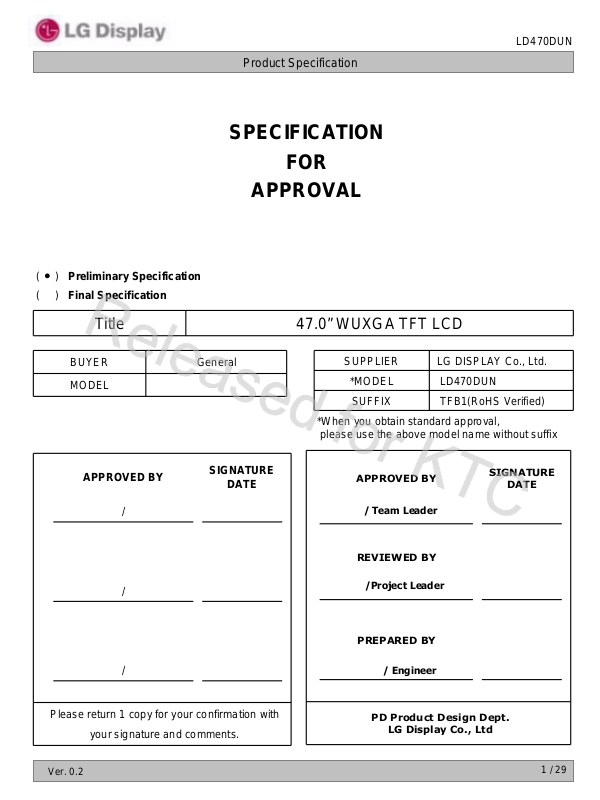

LG Display LD470DUN-TFB1 Specification

( ● ) Preliminary Specification
( ) Final Specification

Title 47.0” WUXGA TFT LCD

LD470DUN

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER General
MODEL

APPROVED BY

/

/

/

SIGNATURE

DATE

SUPPLIER LG DISPLAY Co., Ltd.

*MODEL LD470DUN

SUFFIX TFB1(RoHS Verified)

*When you obtain standard approval,
please use the above model name without suffix

APPROVED BY

/ Team Leader

REVIEWED BY

/Project Leader

PREPARED BY

/ Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.2

PD Product Design Dept.

LG Display Co., Ltd

1 / 29

Product Specification

CONTENTS

LD470DUN

Number ITEM

COVER
CONTENTS
RECORD OF REVISIONS

1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS
3-4 LVDS SIGNAL SPECIFICATIONS
3-5 COLOR DATA REFERENCE

3-6 POWER SEQUENCE

4 OPTICAL SPECIFICATIONS
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY

Page

1
2

3
4
5
6
6
8

10
11

14
15
17
21
24

7 INTERNATIONAL STANDARDS

7-1 SAFETY
7-2 EMC
7-3 ENVIRONMENT

8 PACKING

8-1 INFORMATION OF LCM LABEL

8-2 PACKING FORM

9 PRECAUTIONS
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM
9-7 APPROPRIATE CONDITION FOR PUBLIC DISPLAY

Ver. 0.2

25
25
25
25
26
26
26

27
27
27
28
28
28
28
28

2 / 29

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.1 Feb 04,2013 - Preliminary Specification (First Draft)

0.2 May 10, 2013 4,7 Power Consumption
22, 23 Mechanical Characteristics

LD470DUN

Ver. 0.2

3 / 29

LD470DUN

Product Specification

1. General Description

The LD470DUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)

Local Block backlight system. The matrix employs a-Si Thin Film Transistor as the active element.

It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally

measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.

Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors.
It has been designed to apply the 10-bit 2-port LVDS interface.

It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut,

high color depth and fast response time are important.

Mini-LVDS(RGB)

Control
Signals

Power Signals

Source Driver Circuit

S1 S1920

G1

Gate Driver Circuit

TFT - LCD Panel

(1920 × RGB × 1080 pixels)

[Gate In Panel]

G1080

V : 10Block

H : 8 Block

LVDS

LVDS 1,2

2Port

LVDS
Select

+12.0V

+24.0V, GND, On/off
Ext VBR-B

CN1

(51pin)

EEPROM

SCL

SDA

Timing Controller

[LVDS Rx]

+ Local Dimming

Power Circuit

Block

LED Driver

General Features

Active Screen Size 46.96 inches(1192.87mm) diagonal

Outline Dimension 1044.9(H) x 590.0(V) x 52.5mm(D) (Typ.)

Pixel Pitch 0.5415(H) X 0.5415(V)

Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement

Color Depth 10Bit (D), 1.06 Billion colors

Luminance, White 500 cd/m2 (Center 1point ,Typ.)

Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))

Power Consumption Total 88.9W (Typ.) [Logic=10.9 W, Backlight= 78W(@EXTVBR-B = 100%)

Weight 13,500 g (Typ.)

Display Mode Transmissive mode, Normally black

Surface Treatment

Possible Display Type Landscape and Portrait Enabled

Hard coating(3H), Anti-reflection treatment of the front polarizer (Reflectance〈 2%)

Ver. 0.2

4 / 29

LD470DUN

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage

to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage

Driver Control Voltage

T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC
Operating Temperature TOP 0 +50 °C
Storage Temperature TST -20 +60 °C
Panel Front Temperature TSUR - +68 °C 4
Operating Ambient Humidity HOP 10 90 %RH

Storage Humidity HST 10 90 %RH

LCD Circuit VLCD -0.3 +14.0 VDC
Driver VBL -0.3 + 27.0 VDC
ON/OFF VON/OFF -0.3 +3.9 VDC
Brightness EXTVBR-B 0.0 +3.9 VDC
Status Status -0.3 +5.5 VDC

Value

Unit Note

Min Max

1

2,3

2,3

Note.

1. Ambient temperature condition (Ta = 25  2 °C )

2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 40°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.

90%

60

60%

Ver. 0.2

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [°C]

30

40

50

40%

10%

Storage

Operation

Humidity

[(%)RH]

5 / 29

LD470DUN

Product Specification

3. Electrical Specifications
3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Unit Note

Min Typ Max

Circuit :

Value

Power Input Voltage V

Power Input Current I

Power Consumption P
Rush current I

LCD

LCD

LCD

RUSH

Notes: 1. The specified current and power consumption are under the V

10.8 12.0 13.2

- 914 1188

- 1201 1561

- 10.9 14.17

- - 5

=12.0V, 25  2°C, fV=60Hz

LCD

V

DC

mA 1
mA 2

Watt 1

A 3

condition whereas mosaic pattern(8 x 6) is displayed and fV is the frame frequency.

2. The current is specified at maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. Ripple voltage level is recommended under ±5% of typical voltage

Ver. 0.2

White : 1023Gray
Black : 0Gray

Mosaic Pattern(8 x 6)

6 / 29

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

LD470DUN

Parameter Symbol

LED Driver :
Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Power Supply Input Current IBL - 3.25

Power Supply Input Current (In-Rush) Inrush - -

Power Consumption PBL -

On/Off

Brightness Adjust ExtVBR-B 1 - 100 % On Duty, 6

Input Voltage for

Control System

Signals

LED :
Life Time 50,000 60,000 Hrs 2

PWM Frequency for
NTSC & PAL

Pulse Duty Level
(PWM)

VSYNC, SIN, SCLK ,
Reverse

(Local Dimming)

On V on 2.5 - 3.6 Vdc
Off V off -0.3 0.0 0.7 Vdc

PAL 100 Hz 3

NTSC 120 Hz 3

High Level 2.5 - 3.6

Low Level 0.0 - 0.7

High Level 2.7 3.3 3.6

Low Level -0.3 0.0 0.4

Min Typ Max

Values

78 90

3.75

4.73

Unit Notes

A Ext VBR-B = 100%

VBL = 22.8V

A

Ext VBR-B = 100%

W Ext VBR-B = 100%

Vdc
Vdc
Vdc
Vdc

HIGH : on duty

LOW : off duty

4

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60
minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25±2°C.

3. LGD recommend that the PWM freq. is synchronized with Two times harmonic of V_sync signal of system.
Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.

4. The duration of rush current is about 200ms. This duration is applied to LED on time.

5. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.

6. Ext_PWM Signal have to input available duty range.
Between 99% and 100% ExtVBR-B duty have to be avoided. ( 99% < ExtVBR-B < 100%)
But ExtVBR-B 0% and 100% is possible.

High

Available duty range

Low

0% 1% 99% 100%Ext_PWM Input Duty

Ver. 0.2

7 / 29

LD470DUN

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, a 51-pin connector is used for the module
electronics and Master 14-pin and Slave 12-pin connectors are used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-RE51S-HF or Equivalent, Refer to below table.

- Mating Connector : FI-RE51HL

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1 GND
2
3
4
5
6
7

8
9

10

11 GND

12 RO0N

13 RO0P

14 RO1N

15

16 RO2N

17 RO2P

18 GND

19 ROCLKN

20

21 GND

22 RO3N

23 RO3P

24 RO4N

25 RO4P

26

NC No Connection
NC No Connection
NC No Connection (Reserved for LGD)
NC No Connection (Reserved for LGD)
NC No Connection (Reserved for LGD)

LVDS Select

NC No Connection
NC No Connection

Local Dimming ‘H’ =Enable only

RO1P

ROCLKP

NC

Ground

‘H’ =JEIDA , ‘L’ = VESA

Ground
FIRST LVDS Receiver Signal (A-)

FIRST LVDS Receiver Signal (A+)
FIRST LVDS Receiver Signal (B-)
FIRST LVDS Receiver Signal (B+)
FIRST LVDS Receiver Signal (C-)
FIRST LVDS Receiver Signal (C+)

Ground
FIRST LVDS Receiver Clock Signal(-)

FIRST LVDS Receiver Clock Signal(+)
Ground

FIRST LVDS Receiver Signal (D-)
FIRST LVDS Receiver Signal (D+)
FIRST LVDS Receiver Signal (E-)

FIRST LVDS Receiver Signal (E+)
No Connection

27

Bit Select

28
29
30
31
32
33
34
35
36
37
38
39

40 RE4N
41 RE4P
42
43

44
45
46
47
48
49
50

51

- - -

RE0N
RE0P
RE1N
RE1P
RE2N
RE2P

GND
RECLKN
RECLKP

GND

RE3N
RE3P

NC
NC
NC

GND Ground

GND Ground

GND Ground

VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V

VLCD Power Supply +12.0V

‘H’ = 10bit(D) , ‘L’ = 8bit
SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)
SECOND LVDS Receiver Signal (B+)
SECOND LVDS Receiver Signal (C-)
SECOND LVDS Receiver Signal (C+)

Ground
SECOND LVDS Receiver Clock Signal(-)

SECOND LVDS Receiver Clock Signal(+)
Ground

SECOND LVDS Receiver Signal (D-)
SECOND LVDS Receiver Signal (D+)
SECOND LVDS Receiver Signal (E-)
SECOND LVDS Receiver Signal (E+)

No Connection
No Connection
No Connection

Notes:

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. Specific pins(pin No. #2~#6) are used for internal data process of the LCD module.
These pins should be no connection.

5. It may be happened to Abnormal Display during the system interface signal is not

6. If Specific pin No. #7, #10, #27 is “NC”, LCD Module may be happened to Abnormal Display

Ver. 0.2

8 / 29

Product Specification

3-2-2. Backlight Module

Master

LED Driver Connector -

: 20022WR-H14B2(Yeonho) / 20022WR-H12B2(Yeonho)

Mating Connector -

: 20022HS-14B2 / 20022HS-12B2

Table 5. LED DRIVER CONNECTOR PIN CONFIGULATION

Pin No Symbol Description 14PIN 12PIN Note

LD470DUN

1
2
3
4
5
6
7
8

9
10
11
12

13
14

VBL Power Supply +24.0V VBL VBL

VBL Power Supply +24.0V VBL VBL
VBL Power Supply +24.0V VBL VBL
VBL Power Supply +24.0V VBL VBL
VBL Power Supply +24.0V VBL VBL

GND Backlight Ground GND GND
GND Backlight Ground GND GND
GND Backlight Ground GND GND
GND Backlight Ground GND GND
GND Backlight Ground GND GND

Status Status Status Don’t Care 2

VON/OFF Backlight ON/OFF control VON/OFF Don’t Care

EXTVBR-B External PWM

GND Backlight Ground GND - 1

EXTVBR-B -

1

3

Notes :1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal :Open

3. High : on duty / Low : off duty, Pin#14 can be opened. ( if Pin #14 is open , EXTVBR-B is 100% )

4. Each impedance of pin #12 and #13 is over 50 [KΩ] .

◆ Rear view of LCM

14

…

1

<Master>

Ver. 0.2

PCB

…

…

12

1

<Slave>

PCB

◆ Status

…

9 / 29

LD470DUN

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal timings
should be satisfied with the following specification for normal operation.

Table 6-1. TIMING TABLE for NTSC (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Display Period tHV - 960 - tclk

Horizontal

Vertical

Frequency

Blank tHB 100 140 240 tclk

Total tHP 1060 1100 1200 tclk 2200/2

Display Period tVV - 1080 - tHP

Blank tVB 11 45 69 tHP

Total tVP 1091 1125 1149 tHP

DCLK fCLK 70 74.25 77 MHz 148.5/2

Horizontal fH 65 67.5 70 KHz

Vertical fV 57 60 63 Hz

Table 6-2. TIMING TABLE for PAL (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Display Period tHV - 960 - tclk

Horizontal

Blank tHB 100 140 240 tclk

Total tHP 1060 1100 1200 tclk 2200/2

Display Period tVV - 1080 - tHP

Vertical

Frequency

Note

The Input of HSYNC & VSYNC signal does not have an effect on normal operation(DE Only Mode).

Blank tVB 228 270 300 tHP

Total tVP 1308 1350 1380 tHP

DCLK fCLK 70 74.25 77 MHz 148.5/2

Horizontal fH 65 67.5 70 KHz

Vertical fV 47 50 53 Hz

The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate.

Ver. 0.2

10 / 29

3-4. LVDS Signal Specification

3-4-1. LVDS Input Signal Timing Diagram

LD470DUN

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Invalid data

Valid data

Pixel 0,0

Valid data

Pixel 1,0

tHP

Pixel 2,0

Pixel 3,0

Invalid data

Invalid data

tHV

DE(Data Enable)

Ver. 0.2

1 1080

tVV

tVP

11 / 29

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LD470DUN

Product Specification

# VCM= {(LVDS +) + ( LVDS -)} /2

0V

V

CM

V

IN _ MAXVIN _ MIN

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V

LVDS Input Voltage Range V

CM

IN

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM 250 mV -

2) AC Specification

T

clk

LVDS Clock

A

LVDS Data

(F

= 1/T

)

clk

A

LVDS 1’st Clock

LVDS 2nd / 3rd / 4th Clock

tSKEW

t

SKEW_mintSKEW_max

tSKEW

clk

T

clk

80%

20%

t

RF

Description Symbol Min Max Unit Note

LVDS Differential Voltage

Low Threshold

LVDS Clock to Data Skew Margin t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

LVDS Clock to Clock Skew Margin (Even to Odd) t

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

Note

High Threshold

2. If tRF isn’t enough, t

should be meet the range.

eff

V

TH

V

TL

SKEW

RF

eff

SKEW_EO

3. LVDS Differential Voltage is defined within t

Ver. 0.2

100 300 mV

-300 -100 mV

|(0.25*T

260 (0.3*T

)/7| ps -

clk

)/7 ps 2

clk

±360 ps -

1/7* T

clk

eff

3

T

clk

-

12 / 29

Product Specification

360ps

LD470DUN

V+
data

Vcm

V-
data

V+
clk

Vcm

0.5tui

tui

VTH

VTL

360ps

teff

tui : Unit Interval

V-
clk

Ver. 0.2

13 / 29

LD470DUN

Product Specification

3-5. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 10-bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 8 provides a reference for color versus data input.

Table 8. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black

Red (1023)

Green(1023)

Blue (1023)

Cyan

Magenta

Yellow

White

RED (0000)

RED (0001)

RED (1022)

RED (1023)

...

RED

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ...

1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

Ver. 0.2

GREEN(0000)

GREEN(0001)

...

GREEN(1022)

GREEN(1023)

BLUE (0000)

BLUE (0001)

...

BLUE (1022)

BLUE (1023)

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

... ... ...

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

... ... ...

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

14 / 29

3-6. Power Sequence

3-6-1. LCD Driving circuit

LD470DUN

Product Specification

Power Supply For LCD
V

LCD

Interface Signal (Tx_clock)

User Control Signal
(LVDS_SEL, BIT_SEL, L-DIM EN)

Power for LED

Table 8. POWER SEQUENCE

Parameter

90%

10%

0V

T1

T2

30%

0V

100%

T6

T7

Value

Min Typ Max

Valid Data

T3 T4

LED ON

90%

T8

Unit notes

10%

10%

T5

notes :

Ver. 0.2

T1 0.5 - 20 ms 1
T2 0 - 400 ms 2
T3 200 - - ms 3
T4 200 - - ms 3
T5 1.0 - - s 4
T6 - - T2 ms 5
T7 0.5 - - s 6
T8 100 - - ms 7

1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. T5 should be measured after the Module has been fully discharged between power off and on period.

5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V
it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.

6. If there is no abnormal display, no problem.

7. It is recommendation specification that T8 has to be 100ms as a minimum value.

※ Please avoid floating state of interface signal at invalid period.
※ When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

LCD

),

15 / 29

3-6-2. Sequence for Inverter

LD470DUN

Product Specification

Power Supply For LED Driver

VBL

10%

0V

VON/OFF

Ext-VBR-B

3-6-3. Deep condition for Inverter

90%

T1 T2

T4

24V (typ.)

LED ON

T6

T3

T5

90%

V

: 24V

BL

VBL(Typ.) x 0.8

0 V

Table 9. Power Sequence for LED DRIVER

Parameter

T1 20 - - ms 1
T2 500 - - ms
T3 10 - ms
T4 0 - - ms
T5 0 - - ms
T6 - - 10 ms VBL(Typ) x 0.8

Min Typ Max

Values

Units Remarks

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

Ver. 0.2

16 / 29

LD470DUN

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25±2°C.
The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of  and 
equal to 0 °.
FIG. 1 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Ta= 25±2°C, V

Table 11. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 1000 1400 - 1
Surface Luminance, white L
Luminance Variation 
Response Time Gray-to-Gray G to G - 12 15 ms 4

RED

WH

WHITE

9P 70 80 3

Rx
Ry 0.333

Min Typ Max

400 500 - cd/m

Value

0.649

Dclk=74.25MHz, ExtVBR-B=100%

=12.0V, fV=60Hz,

LCD

Unit Note

2

2

Color Coordinates
[CIE1931]

Color Temperature 10,000 K
Color Gamut 68 %

Viewing Angle (CR>10)

x axis, right(=0°) r 89 - -

Gray Scale - - - 6

Ver. 0.2

x axis, left (=180°) l 89 - ­ y axis, up (=90°) u 89 - ­ y axis, down (=270°) d 89 - -

GREEN

BLUE

WHITE

Gx 0.308
Gy 0.590
Bx 0.153
By 0.064

Wx 0.279
Wy 0.292

Typ

-0.03

Typ

+0.03

degree 5

17 / 29

LD470DUN

Product Specification

Notes :1. Contrast Ratio(CR) is defined mathematically as :
CR(Contrast Ratio) = Maximum CRn (n=1, 2, 3, 4, 5)
Surface Luminance at position n with all white pixels

CRn =
Surface Luminance at position n with all black pixels

n = the Position number(1, 2, 3, 4, 5). For more information, see FIG 2.

2. Surface luminance are determined after the unit has been ‘ON’ and 60min after lighting the
backlight in a dark environment at 25±2°C. Surface luminance is the luminance value at center

1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.

3. The variation in surface luminance ,  WHITE is defined as :
 WHITE(9P) = Minimum(Lon1,Lon2, Lon3,…, Lon8, Lon9) / Maximum(Lon1,Lon2, Lon3,…, Lon8,

Lon9)*100(%)

Where Lon1 to Lon9 are the luminance with all pixels displaying white at 9 locations .

For more information, see the FIG. 2.

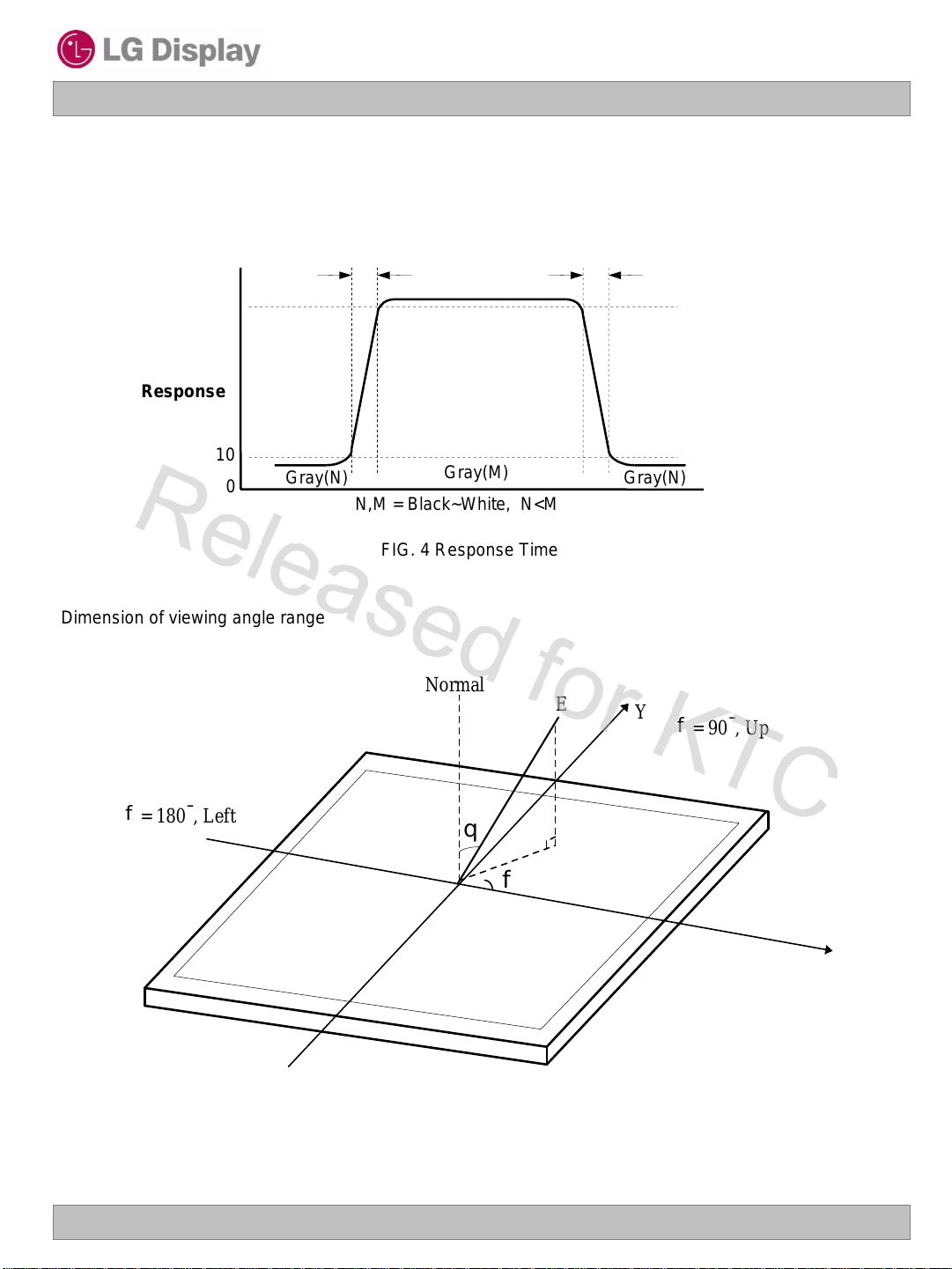

4. Response time is the time required for the display to transition from G(N) to G(M) (Rise Time, TrR)
and from G(M) to G(N) (Decay Time, TrD). For additional information see the FIG. 3. (N<M)
※ G to G Spec is average of measured time (N, M = 0 (Black) ~ 1023(White), 128 gray step).

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which

is normal to the LCD module surface. For more information, see the FIG. 4.

6. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 12.

Table 12. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ.)

L0 0.07

L63 0.27
L127 1.04
L191 2.49
L255 4.68
L319 7.66
L383 11.5
L447 16.1
L511 21.6
L575 28.1
L639 35.4
L703 43.7
L767 53.0
L831 63.2
L895 74.5
L959 86.7

L1023 100

Ver. 0.2

18 / 29

Product Specification

Measuring point for surface luminance & measuring point for luminance variation.

H

A

③②

LD470DUN

V

V

B

B

A

①

④

FIG. 2 5 Points for CR Measure

H

②

⑤

③

①

⑤

A : H / 4 mm
B : V / 4 mm
@ H,V : Active Area

④

⑥

Ver. 0.2

⑦

FIG. 3 9 Points for Luminance Measure

⑧

A : H / 9 mm
B : V / 9 mm
@ H,V : Active Area

⑨

19 / 29

LD470DUN

Normal

Y

E







= 0, Right



= 180, Left



= 270, Down



= 90, Up

Product Specification

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.

100

90

Optical
Response

10

0

Dimension of viewing angle range

Gray(N)

TrR

Gray(M)

N,M = Black~White, N<M

FIG. 4 Response Time

TrD

Gray(N)

Ver. 0.2

FIG. 5 Viewing Angle

20 / 29

Product Specification

5. Mechanical Characteristics

Table 13 provides general mechanical characteristics.

Table 13. MECHANICAL CHARACTERISTICS

Item Value

Horizontal 1044.9 mm

LD470DUN

Outline Dimension

Bezel Area

Active Display Area

Weight 13,500 g (Typ.) , 14,500 g (Max.)

Note : Please refer to a mechanic drawing in terms of tolerance at the next page.

Vertical 590.0 mm

Depth 52.5 mm

Horizontal 1040.0mm

Vertical 585.1 mm

Horizontal 1039.68 mm

Vertical 584.82 mm

Ver. 0.2

21 / 29

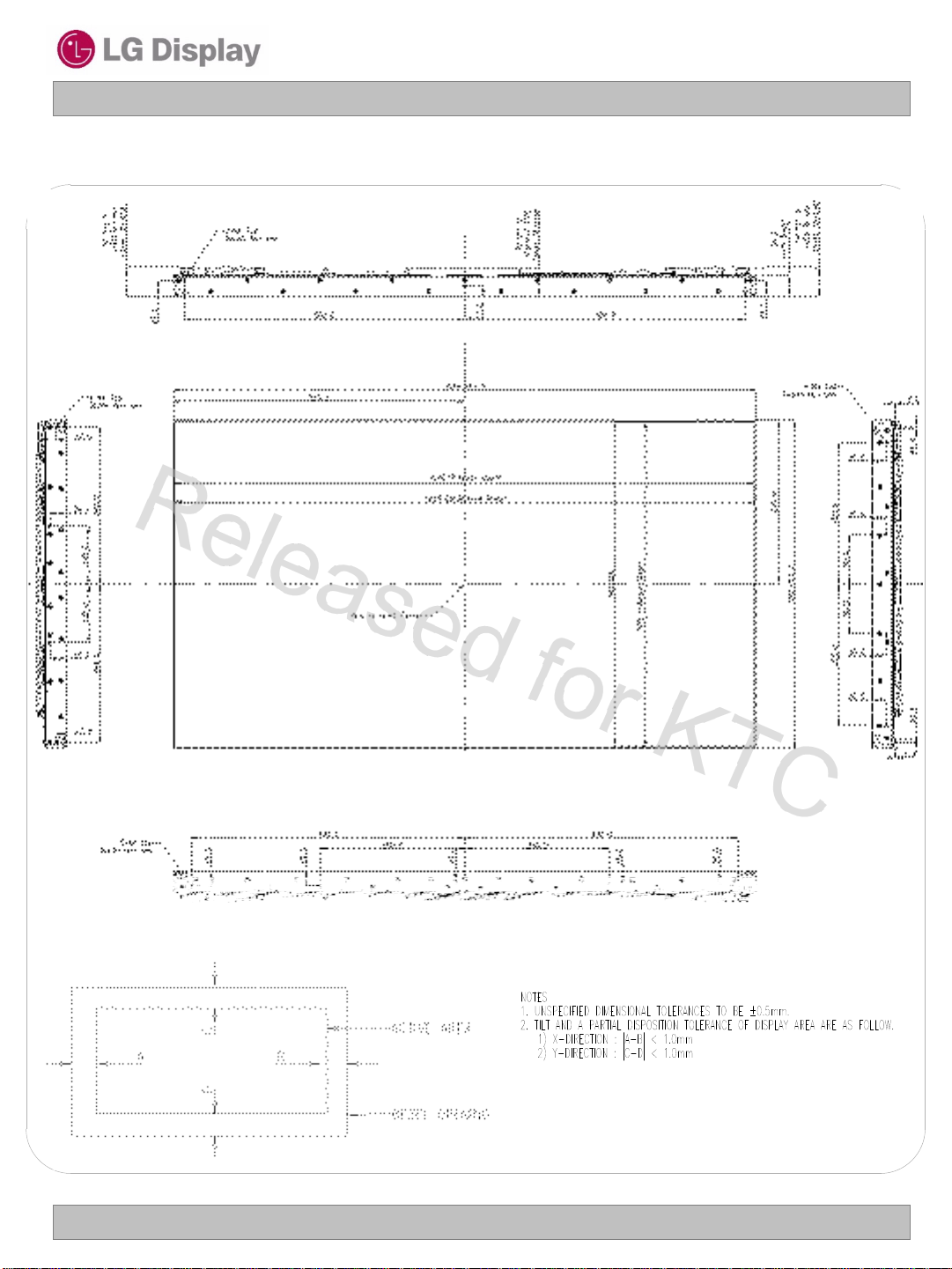

[ FRONT VIEW ]

LD470DUN

Product Specification

Ver. 0.2

22 / 29

<REAR VIEW>

LD470DUN

Product Specification

Ver. 0.2

23 / 29

Product Specification

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60°C, 240h

2 Low temperature storage test Ta= -20°C 240h

3 High temperature operation test Ta= 50°C 50%RH 240h

4 Low temperature operation test Ta= 0°C 240h

Wave form : random

Vibration test

5

(non-operating)

Shock test

6

(non-operating)

Vibration level : 0.5 Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z, 10min
One LCM one direction

Shock level : 10 Grms
Waveform : half sine wave, 15ms
Direction : ±X, ±Y, ±Z
One time each direction

LD470DUN

7 Humidity condition Operation Ta= 40 °C ,90%RH

Altitude operating

8

storage / shipment

0 - 15,000 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 0.2

24 / 29

LD470DUN

Product Specification

7. International Standards
7-1. Safety

a) UL 60950-1, Underwriters Laboratories Inc.
Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Canadian Standards Association.
Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1, European Committee for Electrotechnical Standardization (CENELEC).
Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1, The International Electrotechnical Commission (IEC).
Information Technology Equipment - Safety - Part 1 : General Requirements.

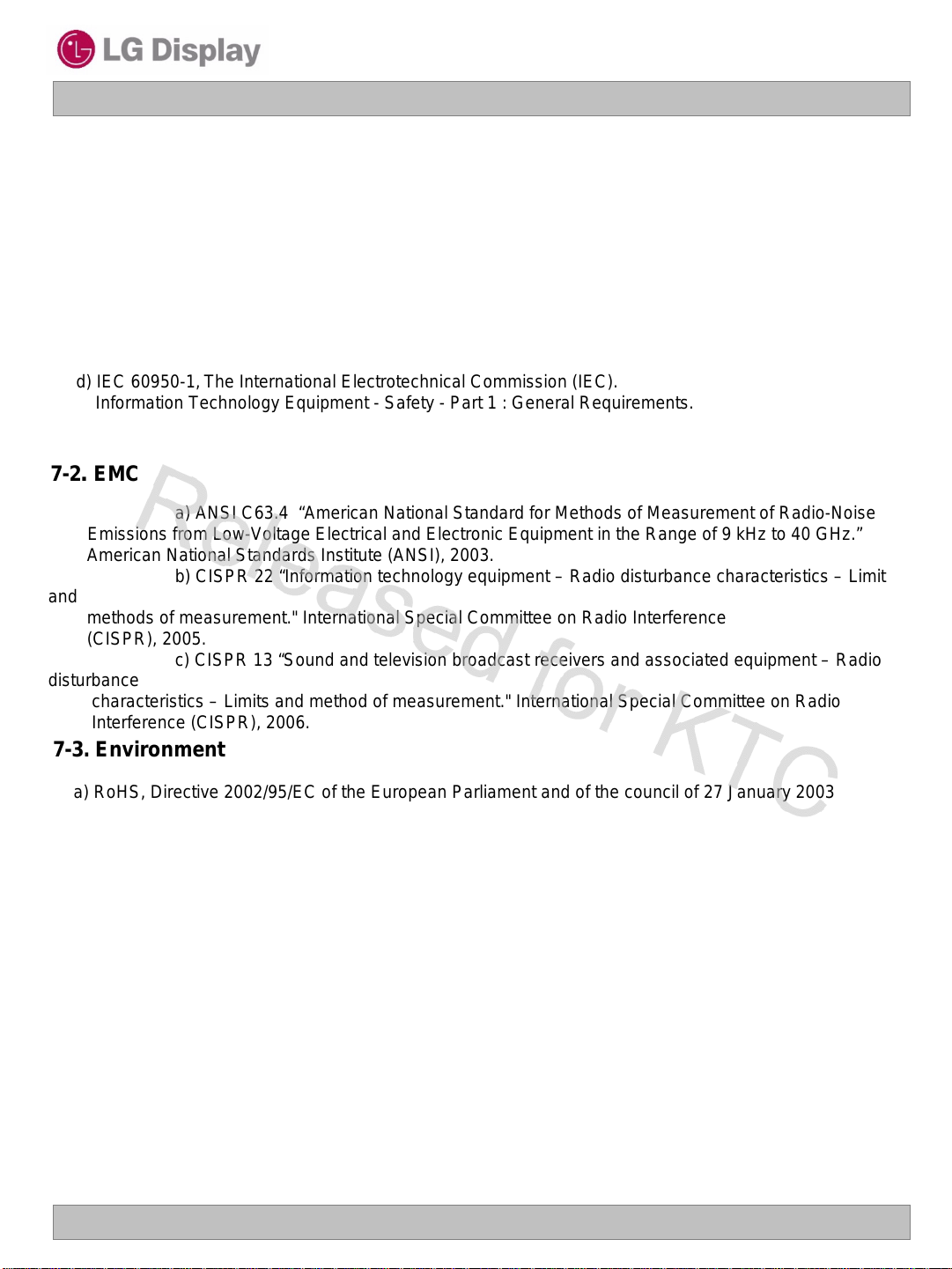

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit
and
methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio
disturbance
characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.2

25 / 29

8. Packing

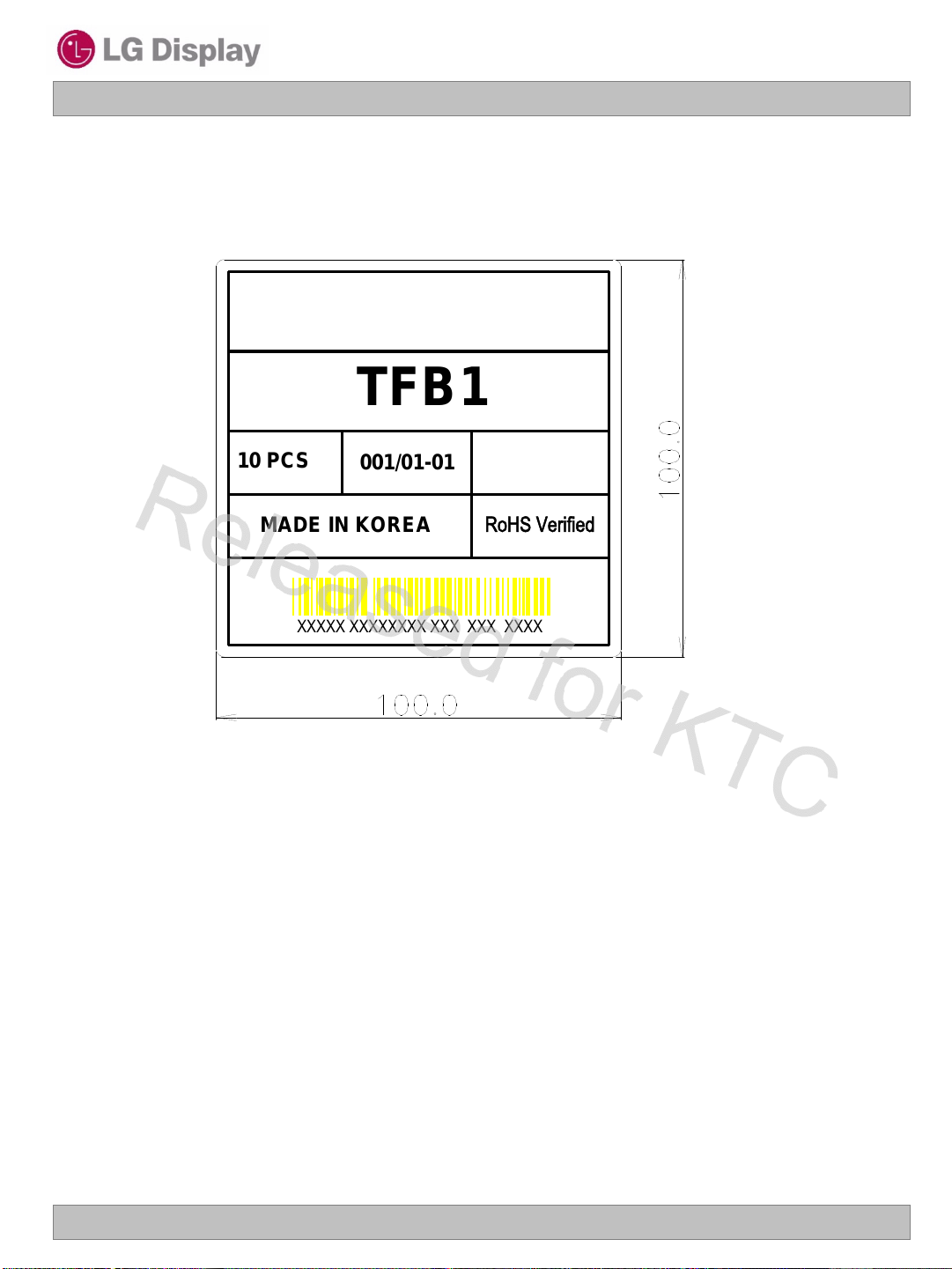

8-1. Information of LCM Label

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

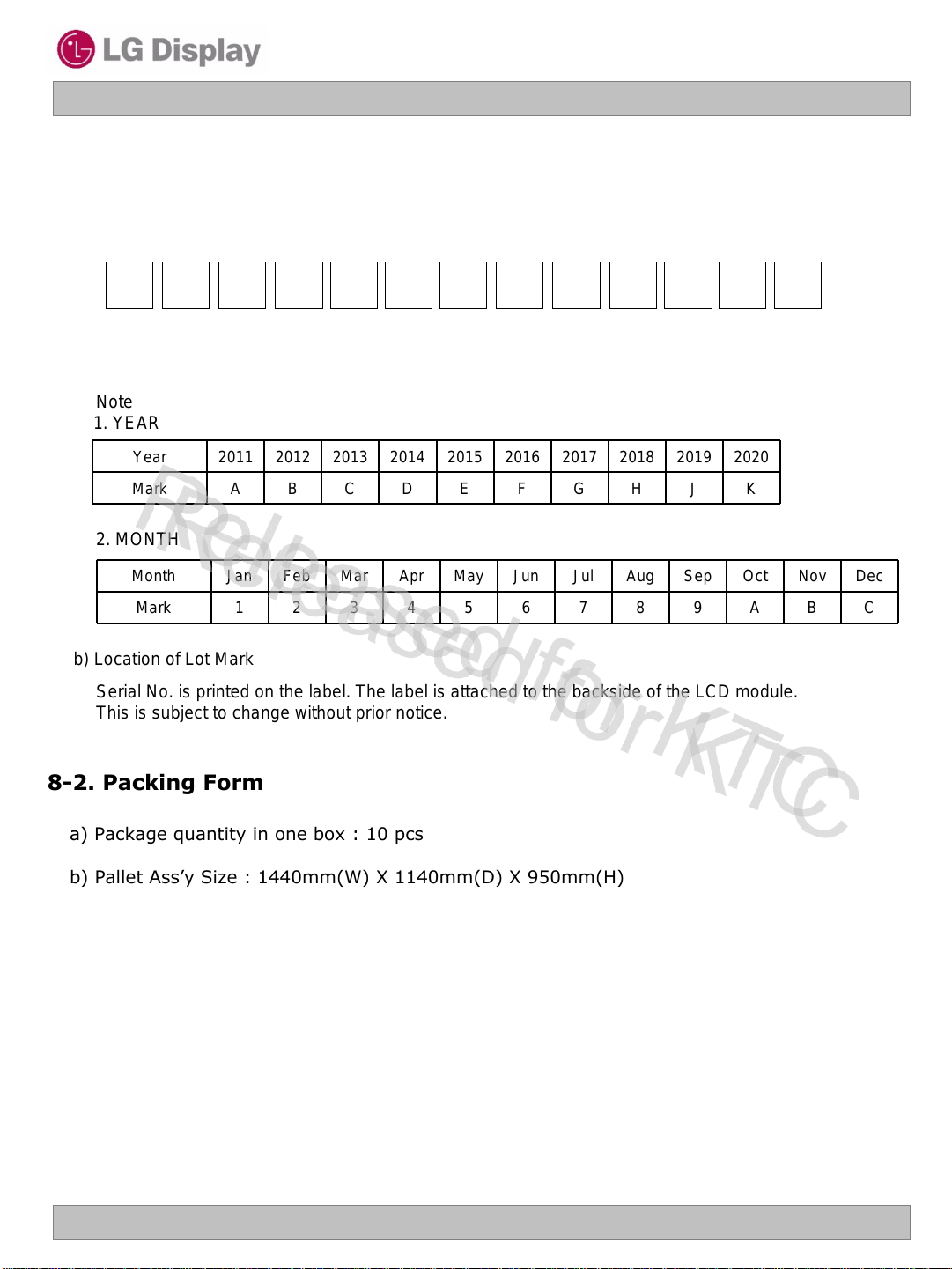

1. YEAR

LD470DUN

Product Specification

Year

Mark

CBA

2014E2015

D

201320122011

2016G2017H2018J2019

F

2. MONTH

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one box : 10 pcs

b) Pallet Ass’y Size : 1440mm(W) X 1140mm(D) X 950mm(H)

2020

K

Oct

A

Nov

B

DecMarFebJan

C321

Ver. 0.2

26 / 29

LD470DUN

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).

(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that

external

force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes

circuit break

by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the

adhesives

used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they

cause

chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

(9) Do not open the case because inside circuits do not have sufficient strength.

V=±200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)

becomes longer

(4) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.

(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.

(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated
its full characteristics perfectly.
(8) A screw which is fastened up the steels should be a machine screw.
(if not, it can causes conductive particles and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal
display, sound noise and temperature rising.

deformations and color fading.

Ver. 0.2

27 / 29

LD470DUN

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

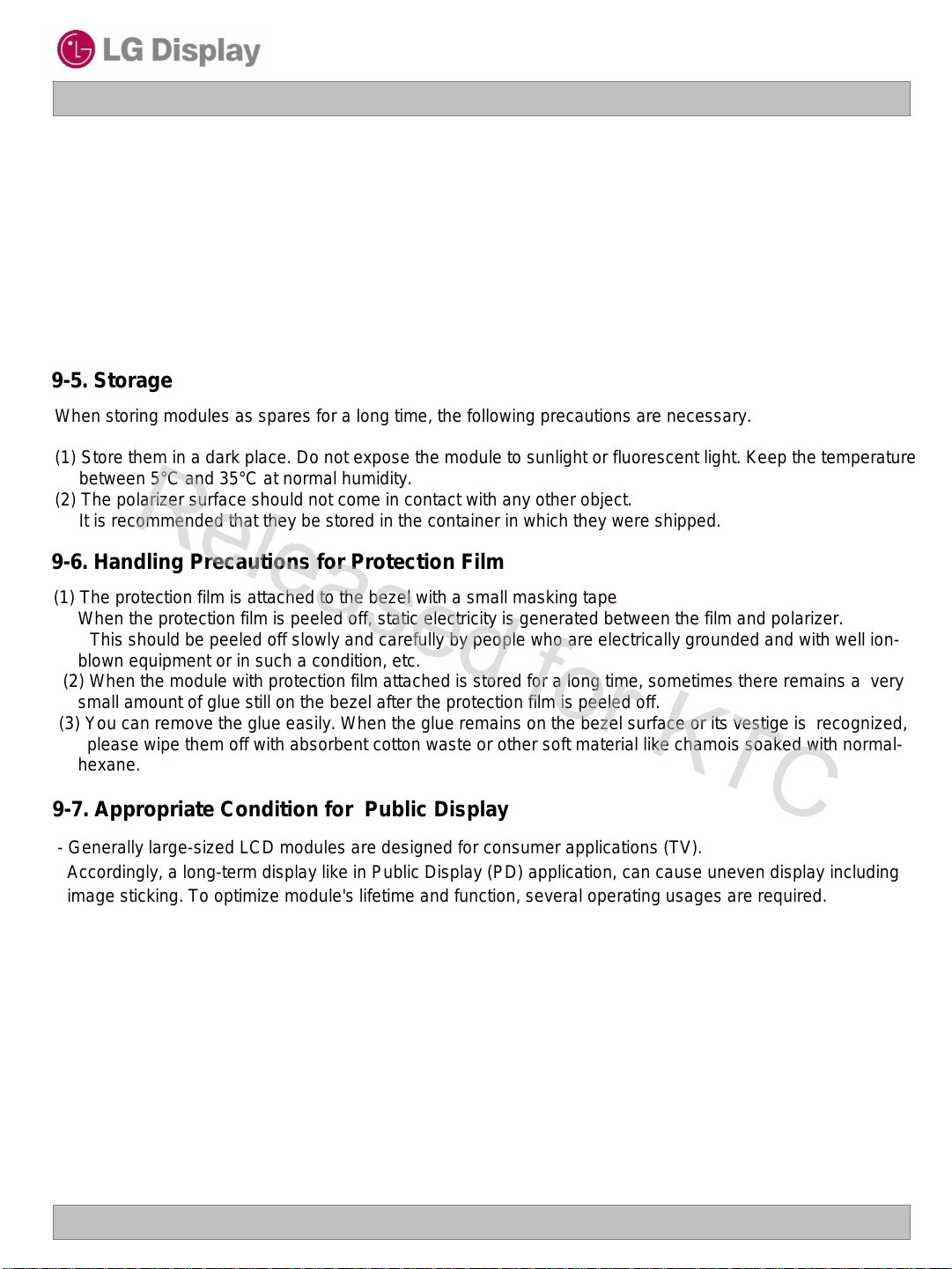

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.
When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-

blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-

hexane.

9-7. Appropriate Condition for Public Display

- Generally large-sized LCD modules are designed for consumer applications (TV).
Accordingly, a long-term display like in Public Display (PD) application, can cause uneven display including
image sticking. To optimize module's lifetime and function, several operating usages are required.

1. Normal operating condition

- Temperature: 0 ~ 40℃

- Operating Ambient Humidity : 10 ~ 90 %

- Display pattern: dynamic pattern (Real display)
Note) Long-term static display can cause image sticking.

2. Operating usages under abnormal condition
a. Ambient condition

- Well-ventilated place is recommended to set up PD system.
b. Power and screen save

- Periodical power-off or screen save is needed after long-term display.

Ver. 0.2

28 / 29

Product Specification

3. Operating usages to protect against image sticking due to long-term static display
a. Suitable operating time: under 18 hours a day.
b. Static information display recommended to use with moving image.

- Cycling display between 5 minutes' information(static) display and 10 seconds' moving image.
c. Background and character (image) color change

- Use different colors for background and character, respectively.

- Change colors themselves periodically.
d. Avoid combination of background and character with large different luminance.

1) Abnormal condition just means conditions except normal condition.

2) Black image or moving image is strongly recommended as a screen save.

4. Lifetime in this spec. is guaranteed only when PD is used according to operating usages.

5. Module should be turned clockwise based on front view when used in portrait mode.

LD470DUN

Ver. 0.2

29 / 29

Product Specification

# APPENDIX-I-1

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7=“L or NC” )

THC63LVD103

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync
Vsync

Data Enable

CLOCK

or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA1-TA1+

TB1-/TB1+

TC1-/TC1+

TCLK1-

TCLK1+

TD1-/TD1+

TA2-/TA2+
TB2-/TB2+

TC2-/TC2+

TCLK2-

TCLK2+

TD2-/TD2+

TE1-/TE1+

TE2-/TE2+

40
39
38

37
36
35

33

32

30

29
28

27
24

23

22
21

20

19

17

16
14

13

12
11

FI-RE51S-HF

GND

12
13
14
15
16
17
19
20
22
23
24
25

28
29
30
31
32
33
35
36
38
39
40
41

Timing

Controller

100Ω
100Ω
100Ω

100Ω
100Ω
100Ω

100Ω
100Ω

100Ω
100Ω
100Ω

100Ω

7

RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCLKN
ROCLKP
RO3N
RO3P
RO4N
RO4P

RE0N
RE0P
RE1N
RE1P
RE2N
RE2P
RECLKN
RECLKP
RE3N
RE3P
RE4N
RE4P

VESA / JEIDA

LCM Module

LD470DUN

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver
input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.2

APPENDIX 1/8

LD470DUN

Product Specification

# APPENDIX-I-2

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7=“H”)

THC63LVD103

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

or Compatible

4
5
59
61
33
34
35
36
37
38
6
8
62
63
40
41
42
44
45
46
9
11
64
1
48
49
50
52
53
54
55
57
58
12

TA1-TA1+

TB1-/TB1+

TC1-/TC1+

TCLK1-

TCLK1+

TD1-/TD1+

TA2-/TA2+
TB2-/TB2+

TC2-/TC2+

TCLK2-

TCLK2+

TD2-/TD2+

TE1-/TE1+

TE2-/TE2+

40
39
38
37
36
35

33
32
30
29

28
27

24

23
21

20
17

16
14

13

12
11

22

19

VCC

FI-RE51S-HF

12
13
14
15
16
17
19
20
22
23
24
25

28
29
30
31
32
33
35
36
38
39
40
41

7

100Ω
100Ω
100Ω

100Ω

100Ω

100Ω

100Ω
100Ω

100Ω
100Ω
100Ω

100Ω

LCM Module

Timing

Controller

RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCLKN
ROCLKP
RO3N
RO3P
RO4N
RO4P

RE0N
RE0P
RE1N
RE1P
RE2N
RE2P
RECLKN
RECLKP
RE3N
RE3P
RE4N
RE4P

VESA / JEIDA

Note :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver
input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.2

APPENDIX 2/8

# APPENDIX- II

LVDS Select : “H” Data-Mapping (JEIDA format)■

RCLKP

RCLKM

LD470DUN

Product Specification

LVDS Data-Mapping info. (10bit)

RAP

RBP

RCP

RDP

REP

LVDS Select : “L” Data-Mapping (VESA format)■

RCLKP

RCLKM

RAP

RBP

R19 R18 R17 R16G14 R15R14’ R14R15’ G14”

B14 G19 G18 G17B15 G16G15’ G15G16’ B15”

V

SYNCHSYNC

B13 B12 G13 G12X R13R12’ R12R13’ X”

B11 B10 G11 G10X R11R10’ R10R11’ X”

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

B19 B18DE B17B16’ B16B17’ DE”

Ver. 0.2

RCP

RDP

REP

V

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B19 B18 G19 G18X R19R18’ R18R19’ X”

B15 B14DE B13B12’ B12B13’ DE”

APPENDIX 3/8

# APPENDIX-Ⅲ

■ Pallet Ass’y

LD470DUN

Product Specification

Ver. 0.2

NO. DESCRIPTION MATERIAL
1 LCD Module
2 BAG AL
3 TAPE MASKING 20mmX50mm
4 PALLET Plywood 1440X1140X120mm
5 PACKING,BOTTOM EPS
6 PACKING,TOP EPS
7 ANGLE,PACKING PAPER
8 BAND PP
9 ANGLE,COVER PAPER
10 BAND,CLIP STEEL or PP
11 LABEL, PALLET YUPO 80G 100mmX70mm

APPENDIX 4/8

# APPENDIX-Ⅳ

■ LCM Label

LD470DUN

Product Specification

Model

UL, TUV Mark

LGD Logo

LD470DUN

(TF)(B1)

Serial No.

Origin

Ver. 0.2

APPENDIX 5/8

# APPENDIX- Ⅴ

■ Pallet Label

LD470DUN

Product Specification

LD470DUN

TFB1

10 PCS

MADE IN KOREA

XXXXX XXXXXXXX XXX XXX XXXX

001/01-01

RoHS Verified

Ver. 0.2

APPENDIX 6/8

Product Specification

# APPENDIX- Ⅵ

■ Option Pin Circuit Block Diagram

1) Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 7

1KΩ

LVDS Select

(Pin 7)

LD470DUN

LVDS Select

50KΩ

ASIC

(TCON)

System Side

2) Circuit Block Diagram of AGP Option Selection pin

AGP Select Pin : Pin 44

1KΩ

AGP Select

(Pin 44)

System Side

LCM Side

AGP Select

50KΩ

ASIC

(TCON)

LCM Side

Ver. 0.2

APPENDIX 7/8

Product Specification

# APPENDIX- Ⅶ

■ EXTVBR-B & Local Dimming Design Guide

1) When L-Dim Enable is “L", Vertical Sync Signal = System Dimming with 100Hz or 120Hz frequency.

2) Local Dimming signals are synchronized with V-Sync Freq. of System in T-Con Board.

3) EXTVBR-B Specification ( VCC = 3.3V ) @ Local Dimming
a) High Voltage Range : 2.5 V ~ 3.6 V
b) Low Voltage Range : 0.0 V ~ 0.8 V

LCM T-con Board

#1

#8

T-Con

#1 51 #1 41

. . .

CNT1 51pin CNT2 41pin

CNT4 CNT4

. . .

. . .

B/L Signal

Generation

Block

8pin)
#1 : Local dimming data Reverse
#2 : GND
#3 : Local dim serial Clock
#4 : GND
#5 : Local dimming serial Data
#6 : Local dim serial Clock
#7 : GND
#8 : Vertical sync signal

#8

#1

(51pin)
#8 : NC

#9 : NC

#10 : L-DIM Enable

#11 : GND

LD470DUN

LED

Driver

EXTVBR-B

Frequency

Rising Time MAX 10.0 μs

Falling Time MAX 10.0 μs

Ver. 0.2

100 Hz for PAL
120 Hz for NTSC

#14 : EXTVBR-B

14pin

Local Dimming On

System
Main IC

(PWM Generator)

Local Dimming Off

<With Driver Model>

VCC

VCC*0.9

VCC*0.1

0

. . .

3.3V

. . .

Chassis

Rising Time

Falling Time

APPENDIX 8/8
