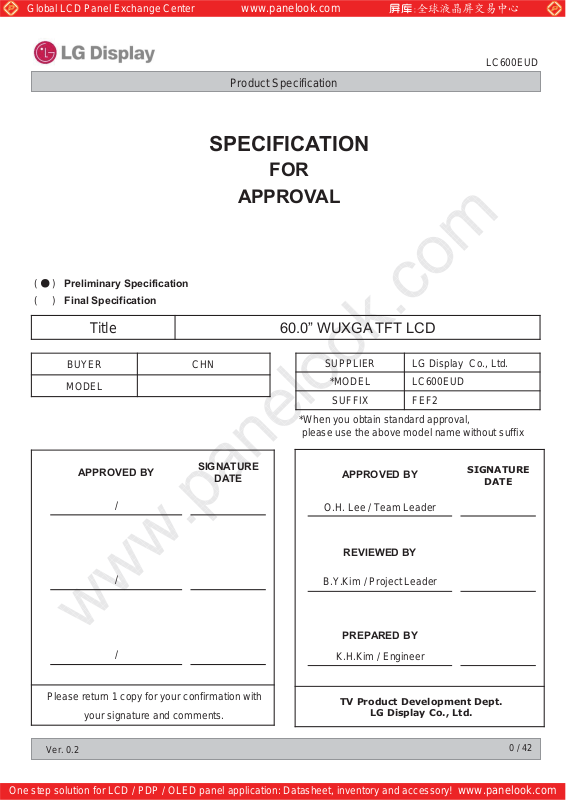

Global LCD Panel Exchange Center
() Preliminary Specification
www.panelook.com
LC600EUD
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Final Specification
Title 60.0” WUXGA TFT LCD
BUYER CHN
MODEL
APPROVED BY
/
SIGNATURE
DATE
SUPPLIER LG Display Co., Ltd.
*MODEL LC600EUD
SUFFIX FEF2
*When you obtain standard approval,
please use the above model name w ithout suffix
APPROVED BY
O.H. Lee / Team Leader
REVIEWED BY
SIGNATURE
DATE
/
/
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
B.Y.Kim / Project Leader
PREPARED BY
K.H.Kim / Engineer
TV Product Development Dept.
LG Display Co., Ltd.
0 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
CONTENTS
Number ITEM
COVER
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS
3-4 LVDS SIGNAL SPECIFICATIONS 11
3-5 COLOR DATA REFERENCE

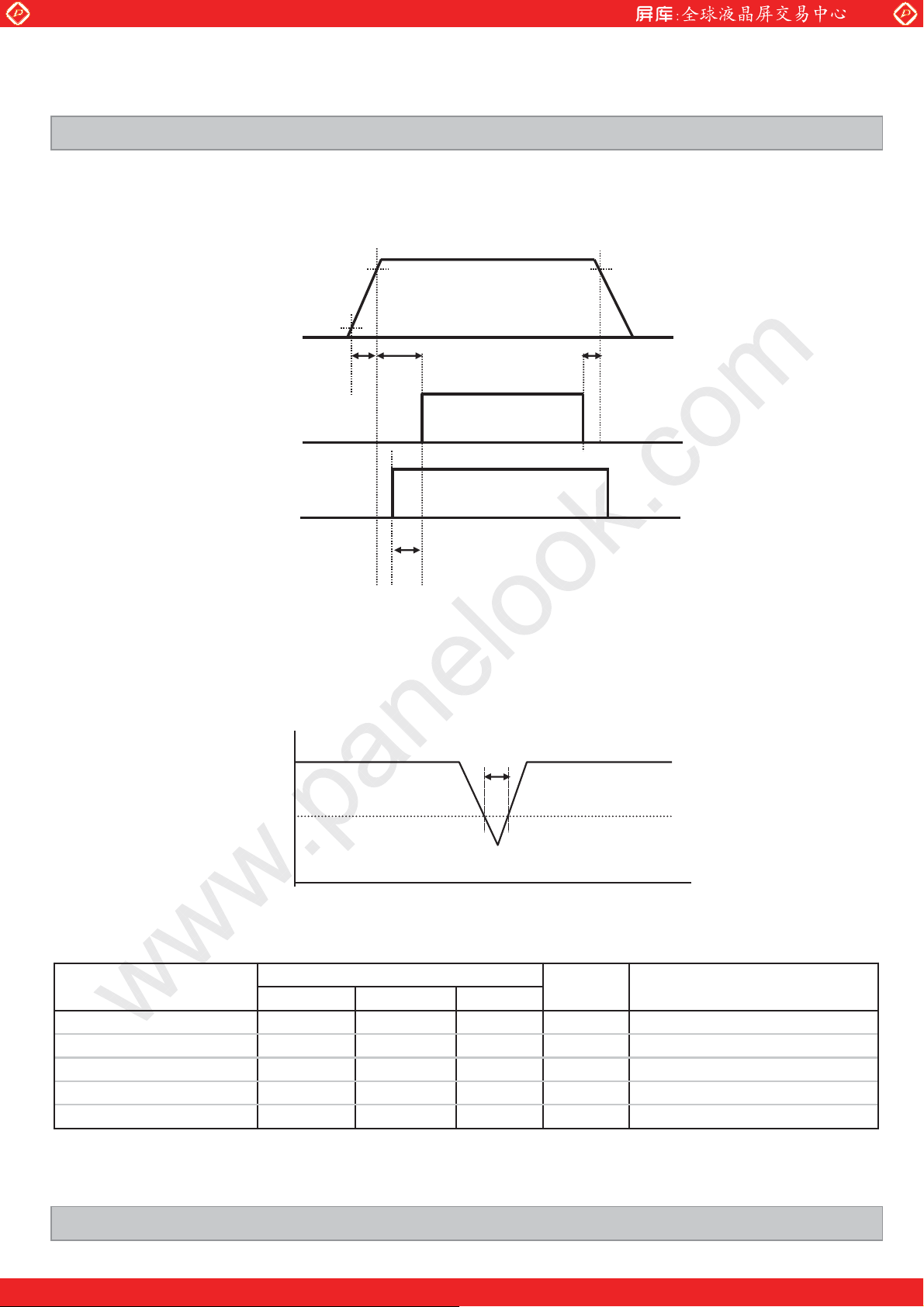

3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATIONS
Page
0
1
2
3
4
5
5
7
10
14
15
17
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC
7-3 ENVIRONMENT
8 PACKING

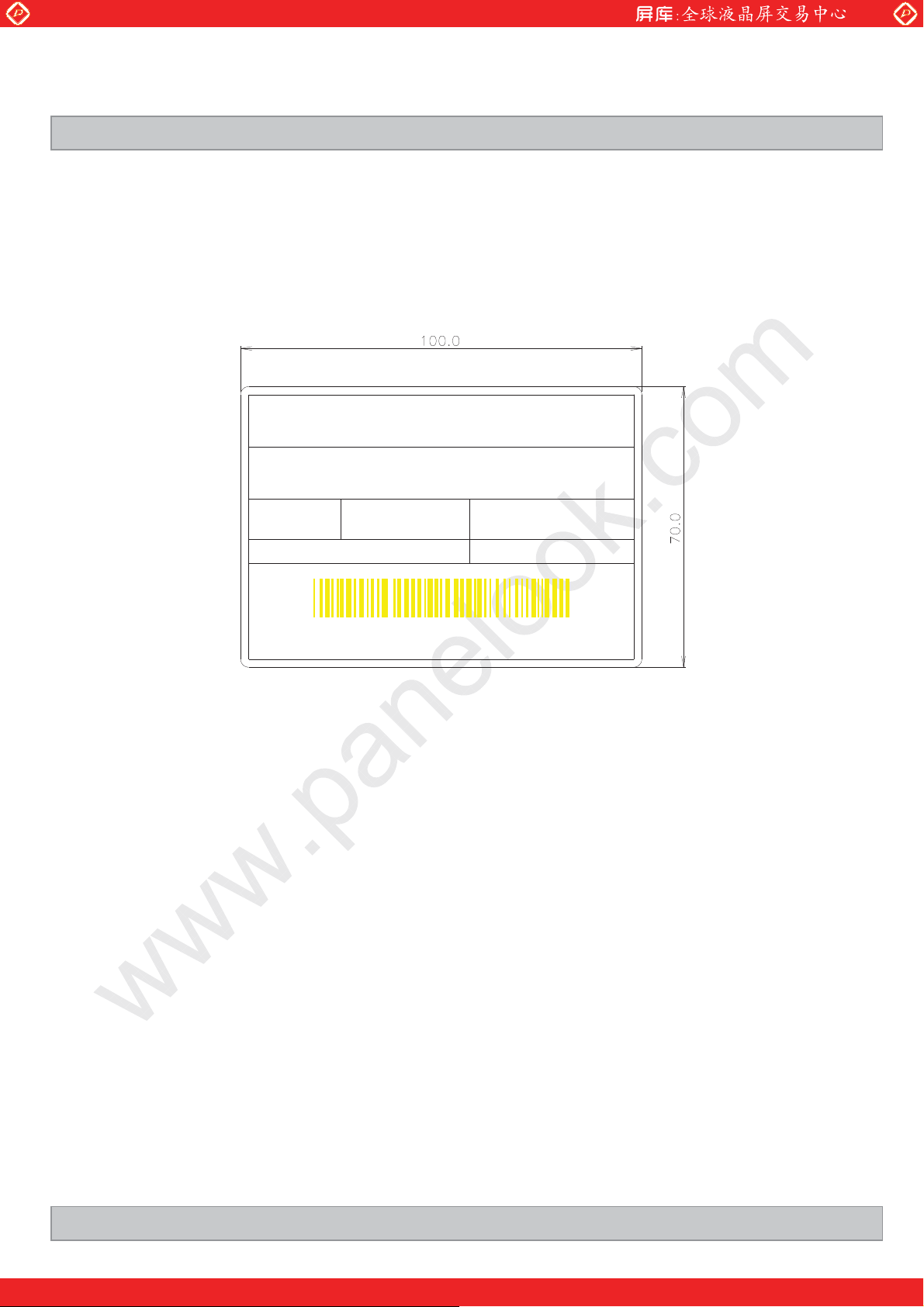

8-1 INFORMATION OF LCM LABEL
8-2 PACKING FORM
9 PRECAUTIONS 29
9-1 MOUNTING PRECAUTIONS 29
9-2 OPERATING PRECAUTIONS 29
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE 30
23
26
27
27
27
27
28
28
28
30
30
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 30
9-7 OPERAGING CONDITION GUIDE 30
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Fab, 28, 2012 - Preliminary Specification (First Draft)
LC600EUD
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
1. General Description
The LC600EUD is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 59.58 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is dete rmined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors.
It has been designed to apply the 10-bit 4-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
LVDS
CN2
(41pin)
EEPROM
2Port
SDA
Integrated
Control
Signals
Power Signals
LVDS
2Port
LVDS
Select
Bit
Select
+12.0V
CN1
(51pin)
LVDS 3,4
LVDS 1,2
Option
signal
I2C
SCL
Timing Controller
LVDS Rx + L/Dim + DGA + ODC
Power Circuit
Block
+24.0V, GND, On/Off
BR-B
ExtV
LED Driver
General Features
Active Screen Size 59.58 inch (1513.397mm) diagonal
Source Driver Circuit
S1 S1920
G1
TFT - LCD Panel
(1920 Ý RGB Ý 1080 pixels)
G1080
Back light Assembly
Outline Dimension 1346.0(H) x 769.3(V) x 11.9 (D)(Typ.)
Pixel Pitch
687༁ x 687༁ x RGB
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 10bit(D), 1.06Billon colors
2
Luminance, White 350 cd/m
(Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption Total 145.04(TBD) W (Typ.) [Logic= 5.04W, LED Backlight= 140W (IF=125mA)]
Weight 19.5Kg (Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(2H), Anti-glare treatment of the front polarizer (Haze < 1%)
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
Value
Parameter` Symbol
Min Max
Unit Note
LCD Circuit V
LCD -0.3 +14.0 VDC
Power Input Voltage
Driver V
BL -0.3 + 27.0 VDC
1
ON/OFF VOFF / VON -0.3 +5.5 VDC
Driver Control Voltage
Brightness EXTVBR-B 0.0 +5.5 VDC
Operating Temperature TOP 0+50
¶C
2,3
Storage Temperature TST -20 +60
Panel Front Temperature T
Operating Ambient Humidity H
SUR -+68
OP 10 90 %RH
¶C
¶C
4
2,3
Storage Humidity H
Note
1. Ambient temperature condition (Ta =
25 r 2 ¶C )
ST 10 90 %RH
2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39¶C, and no condensation of water.
3. Gravity mura can be guaranteed below 40¶C condition.
4. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68¶C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68ć. The range of operating temperature may be degraded in case of
improper thermal management in final product design.
90%
60
60%
Wet Bulb
Temperature [
10
0
10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [
¶C]
20
50
40
40%
30
Humidity [(%)RH]
10%
¶C]
Storage
Operation
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight.
Table 2. ELECTRICAL CHARACTERISTICS
Value
Parameter Symbol
Min Typ Max
Circuit :
Unit Note
Power Input Voltage VLCD 10.8 12.0 13.2 VDC
Power Input Current ILCD
Power Consumption P
Rush current IRUSH - - 5.0 A 3
Note
1. The specified current and power consumption are under the V
LCD - 5.04 6.55 Watt 1
condition, and mosaic pattern(8 x 6) is displayed and f
- 420 546 mA 1
- 450 585 mA 2
=12.0V, Ta=25 r 2¶C, fV=120Hz
LCD
is the frame frequency .
V
2. The current is specified at the maximum current pattern.
3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).
4. Ripple voltage level is recommended under ·5% of typical voltage
White : 1023 Gray
Black : 0 Gray
Mosaic Pattern(8 x 6)
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
Table 3. ELECTRICAL CHARACTERISTICS (Continue)
LC600EUD
Parameter Symbol
LED Driver :
Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1
Power Supply Input Current IBL
Power Supply Input Current (In-Rush) In-rush - - 8.2 A peak
Power Consumption PBL -
On/Off
Input Voltage for
Control System
Signals
LED :
Life Time 30,000 Hrs 2
Brightness Adjust ExtV
PWM Frequency for
NTSC & PAL
Pulse Duty Level
(PWM)
On V on 2.5 - 5.0 Vdc
Off V off -0.3 0.0 0.7 Vdc
BR-B 1 - 100 % On Duty , 6
PAL 100 Hz 3
NTSC 120 Hz 3
High Level 2.4 - 5.0
Low Level 0.0 - 0.7
Min Typ Max
-
Values
5.9
140.0 155.6
6.5
Unit Notes
A rms 1
BL = 22.8V
V
BR-B = 100%, 4
Ext V
W 1
Vdc
Vdc
HIGH : on duty
LOW : off duty
Notes :
1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60
minutes at 25·2¶C. The specified current and power consumption are under the typical supply Input voltage
24Vand V
BR (ExtVBR-B : 100%), it is total power consumption.
2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25·2¶C.
3. LGD recommend that the PWM freq. is synchronized with One time harmonic of V_sync signal of system.
Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.
4. The duration of rush current is about 200ms. This duration is applied to LED on time.
5. Even though inrush current is over the specified value, there is no problem if I
2
T spec of fuse is satisfied.
6. Ext_PWM Signal have to input available duty range.
Between 99% and 100%
But
ExtVBR-B 0% and 100% is possible.
High
ExtVBR-B duty have to be avoided. ( 99% < ExtVBR-B < 100%)
Available duty range
Low
0%
1%
99% 100%Ext_PWM Input Duty
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
3-2. Interface Connections
This LCD module employs two kinds of interface connection, 51-pin connector and 41-pin connector are used
for the module electronics and Two 8-pin connectors are used for the integral backlight sy stem.
3-2-1. LCD Module
- LCD Connector(CN1): - FI-RE51S-HF(manufactured by JAE) or compatible
- Mating Connector : FI-R51HL(JAE) or compatible
Table 4-1. MODULE CONNECTOR(CN1) PIN CONFIGURATION
No Symbol Description No Symbol Description
1
2
3
4
5
6
7
8
9
10
11 GND
12 R1AN
13 R1AP
14 R1BN
15
16 R1CN
17 R1CP
18 GND
19 R1CLKN
20
21 GND
22 R1DN
23 R1DP
24 R1EN
25 R1EP
26
NC
NC
NC
NC
NC
NC
LVDS Select
NC
NC
NC
R1BP
R1CLKP
NC or GND
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
ಫHಬ =JEIDA , ಫLಬ or NC = VESA
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
Ground
FIRST LVDS Receiver Signal (A-)
FIRST LVDS Receiver Signal (A+)
FIRST LVDS Receiver Signal (B-)
FIRST LVDS Receiver Signal (B+)
FIRST LVDS Receiver Signal (C-)
FIRST LVDS Receiver Signal (C+)
Ground
FIRST LVDS Receiver Clock Signal(-)
FIRST LVDS Receiver Clock Signal(+)
Ground
FIRST LVDS Receiver Signal (D-)
FIRST LVDS Receiver Signal (D+)
FIRST LVDS Receiver Signal (E-)
FIRST LVDS Receiver Signal (E+)
No Connection or Ground
27
28
29
30
31
32
33
34
35
36
37
38
39
40 R2EN
41 R2EP
42
43
44
45
46
47
48
49
50
51
Bit Select
R2AN
R2AP
R2BN
R2BP
R2CN
R2CP
GND
R2CLKN
R2CLKP
GND
R2DN
R2DP
NC or GND
NC or GND
GND Ground (Note 6)
GND Ground
GND Ground
NC No connection
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
- - -
ೢHೣ or NC= 10bit(D) , ೢLೣ = 8bit
SECOND LVDS Receiver Signal (A-)
SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)
SECOND LVDS Receiver Signal (B+)
SECOND LVDS Receiver Signal (C-)
SECOND LVDS Receiver Signal (C+)
Ground
SECOND LVDS Receiver Clock Signal(-)
SECOND LVDS Receiver Clock Signal(+)
Ground
SECOND LVDS Receiver Signal (D-)
SECOND LVDS Receiver Signal (D+)
SECOND LVDS Receiver Signal (E-)
SECOND LVDS Receiver Signal (E+)
Connection or Ground
No
No Connection or Ground
Note
1. All GND (ground) pins should be connected together to the LCD module’s metal frame.
2. All VLCD (power input) pins should be connected together.
3. All Input levels of LVDS signals are based on the EIA 644 Standard.
4. #1~#6 & #8~#10 NC (No Connection): These pins are used only for LGD (Do not connect)
5. LVDS pin (pin No. #24,25,40,41) are used for 10Bit(D) of the LCD module.
If used for 8Bit(R), these pins are no connection.
6. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB (No Signal Black) while the system interface signal is not.
If this pin is “H”, LCD Module displays AGP (Auto Generation Pattern).
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
- LCD Connector (CN2) : FI-RE41S-HF (manufactured by JAE) or compatible
- Mating Connector : FI-RE41HL(JAE) or compatible
Table 4-2. MODULE CONNECTOR(CN2) PIN CONFIGURATION
No Symbol Description No Symbol Description
1
2
3
4 NC
5
6
7
8
9
10
11
12
13 RB3P
14
15
16
17
18 RCLK3P
19
20
21
NC
NC
NC
NC
NC
NC
NC
GND
RA3N
RA3P
RB3N
RC3N
RC3P
GND
RCLK3N
GND
RD3N
RD3P
No connection 22
No connection 23
No connection 24 GND Ground
No connection
No connection
No connection 27
No connection 28
No connection 29 RB4P
Ground
THIRD LVDS Receiver Signal (A-)
THIRD LVDS Receiver Signal (A+)
THIRD LVDS Receiver Signal (B-)
THIRD LVDS Receiver Signal (B+)
THIRD LVDS Receiver Signal (C-)
THIRD LVDS Receiver Signal (C+)
Ground
THIRD LVDS Receiver Clock Signal(-)
THIRD LVDS Receiver Clock Signal(+)
Ground
THIRD LVDS Receiver Signal (D-)
THIRD LVDS Receiver Signal (D+)
25 GND Ground
26
30
31
32
33
34 RCLK4P
35
36
37
38
39
40 GND Ground
41 GND Ground
-
RE3N
RE3P
RA4N
RA4P
RB4N
RC4N
RC4P
GND
RCLK4N
GND
RD4N
RD4P
RE4N
RE4P
THIRD LVDS Receiver Signal (E-)
THIRD LVDS Receiver Signal (E+)
FORTH LVDS Receiver Signal (A-)
FORTH LVDS Receiver Signal (A+)
FORTH LVDS Receiver Signal (B-)
FORTH LVDS Receiver Signal (B+)
FORTH LVDS Receiver Signal (C-)
FORTH LVDS Receiver Signal (C+)
Ground
FORTH LVDS Receiver Clock Signal(-)
FORTH LVDS Receiver Clock Signal(+)
Ground
FORTH LVDS Receiver Signal (D-)
FORTH LVDS Receiver Signal (D+)
FORTH LVDS Receiver Signal (E-)
FORTH LVDS Receiver Signal (E+)
Note : 1. All GND (ground) pins should be connected together to the LCD module’s metal frame.
2. LVDS pin (pin No. #22,23,38,39) are used for 10Bit(D) of the LCD module.
If used for 8Bit(R), these pins are no connection.
CN1 CN2
#1 #51 #1 #41
#1 #51
CN1 CN2
#1 #41
Rear view of LCM
Ver. 0.2
8 / 42
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
3-2-2. Backlight Module
Master
LED Driver Connector
: 20022WR - H14B1(Yeonho) or Compatible
Mating Connector
: 20022HS - 14B2 or Compatible
Table 5-1. LED DRIVER CONNECTOR PIN CONFIGURATION
Pin No Symbol Description Note
1 VBL Power Supply +24.0V
2 VBL Power Supply +24.0V
LC600EUD
3 VBL Power Supply +24.0V
4 VBL Power Supply +24.0V
5 VBL Power Supply +24.0V
6
7
8
9
10
11
12
13 NC Don’t care
14 EXTVBR-B External PWM 3
GND
GND
GND
GND
GND
Status
VON/OFF
Backlight Ground
Backlight Ground
Backlight Ground
Backlight Ground
Backlight Ground
Back Light Status
Backlight ON/OFF control
1
2
Notes :1. GND should be connected to the LCD module’s metal frame.
2. Normal : Low (under 0.7V) / Abnormal :Open
3. High : on duty / Low : off duty, Pin#14 can be opened. ( if Pin #14 is open , EXTVBR-B is 100% )
4. Each impedance of pin #12 and #14 is 40[K], 100[K]
Rear view of LCM
Status
PCB
1
14
1
14
…
…
<Master>
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
3-3. Signal Timing Specifications
Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the follow ing specification for normal operation.
Table 6. TIMING TABLE (DE Only Mode)
ITEM Symbol Min Typ Max Unit Note
LC600EUD
Horizontal
Vertical
Frequency
Display
Period
Blank t
Total t
Display
Period
Blank t
Total tVP
ITEM Symbol Min Typ Max Unit Note
DCLK f
Horizontal f
Vertical f
t
HV 480 480 480 tCLK 1920 / 4
HB 40 70 200 tCLK 1
HP 520 550 680 tCLK
t
VV 1080 1080 1080 Lines
VB
CLK 66.97 74.25 78.00 MHz
H 121.8 135 140 KHz 2
V
20
(228)
1100
(1308)
108
(95)
45
(270)
1125
(1350)
120
(100)
86
(300)
1166
(1380)
122
(104)
Lines 1
Lines
2
Hz
NTSC
(PAL)
Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.
2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency
Ć Timing should be set based on clock frequency.
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
10 / 42
Global LCD Panel Exchange Center
3-4. LVDS Signal Specification
3-4-1. LVDS Input Signal Timing Diagram
www.panelook.com
LC600EUD
Product Specification
DCLK
First data
Second data
Third data
Forth data
tCLK
0.5 VDD
Invalid data
Invalid data
Invalid data
Invalid data
DE, Data
Valid data
Pixel 0 Pixel 4
Valid data
Pixel 1 Pixel 5
Valid data
Pixel 2 Pixel 6
Valid data
Pixel 3 Pixel 7
0.7VDD
0.3VDD
Invalid data
Invalid data
Invalid data
Invalid data
DE(Data Enable)
DE(Data Enable)
Ver. 0.2
* tHB = tHFP + tWH +tHBP
* tVB = tVFP + tWV +tVBP
1 1080
tVV
tVP
11 / 42
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-4-2. LVDS Input Signal Characteristics
1) DC Specification
LVDS -
LVDS +
www.panelook.com
LC600EUD
Product Specification
0V
#VCM= {(LVDS +) + ( LVDS -)}/2
V
CM
V
IN _MAXVIN _MIN
Description Symbol Min Max Unit Note
LVDS Common mode Voltage V
LVDS Input Voltage Range V
CM
IN
1.0 1.5 V -
0.7 1.8 V -
Change in common mode Voltage ǻVCM - 250 mV -
2) AC Specification
TG
clkG
LVDS ClockG
A
LVDS DataG
(GFG
= G1G/GTG
)G
clkG
A
80%
LVDS 1’st Clock
tSKEWG
tSKEWG
clkG
T
clk
LVDS 2nd / 3rd / 4thClock
t
SKEW_min tSKEW_max
Description Symbol Min Max Unit Note
V
100 600 mV
LVDS Differential Voltage
LVDS Clock to Data Skew t
LVDS Clock/DATA Rising/Falling time t
Effective time of LVDS t
LVDS Clock to Clock Skew (Even to Odd) t
1. All Input levels of LVDS signals are based on the EIA 644 Standard.
Note
2. If t
isn’t enough, t
RF
should be meet the range.
eff
3. LVDS Differential Voltage is defined within t
Ver. 0.2
TH
-600 -100 mV
V
TL
SKEW
RF
eff
SKEW_EO
- |(0.25*T
260 |(0.3*T
|·360|
- |1/7* T
eff
)/7| ps -
clk
)/7| ps 2
clk
- ps | ps -
clk
20%
t
RF
Tested with Differential Probe
3
12 / 42
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
LVDS Data
0V
(Differential)
LVDS CLK
0.5tui
360ps
tui
VTH
VTL
360ps
teff
tui : Unit Interval
0V
(Differential)
* This accumulated waveform is tested with differential probe
Ver. 0.2
13 / 42
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
3-5. Color Data Reference
The brightness of each primary color (red, green, blue) is based on the 10bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.
Table 7. COLOR DATA REFERENCE
Input Color Data
Basic
Color
RED
Color
Black
Red (1023)
Green (1023)
Blue (1023)
Cyan
Magenta
Yellow
White
RED (0000)
RED (0001)
…
RED (1022)
RED
MSB LSB
ࣰࣱࣲ࣯࣮࣭ࣵࣜࣴࣜࣳࣜࣜࣜࣜࣜࣜࣜ࣬ࣜ ࣰࣱࣲ࣯࣮࣭ࣵࣜࣴࣜࣳࣜࣜࣜࣜࣜࣜࣜ࣬ࣜ ࣰࣱࣲ࣯࣮࣭ࣾࣵࣜࣾࣴࣜࣾࣳࣜࣾࣜࣾࣜࣾࣜࣾࣜࣾࣜࣾࣜࣾ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ
࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ
࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣭࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣪࣪࣪ࣜ ࣪࣪࣪ࣜ ࣪࣪࣪ࣜ
࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
MSB LSB
GREEN
BLUE
MSB LSB
GREEN
BLUE
Ver. 0.2
RED (1023)
GREEN (0000)
GREEN (0001)
...
GREEN (1022)
GREEN (1023)
BLUE (0000)
BLUE (0001)
…
BLUE (1022)
BLUE (1023)
࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣪࣪࣪ࣜ ࣪࣪࣪ࣜ ࣪࣪࣪ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜࣜ
࣪࣪࣪ࣜ ࣪࣪࣪ࣜ ࣪࣪࣪ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ࣬ࣜ
࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜࣜ࣬ࣜ ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭ࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜࣜ
14 / 42
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-6. Power Sequence
3-6-1. LCD Driving circuit
www.panelook.com
LC600EUD
Product Specification
Power Supply For LCD
V
LCD
Interface Signal (Tx_clock)
User Control Signal
(LVDS_select, BIT _select)
Power for LED
Table 8. POWER SEQUENCE
Parameter
90%
10%
0V
1
T
T2
30%
0V
100%
T6
T7
Value
Min Typ Max
Valid Data
T3 T4
LED ON
T8
Vcm : LVDS Common mode Voltage
Unit Notes
90%
10%
10%
T5
Note :
Ver. 0.2
1 0.5 - 20 ms 1
T
T
2 0 - - ms 2
T
3 200 - - ms 3
T
4 200 - - ms 3
T
5 1.0 - - s 4
T
6 --T2ms5
T
7 0.5 - - s 6
T
8 100 - - ms 7
1. Even though T1 is over the specified v alue, there is no problem if I2T spec of fuse is satisfied.
2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.
3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.
4. T5 should be measured after the Module has been fully discharged between power off and on period.
5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V
it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.
6. If there is no abnormal display, no problem.
7. It is recommendation specification that T8 has to be 100ms as a minimum value.
Ć Please avoid floating state of interface signal at invalid period.
Ć When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.
LCD
15 / 42
),
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-6-2. Sequence for LED Driver
Power Supply For LED Driver
VBL
0V
10%
www.panelook.com
Product Specification
24V (typ.)
90%
LC600EUD
90%
VON/OFF
Ext-VBR-B
3-6-3. Dip condition for LED Driver
V
(Typ.) x 0.8
BL
T1 T2
T4
LED ON
T5
T3
V
BL
: 24V
0 V
Table 9. Power Sequence for LED Driver
Parameter
T1 20 - - ms 1
T2 500 - - ms
T3 10 - ms
T4 0 - - ms
T5 - - 10 ms V
Min Typ Max
Values
Units Remarks
BL
Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.
Even though T1 is over the specified value, there is no problem if I
Ver. 0.2
2
T spec of fuse is satisfied.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(Typ) x 0.8
16 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environmentࣜat 25·2¶C.
The values are specified at distance 50cm from the LCD surface at a viewing angle of ) and T equal to 0 ¶.
FIG. 1 shows additional information concerning the measurement equipment and method.
Optical Stage(x,y)
LCD Module
Pritchard 880 or
equivalent
50cm
FIG. 1 Optical Characteristic Measurement Equipment and Method
Table 10. OPTICAL CHARACTERISTICS
Ta= 25·2¶C, V
=12.0V, fV=120Hz, Dclk=74.25MHz,
LCD
cathode
= 125mA
IF_
Value
Parameter Symbol
Unit Note
Min Typ Max
Contrast Ratio CR 1100 1600 - 1
Surface Luminance, white L
Luminance Variation G
Gray-to-Gray G to G - 5 8
Response Time
Color Coordinates
[CIE1931]
Color Temperature 10,000 K
Color Gamut 72 %
2D
Viewing
Angle
3D Crosstalk 3D C/T 1 3 %
Gray Scale
(CR>10)
3D
(CT10%)
MPRT MPRT - 8 12 5
Uniformity G MPRT - - 1 5
Uniformity G G TO G - - 1 5
RED
GREEN
BLUE
WHITE
right(I=0¶)
left (I=180¶)
up (I=90¶)
down (I=270¶)
up + down
WH
WHITE
Tr (x axis) 89 - -
Tl (x axis) 89 - -
Tu (y axis) 89 - -
Td (y axis) 89 - -
Tu (y axis)
+Td (y axis)
2D 280 350
3D 100 130 8
5P 1.35 3
Rx
Ry 0.336
Gx 0.305
Gy 0.609
Bx 0.151
By 0.069
Wx 0.279
Wy 0.292
Typ
-0.03
16 20 -
0.643
Typ
+0.03
---
2
cd/m
ms
degree 6
degree
2
4
8
7
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
Note : 1. Contrast Ratio(CR) is defined mathematically as :
Surface Luminance with all white pixels
Contrast Ratio =
Surface Luminance with all black pixels
It is measured at center 1-point.
2. Surface luminance is determined after the unit has been ‘ON’ and 1 Hour after lighting the
backlight in a dark environmentࣜat 25·2¶C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.
3. The variation in surface luminance , G WHITE is defined as :
G WHITE(5P) = Maximum(L
to L
Where L
For more information, see the FIG. 2.
4. Response time is the time required for the display to transit from G(N) to G(M) (Rise Time, Tr
on1
are the luminance with all pixels displaying white at 5 locations .
on5
on1,Lon2
and from G(M) to G(N) (Decay Time, Tr
Ć G to G Spec stands for average value of all measured points.
Photo Detector : RD-80S / Field : 2Û
5. MPRT is defined as the 10% to 90% blur-edge width B
, L
, L
, L
on3
on4
). For additional information see the FIG. 3. (N<M)
D
) / Minimum(L
on5
ij(pixels) and scroll speed U(pixels/frame)at
on1,Lon2
, L
on3
, L
on4
, L
on5
)
)
R
the moving picture. For more information, see FIG 4
Ć. Gray to Gray / MPRT Response time uniformity is Reference data. Appendix VII-1/ VII-2
6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 5.
7. Gray scale specification
Gamma Value is approximately 2.2. For more information, see the Table 11.
8. 3D performance specification is expressed by 3D luminance, 3D Crosstalk and 3D viewing angle.
3D luminance and 3D crosstalk is measured at center 1-point.
For more information, see the FIG 6~8.
Table 11. GRAY SCALE SPECIFICATION
Gray Level Luminance [%] (Typ)
L0 0.0625
L63 0.27
L127 1.04
L191 2.49
L255 4.68
L319 7.66
L383 11.5
L447 16.1
L511 21.6
L575 28.1
L639 35.4
L703 43.7
L767 53.0
L831 63.2
L895 74.5
L959 86.7
L1023 100
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 / 42
www.panelook.com
Global LCD Panel Exchange Center
ྙ
ྛྚ
ྜྷ
ྜ
www.panelook.com
Product Specification
Measuring point for surface luminance & measuring point for luminance variation.
H
A
LC600EUD
V
B
A: H / 4 mm
FIG. 2 5 Points for Luminance Measure
Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.
TrR
100
90
TrD
B: V / 4 mm
@ H,V : Active Area
Optical
Response
10
0
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Gray(N)
N,M = Black~White, N<M
FIG. 3 Response Time
Gray(M)
Gray(N)
19 / 42
www.panelook.com
Global LCD Panel Exchange Center
ڧ
ۅٻ
ڧ
ۄٻ
www.panelook.com
LC600EUD
Product Specification
MPRT is defined as the 10% to 90% blur-edge with B
picture.
1
M =
Bij (i=j)
U
Example) Bij = 12pixels, U = 10pixels / 120Hz
M = 12pixels / (10pixels / 120Hz)
= 12pixels / {10pixels / (1/120)s}
= 12 / 1,200 s
= 10 ms
FIG. 4 MPRT
ij(pixels) and scroll speed U(pixels/frame)at the moving
90%
10%
B
ij
Dimension of viewing angle range
I
= 180q, Left
I
= 270q, Dow n
Normal
E
T
I
FIG. 5 Viewing Angle
Y
I
= 90q, Up
I
= 0q, Right
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
LW-RW
LW-RB
LB-RW
LB-RB
(a) Test pattern image
2
6
4 5
7
1
9
3
8
(b) Measurement
position
< FIG.6. Measurement configuration>
Luminance
T
Lum( LE or RE, test pattern, number )
Measurement through
Left or Right eyeglass
3D display
LMS
Right or left eyeglass
( Circular polarizer )
(c) Setup
measurement
position
< FIG.7. Positioning eyeglass >
< FIG. 8. notation of luminance measurement >
In order to measure 3D luminance, 3D crosstalk and 3D viewing angle, it need to be prepared as below;
1) Measurement configuration
4-Test pattern images. Refer to FIG 8.
-. LW-RW : White for left and right eye
-. LW-RB : White for left eye and Black for right eye
-. LB-RW : Black for left eye and white for right eye
-. LB-RB : Black for left eye and right eye
Image files where black and white lines are displayed on even or odd lines.
Luminance measurement system (LMS) with narrow FOV (field of view) is used. Refer to FIG 1.
2) Positioning Eyeglass (refer to appendix-VIII for standard specification of eyeglass)
Find angle of minimum transmittance.
This value would be provided beforehand or measured by the following steps;
(i) Test image (LB-RW) is displayed.
(ii) Left eyeglass are placed in front of LMS and luminance is measured,
rotating right eyeglass such as FIG 7. The notation for luminance measurement is “Lum(LE, LB-RW,1)”.
(iii) Find the angle where luminanc e is minimum.
* Following measurements should be performed at the angle of minimum transmittance of eyeglass.
Ver. 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 / 43
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
3) Measurement of 3D luminance
(i) Test image ( LW-RW ) is displayed.
(ii) Left or right eyeglass are placed in front of LMS successively and
luminance is measured at center 1 point where the notation for luminance measurement is
“Lum(LE, LW-RW,1)” or “Lum(RE, LW-RW,1).
4) Measurement of 3D crosstalk
(i) Test image ( LB-RW, LW-RB and LB-RB ) is displayed.
(ii) Right or left eyeglass are placed in front of LMS successively and
luminance is measured for position 1.
with rotating LMS or sample vertically.
Lum(LE, LB-RW,1) - Lum(LE, LB-RB,1)
Lum(LE, LW-RB,1) - Lum(LE, LB-RB,1)
or
Lum(RE, LW-RB,1) - Lum(RE, LB-RB,1)
Lum(RE, LB-RW,1) - Lum(RE, LB-RB,1)
LC600EUD
5) Measurement of 3D Viewing Angle
3D viewing angle is the angle at which the 3D crosstalk is under 10%. The angles are
determined for the vertical or y axis with respect to the z axis which is normal to the LCD
module surface and measured for position 1. For more information , see the Fig 9
y axis
siTy~G s~TyiG
LCM
siTyiG
ĭyu(up)
ĭyd (down)
z axis
stzG
(a) Test pattern image
< FIG.9. Measurement of 3D crosstalk and 3D viewing angle >
Ver. 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(b) Measurement of 3D viewing angle (up/down)
22 / 43
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
5. Mechanical Characteristics
Table 12 provides general mechanical characteristics.
Table 12. MECHANICAL CHARACTERISTICS
Item Value
LC600EUD
Outline Dimension
Bezel Area
Active Display Area
Weight
Horizontal
Vertical
Depth
Horizontal
Vertical
Horizontal
Vertical
19.5 Kg (Typ.), 21.5kg (Max.)
1346.0mm
769.3mm
11.9 mm (B)
1323.0 mm
746.0 mm
1319.04 mm
741.96 mm
Note : Please refer to a mechanical drawing in terms of tolerance at the next page.
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 / 42
www.panelook.com
Global LCD Panel Exchange Center
[ FRONT VIEW ]
www.panelook.com
LC600EUD
Product Specification
SET : TOP
Ver. 0.2
SET : DOWN
24 / 42
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
[ REAR VIEW ]
www.panelook.com
LC600EUD
Product Specification
SET : TOP
Ver. 0.2
SET : DOWN
25 / 42
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
6. Reliability
Table 13. ENVIRONMENT TEST CONDITION
No. Test Item Condition
1 High temperature storage test
2 Low temperature storage test
3 High temperature operation test
4 Low temperature operation test
5
6
7 Humidity condition Operation
8
Vibration test
(non-operating)
Shock test
(non-operating)
Altitude operating
storage / shipment
Ta= 60¶C 240h
Ta= -20¶C 240h
Ta= 50¶C 50%RH 240h
Ta= 0¶C 240h
No Guarantee
No Guarantee
Ta= 40 ¶C ,90%RH
0 - 15,000 ft
0 - 40,000 ft
Note : Before and after Reliability test, LCM should be operated with normal function.
Ver. 0.2
26 / 42
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
7. International Standards
7-1. Safety
a) UL 60065, Underwriters Laboratories Inc.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
c) EN 60065, European Committee for Electrotechnical Standardization (CENELEC).
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
d) IEC 60065, The International Electrotechnical Commission (IEC).
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
(Including report of IEC60825-1:2001 clause 8 and clause 9)
LC600EUD
Notes
1. Laser (LED Backlight) Information
jGXtGslkGwG
plj]W_Y\TXGaGYWWXG
lGslkGwGOjGXtPG
2. Caution
: LED inside.
Class 1M laser (LEDs) radiation when open.
Do not open while operating.
7-2. EMC
a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.
b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and
methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.
c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance
characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.
7-3. Environment
a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 / 42
www.panelook.com
Global LCD Panel Exchange Center
8. Packing
8-1. Information of LCM Label
a) Lot Mark
A B C D E F G H I J K L M
A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.
Note
1. YEAR
Year
www.panelook.com
Product Specification
201320122011
2014E2015
2016G2017H2018J2019
LC600EUD
2020
Mark
CBA
D
F
2. MONTH
Month
Mark
Apr5May
4
Jun
6
Jul8Aug9Sep
7
b) Location of Lot Mark
Serial NO. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one Pallet : 14 pcs
b) Pallet Size : 1600 mm(L) X 1140 mm(W) X 990 mm(H)
K
Oct
A
Nov
B
Dec Mar FebJan
C4 2 1
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
9. Precautions
Please pay attention to the followings when you use this TFT LCD module.
9-1. Mounting Precautions
(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
9-2. Operating Precautions
(1) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(2) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer
(3) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(4) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(5) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
(6) Please do not give any mechanical and/or acoustical impac t to LCM. Otherwise, LCM can’t be operated
its full characteristics perfectly.
(7) A screw which is fastened up the steels should be a machine screw.
(if not, it can causes conductive particles and deal LCM a fatal blow)
(8) Please do not set LCD on its edge.
(9) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal
display, sound noise and temperature rising.
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC600EUD
Product Specification
9-3. Electrostatic Discharge Control
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.
9-4. Precautions for Strong Light Exposure
Strong light exposure causes degradation of polarizer and color filter.
9-5. Storage
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature
between 5¶C and 35¶C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be
recovered when the LCD module returns to the normal condition
9-6. Handling Precautions for Protection Film
(1) The protection film is attached to the bezel with a small masking tape.
When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-
blown equipment or in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains a ver y
small amount of glue still on the bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,
please wipe them off with absorbent cotton waste or other soft material lik e chamois soaked with normal hexane.
9-7. Operating condition guide
(1) The LCD product should be operated under normal conditions. Normal condition is defined as below;
- Temperature : 5 ~ 40 ć, normal humidity.
- Display pattern : continually changing pattern (Not stationary)
(2) If the product will be used in extreme conditions such as high temperature, display patterns or operation
time etc..,
It is strongly recommended to contact LGD for Qualification engineering advice. Otherwise, its reliability
and function may not be guaranteed. Extreme conditions are commonly found at Airports, Transit Stations,
Banks, Stock market, and Controlling systems. The LCD product should be applied by global standard
environment. (refer ETSI EN 300, IEC 60721)
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
30 / 42
Global LCD Panel Exchange Center
# APPENDIX-I
Pallet Ass’y
www.panelook.com
LC600EUD
Product Specification
60” Cinema
60” Cinema
NO. DESCRIPTION MATERIAL
1 LCD Module 60” LCM
2 BAG AL Bag (60”)
3 TAPE MASKING 20MMX50M
4 PALLET Plywood 1600X1140X125.5mm
5 PACKING,BOTTOM EPS
6 PACKING,TOP EPS
7 ANGLE,PACKING PAPER
8 BAND PP
9 ANGLE.COVER PAPER
10 BAND,CLIP STEEL or PP
11 LABEL YUPO 80G 100X70
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31 / 42
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-1
غ LCM Label
www.panelook.com
LC600EUD
Product Specification
Model
UL, TUV Mark
LGD Logo
LC600EUD
(FE)(F2)
Serial No.
Origin
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32 / 42
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-2
غ Pallet Label
www.panelook.com
LC600EUD
Product Specification
LC600EUD
FEF2
14 PCS
MADE IN KOREA
001/01-01
XXXXXXXXXXXXX XXX
RoHS Verified
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
33 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
# APPENDIX- III-1
Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “L” or “NC”)
LC600EUD
Host System
30 Bit
RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8
RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9
BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9
Hsync
Vsync
Data Enable
CLOCK
THC63LVD103
or Compatible
33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12
TA-
TA+
TB-
TB+
TC-
TC+
TCLK-
TCLK+
TD-
TD+
TE-
TE+
31
30
29
28
25
24
23
22
21
20
19
18
FI-RE51S-HF
GND
12
13
14
15
16
17
19
20
22
23
24
25
7
100ȍ
100ȍ
100ȍ
100ȍ
100ȍ
100ȍ
LCM Module
Timing
Controller
RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCLKN
ROCLKP
RO3N
RO3P
RO4N
RO4P
VESA/ JEIDA
Note: 1. The LCD module uses a 100 Ohm[ȍ] resistor between positive and negative lines of each receiver
input.
2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)
3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
34 / 42
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
# APPENDIX- III-2
Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “H” )
LC600EUD
Host System
30 Bit
RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8
RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9
BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9
Hsync
Vsync
Data Enable
CLOCK
THC63LVD103
or Compatible
4
5
59
61
33
34
35
36
37
38
6
8
62
63
40
41
42
44
45
46
9
11
64
1
48
49
50
52
53
54
55
57
58
12
TA-
TA+
TB-
TB+
TC-
TC+
TCLK-
TCLK+
TD-
TD+
TE-
TE+
31
30
29
28
25
24
23
22
21
20
19
18
FI-RE51S-HF
VCC
12
13
14
15
16
17
19
20
22
23
24
25
7
100ȍ
100ȍ
100ȍ
100ȍ
100ȍ
100ȍ
LCM Module
Timing
Controller
RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCLKN
ROCLKP
RO3N
RO3P
RO4N
RO4P
VESA /JEIDA
Note :1. The LCD module uses a 100 Ohm[ȍ] resistor between positive and negative lines of each receiver
input.
2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)
3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
35 / 42
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
# APPENDIX- IV-1
غ LVDS Data-Mapping Information (10 Bit )
1) LVDS Select : “H” Data-Mapping (JEIDA format)
RCLKP
RCLKM
LC600EUD
RAP
RBP
RCP
RDP
REP
R19 R18 R17 R16 G14 R15 R14’ R14 R15’ G14”
B14 G19 G18 G17 B15 G16 G15’ G15 G16’ B15”
V
SYNC HSYNC
B19 B18DE B17B16’ B16B17’ DE”
B13 B12 G13 G12 X R13 R12’ R12 R13’ X”
B11 B10 G11 G10 X R11 R10’ R10 R11’ X”
2) LVDS Select : “L” Data-Mapping (VESA format)
RCLKP
RCLKM
RAP
R15 R14 R13 R12 G10 R11 R10’ R10 R11’ G10”
RBP
RCP
RDP
REP
Ver. 0.2
B10 G15 G14 G13 B11 G12 G11’ G11 G12’ B15”
V
SYNC HSYNC
B15 B14DE B13B12’ B12B13’ DE”
B17 B16 G17 G16 X R17 R16’ R16 R17’ X”
B19 B18 G19 G18 X R19 R18’ R18 R19’ X”
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
36 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
# APPENDIX- IV-2
غ LVDS Data-Mapping Information (8 Bit )
1) LVDS Select : “H” Data-Mapping (JEIDA format)
RCLKP
RCLKM
LC600EUD
RAP
RBP
RCP
RDP
R17 R16 R15 R14 G12 R13 R12’ R12 R13’ G12”
B12 G17 G16 G15 B13 G14 G13’ G13 G14’ B13”
V
SYNC HSYNC
B17 B16DE B15B14’ B14B15’ DE”
B11 B10 G11 G10 X R11 R10’ R10 R11’ X”
2) LVDS Select : “L” Data-Mapping (VESA format)
RCLKP
RCLKM
RAP
R15 R14 R13 R12 G10 R11 R10’ R10 R11’ G10”
RBP
RCP
RDP
Ver. 0.2
B10 G15 G14 G13 B11 G12 G11’ G11 G12’ B15”
V
SYNC HSYNC
B15 B14DE B13B12’ B12B13’ DE”
B17 B16 G17 G16 X R17 R16’ R16 R17’ X”
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
37 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
# APPENDIX- V-1
غ Option Pin Circuit Block Diagram
1) Circuit Block Diagram of LVDS Format Selection pin
LVDS Select Pin : Pin 7
1K
LVDS Select
(Pin 7)
LC600EUD
LVDS Select
System Side LCM Side
2) Circuit Block Diagram of Bit Selection pin
Bit Select Pin : Pin 27
1K
Bit Select
(Pin 27)
50k
ASIC
(TCON)
VCC
50k
Bit Select
OPEN
ASIC
(TCON)
System Side LCM Side
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
38 / 42
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
# APPENDIX- VII-1
Gray to Gray Response Time Uniformity
This is only the reference data of G to G and uniformity for LC600EUD-FEF2 model.
1. G to G Response Time :
Response time is defined as Figure3 and shall be measured by switching the input signal for
“Gray (N) ” and “Gray(M)”.(32Gray Step at 8bit)
2. G to G Uniformity
The variation of G to G Uniformity , G
G to G Uniformity =
G to G is defined as :
)()(
GtoGTypicalGtoGMaximum
)(
GtoGTypical
1
LC600EUD
*Maximum (G to G) means maximum value of measured time (N, M = 0 (Black) ~ 1023(White), 128 gray step).
0Gray 127ray 255Gray … 895Gray 1023Gray
0Gray
127Gray
255Gray
…
895Gray
1023Gray
TrD:127GÆ0G TrR:127GÆ255G … TrR:127GÆ895G TrR:127GÆ1023G
TrD:255GÆ0G TrD:255GÆ127G … TrR:255GÆ895G TrR:255GÆ1023G
……… ……
TrD:895GÆ0G TrD:895GÆ127G TrD:895GÆ255G … TrR:895GÆ1023G
TrD:1023GÆ0G TrD:1023GÆ127G TrD:1023GÆ255G … TrD:1023GÆ895G
TrR:0GÆ127G TrR:0GÆ255G … TrR:0GÆ895G TrR:0GÆ1023G
3. Sampling Size : 2 pcs
4. Measurement Method : Follow the same rule as optical characteristics measurement.
5. Current Status
Below table is actual data of production on XX. XX. 2011 ( LGD RV Event Sample)
# 1
G to G Response Time [ms]
Min. Max.
TBD TBD TBD
Uniformity
# 2
TBD TBD TBD
< # 1 > < # 2 >
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
39 / 42
www.panelook.com
Global LCD Panel Exchange Center
G
# APPENDIX- VII-2
www.panelook.com
LC600EUD
Product Specification
غ MPRT Response Time Uniformity (
This is only the reference data of MPRT and uniformity for LC600EUD-FEF2 model.
1. MPRT Response Time :
Response time is defined as Figure3
2. MPRT Uniformity
The variation of MPRT Uniformity , G MPRT is defined as :
MPRT Uniformity =
3. Sampling Size : 2 pcs
4. Measurement Method : Follow the same rule as optical characteristics measurement.
5. Current Status
Below table is actual data of production on XX. XX. 2011 ( LGD RV Event Sample)
MPRT Response Time [ms]
Sample
Min. Max.
Maximum (MPRT) - Typical (MPRT)
)
MPRT
Typical (MPRT)
1
Uniformity
# 1 TBD TBD TBD
# 2 TBD TBD TBD
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
40 / 42
www.panelook.com
Global LCD Panel Exchange Center
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
ȋ
www.panelook.com
Product Specification

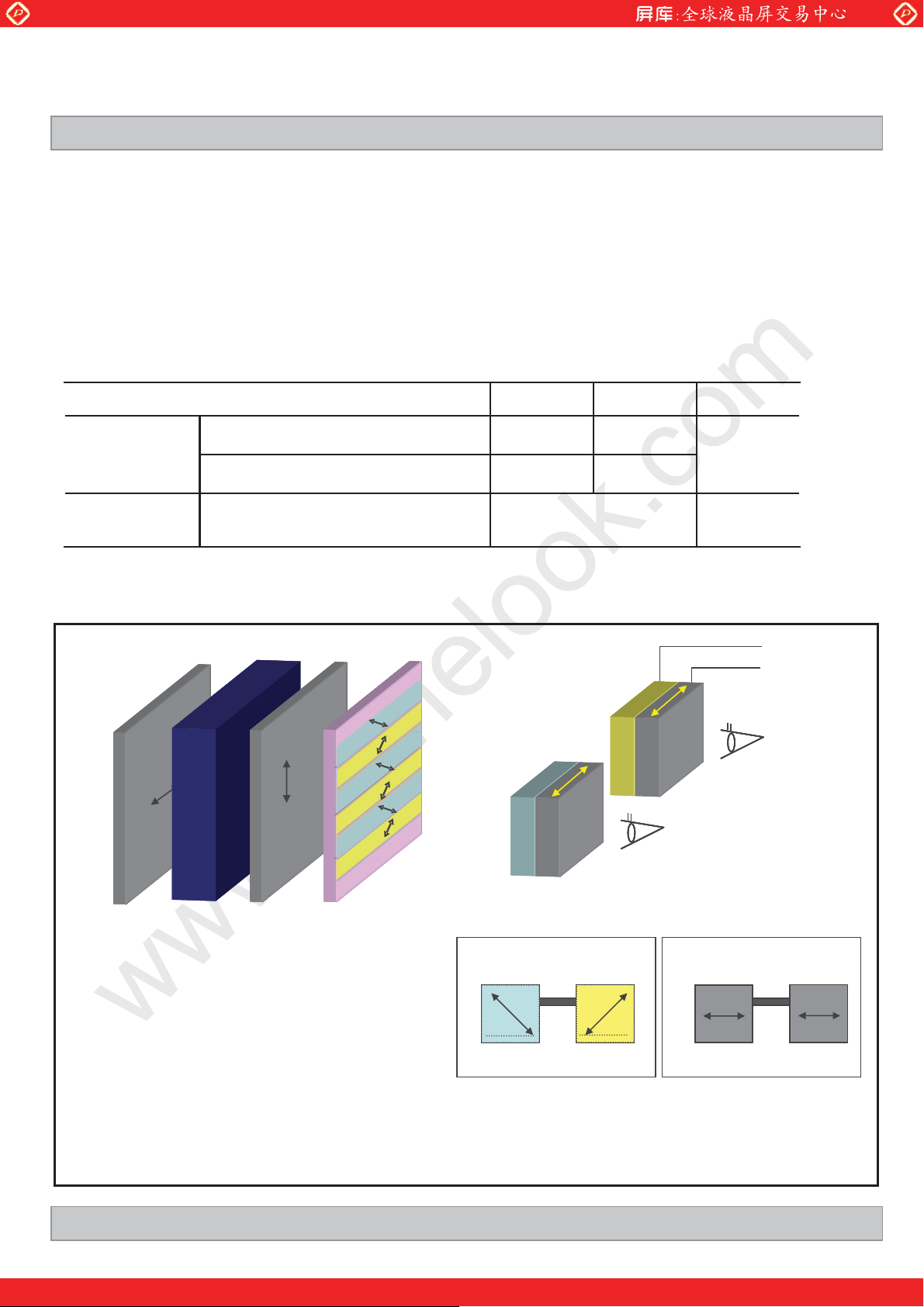

# APPENDIX- VIII
غ Standard specification of Eyegl asses
This is recommended data of Ey eglasses for LC600EUD-FEF2 model. (details refer to table)
For each item, depending on the eyeglass manufacturer tolerances may occur, this tolerance can
affect 3D performance. (3D Crosstalk, 3D luminance, 3D viewing angle)
<Table. Standard specification of Ey eglasses>
Design item of Eyeglasses Left Right Remark
LC600EUD
Optical
axis
Retardation
value
a) Slow axis of retarder
b) Transmission axis of polarizer
Retarder 125nm @550nm
ĆRecommended polarizer
Polarization efficiency: more than 99.90%
45
45
45
45
-45
135
135
135
135
45ȋ45
90
90ȋ90
0
0ȋ0
-45Û 45Û
0Û 0Û
+Ʌ/4
-Ʌ/4
-Ʌ/4
+Ʌ/4
Left eye
Left eyeLeft eye
Refer to
drawing
Retarder
Retarder
Polarizer
Polarizer
Right eye
Right eyeRight eye
Bottom
Bottom
POL
POL
Cell Patterned
Cell Patterned
Top
Top
POL
POL
Patterned
Patterned
retarder
retarder
retarder
retarder
Direction from viewer
a) Slow axis of retarder
a) Slow axis of retarder
-45
-45
Left Right
Left Right
45
45
b) Transmission axis of polarizer
b) Transmission axis of polarizer
0
0
Left Right
Left Right
(b) Configuration of Eyeglasses
<Drawing. Information of optical axis>
Ver. 0.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
0
0
41 / 42
www.panelook.com
Loading...
