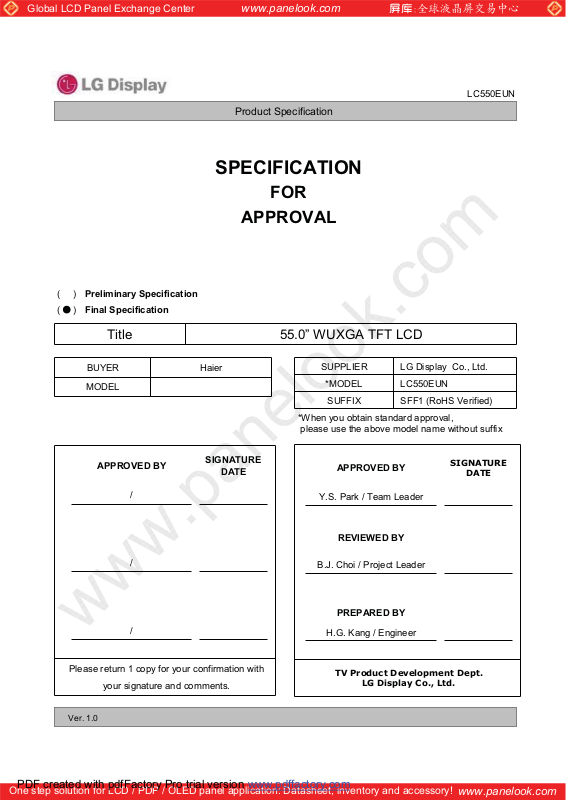

Global LCD Panel Exchange Center
www.panelook.com
LC550EUN
Product Specification
SPECIFICATION
FOR
APPROVAL
()Preliminary Specification
() Final Specification
Title 55.0 WUXGA TFT LCD
BUYER Haier
MODEL
APPROVED BY
/
/
SIGNATURE
DATE
SUPPLIER LG Display Co., Ltd.
*MODEL LC550EUN
SUFFIX SFF1 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY
Y.S. Park / Team Leader
REVIEWED BY
B.J. Choi / Project Leader
SIGNATURE
DATE
PREPARED BY
/
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
H.G. Kang / Engineer
TV Product Development Dept.
LG Display Co., Ltd.
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC550EUN
Product Specification
CONTENTS
Number ITEM
COVER
CONTENTS
RECORD OF REVISIONS 2
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS
3-4 SIGNAL TIMING WAVEFORMS
3-5 COLOR DATA REFERENCE

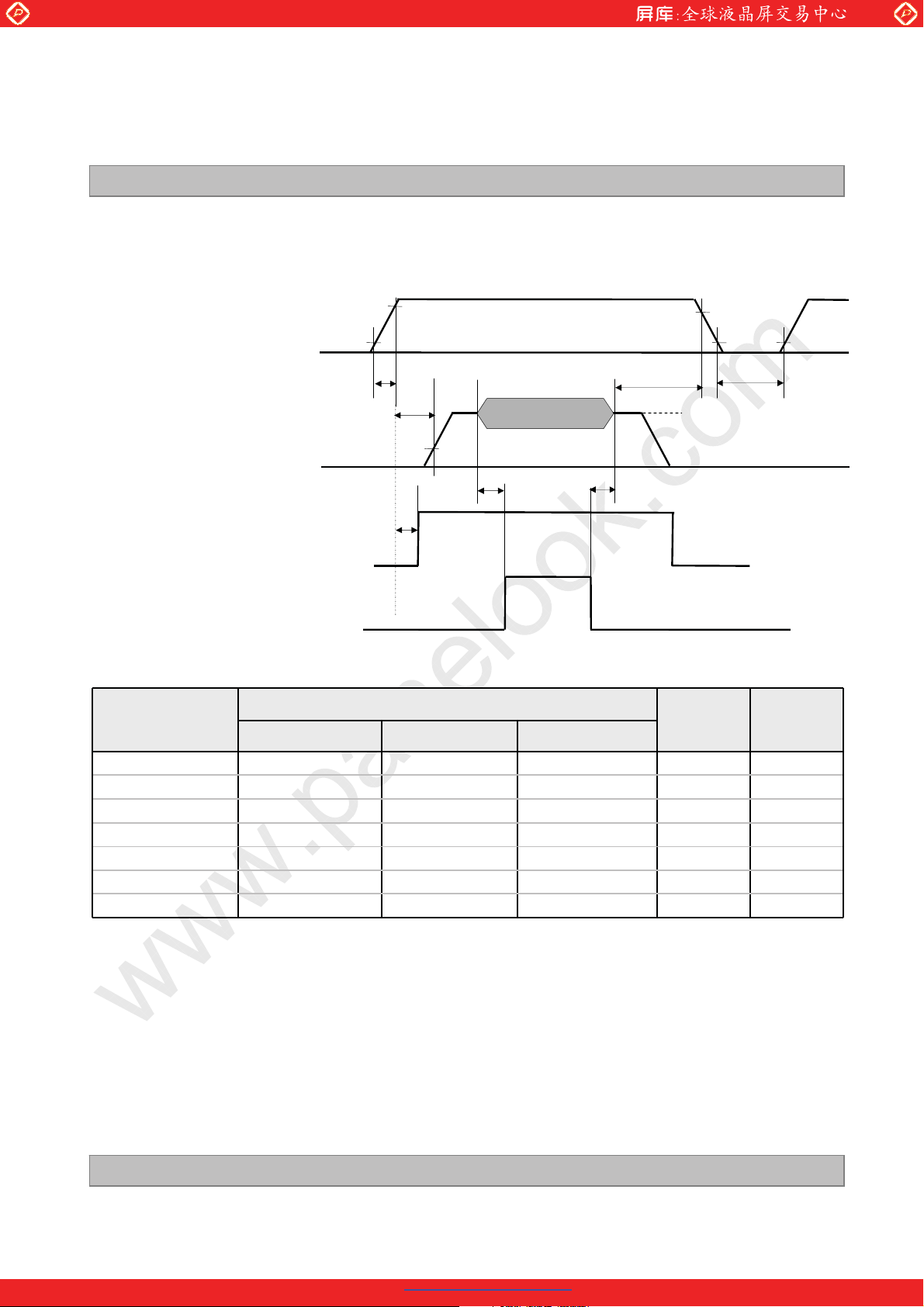

3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATIONS

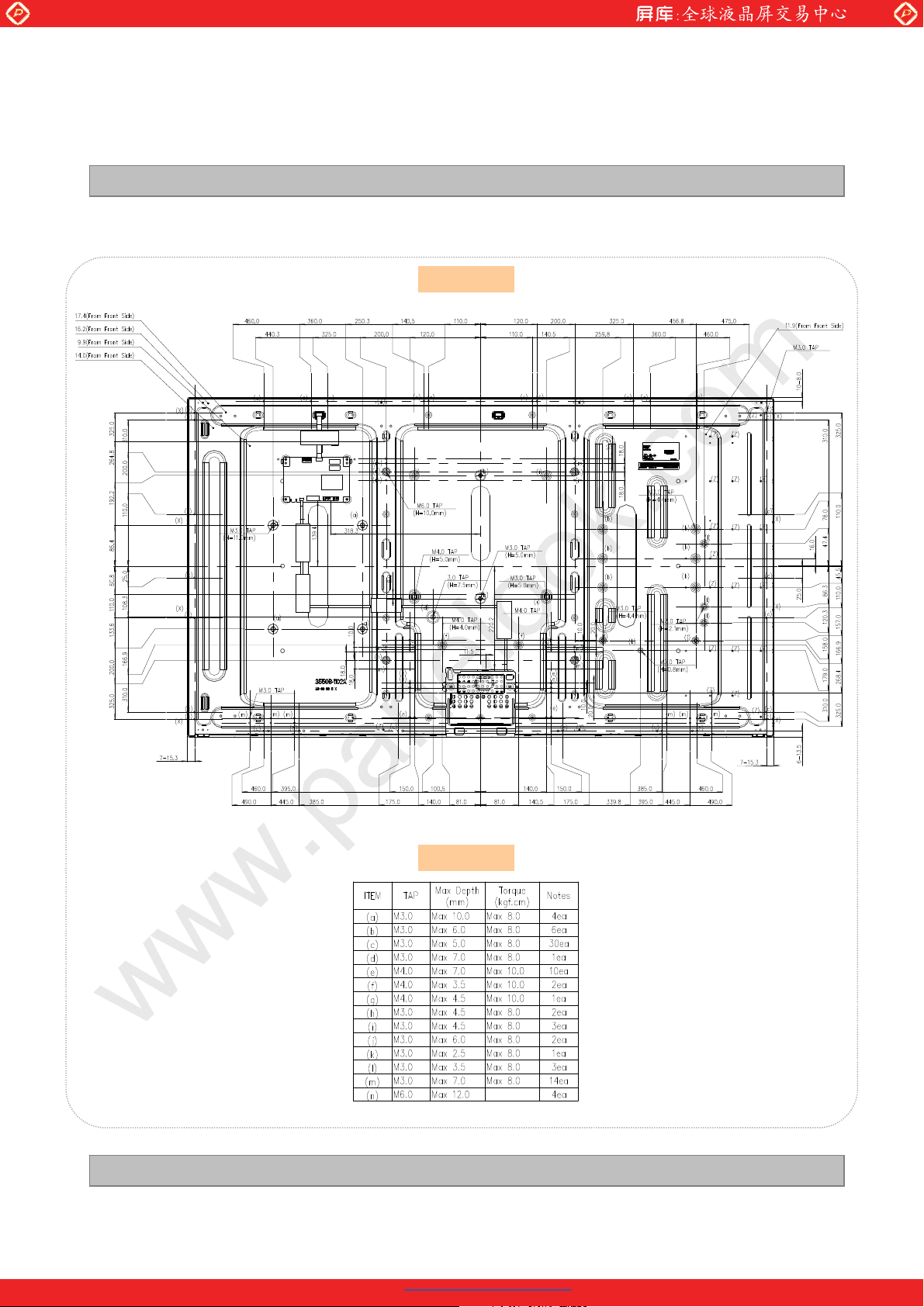

5 MECHANICAL CHARACTERISTICS
6 RELIABILITY
Page
0
1
3
4
5
5
7
9
10
13
14
16
22
25
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC 26
7-3 ENVIRONMENT
8 PACKING

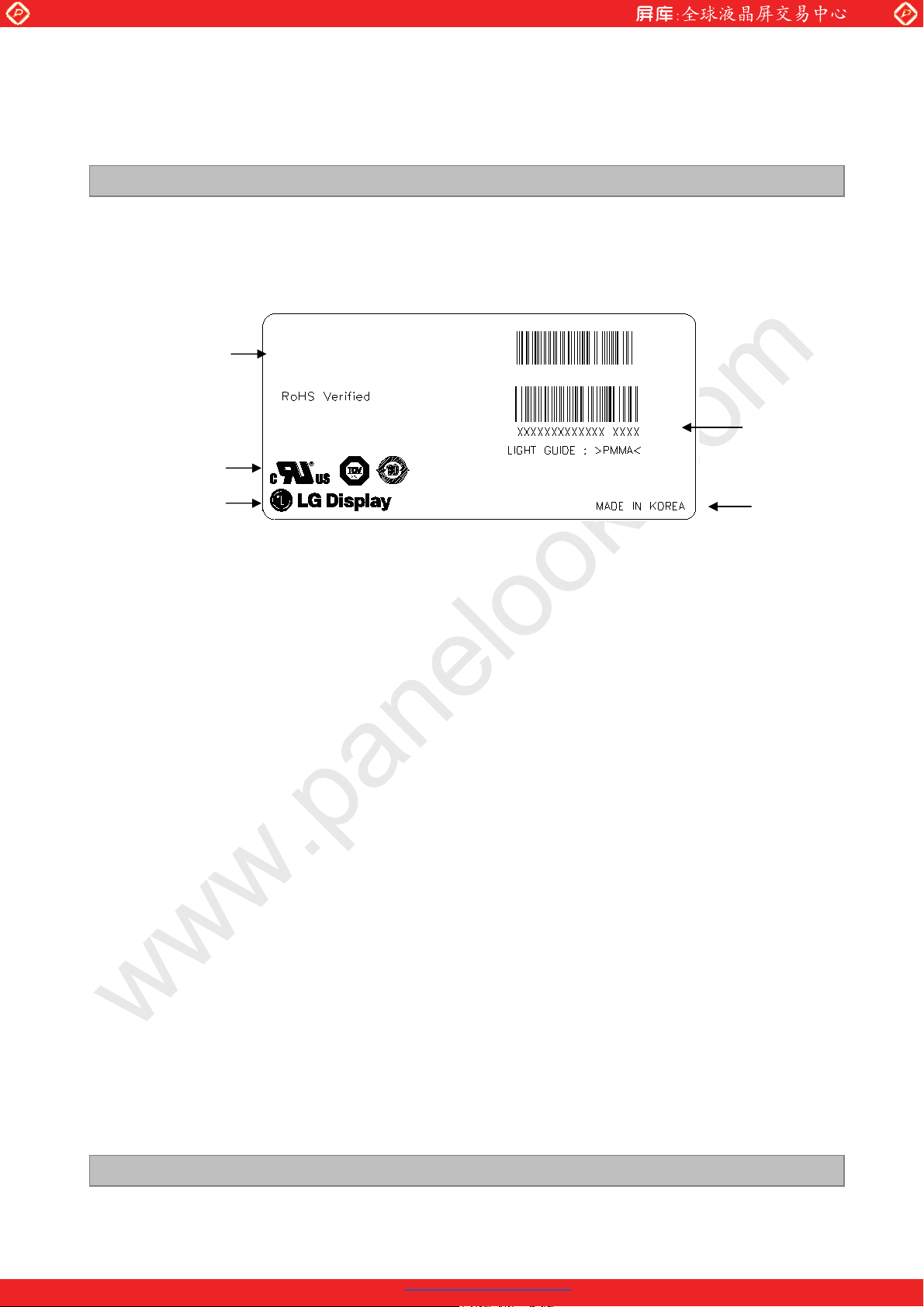

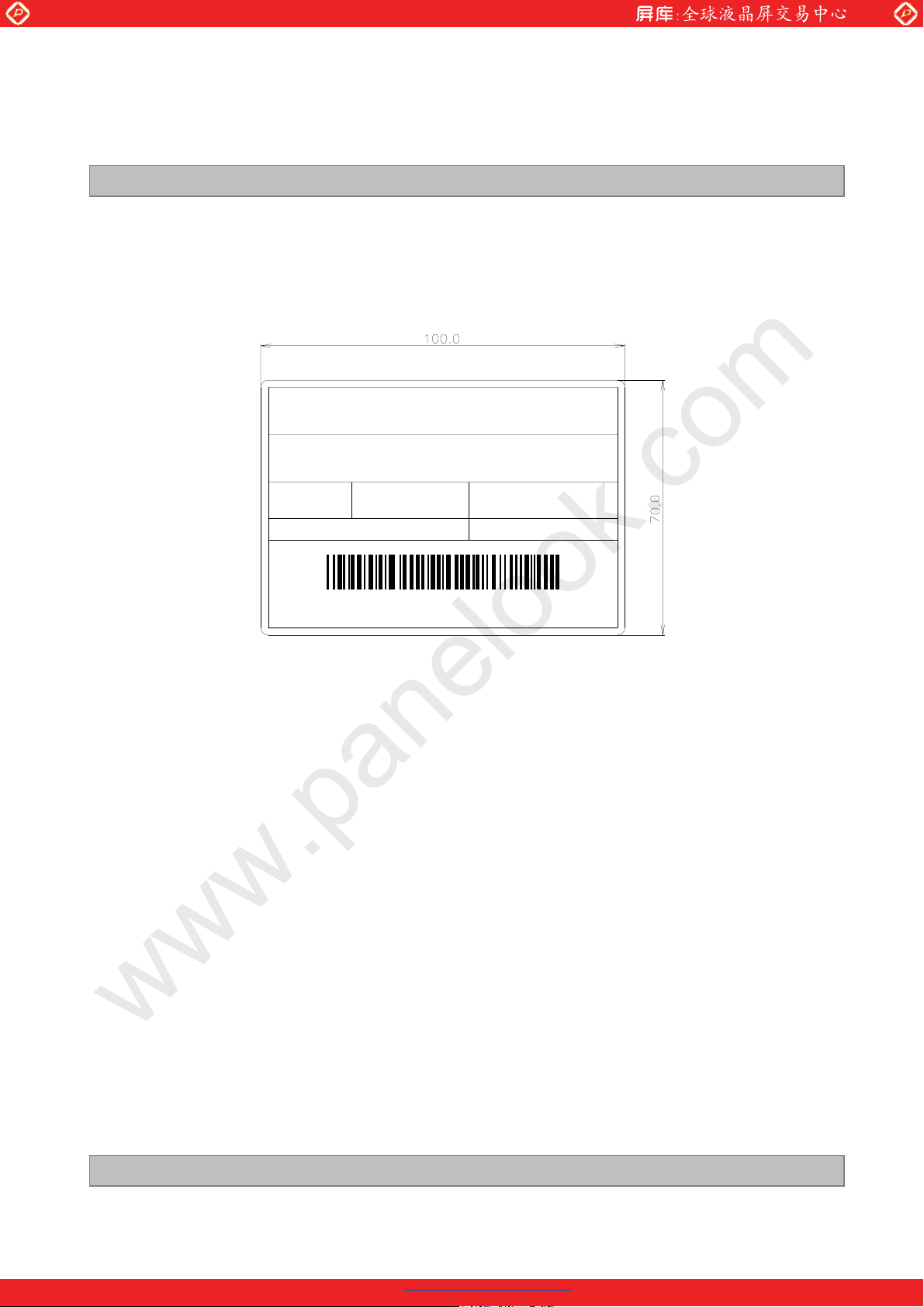

8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS 28
9-1 MOUNTING PRECAUTIONS 28
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL 29
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE 29
9-6 OPERATING GONDITION GUIDE 29
Ver. 1.0
26
26
26
27
27
27
28
29
1 /38
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Revision No. Revision Date Page Description
0.1 May,20, 2012 - Preliminary Specification(First Draft)
0.2 Jun.30. 2012 3, 5, 6 Change the typical value of Power Consumption
0.3 Aug.01. 2012 3,5 Change the typical value of Power Consumption
1.0 Aug.09.2012 Final CAS
www.panelook.com
LC550EUN
Product Specification
RECORD OF REVISIONS
16 Color coordinates change ( R,G,B )

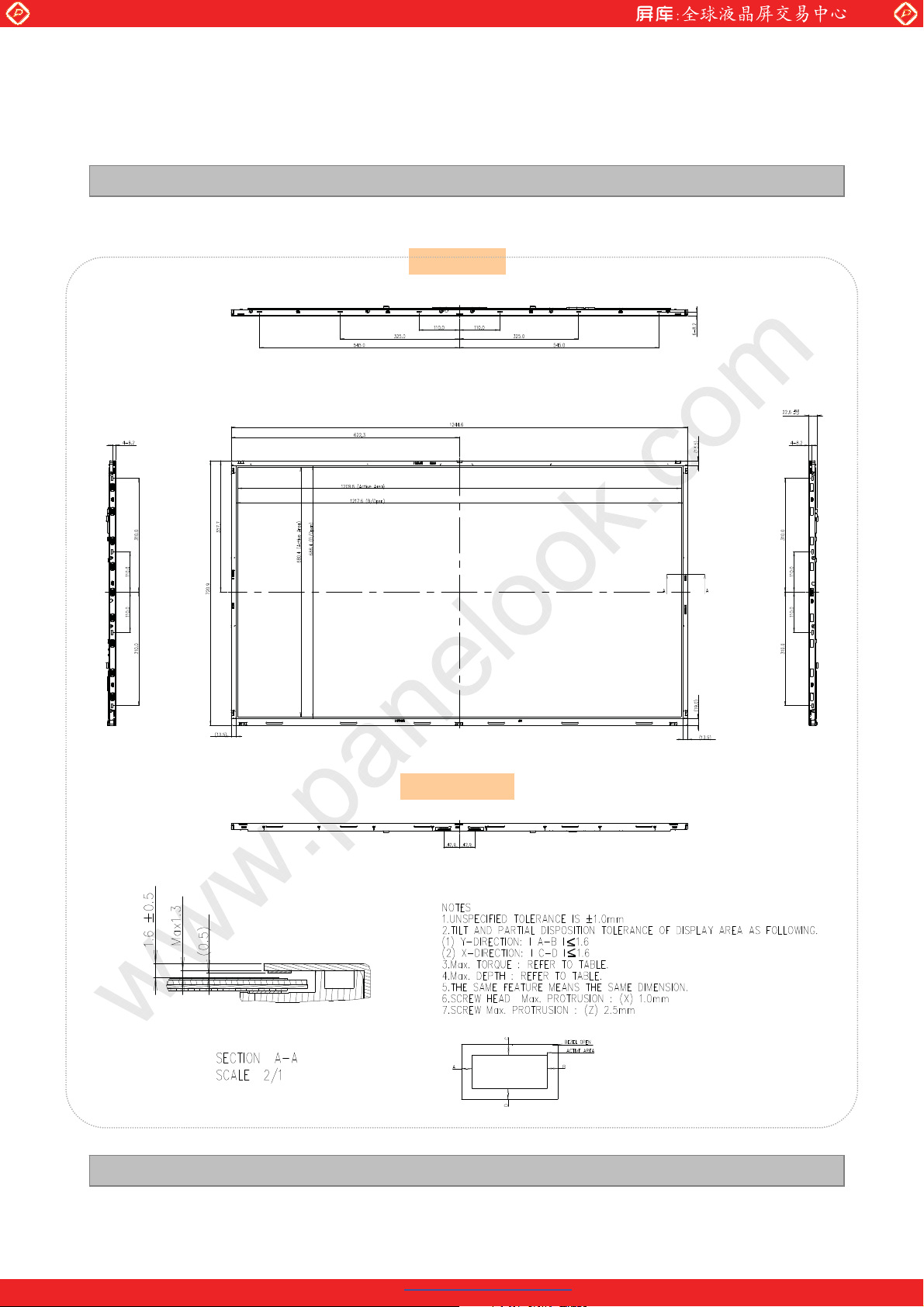

23,24 Mech. Drawing Update
30 Pallet Assy Drawing Update
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2 /38
www.panelook.com
Global LCD Panel Exchange Center
1. General Description
The LC550EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
www.panelook.com
LC550EUN
Product Specification
LVDS
2Port
LVDS
Select
OPC
Enable
ExtV
BR-B
+12.0V
PWM_OUT
1~3
+24.0V, GND, On/Off
CN1
(51pin)
CN2
(4 pin)
LVDS 1,2
Option
signal
I2C
PWM_OUT
1~3
EEPROM
SCL
Timing Controller
LVDS Rx + OPC + DGA
Power Circuit
SDA
Integrated
Block
LED Driver
EPI(RGB)
Control
Signals
Power Signals
Source Driver Circuit
S1 S1920
G1
TFT - LCD Panel
(1920 RGB 1080 pixels)
[Gate In Panel]
G1080
Scanning Block 1
Scanning Block 2
Scanning Block 3
General Features
Active Screen Size 54.64 inches(1387.80mm) diagonal
Outline Dimension 1244.6(H) 720.9(V) 9.9(B) / 22.6(D) mm (Typ.)
Pixel Pitch 0.630 mm x 0.630 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 8bit, 16.7 Million colors
Luminance, White 350 cd/m2(Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption Total 87.58W (Typ.) [Logic= 6.88W, LED Driver=80.7W(ExtVbr_B=100% )]
Weight 16.5Kg (Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(2H), Anti-glare treatment of the front polarizer (Haze < 1%)
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3 /38
www.panelook.com
Global LCD Panel Exchange Center
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
www.panelook.com
LC550EUN
Product Specification
Parameter Symbol
Power Input Voltage
Driver Control Voltage
T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC
Operating Temperature TOP 0 +50 C
Storage Temperature TST -20 +60 C
Panel Front Temperature TSUR - +68 C 4
Operating Ambient Humidity HOP 10 90 %RH
Storage Humidity HST 10 90 %RH
Note
1. Ambient temperature condition (Ta =
LCD Circuit VLCD -0.3 +14.0 VDC
Driver VBL -0.3 + 27.0 VDC
ON/OFF VOFF / VON -0.3 +5.5 VDC
Brightness EXTVBR-B -0.3 +4.0 VDC
25 ± 2 C )
Value
Unit Note
Min Max
2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39C, and no condensation of water.
3. Gravity mura can be guaranteed below 40C condition.
4. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68. The range of operating temperature may be degraded in case of
improper thermal management in final product design.
90%
1
2,3
2,3
60
60%
Storage
Operation
40
50
40%
Humidity [(%)RH]
10%
C]
Wet Bulb
Temperature [
0
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
C]
30
20
10
10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [
4 /38
www.panelook.com
Global LCD Panel Exchange Center
3. Electrical Specifications
3-1. Electrical Characteristics
It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.
Table 2. ELECTRICAL CHARACTERISTICS
Parameter Symbol
Circuit :
www.panelook.com
LC550EUN
Product Specification
Value
Unit Note
Min Typ Max
Power Input Voltage VLCD 10.8 12.0 13.2 VDC
Power Input Current ILCD
Power Consumption PLCD 6.88 8.94 Watt 1
Rush current IRUSH - - 5.0 A 3
ExtV
BR-B
Brightness Adjust for Back Light
ExtV
BR-B
Frequency
Pulse Duty Level
(PWM)
Note
1. The specified current and power consumption are under the V
High Level
Low Level
condition, and mosaic pattern(8 x 6) is displayed and f
- 573 745 mA 1
- 840 1092 mA 2
5 - 100 %
1 - 100 %
40 50/60 80 Hz
2.5 - 3.6 Vdc
0 - 0.8 Vdc
=12.0V, Ta=25 ± 2C, fV=60Hz
LCD
is the frame frequency.
V
HIGH : on duty
LOW : off duty
2. The current is specified at the maximum current pattern.
3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).
4. ExtV
After Driver ON signal is applied, ExtV
After that, ExtV
signal have to input available duty range and sequence.
BR-B
1% and 100% is possible
BR-B
should be sustained from 5% to 100% more than 500ms.
BR-B
For more information, please see 3-6-2. Sequence for LED Driver.
5. Ripple voltage level is recommended under 5% of typical voltage
On Duty
4
White : 255 Gray
Black : 0 Gray
Mosaic Pattern(8 x 6)
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5 /38
www.panelook.com
Global LCD Panel Exchange Center
Table 3. ELECTRICAL CHARACTERISTICS (Continue)
www.panelook.com
LC550EUN
Product Specification
Parameter Symbol
LED Driver :
Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1
Power Supply Input Current IBL
Power Supply Input Current (In-Rush) In-rush - - 6.0 A
Power Consumption PBL -
Input Voltage for
Control System
Signals
LED :
Life Time 30,000 50,000 Hrs 2
On/Off
On V on 2.5 - 5.0 Vdc
Off V off -0.3 0.0 0.7 Vdc
Min Typ Max
Values
-
3.36
80.7
3.62
86.9
Unit Notes
A1
V
BL = 22.8V
BR-B
= 100%
3
ExtV
W1
Notes :
1. Electrical characteristics are determined after the unit has been ON and stable for approximately 60
minutes at 252C. The specified current and power consumption are under the typical supply Input voltage
24Vand V
BR (ExtVBR-B : 100%), it is total power consumption.
2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
252C.
3. The duration of rush current is about 200ms. This duration is applied to LED on time.
4. Even though inrush current is over the specified value, there is no problem if I
2
T spec of fuse is satisfied.
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6 /38
www.panelook.com
Global LCD Panel Exchange Center
3-2. Interface Connections
This LCD module employs two kinds of interface connection, 51-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.
3-2-1. LCD Module
- LCD Connector(CN1): FI-R51S-HF(manufactured by JAE) or compatible
- Mating Connector : FI-R51HL(JAE) or compatible
Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION
No Symbol Description No Symbol Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
NC
NC
NC
NC
NC
NC
LVDS Select
ExtVBR-B
NC
OPC Enable H = Enable , L or NC = Disable
GND
R1AN
R1AP
R1BN
R1BP
R1CN
R1CP
GND
R1CLKN
R1CLKP
GND
R1DN
R1DP
NC No connection
NC No connection
NC or GND
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
H =JEIDA , L or NC = VESA
External PWM (from System)
No Connection (Note 4)
Ground
FIRST LVDS Receiver Signal (A-)
FIRST LVDS Receiver Signal (A+)
FIRST LVDS Receiver Signal (B-)
FIRST LVDS Receiver Signal (B+)
FIRST
LVDS Receiver Signal (C-)
FIRST LVDS Receiver Signal (C+)
Ground
FIRST LVDS Receiver Clock Signal(-)
FIRST LVDS Receiver Clock Signal(+)
Ground
FIRST LVDS Receiver Signal (D-)
FIRST LVDS Receiver Signal (D+)
No Connection or Ground
www.panelook.com
Product Specification
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
-- -
R2AN
R2AP
R2BN
R2BP
R2CN
R2CP
GND
R2CLKN
R2CLKP
GND
R2DN
R2DP
NC or GND
NC or GND
GND Ground (Note 6)
GND Ground
GND Ground
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
LC550EUN
NC No connection
SECOND LVDS Receiver Signal (A-)
SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)
SECOND LVDS Receiver Signal (B+)
SECOND LVDS Receiver Signal (C-)
SECOND LVDS Receiver Signal (C+)
Ground
SECOND LVDS Receiver Clock Signal(-)
SECOND LVDS Receiver Clock Signal(+)
Ground
SECOND LVDS Receiver Signal (D-)
SECOND LVDS Receiver Signal (D+)
NC No connection
NC No connection
No Connection or Ground
No Connection or Ground
NC No connection
Note
1. All GND(ground) pins should be connected together to the LCD modules metal frame.
2. All V
LCD (power input) pins should be connected together.
3. All Input levels of LVDS signals are based on the EIA 644 Standard.
4. #1~#6 & #9 NC (No Connection): These pins are used only for LGD (Do not connect)
5. Specific pins(pin No. #10) are used for OPC function of the LCD module.
If not used, these pins are no connection. (Please see the Appendix VI for more information.)
6. Specific pin No. #44 is used for No signal detection of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is H, LCD Module displays AGP(Auto Generation Pattern).
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7 /38
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
3-2-2. Backlight Module
Master
-LED Driver Connector
: 20022WR - H14B2(Yeonho) or Compatible
- Mating Connector
: 20022HS - 14B2 (Yeonho) or Compatible
Table 5-1. LED DRIVER CONNECTOR PIN CONFIGURATION
Pin No Symbol Description Note
LC550EUN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
GND Backlight Ground
GND Backlight Ground
GND Backlight Ground
GND Backlight Ground
GND Backlight Ground
Status Back Light Status 2
ON/OFF
V
NC Dont care
NC Dont care
Backlight ON/OFF control 3
Notes :1. GND should be connected to the LCD modules metal frame.
2. Normal : Low (under 0.7V) / Abnormal : Open
3. Each impedance of pin #12 is over 50 [K] .
1
Status
Rear view of LCM
PCB
1
14
1
14
<Master>
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8 /38
www.panelook.com
Global LCD Panel Exchange Center
3-3. Signal Timing Specifications
Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.
Table 6. TIMING TABLE (DE Only Mode)
ITEM Symbol Min Typ Max Unit Note
www.panelook.com
LC550EUN
Product Specification
Horizontal
Vertical
Frequency
Display
Period
Blank t
Total t
Display
Period
Blank t
Total t
ITEM Symbol Min Typ Max Unit Note
DCLK f
Horizontal f
Vertical f
t
HV 960 960 960 tCLK 1920 / 2
HB 100 140 240 tCLK 1
HP 1060 1100 1200 tCLK
VV 1080 1080 1080 Lines
t
VB
VP
CLK 63.00 74.25 78.00 MHz
H 57.3 67.5 70 KHz 2
V
20
(228)
1100
(1308)
57
(47)
45
(270)
1125
(1350)
60
(50)
69
(300)
1149
(1380)
63
(53)
Lines 1
Lines
Hz
NTSC
(PAL)
2
Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.
2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency
Timing should be set based on clock frequency.
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9 /38
www.panelook.com
Global LCD Panel Exchange Center
3-4. LVDS Signal Specification
3-4-1. LVDS Input Signal Timing Diagram
www.panelook.com
LC550EUN
Product Specification
DE, Data
DCLK
First data
Second data
0.7VDD
0.3VDD
tCLK
DE(Data Enable)
0.5 VDD
Invalid data
Invalid data
Valid data
Pixel 0,0
Valid data
Pixel 1,0
tHP
Pixel 2,0
Pixel 3,0
Invalid data
Invalid data
tHV
DE(Data Enable)
Ver. 1.0
1 1080
tVV
tVP
10 /38
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Description Symbol Min Max Unit Note
t
RF
t
eff
t
eff
Description Symbol Min Max Unit Note
3-4-2. LVDS Input Signal Characteristics
1) DC Specification
LVDS -
LVDS +
www.panelook.com
LC550EUN
Product Specification
# VCM= {( LVDS +) + ( LVDS - )}/2
0V
D
LVDS Common mode Voltage V
LVDS Input Voltage Range V
CM
V
CM
1.0 1.5 V -
IN
0.7 1.8 V -
V
IN _ MAXVIN _MIN
Change in common mode Voltage VCM - 250 mV -
2) AC Specification
T
clk
LVDS Clock
A
LVDS Data
(F
=1/T
)
clk
A
LVDS 1st Clock
LVDS 2nd/ 3rd/ 4thClock
tSKEW
tSKEW
t
SKEW_mintSKEW_max
clk
T
clk
80%
20%
t
RF
LVDS Differential Voltage
High Threshold
Low Threshold
LVDS Clock to Data Skew t
LVDS Clock/DATA Rising/Falling time t
Effective time of LVDS t
LVDS Clock to Clock Skew (Even to Odd) t
Note
1. All Input levels of LVDS signals are based on the EIA 644 Standard.
2. If t
isnt enough,
should be meet the range.
V
TH
V
TL
SKEW
RF
eff
SKEW_EO
3. LVDS Differential Voltage is defined within
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
100 300 mV
-300 -100 mV
- |(0.2*T
260 |(0.3*T
)/7| ps -
clk
)/7| ps 2
clk
|360| - ps -
- |1/7* T
|ps -
clk
3
11 /38
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC550EUN

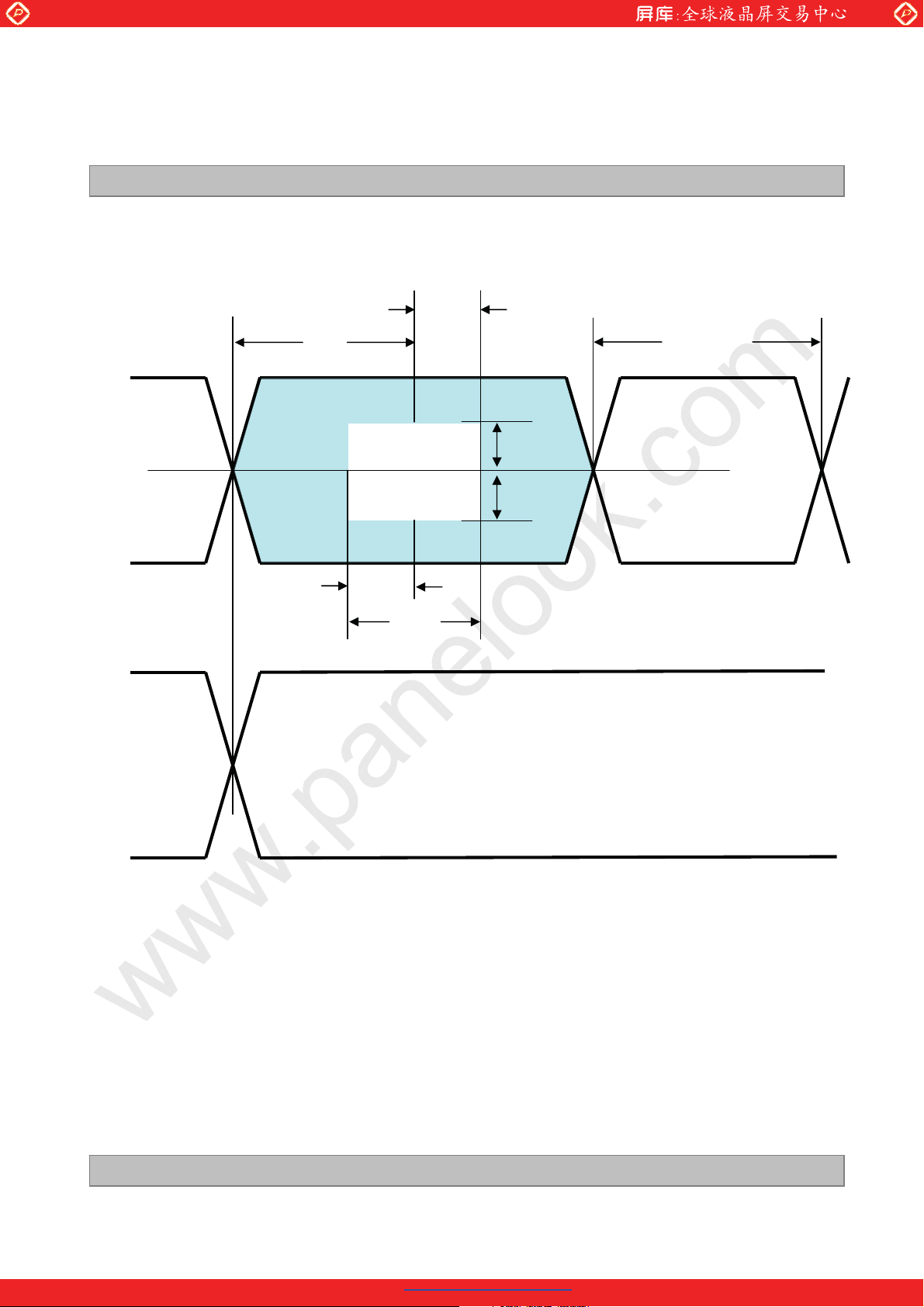

Product Specification
360ps
V+
data
Vdata
V+
clk
Vcm
Vcm
0.5tui
tui
VTH
VTL
360ps
teff
tui : Unit Interval
Vclk
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12 /38
www.panelook.com
Global LCD Panel Exchange Center
3-5. Color Data Reference
The brightness of each primary color(red,green,blue) is based on the 8bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.
Table 7. COLOR DATA REFERENCE
www.panelook.com
LC550EUN
Product Specification
Input Color Data
Basic
Color
RED
Color
RED
MSB LSB
MSB LSB
GREEN
BLUE
MSB LSB
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Cyan 00000000111111111111111 1
Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
White 11 111111111111111111111 1
RED (000) 0000000 0000000000000000 0
RED (001) 0000000 1000000000000000 0
... ... ... ...
RED (254) 1111111 0000000000000000 0
RED (255) 1111111 1000000000000000 0
GREEN (000) 0 0 0 0 0 0 0 0 0000000 00000000 0
GREEN (001) 0 0 0 0 0 0 0 0 0000000 10000000 0
GREEN
BLUE
... ... ... ...
GREEN (254) 0 0 0 0 0 0 0 0 1111111 00000000 0
GREEN (255) 0 0 0 0 0 0 0 0 1111111 10000000 0
BLUE (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0000000 0
BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0000000 1
... ... ... ...
BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1111111 0
BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1111111 1
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 /38
www.panelook.com
Global LCD Panel Exchange Center
Vcm
3-6. Power Sequence
3-6-1. LCD Driving circuit
www.panelook.com
LC550EUN
Product Specification
Power Supply For LCD
V
LCD
Interface Signal (Tx_clock)
0V
0V
User Control Signal
(LVDS_select, OPC Enable, ExtVBR-B)
Power for LED
Table 8. POWER SEQUENCE
Parameter
Min Typ Max
10%
90%
1
T
T6
T2
30%
100%
Value
Valid Data
T3 T4
LED ON
90%
T7
V
: LVDS Common mode Voltage
Unit Notes
10%
10%
T5
Note :
Ver. 1.0
T
1 0.5 - 20 ms 1
T
2 0--ms2
3 400 - - ms 3
T
T
4 200 - - ms 3
5 1.0 - - s 4
T
T
6 0-T2ms5
T
7 0--ms6
1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.
2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.
3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.
4. T5 should be measured after the Module has been fully discharged between power off and on period.
5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V
it will be happened abnormal display. When T6 is NC status, T6 doesn t need to be measured.
6. It is recommendation specification that T7 has to be 0ms as a minimum value.
Please avoid floating state of interface signal at invalid period.
When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.
LCD
),
14 /38
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center

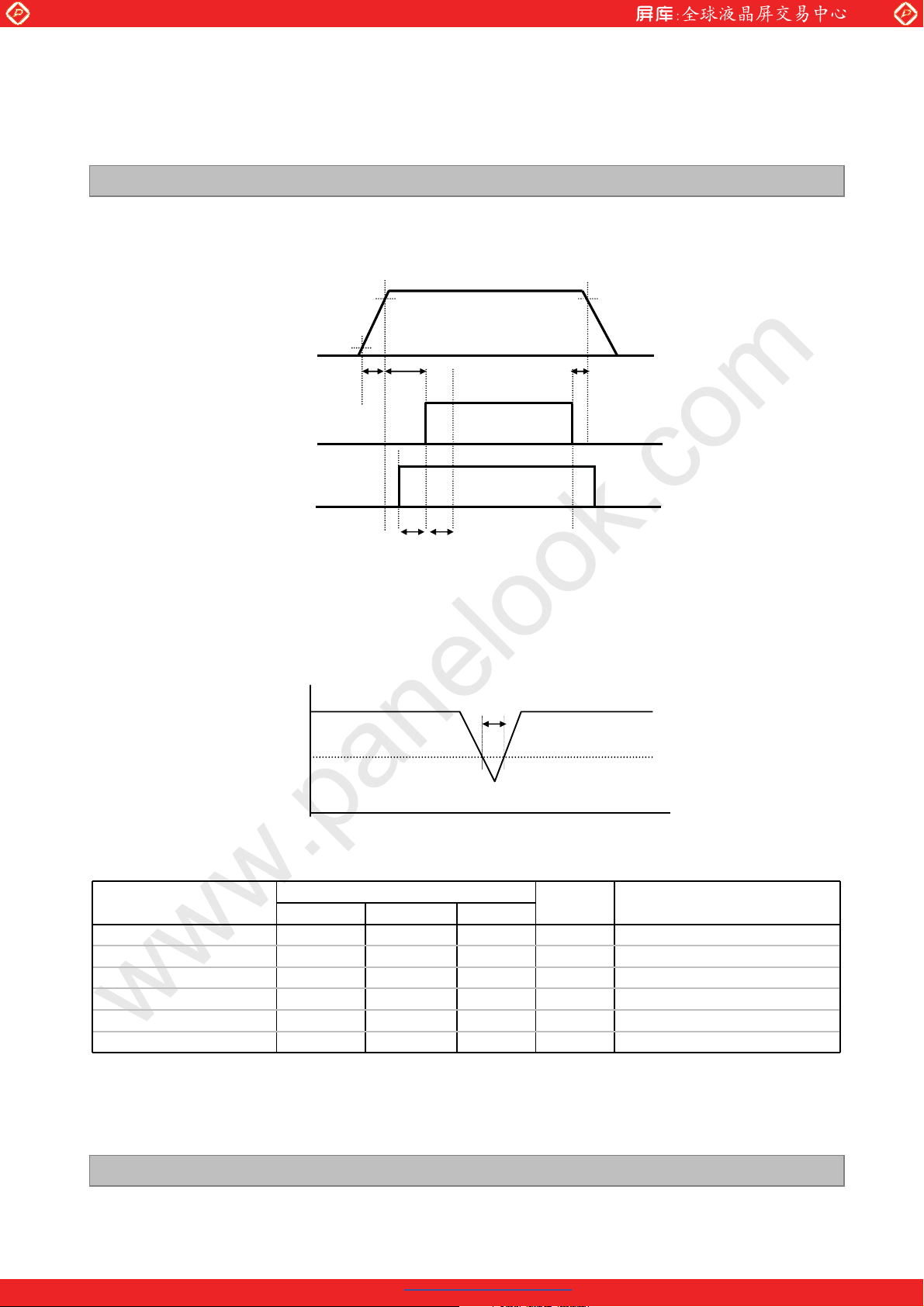

3-6-2. Sequence for LED Driver
Power Supply For LED Driver
VBL
0V
10%
www.panelook.com
Product Specification
24V (typ.)
90%
LC550EUN
90%
VON/OFF
ExtVBR-B
3-6-3. Dip condition for LED Driver
V
(Typ.) x 0.8
BL
T1 T2
T3
LED ON
T4 T6
T5
VBL: 24V
0 V
Table 9. Power Sequence for LED Driver
Parameter
T1 20 - - ms 1
T2 500 - - ms
T3 10 - - ms
T4 0 - - ms
T5 - - 10 ms V
T6 500 - - ms 2
Min Typ Max
Values
Units Remarks
(Typ) x 0.8
BL
Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.
Even though T1 is over the specified value, there is no problem if I
2. In T6 section,
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
ExtVBR-B should be sustained from 5% to 100% .
2
T spec of fuse is satisfied.
15 /38
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification

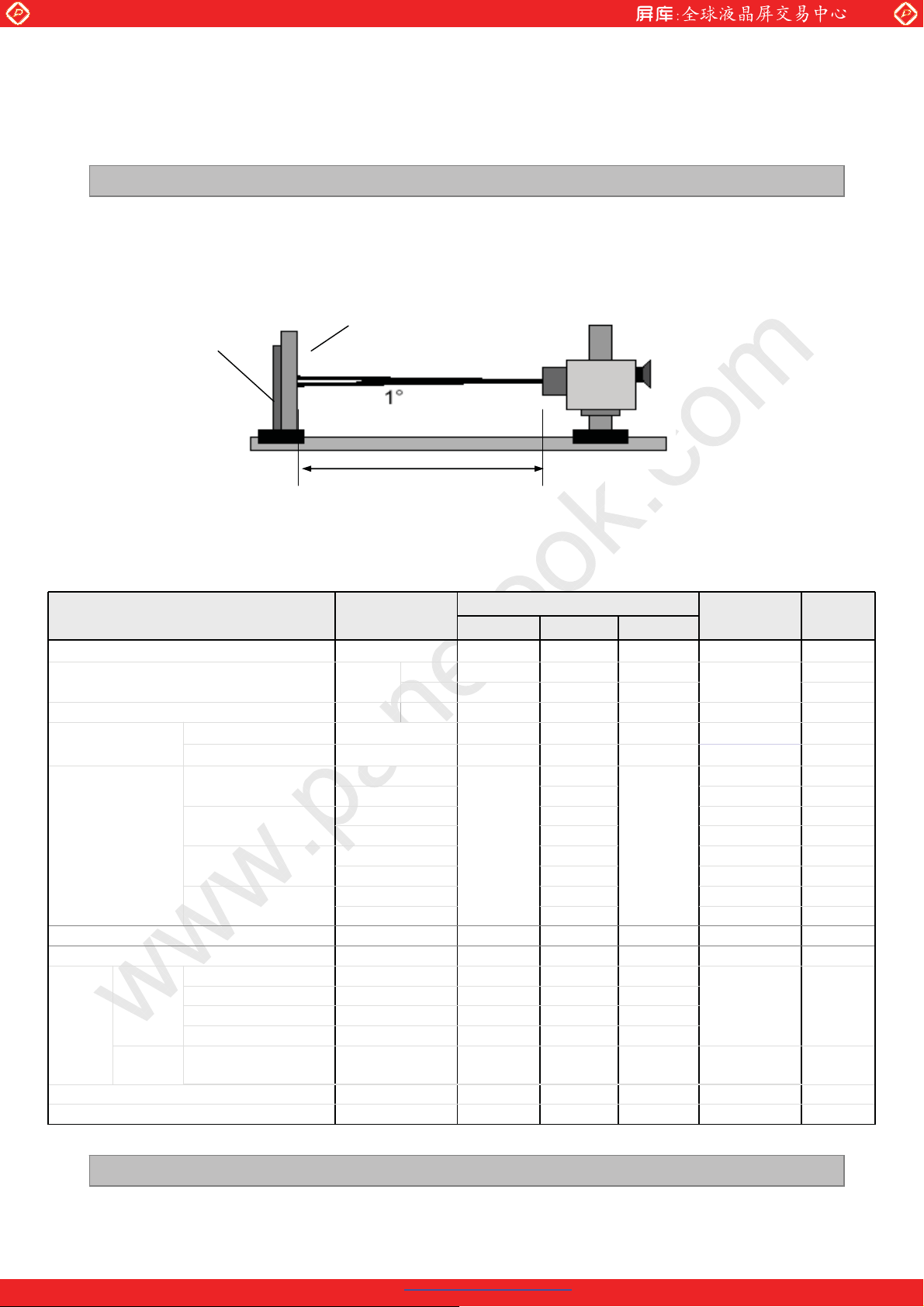

4. Optical Specification
Optical characteristics are determined after the unit has been ON and stable in a dark environment at 252C.
The values are specified at 50cm from the LCD surface at a viewing angle of Φ and θ equal to 0 .
FIG. 1 shows additional information concerning the measurement equipment and method.
LC550EUN
Optical Stage(x,y)
LCD Module
Pritchard 880 or
equivalent
50cm
FIG. 1 Optical Characteristic Measurement Equipment and Method
Table 10. OPTICAL CHARACTERISTICS
Ta= 252C, V
=12.0V, fV=60Hz, Dclk=74.25MHz,
LCD
BR-B =100%
EXTV
Value
Parameter Symbol
Contrast Ratio CR 1000 1400 - 1
Surface Luminance, white L
Luminance Variation
Response Time
Color Coordinates
[CIE1931]
Color Temperature
Color Gamut 68 %
Viewing
Angle
3D Crosstalk 3D C/T - 1 3 % 8
Gray Scale - 2.2 - 7
2D
(CR>10)
3D
(CT10%)
Variation G to G
Gray to Gray (BW) G to G BW
RED
GREEN
BLUE
WHITE
right(φ=0) θr (x axis)
left (φ=180) θl (x axis)
up (φ=90) θu (y axis)
down (φ=270) θd (y axis)
up + down
WH
δ
WHITE
θu (y axis)
2D 280 350
3D 104 130 7
5P 1.35 3
Rx
Ry
Gx
Gy
Bx
By
Wx
Wy
+θd (y axis)
Min Typ Max
6 95
8 12 ms 4
Typ
-0.03
89 - -
89 - -
89 - -
89 - -
16 20 - degree 8
0.281
0.288
10,000 K
Typ
+0.03
Unit Note
2
cd/m
degree 6
2
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 /38
www.panelook.com
Global LCD Panel Exchange Center
Note : 1. Contrast Ratio(CR) is defined mathematically as :
www.panelook.com
LC550EUN
Product Specification
Contrast Ratio =
Surface Luminance with all white pixels
Surface Luminance with all black pixels
It is measured at center 1-point.
2. Surface luminance are determined after the unit has been ON and 1 Hour after lighting the
backlight in a dark environment at 252C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.
3. The variation in surface luminance , δ WHITE is defined as :
δ WHITE(5P) = Maximum(L
Where L
on1
to L
are the luminance with all pixels displaying white at 5 locations .
on5
on1,Lon2
, L
on3
, L
on4
, L
) / Minimum(L
on5
on1,Lon2
, L
on3
, L
on4
, L
on5
)
For more information, see the FIG. 2.
4. Response time is the time required for the display to transit from any gray to white (Rise Time, Tr
and from any gray to black (Decay time, Tr
G to G
Spec stands for average value of all measured points.
BW
). For additional information see the FIG. 3.
D
Photo Detector : RD-80S / Field : 2
5. G to G
is Variation of Gray to Gray response time composing a picture
G to G () =
(Xi- u)
N
2
Xi = Individual Data
u = Data average
N : The number of Data
6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.
7. Gray scale specification
Gamma Value is approximately 2.2. For more information, see the Table 11.
8. 3D performance specification is expressed by 3D luminance and 3D viewing angle.
)
R
Table 11. Gray scale specification
Gray Level Luminance [%] (Typ)
L0 0.07
L15 0.27
L31 1.04
L47 2.49
L63 4.68
L79 7.66
L95 11.5
L111 16.1
L127 21.6
L143 28.1
L159 35.4
L175 43.7
L191 53.0
L207 63.2
L223 74.5
L239 86.7
L255 100
Ver. 1.0
17 /38
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Measuring point for surface luminance & measuring point for luminance variation.
www.panelook.com
LC550EUN
Product Specification
H
A
V
B
A : H / 4 mm

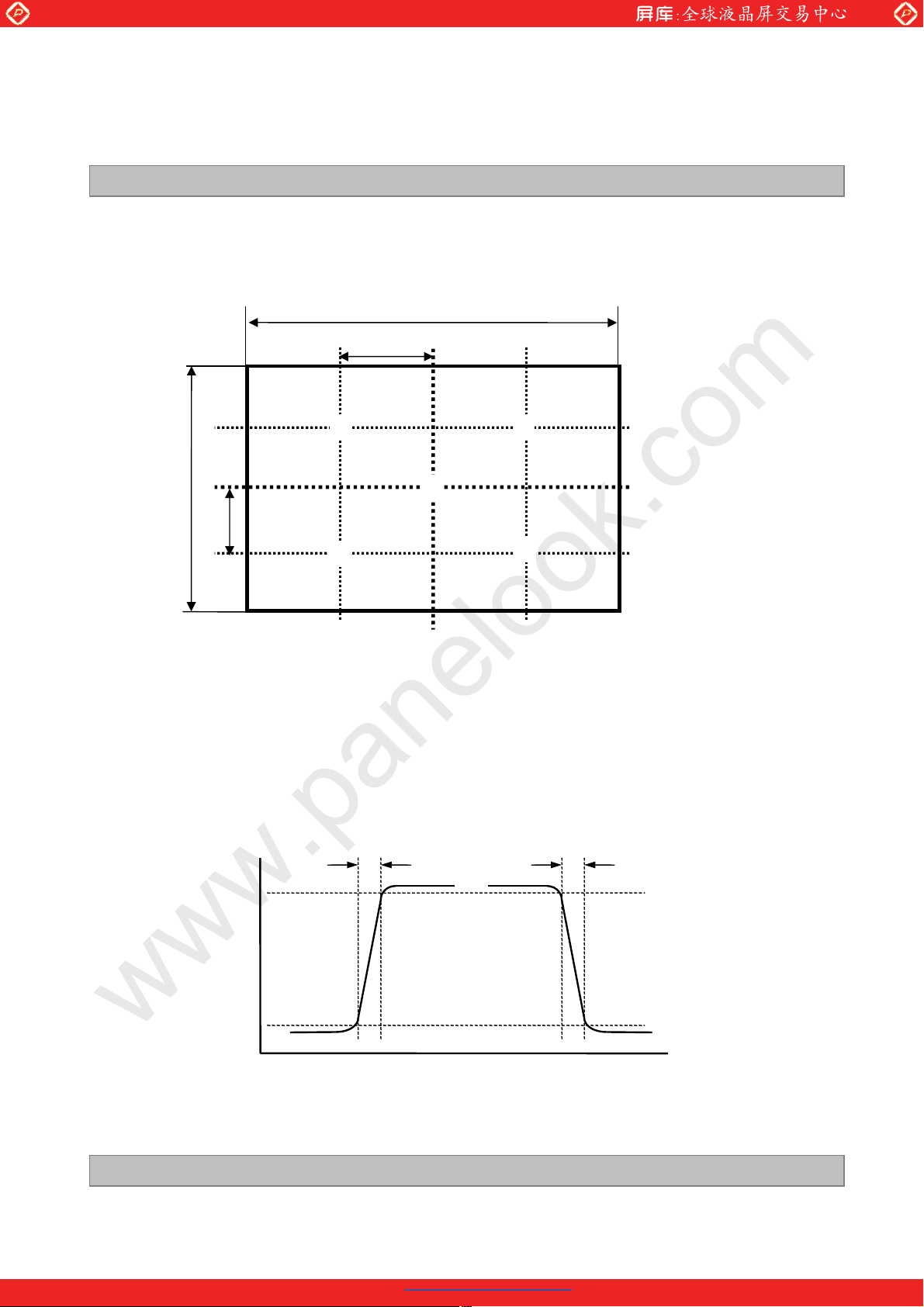

FIG. 2 5 Points for Luminance Measure
Response time is defined as the following figure and shall be measured by switching the input signal for
Gray(N) and Black or White.
Tr
100
90
Tf
B : V / 4 mm
@ H,V : Active Area
Optical
Response
10
0
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Gray(N)
White
N = 0(Black)~255(White)
FIG. 3 Response Time
Gray(N)
Black
18 /38
www.panelook.com
Global LCD Panel Exchange Center

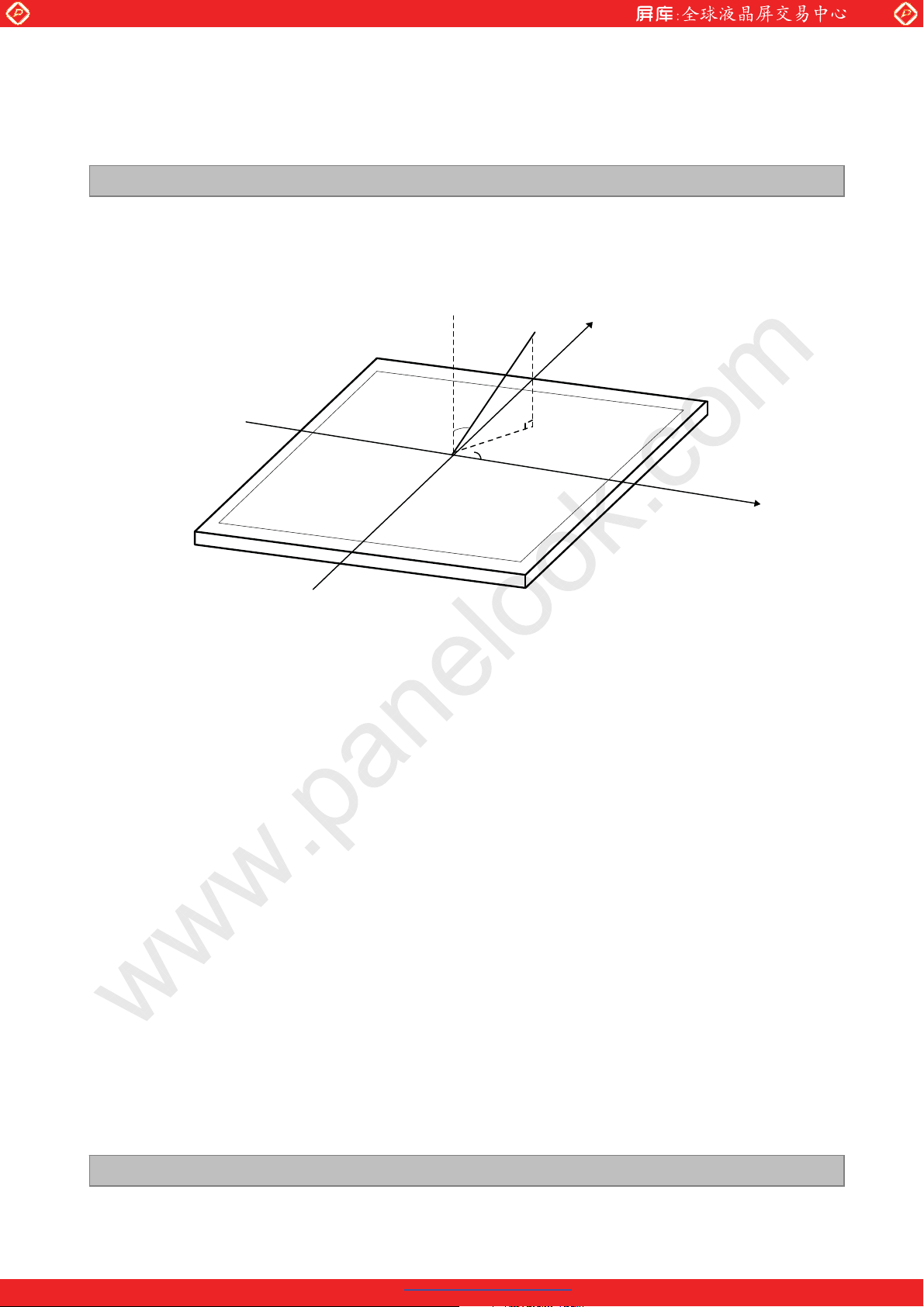

Dimension of viewing angle range
www.panelook.com
LC550EUN
Product Specification
φ
= 180°, Left
φ
= 270°, Down
Normal
θ
φ
FIG. 4 Viewing Angle
E
Y
φ
= 90°, Up
φ
= 0°, Right
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 /38
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC550EUN
Product Specification
LW-RW
LW-RB
LB-RW
LB-RB
(a) Test pattern image
< FIG. 7. Positioning eyeglass >
2
6
45
7
1
9
3
8
3D display
(b) Measurement
position

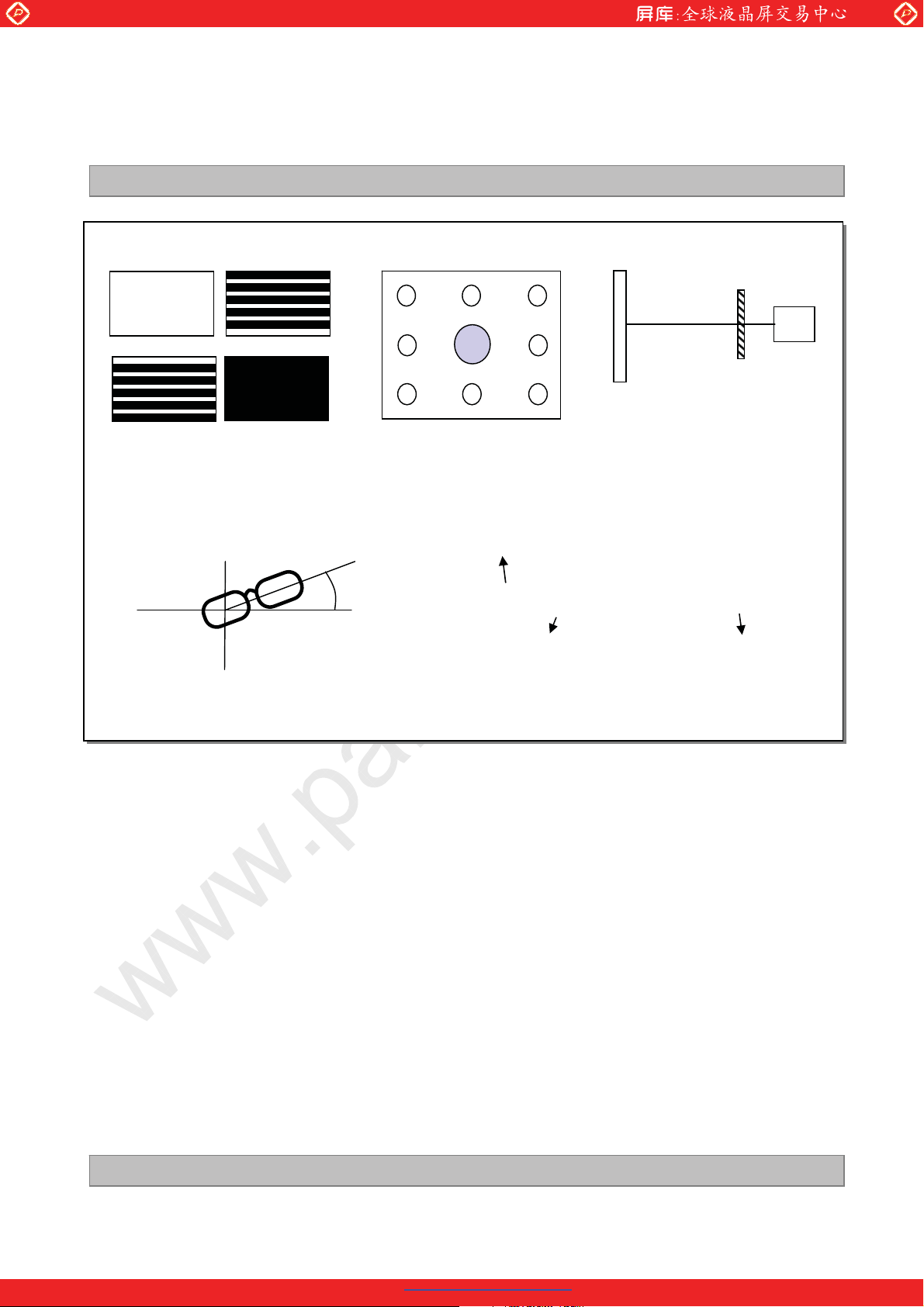

< FIG. 6. Measurement configuration>
Luminance
θ
Lum( LE or RE, test pattern, number )
Measurement through
Left or Right eyeglass
< FIG. 8. notation of luminance measurement >
LMS
Right or left eyeglass
( Circular polarizer )
(c) Setup
measurement
position
In order to measure 3D luminance, 3D crosstalk and 3D viewing angle, it need to be prepared as below;
1) Measurement configuration
4-Test pattern images. Refer to FIG 6.
-. LW-RW : White for left and right eye
-. LW-RB : White for left eye and Black for right eye
-. LB-RW : Black for left eye and white for right eye
-. LB-RB : Black for left eye and right eye
Image files where black and white lines are displayed on even or odd lines.
Luminance measurement system (LMS) with narrow FOV (field of view) is used. Refer to FIG 1.
2) Positioning Eyeglass (refer to appendix-VII for standard specification of eyeglass)
Find angle of minimum transmittance.
This value would be provided beforehand or measured by the following steps;
(i) Test image (LB-RW) is displayed.
(ii) Left eyeglass are placed in front of LMS and luminance is measured,
rotating right eyeglass such as FIG 7. The notation for luminance measurement is Lum(LE, LB-RW,1).
(iii) Find the angle where luminance is minimum.
* Following measurements should be performed at the angle of minimum transmittance of eyeglass.
Ver. 1.0
20 /38
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3) Measurement of 3D luminance
(i) Test image ( LW-RW ) is displayed.
(ii) Left or right eyeglass are placed in front of LMS successively and
luminance is measured at center 1 point where the notation for luminance measurement is
Lum(LE, LW-RW,1) or Lum(RE, LW-RW,1).
4) Measurement of 3D crosstalk
(i) Test image ( LB-RW, LW-RB and LB-RB ) is displayed.
(ii) Right or left eyeglass are placed in front of LMS successively and
luminance is measured for position 1.
with rotating LMS or sample vertically.
or
www.panelook.com
LC550EUN
Product Specification
Lum(LE, LB-RW,1) - Lum(LE, LB-RB,1)
Lum(LE, LW-RB,1) - Lum(LE, LB-RB,1)
Lum(RE, LW-RB,1) - Lum(RE, LB-RB,1)
Lum(RE, LB-RW,1) - Lum(RE, LB-RB,1)
5) Measurement of 3D Viewing Angle
3D viewing angle is the angle at which the 3D crosstalk is under 10%. The angles are
determined for the vertical or y axis with respect to the z axis which is normal to the LCD
module surface and measured for position 1. For more information , see the Fig 9
stz
z axis
stz
siTy~ s~Tyi
siTyi
(a) Test pattern image
y axis
yu(up)
LCM
(b) Measurement of 3D viewing angle (up/down)
yd (down)
stz

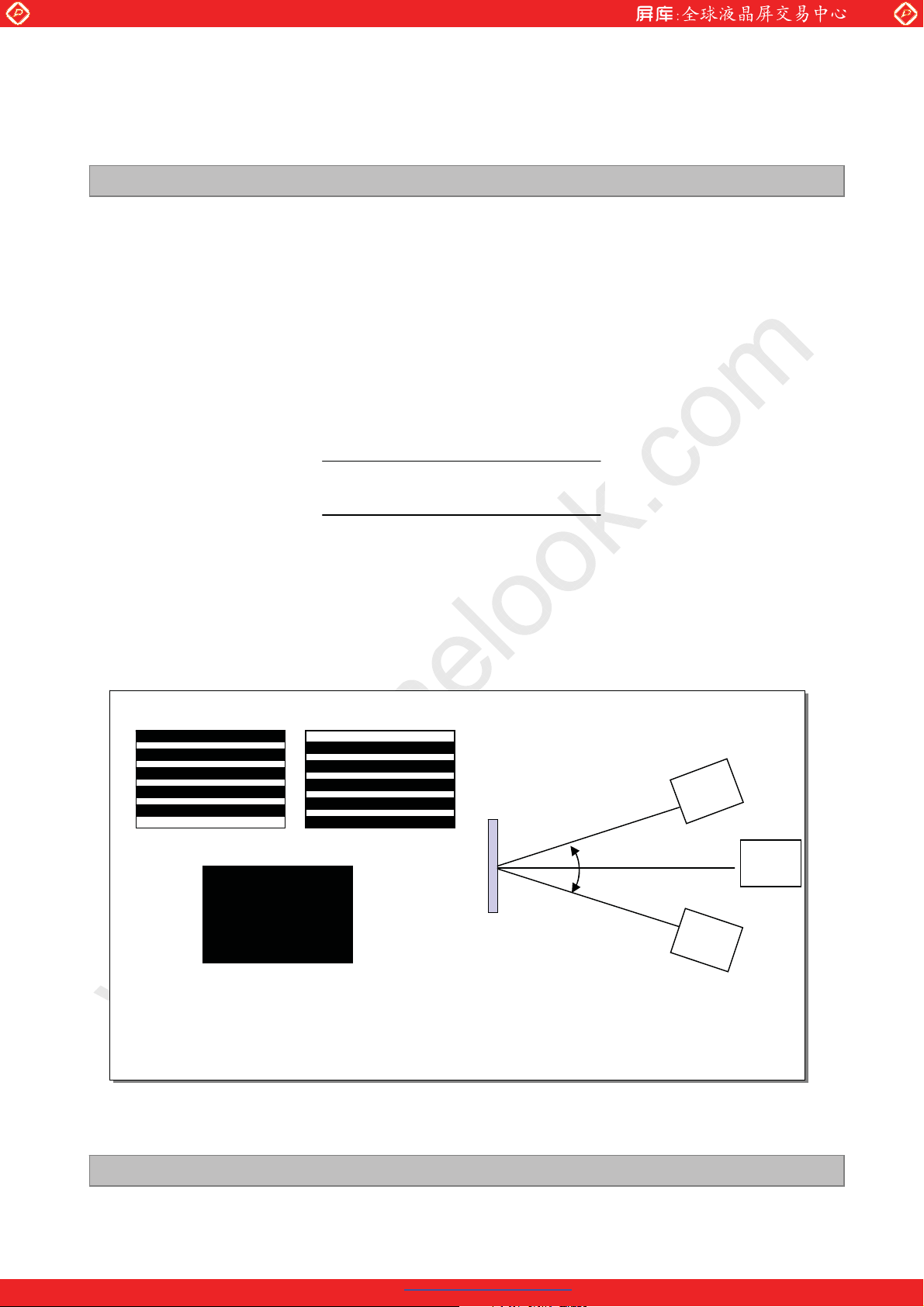

< FIG. 9. Measurement of 3D crosstalk and 3D viewing angle >
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 /38
www.panelook.com
Global LCD Panel Exchange Center
5. Mechanical Characteristics
Table 12 provides general mechanical characteristics.
Table 12. MECHANICAL CHARACTERISTICS
Item Value
www.panelook.com
LC550EUN
Product Specification
Outline Dimension
Bezel Area
Active Display Area
Weight
Horizontal
Vertical
Depth
Horizontal
Vertical
Horizontal
Vertical
16.5 Kg (Typ.), 17.5 kg (Max.)
1244.6 mm
720.9 mm
9.9 mm
1217.6 mm
688.4 mm
1209.6 mm
680.4 mm
Note : Please refer to a mechanical drawing in terms of tolerance at the next page.
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 /38
www.panelook.com
Global LCD Panel Exchange Center
[ FRONT VIEW ]
www.panelook.com
LC550EUN
Product Specification
SET : TOP
Ver. 1.0
SET : DOWN
23 /38
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
[ REAR VIEW ]
www.panelook.com
LC550EUN
Product Specification
Set : Top
Set : Down
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 /38
www.panelook.com
Global LCD Panel Exchange Center
6. Reliability
Table 13. ENVIRONMENT TEST CONDITION
No. Test Item Condition
1 High temperature storage test Ta= 60C 240h
2 Low temperature storage test Ta= -20C 240h
3 High temperature operation test Ta= 50C 50%RH 240h
4 Low temperature operation test Ta= 0C 240h
www.panelook.com
LC550EUN
Product Specification
Wave form : random
Vibration test
5
(non-operating)
Shock test
6
(non-operating)
7 Humidity condition Operation Ta= 40 C ,90%RH
Altitude operating
8
storage / shipment
Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z,
Each direction per 10 min
Shock level : 30Grms
Waveform : half sine wave, 11ms
Direction : X, Y, Z
One time each direction
0 - 16,400 ft
0 - 40,000 ft
Note : Before and after Reliability test, LCM should be operated with normal function.
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 /38
www.panelook.com
Global LCD Panel Exchange Center
7. International Standards
7-1. Safety
a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
c) EN 60065:2002 + A11:2008, European Committee for Electrotechnical Standardization (CENELEC).
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
(Including report of IEC60825-1:2001 clause 8 and clause 9)
Notes
1. Laser (LED Backlight) Information
www.panelook.com
LC550EUN
Product Specification
&ODVV 0 /(' 3URGXFW
,(&
(PEHGGHG /(' 3RZHU &ODVV0
2. Caution
: LED inside.
Class 1M laser (LEDs) radiation when open.
Do not open while operating.
7-2. EMC
a) ANSI C63.4 American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.
American National Standards Institute (ANSI), 2003.
b) CISPR 22 Information technology equipment Radio disturbance characteristics Limit and
methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.
c) CISPR 13 Sound and television broadcast receivers and associated equipment Radio disturbance
characteristics Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.
7-3. Environment
a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 /38
www.panelook.com
Global LCD Panel Exchange Center
8. Packing
8-1. Information of LCM Label
a) Lot Mark
ABCDEFGHI JKLM
A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.
www.panelook.com
LC550EUN
Product Specification
Note
1. YEAR
Year
Mark
CBA
2014E2015
D
201320122011
2016G2017H2018J2019
F
2. MONTH
Month
Mark
Apr5May
4
Jun
6
Jul8Aug9Sep
7
b) Location of Lot Mark
Serial NO. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one Pallet : 18 pcs
b) Pallet Size : 1440 mm(W) X 1140 mm(D) X 950 mm(H)
2020
K
Oct
A
Nov
B
DecMarFebJan
C321
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 /38
www.panelook.com
Global LCD Panel Exchange Center
9. Precautions
Please pay attention to the followings when you use this TFT LCD module.
9-1. Mounting Precautions
(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to
the module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
www.panelook.com
LC550EUN
Product Specification
9-2. Operating Precautions
(1) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(2) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer
(3) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(4) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(5) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
(6) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM cant be operated
its full characteristics perfectly.
(7) A screw which is fastened up the steels should be a machine screw.
(if not, it can causes conductive particles and deal LCM a fatal blow)
(8) Please do not set LCD on its edge.
(9) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal
display, sound noise and temperature rising.
Ver. 1.0
28 /38
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
9-3. Electrostatic Discharge Control
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And dont touch interface pin directly.
9-4. Precautions for Strong Light Exposure
Strong light exposure causes degradation of polarizer and color filter.
9-5. Storage
When storing modules as spares for a long time, the following precautions are necessary.
www.panelook.com
LC550EUN
Product Specification
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature
between 5C and 35C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be
recovered when the LCD module returns to the normal condition.
9-6. Operating condition guide
(1) The LCD product should be operated under normal conditions. Normal condition is defined as below;
- Temperature : 5 ~ 40 , normal humidity
- Display pattern : continually changing pattern (Not stationary)
(2) If the product will be used in extreme conditions such as high temperature, display patterns or operation
time etc..,
It is strongly recommended to contact LGD for Qualification engineering advice. Otherwise, its reliability
and function may not be guaranteed. Extreme conditions are commonly found at Airports, Transit Stations,
Banks, Stock market, and Controlling systems. The LCD product should be applied by global standard
environment. (refer ETSI EN 300, IEC 60721)
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29 /38
www.panelook.com
Global LCD Panel Exchange Center

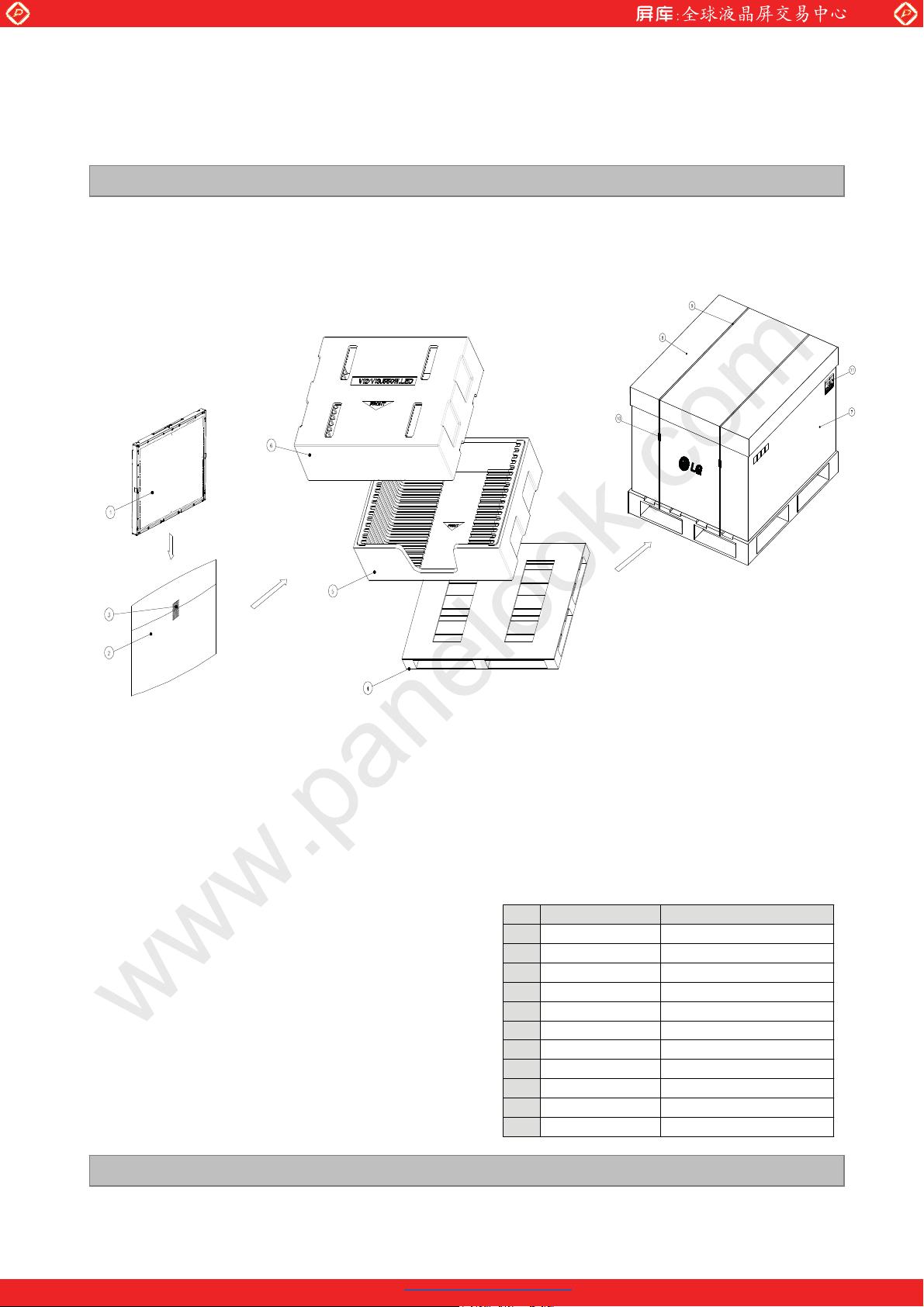

# APPENDIX-I
Pallet Assy
Pallet Assy
www.panelook.com
LC550EUN
Product Specification
NO DESCRIPTION MATERIAL
1 LCD Module -
2 BAG 55INCH
3 TAPE MASKING 20MM X 50M
4 PALLET Plywood (1440X1140X134.5)
5 PACKING_BOTTOM EPS
6 PACKING_TOP EPS
7 ANGLE PACKING PAPER
8 ANGLE COVER PAPER
9 BAND PP
10 BAND,CLIP STEEL
11 LABEL YUPO PAPER 80G 100X70
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30 /38
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-1
LCM Label
www.panelook.com
LC550EUN
Product Specification
Model
UL, TUV Mark
LGD Logo
LC550EUN
(SF)(F1)
Serial No.
Origin
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31 /38
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-2
Pallet Label
www.panelook.com
LC550EUN
Product Specification
LC550EUN
SFF1
18 PCS
MADE IN KOREA
001/01-01
XXXXXXXXXXXXX XXX
RoHS Verified
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32 /38
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- III-1

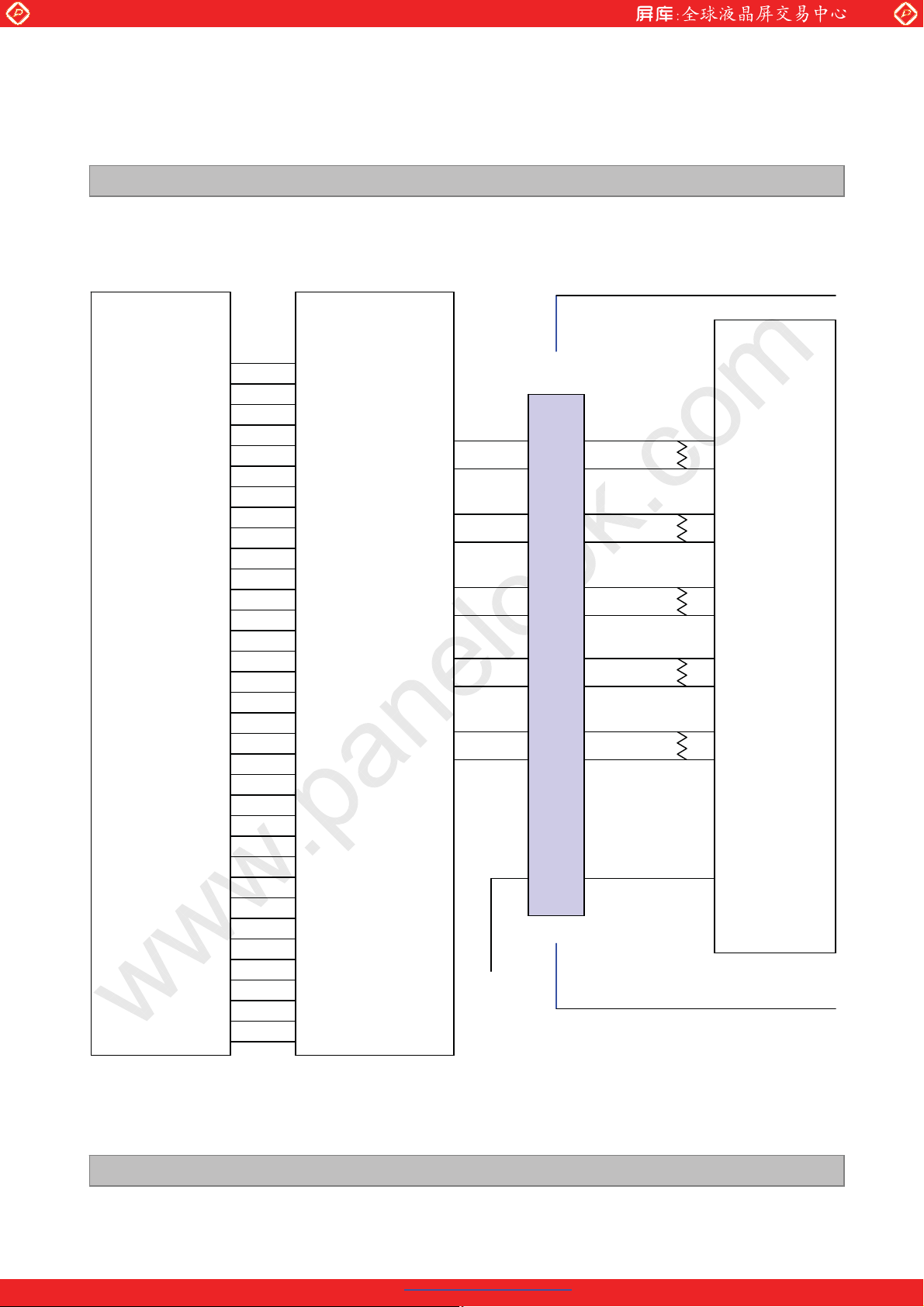

Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= L or NC)
www.panelook.com
LC550EUN
Product Specification
Host System
24 Bit
RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
Hsync
Vsync
Data Enable
CLOCK
THC63LVD103
or Compatible
33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12
TCLK-
TCLK+
TA-
TA+
TB-
TB+
TC-
TC+
TD-
TD+
31
30
29
28
25
24
23
22
21
20
FI-RE51S-HF
GND
12
13
14
15
16
17
19
20
22
23
7
100
100
100
100
100
LCM Module
Timing
Controller
RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCLKN
ROCLKP
RO3N
RO3P
VESA/ JEIDA
Note: 1. The LCD module uses a 100 Ohm[] resistor between positive and negative lines of each receiver
input.
2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)
3. 7 means MSB and 0 means LSB at R,G,B pixel data.
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
33 /38
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- III-2

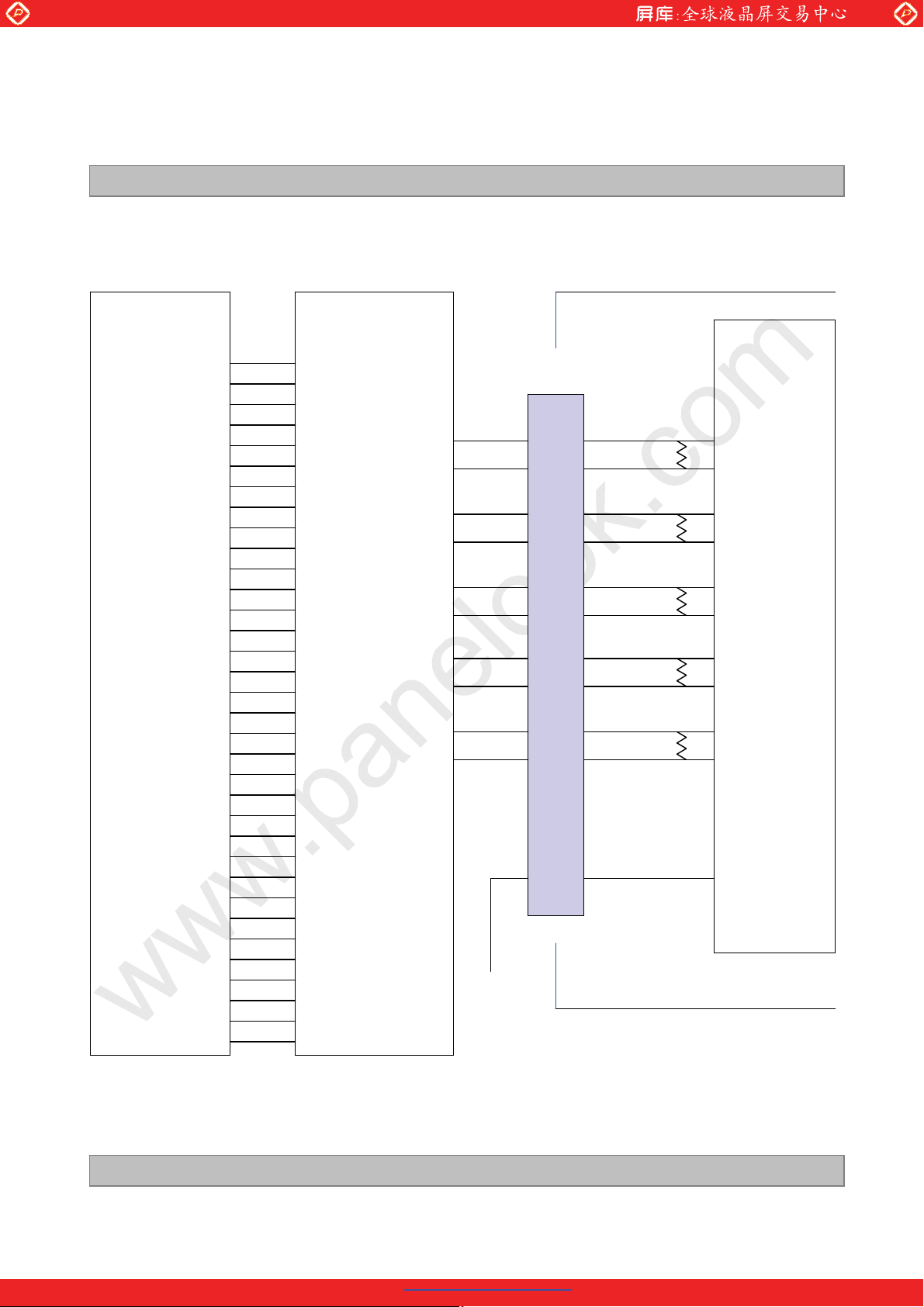

Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= H )
www.panelook.com
LC550EUN
Product Specification
Host System
24 Bit
RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
Hsync
Vsync
Data Enable
CLOCK
THC63LVD103
or Compatible
4
5
59
61
33
34
35
36
37
38
6
8
62
63
40
41
42
44
45
46
9
11
64
1
48
49
50
52
53
54
55
57
58
12
TCLK-
TCLK+
TA-
TA+
TB-
TB+
TC-
TC+
TD-
TD+
31
30
29
28
25
24
23
22
21
20
VCC
FI-RE51S-HF
12
13
14
15
16
17
19
20
22
23
7
100
100
100
100
100
LCM Module
Timing
Controller
RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCLKN
ROCLKP
RO3N
RO3P
VESA /JEIDA
Note :1. The LCD module uses a 100 Ohm[] resistor between positive and negative lines of each receiver
input.
2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)
3. 7 means MSB and 0 means LSB at R,G,B pixel data.
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
34 /38
www.panelook.com
Global LCD Panel Exchange Center

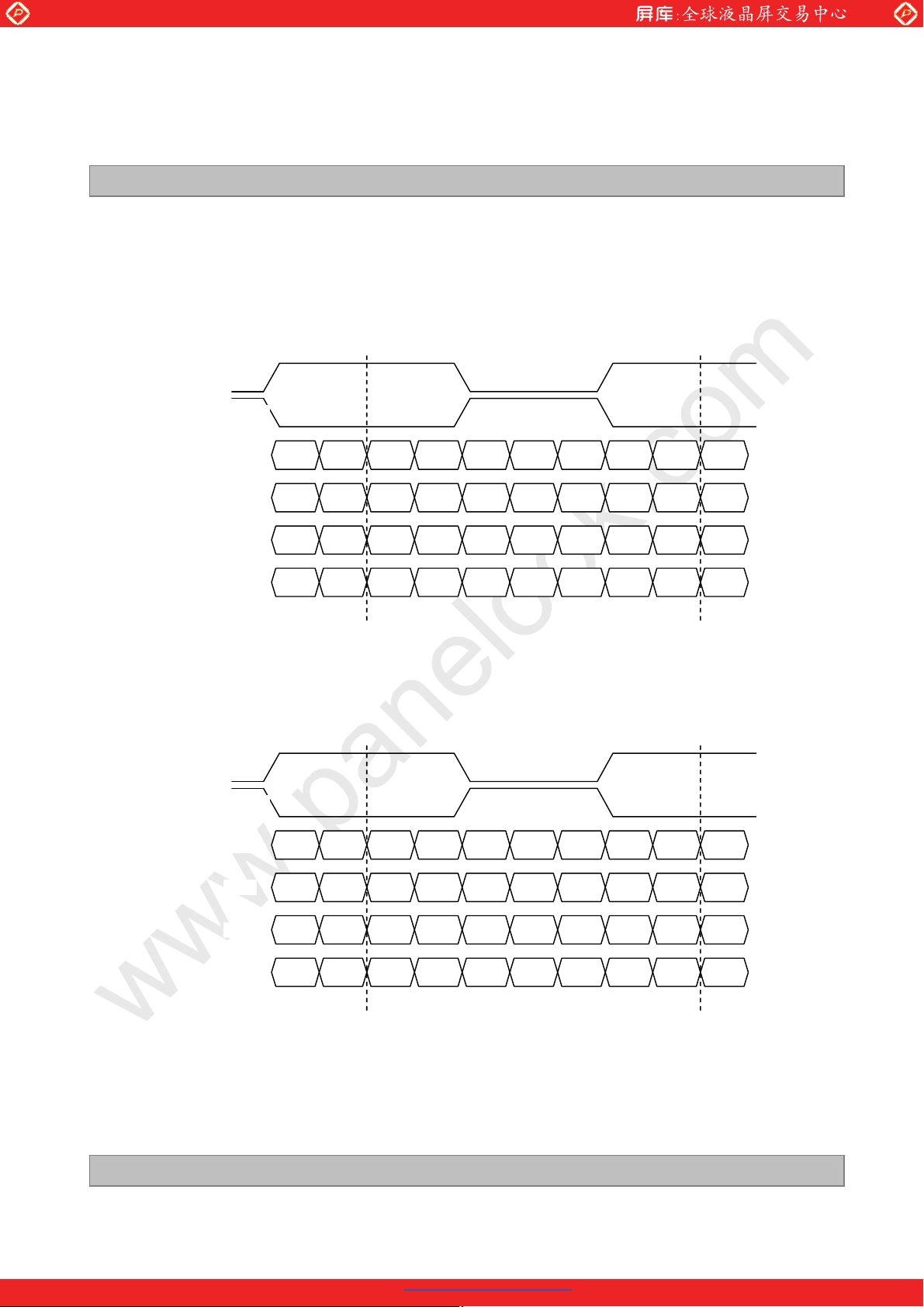

# APPENDIX- IV
LVDS Data-Mapping Information (8 Bit )
1) LVDS Select : H Data-Mapping (JEIDA format)
RCLKP
RCLKM
www.panelook.com
LC550EUN
Product Specification
RAP
RBP
RCP
RDP
2) LVDS Select : L Data-Mapping (VESA format)
RCLKP
RCLKM
RAP
RBP
R17 R16 R15 R14G12 R13R12 R12R13 G12
B12 G17 G16 G15B13 G14G13 G13G14 B13
V
SYNCHSYNC
B11 B10 G11 G10X R11R10 R10R11 X
R15 R14 R13 R12G10 R11R10 R10R11 G10
B10 G15 G14 G13B11 G12G11 G11G12 B15
B17 B16DE B15B14 B14B15 DE
RCP
RDP
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
V
SYNCHSYNC
B17 B16 G17 G16X R17R16 R16R17 X
B15 B14DE B13B12 B12B13 DE
35 /38
www.panelook.com
Global LCD Panel Exchange Center

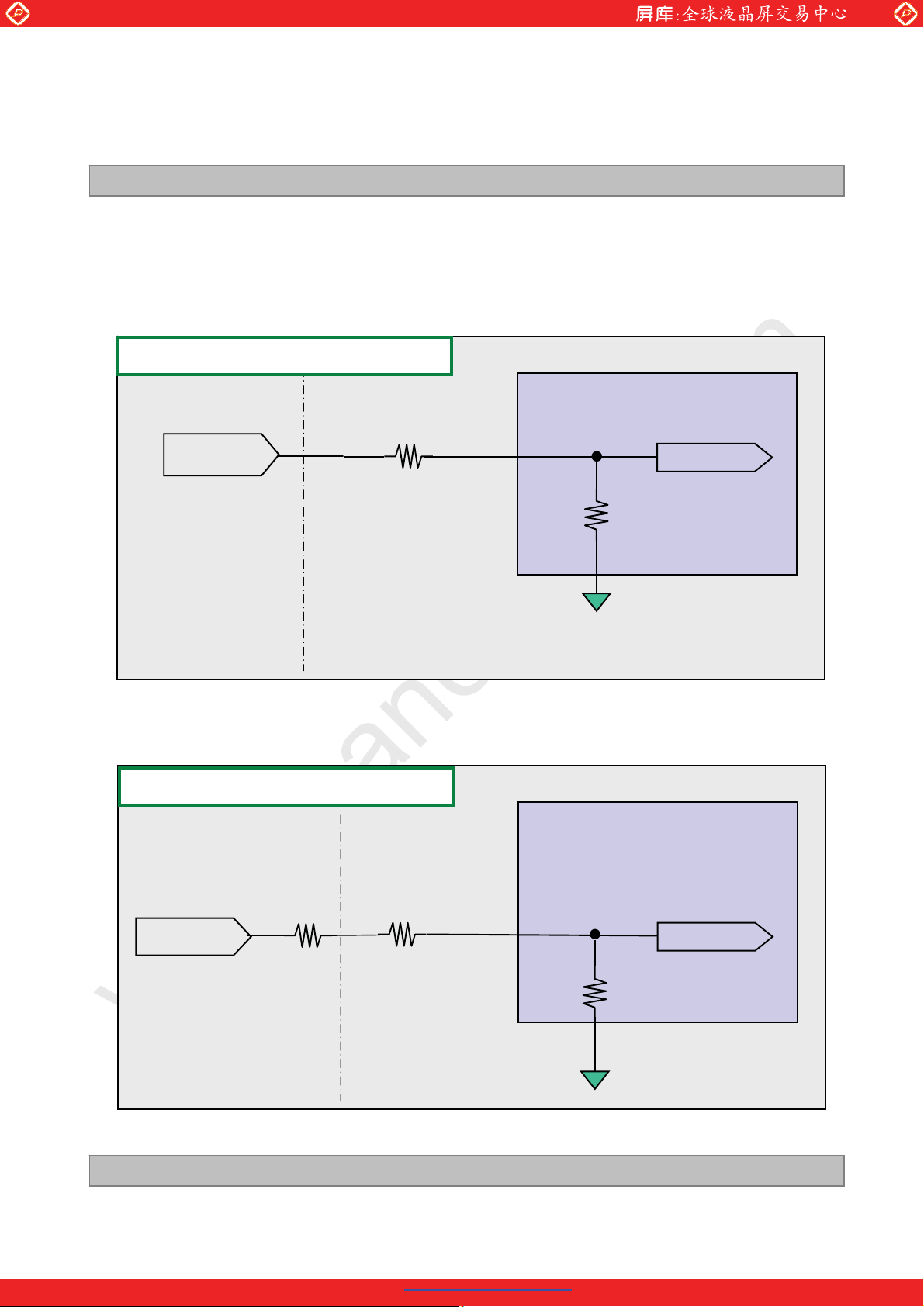

# APPENDIX- V
Option Pin Circuit Block Diagram
1) Circuit Block Diagram of LVDS Format Selection pin
LVDS Select Pin : Pin 7
LVDS Select
(Pin 7)
www.panelook.com
Product Specification
1K
LC550EUN
LVDS Select
System Side LCM Side
2) Circuit Block Diagram of OPC Enable Selection pin
OPC Enable Pin : Pin 10
1K
R1
OPC _Enable
(Pin 10)
50k
ASIC
(TCON)
OPC _Enable
50k
System Side
R11K
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
LCM Side
ASIC
(TCON)
36 /38
www.panelook.com
Global LCD Panel Exchange Center

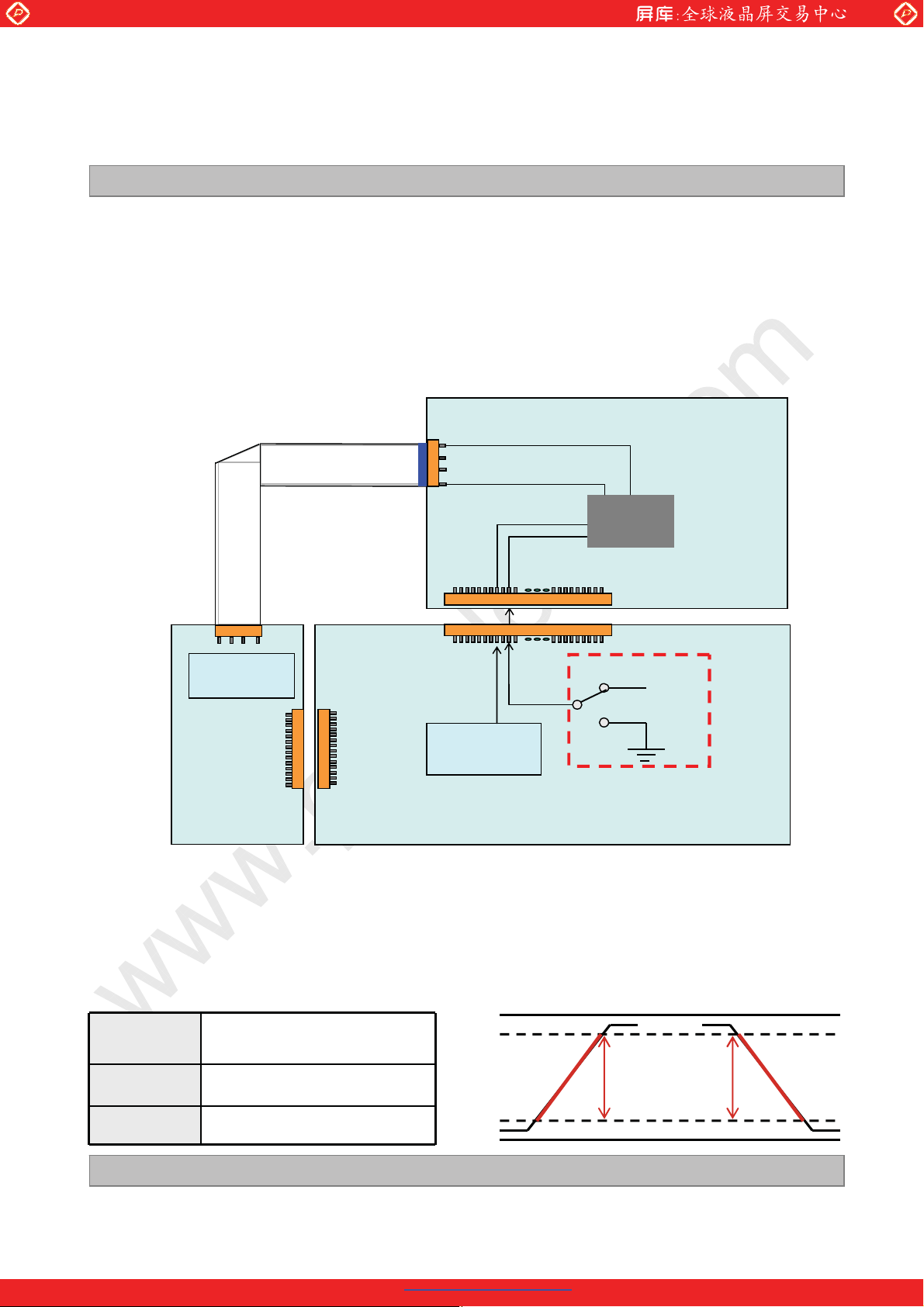

# APPENDIX- VI
Scanning and OPC Design Guide
When OPC Enable is L", OPC Output = System Dimming.
OPC Output( PWM Signal) is synchronized with V-Sync Freq. of System in T-Con Board.
(4pin)
#1 : PWM_TOUT #1
#2 : PWM_TOUT #2
#3 : PWM_TOUT #3
#4 : GND
www.panelook.com
LC550EUN
Product Specification
LCM T-con Board
#1
(51pin)
#8 : Ext_PWM
#10 : OPC_EN
#4
B/L Signal
Generation
Block
#1
LED
Driver
14pin
<With Driver Model>
PWM Specification ( VDD = 3.3V ) @ OPC
1. PWM High Voltage Range : 2.5V~3.6V
2. PWM Low Voltage Range : 0.0V~0.8V
#4
#1 51
CNT1 51pin
CNT4
System
Main IC
(PWM Generator)
T-Con
OPC On
3.3V
OPC Off
Chassis
VDD
EXTVBR-B
Frequency
Rising Time MAX 10.0 s
Falling Time MAX 10.0 s
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
50 Hz for PAL
60 Hz for NTSC
VDD*0.9
Rising Time
Falling Time
VDD*0.1
0
37 /38
www.panelook.com
Global LCD Panel Exchange Center

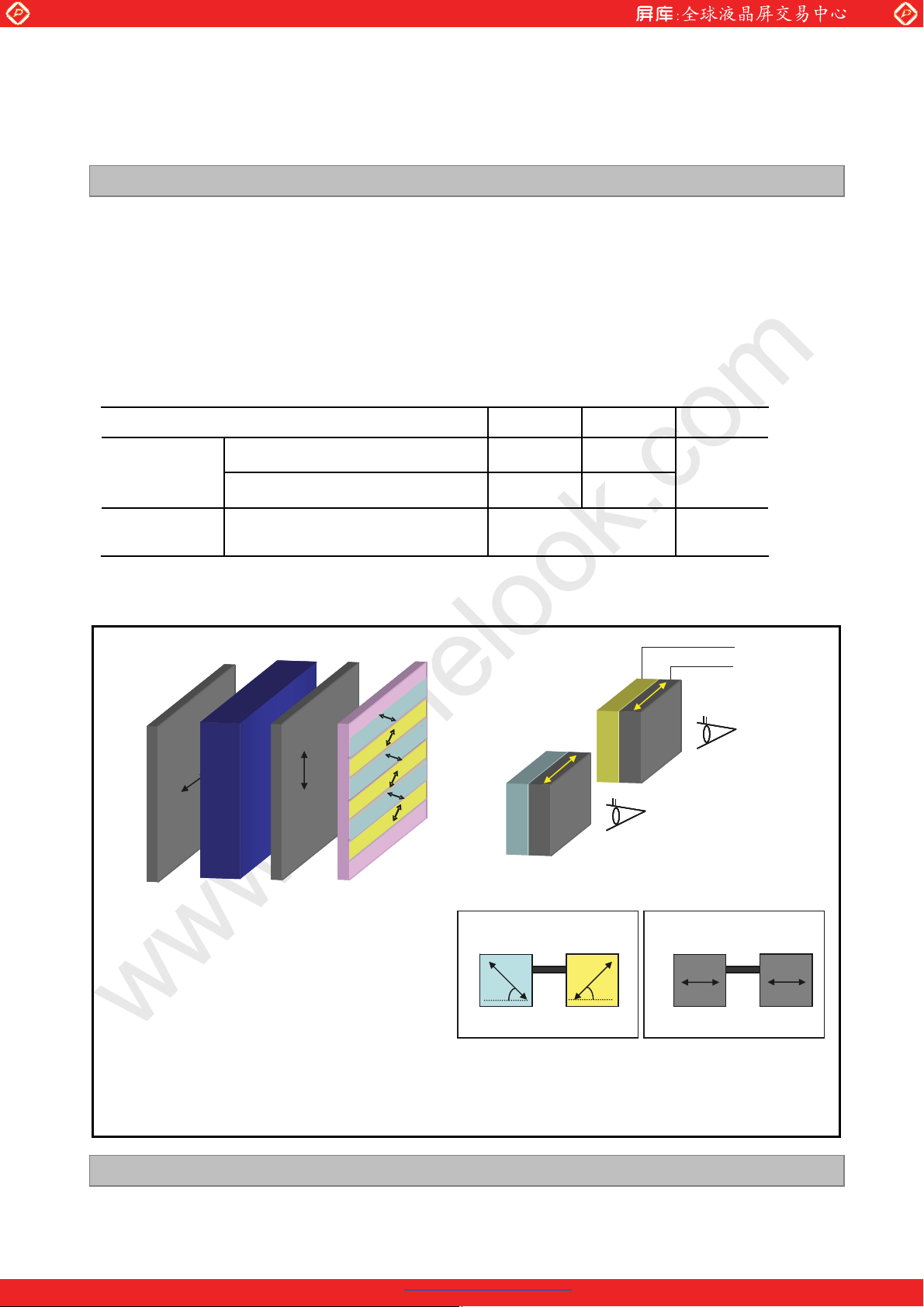

# APPENDIX- VII
Standard specification of Eyeglasses
This is recommended data of Eyeglasses for LC550EUN-SFF1 model. (details refer to table)
For each item, depending on the eyeglass manufacturer tolerances may occur, this tolerance can
affect 3D performance. (3D Crosstalk, 3D luminance, 3D viewing angle)
<Table. Standard specification of Eyeglasses>
Design item of Eyeglasses Left Right Remark
www.panelook.com
LC550EUN
Product Specification
Optical
axis
Retardation
value
a) Slow axis of retarder
b) Transmission axis of polarizer
Retarder 125nm @550nm
Recommended polarizer
Polarization efficiency: more than 99.90%
90
9090
Bottom
Bottom
POL
POL
0
00
Cell Patterned
Cell Patterned
Top
Top
POL
POL
Patterned
Patterned
retarder
retarder
retarder
retarder
-45
45
45
45
45
135
135
135
135
4545
-45 45
0 0
+/4
-/4
-/4
+/4
Left eye
Left eyeLeft eye
Refer to
drawing
Retarder
Retarder
Polarizer
Polarizer
Right eye
Right eyeRight eye
Direction from viewer
a) Slow axis of retarder
a) Slow axis of retarder
b) Transmission axis of polarizer
b) Transmission axis of polarizer
45
45
-45
-45
Left Right
Left Right
0
0
Left Right
Left Right
(b) Configuration of Eyeglasses
<Drawing. Information of optical axis>
Ver. 1.0
PDF created with pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
0
0
38 /38
www.panelook.com
Loading...
