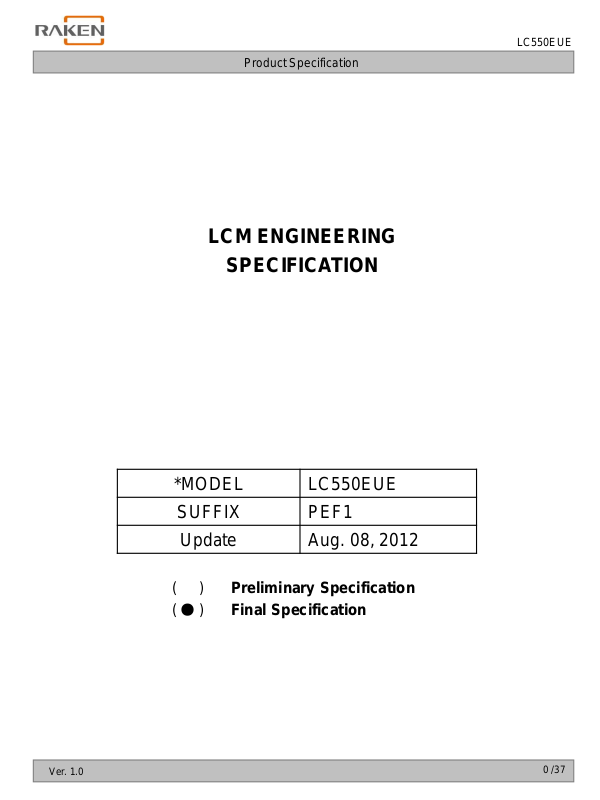

LG Display LC550EUE-PEF1 Specification
Product Specification
LCM ENGINEERING
SPECIFICATION
LC550EUE
Ver. 1.0
*MODEL LC550EUE
SUFFIX PEF1
Update Aug. 08, 2012
( ) Preliminary Specification
( ● ) Final Specification
0 /37
Product Specification
CONTENTS
LC550EUE
Number
1
2
3
3-1
3-2
3-3
3-4
3-5
3-6
4
5
6
COVER
CONTENTS
RECORD OF REVISIONS
GENERAL DESCRIPTION
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
INTERFACE CONNECTIONS
SIGNAL TIMING SPECIFICATIONS
LVDS SIGNAL SPECIFICATIONS
COLOR DATA REFERENCE
POWER SEQUENCE
OPTICAL SPECIFICATIONS
MECHANICAL CHARACTERISTICS
RELIABILITY
ITEM
Page
0
1
2
3
4
5
5
7
9
10
13
14
16
22
25
7
7-1
7-2
7-3
8
8-1
8-2
9
9-1
9-2
9-3
9-4
9-5
9-6 OPERATING CONDITION GUIDE
Ver. 1.0
INTERNATIONAL STANDARDS
SAFETY
EMC
ENVIRONMENT
PACKING
INFORMATION OF LCM LABEL
PACKING FORM
PRECAUTIONS
MOUNTING PRECAUTIONS
OPERATING PRECAUTIONS
ELECTROSTATIC DISCHARGE CONTROL
PRECAUTIONS FOR STRONG LIGHT EXPOSURE
STORAGE
26
26
26
26
27
27
27
28
28
28
29
29
29
29
1 /37
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
1.0 Aug. 08. 2012 - Preliminary Specification (First Draft)
LC550EUE
Ver. 1.0
2 /37
LC550EUE
Product Specification
1. General Description
The LC550EUE is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors.
It has been designed to apply the 10-bit 4-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI(RGB)
Control
Signals
Power Signals
Source Driver Circuit
S1 S1920
G1
TFT - LCD Panel
(1920 × RGB × 1080 pixels)
G1080
LVDS
2Port
LVDS
Select
OPC/TM
Enable
ExtVBR-B
+12.0V
CN1
(51pin)
LVDS 1,2
Option
signal
I2C
EEPROM
SCL
SDA
Timing Controller
LVDS Rx + OPC + DGA
Integrated
Power Circuit
Block
CN2
(4 pin)
PWM_OUT
1~3
Scanning
Block 1
CN1(8Pin), CN2 (8pin)
PWM
LED Anode
LED Cathode
General Features
Active Screen Size 54.64 inches(1387.80mm)diagonal
Outline Dimension 1229.4(H) X 711.8(V) X 9.6(B) X 20.7
Pixel Pitch 0.630mm x 0.630 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 10bit(D), 1.06Billon colors
Luminance, White 360 cd/m2 (Center 1point ,Typ.)
[Gate In Panel]
Scanning
Block 2
Scanning
Block 3
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption Total 107.7W (Typ.) (Logic=9.4Wwith T-CON, LED Backlight =98.3W)(TBD)
Weight 15.4Kg (Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(2H), Anti-glare treatment of the front polarizer (Haze < 1%)
Ver. 1.0
3 /37
LC550EUE
Product Specification
2. Absolute Maximum Ratings
The followingitems are maximumvalueswhich, if exceeded, may cause faulty operation or permanentdamage
to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol
Unit Note
Min Max
Power Input Voltage LCD Circuit VLCD -0.3 +14.0 VDC
LED Input Voltage Forward Voltage VF - +73.9 VDC
T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC
Value
Operating Temperature TOP 0 +50
Storage Temperature TST -20 +65
°C
°C
Panel Front Temperature TSUR - +68
Operating Ambient Humidity HOP 10 90 %RH
Storage Humidity HST 10 90 %RH
Note
1. Ambient temperature condition (Ta = 25 2 °C )
2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39°C, and no condensation of water.
3. Gravity mura can be guaranteed below 40°C condition.
4. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.
90%
°C
1
2,3
4
2,3
Ver. 1.0
Wet Bulb
Temperature [°C]
20
10
0
10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [°C]
30
40
50
60
60%
40%
10%
Storage
Operation
Humidity [(%)RH]
4 /37
LC550EUE
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.
Table 2. ELECTRICAL CHARACTERISTICS
Parameter Symbol
Circuit :
Power Input Voltage VLCD 10.8 12.0 13.2 VDC
Power Input Current ILCD
Power Consumption PLCD 9.4 12.23 Watt 1
Rush current IRUSH - - TBD A 3
ExtV
BR-B
Brightness Adjust for Back Light
ExtV
BR-B
Frequency
Pulse Duty Level
(PWM)
1. The specified current and power consumption are under the V
Note
High Level
Low Level
Min Typ Max
- 784 1019 mA 1
- TBD TBD mA 2
5 - 100 %
1 - 100 %
40 50/60 80 Hz
2.5 - 3.6 Vdc
0 - 0.8 Vdc
Value
Unit Note
HIGH : on duty
=12.0V, Ta=25 2°C, fV=60Hz
LCD
LOW : off duty
condition, and mosaic pattern(8 x 6) is displayed and fVis the frame frequency.
2. The current is specified at the maximum current pattern.
3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).
4. ExtV
After Driver ON signal is applied, ExtV
After that, ExtV
signal have to input available duty range and sequence.
BR-B
1% and 100% is possible
BR-B
should be sustained from 5% to 100% more than 500ms.
BR-B
For more information, please see 3-6-2. Sequence for LED Driver.
5. Ripple voltage level is recommended under ± 5% of typical voltage
On Duty
4
Ver. 1.0
White : 1023 Gray
Black : 0 Gray
Mosaic Pattern(8 x 6)
5 /37
Product Specification
Table 3. ELECTRICAL CHARACTERISTICS (Continue)
LC550EUE
Parameter Symbol
Backlight Assembly :
Forward Current
(one array)
Forward Voltage V
Forward Voltage Variation
Power Consumption P
Burst Dimming Duty On duty 1 100 %
Burst Dimming Frequency 1/T 95 182 Hz 8
LED Array : (APPENDIX-V)
Life Time 30,000 50,000 Hrs 7
The design of the LED driver must have specifications for the LED array in LCD Assembly.
Notes :
Anode I
Cathode I
F (anode)
F (cathode)
F
△V
F
BL
Min Typ Max
99.75 105 110.25 mAdc
70.8 78.0 84.9 Vdc 4
Values
630 mAdc
1.7 Vdc 5
98.3 107.4 W 6
Unit Note
The electrical characteristics of LED driver are based on Constant Current driving type.
The performance of the LED in LCM, for example life time or brightness, is extremely influenced by the
characteristics of the LED Driver. So, all the parameters of an LED driver should be carefully designed.
When you design or order the LED driver, please make sure unwanted lighting caused by the mismatch of the
LED and the driver (no lighting, flicker, etc) has never been occurred. When you confirm it, the LCD–
Assembly should be operated in the same condition as installed in your instrument.
1. Electrical characteristics are based on LED Array specification.
2. Specified values are defined for a Backlight Assembly. (IBL :2 LED array/LCM)
3. Each LED array has one anode terminal and six cathode terminals.
The forward current(IF) of the anode terminal is 630mA and it supplies 105mA into six strings, respectively
± 5%
2, 3
9 (LED Pakage / 1string)
Anode
°° °
°° °
°° °
°° °
Cathode #1
Cathode #2
6 (LED String / 1 Array)
Cathode #6
4. The forward voltage(VF) of LED array depends on ambient temperature (Appendix-V)
5. ΔVFmeans Max VF-Min VFin one Backlight. So V
variation in a Backlight isn‟t over Max. 1.7V
F
6. Maximum level of power consumption is measured at initial turn on.
Typical level of power consumption is measured after 1hrs aging at 25 2°C.
7. The life time(MTTF) is determined as the time at which brightness of the LED is 50% compared to that of
initial value at the typical LED current on condition of continuous operating at 25 2°C, based on duty 100%.
8. The reference method of burst dimming duty ratio.
It is recommended to use synchronous V-sync frequency to prevent waterfall
(Vsync * 2 =Burst Frequency)
Though PWMfrequency is over 182Hz (max252Hz), function of backlight is not affected.
Ver. 1.0
6 /37
LC550EUE
Product Specification
3-2. Interface Connections
This LCD module employs two kinds of interface connection, 51-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.
3-2-1. LCD Module
- LCD Connector(CN1): FI-R51S-HF(manufactured by JAE) or compatible
- Mating Connector : FI-R51HL(JAE) or compatible
Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION
No Symbol Description No Symbol Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
PCID_EN
NC
NC
SDA SDA (For Local Dimming)
SCL SCL (For Local Dimming)
NC
LVDS Select
NC
NC
NC
GND
R1AN
R1AP
R1BN
R1BP
R1CN
R1CP
GND
R1CLKN
R1CLKP
GND
R1DN
R1DP
R1EN
R1EP
NC or GND
„H‟ : PCID Enable, „L‟ or NC: PCID
Disable (3D Mode Only)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
‘H’ =JEIDA , ‘L’ or NC = VESA
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
Ground
FIRST LVDS Receiver Signal (A-)
FIRST LVDS Receiver Signal (A+)
FIRST LVDS Receiver Signal (B-)
FIRST LVDS Receiver Signal (B+)
FIRST LVDS Receiver Signal (C-)
FIRST LVDS Receiver Signal (C+)
Ground
FIRST LVDS Receiver Clock Signal(-)
FIRST LVDS Receiver Clock Signal(+)
Ground
FIRST LVDS Receiver Signal (D-)
FIRST LVDS Receiver Signal (D+)
FIRST LVDS Receiver Signal (E-)
FIRST LVDS Receiver Signal (E+)
No Connection or Ground
27
Bit Select
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
- - -
R2AN
R2AP
R2BN
R2BP
R2CN
R2CP
GND
R2CLKN
R2CLKP
GND
R2DN
R2DP
R2EN
R2EP
NC or GND
NC or GND
GND Ground (Note 6)
GND Ground
GND Ground
NC No connection
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
‘H’ or NC= 10bit(D) , ‘L’ = 8bit
SECOND LVDS Receiver Signal (A-)
SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)
SECOND LVDS Receiver Signal (B+)
SECOND LVDS Receiver Signal (C-)
SECOND LVDS Receiver Signal (C+)
Ground
SECOND LVDS Receiver Clock Signal(-)
SECOND LVDS Receiver Clock Signal(+)
Ground
SECOND LVDS Receiver Signal (D-)
SECOND LVDS Receiver Signal (D+)
SECOND LVDS Receiver Signal (E-)
SECOND LVDS Receiver Signal (E+)
No Connection or Ground
No Connection or Ground
Note
Ver. 1.0
1. All GND (ground) pins should be connected together to the LCD module‟s metal frame.
2. All VLCD(power input) pins should be connected together.
3. All Input levels of LVDS signals are based on the EIA 644 Standard.
4. #2~#3,#6 & #8~#10 NC (No Connection): These pins are used only for LGD (Do not connect)
5. LVDS pin (pin No. #24,25,40,41) are used for 10Bit(D) of the LCD module.
If used for 8Bit(R), these pins are no connection.
6. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB (No Signal Black) while the system interface signal is not.
If this pin is “H”, LCD Module displays AGP (Auto Generation Pattern).
7. Specific pin (pin No. #4, #5) is used for Controlling Local Dimming register in the LCM Module
7 /37
3-2-2. Backlight Module
LC550EUE
Product Specification
[ CN201 ]
1) LED Array assy Connector (Plug)
: HS100-L08N-N62 (black color, manufactured by UJU)
2) Mating Connector (Receptacle)
: IS100-L08T-C46 (black color, manufactured by UJU)
[ CN202 ]
1) LED Array assy Connector (Plug)
: HS100-L08N-N62-A (natural color, manufactured by UJU)
2) Mating Connector (Receptacle)
: IS100-L08T-C46-A (natural color, manufactured by UJU)
Table 5. BACKLIGHT CONNECTOR PIN CONFIGURATION(CN201,CN202)
No Symbol(CN201)
L1 Cathode
1
L2 Cathode
2
L3 Cathode
3
4
5
6
7
8
N.C
N.C
N.C
N.C
Anode_L
Description
LED Output Current
LED Output Current
LED Output Current
Open
Open
Open
Open
LED Input Current for
L1~L6
Note
No Symbol(CN202)
1
2
3
4
5
6
7
8
Anode_R
N.C
N.C
N.C
N.C
R3 Cathode
R2 Cathode
R1 Cathode
Description
LED Input Current for
R1~R6
Open
Open
Open
Open
LED Output Current
LED Output Current
LED Output Current
Note
Ver. 1.0
Rear
87654321
CN201(B) CN202(W)
Buyer LPB
87654321
8 /37
LC550EUE
Product Specification
3-3. Signal Timing Specifications
Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.
Table 6. TIMING TABLE (DE Only Mode)
ITEM Symbol Min Typ Max Unit Note
Horizontal
Vertical
Frequency
Display
Period
Blank tHB 100 140 240 tCLK 1
Total tHP 1060 1100 1200 tCLK
Display
Period
Blank tVB
Total tVP
ITEM Symbol Min Typ Max Unit Note
DCLK fCLK 63 74.25 78.00 MHz
Horizontal fH 57.3 67.5 70 KHz 2
Vertical fV
tHV 960 960 960 tCLK 1920 / 2
tVV 1080 1080 1080 Lines
20
(228)
1100
(1308)
57
(47)
45
(270)
1125
(1350)
60
(50)
86
(300)
1149
(1380)
63
(53)
Lines 1
Lines
Hz
NTSC
(PAL)
2
Note:1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.
2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency
※ Timing should be set based on clock frequency.
Ver. 1.0
9 /38
3-4. LVDS Signal Specification

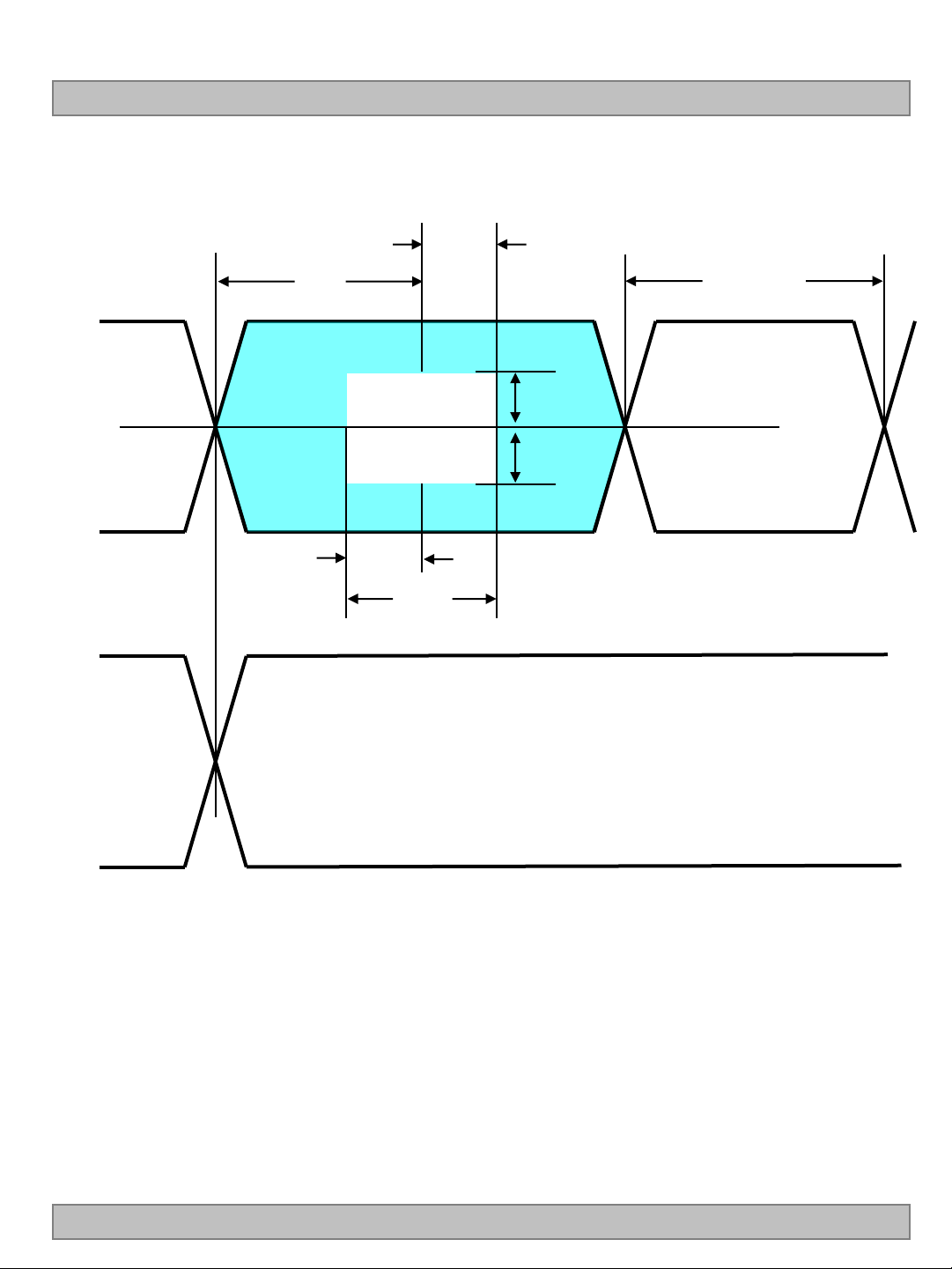

3-4-1. LVDS Input Signal Timing Diagram
LC550EUE
Product Specification
DE, Data
DCLK
First data
Second data
0.7VDD
0.3VDD
tCLK
DE(Data Enable)
0.5 VDD
Invalid data
Invalid data
Valid data
Pixel 0,0
Valid data
Pixel 1,0
tHP
Pixel 2,0
Pixel 3,0
Invalid data
Invalid data
tHV
DE(Data Enable)
Ver. 1.0
1 1080
tVV
tVP
10 /38

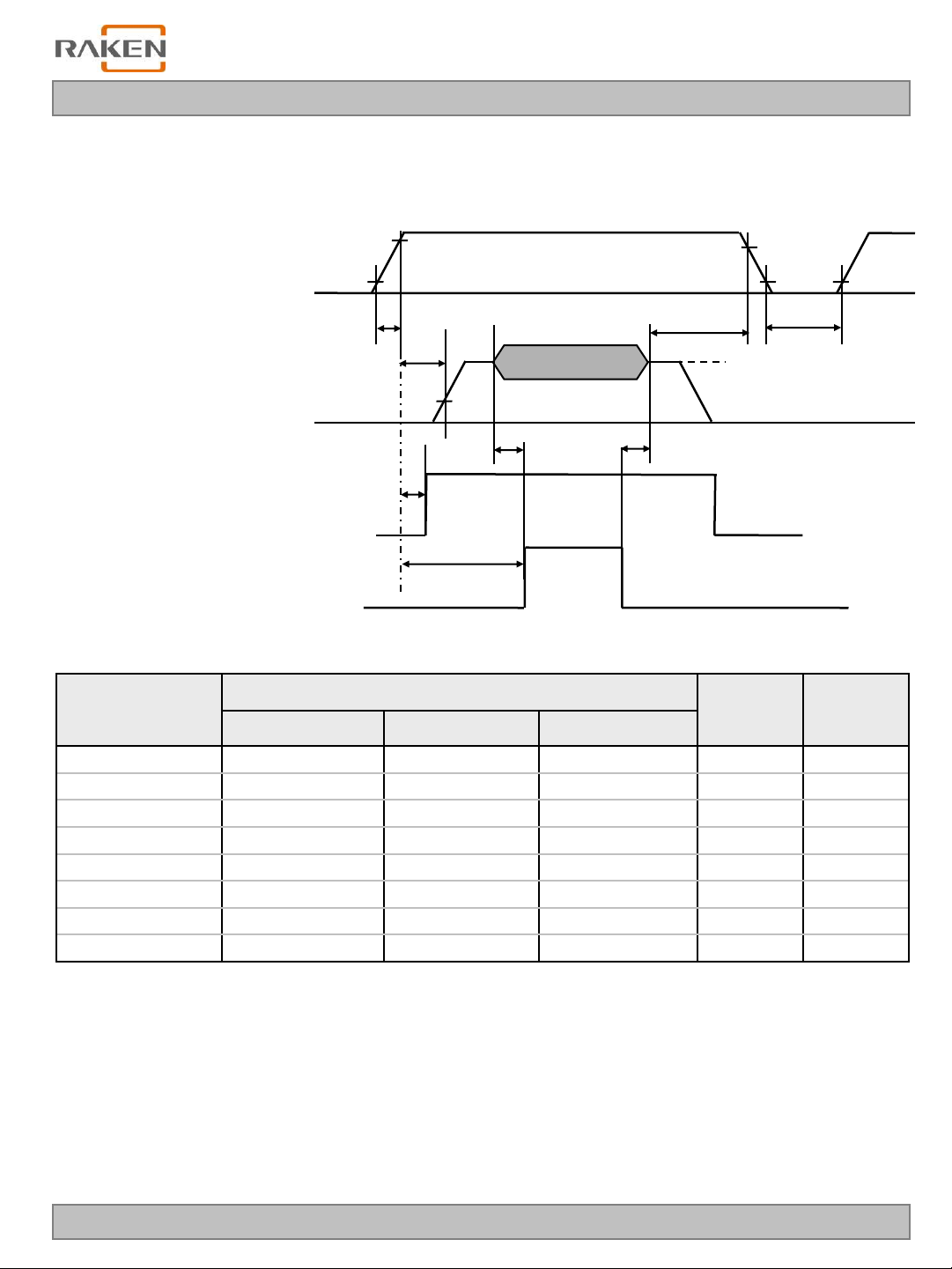

3-4-2. LVDS Input Signal Characteristics
1) DC Specification
LVDS -
LVDS +
LC550EUN
Product Specification
# VCM= {( LVDS +) + ( LVDS - )}/2
0V
V
CM
V
IN_MAXVIN_MIN
Description Symbol Min Max Unit Note
LVDS Common mode Voltage V
LVDS Input Voltage Range V
CM
IN
1.0 1.5 V -
0.7 1.8 V -
Change in common mode Voltage ΔVCM - 250 mV -
2) AC Specification
T
clk
LVDS Clock
A
LVDS Data
clk
clk
= 1/T
clk
)
A
LVDS 1‟st Clock
LVDS 2nd/ 3rd/ 4thClock
tSKEW
t
SKEW_mintSKEW_max
tSKEW
(F
T
80%
20%
t
RF
Description Symbol Min Max Unit Note
LVDS Differential Voltage
High Threshold
Low Threshold
LVDS Clock to Data Skew t
LVDS Clock/DATA Rising/Falling time t
Effective time of LVDS t
LVDS Clock to Clock Skew (Even to Odd) t
Note
1. All Input levels of LVDS signals are based on the EIA 644 Standard.
2. If t
isn‟t enough, t
RF
should be meet the range.
eff
3. LVDS Differential Voltage is defined within t
Ver. 1.0
V
TH
V
TL
SKEW
RF
eff
SKEW_EO
100 600 mV
-600 -100 mV
- |(0.2*T
260 |(0.3*T
)/7| ps -
clk
)/7| ps 2
clk
|± 360| - ps -
- |1/7* T
eff
| ps -
clk
3
11 /38
Loading...
