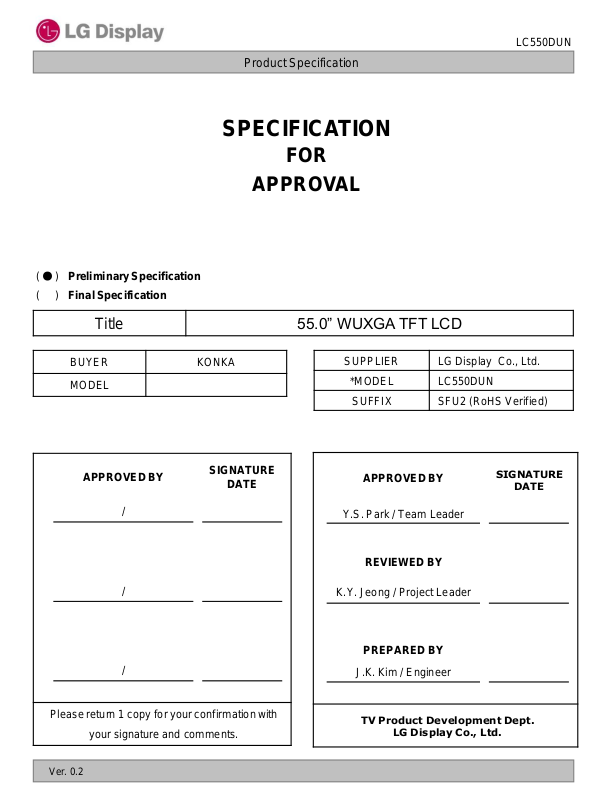

LG Display LC550DUN-SFU2 Specification

(● ) Preliminary Specification
( ) Final Specification

Title 55.0” WUXGA TFT LCD

LC550DUN

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER KONKA

MODEL

APPROVED BY

/

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC550DUN

SUFFIX SFU2 (RoHS Verified)

APPROVED BY

Y.S. Park / Team Leader

REVIEWED BY

K.Y. Jeong / Project Leader

PREPARED BY

J.K. Kim / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.2

TV Product Development Dept.

LG Display Co., Ltd.

Product Specification

CONTENTS

LC550DUN

Number ITEM

COVER
CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS

3-4 LVDS SIGNAL SPECIFICATION
3-5 COLOR DATA REFERENCE

3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATIONS
5 MECHANICAL CHARACTERISTICS

Page

0
1

2
3
4
5
5
7
9

11
14
15
17
23

6 RELIABILITY
7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

7-3 ENVIRONMENT
8 PACKING

8-1 DESIGNATION OF LOT MARK

8-2 PACKING FORM

9 PRECAUTIONS

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 OPERATING CONDITION GUIDE

Ver. 0.2

26
27
27

27
27

28
28
28

29
29
29
30
30
30
30

1 /39

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.0 Oct, 26, 2012 - Preliminary Specification (First Draft)

0.1 Nov. 25, 2012 7 Changed LVDS CNT Manufacturer

0.2 Jan, 25, 2013 3, 6 Changed Power Consumption (LED Driver)

LC550DUN

Ver. 0.2

2 /39

LC550DUN

Product Specification

1. General Description

The LC550EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)

backlight system. The matrix employs a-Si Thin Film Transistor as the active element.

It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.

It has been designed to apply the 8-bit 2-port LVDS interface.

It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

LVDS

EEPROM

EPI(RGB)

Source Driver Circuit

2Port

LVDS
Select

+12.0V

CN1

(51pin)

LVDS 1,2

Option
signal

I2C

SCL

SDA

Timing Controller

LVDS Rx + DGA

Integrated

Power Circuit

G1

Control
Signals

G1080

Power Signals

S1 S1920

TFT - LCD Panel

(1920 × RGB × 1080 pixels)

[Gate In Panel]

Block

ExtVBR-B

+24.0V, GND, On/Off

LED Driver

Back light Assembly

General Features

Active Screen Size 54.64 inches(1387.80mm) diagonal
Outline Dimension
Pixel Pitch 0.630 mm x 0.630 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 8bit, 16.7 Million colors
Luminance, White 300 cd/m2 (Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption Total 101.3W (Typ.) [Logic= 6.8W, LED Driver=94.5W(ExtVBR_B=100% )]
Weight 14.1Kg(Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(2H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))

1237.4(H) × 713.8(V) × 42.0(D) mm(Typ.)

Ver. 0.2

3 /39

LC550DUN

Product Specification

2. Absolute Maximum Ratings

The following items are maximumvalueswhich, ifexceeded, may cause faultyoperation or permanentdamage

to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Unit Note

Min Max

LCD Circuit VLCD -0.3 +14.0 VDC

Power Input Voltage

Driver VBL -0.3 + 27.0 VDC
ON/OFF VOFF / VON -0.3 +5.5 VDC

Driver Control Voltage

Brightness EXTVBR-B -0.3 +5.5 VDC

T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC

Value

Operating Temperature TOP 0 +50

Storage Temperature TST -20 +60

Panel Front Temperature TSUR - +68

°C

°C

°C

Operating Ambient Humidity HOP 10 90 %RH
Storage Humidity HST 10 90 %RH

Note

1. Ambient temperature condition (Ta = 25  2 °C )

2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 40°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.

Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.

90%

1

2,3

4

2,3

Ver. 0.2

Wet Bulb

Temperature [°C]

20

10

0

10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [°C]

30

40

50

60

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

4 /39

LC550DUN

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Value

Parameter Symbol

Min Typ Max

Circuit :

Power Input Voltage VLCD 10.8 12.0 13.2 VDC

- 564 733 mA 1

Power Input Current ILCD

- 848 1102 mA 2

Unit notes

Power Consumption PLCD 6.8 8.8 Watt 1

Rush current IRUSH - - 5.0 A 3

1. The specified current and power consumption are under the V

=12.0V, Ta=25  2°C, fV=60Hz

LCD

condition, and mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. Ripple voltage level is recommended under ± 5% of typical voltage

White : 255 Gray
Black : 0 Gray

Ver. 0.2

Mosaic Pattern(8 x 6)

5 /39

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

LC550DUN

Parameter Symbol

LED Driver :

Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Power Supply Input Current IBL - 3.93 4.73 A 1

Power Supply Input Current (In-Rush) In-rush - - 7 A

Power Consumption PBL - 94.5 108 W 1

On V on 2.5 - 5.0 Vdc
Off V off -0.3 0.0 0.7 Vdc

BR-B

PAL 100 Hz 3

Frequency

NTSC 120 Hz 3

High Level 2.5 - 5.0

Low Level 0.0 - 0.7

Input Voltage for

Control System

Signals

On/Off

Brightness Adjust ExtV

ExtV

BR-B

Pulse Duty Level
(PWM)

Min Typ Max

Values

Unit notes

5 - 100 %

1 - 100 %

Vdc

Vdc

VBL = 22.8V
ExtV

= 100%

BR-B

On Duty

HIGH : on duty

LOW : off duty

4

6

LED :

Life Time 30,000 50,000 Hrs 2

notes :

1. Electrical characteristics are determined after the unit has been „ON‟ and stable for approximately 60

minutes at 25± 2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25± 2°C.

3. LGD recommend that the PWM freq. is synchronized with Two time harmonic of V_sync signal of system.
Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.

4. The duration of rush current is about 200ms. This duration is applied to LED on time.

5. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.

6. ExtV

After Driver ON signal is applied, ExtV

After that, ExtV

signal have to input available duty range and sequence.

BR-B

1% and 100% is possible

BR-B

should be sustained from 5% to 100% more than 500ms.

BR-B

For more information, please see 3-6-2. Sequence for LED Driver.

Ver. 0.2

6 /39

LC550DUN

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, 51-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-RE51S-HF(manufactured by JAE) or GT05P-51S-H38(manufactured by LSM)

or IS050-C51B-C39(manufactured by UJU)

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1 NC No Connection (notes 4) 27 NC No connection
2 NC No Connection (notes 4) 28
3 NC No Connection (notes 4) 29
4 NC No Connection (notes 4) 30

5 NC No Connection (notes 4) 31 R2BP SECOND LVDS Receiver Signal (B+)
6 NC No Connection (notes 4) 32

7 LVDS Select ‘H’ =JEIDA , ‘L’ or NC = VESA 33
8 NC No Connection (notes 4) 34 GND Ground

9 NC No Connection (notes 4) 35
10 NC No Connection (notes 4) 36
11
12
13
14

15 R1BP FIRST LVDS Receiver Signal (B+) 41 NC No connection

16
17
18
19
20 R1CLKP FIRST LVDS Receiver Clock Signal(+) 46 GND Ground
21
22
23

24 NC No connection 50 VLCD Power Supply +12.0V

25 NC No connection 51 VLCD Power Supply +12.0V
26 NC or GND No Connection or Ground - - -

notes

GND
R1AN
R1AP
R1BN

R1CN
R1CP

GND

R1CLKN

GND
R1DN
R1DP

1. All GND(ground) pins should be connected together to the LCD module‟s metal frame.

Ground 37
FIRST LVDS Receiver Signal (A-) 38
FIRST LVDS Receiver Signal (A+) 39
FIRST LVDS Receiver Signal (B-) 40 NC No connection

FIRST LVDS Receiver Signal (C-) 42 NC or GND No Connection or Ground
FIRST LVDS Receiver Signal (C+) 43 NC or GND No Connection or Ground
Ground 44 GND Ground (notes 5)
FIRST LVDS Receiver Clock Signal(-) 45 GND Ground

Ground 47 NC No connection
FIRST LVDS Receiver Signal (D-) 48 VLCD Power Supply +12.0V
FIRST LVDS Receiver Signal (D+) 49 VLCD Power Supply +12.0V

R2AN
R2AP
R2BN

R2CN
R2CP

R2CLKN
R2CLKP

GND
R2DN
R2DP

2. All VLCD(power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #8~#10 NC (No Connection): These pins are used only for LGD (Do not connect)

5. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.

If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

SECOND LVDS Receiver Signal (A-)
SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)

SECOND LVDS Receiver Signal (C-)
SECOND LVDS Receiver Signal (C+)

SECOND LVDS Receiver Clock Signal(-)
SECOND LVDS Receiver Clock Signal(+)
Ground
SECOND LVDS Receiver Signal (D-)
SECOND LVDS Receiver Signal (D+)

Ver. 0.2

7 /39

Product Specification

3-2-2. Backlight Module

Master

-LED Driver Connector
: 20022WR- H14B2(Yeonho) or Compatible

- Mating Connector
: 20022HS - 14B2 (Yeonho) or Compatible

Table 5-1. LED DRIVER CONNECTOR PIN CONFIGURATION

Pin No Symbol Description Note

LC550DUN

1

2

3
4
5
6
7
8

9
10
11
12

13
14

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V
VBL Power Supply +24.0V

VBL Power Supply +24.0V
GND Backlight Ground
GND Backlight Ground
GND Backlight Ground
GND Backlight Ground
GND Backlight Ground

Status

ON/OFF

V

NC

EXTVBR-B External PWM

Back Light Status
Backlight ON/OFF control

Don‟t care

Notes :1. GND should be connectedto the LCD module‟s metal frame.

2. Normal : Low (under 0.7V) / Abnormal: Open

3. High : on duty / Low : off duty, Pin#14 can be opened. ( if Pin #14 is open , EXTVBR-B is 100% )

4. Each impedance of pin #12 and 14 is over 50 [KΩ].

1

2
4

3

Ver. 0.2

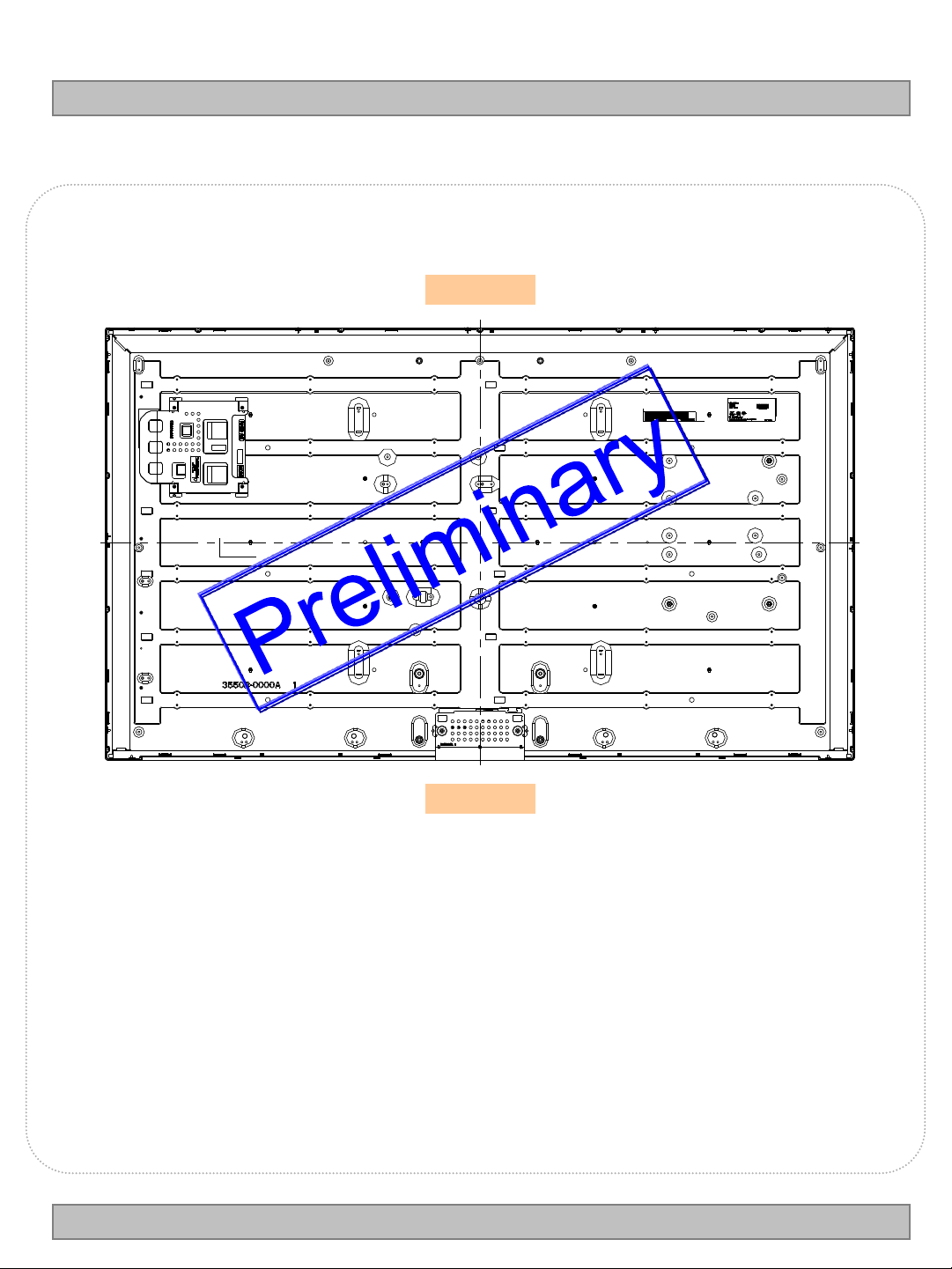

◆ Rear view of LCM

1

14

…

<Master>

◆ Status

PCB

1

14

…

8 /39

LC550DUN

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal

timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Horizontal

Vertical

Frequency

Display

Period

Blank tHB 100 140 240 tCLK 1

Total tHP 1060 1100 1200 tCLK

Display

Period

Blank tVB

Total tVP

ITEM Symbol Min Typ Max Unit Note

DCLK fCLK 63.00 74.25 78.00 MHz

Horizontal fH 57.3 67.5 70 KHz 2

Vertical fV

tHV 960 960 960 tCLK 1920 / 2

tVV 1080 1080 1080 Lines

20

(228)

1100

(1308)

57

(47)

45

(270)
1125

(1350)

60

(50)

69

(300)

1149

(1380)

63

(53)

Lines 1

Lines

Hz

NTSC
(PAL)

2

Note:1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).

If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

3. Spread Spectrum Rate (SSR) for 50KHz ~ 100kHz Modulation Frequency(FMOD) is calculated by

(7 – 0.06*Fmod), where Modulation Frequency (FMOD) unit is KHz.
LVDS Receiver Spread spectrum Clock is defined as below figure

※ Timing should be set based on clock frequency.

Ver. 0.2

9 /39

LC550DUN

Product Specification

※ Please pay attention to the followings when you set Spread Spectrum Rate(SSR) and Modulation Frequency(FMOD)

1. Please set proper Spread Spectrum Rate(SSR) and Modulation Frequency (FMOD) of TV system LVDS output.

2. Please check FOS after you set Spread Spectrum Rate(SSR) and Modulation Frequency(FMOD) to avoid
abnormal display. Especially, harmonic noise can appear when you use Spread Spectrum under FMOD 30 KHz.

Ver. 0.2

10 /39

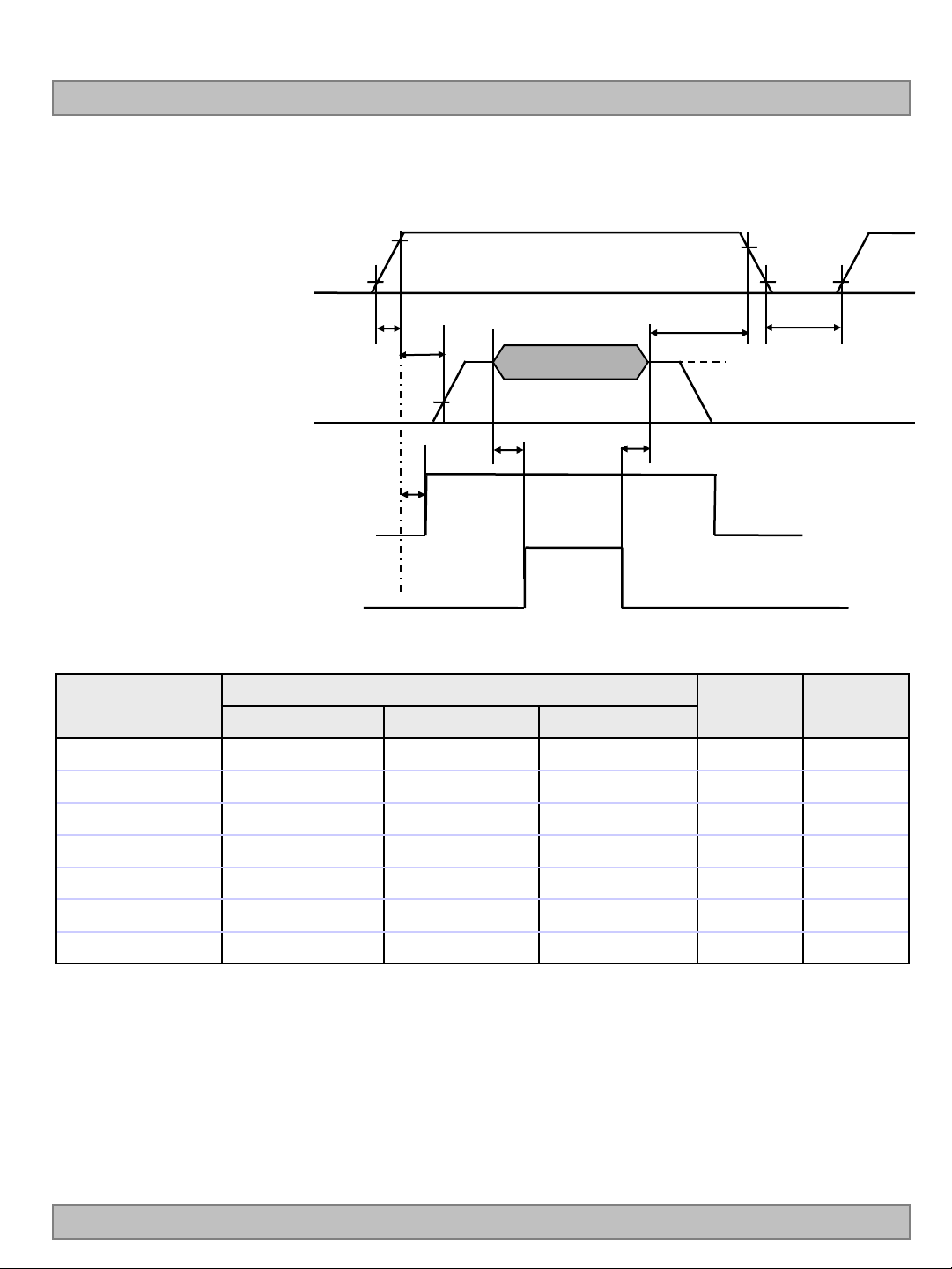

3-4. LVDS Signal Specification

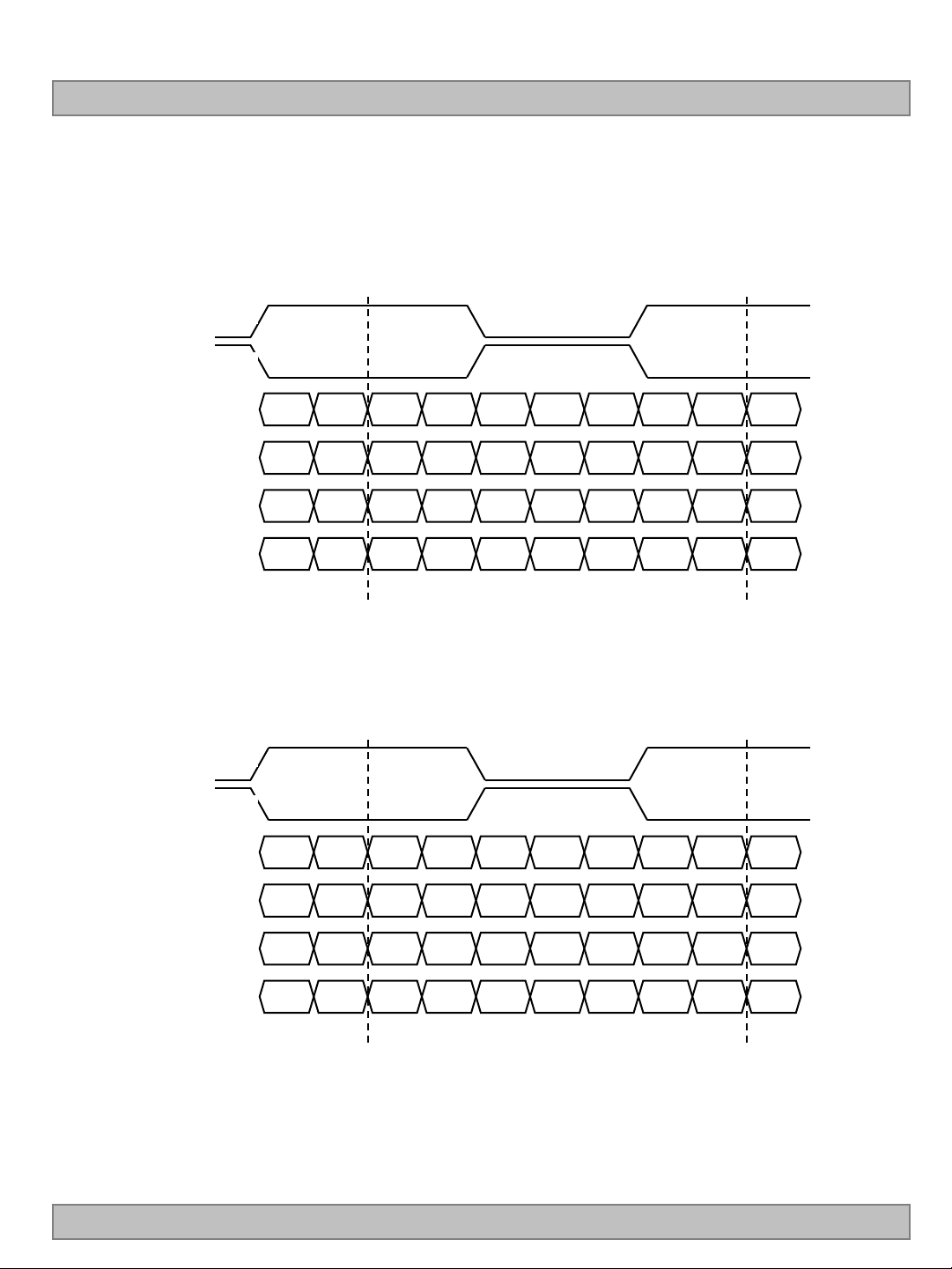

3-4-1. LVDS Input Signal Timing Diagram

LC550DUN

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Invalid data

Valid data

Pixel 0,0

Valid data

Pixel 1,0

tHP

Pixel 2,0

Pixel 3,0

Invalid data

Invalid data

tHV

DE(Data Enable)

Ver. 0.2

1 1080

tVV

tVP

11 /39
