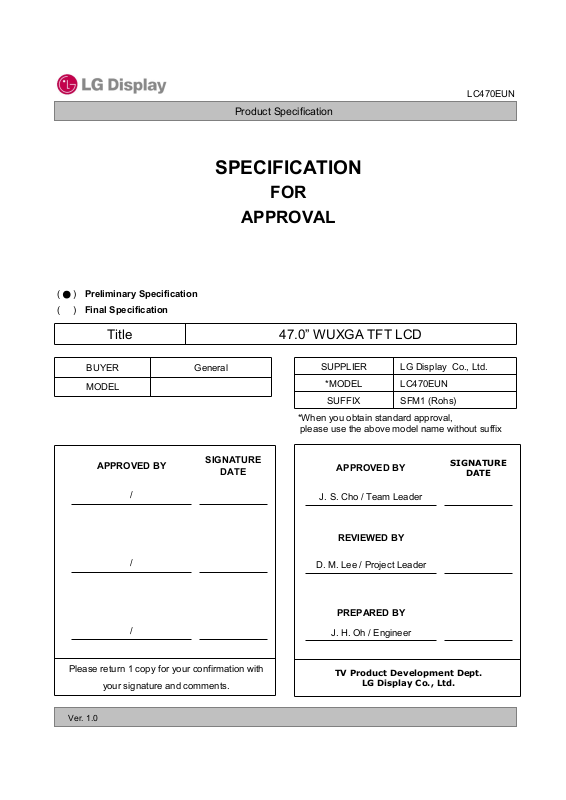

LG Display LC470EUN-SFM1 Specification

(●) Preliminary Specification

( ) Final Specification

Title 47.0” WUXGA TFT LCD

LC470EUN

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER General

MODEL

APPROVED BY

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC470EUN

SUFFIX SFM1 (Rohs)

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

J. S. Cho / Team Leader

REVIEWED BY

D. M. Lee / Project Leader

PREPARED BY

J. H. Oh / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 1.0

TV Product Development Dept.

LG Display Co., Ltd.

Product Specification

CONTENTS

LC470EUN

Number

3-1

3-2

3-3

3-4

3-5

3-6

COVER

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL SPECIFICATIONS

ELECTRICAL CHARACTERISTICS

INTERFACE CONNECTIONS

SIGNAL TIMING SPECIFICATIONS

LVDS SIGNAL SPECIFICATIONS

COLOR DATA REFERENCE

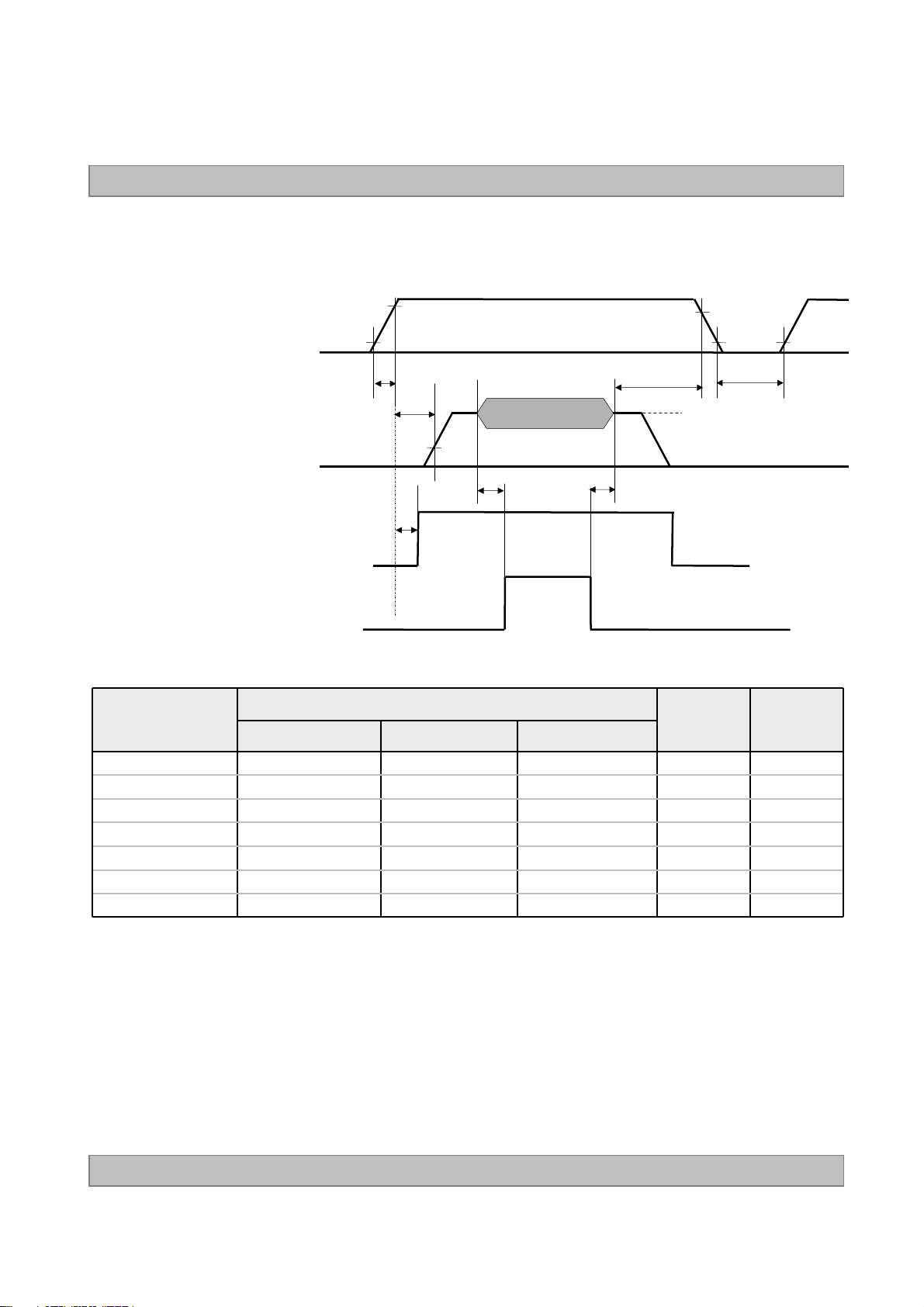

POWER SEQUENCE

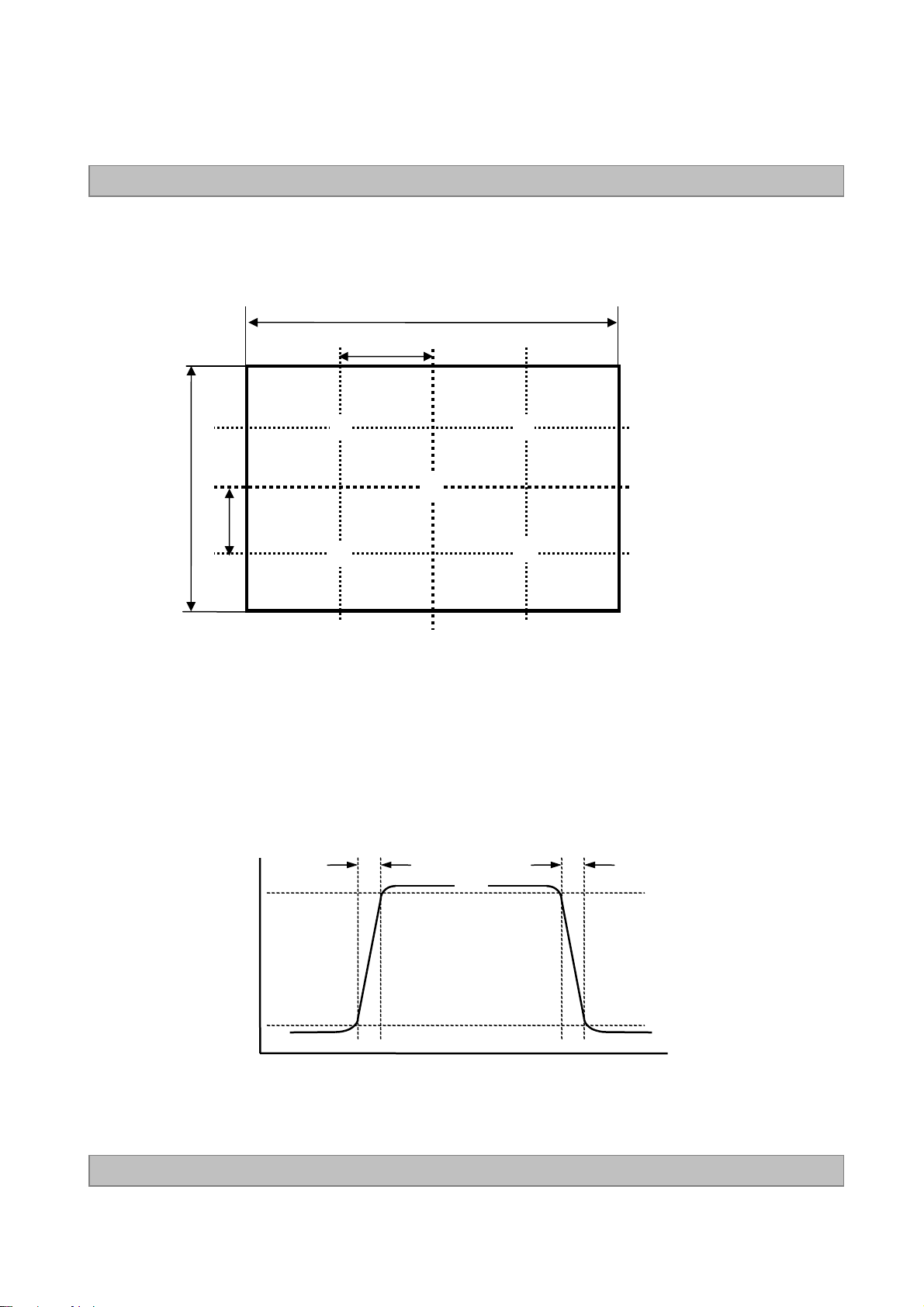

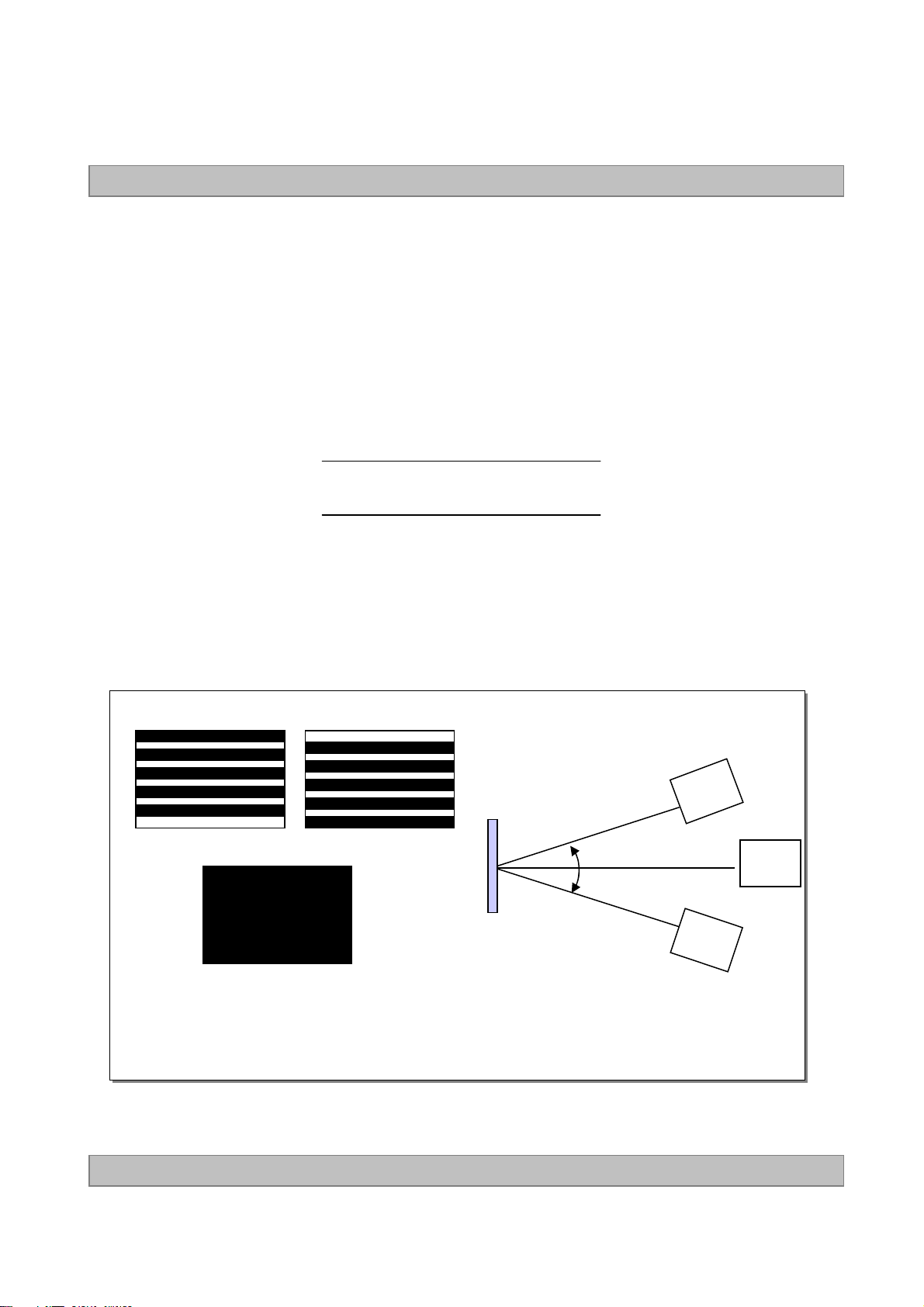

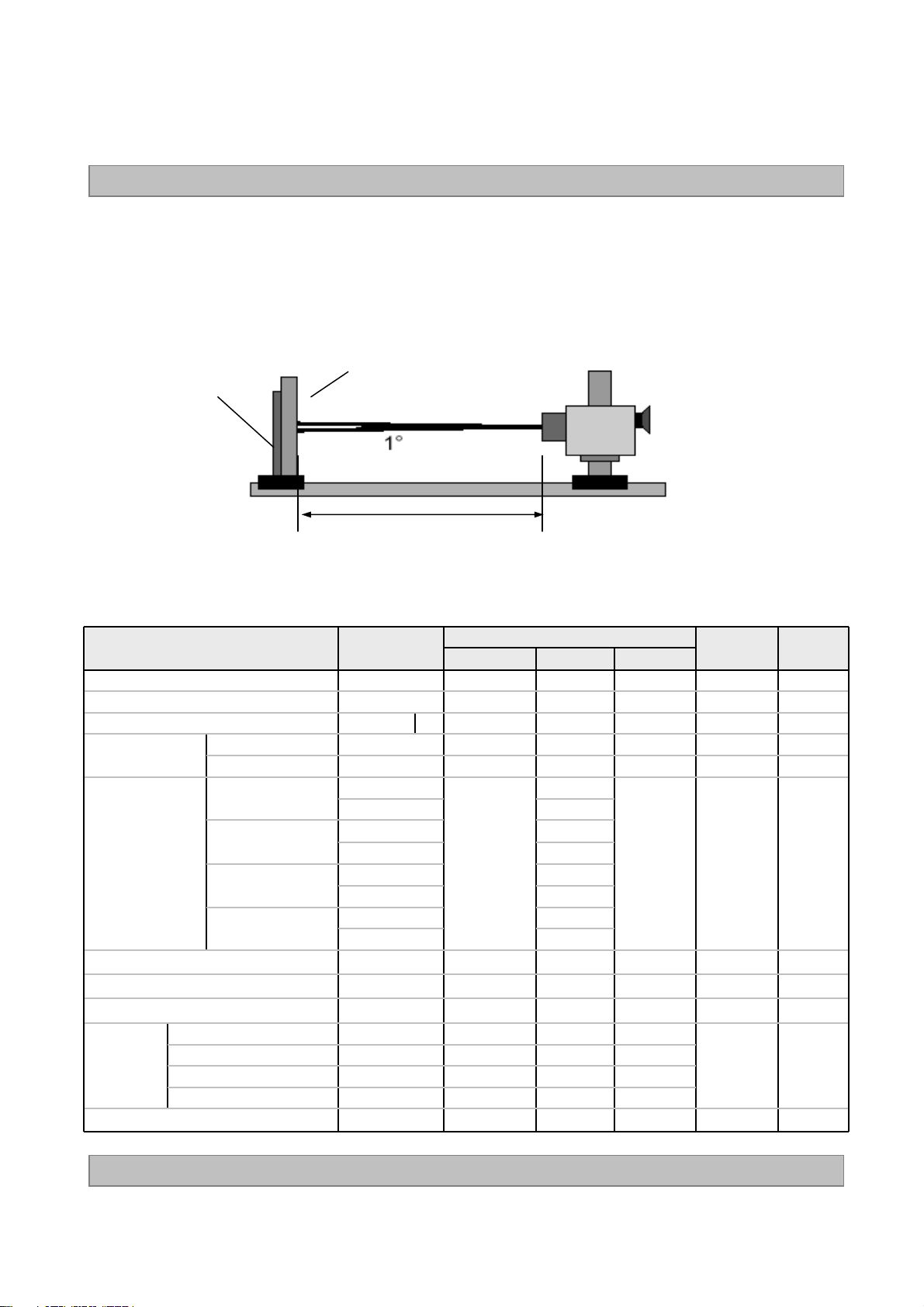

OPTICAL SPECIFICATIONS

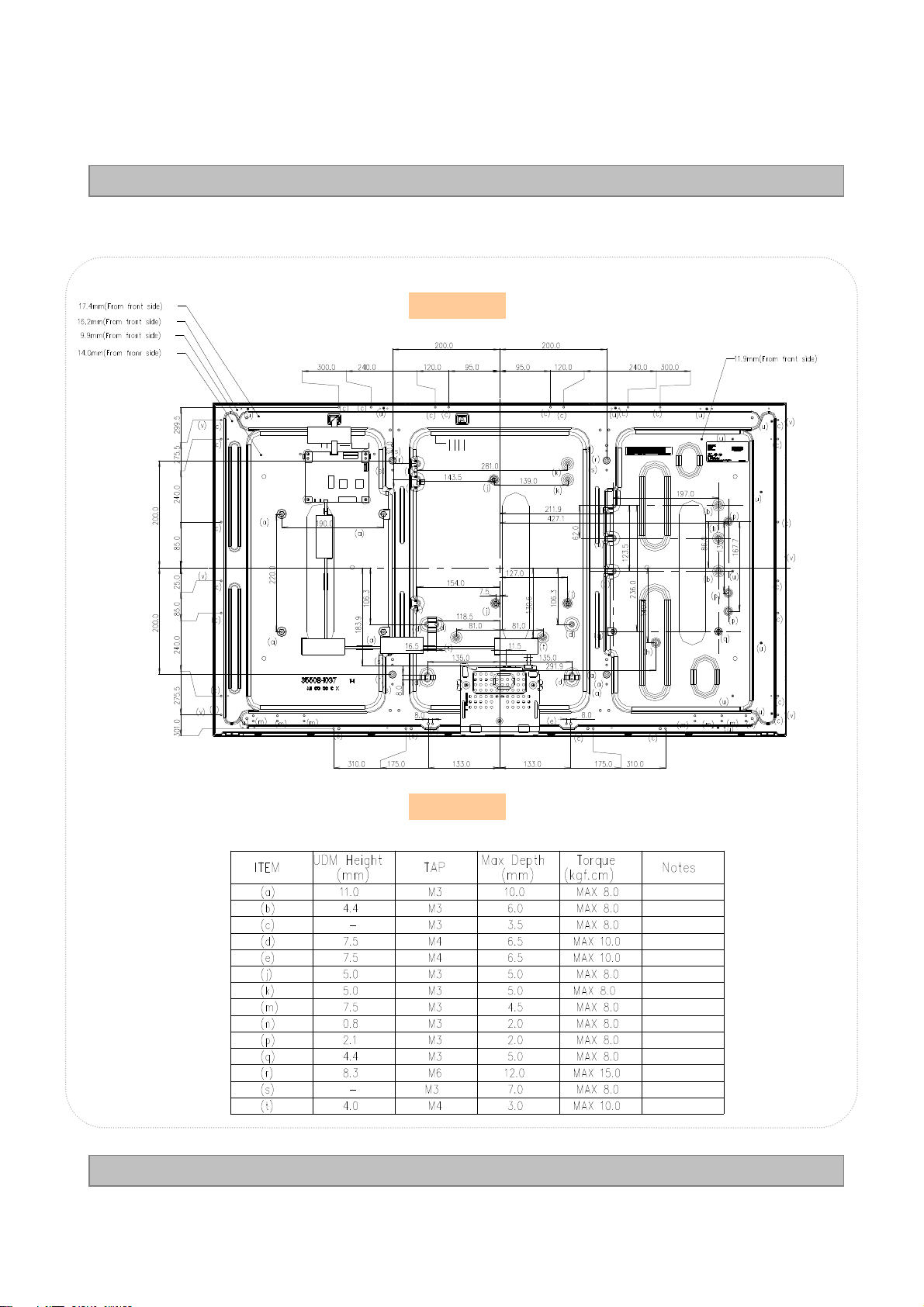

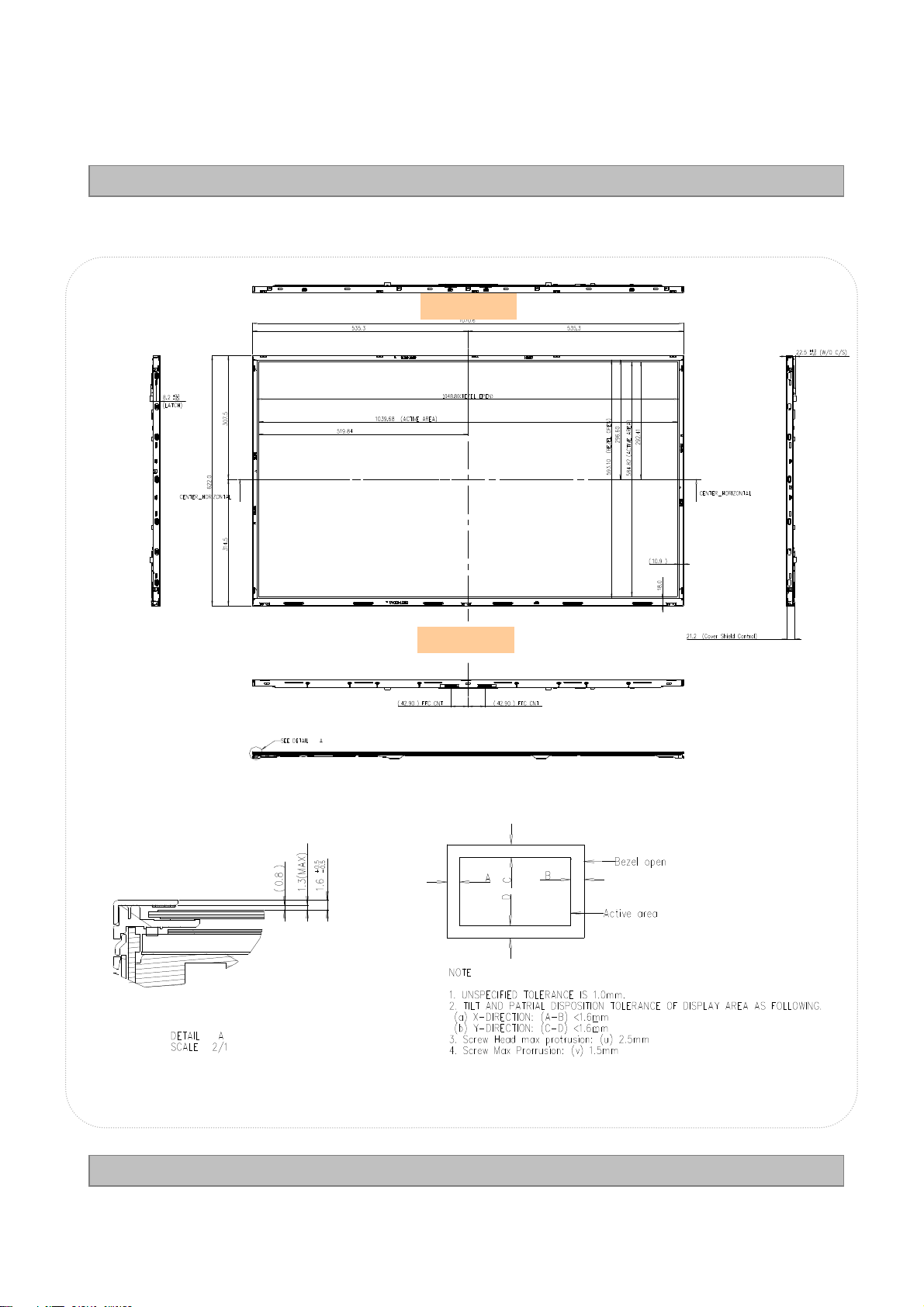

MECHANICAL CHARACTERISTICS

RELIABILITY

ITEM

Page

7-1

7-2

7-3

8-1

8-2

9-1

9-2

9-3

9-4

9-5

9-6

9-7 OPERATING CONDITION GUIDE

Ver. 1.0

INTERNATIONAL STANDARDS

SAFETY

EMC

ENVIRONMENT

PACKING

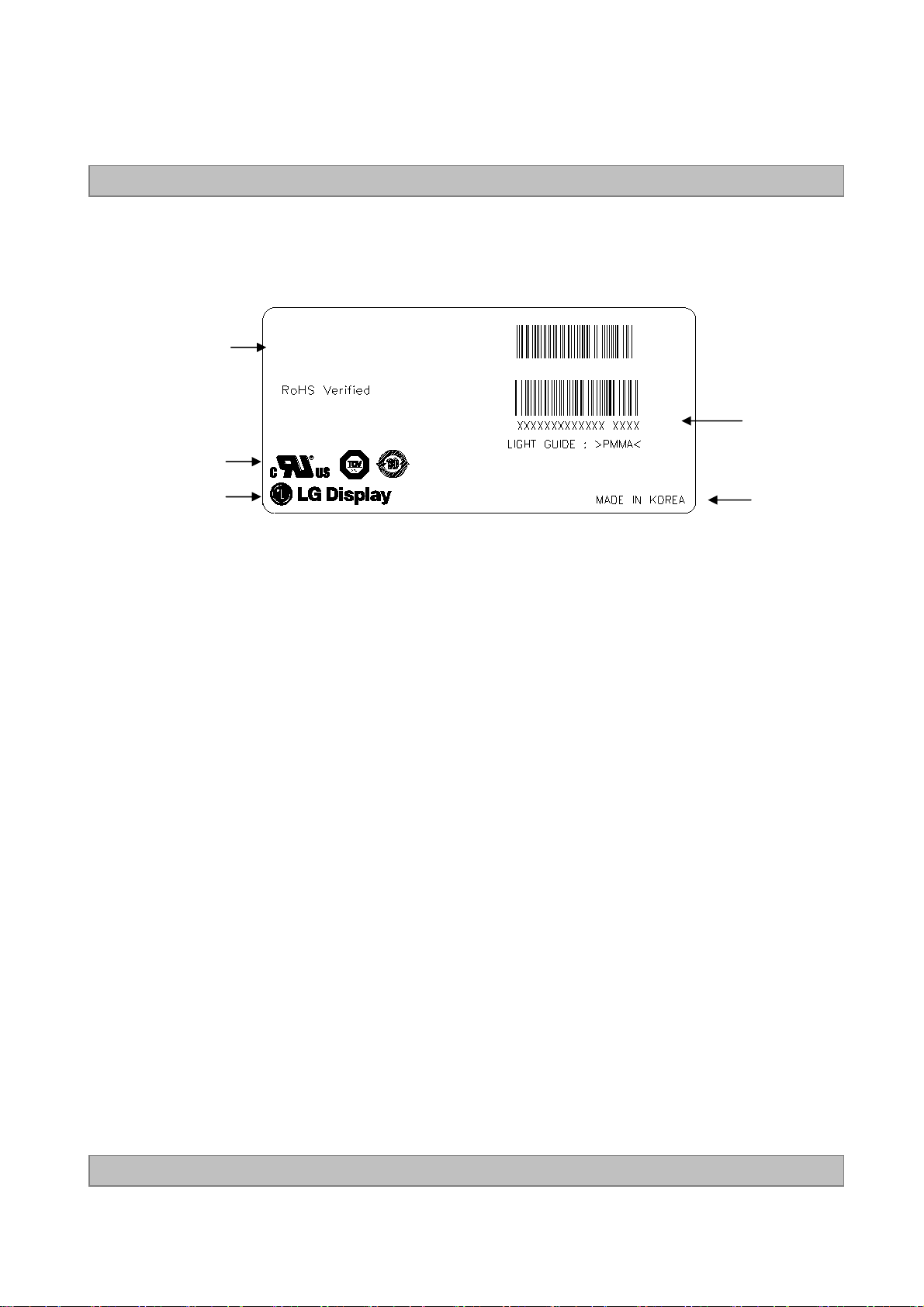

INFORMATION OF LCM LABEL

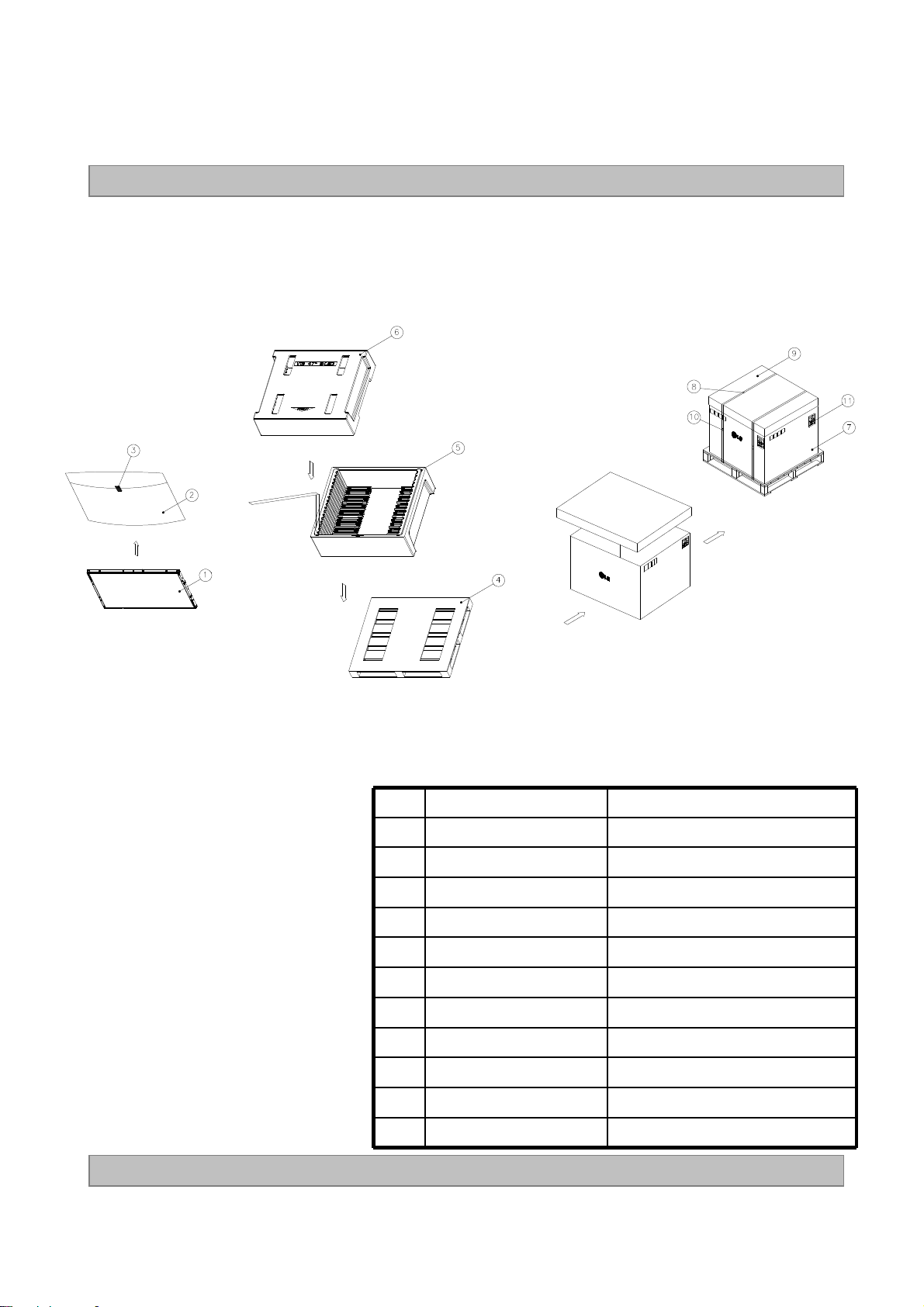

PACKING FORM

PRECAUTIONS

MOUNTING PRECAUTIONS

OPERATING PRECAUTIONS

ELECTROSTATIC DISCHARGE CONTROL

PRECAUTIONS FOR STRONG LIGHT EXPOSURE

STORAGE

HANDLING PRECAUTIONS FOR PROTECTION FILM

1 /39

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.0 Aug,18.2012 - Preliminary Specification (First Draft)

LC470EUN

Ver. 1.0

2 /39

LC470EUN

Product Specification

1. General Description

The LC470EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) ba ck li g ht s ys te m . T h e ma tr i x em pl oys a - Si Th in F ilm T ran s is t or as t h e a ct i ve ele m en t . It is a transmissive display type which is operating in the normally black mode. It has a 46.96 inch diagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes. Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot. Therefore, it can present a palette of more than 16.7Milion colors. It has been designed to apply the 8-bit 2-port LVDS interface. It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.

EPI(RGB)

S1 S1920

TFT - LCD Panel

Control Signals

G1080

Power Signals

LVDS

2Port

LVDS Select

OPC/TM Enable

ExtVBR-B

+12.0V

CN1

(51pin)

LVDS 1,2

Option signal

I2C

EEPROM

SCL

SDA

Timing Controller

LVDS Rx + OPC + DGA

Integrated

Power Circuit

Block

PWM_OUT 1~3

CN2

(4 pin)

PWM_OUT

1~3

LED Driver

+24.0V, GND, On/Off

General Features

Active Screen Size 46.96 inches(1192.87mm) diagonal

Outline Dimension 1070.6(H) × 622.0(V) X 9.9(B)/22.5 mm(D) (W/O C/S Typ.)

Pixel Pitch 0.5415 mm x 0.5415 mm

Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement

Color Depth 8bit, 16.7 Million colors

Luminance, White 350 cd/m2 (Center 1point ,Typ.)

Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))

Source Driver Circuit

(1920 × RGB × 1080 pixels)

[Gate In Panel]

Scanning Block 1

Scanning Block 2

Scanning Block 3

Power Consumption Total 68.0W (Typ.) [Logic=6W , LED Driver=62.0W(ExtVbr_B=100% )]

Weight 10.5 Kg (Typ.)

Display Mode Transmissive mode, Normally black

Ver. 1.0

3 /39

LC470EUN

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage

Driver Control Voltage

T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC

Operating Temperature TOP 0 +50 °C

Storage Temperature TST -20 +60 °C

Panel Front Temperature TSUR - +68 °C 4

Operating Ambient Humidity HOP 10 90 %RH

Storage Humidity HST 10 90 %RH

Note

1. Ambient temperature condition (Ta = 25 ± 2 °C )

LCD Circuit VLCD -0.3 +14.0 VDC

Driver VBL -0.3 + 27.0 VDC

ON/OFF VOFF / VON -0.3 +5.5 VDC

Brightness EXTVBR-B -0.3 +4.0 VDC

Value

Unit Note

Min Max

2. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 40°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber. Thermal management should be considered in final product design to prevent the surface temperature of display area from being over 68℃. The range of operating temperature may be degraded in case of improper thermal management in final product design.

90%

2,3

Ver. 1.0

Wet Bulb Temperature [°C]

10 20 30 40 50 60 70 800-20 Dry Bulb Temperature [°C]

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

4 /39

LC470EUN

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Circuit :

Power Input Voltage VLCD 10.8 12.0 13.2 VDC

Power Input Current ILCD

Power Consumption PLCD

Rush current IRUSH - - 3.0 A 3

ExtV

BR-B

Brightness Adjust for Back Light

ExtV

BR-B

Frequency

Pulse Duty Level (PWM)

1. The specified current and power consumption are under the V

Note

High Level

Low Level

Min Typ Max

5 - 100 %

1 - 100 %

40 50/60 80 Hz

2.5 - 3.6 Vdc

0 - 0.8 Vdc

Value

501 626

717 897

6 8.26

=12.0V, Ta=25 ± 2°C, fV=60Hz

LCD

Unit Note

mA 1

mA 2

Watt 1

HIGH : on duty

LOW : off duty

condition, and mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. ExtV After Driver ON signal is applied, ExtV After that, ExtV

signal have to input available duty range and sequence.

BR-B

1% and 100% is possible

BR-B

should be sustained from 5% to 100% more than 500ms.

BR-B

For more information, please see 3-6-2. Sequence for LED Driver.

5. Ripple voltage level is recommended under ±5% of typical voltage

On Duty

Ver. 1.0

White : 255 Gray Black : 0 Gray

Mosaic Pattern(8 x 6)

5 /39

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

Values

Parameter Symbol

Min Typ Max

LED Driver :

Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Unit Notes

LC470EUN

Power Supply Input Current IBL

Power Supply Input Current (In-Rush) In-rush - - 5.0 A

Power Consumption PBL -

Input Voltage for

Control System

Signals

LED :

Life Time 30,000 50,000 Hrs 2

On/Off

On V on 2.5 - 5.0 Vdc

Off V off -0.3 0.0 0.7 Vdc

2.58

62.0 66.7

2.78

A 1

VBL = 22.8V Ext VBR-B = 100%

W 1

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60

minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage 24Vand VBR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at 25±2°C.

3. The duration of rush current is about 200ms. This duration is applied to LED on time.

4. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.

Ver. 1.0

6 /39

LC470EUN

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, 51-pin connector is used for the module electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-R51S-HF(manufactured by JAE) or compatible

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1 NC No Connection (Note 4) 27 NC No connection

2 NC No Connection (Note 4) 28

3 NC No Connection (Note 4) 29

4 NC No Connection (Note 4) 30

5 NC No Connection (Note 4) 31 R2BP SECOND LVDS Receiver Signal (B+)

6 NC No Connection (Note 4) 32 R2CN SECOND LVDS Receiver Signal (C-)

7 LVDS Select ‘H’ =JEIDA , ‘L’ or NC = VESA 33 R2CP SECOND LVDS Receiver Signal (C+)

8 ExtVBR-B External PWM (from System) 34 GND Ground

9 NC No Connection (Note 4) 35 R2CLKN SECOND LVDS Receiver Clock Signal(-)

10 OPC Enable ‘H’ = Enable , ‘L’ or NC = Disable 36 R2CLKP SECOND LVDS Receiver Clock Signal(+)

15 R1BP FIRST LVDS Receiver Signal (B+) 41 NC No connection

20 R1CLKP FIRST LVDS Receiver Clock Signal(+) 46 GND Ground

24 NC No connection 50 VLCD Power Supply +12.0V

25 NC No connection 51 VLCD Power Supply +12.0V

26 NC or GND No Connection or Ground - - -

GND

R1AN

R1AP

R1BN

R1CN

R1CP

GND

R1CLKN

GND

R1DN

R1DP

Ground 37 GND Ground

FIRST LVDS Receiver Signal (A-) 38 R2DN SECOND LVDS Receiver Signal (D-)

FIRST LVDS Receiver Signal (A+) 39 R2DP SECOND LVDS Receiver Signal (D+)

FIRST LVDS Receiver Signal (B-) 40 NC No connection

FIRST LVDS Receiver Signal (C-) 42 NC or GND No Connection or Ground

FIRST LVDS Receiver Signal (C+) 43 NC or GND No Connection or Ground

Ground 44 GND Ground (Note 6)

FIRST LVDS Receiver Clock Signal(-) 45 GND Ground

Ground 47 NC No connection

FIRST LVDS Receiver Signal (D-) 48 VLCD Power Supply +12.0V

FIRST LVDS Receiver Signal (D+) 49 VLCD Power Supply +12.0V

R2AN

R2AP

R2BN

SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)

SECOND LVDS Receiver Signal (B-)

Note

Ver. 1.0

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #9 NC (No Connection): These pins are used only for LGD (Do not connect)

5. Specific pins(pin No. #10) are used for OPC function of the LCD module. If not used, these pins are no connection. (Please see the Appendix VI for more information.)

6. Specific pin No. #44 is used for “No signal detection” of system signal interface. It should be GND for NSB(No Signal Black) during the system interface signal is not. If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

7 /39

Product Specification

3-2-2. Backlight Module

Master

-LED Driver Connector : 20022WR - H14B2(Yeonho) or Compatible

- Mating Connector : 20022HS - 14B2 or Compatible

Table 5. LED DRIVER CONNECTOR PIN CONFIGURATION

Pin No Symbol Description Note

LC470EUN

VBL Power Supply +24.0V

GND Backlight Ground

Status Back Light Status 2

ON/OFF

NC Don’t care

Backlight ON/OFF control 3

Notes : 1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : Open

3. The impedance of pin #12 is over 50 [KΩ].

◆ Rear view of LCM

Ver. 1.0

…

◆ Status

PCB

…

8 /39

LC470EUN

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Horizontal

Vertical

Frequency

Display

Period

Blank tHB 100 140 240 tCLK 1

Total tHP 1060 1100 1200 tCLK

Display

Period

Blank tVB

Total tVP

ITEM Symbol Min Typ Max Unit Note

DCLK fCLK 63.00 74.25 78.00 MHz

Horizontal fH 57.3 67.5 70 KHz 2

Vertical fV

tHV 960 960 960 tCLK 1920 / 2

tVV 1080 1080 1080 Lines

(228)

1100

(1308)

(47)

(270)

1125

(1350)

(50)

(300)

1149

(1380)

(53)

Lines 1

Lines

NTSC (PAL)

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).

If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical refresh rate and the horizontal frequency

※ Timing should be set based on clock frequency.

Ver. 1.0

9 /39

3-4. LVDS Signal Specification

3-4-1. LVDS Input Signal Timing Diagram

LC470EUN

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Valid data

Pixel 0,0

Valid data

Pixel 1,0

tHP

Pixel 2,0

Pixel 3,0

Invalid data

tHV

DE(Data Enable)

Ver. 1.0

1 1080

tVV

tVP

10 /39

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LC470EUN

Product Specification

# VCM= {(LVDS +) + ( LVDS - )} /2

IN _ MAXVIN _MIN

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V

LVDS Input Voltage Range V

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM - 250 mV -

2) AC Specification

clk

LVDS Clock

LVDS Data

= 1 /T

)

clk

LVDS 1’st Clock

LVDS 2nd/ 3rd/ 4thClock

tSKEW

SKEW_mintSKEW_max

tSKEW

clk

80%

20%

Description Symbol Min Max Unit Note

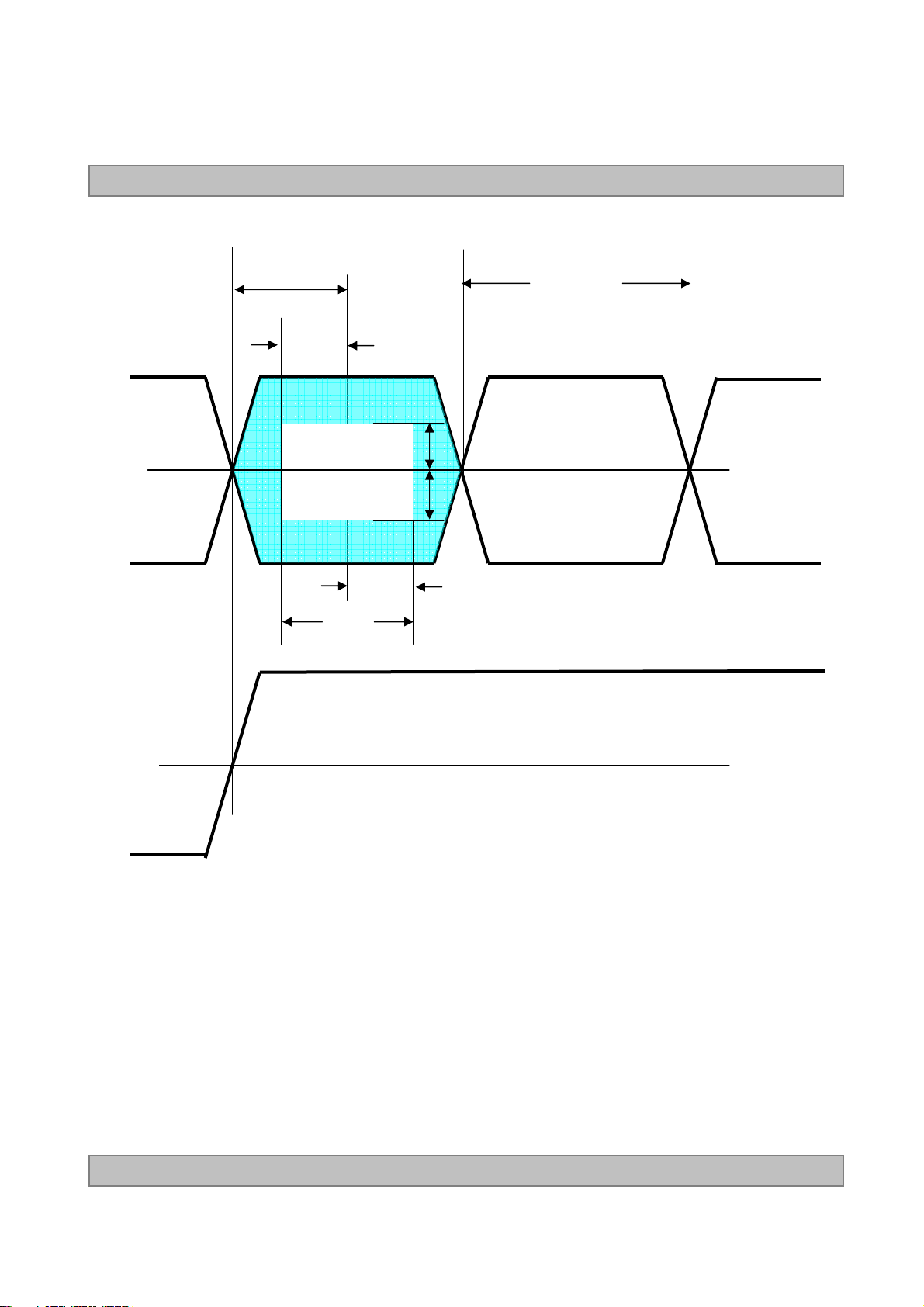

LVDS Differential Voltage

High Threshold

Low Threshold

LVDS Clock to Data Skew t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

LVDS Clock to Clock Skew (Even to Odd) t

Note

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

2. If tRFisn’t enough, t

should be meet the range.

eff

3. LVDS Differential Voltage is defined within t

Ver. 1.0

SKEW

eff

SKEW_EO

100 600 mV

-600 -100 mV

- |(0.2*T

260 |(0.3*T

)/7| ps -

clk

)/7| ps 2

clk

|±360| - ps -

- |1/7* T

eff

| ps -

clk

11 /39

+ 26 hidden pages

LG Display LC470EUN-SFM1 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual

RECORD OF REVISIONS

1. General Description

2. Absolute Maximum Ratings
