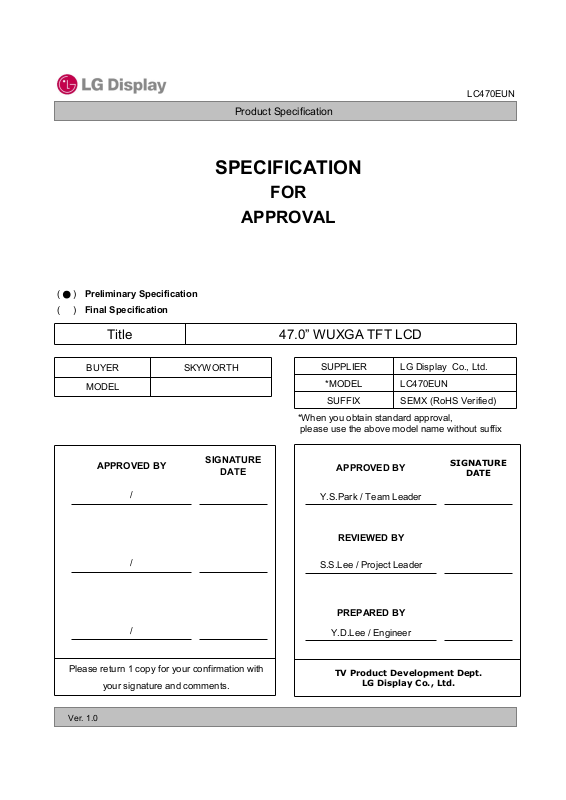

LG Display LC470EUN-SEM1 Specification

(●) Preliminary Specification

( ) Final Specification

Title 47.0” WUXGA TFT LCD

LC470EUN

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER SKYWORTH

MODEL

APPROVED BY

/

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC470EUN

SUFFIX SEMX (RoHS Verified)

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

Y.S.Park / Team Leader

REVIEWED BY

S.S.Lee / Project Leader

PREPARED BY

Y.D.Lee / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 1.0

TV Product Development Dept.

LG Display Co., Ltd.

Product Specification

CONTENTS

LC470EUN

Number

1

2

3

3-1

3-2

3-3

3-4

3-5

3-6

4

5

6

COVER

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL SPECIFICATIONS

ELECTRICAL CHARACTERISTICS

INTERFACE CONNECTIONS

SIGNAL TIMING SPECIFICATIONS

LVDS SIGNAL SPECIFICATIONS

COLOR DATA REFERENCE

POWER SEQUENCE

OPTICAL SPECIFICATIONS

MECHANICAL CHARACTERISTICS

RELIABILITY

ITEM

Page

0

1

2

3

4

5

5

7

9

10

13

14

16

20

23

7

7-1

7-2

7-3

8

8-1

8-2

9

9-1

9-2

9-3

9-4

9-5

9-6

Ver. 1.0

INTERNATIONAL STANDARDS

SAFETY

EMC

ENVIRONMENT

PACKING

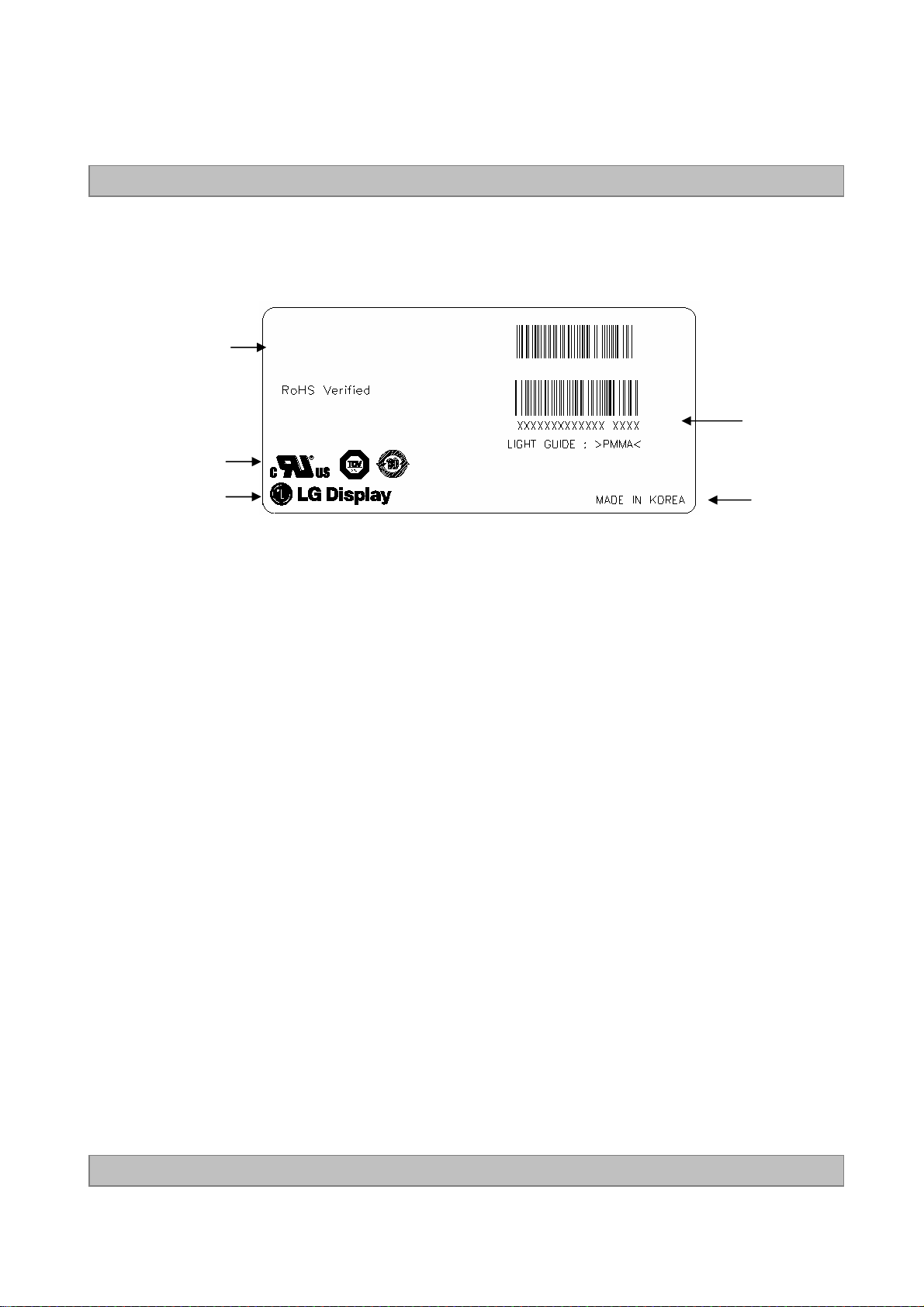

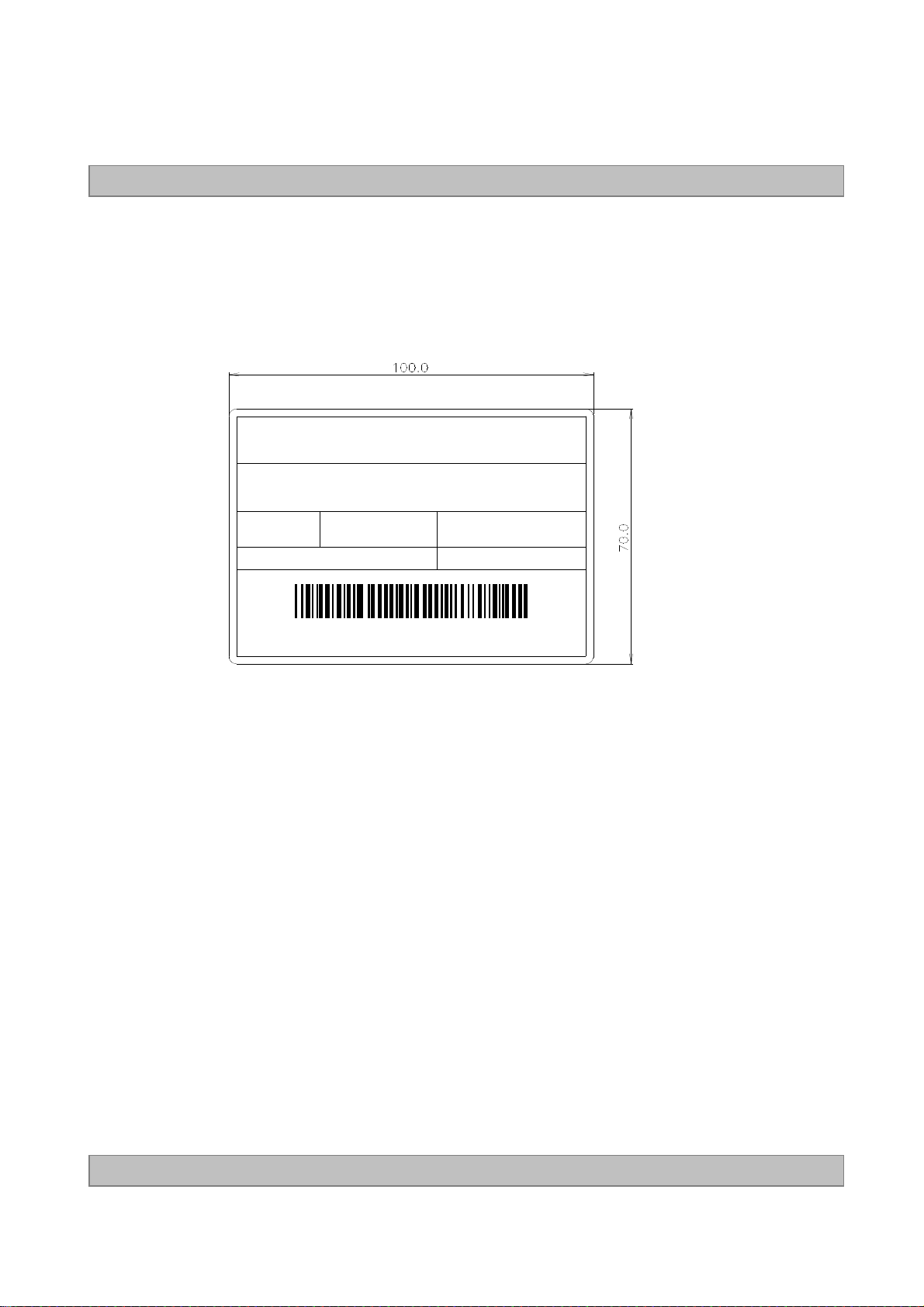

INFORMATION OF LCM LABEL

PACKING FORM

PRECAUTIONS

MOUNTING PRECAUTIONS

OPERATING PRECAUTIONS

ELECTROSTATIC DISCHARGE CONTROL

PRECAUTIONS FOR STRONG LIGHT EXPOSURE

STORAGE

HANDLING PRECAUTIONS FOR PROTECTION FILM

24

24

24

24

25

25

25

26

26

26

27

27

27

27

1 /35

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.0 Mar, 07, 2012 - Preliminary Specification (First Draft)

LC470EUN

Ver. 1.0

2 /35

LC470EUN

Product Specification

1. General Description

The LC470EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
bac k li ght s y st em. T h e m a tr i x em plo ys a - Si T h in Fi l m T ra n s is t or as th e a c tiv e e lem e nt.
It is a transmissive display type which is operating in the normally black mode. It has a 46.96 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

EPI(RGB)

S1 S1920

G1

Control
Signals

G1080

Power Signals

LVDS

2Port

LVDS
Select

OPC/TM
Enable

ExtVBR-B

+12.0V

CN1

(51pin)

LVDS 1,2

Option
signal

I2C

EEPROM

SCL

SDA

Timing Controller

LVDS Rx + OPC + DGA

Integrated

Power Circuit

Block

PWM_OUT
1~3

CN2

(4 pin)

PWM_OUT

1~3

LED Driver

+24.0V, GND, On/Off

General Features

Active Screen Size 46.96 inches(1192.87mm) diagonal

Outline Dimension 1070.6(H) × 622.0(V) X 9.9(B)/23.1 mm(D) (Typ.)

Pixel Pitch 0.5415 mm x 0.5415 mm

Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement

Color Depth 8bit, 16.7 Million colors

Luminance, White 300 cd/m2 (Center 1point ,Typ.)

Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))

Source Driver Circuit

TFT - LCD Panel

(1920 × RGB × 1080 pixels)

[Gate In Panel]

Scanning Block 1

Scanning Block 2

Scanning Block 3

Power Consumption Total 79.2W (Typ.) [Logic=6.4W , LED Driver=72.8W(ExtVbr_B=100% )]

Weight 10.9 Kg (Typ.)

Display Mode Transmissive mode, Normally black

Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze < 1%)

Ver. 1.0

3 /35

LC470EUN

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage

Driver Control Voltage

T-Con Option Selection Voltage VLOGIC

Operating Temperature TOP

Storage Temperature TST

Panel Front Temperature TSUR - +68 °C 4

Operating Ambient Humidity HOP

Storage Humidity HST 10 90 %RH

Note

1. Ambient temperature condition (Ta = 25 ± 2 °C )

LCD Circuit VLCD

Driver VBL -0.3 + 27.0 VDC

ON/OFF VOFF / VON

Brightness EXTVBR-B

Value

Min Max

-0.3 +14.0

-0.3 +5.5

-0.3 +4.0

-0.3 +4.0

0 +50

-20 +60

10 90

Unit Note

VDC

VDC

VDC

VDC

°C

°C

%RH

2. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 40°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.

90%

1

2,3

2,3

Ver. 1.0

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [°C]

30

40

50

60

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

4 /35

LC470EUN

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Circuit :

ILCDPower Input Current

ExtV

BR-B

Brightness Adjust for Back Light

ExtV

BR-B

Frequency

Pulse Duty Level
(PWM)

1. The specified current and power consumption are under the V

Note

High Level

Low Level

Value

MaxTypMin

=12.0V, Ta=25 ± 2°C, fV=60Hz

LCD

condition, and mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. ExtV
After Driver ON signal is applied, ExtV
After that, ExtV

signal have to input available duty range and sequence.

BR-B

1% and 100% is possible

BR-B

should be sustained from 5% to 100% more than 500ms.

BR-B

For more information, please see 3-6-2. Sequence for LED Driver.

5. Ripple voltage level is recommended under ±5% of typical voltage

NoteUnit

VDC13.212.010.8VLCDPower Input Voltage

1mA698537-

2mA1027790-

1Watt8.46.4PLCDPower Consumption

3A3.0--IRUSHRush current

%100-5

%100-1

Hz8050/6040

Vdc3.6-2.5

Vdc0.8-0

On Duty

4

HIGH : on duty

LOW : off duty

Ver. 1.0

White : 255 Gray
Black : 0 Gray

Mosaic Pattern(8 x 6)

5 /35

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

Values

Parameter Symbol

Min Typ Max

LED Driver :

Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Unit Notes

LC470EUN

Power Supply Input Current IBL

Power Supply Input Current (In-Rush) In-rush - - 5.0 A

Power Consumption PBL -

Input Voltage for

Control System

Signals

LED :

Life Time 30,000 50,000 Hrs 2

On/Off

On V on 2.5 - 5.0 Vdc

Off V off -0.3 0.0 0.7 Vdc

-

3.0

72.8 79.5

3.3

A 1

VBL = 22.8V
Ext VBR-B = 100%

3

W 1

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60

minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25±2°C.

3. The duration of rush current is about 200ms. This duration is applied to LED on time.

4. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.

Ver. 1.0

6 /35

LC470EUN

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, 51-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-R51S-HF(manufactured by JAE) or compatible

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

11

12

13

14

16

17

18

19

21

22

23

NC No Connection (Note 4)1

GND

R1AN

R1AP

R1BN

R1CN

R1CP

GND

R1CLKN

GND

R1DN

R1DP

DescriptionSymbolNo

No Connection (Note 4)NC2

No Connection (Note 4)NC3

No Connection (Note 4)NC4

No Connection (Note 4)NC5

No Connection (Note 4)NC6

‘H’ =JEIDA , ‘L’ or NC = VESA LVDS Select7

External PWM (from System)ExtVBR-B8

No Connection (Note 4)NC9

‘H’ = Enable , ‘L’ or NC = Disable OPC Enable10

Ground

FIRST LVDS Receiver Signal (A-)

FIRST LVDS Receiver Signal (A+)

FIRST LVDS Receiver Signal (B-)

FIRST LVDS Receiver Signal (B+)R1BP15

FIRST LVDS Receiver Signal (C-)

FIRST LVDS Receiver Signal (C+)

Ground

FIRST LVDS Receiver Clock Signal(-)

FIRST LVDS Receiver Clock Signal(+)R1CLKP20

Ground

FIRST LVDS Receiver Signal (D-)

FIRST LVDS Receiver Signal (D+)

No connectionNC24

No connectionNC25

No Connection or GroundNC or GND26

No

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

-

Symbol

NC

R2AN

R2AP

R2BN

R2BP

R2CN

R2CP

GND

R2CLKN

R2CLKP

GND

R2DN

R2DP

NC

NC

NC or GND

NC or GND

GND

GND

GND

NC

VLCD

VLCD

VLCD

VLCD

-

Description

No connection

SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)

SECOND LVDS Receiver Signal (B-)

SECOND LVDS Receiver Signal (B+)

SECOND LVDS Receiver Signal (C-)

SECOND LVDS Receiver Signal (C+)

Ground

SECOND LVDS Receiver Clock Signal(-)

SECOND LVDS Receiver Clock Signal(+)

Ground

SECOND LVDS Receiver Signal (D-)

SECOND LVDS Receiver Signal (D+)

No connection

No connection

No Connection or Ground

No Connection or Ground

Ground (Note 6)

Ground

Ground

No connection

Power Supply +12.0V

Power Supply +12.0V

Power Supply +12.0V

Power Supply +12.0V

-

Note

Ver. 1.0

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #9 NC (No Connection): These pins are used only for LGD (Do not connect)

5. Specific pins(pin No. #10) are used for OPC function of the LCD module.
If not used, these pins are no connection. (Please see the Appendix VI for more information.)

6. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

7 /35

Product Specification

3-2-2. Backlight Module

Master

-LED Driver Connector
: 20022WR - H14B2(Yeonho) or Compatible

- Mating Connector
: 20022HS - 14B2 or Compatible

Table 5. LED DRIVER CONNECTOR PIN CONFIGURATION

Pin No Symbol Description Note

LC470EUN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

GND Backlight Ground

GND Backlight Ground

GND Backlight Ground

GND Backlight Ground

GND Backlight Ground

Status Back Light Status 2

ON/OFF

V

NC Don’t care

NC Don’t care

Backlight ON/OFF control 3

Notes : 1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : Open

3. The impedance of pin #12 is over 50 [KΩ].

1

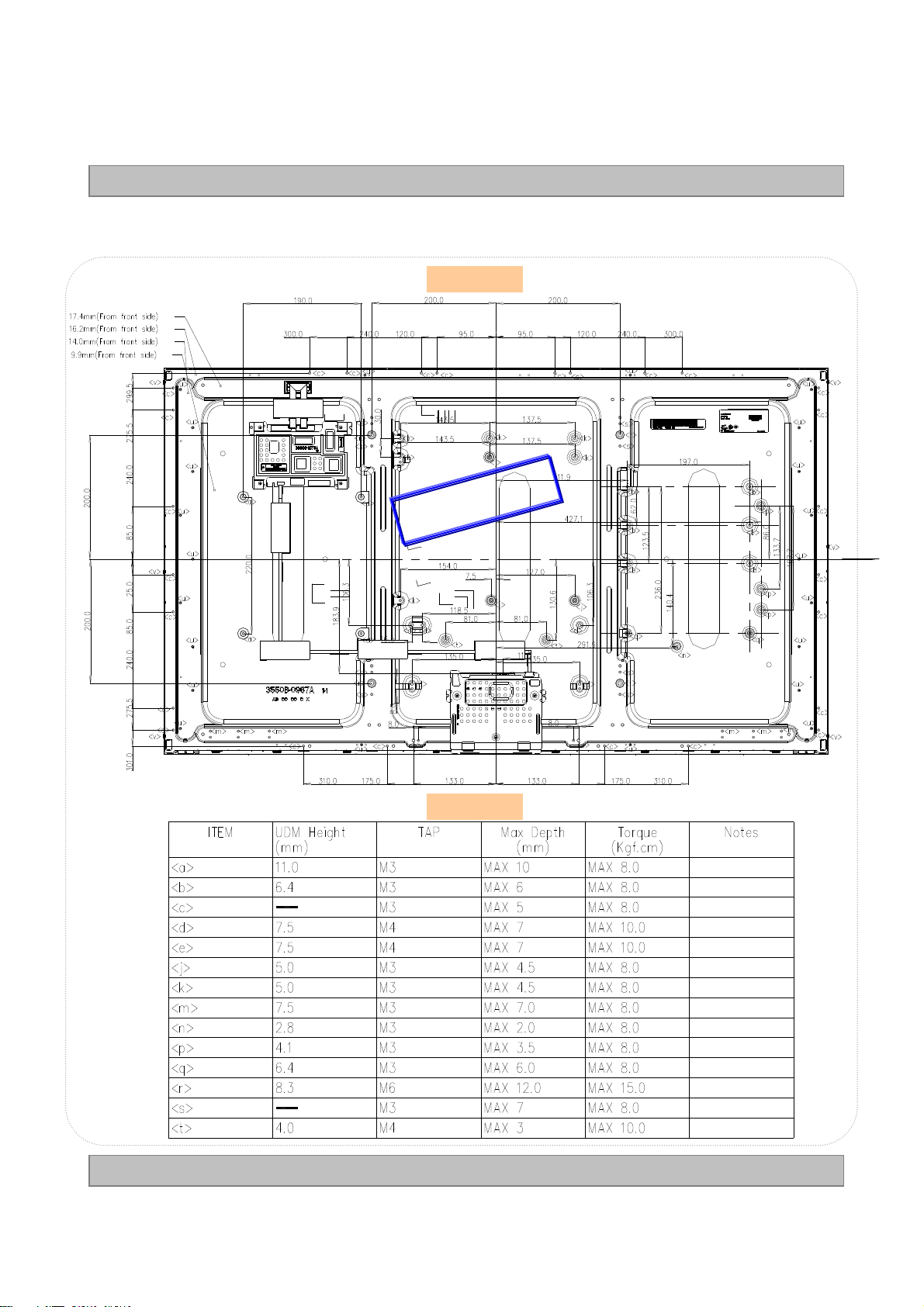

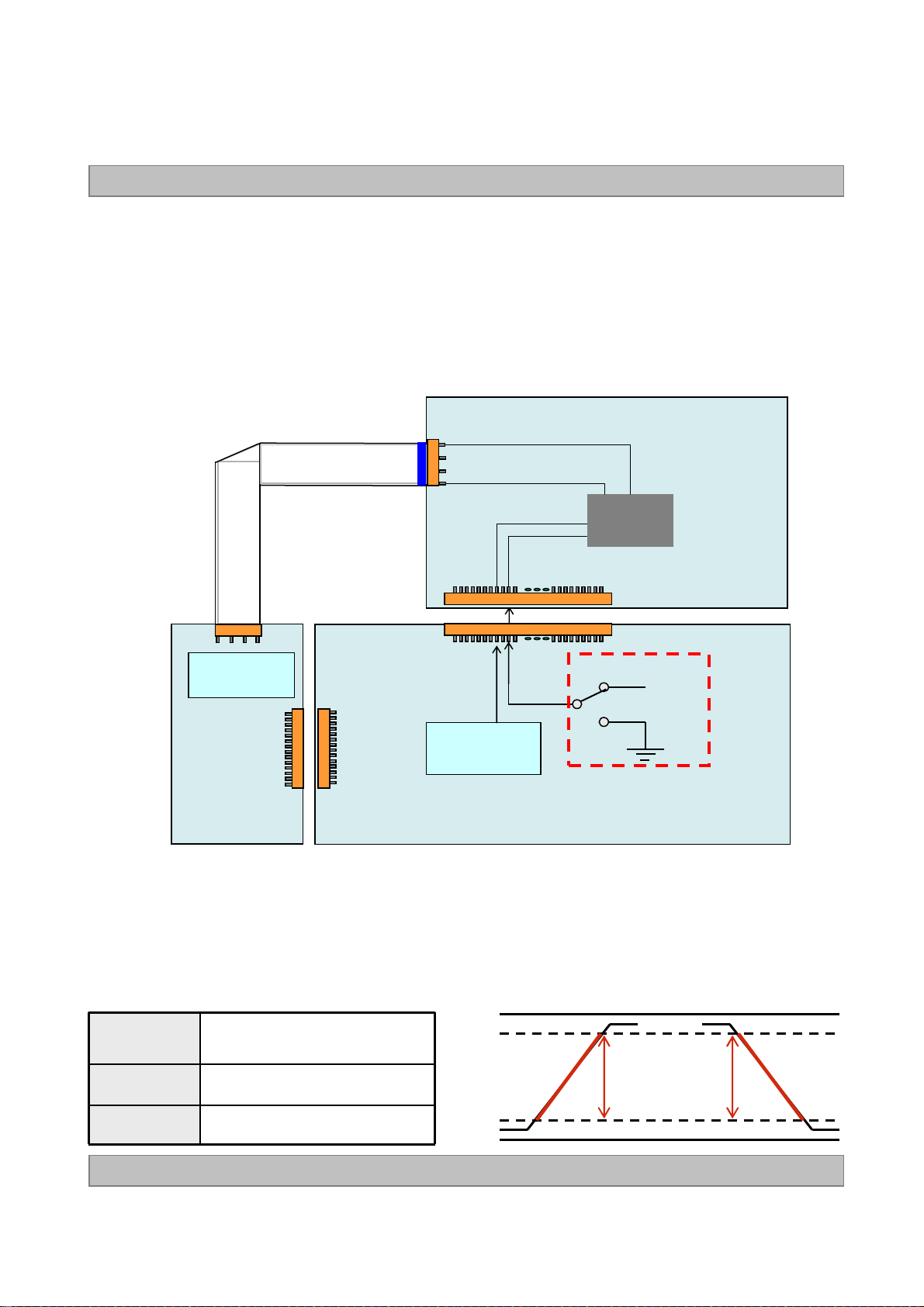

◆ Rear view of LCM

1

Ver. 1.0

…

14

<Master>

◆ Status

PCB

1

14

…

8 /35

LC470EUN

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Horizontal

Vertical

Frequency

Display

Period

Blank tHB 100 140 240 tCLK 1

Total tHP 1060 1100 1200 tCLK

Display

Period

Blank tVB

Total tVP

ITEM Symbol Min Typ Max Unit Note

DCLK fCLK 63.00 74.25 78.00 MHz

Horizontal fH 57.3 67.5 70 KHz 2

Vertical fV

tHV 960 960 960 tCLK 1920 / 2

tVV 1080 1080 1080 Lines

20

(228)

1100

(1308)

57

(47)

45

(270)

1125

(1350)

60

(50)

69

(300)

1149

(1380)

63

(53)

Lines 1

Lines

Hz

NTSC
(PAL)

2

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).

If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

※ Timing should be set based on clock frequency.

Ver. 1.0

9 /35

3-4. LVDS Signal Specification

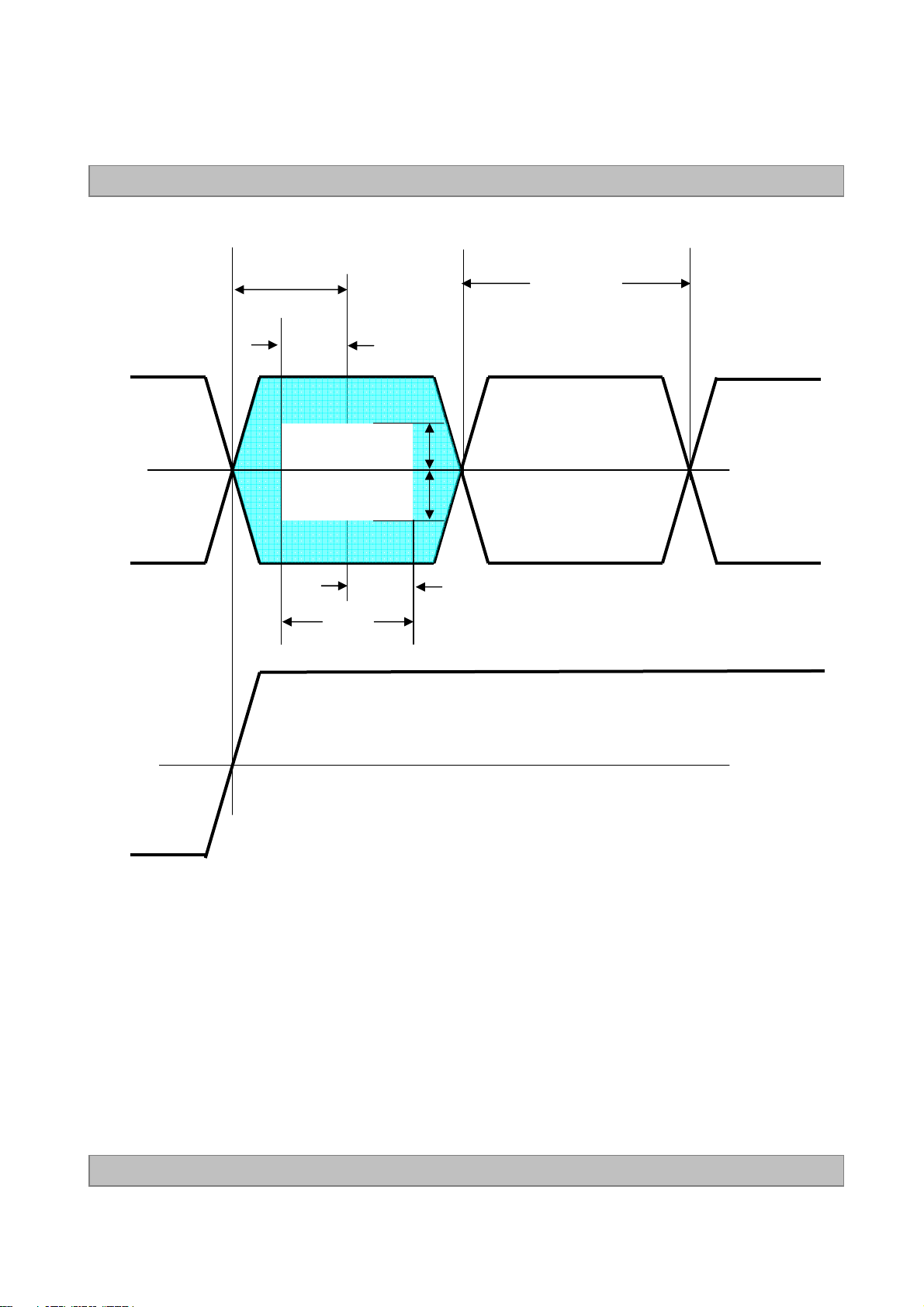

3-4-1. LVDS Input Signal Timing Diagram

LC470EUN

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Invalid data

Valid data

Pixel 0,0

Valid data

Pixel 1,0

tHP

Pixel 2,0

Pixel 3,0

Invalid data

Invalid data

tHV

DE(Data Enable)

Ver. 1.0

1 1080

tVV

tVP

10 /35
