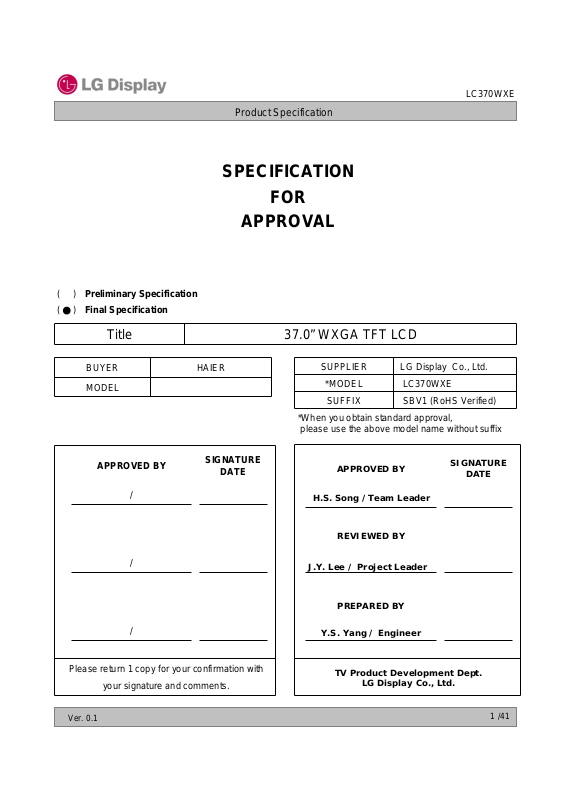

LG Display LC370WXE-SBV1 Specification

()Preliminary Specification
(●) Final Specification

Title 37.0” WXGA TFT LCD

LC370WXE

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER HAIER
MODEL

APPROVED BY

/

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC370WXE

SUFFIX SBV1 (RoHS Verified)

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

H.S. Song /Team Leader

REVIEWED BY

J.Y. Lee / Project Leader

PREPARED BY

Y.S. Yang / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.1

TV Product Development Dept.

LG Display Co., Ltd.

1/41

Product Specification

CONTENTS

LC370WXE

Number

1
2
3

3-1
3-2
3-3

3-4
3-5

3-6
4
5

ITEM

COVER 1
CONTENTS
RECORD OF REVISIONS
GENERAL DESCRIPTION

ABSOLUTE MAXIMUM RATINGS
ELECTRICAL SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
INTERFACE CONNECTIONS
SIGNAL TIMING SPECIFICATIONS

SIGNAL TIMING WAVEFORMS
COLOR DATA REFERENCE

POWER SEQUENCE
OPTICAL SPECIFICATIONS
MECHANICAL CHARACTERISTICS

Page

2
3

4
5
6

6
10
12

13
14
15
16
20

6
7

7-1
7-2

8

8-1

8-2

9

9-1
9-2
9-3
9-4
9-5
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

Ver. 0.1

RELIABILITY
INTERNATIONAL STANDARDS
SAFETY
EMC
PACKING
INFORMATION OF LCM LABEL
PACKING FORM

PRECAUTIONS
MOUNTING PRECAUTIONS
OPERATING PRECAUTIONS
ELECTROSTATIC DISCHARGE CONTROL
PRECAUTIONS FOR STRONG LIGHT EXPOSURE
STORAGE

23
24
24
24
25
25
25

26
26
26
27
27
27
27

2 /41

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.1 May, 14, 2009 - Preliminary Specification (First Draft)

0.2 Jun, 29, 2009 4 Power consumption(85mA Î 89mA)
Surface Treatment (Haze 10% Æ Haze 13%)

6 Power input Current
7 Update Electrical characteristics of Back Light Assembly & Lamp

12 Update Signal Timing Specifications

21,22 Update Mechanical Drawing.

24 Update International Standards.
40 Update Lamp Electrical Spec.

03. Aug.10.2009 22 Extend the length of high voltage cable wires.

04. Sep. 15.2009 40 Revise striking voltage.

1.0 Dec. 15. 2009 7,40 Revise striking voltage. Revise lamp operating current.

LC370WXE

Ver. 0.1

3 /41

LC370WXE

Product Specification

1. General Description

The LC370WXE is a Color Active Matrix Liquid Crys tal D isp lay w i th an integ ral Externa l Ele ctrode Fl uorescen t
Lamp(EEFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 37.02 inch d iagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel ar
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(true) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

ray).

SDA

Mini-LVDS(RGB)

G1

Gate Driver Circuit

Source Driver Circuit

S1 S1366

TFT - LCD Panel

+12.0V

LVDS

5pair

Select #9

CN1

(30pin)

EEPROM

SCL

Timing Controller

[LVDS Rx]

(1366 × RGB × 768 pixels)

Power Circuit

G768

Block

High Input

High Input

CN2, 3pin, 14 Lamps/@89 mA

CN3, 3pin, 14 Lamps/@89mA

General Features

Active Screen Size 37.02 inches(940.3mm) diagonal
Outline Dimension 877.0mm(H) x 516.8mm(V) x 46.9mm(D) (Typ.)
Pixel Pitch 0.200mm x 0.600mm x RGB
Pixel Format 1366 horiz. by 768 vert. pixels RGB stripe arrangement
Color Depth 8-bit, 16.7 M colors
Luminance, White 380 cd/m2 (Center 1 point Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178(Typ.), U/D 178(Typ.))

Back light Assembly

Power Consumption Total 88.2 Watt (Typ.) (Logic= 3.2 W, Inverter= 85W @ with inverter )
Weight 6,950(Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 13%)

Ver. 0.1

4/41

LC370WXE

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values wh ich, if exceeded, may cause faulty operation or damage to the
LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Unit Remark

Min Max

Value

Power Input
Voltage

B/L Input voltage

Operating Temperature TOP 0 +50 °C
Storage Temperature TST -20 +60 °C
Operating Ambient Humidity HOP 10 90 %RH
Storage Humidity HST 10 90 %RH

LCD circuit VLCD -0.3 +14.0 V [DC] at 25 ± 2 °C

Operating
Voltage (one

VOP 700 1100 V[ RMS] at 25 ± 2 °C

side)

Notes : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be Max 39 °C and no condensation of water.

2. Gravity mura can be guaranteed below 40℃ condition.

90%

60

60%

Note 1

Ver. 0.1

Wet Bulb
Temperature [

10

0

10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [

°C]

20

30

40

°C]

50

40%

10%

Storage

Operation

Humidity [(%)RH]

5/41

LC370WXE

Product Specification

3. Electrical Specifications 3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the EEFL
backlight and inverter circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Value

Parameter Symbol

Min Typ Max

Circuit :

Power Input Voltage VLCD 10.8 12.0 13.2 VDC

Unit Note

Power Input Current ILCD

-

­Power Consumption PLCD ­Rush current IRUSH - - 3.0 A 3

Notes : 1. The specified current and power consumption are under the V

condition whereas mosaic pattern(8 x 6) is displayed and f

260 338
350 455

3.2 4.2

=12.0V, 25 ± 2°C, fV=60Hz

LCD

is the frame frequency.

V

mA 1
mA 2

Watt 1

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

White : 255Gray
Black : 0Gray

Ver. 0.1

Mosaic Pattern(8 x 6)

6 /41

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS of Back Light Assembly & Lamp (Continue)

LC370WXE

Parameter Symbol

Values

Unit Notes

Min Typ Max

Backlight Assembly :

Operating Voltage

(one side,fBL=63KHz, I

Operating Current (one side) IBL -89-mA

Established Starting
Voltage (one side)

Operating Frequency fBL 61 63 65 kHz 4
Striking Time S TIME 1.5 - - sec 3
Power Consumption PBL 85 Watt 6

Burst Dimming Duty
Burst Dimming Frequency 1/T 95 - 182 Hz 9

BL= 89mArms))

0℃ - - 1190
25℃ - - 1095

Parameter Symbol

VBL - 980 - V

VS

{ a/T } * 100

20 100 % 9

Values

RMS

RMS

V

RMS

Unit Notes

Min Typ Max

Lamp : APPENDIX-XI

Lamp Voltage (one side) VLAMP 890 1125 1315 V
Lamp Current (one side) ILAMP 3.0 6.3 8.0 mA
Discharge Stabilization Time TS --3Min 5
Lamp Frequency f LAMP 40 63 80 KHz
Lamp Temperature TLAMP 70 °C

Established Starting
Voltage (one side)

Life Time 50,000 Hrs 7

0℃ VS 1190
25℃ VS 1095

RMS

RMS

V

RMS

Notes : The design of the inverter must have specifications for the lamp in LCD Assembly.

The electrical characteristics of inverter are based on High-High Driving type.
The performance of the lamps in LCM, for example lif e time or brightness, is extremely influenced by

the characteristics of the DC-AC inverter. So, all the parameters of an inverter should be carefully

designed so as not to produce too much leakage current from high-voltage output of the inverter.

When you design or order the inverter, please make sure unwanted lighting caused by the mismatch

of the lamp and the inverter (no lighting, flicker, etc) has never been occurred. When you confirm it,

the LCD– Assembly should be operated in the same condition as installed in your instrument.

※ Do not attach a conductive tape to lamp connecting wire.

If you attach conductive tape to the lamp wire, not only luminance level can be lower than typical one
but also inverter operate abnormally on account of leakage current which is generated between lamp wir
and conductive tape.

1. Specified values are defined for a Backlight Assembly.( IBL : 14 lamp, 6.35mA/Lamp)

2. Operating voltage is measured at 25 ± 2°C(after 2hr.aging). The variance range for operating voltage is

3. The established starting voltage [

VS ] should be applied to the lamps for more than Striking time (S TIME)

for start-up. Inverter open voltage must be more than established starting voltage. Otherwise, the lamps ma
not be turned on. The used lamp current is typical value.

Ver. 0.1

1, 2

1

1, 3

2

3

e

± 10%.

y

7 /41

LC370WXE

Product Specification

Vpk-pk

S TIME

Vs = (Vpk-pk) / [ 2*root(2)]

4. Lamp frequency may produce interference with horizontal synchronous frequency. As a result, the may
cause beat on the display. Therefore, lamp frequency shall be away as much as possible from the horizontal
synchronous frequency and its harmonics range in order to prevent interference.
There is no reliability problem of lamp, If use out of range of operation frequency ( 61KHz~65KHz) on CAS

5. The brightness of the lamp after lighted for 5minutes is defined as 100%.

is the time required for the brightness of the center of the lamp to be not less than 95% at typical current.

T

S

The screen of LCD module may be partially dark by the time the brightness of lamp is stable after turn on.

6. Maximum level of power consumption is measured at initial turn on.
Typical level of power consumption is measured after 2hrs aging at 25 ± 2°C.

7. The life time is determined as the time at which brightness of the lamp is 50% compared to that of initial

value at the typical lamp current on condition of continuous operating at 25 ± 2°C, based on duty 100%.

8.The output of the inverter must have symmetrical (negative and positive) voltage and current waveform

(Unsymmetrical ratio is less than 10%). Please do not use the inverter which has not only unsymmetrical

voltage and current but also spike wave.
Requirements for a system inverter design, which is intended to achieve better display performance,

power efficiency and more reliable lamp characteristics.
It can help increase the lamp lifetime and reduce leakage current.

a. The asymmetry rate of the inverter waveform should be less than 10%.
b. The distortion rate of the waveform should be within √2 ±10%.

* Inverter output waveform had better be more similar to ideal sine wave.

Ver. 0.1

I p

I -p

* Asymmetry rate:

| I

–I –p| / Iopx 100%

p

* Distortion rate

I

(or I –p) / I

p

op

8 /408 /41

Product Specification

9. The reference method of burst dimming duty ratio.
It is recommended to use synchronous V-sync frequency to prevent waterfall
(Vsync x 2 =Burst Frequency)

T

A

PWM

Output of Inverter to Lamp

90%

LC370WXE

+3.3V TTL

I-out

PWM duty={ A/T } * 100
Point A : rising time 90% of Iout point .

Point B : falling starting point .
I out duty = { a/T } * 100
PWM Frequency = 1/T

※ We recommend not to be much different between PWM duty and Iout duty .
※ Dimming current output rising and falling time may produce humming and inverter trans’ sound noise.
※ Burst dimming duty should be 100% for more than 1second after turn on.
※ Equipment

Oscilloscope :TDS3054B(Tektronix)
Current Probe : P6022 AC (Tektronix)
High Voltage Probe: P5100(Tektronix)

10. The Cable between the backlight connector and its inverter power supply should be connected directly
with a minimized length. The longer cable between the backlight and the inverter may cause the lower
luminance of lamp and may require more higher starting voltage ( Vs ).

11. The operating current must be measured as near as backlight assembly input.

Point A

a

Point B

12. The operating current unbalance between left and right must be under 10% of Typical current
│Left(Master) current – Right(Slave) Curr e nt │〈 10% of typical current

Ver. 0.1

9 /409 /41

LC370WXE

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, a 30-pin connector is used for the module electronics and

3-pin Balance PCB connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN5) : FI-X30SSL-HF (Manufactured by JAE) or IS100-L30B-C23(Manufactured by UJU)

- Mating Connector : FI-X30C2L (Manufactured by JAE) or Equivalent

Table 4. MODULE CONNECTOR(CN5) PIN CONFIGURATION

Pin No. Symbol Description Note

Power Supply +12.0V
Power Supply +12.0V
Power Supply +12.0V
Power Supply +12.0V

Appendix VII

No Connection

No Connection
No Connection

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

28
29

30

1
2
3
4
5
6
7
8
9

VLCD
VLCD
VLCD
VLCD

GND Ground
GND Ground
GND Ground
GND Ground

LVDS Select ‘H’ =JEIDA , ‘L’ or NC = VESA

NC

GND Ground

RA- LVDS Receiver Signal(-)

RA+ LVDS Receiver Signal(+)

GND Ground

RB- LVDS Receiver Signal(-)

RB+ LVDS Receiver Signal(+)

GND Ground

RC- LVDS Receiver Signal(-)

RC+ LVDS Receiver Signal(+)

GND Ground

RCLK- LVDS Receiver Clock Signal(-)

RCLK+ LVDS Receiver Clock Signal(+)

GND Ground

RD- LVDS Receiver Signal(-)

RD+ LVDS Receiver Signal(+)

GND Ground

NC

NC
GND Ground
GND Ground

Notes :

Ver. 0.1

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD(power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard. (Please see the Appendix VI)

4. Specific pin No. #30 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

10 /41

3-2-2. Backlight Inverter

LC370WXE

Product Specification

[ Master ]

1) Balance Connector

: 65002WS-03 (manufactured by YEONHO)or equivalent

2) Mating Connector

: 65002HS-03 (manufactured by YEONHO) or equivalent.

[ Slave ]

1) Balance Connector

: 65002WS-03 (manufactured by YEONHO)or equivalent

2) Mating Connector

: 65002HS-03 (manufactured by YEONHO) or equivalent.

Table 5. BACKLIGHT CONNECTOR PIN CONFIGURATION(CN2,CN3)

No Symbol Master Slave Note

1
2
3 FB NC NC

H_Input
H_Input

High_Input High_Input
High_Input High_Input

◆ Rear view of LCM

123

1

23

Master

Slave

Ver. 0.1

11 /41

LC370WXE

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE for NTSC &PAL

[ DE (Data Enable) Only ]

ITEM Symbol Min Typ Max Unit Note

Period tCLK 12.5 13.8 15.8 ns

DCLK

Frequency - 63 72.4 80 MHz

HT 1456 1528 1920 tCLK

-

HFP 40 50 -

VT

tHP- tHV 162 tHP- tHV

776

(894)

790

(948)

1063

(1008)

KHz

t

HP

Hsync

Period t
Horizontal Valid tHV 1366 1366 1366 tCLK
Horizontal Blank
Frequency fH 45 47.4 50
Width tWH -32-tCLK
Horizontal Back Porch tHBP 34 80 -
Horizontal Front Porch t

Period t

Vertical Valid tVV 768 768 768 tHP
Vertical Blank - tVP- tVV 22 tVP- tVV tHP

Vsync

Frequency fV

Width t

WV -

(47)

Vertical Back Porch tVBP 5

Vertical Front Porch t

VFP 1

57

60

(50)

5

(12)

15

(128)

2

(40)

63

(53)

-t

Hz

HP

-Hz

-tHP

Note 1)
NTSC : 57~63Hz
(PAL : 47~53Hz)

Note :

1. The input of HSYNC & VSYNC signal does not have an effect on normal operation(DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

3. Timing should be set based on clock frequency.

Ver. 0.1

12 /41

3-4. Signal Timing Waveforms

LC370WXE

Product Specification

DCLK

First data

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

DE, Data

0.7VDD

0.3VDD

Valid data

Invalid data

tHV

tHT

DE(Data Enable)

Ver. 0.1

1 768

tVV

tVT

13 /41

LC370WXE

Product Specification

3-5. Color Data Reference

The brightness of each primary color (red, green, blue) is based on the 8-bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

Ver. 0.1

GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

... ... ... ...

GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0
GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
BLUE (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

... ... ... ...

BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0
BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

14 /41

3-6. Power Sequence

3-6-1. LCD Driving circuit

Power Supply For LCD

V

LCD

0V

Product Specification

90%

50%

10%

LC370WXE

10%

Interface Signal (Tx_clock)

User Control Signal

(LVDS_select)

Power for Lamp

Table 9. POWER SEQUENCE

Parameter

T1 0.5 - 20 ms
T2 0 - - ms 4
T3 200 - - ms 3
T4 200 - - ms 3
T6 2.0 - - s 5
T7 0 - T2 ms 4
T9 T2+T3 - 12 s

T1

Valid Data

T3 T4

0V

T2

30%

T7

Invalid
Data

100%

T9

Lamp ON

Value

Min Typ Max

T6

Invalid
Data

Unit Notes

Note :

1. Please avoid floating state of interface signal at invalid period.

2. When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

3. The T3/T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. If the on time of signals(Interface signal and user control signals) precedes the on time of Power(V
it will be happened abnormal display. When T7 is NC status, T7 doesn’t need to be measured.

5. T6 should be measured after the Module has been fully discharged between power off and on
period.

Ver. 0.1

LCD

15 /41

),

LC370WXE

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25±2°C.
The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of Φ and θ
equal to 0 °.
FIG. 1 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Table 10. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 800 1200 - 1
Surface Luminance, white L
Luminance Variation δ

Response Time

Color Coordinates
[CIE1931]

Viewing Angle (CR>10)

x axis, right(φ=0°) θr 89 - -
x axis, left (φ=180°) θl 89 - -
y axis, up (φ=90°) θu 89 - -
y axis, down (φ=270°) θd 89 - -

Gray Scale - 2.2 - 7

Gray-to-Gray G to G -812 ms 4
Uniformity G to G

RED

GREEN
BLUE Bx 0.144

WHITE Wx

WH

WHITE

Rx 0.636
Ry 0.335

Gx 0.290
Gy 0.610

By 0.063

Wy

Ta= 25±2°C, V

Min Typ Max

304 380 - cd/m

5P - - 1.3 3

σ

-69 5

Typ

-0.03

=12.0V, fV=60Hz, Dclk=72.4MHz, IBL=89mArms

LCD

Value

Typ

+0.03

0.279

0.292

Unit Note

2

degree 6

2

Ver. 0.1

16 /41

Product Specification

Notes :1. Contrast Ratio (CR) is defined mathematically as :

CR =

It is measured at center 5-point.

2. Surface luminance is determined after the unit has been ‘ON’ and 60min after lighting the
backlight in a dark environment at 25±2°C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.

3. The variation in surface l umin ance , δ WHITE is defined as :

Where L

For more information, see the FIG. 2.

Surface Luminance at all white pixels
Surface Luminance at all black pixels

δ WHITE(5P) = Maximum(L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

, L

on3

, L

on4

, L

) / Minimum(L

on5

on1,Lon2

, L

on3

, L

on4

, L

on5

LC370WXE

)

4. Response time is the time required for the display to transit from any gray to white (Rise Time, Tr
and from any gray to black (Decay time, Tr
※ G to G

5. G to G

Spec stands for average value of all measured points.

BW

is Variation of Gray to Gray response time composing a picture

σ

G to G (σ) =

√

Σ(Xi- u)

N

). For additional information see the FIG. 3.

D

2

Xi = Individual Data
u = Data average
N : The number of Data

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 10.

Table 10. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ.)

L0
L15
L31
L47
L63
L79
L95

L111
L127
L143
L159
L175
L191
L207
L223
L239
L255

0.08

0.32

1.10

2.60

4.90

8.10

12.1

16.7

21.6

28.0

35.4

43.9

53.3

64.1

75.8

88.0
100

)

R

Ver. 0.1

17 /41

Product Specification

Measuring point for surface luminance & measuring point for luminance variation.

H

A

③②

LC370WXE

V

①

B

A : H / 4 mm

④

FIG. 2 5 Points for Luminance Me asure

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.

TrR

100

90

⑤

TrD

B : V / 4 mm
@ H,V : Active Area

Ver. 0.1

Optical
Response

10

0

Gray(N)

N,M = Black~White, N<M

FIG. 3 Response Time

Gray(M)

Gray(N)

18 /41

Dimension of viewing angle range

φ

= 180°, Left

Product Specification

Normal

E

θ

φ

Y

φ

= 90°, Up

φ

= 0°, Right

LC370WXE

φ

= 270°, Down

FIG. 4 Viewing Angle

Ver. 0.1

19 /41

Product Specification

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTE RISTIC S

Item Value

LC370WXE

Horizontal
Vertical
Depth 46.9 mm
Horizontal 828.6mm

Bezel Area

Vertical
Horizontal 819.6mm

Active Display Area

Vertical

Weight 6,950g(Typ.), 7,250g(Max)

877.0 mm

516.8 mmOutline Dimension

469.8mm

460.8mm

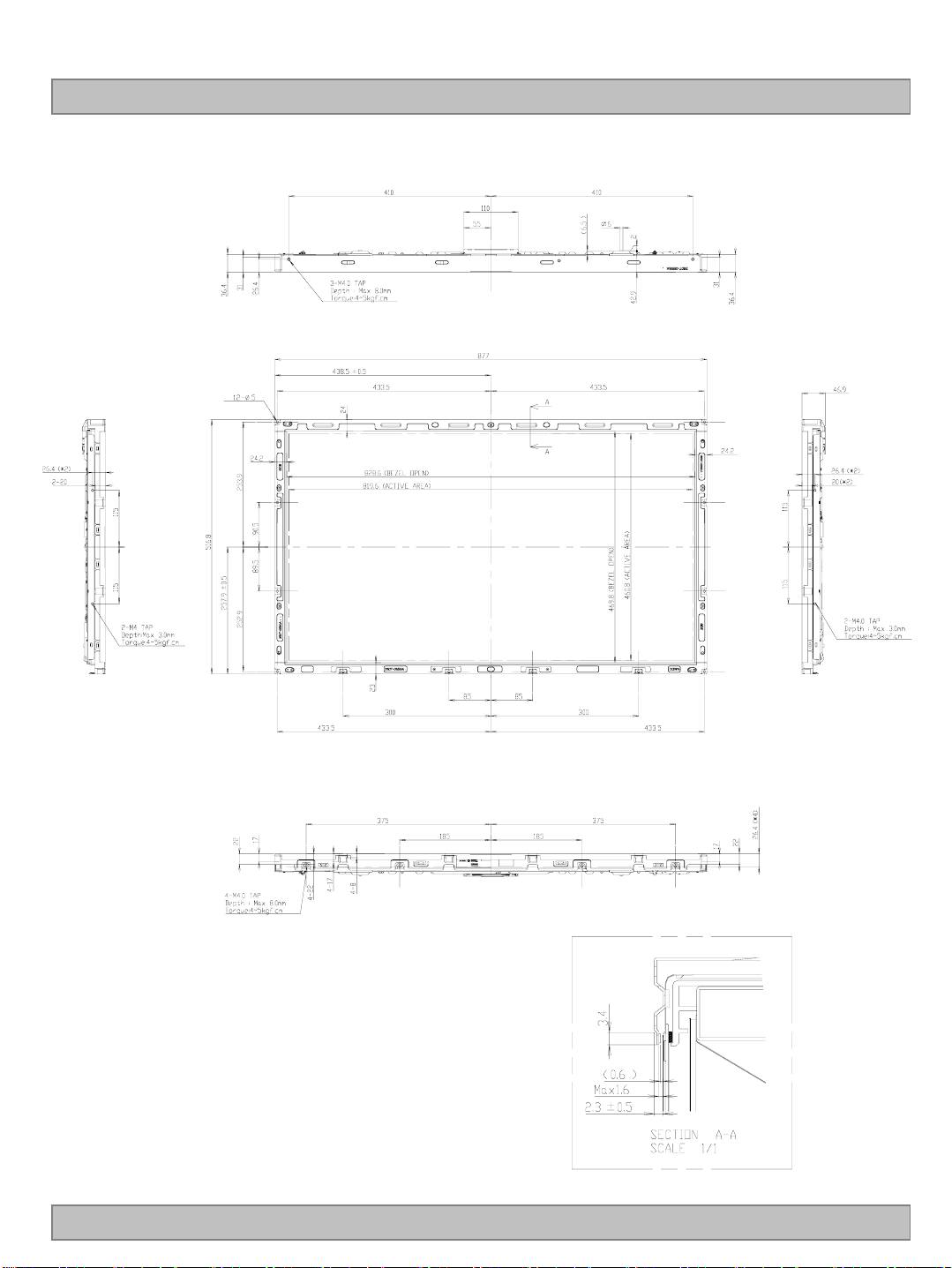

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver. 0.1

20 /41

<FRONT VIEW>

LC370WXE

Product Specification

Ver. 0.1

21 /41

<REAR VIEW>

LC370WXE

Product Specification

Ver. 0.1

22 /41

Product Specification

6. Reliability

Table 14. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60°C 240h

2 Low temperature storage test Ta= -20°C 240h

3 High temperature operation test Ta= 50°C 50%RH 240h

4 Low temperature operation test Ta= 0°C 240h

Wave form : random
Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z

Each direction per 10 min.

5

Vibration test
(non-operating)

LC370WXE

Shock level : 100Grms

Shock test

6

(non-operating)

7 Humidity condition Operation Ta= 40 °C ,90%RH

Altitude operating

8

storage / shipment

Waveform : half sine wave, 2ms
Direction : ±X, ±Y, ±Z

One time each direction

0 - 15,000 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 0.1

23 /41

Product Specification

7. International Standards
7-1. Safety

a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

c) EN 60065:2002 + A11:2008, European Committee for Electrotechnical Standardization (CENELEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

LC370WXE

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.1

24 /41

Product Specification

8. Packing

8-1. Information of LCM Label

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

LC370WXE

Year

Mark

321

200452005

4

200320022001

2006720078200892009

6

2. MONTH

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one box : 4 pcs
b) Box Size : 968 mm X 366 mm X 595 mm.

2010

0

Oct

A

Nov

B

DecMarFebJan

C321

Ver. 0.1

25 /41

LC370WXE

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlor ine type materials for the cover case are not des irable because the former

generates corrosive gas of attacking the polarizer at high tempe rature and the latte r causes ci rcuit br eak
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft mater ials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer. * There is no problem of Panel crack under 5kgf / φ10mm

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=±200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer

(4) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.

(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwis e, LCM can’t be operated

its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it can causes conductive particles and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) Partial darkness may happen during 3~5 minutes when LCM is operated initially in condition that

luminance is under 40% at low temperature (under 5℃). This phenomenon which disappears naturally
after 3~5 minutes is not a problem about reliability but LCD characteristic

Ver. 0.1

26 /41

LC370WXE

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to elec trostatic di scharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not exp ose t h e mo dul e t o sunli ght or flu oresce nt light. K e ep t h e t emp erat ure

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and care fully by people who are electrically g rounded and with well ion­blown equipment or in such a condition, etc.

(2) When the module with protection film a ttached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its ves tige is recognized,

please wipe them off with absorbent cotton waste or other soft materia l like chamois soaked with normal­hexane.

Ver. 0.1

27 /41

Product Specification

# APPENDIX- I-1

■ Required signal assignment for Flat Link Transmitter (Pin9=“L or NC”)

LC370WXE

Host System

24 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync
Vsync

Data Enable

CLOCK

DS90C385

or Compatible

51
52
54
55
56
3
50
2
4
6
7
11
12
14
8
10
15
19
20
22
23
24
16
18
27
28
30
31

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxCLKOUT­TxCLKOUT+

TxOUT3­TxOUT3+

FI-X30SSL-HF

48
47

46
45

42
41

40
39

38
37

GND

GND

12
13

15
16

18
19

21
22

24
25

30

Timing

Controller

100Ω

100Ω

100Ω

100Ω

100Ω

9

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

VESA / JEIDA

LCD Test

LCD Module

Notes:

1. The LCD module uses a 100 Ohm(Ω) resistor between positive and negative lines
of each receiver input.

2. Refer to LVDS transmitter data sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.1

28 /41

Product Specification

# APPENDIX- I-2

■ Required signal assignment for Flat Link Transmitter (Pin9=“H”)

LC370WXE

Host System

24 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync
Vsync

Data Enable

CLOCK

DS90C385

or Compatible

50
2
51
52
54
55
56
3
8
10
4
6
7
11
12
14

16
18
15
19
20
22
23
24
27
28
30
31

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxCLKOUT­TxCLKOUT+

TxOUT3­TxOUT3+

FI-X30SSL-HF

48
47

46
45

42
41

40
39

38
37

GND

VCC

12
13

15
16

18
19

21
22

24
25

30

Timing

Controller

100Ω

100Ω

100Ω

100Ω

100Ω

9

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

VESA / JEIDA

LCD Test

LCD Module

Notes:

1. The LCD module uses a 100 Ohm(Ω) resistor between positive and negative lines
of each receiver input.

2. Refer to LVDS transmitter data sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.1

29 /41

# APPENDIX- II-1

■ Pallet Ass’y

LC370WXE

Product Specification

Ver. 0.1

NO. DESCRIPTION MATERIAL

1LCD Module
2BAG

3 TAPE MASKING 20MMX50M
4Packing EPS

5Packing EPS
6BOX
7 TAPE OPP 70MMX300M
8 Label ART 100X70

AL

PAPER_DW3

30 /41

# APPENDIX- II-2

■ Pallet Ass’y

LC370WXE

Product Specification

Ver. 0.1

NO. DESCRIPTION MATERIAL

1 PACKING ASS’Y
2 PALLET
3ANGLE, PACKING SWR4
4 LABEL YUPO PAPER
5TAPE
6BAND
7BAND, CLIP

Paper_1140X990X117.5

OPP

PP

CLIP 18MM

31 /41

LC370WXE

# APPENDIX 2

Product Specification

# APPENDIX- III

■ LCM Label

Model

LC370WXE
(SB)(V1)

UL, TUV Mark

LGD Logo

US PATENT No. Origin

Serial No.

Ver. 0.1

32 /41

# APPENDIX- IV

■ Box Label and Pallet Label

■ Box Label

LC370WXE

Product Specification

LC370WXE

SBV1

4 PCS

MADE IN KOREA RoHS Verified

LOT/MM-DD

************* ***

■ Pallet Label

LC370WXE

12 PCS

MADE IN KOREA RoHS Verified

LOT/MM-DD

SBV1

Ver. 0.1

************* ***

33 /41

Product Specification

# APPENDIX- V

Option Pin Circuit Block Diagram

Circuit Block Diagram of LVDS Format Selection pin

LC370WXE

LVDS Select

1KΩ

(Pin 9)

50KΩ

System Side LCM Side

LVDS Select

ASIC

(TCON)

Ver. 0.1

34 /41

# APPENDIX- VI-1

1. DC Specification

Description Symbol Min Max Unit Notes

LC370WXE

Product Specification

LVDS Input characteristics

LVDS Single end Voltage |V
LVDS Common mode Voltage V
LVDS Input Voltage Range V
Change in common mode Voltage ΔV

| 200 600 mV -

ID

CM

IN

CM

1.0 1.5 V -

0.7 1.8 V ­250 mV -

2. AC Specification

T

clk

LVDS Clock

A

LVDS Data

(F

= 1 /T

tSKEW

tSKEW

clk

Description Symbol Min Max Unit Notes

LVDS Clock to Data Skew Margin t

SKEW

LVDS Clock/DATA Rising/Falling time t
Effective time of LVDS t

Notes : 1. All Input levels of LVDS signals are based on the EIA 644 Standard.

2. If t

isn’t enough, t

RF

should be meet the range.

eff

)

clk

|(0.25*T

RF

eff

260 (0.3*T

±350 ps -

)/7| ps -

clk

)/7 ps 2

clk

A

80%

20%

t

RF

Ver. 0.1

35 /41

# APPENDIX- VI-2

LC370WXE

Product Specification

LVDS Input characteristics

350ps

V+
data

Vcm

V­data

V+
clk

Vcm

0.5tui

350ps

│VID
│

teff

tui

Vfsw

tui : Unit
Interval

V­clk

Ver. 0.1

36 /41

Product Specification

# APPENDIX- VII

LVDS Data-Mapping info. (8bit)

■ LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LC370WXE

RAP

RBP

RCP

RDP

R17 R16 R15 R14G12 R13R12’ R12R13’ G12”

B12 G17 G16 G15B13 G14G13’ G13G14’ B13”

V

SYNCHSYNC

B11 B10 G11 G10X R11R10’ R10R11’ X”

B17 B16DE B15B14’ B14B15’ DE”

■ LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

Ver. 0.1

RCP

RDP

V

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B15 B14DE B13B12’ B12B13’ DE”

37 /41

LC370WXE

Product Specification

# APPENDIX- VIII-1

Mega DCR using condition(1)

After Inverter ON signal, PWM Duty 100% should be sustained during 1sec.
It is recommended not to sustain more than 10 min for Deep Dimming

(Low duty of the inverter output current 0%~20%)

The deep dimming must be used very carefully due to limitation of lamp characteristics and specification.

1) For stable lamp on, its duty condition should follow below the condition.
After Inverter ON signal, T0 duration should be sustained.

Output current

T0 = Min 1 [sec]

LAMP ON

Inverter ON signal

2) Low duty(0%~20%) of the inverter output current, B/L may not satisfy some of LCM specification.

- Duration : the low duty operation(0 ~ 20%) must be limited within 10 minutes for one time operation.

- Ratio : the period of the low duty operation must be less than 1/5 compare to that of the high duty

operation(20~Max duty) in a certain period to prevent unwanted operation.

- FOS : partial darkness or darkness of center area during the low duty might be happened due to

insufficient lamp current.

Min 3[min]

Duty (20% ~ Max duty)Max duty

- Warm up : the low duty must be used 3 min after the lamps “ON”. In case of low temperature, more

warm up time may be needed.

Ver. 0.1

38 /41

# APPENDIX- VIII-2

Output current

LC370WXE

Product Specification

Mega DCR using condition(2)

T0

Parameter

Min Typ Max
T1 3 - - min Output Current Duty [20%~Max Duty]
T2 - - 10 min Output Current Duty [0~20%]
T3 T2 x 5 - - min Output Current Duty [20%~Max Duty]

T2 T3T1 T2

Value

Unit Note

3) The output current duty may not be same as input PWM duty due to rise/fall time of output.

4) Following the recommended conditions as aforementioned, there is no difference of lamp
lifetime between conventional method and new one.

Ver. 0.1

39 /41

# APPENDIX- XI

■ Lamp Electrical spec

Item Unit

LC370WXE

Product Specification

Standards

Notes

Frequency Characteristics

1 Lamp Voltage ＶＬ V

2 Lamp Current ＩＬ mA

Lamp power

3

W 63kHz 7.35 1, 3

VL x IL

4 Starting Voltage V

5

6

Discharge

Stabilization Time

Operating

Frequency

min

kHz

rms

rms

rms

63kHz 1125 (one_side) 1, 3

6.3 1, 3

MAX 1190 (0℃)

63kHz

2

MAX 1095 (25℃)

33, 4

40~63(Typ)~80 5

Note 1) Started at IL=6.3(mA) and measure 3 minutes later.

2) Voltage at switch on. Inverter output voltage.

3) Ambient Temperature should be 25±1℃ under no wind.

4) The time needed to achieve not less than 95% luminance of the center / center part of lamp. The center
/ center part of lamp shall be measured. The luminance of the lamp after lighted for 5minutes is defined

as 100%.

5) The frequency range can be keep within ±10% range of optical characteristics. (except the
chromaticity)

Ver. 0.1

40 /41

Product Specification

−

# APPENDIX-XII

■ Starting(Striking) Voltage mesurement method.

Measure the high voltage point of Balance Ass’y after removing all lamp.

a) EEFL Structure

)(

V

s

V

)(+

s

Lamp open

LC370WXE

IO

Vpk-pk

Vs = (Vpk-pk) / [ 2*root(2)]

IO

C ballaster

※Equipment

1.TDS7254B(Tek.)

2.P6015(Tek.)

Tk

Figure 1 . EEFL Vopen

Ver. 0.1

41 /41
