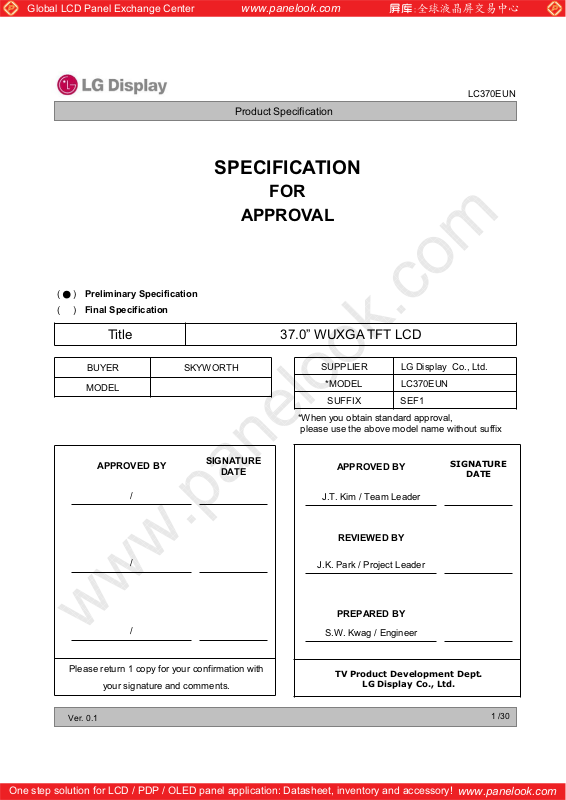

LG Display LC370EUN-SEF1 Specification

Global LCD Panel Exchange Center

www.panelook.com

LC370EUN

Product Specification

SPECIFICATION

FOR

APPROVAL

() Preliminary Specification

()Final Specification

Title 37.0” WUXGA TFT LCD

BUYER SKYWORTH

MODEL

APPROVED BY

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC370EUN

SUFFIX SEF1

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

J.T. Kim / Team Leader

REVIEWED BY

J.K. Park / Project Leader

SIGNATURE

DATE

PREPARED BY

/

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.1

S.W. Kwag / Engineer

TV Product Development Dept.

LG Display Co., Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/30

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC370EUN

Product Specification

CONTENTS

Number ITEM

COVER

CONTENTS

RECORD OF REVISIONS 3

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

3-4 SIGNAL TIMING WAVEFORMS 12

3-5 COLOR DATA REFERENCE

3-6 POWER SEQUENCE

4 OPTICAL SPECIFICATIONS

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY

Page

1

2

4

5

6

6

8

11

14

15

17

23

26

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC 27

7-3 ENVIRONMENT 27

8 PACKING

8-1 DESIGNATION OF LOT MARK

8-2 PACKING FORM

9 PRECAUTIONS 29

9-1 MOUNTING PRECAUTIONS 29

9-2 OPERATING PRECAUTIONS 29

9-3 ELECTROSTATIC DISCHARGE CONTROL 30

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 30

9-5 STORAGE 30

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 30

9-7 OPERATING GONDITION GUIDE 30

Ver. 0.1

27

27

28

28

28

2/30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Revision No. Revision Date Page Description

0.1 Aug, 03, 2011 - Preliminary Specification(First Draft)

www.panelook.com

LC370EUN

Product Specification

RECORD OF REVISIONS

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/30

www.panelook.com

Global LCD Panel Exchange Center

1. General Description

The LC370EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 42.02 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,

high color depth and fast response time are important.

www.panelook.com

LC370EUN

Product Specification

LVDS

EEPROM

EPI(RGB)

Source Driver Circuit

2Port

LVDS
Select

OPC
Enable

BR-B

ExtV

+12.0V

PWM_OUT

1~3

+24.0V, GND, On/Off

CN1

(51pin)

CN2

(4 pin)

LVDS 1,2

Option
signal

I2C

PWM_OUT

1~3

SCL

SDA

Timing Controller

LVDS Rx + OPC + DGA

Integrated

Power Circuit

Block

LED Driver

G1

Control
Signals

G1080

Power Signals

S1 S1920

TFT - LCD Panel

(1920 Ý RGB Ý 1080 pixels)

[Gate In Panel]

Scanning Block 1

Scanning Block 2

Scanning Block 3

General Features

Active Screen Size 36.5 inches(927.2mm) diagonal

Outline Dimension

Pixel Pitch 0.4209 mm x 0.4209 mm

Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement

Color Depth 8bit, 16.7 Million colors

Luminance, White 360 cd/m

Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))

Power Consumption Total 47.1W (Typ.) [Logic= 6.1W, LED Driver=41(TBD)W (ExtVbr_B=100% )]

Weight 7.5 Kg (Typ.)

Display Mode Transmissive mode, Normally black

Surface Treatment Hard coating(2H), Anti-glare treatment of the front polarizer (Haze 10%)

837.2(H) Ý 490.6(V) X 9.9(B) /22.7 mm(D) (Typ.)

2

(Center 1point ,Typ.)

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/30

www.panelook.com

Global LCD Panel Exchange Center

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

www.panelook.com

LC370EUN

Product Specification

Parameter Symbol

Power Input Voltage

Driver Control Voltage

T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC

Operating Temperature TOP 0+50

Storage Temperature T

Panel Front Temperature TSUR -+68

Operating Ambient Humidity H

Storage Humidity H

Notes

1. Ambient temperature condition (Ta =

LCD Circuit V

Driver V

ON/OFF V

Brightness EXT VBR-B -0.3 +4.0 VDC

LCD -0.3 +14.0 VDC

BL -0.3 + 27.0 VDC

OFF / VON -0.3 +5.5 VDC

ST -20 +60

OP 10 90 %RH

ST 10 90 %RH

25 r 2 ¶C )

Value

Min Max

2. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be Max 39¶C, and no condensation of water.

3. Gravity mura can be guaranteed below 40¶C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 68¶C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68ć. The range of operating temperature may be degraded in case of
improper thermal management in final product design.

90%

Unit Note

1

¶C

¶C

¶C

2,3

4

2,3

60

60%

Storage

Operation

Ver. 0.1

Wet Bulb
Temperature [

10

0

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [

¶C]

20

30

40

50

40%

Humidity [(%)RH]

10%

¶C]

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5/30

www.panelook.com

Global LCD Panel Exchange Center

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Circuit :

www.panelook.com

LC370EUN

Product Specification

Value

Unit Note

Min Typ Max

Power Input Voltage V

Power Input Current ILCD

Power Consumption P

Rush current I

Brightness Adjust for Back Light

Pulse Duty Level
(PWM)

Notes

1. The specified current and power consumption are under the V
condition, and mosaic pattern(8 x 6) is displayed and f

LCD 10.8 12.0 13.2 VDC

- 510 (TBD) 665 (TBD) mA 1

- 760 (TBD) 990 (TBD) mA 2

LCD 6.1 (TBD) 7.9 (TBD) Watt 1

RUSH --3.0A 3

ExtV

BR-B

ExtV

BR-B

Frequency

High Level

Low Level

5 - 100 %

1 - 100 %

40 50/60 80 Hz

2.5 - 3.6 Vdc

0 - 0.8 Vdc

=12.0V, Ta=25 r 2¶C, fV=60Hz

LCD

is the frame frequency.

V

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. ExtV
After Driver ON signal is applied, ExtV
After that, ExtV

signal have to input available duty range and sequence.

BR-B

1% and 100% is possible

BR-B

should be sustained from 5% to 100% more than 500ms.

BR-B

For more information, please see 3-6-2. Sequence for LED Driver.

5. Ripple voltage level is recommended under ·5% of typical voltage

On Duty

4

HIGH : on duty

LOW : off duty

White : 255 Gray
Black : 0 Gray

Mosaic Pattern(8 x 6)

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/30

www.panelook.com

Global LCD Panel Exchange Center

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

www.panelook.com

LC370EUN

Product Specification

Parameter Symbol

LED Driver :

Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Power Supply Input Current IBL

Power Supply Input Current (In-Rush) In-rush - -

Power Consumption PBL -

Input Voltage for

Control System

Signals

LED :

Life Time 30,000 50,000 Hrs 2

On/Off

On V on 2.5 - 5.0 Vdc

Off V off -0.3 0.0 0.7 Vdc

Min Typ Max

Values

-

1.7

(TBD)

41

(TBD)

2.0

(TBD)

2.5

(TBD)

44.7

(TBD)

Unit Notes

A1

VBL = 22.8V

A

ExtV

W1

BR-B

= 100%

3

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60

minutes at 25·2¶C. The specified current and power consumption are under the typical supply Input voltage
24Vand V

BR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25·2¶C.

3. The duration of rush current is about 200ms. This duration is applied to LED on time.

2

4. Even though inrush current is over the specified value, there is no problem if I

T spec of fuse is satisfied.

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/30

www.panelook.com

Global LCD Panel Exchange Center

3-2. Interface Connections

This LCD module employs two kinds of interface connection, 51-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1) : FI-R51S-HF(manufactured by JAE) or compatible

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1

2

3

4

5

6

7

8

9

10
11 GND

12 R1AN

13 R1AP

14 R1BN

15

16 R1CN

17 R1CP

18 GND

19 R1CLKN

20
21 GND
22 R1DN

23 R1DP

24
25
26

NC

NC

NC

NC

NC

NC

LVDS Select

ExtVBR-B

NC

OPC Enable ‘H’ = Enable , ‘L’ or NC = Disable

R1BP

R1CLKP

NC No connection
NC No connection

NC or GND

No Connection (Note 4)

No Connection (Note 4)

No Connection (Note 4)

No Connection (Note 4)

No Connection (Note 4)

No Connection (Note 4)

ಫHಬ =JEIDA , ಫLಬ or NC = VESA

External PWM (from System)

No Connection (Notes 4)

Ground

FIRST LVDS Receiver Signal (A-)

FIRST LVDS Receiver Signal (A+)

FIRST LVDS Receiver Signal (B-)

FIRST LVDS Receiver Signal (B+)

FIRST LVDS Receiver Signal (C-)

FIRST LVDS Receiver Signal (C+)
Ground

FIRST LVDS Receiver Clock Signal(-)

FIRST LVDS Receiver Clock Signal(+)
Ground

FIRST LVDS Receiver Signal (D-)

FIRST LVDS Receiver Signal (D+)

No Connection or Ground

www.panelook.com

Product Specification

27

28

29

30

31

32

33

34

35

36

37

38

39
40

41

42

43

44

45

46
47
48

49

50
51

-- -

R2AN

R2AP

R2BN

R2BP

R2CN

R2CP

R2CLKN

R2CLKP

R2DN

R2DP

NC or GND

NC or GND

VLCD Power Supply +12.0V

VLCD Power Supply +12.0V

VLCD Power Supply +12.0V
VLCD Power Supply +12.0V

NC No connection

SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)

SECOND LVDS Receiver Signal (B-)

SECOND LVDS Receiver Signal (B+)

SECOND LVDS Receiver Signal (C-)

SECOND LVDS Receiver Signal (C+)

GND

GND

NC No connection

NC No connection

GND

GND Ground

GND Ground

NC No connection

Ground

SECOND LVDS Receiver Clock Signal(-)

SECOND LVDS Receiver Clock Signal(+)
Ground

SECOND LVDS Receiver Signal (D-)

SECOND LVDS Receiver Signal (D+)

No Connection or Ground

No Connection or Ground

Ground

LC370EUN

Notes

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All V

LCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #9 NC (No Connection): These pins are used only for LGD (Do not connect)

5. Specific pins(pin No. #10) are used for OPC function of the LCD module.

If not used, these pins are no connection. (Please see the Appendix VI for more information.)

6. Specific pin No. #44 is used for “No signal detection” of system signal interface.

It should be GND for NSB(No Signal Black) during the system interface signal is not.

If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/30

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

3-2-2. Backlight Module

Master

- LED Driver Connector
: 20022WR - H14B2 (Yeonho) or Compatible

- Mating Connector
: 20022HS - 14B2 or Compatible

Table 5-1. LED DRIVER CONNECTOR PIN CONFIGURATION

Pin No Symbol Description Note

LC370EUN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

GND

GND

GND

GND

GND

Status

ON/OFF

V

NC Don’t care

NC Don’t care

Backlight Ground

Backlight Ground

Backlight Ground

Backlight Ground

Backlight Ground

Back Light Status 2

Backlight ON/OFF control

Notes :1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : Open

3. Each impedance of pin #12 is over 50 [KΩ]

1

୛ Rear view of LCM

PCB

1

14

…

1

14

…

<Master>

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/30

www.panelook.com

Global LCD Panel Exchange Center

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

www.panelook.com

LC370EUN

Product Specification

Horizontal

Vertical

Frequency

Display

Period

Blank tHB 100 140 240 tCLK 1

Total top 1060 1100 1200 tCLK

Display

Period

Blank t

Total t

ITEM Symbol Min Typ Max Unit Note

DCLK f

Horizontal fH 57.3 67.5 70 KHz 2

Vertical fV

HV 960 960 960 tCLK 1920 / 2

t

t

VV 1080 1080 1080 Lines

VB

VP

CLK 63.00 74.25 78.00 MHz

20

(228)

1100

(1308)

57

(47)

45

(270)

1125

(1350)

60

(50)

69

(300)

1149

(1380)

63

(53)

Lines 1

Lines

Hz

NTSC

(PAL)

2

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).

If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical

refresh rate and the horizontal frequency

Ć Timing should be set based on clock frequency.

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10 /30

www.panelook.com

Global LCD Panel Exchange Center

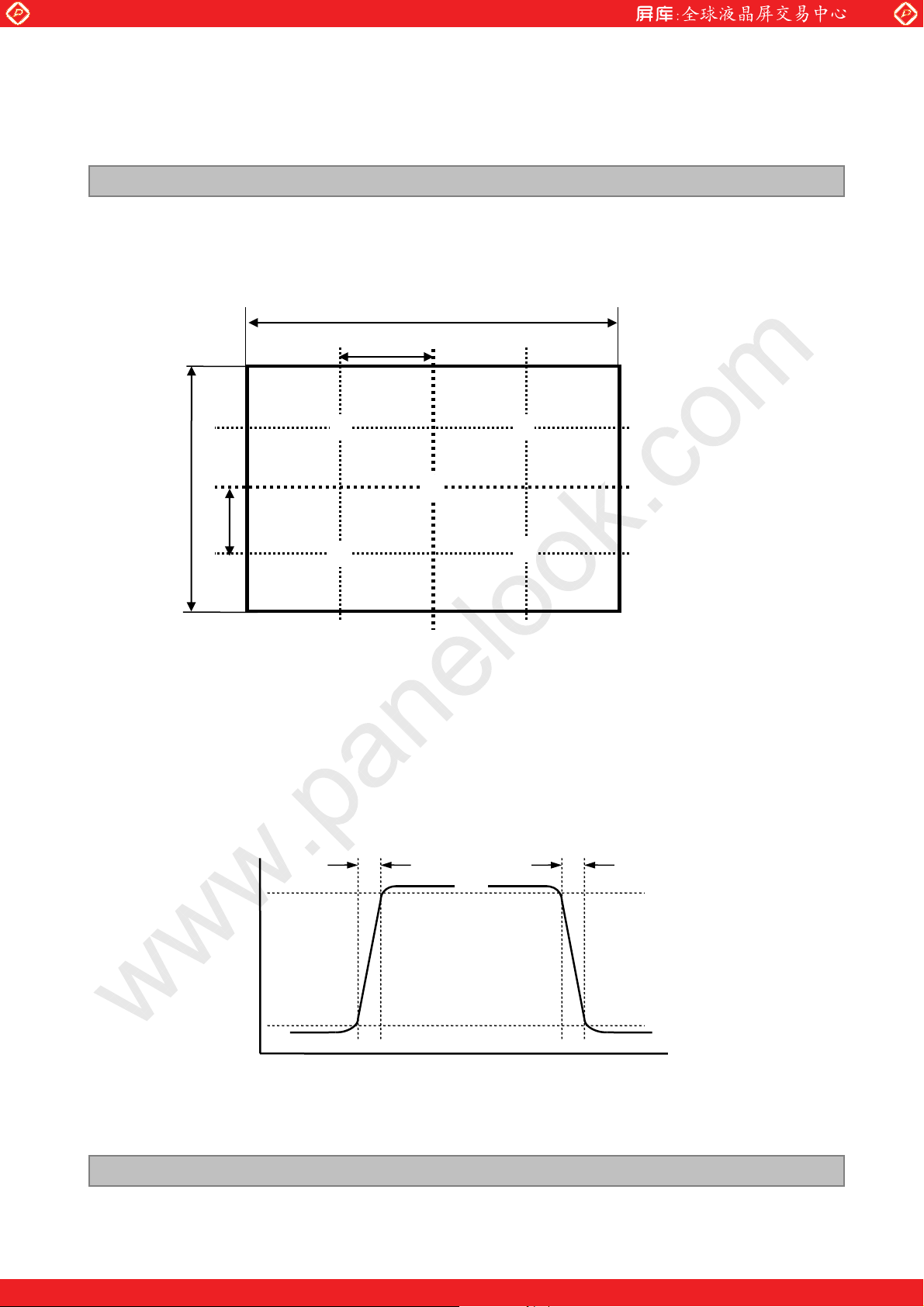

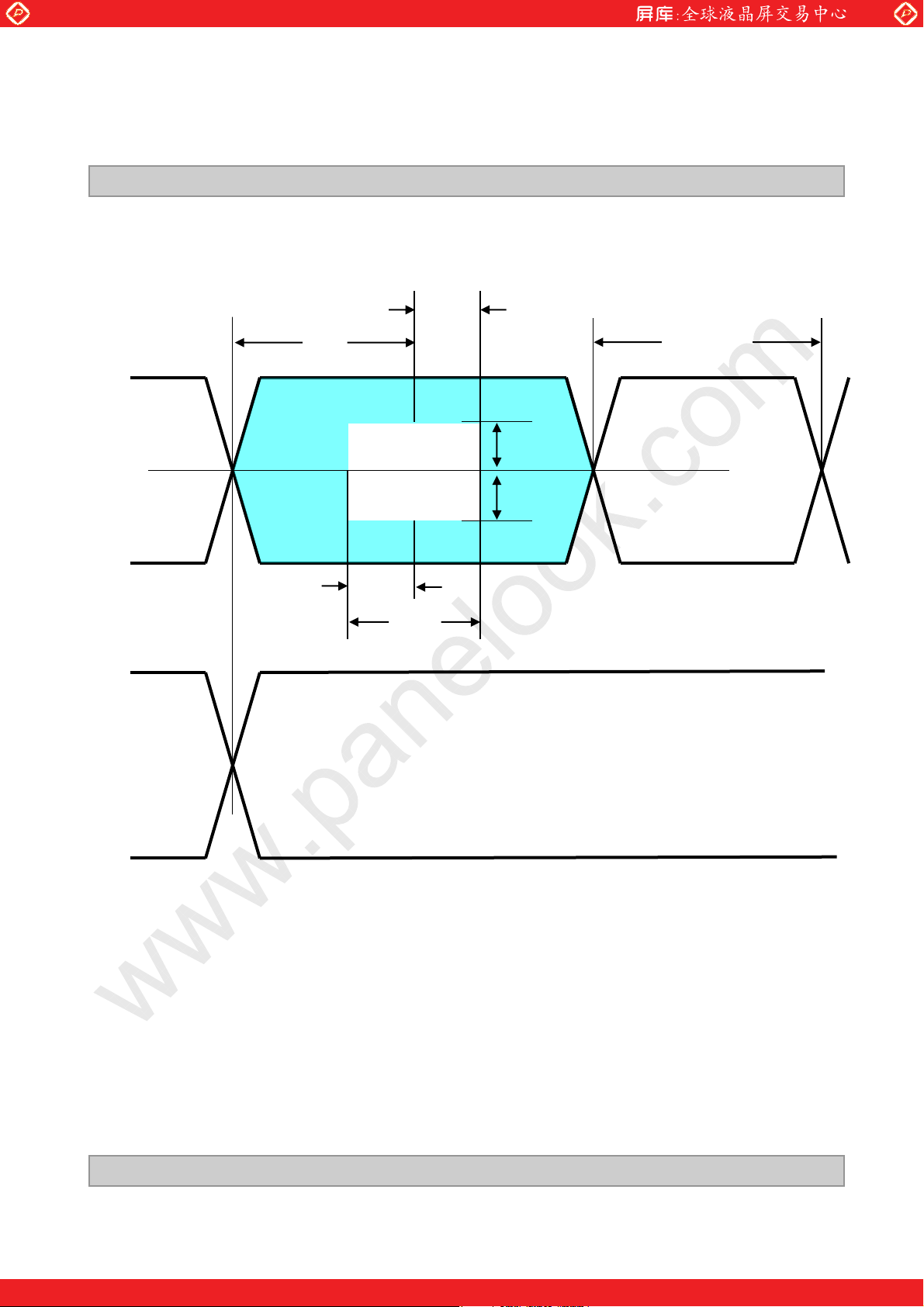

3-4. LVDS Signal Specification

3-4-1. LVDS Input Signal Timing Diagram

www.panelook.com

LC370EUN

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Invalid data

Valid data

Pixel 0,0

Valid data

Pixel 1,0

top

Pixel 2,0

Pixel 3,0

Invalid data

Invalid data

tHV

DE(Data Enable)

Ver. 0.1

1 1080

tVV

tVP

11 /30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

www.panelook.com

LC370EUN

Product Specification

#VCM= {(LVDS +) + ( LVDS - )} /2

0V

V

CM

V

IN _ MAXVIN _ MIN

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V

LVDS Input Voltage Range V

CM

IN

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM - 250 mV -

2) AC Specification

T

clk

LVDS Clock

A

LVDS Data

(F

=1/T

)

clk

A

LVDS 1’st Clock

LVDS 2nd/ 3rd/ 4thClock

tSKEW

tSKEW

t

SKEW_mintSKEW_max

clk

T

clk

80%

20%

t

RF

Description Symbol Min Max Unit Note

LVDS Differential Voltage

High Threshold

Low Threshold

LVDS Clock to Data Skew t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

LVDS Clock to Clock Skew (Even to Odd) t

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

Note

2. If t

isn’t enough, t

RF

should be meet the range.

eff

V

TH

V

TL

SKEW

RF

eff

SKEW_EO

3. LVDS Differential Voltage is defined within t

Ver. 0.1

100 300 mV

-300 -100 mV

- |(0.2*T

260 |(0.3*T

|·360|

- |1/7* T

eff

)/7| ps -

clk

)/7| ps 2

clk

-ps -

|ps -

clk

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3

12 /30

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC370EUN

Product Specification

360ps

V+
data

Vcm

V­data

V+
clk

Vcm

0.5tui

tui

VTH

VTL

360ps

teff

tui : Unit Interval

V­clk

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13 /30

www.panelook.com

Global LCD Panel Exchange Center

3-5. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 8bit gray scale data input for the color.

The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

www.panelook.com

LC370EUN

Product Specification

Input Color Data

Basic
Color

RED

Color

RED

MSB LSB

MSB LSB

GREEN

BLUE

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 00000 0000000000000000000

Red (255) 1 1 1 1 1 1 1 1 0 0 00000000000000

Green (255) 0 0 0 0 0 0 0 0 1 1 11111100000000

Blue (255) 0 0 0 0 0 0 0 0 0 0 00000011111111

Cyan 000000001111111111111111

Magenta 1 1 1 1 1 1 1 1 0 0 00000011111111

Yellow 111111111111111100000000

White 11 1111111111111111111111

RED (000) 000000000000000000000000

RED (001) 000000010000000000000000

... ... ... ...

RED (254) 111111100000000000000000

RED (255) 111111110000000000000000

GREEN (000) 0 0 0 0 0 0 0 0 0000000000000000

GREEN (001) 0 0 0 0 0 0 0 0 0000000100000000

GREEN

BLUE

... ... ... ...

GREEN (254) 0 0 0 0 0 0 0 0 1111111000000000

GREEN (255) 0 0 0 0 0 0 0 0 1111111100000000

BLUE (000) 0 0 0 0 0 0 0 0 0 0 00000000000000

BLUE (001) 0 0 0 0 0 0 0 0 0 0 00000000000001

... ... ... ...

BLUE (254) 0 0 0 0 0 0 0 0 0 0 00000011111110

BLUE (255) 0 0 0 0 0 0 0 0 0 0 00000011111111

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14 /30

www.panelook.com

Global LCD Panel Exchange Center

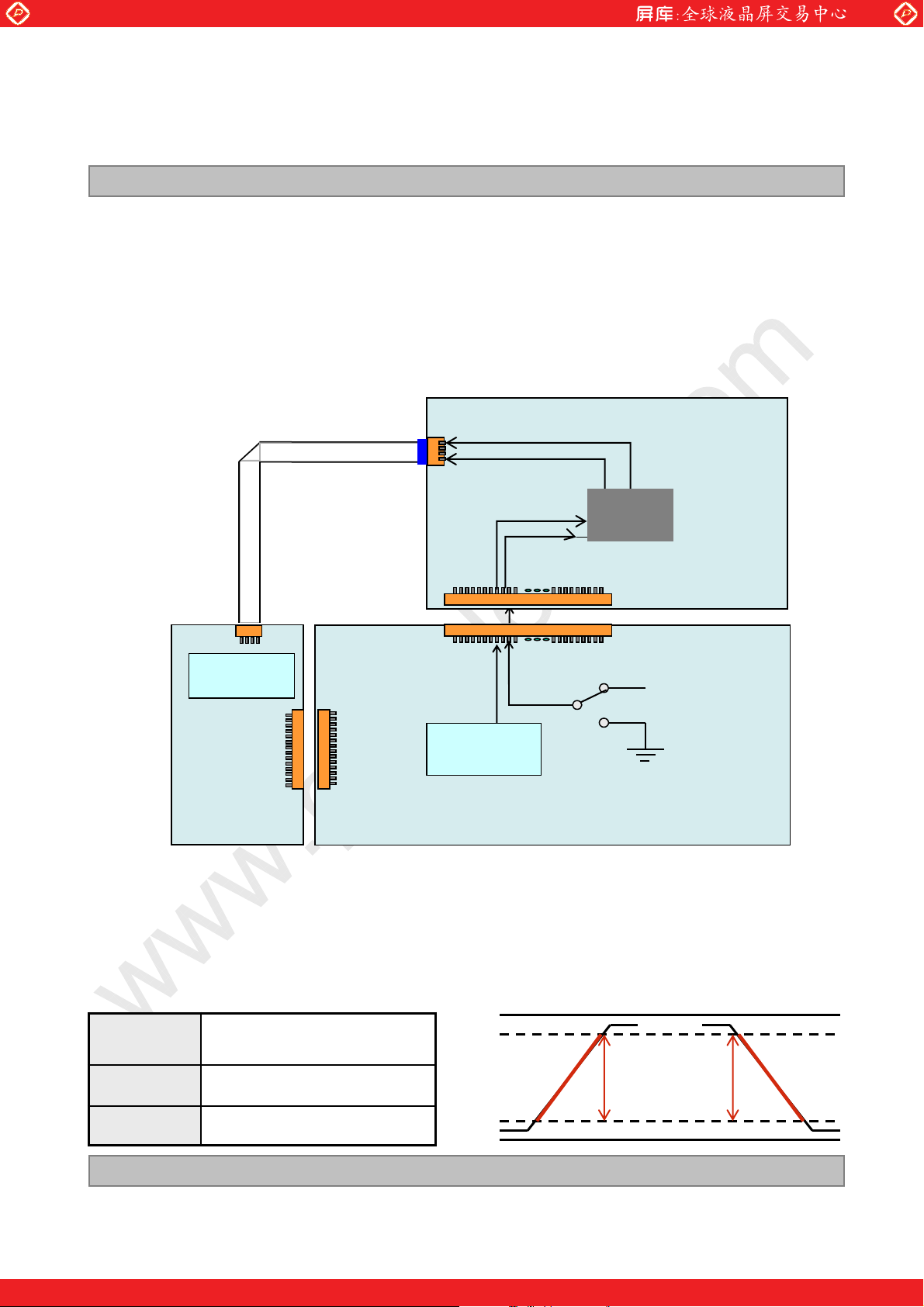

3-6. Power Sequence

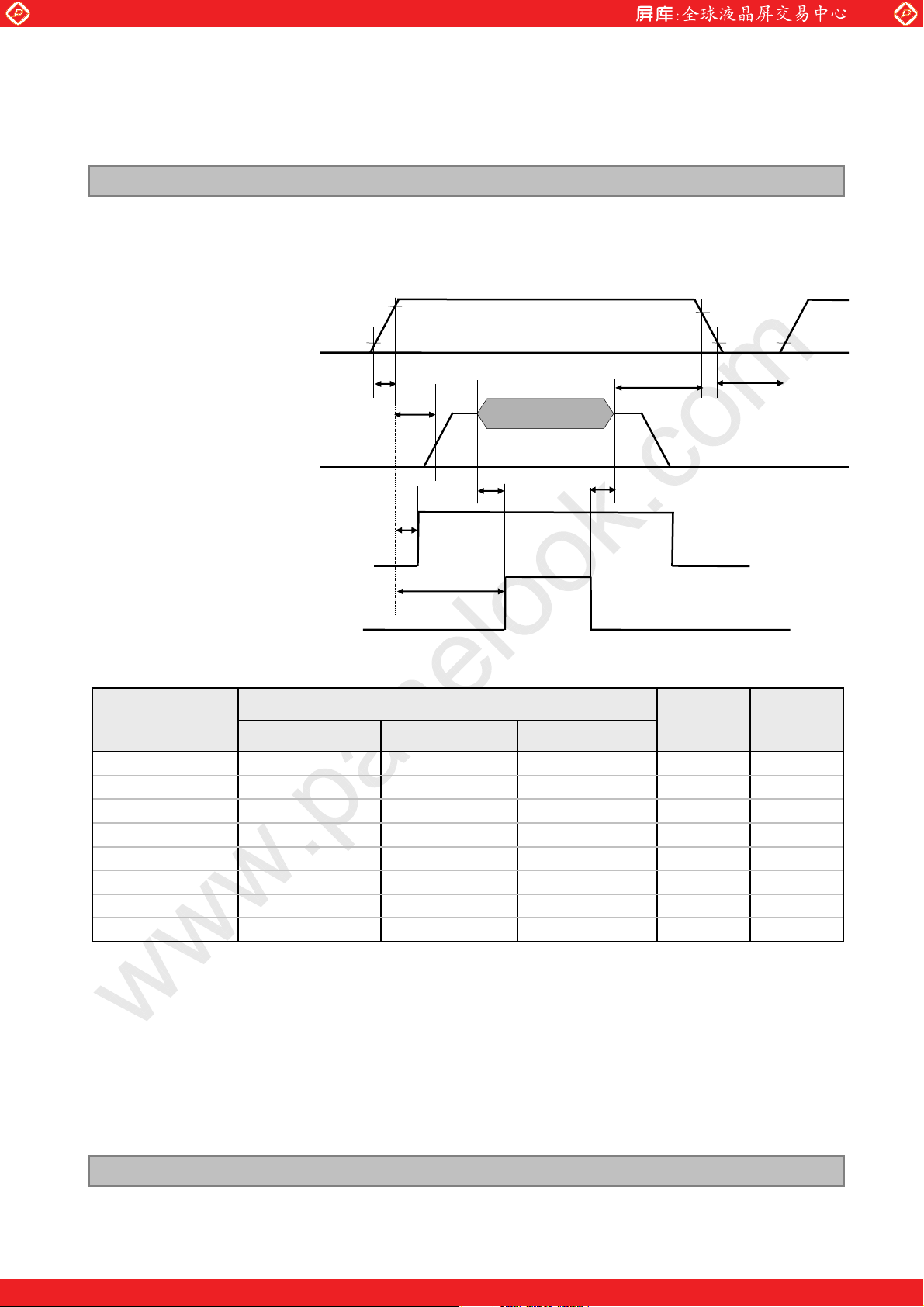

3-6-1. LCD Driving circuit

www.panelook.com

LC370EUN

Product Specification

Power Supply For LCD

V

LCD

Interface Signal (Tx_clock)

0V

0V

User Control Signal

(LVDS_select, OPC Enable, ExtVBR-B)

Power for LED

Table 8. POWER SEQUENCE

Parameter

Min Typ Max

10%

90%

1

T

T6

T2

30%

100%

T7

Value

Valid Data

T3 T4

LED ON

90%

10%

T8

T5

Vcm : LVDS Common mode Voltage

Unit Notes

10%

Note :

Ver. 0.1

1 0.5 - 20 ms 1

T

T

2 0--ms2

T3 200 - - ms 3

T4 200 - - ms 3

T

5 1.0 - - s 4

6 --T2ms5

T

T

7 0.5 - - s 6

T

8 100 - - ms 7

1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. T5 should be measured after the Module has been fully discharged between power off and on period.

5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V

it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.

6. If there is no abnormal display, no problem.

7. It is recommendation specification that T8 has to be 100ms as a minimum value.

Ć Please avoid floating state of interface signal at invalid period.
Ć When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

LCD

),

15 /30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

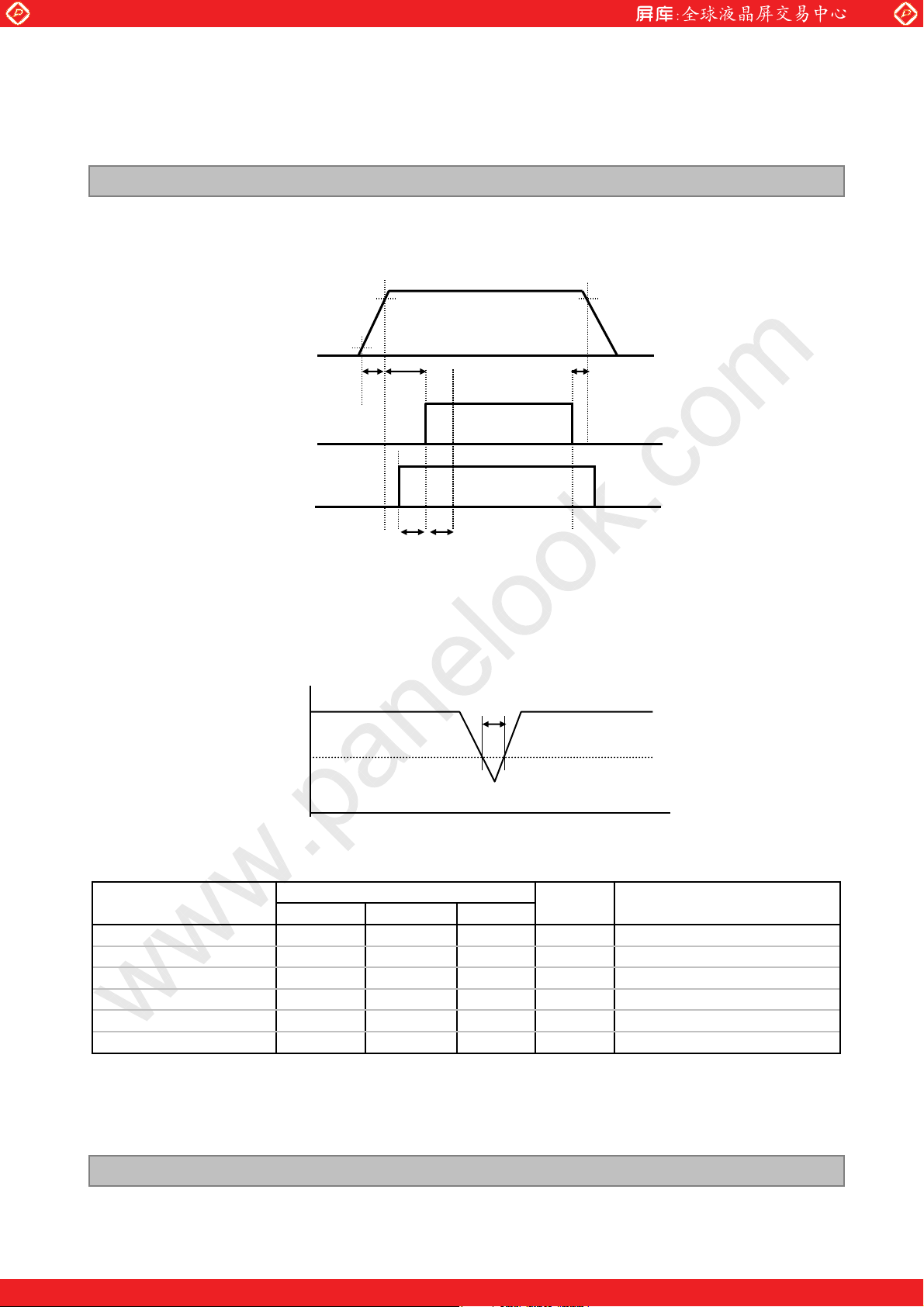

3-6-2. Sequence for LED Driver

Power Supply For LED Driver

VBL

0V

10%

www.panelook.com

Product Specification

24V (typ.)

90%

LC370EUN

90%

VON/OFF

ExtVBR-B

3-6-3. Dip condition for LED Driver

V

(Typ.) x 0.8

BL

T1 T2

T4 T6

LED ON

T5

T3

V

BL

0 V

: 24V

Table 9. Power Sequence for LED Driver

Parameter

T1 20 - - ms 1

T2 500 - - ms

T3 10 - - ms

T4 0 - - ms

T5 - - 10 ms VBL(Typ) x 0.8

T6 500 - - ms 2

Min Typ Max

Values

Units Remarks

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

Even though T1 is over the specified value, there is no problem if I

2. In T6 section,

Ver. 0.1

ExtVBR-B should be sustained from 5% to 100% .

2

T spec of fuse is satisfied.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16 /30

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

4. Optical Specification

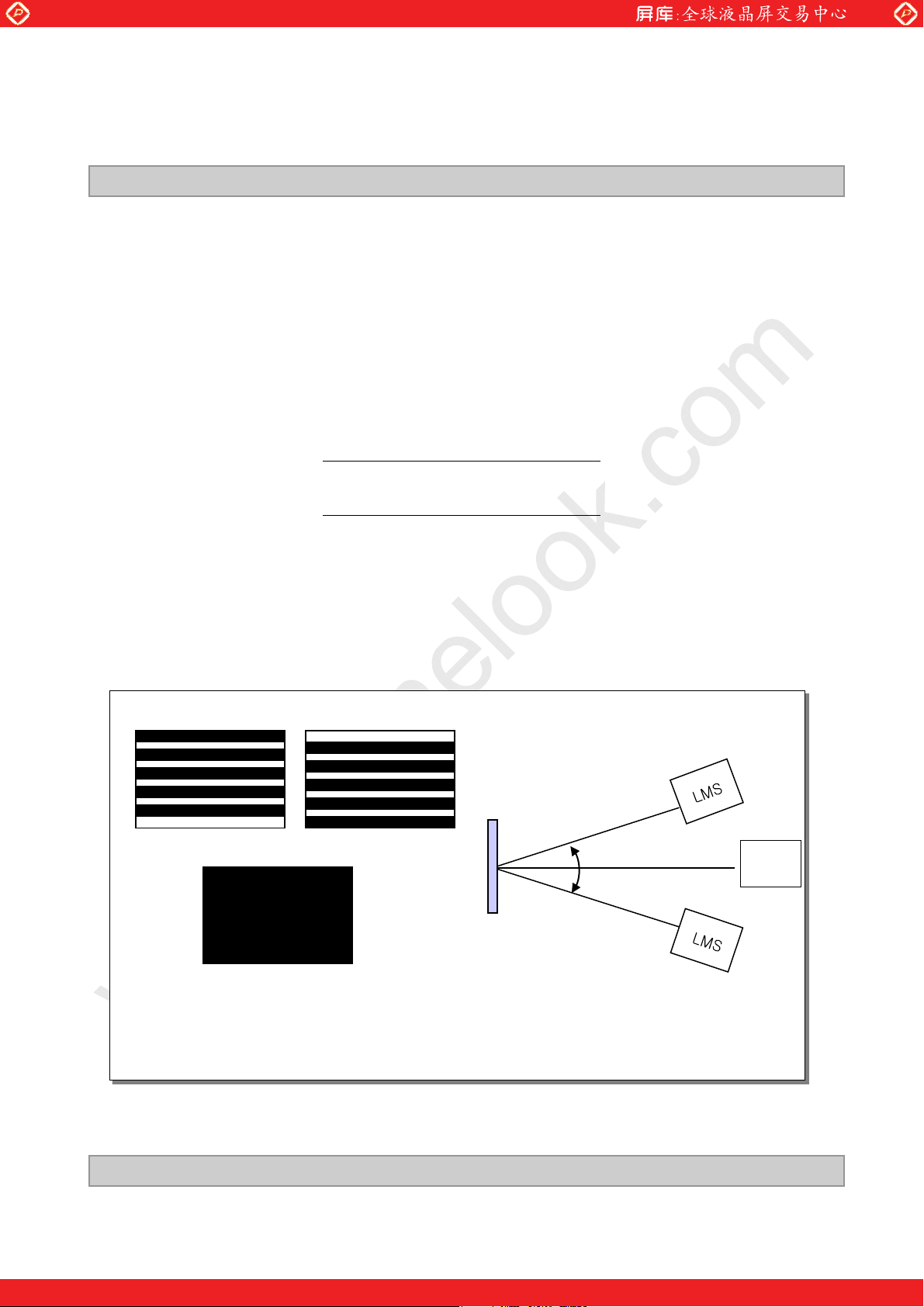

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25·2¶C.
The values are specified at 50cm from the LCD surface at a viewing angle of ) and T equal to 0 ¶.

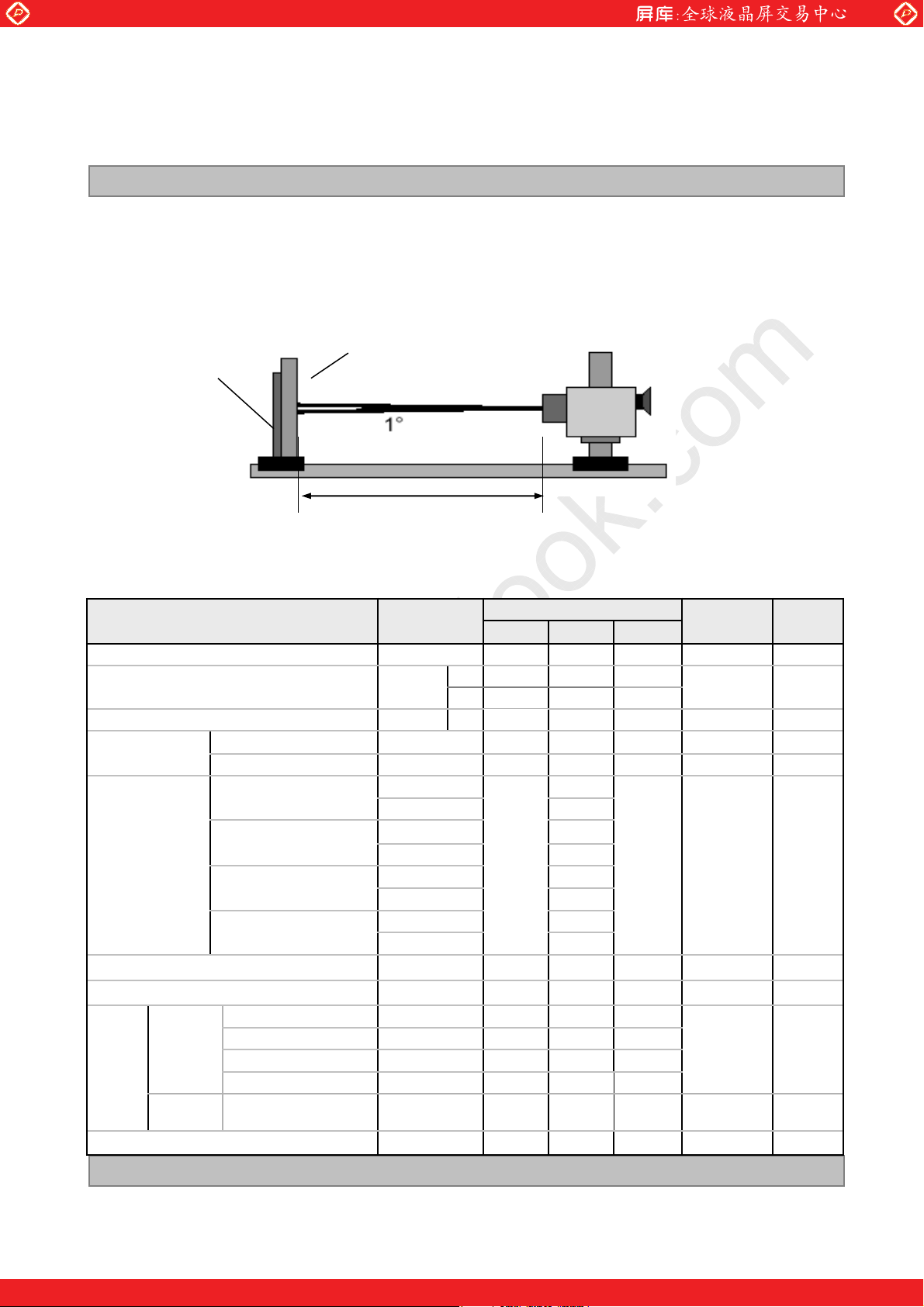

FIG. 1 shows additional information concerning the measurement equipment and method.

LC370EUN

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Ta= 25·2¶C, V

Table 10. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 1000 1400 - 1

Surface Luminance, white L

Luminance Variation G

Response Time

Color Coordinates
[CIE1931]

Color Temperature 10,000 K

Color Gamut 68 %

2D

Viewing
Angle

Gray Scale - - - 7

(CR>10)

(CT≤10%)

Ver. 0.1

Variation G to G

Gray to Gray (BW) G to G

RED

GREEN

BLUE

WHITE

x axis, right(I=0¶)

x axis, left (I=180¶)
y axis, up (I=90¶)

y axis, down (I=270¶)

3D

up + down

WH

WHITE

Tu (y axis)

+Td (y axis)

2D 290 360 -

3D 110 135

5P - - 1.3 3

σ

BW -812 ms 4

Rx

Ry TBD

Gx TBD

Gy TBD

Bx TBD

By TBD

Wx 0.279

Wy 0.292

Tr89--

Tl89--

Tu89--

Td89--

Min Typ Max

-69 5

Typ

-0.03

12

Value

TBD

=12.0V, fV=60Hz, Dclk=74.25MHz,

LCD

EXTVBR-B =100%

Unit Note

2

cd/m

Typ

+0.03

degree 6

degree 8

2

17 /30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note : 1. Contrast Ratio(CR) is defined mathematically as :

www.panelook.com

LC370EUN

Product Specification

Contrast Ratio =

Surface Luminance with all white pixels
Surface Luminance with all black pixels

It is measured at center 1-point.

2. Surface luminance are determined after the unit has been ‘ON’ and 1 Hour after lighting the

backlight in a dark environment at 25·2¶C. Surface luminance is the luminance value at center

1-point across the LCD surface 50cm from the surface with all pixels displaying white.

For more information see the FIG. 2.

3. The variation in surface luminance , G WHITE is defined as :
G WHITE(5P) = Maximum(L

Where L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

, L

on3

, L

on4

, L

) / Minimum(L

on5

on1,Lon2

, L

on3

, L

on4

, L

on5

)

For more information, see the FIG. 2.

4. Response time is the time required for the display to transit from any gray to white (Rise Time, Tr

and from any gray to black (Decay time, Tr
Ć G to G

Spec stands for average value of all measured points.

BW

). For additional information see the FIG. 3.

D

Photo Detector : RD-80S / Field : 2 ¶

5. G to G

is Variation of Gray to Gray response time composing a picture

σ

G to G (σ) =

√

Σ(Xi-u)

N

2

Xi = Individual Data
u = Data average
N : The number of Data

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 11.

8. 3D performance specification is expressed by 3D luminance and 3D viewing angle.

)

R

Table 11. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ)

L0 0.07

L15 0.27

L31 1.04

L47 2.49

L63 4.68

L79 7.66

L95 11.5

L111 16.1

L127 21.6

L143 28.1

L159 35.4

L175 43.7

L191 53.0

L207 63.2

L223 74.5

L239 86.7

L255 100

Ver. 0.1

18 /30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

ྙ

ྛྚ

ྜྷ

ྜ

Measuring point for surface luminance & measuring point for luminance variation.

www.panelook.com

LC370EUN

Product Specification

H

A

V

B

A:H/4mm

FIG. 2 5 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for

“Gray(N)” and “Black or White”.

Tr

100

90

Tf

B:V/4mm
@ H,V : Active Area

Optical
Response

10

Black

Ver. 0.1

0

Gray(N)

White

N = 0(Black)~255(White)

FIG. 3 Response Time

Gray(N)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19 /30

www.panelook.com

Global LCD Panel Exchange Center

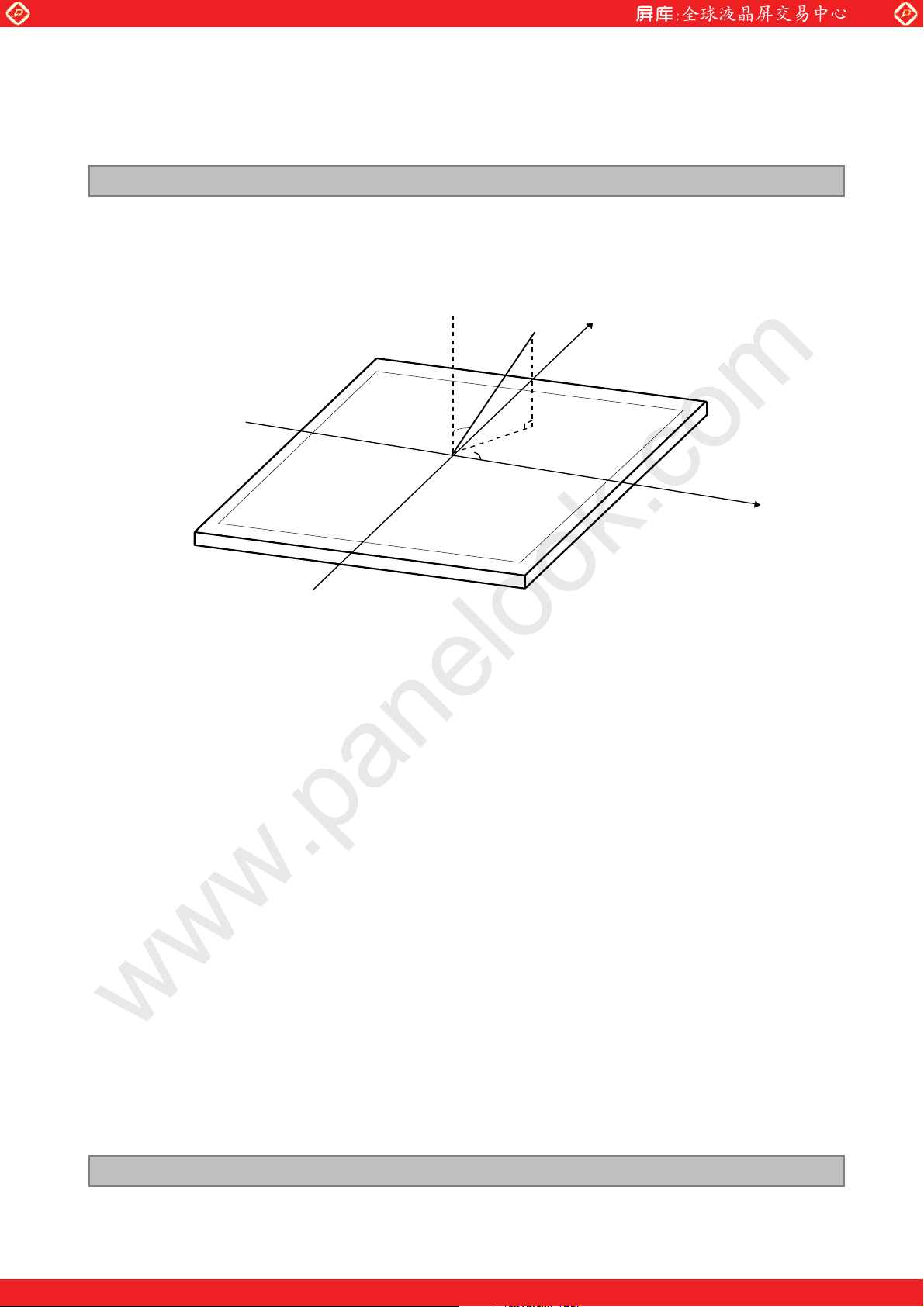

Dimension of viewing angle range

www.panelook.com

LC370EUN

Product Specification

I

= 180q, Left

I

= 270q, Down

Normal

T

I

FIG. 4 Viewing Angle

E

Y

I

= 90q, Up

I

= 0q, Right

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20 /30

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC370EUN

Product Specification

LW-RW

LW-RB

LB-RW

LB-RB

(a) Test pattern image

< FIG. 7. Positioning eyeglass >

2

6

45

7

1

9

3

8

3D display

(b) Measurement

position

< FIG. 6. Measurement configuration>

Luminance

T

Lum( LE or RE, test pattern, number )

Measurement through

Left or Right eyeglass

< FIG. 8. notation of luminance measurement >

LMS

Right or left eyeglass

( Circular polarizer )

(c) Setup

measurement

position

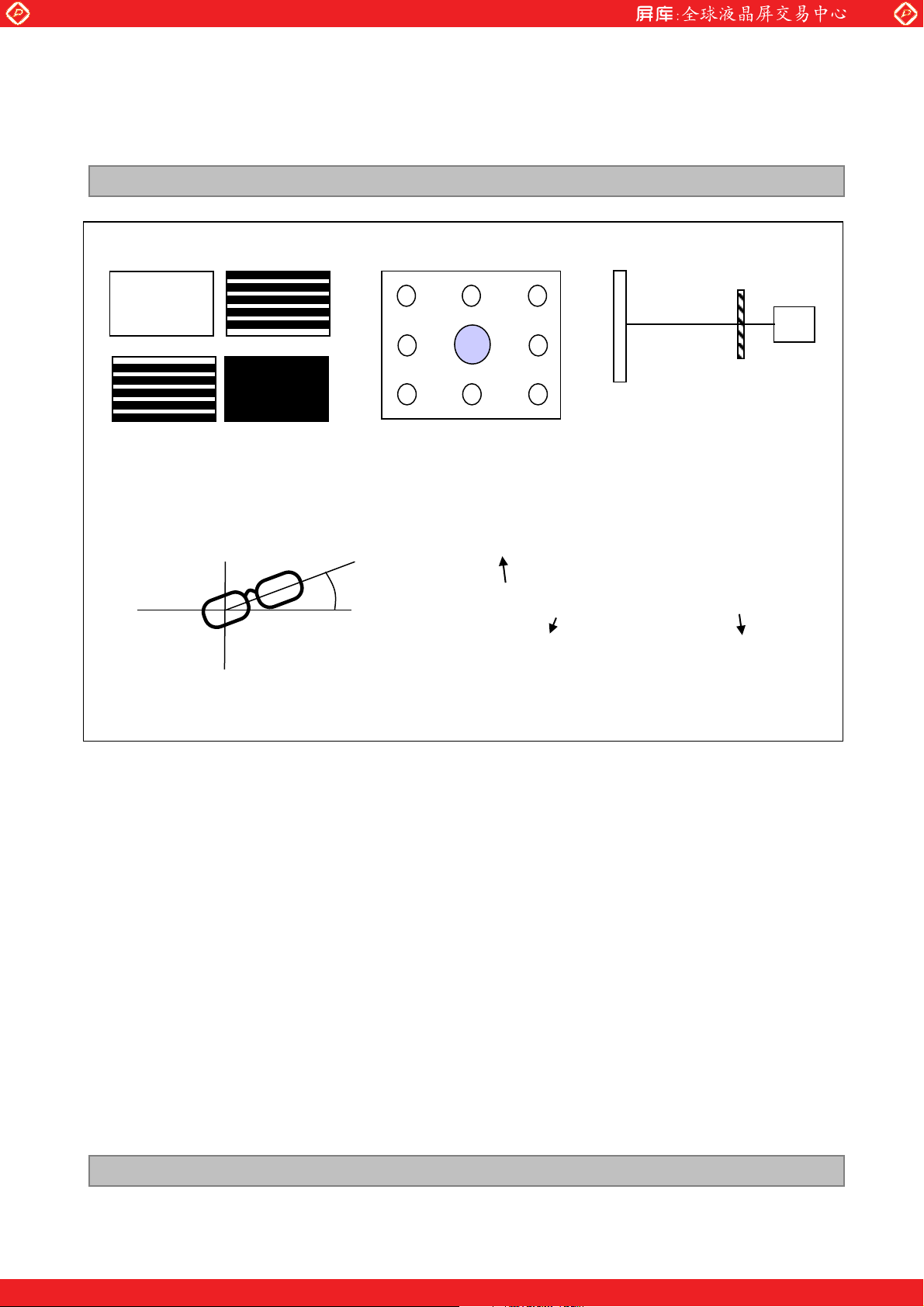

In order to measure 3D luminance, 3D crosstalk and 3D viewing angle, it need to be prepared as below;

1) Measurement configuration
4-Test pattern images. Refer to FIG 6.

-. LW-RW : White for left and right eye

-. LW-RB : White for left eye and Black for right eye

-. LB-RW : Black for left eye and white for right eye

-. LB-RB : Black for left eye and right eye
Image files where black and white lines are displayed on even or odd lines.
Luminance measurement system (LMS) with narrow FOV (field of view) is used. Refer to FIG 1.

2) Positioning Eyeglass (refer to appendix-VII for standard specification of eyeglass)

Find angle of minimum transmittance.
This value would be provided beforehand or measured by the following steps;

(i) Test image (LB-RW) is displayed.
(ii) Left eyeglass are placed in front of LMS and luminance is measured,

rotating right eyeglass such as FIG 7. The notation for luminance measurement is “Lum(LE, LB-RW,1)”.

(iii) Find the angle where luminance is minimum.

* Following measurements should be performed at the angle of minimum transmittance of eyeglass.

Ver. 0.1

21 /30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3) Measurement of 3D luminance
(i) Test image ( LW-RW ) is displayed.

(ii) Left or right eyeglass are placed in front of LMS successively and

luminance is measured at center 1 point where the notation for luminance measurement is
“Lum(LE, LW-RW,1)” or “Lum(RE, LW-RW,1).

4) Measurement of 3D crosstalk
(i) Test image ( LB-RW, LW-RB and LB-RB ) is displayed.
(ii) Right or left eyeglass are placed in front of LMS successively and

luminance is measured for position 1.
with rotating LMS or sample vertically.

or

www.panelook.com

LC370EUN

Product Specification

Lum(LE, LB-RW,1) - Lum(LE, LB-RB,1)
Lum(LE, LW-RB,1) - Lum(LE, LB-RB,1)

Lum(RE, LW-RB,1) - Lum(RE, LB-RB,1)
Lum(RE, LB-RW,1) - Lum(RE, LB-RB,1)

5) Measurement of 3D Viewing Angle

3D viewing angle is the angle at which the 3D crosstalk is under 10%. The angles are

determined for the vertical or y axis with respect to the z axis which is normal to the LCD
module surface and measured for position 1. For more information , see the Fig 9

y axis

siTy~ s~Tyi

siTyi

(a) Test pattern image

LCM

(b) Measurement of 3D viewing angle (up/down)

Φyu(up)

Φyd (down)

z axis

stz

< FIG. 9. Measurement of 3D crosstalk and 3D viewing angle >

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22 /30

www.panelook.com

Global LCD Panel Exchange Center

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTERISTICS

Item Value

www.panelook.com

LC370EUN

Product Specification

Outline Dimension

Bezel Area

Active Display Area

Weight

Horizontal

Vertical

Depth

Horizontal

Vertical

Horizontal 808.128 mm

Vertical 454.572 mm

7.5 Kg (Typ.), 7.9 kg (Max.)

837.2 mm

490.6 mm

22.7 mm

815.4 mm

461.7 mm

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23 /30

www.panelook.com

Global LCD Panel Exchange Center

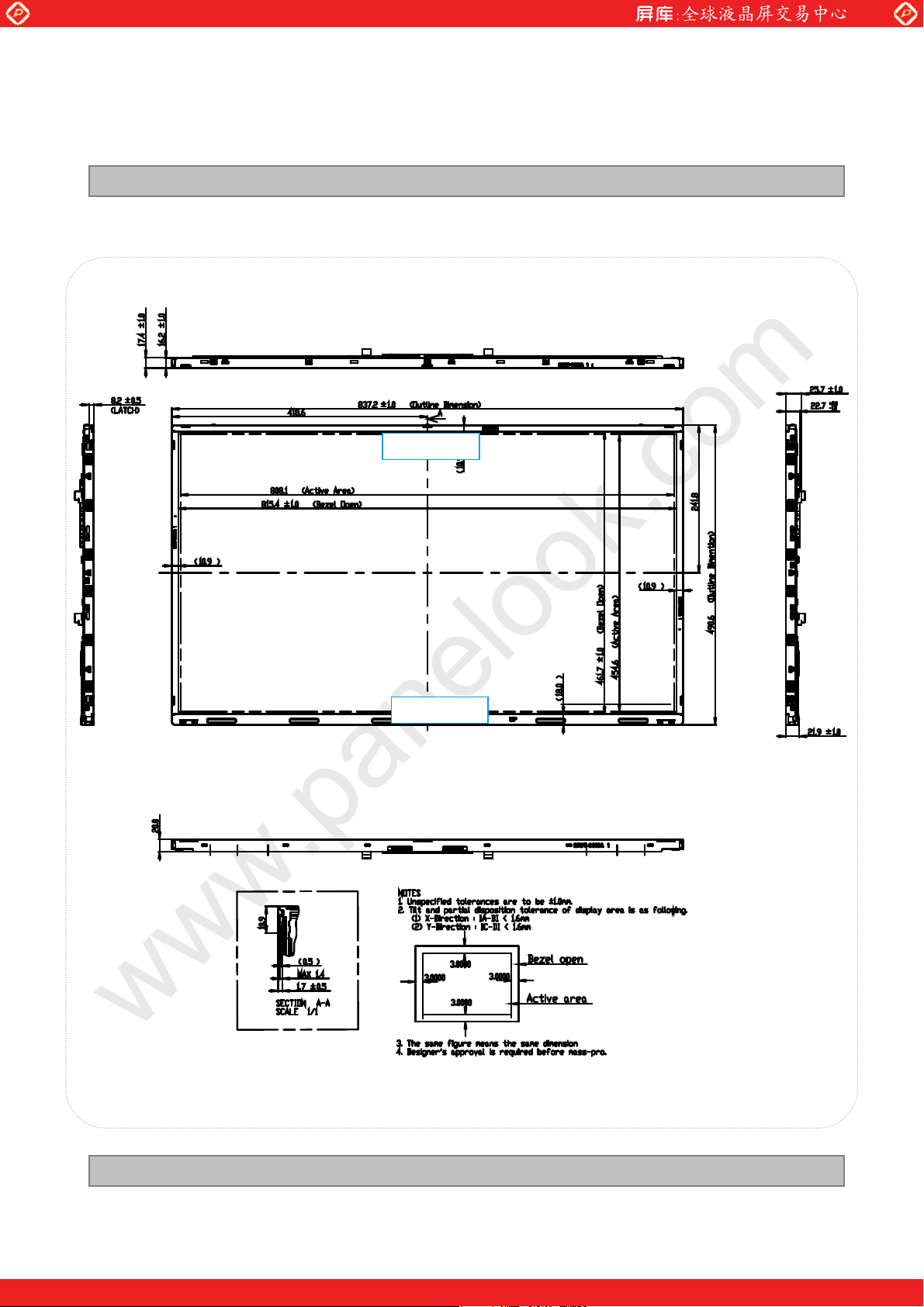

[ FRONT VIEW ]

www.panelook.com

LC370EUN

Product Specification

Set : Top

Set : Down

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

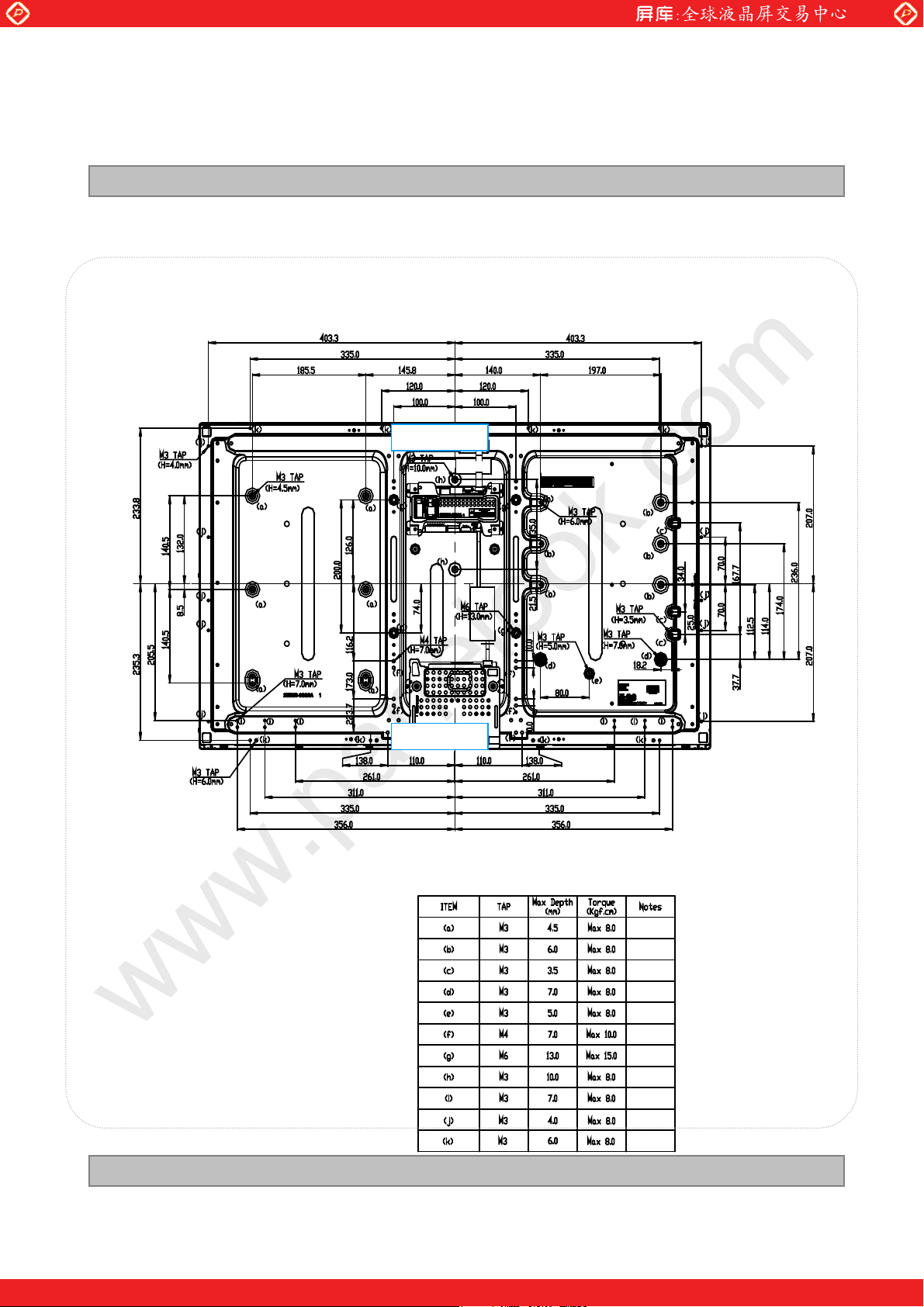

[ REAR VIEW ]

www.panelook.com

LC370EUN

Product Specification

Set : Top

Ver. 0.1

Set : Down

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

www.panelook.com

LC370EUN

Product Specification

1 High temperature storage test

2 Low temperature storage test

3 High temperature operation test

4 Low temperature operation test

Vibration test

5

(non-operating)

Shock test

6

(non-operating)

7 Humidity condition Operation

Altitude operating

8

storage / shipment

Ta= 60¶C 240h

Ta= -20¶C 240h

Ta= 50¶C 50%RH 240h

Ta= 0¶C 240h

Wave form : random
Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z,

Each direction per 10 min

Shock level : 50Grms
Waveform : half sine wave, 11ms
Direction : ᇹX, ᇹY, ᇹZ

One time each direction

Ta= 40 ¶C ,90%RH

0 - 15,000 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26 /30

www.panelook.com

Global LCD Panel Exchange Center

)

“AAm

Aer N NNatat

t

LLow

o

.

t

1

)))

)

C

n

LED insid

n nn whene o

e

.

hil

ti

t

7. International Standards

7-1. Safety

a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

c) EN 60065:2002 + A11:2008, European Committee for Electrotechnical Standardization (CENELEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

(Including report of IEC60825-1:2001 clause 8 and clause 9)

Video and Similar Electronic Apparatus -Safety Requirements.

ng report of IEC60825-1:2001 clause 8 and clause 9

Notes

Laser (LED Backlight) Information

1. Laser (LED Backlight) Information

www.panelook.com

LC370EUN

Product Specification

Class 1M LED Product

lass 1M LED Produc

EC60825-1 : 200

IEC60825-1 : 2001

Embedded LED Power (Class

Embedded LED Power (Class 1M)

autio

2. Caution
: LED inside.

Class 1M laser (LEDs) radiation when open.

lass 1M laser (LEDs) diat

Do not open while operating.

o not open w

e.

e o

n

ng.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

63.4

ns from

n Natio

ional Standard for Methods of Measurement of Radio-Noise

-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to

Standards Institute (ANSI), 2003

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

27 /30

www.panelook.com

Global LCD Panel Exchange Center

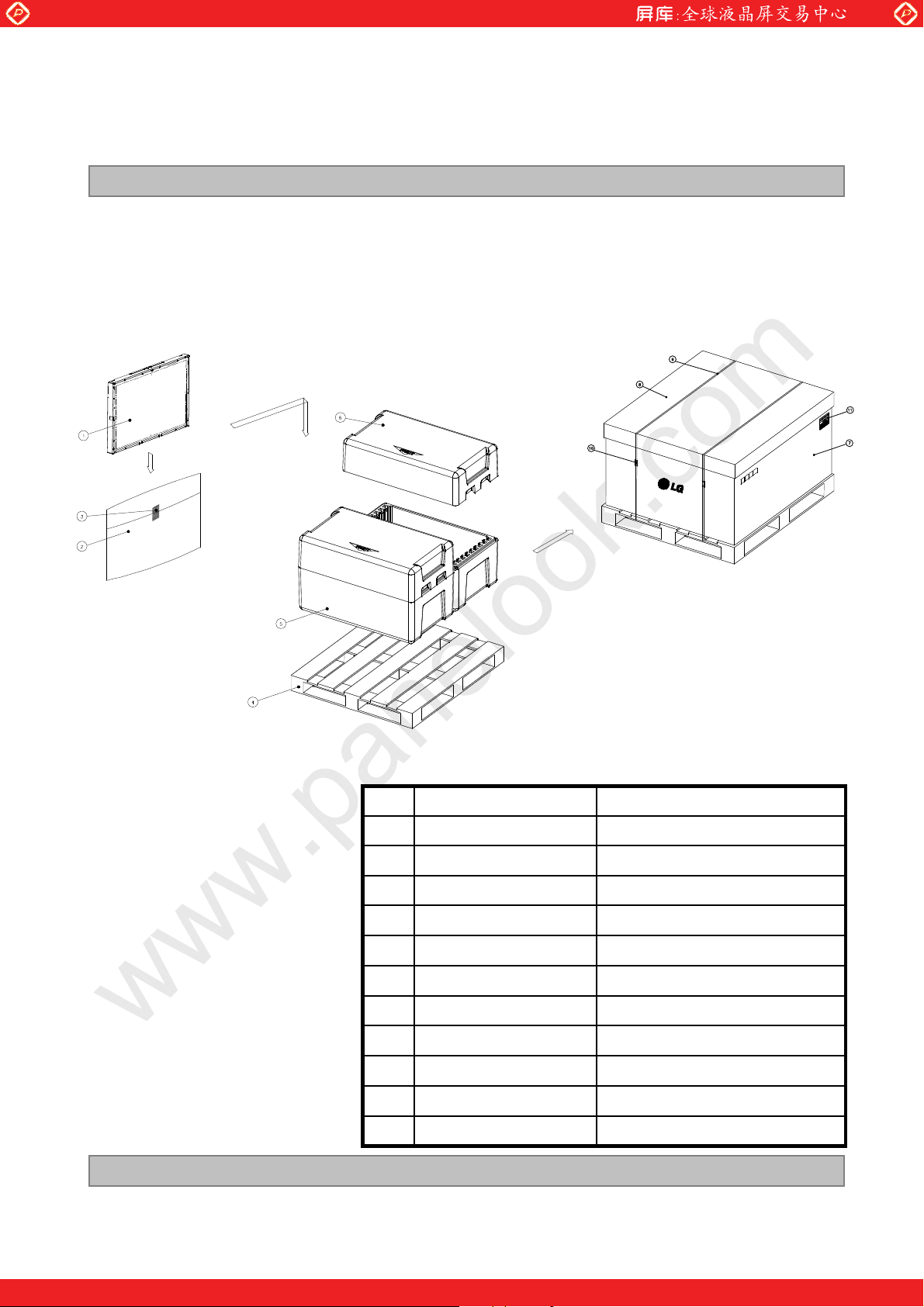

8. Packing

8-1. Information of LCM Label

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

www.panelook.com

LC370EUN

Product Specification

Note

1. YEAR

Year

Mark

CBA

2014E2015

D

201320122011

2016G2017H2018J2019

F

2. MONTH

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

b) Location of Lot Mark

Serial NO. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one Pallet : 18 pcs

b) Pallet Size : 1140 mm(W) X 990mm(D) X 700 mm(H)

2020

K

Oct

A

Nov

B

DecMarFebJan

C321

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

28 /30

www.panelook.com

Global LCD Panel Exchange Center

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to
the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

www.panelook.com

LC370EUN

Product Specification

9-2. Operating Precautions

(1) Response time depends on the temperature.(In lower temperature, it becomes longer.)

(2) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer

(3) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(4) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(5) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.

(6) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(7) A screw which is fastened up the steels should be a machine screw.

(if not, it can causes conductive particles and deal LCM a fatal blow)
(8) Please do not set LCD on its edge.
(9) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal

display, sound noise and temperature rising.

Ver. 0.1

29 /30

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

www.panelook.com

LC370EUN

Product Specification

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5¶C and 35¶C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be

recovered when the LCD module returns to the normal condition.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-

blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-

hexane.

9-7. Operating condition guide

(1) The LCD product should be operated under normal conditions. Normal condition is defined as below;

- Temperature : 5 ~ 40 ć, normal humidity

- Display pattern : continually changing pattern (Not stationary)

(2) If the product will be used in extreme conditions such as high temperature, display patterns or operation

time etc..,
It is strongly recommended to contact LGD for Qualification engineering advice. Otherwise, its reliability
and function may not be guaranteed. Extreme conditions are commonly found at Airports, Transit Stations,
Banks, Stock market, and Controlling systems. The LCD product should be applied by global standard

environment. (refer ETSI EN 300, IEC 60721)

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

30 /30

www.panelook.com

Global LCD Panel Exchange Center



# APPENDIX-I

Pallet Ass’y

www.panelook.com

LC370EUN

Product Specification

Ver. 0.1

NO. DESCRIPTION MATERIAL

1 LCD Module

2 BAG 37INCH

3 TAPE MASKING 20MMX50M

4 PALLET Plastic 1140X990X120mm

5 PACKING,BOTTOM EPS

6 PACKING,TOP EPS

7 ANGLE,PACKING PAPER

8 BAND PP

9 ANGLE.COVER PAPER

10 BAND,CLIP STEEL or PP

11 LABEL YUPO 80G 100X70

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX- II-1

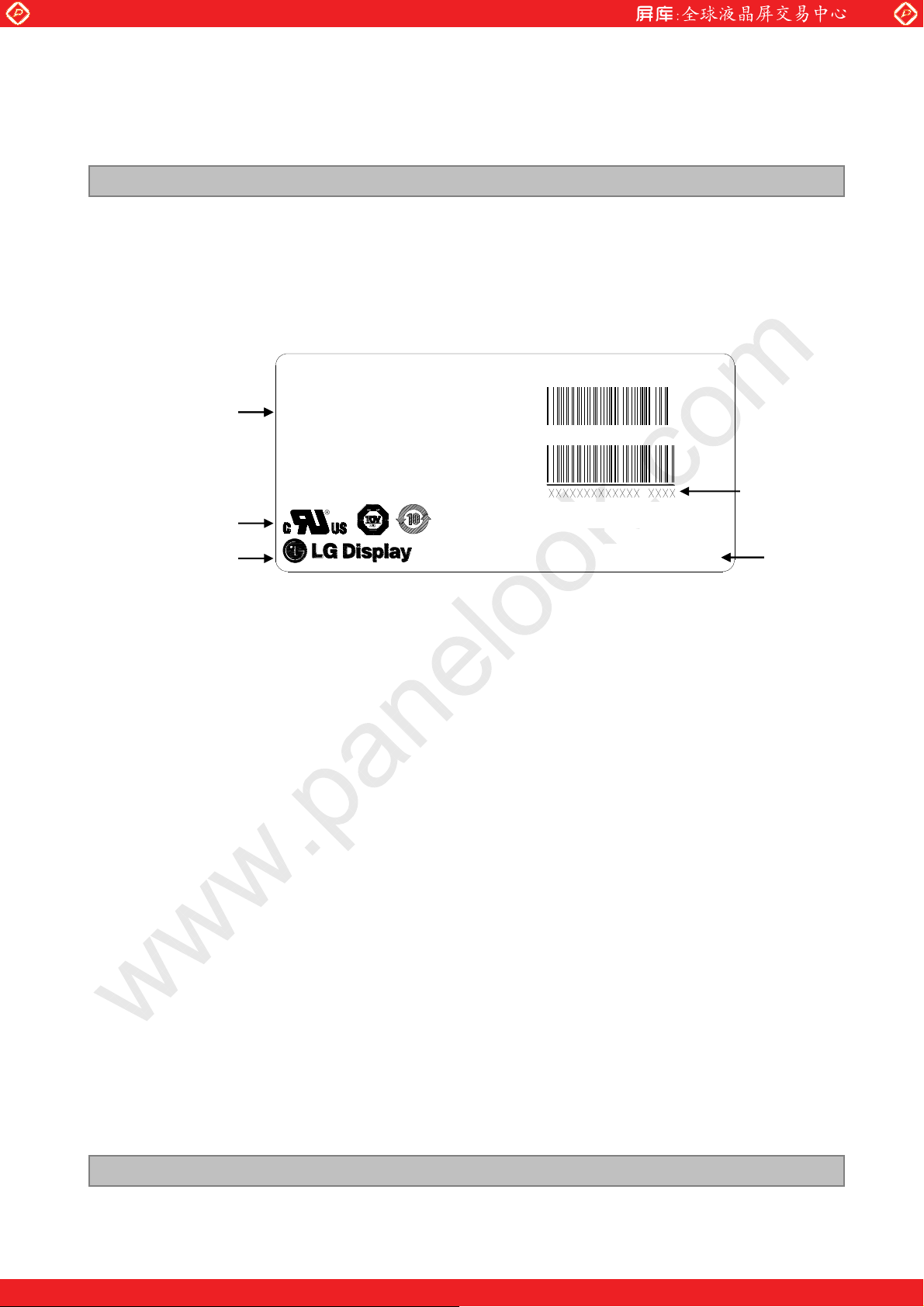

غ LCM Label

Model

(SE)(F1)

RoHS Verified

www.panelook.com

LC370EUN

Product Specification

LC370EUN

UL, TUV Mark

LGD Logo

LIGHT GUIDE : >PMMA<

MADE IN KOREA

Serial No.

Origin

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX- II-2

www.panelook.com

LC370EUN

Product Specification

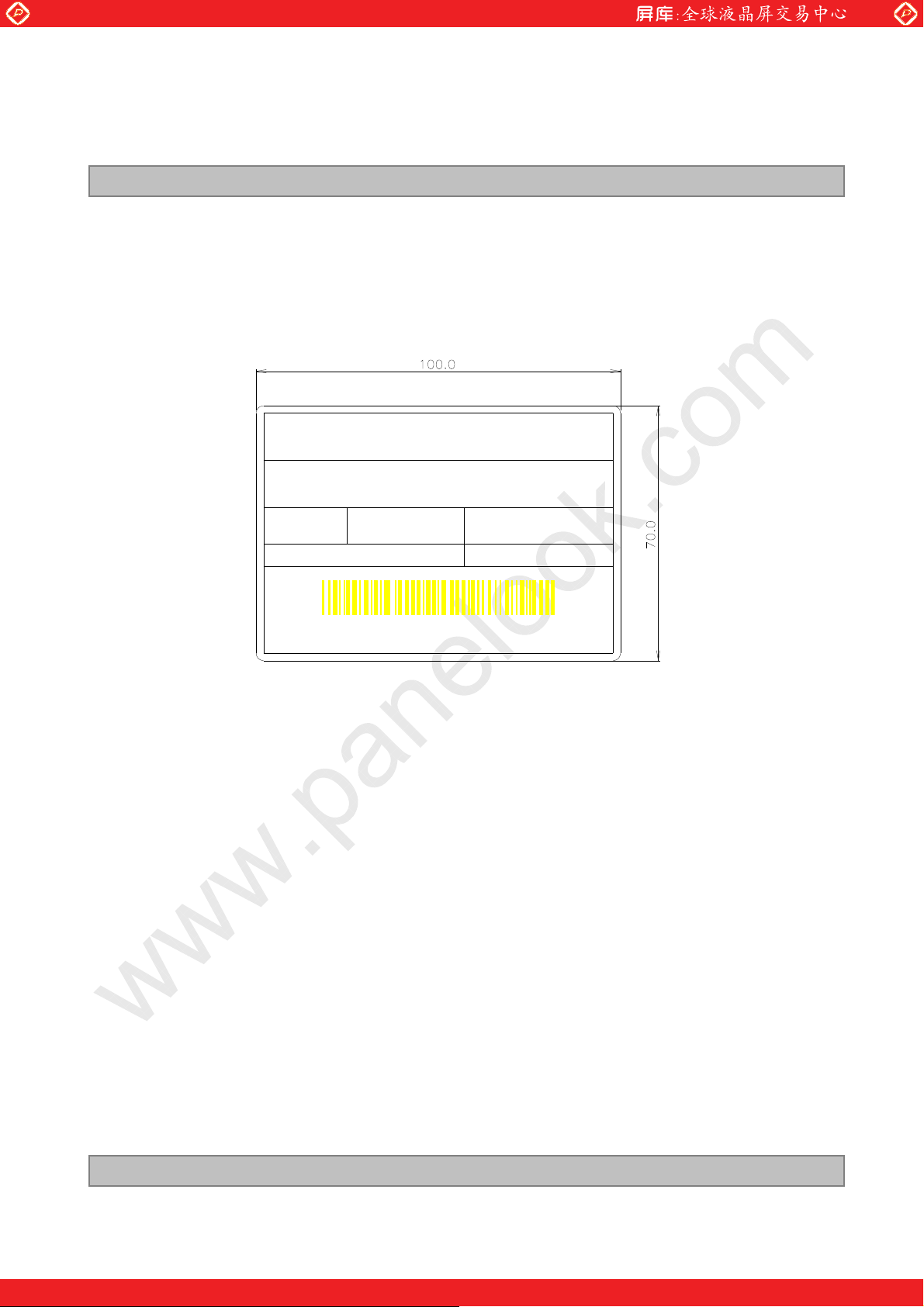

 Pallet Label

LC370EUN

SEF1

18 PCS

MADE IN KOREA

001/01-01

XXXXXXXXXXXXX XXX

RoHS Verified

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX- III-1

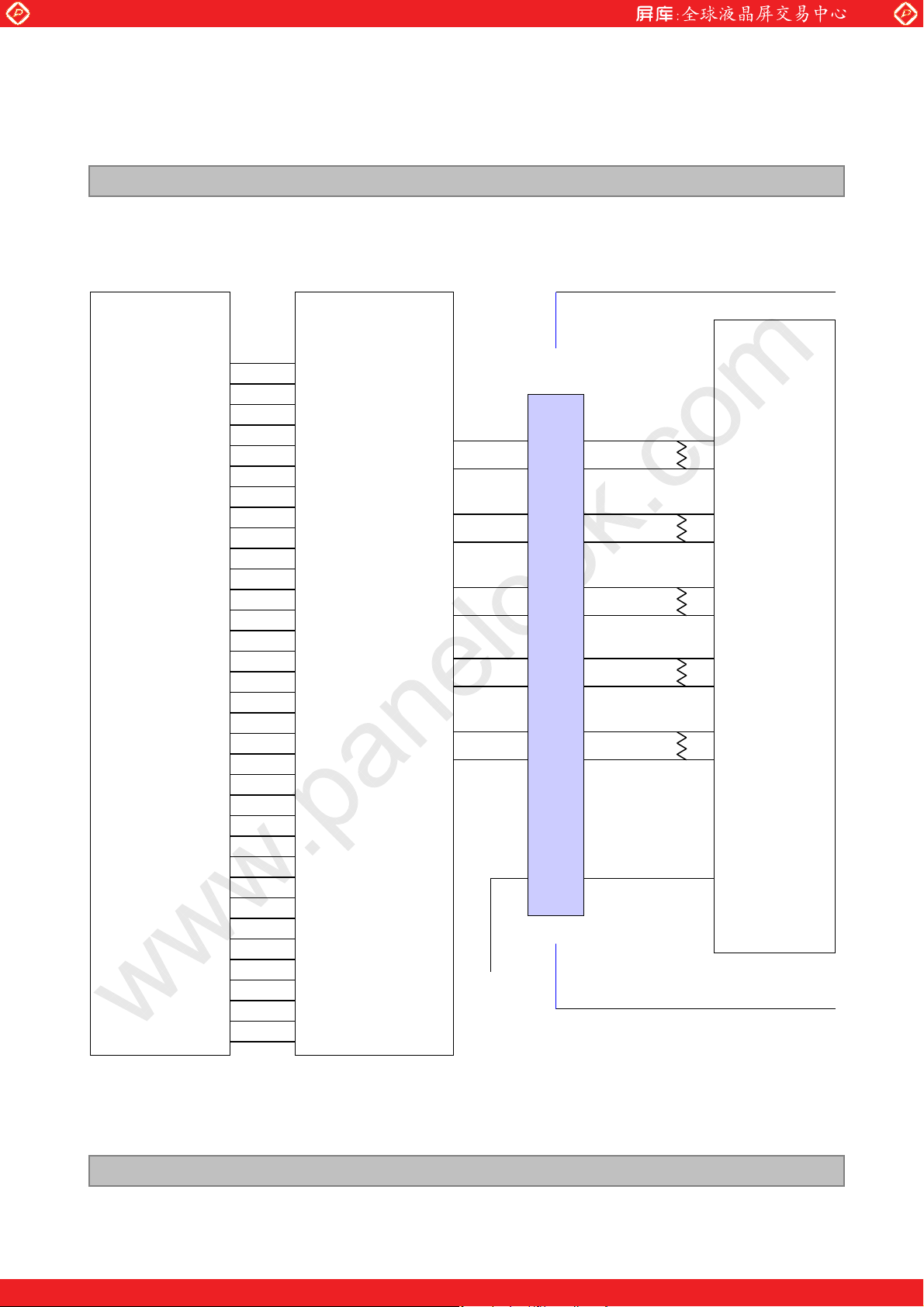

 Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “L” or “NC”)

www.panelook.com

LC370EUN

Product Specification

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7

GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

31

30

29

28

25

24

23

22

21

20

FI-RE51S-HF

GND

12

13

14

15

16

17

19

20

22

23

7

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

Timing

Controller

RO0N

RO0P

RO1N

RO1P

RO2N

RO2P

ROCLKN

ROCLKP

RO3N

RO3P

VESA/ JEIDA

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX- III-2

 Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “H” )

www.panelook.com

LC370EUN

Product Specification

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7

GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

4
5
59
61
33
34
35
36
37
38
6
8
62
63
40
41
42
44
45
46
9
11
64
1
48
49
50
52
53
54
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

31

30

29

28

25

24

23

22

21

20

VCC

FI-RE51S-HF

12

13

14

15

16

17

19

20

22

23

7

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

Timing

Controller

RO0N

RO0P

RO1N

RO1P

RO2N

RO2P

ROCLKN

ROCLKP

RO3N

RO3P

VESA /JEIDA

Note :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX- IV

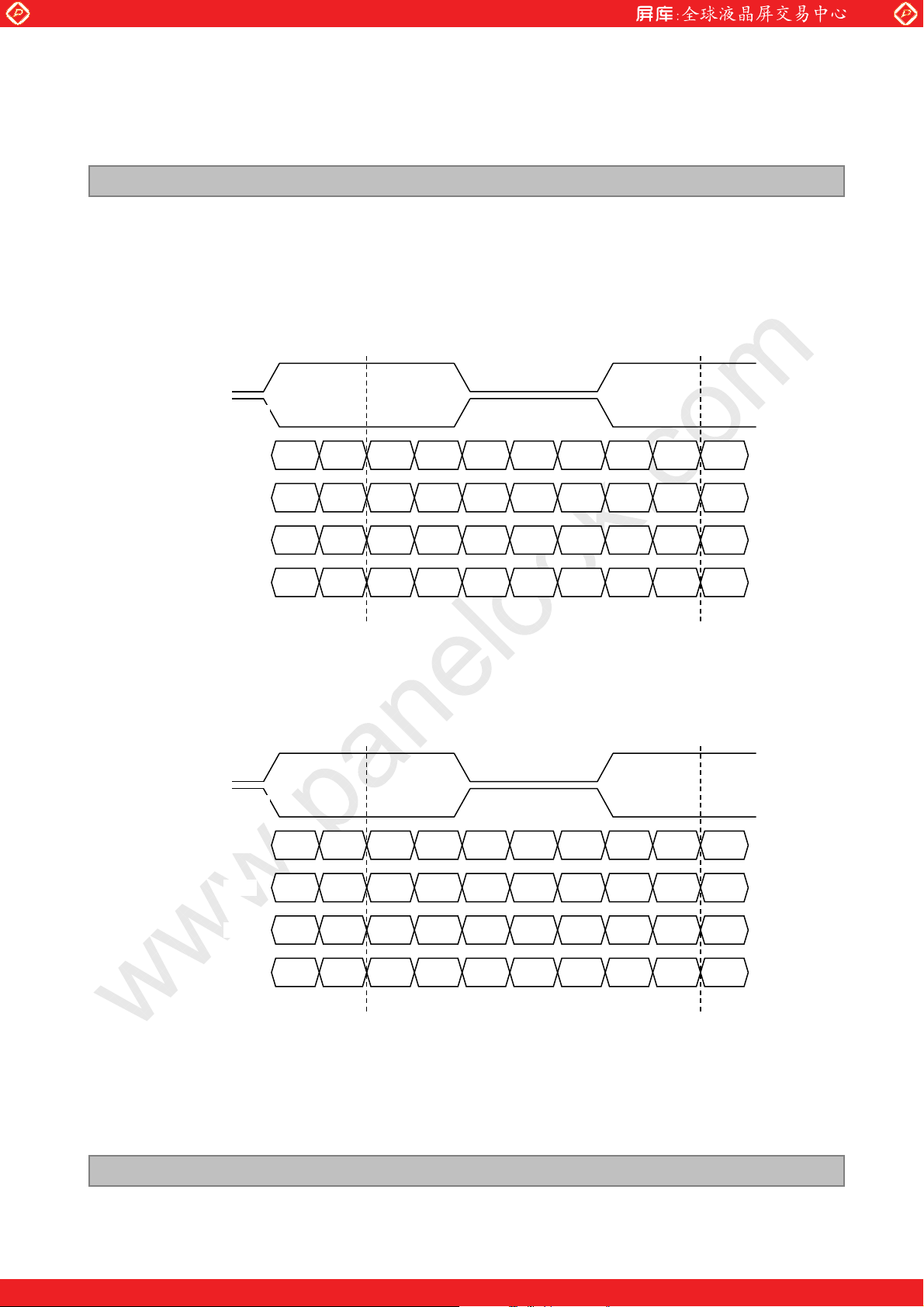

غ LVDS Data-Mapping Information (8 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

www.panelook.com

LC370EUN

Product Specification

RAP

RBP

RCP

RDP

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R17 R16 R15 R14G12 R13R12’ R12R13’ G12”

B12 G17 G16 G15B13 G14G13’ G13G14’ B13”

V

SYNCHSYNC

B11 B10 G11 G10X R11R10’ R10R11’ X”

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

B17 B16DE B15B14’ B14B15’ DE”

Ver. 0.1

RCP

RDP

V

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B15 B14DE B13B12’ B12B13’ DE”

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

ASSIC

CO

CO

CO

N)

e

M

Si

)

e

BBBloock DDD

gr

am oo f ff

C

ab

ctioio

n

naaa

b nnn

0

VCC

# APPENDIX- V-1

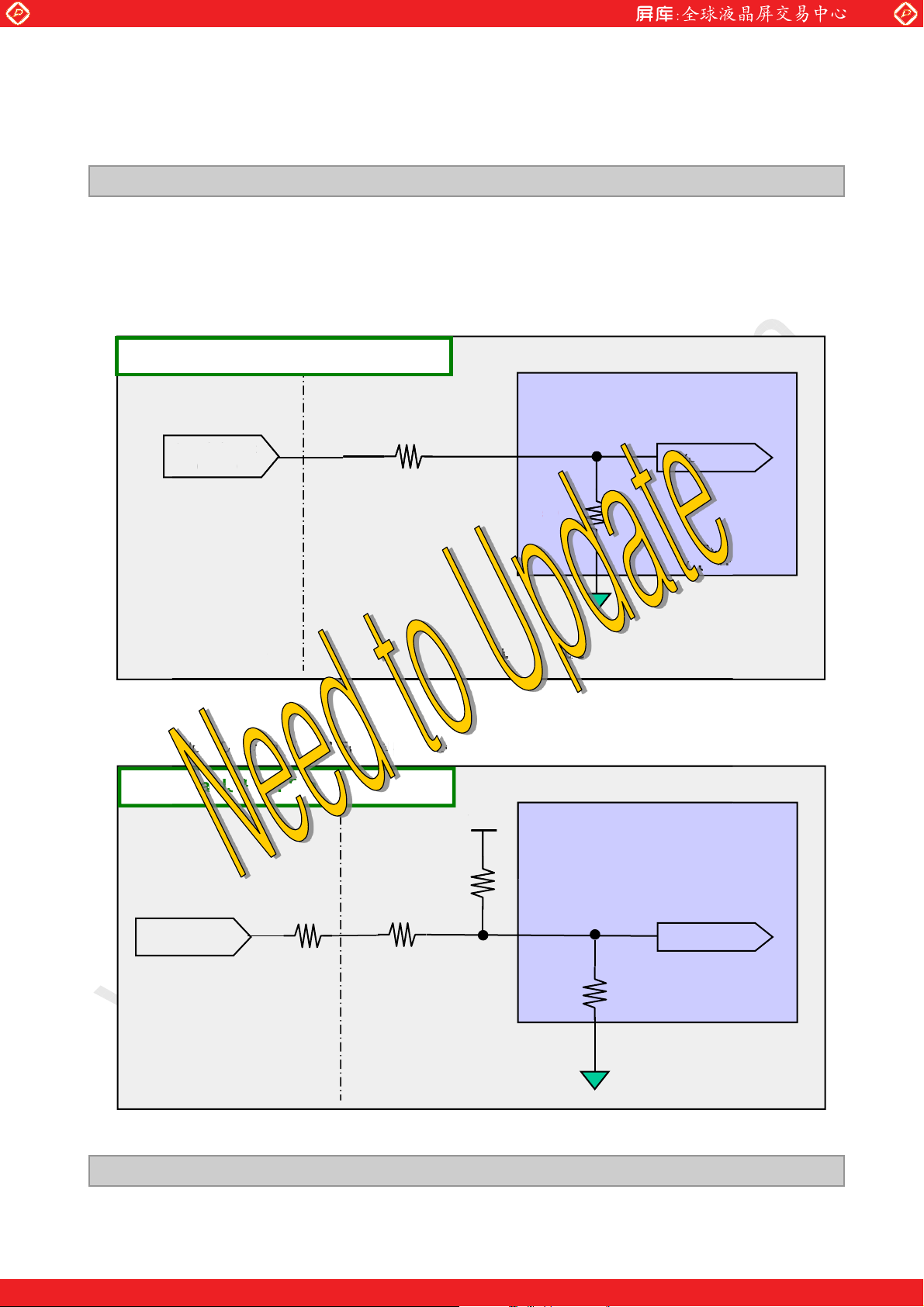

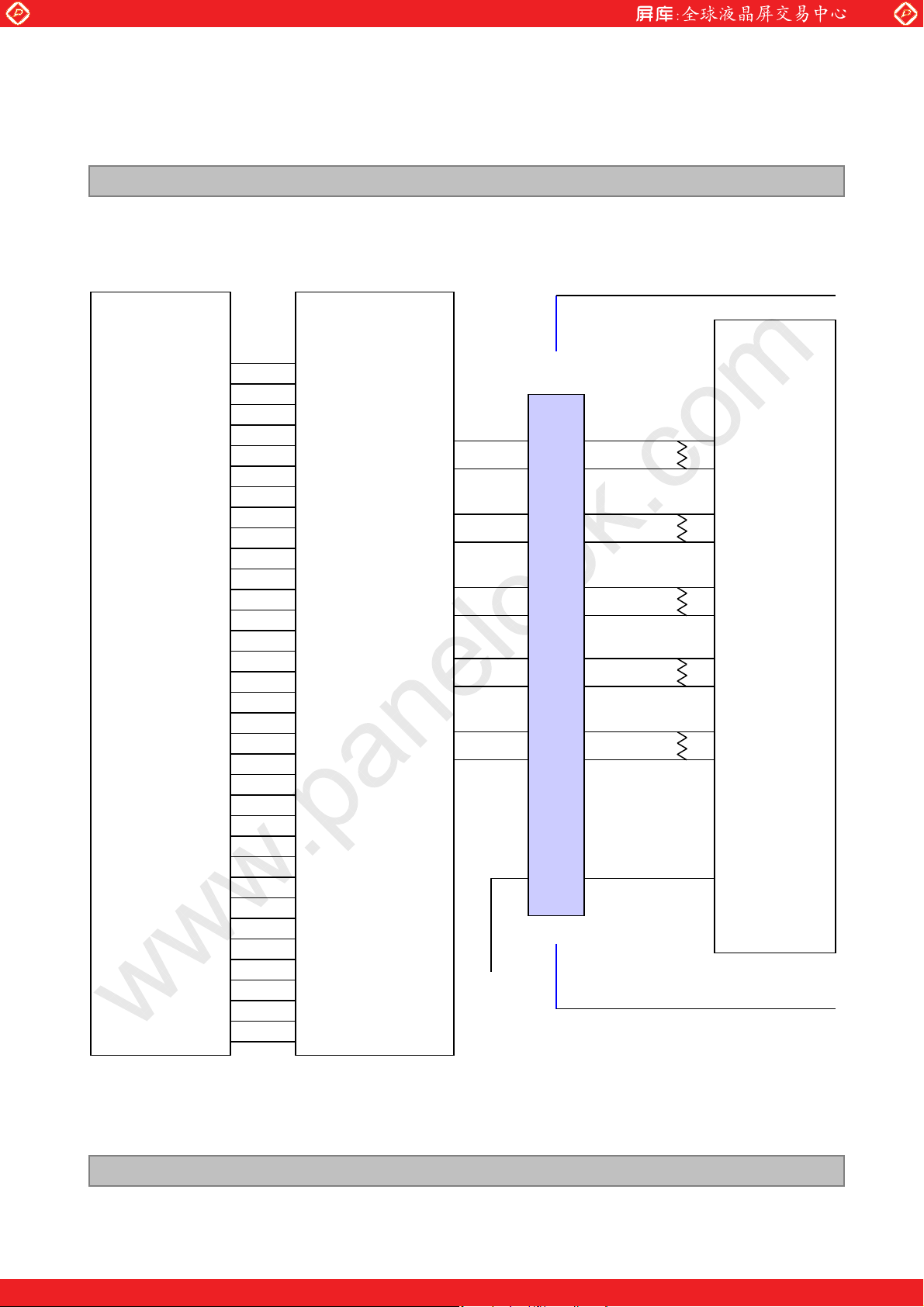

غ Option Pin Circuit Block Diagram

1) Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 7

LVDS Select

Select

(Pin 7)

Pin 7

www.panelook.com

Product Specification

1KΩ

LVDS Select

Sel

LC370EUN

System Side LCM Side

stem Sid

2) Circuit Block Diagram of OPC Enable Selection pin

OPC Enable Pin : Pin 10

E

OPC _Enable

(Pin 10)

ia

i

1

R1

ele

1KΩ

n pi

VCC

OPEN

50kΩ

ASIC

(TCON)

OPC _Enable

60kΩ

System Side

R1 ≤ 1KΩ

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

LCM Side

ASIC

(TCON)

www.panelook.com

Global LCD Panel Exchange Center

غ

# APPENDIX- VI

Scanning and OPC Design Guide

 When OPC Enable is “L", OPC Output = System Dimming.

OPC Output( PWM Signal) is synchronized with V-Sync Freq. of System in T-Con Board.

www.panelook.com

LC370EUN

Product Specification

(4pin)
#1 : PWM_TOUT #1
#2 : PWM_TOUT #2
#3 : PWM_TOUT #3
#4 : GND

Driver

#4

B/L Signal

Generation

Block

LED

#1

(51pin)

#8 : Ext_PWM
#10 : OPC_EN

14pin

#1

#4

#1 51

CNT1 51pin

CNT4

System
Main IC

(PWM Generator)

LCM T-con Board

T-Con

OPC On

3.3V

OPC Off

Chassis

<With Driver Model>

ك PWM Specification ( VDD = 3.3V ) @ OPC

1. PWM High Voltage Range : 2.5V~3.6V

2. PWM Low Voltage Range : 0.0V~0.8V

VDD

EXTVBR-B

Frequency

Rising Time MAX 10.0 μs

Falling Time MAX 10.0 μs

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

50 Hz for PAL
60 Hz for NTSC

VDD*0.9

Rising Time

Falling Time

VDD*0.1

0

www.panelook.com

Global LCD Panel Exchange Center

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

ȋ

# APPENDIX- VII

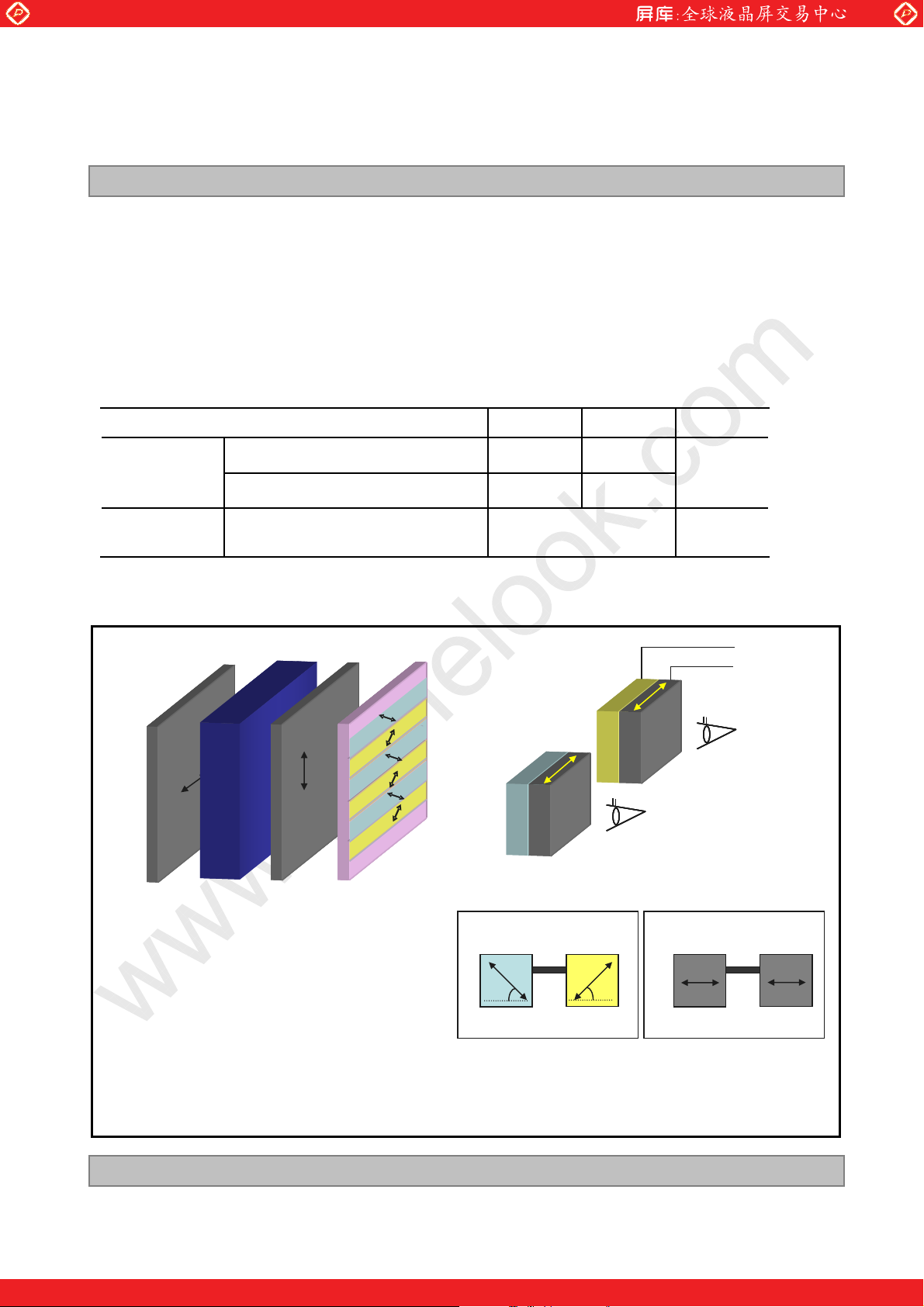

غ Standard specification of Eyeglasses

This is recommended data of Eyeglasses for LC370EUN-SEF1 model. (details refer to table)

For each item, depending on the eyeglass manufacturer tolerances may occur, this tolerance can

affect 3D performance. (3D Crosstalk, 3D luminance, 3D viewing angle)

<Table. Standard specification of Eyeglasses>

Design item of Eyeglasses Left Right Remark

www.panelook.com

LC370EUN

Product Specification

Optical

axis

Retardation

value

a) Slow axis of retarder

b) Transmission axis of polarizer

Retarder 125nm @550nm

ĆRecommended polarizer

Polarization efficiency: more than 99.90%

90

90ȋ90

Bottom

Bottom

POL

POL

0

0ȋ0

Cell Patterned

Cell Patterned

Top

Top

POL

POL

Patterned

Patterned

retarder

retarder

retarder

retarder

-45

45

45

45

45

135

135

135

135

45ȋ45

-45˚ 45˚

0˚ 0˚

+Ʌ/4

-Ʌ/4

-Ʌ/4

+Ʌ/4

Left eye

Left eyeLeft eye

Refer to

drawing

Retarder

Retarder

Polarizer

Polarizer

Right eye

Right eyeRight eye

Direction from viewer

a) Slow axis of retarder

a) Slow axis of retarder

b) Transmission axis of polarizer

b) Transmission axis of polarizer

45

45

-45

-45

Left Right

Left Right

0

0

Left Right

Left Right

(b) Configuration of Eyeglasses

<Drawing. Information of optical axis>

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

0

0

www.panelook.com

Global LCD Panel Exchange Center



⦐

㜼㥉

.

A:H/

A

VVV

h

rdchca

0

lentui

ui

v

v

Vertrtica Se

e

3

belolo

lo

# APPENDIX- VIII

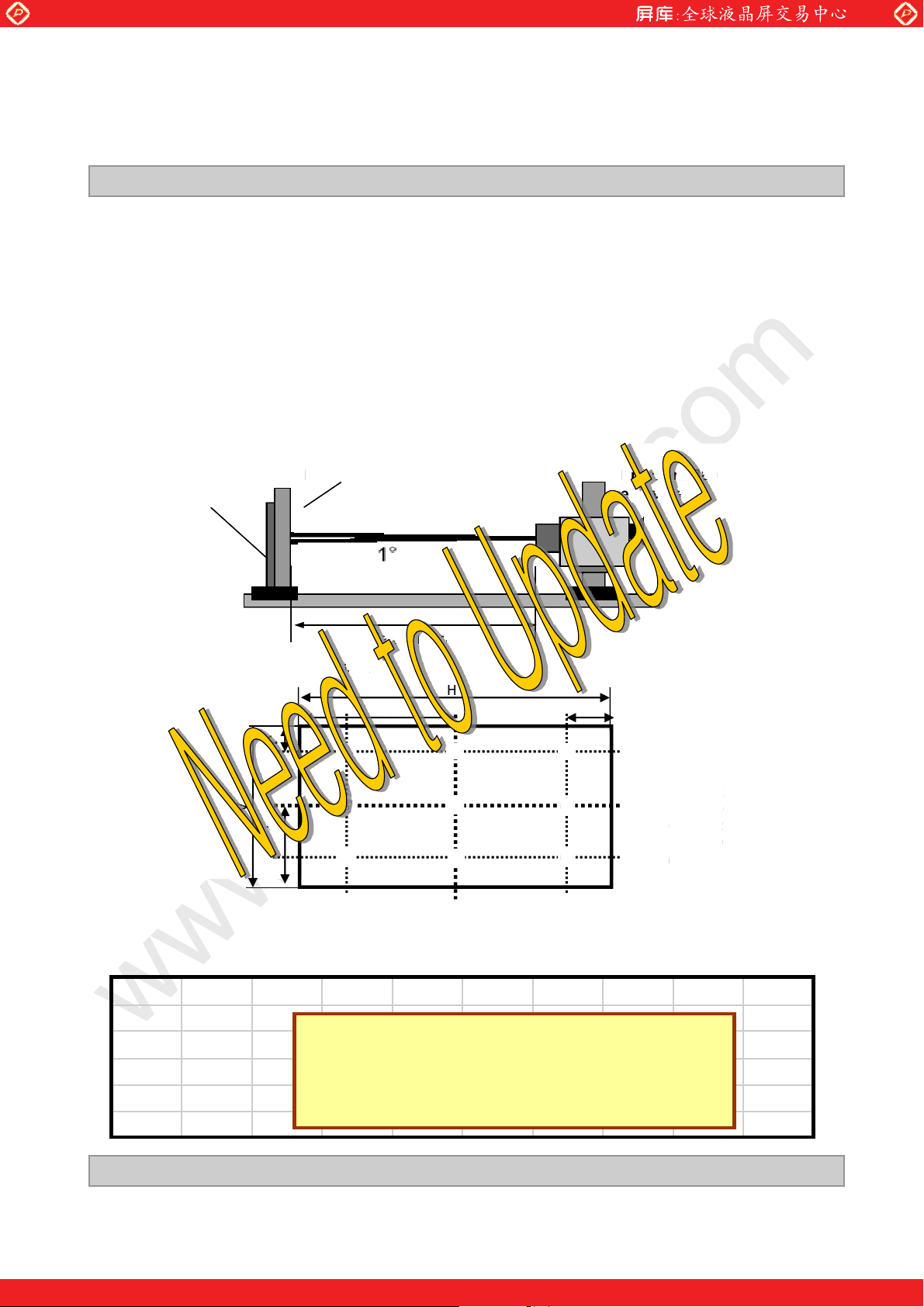

White Uniformity

This is only the reference white uniformity for LC370EUN-SEF1 model.

1. Measurement Condition

Surface luminance is determined after the unit has been ‘ON’ and 1 Hour after lighting
the backlight in a dark environment at 25·2¶C.
Where L1 to L9 are the luminance with all pixels displaying white at 9 locations .

2. Sampling Size : 5 pcs

www.panelook.com

LC370EUN

Product Specification

3. Measurement Method : refer to below.

4. Measurement location: refer to below.

ent Method : refer to below

Optical Stage (x,y)

al Stage (x,y)

ment location: refer to

V

LCD Module

D

ྜྷ ྛ

C

ྡ

Vertical Size X 3

w.

A

H

ྚྠ

ྙ

ྜ

X

ྞ

ྟ

Pritchard 880 or
equivalent

B

A:H/2mm
B:H/9mm
C:V/2mm
D:V/9mm
@ H,V : Active Area

2
:H/9
:V/2
:V/9

H,V :

5. Current Status

Below table is actual data of production on Aug. 28. 2011 ( LGD RV Event Sample)

No.L1L2L3L4L5L6L7L8L9

1

2

3

4

5

Ver. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

RV Sample
Update

www.panelook.com
