Global LCD Panel Exchange Center
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
()Preliminary Specification
() Final Specification
Title 23” Full HD TFT LCD
BUYER
MODEL
APPROVED BY
/
/
General
SIGNATURE
DATE
SUPPLIER LG Display Co., Ltd.
*MODEL LC230EUE
SUFFIX SEA1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY
O.H. Lee/ Team Leader
REVIEWED BY
B.Y. Park / Project Leader
SIGNATURE
DATE
PREPARED BY
/
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 1.0 Jan, 10, 2012
D.U. Lee / Engineer
TV Product Development Dept.
LG Display Co., Ltd.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1/ 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Contents
No ITEM
COVER
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS
3-4 SIGNAL TIMING WAVEFORMS
3-5 COLOR INPUT DATA REFERNECE
3-6 POWER SEQUENCE
3-7 V
4 OPTICAL SPECIFICATIONS
Power Dip Condition
LCD
Page
1
2
3
4
5
6
6
9
14
15
16
17
18
19

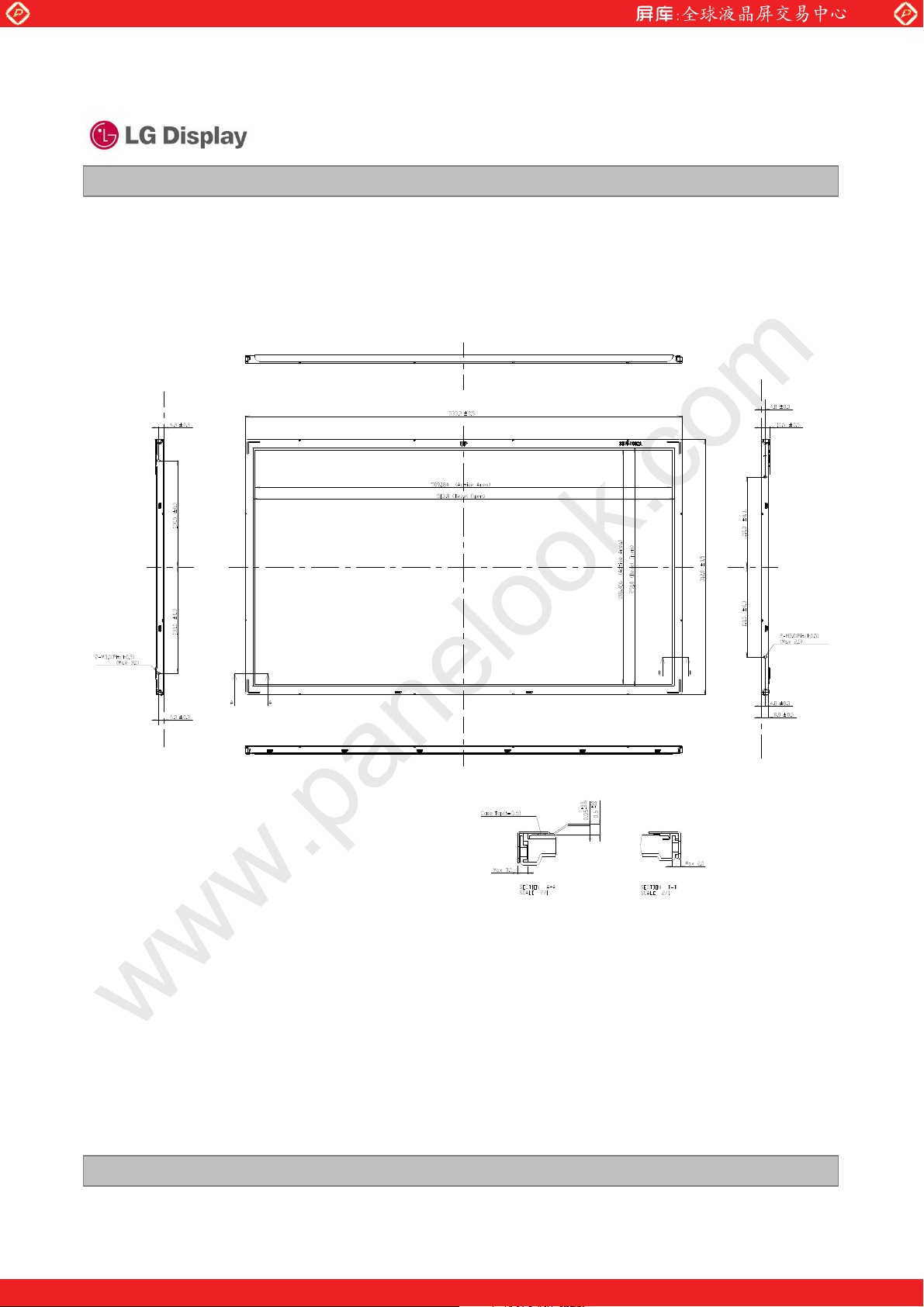

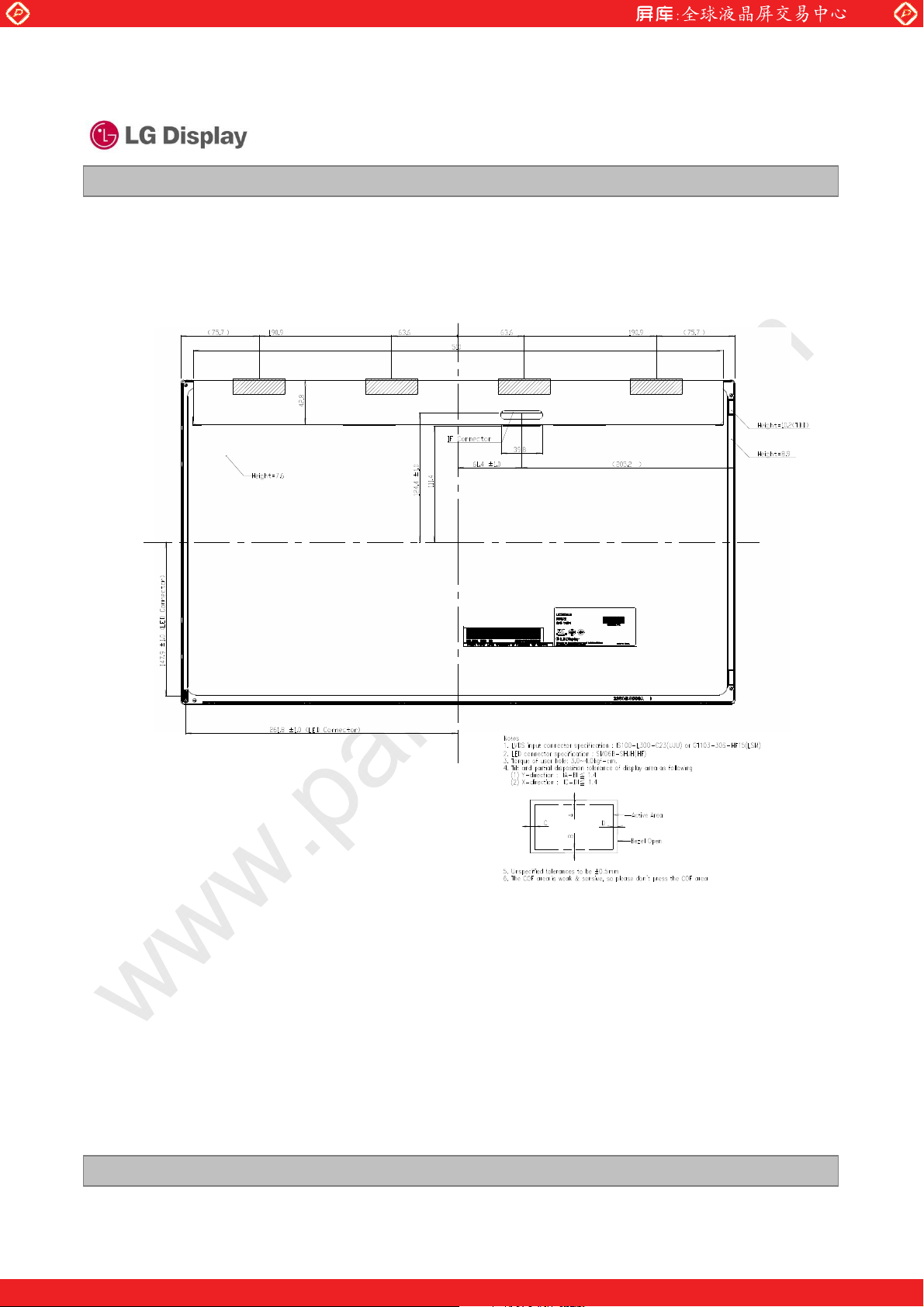

5 MECHANICAL CHARACTERISTICS
6 RELIABLITY
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC
7-3 ENVIRONMENT
8 PACKING
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS 31
Ver. 1.0 Jan, 10, 2012
25
28
29
29
29
29
30
30
30
2/ 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
No
0.0 Nov, 09, 2011 - First Draft, Preliminary Specifications
0.1 Dec, 05, 2011 19 Update Table 9. OPTICAL CHARACTERISTICS
1.0 Jan, 10, 2012 Final CAS release
Revision
Date
Page Description
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/ 36
www.panelook.com
Global LCD Panel Exchange Center
1. General Description
LC230EUE is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode ( White LED) backlight
system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 23 inch diagonally measured
active display area with FHD resolution (1080 vertical by 1920horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M colors with A-FRC (Advanced Frame Rate Control).
It has been designed to apply the 8Bit 2 port LVDS interface.
It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.
EEPROM
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
RGB
Source Driver Circuit
LVDS
2port
+5.0V
CN1
(30pin)
+5.0V
I2C
Timing
Controller
Logic Power
Power Circuit
S1 S1920
G1
TFT - LCD Panel
(1920 Ý RGB Ý 1080 pixels)
G1080
Block
V
LED
General Features
CN2 (6PIN)
[ Figure 1 ] Block diagram
Back light Assembly
(LED)
Active Screen Size 23 inches(58.42cm) diagonal
Outline Dimension 533.2(H) x 312.0(V) x 10.5(D) mm (Typ.)
Pixel Pitch 0.2652 mm x 0.2652 mm
Pixel Format 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement
Color Depth 16,7M colors (6bit + A-FRC)
2
Luminance, White 250 cd/m
( Center 1 Point, Typ.)
Viewing Angle(CR>10) View Angle Free (R/L 178(Typ.), U/D 178(Typ.))
Power Consumption Total 17.4 Watt (Typ.) ( 4.5 Watt
@VLCD, 12.9 Watt @Is=120mA )
Weight 2,200g (typ.)
Display Operating Mode Transmissive mode, normally black
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/ 36
www.panelook.com
Global LCD Panel Exchange Center
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
Table 1. ABSOLUTE MAXIMUM RATINGS
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Parameter Symbol
Power Input Voltage
Operating Temperature
Storage Temperature
Operating Ambient Humidity
Storage Humidity
Panel Front Temperature
VLCD -0.3 6.0 Vdc
TOP 0 50
TST -20 60
HOP 10 90 %RH
HST 10 90 %RH
TSUR
Values
Units Notes
Min Max
- +68 ¶C 5
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39 ¶C Max, and no condensation of water.
2. Maximum Storage Humidity is up to 40, 70% RH only for 4 corner light leakage Mura.
3. Storage condition is guaranteed under packing condition
4. Gravity mura can be guaranteed below 40¶C condition
5. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68¶C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68. The range of operating temperature may be degraded in case of
improper thermal management in final product design.
FIG.2 Temperature and relative humidity
at 25 r 2¶C
¶C
¶C
1, 2, 3, 4
90%
60
50
Wet Bulb
Temperature [C]
40
30
20
10
0
10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [C]
Ver. 1.0 Jan, 10, 2012
60%
40%
10%
Storage
Operation
Humidity [(%)RH]
5/ 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3. Electrical Specifications
3-1. Electrical Characteristics
It requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and
liquid crystal. The second input power for the LED/Backlight, is typically generated by a LED Driver.
The LED Driver is an external unit to the LCDs.
Table 2-1. ELECTRICAL CHARACTERISTICS
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Parameter Symbol
MODULE :
Power Supply Input Voltage VLCD
Permissive Power Input Ripple VdRF
Power Supply Input Current ILCD
Pc TYP
Power Consumption
Pc MAX
Rush current IRUSH
Min Typ Max
4.5 5 5.5
- (890) (1110)
- (1060) (1320)
- (4.5) (5.6)
- (5.3) (6.6)
- - 3.0
Values
100
Unit Notes
Vdc
mVp-p 1
mA 2
mA 3
Watt 2
Watt 3
A 4
Note :
1. Permissive power ripple should be measured under V
=5.0V, 25¶C, fV(frame frequency)=MAX
LCD
condition and At that time, we recommend the bandwidth configuration of oscilloscope is to be under
20Mhz. See the next page.
2. The specified current and power consumption are under the V
=5.0V, 25· 2¶C,fV=60Hz condition
LCD
whereas Typical Power Pattern [Mosaic] shown in the [ Figure 3 ] is displayed.
3. The current is specified at the maximum current pattern.
4. Maximum Condition of Inrush current :
The duration of rush current is about 5ms and rising time of power Input is 500us r 20%.(min.).
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/ 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
• Permissive Power input ripple (V
White pattern
• Power consumption (V
=5V, 25¶C, fV (frame frequency=60Hz condition)
LCD
=5.0V, 25¶C, fv (frame frequency)=MAX condition)
LCD
Black pattern
Typical power Pattern
FIG.3 Mosaic pattern & White Pattern for power consumption measurement
Ver. 1.0 Jan, 10, 2012
Maximum power Pattern
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/ 36
www.panelook.com
Global LCD Panel Exchange Center
Table 2-2. LED Bar ELECTRICAL CHARACTERISTICS
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Parameter Symbol
LED String Current Is - 120 130 mA 1, 2, 5
LED String Voltage Vs 50.2 53.6 57.0 V 1, 5
Power Consumption
LED Life Time LED_LT 30,000 - - Hrs 3
PBar - 12.9 13.7 Watt 1, 2, 4
Min. Typ. Max.
Values
Notes) The LED Bar consists of 34 LED packages, 2 strings (parallel) x 17 packages (serial)
LED driver design guide
: The design of the LED driver must have specifications for the LED in LCD Assembly.
The performance of the LED in LCM, for example life time or brightness, is extremely influenced by
the characteristics of the LED driver.
So all the parameters of an LED driver should be carefully designed and output current should be
Constant current control.
Please control feedback current of each string individually to compensate the current variation
among the strings of LEDs.
When you design or order the LED driver, please make sure unwanted lighting caused by
the mismatch of the LED and the LED driver (no lighting, flicker, etc) never occurs.
When you confirm it, the LCD module should be operated in the same condition as installed in
your instrument.
Unit Notes
1. The specified values are for a single LED bar.
2. The specified current is defined as the input current for a single LED string with 100% duty cycle.
3. The LED life time is defined as the time when brightness of LED packages become 50% or less
than the initial value under the conditions at Ta = 25 r 2¶C and LED string current is typical value.
4. The power consumption shown above does not include loss of external driver.
The typical power consumption is calculated as P
The maximum power consumption is calculated as P
Bar = Vs(Typ.) x Is(Typ.) x No. of strings.
Bar = Vs(Max.) x Is(Typ.) x No. of strings.
5. LED operating conditions are must not exceed Max. ratings.
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/ 36
www.panelook.com
Global LCD Panel Exchange Center
3-2. Interface Connections
3-2-1. LCD Module
- LCD Connector(CN1) : IS100-L30O-C23 (UJU) , GT103-30S-HF15 (LSM)
- Mating Connector : FI-X30C2L (Manufactured by JAE) or Equivalent
Table 3. MODULE CONNECTOR(CN1) PIN CONFIGURATION
No Symbol Description No Symbol Symbol
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
FR0M
FR0P
FR1M
FR1P
FR2M
FR2P
GND
FCLKINM
FCLKINP
FR3M
FR3P
SR0M
SR0P
GND
SR1M
Minus signal of odd channel 0 (LVDS)
Plus signal of odd channel 0 (LVDS)
Minus signal of odd channel 1 (LVDS)
Plus signal of odd channel 1 (LVDS)
Minus signal of odd channel 2 (LVDS)
Plus signal of odd channel 2 (LVDS)
Ground
Minus signal of odd clock channel (LVDS)
Plus signal of odd clock channel (LVDS)
Minus signal of odd channel 3 (LVDS)
Plus signal of odd channel 3 (LVDS)
Minus signal of even channel 0 (LVDS)
Plus signal of even channel 0 (LVDS)
Ground
Minus signal of even channel 1 (LVDS)
16
SR1P
17
GND
18
SR2M
19
SR2P
20
SCLKINM
21
SCLKINP
22
SR3M
23
SR3P
24
GND
25
NC
26
NC
PWM_OUT For Control Burst frequency of Inverter
27
28
VLCD
29
VLCD
30
VLCD
Plus signal of even channel 1 (LVDS)
Ground
Minus signal of even channel 2 (LVDS)
Plus signal of even channel 2 (LVDS)
Minus signal of even clock channel (LVDS)
Plus signal of even clock channel (LVDS)
Minus signal of even channel 3 (LVDS)
Plus signal of even channel 3 (LVDS)
Ground
No Connection (I2C Serial interface for LCM)
No Connection.(I2C Serial interface for LCM)
Power Supply +5.0V
Power Supply +5.0V
Power Supply +5.0V
Note: 1. All GND(ground) pins should be connected together and to Vss which should also be connected to
the LCD’s metal frame.
2. All V
LCD (power input) pins should be connected together.
3. Input Level of LVDS signal is based on the IEA 664 Standard.
4. PWM_OUT signal controls the burst frequency of a inverter.
This signal is synchronized with vertical frequency.
It’s frequency is 3 times of vertical frequency, and it’s duty ratio is 50%.
If you don’t use this pin, it is no connection.
IS100-L30O-C23
#1 #30
#1
Rear view of LCM
FIG.4 Connector diagram
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
#30
9/ 36
www.panelook.com
Global LCD Panel Exchange Center
Table 4. REQUIRED SIGNAL ASSIGNMENT FOR Flat Link (TI:SN75LVDS83) Transmitter
Pin # Require SignalPin Name Pin # Require SignalPin Name
1 Power Supply for TTL InputVCC 29 Ground pin for TTLGND
2 TTL Input (R7)D5 30 TTL Input (DE)D26
3 TTL Input (R5)D6 31 TTL Level clock InputTXCLKIN
4 TTL Input (G0)D7 32 Power Down InputPWR DWN
5 Ground pin for TTLGND 33 Ground pin for PLLPLL GND
6 TTL Input (G1)D8 34 Power Supply for PLLPLL VCC
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
7 TTL Input (G2)D9 35 Ground pin for PLLPLL GND
8 TTL Input (G6)D10 36 Ground pin for LVDSLVDS GND
9 Power Supply for TTL InputVCC 37 Positive LVDS differential data output 3TxOUT3ు
10 TTL Input (G7)D11 38 Negative LVDS differential data output 3TxOUT3ృ
11 TTL Input (G3)D12 39 Positive LVDS differential clock outputTXCLKOUTు
12 TTL Input (G4)D13 40 Negative LVDS differential clock outputTXCLKOUTృ
13 Ground pin for TTLGND 41 Positive LVDS differential data output 2TXOUT2ు
14 TTL Input (G5)D14 42 Negative LVDS differential data output 2TXOUT2ృ
15 TTL Input (B0)D15 43 Ground pin for LVDSLVDS GND
16 TTL Input (B6)D16 44 Power Supply for LVDSLVDS VCC
17 Power Supply for TTL InputVCC 45 Positive LVDS differential data output 1TXOUT1ు
46 Negative LVDS differential data output 1TXOUT1ృ18 TTL Input (B7)D17
19 TTL Input (B1)D18
20 TTL Input (B2)D19
22 TTL Input (B3)D20
23 TTL Input (B4)D21
47 Positive LVDS differential data output 0TXOUT0ు
48 Negative LVDS differential data output 0TXOUT0ృ
49 Ground pin for LVDSLVDS GND21 Ground pin for TTL InputGND
50 TTL Input (R6)D27
51 TTL Input (R0)D0
24 TTL Input (B5)D22
25 TTL Input (RSVD)D23
26 Power Supply for TTL InputVCC 54 TTL Input (R2)D2
52 TTL Input (R1)D1
53 Ground pin for TTLGND
55 TTL Input (R3)D327 TTL Input (HSYNC)D24
56 TTL Input (R4)D428 TTL Input (VSYNC)D25
Notes : 1. Refer to LVDS Transmitter Data Sheet for detail descriptions.
2. 7 means MSB and 0 means LSB at R,G,B pixel data
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 / 36
www.panelook.com
Global LCD Panel Exchange Center
LVDS Input characteristics
1. DC Specification
LVDS -
LVDS +
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
V
IN _MAXVIN _MIN
# VCM= {(LVDS +) + ( LVDS - )} /2
0V
V
CM
Description Symbol Min Max Unit Note
LVDS Common mode Voltage V
LVDS Input Voltage Range V
CM
IN
1.0 1.5 V -
0.7 1.8 V -
Change in common mode Voltage ȟVCM - 250 mV -
2. AC Specification
T
clk
LVDS Clock
A
LVDS Data
(F
= 1/T
)
clk
A
LVDS 1’st Clock
LVDS 2nd/ 3rd/ 4thClock
tSKEW
tSKEW
t
SKEW_mintSKEW_max
clk
T
clk
80%
20%
t
RF
Description Symbol Min Max Unit Note
V
LVDS Differential Voltage
LVDS Clock to Data Skew t
LVDS Clock/DATA Rising/Falling time t
Effective time of LVDS t
LVDS Clock to Clock Skew (Even to Odd) t
1. All Input levels of LVDS signals are based on the EIA 644 Standard.
Note
2. If t
isn’t enough, t
RF
should be meet the range.
eff
TH
V
TL
SKEW
RF
eff
SKEW_EO
3. LVDS Differential Voltage is defined within t
100 600 mV
Tested with Differential Probe
-600 -100 mV
- |(0.25*T
260 |(0.3*T
)/7| ps -
clk
)/7| ps 2
clk
|·360| - ps -
- |1/7* T
eff
|ps -
clk
Ver. 1.0 Jan, 10, 2012
Note
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
11 / 36
www.panelook.com
Global LCD Panel Exchange Center
0.5tui
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
tui
LVDS Data
0V
(Differential)
LVDS CLK
0V
(Differential)
* This accumulated waveform is tested with differential probe
360ps
VTH
VTL
360ps
teff
tui : Unit Interval
3. Data Format
1) LVDS 2 Port
< LVDS Data Format >
Ver. 1.0 Jan, 10, 2012
12 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Table 5. BACKLIGHT CONNECTOR PIN CONFIGURATION(CN2)
The LED interface connector is a model SM06B-SHJH(HF) manufactured by JST.
The mating connector is a SHJP-06V-S(HF) or Equivalent.
The pin configuration for the connector is shown in the table below.
Pin Symbol Description Notes
1 FB1 Channel1 Current Feedback
2 NC No Connection
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
3 VLED LED Power Supply
4 VLED LED Power Supply
5 NC No Connection
6 FB2 Channel2 Current Feedback
#1
Rear view of LCM
#6
[ Figure 5 ] Backlight connector view
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 / 36
www.panelook.com
Global LCD Panel Exchange Center
3-3. Signal Timing Specifications
Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.
Table 6. TIMING TABLE (DE Only Mode)
ITEM Symbol Min Typ Max Unit Note
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Horizontal
Frequency
Display
Period
Blank t
Total t
Display
Period
Blank t
Total t
ITEM Symbol Min Typ Max Unit Note
DCLK f
Horizontal fH 57.3 67.5 70 KHz 2
Vertical f
t
HV 960 960 960 tCLK 1920 / 2
HB 100 140 240 tCLK 1
HP 1060 1100 1200 tCLK
tVV 1080 1080 1080 Lines
VB
VP
CLK 63.00 74.25 78.00 MHz
V
20
(228)
1100
(1308)
57
(47)
45
(270)
1125
(1350)
60
(50)
69
(300)
1149
(1380)
63
(53)
Lines 1Vertical
Lines
Hz
2
NTSC : 57~63Hz
(PAL : 47~53Hz)
Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.
2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency
Timing should be set based on clock frequency.
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 / 36
www.panelook.com
Global LCD Panel Exchange Center

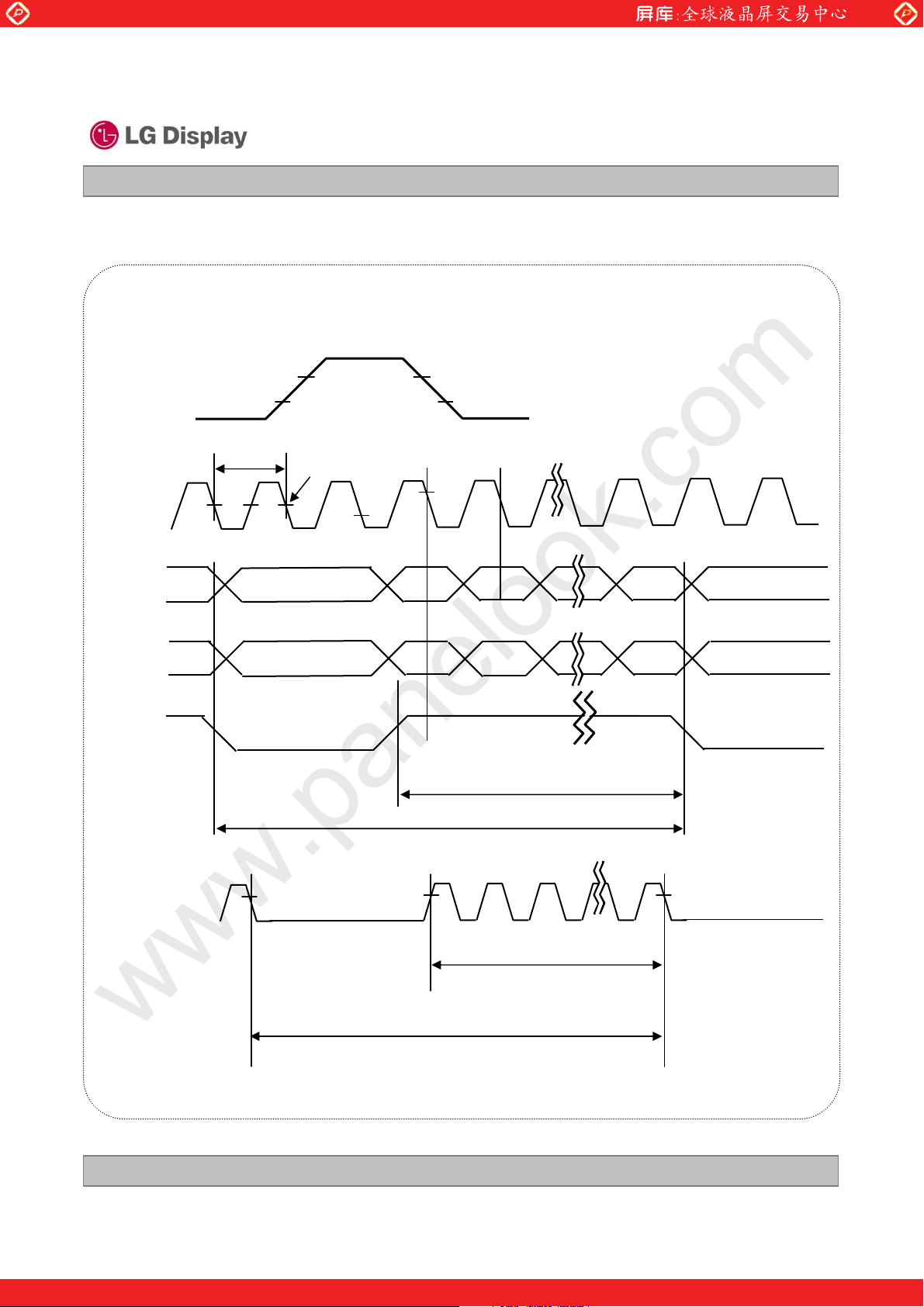

3-4. Signal Timing Waveforms
1. DCLK , DE, DATA waveforms
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
DE, Data
DCLK
First data
Second data
0.7VDD
0.3VDD
tCLK
Invalid data
Invalid data
DE(Data Enable)
0.5 VDD
Valid data
Pixel 0,0
Valid data
Pixel 1,0
tHP
Pixel 2,0
Pixel 3,0
Invalid data
Invalid data
tHV
1 1080
DE(Data Enable)
tVV
tVP
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 / 36
www.panelook.com
Global LCD Panel Exchange Center
3-5. Color Input Data Reference
The Brightness of each primary color(red,green,blue) is based on the 8-bit gray scale data input for the color;
the higher the binary input, the brighter the color. The table below provides a reference for color versus data
input.
Table 7. COLOR DATA REFERENCE
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Input Color Data
Basic
Color
RED
Color
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
... ... ... ...
RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
MSB LSB
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
RED
MSB LSB
GREEN
BLUE
MSB LSB
GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
GREEN
GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0
GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
BLUE (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
BLUE
BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0
BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
... ... ... ...
... ... ... ...
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 / 36
www.panelook.com
Global LCD Panel Exchange Center
3-6. Power Sequence
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Power Supply For LCD
V
LCD
Interface Signal (Tx)
0V
0V
Power Supply for LED
Table 8. POWER SEQUENCE
Parameter
90%
10%
1 T2 T5 T7
T
Valid Data
T3 T4
LED Off LED Off
Min Typ Max
LED On
Values
90%
10%
Units
T1 0.5 - 10 ms
T2 0.01 - 50 ms
T3 500 - - ms
T4 200 - - ms
T5 0.01 - 50 ms
T7 1000 - ms
Notes : 1. Please avoid floating state of interface signal at invalid period.
2. When the interface signal is invalid, be sure to pull down the power supply for LCD V
3. The invalid signal means out of the signal timing specification which define as page 14.
4. The above power sequence should be satisfied the basic power on/off and
resolution, timing transition.
5. LED power must be turn on after power supply for LCD and interface signal are valid.
Ver. 1.0 Jan, 10, 2012
to 0V.
LCD
17 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
3-7. V
LCD
1) Dip condition
Power Dip Condition
t
d
FIG.6 Power dip condition
V
4.5V
3.5V
GND(ground)
LCD
2) V
3.5V ᆙV
3.5V
LCD
V
-dip conditions should also follow the Power On/Off conditions for supply voltage.
LCD
4.5V , tdᆙ20ms
LCD
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 / 36
www.panelook.com
Global LCD Panel Exchange Center
4. Optical Specifications
Optical characteristics are determined after the unit has been ‘ON’ for approximately 30 minutes
in a dark environment at 25·2¶C. The values specified are at an approximate distance 50cm from the LCD
surface at a viewing angle of ) and T equal to 0 ¶ and aperture 1 degree.
FIG. 1 presents additional information concerning the measurement equipment and method.
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
PR 880 or RD 80S
or PR650
Optical Stage(x,y)
LCD Module
50cm
FIG.7 Optical Characteristic Measurement Equipment and Method
Table 9. OPTICAL CHARACTERISTICS
Parameter Symbol
Contrast Ratio CR 600 1000 - 1
Surface Luminance, white L
Luminance Variation
Gray To Gray T
Response Time
Color Coordinates
[CIE1931]
(By PR650)
Viewing Angle (CR>10)
General
Gray Scale - 2.2 8
Gray to Gray
(ɍ)
RED Rx 0.636
GREEN Gx 0.309
BLUE Bx 0.150
WHITE Wx 0.313
Horizontal
Vertical
WH
G
WHITE
GTG_AVR
G to G
Ry 0.334
Gy 0.623
By 0.067
Wy 0.329
T
H
T
V
ɍ
(Ta=25 ¶C, V
Min Typ Max
200 250 - cd/m
- - 1.3 3
- 14 25 ms 4
- (5) - ms
Typ
-0.03
170 178 -
170 178 -
=5V, fV=60Hz Dclk=144MHz, IBL=120mA)
LCD
Values
Typ
+0.03
Units Notes
2
Degree 5
Reference
10,11
2
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 / 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Notes 1. Contrast Ratio(CR) is defined mathematically as :
RatioContrast
It is measured at center point(Location P1)
2. Surface luminance(L
from the surface with all pixels displaying white. For more information see FIG.8 (By PR880)
3. The variation in surface luminance , G WHITE is defined as :
G WHITE(5P) = Maximum(L
Where L
on1
to L
For more information, see the FIG. 8.
4. Gray to gray response time is the time required for the display to transition from gray to gray.
For additional information see Table 10.
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD surface. For more information see FIG.10
WH)is luminance value at Center 1 point(P1) across the LCD surface 50cm
, L
, L
are the luminance with all pixels displaying white at 5 locations .
on5
on1,Lon2
on3
on4
, L
on5
(By RD80S)
(By PR880)
) / Minimum(L
pixels whiteall with Luminance Surface
pixelsblack all with Luminance Surface
(By PR880)
on1,Lon2
, L
on3
(By PR880)
, L
on4
, L
on5
)
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 / 36
www.panelook.com
Global LCD Panel Exchange Center
ྙ
ྛ
ྚ
ྜྷ
ྜ
Notes 8. Gamma Value is approximately 2.2. For more information see Table 11.
Notes 9. It is the standard deviation of G to G (ɍ) data.
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
ȭ(Xi- u)
G to G (ɍ) =
Notes 10. This is not used for product spec, but for end-user marketing purpose
Measuring point for surface luminance & measuring point for luminance variation.
˲
2
N
Xi = Individual Data
u = Data average
N : The number of Data
H
A
V
B
A : H / 4 mm
B : V / 4 mm
@ H,V : Active Area
FIG.8 Measure Point for Luminance
The Gray to Gray response time is defined as the following figure and shall be measured by switching the input
signal for “Gray To Gray “.
- Gray step : 5 Step
- TGTG_AVR is the total average time at rising time and falling time for “Gray To Gray “.
- if system use ODC ( Over Driving Circuit) function, Gray to Gary response time may be 5ms~8ms GtG
* it depends on Overshoot rate.
Table. 10 GTG Gray Table
Gray to Gray
Falling Time
Ver. 1.0 Jan, 10, 2012
G255
G191
G127
G63
G0
G255 G191 G127 G63 G0
Rising Time
21 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Liquid Crystal Display
Product Specification
G to G(BW) Response time is defined as the following figure and shall be measured by switching the input
signal for “Gray(N)” and “Black or White”.
LC230EUE
100
Optical
Response
90
10
Tr
0
Gray(N)
White
N = 0(Black)~255(White)
Gray(N)
Tf
Black
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 / 36
www.panelook.com
Global LCD Panel Exchange Center
Dimension of viewing angle range.
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
I
= 180q, Left
I
= 270q, Down
Normal
E
T
I
FIG.10 Viewing angle
Y
I
= 90q, Up
I
= 0q, Right
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 / 36
www.panelook.com
Global LCD Panel Exchange Center
Table 11. Gray Scale Specification
Gray Level Relative Luminance [%] (Typ.)
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
0
31 1.08
63 4.72
95 11.49
127 21.66
159 35.45
191 53.00
223 74.48
255 100
0.11
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 / 36
www.panelook.com
Global LCD Panel Exchange Center
5. Mechanical Characteristics
The contents provide general mechanical characteristics. In addition the figures in the next page are detailed
mechanical drawing of the LCD.
Bezel Area
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Horizontal 533.2mm
Vertical 312.0mmOutline Dimension
Depth 10.5 mm
Horizontal 513.8mm
Vertical 291.0mm
Horizontal 509.184mm
Active Display Area
Vertical 286.416mm
Weight Typ : 2,200g , Max : 2,310g
Surface Treatment
Hard coating(3H)
Anti-glare treatment of the front polarizer
Notes : Please refer to a mechanic drawing in terms of tolerance at the next page.
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 / 36
www.panelook.com
Global LCD Panel Exchange Center
<FRONT VIEW>
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 / 36
www.panelook.com
Global LCD Panel Exchange Center
<REAR VIEW>
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
LGD Highly recommendation :
As The IPS panel is sensitive & slim, please recommend the metal frame of the system supports the panel
by the double side-mount.
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 / 36
www.panelook.com
Global LCD Panel Exchange Center
6. Reliability
Environment test condition
No Test Item Condition
1 High temperature storage test Ta= 60¶C 240h
2 Low temperature storage test Ta= -20¶C 240h
3 High temperature operation test Ta= 50¶C 50%RH 240h
4 Low temperature operation test Ta= 0¶C 240h
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Wave form : random
5
6
7 Humidity condition Operation Ta=
8
9
Vibration test
(non-operating)
Shock test
(non-operating)
Altitude
operating
storage / shipment
Maximum Storage Humidity for
4 corner light leakage Mura.
Vibration level : 1.00G RMS
Bandwidth : 10-300Hz
Duration : X, Y, Z, 10 min
Shock level : 100G
Waveform : half sine wave, 2ms
Direction : ᇹX, ᇹY, ᇹZ
0 - 10,000 feet(3,048m)
0 - 40,000 feet(12,192m)
Max 70%RH , Ta=40
One time each direction
One time each direction
40 ¶C ,90%RH
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28 / 36
www.panelook.com
Global LCD Panel Exchange Center
7. International Standards
7-1. Safety
a) UL 60950-1, Second Edition, Underwriters Laboratories Inc.
Information Technology Equipment - Safety - Part 1 : General Requirements.
b) CAN/CSA C22.2 No.60950-1-07, Second Edition, Canadian Standards Association.
Information Technology Equipment - Safety - Part 1 : General Requirements.
c) EN 60950-1:2006 + A11:2009, European Committee for Electrotechnical Standardization(CENELEC).
Information Technology Equipment - Safety - Part 1 : General Requirements.
d) IEC 60950-1:2005, Second Edition, The International Electrotechnical Commission (IEC).
Information Technology Equipment - Safety - Part 1 : General Requirements.
(Including report of IEC60825-1:2001 clause 8 and clause 9)
Notes
1. Laser (LED Backlight) Information
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Class 1M LED Product
IEC60825-1 : 2001
Embedded LED Power (Class 1M)
2. Caution
: LED inside.
Class 1M laser (LEDs) radiation when open.
Do not open while operating.
7-2. EMC
a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.
b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and
methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.
c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance
characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.
7-3. Environment
a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29 / 36
www.panelook.com
Global LCD Panel Exchange Center
8. Packing
8-1. Designation of Lot Mark
a) Lot Mark
ABCDEF GHI JKLM
A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.
Note
1. YEAR
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Year
Mark
CBA
2014E2015
D
201320122011
2016G2017H2018J2019
F
2. MONTH
Month
Mark
Apr5May
4
Jun
6
Jul8Aug9Sep
7
b) Location of Lot Mark
Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one box : 11pcs
b) Box Size : 365 X 418 X 618
2020
K
Oct
A
Nov
B
DecMarFebJan
C321
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30 / 36
www.panelook.com
Global LCD Panel Exchange Center
9. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD module.
9-1. MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
(10) As The IPS panel is sensitive & slim, please recommend the metal frame of the system supports the panel
by the double side-mount.
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
9-2. OPERATING PRECAUTIONS
(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :
V=·200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on) becomes
longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated
its full characteristics perfectly.
(8) A screw which is fastened up the steels should be a machine screw.
(if not, it causes metallic foreign material and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) When LCMs are used for public display defects such as Yogore, image sticking can not be guarantee.
Ver. 1.0 Jan, 10, 2012
31 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
9-3. ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.
9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
9-5. STORAGE
When storing modules as spares for a long time, the following precautions are necessary.
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature
between 5¶C and 35¶C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be
recovered when the LCD module returns to the normal condition
9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM
(1) The protection film is attached to the bezel with a small masking tape.
When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ionblown equipment or in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains a very
small amount of glue still on the bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,
please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normalhexane.
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32 / 36
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX-I-1
Packing Ass’y
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
NO. DESCRIPTION MATERIAL
1LCM
2BAG
3TAPE OPP
4 PACKING, BOTTOM EPS
5 PACKING, TOP
6BOX
7TAPE
8 LABEL
PAPER, SW
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
AL
EPS
OPP
ART
33 / 36
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX-I-2
Pallet Ass’y
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
NO. DESCRIPTION MATERIAL
1 PACKING ASS’Y
2 PALLET
3BAND
4 CLIP, BAND
5 ANGLE, PACKING
6 LABEL
7Wrapping
PLYWOOD_1140X870X117.5
PP
STEEL
PAPER (SW)
PAPER
LLDPE
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
34 / 36
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-1
غ LCM Label
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
Model
UL, TUV Mark
LGD Logo
LC230EUE
(SE)(A1)
Π΄·ΖΣΚΗΚΖΕ
;Ͳ͵ͶͺͿʹͺͿͲ
Serial No.
Origin
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
35 / 36
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-2
Box Label
www.panelook.com
LC230EUE
Liquid Crystal Display
Product Specification
LC230EUE
SEA1
Pallet Label
11 PCS
MADE IN CHINA
001/01-01
XXXXXXXXXXXXX XXX
LC230EUE
SEA1
66 PCS
MADE IN CHINA
001/01-01
RoHS Verified
RoHS Verified
XXXXXXXXXXXXX XXX
Ver. 1.0 Jan, 10, 2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
36 / 36
www.panelook.com
Loading...
