LG Display LC216EXN-SFA1 Specification

( ) Preliminary Specification

(●) Final Specification

Title 21.6” WXGA TFT LCD

LC216EXN

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER LGE

MODEL

APPROVED BY

/

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC216EXN

SUFFIX SFA1 (RoHS Verified)

APPROVED BY

J.T. Kim / Team Leader

REVIEWED BY

S.J. Lee / Project Leader

PREPARED BY

C.H. Yun / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 1.0

TV Product Development Dept.

LG Display Co., Ltd.

1/36

Product Specification

CONTENTS

LC216EXN

Number ITEM

COVER

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

3-4 SIGNAL TIMING WAVEFORMS

3-5 COLOR DATA REFERENCE

3-6 POWER SEQUENCE

4 OPTICAL SPECIFICATIONS

5 MECHANICAL CHARACTERISTICS

Page

1

2

3

4

5

6

6

8

10

11

14

15

17

21

6 RELIABILITY

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

7-3 Environment

8 PACKING

8-1 INFORMATION OF LCM LABEL

8-2 PACKING FORM

9 PRECAUTIONS

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

24

25

25

25

25

26

26

26

27

27

27

28

28

28

28

Ver. 1.0

2/36

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.1 Jul. 06. 2012 - Preliminary Specification (First Draft)

0.2 Jul. 17. 2012 8 Module Connector(CN1) Pin Configuration

0.3 Sep. 03. 2012 21 Mechanical Characteristics

0.4 Oct. 26. 2012 6 Power Input Current, Power Consumption

0.5 Nov. 26. 2012 22, 23 Mechanical Drawing

7 LED Driver Power Input Current/Consumption

0.6 Dec. 17. 2012 23 Serial Label Position

0.7 Jan. 23. 2013 22, 23 Mechanical Drawing

1.0 Jan. 24. 2013 - CAS Version 1.0 Release

Final Specification

LC216EXN

Ver. 1.0

3/36

LC216EXN

Product Specification

1. General Description

The LC216EXN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 21.6 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
Therefore, it can present a palette of more than 16.7M(6bit + A-FRC) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

Mini-LVDS(RGB)

Source Driver Circuit

S1 S1366

G1

Control
Signals

TFT - LCD Panel

(1366 × RGB × 768 pixels)

[Gate In Panel]

G768

LVDS

1Port

LVDS
Select

#9

+12.0V

CN1

(30pin)

EEPROM

SCL

SDA

Timing Controller

[LVDS Rx]

Power Circuit

Block

+24.0V, GND, Von/off

Ext VBR-B

LED Driver
CN4(14Pin)

CN3(6Pin)

Back light Assembly(28 LED)

General Features

Active Screen Size 21.6 inches(547.7mm) diagonal

Outline Dimension 501.6(H) × 292.8(V) × 11.8(D) (Typ.)

Pixel Pitch 0.1165 mm x 0.3495 mm

Pixel Format 1366 horiz. by 768 vert. Pixels, RGB stripe arrangement

Color Depth 8-bit(D), 16.7M colors

Luminance, White 250 cd/m2 (Center 1point) (Typ.)

Viewing Angle (CR>10) Viewing angle free ( R/L 178(Min.), U/D 178(Min.))

Power Consumption Total 15.9W (Typ.) (Logic=3.0W, LED Driver=12.9W [@ [ExtVbr_B=100%])

Weight 1,950g (Typ.)

Display Mode Transmissive mode, Normally black

Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))

Ver. 1.0

4/36

LC216EXN

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or damage to the
LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage

Driver Control Voltage

T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC

Operating Temperature TOP 0 +50 °C

Storage Temperature TST -20 +60 °C

Panel Front Temperature TSUR - +68 °C 4

Operating Ambient Humidity HOP 10 90 %RH

Storage Humidity HST 10 90 %RH

Note

1. Ambient temperature condition (Ta = 25 ± 2 °C )

LCD Circuit VLCD -0.3 +14.0 VDC

Driver VBL -0.3 +27.0 VDC

ON/OFF VOFF / VON -0.3 +5.5 VDC

Brightness VBR -0.3 +5.5 VDC

Value

Unit Note

Min Max

2. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 40°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may degraded in case of
improper thermal management in final product design.

90%

1

2,3

2,3

Ver. 1.0

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [°C]

30

40

50

60

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

5/36

LC216EXN

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Value

Parameter Symbol

Min Typ Max

Circuit :

Power Input Voltage VLCD 10.8 12.0 13.2 VDC

Unit Note

Power Input Current ILCD

Power Consumption PLCD - 3.0 3.9 Watt 1

Rush current IRUSH - - 3.0 A 3

Notes : 1. The specified current and power consumption are under the V

- 250 325 mA 1

- 300 390 mA 2

=12.0V, Ta=25 ± 2°C, fV=60Hz

LCD

condition, and mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. Ripple voltage level is recommended under ±5% of typical voltage

White : 255 Gray
Black : 0 Gray

Ver. 1.0

Mosaic Pattern(8 x 6)

6/36

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

LC216EXN

Parameter Symbol

LED Driver :

Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Power Supply Input Current IBL

Power Supply Input Current (In-Rush) In-rush - - 1.8 A

Power Consumption PBL -

On V on 2.5 - 5.0 Vdc

Off V off -0.3 0.0 0.7 Vdc

BR-B

PAL 100 Hz 3

NTSC 120 Hz 3

High Level 2.5 - 5.0

Low Level 0.0 - 0.7

Input Voltage for

Control System

Signals

LED :

On/Off

Brightness Adjust ExtV

ExtV

Pulse Duty Level
(PWM)

BR-B

Frequency

Min Typ Max

-

5 - 100 %

1 - 100 %

Values

0.54

12.9

Unit Notes

0.61

14.6 W 1

A 1

VBL = 22.8V
Ext VBR-B = 100%

On Duty

Vdc

Vdc

HIGH : on duty

LOW : off duty

4

6

Life Time 30,000 50,000 Hrs 2

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60

minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25±2°C.

3. LGD recommend that the PWM freq. is synchronized with Two time harmonic of V_sync signal of system.
Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.

4. The duration of rush current is about 200ms. This duration is applied to LED on time.

5. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.

6. ExtV

After Driver ON signal is applied, ExtV

signal have to input available duty range and sequence.

BR-B

After that, ExtV

1% and 100% is possible

BR-B

should be sustained from 5% to 100% more than 500ms.

BR-B

For more information, please see 3-6-2. Sequence for LED Driver.

Ver. 1.0

7/36

LC216EXN

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, a 30-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1) : FI-X30SSL-HF (Manufactured by JAE) or Compatible.

- Mating Connector : FI-X30C2L (Manufactured by JAE) or Equivalent

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

Pin No. Symbol Description Note

1 VLCD Power Supply +12.0V
2 VLCD Power Supply +12.0V
3 VLCD Power Supply +12.0V
4 VLCD Power Supply +12.0V
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground

9
10
11 GND Ground
12 RA- LVDS Receiver Signal(-)
13 RA+ LVDS Receiver Signal(+)
14 GND Ground
15 RB- LVDS Receiver Signal(-)
16 RB+ LVDS Receiver Signal(+)
17 GND Ground
18 RC- LVDS Receiver Signal(-)
19 RC+ LVDS Receiver Signal(+)
20 GND Ground
21 RCLK- LVDS Receiver Clock Signal(-)
22 RCLK+ LVDS Receiver Clock Signal(+)
23 GND Ground
24 RD- LVDS Receiver Signal(-)
25 RD+ LVDS Receiver Signal(+)
26 GND Ground
27
28

29

30 GND Ground

LVDS Select ‘H’ =JEIDA , ‘L’ or NC = VESA

GND Ground

NC
NC

NC

No Connection (Note 4)
No Connection (Note 4)

No Connection (Note 4) 4

Appendix V

4
4

Notes : 1. All GND (Ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. These pins are used only for LGD (Do not connect)

5. Specific pin No. #30 is used for “No signal detection” of system signal interface.

It should be GND for NSB (No Signal Black) while the system interface signal is not.

If this pin is “H”, LCD Module displays AGP (Auto Generation Pattern).

Ver. 1.0

8/36

Product Specification

3-2-2. Backlight Module

- LED Connector : SM14B-SRSS-TB (Manufactured by JST)

- Mating Connector : SHR-14V-S-B (With protrusions) or SHR-14V-S(Without protrusions)
(Manufactured by JST)

Table 5. LED DRIVER CONNECTOR PIN CONFIGULATION

Pin No Symbol Description Note

1 VBL Power Supply +24.0V

2 VBL Power Supply +24.0V

3 VBL Power Supply +24.0V

4 VBL Power Supply +24.0V

5 VBL Power Supply +24.0V

6 GND Backlight Ground

7 GND Backlight Ground

8 GND Backlight Ground

9 GND Backlight Ground

LC216EXN

1

10 GND Backlight Ground

11 Status Back Light Status 2

12 VON/OFF Backlight ON/OFF control 4

13 NC Don’t care

14 EXTVBR-B External PWM 3

Notes :1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : Open

3. High : on duty / Low : off duty, Pin#14 can be opened. ( if Pin #14 is open , EXTVBR-B is 100% )

4. Each impedance of pin #12 and 14 is over 50 [KΩ] .

◆◆◆◆ Rear view of LCM

◆◆◆◆ Rear view of LCM

14

14

…

…

1

1

PCB

PCB

…

…

◆ Status

Ver. 1.0

9/36

LC216EXN

Product Specification

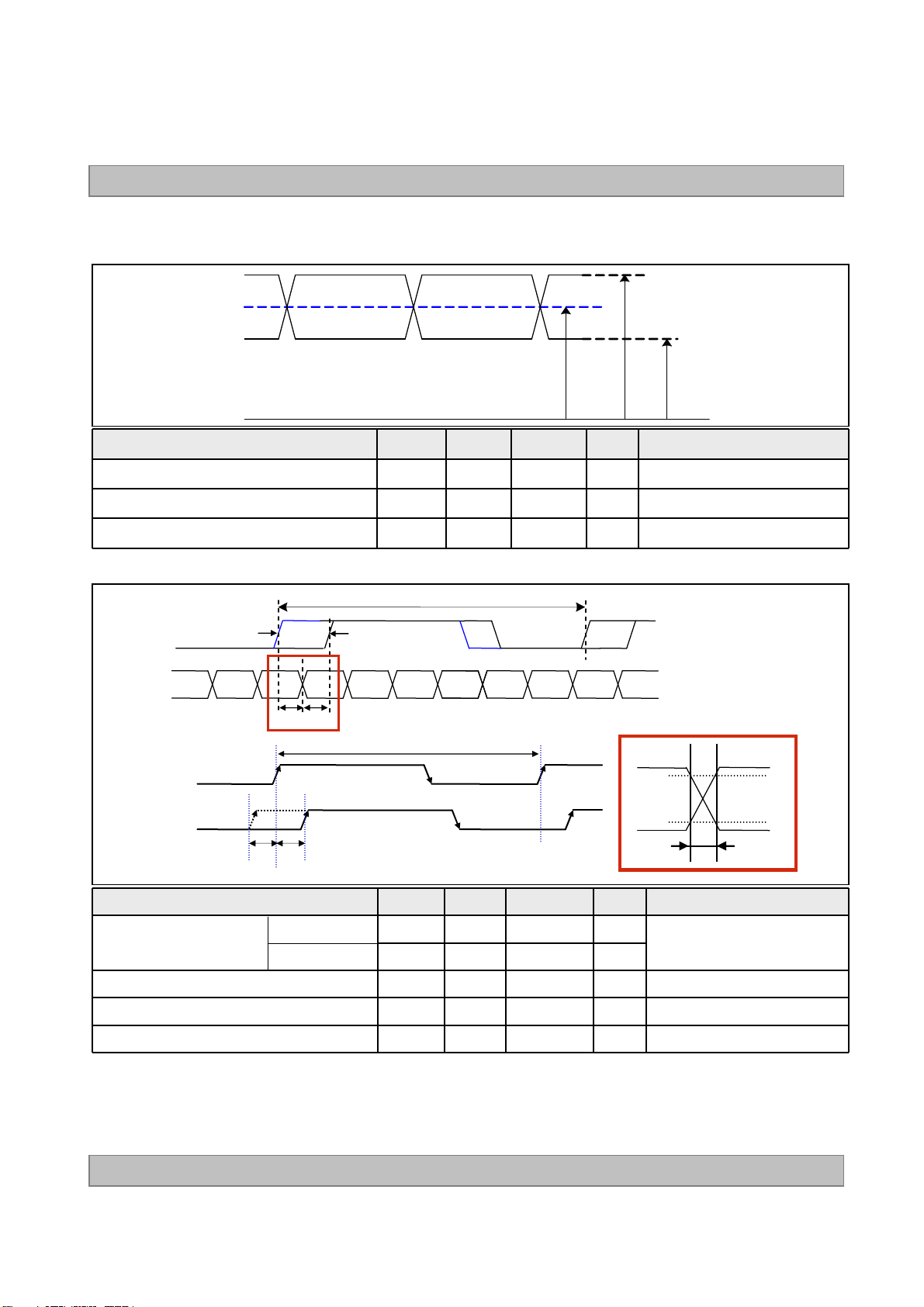

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Horizontal

Vertical

Frequency

Display Period t

Blank t

Total t

Display Period t

Blank t

Total t

HV

HB

HP

VV

VB

VP

- 1366 - tclk

90 162 410 tclk

1456 1528 1776 tclk

- 768 - tHP

20

(126)

788

(894)

22

(180)

790

(948)

240

(295)

1008

(1063)

tHP 1

tHP

ITEM Symbol Min Typ Max Unit Note

DCLK f

Horizontal f

CLK

H

63.0 72.4 80.0 MHz

45 47.4 55 KHz 2

2

NTSC :

57~63Hz

(PAL :

Vertical f

V

(47)

57

60

(50)

63

(53)

Hz

47~53Hz)

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).

If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

※ Timing should be set based on clock frequency.

Ver. 1.0

10/36

3-4. Signal Timing Waveforms

3-4-1. LVDS Input Signal Timing Diagram

LC216EXN

Product Specification

DCLK

1366

tCLK

DE (Data Enable)

0.5 Vcc

Invalid data

DE, Data

tHT

Valid data

1

0.7VDD

tHV

0.3VDD

1366

Invalid data

DE (Data Enable)

Ver. 1.0

768

1 768

tVV

tVT

11/36

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LC216EXN

Product Specification

# VCM= {(LVDS +) + ( LVDS - )}/ 2

0V

V

CM

V

IN _ MAXVIN _MIN

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V

LVDS Input Voltage Range V

CM

IN

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM 250 mV -

2) AC Specification

T

clk

LVDS Clock

A

LVDS Data

(F

= 1 /T

)

clk

A

LVDS 1’st Clock

LVDS 2nd/ 3rd/ 4thClock

tSKEW

t

SKEW_mintSKEW_max

tSKEW

clk

T

clk

80%

20%

t

RF

Description Symbol Min Max Unit Note

LVDS Differential Voltage

High Threshold

Low Threshold

LVDS Clock to Data Skew Margin t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

Note

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

2. If tRFisn’t enough, t

should be meet the range.

eff

3. LVDS Differential Voltage is defined within t

Ver. 1.0

V

TH

V

TL

SKEW

RF

eff

100 600 mV

Tested with Differential Probe

-600 -100 mV

|(0.2*T

260 (0.3*T

)/7| ps -

clk

)/7 ps 2

clk

±360 ps -

eff

3

12/36

Product Specification

LC216EXN

LVDS Data

0V

(Differential)

LVDS CLK

0.5tui

360ps

tui

VTH

VTL

360ps

teff

tui : Unit Interval

0V

(Differential)

* This accumulated waveform is tested with differential probe

Ver. 1.0

13/36

LC216EXN

Product Specification

3-5. Color Data Reference

The brightness of each primary color (Red, Green, Blue) is based on the 8-bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B 7 B6 B 5 B4 B 3 B2 B1 B0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

Ver. 1.0

GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

... ... ... ...

GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

... ... ... ...

BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

14/36

3-6. Power Sequence

3-6-1. LCD Driving circuit

LC216EXN

Product Specification

Power Supply For LCD

V

LCD

Interface Signal (Tx_clock)

User Control Signal

(LVDS_select)

Power for LED

Table 8. POWER SEQUENCE

Parameter

90%

10%

0V

T1

T2

30%

0V

100%

T6

Valid Data

T3 T4

LED ON

Value

Min Typ Max

90%

10%

T7

T5

Vcm : LVDS Common mode Voltage

Unit Note

10%

Note :

Ver. 1.0

T1 0.5 - 20 ms

T2 0 - - ms

T3 400 - - ms

T4 200 - - ms

T5 1.0 - - s

T6 0 - T2 ms

T7 0 - - ms

1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. T5 should be measured after the Module has been fully discharged between power off and on period.

5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V
it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.

6. It is recommendation specification that T7 has to be 0ms as a minimum value.

※ Please avoid floating state of interface signal at invalid period.
※ When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

LCD

1

2

3

3

4

5

6

),

15/36

3-6-2. Sequence for LED Driver

Power Supply For LED Driver

VBL

0V

10%

Product Specification

24V (typ.)

90%

LC216EXN

90%

VON/OFF

ExtVBR-B

3-6-3. Dip condition for LED Driver

VBL(Typ.) x 0.8

T1 T2

T4 T6

LED ON

T5

T3

V

BL

0 V

: 24V

Table 9. Power Sequence for LED Driver

Parameter

T1 20 - - ms 1

T2 500 - - ms

T3 10 - - ms

T4 0 - - ms

T5 - - 10 ms VBL(Typ) x 0.8

T6 500 - - ms 2

Min Typ Max

Values

Units Remarks

notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. In T6 section, ExtVBR-B should be sustained from 5% to 100% .

Ver. 1.0

16/36

LC216EXN

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25±2°C.
The values are specified at distance 50cm from the LCD surface at a viewing angle of Φ and θ equal to 0 °.
FIG. 1 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Ta= 25±2°C, V

Table 10. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 700 1000 - 1

Surface Luminance, white L

Luminance Variation δ

Response Time

Color
Coordinates
[CIE1931]

Color Temperature 10,000 K

Color Gamut 68 %

Viewing Angle (CR>10)

x axis, right(φ=0°) θr 89 - ­x axis, left (φ=180°) θl 89 - ­y axis, up (φ=90°) θu 89 - ­y axis, down (φ=270°) θd 89 - -

Gray Scale - - - 7

Variation G to G

Gray to Gray (BW) G to G BW 10 15 ms 4

RED

GREEN

BLUE

WHITE

WH

WHITE

5P - - 1.3 3

σ

Rx

Ry 0.335

Gx 0.308

Gy 0.606

Bx 0.153

By 0.057

Wx 0.281

Wy 0.288

Min Typ Max

200 250 - cd/m

Typ

-0.03

Value

6 9 ms 5

0.648

=12.0V, fV=60Hz, Dclk=72.4MHz,

LCD

EXTVBR-B =100%

Unit Note

2

Typ

+0.03

degree 6

2

Ver. 1.0

17/36

Product Specification

Notes :1. Contrast Ratio(CR) is defined mathematically as :

Surface Luminance with all white pixels

Contrast Ratio =

Surface Luminance with all black pixels

It is measured at center 1-point.

2. Surface luminance is determined after the unit has been ‘ON’ and 1Hour after lighting the

backlight in a dark environment at 25±2°C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.

3. The variation in surface luminance , δ WHITE is defined as :

δ WHITE(5P) = Maximum(L

Where L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

For more information, see the FIG. 2.

4. Response time is the time required for the display to transit from any gray to white (Rise Time, TrR)
and from any gray to black (Decay time, TrD). For additional information see the FIG. 3.

※ G to GBWSpec stands for average value of all measured points.

Photo Detector : RD-80S / Field : 2 °

, L

on3

, L

on4

, L

on5

) / Minimum(L

on1,Lon2

, L

on3

, L

on4

, L

on5

)

LC216EXN

5. G to G σis Variation of Gray to Gray response time composing a picture

Xi = Individual Data
u = Data average
N : The number of Data

G to G (σ) =

√

Σ(Xi- u)

N

2

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which

is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 11.

Table 11. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ.)

L0 0.10

L15 0.27

L31 1.04

L47 2.49

L63 4.68

L79 7.66

L95 11.5

L111 16.1

L127 21.6

L143 28.1

L159 35.4

L175 43.7

L191 53.0

L207 63.2

L223 74.5

L239 86.7

L255 100

Ver. 1.0

18/36

Product Specification

Measuring point for surface luminance & measuring point for luminance variation.

H

A

③③③③②②②②

LC216EXN

V

①①①①

B

A : H / 4 mm

④④④④

FIG. 2 5 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Black or White”.

Tr

100

90

⑤⑤⑤⑤

Tf

B : V / 4 mm
@ H,V : Active Area

Ver. 1.0

Optical
Response

10

0

Gray(N)

White

N = 0(Black)~255(White)

FIG. 3 Response Time

Gray(N)

Black

19/36

Dimension of viewing angle range

φ

= 180°, Left

Product Specification

Normal

E

θ

φ

Y

φ

= 90°, Up

φ

= 0°, Right

LC216EXN

φ

= 270°, Down

FIG. 4 Viewing Angle

Ver. 1.0

20/36

Product Specification

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTERISTICS

Item Value

Horizontal 501.6 mm

LC216EXN

Outline Dimension

Bezel Area

Active Display Area

Weight 1,950g (Typ.), 2150g (Max.)

Vertical 292.8 mm

Depth 8.3 mm

Horizontal 481.8 mm

Vertical 272.8 mm

Horizontal 477.417 mm

Vertical 268.416 mm

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver. 1.0

21/36

<FRONT VIEW>

LC216EXN

Product Specification

Ver. 1.0

22/36

<REAR VIEW>

LC216EXN

Product Specification

Ver. 1.0

23/36

Product Specification

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60°C 240h

2 Low temperature storage test Ta= -20°C 240h

3 High temperature operation test Ta= 50°C 50%RH 240h

4 Low temperature operation test Ta= 0°C 240h

Wave form : random
Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z,

each direction per 10min

5

Vibration test
(non-operating)

LC216EXN

Shock level : 50G

Shock test

6

(non-operating)

7 Humidity condition Operation Ta= 40 °C ,90%RH

Altitude operating

8

storage / shipment

Waveform : half sine wave, 11ms
Direction : ±X, ±Y, ±Z

each direction

0 - 16,400 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 1.0

24/36

Product Specification

7. International Standards

7-1. Safety

a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

c) EN 60065:2002 + A11:2008, European Committee for Electrotechnical Standardization (CENELEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

(Including report of IEC60825-1:2001 clause 8 and clause 9)

Notes

1. Laser (LED Backlight) Information

Class 1M LED Product

IEC60825-1 : 2001

Embedded LED Power (Class 1M)

LC216EXN

2. Caution
: LED inside.

Class 1M laser (LEDs) radiation when open.
Do not open while operating.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 1.0

25/36

Product Specification

8. Packing

8-1. Information of LCM Label

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

LC216EXN

Year

Mark

CBA

2014E2015

D

201320122011

2016G2017H2018J2019

F

2. MONTH

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one Box : 12pcs

b) Box Size : 553mm X315 mm X408 mm.

2020

K

Oct

A

Nov

B

DecMarFebJan

C321

Ver. 1.0

26/36

LC216EXN

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(2) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer

(3) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(4) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(5) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.

(6) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(7) A screw which is fastened up the steels should be a machine screw.

(if not, it can causes conductive particles and deal LCM a fatal blow)
(8) Please do not set LCD on its edge.
(9) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal

display, sound noise and temperature rising.

Ver. 1.0

27/36

LC216EXN

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be

recovered when the LCD module returns to the normal condition

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape

When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-

blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-

hexane.

.

Ver. 1.0

28/36

# APPENDIX- I-1

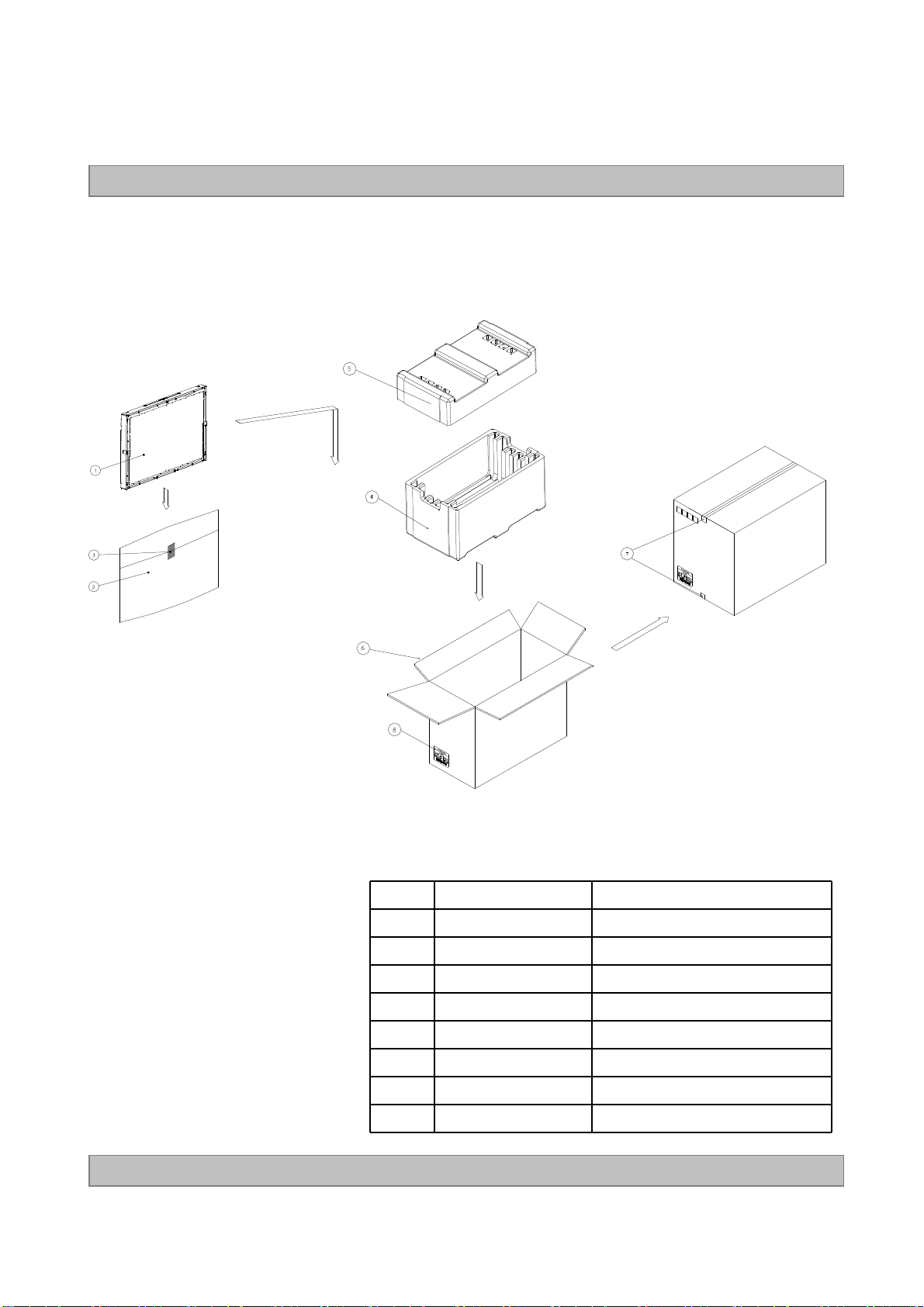

■ Packing Ass’y

LC216EXN

Product Specification

Ver. 1.0

NO. DESCRIPTION MATERIAL

1 LCD Module

2 BAG AL

3 TAPE MASKING 20MM X 50M

4 PACKING EPS

5 PACKING EPS

6 BOX PAPER, SWR4

7 TAPE OPP 70MM X 300M

8 LABEL ART 100 X 70

29/36

# APPENDIX- I-2

■ Pallet Ass’y

LC216EXN

Product Specification

③

⑤

⑥

④

①

⑦

②

NO. DESCRIPTION MATERIAL

1 PACKING ASS’Y -

2 PALLET PLYWOOD_1140X990X117.5

3 BAND PP

4 BAND, CLIP CLIP

5 ANGLE COVER PAPER, SW

6 LABEL ART

7 WRAP LLDPE

Ver. 1.0

30/36

LC216EXN

# APPENDIX 2

# APPENDIX- II-1

■ LCM Label

Model

UL, TUV Mark

LGD Logo

Product Specification

LC216EXN
(SF)(A1)

Serial No.

Origin

Ver. 1.0

31/36

LC216EXN

# APPENDIX 3

# APPENDIX- II-2

■ Box Label

LC216EXN

12 PCS

MADE IN KOREA

Product Specification

SFA1

001/01-01

RoHS Verified

XXXXXXXXXXXXX XXX

■ Pallet Label

144 PCS

MADE IN KOREA

Ver. 1.0

LC216EXN

SFA1

001/01-01

RoHS Verified

XXXXXXXXXXXXX XXX

32/36

Product Specification

# APPENDIX- III-1

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin9= “L” or “NC”)

LC216EXN

Host System

24 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync

Vsync

Data Enable

CLOCK

DS90C385

or Compatible

51
52
54
55
56
3
50
2
4
6
7
11
12
14
8
10
15
19
20
22
23
24
16
18
27
28
30
31

TxCLKOUT­TxCLKOUT+

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxOUT3­TxOUT3+

KDF71G-30S-1H

48

47

46

45

42

41

40

39

38

37

GND

12
13

15
16

18
19

21
22

24
25

Timing

Controller

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

9

VESA / JEIDA

LCD Module

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 1.0

33/36

Product Specification

# APPENDIX- III-2

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin9= “H”)

LC216EXN

Host System

24 Bit

RED0

RED1

RED2

RED3

RED4

RED5

RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync

Vsync

Data Enable

CLOCK

DS90C385

or Compatible

50
2
51
52
54
55
56
3
8
10
4
6
7
11
12
14

16
18
15
19
20
22
23
24
27
28
30
31

TxCLKOUT­TxCLKOUT+

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxOUT3­TxOUT3+

KDF71G-30S-1H

48

47

46

45

42

41

40

39

38

37

Vcc

12
13

15
16

18
19

21
22

24
25

Timing

Controller

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

9

VESA / JEIDA

LCD Module

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 1.0

34/36

Product Specification

# APPENDIX- IV

■ LVDS Data-Mapping Information (8 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LC216EXN

RAP

RBP

RCP

RDP

R17 R16 R15 R14G12 R13R12’ R12R13’ G12”

B12 G17 G16 G15B13 G14G13’ G13G14’ B13”

V

SYNCHSYNC

B17 B16DE B15B14’ B14B15’ DE”

B11 B10 G11 G10X R11R10’ R10R11’ X”

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

Ver. 1.0

RCP

RDP

V

SYNCHSYNC

B15 B14DE B13B12’ B12B13’ DE”

B17 B16 G17 G16X R17R16’ R16R17’ X”

35/36

Product Specification

# APPENDIX- V

■ Option Pin Circuit Block Diagram

1) Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 9

LC216EXN

LVDS Select

1KΩΩΩΩ

(Pin 9)

60kΩΩΩΩ

System Side LCM Side

LVDS Select

ASIC

(TCON)

Ver. 1.0

36/36
