LG VC4916NNT User guide

Model

VC49**

Language English+ Hebrew

Page

Material Size(W*H)

Date

Part No.

Weight 100g

2009.12.22

MFL62558825

Color(cover/body)

Designer

Description

Chage Record

No. Date

Change content

ECO No.

2/2

190×260(mm)

QIAOLIANG

Owner’s Manual

Designer

Confirm

OWNER'S MANUAL

VC4916**

VC4918** VC4920**

New Type Cyclone Vacuum Cleaner

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 4,5 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

Table of contents

Specifications ........................................................................................................... 3

Important safety instructions ................................................................................. 4~5

How to use ................................................................................................................ 6

Assembling vacuum cleaner ................................................................................................................. 6~8

Operating vacuum cleaner

Using carpet and floor nozzle ................................................................................................................ 12~13

Using All Floor nozzle and mini turbine nozzle ...................................................................................... 14

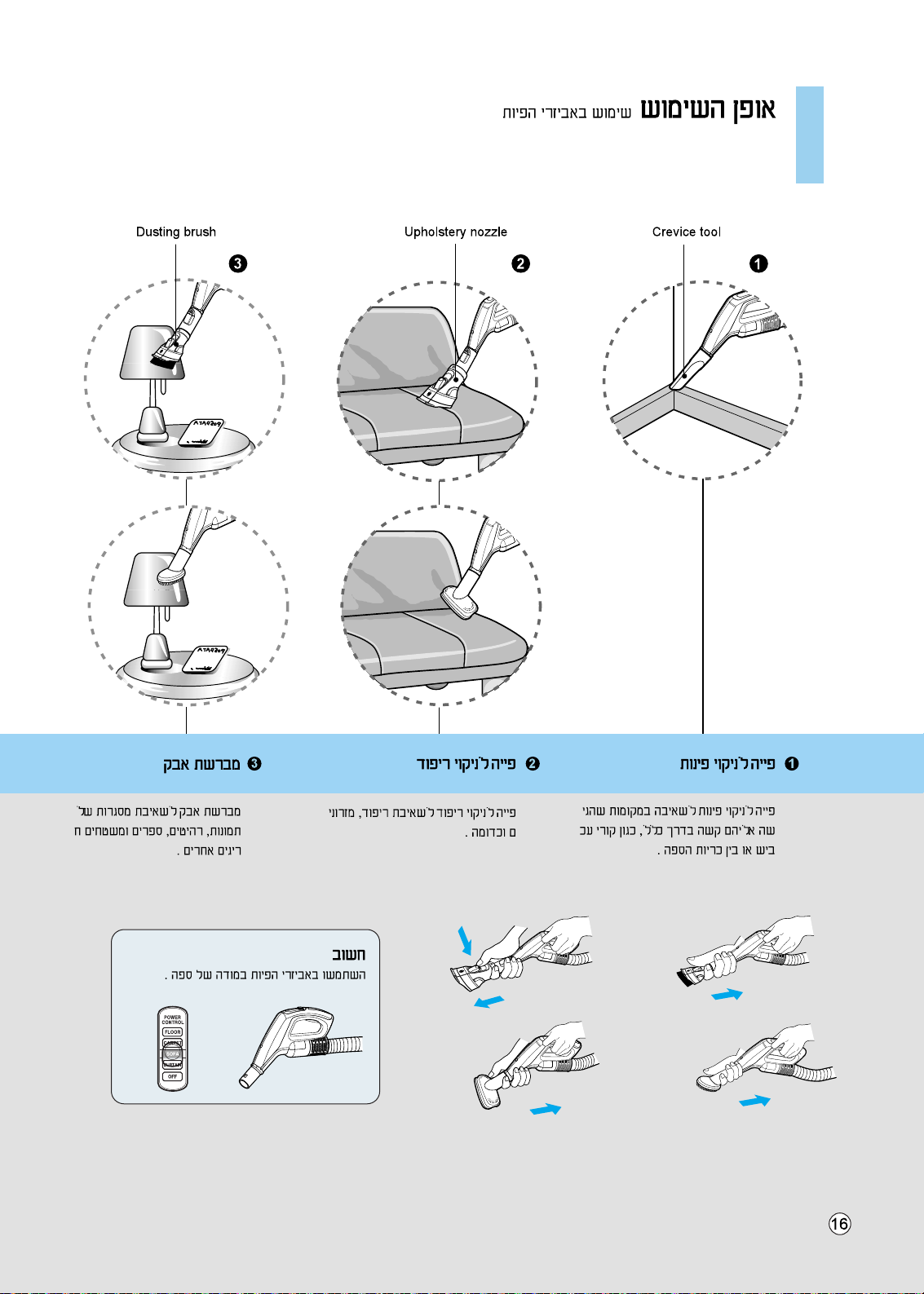

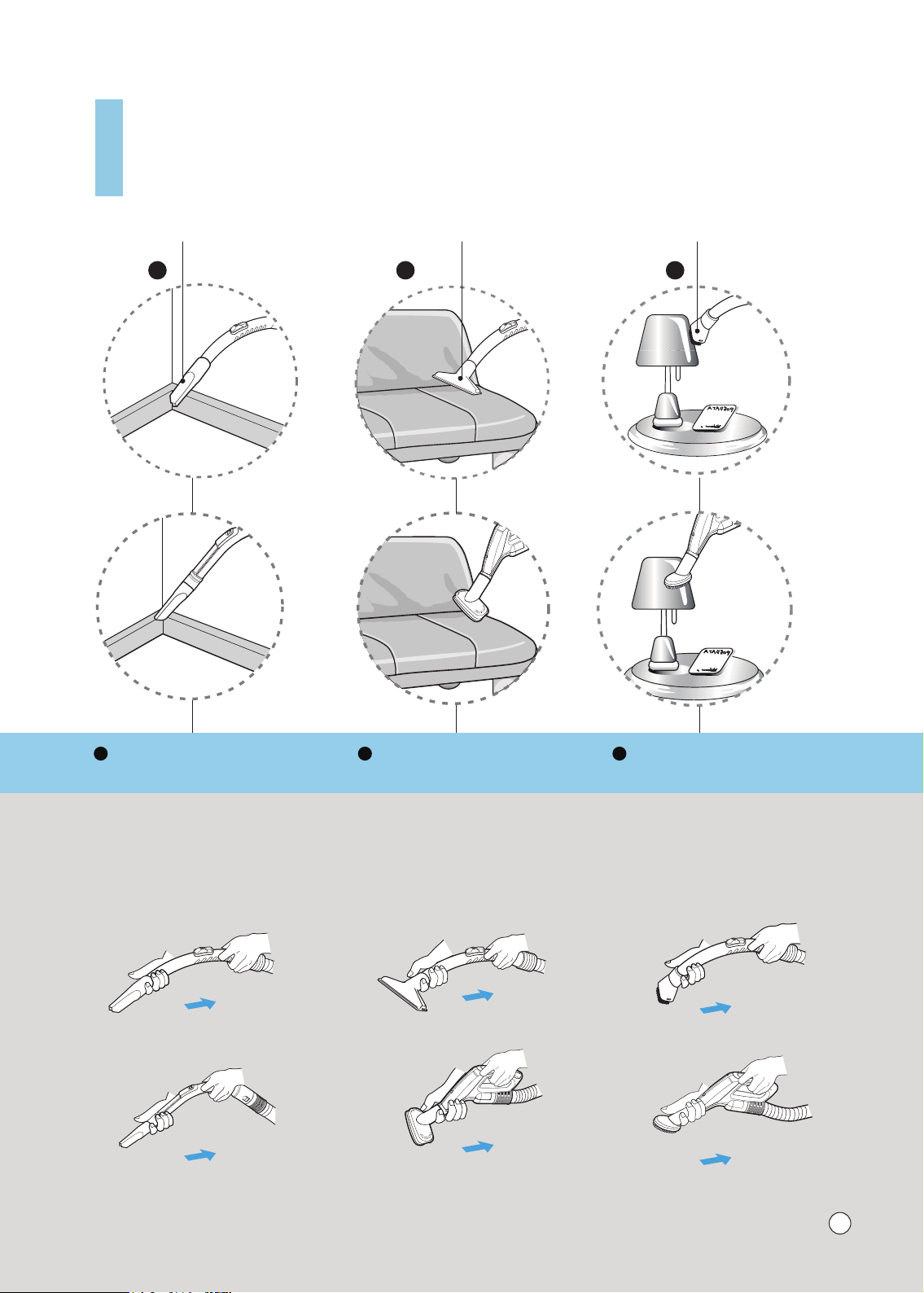

Using accessory nozzles ....................................................................................................................... 15~16

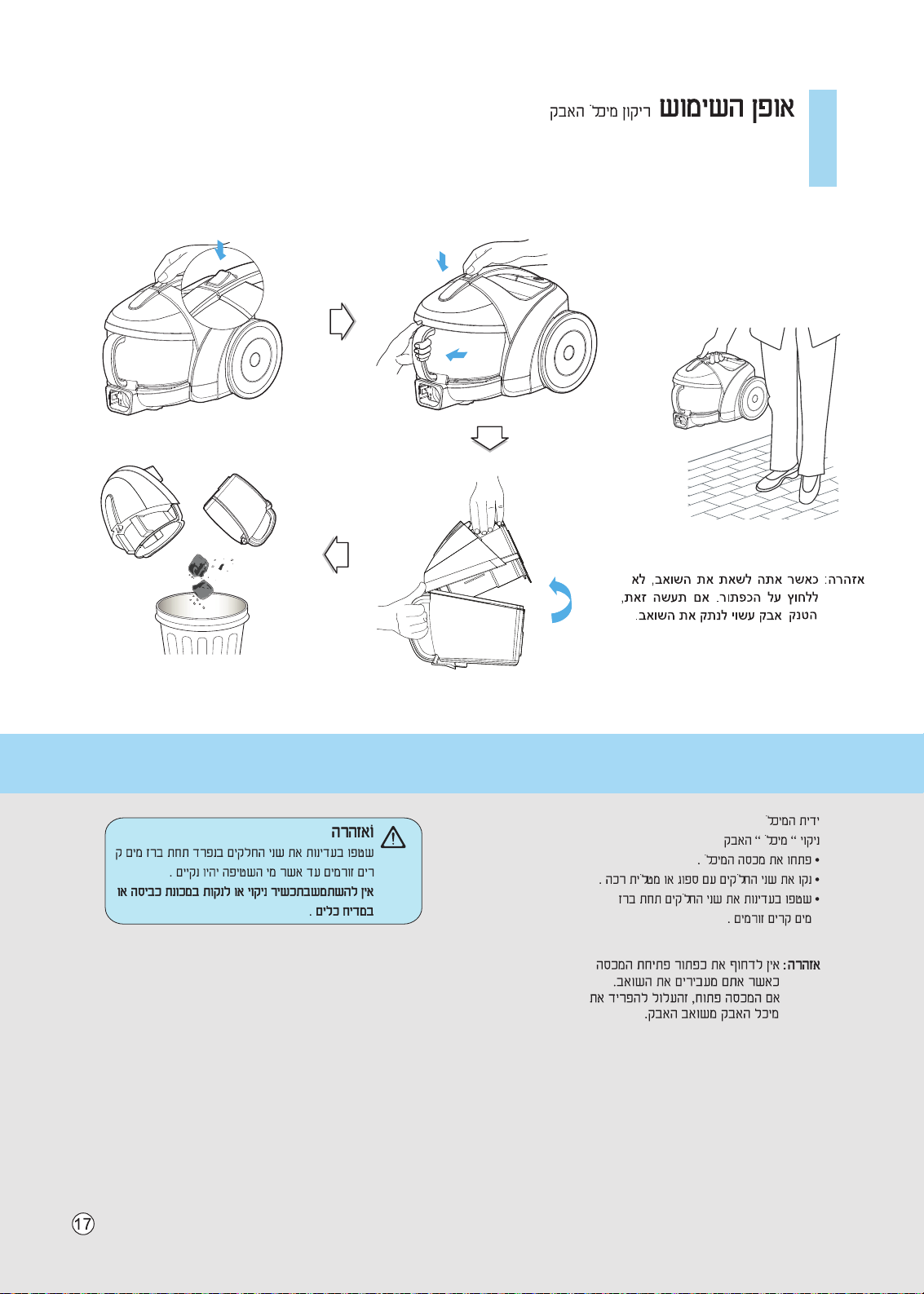

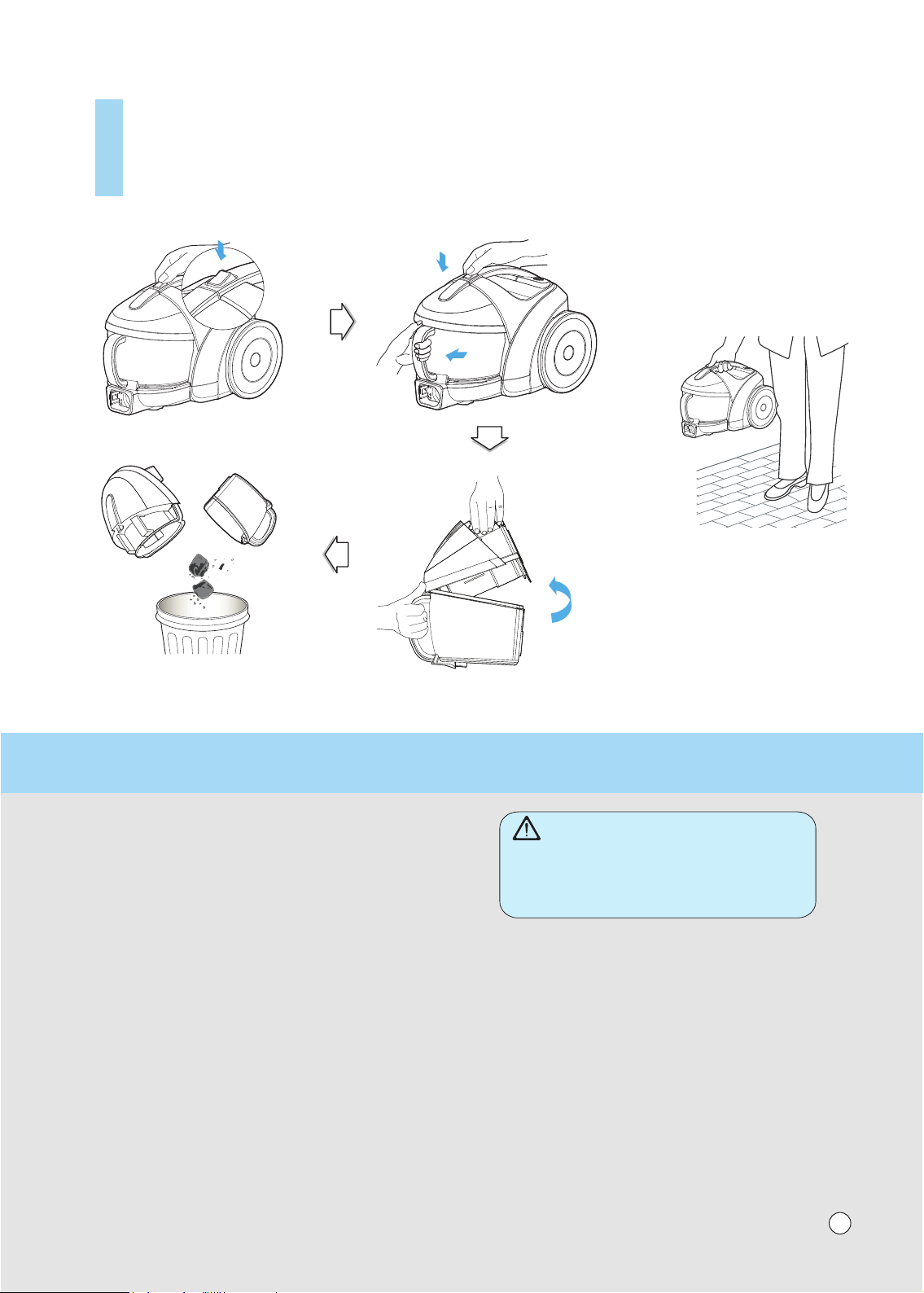

Emptying dust tank ................................................................................................................................ 17

Cleaning dust tank ................................................................................................................................. 18

Cleaning air filter and motor safety filter ................................................................................................ 19

Cleaning exhaust filter ........................................................................................................................... 20

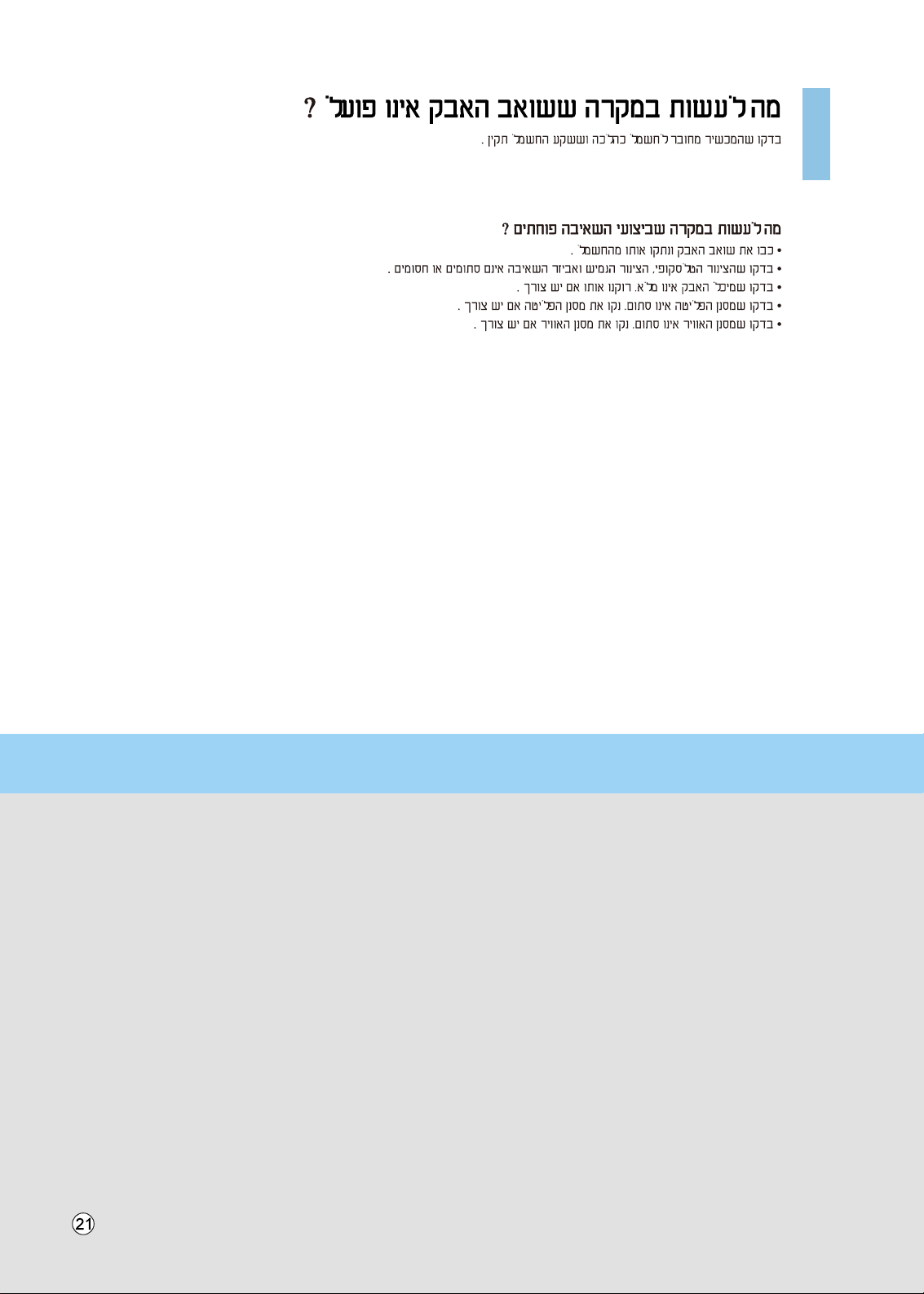

What to do if your vacuum cleaner does not work?

What to do when suction performance decreases?

.................................................................................................................... 10~11

............................................. 21

Specifications

259

402

275

Dimension: 402(mm) x 259(mm) x 275(mm)=L x W x H

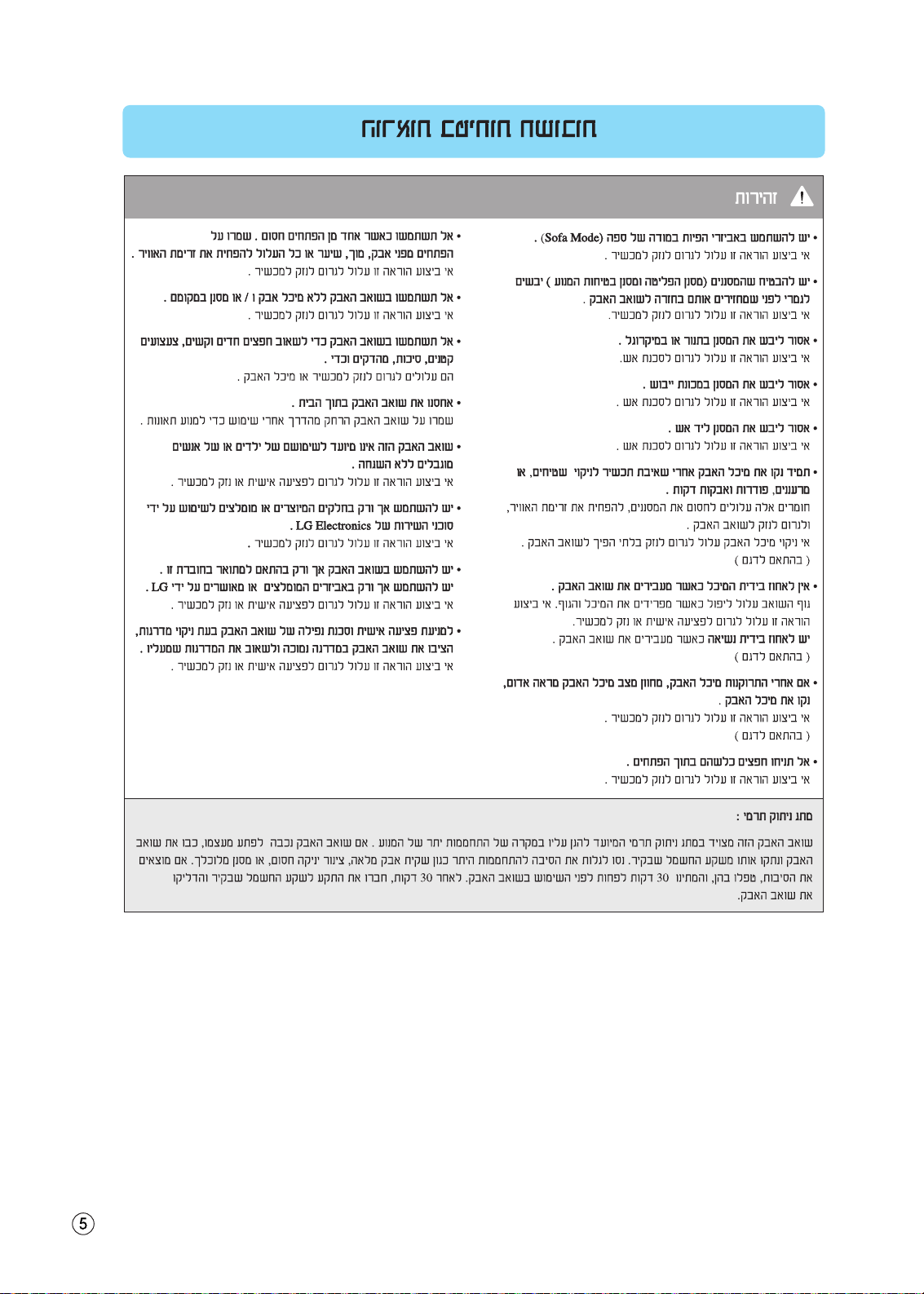

IMPORTANT SAFETY INSTRUCTIONS

How to use Assembling vacuum cleaner

ON/OFF type with dual pipe or common telescopic pipe (depending on the model)

Hose Handle

Carpet and Floor nozzle (depending on model)

Push telescopic pipe or dual pipe into the nozzle outlet.

Dual pipe

Telescopic pipe

(depending on model)

2 3

Telescopic pipe

(depending on model)

• Push the spring latch to release.

• Pull out the pipe to the desired length.

• Release spring latch to lock the pipe

in position.

Spring latch

Dual pipe

(depending on model)

Fit together the two pipes by twisting slightly when choose

dual pipe.

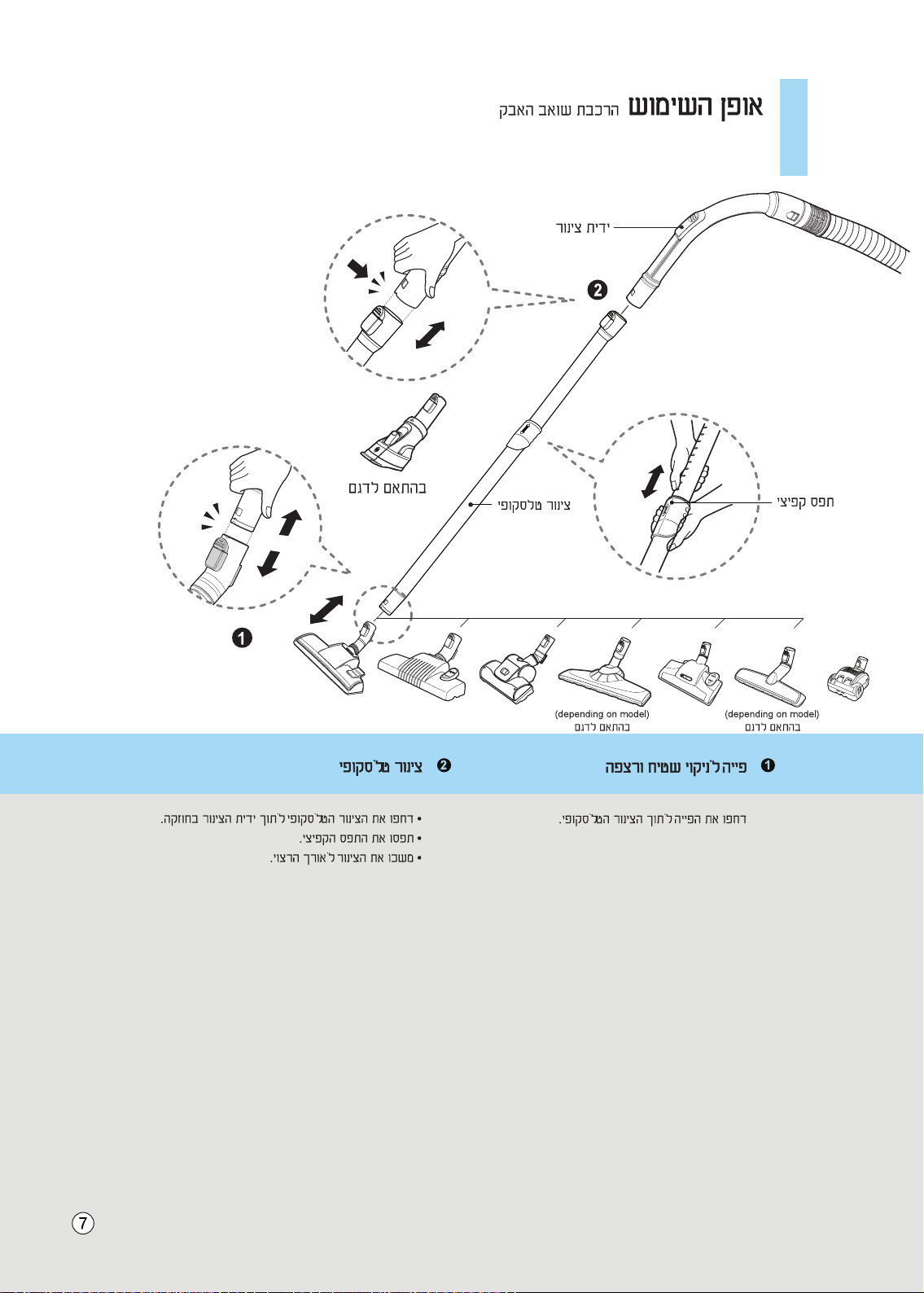

How to use Assembling vacuum cleaner

ON/OFF type and Rotary type with advanced telescopic pipe (depending on the model)

Hose Handle

(depending on model)

Telescopic pipe

Spring latch

Spring latchSpring latch

(depending on model)(depending on model)

Carpet and floor nozzle (Depending on model)

Push the nozzle into the telescopic pipe. • Push telescopic pipe firmly into hose handle.

Telescopic pipe

(Depending on model)

• Grasp the spring latch to expand.

• Pull out the pipe to desired length.

How to use Assembling vacuum cleaner

Hose slide Type (depending on the model)

Hose Handle

(depending on model)

Carpet and floor nozzle (depending on model)

Push the nozzle into the telescopic pipe.

Telescopic pipe

(depending on model) (depending on model)

Telescopic pipe (depending on model)

• Push telescopic pipe firmly into hose handle.

• Grasp the spring latch to expand.

• Pull out the pipe to desired length.

Spring latch

Spring latchSpring latch

Button

Attachment Point

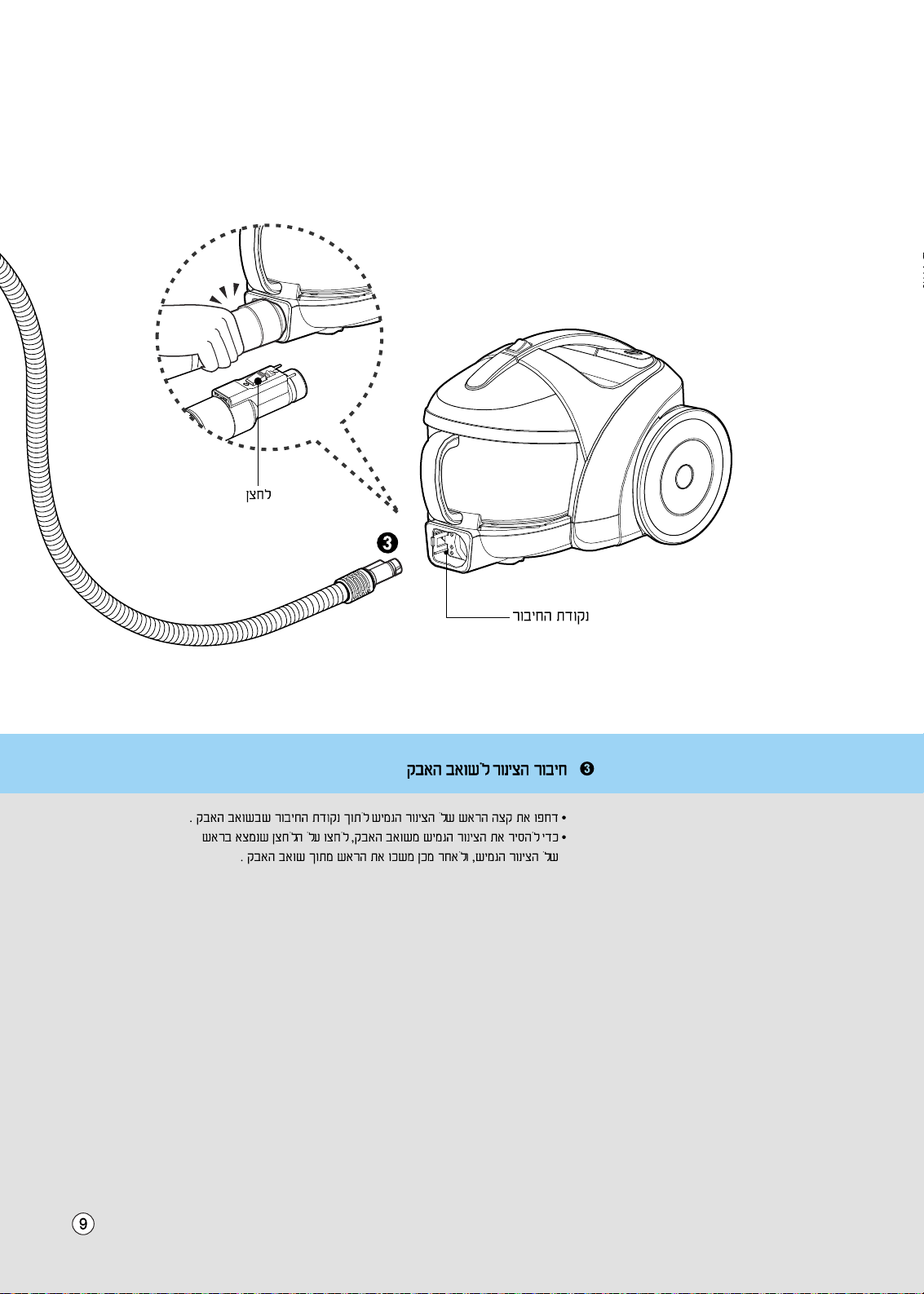

Connecting the hose to the vacuum cleaner

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner. To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

Air Flow Regulator

Open

How to use Operating vacuum cleaner

Air Flow Regulator

Open

1 1 1

Power switch

ON/OFF type

(Depending on model)

Plug

reel button

Air Flow Regulator

Open

Cord

Rotary type

(Depending on model)

Rotary

Power

switch

MIN MAX

control knob

Rotary

control knob

Cord

reel button

Plug

Hose slide type

(Depending on model)

Cord

reel button

Plug

POWER

CONTROL

FLOOR

CARPET

SOFA

CURTAIN

OFF

Control knob

MAX

MIN

How to operate (ON/OFF type)

• Pull out the power cord to the

desired length and plug into the socket.

• Press power switch to start the

vacuum cleaner.

• The flexible hose handle has a manual air flow regulator which allows you to briefly reduce the

suction level.

• Press the cord reel button to rewind the power cord after use.

How to operate (Rotary type)

• Pull out the power cord to the

desired length and plug into the socket.

• Press power switch to start the

vacuum cleaner.

• Slide the rotary control knob to

adjust the suction level.

• The flexible hose handle has a manual air flow regulator which allows you to briefly reduce the

suction level.

• Press the cord reel button to rewind the power cord after use.

How to operate (Hose slide type)

• Pull out the power cord to

the desired length and plug into the socket.

• Place the control knob of

the hose handle to the required position.

• To turn off, slide control

knob to OFF position.

• Press the cord reel button

to rewind the power cord

after use.

Park mode

• To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle.

- Slide the hook on the nozzle into the slot on the side of vacuum cleaner.

Storage

• When you have switched off and unplugged the vacuum cleaner, press the cord reel button to automatically rewind the cord.

• You can store your vacuum cleaner in a vertical position by sliding the hook on the nozzle into the slot on the underside of the vacuum cleaner.

How to use Using carpet and floor nozzle

Carpet and floor nozzle (depending on model)

• The 2 position nozzle This is equipped with a pedal which

allows you to alter its position according to the type of floor to be cleaned.

• Carpet or rug position Press the pedal to lift the brush up.

• Hard floor position (tiles, parquets floor) Press the pedal to lower brush.

Hard Floor Nozzle (depending on model)

• Efficient cleaning of hard floors

(wood, linoleum, etc)

Long Carpet

Cleaning Turbine Nozzle

Hard Floor Nozzle

Short Carpet

Hard floor nozzle (depending on model)

• You can perform cleaning at any place like corner or crevice since revolution is free.

23 4

Turbine Nozzle (depending on model)

• Cleaning turbine brush nozzle.

• Press the button on the rear side of the nozzle to separate the air cover

• Use the dusting brush & crevice tool to vacuum clean the brush and fan.

How to use

Using All Floor nozzle and mini turbine nozzle

Floor

Carpet

Pedal

Press

All Floor nozzle (depending on model)

• The 2 position nozzle This is equipped with a pedal which allows you

to alter its position according to the type of floor to be cleaned.

• Carpet or rug position Press the pedal ( ), then brush will rotate.

• Hard floor position Press the pedal ( ), then brush will stop rotating.

Cleaning All Floor nozzle

• Open the cover by pulling the hook.

• Clean the hole and brush of the nozzle.

256

Mini turbine nozzle (depending on model)

• Mini turbine is used for stairs and other hard to reach places.

• To clean the mini turbine nozzle, remove the nozzle cover : Remove 2 screws on the bottom and take mini turbine nozzle cover off as shown.

• Frequently clean and remove hair, string, and lint build-up in the brush area. Failure to do so could damage to mini turbine nozzle.
