OWNER'S MANUAL
DRYER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
EN ENGLISH
V5RT9
MFL71736614
Rev.00_072320
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE........................................................... 3
WARNING............................................................................................................ 3
CARING FOR THE ENVIRONMENT....................................................................8
INSTALLATION
Parts and Specifications .................................................................................... 9
Installation Place Requirements ....................................................................10
Leveling the Appliance ....................................................................................11
Stacking Instructions .......................................................................................14
OPERATION
Operation Overview.........................................................................................16
Preparing the Clothes......................................................................................17
Control Panel ....................................................................................................20
Programme Table ............................................................................................23
Option Programmes and Extra Functions ....................................................28
SMART FUNCTIONS
LG ThinQ Application.......................................................................................32
Smart Diagnosis ...............................................................................................35
MAINTENANCE
Cleaning after Every Dry .................................................................................37
Cleaning the Appliance Periodically ..............................................................39
TROUBLESHOOTING
Before Calling for Service................................................................................41
APPENDIX
Product Fiche....................................................................................................50
SAFETY INSTRUCTIONS
WARNING
3
EN
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
Safety Messages
This symbol is displayed to indicate matters and operations
that can cause risks. Read the part with this symbol carefully
and follow the instructions in order to avoid risks.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the appliance.
WARNING
To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic precautions,
including the following
Technical Safety
WARNING - To avoid a fire
Risk of Fire and Flammable Materials
• In the appliance enclosure or in the built-in structure, keep
ventilation openings clear of obstruction. If not, it can result in a fire.
4
EN
SAFETY INSTRUCTIONS
• This appliance contains R290, a refrigerant that is environmentally
friendly but flammable. Do not damage the refrigerant circuit, keep
an open frame and ignition sources away from the appliance.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Children of less than 3 years should be kept away unless continuously
supervised.
• Do not dry unwashed items in the appliance.
• Fabric softeners, or similar products, should be used as specified by
the fabric softener instructions.
• Remove all objects from pockets such as lighters and matches.
• Never stop the appliance before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is
dissipated.
• The appliance is not to be used if industrial chemicals have been used
for cleaning.
• Items that have been soiled with substances such as cooking oil,
vegetable oil, acetone, alcohol, petroleum, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot water
with an extra amount of detergent before being dried in the
appliance.
• Do not drink the condensed water. Failure to do so may result in foodborne illnesses.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agents or similarly qualified person in
order to avoid a hazard.
• The lint filter must be cleaned frequently.
• Lint must not to be allowed to accumulate around the appliance.
• Do not spray dry cleaning detergent directly onto the appliance or
use the appliance to dry clothes left with dry cleaning detergent.
SAFETY INSTRUCTIONS
5
• Do not dry clothes stained with oil substances. Oil substances
(including edible oils) stained on clothes cannot be completely
removed even after washing with water.
• The appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly
switched on and off by a utility.
• Remove clothes from the appliance immediately when drying is
complete or the power is turned off during the drying process.
Leaving clothes that have been dried in the appliance unattended
could result in fire. Clothes removed from the appliance after drying
could result in fire. Remove clothes immediately after drying, and
then hang or lay the clothes flat to cool.
• This appliance is intended to be used in household only.
Maximum Capacity
EN
• The maximum capacity in some cycles for clothes to be dried is
(Dry)
.
9 kg
• The recommended maximum capacity for each drying programme
may differ. To get good dry results, please refer to
OPERATION
in
chapter for further details.
Programme Table
Installation
• Make sure the appliance is properly installed, grounded, and
adjusted by qualified service personnel according to the installation
instructions.
• Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
• This appliance should only be transported by two or more people
holding the appliance securely.
• Do not install the appliance in a damp and dusty place. Do not install
or store the appliance in any outdoor area, or any area that is subject
to weathering conditions such as direct sunlight, wind, rain, or
temperatures below freezing.
• Tighten the drain hose to avoid separation.
6
EN
SAFETY INSTRUCTIONS
• If the power cord is damaged or the hole of the socket outlet is loose,
do not use the power cord and contact an authorized service centre.
• Do not plug multiple socket outlets, an extension power cable or
adapter with this appliance.
• Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted with foam
rubber pads should not be dried in the appliance.
• This appliance must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the
appliance, in such a way that a full opening of the appliance door is
restricted.
• This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
• This appliance is equipped with a power cord having an equipmentgrounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate socket outlet that is installed
and grounded in accordance with all local codes and ordinances.
• Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualified electrician or
service personnel if you are in doubt as to whether the appliance is
properly grounded.
• Do not modify the power plug provided with the appliance. If it does
not fit the outlet, have a proper outlet installed by a qualified
electrician.
Operation
• Do not attempt to separate any panels or disassemble the appliance.
Do not apply any sharp objects to the control panel in order to
operate the appliance.
• Do not repair or replace any part of the appliance. All repairs and
servicing must be performed by qualified service personnel unless
specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
• Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
• Do not put animals, such as pets into the appliance.
SAFETY INSTRUCTIONS
7
EN
• Do not leave the appliance door open. Children may hang on the door
or crawl inside the appliance, causing damage or injury.
• Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
• Do not put in, wash or dry articles that have been cleaned in, washed
in, soaked in, or spotted with combustible or explosive substances
(such as wax, oil, paint, gasoline, degreasers, drycleaning solvents,
kerosene, vegetable oil, cooking oil, etc.). Improper use can cause fire
or explosion.
• In case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
• Do not push down on the door, when the appliance door is open.
• Do not touch the door during a high temperature programme.
• Do not use flammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
• If the drain hose or inlet hose is frozen during winter, use it only after
thawing.
• Keep all washing detergents, softener and bleach away from
children.
• Do not touch the power plug or the appliance controls with wet
hands.
• Do not bend the power cable excessively or place a heavy object on it.
Maintenance
• Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
• Disconnect the appliance from the power supply before cleaning the
appliance. Setting the controls to the OFF or stand by position does
not disconnect this appliance from the power supply.
• Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket
outlet.
• Do not spray water inside or outside the appliance to clean it.
8
EN
SAFETY INSTRUCTIONS
Disposal
• Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
• Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
• Remove the door before disposing of or discarding this appliance to
avoid the danger of children or small animals getting trapped inside.
CARING FOR THE ENVIRONMENT
Disposal of Your Old Appliance
• This crossed-out wheeled bin symbol indicates that waste
electrical and electronic products (WEEE) should be
disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances
so correct disposal of your old appliance will help prevent
potential negative consequences for the environment and
human health. Your old appliance may contain reusable
parts that could be used to repair other products, and
other valuable materials that can be recycled to conserve
limited resources.
• You can take your appliance either to the shop where you
purchased the product, or contact your local government
waste office for details of your nearest authorized WEEE
collection point. You are personally responsible for
clearing out any personal information on the device before
disposing of your device. For the most up-to-date
information for your country, visit www.lg.com/global/
recycling.
This dryer contains refrigerant gases
R290 (GWP: 3): 0.145 kg Hermetically sealed.
INSTALLATION
NOTE
NOTE
9
INSTALLATION
Parts and Specifications
• Appearance and specifications may vary without notice to improve the quality of
the appliance.
Front View
a
Water Container
b
Control Panel
c
Door
EN
Available Accessories
Please contact LG Electronics Customer Information Centre or visit the LG Website at
http://www.lg.com for purchase.
a
Condensing Drain Hose and Hose Holder
b
Dry Rack
c
Stacking Kit
• The included accessories vary depending on the model you purchased.
10
WARNING
NOTE
EN
INSTALLATION
Specifications
Asterisk(s) means model variant and can be varied (0-9) or (A-Z).
Model V5RT9
Power supply 220 - 240 V~, 50 Hz
Dimension (Width X Depth X Height) 600 mm X 690 mm X 850 mm
Product weight 56 kg
Allowable temperature 5 - 35 ℃
Installation Place
Requirements
Before installing the appliance, check the
following information to make sure that
the appliance should be installed in a
correct place.
Installation Location
• Do not install the appliance around a
heat source. The rear side of the
appliance must be well ventilated.
Failure to follow these instructions
may result in problems.
• The appliance is not designed for
maritime use or for use in mobile
installation such as caravans, aircraft
and etc.
• Do not install the appliance as a builtin appliance. It is not suitable for builtin purpose.
• For better drying performance, keep
the rear of the appliance away from
the wall.
• Make sure that the location where the
appliance will be installed meets a
minimum clearance conditions.
• Install the appliance on a flat hard
floor. Allowable slope under the
appliance is 1 degree.
• Never try to correct any unevenness in
the floor with pieces of wood,
cardboard or similar materials under
the appliance.
• Install the appliance in a location
where service engineers are easily
accessible in the event of a breakdown.
• Do not install the appliance next to
high-temperature appliances such as
refrigerator, oven or stove, and etc. It
can cause poor drying performance
and delay programme duration. It also
adversely affect the proper functioning
of the compressor.
• Do not install the appliance where
there is a risk of frost or dust. The
appliance may not be able to operate
properly or may be damaged by
freezing of condensed water in the
pump and drain hose.
• With the appliance installed, adjust all
four feet using a spanner to ensure the
appliance is stable, and a clearance of
approximately 20 mm is left between
INSTALLATION
NOTE
NOTE
NOTE
5 cm 1 cm 1 cm
11
EN
the top of the appliance and the
underside of any work-top.
Ventilation
• Alcove or under counter
- Ensure airflow of 3.17 m
through the appliance.
• Cupboard
- Cupboard door must have 2
(louvered) opening, each have a
minimum area of 387 cm
cm from bottom and top of the door.
• Make sure that air circulation around
the appliance is not impeded by
carpets, rugs, and etc.
3
/mm
2
, located 8
temperature for a few hours before
putting it into operation.
• The appliance performs best at a room
temperature of 23 ℃.
Electrical Connection
• Do not use an extension cord or
double adapter.
• Do not overload the outlet with more
than one appliance.
• Connect the appliance to an earthed
socket in accordance with current
wiring regulations.
• The appliance must be positioned a
place close to outlet socket so that the
plug is easily accessible.
• Outlet socket must be within 1.5
meters of either side of the location of
the appliance.
• Always unplug the appliance after use.
Ambient Temperature
• Do not install the appliance in rooms
where freezing temperatures may
occur. Frozen hoses may burst under
pressure. The reliability of the
electronic control unit may be
impaired at temperatures below
freezing point.
• If the appliance is delivered in winter
and temperatures are below freezing,
place the appliance at room
Leveling the Appliance
Checking Leveling
Leveling the appliance prevents
unnecessary noise and vibration. Check
whether the appliance is perfectly level
after installation.
• If the appliance rocks when pushing
the top plate of the appliance
diagonally, adjust the feet again.
12
NOTE
WARNING
NOTE
WARNING
EN
• Timber or suspended type flooring
may contribute to excessive vibration
and unbalance. Re-enforcement or
bracing of the timber floor may need
to be considered to stop or reduce
excessive noise and vibration.
• Do not install the appliance on any
elevated surface, stand or plinth as it
can become unstable and fall causing
serious injury and damage.
INSTALLATION
Adjusting and Leveling the
Appliance
When the appliance is not perfectly level,
turn the adjustable feet until the
appliance no longer wobbles.
• Turn the adjustable feet clockwise to
raise or turn the adjustable feet
counterclockwise to lower from frontto-back, side-to-side and corner-tocorner.
• For safety reasons, two or more people
need to work together to reverse the
door.
• The appearance of the screws varies
and the screws must be inserted
differently depending on the position.
Make sure the screw is properly
selected before tightening.
1
Open the door and remove 2 screws
on the door hinge
the screws, put the door down
carefully from the cabinet
front side facing down to the floor.
a
. After removing
b
with the
Reversing the door
You can reverse the door for your
convenience.
• Do not reverse the door while the
appliance is stacked on a washing
machine.
• Before removing the hinge screws,
have an assistant support the weight
of the door. The door could fall on the
floor due to the weight of the door.
• Remove the lower screw first. The door
may fall on to the floor due to its
weight and the door can be damaged.
2
Remove 8 screws on the hinge
assembly
c
from the door.
INSTALLATION
13
EN
• There are 6 screws on the front and
2 screws on the side.
3
Remove the 3 screws from the door
latch assembly
between the door and the hinge
assembly, and then remove the screw
which is fixed on the door hook.
d
which is fixed
5
Remove the door catch e from the
appliance frame by removing 2
screws and then assemble them on
the opposite side.
6
Remove the 2 decorative screws from
the appliance frame and then
assemble them on opposite side.
4
Swap the position of the hinge
assembly
assembly
screws in reverse order.
• Tighten the screw in their proper
position referring from steps 2 to 4.
c
and the door latch
d
and then tighten the
7
Install the door with the screws
removed in step 1 and then check the
door closes properly.
EN
NOTE
WARNING
14
INSTALLATION
Stacking Instructions
The appliance can be placed on top of an
LG front load washing machine and
securely fixed with a stacking kit. This
installation must be conducted by
qualified service personnel to ensure it
has been installed correctly.
The qualified personnel will ensure you
have the correct stacking kit for your
model of LG front load washing machine
and will ensure it is firmly fixed. For these
reasons, expert fitting is essential.
• Some models are not sold with all of
the available accessories, you may
need to purchase the LG stacking kit
first if it was not provided with your
model. Please contact LG Electronics
Customer Information Centre or visit
the LG Website at http://www.lg.com
for purchase.
Stacking Kit
In order to stack the appliance, an LG
stacking kit is required.
Shape and
assembly
direction
Washing Machine Top
plate size
550 mm 600 mm
Installation Procedure
• For safety reasons, installation
procedure should be performed by
two or more qualified service
personnel.
• The weight of the appliance and the
height of the installation makes the
installation procedure too risky for one
person.
• Incorrect installation can cause serious
accidents.
• Do not operate if the appliance is not
properly stacked.
a
Dryer
b
LG Front Load Washing Machine
The appliance may only be stacked on
top of an LG front load washing machine.
Do not attempt to stack the appliance on
any other washing machine, as it could
result in damage, injury or property
damage.
1
Place the appliance on the top of an
LG front load washing machine.
2
Remove the 2 screws from the
bottom of the rear cover on each
side.
3
Align the LG stacking kit holes and the
rear cover holes in a line.
INSTALLATION
CAUTION
b
a
15
EN
• In case of the top plate size is 600
mm
• In case of the top plate size is 550
mm
4
Fasten the 2 screws that were
removed earlier from the appliance
to the stacking kit.
5
Use the 4 screws in the accessory box
(16 mm) to assemble the washing
machine rear cover and stacking kit.
1
Separate the anti-backflow lid a and
the water container hose
connecting elbow or T piece.
2
Attach the anti-backflow lid a to the
head of the connecting elbow or T
piece and then connect the optional
drain hose
the connecting elbow or T piece.
c
to the opposite side of
a
b
from the
c
6
The procedure for the opposite side
will be the same.
Installing the Optional Drain
Hose
Normally, condensed water is pumped
up to the water container where water is
collected until manually emptied. Water
can also be drained out directly to a
mains drain, especially when the
appliance is stacked on top of a washing
machine. With the connecting elbow or T
piece of the mains drain hose, simply
change the water path and re-route to
the drainage facility as below:
• If the optional drain hose is installed in
a way that leaves it bent or pinched,
drainage may not function properly.
16
NOTE
EN
OPERATION
OPERATION
Operation Overview
Using the Appliance
Before the first cycle, set the appliance to
dry for 5 minutes to warm up the drum.
Open the door between loads the first
few times you use the appliance to allow
any odours from the interior of the
appliance to disperse.
Children must be supervised so that they
do not climb inside the drum.
1
Ensure the lint filter and water
container are clean.
• Open the door and ensure the lint
filter is clean. When the filter is full
with lint, drying times will be longer
than usual.
• Pull out the water container and
empty the condensed water. When
the water container is full, the
appliance may stop during the
cycle.
• In some instance, LED window may
display
water container is full. If this occurs,
empty the water container.
E
icon to inform you that the
• Push the clothes deep into the
drum so that the clothes keeps
away from the door seal. When the
clothes get stuck between the door
and seal, they may get damaged
while drying.
• The clothes should be sorted by
fabric types and dryness level.
• All strings and attached belts of
clothes should be well tied and
fixed before being put into the
drum.
3
Press the
appliance on.
• Depending on the models, the
Power
indicate that the appliance is ready
for dry.
4
Choose a drying programme by
turning the programme selector
knob.
• If you press the
without choosing a programme,
the appliance will proceed with the
Koch-/Buntwäsche
Please refer to the programme
table for the detailed information.
Power
button to turn the
button may light up to
Start/Pause
programme.
button
2
Place the clothes into the drum after
sorting and close the door.
5
CAUTION
WARNING
NOTE
NOTE
CAUTION
Press the
the drying programme.
• When you press the button, the
appliance ventilates the inside of
the drum for 10 seconds in order to
get the appliance ready for drying
operation.
6
After the drying programme has
finished, open the door and unload
the clothes.
Start/Pause
button to start
OPERATION
• For safety reasons, do not allow
children or animals to enter the
appliance. It may cause damage or
injury.
• The final part of a tumble dry cycle
occurs without heat (cool down cycle)
to ensure that the clothes are left at a
temperature that ensures the clothes
will not be damaged.
• A high atmospheric temperature and a
small room may both increase drying
time as well as energy consumption.
17
EN
• Be careful! The drum inside may still be
hot.
7
Press the
appliance off.
8

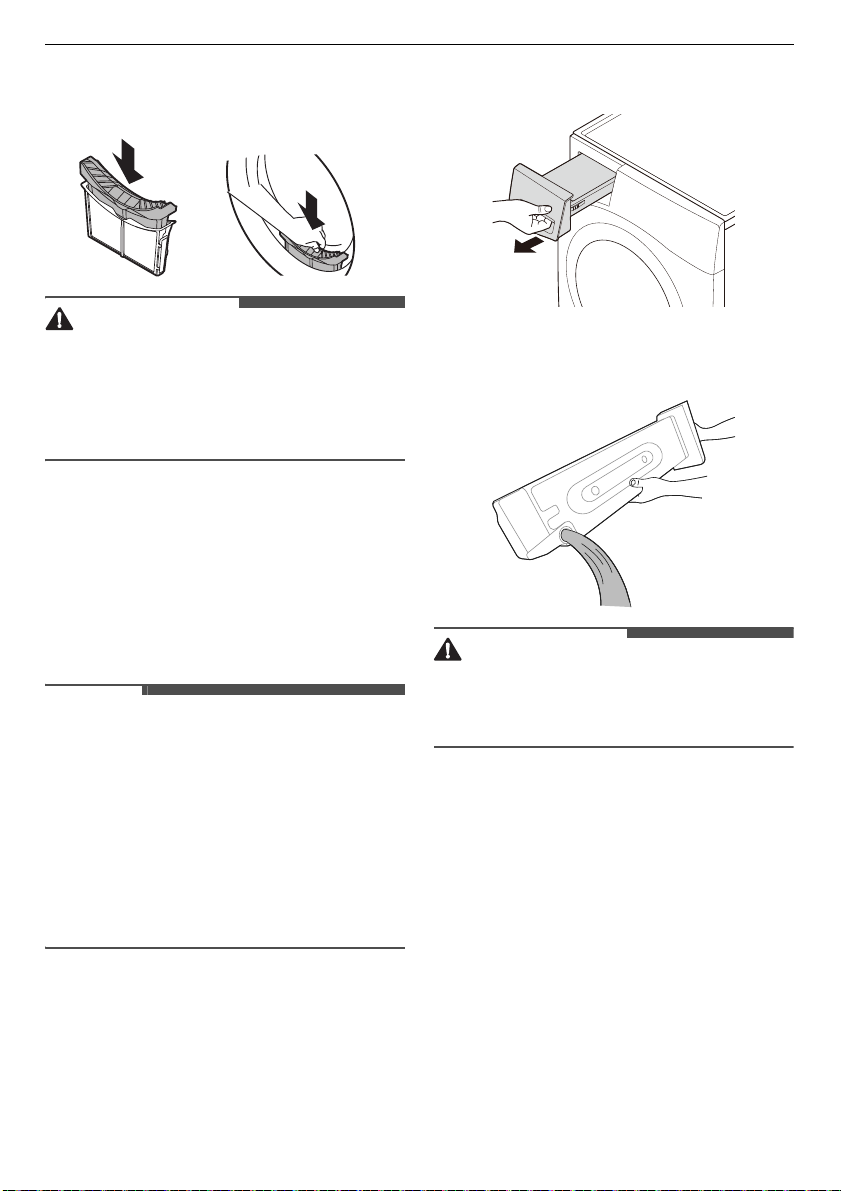

Clean the lint filter and empty the
water container.
9
To help reduce odours from forming,
the dryer’s door can be left open or
slightly ajar for a short period of time
if possible to help ventilate the drum
after use.
Power
button to turn the
Preparing the Clothes
• Do not overload the appliance for the
best drying performance and most
efficient energy usage.
Checking the clothes before
loading
• Check that the clothes are not stuck
between appliance and door,
otherwise the clothes may get
damaged while drying.
• Observe the maximum load capacity
on the programme table for the
relevant drying programme to get
optimum drying results. Overloading
gives a poor drying result and causes
unnecessary creasing.
EN
18
OPERATION
• Do not load soaking wet clothes into
the appliance. It will cause an
increasing of drying time and energy
consumption. Make sure that the
clothes are spun thoroughly before
loading.
• A mixed fabric load can cause the
drying time to be extended and the
time remaining in the display to pause
during active drying. The remaining
time will then continue when it is the
actual time that remains.
• Make sure to empty all pockets. Items
such as nails, hair clips, matches, pens,
coins and keys can damage both your
appliance and clothes.
• Remove loose belts and close zippers,
hooks and strings to make sure that
these items do not snag other clothes.
Sorting the Clothes
Clothes have their own fabric care labels,
so drying according to the fabric care
label is recommended.
Sort the clothes into size and type of
fabric and then prepare the clothes
according to the symbols on the fabric
care labels.
Woollens
• Dry woollens on the
programme. Be sure to follow fabric
care label symbols first. Wool may not
be completely dried from the cycle, so
do not repeat drying. Pull woollens to
their original shape and dry them flat.
Wolle
Non-Iron and Synthetics
• Do not overload the appliance. Take
out non-Iron items as soon as the
appliance stops to reduce creases.
Baby Clothes and Night Gowns
• Always check fabric care labels.
Rubber and Plastics
• Do not dry any items made from or
containing rubber or plastics such as:
- Aprons, Bibs and Chair Covers
- Curtains and Table Clothes
- Bathmats
Fiberglass
• Do not dry fiberglass items in the
appliance. Glass particles left in the
appliance may be subsequently picked
up by your clothes in later cycles.

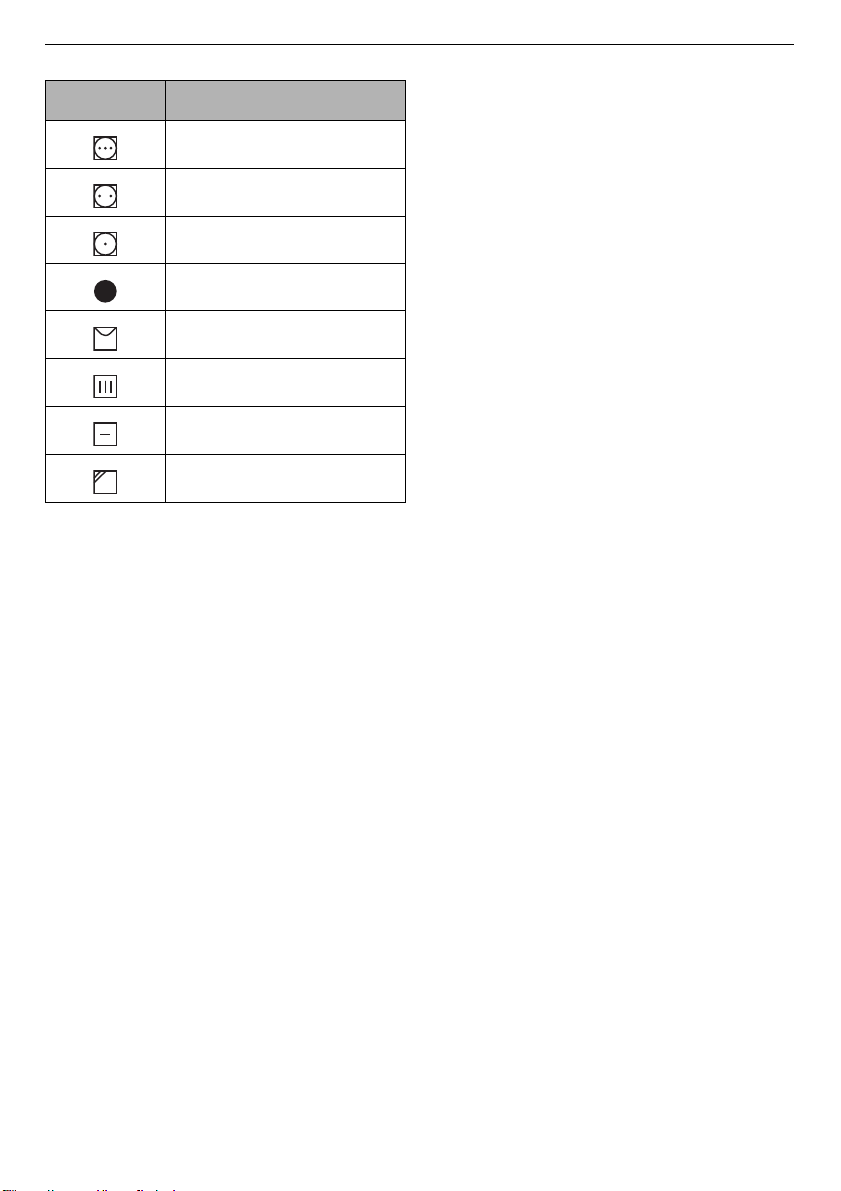

Checking the Fabric Care Label
The symbols on the fabric care label tell
you about the fabric content of your
clothes and how it should be dried.
Symbol Description
Dry
Tumble Dry
Permanent Press /
Crease Resistant
Woven and Loopknit Materials
• Some woven and loopknit materials
may shrink, depending on quality.
Gentle / Delicate
Do not Tumble Dry
Do not Dry
Symbol Description
High Heating
Medium Heating
Low Heating
No Heating / Air
Line Dry / Hang to dry
Drip Dry
Dry Flat
In the Shade
OPERATION
19
EN
20
EN
OPERATION
Control Panel
Control Panel Features
Description
a
b
c
Power On/Off button
• Press the
• Press the
Programme Selector
• Programmes are available according to the clothing type.
• The lamp will light up to indicate the selected programme.
Start/Pause Button
• This
• When in
for safety reasons.
Power
Power
Start/Pause
Pause
, the power is turned off automatically after
button to turn power on and off.
button to cancel the
button is used to start or pause a dry cycle.
Zeitverzögerung
function.
14 minutes
Description
OPERATION
21
EN
d
e
Extra Options and Functions / Additional Programme Buttons
• Use these buttons to select the desired options for the selected
programme. Not all options are available in each programme.
Remote Start
• With the
appliance remotely.
• In order to use the Remote Start function, refer to
Funktionen
Wi-Fi
• Press and hold
connection of the appliance to the
Time and Status Display
• The display shows the settings, estimated remaining time, options, and
status messages. When the appliance is turned on, the default settings
in the display will illuminate.
LG ThinQ
.
Time and Status Display
app, you can use a smartphone to control your
Intelligente
Zeitverzögerung
button for 3 seconds to initiate the
LG ThinQ
application.
a
Description
Drying progress indicator
• @ lights up when the appliance is in drying progress.
•
-
lights up when the appliance is in iron drying progress.
•
+
lights up when the appliance is in cupboard drying progress.
•
=
lights up when the appliance is in cooling progress.
EN
22
OPERATION
Description
b
c
d
e
f
g
Time Remaining Display
• When a drying programme is selected, drying time for the selected
programme is displayed. This time will change when you set the extra
options for the programme.
• Error messages will appear when the appliance diagnose problems.
q
lights up when the Beeper function is turned off.
K
lights up when the lint filter should be cleaned or is inserted.
Power
• Cleaning notice: When you press the
become displayed.
• Missing notice: When the lint filter is not inserted, the icon will become
displayed and the appliance will not operate.
E
lights up when the water collection tank needs to be emptied or is full.
• Emptying notice: When you press the
become displayed.
• Full water notice: The icon will become displayed and a chime will sound
while the appliance is in operation.
f
lights up when the appliance is connected to Wi-Fi network at home.
I
lights up while the condenser is being washed.
button, the icon will
Power
button, this icon will
Programme Table
Sensor Drying Programme Guide
OPERATION
23
EN
Programme Koch-/Buntwäsche
Dry Level
• Clothing Type
• Detail
Note for test
institutes
Extra Trocken
• Towels, dressing gowns and bed linen
• For thick and quilted fabrics
Schranktrocken
• Bath towels, tea towels, underwear and cotton socks
• For fabrics that do not need to be ironed
Bügeltrocken
• Bed linen, table linen, towels, T-shirts, polo shirts and work
clothes
• For fabrics that need to be ironed
• Set programme at
Schranktrocken
accordance in conformity with EN61121 and Directive 932/
2012.
• The
Koch-/Buntwäsche
the most efficient programme in terms of the test conditions
proposed by EN61121 and Directive 932/2012.
• The test results depend on room temperature, type and
amount of load, water hardness, fluctuations in the main
electricity supply and chosen additional options.
Koch-/Buntwäsche
+
Energie
Max. Load
Capacity
R +
(Full & Half Load) for test in
R +
Schranktrocken
+
Energie
9 kg
is
EN
24
OPERATION
Programme Mix
Dry Level
• Clothing Type
• Detail
Extra Trocken
• Bed linen, table linen, tracksuits, anoraks and blankets
• For thick and quilted fabrics that do not need to be ironed
Schranktrocken
• Shirts and blouses
• For fabrics that do not need to be ironed
Bügeltrocken
• Trousers, dressers, skirts and blouses
• For fabrics that need to be ironed
Programme Pflegeleicht
Dry Level
• Clothing Type
• Detail
Schranktrocken
• Shirts, T-shirts, trousers, under-wear and socks
• For polyamide, acrylic, and polyester that do not need to be
ironed
Max. Load
Capacity
Max. Load
Capacity
4 kg
3.5 kg
Bügeltrocken
• Shirts, T-shirts, under-wear, anoraks and socks
• For polyamide, acrylic, polyester that do need to be ironed
Programme Bettdecken
Clothing Type
Detail
Beddings, bed sheets
For bulky items
• Large bed sheets or quilt covers may not dry evenly due to
uneven airflow should they become rolled up. They may
require removal and reloading mid cycle to ensure proper
drying.
Max. Load
Capacity
2.5 kg
OPERATION
25
EN
Programme Handtücher
Clothing Type
Detail
Towels, Pillowcases
For cotton fabrics which do not need to be ironed.
Programme Kurz 30
Clothing Type
Detail
Light and small clothes less than 3 items
For small amount of polyamide, acrylic and polyester items
Programme Allergy Care
Clothing Type
Detail
Cotton, underwear, bed sheets and baby clothes
Helps to remove allergens such as house mites
Programme Feinwäsche
Clothing Type
Silk, fine fabrics and lingerie
Max. Load
Capacity
Max. Load
Capacity
Max. Load
Capacity
Max. Load
Capacity
4.5 kg
1 kg
4.5 kg
1.5 kg
Detail
For fabrics that are heat-sensitive, such as synthetic fabrics
Programme Wolle
Clothing Type
Detail
Wool
For wool fabrics that are suitable for tumble drying
Programme Sportswear
Clothing Type
Detail
Soccer kit and training wear
For polyester material
Max. Load
Capacity
Max. Load
Capacity
1 kg
2 kg
26
CAUTION
NOTE
EN
OPERATION
Timed Drying programme Guide
Programme Korbtrocknen
Clothing Type
Detail
Programme Kalt Trocknen / Lüften
Clothing Type
Detail
Programme Warm Trocknen / Lüften
Clothing Type
Detail
• If the load is less than 1 kg, please use the
in Timed Drying programmes. Wool items should be dried using the
programme and heat-sensitive fabrics including silk, underwear and lingerie
should be dried using the
recommended clothing load when you select your desired programme. Otherwise,
your clothes may be damaged.
Silk, wool, delicate lingerie
Refreshes clothes without tumble drying
All fabrics that need refreshing
Tumbles without heat
Bath towels, bath robes, dishcloths and acrylic quilted fabrics
Small Items & damp clothing, Everyday items suitable for heat
drying
Warm Trocknen / Lüften
Feinwäsche
programme. Please comply with the
Max. Load
Capacity
Max. Load
Capacity
Max. Load
Capacity
programme
Wolle
–
–
–
• If the appliance is installed as built under, it may cause performance degradation.
• If the clothes are not spun at a high speed during washing, energy consumption
and drying times will increase. Large Bed sheets or quilt covers may not dry evenly
due to uneven airflow should they become rolled up. They may require removal
and reloading mid cycle to ensure proper drying.
OPERATION
Selectable Drying Options
Programme EcoHybrid
Programme Trocknungsgrad Off Energie Zeit
27
EN
Koch-/
Buntwäsche
Mix Extra Trocken
Pflegeleicht Schranktrocken
Bettdecken
Handtücher
Kurz 30
Allergy Care
Feinwäsche
Wolle
Extra Trocken
Schranktrocken
Bügeltrocken
Schranktrocken
Bügeltrocken
Bügeltrocken
–
–
–
–
–
–
##
##
##
##
##
##
##
##
#
#
#
#
#
#
Sportswear
Korbtrocknen
Kalt Trocknen
/ Lüften
Warm
Trocknen /
Lüften
–
–
–
–
#
#
#
##
EN
NOTE
28
OPERATION
Option Programmes
and Extra Functions
Delay End
It allows you to delay the finishing time
of the drying cycle from 3 hours to 19
hours.
1
Turn the appliance on.
2
Select a programme.
3
Press the
4
Set time delay hour(s) by pressing the
Mehr Zeit, Weniger Zeit
5
Press the
Anti Crease
It allows you to reduce creases that are
formed when the clothes are not
unloaded promptly at the end of drying
cycle.
When the option is turned on, a lamp
indicated that the anti crease option is
set, lights up and the appliance
repeatedly runs for 10 seconds and
pauses for 5 minutes. The option is
turned off automatically after 2 hours at
the end of drying cycle.
To turn off the option, press the
Falten
cycle.
Zeitverzögerung
Start/Pause
button before you start a drying
button.
button.
button.
Anti
• When the option is set, only the
button works after the drying cycle is
end.
• When a drying cycle is running, pause
the cycle first to set the option.
• Always turn off the appliance before
unloading the clothes.
Power
Dry Level
It allows you to select a dryness level for
the drying programme.
1
Turn the appliance on.
2
Select a programme.
3
Select a dryness level by pressing the
Trocknungsgrad
button repeatedly.
Beep On/Off
It allows you to turn the chime sound on
and off. Press the
Favorit
seconds.
• The LED lights up when the option is
buttons at the same time for 3
turned on.
Weniger Zeit
and
EcoHybrid
It allows you to offer the option of saving
energy or time.
•
Energie
•
Zeit
: Energy saving option.
: Time saving option.
• When the option is set, a rectangle
with a dashed line appears on the
display.
Favorite
NOTE
OPERATION
29
EN
It allows you to store or recall a
customized dry programme for future
use.
How to save your favourite
programme
1
Turn on the appliance.
2
Select a drying programme and set
an option programme or extra
functions. (
Trocknungsgrad
3
Press and hold the
3 seconds.
4
Press the
the customized drying programme.
Anti Falten
, etc.)
Favorit
Start/Pause
,
button for
button to start
How to recall your favourite
programme
1
Turn on the appliance.
2
Press the
3
Press the
the customized drying programme.
Favorit
Start/Pause
button.
button to start
Drum Light
• The light is turned off automatically
after 4 minutes.
• Depending on the doors finish, you
may not be able to see inside the
drum.
More Time / Less Time
It allows you to increase or decrease
drying time when you use manual drying
programmes such as
Kalt Trocknen / Lüften
Trocknen / Lüften
• Press the
the selected programme time by 5
minutes.
• Press the
decrease the selected programme
time by 5 minutes.
Mehr Zeit
Weniger Zeit
Korbtrocknen
and
Warm
.
button to increase
button to
,
Child Lock
It allows you to control the locking and
unlocking of control panel. It prevents
children from changing cycles or
operating the appliance.
Locking the Control Panel
1
Press and hold the
and
Anti Falten
simultaneously for 3 seconds.
Zeitverzögerung
button
While the appliance is running, it is
possible to see inside the drum when
you turn the function on.
To turn the function on or off, press and
hold the
seconds.
•
Light on
•
Light off
Trocknungsgrad
: Door is opened.
: Door is closed.
button for 3
2
A chime will sound, and CL will appear
on the display.
• When the function is activated, all
buttons are locked except for the
Power
button.
30
NOTE
NOTE
EN
• Turning off the power or completing
all cycles will not reset the child lock
function. You must deactivate child
lock before you can access any other
functions.
Unlocking the Control Panel
Press and hold the
and
for 3 seconds.
• A chime will sound and the remaining
time for the current programme will
reappear on the display.
OPERATION
Anti Falten
Zeitverzögerung
button simultaneously
Rack Dry
This programme is designed for use with
clothes that must be dried flat, without
tumbling, including sweaters and
delicate fabrics.
To use the programme, you need a dryer
rack that is placed inside the appliance.
Before drying, discard packing materials
of the dryer rack.
• Some models are not sold with all of
the available accessories, you may
need to purchase the dryer rack first if
it was not provided with your model.
Please contact LG Electronics
Customer Information Centre or visit
the LG Website at http://www.lg.com
for purchase.
2
Insert the hook of dryer rack to the
drum centre.
3
Place the dryer rack on the structure
above the lint filter and press it to
complete assembly.
4
Place wet items on top of the rack.
Allow space around items for air to
circulate.
• The dryer rack does not move, but
the drum will rotate.
1
Open the door.
5
Close the door.
6
Turn power on and select
Korbtrocknen
.
7
NOTE
Press the
Start/Pause
button.
• Check the lint filter and remove any lint
accumulated from items dried on the
rack.
• The
Mehr Zeit
/
Weniger Zeit
keys can
be used to finely adjust the drying
time.
OPERATION
31
EN
32
NOTE
NOTE
EN
SMART FUNCTIONS
SMART FUNCTIONS
LG ThinQ Application
The
LG ThinQ
communicate with the appliance using a
smartphone.
LG ThinQ Application Features
Communicate with the appliance from a
smartphone using the convenient smart
features.
Smart Pairing
This function automatically selects the
best cycle and settings for the dryer
based on usage information about the
most recently completed wash cycle.
• To use this function, both washer and
dryer must be connected to
application.
• If you enable this function in the
ThinQ
dryer after using the washer, a
recommended dryer cycle is
automatically set.
Smart Diagnosis
This function provides useful
information for diagnosing and solving
issues with the appliance based on the
pattern of use.
Push Alert
When the cycle is complete or the
appliance has problems, you have the
option of receiving push notifications on
a smartphone. The notifications are
triggered even if the
application is off.
application allows you to
LG ThinQ
LG
application and turn on the
LG ThinQ
Energy Monitoring
This function checks the energy
consumption of the recently used cycles
and monthly average.
Settings
Allows you to set various options on the
appliance and in the application.
• If you change your wireless router,
Internet service provider, or password,
delete the registered appliance from
the
LG ThinQ
it again.
• The application is subject to change for
appliance improvement purposes
without notice to users.
• Functions may vary by model.
application and register
Before Using LG ThinQ
Application
1
Check the distance between the
appliance and the wireless router (WiFi network).
• If the distance between the
appliance and the wireless router is
too far, the signal strength
becomes weak. It may take a long
time to register or installation may
fail.
SMART FUNCTIONS
NOTE
33
EN
2
Turn off the
Data
on your smartphone.
3
Connect your smartphone to the
wireless router.
• To verify the Wi-Fi connection, check
that
f
• The appliance supports 2.4 GHz Wi-Fi
networks only. To check your network
frequency, contact your Internet
service provider or refer to your
wireless router manual.
•
LG ThinQ
network connection problems or any
faults, malfunctions, or errors caused
by network connection.
• If the appliance is having trouble
connecting to the Wi-Fi network, it may
be too far from the router. Purchase a
Wi-Fi repeater (range extender) to
improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect
or may be interrupted because of the
home network environment.
• The network connection may not work
properly depending on the Internet
service provider.
Mobile data
icon on the control panel is lit.
is not responsible for any
or
Cellular
• The surrounding wireless environment
can make the wireless network service
run slowly.
• The appliance cannot be registered
due to problems with the wireless
signal transmission. Unplug the
appliance and wait about a minute
before trying again.
• If the firewall on your wireless router is
enabled, disable the firewall or add an
exception to it.
• The wireless network name (SSID)
should be a combination of English
letters and numbers. (Do not use
special characters.)
• Smartphone user interface (UI) may
vary depending on the mobile
operating system (OS) and the
manufacturer.
• If the security protocol of the router is
set to
WEP
, you may fail to set up the
network. Please change it to other
security protocols (
recommended) and register the
product again.
WPA2
is
Installing the LG ThinQ
Application
Search for the
from the Google Play Store or Apple App
Store on a smartphone. Follow
instructions to download and install the
application.
LG ThinQ
application
Using the Appliance Remotely
Remote Start
Use a smartphone to control your
appliance remotely. You can also
monitor your cycle operation so you
know how much time is left in the cycle.
34
NOTE
NOTE
EN
Using this function
1
2
3
4
SMART FUNCTIONS
Press the
Load the clothes into the drum.
Press and hold the
button for 3 seconds to enable the
remote control function.
Start a cycle from the
application on your smartphone.
Power
button.
Anti Falten
LG ThinQ
• Only one downloaded cycle can be
stored on the appliance at a time.
Wireless LAN Module
Specifications
Model LCW-004
Frequency
Range
2412 to 2472 MHz
• Once this function is enabled, you can
only start a cycle from the
smartphone application. If the cycle is
not started, the appliance will wait to
start the cycle until it is turned off
remotely from the application or this
function is disabled.
• If the door has been opened, you can
not start a cycle remotely.
Disable this function manually
When the function is activated, press and
hold the
seconds.
Anti Falten
button for 3
LG ThinQ
Download Cycle
Download new and special cycles that
are not included in the basic cycles on
the appliance.
Appliances that have been successfully
registered can download a variety of
specialty cycles specific to the appliance.
Once cycle download is completed in the
appliance, the appliance keeps the
downloaded cycle until a new cycle is
downloaded.
Output
Power
(Max.)
Wireless function S/W version: V 1.0
For consideration of the user, this device
should be installed and operated with a
minimum distance of 20 cm between the
device and the body.
IEEE 802.11b: 17.82 dBm
IEEE 802.11g: 17.72 dBm
IEEE 802.11n: 16.61 dBm
Standby Power Consumption
Standby power
consumption
Network standby power
consumption
The period of time after
which the power
management function, or a
similar function, switches
the equipment
automatically into standby
and/or off mode and/or the
condition providing
networked standby
0.18
W
2.0 W
20
min.
SMART FUNCTIONS
NOTE
35
EN
Declaration of Conformity
Hereby, LG Electronics declares that the
radio equipment type Dryer is in
compliance with Directive 2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
internet address:
http://www.lg.com/global/support/
cedoc/cedoc#
LG Electronics European Shared Service
Centre B.V.
Krijgsman 1, 1186 DM Amstelveen, The
Netherlands
Open Source Software Notice
Information
To obtain the source code under GPL,
LGPL, MPL, and other open source
licenses, that is contained in this
product, please visit http://
opensource.lge.com.
In addition to the source code, all
referred license terms, warranty
disclaimers and copyright notices are
available for download.
LG Electronics will also provide open
source code to you on CD-ROM for a
charge covering the cost of performing
such distribution (such as the cost of
media, shipping, and handling) upon
email request to opensource@lge.com.
This offer is valid for a period of three
years after our last shipment of this
product. This offer is valid to anyone in
receipt of this information.
Use this feature to help you diagnose
and solve problems with your appliance.
• For reasons not attributable to LGE’s
negligence, the service may not
operate due to external factors such
as, but not limited to, Wi-Fi
unavailability, Wi-Fi disconnection,
local app store policy, or app
unavailability.
• The feature may be subject to change
without prior notice and may have a
different form depending on where
you are located.
Using LG ThinQ to Diagnose
Issues
If you experience a problem with your
Wi-Fi equipped appliance, it can transmit
troubleshooting data to a smartphone
using the
• Launch the
select the
the menu. Follow the instructions
provided in the
LG ThinQ
Smart Diagnosis
application.
LG ThinQ
LG ThinQ
application and
feature in
application.
Using Audible Diagnosis to
Diagnose Issues
Follow the instructions below to use the
audible diagnosis method.
• Launch the
select the
the menu. Follow the instructions for
audible diagnosis provided in the
ThinQ
LG ThinQ
Smart Diagnosis
application.
application and
feature in
LG
Smart Diagnosis
This feature is only available on models
with the
c
or d logo.
1
Press the
the appliance.
• Do not press any other buttons or
turn the programme selector knob.
Power
button to turn on
36
NOTE
EN
2
SMART FUNCTIONS
Place the mouthpiece of your
smartphone close to the
logo.
c
or d
Max.
10 mm
3
Press and hold the
Max.
10 mm
Mehr Zeit
button
for 3 seconds or longer while holding
the smartphone mouthpiece to the
logo until the data transfer is
complete.
• Keep the smartphone in place until
the data transfer has finished. Time
remaining for data transfer is
displayed.
4
After the data transfer is complete,
the diagnosis will be displayed in the
application.
• For best results, do not move the
smartphone while the tones are being
transmitted.
MAINTENANCE
WARNING
CAUTION
NOTE
37
EN
MAINTENANCE
• Remove the power plug when you clean the appliance. Not removing the plug may
result in electric shock.
Cleaning after Every
Dry
Cleaning the Lint Filter
• Clean the lint filter in the proper way
referring to the following instructions.
Failure to do so, the lint that is
accumulated on the heat exchanger
may not be cleaned properly.
• Unload the all of the laundries from
the appliance before pull out the lint
filter.
• After cleaning the lint filter insert them
in a place. If the lint filter is not in the
appliance, you can not operate the
appliance.
• Clean the outer filter after drying 10
times or when the lint is
accumulated into the outer filter.
Clean the inner filter
1
Pull out the inner filter from the outer
filter and then open the inner filter.
• Open the filter by unfolding it in the
direction of the arrow.
2
Clean a large cluster of lint first, then
clean the residual lint using vacuum
cleaner or washing under running
water.
a
Inner Filter
• Always clean the inner filter before
and after use.
b
Outer Filter
• Dry the filter completely if the filter
is moist. Failure to do so, odour
may occur in the appliance.
3
After drying the inner filter
completely, close the filter by pushing
down its center.
EN
CAUTION
NOTE
a
38
MAINTENANCE
• Ensure the left and right side of the
inner filter is closed properly.
4
Insert the inner filter into the outer
filter.
Clean the outer filter
1
Remove the dust or lint around the
filter inlet.
• When the lint drops into the filter inlet,
it may cause degradation of drying
performance and increase in drying
time.
5
Clean the residual lint using vacuum
cleaner or washing under running
water.
• Dry the filter completely if the filter
is moist. Failure to do so, odour
may occur in the appliance.
6
Close the outer filter while pushing
the side
a
of the filter.
2
Pull out the outer filter.
3
Remove the inner filter.
4
Open the outer filter by unfolding in
the direction of the arrow grasping
the top edge of the outer filter.
• Ensure the side of the filter is closed
properly. Failure to do so, any lint
accumulated on the filter may get into
the appliance and may cause
degradation of the drying
performance.
7
CAUTION
NOTE
CAUTION
Close them, and reinsert the both lint
filters.
MAINTENANCE
1
Pull out the water container.
39
EN
• Do not load or remove any clothes
when the lint filter is not in a place. The
clothes can drop into the filter inlet
and it may cause the appliance to
malfunction.
Emptying the Water Container
Condensed water is collected in the
water container.
Empty the water container after every
use. Not doing so will affect the drying
performance.
• If the water container is full, the E icon
glows and a chime will sound while the
appliance is operating. If this should
occur, the water container needs to be
emptied within the next hour.
• When the condensed water is drained
out directly through the optional drain
hose, there is no need to empty the
water container.
2
Empty the water container into the
sink.
• Do not drink the condensed water or
reuse it. It could be lead to health
problems for people and animals.
3
Refit it back into the appliance.
• Push in the water container fully
into the appliance until it is in place.
4
Press the
Start/Pause
button.
Cleaning the Appliance
Periodically
Wiping the Moisture Sensor
This device senses the moisture level of
the clothes during operation, which
40
CAUTION
NOTE
EN
means it must be cleaned regularly to
remove any build-up of lime scale on the
surface of the sensor.
Wipe the sensors inside the drum.
• Do not wipe the moisture sensor with
abrasive materials. Always clean the
sensor with a dry rough acrylic sponge.
MAINTENANCE
Cleaning the Cool Air Inlet Grill
Vacuum the cool air inlet grill 3 - 4 times
a year to make sure there is no build up
of lint or dirt that may cause improper air
flow.
• Warm air is expelled through the
ventilation grill.
• Adequate room ventilation should be
provided to avoid the back flow of
gases into the room from units
burning other fuels, such as open fires.
TROUBLESHOOTING
41
EN
TROUBLESHOOTING
Operation of your appliance can lead to errors and malfunctions. The following tables
contain possible causes and notes for resolving an error message or malfunction. It
is recommended to read the tables carefully below in order to save your time and
money that may cost for calling to LG Electronics service centre.
Before Calling for Service
Your appliance is equipped with an automatic error-monitoring system to detect and
diagnose problems at an early stage. If the appliance does not function properly or
does not function at all, check the following tables before calling to LG Electronics
service centre.
Error Messages
Symptoms Possible Cause & Solution
dE
DOOR ERROR
dE4
DOOR ERROR
tE1
/
tEz
/
tE4
TEMPERATURE
ERROR
FI
TEMPERATURE
ERROR
LE1
MOTOR LOCKED
ERROR
LEz
/
AE
COMPRESSOR
ERROR
The door has been opened while the appliance is in
operation or the appliance is being operated without the
door being closed properly.
• Close the door completely.
dE
is not released, call for service.
• If
Door switch detection is not working properly.
• Unplug the power plug and call for service.
Temperature Sensor has malfunctioned.
• Unplug the power plug and call for service.
The temperature inside the drum has risen suddenly.
• Unplug the power plug and call for service.
The motor has stopped suddenly.
• Check if the amount of clothes exceeds the maximum load
capacity.
• Unplug the power plug and call for service.
The compressor has stopped suddenly.
• Unplug the power plug and call for service.
42
EN
TROUBLESHOOTING
Symptoms Possible Cause & Solution
OE
DRAIN PUMP
ERROR
The drain pump motor has malfunctioned.
• Unplug the power plug and call for service.
The surrounding temperature for installation is below
zero.
• The recommended surrounding temperature for
installation is 5 - 35 ℃.
Operation
Symptoms Possible Cause & Solution
Appliance will not
turn on.
Appliance does
not heat.
Power cord is not properly plugged in.
• Make sure that the power plug is securely plugged into a
grounded outlet matching the appliance's rating plate.
House fuse is blown, circuit breaker has tripped, or power
outage has occurred.
• Reset circuit breaker or replace fuse. Do not increase fuse
capacity. If the problem is a circuit overload, have it
corrected by a qualified electrician.
House fuse is blown, circuit breaker has tripped, or power
outage has occurred.
• Reset circuit breaker or replace fuse. Do not increase fuse
capacity. If the problem is a circuit overload, have it
corrected by a qualified electrician.
Water leaks. The water container hose or the optional drain hose is not
connected correctly.
• Connect the water container hose or the optional drain
hose correctly.
The door is closed while clothes or foreign substance is
caught in the door.
• Check if clothes or foreign substance is caught in the door
before using the appliance. If water leaks continuously,
contact the LG Electronics Customer Information Centre.
TROUBLESHOOTING
Symptoms Possible Cause & Solution
43
EN
Appliance runs
and pauses by
itself after the
drying cycle
finishes.
This is how the anti crease option works.
• Make sure that the anti crease option has been set. The
option is designed to prevent creases that are formed when
the clothes are not unloaded promptly after the drying
cycle. When the option is set, the appliance runs for 10
seconds and pauses for 5 minutes. The option is works for
up to 2 hours.
44
EN
TROUBLESHOOTING
Performance
Symptoms Possible Cause & Solution
Clothes take too
long to dry.
Load is not properly sorted.
• Separate heavy items from lightweight items. Larger and
heavier items take longer to dry. Light items in a load with
heavy items can fool the sensor because the light items dry
faster.
Large load of heavy fabrics.
• Heavy fabrics take longer to dry because they tend to retain
more moisture. To help reduce and maintain more
consistent drying times for large and heavy fabrics,
separate these items into smaller loads of a consistent size.
Appliance controls are not set properly.
• Use the appropriate control settings for the type of load
you are drying. Some loads may require an adjustment of
the dry level setting for proper drying.
Lint filter needs to be cleaned.
• Remove the lint from the lint filter after every cycle. With the
lint removed, hold the lint filter up to a light to see if it is
dirty or clogged. With some loads that produce high
amounts of lint, such as new bath towels, it may be
necessary to pause the cycle and clean the filter during the
cycle.
House fuse is blown, circuit breaker has tripped, or power
outage has occurred.
• Reset circuit breaker or replace fuse. Do not increase fuse
capacity. If the problem is a circuit overload, have it
corrected by a qualified electrician.
Appliance is overloaded.
• Divide extra large loads into smaller loads for better drying
performance and efficiency.
Appliance is underloaded.
• If you are drying a very small load, add a few extra items to
ensure proper tumbling action. If the load is very small and
you are using Sensor Dry programmes, the electronic
control cannot properly sense the dryness of the load and
may shut off too soon. Use Timed Drying programmes or
add some extra wet clothes to the load.
TROUBLESHOOTING
Symptoms Possible Cause & Solution
45
EN
Drying time is not
consistent.
Greasy or dirty
spots are left on
clothes.
Heat settings, load size, or dampness of clothing is not
consistent.
• The drying time for a load will vary depending on the type
of heat used (electric), the size of the load, the type of
fabrics, the wetness of the clothes, and lint filter. Even an
unbalanced load in the appliance can cause poor spinning,
resulting in wetter clothes which will take longer to dry.
Fabric softener is used incorrectly.
• When washing clothes that are to be dried in the appliance,
use the correct amount of fabric softener as recommended
by the manufacturer of the fabric softener.
Clean and dirty clothes are being dried together.
• Use the appliance to dry only clean items. Soil from dirty
clothes can transfer to the clean clothes in the same or later
loads.
Clothes were not properly cleaned or rinsed before being
placed in the appliance.
• Stains on dried clothes could be stains that were not
removed during the washing process. Make sure that
clothes are being completely cleaned or rinsed according to
the instructions for your washing machine and detergent.
Some difficult soils may require pre-treating prior to
washing.
Clothes are
wrinkled.
Clothes are
shrinking.
Clothes have dried too long (overdried).
• Over drying a load of clothes can lead to wrinkled clothes.
Try a shorter drying time.
Clothes have been left in the appliance for too long after
cycle ends.
• Use the
Anti Falten
option.
Garment care instructions are not being followed.
• To avoid shrinking your clothes, always consult and follow
fabric care instructions. Some fabrics will naturally shrink
when washed. Other fabrics can be washed but will shrink
when dried in the appliance. Use a low or no heat setting.
46
EN
TROUBLESHOOTING
Symptoms Possible Cause & Solution
Lint is left on
clothes.
Excess static in
clothes after
drying.
Lint filter has not been cleaned properly.
• Remove the lint from the lint filter after every cycle. With the
lint removed, hold the lint filter up to a light to see if it is
dirty or clogged. If it looks dirty, follow the cleaning
instructions. With some loads that produce high amounts
of lint, it may be necessary to clean the lint filter during the
cycle.
Clothes have not been sorted properly.
• Some fabrics are lint producers (i.e., a fuzzy white cotton
towel) and should be dried separately from clothes that are
lint trappers (i.e., a pair of black linen pants).
Appliance is overloaded.
• Divide extra large loads into smaller loads for drying.
Tissue, paper, etc., has been left in pockets.
• Check pockets thoroughly before drying clothes.
Clothes have dried for too long (overdried).
• Overdrying a load of clothes can cause a buildup of static
electricity. Adjust settings and use a shorter drying time, or
use Sensor Dry programmes.
Drying synthetics, permanent press, or synthetic blends.
• These fabrics are naturally more prone to static buildup. Try
using fabric softener, or use shorter Timed Drying time
settings.
TROUBLESHOOTING
Symptoms Possible Cause & Solution
47
EN
Clothes have
damp spots after a
Sensor Dry
programme.
Very large load or very small load. Single large item such
as a blanket or comforter.
• If items are too tightly packed or too sparse the sensor may
have trouble reading the dryness level of the load. Use a
Timed Drying programme for very small loads.
• Large, bulky items such as blankets or comforters can
sometimes wrap themselves into a tight ball of fabric. The
outside layers will dry and register on the sensors, while the
inner core remains damp. When drying a single bulky item,
it may help to pause the cycle once or twice and rearrange
the item to unwrap and expose any damp areas.
• To dry a few remaining damp items from a very large load
or a few damp spots on a large item after a Sensor Dry
programme has completed, empty the lint filter, then set a
Timed Drying programme to finish drying the item(s).
48
EN
TROUBLESHOOTING
Odours
Symptoms Possible Cause & Solution
The appliance has
an odour.
Are you using the appliance for the first time?
• The smell is caused by rubber material that is attached to
the appliance inside. This kind of smell is a rubber's own
smell and disappears automatically after using the
appliance several times.
Do you smell an odour during use?
• When washing the clothes, use the detergent in accordance
with the manufacturers recommendations. If you use the
detergent excessively not according to the
recommendations, undissolved detergent may accumulate
on the clothes and cause an odour.
• You can smell odours from the clothes if the clothes were
left in the appliance after drying or in the washing machine
after washing. Unload the clothes promptly at the end of
the drying or washing cycle.
• Ensure you can smell same odour in the washing machine.
If so, clean the tub of the washing machine referring to the
washing machine user manual.
• Always take care of both lint filters clean. If any residues
were left in the lint filter after drying, it may cause odours.
And also dry the lint filter completely after cleaning.
Wi-Fi
Symptoms Possible Cause & Solution
TROUBLESHOOTING
49
EN
Your home
appliance and
smartphone is not
connected to the
Wi-Fi network.
The password for the Wi-Fi that you are trying to connect
to is incorrect.
• Find the Wi-Fi network connected to your smartphone and
remove it, then register your appliance on
LG ThinQ
.
Mobile data for your smartphone is turned on.
• Turn off the
Mobile data
of your smartphone and register
the appliance using the Wi-Fi network.
The wireless network name (SSID) is set incorrectly.
• The wireless network name (SSID) should be a combination
of English letters and numbers. (Do not use special
characters.)
The router frequency is not 2.4 GHz.
• Only a 2.4 GHz router frequency is supported. Set the
wireless router to 2.4 GHz and connect the appliance to the
wireless router. To check the router frequency, check with
your Internet service provider or the router manufacturer.
The distance between the appliance and the router is too
far.
• If the distance between the appliance and the router is too
far, the signal may be weak and the connection may not be
configured correctly. Move the location of the router so that
it is closer to the appliance.
50
EN
APPENDIX
APPENDIX
Product Fiche
Commission Delegated Regulation (EU) No 392/2012
Asterisk(s) means model variant and can be varied (0-9) or (A-Z).
LG V5RT9
Rated capacity in kg of cotton laundry for the standard cotton
9 kg
programme at full load
Dryer type Condenser
Household
Tumble Dryer
Energy efficiency class on a scale from D (least efficient) to
A++
A+++ (most efficient).
Weighted annual energy consumption (AE
(kWh/year)
*1
) kWh per year
C
228
Automatic tumble drier Yes
Awarded an “EU Ecolabel award” under regulation (EC) No 66/
No
2010
Energy consumption of the standard cotton programme at
full load (E
) (kWh)
dry
Energy consumption of the standard cotton programme at
partial load (E
dry1/2
) (kWh)
Power consumption of the off-mode for the standard cotton
programme at full load (P
) (W)
o
1.91
1.03
0.18
Power consumption of the left-on mode for the standard
cotton programme at full load (P
Duration of the left-on mode (T
) (W)
l
) (min) 10
l
0.18
APPENDIX
51
LG V5RT9
The
Koch-/Buntwäsche
R ~
Schranktrocken
~
Energie
used at full and
partial load is the standard drying programme to which the information in the label
and the fiche relates, that this programme is suitable for drying normal wet cotton
laundry and that it is the most efficient programme in terms of energy
consumption for cotton.
EN
The weighted programme time (T
) of the standard cotton
t
169
programme at full and partial load (min)
The programme time of the standard cotton programme at
full load (T
dry
) (min)
The programme time of the standard cotton programme at
partial load (T
dry1/2
) (min)
Condensation efficiency class X on a scale from G (least
230
124
A
efficient) to A (most efficient)
Average condensation efficiency C
of the standard cotton
dry
91
programme at full load (%)
Average condensation efficiency C
of the standard
dry1/2
91
cotton programme at partial load (%)
The weighted condensation efficiency (C
) for the standard
t
91
cotton programme at full and partial load (%)
The sound power level in dB(A) 64
Free-Standing
*1 Based on 160 standard drying cycles for cotton programmes at full and partial
load, and the consumption of the low-power modes. Actual energy consumption
will depend on how the appliance is used.
Loading...
