PCB STACK UP
Preso-II B
8L
LAYER 1 : TOP
A A
LAYER 2 : SGND
LAYER 3 : IN1
LAYER 4 : SGND1
LAYER 5 : SVCC
FSB 667/800/1066
LAYER 6 : IN2
LAYER 7 : SGND2
LAYER 8 : BOT
DDRII-SODIMM1
DDRII 667/800 MHz
PAGE 10,11
B B
DDRII-SODIMM2
PAGE 10,11
DDRII 667/800 MHz
DMI LINK
PAGE 30
SATA0 150MB
SATA1 150MB
SATA5 150MB
32.768KHz
KB3926 C0
LPC
ENE KBC
PAGE 30
SATA - HDD
PAGE 28
SYSTEM CHARGER(ISL6251AHAZ-T)
SYSTEM POWER ISL6237IRZ-T
DDR II SMDDR_VTERM
C C
1.8V/1.8VSUS(TPS51116REGR)
VCCP +1.5V AND GMCH
1.05V(RT8204)
VGACORE(1.025V)Oz8118
CPU CORE ISL6266A
PAGE 32
PAGE 33
PAGE 37
PAGE 34
PAGE 36
SATA - CD-ROM
PAGE 28
E-SATA
PAGE 31
Keyboard
Touch Pad
PAGE 35
CPU
Penryn
478P (uPGA)/35W
NORTH BRIDGE
Cantiga
PAGE 5~9
SOUTH BRIDGE
ICH9-M
PAGE 19,20,21,22
MDC CONN
SPI
PAGE 20
LOCK DIAGRAM
CPU THERMAL
SENSOR
PAGE 4
PAGE 3,4
32.768KHz
PAGE 25
PCI-Express
16X
USB2.0
0,1,2
X3
PCI-E
Azalia
NVIDIA
N10M-64bit
533p
PAGE 24
AUDIO
Amplifier
TPA6017A2
Analog
Realtek
ALC272
PAGE 24
PAGE 25
CLK_CPU_BCLK,CLK_CPU_BCLK#
CLK_MCH_BCLK,CLK_MCH_BCLK#
DREFCLK,DREFCLK#
DREFSSCLK,DREFSSCLK#
PS8101
PAGE 18
27MHz
PAGE 12~16
NBSRCCLK, NBSRCCLK#
8 9
BlueToothUSB2.0 Ports
PAGE 29
Webcam
X2 X1 X1
Mini PCI-E
Card
(Wireless LAN
/ Robson)
PAGE 31 PAGE 26,27
Dual Link
PAGE 17
LAN
Realtek
PCIE-LAN
RTL8103EL/8111DL
(10/100/GagaLAN)
PAGE 26
HDMI CON
PAGE 18
CRT
PAGE 18
LCD CONN
PAGE 17
12MHz
CR for UMA
RTS5159
PAGE 23
25MHz
RJ45
CLOCK GEN
ALPRS355B MLF64PIN
7,10,11
6
Mini PCI-E Card x2
Express Card x1
Express
Card
(NEW CARD)
PAGE 28
01
14.318MHz
PAGE 2
PAGE 28,31
D D
GMT G9931P1U
FAN
PAGE 29
1
2
3
SPI
PAGE 30
4
Audio Jacks microphone
(Phone/ MIC)
PAGE 24PAGE 17
5
Jack to
Speaker
PAGE 25
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
6
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
7

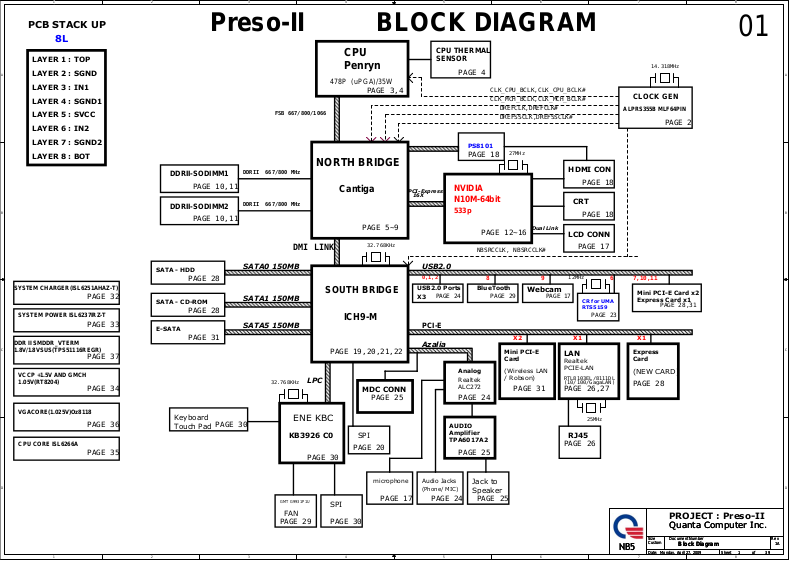

Block Diagram
Block Diagram
Block Diagram
1 39Monday, April 27, 2009
1 39Monday, April 27, 2009
1 39Monday, April 27, 2009
8
1A
1A
1A
Page 2
1
2
3
4
5
6
7
8
+3V
L24
L24
1 2
HCB1608KF-181T15_6
HCB1608KF-181T15_6
L39
L39
1 2
A A
HCB1608KF-181T15_6
HCB1608KF-181T15_6
L23
L23
1 2
HCB1608KF-181T15_6
HCB1608KF-181T15_6
+3V
B B
R178
R178
10K/F_4
10K/F_4
1 2
TME
0 = overclocking
of CPU and SRC
allowed
1 = overclocking
of CPU and SRC
not allowed
+3V
C C
R150
R150
Des
10K/F_4
10K/F_4
1 2
27M_SEL
R151
R151
UMA
*10K/F_4
*10K/F_4
1 2
0 = UMA
+3V_CK_MAIN
C471
C471
10U/6.3V_8
10U/6.3V_8
+3V_CK_CPU
C726
C726
10U/6.3V_8
10U/6.3V_8
+3V_CK_MAIN2
C479
C479
10U/6.3V_8
10U/6.3V_8
12
C456
C456
.1U/10V_4
.1U/10V_4
C473
C473
.1U/10V_4
.1U/10V_4
C423
C423
.1U/10V_4
.1U/10V_4
CG_XIN
C478
C478
33P/50V_4
33P/50V_4
PDAT_SMB21
PCLK_SMB21
Y2
Y2
1 2
14.318MHZ
14.318MHZ
C445
C445
.1U/10V_4
.1U/10V_4
C718
C718
.1U/10V_4
.1U/10V_4
2N7002
2N7002
2N7002Q92N7002
CG_XOUT
12
C477
C477
33P/50V_4
33P/50V_4
C720
C720
.1U/10V_4
.1U/10V_4
C420
C420
.1U/10V_4
.1U/10V_4
Q10
Q10
3
Q9
3
C419
C419
C424
C424
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
+3V_CK_MAIN
+3V_CK_CPU
+3V_CK_MAIN2
C476
C475
C475
.1U/10V_4
.1U/10V_4
CK_PWG21
CGDAT_SMB
R186
R186
10K/F_4
10K/F_4
CGCLK_SMB
27M_SEL
PIN13
C476
.1U/10V_4
.1U/10V_4
CG_XIN
CG_XOUT
R207 *100K/F_4R207 *100K/F_4
CPU_BSEL1
PIN20
DOT96T
R208 2.2K_4R208 2.2K_4
CGCLK_SMB10,11,28,31
CGDAT_SMB10,11,28,31
PIN21
PIN24
SRCT1/LCDT_100DOT96C
SRCT0 SRCC0 27Mout-NSS 27Mout-SS
C434
C434
.1U/10V_4
.1U/10V_4
+3V
R187
2
+3V
2
R187
10K/F_4
10K/F_4
1
1
0=UMA
1 = External
VGA
FSB
U12
U12
23
VDDPLL3
16
VDD48
9
VDDPCI
4
VDDREF
46
VDDSRC
62
VDDCPU
19
VDD96I/O
27
VDDPLL3I/O
33
VDDSRCI/O
43
VDDSRCI/O
52
VDDSRCI/O
56
VDDCPU_IO
55
NC
3
X1
2
X2
63
CK_PWRGD/PD#
64
FSLB/TEST_MODE
7
SCLK
6
SDATA
22
GND
26
GND
18
GND48
59
GNDCPU
15
GNDPCI
1
GNDREF
30
GNDSRC
36
GNDSRC
49
GNDSRC
65
EPAD
PIN25
SRCT1/LCDT_100
CK505
CK505
27MHz_Nonss/SRCCLK1/SE1
RTM875N-606-VD-GR
RTM875N-606-VD-GR
61
CPUCLKT0
60
CPUCLKC0
58
CPUCLKT1
57
CPUCLKC1
SRCCLKT4
SRCCLKC4
PCI_STOP#
SRCCLKT6
SRCCLKC6
SRCCLKT9
SRCCLKC9
PCICLK3
54
53
20
21
24
25
28
29
31
32
34
35
45
44
48
47
51
50
37
38
41
42
40
39
8
10
11
12
13
14
17
5
CPUT2_ITP/SRCT8
CPUC2_ITP/SRCC8
DOTT_96/SRCT0
DOTC_96/SRCC0
27Mhz_ss/SRCCLC1/SE2
SRCCLKT2/SATACL
SRCCLKC2/SATACL
SRCCLKT3/CR#_C
SRCCLKC3/CR#_D
CPU_STOP#
SRCCLKT7/CR#_F
SRCCLKC7/CR#_E
SRCCLKT10
SRCCLKC10
SRCCLKT11/CR#_H
SRCCLKC11/CR#_G
PCICLK0/CR#_A
PCICLK1/CR#_B
PCICLK2/TME
PCICLK4/27_SELECT
PCI_F5/ITP_EN
USB_48MHZ/FSLA
FSLC/TST_SL/REF
QFN64CK505
ICS ICS9LPRS355BKLF
SLG8SP513VTRSilego
Realtek
RTM875N-606-VD-GR
SRC0
SRC0#
SRC1
SRC1#
R_CLK_NEWCARD_OE#
R_CLK_MCH_OE#
TME
R_PCLK_KBC
27M_SEL
ITP_EN
FSA
FSC
FSLC
CLK_CPU_BCLK 3
CLK_CPU_BCLK# 3
CLK_MCH_BCLK 5
CLK_MCH_BCLK# 5
RP64 *4P2R-S-0RP64 *4P2R-S-0
RP46 4P2R-S-0RP46 4P2R-S-0
CLK_PCIE_NEW 28
CLK_PCIE_NEW# 28
CLK_PCIE_3GPLL 6
CLK_PCIE_3GPLL# 6
PM_STPPCI# 21
PM_STPCPU# 21
CLK_PCIE_ICH 20
CLK_PCIE_ICH# 20
CLK_PCIE_WLAN 31
CLK_PCIE_WLAN# 31
CLK_PCIE_LAN 26
CLK_PCIE_LAN# 26
CLK_PCIE_SATA 19
CLK_PCIE_SATA# 19
CLK_PCIE_WWAN 31
CLK_PCIE_WWAN# 31
R184 475/F_4R184 475/F_4
R180 475/F_4R180 475/F_4
R175 33_4R175 33_4
R176 33_4R176 33_4
R141 33_4R141 33_4
R153 22_4R153 22_4
R154 22_4R154 22_4
R152 2.2K_4R152 2.2K_4
R199 10K/F_4R199 10K/F_4
R198 33_4R198 33_4
ALPRS355000
AL8SP513000
AL000875000
4
2
2
4
1 = External VGA
PV Modify
+3V
R156
R156
*10K/F_4
D D
*10K/F_4
1 2
R155
R155
10K/F_4
10K/F_4
1 2
ITP_EN
CPU_BSEL03
R138 *1K/F_4R138 *1K/F_4
CPU_BSEL13 MCH_BSEL1 6
+1.05V
CPU_BSEL23 MCH_BSEL2 6
+1.05V
R473 *1K/F_4R473 *1K/F_4
R213 *1K/F_4R213 *1K/F_4
Enable ITP CLK
1
2
CPU_BSEL0
CPU_BSEL1
CPU_BSEL2
R135 *0_4SR135 *0_4S
R471 *0_4SR471 *0_4S
R197 *0_4SR197 *0_4S
1K to NB only when
XDP is implement.Non
XDP can use 0 ohm
3
MCH_BSEL0 6
4
CPU Clock select
FSC FSB
1 330
0
0
0
0 0
1
1
1
FSA CPU SRC PCI
1 100
10
1
1
1
0
0
0 33
0
1
0
1
1
RSVD
133
166
200
266
333
400
100
100
100
100
100
100
100
100
33
33
33
33
33
33
C436 *33P/50V_4C436 *33P/50V_4
C408 *27P/50V_4C408 *27P/50V_4
C435 *33P/50V_4C435 *33P/50V_4
C402 10P/50V_4C402 10P/50V_4
C405 10P/50V_4C405 10P/50V_4
C463 *33P/50V_4C463 *33P/50V_4
PCLK_KBC
PCLK_ICH
PCLK_DEBUG
CLK_48M_USB
CLK_48M_CR
CLK_14M_ICH
For EMI
5
6
+1.05V3,4,5,6,8,9,19,22,29,34,35
3
1
1
3
SRC1
SRC1#
CPU_BSEL0
CPU_BSEL2
NB5
NB5
NB5
+3V4,6,9,10,11,12,14,15,17,18,19,20,21,22,24,25,26,28,29,30,31,35,36,38
02
DREFCLK 6
DREFCLK# 6
CLK_PCIE_VGA 12
CLK_PCIE_VGA# 12
RP45 *4P2R-S-0RP45 *4P2R-S-0
RP63 4P2R-S-33RP63 4P2R-S-33
CLK_NEWCARD_OE# 28
CLK_MCH_OE# 6
PCLK_DEBUG 31
PCLK_KBC 30
PCLK_ICH 20
CLK_48M_USB 21
CLK_48M_CR 23
CLK_14M_ICH 21
CLK_MCH_OE#
CLK_NEWCARD_OE#
R_PCLK_KBC
R171
R171
*10K/F_4
*10K/F_4
1 2
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
UMA
Des
UMA
2
1
4
3
4
3
2
1
DREFSSCLK 6
DREFSSCLK# 6
27M_NONSS 14
27M_SS 14
Des
R181 10K/F_4R181 10K/F_4
R185 10K/F_4R185 10K/F_4
12
12
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Clock Generator
Clock Generator
Clock Generator
2 39Tuesday, May 05, 2009
2 39Tuesday, May 05, 2009
2 39Tuesday, May 05, 2009
8
+3V
1A
1A
1A
Page 3
5
4
3
2
+1.05V2,4,5,6,8,9,19,22,29,34,35
1
03
U19A
D D
C C
B B
H_A#[35:3]5
H_ADSTB#05
H_REQ#[4:0]5
H_ADSTB#15
H_A20M#19
H_FERR#19
H_IGNNE#19
H_STPCLK#19
H_INTR19
H_NMI19
H_SMI#19
H_A#[35:3]
R527 *0_4SR527 *0_4S
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35
Close to F8 pin
PV Modify
U19A
J4
A[3]#
L5
A[4]#
L4
A[5]#
K5
A[6]#
M3
A[7]#
N2
A[8]#
J1
A[9]#
N3
A[10]#
P5
A[11]#
P2
A[12]#
L2
A[13]#
P4
A[14]#
P1
A[15]#
R1
A[16]#
M1
ADSTB[0]#
K3
REQ[0]#
H2
REQ[1]#
K2
REQ[2]#
J3
REQ[3]#
L1
REQ[4]#
Y2
A[17]#
U5
A[18]#
R3
A[19]#
W6
A[20]#
U4
A[21]#
Y5
A[22]#
U1
A[23]#
R4
A[24]#
T5
A[25]#
T3
A[26]#
W2
A[27]#
W5
A[28]#
Y4
A[29]#
U2
A[30]#
V4
A[31]#
W3
A[32]#
AA4
A[33]#
AB2
A[34]#
AA3
A[35]#
V1
ADSTB[1]#
A6
A20M#
A5
FERR#
C4
IGNNE#
D5
STPCLK#
C6
LINT0
B4
LINT1
A3
SMI#
F6
TDI_1/RSV
D3
TDO_2/RSV
N5
BMP_1#[0]/RSV
M4
BMP_1#[1]/RSV
B2
BMP_1#[2]/RSV
AE8
BMP_1#[3]/VSS
D8
DCLKPH_1/VSS
F8
ACLKPH_1/VSS
D22
GTLREF_2/RSV
T2
THRMDA_1/RSV
V3
THRMDC_1/RSV
AA8
HFPLL_1/VSS
AC8
SPARE_1[4]/VSS
AA7
BR1#/VCC
Penryn Ball-out Rev 1a
Penryn Ball-out Rev 1a
ADDR GROUP 0
ADDR GROUP 0
DEFER#
DRDY#
DBSY#
CONTROL XDP/ITP SIGNALS
CONTROL XDP/ITP SIGNALS
LOCK#
RESET#
TRDY#
ADDR GROUP 1
ADDR GROUP 1
BPM[0]#
BPM[1]#
BPM[2]#
BPM[3]#
PRDY#
PREQ#
TRST#
THERMAL
THERMAL
PROCHOT#
THERMDA
THERMDC
ICH
ICH
THERMTRIP#
H CLK
H CLK
BCLK[0]
BCLK[1]
Quard Core Only
Quard Core Only
RSVD[06]
ADS#
BNR#
BPRI#
BR0#
IERR#
INIT#
RS[0]#
RS[1]#
RS[2]#
HIT#
HITM#
TCK
TDO
TMS
DBR#
+1.05V
R296
R296
1K/F_4
1K/F_4
R295
R295
2K/F_4
2K/F_4
H_D#[63:0]5
H_DSTBN#05
H_DSTBP#05
H_DINV#05
H_D#[63:0]
TP55TP55
TP53TP53
TP54TP54
TP56TP56
TP57TP57
CPU_BSEL02
CPU_BSEL12
CPU_BSEL22
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_DSTBN#15
H_DSTBP#15
H_DINV#15
H_GTLREF
CPU_TEST1
CPU_TEST2
CPU_TEST3
CPU_TEST4
CPU_TEST5
CPU_TEST6
CPU_TEST7
H1
E2
G5
H5
F21
E1
F1
H_IERR#
D20
B3
H4
C1
F3
F4
G3
G2
G6
E4
AD4
AD3
AD1
AC4
AC2
AC1
AC5
AA6
TDI
AB3
AB5
AB6
C20
D21
A24
B25
C7
A22
A21
D2
R23 49.9/F_4R23 49.9/F_4
H_RS#0
H_RS#1
H_RS#2
ITP_BPM#5
ITP_TCK
ITP_TDI
ITP_TDO
ITP_TMS
ITP_TRST#
R25 *0_4R25 *0_4
R24 68_4R24 68_4
H_ADS# 5
H_BNR# 5
H_BPRI# 5
H_DEFER# 5
H_DRDY# 5
H_DBSY# 5
HBREQ#0 5
+1.05V
H_INIT# 19
H_LOCK# 5
H_CPURST# 5
H_RS#[2:0] 5
H_TRDY# 5
H_HIT# 5
H_HITM# 5
SYS_RST# 21
H_PROCHOT# 35
+1.05V
H_THERMDA 4
H_THERMDC 4
PM_THRMTRIP# 6,19
CLK_CPU_BCLK 2
CLK_CPU_BCLK# 2
U19B
U19B
E22
D[0]#
F24
D[1]#
E26
D[2]#
G22
D[3]#
F23
D[4]#
G25
D[5]#
E25
D[6]#
E23
D[7]#
K24
D[8]#
G24
D[9]#
J24
D[10]#
J23
D[11]#
H22
D[12]#
F26
D[13]#
K22
D[14]#
H23
D[15]#
J26
DSTBN[0]#
H26
DSTBP[0]#
H25
DINV[0]#
N22
D[16]#
K25
D[17]#
P26
D[18]#
R23
D[19]#
L23
D[20]#
M24
D[21]#
L22
D[22]#
M23
D[23]#
P25
D[24]#
P23
D[25]#
P22
D[26]#
T24
D[27]#
R24
D[28]#
L25
D[29]#
T25
D[30]#
N25
D[31]#
L26
DSTBN[1]#
M26
DSTBP[1]#
N24
DINV[1]#
AD26
GTLREF
C23
TEST1
D25
TEST2
C24
TEST3
AF26
TEST4
AF1
TEST5
A26
TEST6
C3
TEST7
B22
BSEL[0]
B23
BSEL[1]
C21
BSEL[2]
Penryn Ball-out Rev 1a
Penryn Ball-out Rev 1a
DATA GRP 0
DATA GRP 0
DATA GRP 1
DATA GRP 1
MISC
MISC
D[32]#
D[33]#
D[34]#
D[35]#
D[36]#
D[37]#
DATA GRP 2
DATA GRP 2
D[38]#
D[39]#
D[40]#
D[41]#
D[42]#
D[43]#
D[44]#
D[45]#
D[46]#
D[47]#
DSTBN[2]#
DSTBP[2]#
DINV[2]#
D[48]#
D[49]#
D[50]#
D[51]#
D[52]#
DATA GRP 3
DATA GRP 3
D[53]#
D[54]#
D[55]#
D[56]#
D[57]#
D[58]#
D[59]#
D[60]#
D[61]#
D[62]#
D[63]#
DSTBN[3]#
DSTBP[3]#
DINV[3]#
COMP[0]
COMP[1]
COMP[2]
COMP[3]
DPRSTP#
DPSLP#
DPWR#
PWRGOOD
SLP#
PSI#
Y22
AB24
V24
V26
V23
T22
U25
U23
Y25
W22
Y23
W24
W25
AA23
AA24
AB25
Y26
AA26
U22
AE24
AD24
AA21
AB22
AB21
AC26
AD20
AE22
AF23
AC25
AE21
AD21
AC22
AD23
AF22
AC23
AE25
AF24
AC20
R26
U26
AA1
Y1
E5
B5
D24
D6
D7
AE6
COMP0
COMP1
COMP2
COMP3
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
R301 27.4/F_4R301 27.4/F_4
R297 54.9/F_4R297 54.9/F_4
R307 27.4/F_4R307 27.4/F_4
R311 54.9/F_4R311 54.9/F_4
H_DPRSTP# 6,19,35
H_DPSLP# 19
H_DPWR# 5
H_PWRGD 19
H_CPUSLP# 5
PM_PSI# 35
H_D#[63:0]
H_D#[63:0]
H_DSTBN#2 5
H_DSTBP#2 5
H_DINV#2 5
H_DSTBN#3 5
H_DSTBP#3 5
H_DINV#3 5
+1.05V
R310
R310
R302
R302
54.9/F_4
54.9/F_4
54.9/F_4
54.9/F_4
ITP_TDI
A A
ITP_TMS
ITP_TDO
ITP_BPM#5
R306
R306
*54.9/F_4
*54.9/F_4
R303
R303
*54.9/F_4
*54.9/F_4
R299 54.9/F_4R299 54.9/F_4
R298 54.9/F_4R298 54.9/F_4
CPU_TEST2
CPU_TEST1
ITP_TCK
ITP_TRST#
R26 *1K/F_4R26 *1K/F_4
R27 *1K/F_4R27 *1K/F_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
5
4
3
2
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
Penryn 1/2
Penryn 1/2
Penryn 1/2
3 39Tuesday, May 05, 2009
3 39Tuesday, May 05, 2009
1
3 39Tuesday, May 05, 2009
1A
1A
1A
Page 4
5
+3V2,6,9,10,11,12,14,15,17,18,19,20,21,22,24,25,26,28,29,30,31,35,36,38
+1.05V2,3,5,6,8,9,19,22,29,34,35
+1.5V9,19,20,22,24,25,28,31,34,38
+VCORE35
+VCORE
D D
C C
B B
A A
C47
C47
C38
C38
C46
C46
C557
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
C53
C53
C552
C552
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
C567
C567
C555
C555
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
C560
C560
C51
C51
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
C570
C570
C54
C54
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
C553
C553
C45
C45
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
C50
C50
C547
C547
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8 C583
C561
C561
C44
C44
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
22U/6.3V_8
+1.05V
C564
C554
C554
.1U/10V_4
.1U/10V_4
MBCLK215,29,30
MBDATA215,29,30
C564
.1U/10V_4
.1U/10V_4
C571
C571
.1U/10V_4
.1U/10V_4
22U/6.3V_8
22U/6.3V_8
C569
C569
22U/6.3V_8
22U/6.3V_8
C55
C55
22U/6.3V_8
22U/6.3V_8
C52
C52
22U/6.3V_8
22U/6.3V_8
C48
C48
22U/6.3V_8
22U/6.3V_8
C565
C565
22U/6.3V_8
22U/6.3V_8
C42
C42
22U/6.3V_8
22U/6.3V_8
C546
C546
22U/6.3V_8
22U/6.3V_8
C548
C548
.1U/10V_4
.1U/10V_4
R305
R305
10K/F_4
10K/F_4
C557
22U/6.3V_8
22U/6.3V_8
C41
C41
22U/6.3V_8
22U/6.3V_8
C568
C568
22U/6.3V_8
22U/6.3V_8
C556
C556
22U/6.3V_8
22U/6.3V_8
C43
C43
22U/6.3V_8
22U/6.3V_8
C37
C37
22U/6.3V_8
22U/6.3V_8
C562
C562
22U/6.3V_8
22U/6.3V_8
C566
C566
22U/6.3V_8
22U/6.3V_8
C550
C550
.1U/10V_4
.1U/10V_4
R308
R308
10K/F_4
10K/F_4
MBCLK2
MBDATA2
C559
C559
.1U/10V_4
.1U/10V_4
R304
R304
10K/F_4
10K/F_4
+3V
R309
R309
*0_4S
*0_4S
U18
U18
8
SCLK
7
SDA
6
ALERT#
4
OVERT#
EMC1402-1-ACZL-TR
EMC1402-1-ACZL-TR
ADDRESS: 98H
25mils
LM86VCC
VCC
DXP
DXN
GND
4
+VCORE +VCORE
C551
C551
.1U/10V_4
.1U/10V_4
1
2
3
5
C549
C549
100P/50V_4
100P/50V_4
H_THERMDA 3
H_THERMDC 3

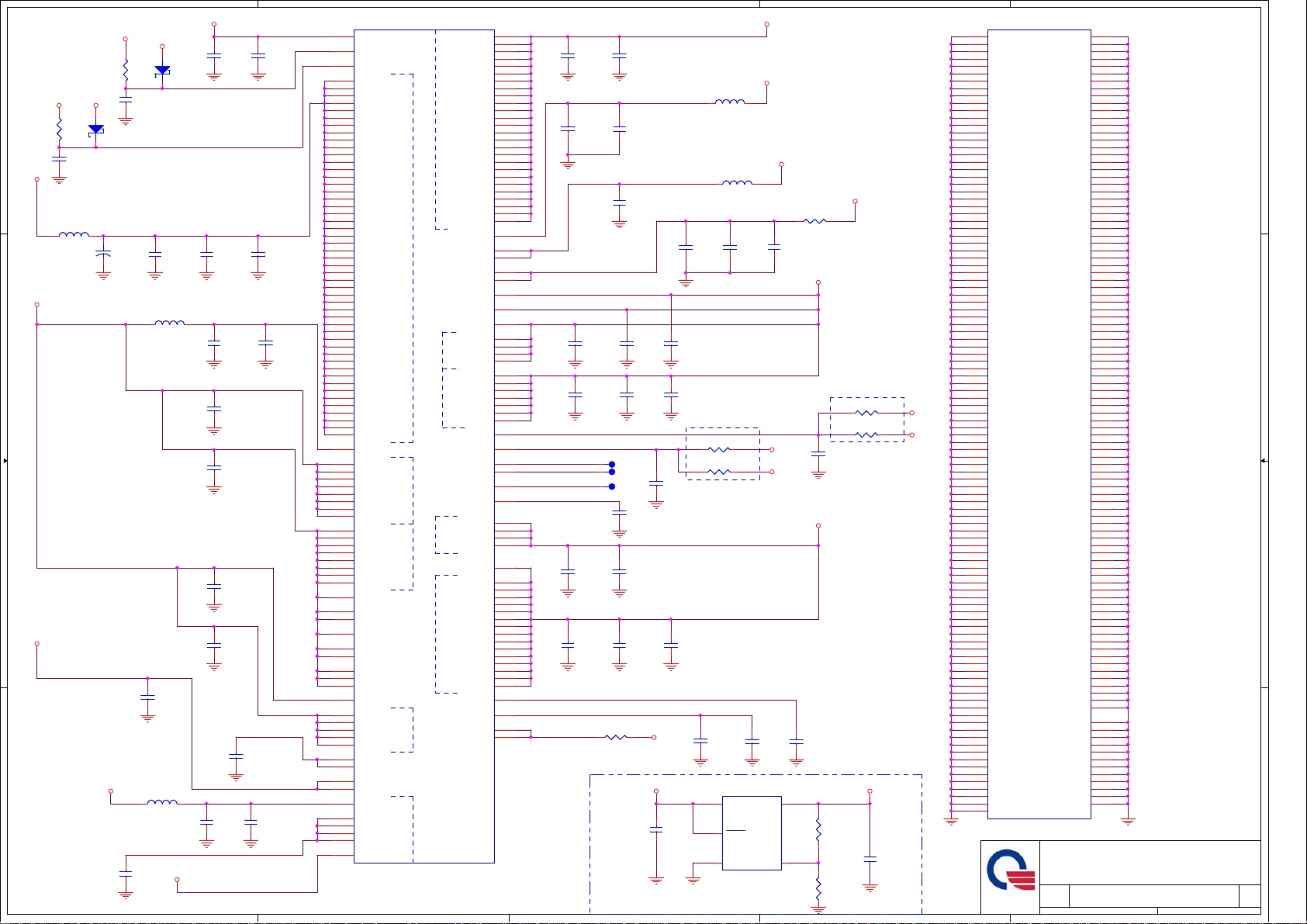

U19C
U19C
A7
VCC[001]
A9
VCC[002]
A10
VCC[003]
A12
VCC[004]
A13
VCC[005]
A15
VCC[006]
A17
VCC[007]
A18
VCC[008]
A20
VCC[009]
B7
VCC[010]
B9
VCC[011]
B10
VCC[012]
B12
VCC[013]
B14
VCC[014]
B15
VCC[015]
B17
VCC[016]
B18
VCC[017]
B20
VCC[018]
C9
VCC[019]
C10
VCC[020]
C12
VCC[021]
C13
VCC[022]
C15
VCC[023]
C17
VCC[024]
C18
VCC[025]
D9
VCC[026]
D10
VCC[027]
D12
VCC[028]
D14
VCC[029]
D15
VCC[030]
D17
VCC[031]
D18
VCC[032]
E7
VCC[033]
E9
VCC[034]
E10
VCC[035]
E12
VCC[036]
E13
VCC[037]
E15
VCC[038]
E17
VCC[039]
E18
VCC[040]
E20
VCC[041]
F7
VCC[042]
F9
VCC[043]
F10
VCC[044]
F12
VCC[045]
F14
VCC[046]
F15
VCC[047]
F17
VCC[048]
F18
VCC[049]
F20
VCC[050]
AA9
VCC[052]
AA10
VCC[053]
AA12
VCC[054]
AA13
VCC[055]
AA15
VCC[056]
AA17
VCC[057]
AA18
VCC[058]
AA20
VCC[059]
AB9
VCC[060]
AC10
VCC[061]
AB10
VCC[062]
AB12
VCC[063]
AB14
VCC[064]
AB15
VCC[065]
AB17
VCC[066]
AB18
VCC[067]
Penryn Ball-out Rev 1a
Penryn Ball-out Rev 1a
VCC[068]
VCC[069]
VCC[070]
VCC[071]
VCC[072]
VCC[073]
VCC[074]
VCC[075]
VCC[076]
VCC[077]
VCC[078]
VCC[079]
VCC[080]
VCC[081]
VCC[082]
VCC[083]
VCC[084]
VCC[085]
VCC[086]
VCC[087]
VCC[088]
VCC[089]
VCC[090]
VCC[091]
VCC[092]
VCC[093]
VCC[094]
VCC[095]
VCC[096]
VCC[097]
VCC[098]
VCC[099]
VCC[100]
VCCP[01]
VCCP[02]
VCCP[03]
VCCP[04]
VCCP[05]
VCCP[06]
VCCP[07]
VCCP[08]
VCCP[09]
VCCP[10]
VCCP[11]
VCCP[12]
VCCP[13]
VCCP[14]
VCCP[15]
VCCP[16]
VCCA[01]
VCCA[02]
VID[0]
VID[1]
VID[2]
VID[3]
VID[4]
VID[5]
VID[6]
VCCSENSE
VSSSENSE
R313 *0_4R313 *0_4
PQ Modify
R312 *0_4SR312 *0_4S
Q13
Q13
MMBT3904-7-F
MMBT3904-7-F
2
1 3
3
AB20
AB7
AC7
AC9
AC12
AC13
AC15
AC17
AC18
AD7
AD9
AD10
AD12
AD14
AD15
AD17
AD18
AE9
AE10
AE12
AE13
AE15
AE17
AE18
AE20
AF9
AF10
AF12
AF14
AF15
AF17
AF18
AF20
G21
V6
J6
K6
M6
J21
K21
M21
N21
N6
R21
R6
T21
T6
V21
W21
B26
C26
AD6
AF5
AE5
AF4
AE3
AF3
AE2
AF7
AE7
.
.
+1.05V
12
+
+
C563
C563
330u_2.5V_7343
330u_2.5V_7343
R292
R292
100/F_4
100/F_4
+VCORE
D26
D26
*RB501V-40
*RB501V-40
2 1
PQ Modify
2 1
D25
D25
RB501V-40
RB501V-40
R314 10K/F_4R314 10K/F_4
C583
.01U/16V_4
.01U/16V_4
CPU_VID0 35
CPU_VID1 35
CPU_VID2 35
CPU_VID3 35
CPU_VID4 35
CPU_VID5 35
CPU_VID6 35
R291
R291
100/F_4
100/F_4
SYS_SHDN# 32,33
3920_RST# 30,32
ECPWROK 6,21,30
+3V
+1.5V
C575
C575
10U/6.3V_8
10U/6.3V_8
VCCSENSE 35
VSSSENSE 35
2
U19D
U19D
A4
VSS[001]
A8
VSS[002]
A11
VSS[003]
A14
VSS[004]
A16
VSS[005]
A19
VSS[006]
A23
VSS[007]
AF2
VSS[008]
B6
VSS[009]
B8
VSS[010]
B11
VSS[011]
B13
VSS[012]
B16
VSS[013]
B19
VSS[014]
B21
VSS[015]
B24
VSS[016]
C5
VSS[017]
C8
VSS[018]
C11
VSS[019]
C14
VSS[020]
C16
VSS[021]
C19
VSS[022]
C2
VSS[023]
C22
VSS[024]
C25
VSS[025]
D1
VSS[026]
D4
VSS[027]
D11
VSS[029]
D13
VSS[030]
D16
VSS[031]
D19
VSS[032]
D23
VSS[033]
D26
VSS[034]
E3
VSS[035]
E6
VSS[036]
E8
VSS[037]
E11
VSS[038]
E14
VSS[039]
E16
VSS[040]
E19
VSS[041]
E21
VSS[042]
E24
VSS[043]
F5
VSS[044]
F11
VSS[046]
F13
VSS[047]
F16
VSS[048]
F19
VSS[049]
F2
VSS[050]
F22
VSS[051]
F25
VSS[052]
G4
VSS[053]
G1
VSS[054]
G23
VSS[055]
G26
VSS[056]
H3
VSS[057]
H6
VSS[058]
H21
VSS[059]
H24
VSS[060]
J2
VSS[061]
J5
VSS[062]
J22
VSS[063]
J25
VSS[064]
K1
VSS[065]
K4
VSS[066]
K23
VSS[067]
K26
VSS[068]
L3
VSS[069]
L6
VSS[070]
L21
VSS[071]
L24
VSS[072]
M2
VSS[073]
M5
VSS[074]
M22
VSS[075]
M25
VSS[076]
N1
VSS[077]
N4
VSS[078]
N23
VSS[079]
N26
VSS[080]
VSS[081]P3VSS[162]
Penryn Ball-out Rev 1a
Penryn Ball-out Rev 1a
VSS[082]
VSS[083]
VSS[084]
VSS[085]
VSS[086]
VSS[087]
VSS[088]
VSS[089]
VSS[090]
VSS[091]
VSS[092]
VSS[093]
VSS[094]
VSS[095]
VSS[096]
VSS[097]
VSS[098]
VSS[099]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[163]
P6
P21
P24
R2
R5
R22
R25
T1
T4
T23
T26
U3
U6
U21
U24
V2
V5
V22
V25
W1
W4
W23
W26
Y3
Y6
Y21
Y24
AA2
AA5
AA11
AA14
AA16
AA19
AA22
AA25
AB1
AB4
AB8
AB11
AB13
AB16
AB19
AB23
AB26
AC3
AC6
AC11
AC14
AC16
AC19
AC21
AC24
AD2
AD5
AD8
AD11
AD13
AD16
AD19
AD22
AD25
AE1
AE4
AE11
AE14
AE16
AE19
AE23
AE26
A2
AF6
AF8
AF11
AF13
AF16
AF19
AF21
A25
AF25
.
.
1
04
PM_THRM_R#
R300
R300
*0_6S
*0_6S
SYS_SHDN-1#
PM_THRM# 21
PV Modify
5
4
2 1
D27
D27
*RB501V-40
*RB501V-40
3
VGA_OVT# 15
SYS_SHDN-1# 29
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Penryn & TH Monitor 2/2
Penryn & TH Monitor 2/2
NB5
NB5
2
NB5
Penryn & TH Monitor 2/2
Date: Sheet of
Date: Sheet of
Date: Sheet of
4 39Tuesday, May 05, 2009
4 39Tuesday, May 05, 2009
4 39Tuesday, May 05, 2009
1
1A
1A
1A
Page 5
5
4
3
2
1
AD14
AA13
AA11
AD11
AD10
AD13
AE12
AE14
AE11
AG2
M11
N12
P13
N10
Y10
Y12
Y14
AA8
AA9
AE9
AA2
AD8
AA3
AD3
AD7
AF3
AC1
AE3
AC3
AE8
AD6
C12
E11
A11
B11
F2
G8
F8
E6
G2
H6
H2
F6
D4
H3
M9
J1
J2
J6
P2
L2
R2
N9
L6
M5
J3
N2
R1
N5
N6
N8
L7
M3
Y3
Y6
Y7
W2
Y9
C5
E3
+1.05V2,3,4,6,8,9,19,22,29,34,35
U24A
U24A
H_D#_0
H_D#_1
H_D#_2
H_D#_3
H_D#_4
H_D#_5
H_D#_6
H_D#_7
H_D#_8
H_D#_9
H_D#_10
H_D#_11
H_D#_12
H_D#_13
H_D#_14
H_D#_15
H_D#_16
H_D#_17
H_D#_18
H_D#_19
H_D#_20
H_D#_21
H_D#_22
H_D#_23
H_D#_24
H_D#_25
H_D#_26
H_D#_27
H_D#_28
H_D#_29
H_D#_30
H_D#_31
H_D#_32
H_D#_33
H_D#_34
H_D#_35
H_D#_36
H_D#_37
H_D#_38
H_D#_39
H_D#_40
H_D#_41
H_D#_42
H_D#_43
H_D#_44
H_D#_45
H_D#_46
H_D#_47
H_D#_48
H_D#_49
H_D#_50
H_D#_51
H_D#_52
H_D#_53
H_D#_54
H_D#_55
H_D#_56
H_D#_57
H_D#_58
H_D#_59
H_D#_60
H_D#_61
H_D#_62
H_D#_63
H_SWING
H_RCOMP
H_CPURST#
H_CPUSLP#
H_AVREF
H_DVREF
CANTIGA_GM
CANTIGA_GM
H_A#_3
H_A#_4
H_A#_5
H_A#_6
H_A#_7
H_A#_8
H_A#_9
H_A#_10
H_A#_11
H_A#_12
H_A#_13
H_A#_14
H_A#_15
H_A#_16
H_A#_17
H_A#_18
H_A#_19
H_A#_20
H_A#_21
H_A#_22
H_A#_23
H_A#_24
H_A#_25
H_A#_26
H_A#_27
H_A#_28
H_A#_29
H_A#_30
H_A#_31
H_A#_32
H_A#_33
H_A#_34
H_A#_35
H_ADS#
H_ADSTB#_0
H_ADSTB#_1
H_BNR#
H_BPRI#
H_BREQ#
H_DEFER#
H_DBSY#
HPLL_CLK
HPLL_CLK#
H_DPWR#
H_DRDY#
H_HIT#
H_HITM#
HOST
HOST
H_LOCK#
H_TRDY#
H_DINV#_0
H_DINV#_1
H_DINV#_2
H_DINV#_3
H_DSTBN#_0
H_DSTBN#_1
H_DSTBN#_2
H_DSTBN#_3
H_DSTBP#_0
H_DSTBP#_1
H_DSTBP#_2
H_DSTBP#_3
H_REQ#_0
H_REQ#_1
H_REQ#_2
H_REQ#_3
H_REQ#_4
H_RS#_0
H_RS#_1
H_RS#_2
A14
C15
F16
H13
C18
M16
J13
P16
R16
N17
M13
E17
P17
F17
G20
B19
J16
E20
H16
J20
L17
A17
B17
L16
C21
J17
H20
B18
K17
B20
F21
K21
L20
H12
B16
G17
A9
F11
G12
E9
B10
AH7
AH6
J11
F9
H9
E12
H11
C9
J8
L3
Y13
Y1
L10
M7
AA5
AE6
L9
M8
AA6
AE5
B15
K13
F13
B13
B14
B6
F12
C8
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_RS#0
H_RS#1
H_RS#2
H_A#[35:3] 3
H_ADS# 3
H_ADSTB#0 3
H_ADSTB#1 3
H_BNR# 3
H_BPRI# 3
HBREQ#0 3
H_DEFER# 3
H_DBSY# 3
CLK_MCH_BCLK 2
CLK_MCH_BCLK# 2
H_DPWR# 3
H_DRDY# 3
H_HIT# 3
H_HITM# 3
H_LOCK# 3
H_TRDY# 3
H_DINV#0 3
H_DINV#1 3
H_DINV#2 3
H_DINV#3 3
H_DSTBN#0 3
H_DSTBN#1 3
H_DSTBN#2 3
H_DSTBN#3 3
H_DSTBP#0 3
H_DSTBP#1 3
H_DSTBP#2 3
H_DSTBP#3 3
H_REQ#[4:0] 3
05
U24J
U24I
U24I
AU48
VSS_1
AR48
VSS_2
AL48
VSS_3
BB47
VSS_4
AW47
VSS_5
AN47
VSS_6
AJ47
VSS_7
AF47
VSS_8
AD47
D D
C C
B B
A A
AB47
BD46
BA46
AY46
AV46
AR46
AM46
BF44
AH44
AD44
AA44
M44
BC43
AV43
AU43
AM43
C43
BG42
AY42
AT42
AN42
AJ42
AE42
N42
BD41
AU41
AM41
AH41
AD41
AA41
U41
M41
G41
B41
BG40
BB40
AV40
AN40
H40
E40
AT39
AM39
AJ39
AE39
N39
B39
BH38
BC38
BA38
AU38
AH38
AD38
AA38
U38
C38
BF37
BB37
AW37
AT37
AN37
AJ37
H37
C37
BG36
BD36
AK15
AU36
Y47
T47
N47
L47
G47
V46
R46
P46
H46
F46
Y44
U44
T44
F44
J43
L42
Y41
T41
L39
Y38
T38
J38
F38
VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80
VSS_81
VSS_82
VSS_83
VSS_84
VSS_85
VSS_86
VSS_87
VSS_88
VSS_89
VSS_90
VSS_91
VSS_92
VSS_93
VSS_94
VSS_95
VSS_96
VSS_97
VSS_98
VSS_99
CANTIGA_GM
CANTIGA_GM
S
S
VS
VS
VSS_100
VSS_101
VSS_102
VSS_103
VSS_104
VSS_105
VSS_106
VSS_107
VSS_108
VSS_109
VSS_110
VSS_111
VSS_112
VSS_113
VSS_114
VSS_115
VSS_116
VSS_117
VSS_118
VSS_119
VSS_120
VSS_121
VSS_122
VSS_123
VSS_124
VSS_125
VSS_126
VSS_127
VSS_128
VSS_129
VSS_130
VSS_131
VSS_132
VSS_133
VSS_134
VSS_135
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199
AM36
AE36
P36
L36
J36
F36
B36
AH35
AA35
Y35
U35
T35
BF34
AM34
AJ34
AF34
AE34
W34
B34
A34
BG33
BC33
BA33
AV33
AR33
AL33
AH33
AB33
P33
L33
H33
N32
K32
F32
C32
A31
AN29
T29
N29
K29
H29
F29
A29
BG28
BD28
BA28
AV28
AT28
AR28
AJ28
AG28
AE28
AB28
Y28
P28
K28
H28
F28
C28
BF26
AH26
AF26
AB26
AA26
C26
B26
BH25
BD25
BB25
AV25
AR25
AJ25
AC25
Y25
N25
L25
J25
G25
E25
BF24
AD12
AY24
AT24
AJ24
AH24
AF24
AB24
R24
L24
K24
J24
G24
F24
E24
BH23
AG23
Y23
B23
A23
AJ6
BG21
AW21
AU21
AP21
AN21
AH21
AF21
AB21
BC20
BA20
AW20
AT20
AJ20
AG20
BG19
BG17
BC17
AW17
AT17
BA16
AU16
AN16
BG15
AC15
W15
BG14
AA14
BG13
BC13
BA13
AN13
AJ13
AE13
BF12
AV12
AT12
AM12
AA12
BD11
BB11
AY11
AN11
AH11
BG10
AV10
AT10
AJ10
AE10
AA10
AM9
R21
M21
G21
Y20
N20
K20
F20
C20
A20
A18
R17
M17
H17
C17
N16
K16
G16
E16
A15
C14
N13
G13
E13
A12
Y11
N11
G11
C11
M10
BF9
BC9
AN9
AD9
BH8
BB8
AV8
AT8
L12
J21
L13
J12
G9
B9
U24J
VSS_199
VSS_200
VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211
VSS_212
VSS_213
VSS_214
VSS_215
VSS_216
VSS_217
VSS_218
VSS_219
VSS_220
VSS_221
VSS_222
VSS_223
VSS_224
VSS_225
VSS_226
VSS_227
VSS_228
VSS_229
VSS_230
VSS_231
VSS_232
VSS_233
VSS_235
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242
VSS_243
VSS_244
VSS_245
VSS_246
VSS_247
VSS_248
VSS_249
VSS_250
VSS_251
VSS_252
VSS_255
VSS_256
VSS_257
VSS_258
VSS_259
VSS_260
VSS_261
VSS_262
VSS_263
VSS_264
VSS_265
VSS_266
VSS_267
VSS_268
VSS_269
VSS_270
VSS_271
VSS_272
VSS_273
VSS_275
VSS_276
VSS_277
VSS_278
VSS_279
VSS_280
VSS_281
VSS_282
VSS_283
VSS_284
VSS_285
VSS_286
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293
VSS_294
VSS_295
VSS_296
CANTIGA_GM
CANTIGA_GM
VSS
VSS
VSS_NCTF_1
VSS_NCTF_2
VSS_NCTF_3
VSS_NCTF_4
VSS_NCTF_5
VSS_NCTF_6
VSS_NCTF_7
VSS_NCTF_8
VSS_NCTF_9
VSS_NCTF_10
VSS_NCTF_11
VSS_NCTF_12
VSS_NCTF_13
VSS_NCTF_14
VSS NCTF
VSS NCTF
VSS_NCTF_15
VSS_NCTF_16
VSS_SCB_1
VSS_SCB_2
VSS_SCB_3
VSS_SCB_4
VSS_SCB_5
VSS SCB
VSS SCB
NC
NC
VSS_297
VSS_298
VSS_299
VSS_300
VSS_301
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307
VSS_308
VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
VSS_314
VSS_315
VSS_316
VSS_317
VSS_318
VSS_319
VSS_320
VSS_321
VSS_322
VSS_323
VSS_324
VSS_325
VSS_327
VSS_328
VSS_329
VSS_330
VSS_331
VSS_332
VSS_333
VSS_334
VSS_335
VSS_336
VSS_337
VSS_338
VSS_339
VSS_340
VSS_341
VSS_342
VSS_343
VSS_344
VSS_345
VSS_346
VSS_347
VSS_348
VSS_349
VSS_350
VSS_351
VSS_352
VSS_353
VSS_354
NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_42
AH8
Y8
L8
E8
B8
AY7
AU7
AN7
AJ7
AE7
AA7
N7
J7
BG6
BD6
AV6
AT6
AM6
M6
C6
BA5
AH5
AD5
Y5
L5
J5
H5
F5
BE4
BC3
AV3
AL3
R3
P3
F3
BA2
AW2
AU2
AR2
AP2
AJ2
AH2
AF2
AE2
AD2
AC2
Y2
M2
K2
AM1
AA1
P1
H1
U24
U28
U25
U29
AF32
AB32
V32
AJ30
AM29
AF29
AB29
U26
U23
AL20
V20
AC19
AL17
AJ17
AA17
U17
BH48
BH1
A48
C1
A3
E1
D2
C3
B4
A5
A6
A43
A44
B45
C46
D47
B47
A46
F48
E48
C48
B48
+1.05V
+1.05V
R340
R340
221/F_4
221/F_4
R337
R337
100/F_4
100/F_4
R48
R48
24.9/F_4
24.9/F_4
R365
R365
1K/F_4
1K/F_4
R359
R359
2K/F_4
2K/F_4
H_D#[63:0]3
H_SWING
C607
C607
.1U/10V_4
.1U/10V_4
H_RCOMP
H_CPURST#3
H_CPUSLP#3 H_RS#[2:0] 3
C615
C615
.1U/10V_4
.1U/10V_4
H_AVREF
H_AVREF
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
H_SWING
H_RCOMP
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
5
4
3
2
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
Cantiga Host & VSS 1/5
Cantiga Host & VSS 1/5
Cantiga Host & VSS 1/5
1
5 39Tuesday, May 05, 2009
5 39Tuesday, May 05, 2009
5 39Tuesday, May 05, 2009
1A
1A
1A
Page 6
5
MCH_CFG_5 DMIx2 selection
Low: DMIx2
High: DMIx4 (Default)
MCH_CFG_16 FSB Dynamic ODT
Low: Dynamic ODT disabled
High: Dynamic ODT enabled (Default)
MCH_CFG_9 PCI Express Graphic Lane
Low: Reverse Lane
High: Normal operation(Default)
D D
MCH_CFG_19 DMI Lane Reversal
MCH_CFG_6 iTPM Host Interface
Low: iTPM Host Interface enabled
High: iTPM Host Interface disabled (Default)
MCH_CFG_7 Intel (R) Management Engine Crypto
Low: Intel (R) Management Engine Crypto
TLS cipher suite with no confidentiality
High: Intel (R) Management Engine Crypto
TLS cipher suite with no confidentiality (Default)
MCH_CFG_10 PCIe Lookback Enable
Low: Enabled
High: Disabled (Default)
MCH_CFG_12/13 XOR/ALLZ/CLOCK Un-gating
MCH_CFG_13 MCH_CFG_12
0 0
1
0
0
1
1 1
C C
MCH_BSEL02
MCH_BSEL12
MCH_BSEL22
R75 *2.2K_4R75 *2.2K_4
B B
PM_SYNC#21
H_DPRSTP#3,19,35
PM_EXTTS#010,11
PM_EXTTS#111
DELAY_VR_PWRGOOD21,35
PLT_RST-R#12,20
PM_THRMTRIP#3,19
DPRSLPVR21,35
+3V
R91 10K/F_4R91 10K/F_4
R85 10K/F_4R85 10K/F_4
A A
ACZ_BITCLK_MCH
R405
R405
*33_4
*33_4
C656
C656
*33P/50V_4
*33P/50V_4
Configuration
Reserved
XOR Mode enabled
All-Z Mode enabled
Normal operation (Default)
For iTPM
5
TP28TP28
TP25TP25
TP21TP21
TP20TP20
MCH_CFG_3
TP3TP3
MCH_CFG_4
TP13TP13
MCH_CFG_5
TP58TP58
MCH_CFG_6
MCH_CFG_7
TP14TP14
MCH_CFG_8
TP8TP8
MCH_CFG_9
TP6TP6
MCH_CFG_10
TP12TP12
MCH_CFG_11
TP7TP7
MCH_CFG_12
TP10TP10
MCH_CFG_13
TP11TP11
MCH_CFG_14
TP5TP5
MCH_CFG_15
TP4TP4
MCH_CFG_16
TP2TP2
MCH_CFG_17
TP9TP9
MCH_CFG_18
TP18TP18
MCH_CFG_19
TP16TP16
MCH_CFG_20
TP19TP19
PM_EXTTS#0
PM_EXTTS#1
R55 100/F_4R55 100/F_4
RST_IN#_MCH
PM_EXTTS#0
PM_EXTTS#1 MCH_TSATN
AH10
AH12
AH13
AY21
BG23
BF23
BH18
BF18
AL34
AK34
AN35
AM35
AT40
AT11
BG48
BF48
BD48
BC48
BH47
BG47
BE47
BH46
BF46
BG45
BH44
BH43
M36
N36
R33
T33
AH9
K12
T24
B31
B2
M1
T25
R25
P25
P20
P24
C25
N24
M24
E21
C23
C24
N21
P21
T21
R20
M20
L21
H21
P29
R28
T28
R29
B7
N33
P32
T20
R32
BH6
BH5
BG4
BH3
BF3
BH2
BG2
BE2
BG1
BF1
BD1
BC1
F1
A47
U24B
U24B
RSVD1
RSVD2
RSVD3
RSVD4
RSVD5
RSVD6
RSVD7
RSVD8
RSVD9
RSVD14
RSVD15
RSVD16
RSVD17
RSVD20
RSVD22
RSVD23
RSVD24
RSVD25
ME_JTAG_TCK
ME_JTAG_TDI
ME_JTAG_TDO
ME_JTAG_TMS
CFG_0
CFG_1
CFG_2
CFG_3
CFG_4
CFG_5
CFG_6
CFG_7
CFG_8
CFG_9
CFG_10
CFG_11
CFG_12
CFG_13
CFG_14
CFG_15
CFG_16
CFG_17
CFG_18
CFG_19
CFG_20
PM_SYNC#
PM_DPRSTP#
PM_EXT_TS#_0
PM_EXT_TS#_1
PWROK
RSTIN#
THERMTRIP#
DPRSLPVR
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21
NC_22
NC_23
NC_24
NC_25
NC_26
CANTIGA_GM
CANTIGA_GM
CFGRSVD
CFGRSVD
PM
PM
NC
NC
4
+3V2,4,9,10,11,12,14,15,17,18,19,20,21,22,24,25,26,28,29,30,31,35,36,38
+1.8VSUS8,9,10,29,34,37
+1.05V2,3,4,5,8,9,19,22,29,34,35
+1.05V_PEG2,3,4,5,8,9,19,22,29,34,35
AP24
SA_CK_0
AT21
SA_CK_1
AV24
SB_CK_0
AU20
SB_CK_1
AR24
SA_CK#_0
AR21
SA_CK#_1
AU24
SB_CK#_0
AV20
SB_CK#_1
BC28
SA_CKE_0
AY28
SA_CKE_1
AY36
SB_CKE_0
BB36
SB_CKE_1
BA17
SA_CS#_0
AY16
SA_CS#_1
AV16
SB_CS#_0
AR13
SB_CS#_1
BD17
SA_ODT_0
AY17
SA_ODT_1
BF15
SB_ODT_0
AY13
SB_ODT_1
BG22
SM_RCOMP
BH21
SM_RCOMP#
SM_VREF
SM_PWROK
SM_REXT
PEG_CLK
PEG_CLK#
DMI_RXN_0
DMI_RXN_1
DMI_RXN_2
DMI_RXN_3
DMI_RXP_0
DMI_RXP_1
DMI_RXP_2
DMI_RXP_3
DMI_TXN_0
DMI_TXN_1
DMI_TXN_2
DMI_TXN_3
DMI_TXP_0
DMI_TXP_1
DMI_TXP_2
DMI_TXP_3
GFX_VID_0
GFX_VID_1
GFX_VID_2
GFX_VID_3
GFX_VID_4
GFX_VR_EN
CL_CLK
CL_DATA
CL_PWROK
CL_RST#
CL_VREF
CLKREQ#
ICH_SYNC#
TSATN#
HDA_BCLK
HDA_RST#
HDA_SDI
HDA_SDO
HDA_SYNC
BF28
BH28
AV42
AR36
BF17
BC36
B38
A38
E41
F41
F43
E43
AE41
AE37
AE47
AH39
AE40
AE38
AE48
AH40
AE35
AE43
AE46
AH42
AD35
AE44
AF46
AH43
B33
B32
G33
F33
E33
C34
AH37
AH36
AN36
AJ35
AH34
N28
M28
G36
E36
K36
H36
B12
B28
B30
B29
C29
A28
SM_RCOMP_VOH
SM_RCOMP_VOL
SM_DRAMRST#
DDR CLK/ CONTROL/COMPENSATION
DDR CLK/ CONTROL/COMPENSATION
DPLL_REF_CLK
DPLL_REF_CLK#
ME JTAG
ME JTAG
DPLL_REF_SSCLK
DPLL_REF_SSCLK#
CLK
CLK
DMI
DMI
GRAPHICS VID
GRAPHICS VID
MEHDA
MEHDA
DDPC_CTRLCLK
DDPC_CTRLDATA
SDVO_CTRLCLK
SDVO_CTRLDATA
MISC
MISC
4
M_A_CLK0 10
M_A_CLK1 10
M_B_CLK0 10
M_B_CLK1 10
M_A_CLK0# 10
M_A_CLK1# 10
M_B_CLK0# 10
M_B_CLK1# 10
M_A_CKE0 10,11
M_A_CKE1 10,11
M_B_CKE0 10,11
M_B_CKE1 10,11
M_A_CS#0 10,11
M_A_CS#1 10,11
M_B_CS#0 10,11
M_B_CS#1 10,11
M_A_ODT0 10,11
M_A_ODT1 10,11
M_B_ODT0 10,11
M_B_ODT1 10,11
SM_RCOMP
SM_RCOMP#
SM_RCOMP_VOH
SM_RCOMP_VOL
+0.9VSMVREF_MCH
SW_PWROK_NB
SM_REXT
TP_SM_DRAMRST#
DREFCLK 2
DREFCLK# 2
DREFSSCLK 2
DREFSSCLK# 2
CLK_PCIE_3GPLL 2
CLK_PCIE_3GPLL# 2
DMI_TXN0
DMI_TXN1
DMI_TXN2
DMI_TXN3
DMI_TXP0
DMI_TXP1
DMI_TXP2
DMI_TXP3
DMI_RXN0
DMI_RXN1
DMI_RXN2
DMI_RXN3
DMI_RXP0
DMI_RXP1
DMI_RXP2
DMI_RXP3
GFXVR_VID_0
GFXVR_VID_1
GFXVR_VID_2
GFXVR_VID_3
GFXVR_VID_4
GFXVR_EN
CL_CLK0 21
CL_DATA0 21
ECPWROK 4,21,30
CL_RST#0 21
DDPC_CTRLCLK
DDPPC_CTRLDATA
ACZ_SDIN3_MCH
R54 56.2/F_4R54 56.2/F_4
R410 *33_4R410 *33_4
R77 80.6/F_4R77 80.6/F_4
R70 80.6/F_4R70 80.6/F_4
R97 10K/F_4R97 10K/F_4
R63 499/F_4R63 499/F_4
TP26TP26
DMI_TXN[3:0] 20
DMI_TXP[3:0] 20
DMI_RXN[3:0] 20
DMI_RXP[3:0] 20
TP60TP60
TP59TP59
TP23TP23
TP22TP22
TP24TP24
TP61TP61
TP17TP17
TP15TP15
SDVO_CLK 18
SDVO_DATA 18
CLK_MCH_OE# 2
MCH_ICH_SYNC# 21
+1.8VSUS
MCH_CLVREF
C305
C305
.1U/10V_4
.1U/10V_4
ACZ_BITCLK_MCH 19
ACZ_RST#_MCH 19
ACZ_SDIN3 19
ACZ_SDOUT_MCH 19
ACZ_SYNC_MCH 19
3
DPST_PWM15,17
LVDS_BLON15,17
EDIDCLK14,15,17
EDIDDATA14,15,17
DISP_ON15,17
+1.05V
R117
R117
1K/F_4
1K/F_4
R118
R118
499/F_4
499/F_4
+1.05V
+0.9VSMVREF_MCH
3
DDCCLK15,18
DDCDATA15,18
HSYNC_COM14,18
VSYNC_COM14,18
C286
C286
.1U/10V_4
.1U/10V_4
2
U24C
UMA
R370 *0_4R370 *0_4
R89 *0_4R89 *0_4
R93 *10K/F_4R93 *10K/F_4
+3V
R92 *10K/F_4R92 *10K/F_4
R361 *0_4R361 *0_4
R366 *0_4R366 *0_4
R376 *0_4R376 *0_4
R421 *2.37K/F_4R421 *2.37K/F_4
LA_DATAN017
LA_DATAN117
LA_DATAN217
LA_DATAP017
LA_DATAP117
LA_DATAP217
LB_DATAN017
LB_DATAN117
LB_DATAN217
LB_DATAP017
LB_DATAP117
LB_DATAP217
R76 0_4R76 0_4
R72 0_4R72 0_4
R74 0_4R74 0_4
R396 *0_4R396 *0_4
R398 *0_4R398 *0_4
CRT_B14,18
CRT_G14,18
CRT_R14,18
R400 *0_4R400 *0_4
R78 0_4R78 0_4
R401 *0_4R401 *0_4
R80 0_4R80 0_4
R403 *0_4R403 *0_4
R82 0_4R82 0_4
R100 *0_4R100 *0_4
R99 *0_4R99 *0_4
R90 *33_4R90 *33_4
R87 *33_4R87 *33_4
SM_RCOMP_VOH
SM_RCOMP_VOL
C285
C285
470P/50V_4
470P/50V_4
LA_CLK#17
LA_CLK17
LB_CLK#17
LB_CLK17
UMA
UMA
+1.8VSUS
TP64TP64
TP63TP63
TP62TP62
TP27TP27
TP29TP29
C217
C217
.01U/16V_4
.01U/16V_4
C201
C201
.01U/16V_4
.01U/16V_4
R115
R115
*1K/F_4
*1K/F_4
R116 *0_4SR116 *0_4S
R112
R112
*1K/F_4
*1K/F_4
DPST_PWM_INT
LVDS_BLON_INT
L_CTRL_CLK
L_CTRL_DATA
EDIDCLK_INT
EDIDDATA_INT
DISP_ON_INT
LVDS_IBG
LVDS_VBG
LA_DATAN3
LA_DATAP3
LB_DATAN3
LB_DATAP3
TV_COMP1
TV_Y/G1
TV_C/R1
TV_DCONSEL1
TV_DCONSEL0
CRT_B_1
CRT_G_1
CRT_R_1
DDCCLK_INT
DDCDATA_INT
HSYNC_INT
CRTIREF
VSYNC_INT
U24C
L32
L_BKLT_CTRL
G32
L_BKLT_EN
M32
L_CTRL_CLK
M33
L_CTRL_DATA
K33
L_DDC_CLK
J33
L_DDC_DATA
M29
L_VDD_EN
C44
LVDS_IBG
B43
LVDS_VBG
E37
LVDS_VREFH
E38
LVDS_VREFL
C41
LVDSA_CLK#
C40
LVDSA_CLK
B37
LVDSB_CLK#
A37
LVDSB_CLK
H47
LVDSA_DATA#_0
E46
LVDSA_DATA#_1
G40
LVDSA_DATA#_2
A40
LVDSA_DATA#_3
H48
LVDSA_DATA_0
D45
LVDSA_DATA_1
F40
LVDSA_DATA_2
B40
LVDSA_DATA_3
A41
LVDSB_DATA#_0
H38
LVDSB_DATA#_1
G37
LVDSB_DATA#_2
J37
LVDSB_DATA#_3
B42
LVDSB_DATA_0
G38
LVDSB_DATA_1
F37
LVDSB_DATA_2
K37
LVDSB_DATA_3
F25
TVA_DAC
H25
TVB_DAC
K25
TVC_DAC
H24
TV_RTN
C31
TV_DCONSEL_0
E32
TV_DCONSEL_1
E28
CRT_BLUE
G28
CRT_GREEN
J28
CRT_RED
G29
CRT_IRTN
H32
CRT_DDC_CLK
J32
CRT_DDC_DATA
J29
CRT_HSYNC
E29
CRT_TVO_IREF
L29
CRT_VSYNC
CANTIGA_GM
CANTIGA_GM
+1.8VSUS
C200
C200
2.2U/6.3V_6
2.2U/6.3V_6
C220
C220
2.2U/6.3V_6
2.2U/6.3V_6
PQ Modify
2
R88
R88
1K/F_4
1K/F_4
12
R95
R95
3.01K/F_4
3.01K/F_4
R83
R83
1K/F_4
1K/F_4 R529
+0.9VSMVREF 10,37
LVDS
LVDS
TV
TV
VGA
VGA
PEG_TX#[15:0]
PEG_TX[15:0]
PEG_RX#[15:0]
PEG_RX[15:0]
PCI-EXPRESS GRAPHICS
PCI-EXPRESS GRAPHICS
PEG_TX0
PEG_TX#0
PEG_TX1
PEG_TX#1
PEG_TX2
PEG_TX#2
PEG_TX3
PEG_TX#3
C416,C423,C440,C431
C419,C418,C430,C424
R371 *20K/F_4R371 *20K/F_4
+3V
PEG_TX#[15:0] 12
PEG_TX[15:0] 12
PEG_RX#[15:0] 12
PEG_RX[15:0] 12
T37
PEG_COMPI
T36
PEG_COMPO
H44
PEG_RX#_0
J46
PEG_RX#_1
L44
PEG_RX#_2
L40
PEG_RX#_3
N41
PEG_RX#_4
P48
PEG_RX#_5
N44
PEG_RX#_6
T43
PEG_RX#_7
U43
PEG_RX#_8
Y43
PEG_RX#_9
Y48
PEG_RX#_10
Y36
PEG_RX#_11
AA43
PEG_RX#_12
AD37
PEG_RX#_13
AC47
PEG_RX#_14
AD39
PEG_RX#_15
H43
PEG_RX_0
J44
PEG_RX_1
L43
PEG_RX_2
L41
PEG_RX_3
N40
PEG_RX_4
P47
PEG_RX_5
N43
PEG_RX_6
T42
PEG_RX_7
U42
PEG_RX_8
Y42
PEG_RX_9
W47
PEG_RX_10
Y37
PEG_RX_11
AA42
PEG_RX_12
AD36
PEG_RX_13
AC48
PEG_RX_14
AD40
PEG_RX_15
PEG_TX#_0
PEG_TX#_1
PEG_TX#_2
PEG_TX#_3
PEG_TX#_4
PEG_TX#_5
PEG_TX#_6
PEG_TX#_7
PEG_TX#_8
PEG_TX#_9
PEG_TX#_10
PEG_TX#_11
PEG_TX#_12
PEG_TX#_13
PEG_TX#_14
PEG_TX#_15
PEG_TX_0
PEG_TX_1
PEG_TX_2
PEG_TX_3
PEG_TX_4
PEG_TX_5
PEG_TX_6
PEG_TX_7
PEG_TX_8
PEG_TX_9
PEG_TX_10
PEG_TX_11
PEG_TX_12
PEG_TX_13
PEG_TX_14
PEG_TX_15
C_PEG_TX#0
J41
C_PEG_TX#1
M46
C_PEG_TX#2
M47
C_PEG_TX#3
M40
C_PEG_TX#4
M42
C_PEG_TX#5
R48
C_PEG_TX#6
N38
C_PEG_TX#7
T40
C_PEG_TX#8
U37
C_PEG_TX#9
U40
C_PEG_TX#10
Y40
C_PEG_TX#11
AA46
C_PEG_TX#12
AA37
C_PEG_TX#13
AA40
C_PEG_TX#14
AD43
C_PEG_TX#15
AC46
C_PEG_TX0
J42
C_PEG_TX1
L46
C_PEG_TX2
M48
C_PEG_TX3
M39
C_PEG_TX4
M43
C_PEG_TX5
R47
C_PEG_TX6
N37
C_PEG_TX7
T39
C_PEG_TX8
U36
C_PEG_TX9
U39
C_PEG_TX10
Y39
C_PEG_TX11
Y46
C_PEG_TX12
AA36
C_PEG_TX13
AA39
C_PEG_TX14
AD42
C_PEG_TX15
AD46
For UMA HDMI Function
RP39 *4P2R-S-0RP39 *4P2R-S-0
4
2
RP43 *4P2R-S-0RP43 *4P2R-S-0
4
2
RP44 *4P2R-S-0RP44 *4P2R-S-0
2
4
RP42 *4P2R-S-0RP42 *4P2R-S-0
2
4
Need to install for GM
DV2 Modify
HDMI_HPD_CON18
HPD# Inverting Level Shifting Circuit
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
NB5
NB5
NB5
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
PEG_COMP
R94 49.9/F_4R94 49.9/F_4
PEG_RX#0
PEG_RX#1
PEG_RX#2
PEG_RX#3
PEG_RX#4
PEG_RX#5
PEG_RX#6
PEG_RX#7
PEG_RX#8
PEG_RX#9
PEG_RX#10
PEG_RX#11
PEG_RX#12
PEG_RX#13
PEG_RX#14
PEG_RX#15
PEG_RX0
PEG_RX1
PEG_RX2
PEG_RX3
PEG_RX4
PEG_RX5
PEG_RX6
PEG_RX7
PEG_RX8
PEG_RX9
PEG_RX10
PEG_RX11
PEG_RX12
PEG_RX13
PEG_RX14
PEG_RX15
3
1
3
1
1
3
1
3
R529
*0_4
*0_4
R341
R341
*100K/F_4
*100K/F_4
Cantiga DMI/DISP 2/5
Cantiga DMI/DISP 2/5
Cantiga DMI/DISP 2/5
2
Des
C303 .1U/10V_4C303 .1U/10V_4
C314 .1U/10V_4C314 .1U/10V_4
C319 .1U/10V_4C319 .1U/10V_4
C311 .1U/10V_4C311 .1U/10V_4
C343 .1U/10V_4C343 .1U/10V_4
C347 .1U/10V_4C347 .1U/10V_4
C313 .1U/10V_4C313 .1U/10V_4
C346 .1U/10V_4C346 .1U/10V_4
C350 .1U/10V_4C350 .1U/10V_4
C306 .1U/10V_4C306 .1U/10V_4
C351 .1U/10V_4C351 .1U/10V_4
C309 .1U/10V_4C309 .1U/10V_4
C316 .1U/10V_4C316 .1U/10V_4
C320 .1U/10V_4C320 .1U/10V_4
C353 .1U/10V_4C353 .1U/10V_4
C355 .1U/10V_4C355 .1U/10V_4
C304 .1U/10V_4C304 .1U/10V_4
C315 .1U/10V_4C315 .1U/10V_4
C318 .1U/10V_4C318 .1U/10V_4
C310 .1U/10V_4C310 .1U/10V_4
C344 .1U/10V_4C344 .1U/10V_4
C348 .1U/10V_4C348 .1U/10V_4
C312 .1U/10V_4C312 .1U/10V_4
C345 .1U/10V_4C345 .1U/10V_4
C349 .1U/10V_4C349 .1U/10V_4
C307 .1U/10V_4C307 .1U/10V_4
C352 .1U/10V_4C352 .1U/10V_4
C308 .1U/10V_4C308 .1U/10V_4R81 0_4R81 0_4
C317 .1U/10V_4C317 .1U/10V_4
C321 .1U/10V_4C321 .1U/10V_4
C354 .1U/10V_4C354 .1U/10V_4
C356 .1U/10V_4C356 .1U/10V_4
HDMI_HPD#
3
Q16
Q16
*2N7002
*2N7002
1
1
06
+1.05V_PEG
UMA
HDMI_HPD#
R119*0_4 R119*0_4
IN_D2 18
IN_D2# 18
IN_D1 18
IN_D1# 18
IN_D0 18
IN_D0# 18
IN_CLK 18
IN_CLK# 18
Level: 0.9V
R377
R377
*7.5K/F_4
*7.5K/F_4
6 39Tuesday, May 05, 2009
6 39Tuesday, May 05, 2009
6 39Tuesday, May 05, 2009
PEG_TX#0
PEG_TX#1
PEG_TX#2
PEG_TX#3
PEG_TX#4
PEG_TX#5
PEG_TX#6
PEG_TX#7
PEG_TX#8
PEG_TX#9
PEG_TX#10
PEG_TX#11
PEG_TX#12
PEG_TX#13
PEG_TX#14
PEG_TX#15
PEG_TX0
PEG_TX1
PEG_TX2
PEG_TX3
PEG_TX4
PEG_TX5
PEG_TX6
PEG_TX7
PEG_TX8
PEG_TX9
PEG_TX10
PEG_TX11
PEG_TX12
PEG_TX13
PEG_TX14
PEG_TX15
1A
1A
1A
Page 7
5
4
3
2
1
07
D D
M_A_DQ[63:0]10
C C
B B
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
AJ38
AJ41
AN38
AM38
AJ36
AJ40
AM44
AM42
AN43
AN44
AU40
AT38
AN41
AN39
AU44
AU42
AV39
AY44
BA40
BD43
AV41
AY43
BB41
BC40
AY37
BD38
AV37
AT36
AY38
BB38
AV36
AW36
BD13
AU11
BC11
BA12
AU13
AV13
BD12
BC12
BB9
AU10
BA11
BD9
AN8
AU5
AU6
AN10
AM11
AM5
AN12
AM13
AJ11
AJ12
BA9
AV9
AY8
BA6
AV5
AV7
AT9
AT5
AJ9
AJ8
U24D
U24D
SA_DQ_0
SA_DQ_1
SA_DQ_2
SA_DQ_3
SA_DQ_4
SA_DQ_5
SA_DQ_6
SA_DQ_7
SA_DQ_8
SA_DQ_9
SA_DQ_10
SA_DQ_11
SA_DQ_12
SA_DQ_13
SA_DQ_14
SA_DQ_15
SA_DQ_16
SA_DQ_17
SA_DQ_18
SA_DQ_19
SA_DQ_20
SA_DQ_21
SA_DQ_22
SA_DQ_23
SA_DQ_24
SA_DQ_25
SA_DQ_26
SA_DQ_27
SA_DQ_28
SA_DQ_29
SA_DQ_30
SA_DQ_31
SA_DQ_32
SA_DQ_33
SA_DQ_34
SA_DQ_35
SA_DQ_36
SA_DQ_37
SA_DQ_38
SA_DQ_39
SA_DQ_40
SA_DQ_41
SA_DQ_42
SA_DQ_43
SA_DQ_44
SA_DQ_45
SA_DQ_46
SA_DQ_47
SA_DQ_48
SA_DQ_49
SA_DQ_50
SA_DQ_51
SA_DQ_52
SA_DQ_53
SA_DQ_54
SA_DQ_55
SA_DQ_56
SA_DQ_57
SA_DQ_58
SA_DQ_59
SA_DQ_60
SA_DQ_61
SA_DQ_62
SA_DQ_63
CANTIGA_GM
CANTIGA_GM
BD21
SA_BS_0
BG18
SA_BS_1
AT25
SA_BS_2
BB20
SA_RAS#
BD20
SA_CAS#
AY20
SA_WE#
M_A_DM0
AM37
SA_DM_0
SA_DM_1
SA_DM_2
SA_DM_3
SA_DM_4
SA_DM_5
SA_DM_6
SA_DM_7
SA_DQS_0
SA_DQS_1
SA_DQS_2
SA_DQS_3
SA_DQS_4
SA_DQS_5
SA_DQS_6
SA_DQS_7
SA_DQS#_0
SA_DQS#_1
SA_DQS#_2
SA_DQS#_3
SA_DQS#_4
SA_DQS#_5
SA_DQS#_6
SA_DQS#_7
SA_MA_0
SA_MA_1
SA_MA_2
SA_MA_3
SA_MA_4
SA_MA_5
SA_MA_6
SA_MA_7
SA_MA_8
SA_MA_9
SA_MA_10
SA_MA_11
SA_MA_12
SA_MA_13
SA_MA_14
DDR SYSTEM MEMORY A
DDR SYSTEM MEMORY A
AT41
AY41
AU39
BB12
AY6
AT7
AJ5
AJ44
AT44
BA43
BC37
AW12
BC8
AU8
AM7
AJ43
AT43
BA44
BD37
AY12
BD8
AU9
AM8
BA21
BC24
BG24
BH24
BG25
BA24
BD24
BG27
BF25
AW24
BC21
BG26
BH26
BH17
AY25
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_BS#0 10,11
M_A_BS#1 10,11
M_A_BS#2 10,11
M_A_RAS# 10,11
M_A_CAS# 10,11
M_A_WE# 10,11
M_A_DM[7:0] 10
M_A_DQS[7:0] 10
M_A_DQS#[7:0] 10
M_A_A[14:0] 10,11
M_B_DQ[63:0]10
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
AK47
AH46
AP47
AP46
AJ46
AJ48
AM48
AP48
AU47
AU46
BA48
AY48
AT47
AR47
BA47
BC47
BC46
BC44
BG43
BF43
BE45
BC41
BF40
BF41
BG38
BF38
BH35
BG35
BH40
BG39
BG34
BH34
BH14
BG12
BH11
BG8
BH12
BF11
BG7
BC5
BC6
BA1
BD3
AV2
AU3
AR3
AN2
AV1
AP3
AR1
AH1
AM2
AM3
AH3
BF8
AY3
AY1
BF6
BF5
AY2
AL1
AL2
AJ1
AJ3
U24E
U24E
SB_DQ_0
SB_DQ_1
SB_DQ_2
SB_DQ_3
SB_DQ_4
SB_DQ_5
SB_DQ_6
SB_DQ_7
SB_DQ_8
SB_DQ_9
SB_DQ_10
SB_DQ_11
SB_DQ_12
SB_DQ_13
SB_DQ_14
SB_DQ_15
SB_DQ_16
SB_DQ_17
SB_DQ_18
SB_DQ_19
SB_DQ_20
SB_DQ_21
SB_DQ_22
SB_DQ_23
SB_DQ_24
SB_DQ_25
SB_DQ_26
SB_DQ_27
SB_DQ_28
SB_DQ_29
SB_DQ_30
SB_DQ_31
SB_DQ_32
SB_DQ_33
SB_DQ_34
SB_DQ_35
SB_DQ_36
SB_DQ_37
SB_DQ_38
SB_DQ_39
SB_DQ_40
SB_DQ_41
SB_DQ_42
SB_DQ_43
SB_DQ_44
SB_DQ_45
SB_DQ_46
SB_DQ_47
SB_DQ_48
SB_DQ_49
SB_DQ_50
SB_DQ_51
SB_DQ_52
SB_DQ_53
SB_DQ_54
SB_DQ_55
SB_DQ_56
SB_DQ_57
SB_DQ_58
SB_DQ_59
SB_DQ_60
SB_DQ_61
SB_DQ_62
SB_DQ_63
CANTIGA_GM
CANTIGA_GM
SB_BS_0
SB_BS_1
SB_BS_2
SB_RAS#
SB_CAS#
SB_DM_0
SB_DM_1
SB_DM_2
SB_DM_3
SB_DM_4
SB_DM_5
SB_DM_6
SB_DM_7
SB_DQS_0
SB_DQS_1
SB_DQS_2
SB_DQS_3
SB_DQS_4
SB_DQS_5
SB_DQS_6
SB_DQS_7
SB_DQS#_0
SB_DQS#_1
SB_DQS#_2
SB_DQS#_3
SB_DQS#_4
SB_DQS#_5
SB_DQS#_6
SB_DQS#_7
SB_MA_0
SB_MA_1
SB_MA_2
SB_MA_3
SB_MA_4
SB_MA_5
SB_MA_6
SB_MA_7
SB_MA_8
SB_MA_9
SB_MA_10
SB_MA_11
SB_MA_12
DDR SYSTEM MEMORY B
DDR SYSTEM MEMORY B
SB_MA_13
SB_MA_14
SB_WE#
BC16
BB17
BB33
AU17
BG16
BF14
AM47
AY47
BD40
BF35
BG11
BA3
AP1
AK2
AL47
AV48
BG41
BG37
BH9
BB2
AU1
AN6
AL46
AV47
BH41
BH37
BG9
BC2
AT2
AN5
AV17
BA25
BC25
AU25
AW25
BB28
AU28
AW28
AT33
BD33
BB16
AW33
AY33
BH15
AU33
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_BS#0 10,11
M_B_BS#1 10,11
M_B_BS#2 10,11
M_B_RAS# 10,11
M_B_CAS# 10,11
M_B_WE# 10,11
M_B_DM[7:0] 10
M_B_DQS[7:0] 10
M_B_DQS#[7:0] 10
M_B_A[14:0] 10,11
A A
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
5
4
3
2
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
Cantiga DDR2 3/5
Cantiga DDR2 3/5
Cantiga DDR2 3/5
1
7 39Tuesday, May 05, 2009
7 39Tuesday, May 05, 2009
7 39Tuesday, May 05, 2009
1A
1A
1A
Page 8
5
U24G
AP33
AN33
BH32
BG32
BF32
BD32
BC32
BB32
BA32
AY32
AW32
AV32
AU32
AT32
AR32
AP32
AN32
BH31
BG31
BF31
BG30
BH29
BG29
BF29
BD29
BC29
BB29
BA29
AY29
AW29
AV29
AU29
AT29
AR29
AP29
BA36
BB24
BD16
BB21
AW16
AW13
AT13
AE25
AB25
AA25
AE24
AC24
AA24
AE23
AC23
AB23
AA23
AJ21
AG21
AE21
AC21
AA21
AH20
AF20
AE20
AC20
AB20
AA20
AM15
AL15
AE15
AJ15
AH15
AG15
AF15
AB15
AA15
U15
AN14
AM14
U14
AJ14
AH14
Y26
Y24
Y21
T17
T16
Y15
V15
T14
U24G
VCC_SM_1
VCC_SM_2
VCC_SM_3
VCC_SM_4
VCC_SM_5
VCC_SM_6
VCC_SM_7
VCC_SM_8
VCC_SM_9
VCC_SM_10
VCC_SM_11
VCC_SM_12
VCC_SM_13
VCC_SM_14
VCC_SM_15
VCC_SM_16
VCC_SM_17
VCC_SM_18
VCC_SM_19
VCC_SM_20
VCC_SM_21
VCC_SM_22
VCC_SM_23
VCC_SM_24
VCC_SM_25
VCC_SM_26
VCC_SM_27
VCC_SM_28
VCC_SM_29
VCC_SM_30
VCC_SM_31
VCC_SM_32
VCC_SM_33
VCC_SM_34
VCC_SM_35
VCC_SM_36/NC
VCC_SM_37/NC
VCC_SM_38/NC
VCC_SM_39/NC
VCC_SM_40/NC
VCC_SM_41/NC
VCC_SM_42/NC
VCC_AXG_1
VCC_AXG_2
VCC_AXG_3
VCC_AXG_4
VCC_AXG_5
VCC_AXG_6
VCC_AXG_7
VCC_AXG_8
VCC_AXG_9
VCC_AXG_10
VCC_AXG_11
VCC_AXG_12
VCC_AXG_13
VCC_AXG_14
VCC_AXG_15
VCC_AXG_16
VCC_AXG_17
VCC_AXG_18
VCC_AXG_19
VCC_AXG_20
VCC_AXG_21
VCC_AXG_22
VCC_AXG_23
VCC_AXG_24
VCC_AXG_25
VCC_AXG_26
VCC_AXG_27
VCC_AXG_28
VCC_AXG_29
VCC_AXG_30
VCC_AXG_31
VCC_AXG_32
VCC_AXG_33
VCC_AXG_34
VCC_AXG_35
VCC_AXG_36
VCC_AXG_37
VCC_AXG_38
VCC_AXG_39
VCC_AXG_40
VCC_AXG_41
VCC_AXG_42
VCC_AXG_SENSE
VSS_AXG_SENSE
VCC_AXG_NCTF_10
VCC_AXG_NCTF_11
VCC_AXG_NCTF_12
VCC_AXG_NCTF_13
VCC_AXG_NCTF_14
VCC_AXG_NCTF_15
VCC_AXG_NCTF_16
VCC_AXG_NCTF_17
VCC_AXG_NCTF_18
VCC_AXG_NCTF_19
VCC_AXG_NCTF_20
VCC_AXG_NCTF_21
VCC_AXG_NCTF_22
POWER
POWER
VCC_AXG_NCTF_23
VCC_AXG_NCTF_24
VCC_AXG_NCTF_25
VCC_AXG_NCTF_26
VCC_AXG_NCTF_27
VCC_AXG_NCTF_28
VCC_AXG_NCTF_29
VCC_AXG_NCTF_30
VCC SMVCC GFX
VCC SMVCC GFX
VCC_AXG_NCTF_31
VCC_AXG_NCTF_32
VCC_AXG_NCTF_33
VCC_AXG_NCTF_34
VCC_AXG_NCTF_35
VCC_AXG_NCTF_36
VCC_AXG_NCTF_37
VCC_AXG_NCTF_38
VCC_AXG_NCTF_39
VCC_AXG_NCTF_40
VCC_AXG_NCTF_41
VCC_AXG_NCTF_42
VCC_AXG_NCTF_43
VCC_AXG_NCTF_44
VCC_AXG_NCTF_45
VCC_AXG_NCTF_46
VCC_AXG_NCTF_47
VCC_AXG_NCTF_48
VCC_AXG_NCTF_49
VCC_AXG_NCTF_50
VCC_AXG_NCTF_51
VCC_AXG_NCTF_52
VCC_AXG_NCTF_53
VCC_AXG_NCTF_54
VCC_AXG_NCTF_55
VCC_AXG_NCTF_56
VCC GFX NCTF
VCC GFX NCTF
VCC_AXG_NCTF_57
VCC_AXG_NCTF_58
VCC_AXG_NCTF_59
VCC_AXG_NCTF_60
VCC_AXG_NCTF_1
VCC_AXG_NCTF_2
VCC_AXG_NCTF_3
VCC_AXG_NCTF_4
VCC_AXG_NCTF_5
VCC_AXG_NCTF_6
VCC_AXG_NCTF_7
VCC_AXG_NCTF_8
VCC_AXG_NCTF_9
VCC_SM_LF1
VCC_SM_LF2
VCC_SM_LF3
VCC_SM_LF4
VCC_SM_LF5
VCC_SM_LF6
VCC_SM_LF7
VCC SM LF
VCC SM LF
+1.8VSUS +1.05V
D D
VCC_SM_36
through
VCC_SM_42 can
be left as NC for
C C
DDR2 desgins.
+1.05V
B B
+1.05V
R61
R61
10_4
10_4
VCC_AXG_SENSE
VSS_AXG_SENSE
R59
A A
R59
10_4
10_4
W28
V28
W26
V26
W25
V25
W24
V24
W23
V23
AM21
AL21
AK21
W21
V21
U21
AM20
AK20
W20
U20
AM19
AL19
AK19
AJ19
AH19
AG19
AF19
AE19
AB19
AA19
Y19
W19
V19
U19
AM17
AK17
AH17
AG17
AF17
AE17
AC17
AB17
Y17
W17
V17
AM16
AL16
AK16
AJ16
AH16
AG16
AF16
AE16
AC16
AB16
AA16
Y16
W16
V16
U16
AV44
BA37
AM40
AV21
AY5
AM10
BB13
4
+VCCSM_LF1
+VCCSM_LF2
+VCCSM_LF3
+VCCSM_LF4
+VCCSM_LF5
+VCCSM_LF6
+VCCSM_LF7
3
Ivcc_axg = 6326.84mA2600mA
+1.05V
Ivcc = 1930.4+508.12 = 2438.52mA
+
+1.05V
12
+
+
C357
C357
330u_2V_7343
330u_2V_7343
+
C598
C598
*330u_2.5V_7343
*330u_2.5V_7343
C643
C643
.1U/10V_4
.1U/10V_4
C638
C638
10U/6.3V_8
10U/6.3V_8
C157
C157
.47U/6.3V_4
.47U/6.3V_4
C115
C115
10U/6.3V_8
10U/6.3V_8
C648
C648
10U/6.3V_8
10U/6.3V_8
C130
C130
1U/6.3V_4
1U/6.3V_4
C40
C40
10U/6.3V_8
10U/6.3V_8
+1.8VSUS
C655
C655
10U/6.3V_8
10U/6.3V_8
C97
C97
10U/6.3V_8
10U/6.3V_8
C137
C137
.33U/6.3V_4
.33U/6.3V_4
C652
C652
10U/6.3V_8
10U/6.3V_8
C98
C98
10U/6.3V_8
10U/6.3V_8
C139
C139
.33U/6.3V_4
.33U/6.3V_4
C39
C39
10U/6.3V_8
10U/6.3V_8
C141
C141
.1U/10V_4
.1U/10V_4
C140
C140
.1U/10V_4
.1U/10V_4
PV Modify
C124
C132
C132
.1U/10V_4
.1U/10V_4
C124
.1U/10V_4
.1U/10V_4
C116
C116
.33U/6.3V_4
.33U/6.3V_4
C162
C162
.33U/6.3V_4
.33U/6.3V_4
C249
C249
.47U/6.3V_4
.47U/6.3V_4
C246
C246
1U/6.3V_4
1U/6.3V_4
C245
C245
1U/6.3V_4
1U/6.3V_4
C135
C135
.1U/10V_4
.1U/10V_4
2
AG34
AC34
AB34
AA34
AM33
AK33
AJ33
AG33
AF33
AE33
AC33
AA33
W33
AH28
AF28
AC28
AA28
AJ26
AG26
AE26
AC26
AH25
AG25
AF25
AG24
AJ23
AH23
AF23
Y34
V34
U34
Y33
V33
U33
T32
U24F
U24F
VCC_1
VCC_2
VCC_3
VCC_4
VCC_5
VCC_6
VCC_7
VCC_8
VCC_9
VCC_10
VCC_11
VCC_12
VCC_13
VCC_14
VCC_15
VCC_16
VCC_17
VCC_18
VCC_19
VCC_20
VCC_21
VCC_22
VCC_23
VCC_24
VCC_25
VCC_26
VCC_27
VCC_28
VCC_29
VCC_30
VCC_31
VCC_32
VCC_33
VCC_34
VCC_35
CANTIGA_GM
CANTIGA_GM
+1.8VSUS6,9,10,29,34,37
+1.05V2,3,4,5,6,9,19,22,29,34,35
POWER
POWER
VCC CORE
VCC CORE
VCC NCTF
VCC NCTF
VCC_NCTF_1
VCC_NCTF_2
VCC_NCTF_3
VCC_NCTF_4
VCC_NCTF_5
VCC_NCTF_6
VCC_NCTF_7
VCC_NCTF_8
VCC_NCTF_9
VCC_NCTF_10
VCC_NCTF_11
VCC_NCTF_12
VCC_NCTF_13
VCC_NCTF_14
VCC_NCTF_15
VCC_NCTF_16
VCC_NCTF_17
VCC_NCTF_18
VCC_NCTF_19
VCC_NCTF_20
VCC_NCTF_21
VCC_NCTF_22
VCC_NCTF_23
VCC_NCTF_24
VCC_NCTF_25
VCC_NCTF_26
VCC_NCTF_27
VCC_NCTF_28
VCC_NCTF_29
VCC_NCTF_30
VCC_NCTF_31
VCC_NCTF_32
VCC_NCTF_33
VCC_NCTF_34
VCC_NCTF_35
VCC_NCTF_36
VCC_NCTF_37
VCC_NCTF_38
VCC_NCTF_39
VCC_NCTF_40
VCC_NCTF_41
VCC_NCTF_42
VCC_NCTF_43
VCC_NCTF_44
AM32
AL32
AK32
AJ32
AH32
AG32
AE32
AC32
AA32
Y32
W32
U32
AM30
AL30
AK30
AH30
AG30
AF30
AE30
AC30
AB30
AA30
Y30
W30
V30
U30
AL29
AK29
AJ29
AH29
AG29
AE29
AC29
AA29
Y29
W29
V29
AL28
AK28
AL26
AK26
AK25
AK24
AK23
1
08
+1.05V
5
CANTIGA_GM
CANTIGA_GM
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
4
3
2
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
Cantiga Vcc 4/5
Cantiga Vcc 4/5
Cantiga Vcc 4/5
1
8 39Tuesday, May 05, 2009
8 39Tuesday, May 05, 2009
8 39Tuesday, May 05, 2009
1A
1A
1A
Page 9
5
+1.05V 2,3,4,5,6,8,19,22,29,34,35
+3V 2,4,6,10,11,12,14,15,17,18,19,20,21,22,24,25,26,28,29,30,31,35,36,38
+1.5V 4,19,20,22,24,25,28,31,34,38
+1.8VSUS 6,8,10,29,34,37
+1.05V_PEG 2,3,4,5,6,8,19,22,29,34,35
+1.05V
D D
C C
B B
UMA
*220U/2.5V_B
*220U/2.5V_B
L34 *10uH/100MA_8L34 *10uH/100MA_8
UMA
+1.05V
4.7U/6.3V_6
4.7U/6.3V_6
L7 HCB1608KF-181T15_6L7 HCB1608KF-181T15_6
+1.05V_MCH_PLL
C123
10U/6.3V_8
10U/6.3V_8
+1.5V
L12
L12
HCB1608KF-181T15_6
HCB1608KF-181T15_6
R53 0.5/F_6R53 0.5/F_6
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
C176
C176
C177
C177
C678
C678
C125
C125
12
+
+
*.1U/10V_4
*.1U/10V_4
*.1U/10V_4
*.1U/10V_4
C126
C126
.1U/10V_4
.1U/10V_4
+1.5V_TVDAC
C194
C194
*.022U/16V_4
*.022U/16V_4
UMA
+1.5V_QDAC
C178
C178
.022U/16V_4
.022U/16V_4
+1.05V_DPLLA
C672
C672
+1.05V_DPLLB
C687
C687
+1.05V_HPLL
+1.05V_MPLL
C114
C114
.1U/10V_4
.1U/10V_4
+3V
+3V
+1.5V
+1.05V
*220U/2.5V_B
*220U/2.5V_B
+1.05V
+1.5V
For PM/GM internal thermal sensor power
+1.05V
L15 HCB1608KF-181T15_6L15 HCB1608KF-181T15_6
A A
5
+1.05V_PEGPLL
R86
R86
1/F_6
1/F_6
C202
C202
10U/6.3V_8
10U/6.3V_8
+1.8VSUS
4
R394 *0_6
R394 *0_6
UMA
UMA
R393 *0_6
R393 *0_6
UMA
UMA
DPLLA+DPLLB = 64.8mA
C284
C284
.1U/10V_4
.1U/10V_4
+
+
C94
C94
C174
C174
2.2U/6.3V_6
2.2U/6.3V_6
+3V
R386 *0_6R386 *0_6
UMA
R96 *0_6R96 *0_6
UMA
R84 *0_6R84 *0_6
UMA
4
C647
C647
*.1U/10V_4
*.1U/10V_4
UMA
UMA
C641
C641
*.1U/10V_4
*.1U/10V_4
UMA
UMA
*1000P/50V_4
*1000P/50V_4
C690 .1U/10V_4C690 .1U/10V_4
C96
C96
10U/6.3V_8
10U/6.3V_8
C100
C100
10U/6.3V_8
10U/6.3V_8
C203
C203
10U/6.3V_8
10U/6.3V_8
C237
C237
*.1U/10V_4
*.1U/10V_4
C118
C118
.1U/10V_4
.1U/10V_4
+1.8VSUS_GMCH_VCCD
73mA
+3V_A_CRT_DAC
C649
C649
*.01U/16V_4
*.01U/16V_4
UMA
UMA
5mA
+3V_A_DAC_BG
C640
C640
*.01U/16V_4
*.01U/16V_4
UMA
UMA
+1.05V_DPLLA
+1.05V_DPLLB
+1.05V_HPLL
24mA
+1.05V_MPLL
139.2mA
C368
C368
UMA
C99
C99
10U/6.3V_8
10U/6.3V_8
C161
C161
4.7U/6.3V_6
4.7U/6.3V_6
+1.05V_A_SM_CK
C198
C198
.1U/10V_4
.1U/10V_4
+3V_A_TV_DAC
C631
C631
*.1U/10V_4
*.1U/10V_4
UMA
UMA
35mA
120uA
157.2mA
50mA
+1.8VSUS_TX_LVDS
414uA
+1.5V_PEG_BG
+1.05V_PEGPLL
480mA
+1.05V_A_SM
C147
C147
1U/6.3V_4
1U/6.3V_4
24mA
79mA
+1.5V_HDA
+1.5V_TVDAC
+1.5V_QDAC
+1.05V_MCH_PLL
+1.05V_PEGPLL
C689
C689
.1U/10V_4
.1U/10V_4
13.2mA
50mA
50mA
60.31mA
C232
C233
C233
*10U/6.3V_8
*10U/6.3V_8
UMA UMA
C232
*1U/6.3V_4
*1U/6.3V_4
U24H
U24H
B27
VCCA_CRT_DAC_1
A26
VCCA_CRT_DAC_2
A25
VCCA_DAC_BG
B25
VSSA_DAC_BG
F47
VCCA_DPLLA
L48
VCCA_DPLLB
AD1
VCCA_HPLL
AE1
VCCA_MPLL
J48
VCCA_LVDS
J47
VSSA_LVDS
AD48
VCCA_PEG_BG
AA48
VCCA_PEG_PLL
AR20
VCCA_SM_1
AP20
VCCA_SM_2
AN20
VCCA_SM_3
AR17
VCCA_SM_4
AP17
VCCA_SM_5
AN17
VCCA_SM_6
AT16
VCCA_SM_7
AR16
VCCA_SM_8
AP16
VCCA_SM_9
AP28
VCCA_SM_CK_1
AN28
VCCA_SM_CK_2
AP25
VCCA_SM_CK_3
AN25
VCCA_SM_CK_4
AN24
VCCA_SM_CK_5
AM28
VCCA_SM_CK_NCTF_1
AM26
VCCA_SM_CK_NCTF_2
AM25
VCCA_SM_CK_NCTF_3
AL25
VCCA_SM_CK_NCTF_4
AM24
VCCA_SM_CK_NCTF_5
AL24
VCCA_SM_CK_NCTF_6
AM23
VCCA_SM_CK_NCTF_7
AL23
VCCA_SM_CK_NCTF_8
B24
VCCA_TV_DAC_1
A24
VCCA_TV_DAC_2
A32
VCC_HDA
M25
VCCD_TVDAC
L28
VCCD_QDAC
AF1
VCCD_HPLL
AA47
VCCD_PEG_PLL
M38
VCCD_LVDS_1
L37
VCCD_LVDS_2
CANTIGA_GM
CANTIGA_GM
3
+VTTLF_CAP1
+VTTLF_CAP2
+VTTLF_CAP3
3
CRTPLLA PEGA SM
CRTPLLA PEGA SM
A LVDS
A LVDS
POWER
POWER
A CK
A CK
TV
TV
HDA
HDA
D TV/CRT
D TV/CRT
LVDS
LVDS
C597
C597
.47U/6.3V_4
.47U/6.3V_4
AXF
AXF
VCC_SM_CK_1
VCC_SM_CK_2
VCC_SM_CK_3
VCC_SM_CK_4
SM CK
SM CK
VCC_TX_LVDS
HV
HV
VCC_PEG_1
VCC_PEG_2
VCC_PEG_3
VCC_PEG_4
VCC_PEG_5
PEG
PEG
DMI
DMI
C119
C119
.47U/6.3V_4
.47U/6.3V_4
VTT_1
VTT_2
VTT_3
VTT_4
VTT_5
VTT_6
VTT_7
VTT_8
VTT_9
VTT_10
VTT_11
VTT_12
VTT_13
VTT_14
VTT_15
VTT
VTT
VTT_16
VTT_17
VTT_18
VTT_19
VTT_20
VTT_21
VTT_22
VTT_23
VTT_24
VTT_25
VCC_AXF_1
VCC_AXF_2
VCC_AXF_3
VCC_HV_1
VCC_HV_2
VCC_HV_3
VCC_DMI_1
VCC_DMI_2
VCC_DMI_3
VCC_DMI_4
VTTLF1
VTTLF2
VTTLF3
VTTLF
VTTLF
U13
T13
U12
T12
U11
T11
U10
T10
U9
T9
U8
T8
U7
T7
U6
T6
U5
T5
V3
U3
V2
U2
T2
V1
U1
B22
B21
A21
BF21
BH20
BG20
BF20
K47
C35
B35
A35
V48
U48
V47
U47
U46
AH48
AF48
AH47
AG47
A8
L1
AB2
C613
C613
.47U/6.3V_4
.47U/6.3V_4
852mA
118.8mA
105.3mA
1782mA
+VTTLF_CAP1
+VTTLF_CAP2
+VTTLF_CAP3
2
C216
C216
.47U/6.3V_4
.47U/6.3V_4
+1.05V_AXF
C160
C160
1U/6.3V_4
1U/6.3V_4
+1.8VSUS_SM_CK
C152
C152
10U/6.3V_8
10U/6.3V_8
119.85mA
+1.8VSUS_TX_LVDS
+3V_HV
C262
C262
.1U/10V_4
.1U/10V_4
C691
C691
4.7U/6.3V_6
4.7U/6.3V_6
456mA
+1.05V_RXR_DMI
C289
C289
.1U/10V_4
.1U/10V_4
2
+1.05V
C149
C129
C129
2.2U/6.3V_6
2.2U/6.3V_6L33 *10uH/100MA_8L33 *10uH/100MA_8
C149
4.7U/6.3V_6
4.7U/6.3V_6
C179
C179
10U/6.3V_8
10U/6.3V_8
L8 1uH/300mA_8L8 1uH/300mA_8
R62
R62
1/F_6
1/F_6
C143
C143
+1.8VSUS_SM_CK_L
.1U/10V_4
.1U/10V_4
C628
C628
10U/6.3V_8
10U/6.3V_8
12
C367
C367
*.1U/10V_4
*.1U/10V_4
UMA UMA
+3V_HV +3V
C247
C247
.1U/10V_4
.1U/10V_4
12
C358
C358
+
+
*330u_2.5V_7343
*330u_2.5V_7343
C121
C121
4.7U/6.3V_6
4.7U/6.3V_6
C366
C366
*10U/6.3V_8
*10U/6.3V_8C123
NB5
NB5
NB5
+1.8VSUS
L17
L17
C365
C365
*10U/6.3V_8
*10U/6.3V_8
+1.05V
21
+1.05V_HV_MCH
R51
R51
10_4
10_4
C688
C688
10U/6.3V_8
10U/6.3V_8
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
+1.05V
+1.8VSUS
*1uH/300mA_8
*1uH/300mA_8
UMA
D9
D9
RB501V-40
RB501V-40
+1.05V+1.05V_PEG
+1.05V
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Cantiga Power 5/5
Cantiga Power 5/5
Cantiga Power 5/5
1
09
9 39Tuesday, May 05, 2009
9 39Tuesday, May 05, 2009
9 39Tuesday, May 05, 2009
1A
1A
1A
Page 10

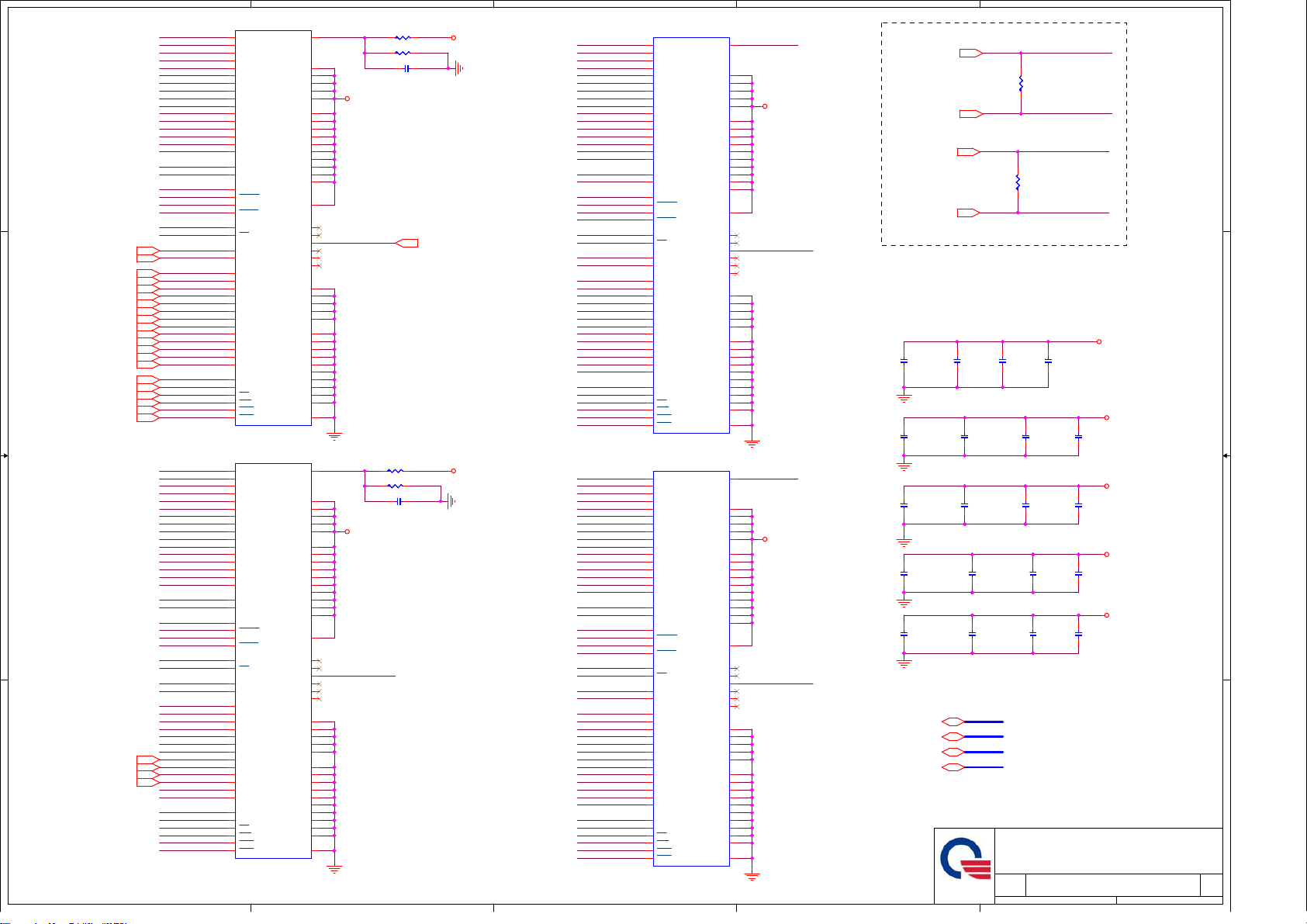

5
+1.8VSUS
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
D D
C C
B B
A A
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_BS#0
M_B_BS#1
M_B_BS#2
M_B_CLK0
M_B_CLK0#
M_B_CLK1
M_B_CLK1#
M_B_ODT0
M_B_ODT1
DIM2_SA0
DIM2_SA1
CGDAT_SMB
CGCLK_SMB
+0.9VSMVREF_DIM
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
M_B_CKE0
M_B_CKE1
M_B_RAS#
M_B_CAS#
M_B_WE#
M_B_CS#0
M_B_CS#1
+3V
102
A0
101
A1
100
A2
99
A3
98
A4
97
A5
94
A6
92
A7
93
A8
91
A9
105
A10
90
A11
89
A12
116
A13
86
A14
84
A15
107
BA0
106
BA1
85
BA2
10
DM0
26
DM1
52
DM2
67
DM3
130
DM4
147
DM5
170
DM6
185
DM7
13
DQS0
31
DQS1
51
DQS2
70
DQS3
131
DQS4
148
DQS5
169
DQS6
188
DQS7
11
DQS0
29
DQS1
49
DQS2
68
DQS3
129
DQS4
146
DQS5
167
DQS6
186
DQS7
30
CK0
32
CK0
164
CK1
166
CK1
79
CKE0
80
CKE1
108
RAS
113
CAS
109
WE
110
S0
115
S1
114
ODT0
119
ODT1
198
SA0
200
SA1
195
SDA
197
SCL
199
VDDspd
1
VREF
2
VSS0
3
VSS1
8
VSS2
9
VSS3
12
VSS4
15
VSS5
18
VSS6
21
VSS7
24
VSS8
27
VSS9
28
VSS10
33
VSS11
34
VSS12
39
VSS13
40
VSS14
41
VSS15
42
VSS16
47
VSS17
48
VSS18
53
VSS19
54
VSS20
VDD081VDD182VDD287VDD388VDD495VDD596VDD6
SO-DIMM
SO-DIMM
59
103
111
104
112
117
118
CN19
CN19
VDD8
VDD7
VDD9
VDD10
VDD11
NC/TEST
(Normal)
(Normal)
VSS56
VSS55
VSS54
VSS53
VSS52
VSS51
VSS50
VSS49
VSS48
VSS47
VSS46
VSS45
VSS44
VSS43
VSS42
VSS41
VSS40
VSS39
VSS38
VSS37
VSS36
VSS35
VSS34
VSS33
VSS32
VSS31
VSS30
VSS29
VSS2878VSS2777VSS2672VSS2571VSS2466VSS2365VSS2260VSS21
132
128
127
122
121
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
NC1
NC2
NC3
NC4
5
7
17
19
4
6
14
16
23
25
35
37
20
22
36
38
43
45
55
57
44
46
56
58
61
63
73
75
62
64
74
76
123
125
135
137
124
126
134
136
141
143
151
153
140
142
152
154
157
159
173
175
158
160
174
176
179
181
189
191
180
182
192
194
50
69
83
120
163
196
193
190
187
184
183
178
177
172
171
168
165
162
161
156
155
150
149
145
144
139
138
133
M_B_DQ1
M_B_DQ5
M_B_DQ2
M_B_DQ7
M_B_DQ4
M_B_DQ0
M_B_DQ3
M_B_DQ6
M_B_DQ13
M_B_DQ12
M_B_DQ14
M_B_DQ11
M_B_DQ9
M_B_DQ8
M_B_DQ10
M_B_DQ15
M_B_DQ21
M_B_DQ17
M_B_DQ19
M_B_DQ23
M_B_DQ20
M_B_DQ16
M_B_DQ18
M_B_DQ22
M_B_DQ28
M_B_DQ29
M_B_DQ27
M_B_DQ26
M_B_DQ24
M_B_DQ25
M_B_DQ31
M_B_DQ30
M_B_DQ36
M_B_DQ33
M_B_DQ35
M_B_DQ39
M_B_DQ34
M_B_DQ32
M_B_DQ37
M_B_DQ38
M_B_DQ40
M_B_DQ41M_B_DQ41M_B_DQ41
M_B_DQ46M_B_DQ46
M_B_DQ43M_B_DQ43
M_B_DQ45M_B_DQ45
M_B_DQ44M_B_DQ44
M_B_DQ47M_B_DQ47
M_B_DQ42M_B_DQ42
M_B_DQ53M_B_DQ53
M_B_DQ49M_B_DQ49
M_B_DQ51M_B_DQ51
M_B_DQ54M_B_DQ54
M_B_DQ48M_B_DQ48
M_B_DQ52M_B_DQ52
M_B_DQ55M_B_DQ55
M_B_DQ50M_B_DQ50
M_B_DQ61M_B_DQ61
M_B_DQ60M_B_DQ60
M_B_DQ58M_B_DQ58
M_B_DQ59M_B_DQ59
M_B_DQ56M_B_DQ56
M_B_DQ57M_B_DQ57
M_B_DQ63M_B_DQ63
M_B_DQ62M_B_DQ62
H 9.2
5
4
+1.8VSUS
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_BS#0
M_A_BS#1
M_A_BS#2
M_A_CLK0
M_A_CLK0#
M_A_CLK1
M_A_CLK1#
M_A_ODT0
PM_EXTTS#0 6,11
SMbus address A4 SMbus address A0
DIM2_SA0
R293 10K/F_4R293 10K/F_4
DIM2_SA1
R294 10K/F_4R294 10K/F_4
M_A_ODT1
DIM1_SA0
DIM1_SA1
CGDAT_SMB
CGCLK_SMB
+0.9VSMVREF_DIM
M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
M_A_CKE0
M_A_CKE1
M_A_RAS#
M_A_CAS#
M_A_WE#
M_A_CS#0
M_A_CS#1
+3V
+3V
102
A0
101
A1
100
105
116
107
106
130
147
170
185
131
148
169
188
129
146
167
186
164
166
108
113
109
110
115
114
119
198
200
195
197
199
VDD081VDD182VDD287VDD388VDD495VDD596VDD6
A2
99
A3
98
A4
97
A5
94
A6
92
A7
93
A8
91
A9
A10
90
A11
89
A12
A13
86
A14
84
A15
BA0
BA1
85
BA2
10
DM0
26
DM1
52
DM2
67
DM3
DM4
DM5
DM6
DM7
13
DQS0
31
DQS1
51
DQS2
70
DQS3
DQS4
DQS5
DQS6
DQS7
11
DQS0
29
DQS1
49
DQS2
68
DQS3
DQS4
DQS5
DQS6
DQS7
30
CK0
32
CK0
CK1
CK1
79
CKE0
80
CKE1
RAS
CAS
WE
S0
S1
ODT0
ODT1
SA0
SA1
SDA
SCL
VDDspd
1
VREF
2
VSS0
3
VSS1
8
VSS2
9
VSS3
12
VSS4
15
VSS5
18
VSS6
21
VSS7
24
VSS8
27
VSS9
28
VSS10
33
VSS11
34
VSS12
39
VSS13
40
VSS14
41
VSS15
42
VSS16
47
VSS17
48
VSS18
53
VSS19
54
VSS20
SO-DIMM
SO-DIMM
59
3
M_B_DM[0..7]
M_B_DQ[0..63]
M_B_DQS[0..7]
103
111
104
112
117
118
CN18
CN18
VDD8
VDD7
VDD9
VDD10
VDD11
NC/TEST
(Normal)
(Normal)
VSS56
VSS55
VSS54
VSS53
VSS52
VSS51
VSS50
VSS49
VSS48
VSS47
VSS46
VSS45
VSS44
VSS43
VSS42
VSS41
VSS40
VSS39
VSS38
VSS37
VSS36
VSS35
VSS34
VSS33
VSS32
VSS31
VSS30
VSS29
VSS2878VSS2777VSS2672VSS2571VSS2466VSS2365VSS2260VSS21
132
128
127
122
121
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
NC1
NC2
NC3
NC4
5
7
17
19
4
6
14
16
23
25
35
37
20
22
36
38
43
45
55
57
44
46
56
58
61
63
73
75
62
64
74
76
123
125
135
137
124
126
134
136
141
143
151
153
140
142
152
154
157
159
173
175
158
160
174
176
179
181
189
191
180
182
192
194
50
69
83
120
163
196
193
190
187
184
183
178
177
172
171
168
165
162
161
156
155
150
149
145
144
139
138
133
M_A_DQ1
M_A_DQ5
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ0
M_A_DQ7
M_A_DQ6
M_A_DQ9
M_A_DQ8
M_A_DQ15
M_A_DQ14
M_A_DQ13
M_A_DQ12
M_A_DQ10
M_A_DQ11
M_A_DQ17
M_A_DQ21
M_A_DQ23
M_A_DQ19
M_A_DQ20
M_A_DQ16
M_A_DQ18
M_A_DQ22
M_A_DQ25
M_A_DQ24
M_A_DQ31
M_A_DQ26
M_A_DQ28
M_A_DQ29
M_A_DQ27
M_A_DQ30
M_A_DQ37
M_A_DQ33
M_A_DQ38
M_A_DQ35
M_A_DQ32
M_A_DQ36
M_A_DQ39
M_A_DQ34
M_A_DQ40
M_A_DQ41
M_A_DQ46
M_A_DQ42
M_A_DQ45
M_A_DQ44
M_A_DQ43
M_A_DQ47
M_A_DQ53
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ48
M_A_DQ54
M_A_DQ55
M_A_DQ60
M_A_DQ56
M_A_DQ62
M_A_DQ58
M_A_DQ57
M_A_DQ61
M_A_DQ59
M_A_DQ63
PM_EXTTS#0
M_B_DQS#[0..7]
M_B_A[14..0]
M_B_CLK0
M_B_CLK0#
M_B_CLK1
M_B_CLK1#
M_B_BS#[0..2]
M_B_ODT[0..1]
M_B_CKE[0..1]
M_B_CS#[0..1]
M_B_RAS#
M_B_CAS#
M_B_WE#
CGCLK_SMB
CGDAT_SMB
+1.8VSUS
+0.9VSMVREF_DIM
+1.8VSUS
+0.9VSMVREF_DIM
R21 10K/F_4R21 10K/F_4
R20 10K/F_4R20 10K/F_4
C668 470P/50V_4C668 470P/50V_4
R418 *10K/F_4R418 *10K/F_4
C604
C604
2.2U/6.3V_6
2.2U/6.3V_6
C244
C244
.1U/10V_4
.1U/10V_4
C609
C609
2.2U/6.3V_6
2.2U/6.3V_6
C238
C238
.1U/10V_4
.1U/10V_4
H 5.2
+1.8VSUS6,8,9,29,34,37
+3V2,4,6,9,11,12,14,15,17,18,19,20,21,22,24,25,26,28,29,30,31,35,36,38
4
3
2
M_B_DM[0..7] 7
M_B_DQ[0..63] 7
M_B_DQS[0..7] 7
M_B_DQS#[0..7] 7
M_B_A[14..0] 7,11
M_B_CLK0 6
M_B_CLK0# 6
M_B_CLK1 6
M_B_CLK1# 6
M_B_BS#[0..2] 7,11
M_B_ODT[0..1] 6,11
M_B_CKE[0..1] 6,11
M_B_CS#[0..1] 6,11
M_B_RAS# 7,11
M_B_CAS# 7,11
M_B_WE# 7,11
CGCLK_SMB 2,11,28,31
CGDAT_SMB 2,11,28,31
C594
C594
C590
C590
2.2U/6.3V_6
2.2U/6.3V_6
2.2U/6.3V_6
2.2U/6.3V_6
+3V
C260
C260
2.2U/6.3V_6
2.2U/6.3V_6
C576
C576
C589
C589
2.2U/6.3V_6
2.2U/6.3V_6
2.2U/6.3V_6
2.2U/6.3V_6
+3V
C263
C263
2.2U/6.3V_6
2.2U/6.3V_6
DIM1_SA0
DIM1_SA1
2
M_A_DM[0..7]
M_A_DQ[0..63]
M_A_DQS[0..7]
M_A_DQS#[0..7]
M_A_A[14..0]
M_A_CLK0
M_A_CLK0#
M_A_CLK1
M_A_CLK1#
M_A_BS#[0..2]
M_A_ODT[0..1]
M_A_CKE[0..1]
M_A_CS#[0..1]
M_A_RAS#
M_A_CAS#
M_A_WE#
PV Modify
+0.9VSMVREF_DIM
R419 *10K/F_4R419 *10K/F_4
R420 *0_6SR420 *0_6S
+1.8VSUS
Place these Caps near So-Dimm1.
C582
C582
C599
C599
C603
.1U/10V_4
.1U/10V_4
C603
.1U/10V_4
.1U/10V_4
C578
C578
.1U/10V_4
.1U/10V_4
C587
C587
2.2U/6.3V_6
2.2U/6.3V_6
2.2U/6.3V_6
2.2U/6.3V_6
SO-DIMM BYPASS PLACEMENT :
C33
C33
C35
C35
2.2U/6.3V_6
2.2U/6.3V_6
Place these Caps near So-Dimm1.
.1U/10V_4
.1U/10V_4
No Vias Between the Trace of PIN to CAP.
Place these Caps near So-Dimm2.
C584
C584
C591
C591
C586
C581
C581
2.2U/6.3V_6
2.2U/6.3V_6
C34
C34
2.2U/6.3V_6
2.2U/6.3V_6
2.2U/6.3V_6
2.2U/6.3V_6
C586
C593
.1U/10V_4
.1U/10V_4
C593
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
SO-DIMM BYPASS PLACEMENT :
C36
C36
Place these Caps near So-Dimm2
.1U/10V_4
.1U/10V_4
No Vias Between the Trace of PIN to CAP.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
M_A_DM[0..7] 7
M_A_DQ[0..63] 7
M_A_DQS[0..7] 7
M_A_DQS#[0..7] 7
M_A_A[14..0] 7,11
M_A_CLK0 6
M_A_CLK0# 6
M_A_CLK1 6
M_A_CLK1# 6
M_A_BS#[0..2] 7,11
M_A_ODT[0..1] 6,11
M_A_CKE[0..1] 6,11
M_A_CS#[0..1] 6,11
M_A_RAS# 7,11
M_A_CAS# 7,11
M_A_WE# 7,11
+0.9VSMVREF 6,37
C600
C600
C579
C579
C113
C113
.1U/10V_4
.1U/10V_4
C606
C606
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
C608
C608
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
C595
C595
.1U/10V_4
.1U/10V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
DDR2 DIMM
DDR2 DIMM
DDR2 DIMM
1
10
10 39Tuesday, May 05, 2009
10 39Tuesday, May 05, 2009
10 39Tuesday, May 05, 2009
1A
1A
1A
Page 11
5
4
3
2
1
11
DDRII DUAL CHANNEL A,B.
D D
DDRII A CHANNEL
+0.9VSMVTT +0.9VSMVTT
C66
C57
C57
.1U/10V_4
.1U/10V_4
C68
C68
.1U/10V_4
.1U/10V_4
C108
C108
.1U/10V_4
.1U/10V_4
C66
.1U/10V_4
.1U/10V_4
C111
C111
.1U/10V_4
.1U/10V_4
C93
C93
.1U/10V_4
.1U/10V_4
C63
C63
.1U/10V_4
.1U/10V_4
DDRII B CHANNEL
C76
C76
C112
.1U/10V_4
.1U/10V_4
C112
.1U/10V_4
.1U/10V_4
C67
C67
.1U/10V_4
.1U/10V_4
C105
C105
.1U/10V_4
.1U/10V_4
C72
C72
.1U/10V_4
.1U/10V_4
C102
C102
.1U/10V_4
.1U/10V_4
C82
C82
.1U/10V_4
.1U/10V_4
+0.9VSMVTT
C101
C101
C103
C70
C70
C107
C107
C75
.1U/10V_4
.1U/10V_4
C75
.1U/10V_4
.1U/10V_4
.1U/10V_4
C C
.1U/10V_4
.1U/10V_4
.1U/10V_4
C103
.1U/10V_4
.1U/10V_4
C89
C89
.1U/10V_4
.1U/10V_4
+0.9VSMVTT
C110
C110
.1U/10V_4
.1U/10V_4
C117
C117
.1U/10V_4
.1U/10V_4
C80
C80
.1U/10V_4
.1U/10V_4
C59
C59
.1U/10V_4
.1U/10V_4
C60
C60
.1U/10V_4
.1U/10V_4
C64
C64
.1U/10V_4
.1U/10V_4
Layout note: Place one cap close to every 2 pullup resistors terminated to SMDDR_VTERM
M_A_ODT06,10
M_A_CKE16,10
M_A_BS#07,10
M_A_RAS#7,10
M_A_BS#17,10
B B
A A
M_A_WE#7,10
M_A_CAS#7,10
PM_EXTTS#16
M_ODT0
M_A_A13
M_A_A8
M_A_A5
M_A_A3
M_A_A1
M_A_CKE1
M_A_A11
M_A_A10
M_A_BS#0
M_A_A6
M_A_A7
M_A_A2
M_A_A4
M_A_BS#1
M_A_A9
M_A_A12
CGCLK_SMB2,10,28,31
CGDAT_SMB2,10,28,31
PM_EXTTS#06,10
R22 *0_4R22 *0_4
RP4 56X2RP4 56X2
RP20 56X2RP20 56X2
RP15 56X2RP15 56X2
RP25 56X2RP25 56X2
RP12 56X2RP12 56X2
RP19 56X2RP19 56X2
RP16 56X2RP16 56X2
RP6 56X2RP6 56X2
RP22 56X2RP22 56X2
RP9 56X2RP9 56X2
M_A_A14
M_B_A14
CGCLK_SMB
CGDAT_SMB
PM_EXTTS#0
PM_EXTTS#1_D
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
R38 56.2/F_4R38 56.2/F_4
R36 56.2/F_4R36 56.2/F_4
U2
U2
8
SCLK
7
SDA
6
ALERT#
4
OVERT#
*LM86CIMM
*LM86CIMM
VCC
DXP
DXN
GND
+0.9VSMVTT
1
2
3
5
*200_4
*200_4
LM86_3V
+3V
R19
R19
DDR_THERMDA
DDR_THERMDC
C32
C32
*.01U/16V_4
*.01U/16V_4
Uninstall
13
Q8
Q8
2
*MMBT3904-7-F
*MMBT3904-7-F
M_B_BS#17,10
M_B_CKE06,10
M_B_BS#27,10
M_B_RAS#7,10
M_B_CS#06,10
M_B_WE#7,10
M_B_CAS#7,10
M_B_BS#07,10
M_A_CS#06,10
M_B_ODT06,10
M_B_ODT16,10
M_B_CS#16,10
M_A_CS#16,10
M_A_ODT16,10
M_B_CKE16,10
M_A_CKE06,10
M_A_BS#27,10
M_B_A0
M_B_A1
M_B_A3
M_B_A8
M_B_A5
M_B_A4
M_B_A2
M_B_A12
M_B_A9
M_B_A6
M_B_A7
M_B_A10
M_A_A0
M_B_A13
M_ODT3
M_ODT1
M_B_A11
M_B_A[14..0]
M_A_A[14..0]
RP7 56X2RP7 56X2
RP14 56X2RP14 56X2
RP18 56X2RP18 56X2
RP13 56X2RP13 56X2
RP21 56X2RP21 56X2
RP17 56X2RP17 56X2
RP26 56X2RP26 56X2
RP2 56X2RP2 56X2
RP8 56X2RP8 56X2
RP10 56X2RP10 56X2
RP11 56X2RP11 56X2
RP1 56X2RP1 56X2
RP3 56X2RP3 56X2
RP5 56X2RP5 56X2
RP23 56X2RP23 56X2
RP24 56X2RP24 56X2
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
M_B_A[14..0] 7,10
M_A_A[14..0] 7,10
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
2
4
+0.9VSMVTT
+0.9VSMVTT 37
+3V 2,4,6,9,10,12,14,15,17,18,19,20,21,22,24,25,26,28,29,30,31,35,36,38
NB5
NB5
5
4
3
2
NB5
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
DDR2 termination
DDR2 termination
DDR2 termination
1
11 39Tuesday, May 05, 2009
11 39Tuesday, May 05, 2009
11 39Tuesday, May 05, 2009
1A
1A
1A
Page 12
5
4
3
2
1
12
U25A
+VGA1.1V
~ 500mA
C229
C227
C371
+VGA1.1V
+VGACORE
C371
22U/6.3V_8
22U/6.3V_8
C370
C370
22U/6.3V_8
22U/6.3V_8
C187
C187
.022U/16V_4
.022U/16V_4
C222
C222
.022U/16V_4
.022U/16V_4
C167
C167
.1U/10V_4
.1U/10V_4
C210
C210
.1U/10V_4
.1U/10V_4
D D
C C
B B
C373
C373
4.7U/6.3V_6
4.7U/6.3V_6
C372
C372
4.7U/6.3V_6
4.7U/6.3V_6
C190
C190
.022U/16V_4
.022U/16V_4
C209
C209
.022U/16V_4
.022U/16V_4
C189
C189
.1U/10V_4
.1U/10V_4
C226
C226
.1U/10V_4
.1U/10V_4
C241
C241
1U/6.3V_4
1U/6.3V_4
C242
C242
1U/6.3V_4
1U/6.3V_4
PLACE NEAR BALLS
C188
C188
.022U/16V_4
.022U/16V_4
C207
C207
*.022U/16V_4
*.022U/16V_4
C231
C231
.1U/10V_4
.1U/10V_4
C191
C191
.1U/10V_4
.1U/10V_4
C230
C230
1U/6.3V_4
1U/6.3V_4
C676
C676
.47U/6.3V_4
.47U/6.3V_4
C219
C219
*.022U/16V_4
*.022U/16V_4
C186
C186
*.022U/16V_4
*.022U/16V_4
C211
C211
.1U/10V_4
.1U/10V_4
C208
C208
.1U/10V_4
.1U/10V_4
+3V
C227
.1U/10V_4
.1U/10V_4
C235
C235
.47U/6.3V_4
.47U/6.3V_4
C221
C221
*.022U/16V_4
*.022U/16V_4
C192
C192
*.022U/16V_4
*.022U/16V_4
C212
C212
.1U/10V_4
.1U/10V_4
C206
C206
.1U/10V_4
.1U/10V_4
C229
.1U/10V_4
.1U/10V_4
C240
C240
.1U/10V_4
.1U/10V_4
NEAR BGA
C234
C234
.47U/6.3V_4
.47U/6.3V_4
C172
C172
4.7U/6.3V_6
4.7U/6.3V_6
C225
C225
4.7U/6.3V_6
4.7U/6.3V_6
C168
C168
4.7U/6.3V_6
4.7U/6.3V_6
1.6A
10.87A
80mA
C622
C622
1U/6.3V_4
C675
C675
1U/6.3V_4
1U/6.3V_4
1U/6.3V_4
+VGA1.1V
L32 10nH_6L32 10nH_6
C374
C374
4.7U/6.3V_6
4.7U/6.3V_6
A A
C671
C671
4.7U/6.3V_6
4.7U/6.3V_6
C145
C145
.1U/10V_4
.1U/10V_4
12~16 mils width
C674
C674
.1U/10V_4
.1U/10V_4
C673
C673
.01U/16V_4
.01U/16V_4
C592
C592
.1U/10V_4
.1U/10V_4
R106 *200_4R106 *200_4
R4232.49K/F_4 R4232.49K/F_4
165mA
+PEX_PLLVDD
PEX_TERMP
U25A
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
AC9
PEX_IOVDD_01
AD7
PEX_IOVDD_02
AD8
PEX_IOVDD_03
AE7
PEX_IOVDD_04
AF7
PEX_IOVDD_05
AG7
PEX_IOVDD_06
AB13
PEX_IOVDDQ_01
AB16
PEX_IOVDDQ_02
AB17
PEX_IOVDDQ_03
AB7
PEX_IOVDDQ_04
AB8
PEX_IOVDDQ_05
AB9
PEX_IOVDDQ_06
AC13
PEX_IOVDDQ_07
AC7
PEX_IOVDDQ_08
AD6
PEX_IOVDDQ_09
AE6
PEX_IOVDDQ_10
AF6
PEX_IOVDDQ_11
AG6
PEX_IOVDDQ_12
J10
VDD_01
J12
VDD_02
J13
VDD_03
J9
VDD_04
L9
VDD_05
M11
VDD_06
M17
VDD_07
M9
VDD_08
N11
VDD_09
N12
VDD_10
N13
VDD_11
N14
VDD_12
N15
VDD_13
N16
VDD_14
N17
VDD_15
N19
VDD_16
N9
VDD_17
P11
VDD_18
P12
VDD_19
P13
VDD_20
P14
VDD_21
P15
VDD_22
P16
VDD_23
P17
VDD_24
R11
VDD_25
R12
VDD_26
R13
VDD_27
R14
VDD_28
R15
VDD_29
R16
VDD_30
R17
VDD_31
R9
VDD_32
T11
VDD_33
T17
VDD_34
T9
VDD_35
U19
VDD_36
U9
VDD_37
W10
VDD_38
W12
VDD_39
W13
VDD_40
W18
VDD_41
W19
VDD_42
W9
VDD_43
W15
VDD_SENSE
W16
GND_SENSE
A12
VDD33_01
B12
VDD33_02
C12
VDD33_03
D12
VDD33_04
E12
VDD33_05
F12
VDD33_06
AF9
PEX_PLLVDD
AE10
PEX_TSTCLK_OUT*
AF10
PEX_TSTCLK_OUT
AG9
RFU_5
AG10
PEX_TERMP
N10M
N10M
1/13 PCI_EXPRESS
1/13 PCI_EXPRESS
PEX_RST*
PEX_REFCLK
PEX_REFCLK*
PEX_TX0
PEX_TX0*
PEX_TX1
PEX_TX1*
PEX_TX2
PEX_TX2*
PEX_TX3
PEX_TX3*
PEX_TX4
PEX_TX4*
PEX_TX5
PEX_TX5*
PEX_TX6
PEX_TX6*
PEX_TX7
PEX_TX7*
PEX_TX8
PEX_TX8*
PEX_TX9
PEX_TX9*
PEX_TX10
PEX_TX10*
PEX_TX11
PEX_TX11*
PEX_TX12
PEX_TX12*
PEX_TX13
PEX_TX13*
PEX_TX14
PEX_TX14*
PEX_TX15
PEX_TX15*
PEX_RX0
PEX_RX0*
PEX_RX1
PEX_RX1*
PEX_RX2
PEX_RX2*
PEX_RX3
PEX_RX3*
PEX_RX4
PEX_RX4*
PEX_RX5
PEX_RX5*
PEX_RX6
PEX_RX6*
PEX_RX7
PEX_RX7*
PEX_RX8
PEX_RX8*
PEX_RX9
PEX_RX9*
PEX_RX10
PEX_RX10*
PEX_RX11
PEX_RX11*
PEX_RX12
PEX_RX12*
PEX_RX13
PEX_RX13*
PEX_RX14
PEX_RX14*
PEX_RX15
PEX_RX15*
RFU_6
AE9
AD9
AB10
AC10
AD10
AD11
AD12
AC12
AB11
AB12
AD13
AD14
AD15
AC15
AB14
AB15
AC16
AD16
AD17
AD18
AC18
AB18
AB19
AB20
AD19
AD20
AD21
AC21
AB21
AB22
AC22
AD22
AD23
AD24
AE25
AE26
AE12
AF12
AG12
AG13
AF13
AE13
AE15
AF15
AG15
AG16
AF16
AE16
AE18
AF18
AG18
AG19
AF19
AE19
AE21
AF21
AG21
AG22
AF22
AE22
AE24
AF24
AG24
AF25
AG25
AG26
AF27
AE27
VGA_RST#
CLK_PCIE_VGA
CLK_PCIE_VGA#
C_PEG_RX0
C_PEG_RX#0
C_PEG_RX1
C_PEG_RX#1
C_PEG_RX2
C_PEG_RX#2
C_PEG_RX3
C_PEG_RX#3
C_PEG_RX4
C_PEG_RX#4
C_PEG_RX5
C_PEG_RX#5
C_PEG_RX6
C_PEG_RX#6
C_PEG_RX7
C_PEG_RX#7
C_PEG_RX8
C_PEG_RX#8
C_PEG_RX9
C_PEG_RX#9
C_PEG_RX10
C_PEG_RX#10
C_PEG_RX11
C_PEG_RX#11
C_PEG_RX12
C_PEG_RX#12
C_PEG_RX13
C_PEG_RX#13
C_PEG_RX14
C_PEG_RX#14
C_PEG_RX15
C_PEG_RX#15
PEG_TX0_R
PEG_TX#0_R
PEG_TX1_R
PEG_TX#1_R
PEG_TX2_R
PEG_TX#2_R
PEG_TX3_R
PEG_TX#3_R
PEG_TX4
PEG_TX#4
PEG_TX5
PEG_TX#5
PEG_TX6
PEG_TX#6
PEG_TX7
PEG_TX#7
PEG_TX8
PEG_TX#8
PEG_TX9
PEG_TX#9
PEG_TX10
PEG_TX#10
PEG_TX11
PEG_TX#11
PEG_TX12
PEG_TX#12
PEG_TX13
PEG_TX#13
PEG_TX14
PEG_TX#14
PEG_TX15
PEG_TX#15
R416 100/F_4R416 100/F_4
C338 .1U/10V_4C338 .1U/10V_4
C337 .1U/10V_4C337 .1U/10V_4
C339 .1U/10V_4C339 .1U/10V_4
C340 .1U/10V_4C340 .1U/10V_4
C302 .1U/10V_4C302 .1U/10V_4
C301 .1U/10V_4C301 .1U/10V_4
C335 .1U/10V_4C335 .1U/10V_4
C336 .1U/10V_4C336 .1U/10V_4
C334 .1U/10V_4C334 .1U/10V_4
C333 .1U/10V_4C333 .1U/10V_4
C300 .1U/10V_4C300 .1U/10V_4
C299 .1U/10V_4C299 .1U/10V_4
C298 .1U/10V_4C298 .1U/10V_4
C297 .1U/10V_4C297 .1U/10V_4
C332 .1U/10V_4C332 .1U/10V_4
C331 .1U/10V_4C331 .1U/10V_4
C296 .1U/10V_4C296 .1U/10V_4
C295 .1U/10V_4C295 .1U/10V_4
C330 .1U/10V_4C330 .1U/10V_4
C329 .1U/10V_4C329 .1U/10V_4
C328 .1U/10V_4C328 .1U/10V_4
C327 .1U/10V_4C327 .1U/10V_4
C292 .1U/10V_4C292 .1U/10V_4
C291 .1U/10V_4C291 .1U/10V_4
C294 .1U/10V_4C294 .1U/10V_4
C293 .1U/10V_4C293 .1U/10V_4
C326 .1U/10V_4C326 .1U/10V_4
C325 .1U/10V_4C325 .1U/10V_4
C324 .1U/10V_4C324 .1U/10V_4
C323 .1U/10V_4C323 .1U/10V_4
C342 .1U/10V_4C342 .1U/10V_4
C341 .1U/10V_4C341 .1U/10V_4
PLT_RST-R#
PLT_RST-R# 6,20
CLK_PCIE_VGA 2
CLK_PCIE_VGA# 2
PEG_RX0 6
PEG_RX#0 6
PEG_RX1 6
PEG_RX#1 6
PEG_RX2 6
PEG_RX#2 6
PEG_RX3 6
PEG_RX#3 6
PEG_RX4 6
PEG_RX#4 6
PEG_RX5 6
PEG_RX#5 6
PEG_RX6 6
PEG_RX#6 6
PEG_RX7 6
PEG_RX#7 6
PEG_RX8 6
PEG_RX#8 6
PEG_RX9 6
PEG_RX#9 6
PEG_RX10 6
PEG_RX#10 6
PEG_RX11 6
PEG_RX#11 6
PEG_RX12 6
PEG_RX#12 6
PEG_RX13 6
PEG_RX#13 6
PEG_RX14 6
PEG_RX#14 6
PEG_RX15 6
PEG_RX#15 6
PEG_TX4 6
PEG_TX#4 6
PEG_TX5 6
PEG_TX#5 6
PEG_TX6 6
PEG_TX#6 6
PEG_TX7 6
PEG_TX#7 6
PEG_TX8 6
PEG_TX#8 6
PEG_TX9 6
PEG_TX#9 6
PEG_TX10 6
PEG_TX#10 6
PEG_TX11 6
PEG_TX#11 6
PEG_TX12 6
PEG_TX#12 6
PEG_TX13 6
PEG_TX#13 6
PEG_TX14 6
PEG_TX#14 6
PEG_TX15 6
PEG_TX#15 6
Dis Olny
PEG_TX0_R
PEG_TX#0_R
PEG_TX1_R
PEG_TX#1_R
PEG_TX#2_R
PEG_TX2_R
PEG_TX3_R
PEG_TX#3_R
RP60 4P2R-S-0RP60 4P2R-S-0
2
1
4
RP59 4P2R-S-0RP59 4P2R-S-0
RP61 4P2R-S-0RP61 4P2R-S-0
RP62 4P2R-S-0RP62 4P2R-S-0
3
2
1
4
3
4
3
2
1
2
1
4
3
PEG_TX0 6
PEG_TX#0 6
PEG_TX1 6
PEG_TX#1 6
PEG_TX#2 6
PEG_TX2 6
PEG_TX3 6
PEG_TX#3 6
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
5
4
3
2
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
N10M (PCIE I/F) 1/5
N10M (PCIE I/F) 1/5
N10M (PCIE I/F) 1/5
1
12 39Tuesday, May 05, 2009
12 39Tuesday, May 05, 2009
12 39Tuesday, May 05, 2009
1A
1A
1A

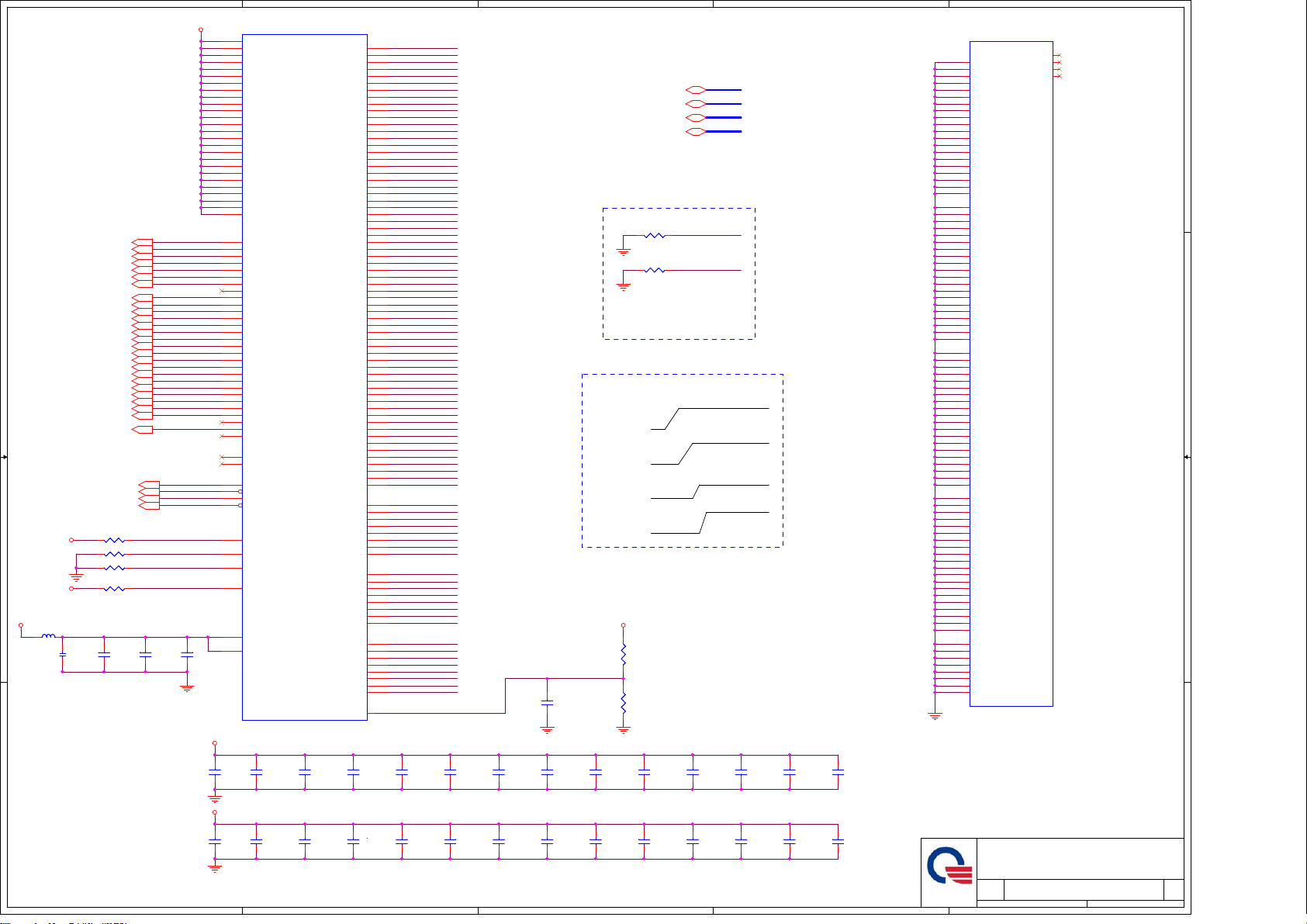

Page 13
5
+1.8V
1.63A
D D
VMA_MA316
VMA_MA016
VMA_MA216
VMA_MA116
VMA_MA3H16
VMA_MA4H16
VMA_MA5H16
VMA_CS0#16
VMA_WE#16
VMA_BA016
VMA_CKE16
VMA_ODT16
VMA_MA2H16
VMA_MA1216
R344 30/F_4R344 30/F_4
+1.8V
R345 36.5/F_4R345 36.5/F_4
R343 *40.2/F_4R343 *40.2/F_4
+1.8V
For debug only
15mils width
C686
C686
4.7U/6.3V_6
4.7U/6.3V_6
VMA_RAS#16
VMA_MA1116
VMA_MA1016
VMA_BA116
VMA_MA816
VMA_MA916
VMA_MA616
VMA_MA516
VMA_MA716
VMA_MA416
VMA_CAS#16
VMA_BA216
VMA_CLK0#16
VMA_CLK1#16
VMA_CLK016
VMA_CLK116
C205
C205
.1U/10V_4
.1U/10V_4
VMA_CLK0
VMA_CLK0#
VMA_CLK1
VMA_CLK1#
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CAL_TERM_GND
R192 Install for DDR3
FBA_DEBUG
R71*60.4/F_4 R71*60.4/F_4
10mA
25mA
+FB_PLLAVDD
C193
C193
.1U/10V_4
.1U/10V_4
C679
C679
1U/6.3V_4
1U/6.3V_4
C C
B B
+VGA1.1V
L35 HCB1608KF-181T15_6L35 HCB1608KF-181T15_6
U25B
U25B
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
A13
FBVDDQ_01
B13
FBVDDQ_02
C13
FBVDDQ_03
D13
FBVDDQ_04
D14
FBVDDQ_05
E13
FBVDDQ_06
F13
FBVDDQ_07
F14
FBVDDQ_08
F15
FBVDDQ_09
F16
FBVDDQ_10
F17
FBVDDQ_11
F19
FBVDDQ_12
F22
FBVDDQ_13
H23
FBVDDQ_14
H26
FBVDDQ_15
J15
FBVDDQ_16
J16
FBVDDQ_17
J18
FBVDDQ_18
J19
FBVDDQ_19
L19
FBVDDQ_20
L23
FBVDDQ_21
L26
FBVDDQ_22
M19
FBVDDQ_23
N22
FBVDDQ_24
U22
FBVDDQ_25
Y22
FBVDDQ_26
F26
FBA_CMD0
J24
FBA_CMD1
F25
FBA_CMD2
M23
FBA_CMD3
N27
FBA_CMD4
M27
FBA_CMD5
K26
FBA_CMD6
J25
FBA_CMD7
J27
FBA_CMD8
G23
FBA_CMD9
G26
FBA_CMD10
J23
FBA_CMD11
M25
FBA_CMD12
K27
FBA_CMD13
G25
FBA_CMD14
L24
FBA_CMD15
K23
FBA_CMD16
K24
FBA_CMD17
G22
FBA_CMD18
K25
FBA_CMD19
H22
FBA_CMD20
M26
FBA_CMD21
H24
FBA_CMD22
F27
FBA_CMD23
J26
FBA_CMD24
G24
FBA_CMD25
G27
FBA_CMD26
M24
FBA_CMD27
K22
FBA_CMD28
J22
RFU_3
L22
RFU_4
F24
FBA_CLK0
F23
FBA_CLK0*
N24
FBA_CLK1
N23
FBA_CLK1*
B15
FB_CAL_PD_VDDQ
A15
FB_CAL_PU_GND
B16
FB_CAL_TERM_GND
M22
FBA_DEBUG
R19
FB_PLLAVDD
T19
FB_DLLAVDD
N10M
N10M
+1.8V
2/13 FRAME_BUFFER
2/13 FRAME_BUFFER
FBA_D0
FBA_D1
FBA_D2
FBA_D3
FBA_D4
FBA_D5
FBA_D6
FBA_D7
FBA_D8
FBA_D9
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D37
FBA_D38
FBA_D39
FBA_D40
FBA_D41
FBA_D42
FBA_D43
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D60
FBA_D61
FBA_D62
FBA_D63
FBA_DQM0
FBA_DQM1
FBA_DQM2
FBA_DQM3
FBA_DQM4
FBA_DQM5
FBA_DQM6
FBA_DQM7
FBA_DQS_WP0
FBA_DQS_WP1
FBA_DQS_WP2
FBA_DQS_WP3
FBA_DQS_WP4
FBA_DQS_WP5
FBA_DQS_WP6
FBA_DQS_WP7
FBA_DQS_RN0
FBA_DQS_RN1
FBA_DQS_RN2
FBA_DQS_RN3
FBA_DQS_RN4
FBA_DQS_RN5
FBA_DQS_RN6
FBA_DQS_RN7
FB_VREF
4
VMA_DQ0
D21
VMA_DQ1
C22
VMA_DQ2
B22
VMA_DQ3
A22
VMA_DQ4
C24
VMA_DQ5
B25
VMA_DQ6
A25
VMA_DQ7
A26
VMA_DQ8
D22
VMA_DQ9
E22
VMA_DQ10
E24
VMA_DQ11
D24
VMA_DQ12
D26
VMA_DQ13
D27
VMA_DQ14
C27
VMA_DQ15
B27
VMA_DQ16
D16
VMA_DQ17
E16
VMA_DQ18
D17
VMA_DQ19
F18
VMA_DQ20
D20
VMA_DQ21
F20
VMA_DQ22
E21
VMA_DQ23
F21
VMA_DQ24
C16
VMA_DQ25
B18
VMA_DQ26
C18
VMA_DQ27
D18
VMA_DQ28
C19
VMA_DQ29
C21
VMA_DQ30
B21
VMA_DQ31
A21
VMA_DQ32
P22
VMA_DQ33
P24
VMA_DQ34
R23
VMA_DQ35
R24
VMA_DQ36
T23
VMA_DQ37
U24
VMA_DQ38
V23
VMA_DQ39
V24
VMA_DQ40
N25
VMA_DQ41
N26
VMA_DQ42
R25
VMA_DQ43
R26
VMA_DQ44
T25
VMA_DQ45
V26
VMA_DQ46
V25
VMA_DQ47
V27
VMA_DQ48
V22
VMA_DQ49
W22
VMA_DQ50
W23
VMA_DQ51
W24
VMA_DQ52
AA22
VMA_DQ53
AB23
VMA_DQ54
AB24
VMA_DQ55
AC24
VMA_DQ56
W25
VMA_DQ57
W26
VMA_DQ58
W27
VMA_DQ59
AA25
VMA_DQ60
AB25
VMA_DQ61
AB26
VMA_DQ62
AD26
VMA_DQ63
AD27
VMA_DM0
D23
VMA_DM1
C26
VMA_DM2
D19
VMA_DM3
B19
VMA_DM4
T24
VMA_DM5
T26
VMA_DM6
AA23
VMA_DM7
AB27
VMA_WDQS0
A24
VMA_WDQS1
C25
VMA_WDQS2
E19
VMA_WDQS3
A19
VMA_WDQS4
T22
VMA_WDQS5
T27
VMA_WDQS6
AA24
VMA_WDQS7
AA26
VMA_RDQS0
B24
VMA_RDQS1
D25
VMA_RDQS2
E18
VMA_RDQS3
A18
VMA_RDQS4
R22
VMA_RDQS5
R27
VMA_RDQS6
Y24
VMA_RDQS7
AA27
+FB_VREF1
A16
15mils width
C610
C610
*.1U/10V_4
*.1U/10V_4
3
VMA_DQ[63..0]16
VMA_DM[7..0]16
VMA_WDQS[7..0]16
VMA_RDQS[7..0]16
R374 10K/F_4R374 10K/F_4
R40 10K/F_4R40 10K/F_4
for DDR2 need use
CMD11(CKE) and
CMD12(ODT)
power up sequence
+VGA1.1V
+3V
+VGACORE
+1.8V
+1.8V
R331
R331
*1K/F_4
*1K/F_4
R338
R338
*1K/F_4
*1K/F_4
VMA_ODT
VMA_CKE
2
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
13/13 GND_NC
13/13 GND_NC
AC11
GND_01
AC14
GND_02
AC17
GND_03
AC2
GND_04
AC20
GND_05
AC23
GND_06
AC26
GND_07
AC5
GND_08
AC8
GND_09
AF11
GND_10
AF14
GND_11
AF17
GND_12
AF2
GND_13
AF20
GND_14
AF23
GND_15
AF26
GND_16
AF5
GND_17
AF8
GND_18
B11
GND_19
B14
GND_20
B17
GND_21
B2
GND_22
B20
GND_23
B23
GND_24
B26
GND_25
B5
GND_26
B8
GND_27
E11
GND_28
E14
GND_29
E17
GND_30
E2
GND_31
E20
GND_32
E23
GND_33
E26
GND_34
E5
GND_35
E8
GND_36
H2
GND_37
H5
GND_38
J11
GND_39
J14
GND_40
J17
GND_41
K19
GND_42
K9
GND_43
L11
GND_44
L12
GND_45
L13
GND_46
L14
GND_47
L15
GND_48
L16
GND_49
L17
GND_50
L2
GND_51
L5
GND_52
M12
GND_53
M13
GND_54
M14
GND_55
M15
GND_56
M16
GND_57
P19
GND_58
P2
GND_59
P23
GND_60
P26
GND_61
P5
GND_62
P9
GND_63
T12
GND_64
T13
GND_65
T14
GND_66
T15
GND_67
T16
GND_68
U11
GND_69
U12
GND_70
U13
GND_71
U14
GND_72
U15
GND_73
U16
GND_74
U17
GND_75
U2
GND_76
U23
GND_77
U26
GND_78
U5
GND_79
V19
GND_80
V9
GND_81
W11
GND_82
W14
GND_83
W17
GND_84
Y2
GND_85
Y23
GND_86
Y26
GND_87
Y5
GND_88
N10M
N10M
NC_01
NC_02
NC_03
NC_04
AA6
AC19
E15
T6
1
U25J
U25J
13
C170
C170
C134
C134
.47U/6.3V_4
.47U/6.3V_4
4.7U/6.3V_6
4.7U/6.3V_6
A A
5
+1.8V
C680
C680
4.7U/6.3V_6
4.7U/6.3V_6
C136
C136
.47U/6.3V_4
.47U/6.3V_4
C155
C155
.47U/6.3V_4
.47U/6.3V_4
C158
C158
.47U/6.3V_4
.47U/6.3V_4
C322
C322
.1U/10V_4
.1U/10V_4
C290
C290
.1U/10V_4
.1U/10V_4
4
C677
C677
4.7U/6.3V_6
4.7U/6.3V_6
C283
C283
4.7U/6.3V_6
4.7U/6.3V_6
C171
C171
.47U/6.3V_4
.47U/6.3V_4
C173
C173
.47U/6.3V_4
.47U/6.3V_4
C685
C685
.47U/6.3V_4
.47U/6.3V_4
C204
C204
.47U/6.3V_4
.47U/6.3V_4
C153
C153
.1U/10V_4
.1U/10V_4
C651
C651
.1U/10V_4
.1U/10V_4
C248
C248
.1U/10V_4
.1U/10V_4
C196
C196
.1U/10V_4
.1U/10V_4
3
C601
C601
.1U/10V_4
.1U/10V_4
C214
C214
.1U/10V_4
.1U/10V_4
C684
C684
.1U/10V_4
.1U/10V_4
C156
C156
.1U/10V_4
.1U/10V_4
C659
C659
.1U/10V_4
.1U/10V_4
C148
C148
.1U/10V_4
.1U/10V_4
C657
C657
.1U/10V_4
.1U/10V_4
C154
C154
.1U/10V_4
.1U/10V_4
2
C682
C682
.1U/10V_4
.1U/10V_4
C239
C239
.1U/10V_4
.1U/10V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
NB5
NB5
NB5
Date: Sheet of
Date: Sheet of
Date: Sheet of
N10M (MEMORY I/F) 2/5
N10M (MEMORY I/F) 2/5
N10M (MEMORY I/F) 2/5
1
1A
1A
13 39Tuesday, May 05, 2009
13 39Tuesday, May 05, 2009
13 39Tuesday, May 05, 2009
1A

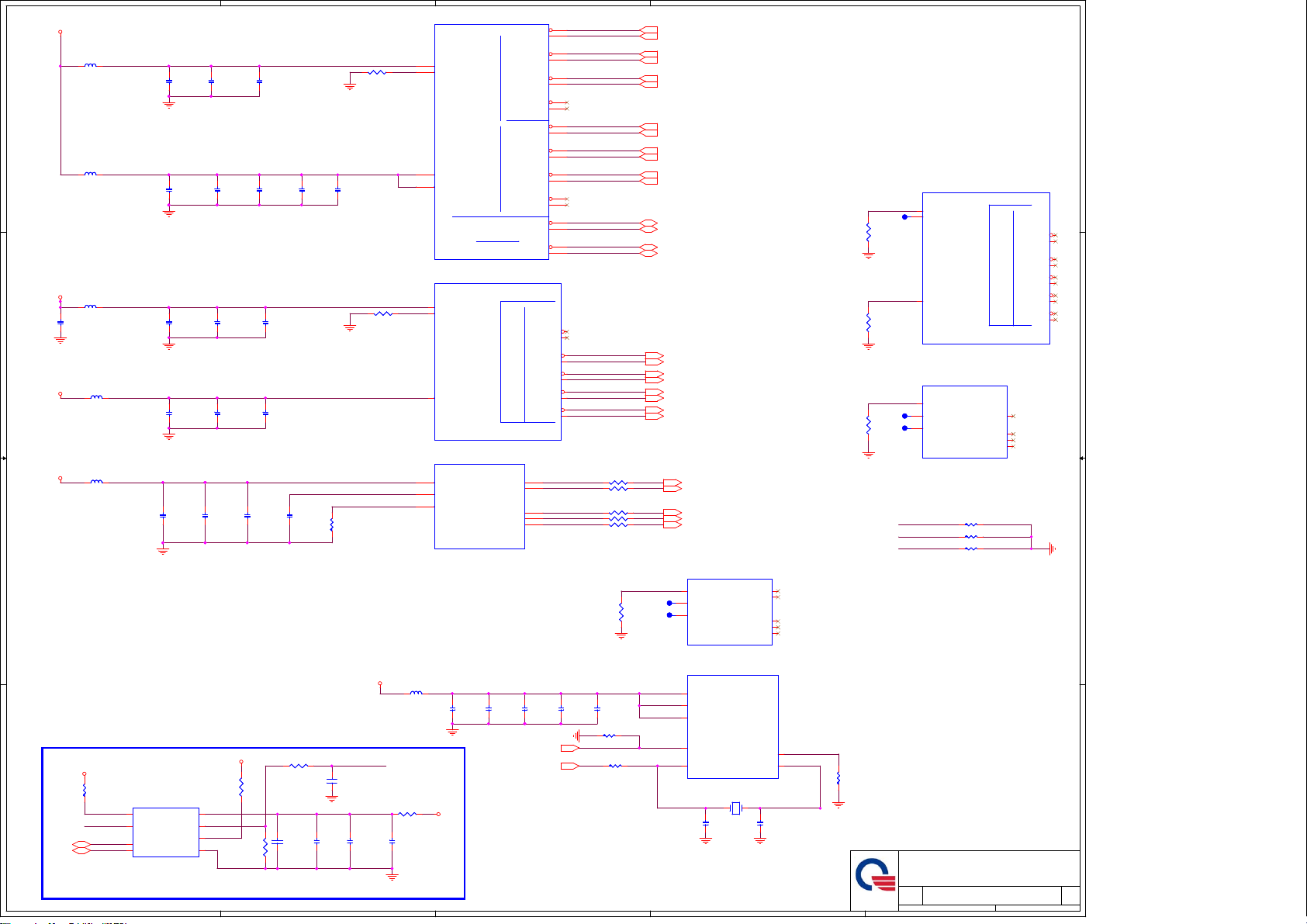

Page 14
5
+1.8V
L16 HCB1608KF-181T15_6L16 HCB1608KF-181T15_6
D D
L29 HCB1608KF-181T15_6L29 HCB1608KF-181T15_6
+1.8V
L30 HCB1608KF-181T15_6L30 HCB1608KF-181T15_6
C642
C642
1U/6.3V_4
1U/6.3V_4
C C
+VGA1.1V
L27 HCB1608KF-181T15_6L27 HCB1608KF-181T15_6
+3V
L31 HCB1608KF-181T15_6L31 HCB1608KF-181T15_6
C663
C663
4.7U/6.3V_6
4.7U/6.3V_6
B B
SPREAD SPECTRUM
+3V
R323
R323
*10K/F_4
A A
EDIDCLK6,15,17
EDIDDATA6,15,17
*10K/F_4
ICSS_PD
BXTALOUT
EDIDCLK
EDIDDATA
U20
U20
8
PD#
1
CLKIN
7
SCL
6
SDA
*ICS91730AMLF-T
*ICS91730AMLF-T
C266
C266
4.7U/6.3V_6
4.7U/6.3V_6
C636
C636
4.7U/6.3V_6
4.7U/6.3V_6
C644
C644
4.7U/6.3V_6
4.7U/6.3V_6
C626
C626
4.7U/6.3V_6
4.7U/6.3V_6
VDD
CLKOUT
REFOUT
GND
C661
C661
4700P/25V_4
4700P/25V_4
*10K/F_4
*10K/F_4
2
4
ICSS_RFO
5
3
C277
C277
4700P/25V_4
4700P/25V_4
C635
C635
4700P/25V_4
4700P/25V_4
C645
C645
4700P/25V_4
4700P/25V_4
C151
C151
4700P/25V_4
4700P/25V_4
R326
R326
+3V
*10K/F_4
*10K/F_4
C662
C662
470P/50V_4
470P/50V_4
+3V_SSC
R317
R317
C264
C264
470P/50V_4
470P/50V_4
C632
C632
4700P/25V_4
4700P/25V_4
GFX27M_L
C646
C646
470P/50V_4
470P/50V_4
C146
C146
470P/50V_4
470P/50V_4
R364 *22_4R364 *22_4
I2C ADDRESS: 0xD4H
5
C660
C660
.1U/10V_4
.1U/10V_4
C580
C580
*470P/50V_4
*470P/50V_4
C633
C633
470P/50V_4
470P/50V_4
C577
C577
*.1U/10V_4
*.1U/10V_4
4
+IFPAB_PLLVDD
+IFPAB_IOVDD
C634
C634
470P/50V_4
470P/50V_4
+IFPCD_PLLVDD
+IFPCD_IOVDD
+DACA_VDD
DACA_VREF
DACA_RSET
R411
R411
124/F_4
124/F_4
C621
C621
*10P/50V_4
*10P/50V_4
4
100mA
R101 *1K/F_4R101 *1K/F_4
50mA
50mA
160mA
R79 1K/F_4R79 1K/F_4
385mA
110mA
+VGA1.1V
L14 HCB1608KF-181T15_6L14 HCB1608KF-181T15_6
27M_SS
R315 *4.7_6R315 *4.7_6
C573
C573
C574
C574
*4.7U/6.3V_6
*4.7U/6.3V_6
*4.7U/6.3V_6
*4.7U/6.3V_6
U25F
U25F
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
6/13 IFPAB
6/13 IFPAB
AD5
IFPAB_PLLVDD
AB6
IFPAB_RSET
V3
IFPA_IOVDD
V2
IFPB_IOVDD
CLOCK
CLOCK
N10M
N10M
U25H
U25H
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
7/13 IFPC
7/13 IFPC
P6
IFPC_PLLVDD
R5
IFPC_RSET
J6
IFPC_IOVDD
N10M
N10M
U25C
U25C
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
3/13 DACA
3/13 DACA
AG2
DACA_VDD
AF1
DACA_VREF
AE1
DACA_RSET
N10M
N10M
C175
C175
1U/6.3V_4
1U/6.3V_4
+3V
A
A
DATA
DATA
B
B
A
A
B
B
C
C
DACA_HSYNC
DACA_VSYNC
DACA_GREEN
DACA_BLUE
DVI
DVI
TXC
TXC
TXC
TXC
TXD0
TXD0
TXD0
TXD0
TXD1
TXD1
TXD1
TXD1
TXD2
TXD2
TXD2
TXD2
DACA_RED
C165
C165
1U/6.3V_4
1U/6.3V_4
IFPA_TXD0*
IFPA_TXD0
IFPA_TXD1*
IFPA_TXD1
IFPA_TXD2*
IFPA_TXD2
IFPA_TXD3*
IFPA_TXD3
IFPB_TXD4*
IFPB_TXD4
IFPB_TXD5*
IFPB_TXD5
IFPB_TXD6*
IFPB_TXD6
IFPB_TXD7*
IFPB_TXD7
IFPA_TXC*
IFPA_TXC
IFPB_TXC*
IFPB_TXC
DP
DP
IFPC_AUX*
IFPC_AUX
AD2
AD1
AE2
AE3
AD3
C164
C164
1U/6.3V_4
1U/6.3V_4
27M_NONSS2
3
IFPC_L3*
IFPC_L3
IFPC_L2*
IFPC_L2
IFPC_L1*
IFPC_L1
IFPC_L0*
IFPC_L0
27M_SS2
3
V4
V5
AA4
AA5
Y4
W4
AB5
AB4
V1
W1
W2
W3
AA3
AA2
AA1
AB1
AD4
AC4
AB2
AB3
G5
G4
J4
H4
K4
L4
M4
M5
N4
P4
CRT_HSYNC
CRT_VSYNC
L_CRT_R
L_CRT_G
L_CRT_B
C199
C199
.1U/10V_4
.1U/10V_4
N_TXC_HDMIÂN_TXC_HDMI+
N_TX0_HDMIÂN_TX0_HDMI+
N_TX1_HDMIÂN_TX1_HDMI+
N_TX2_HDMIÂN_TX2_HDMI+
R409 33_4R409 33_4
R408 33_4R408 33_4
R108 0_4R108 0_4
R105 0_4R105 0_4
R103 0_4R103 0_4
+NV_PLLVDD
12.00
C185
C185
.1U/10V_4
.1U/10V_4
R58 *10K/F_4R58 *10K/F_4
R356 0_4R356 0_4
EXT_TXLOUT0- 17
EXT_TXLOUT0+ 17
EXT_TXLOUT1- 17
EXT_TXLOUT1+ 17
EXT_TXLOUT2- 17
EXT_TXLOUT2+ 17
EXT_TXUOUT0- 17
EXT_TXUOUT0+ 17
EXT_TXUOUT1- 17
EXT_TXUOUT1+ 17
EXT_TXUOUT2- 17
EXT_TXUOUT2+ 17
EXT_TXLCLKOUT- 17
EXT_TXLCLKOUT+ 17
EXT_TXUCLKOUT- 17
EXT_TXUCLKOUT+ 17
N_TXC_HDMI- 18
N_TXC_HDMI+ 18
N_TX0_HDMI- 18
N_TX0_HDMI+ 18
N_TX1_HDMI- 18
N_TX1_HDMI+ 18
N_TX2_HDMI- 18
N_TX2_HDMI+ 18
HSYNC_COM 6,18
VSYNC_COM 6,18
CRT_R 6,18
CRT_G 6,18
CRT_B 6,18
U25D
U25D
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
5/13 DACC
+DACB_VDD
R111
R111
10K/F_4
10K/F_4
55mA
50mA
25mA
27M_SS
XTALIN
5/13 DACC
W5
DACC_VDD
R6
T6T6
DACC_VREF
V6
T5T5
DACC_RSET
N10M
N10M
U25K
U25K
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
12/13 XTAL_PLL
12/13 XTAL_PLL
K5
PLLVDD
K6
VID_PLLVDD
L6
SP_PLLVDD
D11
XTAL_SSIN
D10
XTAL_IN
N10M
N10M
C611
C611
*18P/50V_4
*18P/50V_4
STUFF PDs on XTALSSIN and
XTALOUTBUFF WHEN EXT_SS
IS NOT USED
DACC_HSYNC
DACC_VSYNC
DACC_RED
DACC_GREEN
DACC_BLUE
XTAL_OUTBUFF
Y3 *27MHZY3 *27MHZ
2 1
5*3 package
Install it when not connected to Spread spectrum device
2
XTAL_OUT
2
U6
U4
T5
T4
R4
C612
C612
*18P/50V_4
*18P/50V_4
E9
E10
BXTALOUT
XTALOUT
R60
R60
*10K/F_4
*10K/F_4
1
U25G
U25G
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
8/13 IFPE
IFPEF_PLLVDD
R73
R73
10K/F_4
10K/F_4
R357
R357
10K/F_4
10K/F_4
+DACC_VD
R56
R56
10K/F_4
10K/F_4
8/13 IFPE
N6
IFPE_PLLVDD
M6
T3T3
IFPE_RSET
H6
IFPE_IOVDD
N10M
N10M
U25E
U25E
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
4/13 DACB
4/13 DACB
D7
DACB_VDD
G6
T2T2
DACB_VREF
F8
T1T1
DACB_RSET
N10M
N10M
L_CRT_R
L_CRT_G
L_CRT_B
E
E
DACB_CSYNC
DACB_RED
DACB_GREEN
DACB_BLUE
R107 150/F_4R107 150/F_4
R104 150/F_4R104 150/F_4
R102 150/F_4R102 150/F_4
Close to GPU
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
N10M (DISPLAY) 3/5
N10M (DISPLAY) 3/5
NB5
NB5
NB5
N10M (DISPLAY) 3/5
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
DVI DP
DVI DP
TXC
TXC
TXC
TXC
TXD0
TXD0
TXD0
TXD0
TXD1
TXD1
TXD1
TXD1
TXD2
TXD2
TXD2
TXD2
14
IFPE_AUX*
IFPE_AUX
IFPE_L3*
IFPE_L3
IFPE_L2*
IFPE_L2
IFPE_L1*
IFPE_L1
IFPE_L0*
IFPE_L0
D6
F7
E7
E6
14 39Tuesday, May 05, 2009
14 39Tuesday, May 05, 2009
14 39Tuesday, May 05, 2009
D4
D3
B4
B3
C4
C3
D5
E4
F4
F5
1A
1A
1A

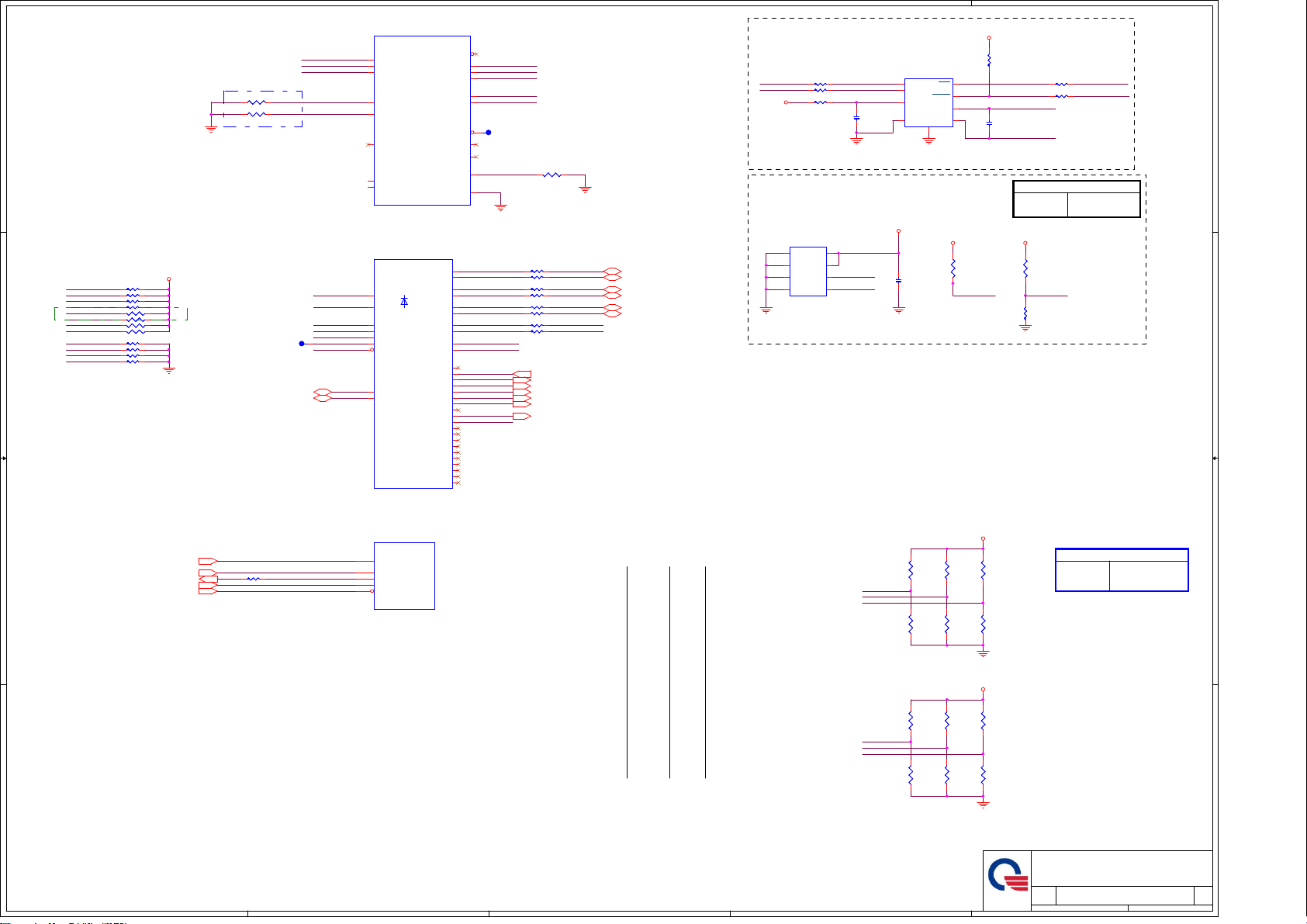

Page 15
5
STRAP0
STRAP1
STRAP2
R67 40.2K/F_4R67 40.2K/F_4
D D
R68 40.2K/F_4R68 40.2K/F_4
STRAP_REF_3V3
STRAP_REF_MIOB
Only for N10M
PV Modify (Dis)
JTAG_TMS
R417 10K/F_4R417 10K/F_4
JTAG_TDI
R415 10K/F_4R415 10K/F_4
VGA_OVT#
R368 10K/F_4R368 10K/F_4
ALERT
R375 10K/F_4R375 10K/F_4
I2CD_SCL_G
R385 *2.2K_4R385 *2.2K_4
I2CD_SDA_G
R382 *2.2K_4R382 *2.2K_4
I2CE_SCL_G
R110 2.2K_4R110 2.2K_4
I2CE_SDA_G
R109 2.2K_4R109 2.2K_4
JTAG_TCK
R413 10K/F_4R413 10K/F_4
JTAG_TRST#
C C
DPST_PWM
NV_HDA_RST
R414 10K/F_4R414 10K/F_4
R369 2K/F_4R369 2K/F_4
R358 10K/F_4R358 10K/F_4
+3V
GFX_THMDÂGFX_THMD+
JTAG_TCK
JTAG_TMS
JTAG_TDI
JTAG_TDO
T7T7
JTAG_TRST#
MBCLK24,29,30
MBDATA24,29,30
4
U25L
U25L
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
11/13 MISC
11/13 MISC
C7
STRAP0
B9
STRAP1
A9
STRAP2
F11
STRAP_REF_3V3
F10
STRAP_REF_MIOB
F9
SPDIF
C15
RFU_1
D15
RFU_2
N10M
N10M
U25M
U25M
PBGA533-NVIDIA-GEFORCE6250
PBGA533-NVIDIA-GEFORCE6250
9/13 I2C_GPIO_THERM_JTAG
9/13 I2C_GPIO_THERM_JTAG
D8
THERMDN
D9
THERMDP
AF3
JTAG_TCK
AF4
JTAG_TMS
AG4
JTAG_TDI
AE4
JTAG_TDO
AG3
JTAG_TRST*
T1
I2CS_SCL
T2
I2CS_SDA
N10M
N10M
B10
I2CA_SCL
I2CA_SDA
I2CB_SCL
I2CB_SDA
I2CC_SCL
I2CC_SDA
I2CD_SCL
I2CD_SDA
I2CE_SCL
I2CE_SDA
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
ROM_CS*
ROM_SI
ROM_SO
ROM_SCLK
I2CH_SCL
I2CH_SDA
BUFRST*
TESTMODE
RFU_GND
ROM_SI
A10
ROM_SO
C10
ROM_SCLK
C9
HDCP_SCL
A3
HDCP_SDA
A4
N5
T4T4
J5
RFU_8
F6
RFU_7
TESTMODE
AD25
AC6
L_DDCCLK
R1
L_DDCDAT
T3
I2CB_SCL_G
R2
I2CB_SDA_G
R3
I2CC_SCL_G
A2
I2CC_SDA_G
B1
I2CD_SCL_G
N2
I2CD_SDA_G HDMI_SDA
N3
I2CE_SCL_G
Y6
I2CE_SDA_G
W6
N1
G1
DPST_PWM
C1
M2
M3
K3
K2
J2
VGA_OVT#
C2
ALERT
M1
D2
D1
J3
J1
K1
F3
G3
G2
F1
F2
3
10K/F_4
10K/F_4
R98
R98
R388 0_4R388 0_4
R389 0_4R389 0_4
R384 *0_4R384 *0_4
R387 *0_4R387 *0_4
R324 33_4R324 33_4
R325 33_4R325 33_4
R383 0_4R383 0_4
R380 0_4R380 0_4
EDIDCLK
EDIDDATA
HDMI_SCL
NB9M/NB9P-GE2/NB9P-GS stuff I2CD,
NB9P-GE stuff I2CB
HDMI_DET 18
DPST_PWM 6,17
DISP_ON 6,17
LVDS_BLON 6,17
V_PWRCNTL 36
VGA_GPIO6 36
VGA_OVT# 4
DDCCLK 6,18
DDCDATA 6,18
HDMI_SCL 18
HDMI_SDA 18
EDIDCLK 6,14,17
EDIDDATA 6,14,17
I2C ADDRESS: 0x98H
R363 *0_4R363 *0_4
R362 *0_4R362 *0_4
R360 *200_4R360 *200_4
+3V
U23
U23
1
2
3
A0
VCC
A1
WP
A2
SCL
GND4SDA
AT88SC0808C-SU
AT88SC0808C-SU
8
7
6
5
2
R342
R342
*2.2K_4
*2.2K_4
MAX6649_O#
MAX6649_A#
C614
C614
*2200P/50V_4
*2200P/50V_4
GFX_THMD+
GFX_THMD-
VGA THERMAIL CIRCUIT
R367
R367
R347
R347
DHCP ROM
+3V
U21
U21
GFX_SDAEDIDDATA VGA_OVT#
7
SDAT
GFX_SCLEDIDCLK
8
SCLK
MAX6649_V
1
VCC
C620
C620
5
*.1U/10V_4
*.1U/10V_4
Use 10MIL Guard(GND) Trace around THERMDC and THERMDA
GND
THERMAL TRACE CONSTRAINTS
OVT
ALERT
DXP
DXN
GND
*G799P8UF
*G799P8UF
9
4
6
2
3
HDCP ROM
HDCP_SCL
HDCP_SCL
HDCP_SDA
+3V
C623
C623
.1U/10V_4
.1U/10V_4
+3V +3V
R378
R378
2.2K_4
2.2K_4
R372
R372
2.2K_4
2.2K_4
HDCP_SCLHDCP_SDA
R373
R373
*10K/F_4
*10K/F_4
1
*0_4
*0_4
ALERT
*0_4
*0_4
Low: Crypto ROM
Hi: I2C ROM
15
PCI_DEVID[4] / SUBVENDOR
R349
R349
4.99K/F_4
4.99K/F_4
R348
R348
*4.99K/F_4
*4.99K/F_4
R328
R328
*4.99K/F_4
*4.99K/F_4
R327
R327
10K/F_4
10K/F_4
+3V
+3V
R353
R353
*4.99K/F_4
*4.99K/F_4
R352
R352
15K/F_4
15K/F_4
R335
R335
25.5K/F_4
25.5K/F_4
R354
R354
*4.99K/F_4
*4.99K/F_4
VRAM ID
ROM_SI
PD 5K: Hynix
PD 10K: Samsung
PD 15K: Qimonda
Logical Strap Bit Mapping
PU PD
5K
1000 0000
10K
1001 0001
15K
20K
25K
30K
35K
45K
1011 0011
1100
1101
1110 0110
1111
00101010
0100
0101
0111
U25I
U25I
PBGA533-NVIDIA-GEFORCE6250
HD Audio Level :3V
NV_HDA_BCLK19
B B
A A
NV_HDA_SYNC19
ACZ_SDIN219
NV_HDA_SDO19
NV_HDA_RST19
R57 10_4R57 10_4
NV_HDA_SDI
NV_HDA_RST
PBGA533-NVIDIA-GEFORCE6250
10/13 HDAUDIO
10/13 HDAUDIO
A7
HDA_BCLK
B7
HDA_SYNC
A6
HDA_SDI
B6
HDA_SDO
C6
HDA_RST*
N10M
N10M
GPIO ASSIGNMENTS
GPIO
0
1
3
4
6
7
8
9
10
11
12
13
145OUT
ACTIVE
I/O
IN
N/A
IN
N/A
OUT
HIGH
OUT2HIGH
OUT
HIGH
OUT
N/A
OUT
N/A
OUT
N/A
IN
LOW
OUT
LOW
OUT
N/A
OUT
N/A
IN
N/A
OUT
LOW
HIGH
USAGE
PRIMARY DVI HOTPLUG
SECONDARY DVI HOTPLUG
PANEL BACKLIGHT PWM
PANEL POWER ENABLE
PANEL BACKLIGHT ENABLE
NVVDD VID0
NVVDD VID1
FBVDD VID0
THERMAL ALERT
FAN PWM
FBVREF SELECT
SLI SYNC0
AC DETECT
PS CONTROL OR HDMI_CEC
PS CONTROL
ROM_SI
ROM_SO
ROM_SCLK
Straps
STRAP0
STRAP1
STRAP2
R350
R350
*4.99K/F_4
*4.99K/F_4
R351
R351
10K/F_4
10K/F_4
R336
R336
45.3K/F_4
45.3K/F_4
R355
R355
*4.99K/F_4
*4.99K/F_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
C
C
C
N10M (GPIO & STRRAPS) 4/5
N10M (GPIO & STRRAPS) 4/5
NB5
NB5
5
4
3
2
NB5
N10M (GPIO & STRRAPS) 4/5
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
15 39Tuesday, May 05, 2009
15 39Tuesday, May 05, 2009
15 39Tuesday, May 05, 2009
1A
1A
1A
Page 16
5
U22
VMA_DQ1
VMA_DQ6
VMA_DQ3
VMA_DQ5
VMA_DQ7
VMA_DQ0
VMA_DQ4
VMA_DQ2
VMA_DQ13
VMA_DQ11
VMA_DQ15
D D
VMA_BA113
VMA_BA013
VMA_MA1213
VMA_MA1113
VMA_MA1013
VMA_MA913
VMA_MA813
VMA_MA713
VMA_MA613
VMA_MA513
VMA_MA413
C C
B B
A A
VMA_MA313
VMA_MA213
VMA_MA113
VMA_MA013
VMA_ODT13
VMA_CKE13
VMA_CS0#13
VMA_WE#13
VMA_RAS#13
VMA_CAS#13
VMA_MA5H13
VMA_MA4H13
VMA_MA3H13
VMA_MA2H13
VMA_DQ8
VMA_DQ9
VMA_DQ14
VMA_DQ10
VMA_DQ12
VMA_DM0
VMA_DM1
VMA_WDQS0
VMA_RDQS0
VMA_WDQS1
VMA_RDQS1
VMA_CLK0
VMA_CLK0#
VMA_BA1
VMA_BA0
VMA_MA12
VMA_MA11
VMA_MA10
VMA_MA9
VMA_MA8
VMA_MA7
VMA_MA6
VMA_MA5
VMA_MA4
VMA_MA3
VMA_MA2
VMA_MA1
VMA_MA0
VMA_ODT
VMA_CKE
VMA_CS0#
VMA_WE#
VMA_RAS#
VMA_CAS#
VMA_DQ37
VMA_DQ35
VMA_DQ38
VMA_DQ33
VMA_DQ32
VMA_DQ39
VMA_DQ34
VMA_DQ36
VMA_DQ44
VMA_DQ42
VMA_DQ46
VMA_DQ40
VMA_DQ41
VMA_DQ47
VMA_DQ43
VMA_DQ45
VMA_DM4
VMA_DM5
VMA_WDQS4
VMA_RDQS4
VMA_WDQS5
VMA_RDQS5
VMA_CLK1
VMA_CLK1#
VMA_BA1
VMA_BA0
VMA_MA12
VMA_MA11
VMA_MA10
VMA_MA9
VMA_MA8
VMA_MA7
VMA_MA6
VMA_MA5H
VMA_MA4H
VMA_MA3H
VMA_MA2H
VMA_MA1
VMA_MA0
VMA_ODT
VMA_CKE
VMA_CS0#
VMA_WE#
VMA_RAS#
VMA_CAS#
5
U22
B9
UDQ7
B1
UDQ6
D9
UDQ5
D1
UDQ4
D3
UDQ3
D7
UDQ2
C2
UDQ1
C8
UDQ0
F9
LDQ7
F1
LDQ6
H9
LDQ5
H1
LDQ4
H3
LDQ3
H7
LDQ2
G2
LDQ1
G8
LDQ0
B3
UDM
F3
LDM
B7
UDQS
A8
UDQS
F7
LDQS
E8
LDQS
J8
CK
K8
CK
L3
BA1
L2
BA0
R2
A12
P7
A11
M2
A10
P3
A9
P8
A8
P2
A7
N7
A6
N3
A5
N8
A4
N2
A3
M7
A2
M3
A1
M8
A0
K9
ODT
K2
CKE
L8
CS
K3
WE
K7
RAS
L7
CAS
K4N1G164QQ-HC20
K4N1G164QQ-HC20
U8
U8
B9
UDQ7
B1
UDQ6
D9
UDQ5
D1
UDQ4
D3
UDQ3
D7
UDQ2
C2
UDQ1
C8
UDQ0
F9
LDQ7
F1
LDQ6
H9
LDQ5
H1
LDQ4
H3
LDQ3
H7
LDQ2
G2
LDQ1
G8
LDQ0
B3
UDM
F3
LDM
B7
UDQS
A8
UDQS
F7
LDQS
E8
LDQS
J8
CK
K8
CK
L3
BA1
L2
BA0
R2
A12
P7
A11
M2
A10
P3
A9
P8
A8
P2
A7
N7
A6
N3
A5
N8
A4
N2
A3
M7
A2
M3
A1
M8
A0
K9
ODT
K2
CKE
L8
CS
K3
WE
K7
RAS
L7
CAS
K4N1G164QQ-HC20
K4N1G164QQ-HC20
VREF
VDD1
VDD2
VDD3
VDD4
VDD5
VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9
VDDQ10
VDDL
NC1
NC2
NC3
NC4
NC5
NC6
VSS1
VSS2
VSS3
VSS4
VSS5
VSSQ1
VSSQ2
VSSQ3
VSSQ4
VSSQ5
VSSQ6
VSSQ7
VSSQ8
VSSQ9
VSSQ10
VSSDL
VREF
VDD1
VDD2
VDD3
VDD4
VDD5
VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9
VDDQ10
VDDL
NC1
NC2
NC3
NC4
NC5
NC6
VSS1
VSS2
VSS3
VSS4
VSS5
VSSQ1
VSSQ2
VSSQ3
VSSQ4
VSSQ5
VSSQ6
VSSQ7
VSSQ8
VSSQ9
VSSQ10
VSSDL
J2
A1
E1
J9
M9
R1
A9
C1
C3
C7
C9
E9
G1
G3
G7
G9
J1
A2
E2
L1
R3
R7
R8
A3
E3
J3
N1
P9
A7
B2
B8
D2
D8
E7
F2
F8
H2
H8
J7
J2
A1
E1
J9
M9
R1
A9
C1
C3
C7
C9
E9
G1
G3
G7
G9
J1
A2
E2
L1
R3
R7
R8
A3
E3
J3
N1
P9
A7
B2
B8
D2
D8
E7
F2
F8
H2
H8
J7
15mil
VMREFA0
VMA_BA2
15mil
VMREFA1
VMA_BA2
4
R42 1K/F_4R42 1K/F_4
R41 1K/F_4R41 1K/F_4
C106 .1U/10V_4C106 .1U/10V_4
+1.8V
R424 1K/F_4R424 1K/F_4
R425 1K/F_4R425 1K/F_4
C683 .1U/10V_4C683 .1U/10V_4
+1.8V
4
VMA_BA2 13
+1.8V
+1.8V
3
VMA_DQ31
VMA_DQ28
VMA_DQ29
VMA_DQ24
VMA_DQ26
VMA_DQ27
VMA_DQ25
VMA_DQ30
VMA_DQ19
VMA_DQ20
VMA_DQ16
VMA_DQ21
VMA_DQ23
VMA_DQ17
VMA_DQ22
VMA_DQ18
VMA_DM3
VMA_DM2
VMA_WDQS3
VMA_RDQS3
VMA_WDQS2
VMA_RDQS2
VMA_CLK0
VMA_CLK0#
VMA_BA1
VMA_BA0
VMA_MA12
VMA_MA11
VMA_MA10
VMA_MA9
VMA_MA8
VMA_MA7
VMA_MA6
VMA_MA5
VMA_MA4
VMA_MA3
VMA_MA2
VMA_MA1
VMA_MA0
VMA_ODT
VMA_CKE
VMA_CS0#
VMA_WE#
VMA_RAS#
VMA_CAS#
VMA_DQ59
VMA_DQ60
VMA_DQ58
VMA_DQ62
VMA_DQ63
VMA_DQ56
VMA_DQ61
VMA_DQ57
VMA_DQ51
VMA_DQ53
VMA_DQ48
VMA_DQ52
VMA_DQ54
VMA_DQ50
VMA_DQ55
VMA_DQ49
VMA_DM7
VMA_DM6
VMA_WDQS7
VMA_RDQS7
VMA_WDQS6
VMA_RDQS6
VMA_CLK1
VMA_CLK1#
VMA_BA1
VMA_BA0
VMA_MA12
VMA_MA11
VMA_MA10
VMA_MA9
VMA_MA8
VMA_MA7
VMA_MA6
VMA_MA5H
VMA_MA4H
VMA_MA3H
VMA_MA2H
VMA_MA1
VMA_MA0
VMA_ODT
VMA_CKE
VMA_CS0#
VMA_WE#
VMA_RAS#
VMA_CAS#
3
U7
U7
B9
UDQ7
B1
UDQ6
D9
UDQ5
D1
UDQ4
D3
UDQ3
D7
UDQ2
C2
UDQ1
C8
UDQ0
F9
LDQ7
F1
LDQ6
H9
LDQ5
H1
LDQ4
H3
LDQ3
H7
LDQ2
G2
LDQ1
G8
LDQ0
B3
UDM
F3
LDM
B7
UDQS
A8
UDQS
F7
LDQS
E8
LDQS
J8
CK
K8
CK
L3
BA1
L2
BA0
R2
A12
P7
A11
M2
A10
P3
A9
P8
A8
P2
A7
N7
A6
N3
A5
N8
A4
N2
A3
M7
A2
M3
A1
M8
A0
K9
ODT
K2
CKE
L8
CS
K3
WE
K7
RAS
L7
CAS
K4N1G164QQ-HC20
K4N1G164QQ-HC20
U26
U26
B9
UDQ7
B1
UDQ6
D9
UDQ5
D1
UDQ4
D3
UDQ3
D7
UDQ2
C2
UDQ1
C8
UDQ0
F9
LDQ7
F1
LDQ6
H9
LDQ5
H1
LDQ4
H3
LDQ3
H7
LDQ2
G2
LDQ1
G8
LDQ0
B3
UDM
F3
LDM
B7
UDQS
A8
UDQS
F7
LDQS
E8
LDQS
J8
CK
K8
CK
L3
BA1
L2
BA0
R2
A12
P7
A11
M2
A10
P3
A9
P8
A8
P2
A7
N7
A6
N3
A5
N8
A4
N2
A3
M7
A2
M3
A1
M8
A0
K9
ODT
K2
CKE
L8
CS
K3
WE
K7
RAS
L7
CAS
K4N1G164QQ-HC20
K4N1G164QQ-HC20
VREF
VDD1
VDD2
VDD3
VDD4
VDD5
VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9
VDDQ10
VDDL
NC1
NC2
NC3
NC4
NC5
NC6
VSS1
VSS2
VSS3
VSS4
VSS5
VSSQ1
VSSQ2
VSSQ3
VSSQ4
VSSQ5
VSSQ6
VSSQ7
VSSQ8
VSSQ9
VSSQ10
VSSDL
VREF
VDD1
VDD2
VDD3
VDD4
VDD5
VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9
VDDQ10
VDDL
NC1
NC2
NC3
NC4
NC5
NC6
VSS1
VSS2
VSS3
VSS4
VSS5
VSSQ1
VSSQ2
VSSQ3
VSSQ4
VSSQ5
VSSQ6
VSSQ7
VSSQ8
VSSQ9
VSSQ10
VSSDL
J2
A1
E1
J9
M9
R1
A9
C1
C3
C7
C9
E9
G1
G3
G7
G9
J1
A2
E2
L1
R3
R7
R8
A3
E3
J3
N1
P9
A7
B2
B8
D2
D8
E7
F2
F8
H2
H8
J7
J2
A1
E1
J9
M9
R1
A9
C1
C3
C7
C9
E9
G1
G3
G7
G9
J1
A2
E2
L1
R3
R7
R8
A3
E3
J3
N1
P9
A7
B2
B8
D2
D8
E7
F2
F8
H2
H8
J7
15mil
VMREFA0
+1.8V
VMA_BA2
15mil
VMREFA1
+1.8V
VMA_BA2
2
VMA_CLK013
R44
R44
475/F_4
475/F_4
VMA_CLK0#13
VMA_CLK113
R113
R113
475/F_4
475/F_4
VMA_CLK1#13
NB10M: 475R
CS14752FB11 RES CHIP 475 1/16W +-1%(0402)
(By pass capacitor)
C630
C630
.1U/10V_4
.1U/10V_4
C639
C639
1000P/50V_4
1000P/50V_4
C670
C670
1000P/50V_4
1000P/50V_4
C127
C127
1000P/50V_4
1000P/50V_4
C664
C664
1000P/50V_4
1000P/50V_4
VMA_DQ[63..0]13
VMA_DM[7..0]13
VMA_WDQS[7..0]13
VMA_RDQS[7..0]13
C629
C629
.1U/10V_4
.1U/10V_4
C166
C166
.01U/16V_4
.01U/16V_4
C133
C133
.01U/16V_4
.01U/16V_4
C150
C150
.01U/16V_4
.01U/16V_4
C265
C265
.01U/16V_4
.01U/16V_4
C223
C223
.1U/10V_4
.1U/10V_4
C128
C128
.1U/10V_4
.1U/10V_4
C288
C288
.1U/10V_4
.1U/10V_4
C625
C625
.1U/10V_4
.1U/10V_4
C653
C653
.1U/10V_4
.1U/10V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
2
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
VMA_CLK0
VMA_CLK0#
VMA_CLK1
VMA_CLK1#
C278
C278
.1U/10V_4
.1U/10V_4
N10M VRAM-1(GDDR2) 5/5
N10M VRAM-1(GDDR2) 5/5
N10M VRAM-1(GDDR2) 5/5
+1.8V
+1.8V
C195
C195
4.7U/6.3V_6
4.7U/6.3V_6
+1.8V
C287
C287
4.7U/6.3V_6
4.7U/6.3V_6
+1.8V
C142
C142
4.7U/6.3V_6
4.7U/6.3V_6
+1.8V
C627
C627
4.7U/6.3V_6
4.7U/6.3V_6
1
16 39Tuesday, May 05, 2009
16 39Tuesday, May 05, 2009
16 39Tuesday, May 05, 2009
16
1A
1A
1A

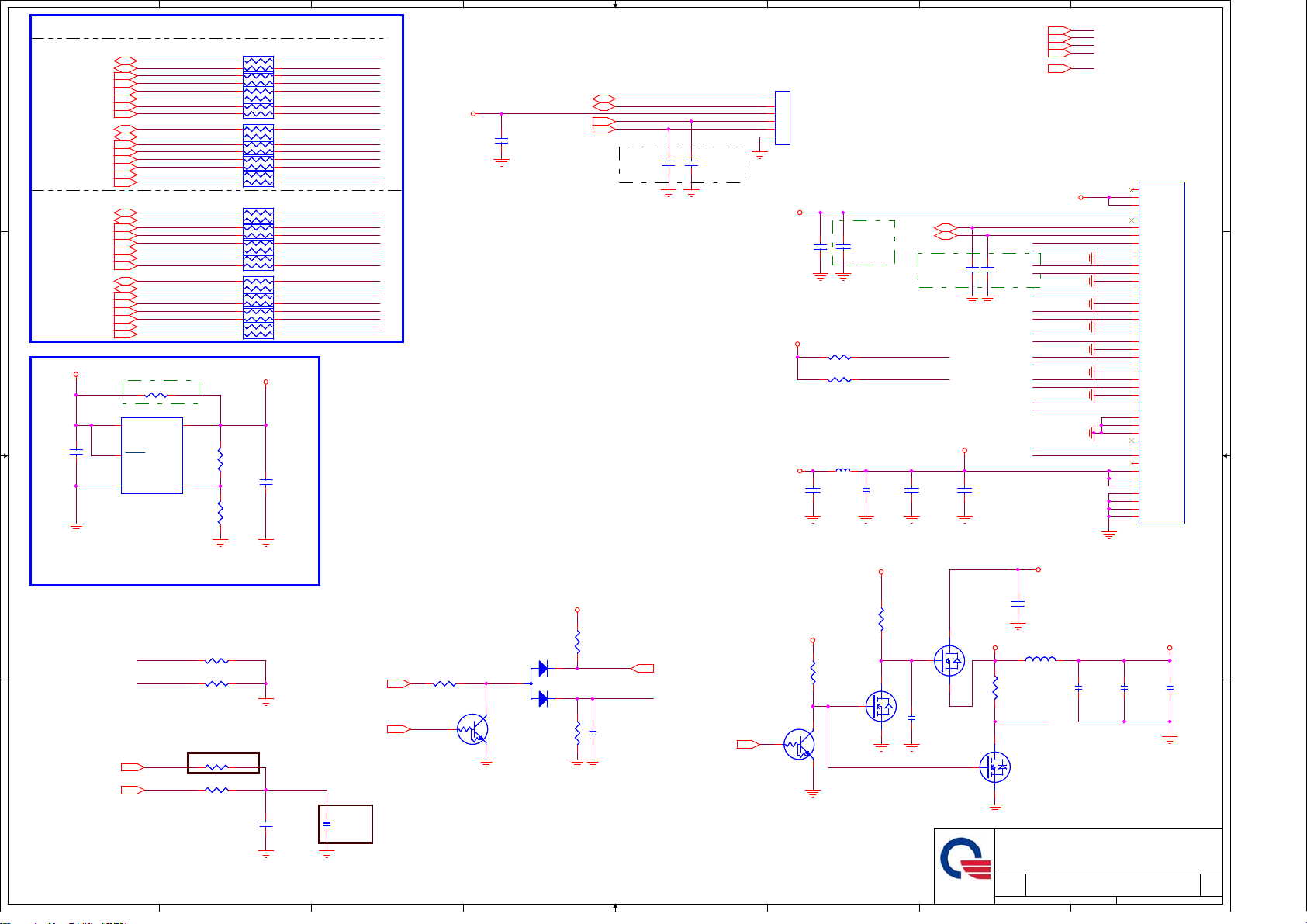

Page 17
1
1. If LCD connector near GPU, then place these series Resistors near GPU
2. If LCD connector near N/B, then place these series Resistors near N/B
OPTION SIGNAL FROM NB FOR UMA VGA
LA_CLK6
LA_CLK#6
LA_DATAP06
LA_DATAN06
LA_DATAP16
LA_DATAN16
LA_DATAP26
A A
LA_DATAN26
LB_CLK#6
LB_CLK6
LB_DATAP06
LB_DATAN06
LB_DATAP16
LB_DATAN16
LB_DATAN26
LB_DATAP26
OPTION SIGNAL FROM Nvidia to VGA
EXT_TXLCLKOUT+14
EXT_TXLCLKOUT-14
EXT_TXLOUT0-14
EXT_TXLOUT0+14
EXT_TXLOUT1+14
EXT_TXLOUT1-14
EXT_TXLOUT2+14
EXT_TXLOUT2-14
EXT_TXUCLKOUT+14
EXT_TXUCLKOUT-14
EXT_TXUOUT0+14
EXT_TXUOUT0-14
EXT_TXUOUT1-14
EXT_TXUOUT1+14
EXT_TXUOUT2-14
1U/6.3V_4
1U/6.3V_4
EXT_TXUOUT2+14
+5V
C7
C7
1
2
PV Modify
R5 *0_6SR5 *0_6S
U1
U1
VIN3VOUT
SHDN
GND
*IC(5P) G913C (SOT23-5)EP
*IC(5P) G913C (SOT23-5)EP
SET
4
5
B B
2
RP34 *4P2R-S-0RP34 *4P2R-S-0
RP37 *4P2R-S-0RP37 *4P2R-S-0
RP31 *4P2R-S-0RP31 *4P2R-S-0
RP29 *4P2R-S-0RP29 *4P2R-S-0
RP58 *4P2R-S-0RP58 *4P2R-S-0
RP52 *4P2R-S-0RP52 *4P2R-S-0
RP54 *4P2R-S-0RP54 *4P2R-S-0
RP56 *4P2R-S-0RP56 *4P2R-S-0
4
3
2
1
4
3
2
1
2
1
4
3
4
3
2
1
2
1
4
3
4
3
2
1
4
3
2
1
2
1
4
3
TXLCLKOUT+
TXLCLKOUTÂTXLOUT0+
TXLOUT0ÂTXLOUT1+
TXLOUT1ÂTXLOUT2+
TXLOUT2-
TXUCLKOUTÂTXUCLKOUT+
TXUOUT0+
TXUOUT0ÂTXUOUT1+
TXUOUT1ÂTXUOUT2ÂTXUOUT2+
3
+3.6V_CAM
C4
C4
.01U/16V_4
.01U/16V_4
4
USBP9+20
USBP9-20
DIGITAL_CLK24
DIGITAL_D124
*100P/50V_4
*100P/50V_4
5
CN1
CN1
CAMERA-BOARD
CAMERA-BOARD
1
2
3
4
5
6
C6
C6
C5
C5
*100P/50V_4
*100P/50V_4
Close with CN28
RP35 4P2R-S-0RP35 4P2R-S-0
RP36 4P2R-S-0RP36 4P2R-S-0
RP32 4P2R-S-0RP32 4P2R-S-0
RP30 4P2R-S-0RP30 4P2R-S-0
RP57 4P2R-S-0RP57 4P2R-S-0
RP51 4P2R-S-0RP51 4P2R-S-0
RP53 4P2R-S-0RP53 4P2R-S-0
RP55 4P2R-S-0RP55 4P2R-S-0
R4
R4
R1
*215K/F_4
*215K/F_4 L1 FBM2125 HM330-TL1 FBM2125 HM330-T
R3
R3
R2
*100K/F_4
*100K/F_4
1
3
3
1
3
1
1
3
1
3
1
3
3
1
3
1
+3.6V_CAM
2
4
4
2
4
2
2
4
2
4
2
4
4
2
4
2
C8
C8
4.7U/6.3V_6
4.7U/6.3V_6
TXLCLKOUT+
TXLCLKOUTÂTXLOUT0ÂTXLOUT0+
TXLOUT1+
TXLOUT1ÂTXLOUT2+
TXLOUT2-
TXUCLKOUT+
TXUCLKOUTÂTXUOUT0+
TXUOUT0ÂTXUOUT1ÂTXUOUT1+
TXUOUT2ÂTXUOUT2+
+3V
1000P/50V_4
1000P/50V_4
+3V
+VIN
C18
C18
.1U/50V_6
.1U/50V_6
C3
C3
PV Modify
R1
R2 2.2K_4R2 2.2K_4
.01U/50V_4
.01U/50V_4
6
7
+3V2,4,6,9,10,11,12,14,15,18,19,20,21,22,24,25,26,28,29,30,31,35,36,38
+5V18,22,24,25,28,29,31,37,38
+VIN32,33,34,35,36,37,38
+3VPCU19,29,30,32,33,36,38
+12VALW33,38
LCD / USB CAMERA / DIGITAL MIC CONNECTOR
+3VLCD_CON
C820
C820
.22U/10V_4
.22U/10V_4
2.2K_4R12.2K_4
EMI
C12
C12
.1U/50V_6
.1U/50V_6
EDIDCLK6,14,15
EDIDDATA6,14,15
EDIDCLK
EDIDDATA
C821
C821
*1000P/50V_4
*1000P/50V_4
EMI
+VIN_BLIGHT
C15
C15
*10U/25V_12
*10U/25V_12
1 2
C822
C822
*1000P/50V_4
*1000P/50V_4
1 2
TXLOUT0ÂTXLOUT0+
TXLOUT1ÂTXLOUT1+
TXLOUT2ÂTXLOUT2+
TXLCLKOUTÂTXLCLKOUT+
TXUOUT0ÂTXUOUT0+
TXUOUT1ÂTXUOUT1+
TXUOUT2ÂTXUOUT2+
TXUCLKOUTÂTXUCLKOUT+
VADJ1
BLON_CON
LCD_CON40
LCD_CON40
GS12401-1011-40P-R-NH
GS12401-1011-40P-R-NH
12
C10
C10
8
17
CN2
CN2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
330K_4
330K_4
2N7002Q62N7002
6
R16
R16
2
Q6
+12VALW
12
3
1
AO3404 ID
current
5.8A
AO3404Q4AO3404
LCDONG
2 1
LCDON#
Q4
2
C25
C25
.022U/16V_4
.022U/16V_4
3
1
NB5
NB5
NB5
+3VLCD
12
3
2
1
7
C C
D D
Vout=1.25(1+R1/R2)
DISP_ON
R18 100K/F_4R18 100K/F_4
LVDS_BLON
R12 100K/F_4R12 100K/F_4
DPST_PWM
DPST_PWM6,15
PWM_VADJ30
1
R8 1K/F_4R8 1K/F_4
PWM_VADJ VADJ1
R7 *0_4R7 *0_4
+3VPCU
100K/F_4
100K/F_4
2
Q7
Q7
R17
R17
+5VSUS
12
1 3
R6
D1
LVDS_BLON6,15
LCD_BK21
R11 1K/F_4R11 1K/F_4
DTC144EUA
DTC144EUA
PN_BLON
3
2
Q2
Q2
BAT54AD1BAT54A
1 3
36K/F_4R636K/F_4
1
2
R9
100K/F_4R9100K/F_4
PQ Modify
C14
C14
*4.7U/6.3V_6
*4.7U/6.3V_6
2
C13
C13
22P/50V_4
22P/50V_4
3
4
BLON_CON
C16
C16
22P/50V_4
22P/50V_4
Close to EC
LID_EC# 29,30
5
DISP_ON6,15
DTC144EUA
DTC144EUA
+3V
C19
C19
.1U/10V_4
.1U/10V_4
C2
C2
+3VLCD_CON
C20
C20
10U/6.3V_8
10U/6.3V_8
L2 PBY201209T-4A/08L2 PBY201209T-4A/08
R15
R15
22_8
22_8
LCDDISCHG
Q5
2N7002Q52N7002
.01U/16V_4
.01U/16V_4
C1
C1
.1U/10V_4
.1U/10V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
LCD CONN(WC/MIC)/LID
LCD CONN(WC/MIC)/LID
LCD CONN(WC/MIC)/LID
17 39Tuesday, May 05, 2009
17 39Tuesday, May 05, 2009
17 39Tuesday, May 05, 2009
8
1A
1A
1A

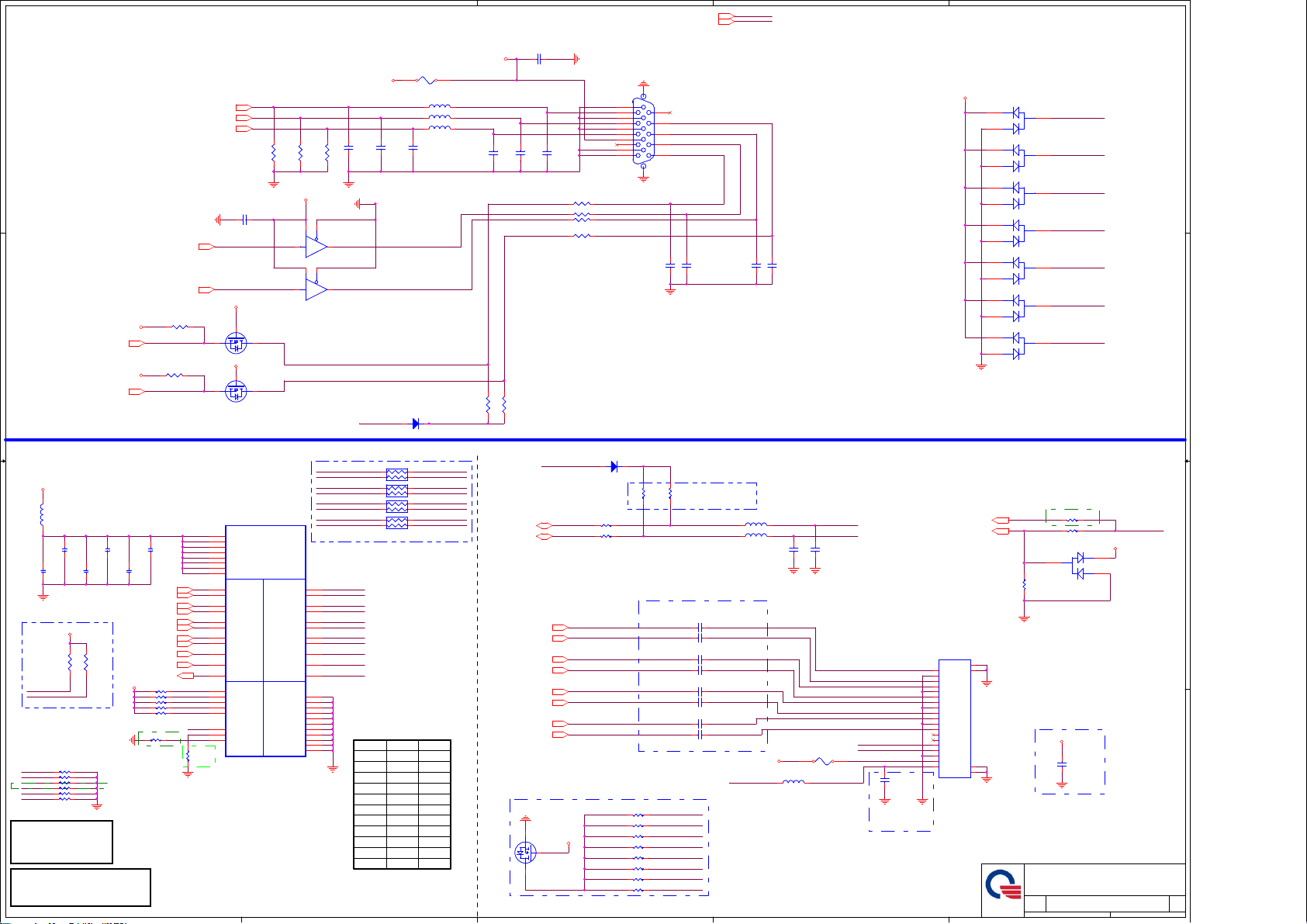

Page 18
5
CRT_R6,14
D D
R316 2.2K_4R316 2.2K_4
+3V
+3V
DDCCLK
R320 2.2K_4R320 2.2K_4
DDCDATA
C C
DDCCLK6,15
DDCDATA6,15
CRT_G6,14
CRT_B6,14
R30
150/F_4
150/F_4
R32
R32
150/F_4
150/F_4
+5V
5
U3
U3
2 4
5
U4
U4
2 4
DDCCLK2
+3V
DDCDAT2
R30
R35
R35
150/F_4
150/F_4
C61 .1U/10V_4C61 .1U/10V_4
VSYNC_COM6,14
HSYNC_COM6,14
+3V
2
3
1
Q14
Q14
2N7002
2N7002
2
3
1
Q15
Q15
2N7002
2N7002
1
M74VHC1GT125DF2G
M74VHC1GT125DF2G
1
M74VHC1GT125DF2G
M74VHC1GT125DF2G
4
C85
C85
6.8P/50V_4
6.8P/50V_4
+5VCRT
+5V
6.8P/50V_4
6.8P/50V_4
C79
C79
2 1
F1
F1
40 mil
12
FUSE1A6V_POLY
FUSE1A6V_POLY
L5 BLM18BA470SN1L5 BLM18BA470SN1
L4 BLM18BA470SN1L4 BLM18BA470SN1
L3 BLM18BA470SN1L3 BLM18BA470SN1
C74
C74
6.8P/50V_4
6.8P/50V_4
VSYNC
HSYNC
+5V_CRT2
D28RB 501V-40 D28RB501V-40
C572 .1U/10V_4C572 .1U/10V_4
+5VCRT
+5VCRT
SSM14 spec is 40V 1A
C77
C77
6.8P/50V_4
6.8P/50V_4
R319
R319
R322
R322
2.2K_4
2.2K_4
2.2K_4
2.2K_4
40 mil
CRT_R1
CRT_G1
CRT_B1
C81
C81
6.8P/50V_4
6.8P/50V_4
C87
C87
6.8P/50V_4
6.8P/50V_4
R28 *0_4SR28 *0_4S
R29 *0_4SR29 *0_4S
R318 *0_4SR318 *0_4S
R321 *0_4SR321 *0_4S
3
+3V2,4,6,9,10,11,12,14,15,17,19,20,21,22,24,25,26 ,28,29,30,31,35,36,38
+5V17,22,24,25,28,29,31,37,38
CRT PORT
1617
6
111
7
12
2
8
13
3
9
14
4
10
15
5
CRT CONN
CRT CONN
CN16
CN16
DDCCLK3
CRTVSYNC
CRTHSYNC
DDCDAT3
C65
*470P/50V_4
*470P/50V_4
C65
C71
C71
*47P/50V_4
*47P/50V_4
*47P/50V_4
*47P/50V_4
C588
C588
C585
C585
*470P/50V_4
*470P/50V_4
2
1
18
+3V
D7 *BAV99WD7 *B AV99W
1
2
D5 *BAV99WD5 *B AV99W
1
2
D3 *BAV99WD3 *B AV99W
1
2
D6 *BAV99WD6 *B AV99W
1
2
D2 *BAV99WD2 *B AV99W
1
2
D4 *BAV99WD4 *B AV99W
1
2
D8 *BAV99WD8 *B AV99W
1
2
CRT_R
3
CRT_G
3
CRT_B
3
DDCCLK2
3
VSYNC
3
HSYNC
3
DDCDAT2
3
+5V_HDMIC
D10 RB501V-40D10 RB501V-40
+3V
2 1
R391 33_4R391 33_4
R69 33_4R69 33_4
N_TX2_HDMI+
N_TX2_HDMI-
N_TX1_HDMI+
N_TX1_HDMI-
N_TX0_HDMI+
N_TX0_HDMI-
N_TXC_HDMI+
N_TXC_HDMI-
3
R66
R66
2K/F_4
2K/F_4
Only for N10M
R406 499/F_4R406 499/F_4
R407 499/F_4R407 499/F_4
R399 499/F_4R399 499/F_4
R397 499/F_4R397 499/F_4
R402 499/F_4R402 499/F_4
R404 499/F_4R404 499/F_4
R395 499/F_4R395 499/F_4
R392 499/F_4R392 499/F_4
R390
R390
N10M ==> 2K
2K/F_4
2K/F_4
UMA ==> 2.2K
HDMISCL HDMISCL
L28
L28
HDMISDA
L9
C236 .1U/10V_4C236 .1U/10V_4
C243 .1U/10V_4C243 .1U/10V_4
C213 .1U/10V_4C213 .1U/10V_4R49
C197 .1U/10V_4C197 .1U/10V_4
C218 .1U/10V_4C218 .1U/10V_4
C228 .1U/10V_4C228 .1U/10V_4
C184 .1U/10V_4C184 .1U/10V_4
C169 .1U/10V_4C169 .1U/10V_4
C_TX2_HDMI+
C_TX2_HDMIÂC_TX1_HDMI+
C_TX1_HDMIÂC_TX0_HDMI+
C_TX0_HDMIÂC_TXC_HDMI+
C_TXC_HDMI-
1 2
1 2
*0_6L9*0_6
*0_6
*0_6
C163
C163
*10P/50V_4
*10P/50V_4
+5V
L26 *0_ 6SL26 *0_6S
1 2
F2
F2
FUSE1A6V_POLY
FUSE1A6V_POLY
HDMISDA
C637
C637
*10P/50V_4
*10P/50V_4
C_TX2_HDMI+
C_TX2_HDMI-
C_TX1_HDMI+
C_TX1_HDMI-
C_TX0_HDMI+
C_TX0_HDMI-
C_TXC_HDMI+
C_TXC_HDMI-
HDMI_DET_CHDMI_DET_N
2
12
HDMI PORT
HDMISCL
HDMISDA
+5V_HDMIC
C624
C624
220P/50V_4
220P/50V_4
N10M ==> 200P
UMA ==> 0.01UF
HDMI_DET130
HDMI_DET15
CN20
CN20
SHELL1
1
D2+
SHELL3
2
D2 Shield
3
D2-
4
D1+
5
D1 Shield
6
D1-
7
D0+
8
D0 Shield
9
D0-
10
CK+
11
CK Shield
12
CK-
13
CE Remote
14
NC
15
DDC CLK
16
DDC DATA
17
GND
18
+5V
19
HP DET
SHELL4
SHELL2
HDMI CONN
HDMI CONN
HDMI-2HE1503-000111-20P-H
HDMI-2HE1503-000111-20P-H
PV Modify
R381 *0_4SR381 *0_4S
R379 10K/F_4R379 10K/F_4
3
R50
R50
100K/F_4
100K/F_4
20
22
23
21
+5V_HDMIC
D29
D29
BAV99W
BAV99W
C144
C144
*.01U/16V_4
*.01U/16V_4
For EMI
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Num ber Rev
Size Document Num ber Rev
Size Document Num ber Rev
Custom
Custom
Custom
CRT/PS8101 HDMI Conn
CRT/PS8101 HDMI Conn
NB5
NB5
NB5
CRT/PS8101 HDMI Conn
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
HDMI_DET_N
+3V
1
2
1A
1A
1A
18 39Tuesday, May 05, 2009
18 39Tuesday, May 05, 2009
18 39Tuesday, May 05, 2009
TXC_HDMI+
OUT_D1+
OUT_D1-
OUT_D2+
OUT_D2-
OUT_D3+
OUT_D3-
OUT_D4+
OUT_D4ÂSCL_SINK
SDA_SINK
HPD_SINK
EPAD
TXC_HDMIÂTX0_HDMI+
TX0_HDMI-
TX1_HDMI+
TX1_HDMI-
TX2_HDMI+
TX2_HDMI-
TX2_HDMI+
22
TX2_HDMI-
23
TX0_HDMI+
19
TX0_HDMI-
20
TX1_HDMI-
16
TX1_HDMI+
17
TXC_HDMI-
13
TXC_HDMI+
14
HDMI_SCL
28
HDMI_SDA
29
HDMI_DET
30
1
GND
5
GND
12
GND
18
GND
24
GND
27
GND
31
GND
36
GND
37
GND
43
GND
49
UMA HDMI Function
+3V
L6
EMI
*0_6L6*0_6
1 2
+3V_LS
C120
C120
*.01U/16V_4
*.01U/16V_4
C109
C109
C91
C91
*.1U/10V_4
*.1U/10V_4
*.1U/10V_4
*2K/F_4
*2K/F_4
*.1U/10V_4
+3V
R49
R52
R52
*2K/F_4
*2K/F_4
B B
UMA
SDVO_DATA
SDVO_CLK
C104
C104
*.01U/16V_4
*.01U/16V_4
*.01U/16V_4
*.01U/16V_4
C122
C122
*.01U/16V_4
*.01U/16V_4
SDVO_CLK6
SDVO_DATA6
HDMI_HPD_CON6
+3V
R47 *4.7K_4R47 *4.7K_4
R39 *4.7K_4R39 *4.7K_4
R45 *4.7K_4R45 *4.7K_4
R43 *4.7K_4R43 *4.7K_4
R37 *4.7K_4R37 *4.7K_4
R46 *4.7K_4R46 *4.7K _4
C90
C90
IN_D26
IN_D2#6
IN_D06
IN_D0#6
IN_D1#6
IN_D16
IN_CLK#6
IN_CLK6
PV Modify (UMA)
PC0
R330 *0_4R330 *0_4
PC1
R333 *0_4R333 *0_4
REXT
R339 *0_4R339 *0_4
RT_EN#
R346 0_4R346 0_4
CFG1
R334 *0_4R334 *0_4
CFG0
R329 *0_4R329 *0_4
A A
EQUALIZATION SETTING
PC1:PC0=0:0 8dB
PC1:PC0=0:1 4dB Recommanded
PC1:PC0=1:0 12dB
PC1:PC0=1:1 0dB
SCLZ/SDAZ Low-level input/output Voltage
CFG1:CFG0=0:0 VIL:<0.4V VOL:0.6V (Default)
CGF1:CGF0=0:1 VIL:<0.36V VOL:0.55V
CGF1:CGF0=1:0 VIL:<0.44V VOL:0.65V
CGF1:CGF0=1:1 VIL:<0.36V VOL:0.6V
5
U6
U6
2
VCC
11
VCC
15
VCC
21
VCC
26
VCC
33
VCC
40
VCC
46
VCC
39
IN_D1+
38
IN_D1-
42
IN_D2+
41
IN_D2-
45
IN_D3+
44
IN_D3-
48
IN_D4+
47
IN_D4-
9
SCL
8
SDA
7
HPD
DDC_EN
32
DDC_EN
PC0
3
PC0
PC1
4
PC1
CFG1
34
DDCBUF_EN
CFG0
35
CFG
RT_EN#
10
RT_EN#
25
OE#
REXT
6
REXT
CONTROL
CONTROL
R530
R530
*4.7K_4
*4.7K_4
*PI3VDP411LSZDE
*PI3VDP411LSZDE
DV2 Modify
POWER
POWER
GND
GND
1
3
3
1
1
3
3
1
UMA
R47
R39
R45
R43
R37
R46 499
R529 NC 0
R341 100K
R377 7.5K
R371
Q16
Vendor:PDT P/N:AL008101000
Vendor:PIM P/N:ALP411LS001
4
RP27*4P2R-S-0 RP27*4P2R-S-0
2
4
RP33*4P2R-S-0 RP33*4P2R-S-0
4
2
RP28*4P2R-S-0 RP28*4P2R-S-0
2
4
RP38*4P2R-S-0 RP38*4P2R-S-0
4
2
PDT PIM
4.7K
4.7K
NC
NC
NC NC
20K
2N7002
C_TXC_HDMI+
C_TXC_HDMIÂC_TX0_HDMI+
C_TX0_HDMIÂC_TX1_HDMI+
C_TX1_HDMIÂC_TX2_HDMI+
C_TX2_HDMI-
4.7K
NC
NC
NC
4.7K
NC
NC
NC
NC
HDMI_SCL15
HDMI_SDA15
N_TX2_HDMI+14
N_TX2_HDMI-14
N_TX1_HDMI+14
N_TX1_HDMI-14
N_TX0_HDMI+14
N_TX0_HDMI-14
N_TXC_HDMI+14
N_TXC_HDMI-14
Only for N10M
1
2
Q17
Q17
2N7002
2N7002
3

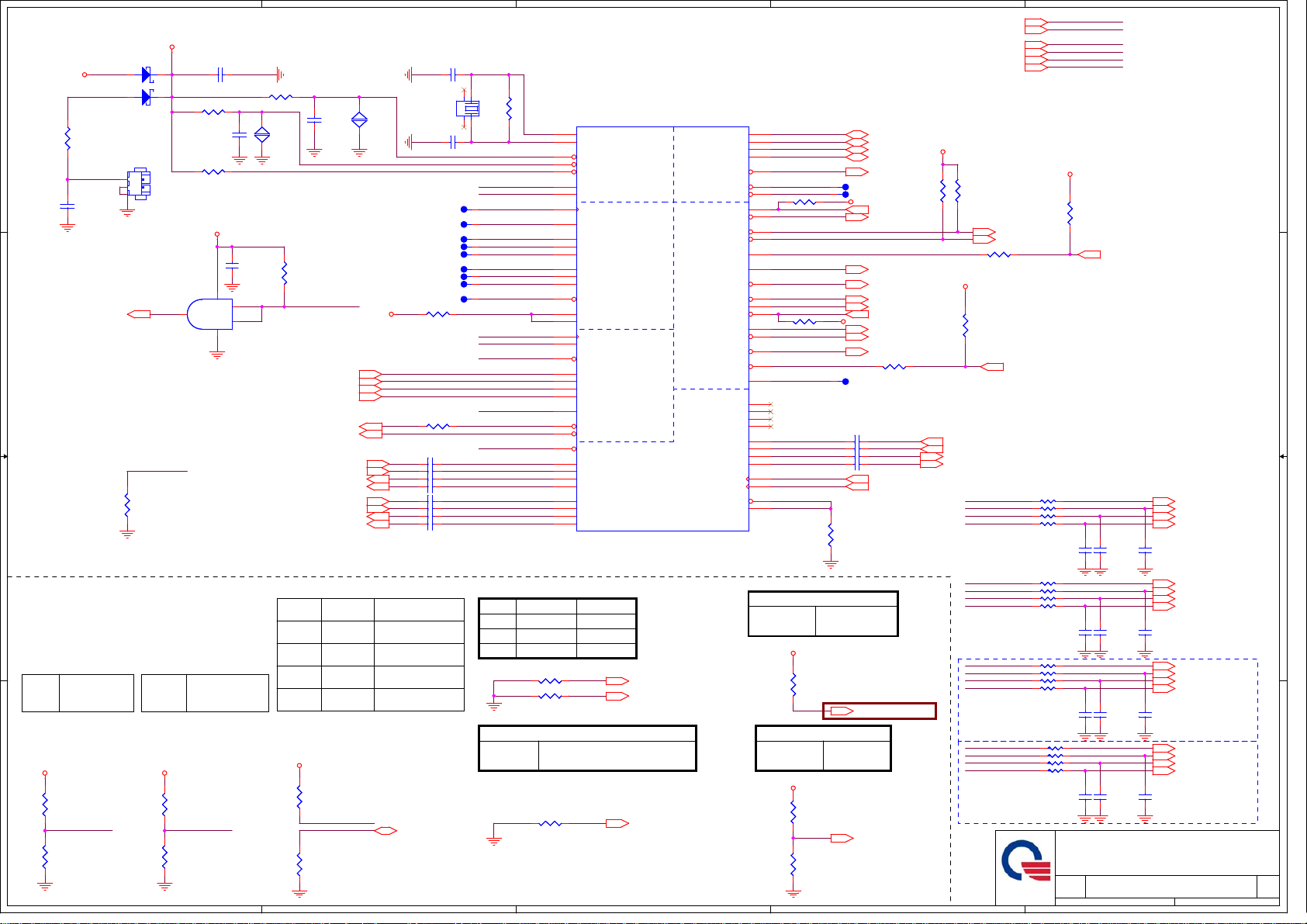

Page 19
5
+3VRTC
RB500V-40
RB500V-40
D13
RB500V-40
RB500V-40
1
2
D13
D14
D14
CN11
CN11
85204-0200L
85204-0200L
+3VPCU
+3VRTC_2
D D
*.1U/10V_4
*.1U/10V_4
C492
C492
R190
R190
1K/F_4
1K/F_4
+3VRTC_BAT
20 mil
For CR2032(Large)
SATA_LED#29
C C
Notice: GPIO33 is also a strap pin.
Don't pull it to high.
BT_COMBO_EN#
R194
R194
*1K/F_4
*1K/F_4
B B
SB Strap
ICH9-M Internal VR
Enable strap
(Internal VR for
Vccsus1_05,VccSus1_5
and VccCL1_5)
Low = Internal VR disable
INTVRMEN
High = Internal VR
enable(Default)
A A
R440
R440
332K/F_4
332K/F_4
ICH_INTVRMEN LAN100_SLP
R438
R438
*0_4
*0_4
LAN100_SLP
5
C442 1U/6.3V_4C442 1U/6.3V_4
C460
.1U/10V_4
.1U/10V_4
+3V
U14
U14
3 5
MC74VHC1G08DFT2G
MC74VHC1G08DFT2G
R191 20K/F_4R191 20K/F_4
C742
C742
.1U/10V_4
.1U/10V_4
1
2
R192 180K_4R192 180K_4
R144 1M/F_4R144 1M/F_4
4
SATA HDD
SATA ODD
ICH9-M LAN100_SLP Strap
(Internal VR for
VccLAN1_05 and
VccCL1.05)
Low = Internal VR disable
High = Internal VR
enable(Default)
+3VRTC+3VRTC
R446
R446
332K/F_4
332K/F_4
R444
R444
*0_4
*0_4
C464
12
G3
G3
*SHORT_ PAD1
*SHORT_ PAD1
C464
1U/6.3V_4
1U/6.3V_4
R235
R235
10K/F_4
10K/F_4
ICH_SATA_LED#
ACZ_SDIN024
ACZ_SDIN125
ACZ_SDIN215
ACZ_SDIN36
LAN_DISABLE#26,30
BT_COMBO_EN#31
SATA_RXN028
SATA_RXP028
SATA_TXN028
SATA_TXP028
SATA_RXN128
SATA_RXP128
SATA_TXN128
SATA_TXP128
XOR Chain Entrance Strap
HDA_SDOUT
ICH_TP3
0
0
1
1 Set PCIE port config bit 1
+3V
R216
R216
*1K/F_4
*1K/F_4
ACZ_SDOUT
R449
R449
*1K/F_4
*1K/F_4
12
G2
G2
*SHORT_ PAD1
*SHORT_ PAD1C460
+1.5V
0
1
1
4
15P/50V_4
15P/50V_4
32.768KHZ
32.768KHZ
15P/50V_4
15P/50V_4
R427 24.9/F_4R427 24.9/F_4
R241 *0_4R241 *0_4
C714 .01U/16V_4C714 .01U/16V_4
C712 .01U/16V_4C712 .01U/16V_4
C438 .01U/16V_4C438 .01U/16V_4
C433 .01U/16V_4C433 .01U/16V_4
C715 .01U/16V_4C715 .01U/16V_4
C717 .01U/16V_4C717 .01U/16V_4
C446 .01U/16V_4C446 .01U/16V_4
C441 .01U/16V_4C441 .01U/16V_4
Description
RSVD
Enter XOR Chain
Normal opration(Default)0
ICH_TP3 21
4
C701
C701
C707
C707
23
R430
TP31TP31
TP39TP39
TP40TP40
TP42TP42
TP49TP49
TP43TP43
TP44TP44
TP41TP41
TP46TP46
R430
10M_4
10M_4
4 1
RTC_RST#
SRTC_RST
SM_INTRUDER#
ICH_INTVRMEN
LAN100_SLP
GLAN_CLK
LAN_RSTSYNC
LAN_RXD0
LAN_RXD1
LAN_RXD2
LAN_TXD0
LAN_TXD1
LAN_TXD2
GPIO56
GLAN_COMP
ACZ_BCLK
ACZ_SYNC
ACZ_RST#
ACZ_SDOUT
ICH_SATA_LED#
SATA_RXN0_C
SATA_RXP0_C
SATA_TXN0_C
SATA_TXP0_C
SATA_RXN1_C
SATA_RXP1_C
SATA_TXN1_C
SATA_TXP1_C
Y4
Y4
ICH9 Boot BIOS select
SPI
PCI 1 0
LPC
A16 swap override strap
PCI_GNT#3
U29A
RTC_X1
RTC_X2
U29A
C23
RTCX1
C24
RTCX2
A25
RTCRST#
F20
SRTCRST#
C22
INTRUDER#
B22
INTVRMEN
A22
LAN100_SLP
E25
GLAN_CLK
C13
LAN_RSTSYNC
F14
LAN_RXD0
G13
LAN_RXD1
D14
LAN_RXD2
D13
LAN_TXD0
D12
LAN_TXD1
E13
LAN_TXD2
B10
GPIO56
B28
GLAN_COMPI
B27
GLAN_COMPO
AF6
HDA_BIT_CLK
AH4
HDA_SYNC
AE7
HDA_RST#
AF4
HDA_SDIN0
AG4
HDA_SDIN1
AH3
HDA_SDIN2
AE5
HDA_SDIN3
AG5
HDA_SDOUT
AG7
HDA_DOCK_EN#/GPIO33
AE8
HDA_DOCK_RST#/GPIO34
AG8
SATALED#
AJ16
SATA0RXN
AH16
SATA0RXP
AF17
SATA0TXN
AG17
SATA0TXP
AH13
SATA1RXN
AJ13
SATA1RXP
AG14
SATA1TXN
AF14
SATA1TXP
ICH9M REV 1.0
ICH9M REV 1.0
SPI_CS#1PCI_GNT0#STRAP
0
1
Low = A16 swap override enabled
Hi = Default
1
1
R206*1K/F_4 R206*1K/F_4
R145*1K/F_4 R145*1K/F_4
R205*1K/F_4 R205*1K/F_4
GNT0# 20
SPI_CS#1_R 20
GNT3# 20
3
RTCLAN / GLAN
RTCLAN / GLAN
IHDA
IHDA
SATA
SATA
(default)
3
FWH0/LAD0
FWH1/LAD1
FWH2/LAD2
FWH3/LAD3
FWH4/LFRAME#
LPCCPU
LPCCPU
LDRQ1#/GPIO23
DPRSTP#
CPUPWRGD
THRMTRIP#
SATA4RXN
SATA4RXP
SATA4TXN
SATA4TXP
SATA5RXN
SATA5RXP
SATA5TXN
SATA5TXP
SATA_CLKN
SATA_CLKP
SATARBIAS#
SATARBIAS
LDRQ0#
A20GATE
A20M#
DPSLP#
FERR#
IGNNE#
INIT#
INTR
RCIN#
SMI#
STPCLK#
TP12
K5
K4
L6
K2
K3
ICH_DRQ#0
J3
ICH_DRQ#1
J1
R188 10K/F_4R188 10K/F_4
N7
AJ27
AJ25
AE23
AJ26
AD22
AF25
AE22
AG25
L3
R237 10K/F_4R237 10K/F_4
AF23
NMI
AF24
AH27
H_THERMTRIP_R
AG26
ICH_TP12
AG27
AH11
AJ11
AG12
AF12
SATA_RXN5_C
AH9
SATA_RXP5_C
AJ9
SATA_TXN5_C
AE10
SATA_TXP5_C
AF10
AH18
AJ18
SATA_RBIAS_PN
AJ7
AH7
No Reboot Strap
ACZ_SPKR
+3V
R195
R195
*1K/F_4
*1K/F_4
TPM physical presence
ICH_GPIO57 Low: Default
+3VS5
R464
R464
*10K/F_4
*10K/F_4
R466
R466
100K/F_4
100K/F_4
LAD0 30,31
LAD1 30,31
LAD2 30,31
LAD3 30,31
LFRAME# 30,31
TP52TP52
TP73TP73
+3V
GATEA20 30
H_A20M# 3
H_PWRGD 3
H_IGNNE# 3
H_INIT# 3
H_INTR 3
RCIN# 30
+3V
H_NMI 3
H_SMI# 3
H_STPCLK# 3
R136 49.9/F_4R136 49.9/F_4
TP30TP30
C721 .01U/16V_4C721 .01U/16V_4
C719 .01U/16V_4C719 .01U/16V_4
C450 .01U/16V_4C450 .01U/16V_4
C454 .01U/16V_4C454 .01U/16V_4
CLK_PCIE_SATA# 2
CLK_PCIE_SATA 2
R193
R193
24.9/F_4
24.9/F_4
Low: Default
Hi: No reboot
PQ Modify
ACZ_SPKR 21,24
ICH_GPIO57 21
2
2
R139
R139
*56.2/F_4
*56.2/F_4
+1.05V
SATA_RXN5 31
SATA_RXP5 31
SATA_TXN5 31
SATA_TXP5 31
+1.05V
+3VPCU17,29,30,32,33,36,38
+3VRTC22
+3V2,4,6,9,10,11,12,14,15,17,18,20,21,22,24,25,26,28,29,30,31,35,36,38
+1.5V4,9,20,22,24,25,28,31,34,38
+1.05V2,3,4,5,6,8,9,22,29,34,35
+3VS520,21,22,28,38
R435
R435
*56.2/F_4
*56.2/F_4
H_DPRSTP# 3,6,35
H_DPSLP# 3
R433 49.9/F_4R433 49.9/F_4
R137
R137
49.9/F_4
49.9/F_4
PM_THRMTRIP# 3,6
E-SATA CONNECT
ACZ_RST#
R200 33_4R200 33_4
ACZ_SDOUT
R218 33_4R218 33_4
ACZ_SYNC
R222 33_4R222 33_4
ACZ_BCLK
R210 33_4R210 33_4
ACZ_RST#
R201 33_4R201 33_4
ACZ_SDOUT
R219 33_4R219 33_4
ACZ_SYNC
R223 33_4R223 33_4
ACZ_BCLK
R211 33_4R211 33_4
ACZ_RST#
R203 *33_4R203 *33_4
ACZ_SDOUT
R217 *33_4R217 *33_4
ACZ_SYNC
R221 *33_4R221 *33_4
ACZ_BCLK
R209 *33_4R209 *33_4
ACZ_RST#
R202 22_4R202 22_4
ACZ_SDOUT
R220 22_4R220 22_4
ACZ_SYNC
R224 22_4R224 22_4
ACZ_BCLK
R212 22_4R212 22_4
Close to U45
NB5
NB5
NB5
1
19
+1.05V
R432
R432
49.9/F_4
49.9/F_4
H_FERR# 3
ACZ_RST#_AUDIO 24
ACZ_SDOUT_AUDIO 24
ACZ_SYNC_AUDIO 24
BIT_CLK_AUDIO 24
C474
C474
*10P/50V_4
*10P/50V_4
C769
C769
*10P/50V_4
*10P/50V_4
C654
C654
*10P/50V_4
*10P/50V_4
NV_HDA_RST
NV_HDA_SDO
NV_HDA_SYNC
NV_HDA_BCLK
C618
C618
C617
C617
*10P/50V_4
*10P/50V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
C784
C784
C783
C783
*10P/50V_4
*10P/50V_4
*10P/50V_4
*10P/50V_4
C740
C740
C741
C741
*10P/50V_4
*10P/50V_4
*10P/50V_4
*10P/50V_4
C658
C658
C650
C650
*10P/50V_4
*10P/50V_4
*10P/50V_4
*10P/50V_4
C619
C619
*10P/50V_4
*10P/50V_4
*10P/50V_4
*10P/50V_4
ICH9-M Host 1/4
ICH9-M Host 1/4
ICH9-M Host 1/4
1
ACZ_RST#_MDC 25
ACZ_SDOUT_MDC 25
ACZ_SYNC_MDC 25
BIT_CLK_MDC 25
ACZ_RST#_MCH 6
ACZ_SDOUT_MCH 6
ACZ_SYNC_MCH 6
ACZ_BITCLK_MCH 6
UMA
NV_HDA_RST 15
NV_HDA_SDO 15
NV_HDA_SYNC 15
NV_HDA_BCLK 15
Des
19 39Tuesday, May 05, 2009
19 39Tuesday, May 05, 2009
19 39Tuesday, May 05, 2009
1A
1A
1A

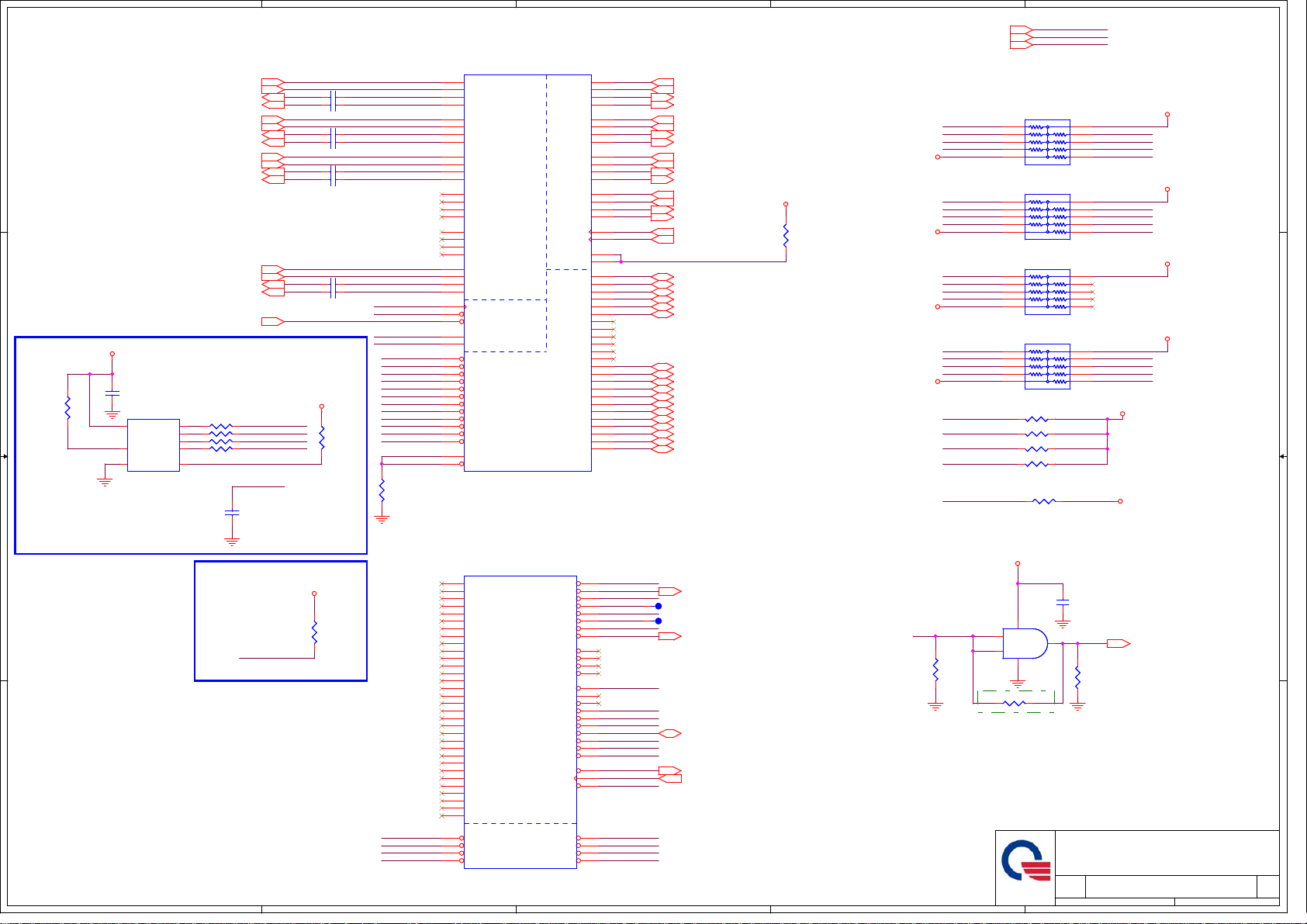

Page 20
5
PCIE_RXN031
PCIE_RXP031
MINI CARD PCI-E(WLAN)
D D
EXPRESS CARD (NEW CARD)
MINI CARD PCI-E(Robson)
PCIE-LAN
SPI_HOLD#
+3V
C713
C713
*.1U/10V_4
*.1U/10V_4
8
7
4
U28
U28
CE#
VDD
SCK
HOLD#
WP#
VSS
*W25X40VSSIG
*W25X40VSSIG
5
SI
SO
C C
R457
R457
*10K/F_4
*10K/F_4
512K byte SPI ROM
for HDCP only
B B
A A
PCIE_TXN031
PCIE_TXP031
PCIE_RXN128
PCIE_RXP128
PCIE_TXN128
PCIE_TXP128
PCIE_RXN331
PCIE_RXP331
PCIE_TXN331
PCIE_TXP331
PCIE_RXN6_LAN26
PCIE_RXP6_LAN26
PCIE_TXN6_LAN26
PCIE_TXP6_LAN26
SPI_CS#1_R19
R177 *22_4R177 *22_4
1
R132 *22_4R132 *22_4
6
R130 *22_4R130 *22_4
5
R172 *22_4R172 *22_4
2
SPI_WP#
3
For iTPM
SPI_CLK_R
C393
C393
*.1U/10V_4
*.1U/10V_4
for EMI
SPI_MOSI
C384 .1U/10V_4C384 .1U/10V_4
C385 .1U/10V_4C385 .1U/10V_4
C386 .1U/10V_4C386 .1U/10V_4
C387 .1U/10V_4C387 .1U/10V_4
C388 .1U/10V_4C388 .1U/10V_4
C389 .1U/10V_4C389 .1U/10V_4
C379 .1U/10V_4C379 .1U/10V_4
C380 .1U/10V_4C380 .1U/10V_4
For GM HDCP
+3V
SPI_CS#0_R
SPI_CLK_R
SPI_MOSI
SPI_MISO
+3VS5
R161
R161
*10K/F_4
*10K/F_4
R129
R129
*10K/F_4
*10K/F_4
4
U29D
PCIE_RXN0
PCIE_RXP0
PCIE_TXN0_C
PCIE_TXP0_C
PCIE_RXN1
PCIE_RXP1
PCIE_TXN1_C
PCIE_TXP1_C
PCIE_RXN3
PCIE_RXP3
PCIE_TXN3_C
PCIE_TXP3_C
PCIE_TXN6_C
PCIE_TXP6_C
SPI_CLK_R
SPI_CS#0_R
SPI_MOSI
SPI_MISO
USB_OC#0
USB_OC#1
USB_OC#2
USB_OC#3
USB_OC#4
USB_OC#5
USB_OC#6
USB_OC#7
USB_OC#8
USB_OC#9
USB_OC#10
USB_OC#11
USBRBIAS_PN
R232
R232
22.6/F_4
22.6/F_4
INTA#
INTB#
INTC#
INTD# INTH#
4
U29D
N29
PERN1
N28
PERP1
P27
PETN1
P26
PETP1
L29
PERN2
L28
PERP2
M27
PETN2
M26
PETP2
J29
PERN3
J28
PERP3
K27
PETN3
K26
PETP3
G29
PERN4
G28
PERP4
H27
PETN4
H26
PETP4
E29
PERN5
E28
PERP5
F27
PETN5
F26
PETP5
C29
PERN6/GLAN_RXN
C28
PERP6/GLAN_RXP
D27
PETN6/GLAN_TXN
D26
PETP6/GLAN_TXP
D23
SPI_CLK
D24
SPI_CS0#
F23
SPI_CS1#/GPIO58/CLGPIO6
D25
SPI_MOSI
E23
SPI_MISO
N4
OC0#/GPIO59
N5
OC1#/GPIO40
N6
OC2#/GPIO41
P6
OC3#/GPIO42
M1
OC4#/GPIO43
N2
OC5#/GPIO29
M4
OC6#/GPIO30
M3
OC7#/GPIO31
N3
OC8#/GPIO44
N1
OC9#/GPIO45
P5
OC10#/GPIO46
P3
OC11#/GPIO47
AG2
USBRBIAS
AG1
USBRBIAS#
ICH9M REV 1.0
ICH9M REV 1.0
U29B
U29B
D11
AD0
C8
AD1
D9
AD2
E12
AD3
E9
AD4
C9
AD5
E10
AD6
B7
AD7
C7
AD8
C5
AD9
G11
AD10
F8
AD11
F11
AD12
E7
AD13
A3
AD14
D2
AD15
F10
AD16
D5
AD17
D10
AD18
B3
AD19
F7
AD20
C3
AD21
F3
AD22
F4
AD23
C1
AD24
G7
AD25
H7
AD26
D1
AD27
G5
AD28
H6
AD29
G1
AD30
H3
AD31
Interrupt I/F
Interrupt I/F
J5
PIRQA#
E1
PIRQB#
J6
PIRQC#
C4
PIRQD#
ICH9M REV 1.0
ICH9M REV 1.0
PCI
PCI
SPI
SPI
USB
USB
REQ1#/GPIO50
REQ2#/GPIO52
REQ3#/GPIO54
V27
DMI0RXN
V26
DMI0RXP
U29
DMI0TXN
U28
DMI0TXP
Y27
DMI1RXN
Y26
DMI1RXP
W29
DMI1TXN
W28
DMI1TXP
AB27
DMI2RXN
AB26
DMI2RXP
AA29
DMI2TXN
AA28
DMI2TXP
AD27
DMI3RXN
AD26
DMI3RXP
AC29
DMI3TXN
AC28
DMI3TXP
T26
DMI_CLKN
T25
DMI_CLKP
PCI-Express
PCI-Express
Direct Media Interface
Direct Media Interface
USBP0N
USBP1N
USBP2N
USBP3N
USBP4N
USBP5N
USBP6N
USBP7N
USBP8N
USBP9N
USBP10N
USBP10P
USBP11N
USBP11P
REQ0#
GNT0#
C/BE0#
C/BE1#
C/BE2#
C/BE3#
IRDY#
PAR
PERR#
SERR#
STOP#
TRDY#
PME#
USBP0P
USBP1P
USBP2P
USBP3P
USBP4P
USBP5P
USBP6P
USBP7P
USBP8P
USBP9P
AF29
AF28
AC5
AC4
AD3
AD2
AC1
AC2
AA5
AA4
AB2
AB3
AA1
AA2
W5
W4
Y3
Y2
W1
W2
V2
V3
U5
U4
U1
U2
REQ0#
F1
GNT0#
G4
REQ1#
B6
GNT1#
A7
REQ2#
F13
GNT2#
F12
REQ3#
E6
GNT3#
F6
D8
B4
D6
A5
IRDY#
D3
E3
R1
DEVSEL#
C6
PERR#
E4
LOCK#
C2
SERR#
J4
STOP#
A4
TRDY#
F5
FRAME#
D7
C14
D4
PCI_PME#
R2
INTE#
H4
INTF#
K6
INTG#
F2
G2
DMI_ZCOMP
DMI_IRCOMP
GNT1#/GPIO51
GNT2#/GPIO53
GNT3#/GPIO55
PCIRST#
DEVSEL#
PLOCK#
FRAME#
PLTRST#
PCICLK
PIRQE#/GPIO2
PIRQF#/GPIO3
PIRQG#/GPIO4
PIRQH#/GPIO5
3
DMI_IRCOMP_R
USBP0- 31
USBP0+ 31
USBP1- 24
USBP1+ 24
USBP2- 24
USBP2+ 24
USBP6- 23
USBP6+ 23
USBP7- 28
USBP7+ 28
USBP8- 29
USBP8+ 29
USBP9- 17
USBP9+ 17
USBP10- 31
USBP10+ 31
USBP11- 31
USBP11+ 31
TP72TP72
TP45TP45
3
DMI_RXN0 6
DMI_RXP0 6
DMI_TXN0 6
DMI_TXP0 6
DMI_RXN1 6
DMI_RXP1 6
DMI_TXN1 6
DMI_TXP1 6
DMI_RXN2 6
DMI_RXP2 6
DMI_TXN2 6
DMI_TXP2 6
DMI_RXN3 6
DMI_RXP3 6
DMI_TXN3 6
DMI_TXP3 6
CLK_PCIE_ICH# 2
CLK_PCIE_ICH 2
GNT0# 19
GNT3# 19
SERR# 30
PLT_RST-R# 6,12
PCLK_ICH 2
+1.5V
R131
R131
24.9/F_4
24.9/F_4
E-SATA and USB Connector
USB Connector
USB Connector
Card Reader
NEW CARD
BLUETOOTH
Carama USB
Wireless Mini-Card
Robson Mini-Card
2
+3VS5
100K/F_4
100K/F_4
2
+3V
+3V
+3V
PLT_RST-R#
R462
R462
+1.5V4,9,19,22,24,25,28,31,34,38
+3V2,4,6,9,10,11,12,14,15,17,18,19,21,22,24,25,26,28,29,30,31,35,36,38
+3VSUS21,23,29,31,34,35,36,38
INTF#
LOCK#
IRDY#
PERR#
REQ2#
REQ3#
FRAME#
TRDY#
INTH#
INTA#
SERR#
INTC#
USB_OC#7
USB_OC#4
USB_OC#5
USB_OC#6
USB_OC#2
USB_OC#3
USB_OC#8
USB_OC#9
PCI_PME#
U30
*MC74VHC1G08DFT2G
*MC74VHC1G08DFT2G
U30
2
1
R465 *0_4SR465 *0_4S
PV Modify
RP48
RP48
6
7
8
9
10
10P8R-8.2K
10P8R-8.2K
RP47
RP47
6
7
8
9
10
10P8R-8.2K
10P8R-8.2K
RP49
RP49
6
7
8
9
10
10P8R-8.2K
10P8R-8.2K
RP50
RP50
6
7
8
9
10
10P8R-8.2K
10P8R-8.2K
R225 8.25K/F_4R225 8.25K/F_4
R214 8.25K/F_4R214 8.25K/F_4
R255 8.25K/F_4R255 8.25K/F_4
R254 8.25K/F_4R254 8.25K/F_4
R230 10K/F_4R230 10K/F_4
+3VS5
C722
C722
*.1U/10V_4
*.1U/10V_4
4
3 5
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
20
+3V
5
REQ0#
4
INTG#
3
INTE#
2
INTB#
1
+3V
5
INTD#
4
STOP#
3
DEVSEL#
2
REQ1#
1
+3V
5
4
3
2
1
+3VS5
5
USB_OC#10
4
USB_OC#1
3
USB_OC#0
2
USB_OC#11
1
+3VS5
+3VS5
PLTRST# 26,28,30,31
R460
R460
*100K/F_4
*100K/F_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
ICH9-M PCIE 2/4
ICH9-M PCIE 2/4
ICH9-M PCIE 2/4
1
1A
1A
20 39Tuesday, May 05, 2009
20 39Tuesday, May 05, 2009
20 39Tuesday, May 05, 2009
1A

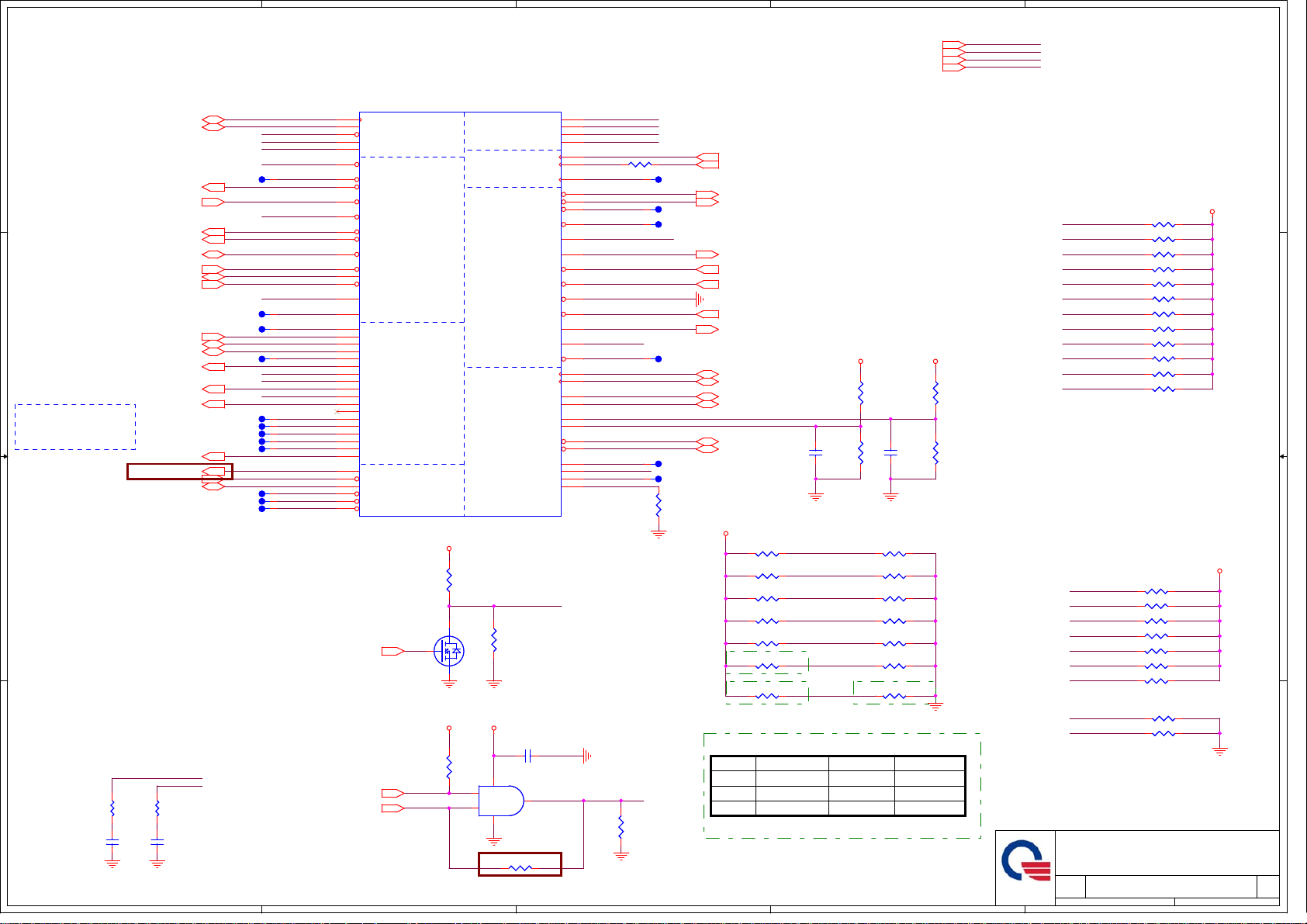

Page 21
5
G16
A13
E17
C17
B18
F19
G19
A17
A14
E19
E20
AJ23
D21
A20
AG19
AH21
AG21
A21
C12
C21
AE18
AF8
AJ22
D19
AE19
AG22
AF21
AH24
AJ24
B21
AH20
AJ20
AJ21
VR_PWRGD_CK410#35
DELAY_VR_PWRGOOD6,35
ECPWROK4,6,30
MCH_ICH_SYNC#6
R234
R234
*10_4
*10_4
C488
C488
*10P/50V_4
*10P/50V_4
5
PCLK_SMB2
PDAT_SMB2
SYS_RST#3
PM_SYNC#6
PM_STPPCI#2
PM_STPCPU#2
CLKRUN#30
PCIE_WAKE#26,28,31
SERIRQ30
PM_THRM#4
KBSMI#30
SCI#30
SWI#30
5159_RST_R#23
LCD_BK17
WAN_OFF#31
ICH_GPIO5719
ACZ_SPKR19,24
ICH_TP319
CLK_48M_USB
CLK_14M_ICH
R239
R239
*33_4
*33_4
C489
C489
*10P/50V_4
*10P/50V_4
TP50TP50
SMB_ALERT#
PM_STPPCI_ICH#
PM_STPCPU_ICH#
TP66TP66
TP35TP35
T8T8
TP75TP75
TP38TP38
TP33TP33
TP34TP34
TP32TP32
TP68TP68
TP67TP67
TP65TP65
SMB_LINK_ALERT#
SMB_CLK_ME
SMB_DATA_ME
PM_RI#
PM_SUS_STAT#
VR_PWRGO_CLKEN
LAN_PHYPC
5158_RST_R#
BOARD_ID5
GPIO 18
BOARD_ID2
ICH_GPIO35
ICH_GPIO33
MFG_MODE
CRB_SV_DET_R
DMI_TERM_SEL
ICH_TP8
ICH_TP9
ICH_TP10
D D
C C
BIOS_REC:BOARD_ID2
Default is PH
For Bios recovery PD
PQ Modify
B B
A A
4
U29C
U29C
SMBCLK
SMBDATA
LINKALERT#/GPIO60/CLGPIO4
SMLINK0
SMLINK1
RI#
R4
SUS_STAT#/LPCPD#
SYS_RESET#
M6
PMSYNC#/GPIO0
SMBALERT#/GPIO11
STP_PCI#
STP_CPU#
L4
CLKRUN#
WAKE#
M5
SERIRQ
THRM#
VRMPWRGD
TP11
GPIO1
GPIO6
GPIO7
GPIO8
GPIO12
GPIO13
GPIO17
K1
GPIO18
GPIO20
SCLOCK/GPIO22
A9
GPIO27
GPIO28
L1
SATACLKREQ#/GPIO35
SLOAD/GPIO38
SDATAOUT0/GPIO39
SDATAOUT1/GPIO48
GPIO49
A8
GPIO57/CLGPIO5
M7
SPKR
MCH_SYNC#
TP3
TP8
TP9
TP10
ICH9M REV 1.0
ICH9M REV 1.0
BS870-7-F
BS870-7-F
PQ Modify
4
SMB
SMB
Q11
Q11
2
R183
R183
*2K/F_4
*2K/F_4
SATA
SATA
GPIO
GPIO
Clocks
Clocks
S4_STATE#/GPIO26
DPRSLPVR/GPIO16
SYS GPIO
SYS GPIO
Power MGTController Link
Power MGTController Link
GPIO
GPIO
GPIO10/SUS_PWR_ACK
GPIO14/AC_PRESENT
MISC
MISC
+3V
R528
R528
1K/F_4
1K/F_4
VR_PWRGO_CLKEN
3
1
+3VSUS+3V
2
1
3 5
R169 *0_4SR169 *0_4S
SATA0GP/GPIO21
SATA1GP/GPIO19
SATA4GP/GPIO36
SATA5GP/GPIO37
CLK14
CLK48
SUSCLK
SLP_S3#
SLP_S4#
SLP_S5#
PWROK
BATLOW#
PWRBTN#
LAN_RST#
RSMRST#
CK_PWRGD
CLPWROK
SLP_M#
CL_CLK0
CL_CLK1
CL_DATA0
CL_DATA1
CL_VREF0
CL_VREF1
CL_RST0#
CL_RST1#
MEM_LED/GPIO24
WOL_EN/GPIO9
R468
R468
100K/F_4
100K/F_4
C443 *.1U/10V_4C443 *.1U/10V_4
U11
U11
4
*MC74VHC1G08DFT2G
*MC74VHC1G08DFT2G
AH23
AF19
AE21
AD20
H1
AF3
P1
C16
E16
G17
C10
G20
M2
B13
R3
D20
D22
R5
R6
B16
F24
B19
F22
C19
C25
A19
F21
D18
A16
C18
C11
C20
PM_ICH_PWROK
BOARD_ID1
BOARD_ID0
BOARD_ID3
BOARD_ID4
SUSCLK
SLP_S5#
S4_STATE#
PM_ICH_PWROK
LAN_RST#
ECPWROK
ICH_SLP_M#
CL_VREF0_ICH
CL_VREF1_ICH
SUS_PWR_ACK
AC_PRESENT
ICH_WOL_EN
3
R227 33_4R227 33_4
R157
R157
10K/F_4
10K/F_4
3
TP74TP74
TP37TP37
TP71TP71
TP69TP69
TP70TP70
TP47TP47
R163
R163
100K/F_4
100K/F_4
CLK_14M_ICH 2
CLK_48M_USB 2
SUSB# 30
SUSC# 30
DPRSLPVR 6,35
PM_BATLOW# 30
DNBSWON# 30
RSMRST# 30
CK_PWG 2
CL_CLK0 6
CL_CLK1 31
CL_DATA0 6
CL_DATA1 31
CL_RST#0 6
CL_RST#1 31
+3V
R162 *10K/F_4R162 *10K/F_4
R442 *10K/F_4R442 *10K/F_4
R448 10K/F_4R448 10K/F_4
R142 *10K/F_4R142 *10K/F_4
R146 *10K/F_4R146 *10K/F_4
R173 10K/F_4R173 10K/F_4
R534 *10K/F_4R534 *10K/F_4
Board ID
BOARD_ID 2
Model
GM45
GL40
N10M 1
C711
C711
.1U/10V_4
.1U/10V_4
BOARD_ID0
BOARD_ID1
BOARD_ID2
BOARD_ID3
BOARD_ID4
BOARD_ID5
GPIO 18
PV Modify
0
0
2
+1.5V4,9,19,20,22,24,25,28,31,34,38
+3V2,4,6,9,10,11,12,14,15,17,18,19,20,22,24,25,26,28,29,30,31,35,36,38
+3VS519,20,22,28,38
+3VSUS23,29,31,34,35,36,38
+3V+3VS5
R458
R458
3.24K/F_4
3.24K/F_4
R455
R455
453/F_4
453/F_4
0.405V
C397
C397
.1U/10V_4
.1U/10V_4
R148 10K/F_4R148 10K/F_4
R436 10K/F_4R436 10K/F_4
R447 *10K/F_4R447 *10K/F_4
R140 10K/F_4R140 10K/F_4
R147 10K/F_4R147 10K/F_4
R168 *10K/F_4R168 *10K/F_4
R535 10K/F_4R535 10K/F_4
BOARD_ID 3 BOARD_ID 5
0
0
0
1
1
1
2
R133
R133
3.24K/F_4
3.24K/F_4
R134
R134
453/F_4
453/F_4
NB5
NB5
NB5
1
21
+3VS5
SWI#
PM_RI#
SMB_CLK_ME
SMB_DATA_ME
DNBSWON#
PCLK_SMB
PDAT_SMB
SMB_ALERT#
PCIE_WAKE#
PM_BATLOW#
SMB_LINK_ALERT#
SYS_RST#
ICH_TP3
PM_THRM#
SERIRQ
CLKRUN#
KBSMI#
SCI#
ICH_GPIO35
SUS_PWR_ACK
RSMRST#
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
R451 10K/F_4R451 10K/F_4
R170 10K/F_4R170 10K/F_4
R179 10K/F_4R179 10K/F_4
R454 10K/F_4R454 10K/F_4
R229 10K/F_4R229 10K/F_4
R182 2.2K_4R182 2.2K_4
R461 2.2K_4R461 2.2K_4
R456 10K/F_4R456 10K/F_4
R160 10K/F_4R160 10K/F_4
R463 8.25K/F_4R463 8.25K/F_4
R174 10K/F_4R174 10K/F_4
R459 10K/F_4R459 10K/F_4
+3V
R450 *10K/F_4R450 *10K/F_4
R443 8.25K/F_4R443 8.25K/F_4
R189 10K/F_4R189 10K/F_4
R196 8.25K/F_4R196 8.25K/F_4
R453 10K/F_4R453 10K/F_4
R452 10K/F_4R452 10K/F_4
R236 *10K/F_4R236 *10K/F_4
R166 10K/F_4R166 10K/F_4
R143 10K/F_4R143 10K/F_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
ICH9-M GPIO 3/4
ICH9-M GPIO 3/4
ICH9-M GPIO 3/4
1
21 39Tuesday, May 05, 2009
21 39Tuesday, May 05, 2009
21 39Tuesday, May 05, 2009
1A
1A
1A
Page 22
5
+5V
R204
R204
10_4
10_4
C467
C467
+3VS5+5VS5
1U/6.3V_4
1U/6.3V_4
21
D16
D16
R233
D D
C C
R233
RB501V-40
RB501V-40
10_4
10_4
C487
C487
.1U/10V_4
.1U/10V_4
+1.5V
L20 HCB1608KF-181T15_6L20 HCB1608KF-181T15_6
+1.5V
+1.5V_SATA_ICH +1.5V_APLL_ICH
12
C382
C382
+
+
*220U/2.5V_B
*220U/2.5V_B
L22 10uH/100MA_8L22 10uH/100MA_8
VCC1_5_A TOTAL 1.342A
B B
+3V
19mA
+3V_VCCPAUX
C452
C452
.1U/10V_4
.1U/10V_4
+1.5V
A A
L36 1uH/300mA_8L36 1uH/300mA_8
C391
C391
4.7U/6.3V_6
4.7U/6.3V_6
5
+3V
21
D15
D15
RB501V-40
RB501V-40
C415
C415
10U/6.3V_8
10U/6.3V_8
+3V
+3VRTC
C706
C706
.1U/10V_4
.1U/10V_4
C416
C416
2.2U/6.3V_6
2.2U/6.3V_6
C440
C440
10U/6.3V_8
10U/6.3V_8
C453
C453
1U/6.3V_4
1U/6.3V_4
C447
C447
1U/6.3V_4
1U/6.3V_4
+1.5V_USB_ICH
C465
C465
.1U/10V_4
.1U/10V_4
C466
C466
.1U/10V_4
.1U/10V_4
C693
C693
10U/6.3V_8
10U/6.3V_8
C705
C705
.1U/10V_4
.1U/10V_4
2mA
2mA
+5VREF_SUS
+1.5V_PCIE_ICH
C409
C409
1U/6.3V_4
1U/6.3V_4
11mA
+1.05V_LAN_ICH
C457
C457
.1U/10V_4
.1U/10V_4
+1.5V_ICH_GLANPLL
C694
C694
2.2U/6.3V_6
2.2U/6.3V_6
+1.5V_PCIE_ICH
+3V_GLAN_ICH
+5VREF
646mA
47mA
C432
C432
1U/6.3V_4
1U/6.3V_4
23mA
80mA
1mA
AE1
AA24
AA25
AB24
AB25
AC24
AC25
AD24
AD25
AE25
AE26
AE27
AE28
AE29
G25
H24
H25
K24
K25
M24
M25
N23
N24
N25
P24
P25
R24
R25
R26
R27
U24
U25
V24
V25
U23
W24
W25
K23
AJ19
AC16
AD15
AD16
AE15
AF15
AG15
AH15
AJ15
AC11
AD11
AE11
AF11
AG10
AG11
AH10
AJ10
AC9
AC18
AC19
AC21
G10
AC12
AC13
AC14
AA7
AB6
AB7
AC6
AC7
B12
D28
D29
E26
E27
A23
A6
F25
J24
J25
L23
L24
L25
T24
T27
T28
T29
Y24
Y25
G9
AJ5
A10
A11
A12
A27
A26
U29F
U29F
ICH9M REV 1.0
ICH9M REV 1.0
4
VCCRTC
V5REF
V5REF_SUS
VCC1_5_B[01]
VCC1_5_B[02]
VCC1_5_B[03]
VCC1_5_B[04]
VCC1_5_B[05]
VCC1_5_B[06]
VCC1_5_B[07]
VCC1_5_B[08]
VCC1_5_B[09]
VCC1_5_B[10]
VCC1_5_B[11]
VCC1_5_B[12]
VCC1_5_B[13]
VCC1_5_B[14]
VCC1_5_B[15]
VCC1_5_B[16]
VCC1_5_B[17]
VCC1_5_B[18]
VCC1_5_B[19]
VCC1_5_B[20]
VCC1_5_B[21]
VCC1_5_B[22]
VCC1_5_B[23]
VCC1_5_B[24]
VCC1_5_B[25]
VCC1_5_B[26]
VCC1_5_B[27]
VCC1_5_B[28]
VCC1_5_B[29]
VCC1_5_B[30]
VCC1_5_B[31]
VCC1_5_B[32]
VCC1_5_B[33]
VCC1_5_B[34]
VCC1_5_B[35]
VCC1_5_B[36]
VCC1_5_B[37]
VCC1_5_B[38]
VCC1_5_B[39]
VCC1_5_B[40]
VCC1_5_B[41]
VCC1_5_B[42]
VCC1_5_B[43]
VCC1_5_B[44]
VCC1_5_B[45]
VCC1_5_B[46]
VCC1_5_B[47]
VCC1_5_B[48]
VCC1_5_B[49]
VCCSATAPLL
VCC1_5_A[01]
VCC1_5_A[02]
VCC1_5_A[03]
VCC1_5_A[04]
VCC1_5_A[05]
VCC1_5_A[06]
VCC1_5_A[07]
VCC1_5_A[08]
VCC1_5_A[09]
VCC1_5_A[10]
VCC1_5_A[11]
VCC1_5_A[12]
VCC1_5_A[13]
VCC1_5_A[14]
VCC1_5_A[15]
VCC1_5_A[16]
VCC1_5_A[17]
VCC1_5_A[18]
VCC1_5_A[19]
VCC1_5_A[20]
VCC1_5_A[21]
VCC1_5_A[22]
VCC1_5_A[23]
VCC1_5_A[24]
VCC1_5_A[25]
VCCUSBPLL
VCC1_5_A[26]
VCC1_5_A[27]
VCC1_5_A[28]
VCC1_5_A[29]
VCC1_5_A[30]
VCCLAN1_05[1]
VCCLAN1_05[2]
VCCLAN3_3[1]
VCCLAN3_3[2]
VCCGLANPLL
VCCGLAN1_5[1]
VCCGLAN1_5[2]
VCCGLAN1_5[3]
VCCGLAN1_5[4]
VCCGLAN3_3
4
CORE
CORE
VCCA3GP ATXARX USB CORE
VCCA3GP ATXARX USB CORE
VCCP_CORE
VCCP_CORE
PCI
PCI
VCCSUS1_05[1]
VCCSUS1_05[2]
VCCSUS1_5[1]
VCCSUS1_5[2]
VCCSUS3_3[01]
VCCSUS3_3[02]
VCCSUS3_3[03]
VCCSUS3_3[04]
VCCPSUSVCCPUSB
VCCPSUSVCCPUSB
VCCSUS3_3[05]
VCCSUS3_3[06]
VCCSUS3_3[07]
VCCSUS3_3[08]
VCCSUS3_3[09]
VCCSUS3_3[10]
VCCSUS3_3[11]
VCCSUS3_3[12]
VCCSUS3_3[13]
VCCSUS3_3[14]
VCCSUS3_3[15]
VCCSUS3_3[16]
VCCSUS3_3[17]
VCCSUS3_3[18]
VCCSUS3_3[19]
VCCSUS3_3[20]
GLAN POWER
GLAN POWER
VCC1_05[01]
VCC1_05[02]
VCC1_05[03]
VCC1_05[04]
VCC1_05[05]
VCC1_05[06]
VCC1_05[07]
VCC1_05[08]
VCC1_05[09]
VCC1_05[10]
VCC1_05[11]
VCC1_05[12]
VCC1_05[13]
VCC1_05[14]
VCC1_05[15]
VCC1_05[16]
VCC1_05[17]
VCC1_05[18]
VCC1_05[19]
VCC1_05[20]
VCC1_05[21]
VCC1_05[22]
VCC1_05[23]
VCC1_05[24]
VCC1_05[25]
VCC1_05[26]
VCCDMIPLL
VCC_DMI[1]
VCC_DMI[2]
V_CPU_IO[1]
V_CPU_IO[2]
VCC3_3[01]
VCC3_3[02]
VCC3_3[07]
VCC3_3[03]
VCC3_3[04]
VCC3_3[05]
VCC3_3[06]
VCC3_3[08]
VCC3_3[09]
VCC3_3[10]
VCC3_3[11]
VCC3_3[12]
VCC3_3[13]
VCC3_3[14]
VCCHDA
VCCSUSHDA
VCCCL1_05
VCCCL1_5
VCCCL3_3[1]
VCCCL3_3[2]
A15
B15
C15
D15
E15
F15
L11
L12
L14
L16
L17
L18
M11
M18
P11
P18
T11
T18
U11
U18
V11
V12
V14
V16
V17
V18
R29
W23
Y23
AB23
AC23
AG29
AJ6
AC10
AD19
AF20
AG24
AC20
B9
F9
G3
G6
J2
J7
K7
AJ4
AJ3
AC8
F17
AD8
F18
A18
D16
D17
E22
AF1
T1
T2
T3
T4
T5
T6
U6
U7
V6
V7
W6
W7
Y6
Y7
T7
G22
G23
A24
B24
1.634A
C449
C449
.1U/10V_4
.1U/10V_4
23mA
+1.5V_ICH_VCCDMIPLL
C392
C392
.01U/16V_4
.01U/16V_4
48mA
+1.05V_ICH_DMI
+1.05V_CPU_IO
+3V_DMI_ICH
+3V_SATA_ICH
+3V_VCCPCORE_ICH
+3V_PCI_ICH
+1.5V_VCCHDA
+1.5V_VCCSUSHDA
TP_VCCSUS1_05_ICH_1
TP_VCCSUS1_05_ICH_2
TP_VCCSUS1_5_ICH_1
+1.5VSUS_INT_ICH
+3VS5_SB_1
+3VS5_SB_2
+1.05V_CL_INT_ICH
+1.5V_CL_INT_ICH
+3V_CL_ICH
19mA
C459
C459
.1U/10V_4
.1U/10V_4
C470
C470
.1U/10V_4
.1U/10V_4
C439
C439
.1U/10V_4
.1U/10V_4
C480
C480
.022U/16V_4
.022U/16V_4
3
C455
C455
.1U/10V_4
.1U/10V_4
C376
C376
10U/6.3V_8
10U/6.3V_8
C407
C407
4.7U/6.3V_6
4.7U/6.3V_6
2mA
C414
C414
.1U/10V_4
.1U/10V_4
L181uH/300mA_8 L181uH/300mA_8
C421
C421
.1U/10V_4
.1U/10V_4
+1.05V
+1.5V
L21HCB1608KF-181T15_6 L21HCB1608KF-181T15_6
+1.05V
C427
C427
4.7U/6.3V_6
4.7U/6.3V_6
VCC3_3 308mA
C491
C491
C417
C417
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
C462
C462
C472
C472
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
11mA
TP51TP51
TP36TP36
TP48TP48
C428
C428
.1U/10V_4
.1U/10V_4
11mA
C483
C483
.1U/10V_4
.1U/10V_4
*0_6
*0_6
UMA
Des
R238
R238
R2310_6 R2310_6
+1.5VS5
+3VS5
VCCSUS 3_3 212mA
C437
C437
.1U/10V_4
.1U/10V_4
C486
C481
C481
.022U/16V_4
.022U/16V_4
R428*0_6S R428*0_6S
*1U/6.3V_4
*1U/6.3V_4
C486
.1U/10V_4
.1U/10V_4
C412
+3V
+3VS5 +1.5VS5
C495
C495
C412
1U/6.3V_4
1U/6.3V_4
C411
C411
.1U/10V_4
.1U/10V_4
U15
U15
VIN3VOUT
1
SHDN
2
GND
SET
*IC(5P) G913C (SOT23-5)EP
*IC(5P) G913C (SOT23-5)EP
4
5
Vout=1.25(1+R1/R2)
3
R149*0_6S R149*0_6S
+3V
R228 *0_6R228 *0_6
R481 0_6R481 0_6
C484
C484
.1U/10V_4
.1U/10V_4
+3VS5
C422
C422
.1U/10V_4
.1U/10V_4
Install for UMA model
R252
R252
R1
*22.1K/F_4
*22.1K/F_4
R251
R251
R2
*100K/F_4
*100K/F_4
+1.05V
UMA
Des
2
C498
C498
*4.7U/6.3V_6
*4.7U/6.3V_6
2
+1.5V
+3V
AA26
AA27
AA23
AB28
AB29
AC17
AC26
AC27
AC3
AD1
AD10
AD12
AD13
AD14
AD17
AD18
AD21
AD28
AD29
AD4
AD5
AD6
AD7
AD9
AE12
AE13
AE14
AE16
AE17
AE20
AE24
AF13
AF16
AF18
AF22
AH26
AF26
AF27
AG13
AG16
AG18
AG20
AG23
AG3
AG6
AG9
AH12
AH14
AH17
AH19
AH2
AH22
AH25
AH28
AH5
AH8
AJ12
AJ14
AJ17
AA3
AA6
AB1
AB4
AB5
AE2
AE3
AE4
AE6
AE9
AF5
AF7
AF9
B11
B14
B17
B20
B23
C26
C27
E11
E14
E18
E21
E24
G12
G14
G18
G21
G24
G26
G27
H23
H28
H29
AJ8
B2
B5
B8
E2
E5
E8
F16
F28
F29
G8
H2
U29E
U29E
VSS[001]
VSS[002]
VSS[003]
VSS[004]
VSS[005]
VSS[006]
VSS[007]
VSS[008]
VSS[009]
VSS[010]
VSS[011]
VSS[012]
VSS[013]
VSS[014]
VSS[015]
VSS[016]
VSS[017]
VSS[018]
VSS[019]
VSS[020]
VSS[021]
VSS[022]
VSS[023]
VSS[024]
VSS[025]
VSS[026]
VSS[027]
VSS[028]
VSS[029]
VSS[030]
VSS[031]
VSS[032]
VSS[033]
VSS[034]
VSS[035]
VSS[036]
VSS[037]
VSS[038]
VSS[039]
VSS[040]
VSS[041]
VSS[042]
VSS[043]
VSS[044]
VSS[045]
VSS[046]
VSS[047]
VSS[048]
VSS[049]
VSS[050]
VSS[051]
VSS[052]
VSS[053]
VSS[054]
VSS[055]
VSS[056]
VSS[057]
VSS[058]
VSS[059]
VSS[060]
VSS[061]
VSS[062]
VSS[063]
VSS[064]
VSS[065]
VSS[066]
VSS[067]
VSS[068]
VSS[069]
VSS[070]
VSS[071]
VSS[072]
VSS[073]
VSS[074]
VSS[075]
VSS[076]
VSS[077]
VSS[078]
VSS[079]
VSS[080]
VSS[081]
VSS[082]
VSS[083]
VSS[084]
VSS[085]
VSS[086]
VSS[087]
VSS[088]
VSS[089]
VSS[090]
VSS[091]
VSS[092]
VSS[093]
VSS[094]
VSS[095]
VSS[096]
VSS[097]
VSS[098]
VSS[099]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
ICH9M REV 1.0
ICH9M REV 1.0
NB5
NB5
NB5
1
H5
VSS[107]
J23
VSS[108]
J26
VSS[109]
J27
VSS[110]
AC22
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
VSS[182]
VSS[183]
VSS[184]
VSS[185]
VSS[186]
VSS[187]
VSS[188]
VSS[189]
VSS[190]
VSS[191]
VSS[192]
VSS[193]
VSS[194]
VSS[195]
VSS[196]
VSS[197]
VSS[198]
VSS_NCTF[01]
VSS_NCTF[02]
VSS_NCTF[03]
VSS_NCTF[04]
VSS_NCTF[05]
VSS_NCTF[06]
VSS_NCTF[07]
VSS_NCTF[08]
VSS_NCTF[09]
VSS_NCTF[10]
VSS_NCTF[11]
VSS_NCTF[12]
K28
K29
L13
L15
L2
L26
L27
L5
L7
M12
M13
M14
M15
M16
M17
M23
M28
M29
N11
N12
N13
N14
N15
N16
N17
N18
N26
N27
P12
P13
P14
P15
P16
P17
P2
P23
P28
P29
P4
P7
R11
R12
R13
R14
R15
R16
R17
R18
R28
T12
T13
T14
T15
T16
T17
T23
B26
U12
U13
U14
U15
U16
U17
AD23
U26
U27
U3
V1
V13
V15
V23
V28
V29
V4
V5
W26
W27
W3
Y1
Y28
Y29
Y4
Y5
AG28
AH6
AF2
B25
A1
A2
A28
A29
AH1
AH29
AJ1
AJ2
AJ28
AJ29
B1
B29
22
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
ICH9-M Power 4/4
ICH9-M Power 4/4
ICH9-M Power 4/4
1
22 39Monday, March 23, 2009
22 39Monday, March 23, 2009
22 39Monday, March 23, 2009
1A
1A
1A
Page 23
8
+3VSUS
R470 6.19K/F_4R470 6.19K/F_4
USBP6-20
USBP6+20
R477
R477
*270K_4
*270K_4
R483 100K/F_4R483 100K/F_4
R475 *0_4SR475 *0_4S
R478
R478
CARD_LEDO#
1 2
R480
R480
*0_4S
*0_4S
CLK_48M_CR2
CARD_LED#29
C532
C532
1000P/50V_4
D D
C C
1000P/50V_4
C733 *5.6P/50V_4C733 *5.6P/50V_4
C739 *5.6P/50V_4C739 *5.6P/50V_4
+3VSUS
100K/F_4
100K/F_4
SP1
SP3
SP4
RREF
XTLO
Y5
*12MHzY5*12MHz
XTLI
MODE_SEL
For 5159
5158_RST#
5158_RST#
C744
C744
1U/6.3V_4
1U/6.3V_4
7
XTLO
U32
U32
13
CF_CD#
14
GPIO0
15
CF_D10
16
CF_D9
17
CF_D2
18
CF_D8/SM_CD#
19
CF_D1/XD_CD#
20
CF_D0/SM_WPM#/SD_WP
21
CF_A0/SD_CD#
22
CF_DMACK#
23
CF_A1/XD_D4
24
CF_DMARQ
2
RREF
4
DM
5
DP
48
XTLO
47
XTLI
45
MODE_SEL
44
RST#
Realtek RTS5159
Realtek RTS5159
6
XD_CLE/CF_D3
XD_CE#/CF_D11
XD_ALE/CF_D4
SD_DAT2/XD_RE#/CF_D12
SD_DAT3/XD_WE#/CF_D5
XD_RDY/CF_D13
SD_DAT4/XD_WP#/CF_D6
SD_DAT5/XD_D0/CF_D14
SD_CLK/XD_D1/MS_CLK/CF_D7
SD_DAT6/XD_D7/MS_D3/CF_D15
SD_DAT7/XD_D2/MS_D2/CF_IOWR#
SD_DAT0/XD_D6/MS_D0/CF_RST#
SD_DAT1/XD_D3/MS_D1/CF_IORDY
SD_CMD
CF_CS0#
MS_INS#/CF_IORD#
XD_D5/MS_BS/CF_A2
AV_PLL_IN
VREG_OUT
5V_IN
A3V3_ IN
D3V3_ IN
D3V3_OUT
A3V3_OUT
CARD_3V3_OUT
AG33
AG_PLL
DGND2
DGND1
43
42
41
40
39
38
37
36
35
34
31
30
29
28
27
26
25
1
10
8
3
33
11
7
9
6
46
32
12
5
SP19
SP18
SP17
SP16
SP15
SP14
SP13
SD_CMDSP2
SP12
SP11
SP10
SP9
SP8
SP7
SP6
SP5
C731
C731
.1U/10V_4
.1U/10V_4
Vreg out 1.8V from Internal 3.3VLDO
VREG
+3VSUS_RTS
C766
C766
.1U/10V_4
.1U/10V_4
C729
C729
.1U/10V_4
.1U/10V_4
C727
C727
.1U/10V_4
.1U/10V_4
+3VSUS
+3VCARD
R479 *0_4SR479 *0_4S
DV1 Modify
SP11
R492 33_4R492 33_4
Close to chipset
C728
C728
1U/6.3V_4
1U/6.3V_4
For 5159
C725
C725
.1U/10V_4
.1U/10V_4
4
SD_DAT1SP4
SD_MS_CLK
C758
C758
10P/50V_4
10P/50V_4
PV Modify
R469 *0_6SR469 *0_6S
C724
C724
4.7U/6.3V_6
4.7U/6.3V_6
+3VSUS
3
PQ Modify
2
SP1
R474 *0_4R474 *0_4
SP2
R472 *0_4R472 *0_4
SP3
R467 *0_4R467 *0_4
SP4
R482 33_4R482 33_4
SP5
R488 *0_4R488 *0_4
SP6
R491 *0_4R491 *0_4
SP7
R485 33_4R485 33_4
SP8
R493 33_4R493 33_4
SP9
R494 *0_4R494 *0_4
SP10
R476 33_4R476 33_4
SP11
R501 *0_4R501 *0_4
SP12
R502 33_4R502 33_4
SP13
R489 33_4R489 33_4
SP14
R516 *0_4R516 *0_4
SP15
R514 33_4R514 33_4
SP16
R498 33_4R498 33_4
SP17
R515 *0_4R515 *0_4
SP18
R517 *0_4R517 *0_4
SP19
R518 *0_4R518 *0_4
Close to chip
D11
D11
*CH501H-40PT
5158_RST# 5158_RST_R#
*CH501H-40PT
2 1
SD/MMC MS XD
SP1
SP2
SD_WP
SP3
SD_CD#
SP4_R
SD_DAT1
SP5
SP6
SP7_R
SD_DAT0
SP8_R
SD_DAT7 XD_D2
SP9
SP10_R
SD_DAT6 XD_D7
SP11
SP12_R
SD_DAT5 XD_D0
SP13_R
SD_DAT4 XD_WP#
SP14
SP15_R
SD_DAT3 XD_WE#
SP16_R
SD_DAT2 XD_RE#
SP17
SP18
SP19
MS_D1
MS_D2
MS_INS#
MS_D3
MS_SCLK
1
23
XD_CD#
XD_D4
XD_D5MS_BS
XD_D3
XD_D6MS_D0
XD_D1SD_CLK
XD_R/B#
XD_ALE
XD_CE#
XD_CLE
5159_RST_R# 21
*H-C315D118P2H5*H-C315D118P2
*H-C315D118P2
*H-C315D118P2
H5
H21
H21
1
1
5 IN1 CARD READER
C755
C755
*270P/25V_4
+3VCARD
B B
R487
R487
*10K/F_4
*10K/F_4
SP13_R
R490 *0_6SR490 *0_6S
A A
Close Connector
C738
C738
2.2U/6.3V_6
2.2U/6.3V_6
8
*270P/25V_4
SP14
SP16_R
SP18
SP19
SP17
SP15_R
XD-WP#
SP12_R SP3
SP11
SP16_R
SP15_R
SD_CMD
SD_MS_CLK
SP10_R
SP9
SP8_R
SP7_R
SP6
SP5
+3VCARD+3VCARD
R495
R495
150K/F_4
150K/F_4
XD,MMC/SD,MS/MSP
CN25
CN25
1
XD-R/B
2
XD-RE
3
XD-CE
4
XD-CLE
5
XD-ALE
6
XD-WE
7
XD-WP
8
XD-DATA0
9
XD-DATA1
10
SD-DATA2
11
SD-DAT3
12
SD-CMD
13
GND
14
MS-VCC
15
MS-SDLK
16
MS-DATA3
17
MS-INS
18
MS-DATA2
19
MS-DATA0
20
MS-DATA1
21
MS-BS
22
GND
5IN1 CARD READER SOCKET
5IN1 CARD READER SOCKET
4IN1-72700327123-43P-L
4IN1-72700327123-43P-L
C774
C774
.1U/10V_4
.1U/10V_4
C732
C732
.1U/10V_4
.1U/10V_4
7
C751
C751
.1U/10V_4
.1U/10V_4
GND
GND
GND
GND
GND
SD-C/D
SD-CD-SW
SD-W/P
SD-WP-SW
XD-CD
XD-VCC
XD-DATA7
XD-DATA6
XD-DATA5
SD-DATA1
XD-DATA4
XD-DATA3
XD-DATA2
SD-DATA0
SD-CLK
SD-VCC
+3VCARD+3VCARD
43
38
37
40
42
SP3
39
36
SP2
41
SP2
35
SP1
34
33
SP10_R
32
SP7_R
31
SP5
30
SD_DAT1
29
SP4_R
28
SP6
27
SP8_R
26
SP7_R
25
SD_MS_CLK
24
23
6
+3VCARD
SP14
SP16_R
SP18
SP19
SP17
SP15_R
XD-WP#
SP12_R
SP11
SP16_R
SP15_R
SD_CMD
SD_MS_CLK
SP10_R
SP9
SP8_R
SP7_R
SP6
SP5
CN26
CN26
1
xD-R/B
2
xD-RE
3
xD-CE
4
xD-CLE
5
xD-ALE
6
xD-WE
7
xD-WP
8
xD-D0
9
xD-D1
10
SD-DAT2
11
SD-DAT3
12
SD-CMD
13
GND
14
MS-VCC
15
MS-SDLK
16
MS-DATA3
17
MS-INS
18
MS-DATA2
19
MS-DATA0
20
MS-DATA1
21
MS-BS
22
GND
*TAI TWUM 5IN1 CARD READER SOCKET
*TAI TWUM 5IN1 CARD READER SOCKET
7IN1-R015-B11-LM-42P-L
7IN1-R015-B11-LM-42P-L
5
GND
GND
GND
GND
SD-CD
SD-WP
xD-CD
xD-VCC
xD-D7
xD-D6
xD-D5
SD-DAT1
xD-D4
xD-D3
xD-D2
SD-DAT0
SD-CLK
SD-VCC
37
38
41
42
40
NC
39
NC
SP3
36
SP2
35
SP1
34
33
SP10_R
32
SP7_R
31
SP5
30
SD_DAT1
29
SP4_R
28
SP6
27
SP8_R
26
SP7_R
25
SD_MS_CLK
24
23
4
+3VCARD
1
*H-C256D173P2H9*H-C256D173P2
*H-C256D173P2H4*H-C256D173P2
H9
H4
1
1
1
*H-C276D161P2
*H-C276D161P2
*H-C276D161P2
*H-C276D161P2
H10
H10
H12
H12
1
1
3
1
*H-C315D118P2
*H-C315D118P2
H11
H11
*H-C256D173P2H8*H-C256D173P2
H8
*H-C276D161P2
*H-C276D161P2
H13
H13
NB5
NB5
NB5
*H-C315D118P2H2*H-C315D118P2
H2
1
*H-C256D173P2H3*H-C256D173P2
H3
1
*H-C315D110P2H1*H-C315D110P2
H1
1
*H-C276D67P2
*H-C276D67P2
H14
H14
1
1
*H-C276D67P2
*H-C276D67P2
H16
H16
1
*H-C315D118P2
*H-C315D118P2
*H-C315D118P2
*H-C315D118P2
H23
H23
H18
H18
1
1
*H-O173X114D173X114N
*H-O173X114D173X114N
*H-O472X236N
*H-O472X236N
H26
H26
1
1
*H-C276D161P2
*H-C276D161P2
*H-C276D161P2
*H-C276D161P2
H15
H15
H17
H17
1
1
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
2
RTS5158 & CR SOCKET &HOLE
RTS5158 & CR SOCKET &HOLE
RTS5158 & CR SOCKET &HOLE
*H-C315D118P2H6*H-C315D118P2
*H-C315D118P2
*H-C315D118P2
H6
H22
H22
1
*H-C114D114NH7*H-C114D114N
*H-O173X114D173X114N
*H-O173X114D173X114N
H25
H25
1
*H-C256D146P2
*H-C256D146P2
1
23 39Tuesday, May 05, 2009
23 39Tuesday, May 05, 2009
23 39Tuesday, May 05, 2009
1
H7
H24
H24
1
*H-C256D146P2
*H-C256D146P2
H19
H19
H20
H20
1
1A
1A
1A
Page 24
A
+3V +3V_DVDD
C514
1U/6.3V_4
1U/6.3V_4
DIGITAL_CLK17
EAPD#25
DIGITAL_D117
+3V_DVDD
Close to Pin1
ACZ_SDOUT_AUDIO19
BIT_CLK_AUDIO19
ACZ_SDIN019
ACZ_SYNC_AUDIO19
ACZ_RST#_AUDIO19
ACZ_SPKR19,21
L43 BK1005HS601-T_4L43 BK1005HS601-T_4
C782
C782
.1U/10V_4
.1U/10V_4
R226 22_4R226 22_4
R257 10K/F_4R257 10K/F_4
PQ Modify
R263
1 1
R263
10K/F_4
10K/F_4
C513
C513
.1U/10V_4
.1U/10V_4
ADC_BITCLK
ACZ_SDIN0_ADC
C506
C506
.1U/10V_4
.1U/10V_4
C511
C511
.1U/10V_4
.1U/10V_4
Close to Pin9
C504
C504
10U/6.3V_8
10U/6.3V_8
1
DVDD
2
GPIO0-DMIC-12
3
GPIO3/DMIC-34
4
DVSS
5
SDATA-OUT
6
BIT-CLK
7
DVSS-I/O
8
SDATA-IN
9
DVDD-I/O
10
SYNC
11
RESET#
12
PCBEEP
+3V_1.5V_DVIO
C512
C512
.1U/10V_4
.1U/10V_4
44
45
46
47
48
EAPD
SPDIFO2
SPDIFO1
DMIC-CLK
DMIC-CLK3/4
ALC272
ALC272
Sense A13LINE2-L14LINE2-R15MIC2-L16MIC2-R17LINE1-VREFO18MIC2-VREFO19LINE2-VREFO20MIC1-L21MIC1-R22LINE1-L23LINE1-R
Close to Pin9
43
AGND
NC
B
37
MONO
FRONT-R
FRONT-L
Sense B
HPOUT-L
HPOUT-R
CPVEE
AVSS1
AVDD1
24
C537
C537
10U/6.3V_8
10U/6.3V_8
U35
U35
CBN
CBP
VREF
+4.75VAVDD
C801
C801
.1U/10V_4
.1U/10V_4
AGND
36
35
SENSE B SA_HP#
34
33
32
31
30
29
28
27
26
25
C805 2.2U/6.3V_6C805 2.2U/6.3V_6
C802 2.2U/6.3V_6C802 2.2U/6.3V_6
R525 5.1K/F_4R525 5.1K/F_4
EARPO_L EARP_L
R526 75/F_4R526 75/F_4
R273 75/F_4R273 75/F_4
C813 2.2U/6.3V_6C813 2.2U/6.3V_6
C526 2.2U/6.3V_6C526 2.2U/6.3V_6
VREFOUT_B_L
VREF_FLT
+4.75VAVDD
10U/6.3V_8
10U/6.3V_8
2 1
2 1
C521
C521
R523 2.2K_4R523 2.2K_4
D31RB501V-40 D31RB501V-40
R513 2.2K_4R513 2.2K_4
D30RB501V-40 D30RB501V-40
R521 1K/F_4R521 1K/F_4
R519 1K/F_4R519 1K/F_4
C812
C812
.1U/10V_4
.1U/10V_4
AGND
Close to Pin38
AGND
R512
R512
20K/F_4
20K/F_4
38
39
42
41
JDREF40AVSS2
AVDD2
SURR-L
SURR-R
MIC1-VREFO-L
VREFOUT_B_L
MIC1_R1
MIC1_L1
EARP_REARPO_R
C811
C811
.1U/10V_4
.1U/10V_4
12
C781
C781
4.7U/6.3V_6
4.7U/6.3V_6
AGND
HP-R 25
HP-L 25
AGND SHIELD
AGND SHIELD
AGND SHIELD
EXT_MIC_R
EXT_MIC_L
C
C793
C793
.1U/10V_4
.1U/10V_4
To Internal Speakers
HP sense pin
To Headphone jack
C536
C536
C810
C810
10U/6.3V_8
10U/6.3V_8
1U/6.3V_4
1U/6.3V_4
AGND
TO Audio Jack MIC
C522
C522
10U/6.3V_8
10U/6.3V_8C514
L40 *0_8L40 *0_8
5
4
C794
C794
1U/6.3V_4
1U/6.3V_4
AGNDAGND
1 2
U33
U33
1
Vout
Vin
BYP
3
GND2EN
TPS793475
TPS793475
R499 10K/F_4R499 10K/F_4
ADC_BITCLK ACZ_SDIN0_ADC
C785
C785
*27P/50V_4
*27P/50V_4
UMA
R259 *0_4R259 *0_4
+1.5V
+3V_DVDD
R258 0_4R258 0_4
Des
D
+5V
C778
C778
.1U/10V_4
.1U/10V_4
FOR EMI
+5V_CDC
C777
C777
.047U/25V_4
.047U/25V_4
+5V
C779
C779
*27P/50V_4
*27P/50V_4
+3V_1.5V_DVIO
C509
C509
10U/6.3V_8
10U/6.3V_8
C776
C776
1U/6.3V_4
1U/6.3V_4
+5V+4.75VAVDD
C775
C775
10U/6.3V_8
10U/6.3V_8
MONO_OUT
E
PV Modify
R270 *0_6SR270 *0_6S
R266 *0_6SR266 *0_6S
C517 1000P/50V_4C517 1000P/50V_4
1 2
C515 1000P/50V_4C515 1000P/50V_4
1 2
AGND
PORT
PLACE TO
X
PORT A
PORT B
PORT C
PORT D
PORT E
PORT F
X
Audio Jack MIC
X
Internal Speckers
X
X
PORT I HP OUT
24
MIC sense pin
SA_MIC#
A
R269 20K/F_4R269 20K/F_4
SENSE_A
DV1 Modify
C814
C814
*27P/50V_4
*27P/50V_4
C815
C815
*27P/50V_4
*27P/50V_4
Close to CN8
USBP1+20
USBP1-20
USBP2+20
USBP2-20
C816
C816
*180P/50V_4
*180P/50V_4
B
*180P/50V_4
*180P/50V_4
AGND AGNDAGNDAGND
C817
C817
+5VSUS
100 mil
EXT_MIC_L
EXT_MIC_R
EARP_L
EARP_R
SA_HP#
SA_MIC#
AGND
CN8
CN8
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
AUDIO CONN
AUDIO CONN
88501-2001-20P-L-QL3
88501-2001-20P-L-QL3
AUDIO / USB BOARD CONNECTOR
+5VSUS
C27
C27
C28
C28
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Azalia IDT92HD71B7
Azalia IDT92HD71B7
NB5
NB5
C
D
NB5
Azalia IDT92HD71B7
Date: Sheet of
Date: Sheet of
Date: Sheet of
E
24 39Tuesday, May 05, 2009
24 39Tuesday, May 05, 2009
24 39Tuesday, May 05, 2009
1A
1A
1A
Page 25
1
2
3
4
5
6
7
8
AUDIO AMPLIFIER
PV Modify
R289 *15K/F_4R289 *15K/F_4
AGND
C540 .47U/10V_6C540 .47U/10V_6
HP-L24
A A
HP-R24
12
C510 .47U/10V_6C510 .47U/10V_6
12
HP_L_C
HP_R_C
PV Modify
6017A2 Gain Table
GAIN0 GAIN1 AV(INV)
0 0 6dB
0 1 10dB
1 0 15.6dB
1 1 21.6dB
B B
+5VAMP
R274 *100K/F_4R274 *100K/F_4
R275 100K/F_4R275 100K/F_4
AGND
AUDIO_G0
AUDIO_G1
R288 40.2K/F_4R288 40.2K/F_4
R261 40.2K/F_4R261 40.2K/F_4
R262 *15K/F_4R262 *15K/F_4
AGND
C539 .47U/10V_6C539 .47U/10V_6
AGND
AGND
C516 1000P/50V_4C516 1000P/50V_4
R264 *0_6SR264 *0_6S
R265 *0_6SR265 *0_6S
R272 1K/F_4R272 1K/F_4
R277 *1K/F_4R277 *1K/F_4
1 2
C538 .47U/10V_6C538 .47U/10V_6
1 2
C541 2.2U/6.3V_6C541 2.2U/6.3V_6
1 2
12
12
AGND
+5VAMP
C_SPKR_L
C_SPKR_R
AMP_BYPASS
AUDIO_G0
AUDIO_G1
VOLMUTE#30
U17
U17
6
PVDD1
15
PVDD2
16
VDD
5
LIN-
17
RIN-
9
LIN+
7
RIN+
10
BYPASS
2
GAIN0
3
GAIN1
TPA6017A2/FAN7031/LM4874
TPA6017A2/FAN7031/LM4874
R271 100K/F_4R271 100K/F_4
+3V
EAPD#24
AL001431K04
AL6017A2K12
APA2031 ,AL002031K00
ROUT+
ROUT-
LOUT+
LOUT-
SHUTDOW N
EPAD
GND1
GND2
GND3
GND4
2
1
AGND
AGND
R_SPK+
R_SPK-
C525
C525
*180P/50V_4
*180P/50V_4
L_SPK+
L_SPK-
C529
C529
*180P/50V_4
*180P/50V_4
CN13
CN13
4
3
2
1
INT SPEAKER CONN
INT SPEAKER CONN
INT. SPEAKER
25
R_SPK+4
C807 100P/50V_4C807 100P/50V_4
12
C809
C809
10U/6.3V_8
10U/6.3V_8
R_SPK-3
L_SPK+2
L_SPK-1
18
14
4
8
19
12
NC
21
1
11
13
20
AGND
12
D21
D21
BAT54A
BAT54A
3
AGND
C795 100P/50V_4C795 100P/50V_4
C799 100P/50V_4C799 100P/50V_4
1 2
+5V +5VAMP
R260 *0_6SR260 *0_6S
C804 100P/50V_4C804 100P/50V_4
1 2
1 2
1 2
AGND
12
C507
C507
.1U/10V_4
.1U/10V_4
R511 *0_6SR511 *0_6S
R509 *0_6SR509 *0_6S
*180P/50V_4
*180P/50V_4
R522 *0_6SR522 *0_6S
R524 *0_6SR524 *0_6S
*180P/50V_4
*180P/50V_4
12
C508
C508
.1U/10V_4
.1U/10V_4
C520
C520
C527
C527
12
C535
C535
.047U/25V_4
.047U/25V_4
C C
Des
UMA
R4970_6 R4970_6
R496*0_6 R496*0_6
C770
C770
.1U/10V_4
.1U/10V_4
C768
C768
*10P/50V_4
*10P/50V_4
+3V
+1.5V
+3V
C773
C773
2.2U/6.3V_6
2.2U/6.3V_6
BIT_CLK_MDC 19
C771
C771
1000P/50V_4
1000P/50V_4
MDC
C772
C772
.1U/10V_4
.1U/10V_4
CN24
CN24
ACZ_SDOUT_MDC19
ACZ_SYNC_MDC19
ACZ_SDIN119
ACZ_RST#_MDC19
D D
R484 33_4R484 33_4
C482
C482
*10P/50V_4
*10P/50V_4
AC_SDIN1_MDC
GND1REV
A_SDO3REV
GND5VCC
A_SYNC7GND
A_SDI9GND
A_RST#11A_BCLK
MDC CONN
MDC CONN
MDC-1-179373-2-12P-RUV
MDC-1-179373-2-12P-RUV
2
4
6
8
10
12
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
1
2
3
4
5
6
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
AMP_TPA6017/MDC
AMP_TPA6017/MDC
AMP_TPA6017/MDC
25 39Tuesday, May 05, 2009
25 39Tuesday, May 05, 2009
25 39Tuesday, May 05, 2009
8
1A
1A
1A
Page 26
5
4
3
2
1
PQ Modify
+CTRL12DVDD
PQ Modify
R127 *0_6SR127 *0_6S
R128 *0_6R128 *0_6
for RTL8111DL use
for RTL8103E use
+3V_LAN
ENSWREG
R461
R437 *0_6SR437 *0_6S
R431 *0_6R431 *0_6
+3V_LAN
R463
R461 and R463 are used in RTL8111DL ,
remove R463 if switching regulator is
enable , Remove R461 external power is
used.
For RTL8111DL use
Close Pin 44,45
D D
+CTRL12DVDD +DVDD12_LAN
C390 10U/6.3V_8C390 10U/6.3V_8
C394 10U/6.3V_8C394 10U/6.3V_8
C398 0.1U/10V_4C398 0.1U/10V_4
Length<200mil
Width>60mil
26
10
11
12
+DVDD12_LAN
PCIE_TXP6_LAN
PCIE_TXN6_LAN
PCIE_LAN_CLK
PCIE_LAN_CLK#
LAN_GLED#
LAN_YLED#
C369
C369
*.01U/16V_4
*.01U/16V_4
XTAL1
XTAL2
+CTRL12DVDD
LANRSET
+CTRL12A
U9
U9
1
AVDD33
2
MDIP0
3
MDIN0
4
NC/FB12
5
MDIP1
6
MDIN1
7
GND1
8
NC/MDIP2
9
NC/MDIN2
DVDD12/AVDD12
NC/MDIP3
NC/MDIN3
ENSWREG
48
46
41
44
43
45
47
RSET
GND4
CKTAL242CKTAL1
NC/VDDSR
NC/ENSWREG
VCTR12DVDDSR
VCTRL12A/SROUT12
RTL8103EL/8111DL
RTL8103EL/8111DL
DVDD1213GND214HSIP15HSIN16REFCLK_P17REFCLK_N18EVDD1219HSOP20HSON21EGND22NC/GPO23NC/NC
Link
C666
C666
*.01U/16V_4
*.01U/16V_4
LAN_TX#
+3V_LAN
40
37
39
38
LED0
VDD33B
NC/LV_PLL
NC/AVDD33
LED1/EESK
LED2/EEDI
LED3/EEDO
ISOLATEB
LANWAKEB
CLKREQB
24
PCIE_RXN6_LAN_L
PCIE_RXP6_LAN_L
EVDD12
+3V_LAN
+DVDD12_LAN
+3V_LAN
36
DVDD12B
35
34
33
32
EECS
31
GND3
30
DVDD12A
29
VDD33A
28
27
PERSTB
26
25
C699 .01U/16V_4C699 .01U/16V_4
C698 .01U/16V_4C698 .01U/16V_4
C697 .01U/16V_4C697 .01U/16V_4
C696 .01U/16V_4C696 .01U/16V_4
LAN_GLINK100#
LAN_GLINK10#
LAN_GLINK1000#
EECS
ISOLATEB
LAN_RESET#
C410 0.1U/10V_4C410 0.1U/10V_4
C404 0.1U/10V_4C404 0.1U/10V_4
Close to LAN
MDI0+
MDI0-
MDI1+
MDI1-
MDI2+
MDI2-
MDI3+
MDI3-
R167 3.6K_6R167 3.6K_6
R159 *0_4SR159 *0_4S
LAN CABLE DETECT 30
PCIE_RXN6_LAN 20
PCIE_RXP6_LAN 20
U27
U27
V_DAC
1
TCT1
2
TD1+
3
TD1-
V_DAC
4
TCT2
5
TD2+
6
TD2-
V_DAC
7
TCT3
8
TD3+
9
TD3-
V_DAC
10
TCT4
11
TD4+
TD4-12MX4-
NS892405
NS892405
+DVDD12_LAN
12
+DVDD12_LAN
+3V_LAN
PQ Modify
24
MCT1
23
MX1+
22
MX1-
21
MCT2
20
MX2+
19
MX2-
18
MCT3
17
MX3+
16
MX3-
15
MCT4
14
MX4+
13
+3V_LAN
PCIE_WAKE# 21,28,31
LAN_MCT0
LAN_MX0+
LAN_MX0ÂLAN_MCT1
LAN_MX1+
LAN_MX1ÂLAN_MCT2
LAN_MX2+
LAN_MX2ÂLAN_MCT3
LAN_MX3+
LAN_MX3-
for RTL8103E use
*1K/F_4
*1K/F_4
R441
R441
R445 *0_4SR445 *0_4S
R439 *0_4R439 *0_4
RTL8103EL(10/100Mbps):
R123,R122,C363,C362 use 0 ohm
C363
C363
0.01U/100V_0603
0.01U/100V_0603
C362
C362
0.01U/100V_0603
0.01U/100V_0603
C361
C361
0.01U/100V_0603
0.01U/100V_0603
C360
C360
0.01U/100V_0603
0.01U/100V_0603
PV Modify
PLTRST# 20,28,30,31
LAN_REST# 30
R123 75/F_4R123 75/F_4
R122 75/F_4R122 75/F_4
R121 75/F_4R121 75/F_4
R120 75/F_4R120 75/F_4
C692
C692
1500P/2KV_1808
1500P/2KV_1808
+3V_LAN
+3V_LAN
+3V
R165
R165
1K/F_4
1K/F_4
ISOLATEB
R164
R164
15K/F_4
15K/F_4
1 2
R124 330/F_4R124 330/F_4
R422 330/F_4R422 330/F_4
if ISOLATEB pin
pull-low,the LAN
chip will not drive
it's PCI-E outputs
( excluding
PCIE_WAKE# pin )
R158 100/F_4R158 100/F_4
2 1
D12 *RB501V-40D12 *RB501V-40
FOR EMI
C359 .1U/10V_4C359 .1U/10V_4
LAN_GLED
LAN_GLED#
LAN_MX3ÂLAN_MX3+
LAN_MX1ÂLAN_MX2ÂLAN_MX2+
LAN_MX1+
LAN_MX0ÂLAN_MX0+
LAN_YLED
LAN_YLED#
C669 .1U/10V_4C669 .1U/10V_4
FOR EMI
LAN_DISABLE# 19,30
RJ45
CN21
CN21
12
LED_GRE_P
10
LED_GRE_N
8
RX1-
7
RX1+
6
RX0-
5
TX1-
4
TX1+
3
RX0+
2
TX0-
1
TX0+
9
LED_YEL_P
11
LED_YEL_N
RJ45_CONN
RJ45_CONN
RJ45-2006103-1-12P-H
RJ45-2006103-1-12P-H
GND1
GND
14
13
Y1
21
25MHZY125MHZ
C406
C406
33P/50V_4
33P/50V_4
DV1 Modify
C403
C403
33P/50V_4
33P/50V_4
+CTRL12DVDD
R429 2.49K/F_4R429 2.49K/F_4
+CTRL12A27
Length<200mil
Width>60mil
C C
+3V_LAN
+DVDD12_LAN
+DVDD12_LAN
PCIE_TXP6_LAN20
PCIE_TXN6_LAN20
CLK_PCIE_LAN2
CLK_PCIE_LAN#2
B B
AL08111DB00
AL08103EB00
LAN_GLINK100#
LAN_TX#
A A
+3V_LAN
MDI0+
MDI0-
MDI1+
MDI1-
MDI2+
MDI2Â+DVDD12_LAN
MDI3+
MDI3-
RTL8111DL-GR
RTL8103EL-GR
R412 *0_4SR412 *0_4S
DV1 Modify
NS892402:1G
NS892405:10/100
5
4
DB0AT9LAN05
DB0ZB1LAN04
3
NB5
NB5
NB5
2
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
RTL8111C/8101E/RJ45
RTL8111C/8101E/RJ45
RTL8111C/8101E/RJ45
Date: Sheet of
Date: Sheet of
Date: Sheet of
26 39Tuesday, May 05, 2009
26 39Tuesday, May 05, 2009
26 39Tuesday, May 05, 2009
1
1A
1A
1A
Page 27
5
4
3
2
1
27
D D
+3VLANVCC
PQ Modify
R125 *0_8SR125 *0_8S
C377
C377
0.1U/10V_4
0.1U/10V_4
Length<200mil
Width>60mil
C425
C425
0.1U/10V_4
0.1U/10V_4
C429
C429
0.1U/10V_4
0.1U/10V_4
C413
C413
0.1U/10V_4
0.1U/10V_4
+3V_LAN
Close to Pin 1Close to Pin 29,37,40
C C
B B
Length<200mil
Width>60mil
+CTRL12A26
L19
RTL8111DL ( Gaga lan )
use 4.7uH power choke
A>600mA tolerance ±15%
RTL8103E stuff 0ohm
<GroupName>
<GroupName>
L19 0_8
L19 0_8
8111DL
8103E
C703
C703
10U/6.3V_8
10U/6.3V_8 L37
C702,C703
RTL8111DL Stuff
RTL 8103E Remove
CV-4706MN00
CS00004JA40
C702
C702
10U/6.3V_8
10U/6.3V_8
C704
C704
0.1U/10V_4
0.1U/10V_4
PQ Modify
+CTRL12A_L
PQ Modify
R434 *0_8SR434 *0_8S
L37
*0_8S
*0_8S
C401
C401
1U/10V_4
1U/10V_4
L37/R434
RTL8111DL used 0 ohm
RTL 8103E remove 0 ohm
EVDD12
+DVDD12_LAN
C400
C400
1U/10V_4
1U/10V_4
Close to 8111DL
DVDD12 pin -- 19
C395
C431
C418
C418
0.1U/10V_4
0.1U/10V_4
A A
C431
0.1U/10V_4
0.1U/10V_4
C430
C430
0.1U/10V_4
0.1U/10V_4
C378
C378
0.1U/10V_4
0.1U/10V_4
C395
0.1U/10V_4
0.1U/10V_4
Close to 8111DL DVDD12
pin -- 10, 13, 30, 36, 39.
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
NB5
NB5
5
4
3
2
NB5
A3
Date: Sheet of
Date: Sheet of
Date: Sheet of
LAN Power
LAN Power
LAN Power
27 39Tuesday, May 05, 2009
27 39Tuesday, May 05, 2009
1
27 39Tuesday, May 05, 2009
1A
1A
1A
Page 28
A
B
C
D
E
NEWCARD
SATA ODD CONECTOR
+3VNEWCARD
D D
SATA_TXP119
C458
C458
.1U/10V_4
.1U/10V_4
SATA_TXN119
SATA_RXN119
SATA_RXP119
R215 1K/F_4R215 1K/F_4
1 2
+5V_ODD
+5V_ODD
+5V
C C
C451
C451
10U/6.3V_8
10U/6.3V_8
120 mils
C468
C468
.1U/10V_4
.1U/10V_4
C469
C469
.1U/10V_4
.1U/10V_4
C461
C461
.1U/10V_4
.1U/10V_4
CN23
CN23
S1
S1
1
GND1
2
TXP
3
4
5
6
7
8
9
10
11
12
13
SATA ODD
SATA ODD
SATA-48325-1103-13P-R-H-QL6
SATA-48325-1103-13P-R-H-QL6
TXN
GND2
RXN
RXP
GND3
DP
+5V
+5V
MD
GND
GND
14
A
14
B
S7
S7
P1
P1
15
15
P6
P6
SATA HDD CONNECTOR
DC Current rating: 0.5 A
21
22
CN15
CN15
SATA HDD(1ST)
SATA HDD(1ST)
Main HDD
1
B B
+3V_HDD1
+5V_HDD1
1
123456789
1011121314151617181920
23
24
20
20
+5V: 2 A(4 Pin)
+3V: 2 A(4 Pin)
Gnd : (5 Pin)
SATA_TXP0 19
SATA_TXN0 19
SATA_RXN0 19
SATA_RXP0 19
USBP7-20
USBP7+20
CGCLK_SMB2,10,11,31
CGDAT_SMB2,10,11,31
PCIE_WAKE#21,26,31
CLK_NEWCARD_OE#2
CLK_PCIE_NEW#2
CLK_PCIE_NEW2
PCIE_RXN120
PCIE_RXP120
PCIE_TXN120
PCIE_TXP120
CPUSB#
+1.5VNEWCARD
PERST#
CPPE#
PCI-Express TX and RX direct to connector
U31
U31
STBY#13.3VIN
PLTRST#
CPPE#
CPUSB#
PERST#
NEW_OC#
12
17
15
10
20
18
19
C734
C734
.1U/10V_4
.1U/10V_4
6
9
8
7
AUXIN
AUXOUT
SYSRST#
CPPE#
CPUSB#
PERST#
SHDN#
RCLKEN
OC#
GND
C736
C736
.1U/10V_4
.1U/10V_4
+3VS5
+3VAUX
PLTRST#20,26,30,31
T15
T15
*PAD
*PAD
+3VS5 +3V
12
C743
C743
.1U/10V_4
.1U/10V_4
C745
C745
.1U/10V_4
.1U/10V_4
GND
26
3.3VOUT
3.3VOUT
1.5VOUT
1.5VOUT
+3VAUX
2
4
3.3VIN
12
1.5VIN
14
1.5VIN
3
5
11
13
R5538D001-TR-F
R5538D001-TR-F
12
C764
C764
.1U/10V_4
.1U/10V_4
CN12
CN12
48303-0042
48303-0042
expcard-13080153-a-26p-l
expcard-13080153-a-26p-l
1
GND_1
2
USB-
3
USB+
4
CPUSB#
5
RSV_0
6
RSV_1
7
SMBCLK
8
SMBDATA
9
+1.5V_0
10
+1.5V_1
11
WAKE#
12
+3.3VAUX
13
PERST#
14
+3.3V_1
15
+3.3V_2
16
CLKREQ#
17
CPPE#
18
REFCLK-
19
REFCLK+
20
GND_2
21
PERn0
22
PERp0
23
GND_3
24
PETn0
25
PETp0
26
GND_4
+3V
+1.5V
+3VNEWCARD
+1.5VNEWCARD
+3VAUX+1.5V
12
C762
C762
.1U/10V_4
.1U/10V_4
27
C760
C760
.1U/10V_4
.1U/10V_4
NC430NC329NC228NC1
C761
C761
.1U/10V_4
.1U/10V_4
28
+3VNEWCARD
12
C735
+5V+5V_HDD1
A A
R31 *0_8R31 *0_8
+3V+3V_HDD1
+5V_HDD1
C69
C69
10U/6.3V_8
10U/6.3V_8
C73
C73
4.7U/6.3V_6
4.7U/6.3V_6
C78
C78
.1U/10V_4
.1U/10V_4
C58
C58
*10U/6.3V_8
*10U/6.3V_8
+3V_HDD1
C83
C83
*10U/6.3V_8
*10U/6.3V_8
C88
C88
*.1U/10V_4
*.1U/10V_4
C735
.1U/10V_4
.1U/10V_4
C737
C737
.1U/10V_4
.1U/10V_4
+1.5VNEWCARD
12
C763
C763
.1U/10V_4
.1U/10V_4
C765
C765
.1U/10V_4
.1U/10V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
NB5
NB5
NB5
Date: Sheet of
Date: Sheet of
A
B
C
D
Date: Sheet of
ODD/HDD/NEW CARD
ODD/HDD/NEW CARD
ODD/HDD/NEW CARD
E
28 39Tuesday, May 05, 2009
28 39Tuesday, May 05, 2009
28 39Tuesday, May 05, 2009
1A
1A
1A
Page 29
5
4
3
2
1
BLUETOOTH POWER
+3VSUS
+3VSUS+3VSUS
R13
D D
BT_OFF#30
R13
*4.7K_4
*4.7K_4
Q3
Q3
2
*DTC144EUA
*DTC144EUA
1 3
2
R14 *0_4SR14 *0_4S
R10
R10
*4.7K_4
*4.7K_4
HW_RADIO_DIS#HW_RADIO_DIS#
Q1
Q1
*DTC144EUA
*DTC144EUA
1 3
USBP8+20
USBP8-20
BLUELED30
C823
C823
390P/50V_4
390P/50V_4
PV Modify
24mil
C9
C9
.1U/10V_4
.1U/10V_4
CN3
CN3
6
5
4
3
2
1
BLUE TOOTH CONN
BLUE TOOTH CONN
87213-0600-6P-L
87213-0600-6P-L
POWER BOTTON CONNECT
CN7
CN7
PWR BTN CONN
C C
NBSWON1# NBSWON1#
12
G1
G1
*SHORT_ PAD1
*SHORT_ PAD1
C21
C21
.1U/10V_4
.1U/10V_4
LID_EC# PWR_LED#
C22
C22
.1U/10V_4
.1U/10V_4
C534
C534
.1U/10V_4
.1U/10V_4
NBSWON1#30
LID_EC#17,30
+3VPCU
+3V
.1U/10V_4
.1U/10V_4
C24
C24
.1U/10V_4
.1U/10V_4
C23
C23
PWR BTN CONN
1
2
3
4
5
6
1. NBSWON1#
2. GND
3. GND
4. LID_EC#
5. +3V
6. +3VPCU
C254 220P/50V_4C254 220P/50V_4 C282 220P/50V_4C282 220P/50V_4
MY6
C272 220P/50V_4C272 220P/50V_4
MY3
C253 220P/50V_4C253 220P/50V_4
C255 220P/50V_4C255 220P/50V_4
MY8
C273 220P/50V_4C273 220P/50V_4
MY9
C256 220P/50V_4C256 220P/50V_4
MY10
C274 220P/50V_4C274 220P/50V_4
C257 220P/50V_4C257 220P/50V_4
RP40
RP40
10
MY4
9
MY5
8
MY6
7 4
MY7
10P8R-8.2K
10P8R-8.2K
RP41
RP41
10
9
8
7 4
10P8R-8.2K
10P8R-8.2K
MY[0..15]
MX[0..7]
MX0
MX0
+3VPCU
MY13
MY14
MY15
MY[0..15]30
MX[0..7]30
MY1
MY2
C269 220P/50V_4C269 220P/50V_4
MY4
C271 220P/50V_4C271 220P/50V_4
MY0
C281 220P/50V_4C281 220P/50V_4 C280 220P/50V_4C280 220P/50V_4
MX4
C268 220P/50V_4C268 220P/50V_4
MX6
C252 220P/50V_4C252 220P/50V_4
MX3
C250 220P/50V_4C250 220P/50V_4
MX2MY11
C267 220P/50V_4C267 220P/50V_4
MY3
1
MY2
2
MY1
3
MY0
56
MY11
1
MY10MY12
2
MY9
3
MY8
56
MX7MY5
C270 220P/50V_4C270 220P/50V_4
MX0
C279 220P/50V_4C279 220P/50V_4
MX5
C251 220P/50V_4C251 220P/50V_4
MX1MY7
MY12
C275 220P/50V_4C275 220P/50V_4
MY13
C258 220P/50V_4C258 220P/50V_4
MY14
C276 220P/50V_4C276 220P/50V_4
MY15
C259 220P/50V_4C259 220P/50V_4
MY2
MY15
MY14
MY13
MY12
MY11
MY10
MY9
MY8
MY7
MY6
MY5
MY4
MY3
MX7
MX6
MY2
MX5
MX4
MX3
MX2
MY1
MY0
MX1
MX0
CN10
CN10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26 27
88767-250N
88767-250N
88726-25XX-25P-L-BL1
88726-25XX-25P-L-BL1
29
LED
LED7
B B
A A
RF_LINK#30,31
BATLOW#30
MBATLED0#30,31
PWR_LED#30,31
SATA_LED#19
NUMLED#30
CAPSLED#30
CARD_LED#23
󲙦󰵓
󲙦󰵓
󲙦󰵓
󲙦󰵓
󲙦󰵓
󲙦󰵓
󲙦󰵓
5
LED7
Orange_LED
Orange_LED
LED3LED3
4 2
Red
3 1
Green
LED2
LED2
Orange_LED
Orange_LED
LED4
LED4
Orange_LED
Orange_LED
LED5
LED5
Orange_LED
Orange_LED
LED6
LED6
Orange_LED
Orange_LED
LED1
LED1
*BLUE_LED
*BLUE_LED
RFON_R_LED1
PWR_R_LED1
SATA_R_LED1
NUM_LED
CAP_LED
CARD_LED1
MBAT_R_LED1
Pv Modify
R283 430_6R283 430_6
1 2
R278 430_6R278 430_6
1 2
R279 120_6R279 120_6
1 2
R290 430_6R290 430_6
1 2
R280 430_6R280 430_6
1 2
R281 430_6R281 430_6
1 2
R282 430_6R282 430_6
1 2
PQ Modify
R276 *39_6R276 *39_6
1 2
+3V
+3VPCU
+3VPCU
+3V
+3V
+3V
+3VSUS
4
+5V
FAN1SIG30
C605
C605
2.2U/6.3V_6
2.2U/6.3V_6
R33 10K/F_4R33 10K/F_4
VFAN30
SYS_SHDN-1#4
+5V
THERM_OVER#
+5V_FAN
C602
C602
.1U/10V_4
.1U/10V_4
R34 *0_4R34 *0_4
+5V
C92
C92
1U/6.3V_4
1U/6.3V_4
+3V
R332
R332
CPU FAN
4.7K_4
4.7K_4
FANPWR = 1.6*VSET
U5
VIN2VO
GND
1
/FON
GND
GND
4
VSET
GND
G995U5G995
THERM_OVER#
CN17
CN17
1
1
2
2
3
3
FAN CONN
FAN CONN
53398-0310-3P-L
53398-0310-3P-L
30 mil
+5V_FAN
3
5
6
7
8
3
MX7
MX7
MY0 MY15
MY0 MY15
K1: Mute
K2: Volume Up
K3: Volume Down
K4: SRS
C138
C138
.1U/10V_4
.1U/10V_4
+1.8VSUS
+1.05V
+1.8VSUS
C131
C131
.1U/10V_4
.1U/10V_4
+1.05V
Close to U21 For EMI
C215
C215
.1U/10V_4
.1U/10V_4
2
+1.8VSUS
+1.05V
MBDATA24,15,30
MBCLK24,15,30
NB5
NB5
NB5
K1 K2
K1 K2
K3 K4
K3 K4
IC2_INT30
+3V
MY11
MY12
MX5
MX6
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
KB/FAN/POWER CONN/LED
KB/FAN/POWER CONN/LED
KB/FAN/POWER CONN/LED
1
CN4
CN4
TOUCH BTN CONN
TOUCH BTN CONN
1
2
3
4
5
6
CN5
CN5
BOTTON CONN
BOTTON CONN
1
2
3
4
5
6
29 39Tuesday, May 05, 2009
29 39Tuesday, May 05, 2009
29 39Tuesday, May 05, 2009
1A
1A
1A
Page 30
5
U16
SERIRQ21
LFRAME#19,31
LAD019,31
LAD119,31
LAD219,31
LAD319,31
PCLK_KBC2
PLTRST#20,26,28,31
D D
C C
LAN CABLE DETECT26
B B
SCI1#
PM_BATLOW1#
A A
DNBSWON#1
KBSMI#1
SWI#1
CLKRUN#21
GATEA2019
RCIN#19
MX029
MX129
MX229
MX329
MX429
MX529
MX629
MX729
MY029
MY129
MY229
MY329
MY429
MY529
MY629
MY729
MY829
MY929
MY1029
MY1129
MY1229
MY1329
MY1429
MY1529
IC2_INT29
ACIN32
SERR#20
RF_LINK#29,31
R284 *4.7K_4R284 *4.7K_4
SUSON37,38
MAINON32,34,36,37,38
LAN_POWER38
S5_ON38
RF_OFF#31
LAN_DISABLE#19,26
BT_OFF#29
MBATLED0#29,31
BATLOW#29
D18 RB501V-40D18 RB501V-40
D20 RB501V-40D20 RB501V-40
D24 RB500V-40D24 RB500V-40
D17 RB500V-40D17 RB500V-40
D19 RB501V-40D19 RB501V-40
SERIRQ
LFRAME#
LAD0
LAD1
LAD2
LAD3
PLTRST1#
CLKRUN#
SCI1#
GATEA20
RCIN#
3920_RST#
MX0
MX1
MX2
MX3
MX4
MX5
MX6
MX7
MY0
MY1
MY3
MY4
MY5
MY6
MY7
MY8
MY9
MY10
MY11
MY12
MY13
MY14
MY15
EC_GPIO4C
ACIN
TPCLK
TPDATA
BIOS_RD#
BIOS_WR#
BIOS_CS#
CLIENT_ID
LAN CABLE DETECT
BIOS_A0
SUSON
MAINON
LAN_POWER
S5_ON
RF_OFF#
BT_OFF#
TP_LED0#
TP_LED1#
C543
C543
.1U/10V_4
.1U/10V_4
1 2
21
21
21
21
21
5
MY2
C545
C545
4.7U/6.3V_6
4.7U/6.3V_6
U16
3
SERIRQ
4
LFRAME
10
LAD0
8
LAD1
7
LAD2
5
LAD3
12
PCICLK
13
PCIRST/GPIO5
38
CLKRUN
20
SCI/GPIOE
1
GA20/GPIO0
2
KBRST/GPIO1
37
ECRST
55
KSI0/GPIO30
56
KSI1/GPIO31
57
KSI2/GPIO32
58
KSI3/GPIO33
59
KSI4/GPIO34
60
KSI5/GPIO35
61
KSI6/GPIO36
62
KSI7/GPIO37
39
KSO0/GPIO20
40
KSO1/GPIO21
41
KSO2/GPIO22
42
KSO3/GPIO23
43
KSO4/GPIO24
44
KSO5/GPIO25
45
KSO6/GPIO26
46
KSO7/GPIO27
47
KSO8/GPIO28
48
KSO9/GPIO29
49
KSO10/GPIO2A
50
KSO11/GPIO2B
51
KSO12/GPIO2C
52
KSO13/GPIO2D
53
KSO14/GPIO2E
54
KSO15/GPIO2F
81
KSO16/GPIO48
82
KSO17/GPIO49
83
PSCLK1/GPIO4A
84
PSDAT1/GPIO4B
85
PSCLK2/GPIO4C
86
PSDAT2/GPIO4D
87
PSCLK3/GPIO4E
88
PSDAT3/GPIO4F
119
RD
120
WR
128
SELMEM/SPICS
89
SELIO/GPIO50
76
SELIO2/GPIO43
109
D0/GPXD0
110
D1/GPXD1
112
D2/GPXD2
114
D3/GPXD3
115
D4/GPXD4
116
D5/GPXD5
117
D6/GPXD6
118
D7/GPXD7
97
A0/GPXA0
98
A1/GPXA1
99
A2/GPXA2
100
A3/GPXA3
101
A4/GPXA4
102
A5/GPXA5
103
A6/GPXA6
104
A7/GPXA7
105
A8/GPXA8
106
A9/GPXA9
107
A10/GPXA10
108
A11/GPXA11
124
V18R
KB3926 C0
KB3926 C0
SCI# 21
PM_BATLOW# 21
DNBSWON# 21
KBSMI# 21
SWI# 21
FANPWM1/GPIO12
FANPWM2/GPIO13
VCC1
VCC2
VCC3
VCC4
VCC5
VCC6
AVCC
AD0/GPI38
AD1/GPI39
AD2/GPI3A
AD3/GPI3B
DA0/GPO3C
DA1/GPO3D
DA2/GPO3E
DA3/GPO3F
PWM1/GPIOE
PWM2/GPIO10
FANFB1/GPIO14
FANFB2/GPIO15
SCL1/GPIO44
SDA1/GPIO45
SCL2/GPIO46
SDA2/GPIO47
GPIO4
GPIO7
GPIO8
GPIOA
GPIOB
GPIOC
GPIOD
GPIO11
GPIO16
GPIO17
GPIO18
GPIO19
GPIO1A
CIR_RX/GPIO40
GPIO41
GPIO42
GPIO52
GPIO53
GPIO54
GPIO55
GPIO56
GPIO57
GPIO58
GPIO59
XCLKO
XCLKI
GND1
GND2
GND3
GND4
GND5
AGND
4
+3VPCU
C523 .1U/10V_4C523 .1U/10V_4
C500 .1U/10V_4C500 .1U/10V_4
C787 .1U/10V_4C787 .1U/10V_4
C544 .1U/10V_4C544 .1U/10V_4
C542 .1U/10V_4C542 .1U/10V_4
C530 .1U/10V_4C530 .1U/10V_4
C524 10U/6.3V_8C524 10U/6.3V_8
C496 .1U/10V_4C496 .1U/10V_4
R247 1K/F_4R247 1K/F_4
AD_AIR
SYS_I
CC-SET
CELL_SLT
VFAN
D/C#
PWM_VADJ
FAN2ON
FAN1SIG
MBCLK
MBDATA
MBCLK2
MBDATA2
SUSB#
HWPG
PM_BATLOW1#
SUSC#
LAN_REST#
SWI#1
NBSWON1#
BL/C#
EC-GPIO16
EC-GPIO17
KBSMI#1
VRON
NUMLED#
LAN_REST#
HDMI_DET1
DNBSWON#1
CAPSLED#
PWR_LED#
ECPWROK
RSMRST#
VOLMUTE#
SPI_CLK
LID_EC#
C808 27P/50V_4C808 27P/50V_4
CRY2
CRY1
1 2
4
1
1 2
C806 27P/50V_4C806 27P/50V_4
DV1 Modify
R285 *10K/F_4R285 *10K/F_4
CLIENT_ID HI ==>LG
LOW==>CB
4
9
22
33
96
111
125
67
63
64
65
66
68
70
71
72
21
23
26
27
28
29
77
78
79
80
6
14
15
16
17
18
19
25
30
31
32
34
36
73
74
75
90
91
92
93
95
121
126
127
123
122
11
24
35
94
113
69
+3VPCU
+3VPCU_EC
TEMP_MBAT 32
AD_AIR 32
SYS_I 32
CC-SET 32
CELL_SLT 32
VFAN 29
D/C# 32
PWM_VADJ 17
PQ Modify
T9T9
FAN1SIG 29
MBCLK 32
MBDATA 32
MBCLK2 4,15,29
MBDATA2 4,15,29
SUSB# 21
HWPG 33,34,36,37
SUSC# 21
LAN_REST# 26
T14T14
NBSWON1# 29
T12T12
T10T10
T11T11
VRON 35
NUMLED# 29
T13T13
HDMI_DET1 18
CAPSLED# 29
PWR_LED# 29,31
ECPWROK 4,6,21
RSMRST# 21
VOLMUTE# 25
LID_EC# 17,29
Y6
Y6
32.768KHZ
32.768KHZ
2 3
CLIENT_ID
3
2
1
TOUCH PAD CONNECTOR
U13
U13
*GMT_G910T21U
*GMT_G910T21U
1
Vout
L25
L25
BK1608HS470
BK1608HS470
+5VPCU+3VPCU_EC
L13 *0_6SL13 *0_6S
3
Vin
GND
C490
*.1U/10V_4
*.1U/10V_4
+3VPCU
C490
2
+5VSUS
+3V
L11 BK1608HS470L11 BK1608HS470
TPDATA TPDATA-1
L10 BK1608HS470L10 BK1608HS470
+5VSUS
R65 4.7K_4R65 4.7K_4
R64 4.7K_4R64 4.7K_4
C181
C181
10P/50V_4
10P/50V_4
25 mils
+5V_TP
C180
C180
10P/50V_4
10P/50V_4
TPCLK
TPDATA
C183 .1U/10V_4C183 .1U/10V_4
C182 .1U/10V_4C182 .1U/10V_4
TPCLK-1TPCLK
TP_LED0#
TP_LED1#
TP_L
TP_R
close connector
30
12
11
10
9
8
7
6
5
4
3
2
1
CN9
CN9
TOUCH PAD CONN
TOUCH PAD CONN
TOUCH PAD L/R
For SW9
SW1
.1U/10V_4
.1U/10V_4
HOLD#
MX25L8005
MX25L8005
VDD
VSS
1 3
C803
C803
1
SW1
TMG-533-S-V-TR
TMG-533-S-V-TR
SW2
SW2
TMG-533-S-V-TR
TMG-533-S-V-TR
+3VPCU
8
SPI_7P
7
4
30 39Tuesday, May 05, 2009
30 39Tuesday, May 05, 2009
30 39Tuesday, May 05, 2009
13
24
56
13
24
56
R520
R520
10K/F_4
10K/F_4
1A
1A
1A
SW3
+3V
+3VPCU
+3VPCU
R510 *10K/F_4R510 *10K/F_4
R508 10K/F_4R508 10K/F_4
R246 4.7K_4R246 4.7K_4
R245 4.7K_4R245 4.7K_4
R267 *8.2K_4R267 *8.2K_4
R268 10K/F_4R268 10K/F_4
R248 47K_4R248 47K_4R286 10K/F_4R286 10K/F_4
TP_L_CONN
TP_R_CONN
SW3
TMG-533-S-V-TR
TMG-533-S-V-TR
SW4
SW4
TMG-533-S-V-TR
TMG-533-S-V-TR
HWPG
NBSWON1#
MBCLK
MBDATA
PM_BATLOW#
EC_GPIO4C
3920_RST# 4,32
C497 .1U/10V_4C497 .1U/10V_4
13
24
56
13
24
56
+3VPCU
TP_L
R256 1K/F_4R256 1K/F_4
C505
C505
.1U/10V_4
.1U/10V_4
1 2
R249 1K/F_4R249 1K/F_4
C499
C499
.1U/10V_4
.1U/10V_4
1 2
BLUELED29
BIOS_CS#
SPI_CLK
R287 33_4R287 33_4
BIOS_WR#
BIOS_RD#
R503 10K/F_4R503 10K/F_4
RF_LINK#
DTC144EUA
DTC144EUA
SPI_3P
TP_L_CONN
TP_R_CONNTP_R
2
Q12
Q12
U34
U34
1
CE#
6
SCK
5
SI
2
SO
3
WP#
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
3
2
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
KB3926/ROM/TP
KB3926/ROM/TP
KB3926/ROM/TP
Page 31
A
B
C
D
E
Mini PCI-E Card 1
WLAN
+3V
+3V_WLAN
D D
CL_RST#1_R
CL_DATA1_R
CL_CLK1_R
PCIE_TXP0
PCIE_TXN0
PCIE_RXP0
PCIE_RXN0
PLTRST#
CLK_PCIE_WLAN
CLK_PCIE_WLAN#
CLK_MINI_OE#
MINICAR_PME#
T16T16
R244 *0_4R244 *0_4
R243 *0_4R243 *0_4
R242 *0_4R242 *0_4
CL_RST#121
CL_DATA121
CL_CLK121
PCIE_TXP020
PCIE_TXN020
PCIE_RXP020
PCIE_RXN020
PCLK_DEBUG2
CLK_PCIE_WLAN2
CLK_PCIE_WLAN#2
BT_COMBO_EN#19
C C
+3V_WLAN
CN28
CN28
51
Reserved
49
Reserved
47
Reserved
45
Reserved
43
Reserved
41
Reserved
39
Reserved
37
Reserved
35
GND
33
PETp0
31
PETn0
29
GND
27
GND
25
PERp0
23
PERn0
21
GND
19
Reserved
17
Reserved
15
GND
13
REFCLK+
11
REFCLK-
9
GND
7
CLKREQ#
5
BT_CHCLK
3
BT_DATA
1
WAKE#
MINI PCIE H=7.0
MINI PCIE H=7.0
MIPCIEXP-1775838-1-52P
MIPCIEXP-1775838-1-52P
+3.3V
GND
+1.5V
LED_WPAN#
LED_WLAN#
LED_WWAN#
GND
USB_D+
USB_D-
GND
SMB_DATA
SMB_CLK
+1.5V
GND
+3.3Vaux
PERST#
W_DISABLE#
GND
Reserved
Reserved
Reserved
Reserved
Reserved
+1.5V
GND
+3.3V
+1.5V
+1.5V
C792
C792
.1U/10V_4
.1U/10V_4
C748
C748
10U/6.3V_8
10U/6.3V_8
+3V_WLAN
+3VSUS
2
Q18
Q18
*DTC144EUA
*DTC144EUA
C791
13
C791
.1U/10V_4
.1U/10V_4
MINICAR_PME#
C747
C747
10U/6.3V_8
10U/6.3V_8
R500 *10K/F_4R500 *10K/F_4
C493
C493
1U/6.3V_4
1U/6.3V_4
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
RF_LINK#
PLTRST#
MINIRF_OFF#
LAD0
LAD1
LAD2
LAD3
LFRAME#
R240 10K/F_4R240 10K/F_4
R486 *0_4SR486 *0_4S
RF_LINK# 29,30
+3V
USBP10+ 20
USBP10- 20
CGDAT_SMB 2,10,11,28
CGCLK_SMB 2,10,11,28
PLTRST# 20,26,28,30
RF_OFF# 30
LAD0 19,30
LAD1 19,30
LAD2 19,30
LAD3 19,30
LFRAME# 19,30
C753
C753
.1U/10V_4
.1U/10V_4
C750
C750
.1U/10V_4
.1U/10V_4
C749
C749
.01U/16V_4
.01U/16V_4
PCIE_WAKE#21,26,28
C754
C754
.1U/10V_4
.1U/10V_4
C494
C494
.1U/10V_4
.1U/10V_4
31
PCLK_DEBUG
R504 *0_4R504 *0_4
C786 *33P/50V_4C786 *33P/50V_4
for EMI request
1U/6.3V_4
1U/6.3V_4
USBP0-20
USBP0+20
+5VSUS
C426
C426
*Clamp-Diode
*Clamp-Diode
Mini PCI-E Card 2 E-SATA/USB COMBO
C789
C789
.1U/10V_4
.1U/10V_4
+3V_RBS
+5V_MINIEC
CN27
CN27
51
Reserved
49
Reserved
47
Reserved
45
Reserved
43
Reserved
41
Reserved
39
Reserved
37
Reserved
35
GND
33
PETp0
31
PETn0
29
GND
27
GND
25
PERp0
23
PERn0
21
GND
19
Reserved
17
Reserved
15
GND
13
REFCLK+
11
REFCLK-
9
GND
7
CLKREQ#
5
BT_CHCLK
3
BT_DATA
1
WAKE#
MINI PCIE H=7.0
MINI PCIE H=7.0
MIPCIEXP-1775838-1-52P
MIPCIEXP-1775838-1-52P
+3V_RBS
C790
C790
10U/6.3V_8
10U/6.3V_8
+3.3V
GND
+1.5V
LED_WPAN#
LED_WLAN#
LED_WWAN#
GND
USB_D+
USB_D-
GND
SMB_DATA
SMB_CLK
+1.5V
GND
+3.3Vaux
PERST#
W_DISABLE#
GND
Reserved
Reserved
Reserved
Reserved
Reserved
+1.5V
GND
+3.3V
C757
C757
.01U/16V_4
.01U/16V_4
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
C756
C756
.1U/10V_4
.1U/10V_4
+1.5V
B
+1.5V
C746
C746
10U/6.3V_8
10U/6.3V_8
CGDAT_SMBCGDAT_SMB
CGCLK_SMB
+3.3Vaux
PLTRST#
WAN_OFF#
ROBSON
R507 *0_6R507 *0_6
B B
A A
MBATLED0#29,30
PCIE_TXP320
PCIE_TXN320
CLK_PCIE_WWAN2
CLK_PCIE_WWAN#2
+5V
C788
C788
.1U/10V_4
.1U/10V_4
A
R505 *0_4R505 *0_4
R506 *0_4R506 *0_4
PCIE_TXP3
PCIE_TXN3
PCIE_RXP3
PCIE_RXN3
CLK_PCIE_WWAN
CLK_PCIE_WWAN#
C752
C752
.1U/10V_4
.1U/10V_4
PWR_LED#29,30
PCIE_RXP320
PCIE_RXN320
+3V
USBP11+ 20
USBP11- 20
R253 *0_6SR253 *0_6S
R250 *0_6R250 *0_6
WAN_OFF# 21
PQ Modify
+3V
+3VSUS
C
C710
C710
2
3
4
1
G545A2P8U
G545A2P8U
12
VIN1
VIN2
EN
GND
U10
U10
OUT3
OUT2
OUT1
8
7
6
5
OC
12
+5VSUS_USBP0
L38
L38
1
4 3
*WCM2012-90
*WCM2012-90
C709
C709
*Clamp-Diode
*Clamp-Diode
80 mils (Iout=2A)
C399
C399
C383
C383
470P/50V_4
470P/50V_4
.1U/10V_4
.1U/10V_4
2
SATA_TXP519
SATA_TXN519
SATA_RXN519
SATA_RXP519
D
C381
C381
+
+
100U/6.3V_3528
100U/6.3V_3528
+5VSUS_USBP0
USBP0ÂUSBP0+
USB & ESATA
CN22
CN22
1
USB Vcc
2
D-
3
D+
4
GND
5
6
7
8
9
10
11
USB_ESATA_COMBO
USB_ESATA_COMBO
ESATA-1759583-3-11P-V
ESATA-1759583-3-11P-V
GND
A+
AÂGND
BÂB+
GND
Shield
Shield
Shield
Shield
14
15
12
13
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
MINI PCIE CONN X2/E-SATA
MINI PCIE CONN X2/E-SATA
NB5
NB5
NB5
MINI PCIE CONN X2/E-SATA
Date: Sheet of
Date: Sheet of
Date: Sheet of
E
1A
1A
31 39Tuesday, May 05, 2009
31 39Tuesday, May 05, 2009
31 39Tuesday, May 05, 2009
1A
Page 32
TOP DC_JACK
60W/90W
CN6
CN6
4
HS3404F
HS3404F
3
2
1
D D
5
PC79 *.1U/50V _6PC7 9 *.1U/50V_6
PC78 .1U/50V_6PC78 .1U/50V _6
HI0805R800R_5A/0 8
HI0805R800R_5A/0 8
AD+
PC77
PC77
HI0805R800R_5A/0 8
HI0805R800R_5A/0 8
U/50V_6
U/50V_6
.1
.1
+VA
MEK100-05-DPS/45V /10A
PL1
PL1
PL2
PL2
MEK100-05-DPS/45V /10A
2
1
PC75
PC75
.1U/50V_6
.1U/50V_6
DB Modify for connector swap (follow QL8)
C C
+VA
+VAD_1
PD6
PD6
1SS355
1SS355
2 1
PR103
PR103
150K/F_4
150K/F_4
PR95
PR95
75K/F_4
75K/F_4
B B
AD_AIR30
PC76
PC76
.1U/10V_4
.1U/10V_4
6251ACIN
PR98
PR98
12.4K/F_4
12.4K/F_4
ACIN30
PR104
PR104
10K/F_4
10K/F_4
3
PR12
A A
PQ1
PQ1
2N7002E
2N7002E
PR12
2
100K_4
100K_4
PD3
PD3
1SS355
1
2 1
1SS355
MAINON30,34,36,37 ,38
+VAD_1
Setting the Vin min to 17V
For EN = 1.06V
PR5
PR5
10K/F_4
10K/F_4
2
PR6
PR6
15K/F_4
15K/F_4
PC16
PC16
1U/25V_8
1U/25V_8
PR13
PR13
1M/F_4
1M/F_4
PD8
PD8
3
ACOK_IN BATDIS_G
+VH28
SYS_SHDN#4,33
3920_RS T#4,30
2 1
+ISL6251 _VDDACOK
13
PQ2
PQ2
DDTA124EUA -7-F
DDTA124EUA -7-F
ACOK#
+VAD
Close to N-CH MOSFET
PD9
PD9
*P4SMAJ20A
*P4SMAJ20A
close to PQ25
2 1
PR115 100/F_4PR115 100/F_4
PR113 150K/F_4PR113 150K/F_4
PR114 100/F_4PR114 100/F_4
+VAD
3216
5
4
PD7
PD7
1SS355
1SS355
PR118
PR118
*470_4 P TC
*470_4 P TC
4 3
PQ25
PQ25
IRFR3709ZCTRPBF
IRFR3709ZCTRPBF
1
3
PQ34
PQ34
2N7002E
2N7002E
SYS_SHDN#
3920_RS T#
2 1
PD10
PD10
*1SS355
*1SS355
CSOP
CSON
PQ27
PQ27
IMD2
IMD2
PR105
PR105
10/F_8
10/F_8
PC88
PC88
1U/25V_8
1U/25V_8
*100K/F_4
*100K/F_4
CELL_SL T30
CELL_SLT = 1 -- 3 S (Cells = GND 3S)
CELL_SLT = 0 -- 4 S (Cells = VDD 4S)
For mosfet burn
5
ACOK#
2
PR110
PR110
20_6
20_6
PR108
PR108
20_6
20_6
1 2
Setting the Vin
min to 12V
For ACSET 1.26V
+ISL6251 _VDD
PR99
PR99
DV2
1 2
PC92
PC92
1U/25V_8
1U/25V_8
1
3
PR107
PR107
100K/F_4
100K/F_4
2
4
2
PQ33
PQ33
*2N7002E
*2N7002E
.047U/25V_4
.047U/25V_4
PR109
PR109
12.4K/F_4
12.4K/F_4
12
PR102
PR102
*100K/F_4
*100K/F_4
3
PQ28
PQ28
1
*BS870-7-F
*BS870-7-F
4
+PRWSRC
PR117
PR117
1 2
*100K/F_4
*100K/F_4
1
PC90
PC90
ACOK#
DCIN
6251ACIN
6251CEL LS_1
CSOP_1
CSON1
6251EN
+ISL6251 _VDD
21
22
23
24
2
3
PR106
PR106
100K/F_4
100K/F_4
CSOP
CSON
ACPRN
DCIN
ACSET
EN
PC93
PC93
12
*100P/50 V_4
*100P/50 V_4
PR119
PR119
2_6
2_6
CELLS
4
6800P/25V_4
6800P/25V_4
PC96
PC96
PR116
PR116
RC2512-R020
RC2512-R020
PR112
PR112
*0_2/S
*0_2/S
1 2
CSIP CSIN
PC95
PC95
.1U/50V_6
.1U/50V_6
19
CSIP
ISL6251 A
ISL6251 A
ICOMP5VCOMP
6
6251ICOMP
1 2
6251VCOMP1
6251VCOMP2
1 2
21
PR120
PR120
*0_2/S
*0_2/S
1 2
PR111
PR111
20_6
20_6
CSIN_1
20
CSIN
PU4
PU4
ICM7CHLIM
6251VRE F
VREF = 2.39V
PR121
PR121
10K/F_4
10K/F_4
PC22
PC22
.01U/16V_4
.01U/16V_4
+ISL6251 _VDD
15
1
VDD
VDDP
BOOT
UGATE
PHASE
LGATE
PGND
GND
VADJ
ACLIM
VRFE
9
8
PC100
PC100
100P/50V_4
100P/50V_4
PR22
PR22
100/F_4
100/F_4
PC18
PC18
3300P/5 0V_4
3300P/5 0V_4
Input Current monitor
V icm = 19.9 * (Vcsip - Vcsin)
PC87 1U/6.3V_4PC87 1U/6.3V_ 4
PR123
PR123
4.7_6
4.7_6
ISL6251 _VDDP
6251B_2
16
17
18
14
13
12
11
10
100K/F_4
100K/F_4
PR25
PR25
100K/F_4
100K/F_4
1 2
3
PC23 4.7U/6.3 V_6PC23 4.7U/6.3V _6
1 2
21
RB501V-40
RB501V-40
PD5
PD5
PR122
PR122
PC99
PC99
2_6
2_6
6251B_1
.1U/50V_6
.1U/50V_6
ISL6251 _UGATE
ISL6251 _PHASE
ISL6251 _LGATE
VADJ
ACLIM
PR36
PR36
12
CC-SET 30
Charging Curret setting =
I chg = 165mV / Rsense * (Vchlim / 3.3V)
SYS_I 30
3
PR27
PR27
31.6K/F_4
31.6K/F_4
PR26
PR26
10K/F_4
10K/F_4
+VIN
over lap
1 2
578
PQ4
PQ4
AO4496
AO4496
3 6
241
12
578
PR44
PR44
2.2_8
2.2_8
6251VRE F
PR28
PR28
*100K/F_4
*100K/F_4
1 2
VADJ =
VERF >> 4.2V +5%
Float >> 4.2V
GND >> 4.2 -5%
PR124
PR124
*100K/F_4
*100K/F_4
1 2
ADP TYPE PR27 VALUE P/N
60W
90W
PC31
PC31
2200P/5 0V_4
2200P/5 0V_4
3 6
241
PQ6
PQ6
AO4712
AO4712
V ACLIM = VREF *
(Rl // 152K) / (Rhi // 152K + Rlow// 152K)
Input curretn = 2.9A (71.5K , 1 0K)
(0.05/Vref * Vaclim + 0.05 ) / Rsense
31.6K/F
2.55K/F
1 3
close with PQ29
PC7
PC7
1 2
4.7U/25V_8
4.7U/25V_8
PL7
PL7
10UH
10UH
CSOP
CSON
ACOK_IN
DTC144EUA
DTC144EUA
PQ32
PQ32
2
PC83
PC83
4.7U/25V_8
4.7U/25V_8
6251LR
CS33162FB14
CS22552FB01
PC98
PC98
*10U/6.3V _8
*10U/6.3V _8
PC94
PC94
1 2
.1U/50V_6
.1U/50V_6
PC8
PC8
1000P/50V_4
1000P/50V_4
PR101
PR101
RL3720W T-R020
RL3720W T-R020
1 2
1P
PR125
PR125
0_4
0_4
*1SS355
*1SS355
PD11
PD11
2
PL4
PL4
HI0805R800R_5A/0 8
HI0805R800R_5A/0 8
PQ29
PQ29
8
1
7
2
6
3
54
FDS6679A Z
FDS6679A Z
BATDIS_G
MBDATA30
MBCLK30
PC6
PC6
1 2
.1U/50V_6
.1U/50V_6
+BATCHG
2P
PC84
PC84
PC80
PC80
10U/25V_12
10U/25V_12
10U/25V_12
10U/25V_12
+VAD_1
PR100
PR100
22_6
22_6
12
PC85
PC85
.1U/50V_6
.1U/50V_6
PC82
PC82
.01U/50V_4
.01U/50V_4
.01U/50V_6
.01U/50V_6
1
2
3
PC15
PC15
PU1
PU1
VIN
GND
CN
12
*100P/50 V_4
*100P/50 V_4
UDZS5.6BTE-1 7
UDZS5.6BTE-1 7
P2805
P2805
CP
7
D_CAP
NC
4
PC4
PC4
Vout
HI0805R800R_5A/0 8
HI0805R800R_5A/0 8
PR3
PR3
330/F_4
330/F_4
12
PD2
PD2
8
6
PG
5
PL3
PL3
2 1
6251ACIN
12
PC11
PC11
1U/25V_6
1U/25V_6
SMD
PR4
PR4
330/F_4
330/F_4
2 1
PD1
PD1
UDZS5.6BTE-1 7
UDZS5.6BTE-1 7
+VH28
SMC
+3VPCU
12
PC3
PC3
*100P/50 V_4
*100P/50 V_4
12
PC19
PC19
1
BATT+
PR2
PR2
10K/F_4
10K/F_4
PC2
PC2
.01U/16V_4
.01U/16V_4
.1U/50V_6
.1U/50V_6
32
CN14
CN14
7
8
7
8
6
10
6
10
5
9
5
9
4
2
4
2
3
113
BP07061 -BA015
BP07061 -BA015
PR1
PR1
1K/F_4
1K/F_4
PC1
PC1
.01U/50V_4
.01U/50V_4
for EC damage
TEMP_MBAT 30
12
21
2
D/C# 30
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Docum ent Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Charger (ISL6251)
Charger (ISL6251)
NB5
NB5
NB5
Charger (ISL6251)
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
4C
4C
32 39Tuesday, May 05, 2009
32 39Tuesday, May 05, 2009
32 39Tuesday, May 05, 2009
4C
Page 33
5
4
DC/DC +3V_ALW/+5V_ALW/+5V_ALW2 /+12V_ALW
3
2
1
D D
PC58
PC58
1 2
5 Volt +/- 5%
Place these CAPs
close to FETs
PC112
PC112
1 2
4.7U/25V_8
*4.7U/25V_8
*4.7U/25V_8
4.7U/25V_8
PC105
PC105
1000P/50V_4
1000P/50V_4
1 2
PC104
PC104
.1U/50V_6
.1U/50V_6
over lap over lap
Countinue current:5A
Peak current:8A
C C
OCP minimum 10A
+5VPCU
PQ35
PQ35
AO4496
AO4496
PL9
PL9
2.5uH/7.5A
1 2
2.5uH/7.5A
1 2
PC117
PC117
2200P/50V_4
2200P/50V_4
HWPG 30,34,36,37
Rds(on) 20m ohm
SYS_SHDN#4,32
+5V_ALWP
12
+
+
B B
PGOOD2
PGOOD1
A A
PC108
PC108
0U/6.3V_6X5.8
0U/6.3V_6X5.8
33
33
PC113
PC113
U/10V_4
U/10V_4
.1
.1
PR128
PR128
*0_4
*0_4
PR126
PR126
*0_4/S
*0_4/S
PR141
PR141
*0_4/S
*0_4/S
5
3 6
241
3 6
241
+10VALW
+5VALW
578
5V_LX
578
5V_DH
PQ37
PQ37
AO4712
AO4712
1 2
5V_DL
PR129
PR129
100K/F_4
100K/F_4
PR144
PR144
*0_4/S
*0_4/S
4
PC124
PC124
1 2
PC103
PC103
.1U/50V_6
.1U/50V_6
1 2
0.1U/25V_8
0.1U/25V_8
PR127
PR127
330K/F_4
330K/F_4
PC120
PC120
1U/25V_8
1U/25V_8
+VIN
21
PD18
PD18
UDZ5V6B-7-F
UDZ5V6B-7-F
PR132
PR132
1K/F_4
1K/F_4
PR133
PR133
150K/F_4
150K/F_4
DV2
PC109
PC109
0.1U/10V_4
0.1U/10V_4
PC106
PC106
4.7U/6.3V_6
4.7U/6.3V_6
9
10
11
12
13
14
15
16
37
36
39
40
PC122
PC122
.01U/50V_6
.01U/50V_6
12
PC119
PC119
.01U/50V_6
.01U/50V_6
+12VALW
+15VALW
+5VALW
BYP
OUT1
FB1
ILIM1
PGOOD1
ON1
DH1
LX1
PAD
PAD
PAD
PAD
PAD
38
1 2
PAD33PAD34PAD
35
+5VALW
12
12
3
4
7
8
6
5
IN
N.C
LDO
VCC
ONLDO
LDOREFIN
PU5
PU5
ISL6237IRZ-T
ISL6237IRZ-T
BST117DL118VDD19N.C20AGND21PGND22DL223BST2
*SHORT-1A
*SHORT-1A
PC110
PC110
1U/6.3V_4
1U/6.3V_4
3
.1U/10V_4
.1U/10V_4
1
2
REF
TON
PGOOD2
24
PR73
PR73
PC114
PC114
PC107
PC107
.1U/50V_6
.1U/50V_6
1 2
DV2
PGOOD1 PGOOD2
1 2
PR130
PR130
4.7_6
4.7_6
1 2
1
PD13
PD13
PD12
PD12
2
BAV99
BAV99
1
2
BAV99
BAV99
3
3
REFIN2
ILIM2
OUT2
SKIP
ON2
DH2
LX2
PAD41PAD
42
1 2
+5V_VCC1
32
31
30
29
28
27
26
25
PR136
PR136
4.7_6
4.7_6
+5V_VCC1
12
PC111
PC111
1U/6.3V_4
1U/6.3V_4
PR138
PR138
309K/F_4
309K/F_4
1 2
3V_DH
PC115
PC115
.1U/50V_6
.1U/50V_6
1 2
3V_LX
Rds(on) 20m ohm
3V_DL
578
3 6
578
3 6
2
PC126
PC126
1 2
PQ39
PQ39
AO4496
AO4496
241
241
PQ38
PQ38
AO4712
AO4712
+5VPCU
Place these CAPs
close to FETs
PC127
PC127
.1U/50V_6
.1U/50V_6
PC118
PC118
2200P/50V_4
2200P/50V_4
+3VPCU
C17
C17
.1U/10V_4
.1U/10V_4
C261
C261
.1U/10V_4
.1U/10V_4
NB5
NB5
NB5
1 2
1000P/50V_4
1000P/50V_4
PL10
PL10
2.5uH/7.5A
2.5uH/7.5A
1 2
1 2
C11
C11
.1U/10V_4
.1U/10V_4
PC123
PC123
PC59
PC59
1 2
4.7U/25V_8
4.7U/25V_8
3.3 Volt +/- 5%
*4.7U/25V_8
*4.7U/25V_8
Countinue current:5A
Peak current:7.5A
OCP minimum 9A
+3.3V_ALWP
PR139
PR139
*0_4/S
*0_4/S
PC125
PC125
.1U/10V_4
.1U/10V_4
PR140
PR140
*0_4
*0_4
C31
C30
C30
.1U/10V_4
.1U/10V_4
C31
.1U/10V_4
.1U/10V_4
C84
C84
.1U/10V_4
.1U/10V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
+5V/+3V (ISL6237)
+5V/+3V (ISL6237)
+5V/+3V (ISL6237)
33
+3VPCU
12
+
+
PC121
PC121
330U/6.3V_6X5.8
330U/6.3V_6X5.8
C375
C375
.1U/10V_4
.1U/10V_4
EMI Suggestion
1
C800
C800
.1U/10V_4
.1U/10V_4
33 39Tuesday, May 05, 2009
33 39Tuesday, May 05, 2009
33 39Tuesday, May 05, 2009
4C
4C
4C
Page 34
5
4
3
2
1
VCCP1.05V & +1.5V
Countinue current:7.5A
Peak current:10A
34
OCP minimum 15A
+1.05Volt +/- 5%
D D
+5VPCU
PR160
PR160
10_6
16
15
17
4
5
PU6
PU6
10_6
RTVDD
TON
PGOOD
LPGOOD
EN/DEM
PAD
2
VDD
LEN
14
9
VDDP
RT8204
RT8204
LFB6LDRI
7
2 1
PD14
PD14
RB501V-40
RB501V-40
1 2
PR148
PR148
2.2_6
2.2_6
13
12
DH
BST
11
LX
10
ILIM
8
DL
3
FB
VOUT
1
PR158
PR158
4.02K/F_4
4.02K/F_4
PC149
PC149
*100P/50V_4
*100P/50V_4
PR163
PR163
1M/F_4
1M/F_4
+3VSUS
PR162
PR162
10K/F_4
10K/F_4
HWPG30,33,36,37
C C
MAINON30,32,36,37,38
MAINON
PR157 *0_4/SPR157 *0_4/S
PR155 *0_4/SPR155 *0_4/S
PR161
PR161
15K/F_4
15K/F_4
*15K/F_4
*15K/F_4
MAINON RTLEN
PR89
PR89
*0_4/S
*0_4/S
PR156
PR156
PC150
PC150
RTTON
RTPG
RTLPPG
RTEN
1U/6.3V_4
1U/6.3V_4
PR88
PR88
*1M/F_4
*1M/F_4
Vo=0.75(R1+R2)/R2
RTLDRI
B B
PR152
+1.5V
C502
C485
C485
.1U/10V_4
.1U/10V_4
+1.05V
C730
C730
.1U/10V_4
A A
.1U/10V_4
C665
C665
.1U/10V_4
.1U/10V_4
C681
C681
.1U/10V_4
.1U/10V_4
C502
.1U/10V_4
.1U/10V_4
+1.8VSUS
C667
C667
.1U/10V_4
.1U/10V_4
+1.8VSUS
C364
C364
.1U/10V_4
.1U/10V_4
+1.05V
PR152
100/F_4
100/F_4
PC145
PC145
PC141
PC141
39P/50V_4
39P/50V_4
PC146
PC146
*39P/50V_4
*39P/50V_4
.033U/10V_4
.033U/10V_4
RTLFB
Vo=0.75(R1+R2)/R2
RTBST
PC130
PC130
2200P/50V_4
1 2
PR149
PR149
2.2_4
2.2_4
PC139
PC139
2200P/50V_4
2200P/50V_4
2200P/50V_4
PC136
PC136
.1U/50V_6
.1U/50V_6
RTDH
RTLX
PR150
PR150
12.7K/F_4
12.7K/F_4
RTDL
RTFB
PR159
PR159
10K/F_4
10K/F_4
578
3 6
241
578
3 6
241
PQ40
PQ40
AO4496
AO4496
PQ42
PQ42
AO4712
AO4712
PC129
PC129
.1U/50V_6
.1U/50V_6
PL11
PL11
1.5UH/10A-SIL104R-1R5PF
1.5UH/10A-SIL104R-1R5PF
PC131
PC131
.1U/50V_6
.1U/50V_6
over lap
PC61
PC61
1 2
4.7U/25V_8
4.7U/25V_8
12
+
PC63
+
PC63
330u_2V_7343
330u_2V_7343
PQ
PC128
PC128
1 2
4.7U/25V_8
4.7U/25V_8
+1.05V
PC134
PC134
.1U/10V_4
.1U/10V_4
RDSon=15m ohm
+1.8VSUS
578
3 6
241
PR154
PR154
10K/F_4
10K/F_4
PR153
PR153
10K/F_4
10K/F_4
PQ18
PQ18
AO4496
AO4496
PC66
PC66
PC147
PC147
PC64
PC64
.1U/10V_4
10U/4V/X6S_8
10U/4V/X6S_8
.1U/10V_4
3.04A
+1.5V
PC70
10U/4V/X6S_8
10U/4V/X6S_8
PC70
10U/4V/X6S_8
10U/4V/X6S_8
PC68
PC68
.1U/10V_4
.1U/10V_4
PC135
PC135
*10U/4V/X6S_8
*10U/4V/X6S_8
+VIN
+1.05V
600 mils15A
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
EMI Suggestion
NB5
NB5
NB5
5
4
3
2
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
B
B
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
+1.05V/+1.5V (RT8204)
+1.05V/+1.5V (RT8204)
+1.05V/+1.5V (RT8204)
1
34 39Tuesday, May 05, 2009
34 39Tuesday, May 05, 2009
34 39Tuesday, May 05, 2009
4C
4C
4C
Page 35
5
4
3
2
1
over lap for acoustic noise
PC29
PC29
.22U/25V_6
.22U/25V_6
+5VPCU
PC43
PC43
.22U/25V_6
.22U/25V_6
PR49
PR49
11K/F_4
11K/F_4
PR68
PR68
11K/F_4
11K/F_4
12
PC57
PC57
.33U/6.3V_4
.33U/6.3V_4
PR93
PR93
10K _6 NTC
10K _6 NTC
DELAY_VR_PWRGOOD 6,21
6262_UG1
6262_PH1
6262_LG1
12
PC50
PC50
.22U/10V_4
.22U/10V_4
12
PC49
PC49
.22U/10V_4
.22U/10V_4
DV2
PR72
PR72
2.7K/F_4
2.7K/F_4
Panasonic
ERT-J1VR103J
Close to Phase 1 Inductor
VCCSENSE 4
VSSSENSE 4
PQ31
PQ31
AON6718L
AON6718L
35
PL5
PL5
12
.1U/50V_6
.1U/50V_6
PC74
PC74
PL6
PL6
12
PC86
PC86
+
+
PR9
PR9
*0_6/S
*0_6/S
100U/25V L-F
100U/25V L-F
330u_2V_7343
330u_2V_7343
PR10
PR10
*0_6/S
*0_6/S
+VIN
PC12
PC12
12
+
+
PC20
PC20
330u_2V_7343
330u_2V_7343
12
+
+
PC10
PC10
330u_2V_7343
330u_2V_7343
12
+
+
+VCORE
Merom: VCC_CORE/ 44A
Yonah: VCC_CORE/ 36A
12
+
+
PC21
PC21
330u_2V_7343
330u_2V_7343
12
12
PC91
PC91
PC81
PC81
+
+
+
PC5
PC5
PC73
PC73
1 2
PR96
PR96
2.2_8
2.2_8
1 2
PC71
PC71
1500P/50V_4
1500P/50V_4
4
PQ30
PQ30
AON6718L
AON6718L
1 2
4.7U/25V_8
4.7U/25V_8
4.7U/25V_8
4.7U/25V_8
over lap
PC14
PC14
1 2
4.7U/25V_8
5
G
G
213
G
G
4
4.7U/25V_8
D
D
PQ24
PQ24
AON6428L
AON6428L
S
S
5
D
D
PR97
PR97
2.2_8
2.2_8
S
S
213
1 2
PC72
PC72
1500P/50V_4
1500P/50V_4
5
D
D
PQ26
PQ26
G
G
AON6428L
G
G
S
S
213
5
D
D
S
S
213
VSUM
ISEN2
6262_UG26262_UG2
6262_PH2
6262_LG2
VSUM
ISEN1
AON6428L
PR62 3.65K/F_6PR62 3.65K/F_6
PR61 10K/F_4PR61 10K/F_4
PR69 1/F_6PR69 1/F_6
PR70 10K/F_6PR70 10K/F_6
PR67 3.65K/F_6PR67 3.65K/F_6
PR66 10K/F_4PR66 10K/F_4
PR71 1/F_6PR71 1/F_6
PR63 10K/F_6PR63 10K/F_6
4
4
+
100U/25V L-F
100U/25V L-F
100U/25V L-F
100U/25V L-F
0.36uH/30A(ETQP4LR36WFC)
0.36uH/30A(ETQP4LR36WFC)
1 2
3 4
PR8
PR8
*0_6/S
*0_6/S
+VIN
PC89
PC89
1 2
4.7U/25V_8
4.7U/25V_8
0.36uH/30A(ETQP4LR36WFC)
0.36uH/30A(ETQP4LR36WFC)
1 2
3 4
PR7
PR7
*0_6/S
*0_6/S
+1.05V
PR21
PR32
PR31
PR31
*0_4
*0_4
D D
CPU_VID6
TP1TP1
PM_PSI#3
PR53
PR53
*SHORT-1A
*SHORT-1A
CPU_VID5 CPU_VID2CPU_VID3 CPU_VID0CPU_VID1CPU_VID4
PC30
PC30
.1U/10V_4
.1U/10V_4
PR94 Close to Phase 1 Inductor
+3VSUS
PR45
1 2
VR_PWRGD_CK410#21
PR45
*68_4
*68_4
PR94
PR94
470K_4 NTC
470K_4 NTC
.01U/16V_4
.01U/16V_4
PC36
PC36
CPU_VID04
CPU_VID14
CPU_VID24
CPU_VID34
CPU_VID44
CPU_VID54
CPU_VID64
DPRSLPVR6,21
H_DPRSTP#3,6,19
PR52
PR52
255/F_4
255/F_4
PR51 97.6K/F_4PR51 97.6K/F_4
PC45
PC45
220P/50V_4
220P/50V_4
C C
H_PROCHOT#3
ED8-B -0623-add
Panasonic
ERT-J0EV474J
VRON
PR16
PR16
100K/F_4
100K/F_4
B B
A A
PR32
*0_4
*0_4
PR43
PR43
PGD_INPWR_MON
12
4.99K/F_4
4.99K/F_4
for ISL6262A
PSI#
Throttling temp.
105 degree C
PR42 147K/F_6PR42 147K/F_6
PR48
PR48
4.02K/F_4
4.02K/F_4
1 2
PR18 *0_4/SPR18 *0_4/S
PR30 499/F_4PR30 499/F_4
PR55 1K/F_4PR55 1K/F_4
PC44
PC44
1000P/50V_4
1000P/50V_4
470P/50V_4
470P/50V_4
12
PR19
PR19
*0_4
*0_4
+5VPCU
PR65
PR65
10_6
10_6
PC48
PC48
1U/6.3V_4
1U/6.3V_4
PSI#
PGD_IN
12
.015U/50V_6
.015U/50V_6
CPU_VID0
CPU_VID1
CPU_VID2
CPU_VID3
CPU_VID4
CPU_VID5
CPU_VID6
DPRSLPVR_R
PC40
PC40
12
PR50 6.81K/F_4PR50 6.81K/F_4
PC42
PC42
1000P/50V_4
1000P/50V_4
.1U/25V_4
.1U/25V_4
PC39
PC39
VR_ON
PR56
PR56
1K/F_4
1K/F_4
PC53
PC53
.01u/16V_4
.01u/16V_4
PC47
PC47
21
49
37
38
39
40
41
42
43
44
45
46
47
13
12
11
10
PR20
PR20
2
3
4
5
6
7
9
PQ
1 2
*0_4
*0_4
PR64
PR64
1/F_6
1/F_6
12
22
VCC
GND
GND_T
PSI#
PGD_IN
RBIAS
VR_TT#
NTC
SOFT
VID0
VID1
VID2
VID3
VID4
VID5
VID6
VR_ON
DPRSLPVR
DPRSTP#
CLK_EN#
VDIFF
FB2
FB
COMP
VW
.01U/16V_4
.01U/16V_4
15
PC46
PC46
PR34
*0_4
*0_4
+3V
12
PC24
PC24
48
3V3
UGATE1
BOOT1
PHASE1
LGATE1
PGND1
ISEN1
PVCC
UGATE2
BOOT2
PHASE2
LGATE2
PGND2
ISEN2
OCSET
VSUM
DROOP
16
PR60
PR60
3.57K/F_4
3.57K/F_4
PC54
PC54
180P/50V_4
180P/50V_4
PC52
PC52
PR58 0_4PR58 0_4
PR59 0_4PR59 0_4
1
PGOOD
NC
VO
DFB
17
12
PR34
PR40
PR40
1.91K/F_4
1.91K/F_4
PR33
PR33
+VIN
PR37
PR37
10_4
10_4
.1U/10V_4
.1U/10V_4
20
PU3
PU3
VIN
ISL6262A
ISL6262A
VSEN
RTN
14
12
.01U/16V_4
.01U/16V_4
1 2
*0_4
*0_4
35
36
1 2
34
32
33
24
31
27
1 2
26
28
30
29
23
25
8
19
12
PC51
PC51
18
ISL6262_VO
Parallel
PR41
PR41
2.2_6
2.2_6
PC38
PC38
1 2
4.7U/25V_8
4.7U/25V_8
PR54
PR54
2.2_6
2.2_6
.22U/10V_4
.22U/10V_4
PR57
PR57
1K/F_4
1K/F_4
PR21
PC55
PC55
VSUM
*0_4
*0_4
ISEN1
ISEN2
.1U/10V_4
.1U/10V_4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
CPU Core ( ISL6262A)
CPU Core ( ISL6262A)
NB5
NB5
5
4
3
2
NB5
CPU Core ( ISL6262A)
Date: Sheet of
Date: Sheet of
Date: Sheet of
1
35 39Tuesday, May 05, 2009
35 39Tuesday, May 05, 2009
35 39Tuesday, May 05, 2009
4C
4C
4C
Page 36
5
VGA Core & VCC1.1
4
3
2
1
+1.1Volt +/- 5%
Countinue current:15A
Peak current:17A
OCP minimum 22A
36
D D
C C
V_PWRCNTL15
B B
PQ50
PQ50
2N7002
2N7002
1.1UGND
VGA_GPIO615
A A
1
PC176
0.22U -->
1U --> 15ms
1.8V_ON38
HWPG30,33,34,37
MAINON30,32,34,37,38
+3V
PR181
PR181
*0_4/S
*0_4/S
2
3
+3VPCU
PR192
PR192
*0_4/S
*0_4/S
PC179
PC179
1000P/50V_4
1000P/50V_4
1.1UGND 1.1UGND
3ms
2 1
PR172
PR172
215K/F_4
215K/F_4
3
PR182
PR182
10K/F_4
10K/F_4
2
PQ49
PQ49
2N7002
2N7002
PR180
PR180
1
1M/F_4
1M/F_4
1.1UGND1.1UGND
+3VPCU
3
PR191
PR191
10K/F_4
10K/F_4
2
PQ53
PQ53
2N7002
2N7002
1
1.1UGND 1.1UGND
1SS355
1SS355
PR187
PR187
10K/F_4
10K/F_4
2
PR185
PR185
1M/F_4
1M/F_4
PD16
PD16
PR174
PR174
681K/F_4
681K/F_4
3
1
PR176
PR176
162K/F_4
162K/F_4
PR177
PR177
124K/F_4
124K/F_4
PQ52
PQ52
2N7002
2N7002
+3VSUS
PR184
PR184
10K/F_4
10K/F_4
1.1UGND
PC166
PC166
1000P/50V_4
1000P/50V_4
PR189
PR189
1K/F_4
1K/F_4
1.1UGND
PC177
PC177
.01U/50V_4
.01U/50V_4
PD17 RB501V-40PD17 RB501V-40
PR188 15K/F_4PR188 15K/F_4
PR190 10K/F_4PR190 10K/F_4
PC176
PC176
1U/6.3V_4
1U/6.3V_4
PC170
PC170
.1U/10V_4
.1U/10V_4
21
PR179
PR179
130K_4
130K_4
PR183
PR183
*100K/F_4
*100K/F_4
V_PWRCNTL
LO
LO
1.1UGND
VGA_GPIO6
PC175
PC175
1U/6.3V_4
1U/6.3V_4
M1.8VIN
M1.8EN
M1.8VSET
M1.8REF
M1.8TSET
PC173
PC173
1000P/50V_4
1000P/50V_4
LO
LOHI
PR186
PR186
20_6
20_6
1.1UGND
16
2
VIN
VDDA
4
PGD
3
ON/SKIP
PU8
VSET
VREF
TSET
GNDA1
17
PC178
PC178
.022U/16V_4
.022U/16V_4
PU8
OZ8119
OZ8119
OCT
1
PR91
PR91
*SHORT-1A
*SHORT-1A
13
14
15
nVidia N10M-GE1 Status
1.09V
1.2VHI
0.90V
0.90VHI HI
5
BST
VDDP
HDR
LX
LDR
CSP
CSN
GNDP
6
PC165
PC165
1000P/50V_4
1000P/50V_4
+5VPCU
1U/6.3V_4
1U/6.3V_4
M1.8BST
8
M1.8HDR
9
M1.8LX
10
M1.8LDR
7
M1.8CSP
11
M1.8CSN
12
P8
P0
P10, P12
PC174
PC174
1 2
PC164
PC164
22P/50V_4
22P/50V_4
PR178
PR178
4.7_6
4.7_6
PC163
PC163
.22U/25V_6
.22U/25V_6
21
PD15
PD15
RB501V-40
RB501V-40
4
4
PQ45
PQ45
AON6718L
AON6718L
PC133
PC133
1000P/50V_4
5
D
D
PQ44
213
5
213
S
S
D
D
S
S
PQ44
AON6428L
AON6428L
G
G
G
G
PQ
1000P/50V_4
PL12
1.0UH/15A(PCMC104T-1R0MN)
1.0UH/15A(PCMC104T-1R0MN)
PR151
PR151
2.2_8
2.2_8
1 2
PC138
PC138
1500P/50V_4
1500P/50V_4
PL12
DCR=3mohm
12
PR171
PR171
100K/F_4
100K/F_4
PR168
PR168
309K/F_4
309K/F_4
1 2
PC161
PC161
3900P/50V_4
3900P/50V_4
PC137
PC137
.1U/50V_6
.1U/50V_6
PR169
PR169
51/F_4
51/F_4
PR173
PR173
*6.04K/F_4
*6.04K/F_4
12
+
+
PC153
PC153
390U/2.5V_6X5.8ESR10
390U/2.5V_6X5.8ESR10
PC132
PC132
1 2
4.7U/25V_8
4.7U/25V_8
over lap
800 mils17A
PC143
PC143
10U/4V/X6S_8
10U/4V/X6S_8
+VIN
PC142
PC142
R126
R126
*0_6
*0_6
PC140
PC140
1 2
*4.7U/25V_8
*4.7U/25V_8
PC148
PC148
.1U/10V_4
.1U/10V_4
10U/4V/X6S_8
10U/4V/X6S_8
+VGACORE +1.8V+VGA1.1V
+VGACORE
12
+
+
PC144
PC144
330u_2V_7343
330u_2V_7343
For VGA voltage drop.
R426
R426
*0_6
*0_6
R114
R114
*0_6
*0_6
For UMA Only
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
B
B
NB5
NB5
NB5
5
4
3
2
B
Date: Sheet of
Date: Sheet of
Date: Sheet of
VGA CORE OZ8119
VGA CORE OZ8119
VGA CORE OZ8119
1
36 39Tuesday, May 05, 2009
36 39Tuesday, May 05, 2009
36 39Tuesday, May 05, 2009
4C
4C
4C
Page 37
A
( VTT/2A )
+0.9VSMVTT
12
PC34
PC34
10U/6.3V_8
4 4
+0.9VSMVREF6,10
10U/6.3V_8
( 3mA )
V5FILT
MAINON30,32,34,36,38
SUSON30,38
+VIN
PR17 620K/F_4PR17 620K/F_4
PR35
PR35
*0_4
*0_4
MAINON
12
PC33
PC33
10U/6.3V_8
10U/6.3V_8
12
PC35
PC35
.033U/10V_4
.033U/10V_4
for RT8207
3 3
PU2
PU2
1
2
3
4
5
6
7
8
9
10
11
12
RT8207GQW
RT8207GQW
VTTGND
VTTSNS
GND
MODE
VTTREF
COMP
NC
VDDQSNS
VDDQSET
S3
S5
NC
25
VTT
GND
VLDOIN
VBST
DRVH
DRVL
PGND
CS_GND
V5IN
V5FILT
PGOOD
B
PR46
PR46
2.2_6
2.2_6
PR14
PR14
8.25K/F_4
8.25K/F_4
DV1
+5VPCU
21
PD4
PD4
RB501V-40
RB501V-40
PC27
PC27
1 2
.1U/50V_6
.1U/50V_6
12
PR15
PR15
10_6
10_6
PC17
PC17
1U/6.3V_4
1U/6.3V_4
+1.8VSUS
24
23
22
21
20
LL
19
18
17
1116CS
16
CS
15
V5FILT
14
13
1116VBST
1116DRVH
1116LL
1116DRVL
PC32
*10U/4V/X6S_8
*10U/4V/X6S_8
1 2
HWPG 30,33,34,36
PC25
PC25
.1U/50V_6
.1U/50V_6PC32
PQ5
PQ5
AON6428L
AON6428L
PQ3
PQ3
AON6718L
AON6718L
+5VPCU
C
G
G
4
G
G
4
PC13
PC13
RDSon=15m ohm
12
1U/6.3V_4
1U/6.3V_4
PR47
PR47
*SHORT-1A
*SHORT-1A
5
D
D
S
S
213
1.0UH/25A-MPO104-1R0
1.0UH/25A-MPO104-1R0
5
D
D
S
S
213
PC102
PC102
1500P/50V_4
1500P/50V_4
for OCP
PR11
PR11
2.2_8
2.2_8
1 2
PC9
PC9
1500P/50V_4
1500P/50V_4
D
+VIN
E
over lap
PC26
PC26
PC101
PC101
1 2
1 2
4.7U/25V_8
4.7U/25V_8
4.7U/25V_8
4.7U/25V_8
PL8
PL8
12
+
+
PC97
PC97
390U/2.5V_6X5.8ESR10
390U/2.5V_6X5.8ESR10
1.8 Volt +/- 5%
Countinue current:10A
Peak current:12A
OCP minimum 15A
12
PC37
PC37
.1U/10V_4
.1U/10V_4
DV1
PR38
PR38
14.3K/F_4
14.3K/F_4
PR24
PR24
10K/F_4
10K/F_4
+1.8VSUS+1.8VSUS
12
PC28
PC28
100P/50V_4
100P/50V_4
37
+1.8VSUS
+1.8VSUS
For Discrete Only
1.1 Volt +/- 5%
PU7
.1U/10V_4
.1U/10V_4
PC167
PC167
1U/6.3V_4
1U/6.3V_4
PU7
3
VIN
2
VEN
VPP4GND
1
POK
RT9018
RT9018
PR167
PR167
100K/F_4
100K/F_4
+5V +5V+5VSUS
C533
C533
.1U/10V_4
.1U/10V_4
ADJ
7
1.2VADJ
1 2
5
NC
6
VO
8
9
GND1
PR170
PR170
38.3K/F_4
38.3K/F_4
VO=(0.8(R1+R2)/R2)
R2<120Kohm
C501
.1U/10V_4
.1U/10V_4
R1R2
C616
.1U/10V_4
.1U/10V_4
PC160
+5VPCU
HWPG
C26
C26
.1U/10V_4
.1U/10V_4
PC160
1 2
PC157
PC157
PR166
PR166
100K/F_4
100K/F_4
MAINON
.33U/6.3V_4
.33U/6.3V_4
2 2
1 1
C503
C503
.1U/10V_4
.1U/10V_4 C616
C159
C159
.1U/10V_4
.1U/10V_4
PC156
PC156
C723
C723
.1U/10V_4
.1U/10V_4
A
U/4V/X6S_8
U/4V/X6S_8
10
10
C62
C62
.1U/10V_4
.1U/10V_4
Countinue current:2A
Peak current:2.5A
+VGA1.1V
PC172
PC172
PC171
PC171
10U/4V/X6S_8
10U/4V/X6S_8
10U/4V/X6S_8
10U/4V/X6S_8
C796
C796
C86
C86
.1U/10V_4
.1U/10V_4
.1U/10V_4
.1U/10V_4
B
+VGA1.1V 12,13,14,36
PC162
PC162
.1U/10V_4
.1U/10V_4
C558
C558
.1U/10V_4
.1U/10V_4
1.8V_OND38
for G73&G8X VGA
PLL power
+VIN
C700
C700
.1U/50V_6
.1U/50V_6C501
C444
C444
.1U/50V_6
.1U/50V_6
C
+1.8VSUS
578
3 6
C56
C56
.1U/50V_6
.1U/50V_6
PC151
PC151
.1U/10V_4
.1U/10V_4
PQ46
PQ46
ME4856
ME4856
241
+1.8V
PC154
PC154
.1U/10V_4
.1U/10V_4
C818
C818
.1U/50V_6
.1U/50V_6
DV1
EMI Suggestion
( 4.7A )
+1.8V 13,14,16,36,38
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
D
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
1.8V/DDR_VTER/+1.8v/+1.1V
1.8V/DDR_VTER/+1.8v/+1.1V
1.8V/DDR_VTER/+1.8v/+1.1V
37 39Tuesday, May 05, 2009
37 39Tuesday, May 05, 2009
37 39Tuesday, May 05, 2009
E
4C
4C
4C
Page 38
1
2
3
4
5
+5V
+VIN
A A
PR197
PR197
1M/F_4
1M/F_4
PR194
DTC144EUA
DTC144EUA
2
PQ11
PQ11
DTC144EUA
DTC144EUA
2
2
PQ57
PQ57
1 3
1 3
+VIN
S5_ONG
MAINON30,32,34,36,37
B B
SUSON30,37
C C
S5_ON30
PQ21
PQ21
DTC144EUA
DTC144EUA
+3V +3VSUS
D D
1 3
PR194
1M/F_4
1M/F_4
+VIN
PR77
PR77
1M/F_4
1M/F_4
PR78
PR78
1M/F_4
1M/F_4
+5VS5
PR87
PR87
1M/F_4
1M/F_4
PR90
PR90
1M/F_4
1M/F_4
3
DV2 DV2
2
1
DV2
2
MAINON_G
+3VSUS
DV2
2
SUSON_G
PR85
PR85
*22_8
*22_8
PQ17
PQ17
*2N7002E
*2N7002E
2
PR195
PR195
*22_8
*22_8
3
PQ59
PQ59
*2N7002E
*2N7002E
1
PR76
PR76
*22_8
*22_8
3
PQ10
PQ10
*2N7002E
*2N7002E
1
+3VS5
PR83
PR83
*22_8
*22_8
3
PQ16
PQ16
*2N7002E
*2N7002E
1
+3V
PR198
PR198
*22_8
*22_8
3
PQ60
PQ60
*2N7002E
*2N7002E
2
1
+5VSUS
PR75
PR75
*22_8
*22_8
3
PQ9
PQ9
*2N7002E
*2N7002E
2
1
+10VALW
S5_OND10V
3
2N7002E
2N7002E
2
1
PR175
PR175
1M/F_4
1M/F_4
PQ51
PQ51
2
2
12
+1.5V
3
1
+15VALW
+3VPCU
3
PC169
PC169
2200P/50V_4
2200P/50V_4
PR193
PR193
*22_8
*22_8
PQ55
PQ55
*2N7002E
*2N7002E
PR74
PR74
1M/F_4
1M/F_4
SUSD
3
PQ8
PQ8
2N7002E
2N7002E
1
+15VALW
PR196
PR196
1M/F_4
1M/F_4 PC56
MAIND
3
PQ58
PQ58
2N7002E
2N7002E
2
1
12
PC60
PC60
PQ48
PQ48
ME3424
ME3424
65241
0.03A
+3VS5
12
PC168
PC168
.01U/16V_4
.01U/16V_4
12
+10VALW
2
2200P/50V_4
2200P/50V_4
+3VS5 19,20,21,22,28
PC183
PC183
2200P/50V_4
2200P/50V_4
PR165
PR165
1M/F_4
1M/F_4
SUSD10V
3
PQ23
PQ23
2N7002E
2N7002E
1
DV2
+10VALW
2
+15VALW
2
3
1
12
PC155
PC155
PR86
PR86
1M/F_4
1M/F_4
3
PQ20
PQ20
2N7002E
2N7002E
1
PR164
PR164
1M/F_4
1M/F_4
MAIND10V
PQ22
PQ22
2N7002E
2N7002E
DV2
2200P/50V_4
2200P/50V_4
S5_OND
12
PC152
PC152
2
12
PC69
PC69
2200P/50V_4
2200P/50V_4
2200P/50V_4
2200P/50V_4
+5VPCU
MAIND10V
+3V
3
PQ54
PQ54
2N7002E
2N7002E
+5VS5
1
5.87A
PC116
PC116
.1U/10V_4
.1U/10V_4
(2mA)
12
PC180
PC180
.01U/16V_4
.01U/16V_4
+3VPCU
578
3 6
241
LAN_POWER30
PC159
PC159
.1U/10V_4
.1U/10V_4
PQ36
PQ36
Si4800BDY
Si4800BDY
1.8V_ON36
MAIND
65241
+3VSUS
PC158
PC158
.1U/10V_4
.1U/10V_4
2
PQ13
PQ13
DTC144EUA
DTC144EUA
PQ43
PQ43
DTC144EUA
DTC144EUA
PQ47
PQ47
ME3424
ME3424
3
0.48A
2
SUSD10V
1 3
For Discrete Only
+5VPCU
578
+VIN
1 3
3 6
241
PR81
PR81
1M/F_4
1M/F_4
PR80
PR80
1M/F_4
1M/F_4
+VIN
1.8V_ONG
PR146
PR146
1M/F_4
1M/F_4
PR147
PR147
1M/F_4
1M/F_4
PC56
.1U/10V_4
.1U/10V_4
PQ7
PQ7
Si4800BDY
Si4800BDY
PC41
PC41
.1U/10V_4
.1U/10V_4
+3VLANVCC
PR84
PR84
*22_8
*22_8
3
PQ14
PQ14
DV2
*2N7002E
*2N7002E
2
1
LAN_POWER_G
2
+1.8V
+5V
PR145
PR145
*22_8
*22_8
3
PQ41
PQ41
*2N7002E
*2N7002E
1
+10VALW
2
DV2
SUSD
3
1
+10VALW
2
PQ56
PQ56
ME3424
ME3424
PR82
PR82
1M/F_4
1M/F_4
LAN_ON
PQ15
PQ15
2N7002E
2N7002E
PR79
PR79
1M/F_4
1M/F_4
3
PQ12
PQ12
2N7002E
2N7002E
1
3
12
+5VPCU
65241
+3VPCU
3
PC65
PC65
2200P/50V_4
2200P/50V_4
12
PC62
PC62
2200P/50V_4
2200P/50V_4
38
PC181
PC181
.1U/10V_4
.1U/10V_4
2.49A5.8A
+5VSUS
PC182
PC182
.1U/10V_4
.1U/10V_4
65241
PQ19
PQ19
ME3424
ME3424
0.67A
+3VLANVCC
PC67
PC67
.1U/10V_4
.1U/10V_4
1.8V_OND 37
C95
C95
.1U/10V_4
.1U/10V_4
C49
C49
.1U/10V_4
.1U/10V_4
C708
C396
C596
C596
.1U/10V_4
.1U/10V_4
1
C396
.1U/10V_4
.1U/10V_4
C708
.1U/10V_4
.1U/10V_4
C759
C759
.1U/10V_4
.1U/10V_4
2
C695
C695
.1U/10V_4
.1U/10V_4
C448
C448
.1U/10V_4
.1U/10V_4
C716
C716
.1U/10V_4
.1U/10V_4
C29
C29
.1U/10V_4
.1U/10V_4
C224
C224
.1U/10V_4
.1U/10V_4
EMI Suggestion
3
C780
C780
.1U/10V_4
.1U/10V_4
C767
C767
.1U/10V_4
.1U/10V_4
NB5
NB5
NB5
4
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
DISCHARGE/3VS5/5VS5/LAN
DISCHARGE/3VS5/5VS5/LAN
DISCHARGE/3VS5/5VS5/LAN
38 39Tuesday, May 05, 2009
38 39Tuesday, May 05, 2009
38 39Tuesday, May 05, 2009
5
4C
4C
4C
Page 39
1
2
3
4
5
6
7
8
39
A A
B B
C C
D D
PROJECT : Preso-II
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
NB5
NB5
1
2
3
4
5
6
NB5
Custom
Date: Sheet of
Date: Sheet of
Date: Sheet of
7
Voltage status
Voltage status
Voltage status
39 39Monday, May 04, 2009
39 39Monday, May 04, 2009
39 39Monday, May 04, 2009
8
1A
1A
1A
Loading...
