LG PRCTSH1 INSTALLATION INSTRUCTIONS
Visit us at : http://www.lgservice.com
LG
LG
LGMV 4.0
Installation Manual
Model : PRCTSH1
IMPORTANT
•Please read this Installation Manual carefully and thoroughly before installing and operating your room air conditioner.
•Please retain this Installation Manual for future reference after reading it thoroughly.
LGMV 4.0
TABLE OF CONTENTS
|
|
|
|
|
............................................................................ |
|
■ LGMV 4.0 Overview |
|
3 |
||||
|
|
.................................................................................................... |
||||
■ Parts |
|
|
|
|
4 |
|
|
|
|
|
.................................................................................. |
||
■ Programs in CD |
|
|
4 |
|||
|
|
|
........................................................................................... |
|||
■ Installation |
|
|
|
5 |
||
1. |
Hard Lock Program Installation .............................................................................. |
5 |
||||
2. |
Installation of Main LGMV Program........................................................................ |
8 |
||||
3. |
Port Set-up ............................................................................................................ |
|
|
11 |
||
4. |

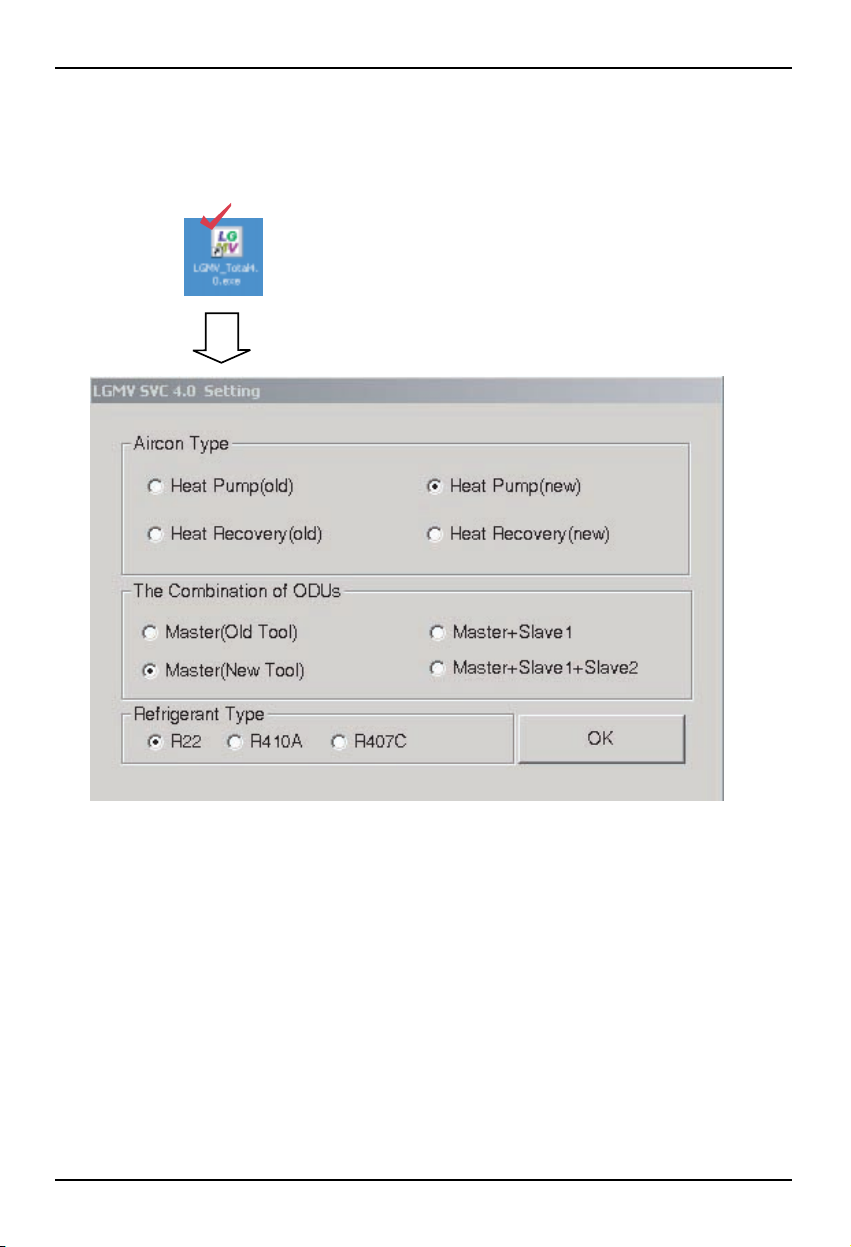

Setting the Initial Dialog Box................................................................................. |
19 |
||||
5. |
Explanation about Integrated LGMV 4.0 display screen ..................................... |
21 |
||||
2 LGMV 4.0
LGMV 4.0 Overview
LGMV 4.0 Overview
Heat Pump
10HP |
|
Existing monitoring program only for 10 HP |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Development completed |
|
New tool 20HP |
|
New tool 30HP |
Developing
New tool 40HP
Heat
Recovery
Development completed
Developing
20HP |
|
30HP |
|
40HP |
Necessary to develop the monitoring program for each product
Issuing Integrated LGMV 4.0
Installation Manual 3
Parts
Parts
• Parts of LGMV
+
LGMV 4.0 CD |
HARD LOCK Key |
(Program + Install manual)
*NOTE : Recommended PC Specification to install LGMV Main program
•CPU : Over Pentium IV 1.6GHz
•Main Memory : Over 256MB
•Operating System : Windows NT/ 2000/ XP/ 2003 (include Microsoft Java VM)
•Hard Disk : More than 600MB when operating
•Web browser : Over Internet Explore 5.0
Programs in CD
1.Check below files listed in CD
2.Description of file in CD
: LGMV 4.0 Installation Manual
: Hard Lock Program(LGMV 4.0 Security Program)
: LGMV 4.0 Main Software Installation file
4 LGMV 4.0
Installation
Installation
1.Hard Lock Program Installation
(1)2 files appear when hdd32 folder is opened
(2)Execute hdd32.exe file. The following window pops up. - Follow the below mentioned procedure
Select U.S.English and then click 'OK' button
Installation Manual 5
Installation
Click 'Next' button
Click 'Next' button
6 LGMV 4.0
Installation
Click 'Finish' button to complete the installation of Hard Lock program
(3)Insert Hard Lock Key in PC Parallel Port

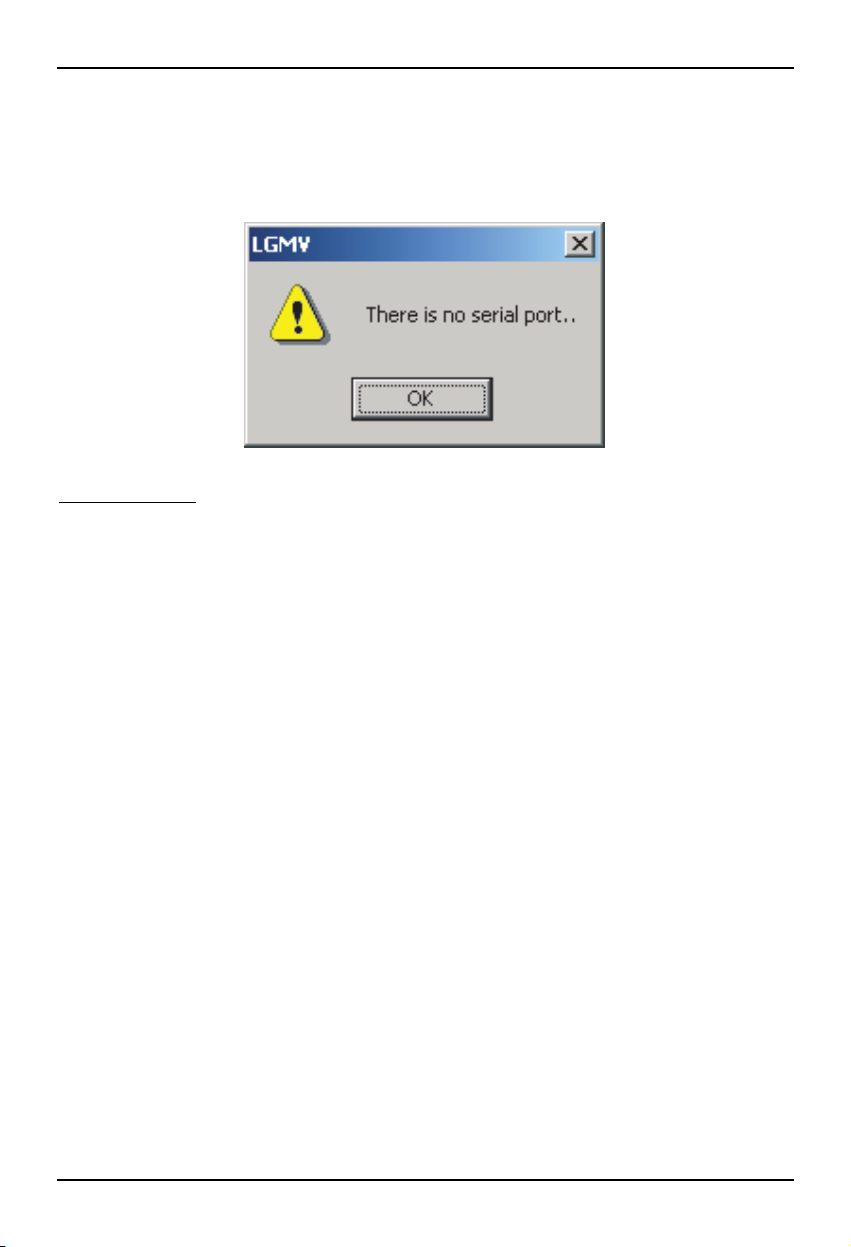

*NOTE : If you don't insert Hard Lock Key before LGMV main program execution, below error message will appear.
Hard Lock Key
Installation Manual 7
Installation
2.Installation of Main LGMV Program
(1)Select LGMV_TOTAL4.0
(2)Execute LGMV_TOTAL4.0.msi file. The following window pops up. - Follow the below mentioned procedure
Click 'Next' button
8 LGMV 4.0
Installation
Click 'Next' button
Click 'Next' button
Installation Manual 9
Installation
Click 'Close' button to complete the LGMV_TOTAL4.0
10 LGMV 4.0
Installation
3. Port set-up
LGMV 4.0 Program will be operated correctly when it is connected COM1
Serial port : COM1 port only
In case that there is not RS232 Serial port in your notebook, use USB port of your PC. Refer to '(2) Setting the USB port as the serial port' on page 14.

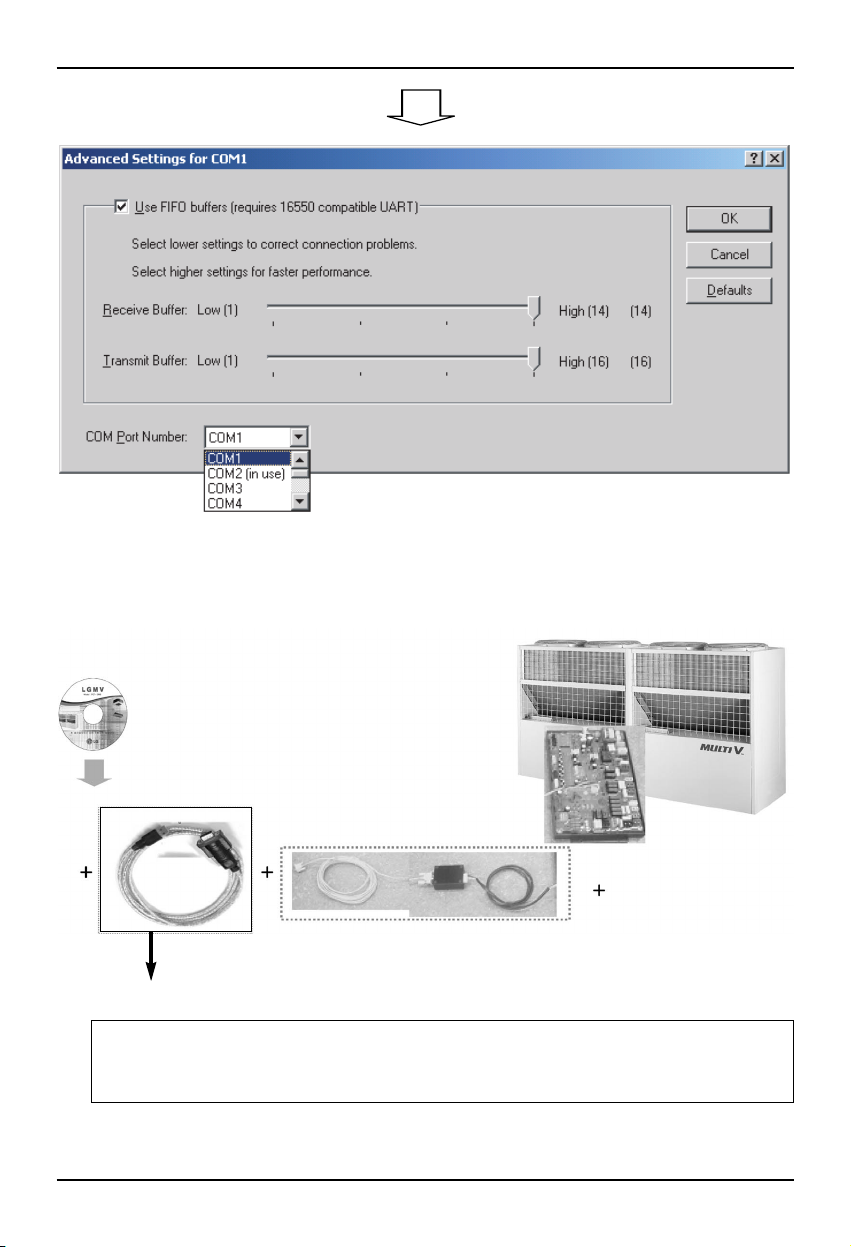

(1) Check COM1 port
PRCTFE0 : Additional purchase
System Overview In case of RS 232 Serial PORT In PC
PRCTFE0 connection should be done as the above picture and it would be connected to the main PCB connector of outdoor unit.

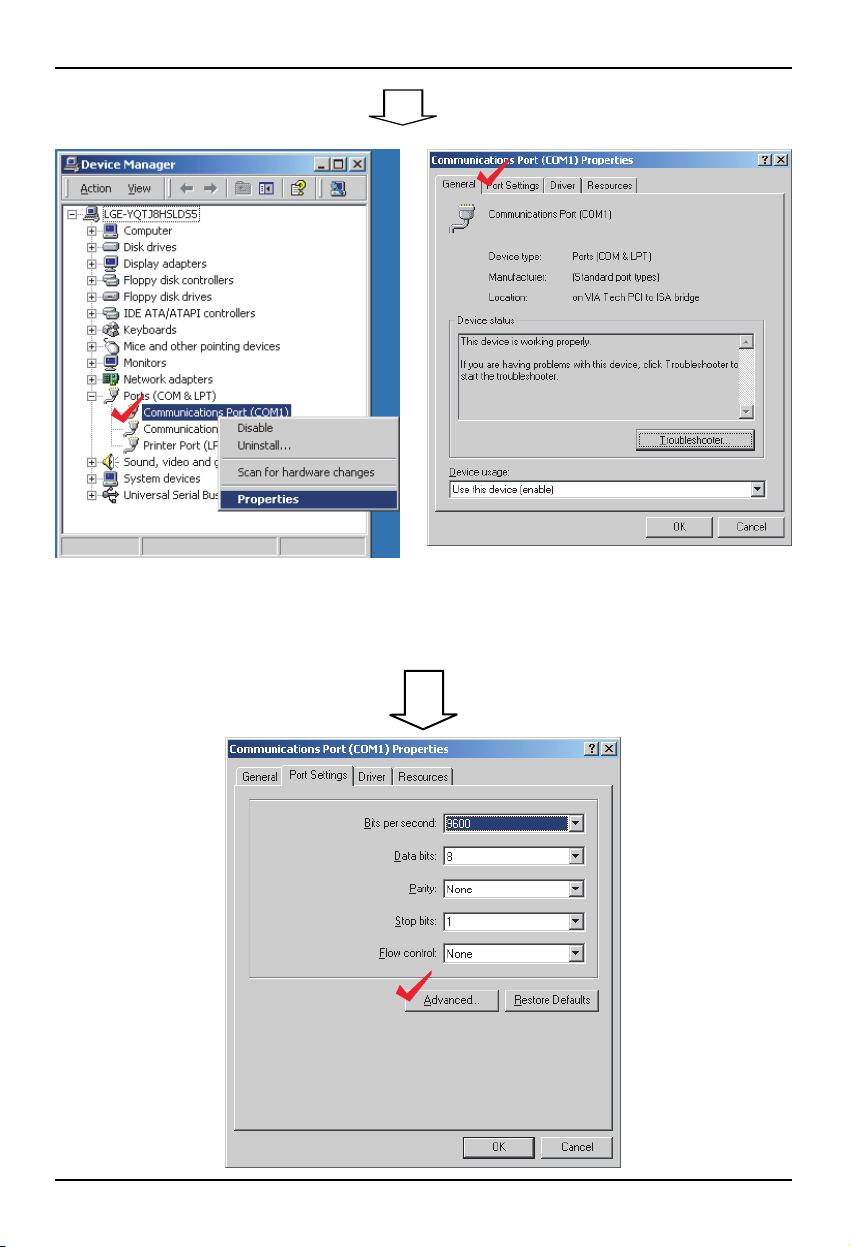

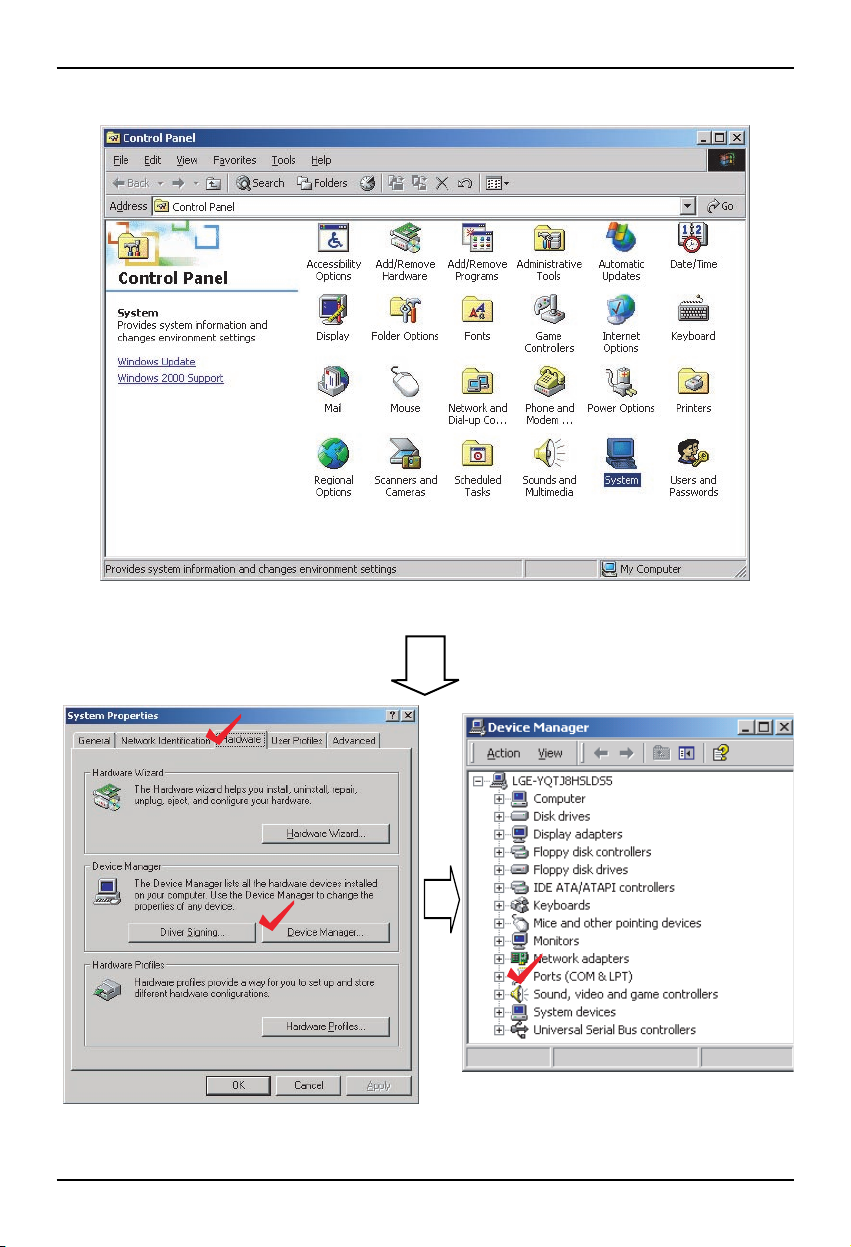

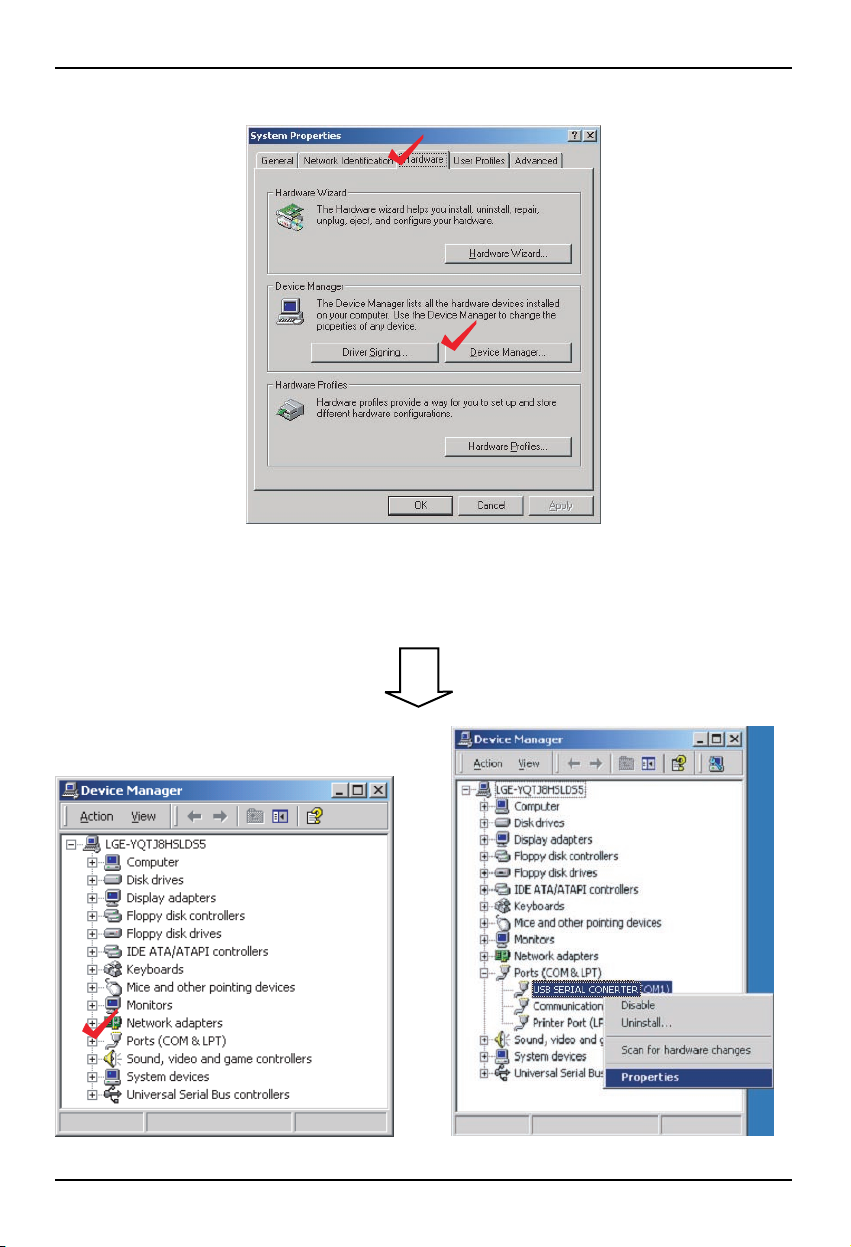

To check COM1 port, follow the below procedure
Select 'Start' -> 'System' -> 'Control Panel' then you can see and choose the 'System' icon in 'Control Panel'
Installation Manual 11
