OWNER’S &
INSTALLATION MANUAL
AIR
CONDITIONER
Please read this manual carefully before operating your set and
retain it for future reference.
Wireless Remote Controller
PQWRCQ0FDB
PQWRHQ0FDB
MFL69265506
Rev.01_050819
РУССКИЙ ЯЗЫК
PORTUGUÊS
ENGLISH
MALTI
SLOVENČINA
ITALIANO ESPAÑOL
MAGYAR
БЪЛГАРСКИ
SLOVENŠČINA
LATVIEŠU VALODA
FRANÇAIS
SRPSKI HRVATSKI
LIETUVIŲ KALBA
DEUTSCH
ΕΛΛΗΝΙΚΆ
SVENSKA NORSK SUOMI
GAEILGE
МАКЕДОНСКИ
ČEŠTINA
NEDERLANDS
SHQIP
ÍSLENSKA
POLSKI
DANSK
BOSANSKI
1 Wireless Remote Controller Owner’s & Installation Manual 1
LIMBA ROMÂNĂ
EESTI KEEL
Wireless Remote Controller Owner’s & Installation Manual
TABLE OF CONTENTS
n Safety Precautions.....................................................................................................3
n Part Description .........................................................................................................4
Wireless Remote Controller .........................................................................................5
n Operating Instruction.................................................................................................6
How to insert the Batteries...........................................................................................6
Wireless Remote Controller Maintenance ...................................................................6
Operating Method ........................................................................................................6
n Installation Instructions.............................................................................................7
Installer Setting - Setting Address of Central Control...................................................7
Installer Setting - Checking Address of Central Control...............................................7
Installer Setting - How to enter installer setting mode..................................................8
Installer Setting - Installer Setting Code Table .............................................................9
n Owner's Instruction..................................................................................................10

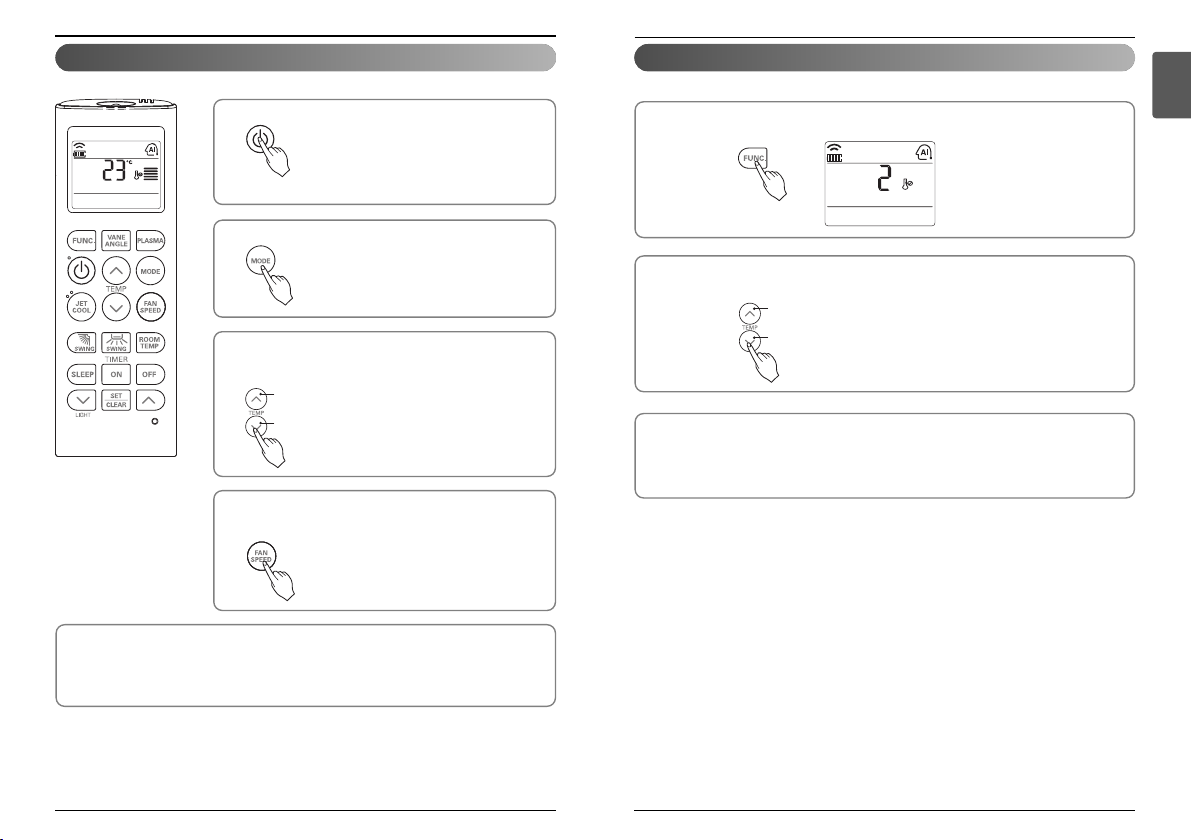

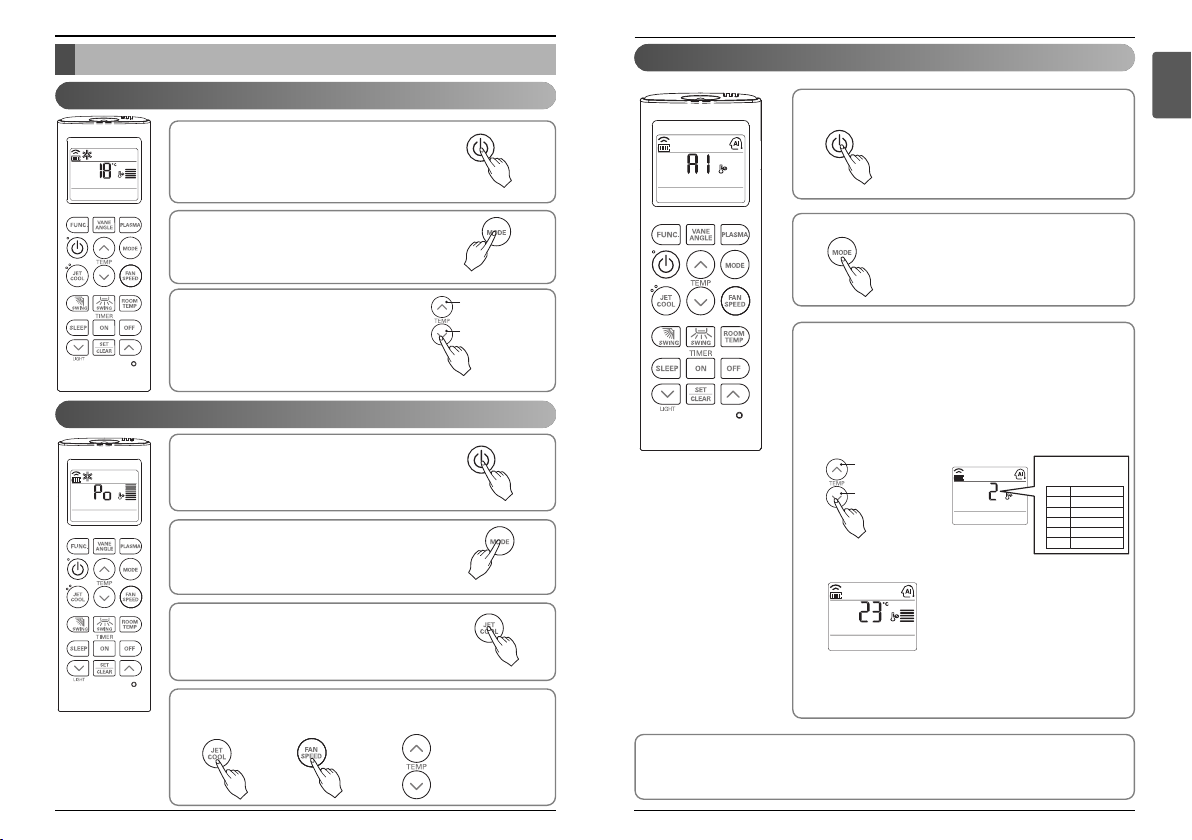

Cooling Mode - Standard Operation ..........................................................................10
Cooling Mode - Power Cooling ..................................................................................10
Auto Operation Mode .................................................................................................11
Auto Changeover Mode .............................................................................................12
Auto Changeover Mode - Setting the Mode Change Temperature ............................13
Dehumidification Mode ..............................................................................................14
Heating Mode.............................................................................................................15
Fan Mode...................................................................................................................16
n Temperature Setting/Room Temperature checking ..............................................17
n Airflow Setting..........................................................................................................18
Up/Down Airflow Direction Control (Optional)............................................................18
Left/Right Airflow Direction Control (Optional) ...........................................................18
n Sub function .............................................................................................................19
Plasma Purification(Optional) ....................................................................................19
Auto Clean (Optional) ................................................................................................19
Smart Clean (Optional) ..............................................................................................20
LCD Luminosity Control (Optional) ............................................................................20
Celsius/Fahrenheit Switching.....................................................................................20
Electric heater (Optional) ...........................................................................................21
Individual vane angle control (Optional).....................................................................21
n Timer .........................................................................................................................22
Setting the Current Time............................................................................................22
Sleep Timer Setting....................................................................................................22
On Timer Setting........................................................................................................22
Off Timer Setting........................................................................................................23
To cancel the Timer Setting........................................................................................23
Safety Precautions
Safety Precautions
• The installation requires expert skills, and it should be installed by the service center or other shops
specialized in the installation and recognized by our company.
• For all the problems arising after installation by someone who has no relevant qualifications, our
company will not provide free service.
• The following safety cautions are provided to prevent unexpected dangers or losses.
!
WARNING
: If the user does not follow the mandatory items, it may result in serious injury or death.
!
CAUTION
: If the user does not follow the mandatory items, it may cause personal injury or property damage.
!
WARNING
Installation
• Replace the all batteries in the remote control with new ones of the same type. Do not mix old and
new batteries or different types of batteries. There is risk of fire or explosion
• Do not disassemble, repair, or modify the product at your discretion in order to prevent fire or an
electric shock.
Operation
• Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire. They may burn
or explode.
• If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not
use the remote if the batteries have leaked.The chemicals in batteries could cause burns or other
health hazards.
• Push the button at one time. There will be no operation if you Several buttons at one time.
• Do not drop or throw the remote Controller. Do not give any strong impact and Put your foot it.
• Do not use this at the moisture and Humidity places.
• Do not use this at heating and Firing conditions.
• Do not place the remote controller in a location exposed to direct sunlight
• Aim at the signal receptor on the wiress remote controller so as to operate
• The remote control signal can be received at a distance of up to about 7m
• Be sure that there are no obstructions between the remote controller and the signal receptor
• Batteries:
Do not burn, do not try to open it, do not dispose in ordinary trash. Preserve environment and your
health.
After use, batteries must be delivered to the merchant or service authorized network (Conama
number 401 dated 11/2008).
ENGLISH
2 Wireless Remote Controller
Owner’s & Installation Manual 3
Part Description
Part Description
°C/°F(5 s)
TIME(3 s)
Wireless Remote Controller
Accessory
Holder(1EA) Fixing Screw (2EA) Owner's / Installation
LCD Screen
Manual
AAA(1.5V)
Batteries(2EA)
Wireless Remote Controller
1
2
3
4
5
6
7
8
9
TIME(3 s)
Operation Mode
Cooling Mode
Auto Mode or Auto Changeover
Dehumidification mode
Heating Mode
Fan Mode
•
Cooling Model( ), Heat Pump Model( )
°C/°F(5 s)
10
11
12
13
14
15
16
17
Part Description
VANE ANGLE Button
Used to set each vane angle.
FUNCTION SETTING Button
Used to set or clear Auto Clean, Smart Clean,
Electric heater or Individual vane angle control.
ON/OFF Button
Used to turn on/off the unit.
JET COOL Button
Speed cooling operates super high fan speed.
LEFT/RIGHT AIRFLOW Button (OPTIONAL)
Used to set the desired left/right(horizontal)
airflow direction.
UP/DOWN AIRFLOW Button
Used to stop or start louver movement and set
the desired up/down airflow direction.
ON TIMER Button
Used to set the time of starting operation.
SLEEP TIMER Button
Used to set the time of sleeping operation.
SET / CLEAR Button
Used to set/clear the timer.
Used to set the current time(if it input for 3sec.)
PLASMA Button (OPTIONAL)
Used to start or stop the plasma-purification
function.
ROOM TEMPERATURE SETTING Button
Used to select the room temperature.
OPERATION MODE SELECTION Button
Used to select the operation mode.
INDOOR FAN SPEED SELECTION Button
Used to select fan speed in four steps low,
medium, high and chaos.
ROOM TEMPERATURE CHECKING Button
Used to check the room temperature.
OFF TIMER Button
Used to set the time of stopping operation.
TIMER SETTING(Up/Down)/LIGHT Button
Used to set the timer.
Used to adjust the brightness.(if it is not time
adjust mode)
RESET Button
Used to reset the remote controller.
ENGLISH
4 Wireless Remote Controller
Owner’s & Installation Manual 5
Operating Instruction
Operating Instruction
Installation Instructions
Installation Instructions
ENGLISH
How to insert the Batteries
1. Remove the battery cover by pulling it according to the arrow
direction.
2. Insert new batteries making sure that the (+) and (-) of battery are
installed correctly.
3. Reattach the cover by sliding it back into position.
1. Always use/replace both batteries of same type.
2. If the system is not to be used for a long time, remove the
batteries to save their working life.
3. If the display screen of remote controller starts, fading replace
both of the batteries.
Wireless Remote Controller Maintenance
1. Choose a suitable place where its safe & easy
to reach.
2. Fix the holder to wall etc with the supplied
screws firmly.
3. Slide the remote controller inside the holder.
1. Remote controller should never be exposed to
direct sunlight.
2. Signal transmitter & receiver should always be
clean for proper communication. Use a soft
cloth to clean them.
3. In case some other appliances also get
operated with remote control, change their
position or consult your serviceman.
Operating Method
1. The signal receiver is inside the unit.
2.
Aim the remote controller towards the unit to operate it.
There should not be any blockage in between.

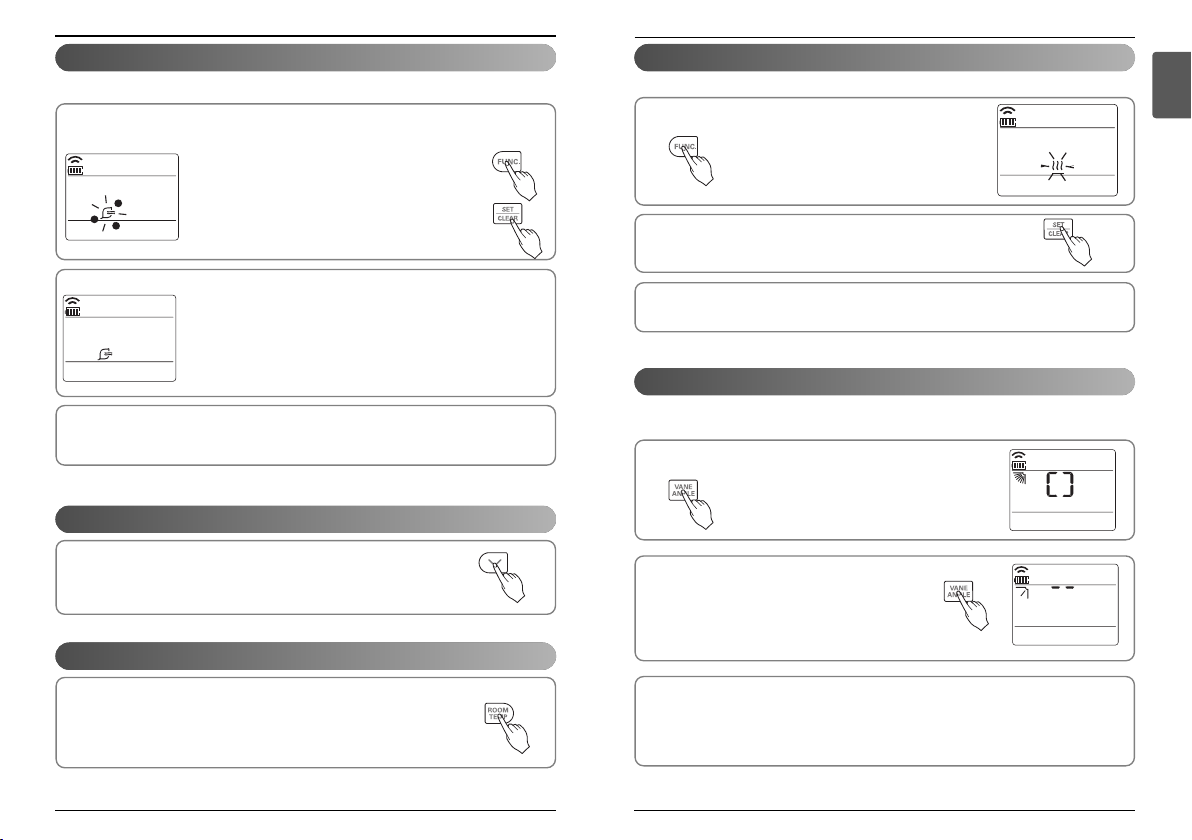

Installer Setting - Setting Address of Central Control
With the MODE button pressed, press the RESET button.
1
By using the TEMPERATURE SETTING button, set the indoor unit address.
- Setting range : 00 ~ FF
2
Group No.
Indoor Unit No.
After setting the address, press the ON/OFF button toward the
°C/°F(5 s)
TIME(3 s)
indoor unit 1 time.
3
The indoor unit will display the set address to complete the address setting.
- The address display time and method can differ by the indoor uint type.
4
Reset the remote controller to use the general operation mode.
5
Installer Setting - Checking Address of Central Control
When FUNCTION button pressed, press RESET button
1
Press the ON/OFF button toward the indoor unit 1 time, and the indoor unit will display the set
address in the display window.
2
6 Wireless Remote Controller
- The address display time and method can differ by the indoor unit type.
Reset the remote controller to use the general operation mode.
3
Owner’s & Installation Manual 7
Installation Instructions

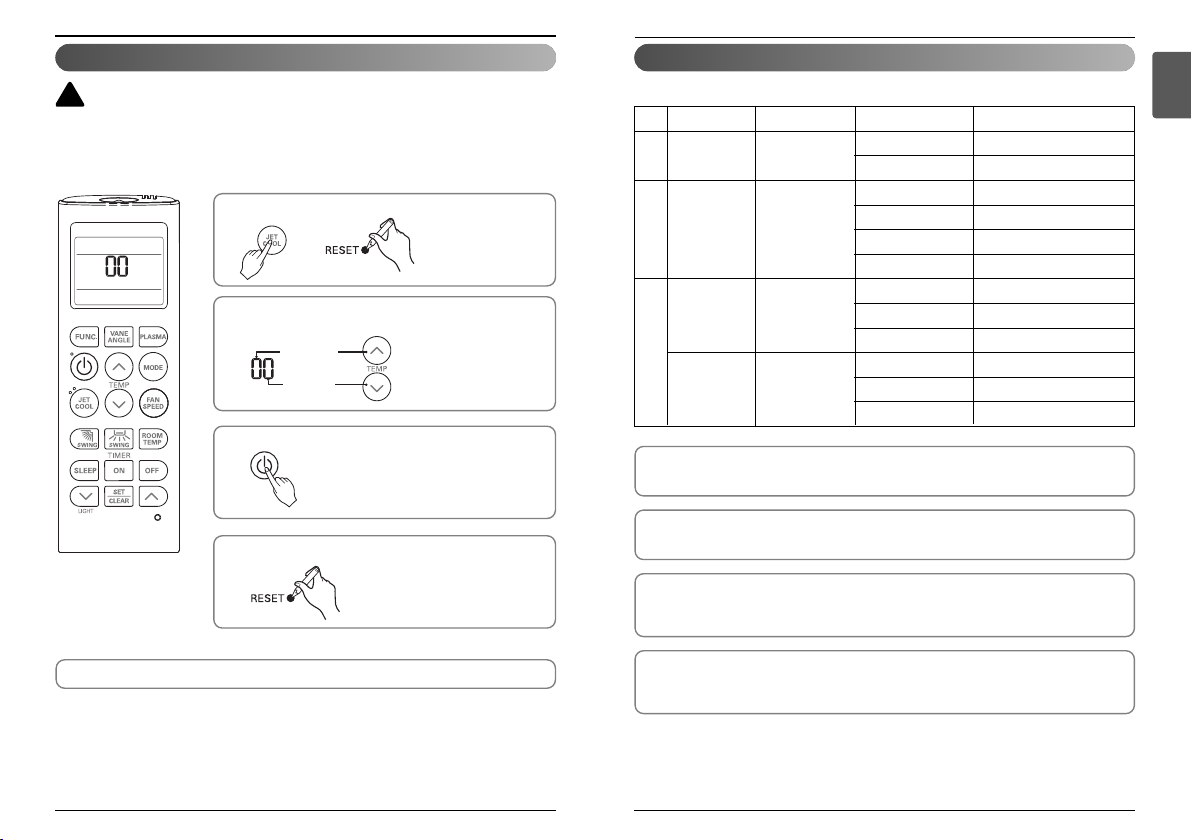

Installer Setting -How to enter installer setting mode
Installer Setting - Installer Setting Code Table
Installation Instructions
ENGLISH
!
CAUTION
Installer setting mode is to set the detail function of the remote controller.
If the installer setting mode is not set correctly, it can cause problems to the product, user injury or
property damage. This must be set by an certificated installer, and any installation or change that is
carried out by a non-certificated person should be responsible for the results. In this case, free service
cannot be provided.
When JET COOL button pressed, press RESET button
1
By using the TEMPERATURE SETTING button, set function code
and setting value. (Please refer the Installer Setting Code Table.)
2
Function Code
Setting Code
°C/°F(5 s)
TIME(3 s)
Press the ON/OFF button toward the indoor unit 1 time.
3
Reset the remote controller to use the general operation mode.
4
Refer to the Installer Setting Code Table on the next page.
Installer Setting Code Table
No. Function Function Code Setting Value Remote Controller LCD
0 Mode Override
1 : Set to Slave
1 : Standard
1 2 : Low
Ceiling Height
Selection
3 : High
4 : Super High
0 : Set to Master
Group Control 1 : Set to Slave
2 : Check Master/Slave
2
3 :
Auxiliary heater 4 :
5 :
Mode Override
This Function is only for Non-Auto Changeover H/P model.
Ceiling Height Selection
Indoor unit connected to wired remote controller operate as wired remote controller setting.
Group Control
This function is only for group control. Please don’t set this function in case of non-group control.
After setting Group Control of the product, turn off the power then turn it back on after 1 minute.
Auxiliary heater
This function is only applied to models with Auxiliary Heater function being activated.
0 : Set to Master
0
1
22
2
Set to Auxiliary heater
2
Cancel Auxiliary heater
Check Auxiliary heater Installation
00
01
11
12
13
14
20
21
22
23
24
25
8 Wireless Remote Controller
Owner’s & Installation Manual 9
Owner's Instruction
TIME(3 s)
°C/°F(5 s)
Code Feel
2 Cold
1 Slightly cool
0 Neutral
-1 Slightly warm
-2 Warm
❈ Please select the code
depend on your feeling.
To lower the temperature
To raise the temperature
Owner's Instruction
Cooling Mode - Standard Operation
Press the ON/OFF button.
The unit will respond with beep sound.
1
Auto Operation Mode
Press the ON/OFF button.
The unit will respond with beep sound.
1
Owner's Instruction
ENGLISH
Press MODE button to select Cooling Mode.
2
°C/°F(5 s)
TIME(3 s)
Cooling Mode - Power Cooling
Set the desired temperature by pressing TEMP button.
Press ROOM TEMPERATURE CHECKING button to
3
check the room temperature. When setting the desired
temperature is higher than room temperature, cooling
wind isn’t blow out.
h Setting Temp. Range : 18~30°C(64~86°F)
Press the ON/OFF button.
The unit will respond with beep sound.
1
Press MODE button to select Cooling Mode.
2
Press the JET COOL button. The unit will operate in super
high fan speed in cooling mode.
3
°C/°F(5 s)
TIME(3 s)
10 Wireless Remote Controller
h Wall mounted models operate power cooling mode for
30 minutes.
To cancel the Power cooling Mode press the Jet Cool button or the fan button
or the room temperature setting button again and the unit will operate in high
4
fan speed in cooling mode.
or or
Press MODE button to select Auto Operation Mode.
2
Set the desired temperature.
3
<For Cooling Model>
The temperature and fan speed are automatically set by the
electronic controls based on the actual room temperature.
If you feel hot or cold, press TEMPERATURE SETTING buttons for
more cooling or heating effect.
You cannot switch the indoor fan speed. It has already been set by
the Auto Operation Mode rule.
To raise the temperature
To lower the temperature
<For Heating Model>
You can set desired temperature and
indoor fan speed.
Setting Temp. Range : 18~30°C(64~86°F)
During Auto Operation Mode
• If the system is not operating as desired, manually switch to another mode. The system will not
automatically switch from the cooling mode to the heating mode, or from heating to cooling, then you must
set the mode and the desired temperature again.
Owner’s & Installation Manual 11
Owner's Instruction
Auto Changeover Mode
This Function is only available on some products.
Press the ON/OFF button. The unit will respond with beep sound.
1
Press MODE button to select Auto Changeover Mode.
2
°C/°F(5 s)
TIME(3 s)
Set the desired room temperature.
h Setting Temp. Range in Auto Changeover Mode : 18~30°C
3
(64~86°F)
To raise the temperature
To lower the temperature
You can select the fan speed in four stepss-low, medium, high and
chaos. Each time the button is pressed, the fan speed mode is
4
shifted.
Owner's Instruction
Auto Changeover Mode - Setting the Mode Change Temperature
This Function is to set the operating mode of the Auto Changeover Mode.
In Auto Changeover Mode, Press FUNCTION button to select
Setting the Mode Change Temperature.
1
Press the TEMPERATURE SETTING button to set desired Mode Change Temperature.
(Default value is 2°C(4°F).)
2
To raise the temperature
To lower the temperature
The Mode Change Temperature is the difference of temperature when from cooling mode to heating mode or
from heating mode to cooling mode.
Ex) When setting temperature is 25°C(76°F) and room temperature is 20°C(68°F), then operating mode is
heating. If you set the mode change temperature to 2°C(4°F), when the room temperature up to
27°C(25°C + 2°C)(80°F(76°F + 4°F)), the unit start cooling operation.
h Mode Change Temp. Range
: 1~7°C(2~14°F)
ENGLISH
During Auto changeover Mode
The air conditioner changes the operation mode automatically to keep indoor temperature. When room
temperature vary over ±2°C(4°F) with respect to setting temperature, air conditioner keeps the room
temperature within ±2°C(4°F) with respect to setting temperature by auto changeover mode.
12 Wireless Remote Controller
Owner’s & Installation Manual 13
Owner's Instruction
Dehumidification Mode
Press the ON/OFF button.
The unit will respond with beep sound.
1
Heating Mode
This Function is only for H/P model.
Press the ON/OFF button.
The unit will respond with beep sound.
1
Owner's Instruction
ENGLISH
Press MODE button to select Dehumidification Mode.
2
°C/°F(5 s)
TIME(3 s)
During Dehumidification Mode
• If you select the dehumidification mode on the operation selection button, the indoor unit starts to run the
dehumidification function, automatically setting the room temp. and air volume to the best condition for
dehumidification based on the sensed room temp.
In this case, the setting temp. is not displayed in the Remote Controller and you are not able to control the
room temp. either.
• During the healthy dehumidification function, the air volume is automatically set according to the algorithm
responding to the current room temp. and makes the room condition healthy and comfortable even in the
high humidity season.
Set the fan speed. You can select the fan speed in four steps - low,
medium, high, or chaos. Each time the button is pressed, the fan
3
speed mode is shifted.
TIME(3 s)
°C/°F(5 s)
Press MODE button to select Heating Mode.
2
Set the desired temperature by pressing TEMP button.
Press ROOM TEMPERATURE CHECKING button to check the room
3
temperature.
When setting the desired temperature is lower than room
temperature, heating wind isn’t blow out.
To raise the temperature
To lower the temperature
Set the fan speed again. You can select the fan speed in four steps–
low, medium, high, or chaos. Each time the button is pressed, the fan
4
speed mode is shifted.
h Setting Temp. Range in
Heating Mode : 16~30°C
(60°F~86°F)
14 Wireless Remote Controller
Owner’s & Installation Manual 15
Owner's Instruction
Fan Mode
Temperature Setting/Room Temperature checking
Temperature Setting/Room Temperature checking
ENGLISH
Press the ON/OFF button.
The unit will respond with beep sound.
1
Press MODE button to select Fan Mode.
2
°C/°F(5 s)
TIME(3 s)
Natural Wind by the chaos Logic
• For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to chaos mode. In
this mode, the wind blows like natural breeze by automatically changing fan speed according to the chaos
logic.
During Fan Mode
• The outdoor compressor doesn't work.
Have a function to circulate the indoor as it sends out the air that doesn't have much temperature difference
with indoor.
Set the fan speed again. You can select the fan speed in four steps–
low, medium, high, or chaos. Each time the button is pressed, the fan
3
speed mode is shifted.
TIME(3 s)
°C/°F(5 s)
We can simply adjust the desired temperature
• Press the buttons to adjust the desired temperature
: Increase Temp. per one time pressing
: Decrease Temp. per one time pressing
Room temp: Indicate the current room temperature
Set temp: Indicate the temperature that user want to set
<Cooling Mode>
The cooling mode doesn't work if desired temperature is higher than
room temperature Please lower the desired temperature
<Heating Mode>
The heating mode doesn't work if desired temperature is lower than room
temperature Please increase the desired temperature
Whenever press ROOM TEMPERATURE button, the room temperature
will be displayed within 5 seconds.
After 5 seconds, it turns to display the desired temperature.
Because of location of remote controller, the real room temperature and
the this displayed value can be different.
Press ROOM TEMPERATURE button for 5 seconds, temperature unit
change Celsius to Fahrenheit or Fahrenheit to Celsius.
16 Wireless Remote Controller
Owner’s & Installation Manual 17
Airflow Setting
Airflow Setting
Sub function
Sub function
ENGLISH
Up/Down Airflow Direction Control (Optional)
The up/down airflow (Vertical Airflow) can be adjusted by using the remote controller.
1. Press the ON/OFF button to start the unit.
2. Press UP/DOWN AIRFLOW button and the louvers will swing up and down.
Press the UP/DOWN AIRFLOW button again to set the vertical louver at the desired airflow direction.
• If you press the UP/DOWN AIRFLOW button, the horizontal airflow direction is changed automatically based
on the Auto Swing algorithm to distribute the air in the room evenly and at the same time to make the human
body feel more comfortable, as if enjoying a natural breeze.
• Always use the remote controller to adjust the up/down airflow direction. Manually moving the vertical airflow
direction louver by hand, could damage the air conditioner.
• When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.
Left/Right Airflow Direction Control (Optional)
The left/right(horizontal) airflow can be adjusted by using the remote control.
1. Press the ON/OFF button to start the unit.
2. Press the LEFT/RIGHT AIRFLOW button and the louvers will swing left and right. Press the
Horizontal Airflow Direction Control Button again to set the horizontal louver at the desired
airflow direction.
h Up/Down and Left/Right Airflow function isn’t shown on display of remote controller.
Plasma Purification(Optional)
Press the ON/OFF button.
The unit will respond with beep sound.
1
Press the PLASMA button. Plasma Purification will
start when the button is pressed and stop when the
2
button is pressed again.
PLASMA Purification only
If you press the PLASMA button, Plasma Purification operates.
• Plasma filter is a technology developed by LG to get rid of
microscopic contaminants in the intake air generating a
plasma of high charge electrons. This plasma kills and
destroys the contaminants completely to provide clean and
hygienic air.
• This function can be used in any operation mode and any fan
speed can be used while plasma filter is functioning.
Auto Clean (Optional)
This function operate when the unit is turned off.
Press the FUNCTION SETTING button 1 time.
Auto Clean symbol will blink.
1
18 Wireless Remote Controller
Press the SET/CLEAR button to reserve or cancel the Auto Clean function.
2
If the Auto Clean function is reserved, whenever the unit is turned off, the indoor fan is
still running for about 30 minutes internally without cooling or dehumidification operation.
Also the louver is closed.
This dries up any remains of moisture & cleans the unit internally.
Owner’s & Installation Manual 19
Sub function
Smart Clean (Optional)
The Smart Clean function can be used by setting to manual or automatic.
Auto Smart Clean operation
If the accumulated operation time of the product exceeds 30 hours, the Smart Clean automatically starts
when the unit is turned off.
1. Press the FUNCTION SETTING button 2 times.
Smart Clean symbol will blink.
Electric heater (Optional)
It can only be set during heating operation.
Press the FUNCTION SETTING button 3 times.
Electric heater symbol will blink.
1
Sub function
ENGLISH
2. Press the SET/CLEAR button to reserve or cancel the Smart
Clean function.
You can set/clear with out on or off.
Manual Smart Clean operation
1. When the unit stop, press the FUNCTION button to select Smart Clean.
Smart Clean symbol blinks, then press SET/CLEAR button.
2. To stop Manual Smart Clean operation, press the FUNCTION button to select
Smart clean and press SET/CLEAR button.
The brush clean a dust from the filter by moving from left to right or from right to left on the filter.
The sucked dust is collected into the dust box.
The operating process of Smart Clean is different from the product type.
LCD Luminosity Control (Optional)
Press the LCD LUMINOSITY button.
It is comfortable when you feel that the display of the unit too bright .
Celsius/Fahrenheit Switching
Press the °C/°F SWITCH button to change from Celsius to Fahrenheit or from Fahrenheit to Celsius.
Whenever press TEMPERATURE SETTING button in Fahrenheit mode, the temperature
will increase/drop 2°F.
°C/F(5 s)
Press the SET/CLEAR button to reserve or cancel the Electric heater function.
2
• The indoor unit displays during the heating mode, the Auxiliary heater is automatically turned on, but it is not
displayed on the wireless remote controller separately.
• It operates in Floor heating mode in Console products.
Individual vane angle control (Optional)
It is the function that can control 4 vane angles individually in the ceiling type 4Way
cassette product group.
Press the VANE ANGLE button, Individual vane angle control symbol will
blink.
1
Set each vane angle by pressing up/down/left/right
direction keys.
2
• Every time VANE ANGLE button is pressed,
• When temperature setting button is pressed, the display
• There may be differences between wireless remote controller up/down/left/right buttons and the wind
discharge port directions.
• Set desired angle with checking the vane angle movement of the product.
• The individual vane control function is an additional function of a product, and it may not work in some
products.
• If you press the VANE ANGLE button 3sec. all
vanes are set to standard angle.
corresponding vane angle and set values are displayed.
window appears asof the figure in the right, and the
angle can be set to 1~6.
20 Wireless Remote Controller
Owner’s & Installation Manual 21
Timer
Timer OFF
Timer Sleep
Timer ON
Timer
Setting the Current Time
1. Press the SET / CLEAN button for 3 seconds.
2. Press TIME SETTING buttons until the desired
time is set. (If you press down the button for a long
time, it will change quickly in the units of 10 min.)
3. Press the SET / CLEAR button.
Check the indicator for A.M. and P.M.
Sleep Timer Setting
1. Press the SLEEP button.
2. Press TIME SETTING buttons until the desired time
is set. (7 hours is the maximum setting)
3. Press the SET / CLEAR button.
On Timer Setting
1. Press the ON button.
Off Timer Setting
1. Press the OFF button.
2. Press TIME SETTING buttons until the desired time
is set.
3. Press the SET / CLEAR button.
To cancel the Timer Setting
• If you wish to cancel all timer setting, press the CLEAR ALL button.
• If you wish to cancel each timer setting, press the
each timer button to turn timer sleep or on or off as you want.
And then press the SET/CLEAR button aiming the remote
controller at the signal receptor.
(The timer lamp on the air conditioner and the display will go off.)
Timer
ENGLISH
2. Press TIME SETTING buttons until the desired time
is set.
3. Press the SET / CLEAR button.
22 Wireless Remote Controller
Owner’s & Installation Manual 23
LG Electronics Inc.
EU Representative : LG Electronics European Shared Service Center B.V.
Manufacturer: LG Electronics Inc. Changwon 2nd factory, 84, Wanam-ro,
Krijgsman 1, 1186 DM Amstelveen, The Netherlands
Seongsan-gu, Changwon-si, Gyeongsangnam-do, KOREA
Loading...
