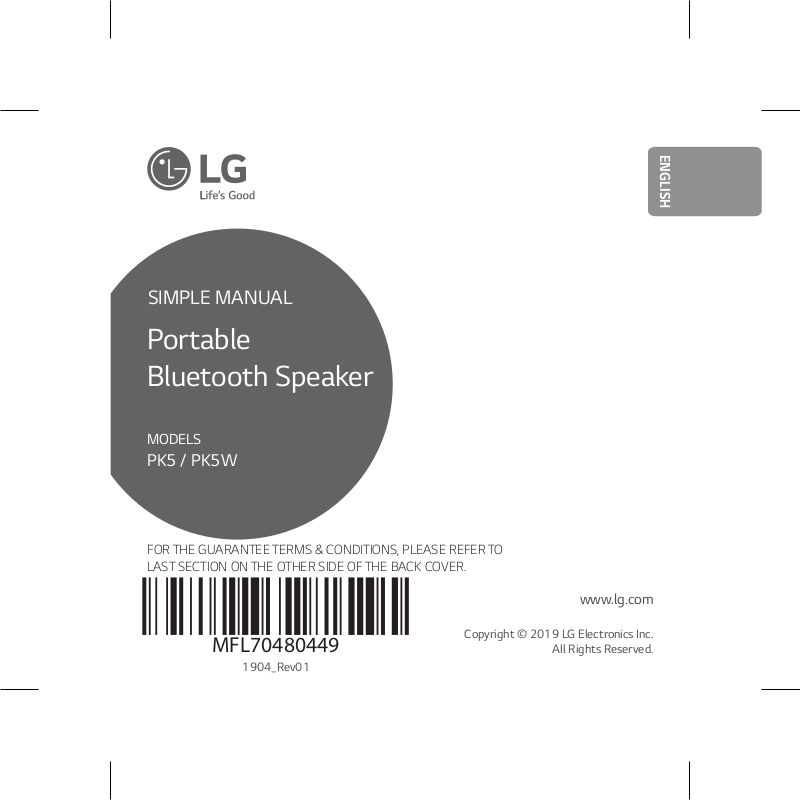

SIMPLE MANUAL
Portable
Bluetooth Speaker
MODELS
PK5 / PK5W
FOR THE GUARANTEE TERMS & CONDITIONS, PLEASE REFER TO
LAST SECTION ON THE OTHER SIDE OF THE BACK COVER.
MFL70480449
1904_
Rev01
Copyright © 2019 LG Electronics Inc.
ENGLISH
www.lg.com
All Rights Reserved.
Sound Effect LEDs ( : On / : Off)
Clear Vocal +
Enhanced Bass
Charging LED status
Green Off : Fully Charged
Red : Charging
Battery LED status
Green : ≥ 70 % / Amber : > 10 %
Blinking red indicates the battery needs to be charged.
Clear Vocal Enhanced Bass Standard
AC Adapter (Not supplied)
Power
Battery
Bluetooth
Playback
Controls
2
Power On / Off
Check Battery Status
To pair your mobile device, select LG-PK5(xx) from device list.
(Bluetooth LED: Blink ON)
Ready to pair another device
Play / Pause
Forward Skip
Backward Skip
....................................
.................
....................................
...........
Hold 1 for 2 seconds
Hold
...................................
.................................
Press 1
for 2 seconds
Press
Press X 2
Press
X 3
Handsfree
Volume
Voice
Command
Mood light
Sound effect
Dual Play
(Optional)
Connect Bluetooth prior to use the Playback controls, Handsfree and Voice command.
Receive / Disconnect
Volume Control
Use voice command of your smart device
Make sure use the smart device that has voice command.
Party (Various colors) Water (Blue tone) Forest (Yellow tone)
[My style (Customizing)] Off
To enable My Style option, you have to customize with “Music
Flow Bluetooth” app. (Only Android)
Enjoy premium sound with MERIDIAN technology
............
Fine-tune sound to provide optimal high-quality sound.
For more information, refer to online owner’s manual.
You need two speakers. Press and hold each speaker’s
button for 2 seconds. (Dual play LED: Blink ON)
..............................
................................
Press CLEAR VOCAL and/or ENHANCED BASS
......
..............
Hold
Press
or
Press
Press .
for 2 seconds
Multi phone pairing Dual Play
Controller App
3
Specification
Power Supply:
-5 V 0 1.8 A (AC Adapter)
-Built-in rechargeable battery
Power consumption: Refer to the main label.
Dimensions (W x H x D):
-Approx. 220 mm X 129 mm X 119 mm
Operating Temperature:
Operating Humidity: 5 % to 60 %
Water-proof: IPX5
-Degree of protection against jets of water.
Battery Life: Approx. 18 hours
(Varies by volume level and audio content.)
yDesign and specications are subject to
change without notice.
5 °C to 35 °C
Important Notice
yFully charge the device before using for
the rst time.
yIt is recommended that you use the 5 V AC
adapter (more than 1.8 A) with this unit
yFor more information on Dual Play
(Connection, Compatible models etc.),
refer to online owner’s manual.
-The speaker might not synchronize sound
with visuals in Dual play.
yTo enjoy more features, download the
"Music Flow Bluetooth" App to your device.
(Only Android)
yResetting
In the case of the speaker freezing due to
malfunction, press the RESET button
using an object like a thin pin.
For more information, download the online owner’s manual. http://www.lg.com
4
Safety Information
C
AUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK) NO USER-SERVICEABLE PARTS
INSIDE REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This lightning ash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage within the
product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
WARNING:
yTO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
yDo not install this equipment in a conned
space such as a book case or similar unit.
yThis unit contains magnets which can
be harmful to some kind of object (Ex :
Magnetic card, Pacemaker etc..).
CAUTION:
yDo not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions. Slots and
openings in the cabinet are provided for
ventilation and to ensure reliable operation
of the product and to protect it from over
heating. The openings should never be
blocked by placing the product on a bed,
sofa, rug or other similar surface. This
product shall not be placed in a built-in
installation such as a bookcase or rack
unless proper ventilation is provided or
the manufacturer’s instruction has been
adhered to.
5
yThe apparatus should not be exposed
to water (dripping or splashing) and no
objects lled with liquids, such as vases,
should be placed on the apparatus.
yNo naked ame sources, such as lighted
candles, should be placed on the apparatus.
yIt is recommended that you use the 5 V
AC adapter (more than 1.8 A) with this
device. If you do not use the recommended
adapter, charging is unavailable or charging
time may differ.
yTo avoid re or electric shock, do not open
the unit. contact to qualied personnel
only.
yDo not leave the unit in a place near the
heating appliances or subject to direct
sunlight, moisture, or mechanical shock.
yThe Power Plug is the disconnecting
device. In case of an emergency, the Power
Plug must remain readily accessible.
yTo clean the unit, use a soft, dry cloth. If
the surfaces are extremely dirty, use a
soft cloth lightly moistened with a mild
detergent solution. Do not use strong
solvents such as alcohol, benzine, or
thinner, as these might damage the
surface of the unit.
6
yDo not use volatile liquids such as
insecticide spray near the unit. Wiping with
strong pressure may damage the surface.
Do not leave rubber or plastic products in
contact with the unit for a long period of
time.
yDo not place the unit over the vehicle’s
air bag. When the air bag deploys, it may
result in injury. Before using in the car, x
the unit.
yDo not use the handsfree function during
driving a car.
yDo not leave the unit on an unstable place
such as high shelves. it may fall down
because of the vibration of the sound.
yDo not use high voltage products around
this product. (ex. Electrical swatter) This
product may malfunction due to electrical
shock.
CAUTION when using this product in
environments of low humidity.
yIt may cause static electricity in environments
of low humidity.
yIt is recommended to use this product after
touching any metal object which conducts
electricity.
NOTICE: For safety marking information
including product identication and supply
ratings, please refer to the main label on the
bottom or the other surface of the product.
CAUTION: Internal lithium battery in the unit
should not be replaced by user because of
danger of explosion if battery is incorrectly
replaced ,and must be replaced with the same
type battery by expert.
Symbols
Refers to alternating current (AC).
~
Refers to direct current (DC).
0
Refers to class II equipment.
Refers to stand-by.
1
Refers to “ON” (power).
!
Refers to dangerous voltage.
For models using a battery
This device is equipped with a portable battery
or accumulator.
How to Safely remove the batteries or the
battery pack from the equipment:
the old batteries or battery pack, follow the
assembly steps in reverse order. To prevent
contamination of the environment and bring
on possible threat to human and/or animal
health, the old batteries or the battery pack
must be put in an appropriate container at
designated collection points. Do not dispose
of batteries or battery pack together with
other waste. It is recommended that you use
local, free reimbursement systems batteries
or battery packs, (may not be available in
your area). The batteries or the battery pack
should not be exposed to excessive heat such
as sunshine, re or the like.
To Remove
7
Declaration of Conformity
Hereby, LG Electronics declares that the radio
equipment type Portable Bluetooth Speaker
is in compliance with Directive 2014/53/
EU. The full text of the EU declaration of
conformity is available at the following
internet address:
http://www.lg.com/global/support/cedoc/cedoc#
Frequency range Output power (Max.)
2402 to 2480 MHz 10 dBm
8
WEEE
Disposal of your old appliance
1. This crossed-out wheeled bin symbol indicates
that waste electrical and electronic products
(WEEE) should be disposed of separately from
the municipal waste stream.
2. Old electrical products can contain hazardous
substances so correct disposal of your old
appliance will help prevent potential negative
consequences for the environment and human
health. Your old appliance may contain reusable
parts that could be used to repair other
products, and other valuable materials that can
be recycled to conserve limited resources.
3. You can take your appliance either to the shop
where you purchased the product, or contact
your local government waste ofce for details of
your nearest authorised WEEE collection point.
For the most up to date information for your
country please see www.lg.com/global/recycling
Pb
Battery
Disposal of waste batteries/accumulators
1. This symbol may be combined with chemical
symbols for mercury (Hg), cadmium (Cd) or lead
(Pb) if the battery contains more than 0.0005%
of mercury, 0.002% of cadmium or 0.004% of
lead.
2. All batteries/accumulators should be disposed
separately from the municipal waste stream via
designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old batteries/
accumulators will help to prevent potential
negative consequences for the environment,
animal and human health.
4. For more detailed information about disposal of
your old batteries/ accumulators, please contact
your city office, waste disposal service or the
shop where you purchased the product. (http://
www.lg.com/global/sustainability/ environment/
take-back-recycling/globalnetwork- europe)
Removal of waste batteries and
accumulators
(Product with embedded battery ONLY)
In case this product contains a battery
incorporated within the product which
cannot be readily removed by endusers, LG
recommends that only qualified professionals
remove the battery, either for replacement
or for recycling at the end of this product’s
working life. To prevent damage to the
product, and for their own safety, users
should not attempt to remove the battery
and should contact LG Service Helpline, or
other independent service providers for
advice.
Removal of the battery will involve
dismantling of the product case,
disconnection of the electrical cables/
contacts, and careful extraction of the
battery cell using specialized tools. If you need
the instructions for qualified professionals on
how to remove the battery safely, please visit
http://www.lge.com/global/sustainability/
environment/take-back-recycling.
9
Technology with the human touch
GUARANTEE
• LG Electronics U.K. Ltd. will provide the following services in order to
expedite this Guarantee.
All faulty components which fail due to defective manufacture will be replaced
1.
free of charge for a period of 12 months from the original date of purchase.
2. The dealer (or his service agent) who sold the product will be reimbursed
for any labour provided in the repair of this LG equipment, for a period of
12 months from the original date of purchase. These claims must be made
in accordance with the published scale of service charges and relevant
claims procedure.
PLEASE NOTE:
A. The dealer may restrict the guarantee to the original purchaser.
B. The dealer is not obliged to carry out service under guarantee if
unauthorized modifications are made to the apparatus, or if non standard
components are used or if the serial number of the apparatus is removed,
defaced, misused, or altered.
C. Any claims made under guarantee must be directed to the dealer from
whom the equipment was originally purchased. The dealer may, before
carrying out service under guarantee, require a receipted account as
evidence of the date of purchase.
D. We respectfully point out that your dealer is not obligated to replace
batteries if they become exhausted or worn in use.
E. Aerial alignment and consumer control adjustments are not covered by this
guarantee.
This guarantee does not affect your statutory rights.
• REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR
RECEIPT MUST BE SURRENDERED AT THE TIME GUARANTEE SERVICE IS
PROVED.
• Product Registration Card :
It is helpful to complete at least your name, address, phone, model &
serial numbers and return it. This will enable LG to assist you in the future
should you lose your receipt, your units be stolen, or should modifications
be necessary.
• To obtain information or assistance:
Call UK: 0344 847 5454 IE: 01 686 9454
MODEL NO.* SERIAL NO.* DATE OF PURCHASE.*
In all cases of difficulty - consult your LG dealer from whom the product
was purchased
LGEUK Website : www.lg.com/uk
(Service website : www.lg.com/uk/support)
Loading...
