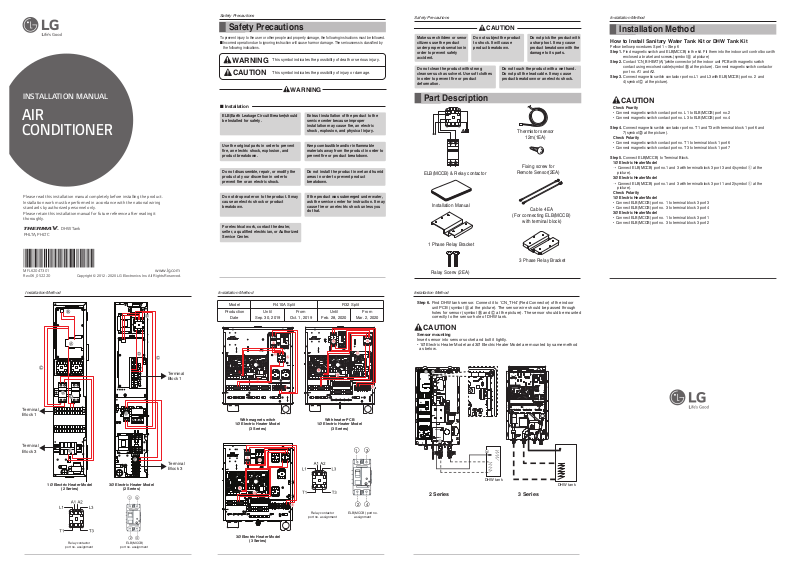

LG PHLTA INSTALLATION INSTRUCTIONS

www.lg.com
DHW Tank
PHLTA, PHLTC
Please read this installation manual completely before installing the product. Installation work must be performed in accordance with the national wiring standards by authorized personnel only. Please retain this installation manual for future reference after reading it thoroughly.
INSTALLATION MANUAL
AIR CONDITIONER
Copyright © 2012 - 2020 LG Electronics Inc. All Rights Reserved.
MFL62047301 Rev.06_052220
Do not drop water on to the product. It may cause an electric shock or product breakdown.
If the product was submerged under water, ask the service center for instruction. It may cause fire or an electric shock unless you do that.
For electrical work, contact the dealer, seller, a qualified electrician, or Authorized Service Center.
Safety Precautions
Use the original parts in order to prevent fire, an electric shock, explosion, and product breakdown.
Keep combustible and/or inflammable materials away from the product in order to prevent fire or product breakdown.
ELB(Earth Leakage Circuit Breaker)should be Installed for safety.
Entrust installation of the product to the service center because improper installation may cause fire, an electric shock, explosion, and physical injury.
Do not disassemble, repair, or modify the product at your discretion in order to prevent fire or an electric shock.
Do not install the product in wet and humid areas in order to prevent product breakdown.
Installation
WARNING
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be followed.
Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Safety Precautions
CAUTION
CAUTION
ʸ
ʷ
ʹ
ʺ
ʸ
ʷ
ʹ
ʺ
ʶ
ʶ
CAUTION
CAUTION
Installation Method
Make sure children or senor citizens use the product under proper observation in order to prevent safety accident.
Do not clean the product with strong cleanser such as solvent. Use soft clothes in order to prevent fire or product deformation.
Do not subject the product to shock. It will cause product breakdown.
Part Description
ELB(MCCB) & Relay contactor
Installation
Manual
Do not pick the product with a sharp tool. It may cause product breakdown with the damage to its parts.
Do not touch the product with a wet hand. Do not pull the lead cable. It may cause product breakdown or an electric shock.
Thermistor sensor
12m(1EA)
Fixing screw for
Remote Sensor(2EA)
Cable 4EA
(For connecting ELB(MCCB)
with terminal block)
Installation Method
How to Install Sanitary Water Tank Kit or DHW Tank Kit
Fellow bellow procedures Spet 1 ~ Step 6 Step 1. Find magnetic switch and ELB(MCCB) in the kit. Fit them into the indoor unit control box with
enclosed a braket and screws.(symbol
Step 2. Contact ‘CN_B/HEAT(A)’(white connector)of the indoor unit PCB with magnetic switch
contact using encolsed cable(symbol port no. A1 and A2.
Step 3. Connect magnetic switch contactor port no.L1 and L3 with ELB(MCCB) port no. 2 and
Check Poarity
• Connect magnetic switch contact port no. L1 to ELB(MCCB) port no.2
• Connect magnetic switch contact port no. L3 to ELB(MCCB) port no.4
Step 4. Connect magnetic switch contactor port no. T1 and T3 with terminal block 1 port 6 and
Check Polarity
• Connect magnetic switch contact port no. T1 to terminal block 1 port 6
• Connect magnetic switch contact port no. T3 to terminal block 1 port 7
Step 5. Connect ELB(MCCB) to Terminal Block.
1Ø Electric Heater Model
Connect ELB(MCCB) port no.1 and 3 with terminal block 3 port 3 and 4(symbol Ⓔ at the
picture).
3Ø Electric Heater Model
Connect ELB(MCCB) port no.1 and 3 with terminal block 3 port 1 and 2(symbol Ⓔ at the
picture).
Check Polarity 1Ø Electric Heater Model
• Connect ELB(MCCB) port no. 1 to terminal block 3 port 3
• Connect ELB(MCCB) port no. 3 to terminal block 3 port 4
3Ø Electric Heater Model
• Connect ELB(MCCB) port no. 1 to terminal block 3 port 1
• Connect ELB(MCCB) port no. 3 to terminal block 3 port 2
4(symbol
7(symbol at the picture).
at the picture).
at picture)
at the picture). Connect magnetic switch contactor
Installation Method
ʸ
Terminal Block 1
Terminal Block 3
ʷ
ʶ
ʶ
ʹ
ʺ
1Ø Electric Heater Model
(2 Series)
Relay contactor
port no. assignment
ʶ
ʹ
1
2 4
ʸ
ʺ
3
Terminal Block 1
Terminal Block 3
ʶ
3Ø Electric Heater Model
(2 Series)
ELB(MCCB)
port no. assignment
Installation Method
Model R410A Split R32 Split
Production
Date
ʷ
With magnet switch
1Ø Electric Heater Model
ʷ
3Ø Electric Heater Model
Sep. 30, 2019
ʹ
(3 Series)
ʶ
ʹ
(3 Series)
Until
ʶ
ʸ
ʸ
From
Oct. 1, 2019
ʶ
ʺ
ʺ
Until
Feb. 28, 2020
ʶ
ʷ
With heater PCB
1Ø Electric Heater Model
(3 Series)
Relay contactor
port no. assignment
ʹ
ELB(MCCB) port no.
From
Mar. 2, 2020
ʶ
ʸ
1 3
2 4
assignment
1 Phase Relay Bracket
3 Phase Relay Bracket
Ralay Scerw (2EA)
Installation Method
Step 6. Find DHW tank sensor. Connect it to ‘CN_TH4’ (Red Connector) of the indoor
unit PCB (symbol ʶ at the picture). The sensor wire should be passed through holes for sensor (symbol ʷ and ʸ at the picture). The sensor should be mounted correctly to the sensor hole of DHW tank.
Sensor mounting
Insert sensor into sensor socket and bolt it tightly.
• 1Ø Electric Heater Model and 3Ø Electric Heater Model are mounted by same method as below.
A
B
ʺ
C
D
DHW tank
DHW tank
3 Series2 Series
