STANDBY

COLOR MONIT OR

SER VICE MANUAL

CAUTION

BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS NO. : CL-50

MODEL: PFM42V1, PFM42V1A, PFM-42V1E

1. PDP CHARACTERISTICS

Type : WVGA Module Size : 42 inch Display area :

920.1 (H) x 518.4 (V)

±0.5mm

Cell Pitch :

396um (H) x 1080um (V) (stand for Green Cell)

Number of gradations :

256 steps for RGB Peak Brightness : Typ.1000 cd/㎡(1/25white window) Electrical Interface : LVDS Contrast Ratio :

Typ.

1000:1(In dark room with 1/25 white)

Power Consumption : Typ.230W(Full White Pattern)

2. OPTICAL CHARACTERISTICS

2-1. White Peak Brightness: 297.5Min(cd/㎡)

(1/25 White window with 40% scren filter RGB mode)

2-2. White Average Brightness: 60Min(Full White window)

3. ENGINEERING SPEC

3-1. Sync Signal

• Type : Composite Video, Y/C, Component(Y/Cb/Cr), Hivision(Y/Pb/Pr), Analog RGB, DVI-D(TMDS)

3-2. Video Input Signal

Composite Video

: 75 Ω terminated(Auto)

NTSC 3.58, PAL 4.43, SECAM, NTSC4.43, PAL60, PAL-N PAL-M: 1Vp-p

2) Y/C : 75 Ω terminated

Y: 1Vp-p, Minus Sync C:

0.286Vp-p(NTSC)/0.3Vp-p(PAL)

3) Component : 75 Ω terminated

(Y/Cb/Cr) NTSC:

0.714Vp-p

/PAL:

0.7Vp-p

SYNC_ON Y:

0.286Vp-p(NTSC)

0.3Vp-p(PAL)

4) Hivision : 75 Ω terminated

(Y/Pb/Pr) Y:

1Vp-p

, Trilevel Sync

Pb, Pr: 0.7Vp-p

5) Analog RGB : 75 Ω terminated

(fH=15~96kHz, fV=48~85Hz) R/G/B: 0.7Vp-p SYNC: H/V Separate 1-5Vp-p,

High Impedance,

H/V Composite

: 1-5Vp-p,

High Impedance,

SYNC_ON_GREEN 0.286Vp-p

6) DVI-D : TMDS

3-3. Operating Frequency

Horizontal : 15 ~ 96kHz (ANALOG) Horizontal : 28 ~ 81kHz (DIGITAL) Vertical : 48 ~ 85Hz

5. POWER SUPPLY

5-1. Power

: AC 100-240V

±5V

, 50/60Hz

±2%

5-2. Power Consumption

6. ENVIRONMENT

6-1. Operating Temperature: 0°C~+35°C (32°F~95°F) 6-2. Relative Humidity : 20%~90%

(No dew condensation)

6-3. Altitude :~2,000m

7. DIMENSIONS

Width : 1,033 mm (40.67'') Depth : 102 mm (4.01') Height : 631 mm (24.84'')

8. WEIGHT

Net. Weight : 27.6kg (60.86 lbs) Gross Weight : 36.2kg (79.81 lbs)

CONTENTS

SPECIFICATIONS

- 2 -

SPECIFICATIONS ................................................... 2

PRECAUTIONS ....................................................... 3

TIMING CHART ....................................................... 4

OPERATING INSTRUCTIONS ................................ 6

BLOCK DIAGRAM ................................................... 8

DESCRIPTION OF BLOCK DIAGRAM.................... 9

ADJUSTMENT .......................................................12

TROUBLESHOOTING GUIDE .............................. 13

WIRING DIAGRAM ................................................26

SCREW PART LIST................................................ 27

EXPLODED VIEW...................................................29

REPLACEMENT PARTS LIST ...............................31

PIN CONFIGURATION ...........................................45

SCHEMATIC DIAGRAM......................................... 48

MODE NORMAL Stand By

AC OFF

Wattage

350 W

3 W

LED COLOR

GREEN

RED OFF

VIDEO

YES

NO NO

- 3 -

PRECAUTION

WARNING FOR THE SAFETY-RELATED COMPONENT.

• There are some special components used in LCD monitor that are important for safety. These parts are

marked on the schematic diagram and the replacement parts list. It is essential that these critical

parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard.

• Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee.

TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT.

• Must mount the module using mounting holes arranged in four corners.

• Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

• Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel.

• Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

• Make certain that treatment person’s body are grounded through wrist band.

• Do not leave the module in high temperature and in areas of high humidity for a long time.

• The module not be exposed to the direct sunlight.

• Avoid contact with water as it may a short circuit within the module.

• If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.)

WARNING

BE CAREFUL ELECTRIC SHOCK !

• If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms.

• Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire.

CAUTION

Please use only a plastic screwdriver to protect yourself from shock hazard during service operation.

- 4 -

Mode

H/V

Sort

640 x 350

H – 31.500 900 720 180 72 90 18 V – 66.667Hz 525 480 45 3 39 3

640 x 480

H – 31.500 900 720 180 72 90 18

V + 70.156Hz 449 400 49 3 34 12

640 x 480

(MAC13”)

H + 31.469 800 640 160 96 56 8

V – 70.086Hz 449 350 99 2 66 31

720 x 400

(TEXT)

H + 37.879 1056 800 256 128 88 40

V + 60.317Hz 628 600 28 4 23 1

800 x 600

H – 49.731 1152 832 320 64 224 32

V – 74.559Hz 667 624 43 3 37 3

832 x 624

(MAC16”)

H – 48.363 1344 1024 320 136 160 24

V – 60.004Hz 806 768 38 6 29 3

1024x768

H + 60.023 1312 1024 288 96 176 16

V + 75.029Hz 800 768 32 3 28 1

1024x768

H + 68.677 1376 1024 352 96 208 48

V + 84.997Hz 808 768 40 3 36 1

1024x768

H + 67.500 1600 1152 448 128 256 64

V + 75.000Hz 900 864 36 3 32 1

1152x864

H – 68.681 1456 1152 304 128 144 32

V – 75.062Hz 915 870 45 3 39 3

1280 x 960

1152x870

(MAC21”)

H + 63.981 1688 1280 408 112 248 48

V + 60.020Hz 1066 1024 42 3 38 1

H + 60.000 1800 1280 520 112 312 96

V + 60.000Hz 1000 960 40 3 36 1

1280x1024

H – 74.537 2160 1600 560 168 280 112

V + 59.869Hz 1245 1200 45 4 38 3

1600x1200

H + 31.020 1088 848 240 112 112 16

V + 60.000Hz 517 480 37 8 23 6

848x480

Sync

Polarity

Frequency

Dot

Clock

Back Porch

(F)

Front Porch

(C)

Resolution

25.175

30.240

28.350

40.000

57.290

65.000

78.750

94.500

108.000

100.000

108.000

161.000

33.750

<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>

H – 31.469 800 640 160 96 48 16

V – 59.940Hz 525 480 45 2 33 10

Sync Duration

(D)

Blanking time

(B)

Video Active Time

(A)

Total Period

(E)

TIMING CHART

VIDEO

SYNC

1. PC MODE & COMPOSITE MODE

- 5 -

Mode

H/V

Sort

848x480

H – 37.684 1088 848 240 80 120 40 V + 74.769Hz 504 480 24 5 16 3

848x480

H – 47.776 1664 1280 384 128 192 64

V + 59.870Hz 798 768 30 7 20 3

848x480

H – 29.830 1056 848 208 80 104 24

V + 59.659Hz 500 480 20 5 12 3

1280x768

H + 47.396 1440 1280 160 32 80 48

V – 59.995Hz 790 768 22 7 12 3

1280x768

H 15.734 910 754 156 67 67 22

V 59.941Hz 262.5 245 20.5 3 13.5 4

753x483

(NTSC)

H 15.625 1136 923 213 84 103 26

V 50.000Hz 312.5 287 25.5 2.5 20 3

932x573

(PAL)

H + 47.712 1792 1360 432 112 256 64

V + 60.015Hz 795 768 27 6 15 3

1360x768

H – 65.317 1864 1400 464 144 232 88

V + 59.978Hz 1089 1050 39 4 32 3

1400x1050

Sync

Polarity

Frequency

Dot

Clock

Back Porch

(F)

Front Porch

(C)

Resolution

31.500

29.750

41.000

79.500

68.250

14.320

17.750

85.500

121.750

H + 29.514 1008 848 160 32 80 48

V – 59.745Hz 494 480 14 5 6 3

Sync Duration

(D)

Blanking time

(B)

Video Active Time

(A)

Total Period

(E)

No.

31 32 33 34 35 36

Resolution 1920 x 540 1920 x 540 1920 x 540 1280 x 720 1440 x 483 1872 x 575

H-freq(KHz)

33.750

28.125

27.000

45.000

31.469

31.250

V-freq(Hz)

60.00

50.00

48.00

60.00

59.94

50.00

Pixel(MHz)

74.25

74.00

54.00

72.00

Proposed

1080/60I 1080/50I 1080/48I

720/60P 480/60P 575/50P

2. COMPONENT MODE(Y, CB/PB, CR/PR)

No.

1 2 3 4 5

6 7

Item AV Video Input Level AV Sync In Level AV Burst In Level AV Video In Level, L/R AV Audio In Level, L/R Component Video Input Level

(Y, C

B/PB, CR/PR)

RGB/H/V Input Level

Min

0.85

0.24

0.14

0.47

0.6

Typ

1.00

0.29

0.28

0.63

0.7

Max

1.15

0.32

0.35

0.79

0.8

Unit Vpp Vpp Vpp

V Vpp Vpp

Remark

75 ohm (480p, 480i, 720p,1080i)

75 ohm

3. A/V COMPONENT INPUT

- 6 -

REAR VIEW

FRONT VIEW REAR VIEW

OPERATING INSTRUCTIONS

STANDBY

Front Control Panel SPEAKER Socket

~ AC IN Terminal

CONTROL Button

1 2 3 4 5 6

1. VIDEO Connertors

The PFM-42V1E is not equipped with VIDEO connectors. For the PFM-42V1E, composite video and Y/C input can be input when ad VIDEO input adaptor BKM-V10(not supplied)is installed in the display.

COMPOSITE IN(BNC): Connects to the composite video signal output of a piece of video equipment.

COMPOSITE OUT(BNC): Connects to the composite video signal input of a piece ofvideo equipment.

Y/C IN(Mini DIN 4-pin): Connects to the Y/C signal output of a piece of video equipment.

AUDIO IN L/R(RCA-jack): Inputs an audio signal. Connects to the audio output of a piece of video equipment.

2. INPUT1(ANALOG RGB/YUV IN) connectors

RGB/YUV(D-sub 15-pin): Connects to the analog RGB

signal or component(YUV)signal output of a piece of video equipment.

Audio(Stereo mini-ack): Inputs an audio signal. Connects to the audio output of a piece of video equipment.

3. INPUT2(DVI-D) Connertors

DVI: Connects to the digital RGB signal output of a

computer. AUDIO(Streo minijack): Input an audio signal. Connects to the audio output of a computter.

Connect the supplied cable to the DVI connector.

4. CONTROL S IN/OUT(Control S Signal Input/out) Connertors(Mini-jack)

You can control multiple devices with a single remote commander when connected to the CONTROL S connector of a video device or other display. Connect the CONTROL S OUT connector on this display to the CONTROL S IN connector in this display to the CONTROL S OUT connector of the other device.

5. AUDIO OUT(Stereo mini-jack)

Outputs an audio of the signal currently indicated on the screen.

6. REMOTE Connector(D-sub 9-pin)

This connector allows remote control of the display using the REMOTE protocol. For details, contact your authorized Sony dealers.

COMPOSITE AUDIO IN

IN OUT Y/C IN

VIDEO INPUT 1 INPUT 2

AUDIO

AUDIORGB/YUV

OUTINDVI AUDIO

CONTROLS

OUT

REMOTE

1. (standby)switch

Press to power on the display unit. Press again to return to the standby mode.

Note To protect the panel, a certain amount of times is required to turn unit ON/STANDBY. Wait about 8seconds after one of these operations before pressing this switch again.

2. STANDBY inducator

Lights up in red in the standby mode.

3. ON inducator

Lights up in green when the diplay unit is powered on.

4. REMOTE Control detector

Receives the signals from Remote Commander.

- 7 -

Front Control Panel Bottom Control Panel

STANDBY

MENU ENTER

- VOLUME +

32 4

1. MENU button

Press to show menus. Press again to hide them.

2. buttons

Press to move the cursor(yellow) to an item you want to select or to adjust a value in a menu.

3. ENTER button

Press to set your choice.

4. VOLUME +/- button

Press to adjust the speaker volume.

- 8 -

CN19 12Pin

GND

NCNCNC

T-Sense

CPU-IR

Rx/Tx

CN9 7Pin

ACD

RLY

5V-ST

5VD

CN8 12 Pin

GND

12VA

CN2 10 Pin

GND

DSW

CN6 13P

GND

12V

GND

5VST

GND

RXD

TXD

SDA1

SCL1

26VN

5Vst

Rea

Timer

Temp.

Sense

(4052)

41T81)

IIC

Bat

OTP

(M27W800)

EEPROM

24C64

DSW

CVM

Sync

(4052)

Sync

Sep

CN22 7 Pin

G-LED2

R-LED2

GND

5VST

STBYIRCN3 4 Pin

KEY1NCGND

3.3VS

CN23 8 Pin9V9V9VNC

GND

GNDNCCN12 Pin

ADOM-OUTR

AUDIO-MUTE

SCL5

SCA5

GND

ADOM-OUTL

GND

12VA

GND

CN7 15 Pin

GND

SVIDEO-C

GND

SVIDEO-Y

AV1-CVBS

RGB3

Q-SENSE2

Q-SENSE1

GND

AD03-INL

GND

AD03-INR

CN15 4 Pin

26VN

GND

RGB

Buffer

U-Com

Analog

S/W

Macro.(IIC5)

CXA2171

(BA7657F)

W/TTX

(SDA5550M)

Analog

DDC

(24C21)

TMDS Rx

(Sil161B)

DVI

DDC

(24C21)

A/V Input Select & 6db Amp.

(CXA 2069Q)

Control S In/Out

MAX

232

3D Comb-Filter

(UPD64083)

Video

Decoder

(VPC3230D)

C/C

Z86229

De-Interlace(I/P)

(FLI2310 BC)

Image Processor

ASI 510

(Aurora)

S-Dram

(HY57V643220

CT-6)

S-Dram

(HY57V

643220

CT-6)

ADC9888

(170MHz)

CVM Sync

(4052)

LVDS Tx

(LVDS 83)

Module

Control

12V9V5VST

3.3V

2.5V

1.8V

I/O

Extender

(74LS373)

IIC2

RGB

H/V

Sep

SOG

15 Pin D-Sub

DVI D

Remote

5-BNC

Component

48 bit

DST

D-H/V

Sync

Audio 1 In

Audio 3 In

CPU-IR

A/RGB

M/RGB

CVH-Sync

M/H/V

A/H/V

VPC/H/V

CV-Sync

AH/V DH/V

TMDS 48

24 bit

LVDS 31 Pin

To Module

16 bit

8 bit

(Video)

V Out

D/RGB

D/FB

ADC Odd 24 Bit

(Component)

S Video Y

S Video C

M/RGB

CVH-Sync

CVBS-Y

S Video

Y/C

CVBS-C

CVBS Out

CVBS In

Y/C In

Rx/Tx

Audio Pre Out

CVBS Out-In

Audio

In 2

Audio In 3

Audio

Out

Control S

Out

BLOCK DIAGRAM(MAIN)

- 9 -

DESCRIPTION OF BLOCK DIAGRAM

1. Input selection circuit

At BA7657F(IC4) Video signal selects between PC RGB signal and Component signal. Then selected output inputs to AD9888(IC12).

2. A/D Converter

This block is composed of AD9888(IC12) and peripheral devices. AD9888(IC12) includes A/D converter, Pre-amp, and PLL. The basic RGB signal from D-sub RGB and Component signal Y/Pb/Pr are input to R,G,B pin of AD9888(IC12). Input video signal is amplified, Phase locked , A/D converted to RGB/YUV each 8bits digital signal by this IC(IC12). And send the Digital video signal to ASI510(IC14). IC12 makes clock for ASI510(IC14).

3.TMDS Receiver

This Block is composed of SiI161B (IC17) and peripheral devices. This ICs decodes TMDS Input signal from DVI-D Pin (CN5) and make 48bit digital signal to send Digital signal to ASI510(IC14).

4. Micom & DDC Controller part

This block is composed of SDA5550M(IC3) and OPT Memory(IC33),expanded I/O Expender IC(IC2, IC8,IC36) and EEPROM IC(IC1,IC34,IC49). SDA5550M controls peripheral devices through IIC line. Major functions are

(1) to store user setting value in the IC1.

And (2) to store EDID data in the EEPROM

(IC34,IC49)

5. Video Decoder Circuit

This block is composed of VPC3230D(IC601) and peripheral devices SDA5550M(IC3) controls this IC through IIC Line. This IC analyzes input signal of CVBS, Y/C, Y/Pb/Pr and output analyzed signal (8bit interlace signal) to De-interlace block. Analyzed signal has video control signals like Contrast, Brightness, Sharpness, Color, tint signals Including Adaptive Comb Filter. Input CVBS from 3d Comb filer IC(IC31) is seperarated to Y and C. And passed by LPF(L501,L502). Then inputed to Audio/Video switch(IC41).

6. DTV Circuit

This block is composed of AD9888(IC12) and peripheral devices AD9888(IC12) includes A/D converter, Pre-amp, and PLL. This circuit is controlled by SDA5550M(IC3) from IIC Line. The function is that Component signal(Y/Pb/Pr) from Component(CN2,CN10) pass by control and output to ASI510.

7. Audio Decoder Circuit

This block is composed of TPA3002D2(IC10) and peripheral devices. SDA5550M(IC3) controls this IC through IIC Line.

This IC analyzes Audio input signal through A/V Jack

and PC1/2 audio, DVD/DTV audio.

8. De-Interlacer

This block is composed of FLI2310(IC10) and peripheral devices. SDA5550M(IC3) controls this IC through IIC Line. And this IC convert 8 Bit Interlace Y/UV signal to Deinterlace signal. It output converted signal to 16 Bit YUV signal

9. Panel-Link Circuit

LVDS Transmitter THC63LVDM83R(IC44) is the IC that receives output digital signal of ASI510(IC14) and output to PDP Module. The signal format is LVDS. PDP Module has LVDS receiver that is same output of ASI510(IC14). This is the best for reduction EMI problem and the number of pin connector.

10. 3D Comb filter

In case of NTSC Composite VIDEO signal, Color and Y are separated by 3D Comb filter IC UPD64083 (IC31). Then inputted to Video decoder IC VPC3230D(IC601).

Block Diagram(Others)

- 10 -

Wafer, 44P,

PCN10C

-44S

Wafer, 10P,

13P and 15P

From

Option

Board

#1,#2

Main

Board

SUB Board Assy

Tact SW,

Menu/

Down,Up/

Ente r/

Vol Down,Up

Wafer, 4P

Main

Board

Key Control Board Assy

Remote Control Board Assy

Wafer, 7P

Main

Board

LED,

GN/RD

Infra-R ed

Recei

ver

SW, Power

From

Audio

Amplifier

Board

Speak er

R/L

Speaker Jack Board Assy

Audio Amplifier Board Assy

Speaker

Jack

Board

Right

Sound Out

Left

Sound Out

Right

Sound Out

Left

Sound Out

Temp

Sensor,

LM350Z

Main

Board

Temperature Sensor Board Assy

Amp,

KA358

Composite

(CVBS)

Sub

Board

Option #1 Board Assy

Option #2 Board Assy

From

Main

Board

Audio

Process,

TA1343N

Audio

Amplifier,

TPA3002

CVBS

Out

Buffer

Y/C

Buffer

Audio

CVBS

Out

Y/C

Out

Audio

Out

Component

Sub

Board

Component

Buffer

Audio

Component

Out

Audio

Out

Block Diagram(Power)

- 11 -

AC INPUT

PFC

Rectifer bridge connection

Input Filter

+5V

Flyback conv.

Supervisory

AC-Det

Relay-on

5V-Det

5Vctrl

+5V

9Vsc

Flyback conv.

+60V

+190V

GND

Stand-by 5V

26Vnet

5Vsc

Vs-on

+9V

RL1

using a CSD

and

Sequence

control

using a CSD

Flyback conv.

using a CSD

Flyback conv.

+14V

+12V

12Vaudio

Voltage Regulator

SW1

- 12 -

ADJUSTMENT

1. Procedures of how to go to service mode.

1) Enter the service mode of this unit by turning on the power while pressing and holding the "↓" key simultaneously.

2) Press "MENU" key----MAINTAIN.

3) Press "OK" key to enter the service menu.

4) Select the desired function.

5) Press the "MENU" key to exit OSD.

6) Turn off the power and then turn on it again. The monitor then enters the normal mode. To enter the service again, repeat the procedure described above.

Note

W/B readjustment is required after the panel, board and microcomputer are replaced. However, be sure to perform aging for more than 30 minutes for RGB reset before W/B adjustment.

2. Setup

1) Prepare timing and pattern data for a signal generator according to the Sony timing specifications.

Connect a monitor video cable to the signal generator.

3) Put Color Analyzer(ex. CA-110) 50cm away from the monitor, specify it vertically in the center of the display, and adjust the focus to the optimum level using an eyepiece.

4) Put the monitor and Color Analyzer(ex. CA-110) in a light-shielded room.

5) Set up [SERVICE MODE] of the monitor.

3. Operation

Data is manually set to improve the productivity. The brightness, contrast, and backlight are set to 50, 70 and 100 respectively. After that, the default data of the color temperature to be adjusted is set.

4. Warm up time

Warm up for 30 minutes before performing any adjustment.

5. Adjustment for White Balance

a. Display SMPTE at SXGA/60Hz(Input level 0.73V). b. Set up [SERVICE MODE]. c. Click "INITIAL EEPROM" and again setup Service

Mode.

d. Click "WHITE BALANCE"

6. 11000K color adjustment

a. Select "11000K" in "COLOR TEMP" and enter. b. Use a 100%(100IRE) Full white video field in the primary mode. c. Adjust "RGB GAIN " to secure the color temperature. d. Press "MENU" key to exit adjust mode.

7. 9300K color adjustment

a. Select "9300K" in "COLOR TEMP" and enter. b. Repeat the adjustment procedure as steps b to d at

11000K.

8. 6500K color adjustment

a. Select "6500K" in "COLOR TEMP" and enter. b. Repeat the adjustment procedure as steps b to d at

11000K.

- 13 -

TROUBLESHOOTING GUIDE(MAIN)

1. OUT OF ORDER ON POWER

Check Ctrl signal

CN9 (Pin#2)

‘RLY’

NO POWER

Replace

the Power B’d

Check 5V-ST

CN9(Pin#3)

Check

Connector or 5V-ST Output On Power B’d

Check

IC8 (Pin #6)

Fail

Check Device Q35, IC8, IC3

High

Check Ctrl signal

CN9 Pin#1

‘ACD’

Check

IC2 (Pin #3)

Connector or ‘ACD’ Output On Power B’d Check Device IC2, IC3

High

Fail

Check Ctrl signal

CN9 (Pin#5)

‘VS07’

Check

IC8 (Pin #9)

Check Device Q36, IC8, IC3

High

*Check the Power

Cable connection

Pass

- 14 -

NO RASTER ON DIGITAL

SIGNAL

Rewrite EDID

Data

Repeat

‘A’ Process

Check The

EDID Data

Check IC17(Sil161B)

-H/V Sync

-Output Clock

-Output Data

-Power Down Ctrl Signal (TMDSRX*-PDN)

Fail

Pass

- 15 -

2. NO RASTER STATE

Check

U12(AD9888) .HSYNC-ADC .VSYNC-ADC

.DCLK-ADC

.DATA

NO RASTER ON ANALOG

SIGNAL

*Check the Power : 3.3VDD *Replace Device

IC21

Check

Power Line IC21, IC45, IC20, IC22,

IC23, IC24

Check LED

Status on

Display Head

Check

Ctrl signal IC44

Pin#32

(LVDS83)

Green

3.3V

2.5V

Fail

Replace Device : IC14, IC15

Replace the IC14(Scaler)

Find a Soldering Error or check the oscillator(X5)

*Check the D-sub Conn

Connection

- Y/Pb/Pr Jack check

*Check the other Device

- IC26, IC27(SDRAM)

- IC44(LVDS83) Pin#32

Check

Scaler(IC14)

Output . PCLOCK . PVSYNC . PHSYNC

. PVALID

.DATA

Fail

Pass

*Check Connector

CN501

Check

Control Signal

‘DISPEN’

CN501 Pin #27

Fail

Replace Device

.IC21, IC30, IC4

Amber

Pass

‘A’ Process

- 16 -

NO RASTER ON Y, Pb, Pr/Y,Cb Cr SIGNAL

Replace Device

Q53, 54, 55, 50, 51, 52

Power S/W off and on after remove the Input signal cable

Repeat

‘A’ Process

Input Select

Input 1, Option

Check

Microvision Copy

Protection & Input Select

IC43(CXA2171)

Check

Analog Switch DTV

IC4(BA7657)

Check

IC12(AD9888)

*In/Out H/V Sync

*Output Data

Check

IC10(FLI2310)

*S2310-RESET

*In/Out H/V Sync

*Output Data

Replace Device

Q29, 30, 31,

23, 27, 28

*Check the Power ( 3.3ADCAA, 3.3ADCPA

3.33.3ADCDA) *Replace Device

IC13

*Check the Power ( 3.3V-DNT, 1.8V-DNT

*Replace Device

IC18, IC11

Fail

Pass

PassPass

Pass

480P 480i

720P 1080i

Pass

- 17 -

NO RASTER ON AV SIGNAL

(CVBS, S-VIDEO)

Repeat

‘A’ Process

Check

Input Select for AV

IC41(CXA2069)

Pass

Check

3D Comb Filter

IC31(uPD64083)

Pass

Check

U601(VPC3230D)

*In/Out H/V Sync

*Output Data *Input Signal

Check

U302(FLI2310)

*VPC-RESET

*In/Out H/V Sync

*Output Data

Pass

* Check video signal CN7 Pin#14 AV1-CVBS * Replace Device

Fail

* Check the power

(3.3VDD-UPD, 2.5VDD-UPD, 2.5VDD-UPD)

* Replace Device

IC40, IC42, Q10, 11,14, 15, 16, 17

Fail

* Check the power

:1.8V-DNT, 3.3V-DNT

* Replace Device

IC18, IC11

Check the Input jack and cable

Fail

* Check the power

(5V-VPC, 3.3V-VPC)

* Replace Device

IC25, IC28, Q4,6,22,12,18, 5,8,7,21,34, 39,20,37,40,21,38, 41, 42, 45, 48, 43, 46, 49, 57, 44, 47, 56

Fail

- 18 -

A Process

Check

CN207(44Pin Wafer)

B12,B13,B14,B15,B16

Check

CN2

R/G/B/H/V

VS-Board

Input

Option #2

Input

* Check

CN201, CN202, CN203

CN204,CN205 Input

* Check

5VST, 12V

No Raster On analog Signal

Fail

* Check CN2 10Pin Signal connector

Fail

Yes

A Process

Check

CN207(44Pin Wafer)

B12,B13,B14

Check

CN2

Pb/Y/Pr

VS-Board

Input

Option #2

Input

* Check

CN201, CN202, CN203

* Check

5VST, 12V

No Raster On Y, Pb, Pr/Y, Cb, Cr

Fail

* Check CN2

10Pin Signal connector

Fail

Yes

- 19 -

3. SOUND TROUBLESHOOTING

NO SOUND OUTPUT

Check Connector

Main B’d:CN12,CN14

Video B’d:CN103

Option B’d:CN206

Check

Audio Process

IC301(TA1343N)

Check

Audio Amp.

IC351

(TPA3002D2)

*(NOTE)

Pass Pass

Pass

Check

Audio Input Slect

IC41 (CXA2069)

Check Connector

Sound B,d:CN301

Pin#1,3

* Check Audio Signal CN7

Video & Option B’d : Pin#6,8

. Check Audio Input IC41

Pin #2,4,9,11,16,18

* Replace Device

Fail

Sound B,d Check

*NOTE

Sound output device(IC351) has over lod protection circuit. If speaker terminal is shorted in a moment. Sound funtion is stopped until the power seitch off and on.

* Check the Power

(9V)

* Replace Device

IC301

* Check the Power

(12VA)

* Repiace Device

IC351

Pass

- 20 -

TROUBLESHOOTING GUIDE(PDP)

1. Checking for no Picture

A screen doesn’t display at all and condition of black pattern or power off.

(1) Check whether the CTRL B/D LED(D1~D4) is turned on or not. (2) Check the power and signal cable of CTRL B/D. (3) X B/D, Y B/D, Z B/D is well plugged in. (4) Check the connection of X B/D, Y B/D and Z B/D to CTRL B/D. (5) Measure the output wave of X, Y, Z B/D with oscilloscope(more than 200MHz)

and find the trouble of B/D by comparing the output wave with below figure.

- Measure Point fo Y B/D : TP (Connector P4 80 pin)

- Measure Point fo Z B/D : Connection part of panel (SUS_OUT)

- Measure Point fo X B/D : L1(RIGHT), L2(LEFT BOTTOM)

(6) Check the SCAN(Y side) IC (7) Check the DATA(X side) COF IC (8) Replace the CTRL B/D.

- 21 -

- 22 -

2. Hitch Diagnosis Following Display Condition

2-1. 4/7 or 3/7 of the screen doesn t be

shown

(1) Confirm the power connector of X B/D is well plugged in

which is correspond to not showing screen.

(2) Confirm the connector that is connected between CTRL

B/D and X B/D correspond to not showing part.

(3) Replace relevant X B/D.

[

Relationship between screen and X B/D

Screen X B/D Left of the Screen 4/7 <--> Right X B/D Right of the Screen 3/7 <--> Left X B/D

[

Screen Display Form

2-2. The screen doesn t be shown as Data

COF

(Include not be shown part of Data COF quantity or a part)

(1) The problem between Data COF and X B/D is more

possible that the screen is not be shown as data COF.

(2) Confirm the connector of Data COF is well connected to X

B/D. Correspond to the part that screen is not showing

(3) Confirm whether the Data COF is failed and replace X B/D

[

Example of the screen display form

(Anything of the 7 Data COF can be shown beside below pictures)

: All : Partial : not at all

ANODE Pattern (GND) CATHOD Pattern and examine the Diode

to the pure or reverse direction.

GND

Measure the third resistance value

Resistance

[

How to examine Data COF IC

Left of the Screen(4/7) Right of the Screen(3/7)

Display Not display

- 23 -

2-3. It Generates Unusual Pattern of Data

COF IC unit

(1) In case of generating unusual pattern of Data COF IC unit

as below picture, there is problem in the check that is input into Data COF IC

(2) In case of <case 1, 2, 3>

- confirm the connection of Data COF connector

- replace the relevant X B/D

(3) In case of <case 4, 5>

- confirm the connector that is connected from CTRL to X B/D

- Replace relevant XB/D or CTRL B/D

[

Screen Display Form

2-4. Regular Stripe is Generated about the

Quantity of one Data COF IC or more

(1) In case of generating regular stripe about the quantity of

one Data COF IC, there is problem at the output of outputflatworm of X B/D In case of generating regular stripe about the quantity of two Data COF IC, that means the data which is conveyed from CTRL B/D doesn t conveyed well.

(2) Confirm the XB/D connection connector plugged in well.

Correspond to unusual screen.

(3) Replace relevant XB/D or CTRL B/D.

[

Relationship between screen and X B/D

Screen X B/D Left Bottom of the Screen 4/7 <--> Right X B/D Right Bottom of the Screen 3/7 <--> Left X B/D

[

Screen Display Form

Unusual screen comes out about one IC quantity in one COF

Unusual screen comes out across one quantity about two IC quantities in one COF

Unusual screen comes out about 4IC quantities in one COF

Unusual screen comes out as a unit of Data COF IC through one X B/D

Unusual screen comes out as a unit of Data COF IC through Top or Bottom screen

It comes out partial field about the quantity of one IC or more or It may come out together at other field of screen.

- 24 -

2-5. The screen display has a problem for

Scan FFC.

(1) It s may be a problem between Scan FFC and Y B/D. (2) Check the connection of Y B/D and Scan COF. (3) If the Scan IC is failed, replace the Y DRV B/D.

[

Screen Display Form

[

Check a method of SCAN IC

Change the Vpp Pin into ANODE and GND Pin into CATHOD and then test the Diode with forward or reverse direction.

2-6. The screen has a vertical line with

regular gap.

(A vertical stripe flash at especial color)

(1) This is a problem about control B/D. (2) Replace Control B/D.

[

Screen Display Form

2-7. A data copy is happened into vertical

direction

(1) In this case, it s due to incorrect marking of scan wave. (2) Replace a Y DRV B/D or Y SUS B/D.

[

Screen Display Form

The screen display is very good The screen display is a poor

one eighth of screen

The screen has a vertical line

with regular gap

- 25 -

2-8. The screen has one or several vertical

line

(1) In this case, It isn t a problem about controller B/D or X

B/D.

(2) It may cause followings.

- It s out of order a panel

- Open or short of DATA COF FPC attached panel

- It s out of order a DATA COF attached panel

(3) Replace Module.

[

Screen Display Form

2- 9. The screen has one or several

horizontal line

(1) In this case, it isn t a problem about controller B/D or X

B/D.

(2) It may cause followings.

- It s out of order a panel

- Open or short of SCAN FPC attached panel

- It s out of order a SCAN IC attached panel

(3) Replace Y DRV B/D

[

Screen Display Form

2-10. The screen displays input signal

pattern but the brightness is dark

(1) In this case, Z B/D operation isn t complete. (2) Check the power cord of Z B/D. (3) Check the connector of Z B/D and Controller B/D. (4) Replace the Controller B/D or Z B/D.

2-11. The screen displays other color

partially on full white screen or happens discharge partially on full black screen.

(1) Check the declination of Y B/D set up, set down wave. (2) Check the declination of Z B/D ˙ ramp wave. (3) Measure each output wave with oscilloscope(more than

200MHz) and compare the data with below figure data. Adjust the Y B/D set up(Test-up:B/C[¥s/¥s])/setdown(Test- down:D[¥s]) and Z B/D ramp(Tramp:F/G[¥s/¥s]) declination by changing VR1/VR2/VR3.

- Measuring Point of Y B/D : P4 (Connector P4 36 pin)

- Measuring Point of Z B/D : B37 (SUS_OUT)

2-12. A center of screen is darker than

a edge of screen at full white pattern.

(1) In this case, it s a problem about Z B/D ramp wave. (2) Check the connection cable of Z B/D and CTRL B/D. (3) Replace the Z B/D.

[

Screen Display Form

2-13. It doesn t display a specified

brightness at specified color

(1) Check the connector of CTRL B/D input signal. (2) Replace the CTRL B/D.

Y Output Voltage Wavefrom Z RAMP Voltage Wavefrom

It may show several vertical lines in a quarter or other division part of screen including left case.

It may show several horizontal lines including left case.

- 26 -

WIRING DIAGRAM

AC Inlet

2 Pin & FG

4 Pin

Audio

4 Pin

7 Pin

12 Pin

Power

Logic Main

10 Pin

Key control

#15

LVDS

31 Pin

15 Pin

13 Pin

10 Pin

Main Board

SMPS

Remote control

Sub Board

Option Board

#1/#2

Audio Amp

Audio

Jack L

Audio

Jack R

Temp.

Sensor

Temp.Sensor

12P

Temp.

Sensor

#14

#10

#11

#12

#13

#16

12P

No. SONY Part No. LG Part No.

1112131415

6631T39004A

6631T39004B

6631T39004C

6631T25018A

6631T25018B

6631T25018C

6631T20026A

6631T20026B

6631T20026C

6631T20026D

6631T10004A

6631T20026E

6631T25018E

6631T20026F

6631T11016L

6631T25018D

1-900-276-34

1-900-280-74

1-900-280-75

1-900-280-76

1-900-280-77

1-900-280-78

1-900-280-79

1-900-280-80

1-900-280-81

1-900-280-82

1-900-280-83

1-900-280-84

1-900-280-88

1-900-280-86

1-900-280-87

1-900-280-85

Wiring Part List

SCREW PART LIST(1)

- 27 -

NO LG P/NO

1SZZTMP007C

332-102C

339-006B

339-009C

1SZZTMP007A

NO LG P/NO LG P/NO

339-008H

339-008K

339-008L

1SZZTMF012A

332-113E

332-113D

339-008F

1NHB0302118a1WZZTKK005A

TOTAL SCREW P/NO

3911TKK476A

X-4042-795-1

SONY

- 28 -

SCREW PART LIST(2)

NO LG P/NO(A)

1SZZVMB005A

1WZZTKK004A

1SZZTMH003A

444

TOTAL SCREW P/NO(A)

3911TKK476B

X-4042-796-1

SONY

TOTAL SCREW P/NO(B)

SONY

332-102R

339-008K

LG P/NO(B)

3911TKK476C

X-4042-797-1

- 29 -

EXPLODED VIEW

2-1

2-3

2-4

2-5

2-6

2-2

1 2 3

4 5 6

7 8

PFM

ID MODE

RM-971

ON SET

VOL

H SHIFT

RGB/YUV

INPUT1

MUTING STBY ONDISPLAY

INPUT2 VIDEO OPTION

S/VIDEO ASPECT

V SHIFT H SIZE V SIZE

CHROMABRIGHT

ENTER

CONTRAST

OFF

POWER

14-1

14-2

14-3

- 30 -

EXPLODED VIEW PARTS LIST

Ref. No.

2-1 2-2 2-3 2-4 2-5 2-6

3 4

5 6 7 8 9

10 11 12

14 14-1 14-2 14-3

SONY Part No.

X-4042-306-1 X-4042-097-1

1-805-424-11

X-4042-803-1 X-4042-801-1

1-761-813-11 4-097-589-01

X-4042-802-1

1-761-817-11 1-761-817-21 4-101-213-01 1-761-814-11 4-101-217-11 4-101-217-01

X-4042-800-1

X-4042-799-1

1-761-810-11 1-761-812-11 1-761-811-11 1-417-398-11

1-761-815-11 1-761-816-11

1-827-782-11 1-477-278-13 4-101-220-01 4-101-218-01 4-101-219-01 4-101-222-01 4-101-223-01 4-101-224-01 1-825-627-21 1-825-627-11 1-825-628-21 1-825-628-11

Description

CABINET ASSEMBLY, PS420VAO/PS420VAP SONY E003 (BK)-(PFM42V1) CABINET ASSEMBLY, PS420VA/PS420VAO/PS420VAA SONY E003 (SK)

-(PFM42V1, PFM-42V1E, PFM42V1A)

PDP, 42" 16:9 852*480 PDP42V50012.AKLGG(LVDS, FRAME FOR DID), FOR INTERCOMPANYY DOMESTIC

-(PFM42V1, PFM-42V1E)

PDP, 42" 16:9 852*480 PDP42V50012.AKLGG-

(PFM42V1A)

PWB(PCB) ASSEMBLY, DISPLAY YDRV ASSY HAND INSERT 42SD5_YDRV_TOTAL_T1_4LAYER PWB(PCB) ASSEMBLY, DISPLAY YDRV ASSY HAND INSERT 42SD5_YDRV_BTM_T1_4LAYER PWB(PCB) ASSEMBLY, DISPLAY, YSUB ASSY HAND INSERT 42SD5 _SEPERATED_YSUB PWB(PCB) ASSEMBLY, DISPLAY, CTRL ASSY HAND INSERT 42V5 CTRL NEW MCM(1222) LVDS PWB(PCB) ASSEMBLY, DISPLAY, XRRT ASSY HAND INSERT 42SD5_XR_SEPERATE(4LAYER) PWB(PCB) ASSEMBLY, DISPLAY, ZSUB ASSY HAND INSERT 42SD5(YZ SEPARATE) SHIELD ASSEMBLY,REAR BACK SONY PS420VA(BK)

-(PFM42V1)

SHIELD ASSEMBLY, REAR BACK PS420VA(L/GRAY)

-(PFM-42V1E, PFM42V1, PFM42V1A)

PWB(PCB) ASSEMBLY, SUB, PS420VA LED & P/SW HAND SONY REMOTE CONTROL FILTER(MECH), PDF-69J07H ASAHI PS420VA METAL ASSEMBLY, FRAME FRONT SONY PDP42" PWB(PCB) ASSEMBLY, SUB, PS420VA ETC TOTAL SONY L SPEAKER PWB(PCB) ASSEMBLY, SUB, PS420VA ETC TOTAL SONY R SPEAKER SHIELD, TOP MODULE X-BOARD(PS420VA) PWB(PCB) ASSEMBLY, SUB, PS420VA CONTROL HAND SONY KEY PAD KNOB, TACT CONTROL PDP42” SONY BACK

-(PFM42V1)

KNOB, TACT CONTROL PS420VA BACK(L/GRAY)

(PFM-42V1E, PFM42V1, PFM42V1A)

METAL ASSEMBLY, FRAME MODULE SONY PDP42” PWB(PCB) ASSEMBLY, SUB, PS420VA SUB TOTAL SONY TEMP. SENSOR METAL ASSEMBLY, FRAME FAN BRACKET(PS420VA) METAL. FRAME FAN BRACKET,PS420VA METAL. FRAME FAN BRACKET NEW(PS420VA) FAN, AD0512LB-G70,WITH FAN 3EA, PS420VA 52MM ADDA PWB(PCB) ASSEMBLY, POWER, 42" PDP POWER TOTAL ORIGIN PWB(PCB) ASSEMBLY, SUB, PS420VA SOUND HAND SONY AUDIO AMP PWB(PCB) ASSEMBLY, MAIN, PS420VA ALRDG SONY CL-50 TOTAL FILTER(CIRC), ID-N10BEH DONGIL BK PS420VA HOLDER, AC INLET PS420VA(SONY PDP42”) PWB(PCB) ASSEMBLY, SUB, PS420VA SUB HAND SONY SUB PWB(PCB) ASSEMBLY, INTERFACE, BKM10 INTERFACE TOTAL SONY #1 OPTION -(PFM42V1, PFM42V1A) METAL PLATE COVER, OPTION PS420VA -(Only PFM-42V1E) METAL, SHIELD COVER,MAIN INTERFACE PDP42"-(PFM42V1) METAL, SHIELD COVER,MAIN INTERFACE PS420VA (L/GRAY)-(PFM42V1, PFM42V1A, PFM-42V1E) CABLE,DVI, UL20276 AWG30 DT 3000MM BLACK(9930) PS420VA DM REMOTE CONTROLLER, PS420VA ALRDE REMOTO CONTROL PACKING, PS420VA EPP TOP BOT PACKING BOX, PS420VA SONY(PDP42”-TOP CARTON) BOX, PS420VA SONY(PDP42”-BOTTOM CARTON) CARTON PLATE,(1152*364*710)SONY PDP CROSS VER.PAD BAG.VINYL, PE(1000X1200)SONY PDP42” UNIT LAMI-BAG BOX, PS420 SONY ACCESSORY BOX FOR SONY COVER ASSEMBLY, PS420VA. SPEAKER,RIGHT(DARK BLUE) COVER ASSEMBLY, PS420VA. SPEAKER,LEFT(DARK BLUE) COVER ASSEMBLY, PS420VA. SPEAKER,RIGHT(SILVER) COVER ASSEMBLY, PS420VA. SPEAKER,LEFT(SILVER)

LG Part No.

3091TKE004A 3091TKE004B

6348Q-E036C

6348Q-E036U 6871QDH051A 6871QDH052A 6871QYH027A 6871QCH032A 6871QRH034A 6871QZH030A

4815TKK028A 4815TKK028B 6871TSH391C 5230TKK001A 4951TKS107A

6871TST413A

6871TST413B

4814TKK251A 6871TSH390B

4940TKT178A

4940TKT178B

4951TKS108A

6871TST412B

4951TKS132A 4950TKS260A 4950TKS262A

5900T52001B

6871TPT246A

6871TSH411B 6871TMT425B

6200TJB001Q

4930TKK058A 6871TSH392B 6871TKT290D 4950TKK659A 4950TKK598A 4950TKK598B 6866TDV004P

6710T00005A

3920TKE233A 3890TSE458A 3890TSE459A 3918TKK048A 3880TKZ017C 3890TSE463A 3551TKS042A 3551TKS042B 3551TKS042C 3551TKS042D

- 31 -

DATE: 2003. 09. 08.

*S *AL

LOC. NO.

PART NO. DESCRIPTION / SPECIFICATION

C1 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C4 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C5 0CC330CK41A 33PF 1608 50V 5% R/TP NP0 C6 0CC330CK41A 33PF 1608 50V 5% R/TP NP0 C7 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C8 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C9 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C10 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C11 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C12 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C13 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C14 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C15 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C16 DCH7106F621 10UF 16V M 3528MM TP(-) C17 DCH7106F621 10UF 16V M 3528MM TP(-) C18 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C19 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C20 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C21 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C22 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C23 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C24 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C25 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C26 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C27 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C28 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C29 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C30 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C31 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C32 0CZZTAT007L RE3-16V221MF3#-T36 ELNA 16V C33 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C34 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C35 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C36 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C37 0CC561CK41A 560PF 1608 50V 5% NP0 R/TP C38 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C39 0CZZTAT007L RE3-16V221MF3#-T36 ELNA 16V C40 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C41 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C42 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C43 0CC330CK41A 33PF 1608 50V 5% R/TP NP0 C44 0CC330CK41A 33PF 1608 50V 5% R/TP NP0 C45 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C46 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C47 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C48 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C49 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C50 DCH7106F621 10UF 16V M 3528MM TP(-) C51 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C52 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C53 0CC150CK41A 15PF 1608 50V 5% R/TP NP0

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C54 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C55 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C56 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C57 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C58 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C59 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C60 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C61 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C62 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C63 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C64 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C65 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C66 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C67 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C68 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C69 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C70 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C71 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C72 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C73 0CH6102K406 1000PF 50V J SL 2012 R/TP C74 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C75 0CH6102K406 1000PF 50V J SL 2012 R/TP C76 0CH6102K406 1000PF 50V J SL 2012 R/TP C77 0CH6102K406 1000PF 50V J SL 2012 R/TP C78 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C79 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C80 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C81 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C82 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C83 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C84 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C85 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C86 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C87 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C88 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C89 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C90 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C91 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C92 DCH7106F621 10UF 16V M 3528MM TP(-) C93 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C94 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C95 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C96 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C97 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C98 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C99 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C100 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C101 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C102 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C103 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C104 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C105 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C106 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C107 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0

REPLACEMENT PARTS LIST

CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,

READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.

* NOTE : S SAFETY Mark

AL ALTERNATIVE PARTS

MAIN BOARD

CAPACITORS

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C108 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C109 0CK392CK56A 3900PF 1608 50V 10% R/TP X7R C110 0CK393CK56A 39000PF 1608 50V 10% R/TP X7 C111 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C112 0CH6102K406 1000PF 50V J SL 2012 R/TP C113 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C114 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C115 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C116 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C117 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C118 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C119 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C120 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C121 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C122 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C123 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C124 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C125 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C126 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C127 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C128 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C129 0CH6101K416 100PF 50V J NP0 2012 R/TP C130 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C131 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C132 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C133 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C134 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C135 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C136 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C137 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C138 DCH7106F621 10UF 16V M 3528MM TP(-) C139 DCH7106F621 10UF 16V M 3528MM TP(-) C140 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C141 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C142 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C143 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C144 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C145 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C146 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C147 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C148 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C149 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C150 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C151 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C152 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C153 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C154 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C155 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C156 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C157 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C158 0CH6102K406 1000PF 50V J SL 2012 R/TP C159 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C160 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C161 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C162 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C163 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C164 0CH6331K416 330PF 50V J NP0 2012 R/TP C165 0CH6331K416 330PF 50V J NP0 2012 R/TP C166 0CH6331K416 330PF 50V J NP0 2012 R/TP C167 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C168 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C169 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C170 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C171 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C172 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C173 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C174 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C175 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C176 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C177 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C178 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C179 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C180 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C181 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C182 0CZZTAT007D RE3-35V331MH3#-T2 ELNA 35V 3 C183 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C184 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C185 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C186 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C187 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C188 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C189 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C190 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C191 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C192 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C193 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C194 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C195 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C196 0CH6331K416 330PF 50V J NP0 2012 R/TP C197 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C198 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C199 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C200 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C201 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C202 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C203 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C204 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C205 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C206 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C207 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C208 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C209 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C210 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C211 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C212 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C213 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C214 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C215 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C216 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C217 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C218 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C219 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C220 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C221 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C222 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C223 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C224 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C225 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C226 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C227 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C228 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C229 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C231 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y

- 32 -

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C232 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C233 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C234 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C235 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C236 0CH6331K416 330PF 50V J NP0 2012 R/TP C237 0CH6331K416 330PF 50V J NP0 2012 R/TP C238 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C239 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C240 0CH6331K416 330PF 50V J NP0 2012 R/TP C241 0CH6331K416 330PF 50V J NP0 2012 R/TP C242 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C243 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C244 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C245 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C246 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C247 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C248 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C249 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C250 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C251 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C252 0CK473CK56A 47000PF 1608 50V 10% R/TP X7 C253 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C254 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C255 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C256 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C257 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C258 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C259 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C260 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C261 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C262 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C263 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C264 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C265 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C266 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C267 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C268 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C269 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C270 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C272 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C273 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C274 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C275 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C276 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C277 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C279 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C280 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C281 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C282 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C283 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C284 0CZZTAT007L RE3-16V221MF3#-T36 ELNA 16V C285 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C286 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C287 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C288 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C289 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C290 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C291 0CH6102K406 1000PF 50V J SL 2012 R/TP C292 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C293 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C294 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C295 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C296 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C297 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C298 0CC151CK41A 150PF 1608 50V 5% NP0 R/TP C299 0CK683CK56A 0.068UF 1608 50V 10% X7R R/T C300 0CK682CK51A 6800PF 1608 50V 10% R/TP B(Y C301 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C302 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C303 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C304 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C305 0CC471CK41A 470PF 1608 50V 5% R/TP NP0 C307 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C308 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C309 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C310 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C311 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C312 0CZZTAT009A NC1C226M05005VR SAMWHA 16V 2 C313 0CZZTAT009A NC1C226M05005VR SAMWHA 16V 2 C314 0CZZTAT009A NC1C226M05005VR SAMWHA 16V 2 C315 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C316 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C317 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C318 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C319 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C320 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C321 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C322 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C323 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C324 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C325 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C326 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C327 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C328 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C329 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C330 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C331 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C332 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C333 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C334 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C335 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C336 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C337 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C338 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C339 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C340 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C341 0CZZTAT009A NC1C226M05005VR SAMWHA 16V 2 C342 0CZZTAT009A NC1C226M05005VR SAMWHA 16V 2 C343 0CZZTAT009A NC1C226M05005VR SAMWHA 16V 2 C344 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C345 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C346 0CK222CK51A 2200PF 1608 50V 10% R/TP B(Y C347 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C348 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C349 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C350 0CH6102K406 1000PF 50V J SL 2012 R/TP C351 0CC561CK41A 560PF 1608 50V 5% NP0 R/TP C352 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C353 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C354 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C355 0CC821CK41A 820PF 1608 50V 5% R/TP NP0 C356 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C357 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C358 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP

- 33 -

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C359 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C360 0CC470CK41A 47PF 1608 50V 5% R/TP NP0 C361 0CC150CK41A 15PF 1608 50V 5% R/TP NP0 C362 0CC150CK41A 15PF 1608 50V 5% R/TP NP0 C363 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C364 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C365 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C366 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C367 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C368 0CC180CK41A 18PF 1608 50V 5% R/TP NP0 C369 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C370 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C371 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C372 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C373 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C374 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C375 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C376 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C380 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C384 0CZZTAT007L RE3-16V221MF3#-T36 ELNA 16V C385 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C386 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C387 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C388 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C389 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C390 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C391 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C392 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C393 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C394 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C395 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C396 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C397 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C398 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C399 0CK474CH94A “0.47UF 1608 25V 80%,-20% R/T” C400 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C401 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C402 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C403 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C404 0CZZTAT007L RE3-16V221MF3#-T36 ELNA 16V C405 DCH7106F621 10UF 16V M 3528MM TP(-) C406 0CH3684K946 “0.68UF 50V 80%,-20% F(Y5V) 2” C407 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C408 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C409 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C410 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C411 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C412 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C413 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C414 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C415 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C416 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C417 0CC331CK41A 330PF 1608 50V 5% R/TP NP0 C418 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C419 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C420 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C421 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C422 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C423 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C424 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C425 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C426 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C427 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C428 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C429 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C430 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C431 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C432 0CH3684K946 “0.68UF 50V 80%,-20% F(Y5V) 2” C433 0CH6101K416 100PF 50V J NP0 2012 R/TP C434 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C435 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C437 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C438 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C439 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C440 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C441 0CH3684K946 “0.68UF 50V 80%,-20% F(Y5V) 2” C442 0CH3684K946 “0.68UF 50V 80%,-20% F(Y5V) 2” C443 0CH6102K406 1000PF 50V J SL 2012 R/TP C444 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C447 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C451 0CH6102K406 1000PF 50V J SL 2012 R/TP C452 0CH6100K116 10PF 50V D NP0 2012 R/TP C453 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C455 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C456 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C457 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C458 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C459 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C460 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C461 0CC100CK41A 10PF 1608 50V 5% R/TP NP0 C463 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C464 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C465 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C466 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C467 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C468 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C469 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C470 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C471 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C472 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C473 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C474 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C475 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C476 0CC121CK41A 120PF 1608 50V 5% R/TP NP0 C477 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C478 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C479 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C480 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C481 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C482 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C483 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C484 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C485 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C486 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C487 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C488 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C489 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C490 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C491 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C492 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C493 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C494 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C495 0CZZTAT006B RV2-16V220MU-R ELNA 16V 22UF C496 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012”

- 34 -

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C497 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C500 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C501 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C502 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C503 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C504 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C505 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C506 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C507 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C508 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C509 0CZZTAT007L RE3-16V221MF3#-T36 ELNA 16V C510 0CZZTAT007L RE3-16V221MF3#-T36 ELNA 16V C511 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C512 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C513 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C514 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C515 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C516 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C517 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C518 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C519 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C520 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C601 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C602 0CZZTAT007M RE3-16V471MG3#-T8 ELNA 16V 4 C603 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C604 0CZZTAT007L RE3-16V221MF3#-T36 ELNA 16V C606 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C607 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C614 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C616 0CK472CK51A 4700PF 1608 50V 10% R/TP B(Y C617 0CC391CK41A 390PF 1608 50V 5% NP0 R/TP C619 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C620 0CC020CK01A 2PF 1608 50V 0.25 PF R/TP NP C621 0CC020CK01A 2PF 1608 50V 0.25 PF R/TP NP C622 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C628 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C633 0CC391CK41A 390PF 1608 50V 5% NP0 R/TP C634 0CC391CK41A 390PF 1608 50V 5% NP0 R/TP C635 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C636 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C637 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C638 0CK224CF56A 0.22UF 1608 16V 10% R/TP X7R C639 0CK683CK56A 0.068UF 1608 50V 10% X7R R/T C640 0CK683CK56A 0.068UF 1608 50V 10% X7R R/T C641 0CK683CK56A 0.068UF 1608 50V 10% X7R R/T C642 0CK152CK51A 1500PF 1608 50V 10% R/TP B(Y C644 0CK472CK51A 4700PF 1608 50V 10% R/TP B(Y C645 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C650 0CK472CK51A 4700PF 1608 50V 10% R/TP B(Y C653 0CK472CK51A 4700PF 1608 50V 10% R/TP B(Y C806 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C810 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100

D1 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D2 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D3 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D4 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D5 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D6 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D7 0DS226009AA KDS226 TP KEC SOT-23 80V 30

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

D8 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D9 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D10 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D11 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D12 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D13 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D14 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D15 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D16 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D17 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D18 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D19 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D20 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D21 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D22 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D42 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D48 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 D49 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 ZD1 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD2 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD3 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD4 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD5 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 ZD6 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD7 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD8 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD9 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD10 0DZ120009CF UDZ 12B TP ROHM-K SOD323 200 ZD11 0DZ120009CF UDZ 12B TP ROHM-K SOD323 200 ZD12 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD13 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD14 0DZ120009CF UDZ 12B TP ROHM-K SOD323 200 ZD15 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD16 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD17 0DZ120009CF UDZ 12B TP ROHM-K SOD323 200 ZD18 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 ZD20 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323

IC1 0IMMRAL034A “AT24C64AN-10SI-2.7 ATMEL 8P,” IC2 0ISTLFA093A “MM74HC373WMX FAIRCHILD 20P,S” IC3 0ISM555000A SDA5550 MQFP100 BK MICOM TXT IC4 0IRH765700B “BA7657F 24P,SOP TP INPUT SIG” IC5 0ISTLFA094A “FSTD3306MTC FAIRCHILD 8P,TSS” IC6 0IKE702500B KIA7025AF 3P SOT-89 TP RESE IC7 0IPRPSG023A “M41T81 STM 8P,SOIC R/TP SERI” IC8 0ISTLFA093A “MM74HC373WMX FAIRCHILD 20P,S” IC9 0ICTMZI001A Z8622912SSC ZILOG 18PIN-SOIC IC10 0IMCRGN001B FLI2310BC GENESIS 208P PQFP IC11 0IPMGFA003D FAN1117AS-1.8 FAIRCHILD 4P S IC12 0IPRPAD011A AD9888KS-205 ANALOG DEVICE 1 IC13 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT IC14 0IPRPA9001A “ASI510(42””PDP) AURORA BGA 31” IC15 0IPMGFA003D FAN1117AS-1.8 FAIRCHILD 4P S IC16 0ISTLTI047A SN74LV4052APWR TEXAS INSTRUM IC17 0IS5161000B SIL161BCT100 SILICON IMAGE 1 IC18 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT IC19 0IMX232162A MAX232ACSE 16NARROW-SO RS232 IC20 0IFA111733A RC1117S-33 SOT-223 TP 1A 3.3 IC21 0IFA111733A RC1117S-33 SOT-223 TP 1A 3.3 IC22 0IFA111733A RC1117S-33 SOT-223 TP 1A 3.3

- 35 -

DIODEs

ICs

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

IC23 0IPMGFA003B RC1117S-2.5 FAIRCHILD SOT-22 IC24 0IRH033200A BA033FP-E2 MOLD-3 TP REGULAT IC25 0ISS780500H “KA78M05-R 3P,D-PAK TP 5V 0.5” IC26 0IMMRHY033A HY57V643220C(L)T-6 HYNIX 86P IC27 0IMMRHY033A HY57V643220C(L)T-6 HYNIX 86P IC28 0IFA111733A RC1117S-33 SOT-223 TP 1A 3.3 IC29 0IMMRHY033A HY57V643220C(L)T-6 HYNIX 86P IC30 0ISTLFA058A “74F14SCX FAIRCHILD 14P,SOIC” IC31 0IMMRNE002A UPD64083GF3BA NEC 100 QFP ST IC33 6620HJ4401A CCSD-44T-SM WOOYOUNG 44PP IC33 0IZZTSZ283A “ST 44P, PLCC, 8M OTP MEMORY” IC34 0ISS524202B S524A40X21(SCT0) SAMSUNG ELE IC35 0ISS780500H “KA78M05-R 3P,D-PAK TP 5V 0.5” IC36 0ISTLFA093A “MM74HC373WMX FAIRCHILD 20P,S” IC37 0ISS780500H “KA78M05-R 3P,D-PAK TP 5V 0.5” IC38 0ISTLTI047A SN74LV4052APWR TEXAS INSTRUM IC39 0IPMGKE039A “KIA78D09F KEC 3P,DPAK R/TP 9” IC40 0IPMGFA003B RC1117S-2.5 FAIRCHILD SOT-22 IC41 0ISO206900A CXA2069Q QFP64 BK I2C BUS AV IC42 0IFA111733A RC1117S-33 SOT-223 TP 1A 3.3 IC43 0IPRPSO008A “CXA2171AQ SONY 48P,QFP TRAY” IC44 0ITH638300B “THC63LVDM83R THINE 56P,TSSOP” IC45 0IFA111733A RC1117S-33 SOT-223 TP 1A 3.3 IC46 0IPMGKE039A “KIA78D09F KEC 3P,DPAK R/TP 9” IC49 0ISS524202B S524A40X21(SCT0) SAMSUNG ELE IC53 0TFFC80009A FAIRCHILD FDC6326L R/TP SOTIC601 0IIT323000E VPC3230D C5 80P QFP TRAY VID

FB1 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB2 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB4 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB6 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB8 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB9 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB14 6210TCE001F HB-1S2012-800JT CERATEC 2012 FB15 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB16 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB17 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB18 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB19 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB20 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB24 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB25 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB26 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB27 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB28 6210TCE001B HH-1H3216-500JT CERATEC 3216 FB29 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB32 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB34 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB35 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB39 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB41 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB48 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB50 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB52 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB53 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB54 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB55 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB56 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB57 6210TCE001Z HH-1M2012-600JT CERATEC R/TP

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

FB58 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB59 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB65 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB72 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB73 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB74 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB75 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB76 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB79 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB80 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB81 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB82 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB83 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB84 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB85 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB90 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB91 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB92 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB93 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB94 6210TCE001Z HH-1M2012-600JT CERATEC R/TP FB95 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB97 6210TCE001F HB-1S2012-800JT CERATEC 2012 FB98 6210TCE001F HB-1S2012-800JT CERATEC 2012 FB99 6210TCE001F HB-1S2012-800JT CERATEC 2012 FB100 6210TCE001F HB-1S2012-800JT CERATEC 2012 FB101 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB102 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB103 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB104 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB105 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB106 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB107 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB108 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB109 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB110 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB111 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB112 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB113 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB114 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB115 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB116 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB117 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB118 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB119 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB120 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB121 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB122 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB123 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB601 6210TCE001G HH-1M3216-501 CERATEC 3216MM FB602 6210TCE001G HH-1M3216-501 CERATEC 3216MM L1 6140TBZ016H “- - DR10*7,0.5MM 22UH,L2320A” L2 6140TBZ016H “- - DR10*7,0.5MM 22UH,L2320A” L3 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L4 6140TBZ016H “- - DR10*7,0.5MM 22UH,L2320A” L5 6140TBZ016H “- - DR10*7,0.5MM 22UH,L2320A” L7 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L10 6140TBZ016H “- - DR10*7,0.5MM 22UH,L2320A” L11 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L12 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L13 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L22 0LC2000005E “FI-C2012-822KJT,8.2UH CERATE” L36 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT”

- 36 -

COIL & COREs

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

L38 0LC2000005F F1-C2012-562-KJT CERATECH R/ L42 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L43 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L44 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L45 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L46 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L51 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L60 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L61 0LC2000005D “F1-B2012-332KJT,3.3 UH CERAT” L62 0LCTD00015A “NL322522T-181J,180UH TDK R/T” L63 0LCTD00015A “NL322522T-181J,180UH TDK R/T” L501 6200J00011A H354LAI-K5202 TOKO R/TP BAND L502 6200J00011A H354LAI-K5202 TOKO R/TP BAND L503 6200J00011A H354LAI-K5202 TOKO R/TP BAND L504 6200J00011A H354LAI-K5202 TOKO R/TP BAND L505 6200J00011A H354LAI-K5202 TOKO R/TP BAND L506 6200J00011A H354LAI-K5202 TOKO R/TP BAND L507 6200J00011A H354LAI-K5202 TOKO R/TP BAND L508 6200J00011A H354LAI-K5202 TOKO R/TP BAND L509 6200J00011A H354LAI-K5202 TOKO R/TP BAND

Q1 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q2 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q3 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q4 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q5 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q6 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q7 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q8 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q9 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q10 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q11 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q12 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q13 0TR150400BA CHIP 2SA1504S(ASY) BK KEC Q14 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q15 0TR387500AA CHIP 2SC3875S(ALY) KEC Q16 0TR150400BA CHIP 2SA1504S(ASY) BK KEC Q17 0TR387500AA CHIP 2SC3875S(ALY) KEC Q18 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q19 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q20 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q21 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q22 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q23 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q24 0TR144009AH DTC144EK CHIP TP ROHM - Q25 0TR387500AA CHIP 2SC3875S(ALY) KEC Q26 0TR144009AI DTA144EK CHIP TP ROHM - Q27 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q28 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q29 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q30 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q31 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q32 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q33 0TR150400BA CHIP 2SA1504S(ASY) BK KEC Q34 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q35 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q36 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q37 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q38 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q39 0TR390609FA KST3906-MTF TP SAMSUNG SOT2

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Q40 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q41 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q42 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q43 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q44 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q45 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q46 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q47 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q48 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q49 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q50 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q51 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q52 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q53 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q54 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q55 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q56 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q57 0TR390609FA KST3906-MTF TP SAMSUNG SOT2 Q58 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q59 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q62 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q63 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q102 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP

R1 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R2 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R3 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R4 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R5 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R6 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R7 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R8 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R9 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R12 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R13 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R14 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R15 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R16 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R17 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R18 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R19 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R20 0RH4702D622 47K 1/10W 5 D.R/TP R21 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R22 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R24 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R23 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R25 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R26 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R27 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R28 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R29 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R30 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R31 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R32 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R33 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R34 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R35 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R36 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R37 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R38 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP

- 37 -

TRANSISTOR

RESISTORs

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R39 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R40 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R41 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R42 0RH1000D622 100 1/10W 5 D.R/TP R43 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R44 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R45 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R46 0RH1000D622 100 1/10W 5 D.R/TP R47 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R48 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R49 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R50 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R51 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R52 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R53 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R54 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R55 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R56 0RH1000D622 100 1/10W 5 D.R/TP R57 0RH1000D622 100 1/10W 5 D.R/TP R58 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R59 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R60 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R61 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R62 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R63 0RH1000D622 100 1/10W 5 D.R/TP R64 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R65 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R66 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R67 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R68 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R69 0RJ1004D677 1000000 OHM 1/10 W 5% 1608 R R70 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R71 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R72 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R73 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R74 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R75 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R76 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R77 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R78 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R79 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R80 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R81 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R82 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R83 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R84 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R85 0RH1000D622 100 1/10W 5 D.R/TP R89 0RH1000D622 100 1/10W 5 D.R/TP R90 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP R91 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP R92 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T R93 0RJ1211D477 1.21K OHM 1/10 W 1% 1608 R/T R95 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R96 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R97 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R98 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R100 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R101 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R102 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R103 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R104 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R105 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R106 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R107 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R108 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R109 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R110 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R111 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R112 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R113 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R114 0RH1000D622 100 1/10W 5 D.R/TP R115 0RH0000D622 0 1/10W P-TYPE TAPPING R116 0RH0000D622 0 1/10W P-TYPE TAPPING R117 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R118 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R119 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R120 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R122 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R123 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R124 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R125 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R126 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R127 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R128 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R129 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R130 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R131 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R132 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R133 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/TP R134 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/TP R135 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/TP R136 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP R137 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP R138 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP R139 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R140 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R141 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R142 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R143 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R144 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R145 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R146 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R147 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R148 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R151 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R152 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R153 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R154 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R155 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R156 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R157 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R158 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R159 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R163 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R164 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R165 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R166 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R167 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R168 0RH4702D622 47K 1/10W 5 D.R/TP R169 0RH4702D622 47K 1/10W 5 D.R/TP R174 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R175 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R176 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R177 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP

- 38 -

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R178 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R179 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R180 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R181 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R182 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R183 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R184 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R185 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R186 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R187 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R188 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R189 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R190 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R191 0RJ3302D677 33K OHM 1/10 W 5% 1608 R/TP R192 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R193 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R194 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R195 0RJ2002D677 20000 OHM 1/10 W 5% 1608 R/T R196 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R197 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R198 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R199 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R200 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R202 0RH1000D622 100 1/10W 5 D.R/TP R204 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R205 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R206 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R207 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R208 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP R209 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R210 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R211 0RH0000D622 0 1/10W P-TYPE TAPPING R213 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R215 0RJ3600D477 360 OHM 1/10 W 1% 1608 R/TP R216 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R217 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R218 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R222 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP R223 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R224 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R225 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R226 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R227 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R228 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R229 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R230 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R231 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R232 0RH0752D622 75 1/10W 5 D.R/TP R234 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R235 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R236 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R237 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R238 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R240 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T R241 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T R242 0RH1000D622 100 1/10W 5 D.R/TP R243 0RH1000D622 100 1/10W 5 D.R/TP R244 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R245 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R246 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R248 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R251 0RH4702D622 47K 1/10W 5 D.R/TP

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R252 0RH4700D622 470 1/10W 5 D.R/TP R253 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R254 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R255 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP R256 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R257 0RH1002D422 10000 OHM 1 / 10 W 1% D R/TP R258 0RH0000D622 0 1/10W P-TYPE TAPPING R259 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R260 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R261 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R262 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R263 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R264 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R265 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R266 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R267 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R268 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R269 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R270 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R271 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R272 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R273 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R274 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R275 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R276 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R277 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R278 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R279 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R280 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R282 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R283 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R284 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R285 0RJ4703D677 470K OHM 1/10 W 5% 1608 R/TP R288 0RH0752D622 75 1/10W 5 D.R/TP R289 0RH0752D622 75 1/10W 5 D.R/TP R290 0RH0752D622 75 1/10W 5 D.R/TP R291 0RH5600D622 560 1/10W 5 D.R/TP R292 0RH5600D622 560 1/10W 5 D.R/TP R293 0RH5600D622 560 1/10W 5 D.R/TP R294 0RH6801D622 6.8K 1/10W 5 D.R/TP R295 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R296 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R297 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R298 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R299 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R300 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R301 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R302 0RH6801D622 6.8K 1/10W 5 D.R/TP R303 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R304 0RH6801D622 6.8K 1/10W 5 D.R/TP R305 0RH7501D622 7.5K 1/10W 5 D.R/TP R306 0RH7501D622 7.5K 1/10W 5 D.R/TP R307 0RH7501D622 7.5K 1/10W 5 D.R/TP R308 0RH7501D622 7.5K 1/10W 5 D.R/TP R309 0RH7501D622 7.5K 1/10W 5 D.R/TP R310 0RH7501D622 7.5K 1/10W 5 D.R/TP R311 0RH6801D622 6.8K 1/10W 5 D.R/TP R312 0RH6801D622 6.8K 1/10W 5 D.R/TP R313 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R314 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP R315 0RH6801D622 6.8K 1/10W 5 D.R/TP R316 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP

- 39 -

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R317 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T R318 0RH5600D622 560 1/10W 5 D.R/TP R319 0RH5600D622 560 1/10W 5 D.R/TP R320 0RH5600D622 560 1/10W 5 D.R/TP R321 0RH0752D622 75 1/10W 5 D.R/TP R322 0RH0752D622 75 1/10W 5 D.R/TP R323 0RH0752D622 75 1/10W 5 D.R/TP R324 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R325 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R326 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R327 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R328 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R329 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R330 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R331 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R333 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R334 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R335 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R336 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R337 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R338 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R339 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R340 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R341 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R342 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R343 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R344 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R345 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R346 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R347 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R348 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R349 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R350 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R351 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/TP R354 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R355 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R358 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R359 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R361 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R362 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R363 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R364 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R365 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R368 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R373 0RJ2400D677 240 OHM 1/10 W 5% 1608 R/TP R374 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R375 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R376 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R377 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R378 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R379 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R380 0RH1000D622 100 1/10W 5 D.R/TP R381 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R383 0RH1000D622 100 1/10W 5 D.R/TP R384 0RH1000D622 100 1/10W 5 D.R/TP R385 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP R386 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP R387 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP R388 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/TP R389 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/TP R390 0RJ6801D677 6800 OHM 1/10 W 5% 1608 R/TP R391 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R392 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R393 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R394 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R395 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R396 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R397 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R398 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R399 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R400 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R401 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R402 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R403 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R404 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R405 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R406 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R407 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R408 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R409 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R410 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R415 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R416 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R417 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP R418 0RJ2203D677 220K OHM 1/10 W 5% 1608 R/TP R419 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R420 0RJ1002D477 10K OHM 1/10 W 1% 1608 R/TP R421 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R422 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R423 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R424 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R425 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R426 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R427 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R428 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R429 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R430 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R431 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R432 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R433 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R434 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R435 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R436 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R437 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R438 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R439 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R440 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R441 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R442 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R443 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R444 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R445 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R447 0RH0752D622 75 1/10W 5 D.R/TP R448 0RH0752D622 75 1/10W 5 D.R/TP R449 0RH0752D622 75 1/10W 5 D.R/TP R450 0RH0752D622 75 1/10W 5 D.R/TP R451 0RJ3303D677 330K OHM 1/10 W 5% 1608 R/TP R453 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R454 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R463 0RH1000D622 100 1/10W 5 D.R/TP R464 0RH1000D622 100 1/10W 5 D.R/TP R465 0RH0000D622 0 1/10W P-TYPE TAPPING R466 0RH2201D622 2.2K OHM 1 / 10 W 2012 5.00% R468 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D

- 40 -

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R469 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R470 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R471 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R472 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R473 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D R477 0RH1000D622 100 1/10W 5 D.R/TP R478 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R479 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R480 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R481 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R487 0RH0000D622 0 1/10W P-TYPE TAPPING R488 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R489 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R490 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R491 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R492 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R493 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP R494 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R495 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R496 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R497 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R498 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R499 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R500 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R501 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R502 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R503 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R504 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R505 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R506 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R507 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R508 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R509 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R510 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R511 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R512 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R513 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R514 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R515 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R516 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R517 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R518 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R519 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/TP R520 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R521 0RJ3300D677 330 OHM 1/10 W 5% 1608 R/TP R522 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R523 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R524 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R530 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R531 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R532 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R533 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R535 0RH0000D622 0 1/10W P-TYPE TAPPING R536 0RH0000D622 0 1/10W P-TYPE TAPPING R537 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R538 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R539 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R544 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R545 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R546 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP R547 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R549 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R555 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R556 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R557 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R562 0RH0000D622 0 1/10W P-TYPE TAPPING R563 0RH0000D622 0 1/10W P-TYPE TAPPING R564 0RH0000D622 0 1/10W P-TYPE TAPPING R565 0RH0000D622 0 1/10W P-TYPE TAPPING R566 0RH0000D622 0 1/10W P-TYPE TAPPING R567 0RH0000D622 0 1/10W P-TYPE TAPPING R601 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R602 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R603 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R617 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R634 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP RA1 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA2 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA3 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA4 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA5 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA6 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA7 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA8 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA9 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA10 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA11 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA12 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA13 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA14 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA15 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA16 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA17 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA18 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA19 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA20 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA21 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA22 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA23 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA24 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA25 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA26 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA27 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA28 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA29 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA30 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA31 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA46 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA47 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA48 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA49 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA50 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA51 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA52 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA53 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA54 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA55 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA56 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA57 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA58 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA59 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA60 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA61 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA62 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32

- 41 -

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

RA63 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA64 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA65 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA66 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA67 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA72 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA73 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA74 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA75 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA76 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA77 0RHZTCZ001A RCA SMART 100OHM 1/16 W 5% 3 RA78 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA79 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA80 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA81 0RHZTCZ001E RCA SMART 47OHM 1/16 W 5% 32 RA603 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1 RA604 0RHZTCZ001D RCA86TRJ22R0 SMART 22OHM 1/1

X1 6212AA2004H HC-49U TXC 6MHZ +/- 30 PPM 2 X2 6212AA2004B HC-49U TXC 20.0MHZ +/- 30 PP X3 6212AA2004F HC-49U TXC 14.318 MHZ +/- 30 X4 6212AA2004G HC-49U TXC 13.5MHZ +/- 30 PP X601 6202TST003C HC-49/SM5H KONY CHIP 20.25MH X7 6212AC2002A 6H26 TXC 32.768KHZ +/- 30 PP X8 6212AA2004K HC-49U TXC 4MHZ +/- 30 PPM 2

C101 0CZZTAT006C RV2-16V470MU-R ELNA 16V 47UF C120 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C119 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C118 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C117 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C116 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C115 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C113 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C112 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C111 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C110 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C109 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C108 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C106 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C105 0CZZTAT006C RV2-16V470MU-R ELNA 16V 47UF C104 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C103 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C102 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R D111 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D109 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D101 0DS226009AA KDS226 TP KEC SOT-23 80V 30 ZD102 0DZ910009FE UDZS 9.1B TP ROHM - - 9.1V ZD101 0DZ910009FE UDZS 9.1B TP ROHM - - 9.1V R132 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R131 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R130 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R129 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R128 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R127 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R126 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R125 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R124 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R122 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R121 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/TP R120 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/TP R119 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R118 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R117 0RJ2702D677 27K OHM 1/10 W 5% 1608 R/TP R116 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R115 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T R114 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R113 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R112 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R111 0RJ2702D677 27K OHM 1/10 W 5% 1608 R/TP R110 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R109 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T R108 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R106 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R105 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R104 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R103 0RJ2702D677 27K OHM 1/10 W 5% 1608 R/TP R102 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R101 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T Q103 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q102 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q101 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP IC104 0IPMGKE036A KIA78DL09F KEC DPARK R/TP 9V IC103 0IPRPAD019A “AD8091 ANALOG DEVICE 5P,SOT2” IC102 0IPRPAD019A “AD8091 ANALOG DEVICE 5P,SOT2” IC101 0IPRPAD019A “AD8091 ANALOG DEVICE 5P,SOT2” FB102 6210TCE001B HH-1H3216-500JT CERATEC 3216 FB101 6210TCE001B HH-1H3216-500JT CERATEC 3216

C1103 0CN1030F679 10000P 16V M Y TA52 C1102 0CN1040K949 0.1M 50V Z F TA52 C1101 0CN1040K949 0.1M 50V Z F TA52 D1101 0DZ510009BE GDZ5.1B TP GRANDE DO34 500MW R1106 0RN1201F409 1.20K 1/6W 1% TA52 R1105 0RN7500F409 750 1/6W 1% TA52 R1104 0RN5100F409 510 1/6W 1 TA52 R1103 0RN3900F409 390 1/6W 1% TA52 R1102 0RN2700F409 270 1/6W 1% TA52 R1101 0RN2001F409 2K OHM 1/6 W 1.00% TA52 S1106 140-058E SKHV10910B LGEC NON 12V 20A S1105 140-058E SKHV10910B LGEC NON 12V 20A S1104 140-058E SKHV10910B LGEC NON 12V 20A S1103 140-058E SKHV10910B LGEC NON 12V 20A S1102 140-058E SKHV10910B LGEC NON 12V 20A S1101 140-058E SKHV10910B LGEC NON 12V 20A FB1101 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM

C301 0CC1010K405 100P 50V J SL TS C302 0CC1010K405 100P 50V J SL TS C303 0CZZTAT007H RE3-50V100ME3#-T2 ELNA 50V 1 C304 181-288H MKT 100V 333JTR PHS 86333 C305 181-288H MKT 100V 333JTR PHS 86333 C306 0CK1030K945 0.01UF 50V Z F TR C307 181-288H MKT 100V 333JTR PHS 86333 C308 0CZZTAT007H RE3-50V100ME3#-T2 ELNA 50V 1 C309 0CZZTAT007H RE3-50V100ME3#-T2 ELNA 50V 1

- 42 -

OTHERs

INTERFACE BOARD

CONTROL BOARD

SOUND BOARD

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C310 0CQ2231N419 0.022UF 100V J PE NI TP C311 0CZZTAT007G RE3-50V4R7ME3#-T2 ELNA 50V 4 C313 0CZZTFT001L ECQB1H822JM3 822J 50V TP5.0 C314 0CZZTAT007F RE3-50V3R3ME3#-T2 ELNA 50V 3 C315 0CK1030K945 0.01UF 50V Z F TR C316 0CK1030K945 0.01UF 50V Z F TR C317 0CZZTAT005B RJ4-16V101MX ELNA 16V 100UF C318 0CK2230K945 0.022UF 50V Z F TR C319 0CZZTFT001V ECQB1H473JM3 473J 50V TP5.0 C320 181-288H MKT 100V 333JTR PHS 86333 C321 0CQ2231N419 0.022UF 100V J PE NI TP C322 0CK1030K945 0.01UF 50V Z F TR C323 0CK1030K945 0.01UF 50V Z F TR C326 0CZZTAT007G RE3-50V4R7ME3#-T2 ELNA 50V 4 C327 0CZZTAT007B RE3-16V470ME3#-T2 ELNA 16V 4 C328 0CZZTAT007H RE3-50V100ME3#-T2 ELNA 50V 1 C329 0CZZTAT007D RE3-35V331MH3#-T2 ELNA 35V 3 C331 0CK1040K945 0.1UF 50V Z F TR C332 0CZZTAT007C RE3-25V221MG3#-T2 ELNA 25V 2 C334 0CZZTAT007B RE3-16V470ME3#-T2 ELNA 16V 4 C335 0CK1040K945 0.1UF 50V Z F TR C346 0CZZTFT001L ECQB1H822JM3 822J 50V TP5.0 C351 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C352 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C353 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C354 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C355 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C356 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C357 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C358 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C359 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 C360 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C361 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C362 0CH6221K416 220PF 50V J NP0 2012 R/TP C363 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C364 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C365 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C366 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C367 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” C368 0CZZTAT006A RV2-16V100MU-R ELNA 16V 10UF C369 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C370 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP C371 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C372 0CH3474H946 “0.47UF 25V 80%,-20% F(Y5V) 2” C373 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C374 0CH3103K516 10000PF 50V 10% B(Y5P) 2012 C375 0CH3105H946 “1UF 25V 80%,-20% F(Y5V) 2012” D301 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D302 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D303 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D304 0DS226009AA KDS226 TP KEC SOT-23 80V 30 D305 0DD140009AA EK14 V(1) TP SANKEN E/EO-TMD FB301 125-155G BFS3550R2FG SAMWHA 3.5*5MM R IC301 0IPRPTO015A “TA1343N TOSHIBA 24P,SDIP ST” IC302 0IPMGKE036A KIA78DL09F KEC DPARK R/TP 9V IC351 0IPRPTI030A TPA3002D2PHP TEXAS INSTRUMEN L351 6140TBZ007E “SLF12575T-330M3R2,TDK SMD CH” L352 6140TBZ007E “SLF12575T-330M3R2,TDK SMD CH” L353 6140TBZ007E “SLF12575T-330M3R2,TDK SMD CH” L354 6140TBZ007E “SLF12575T-330M3R2,TDK SMD CH” Q301 0TR127009AA KTA1270-Y(KTA562TM) TP KEC T Q304 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R301 0RH4703D622 470K 1/10W 5 D.R/TP R302 0RH4703D622 470K 1/10W 5 D.R/TP R303 0RH1000D622 100 1/10W 5 D.R/TP R304 0RH1000D622 100 1/10W 5 D.R/TP R305 0RH1000D622 100 1/10W 5 D.R/TP R306 0RH1000D622 100 1/10W 5 D.R/TP R307 0RH1000D622 100 1/10W 5 D.R/TP R308 0RH1000D622 100 1/10W 5 D.R/TP R313 0RH2702D622 27K 1/10W 5 D.R/TP R314 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R315 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R316 0RH6801D622 6.8K 1/10W 5 D.R/TP R317 0RJ2002D477 20K OHM 1/10 W 1% 1608 R/TP R318 0RJ3302D477 33K OHM 1/10 W 1% 1608 R/TP R319 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D R320 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% R321 0RJ1001D477 1K OHM 1/10 W 1% 1608 R/TP R351 0RH1203D622 120K OHM 1 / 10 W 5% D R/TP

C501 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C502 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C503 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C504 0CZZTAT006D RV2-16V101MSU-R ELNA 16V 100 IC502 0IKE358000P KIA358F 8P FLP-8 TP OP-AMP D R501 0RJ1000D477 100 OHM 1/10 W 1% 1608 R/TP R502 0RJ1001D477 1K OHM 1/10 W 1% 1608 R/TP R503 0RJ3901D677 3.9K OHM 1/10 W 5% 1608 R/TP R504 0RJ6801D477 6.8K OHM 1/10 W 1% 1608 R/TP

C1202 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1203 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C1204 0CK105CF94A “1UF 1608 16V 80%,-20% R/TP F” C1205 0CK105CF94A “1UF 1608 16V 80%,-20% R/TP F” D1201 0DLLT0238AA LITEON LTST-C155KGJRKT R/TP D1202 0DLLT0238AA LITEON LTST-C155KGJRKT R/TP D1203 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 D1204 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 IC1201 6726TV0001A TSOP4838SO1 VISHAY 38.0KHZ H R1201 0RJ1211D477 1.21K OHM 1/10 W 1% 1608 R/T R1202 0RJ2000D677 200 OHM 1/10 W 5% 1608 R/TP R1203 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R1204 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R1205 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP S1201 6600R00004A JTP1138A6EM JEIL 12VDC 50MA

C303 0CN1040K949 0.1M 50V Z F TA52 C1301 0CH6150K416 15PF 50V J NP0 2012 R/TP C1302 0CH6150K416 15PF 50V J NP0 2012 R/TP C1303 0CH6150K416 15PF 50V J NP0 2012 R/TP C1304 0CH6150K416 15PF 50V J NP0 2012 R/TP C1305 0CH6150K416 15PF 50V J NP0 2012 R/TP C1306 0CH6150K416 15PF 50V J NP0 2012 R/TP C1307 0CH6150K416 15PF 50V J NP0 2012 R/TP C1308 0CH6150K416 15PF 50V J NP0 2012 R/TP FB1301 6210TCE001B HH-1H3216-500JT CERATEC 3216 FB1302 6210TCE001B HH-1H3216-500JT CERATEC 3216

- 43 -

TEMP.SENSOR BOARD

LED & POWER SWITCH BOARD

ETC SWITCH BOARD

DATE: 2003. 09. 08.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

FB1303 6210TCE001B HH-1H3216-500JT CERATEC 3216 FB1304 6210TCE001B HH-1H3216-500JT CERATEC 3216 IC501 0IPRPNS030A LM35DZ NATIONAL SEMICONDUCTO R301 0RD4701Q609 4.70K 1/4W(3 5% TA52 R302 0RD4701Q609 4.70K 1/4W(3 5% TA52 R303 0RD4701Q609 4.70K 1/4W(3 5% TA52

- 44 -

PIN CONFIGURATION

- 45 -

SIL161BCT100

HS_DJTR

SiI 161B

100-Pin TQFP

(Top View)

PIXS

GND5

VCC

STAG_OUT7

SCDT

PDO

QE0

QE1

QE2

QE3

QE4

QE5

QE6

QE7

OVCC

OGND

QE8

QE9

QE1022

QE11

QE1224

QE13

QE1426QE1527OGND28OVCC29QE1630QE1731QE1832QE1933QE2034QE2135QE2236

QE2337VCC38GND39CTL140CTL241

CTL342OVCC43ODCK44

OGND45DE46VSYNC

HSYNC48QO049

QO1

QO21

QO20

QO19

QO18 71

QO17

QO16 69

GND

VCC

QO15

QO14

QO13

QO12

QO11

QO10

QO9

QO8

OGND

OVCC

QO7

QO6

QO5 54

QO4

QO3 52

QO2

QO22

OCK_INV

100

RESERVED

PGND

PVCC

EXT_RES

AVCC

RXC-

RXC+

AGND

RX0-

RX0+ 90

AGND

AVCC

AGND

RX1-

RX1+ 85

AVCC

AGND

AVCC 82

RX2-

RX2+

AGND

OVCC

QO23 77

OGND

DIFFERENTI AL SIGNAL

ODD 8-bits RED

EVEN 8-bits RED

ODD 8-bits GREEN

EVEN 8-bits GREEN

ODD 8-bits BLUE

EVEN 8-bits BLUE

CONFIG. PINS

PLL

PWR

MANAGEM ENT

GPO

OUTPUT CLOCK

CONTROLS

PIN CONFIGURATION

CTL3

RX2+ RX2-

RX1+ RX1-

RX0+ RX0-

RXC+ RXC-

SYNC2

EXT_RES

PDO

ODCK

PIXS HS_DJTR OCK_INV

STAG_OUT

Data Recovery

CH2

VCR

Termination

Control

Data Recovery

CH1

VCR

Data Recovery

CH0

VCR

PLL

VCR

SYNC1

SYNC0

Channel

SYNC

SYNC2

SYNC1

SYNC0

Decoder

CTL2

CTL1

VSYNC HSYNC

Panel Inter-

face

Logic

QE[23:0]

QO[23:0]

DE HSYNC VSYNC

CTL3

CTL2

CTL1

SCDT

DATA

BLOCK DIAGRAM

- 46 -

AD988KS-205 ANALOG

66 65

101

102

100

120

121

122

123

124

125

126

127

128

119

111

118

117

116

115

114

113

112

110

109

108

107

106

105

104

103

PIN 1 IDENTIFIER

TOP VIEW

(Not to Scale)

VSOUT

SOGOUT

HSOUT

DATACKB

DATACK

GND

GND GND V

GND

DGA

FILT

DGA

COAST

DGA

CKEXT

DGA

GND

DGA

DGB

GND D

BA0

DBA

REF BYPASS

GND GND

AIN

RMIDSCV

GND

SOGIN0

AIN

GND

SOGIN1

AIN

GND

AIN

GND

AIN

BMIDSCV

GND GND

CKINV

CLAMP

SDA

SCL

BA5

DBA

GND D

GB0

DGB

AD9888

A0 V

GND GND

DBA

GND GND GND GND

GND

VSYNC1

HSYNC1

VSYNC0

HSYNC0

PVD

GND

PVD

GND

PIN CONFIGURATION

- 47 -

SOGIN0

HSYNC0

COAST

MUX2

SYNC SLICER

SOGIN1

HSYNC1

NEGATIVE PEAK

CLAMP

COMP SYNC

SYNC SEPARATOR

SOGOUT

HSYNCOUT

VSYNCOUT

ACTIVITY

DETECT

POLARITY

DETECT

POLARITY

DETECT

ACTIVITY

DETECT

POLARITY

DETECT

MUX3

MUX4

CLOCK

GENERATOR

MUX5

ACTIVITY

DETECT

MUX1

INTEGRATOR

1/S

VSYNC0

VSYNC1

MUX5

PIXEL CLOCK

VSYNC

PLL

BLOCK DIAGRAM

ASI510(42”PDP) AURORA

ADI Input Stage Video image Processing Chnnel X

Video image Processing Chnnel Y

ADI

Digital

Port

Video A

Port

Video B

Port

Analog

Sync

Digital

Sync

Comp

Sync

I2C Parallel

Data

Formatter

Memory controller

Input


Enhancer

Scalar

Engine

De-

Interlacing

engine

Output


Enhancer

Data

Formatter

Input


Enhancer

Scalar

Engine

De-

Interlacing

engine

Output


Enhancer

ADI

GPIO

Interface

Mem

PLL

Display

PLL

System

PLL

Host Micro

Interface

InfraRed

Interface

Sync

Processing

BLOCK DIAGRAM

SCHEMATIC DIAGRAM

- 48 -

1. DSUB & AD9888

- 49 -

2. SCALER(ASI510)

- 50 -

3. MEMORY

- 51 -

4. FLI2310

- 52 -

5. VPC3230D

- 53 -

6. CXA2171AQ/BA7657/CONNECTOR

- 54 -

7. MICOM

- 55 -

8. POWER

- 56 -

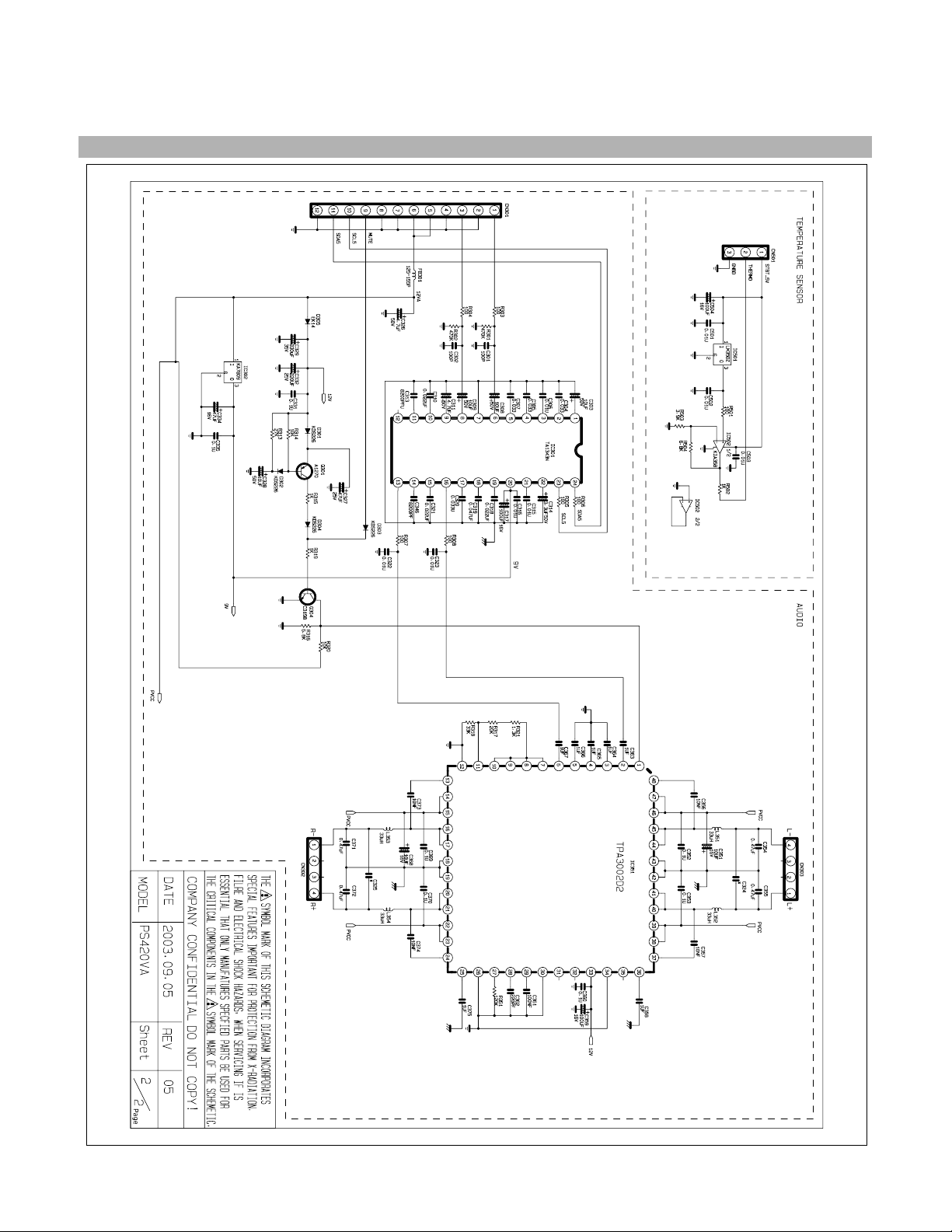

9. AUDIO

- 57 -

10. OPTION

Sep. 2003

P/NO : 3828TSO063A Printed in Korea

LG PFM42V1, PFM-42V1E Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
