Owner's Manual

DLP PROJECTOR

Please read the safety information carefully before using the product.

PF85U

www.lg.com

LICENSE

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO: DivX® is a digital video format created by

DivX, LLC, a subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that has passed rigorous testing to verify

that it plays DivX video. Visit divx.com for more information and

software tools to convert your les into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device

must be registered in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx. com for more information on how to complete your registration.

DivX Certied® to play DivX® video up to HD 1080p, including

premium content.

DivX®, DivX Certied® and associated logos are trademarks

of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. patents:

7,295,673; 7,460,668; 7,515,710; 7,519,274 The terms HDMI and HDMI High-Denition Multimedia Interface,

and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS

2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All Rights

Reserved.

This device meets the EMC requirements for home appliances (Class B) and is intended for home usage. This device can be used in all regions.

NOTE

Image shown may differ from your projector.

Your projector’s OSD (On Screen Display) may differ slightly from that shown in

this manual.

SAFETY INSTRUCTIONS

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SAFETY INSTRUCTIONS

Please take note of the safety instructions to prevent any potential accident or misuse of the projector.

Safety precautions are given in two forms, i.e. Warning and Caution as detailed below.

WARNING Failure to follow the instructions may cause serious injury and even death.

CAUTION Failure to follow the instructions may cause personal injury or product

damage.

Read the owner's manual carefully and keep it on hand.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning ash with

arrowhead symbol, within

an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure

that may be of sufcient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE

AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

Read these instructions. Keep these instructions.

Heed all warnings.

Follow all instructions.

Indoor Installation

WARNING

Do not use the projector outside and

do not expose the product to any humidity or water.

- Since the product is not waterproof, this may result in a fire or electric shock.

Do not place the projector in direct

sunlight or near heat sources such as radiators, fires, stoves, etc

- This may result in fire.

Do not place flammable materials

such as aerosols near the projector.

- This may result in fire.

Do not allow children to cling to or

climb up to the projector.

- This may cause the projector to fall, causing injury or death.

Do not install the product in a place

with no ventilation (e.g., on a bookshelf or in a closet) or on a carpet or cushion.

- This may result in fire due to the increase in internal temperature.

SAFETY INSTRUCTIONS

Do not place the product close to

sources of steam, oil or oil mist, such as humidifiers and kitchen counters.

- Failure to do so may result in fire, electric shock, or corrosion.

Do not install the product onto a wall

or ceiling that is close to sources of oil or oil mist.

- The product may be damaged and fall, resulting in serious injury.

Do not place the projector where it

might be exposed to dust.

- This may result in fire.

Do not use the projector in a damp

place such as a bathroom where it is likely to get wet.

- This may result in fire or electric shock.

Do not allow a tablecloth or curtain to

block the air vent.

- This may result in fire due to the increase in the internal temperature.

Ensure good ventilation around the

projector. The distance between the projector and the wall should be

least 30 cm (11.8 inches)

- This will prevent fire due to the increase in the internal temperature.

CAUTION

When placing the projector on a table

or shelf, be careful not to put it near the edge.

- The projector could fall due to bal- The projector could fall due to bal-The projector could fall due to balance problems, which may cause personal injury or damage to the product. Make sure to use the projector cabinet or stand that fits the projector.

When moving the projector

sure to switch it off power plug and cords.

- The power cord may be damaged, resulting in fire or electric shock.

and remove the

, make

Do not place the projector on an

unstable or vibrating surface such as a wobbly shelf or a slope.

- It may fall and cause injury. Be careful not to tip the projector over

when connecting external devices to the projector.

- This may cause personal injury or damage to the projector.

Power

WARNING

The grounding wire should be con-

nected.

- Ensure that you connect the grounding cable to avoid electric shock. If it is not possible to ground the unit,

have a qualied electrician install a

separate circuit breaker. Do not try to ground the projector by connecting it to telephone wires, lightning rods or gas pipes.

The power plug should be inserted

fully into the power outlet.

- An unstable connection may cause a fire.

Do not place heavy objects on the

power cord.

- This may result in fire or electric shock.

Never touch the power plug with wet

hands.

- This may result in electric shock.

Do not plug too many devices into

one multi-power outlet.

- This may result in fire due to the power outlet overheating.

Prevent dust from collecting on the

power plug pins or outlet.

- This may result in fire.

To turn off the main power, remove

the power plug, which should be positioned so it is easy to access for operation.

SAFETY INSTRUCTIONS

CAUTION

Hold the plug firmly when unplugging.

- A damaged wire may create a fire hazard.

Ensure the power cord and plug are

not damaged, modified, severely bent, twisted, pulled, sandwiched or hot. Do not use the product if the power outlet is loose.

- This may result in fire or electric shock.

Keep the power cord away from heating

devices.

- The wire's sheath may melt, which may result in fire or electric shock

Place the projector where people will

not trip over or step on the power cord to protect the power cord and plug from any damage.

- This may result in fire or electric shock.

Do not turn the projector on or off

plugging in the power plug or unplugging it from the power outlet. (Do not use the power plug as a switch.)

- This may result in electric shock or damage to the product.

Do not insert a conductor into the

other side of the wall outlet while the power plug is inserted into the wall outlet. In addition, do not touch the power plug immediately after it is disconnected from the wall outlet.

- This may result in electric shock.

Only use the official power cord pro-

vided by LG Electronics. Do not use other power cords.

- This may result in fire or electric shock.

When In Use

Do not place anything containing

liquid on top of the projector such as a vase, flower pot, cup, cosmetics, or medicine; or ornaments, candles, etc.

- This may result in fire or electric

In the event that there is a heavy

impact or the cabinet is damaged, switch it off, unplug it from the power outlet and contact an authorized service

- This may result in electric shock. Do not insert pieces of metal such as

coins, hairpins or metal debris, nor flammable materials such as paper or matches into the projector.

- This is to prevent electric shock or fire. In the event that liquid or a foreign

object falls into the projector, switch it off and unplug it from the power outlet and contact our service center.

- This may result in fire or electric

Make sure that a child does not swal-

low the batteries when you replace the old remote control batteries with new ones. Keep batteries out of reach of children.

- If a child swallows a battery, consult

Never open any cover on the projector.

- Do not look directly into the lens

when the projector is in use.

- The bright light may damage your

When the lamp is on or has just been

turned off, avoid touching the air vent or lamp, because these will be very hot.

WARNING

shock, or cause injury due to falling.

center

shock.

a doctor immediately.

There is a high risk of electric shock

eyes.

SAFETY INSTRUCTIONS

If there is a gas leak in the room with

the projector, do not touch the projector or power outlet. Open the windows for ventilation.

- Sparks may cause fire or burns. Unplug the power cord from

during a lightning storm.

the outlet

- This will prevent shock or damage to the projector.

Do not use the projector near

electronic devices that generate a strong magnetic field. Do not put the plastic package used

to pack the projector around your head.

- This may cause suffocation.

Do not keep your hand on the projector

for a long time when it is running. When you play a game by connecting

a game console to a projector, it is recommended that you maintain

a distance of more than four times the diagonal length of the screen.

- Make sure that the connecting cable is

long enough. may fall causing damage to the product.

Do not place the projector or its

Otherwise, the product

personal injury or

remote control with battery in an extremely high temperature environment.

- This may result in fire.

Do not place heavy objects on the

projector.

- It may fall down and cause personal injury.

CAUTION

Be careful not to allow any impact to

the lens during transport. Do not touch the lens of the projector.

- The lens may be damaged.

Do not use any sharp tools on the

projector such as a knife or hammer, because this may damage the casing. In the event that no image appears

on the screen or no sound is heard, stop using the projector. Switch off the projector, unplug it from the power outlet

and contact our service center

- This may result in fire or electric shock.

Do not drop anything onto

the projector or allow anything to bang into the projector.

- This may cause damage to the projector or personal injury.

It is recommended that you maintain

a distance of at least 5-7 times the diagonal length of the screen.

- If you watch the screen at a close distance for a long time, your eye sight may become worse.

Do not block the light beam emitted

from the projector using a book or other object.

- Lengthy exposure to the projector beam may result in fire. In addition, the lens may be overheated and damaged by the reflected heat. Disable the AV function to stop projection temporarily or turn off the power.

Do not start the projector with the

volume turned up high.

- High volume may damage hearing.

SAFETY INSTRUCTIONS

Cleaning

WARNING

Do not spray the projector with

water when cleaning. Make sure water does not flow into the projector

- This may result in fire or electric shock.

When there is smoke or a strange

smell coming out from the projector or a foreign object falls into the projector, please switch it off and unplug it from the power outlet and contact our service center.

Otherwise, this may result in fire or

electric shock.

Use air spray, a soft cloth or a cotton

swab moistened with a chemical stains on the front projection lens.

CAUTION

Contact your seller or our service

center once a year to clean the internal parts of the projector.

- If you do not clean the projector for

When cleaning plastic parts such as

the projector case, first and wipe with a soft cloth. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, automobile or industrial shiner, abrasives, wax, benzene, or alcohol as these can damage the projector.

- This can result in fire, electric

Remove the plug from the outlet

before cleaning the product.

- Otherwise, this may result in electric

or alcohol to remove dust or

a long period of time, dust will accumulate, which may result in fire or damage to the projector.

unplug the power

shock or cause damage to the product (deformation and corrosion).

shock.

lens cleaning

Others

WARNING

When you go out, place the projector

out of reach of animals, and remove the power plug from the wall outlet.

- Using a damaged power cord may result in short circuit or fire.

Do not use the projector near high-

precision electronic devices or those that transmit weak radio signals.

- This may affect the operation of the product, causing an accident.

Only a qualified technician can

disassemble or modify the projector. For diagnosis, adjustment, or repair, contact your seller or our service center.

- This may result in fire or electric shock.

Do not stare directly into lens when in

operation, eye damage can occure. No user serviceable parts inside unit.

High voltage parts can cause shock

and even electrocution. Proper ventilation required, do not

block airflow around unit. Doing so can cause injury and internal overheating. To prevent damage to lamp, unit must

remain plugged in for approximately 3 minutes after power down to allow for proper cool down (not applicable on LED models). Do not touch the lens; doing so can

result in burns or damage to lens.

Lens and unit may be HOT during

and immediately after use. Use caution when handling unit, allowing for proper cool down. Only use a grounded electrical outlet.

SAFETY INSTRUCTIONS

Do not insert anything into or cover

up the exhaust vents.

- This may result in fire or electric shock.

Follow all maintenance guidelines

for optimal use; service only at an authorized service center. Lamp contains mercury and as such

must be disposed of according to local, state and federal laws (not applicable on LED models).

CAUTION

Do not mix new batteries with old

ones.

- Burst or leaking batteries may result in damage or injury.

Be sure to unplug if the projector is not

to be used for a long

period

- Accumulated dust may result in fire or

electric shock due to overheating, ignition, or poor insulation.

Only use the specified type of battery.

- Burst or leaking batteries may result in

damage or injury.

Do not charge the battery using any

devices other than the one provided with the product.

- This may result in damage to the

battery or fire.

Dispose of used batteries properly.

- This may result in explosion or fire. The correct method of disposal may vary depending on your country or region. Dispose of the battery pack as instructed.

Do not throw or disassemble the battery.

- This may result in fire or explosion

due to damage to the battery.

Always use batteries approved and

certified by LG Electronics.

- This will prevent damage or fire.

Store batteries away from metallic ob-

jects, such as keys and paper clips.

- Excess current may cause a rapid increase in temperature, resulting in fire or burns.

Do not store the batteries near any

heat source, such as a heater.

- This may result in fire or damage to the product.

Do not store batteries at temperatures

higher than 60 °C (140° F) or in high

humidity.

- This may result in explosion or fire.

Keep the batteries and remote out of

reach of children.

- This will prevent personal injury or damage to the product.

Make sure that the battery is installed

correctly.

- This prevent explosion or fire.

The battery contains lithium-ion, so it

must be handled with care.

- This may result in explosion or fire.

Make sure you use the same type of

batteries for replacement. Incorrect battery replacement may

cause fire.

Risk Group 2

CAUTION Possibly hazardous optical

radiation emitted from this product. Do

not

stare at operating lamp. It could be

harmful to

the eye.

SAFETY INSTRUCTIONS

ANTENNA

Outdoor Antenna Grounding

If an outdoor antenna is installed,

follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical

Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the leadin wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National Electrical Code, ANSI/ NFPA 70

Antenna Lead in Wire

Ground Clamp

Electric Service

Equipment

Ground Clamp

For USA

NEC: National Electrical Code

Antenna Discharge Unit (NEC Section 810-20) Grounding Conductor (NEC Section 810-21) Power Service GroundingElectrode System (NEC Art 250, Part H)

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer’s attention to

Article 820 - 40 of the National Electric

Code (U.S.A.). The code provides guidelines for proper grounding and,

in particular, species that the cable

ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

SAFETY INSTRUCTIONS

FCC NOTICE

Federal Communications Commission (FCC) Statement

You are cautioned that changes or

modications not expressly approved

by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/projector technician for help.

This device complies with Part 15 of the

FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful

interference, and

2) This device must accept any interference received, including interference that may cause undesired operation of the device of the device.

FCC Caution

Any changes or modications not

expressly approved by the party responsible for compliance could void the user's authority to operate this equipment and for indoor use only, use outdoors or in other modes not covered by this manual may violate the FCC regulation and violate the user authority to use the product.

Specially, within the 5.15-5.25 GHz

band, U-NII device is restricted to indoor operations to reduce any potential for harmful interference to co-channel MSS operations.

FCC RF Radiation Exposure

Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and

operated with minimum distance 20 cm (7.8 inches) between the radiator

and your body. End users must follow

the specic operating instructions for

satisfying RF exposure compliance.

SAFETY INSTRUCTIONS

IC (CANADA)

Industry Canada Statement:

This device complies with RSS-210 of

the Industry Canada Rules. Operation is subject to the following two conditions:

1) this device may not cause

interference and

2) this device must accept any interference, including interference that may cause undesired operation of the device.

Avis d’Industrie Canada :

Cet appareil est conforme à la norme

CNR-210 des règlements d’Industrie

Canada. Son fonctionnement est sujet aux deux conditions suivantes :

1) Cet appareil ne doit pas provoquer

d’interférences et

2) Cet appareil doit accepter toutes les interférences, y compris celles pouvant entraîner son dysfonctionnement.

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

NOTE: THE MANUFACTURER IS NOT

RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY

UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Avis d’Industrie Canada sur l’exposition aux rayonnements

Cet appareil est conforme aux limites d’exposition aux rayonnements d’Industrie Canada pour un environnement non contrôlé.

REMARQUE : LE FABRICANT

N’EST PAS RESPONSABLE DES INTERFÉRENCES

RADIOÉLECTRIQUES CAUSÉES

PAR DES MODIFICATIONS NON AUTORISÉES APPORTÉES À CET APPAREIL. DE TELLES MODIFICATIONS POURRAIT ANNULER L’AUTORISATION ACCORDÉE À L’UTILISATEUR DE FAIRE FONCTIONNER L’APPAREIL.

CONTENTS

LICENSE 2

SAFETY INSTRUCTIONS 3

PREPARATION 15

Accessories 15

Optional Extras 16

Parts and Components 17

- Front 17

- Back 18

Installation 19

- Installation Precautions 19

- Projection Distance per Screen Size 20

- How to Install the Projector On a Tripod

- Kensington Security System 21

REMOTE CONTROL 22

MAGIC REMOTE CONTROL 24

- To Register the Magic Remote Control 26

- To Re-register the Magic Remote Control 26

- Using the Magic Remote Control 27

USING THE PROJECTOR 28

Connecting to an Antenna or Cable 28

Watching Projector 29

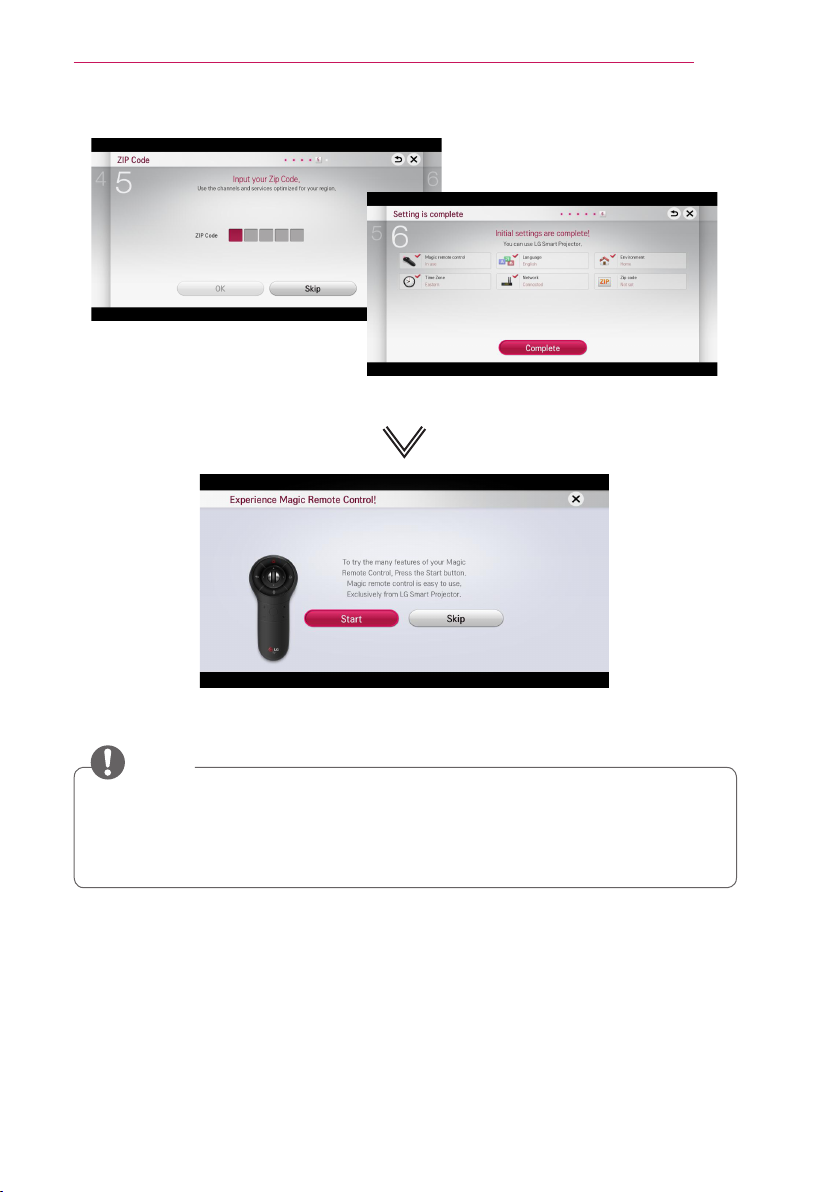

- Initial Setup 29

- Focus and Position of the Screen Image 32

- Watching With the Projector 32

To Set Channel 33

- To View Program Information 33

- To set Favorite Channels 33

- To use Favorite 33

Additional Options 34

- Adjusting Aspect Ratio 34

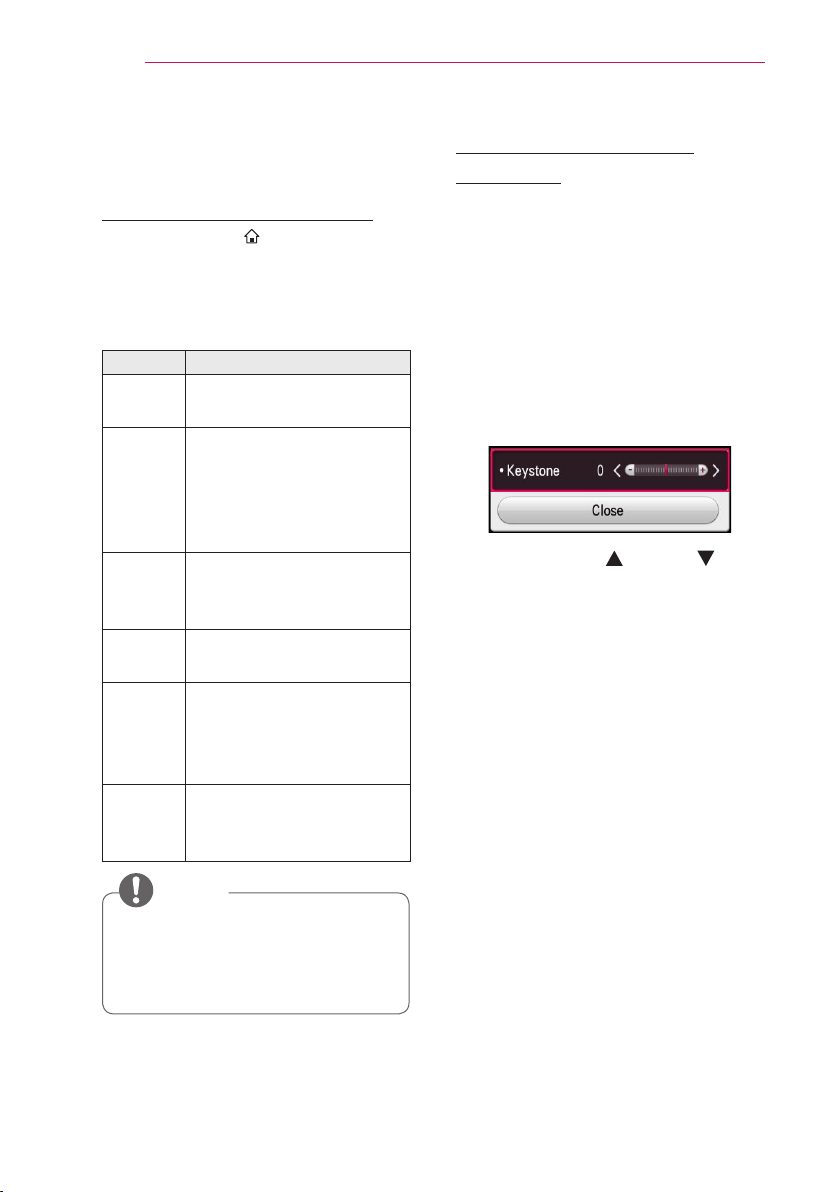

- Using the Keystone Function 34

- Changing Input Device 35

- To Use SIMPLINK 36

Using the Quick Menu 37

To Set Sound 38

- To Set Sound Output 38

- To Connect and Use a Bluetooth headset

- Using the Multi Audio 40

ENTERTAINMENT 41

To Use Smart Features 41

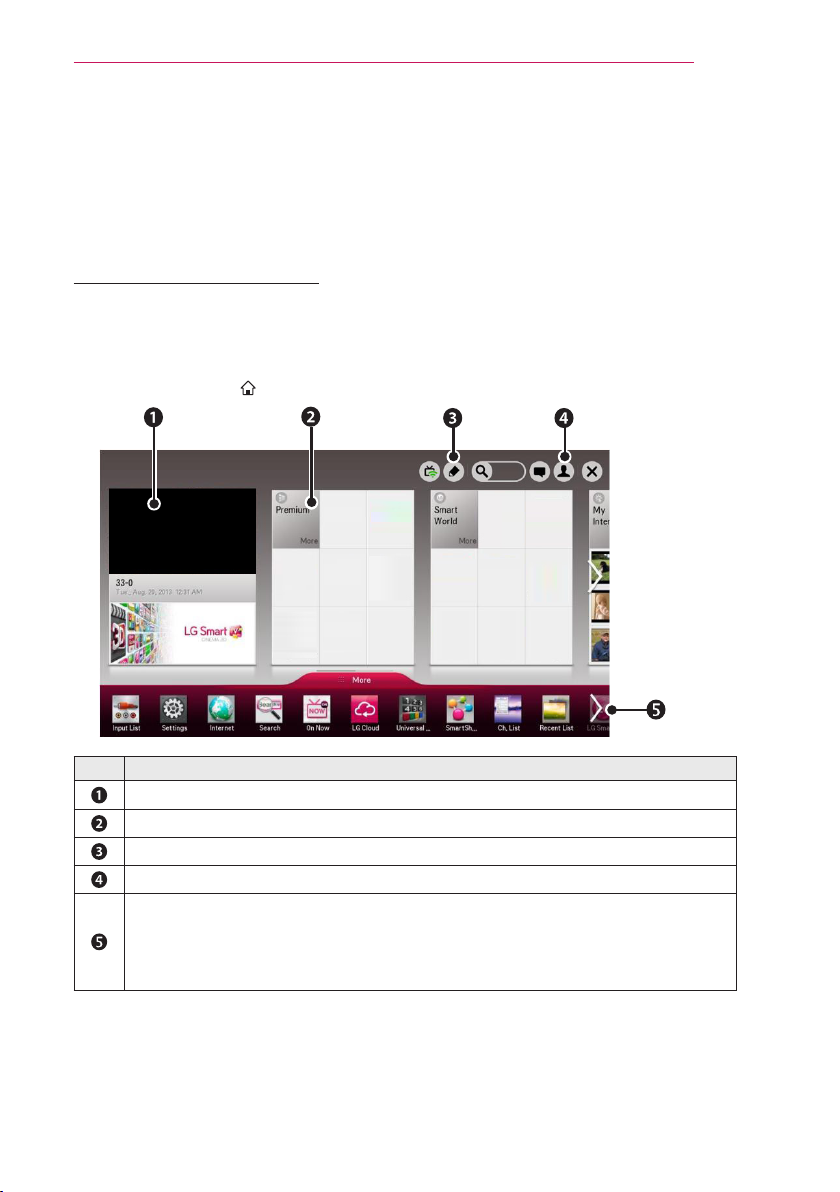

- To Use Home Screen 41

- To Use MY APPS 42

- To Edit Items in MY APPS 42

To Connect Network 43

- One-click Network Connection 43

- To Connect to a Network Through Set Expert 43

- To Use the Wi-Fi Direct Function 44

- To Use the Miracast™/Intel’s WiDi Function 44

- Tips for Network Settings 45

Tag On 46

- What is Tag On? 46

- To Start Tag On For the First Time 46

- To use the Tag On 47

SMARTSHARE 48

Before Using 48

- Connecting a USB Device 48

- Removing a USB Device 48

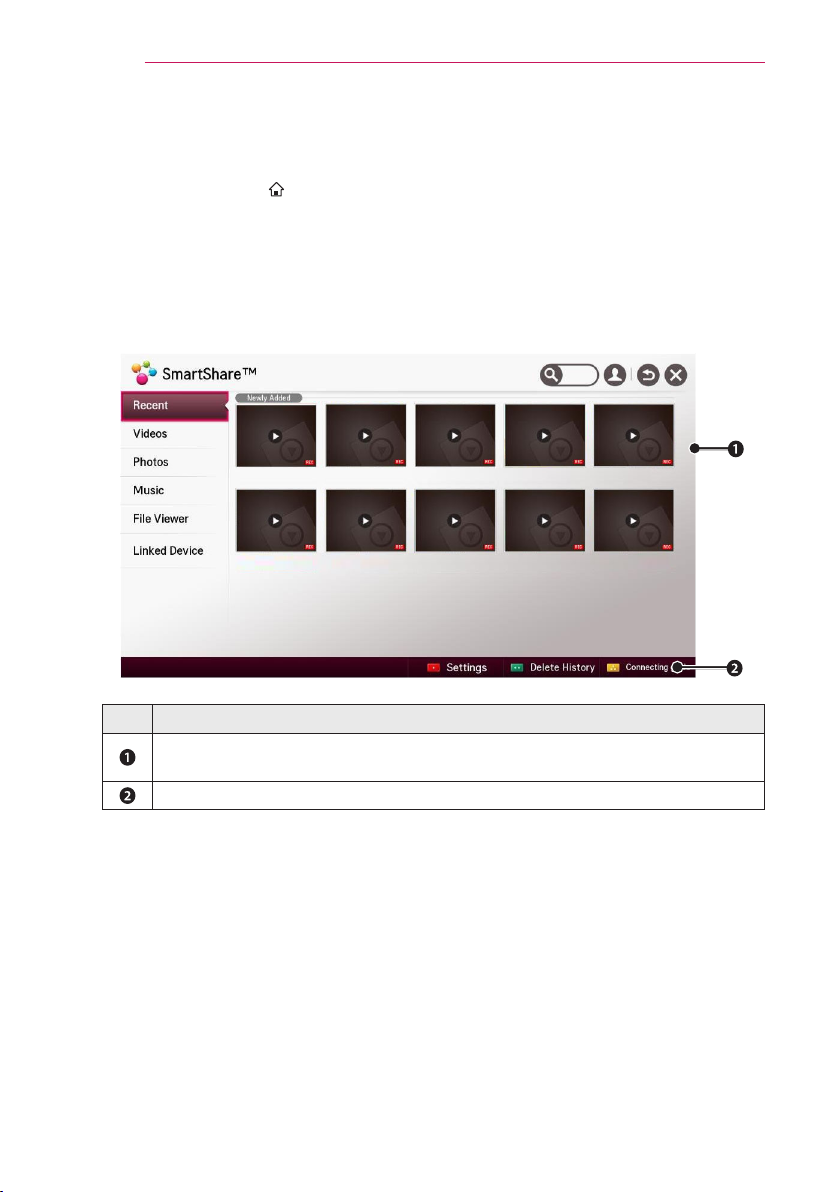

To use SmartShare™ 50

- Watching the Videos 51

- Viewing the Photos 53

- Listening to Music 54

CONTENTS

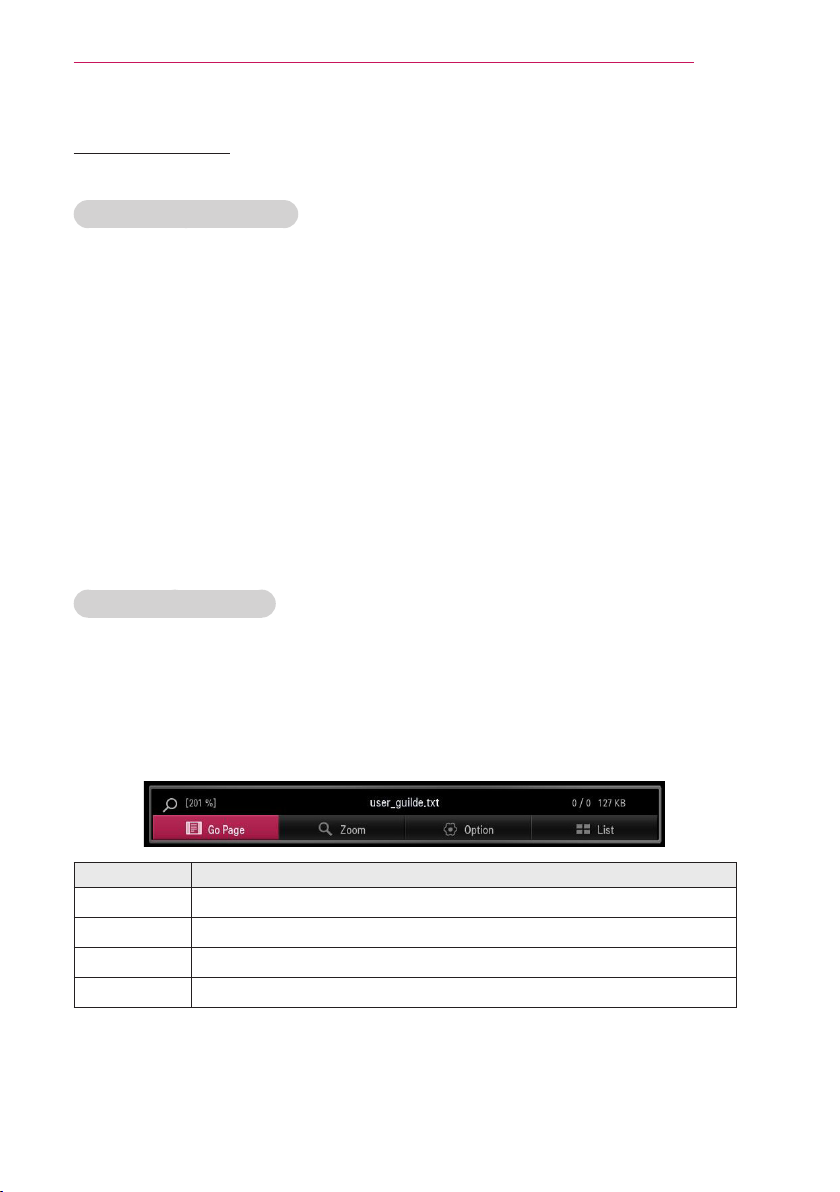

- Viewing Files 55

- To Set SmartShare™ Related Functions 56

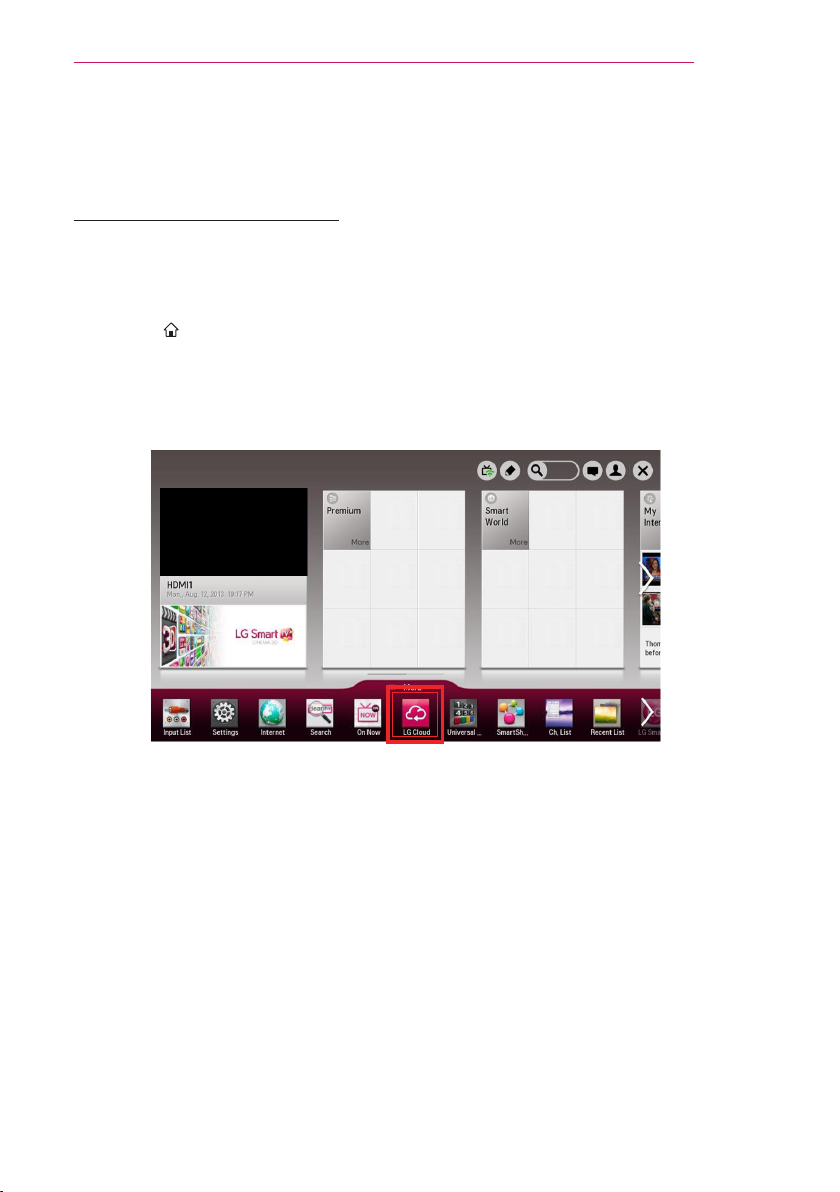

To Use the LG Cloud 59

- What is the LG Cloud? 59

- To Use the LG Cloud 60

To Connect DLNA 61

- To Connect a DLNA-Authenticated

Smartphone 61

- To Connect DLNA DMR (Digital Media

Renderer) 61

- To Connect DLNA DMP (Digital Media Player) 62

- SmartShare™ PC SW Installing and Setting 63

- In Case of a DLNA Malfunction 64

To Use A Premium Service 65

- To Use Paid Content 65

- To Reset Premium 66

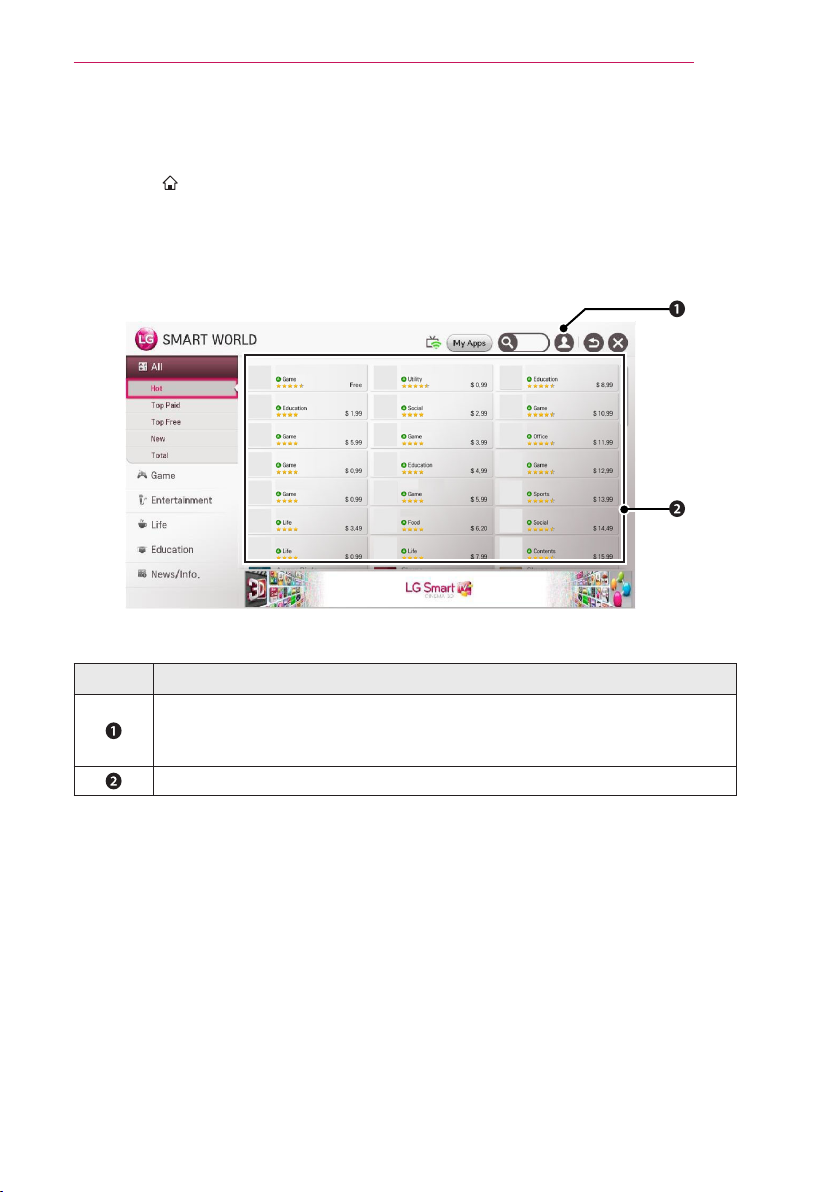

To use LG Smart World 67

To Use Search Function 68

To Use the Voice Recognition Function 68

- Using this Function Through Search 68

- Using this Function on the Internet 69

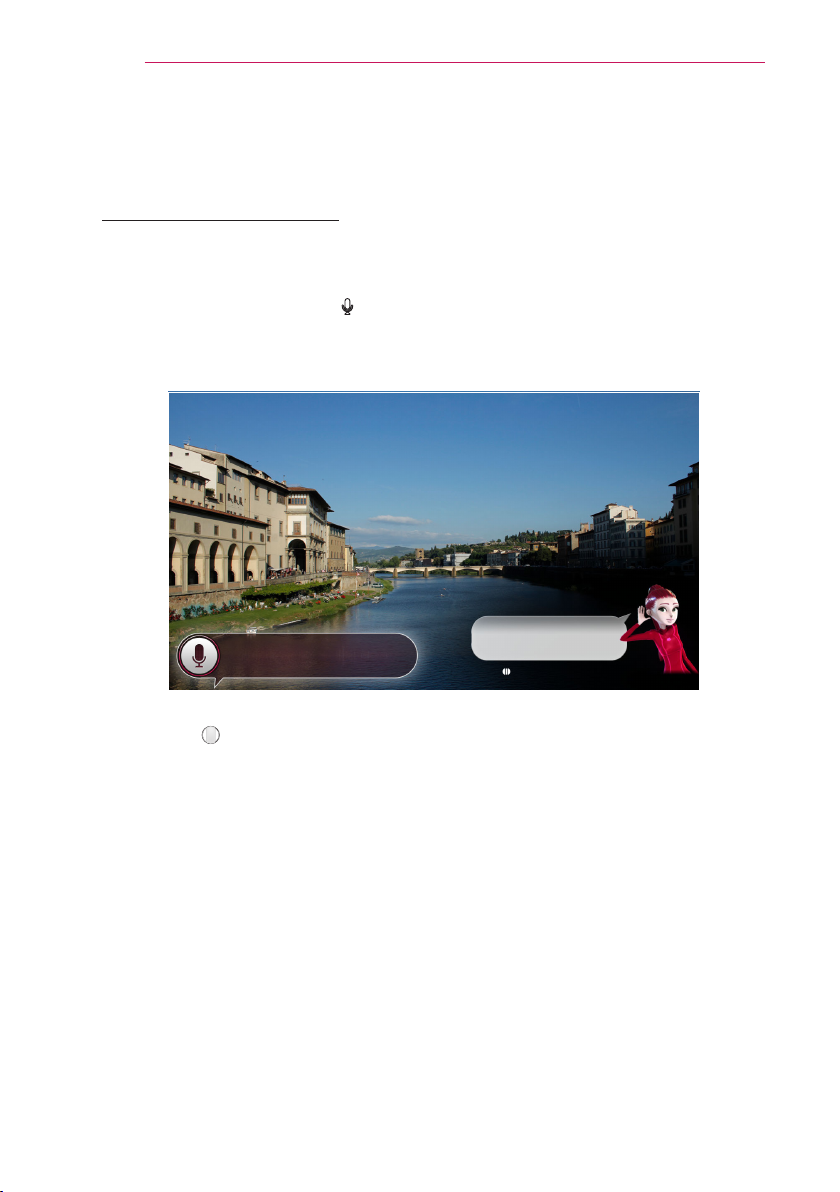

To Use Voice Mate Function 70

- What Is Voice Mate? 70

- How to Use Voice Mate? 71

- What Are Other Functions of Voice Mate?

What Is On Now? 72

- To Use On Now 72

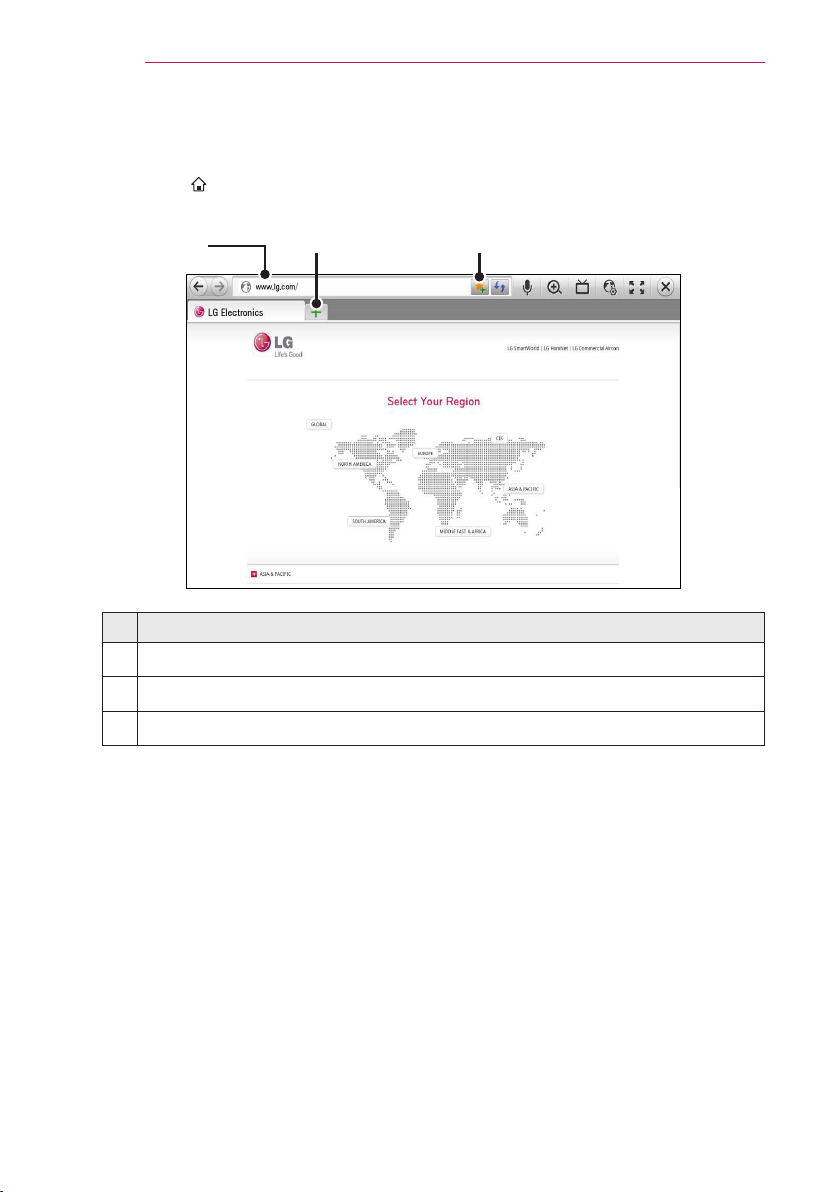

To Use Internet 74

Frequently Asked Questions for Smart Projector 75

USING ADVANCED FUNCTIONS 79

To Use Screen Remote 79

- To Use Screen Remote 79

- To Control a Device Connected to the Projector Using the Screen Remote 79

To Use the Universal Control function 80

To Control a Projector Using a Smartphone 81

To Use a USB Input Device On a Projector 82

- To Use a USB Wired/wireless Mouse 82

- To Use a USB Wired/wireless Keyboard

CUSTOMIZING SETTINGS 83

SETTINGS 83

PICTURE Settings 84

SOUND Settings 88

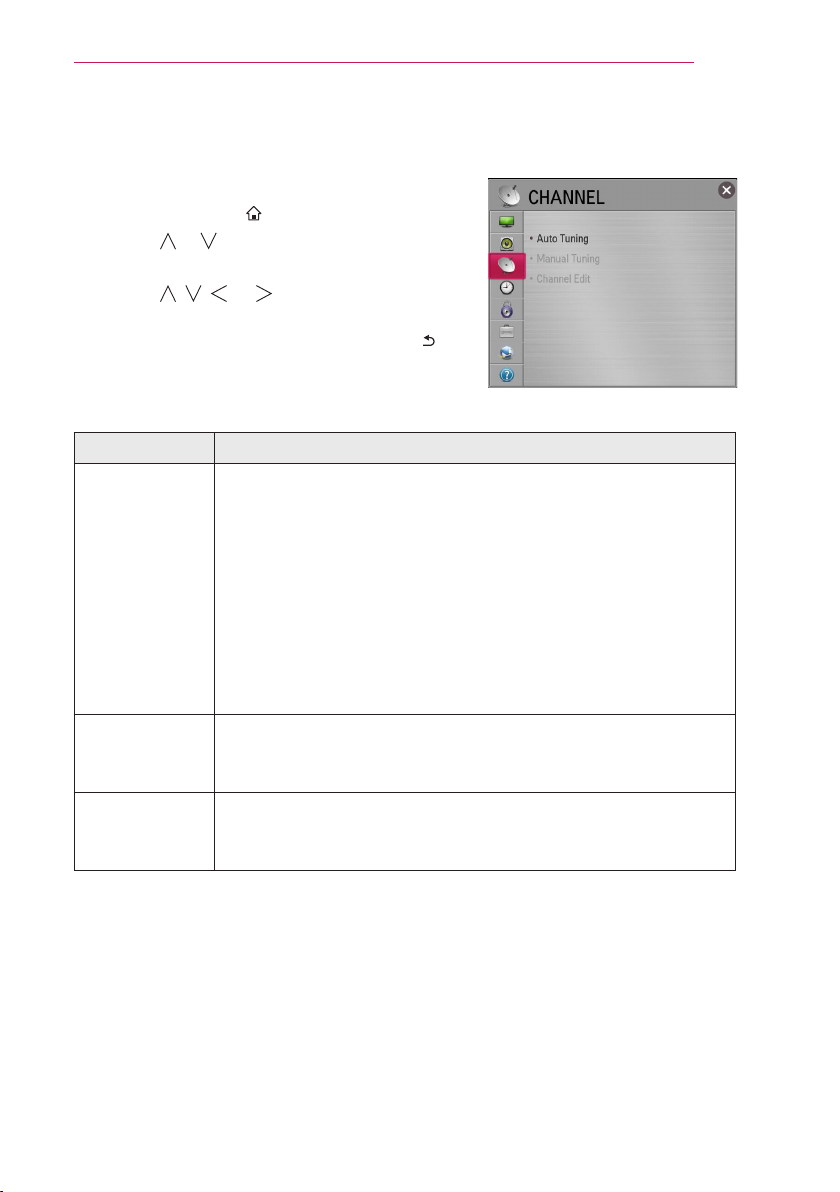

CHANNEL Settings 91

TIME Settings 92

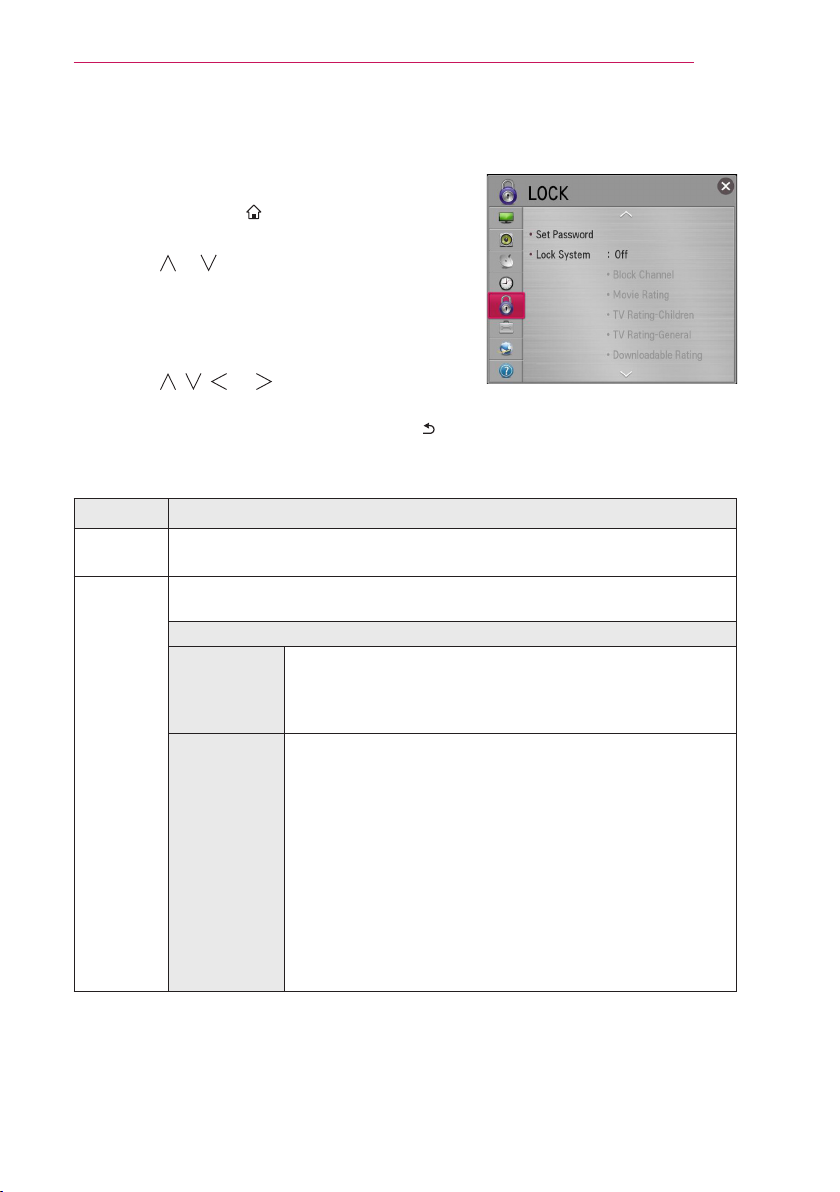

LOCK Settings 93

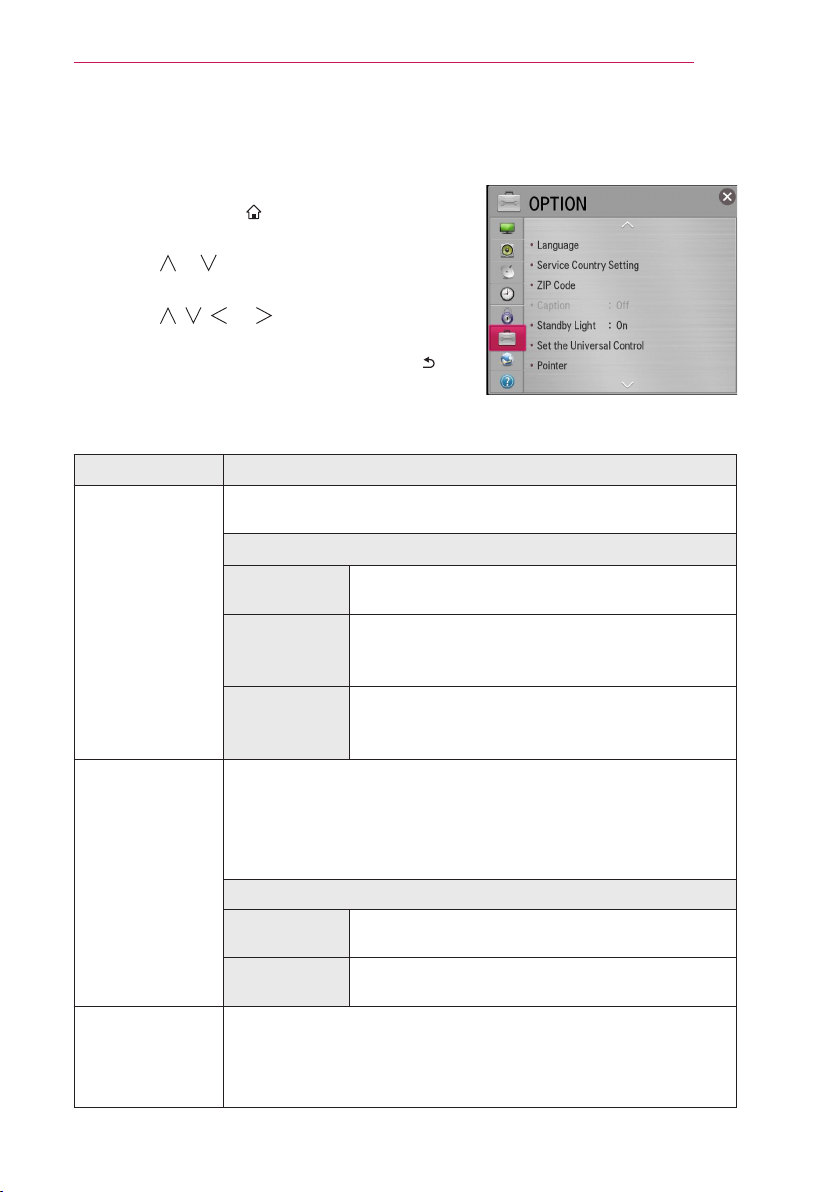

OPTION Settings 95

NETWORK Settings 99

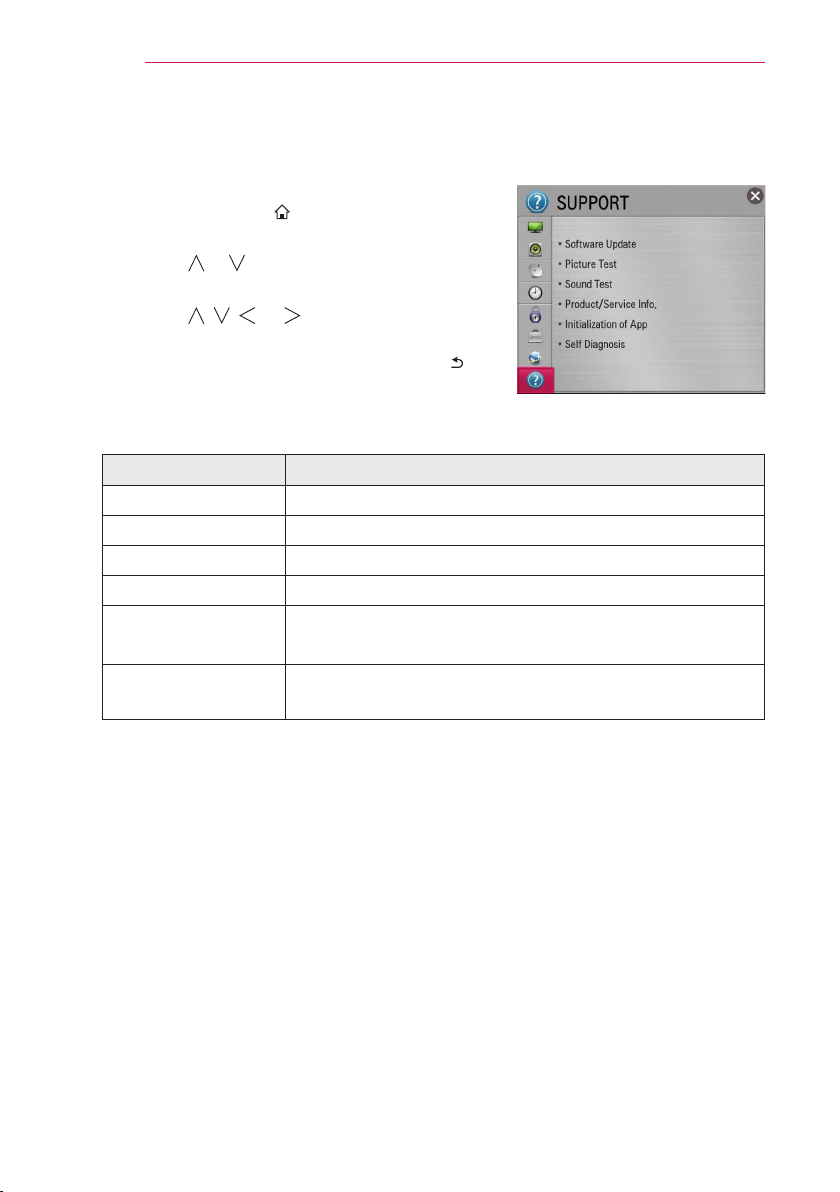

SUPPORT 100

CONNECTING DEVICES 101

Connecting to HD Receiver, DVD, or VCR Player, External Devices 102

- HDMI Connection 102

- HDMI to DVI Connection 103

- AV Connection 103

- Component Connection 104

Connecting a PC 104

- HDMI Connection 104

- HDMI to DVI Connection 105

Connecting a Laptop 106

- HDMI Connection 106

Connecting to Headphones 107

CONTENTS

Connecting a Digital Amp 108

Using the Mirroring Function of a Mobile Phone 109

- MHL Connection 109

MAINTENANCE 110

Cleaning 110

- Cleaning the Lens 110

- Cleaning the Projector Case 110

INFORMATION 111

To update projector software 111

Before reporting a problem, check the following: 112

- General 112

- Picture 112

- Sound 113

- PC connection problem 114

- Problems Replaying Movies in My Media

115

SPECIFICATIONS 116

PREPARATION

70- $)

YRO

EDFN VPDUW

/40(18

PREPARATION

Accessories

Accessories included with the project are show below. The pictures may differ slightly from the actual product. Accessories are subject to change without prior notice. New accessories may be added or old ones removed.

Remote Control

Two AAA Batteries

Magic Remote Control

Two AA Batteries

User Guide

Composite Gender Component Gender Power Cord

Tag On

Tag On Owner's Manual CD

When connecting an HDMI or USB cable, or

connecting a USB flash drive to the HDMI or USB port, use a product that has a width of 18 mm or less and a height of 10 mm or less. If the USB cable or USB flash

drive does not fit the USB ports of the projector, use

an extension cable that supports USB 2.0.

PREPARATION

Optional Extras

To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product. Optional accessories are subject to change without prior notice.

Projection Screen Tripod HDMI Cable

Video Cable Audio Cable RF Cable

Optical Cable LG Audio Device MHL Cable

PREPARATION

Parts and Components

The projector is manufactured using high-precision technology. You may, however, see tiny black dots and/or bright colored dots (red, blue, or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction.

Front

Vent

Speaker

Lens

Button Description

(POWER)

(SMART)

, (CHANNEL)

, (Volume)

, , ,

(OK)

Turns the projector on or off.

Display or closes the Home menu.

Changes the channel or sets the features. Adjusts the volume level. Moves between menus and changes the settings. Shows the current mode and saves changes to the settings.

Speaker

Control Panel

1 Due to the high temperature of vent area, do not get close to the vent area. 2 Do not touch the lens while using the projector. The lens may be damaged.

PREPARATION

Back

(Headphone Port) USB IN 2 Port

OPTICAL DIGITAL AUDIO OUT Port

LAN Port HDMI IN 2(MHL) Port

COMPONENT IN Port ANTENNA/CABLE IN Port

AV IN Port AC IN Port

USB IN 1 Port

HDMI IN 1(ARC) Port

Installation

Installation Precautions

Place the projector in a well-ventilated

environment.

- To prevent internal heat build-up, install the projector in a wellventilated place. Do not place anything near the projector as this may block its air vents. If the air vents are blocked, the internal temperature will increase.

- Do not place the projector on a carpet or rug. If the vent is on the bottom, use the projector on a solid level surface not blocked.

- Be sure to prevent foreign objects such as paper debris from entering the projector.

and ensure the vent

PREPARATION

Do not place the projector in a hot,

cool, or humid environment. Do not place the projector in a place

where it will easily attract dust.

- This may result in fire. Never open any cover on the

projector. There is a high risk of electric shock. The projector is manufactured using

high-precision technology. You may, however, see tiny black dots and/ or bright colored dots (red, blue or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction. The remote control may not work

in an environment where a lamp equipped with electronic ballasts or a three-wavelength fluorescent lamp is installed. Replace the lamp with an international standard lamp for the remote control to work normally. To adjust the angle of the projector,

turn the adjustment legs to the left or right while pressing on the rubber part at the same time.

- Leave enough distance (30 cm [11.8 inches] or more) around the projector.

PREPARATION

Projection Distance per Screen Size

1 Place the projector on a sturdy, level surface, together with the PC or audio/video

source.

2 Place the projector an appropriate distance away from the screen. The distance

between the projector and the screen determines the actual size of the image.

3 Position the projector so that the lens is at a right angle to the screen. If the

projector is not at a right angle, the projected image will look distorted. To correct the distortion, use the Keystone function. (see page 34)

4 Connect the power cord of the projector and the connected device to the wall outlet.

Ratio of upward projection: 100 %

Screen Height (X)

X/2

DISPLAY

Screen Width (Y)

Y/2

DISPLAY

X/2

Projection distance (D)

Y/2

Projection distance (D)

47.7

(1.8 inches)

16:9 Ratio

Screen

Size (mm)

508 20 443 17.4 249 9.8 621 24.4 635 25 553 21.7 311 12.2 776 30.5 762 30 664 26.1 374 14.7 932 36.6

889 35 775 30.5 436 17.1 1087 42.7 1016 40 886 34.8 498 19.6 1242 48.8 1143 45 996 39.2 560 22 1397 55 1270 50 1107 43.5 623 24.5 1553 61.1 1397 55 1218 47.9 685 26.9 1708 67.2 1524 60 1328 52.2 747 29.4 1863 73.3 1651 65 1439 56.6 809 31.8 2018 79.4 1778 70 1550 61 872 34.3 2174 85.5 1905 75 1660 65.3 934 36.7 2329 91.6 2032 80 1771 69.7 996 39.2 2484 97.7 2159 85 1882 74 1058 41.6 2639 103.8 2286 90 1992 78.4 1121 44.1 2795 110 2413 95 2103 82.7 1183 46.5 2950 116.1 2540 100 2214 87.1 1245 49 3105 122.2

2667 105 2324 91.4 1308 51.4 3260 128.3 2794 110 2435 95.8 1370 53.9 3416 134.4

2921 115 2546 100.2 1432 56.3 3571 140.5 3048 120 2657 104.6 1494 58.8 3726 146.6

Screen

Size (inch)

Screen

Width (Y)

(mm)

Screen

Width (Y)

(inch)

Screen

Height (X)

(mm)

Screen

Height (X)

(inch)

Projection

Distance

(D) (mm)

Projection

Distance

(D) (

inch

)

PREPARATION

How to Install the Projector On a Tripod

You can install this projector using a camera tripod.

As shown below, you can mount the projector instead of a camera on the tripod. When stabilizing the tripod, we recommend using a locking bolt of standard size

4.5 mm (0.1 inches) or less. The maximum size allowed for the locking bolt is

5.5 mm (0.2 inches). (If it is longer than the maximum allowed size, it may damage the projector.)

Bottom side of the projector

The projector is

connected to this part.

Tripod

Bolt used to

attach the

projector

⇒

CAUTION

If you are using a tripod, be careful not to apply external force to the tripod. Doing

so may damage the projector. Do not place the tripod on an unstable surface.

Be sure to use a tripod with a maximum load capacity of 3 kg or more.

To use the projector safely, position the tripod legs so that they are as wide and

stable as possible and be sure to securely attach the projector to the tripod.

Kensington Security System

This projector has a Kensington Security Standard connector. Connect a Kensington

Security System cable as shown below. For more information on installation and use of the Kensington Security System,

refer to the user’s guide provided with the Kensington Security System. The Kensington Security System is an optional accessory.

What is Kensington? Kensington is a company that provides security systems for

laptops and other electronic devices. Website: http://www.kensington.com

70- $)

REMOTE CONTROL

Open the lid at the back of the remote control and insert the batteries as described in the instructions. Use new batteries and do not mix regular or rechargeable

batteries. (1.5 V AAA)

REMOTE CONTROL

CAUTION

Do not mix new batteries with old ones.

POWER

Turns the projector on or off.

ENERGY SAVING

Adjusts the screen brightness.

INPUT

Changes the input source.

Number buttons

Enters a number.

- (dash)

Enters a channel number, such as 2-1 or 2-2.

LIST

Displays the channel list.

FLASHBK

Displays the channel you were watching previously.

VOL +, -

Adjusts the volume level.

FAV

Shows favorite channels.

INFO

Displays the information of a program or screen.

MUTE

Mutes the sound of the projector.

CH ,

Changes the TV channel.

PAGE /

Moves to the previous/next page.

REMOTE CONTROL

70- $)

HOME

SETTINGS

Displays or closes the Settings menu.

SMART

Displays the Home menu.

MY APPS/ Q.MENU

MY APPS: Displays the list of my apps. Q.MENU: Changes the settings easily.

Up/Down/Left/Right buttons

Switches between menu functions.

Shows the current mode and saves changes to the settings.

Returns to the previous screen.

AV MODE

Selects AV mode for the genre of the program being watched.

EXIT

Exits the menu.

Playback control buttons

Controls the playback of multimedia content on the SmartShare™.

RATIO

Resizes the picture.

SLEEP

Sets the sleep timer.

BLANK

Displays the empty screen for a while.

Allows you to use the SIMPLINK function.

Key's ▲, ▼

Adjusts the Keystone function.

Color buttons

Sets detailed settings or gesture for each menu.

NOTE

When using the remote control, the optimal operation range is

6 meters (19.6 feet) or less (left/right) and within a 30 degree

arc of the remote control IR receiver. If a cable is connected to the back port, the optimal operating

range is 3 meters (9.8 feet) or less (left/right) and within a 30

degree arc of the remote control IR receiver. For seamless operation, do not block the IR receiver.

When you carry the remote control in the portable bag, make sure that the buttons

on the remote control are not pressed by the projector, cables, documents or any other accessories in the bag. Otherwise, it may significantly reduce the battery life.

30 ° 30 °

70- $)

MAGIC REMOTE CONTROL

If the battery low message appears while using the projector, replace the batteries.

As shown in the gure, press the top of the battery cover

and slide it down the cover. Insert two new and identical

batteries (1.5 V, AA type) with + and - poles pointing in the

correct direction in the remote control.

CAUTION

Do not mix new batteries with old ones.

Pointer Signal Transmitter

(POWER)

Turns the projector on or off.

, , , (Up/Down/Left/Right)

EDFN VPDUW

/40(18

YRO

BACK

Press this button during menu selection to return to the previous step.

SMART

Displays the Home menu.

Wheel (OK)

Select a menu or option. If you press the , , , or button while the pointer is moving, the pointer disappears and the magic remote control operates as a normal remote control. To display the pointer on the screen, shake the magic remote control to the left/right.

(Voice recognition)

Check the network connection before using the voice recognition function.

1. Press the voice recognition button.

2. Speak your request when the voice display bar on the left of the projector screen is activated. Use the magic remote control no further than

10 cm (3.9 inches) from your face. The voice

search may fail if you speak too quickly or too slowly. The recognition rate may vary depending on the user's characteristics (voice volume, pronunciation, intonation, and speed) and the environment (noise and projector volume).

EDFN VPDUW

MAGIC REMOTE CONTROL

Opens the self-diagnosis window.

YRO

/40(18

The universal remote is displayed. Allows you to change the projector settings easily.

, VOL

Adjusts the volume level.

(MUTE)

Mutes the sound of the projector.

, CH

Changes the TV channel.

Displayed when you press the

Wheel (OK) button on the magic remote control. Check program information.

If you point and hold the pointer at

the bottom left of the screen while watching Projector, the MY APPS icon is displayed. Clicking the icon displays the MY APPS menu.

MAGIC REMOTE CONTROL

To Register the Magic Remote Control

To use the magic remote control, register it with your projector rst.

1 Turn on the projector and wait for about 10 seconds and then press

the Wheel (OK) button while pointing the remote control at the projector.

2 The remote control is automatically registered and the registration completion

message appears on the projector screen.

* If you failed to register the magic remote control, turn off the projector and try again.

To Re-register the Magic Remote Control

1 Press the SMART

and

BACK buttons together for about 5 seconds.

2 Press the Wheel (OK) button towards the projector to re-register the magic

remote control.

* Press the SMART

the Magic Remote Control.

* Press the

seconds to reset and re-register it.

and

BACK buttonat the same time, for ve seconds, to reset

BACK button while pointing the remote control at the projector for ve

Using the Magic Remote Control

1 Shake the magic remote control lightly when there is no pointer

displayed on the screen. A pointer will be displayed on the screen.

- The pointer disappears if the remote control is not used for a certain period of time.

2 When you move the pointer signal transmitter up/down/left/right

while pointing it toward the projector, the pointer moves.

- If the pointer is not working properly, do not move the magic

remote control for about 10 seconds, and then try again.

3 If you press the navigation button while moving the pointer on

the screen, the pointer disappears, and the magic remote control works as a common remote control.

4 Use within an effective distance of 10 meters. (32.8 feet). Using

the remote control from greater distances or when obstructions block the sight line may cause malfunctions.

5 Electronic devices nearby may cause communication

interference. Devices such as microwave ovens and wireless

LANs use the same frequency range (2.4 GHz) as the Magic

Remote Control and may cause interference.

6 Take care not to bang it against other hard objects such as

furniture or the oor.

MAGIC REMOTE CONTROL

USING THE PROJECTOR

Connecting to an Antenna or Cable

To watch TV using an indoor/outdoor antenna, connect a wall terminal and the antenna port of the Projector using an

RF cable (75 Ω).

You can watch terrestrial or cable (analog, digital) TV. (The RF cable is sold separately.)

NOTE

Make sure not to bend the copper

wire of the RF cable (75 Ω). Turn

the input jack to the right to fasten it.

Copper wire

Ensure you use a standard coaxial

cable (75 Ω, sold separately) when

connecting to the projector input. For better image quality in

locations where signal strength is low, purchase and install a signal amplifier (booster). A signal splitter is required if you

want to use two or more projectors through one antenna. If you have any problems when

installing the antenna, please consult a suitable retailer or the store where you purchased the antenna.

USING THE PROJECTOR

Watching Projector

Initial Setup

The menu screen display in this owner's manual is an example to help users understand how to operate the product and may look different from the actual screen.

1 Connect the power cord correctly. 2 After waiting for a moment, press the POWER button on the remote control or the

control panel.

3 When you turn on the projector for the rst time, a setting screen appears as shown

below. Here, you can specify the items required for watching the projector more

easily.

USING THE PROJECTOR

* Store mode is used when displaying the product in-store. The picture mode is

automatically reset after a certain period of time. You can select Home to use the product at home.

USING THE PROJECTOR

* The initial settings are completed when you select the settings above.

* Simple guide of Magic Remote Control.

NOTE

For Auto Tuning while using the projector, go to SETTINGS → CHANNEL and

select Auto Tuning. To change the mode while using the projector, go to SETTINGS → OPTION and

select Mode Setting.

USING THE PROJECTOR

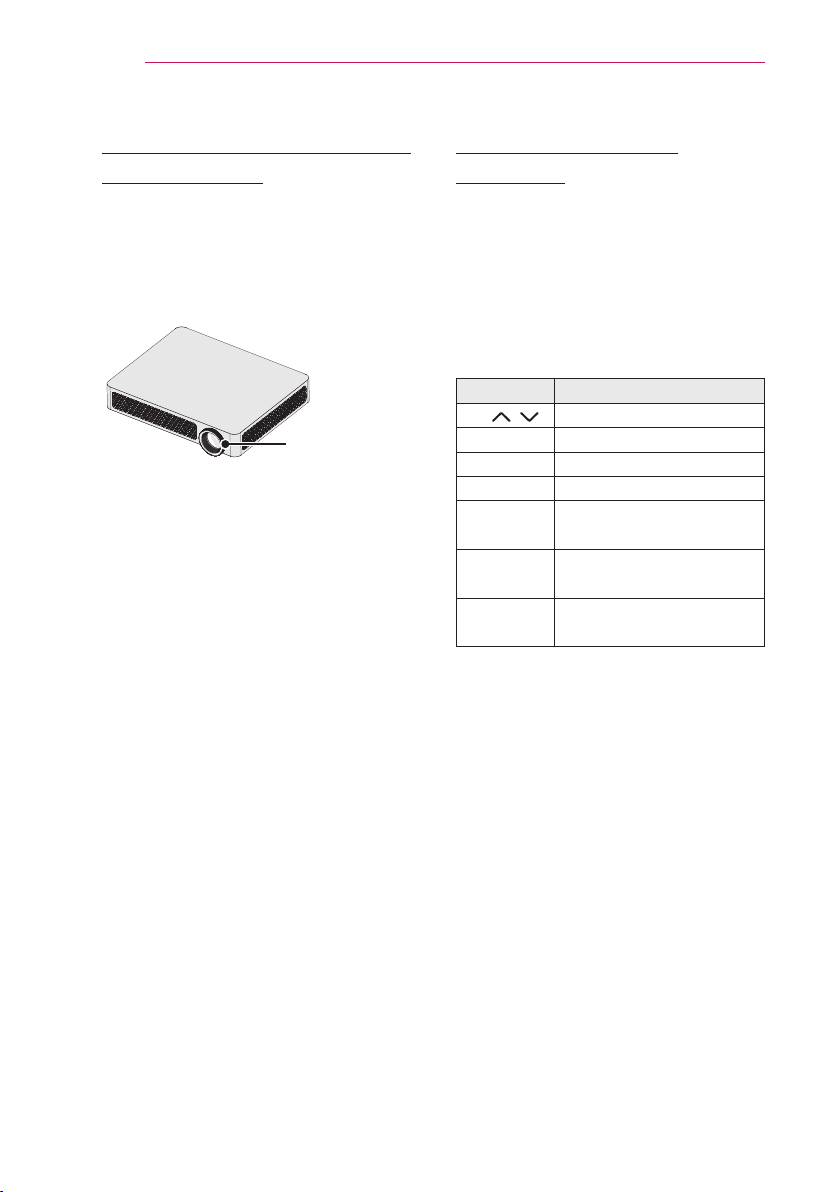

Focus and Position of the Screen Image

When an image appears on the screen,

check if it is in focus and ts the screen

properly. To adjust the focus of the image, rotate the focus ring.

Focus Ring

Watching With the Projector

1 In

standby m

button to turn the projector on.

ode, press the POWER

2 Press the INPUT button and select

the input signal you want.

3 Control the projector using the

following buttons while watching projec tor.

Button Description

CH , Changes the TV channel. LIST Displays the channel list. 0 - 9 Enters a channel number. VOL +, - Adjusts the volume level. MUTE Mutes the sound from the

projector.

FLASHBK Displays the channel you

were watching previously.

Key's ▲, ▼Adjusts the Keystone

function.

4 To turn the projector off, press the

POWER button.

USING THE PROJECTOR

To Set Channel

Displays information on current program or current time, etc. Image shown may differ from your projector.

To View Program Information

1 Move the pointer of the magic remote control to the top of the projector screen. 2 Click the activated channel banner area. 3 The program details will be displayed at the bottom of the projector screen.

❶

❷

Description

Current time Program name/ Detail information on program (for digital broadcast)

To set Favorite Channels

SMART

→ Settings → CHANNEL → Channel Edit

1 Move to the desired channel on Wheel (OK) button. Channel is selected. 2 Press Set as Favorite. 3 Select the desired Favorite channel group. 4 Select OK. Favorite is set.

To use Favorite

SMART

Channel list will appear. Select the desired preset favorite channel from Favorite List A to D.

→ Ch. List

USING THE PROJECTOR

Additional Options

Adjusting Aspect Ratio

Select SMART

PICTURE → Aspect Ratio to change the aspect ratio. You can also use the Q.MENU,

SETTINGS, or RATIO button.

Menu Description

16:9 Resizes the image ratio to

t a 16:9 screen.

Just Scan

Set By Program

4:3 Resizes the image ratio to

Zoom Resizes the image to t the

Cinema Zoom 1

Displays high-quality image without loss.

Depending on the input signal, screen aspect ratio

changes to 4:3 or 16:9.

t 4:3 screen.

screen width. The top and bottom parts of the image may be cut off.

Formats an image to the

cinemascope ratio (2.35:1)

and zooms in on the ratio.

→ Settings →

In DTV/HDMI/Component

(over 720p) mode, Just Scan is available.

Using the Keystone Function

To prevent the screen image from becoming trapezoidal, Keystone adjusts the top and bottom width of the image if the projector is not set up at a right angle to the screen. Because the Keystone function may cause inferior screen image quality, use this function only when it is not possible to set up the projector at an optimal angle.

1 Press the Key's or Key's

button to adjust the picture.

Keystone can be adjusted

from -40 to 40.

2 Press the OK button when done.

NOTE

Available picture size may differ

depending on the input signal.

The screen aspect ratios on HDMI-PC

input are available in 4:3 and 16:9 only.

USING THE PROJECTOR

Changing Input Device

To select an external input

Selects external input.

Select SMART

press the INPUT button on the remote control to display the input selection screen.

- Connected inputs are displayed first. However, AV is always activated.

Select an input signal using the

remote control's INPUT button to connect the projector to the desired input. You can use the or button to switch among all the input modes.

→ Input List or

Selecting an Input Label

Displays which devices are connected to which input ports.

1 Select SMART

or press the INPUT button on the remote control to display the input selection screen.

→ Input List

2 Press the red button. 3 Press the or button to go to

the desired input and press the OK button.

4 Press the , , , or button to

select a device name.

USING THE PROJECTOR

To Use SIMPLINK

SIMPLINK is a feature that enables you to control and manage various multimedia devices conveniently using the projector remote control only via the SIMPLINK menu.

1 Connect the projector's HDMI IN

terminal with SIMPLINK device's

HDMI output terminal using HDMI

cable. For home theater units with

SIMPLINK function, connect HDMI

terminals as above and use an optical cable to connect Optical Digital Audio Out from the projector to Optical Digital Audio In of the SIMPLINK device.

2 Select SMART

SIMPLINK menu window appears.

→ SIMPLINK.

3 Select SIMPLINK Setting on

SIMPLINK menu window. SIMPLINK setup window appears.

4 SIMPLINK Setting to On in

SIMPLINK setup window.

5 Close SIMPLINK setup window. 6 Select the device to control from

SMART

→ SIMPLINK.

NOTE

This function only works on devices

with the SIMPLINK logo ( ). Verify that the external device has a SIMPLINK logo. To use the SIMPLINK function, you

need to use a high-speed HDMI®

cable (with CEC, or Consumer Electronics Control, feature added).

High-speed HDMI® cables have the No. 13 pin connected for information

exchange between devices. Turn on or select the media of a

device with home theatre features to see the speaker switch to External Speaker. Connect with an Optical cable (sold

separately) to use External Speaker. Switching to external input causes

devices operating with SIMPLINK to stop. Use of a third-party device with

HDMI-CEC features may cause

malfunctions.

USING THE PROJECTOR

Explanation Of SIMPLINK Features

Menu Description

Direct Play Plays the multimedia

device on the projector instantly.

Select multimedia device.

Disc playback

Power off all devices

Sync Power on

Speaker Selects speaker either

Selects the desired device via the SIMPLINK menu to control it from the projector screen instantly.

Manages the multimedia device with the projector remote control.

If the Auto Power function is set to On in the SIMPLINK settings, turning the projector off will turn the power off on all SIMPLINK-connected devices.

If the Auto Power function is set to On in the SIMPLINK settings, turning on a SIMPLINK device will turn the projector on.

on the home theatre unit or the projector.

Using the Quick Menu

You can customize frequently used menus.

1 Press the MY APPS button to select

the Quick Menu. Or press the SMART select Quick Menu.

2 Press the or button to select a

menu and press OK.

Menu Description Aspect Ratio Picture Mode Sound Mode Sleep Timer

Caption Sets whether to display

Multi Audio

SAP Changes the MTS sound

Energy Saving

Resizes the picture.

Changes the picture mode.

Sets the sound mode.

Sets the projector to be

turned off at the specied

time.

captions. Sets MONO or STEREO, or a language for a bilingual broadcast (Digital signal).

(Analog signal). Adjusts the brightness.

button and

USING THE PROJECTOR

Menu Description

AV Mode Sets the genre.

Mode Off You can watch

using the settings in the video/ audio menu.

Cinema Change to

optimal video/ audio settings for movies.

Game Change to

optimal video/ audio settings for games.

Del/Add Can delete or add

channels.

USB Device

Allows you to remove a connected USB device in a safe manner.

3 Press the , , , or button to

scroll through the following menus.

To Set Sound

To Set Sound Output

To use projector’s speakers

Sound is output through the projector speaker.

SMART

Sound Out → Projector Speaker

To use External Speaker

Sound is output through the speaker connected to the optical port. SIMPLINK is supported.

Select SMART

SOUND → Sound Out → External

Speaker (Optical/HDMI ARC) to set up as follows.

To use Digital Sound Out

Sets up Digital Sound Output.

→ Settings → SOUND →

→ Settings →

SMART

→ Sound Out → External Speaker (Optical/HDMI ARC) → Digital

Sound Out

Item Sound Input

Auto MPEG PCM

PCM All PCM

→ Settings → SOUND

Digital Sound

Out

Dolby Digital Dolby Digital Dolby Digital

Plus HE-AAC Dolby Digital

Dolby Digital

USING THE PROJECTOR

To connect and use an LG audio

device

LG audio device allows you to enjoy rich powerful sound easily.

Wired Connection:

SMART

→ SOUND → Sound Out → LG Sound Sync (Optical)

Connect LG audio device with the

AUDIO OUT port. Wireless Connection:

SMART

→ SOUND → Sound Out → LG Sound Sync (Wireless)

LG audio device with the logo can be connected wirelessly.

→ Settings

logo to the OPTICAL DIGITAL

→ Settings

NOTE

You can use the projector remote

control to adjust the volume of the connected device. For a wireless connection, if the

device fails to connect, check the device power and make sure the LG Audio device is set up properly. When you select LG Sound Sync

(Wireless), devices available for connection are searched and one of searched devices is automatically connected. When a device is connected, its name is shown. If two or more devices are detected,

the first detected device is connected first. To view more detected devices to connect, press the Show More button. When LG Sound Sync (Wireless) is

active and you turn on the projector, it will search and try to connect the device which recently connected.

USING THE PROJECTOR

To Connect and Use a Bluetooth headset

Sound output is through the Bluetooth headset.

SMART

→ Sound Out → LG Sound Sync

(Wireless)

The devices that can be connected

are:LG BTS1, LG HBS-700, LG HBS730, LG HBS-800 (Product availability

may vary by country.) For wireless connection, if the device

fails to connect. Check the device power to connect and if the LG Audio device is in a proper operating condition. If two or more devices are detected,

the first detected device is connected first. To view more detected devices to connect, press the Show More button.

→ Settings → SOUND

Using the Multi Audio

Multi Audio means stereo and multiple language broadcast from the channel provider.

SMART

Audio

In the case of digital broadcast

Multiple languages can be selected depending on the multi-language signals from the TV station.

For default language, select at

SMART

→ Language → Audio Language.

In the case of analog broadcast

Item Description

Mono Left and right speakers

Stereo The sound mode is in

SAP Changes the MTS

→ Quick Menu → Multi

→ Settings → OPTION

produce sound, and the sound model is mono. Select this menu to listen in Mono mode regardless of broadcast state. This can be set for a stereo broadcast signal. Select Mono in poor reception areas (e.g., areas with weak or erratic signals) or when multi audio reception is not clear.

stereo when the sound comes out of both left and right speakers.

sound.

ENTERTAINMENT

To Use Smart Features

To Use Home Screen

With all smart projector features on one screen, everyone can access a wealth of content and applications conveniently via the quick and easy-to-use menu, arranged by themes such as Card, MY APPS, etc.

Press the SMART

button on the remote control.

Movie Weather

Sports UCC

News

Picture Map Game

Description

Displays the screen you are currently watching. Displays the premium menu. Edit the card list. Login button

Displays the list of my apps. Select More at the bottom of the Home screen. Select More to check pre-installed and downloaded apps. Select an app to use.

ENTERTAINMENT

To Use MY APPS

SMART

Select More at the bottom of the home screen.

Select More to check apps pre-installed apps and apps you have downloaded.

→ More

To Edit Items in MY APPS

On the MY APPS page, select (Edit) at the top of the screen to move or delete apps. Please note that system apps can be moved, but cannot be deleted.

Select SMART

Changes orders / deletes items by dragging the app icons if your device has a Magic

Remote Control.

→ More → MY APPS → (Edit).

ENTERTAINMENT

To Connect Network

A wireless or wired network connection is required to use smart features. When connected to the network, you can use premium content, LG Smart World, DLNA and more.

One-click Network Connection

Connects easily to a wired/wireless network.

SMART

NETWORK → Network connection to connect to an available network automatically. Follow the prompts on the projector.

→ Settings →

To Connect to a Network Through Set Expert

For use in special circumstances such

as in ofces (in cases where a static IP

is used).

Select SMART

NETWORK → Network connection → Start Connection → Other

Network List → Manual Setup.

→ Settings →

1 Select a network connection, either

Wired or Wireless.

2 When connecting via Wi-Fi, use

the one of the following network connection methods.

Item Description

AP List Connects to the network

selected from the AP List.

Enter the SSID

WPSPBC

WPS-PIN Connects easily when the

Connects to the wireless AP typed in.

Connects easily when the button of a wireless AP supporting PBC is pressed.

PIN of the wireless AP that you wish to connect to is entered in to the AP website.

ENTERTAINMENT

To Use the Wi-Fi Direct Function

Wi-Fi Direct is a function that allows your projector to connect with a Wi-Fi Direct device without Internet connection. With

SmartShare™, you can watch the les

stored on a device connected via Wi-Fi Direct.

Select SMART

NETWORK → Wi-Fi Direct.

→ Settings →

1 Set Wi-Fi Direct to On. (If you do not

use it, please change it to Off.)

2 Enable the Wi-Fi Direct settings on the

device that you want to connect to.

3 A list of devices that can be

connected to the projector is displayed.

4 Select a device to connect. 5 Select Yes when the connection

request message appears.

6 If the device that you want to connect

accepts the request, Wi-Fi Direct is connected.

To Use the Miracast™/ Intel’s WiDi Function

You can view the screen of a device with Miracast™ and Intel’s WiDi technologies on your projector. Contact the device

manufacturer to nd out if the device

supports this function.

Select SMART

NETWORK → Miracast™/Intel’s WiDi.

→ Settings →

1 Set Miracast™/Intel’s WiDi to On.

(If you do not use it, please change it to Off.)

2 Enable the Miracast™/Intel’s WiDi

settings on the device that you want to connect to.

3 A list of devices that can be

connected to the projector is displayed.

4 Select a device to connect. 5 Select Yes, when the connection

request message appears.

6 If the device that you want to connect

accepts the request, Miracast™/ Intel’s WiDi is connected. When Wi-Fi Direct is set to Off, if

you set Miracast™/Intel’s WiDi to On, Wi-Fi Direct is automatically set

to On. When you set the Miracast™ / Intel’s

WiDi function to Off, Wi-Fi Direct returns to the previous setting.

NOTE

It is recommended to connect a

laptop using Intel’s WiDi within close range. Though Intel’s WiDi can be

connected without a wireless router, it is recommended to connect the wireless router first for optimal performance. You may not connect your projector

to a non-LG Electronics device even when it is detected. It is recommended you to connect a

device to a 5 GHz router.

The response rate may vary

depending on the user’s environment. For more information on the device

you want to connect to, refer to its owner’s manual.

Tips for Network Settings

Use a standard LAN cable (Cat5

or higher with RJ45 connector, 10 Base-T or 100 Base TX LAN port).

Resetting your modem can cause

network connection problems. To resolve the problem, turn the power off, disconnect and reconnect, and then turn the power back on. LG Electronics is not responsible for

any network connection problems or any faults, malfunctions and errors caused by an network connection. A network connection may not work

properly depending on the Internet service provider. A DSL modem is required for a DSL

service; a cable modem is required for a cable service. Only a limited number of network connections may be available, and projector network setting may not be available depending on your contract with your Internet Service Provider (ISP.) (If only one device is allowed per line and the PC is already connected, other devices cannot be used.) Wireless networks can be subject

to interference from other devices

operating at a frequency of 2.4 GHz

(wireless phones, Bluetooth devices or microwave ovens). There may also be interference from devices with a

frequency of 5 GHz, same as other

Wi-Fi devices.

ENTERTAINMENT

The surrounding wireless environment

can cause the wireless network service to run slowly. If you do not turn off the entire local

home network, network traffic may occur on some devices. For an AP connection, an access

point device that supports wireless connection is required and the wireless connection feature must be enabled on the device. Contact your service provider regarding availability of wireless connection on your access point. Check the SSID and security settings

of the AP for AP connection. Refer to the appropriate documentation for SSID and security settings of the AP. Invalid settings on network devices

(wired/wireless line sharer, hub) can cause the projector to run slowly or not operate properly. Install the devices correctly according to the appropriate manual and set the network. Connection method may differ

according to the AP manufacturer.

ENTERTAINMENT

Tag On

What is Tag On?

Tag On is a data transmission technology that can be used on smartphones with NFC (Near Field Communication). Simply by tapping your smartphone to a Tag On sticker, you can share content between your smartphone and projector.

To connect your smartphone to the

projector using Tag On, they must be connected on the same Wi-Fi network or Miracast™/Intel’s WiDi of the smart projector is set to On.

NOTE

Do not attach the sticker to a metal

part of the projector. Otherwise, your smartphone cannot recognize the Tag On sticker. Do not crumple or fold the Tag On

sticker. Otherwise, the Tag On is not recognized. To purchase a Tag On sticker, please

contact the LG Electronics Service Centre. This function is supported only on a

smartphone with Android 4.0 (ICS) or

later.

To Start Tag On For the First Time

To connect your smartphone to the projector using NFC, install the Tag On app on the smartphone and complete the authentication process.

1 Make sure that the smart projector

is on the same network as your smartphone. If Wi-Fi cannot be

enabled, go to

→ Settings → NETWORK → Miracast™/Intel’s WiDi and set to On.

SMART

2 Enable the smartphone's NFC

function and set to Read/Write and P2P Mode. For more information on

enabling NFC and setting the mode, refer to the owner's manual of your smartphone.

3 Tap your smartphone to a Tag On

sticker. Make sure to follow the instructions on the smartphone screen and install the Tag On app and LG TV Remote app.

4 Tap the smartphone to the Tag On

sticker again.

5 Enter the pairing key displayed on the

smart projector into the smartphone. When two or more projectors are detected, the pairing key is displayed only after the projector you want to connect to is selected in the device list.

6 When the connection is made

properly, you can use Tag On. The information of the connected

projector is saved in the Tag On sticker. You can change or reset the information in the Settings menu of the smartphone Tag On app.

To use the Tag On

Follow the steps below to share content on your NFC-enabled smartphone.

1 Tap the NFC-enabled smartphone to

a Tag On sticker.

2 The Tag On app starts running on the

smartphone to connect to the smart projector.

- To use a Wi-Fi network, make sure that the smart projector is on the same network as your smartphone.

- If the smart projector and the smartphone are not on the same network, use Wi-Fi Direct.

If the Tag On app is not installed,

the installation page appears automatically. For more information on how to share

content between your smartphone and projector, refer to the Tag On app's help. Click to run the Tag On app on your smartphone and select the Settings menu to view the help.

ENTERTAINMENT

SMARTSHARE

Before Using

Connecting a USB Device

Connect a USB device (external HDD,

USB memory) to the USB port of

projector to enjoy the content les stored

in the USB device with your projector. You cannot write or delete data in the

USB device. Connect a USB ash drive

as shown below.

USB Flash Drive

Removing a USB Device

1 Press the MY APPS button to select

the Quick Menu. (Or press the SMART select Quick Menu.)

button and

2 Use the or button to move

to USB Device and press the OK button.

3 Select a USB to remove. Wait for

conrmation that the USB device has

stopped before removing the USB.

NOTE

If detached early, an error may occur

on the projector or the USB storage device. Once a USB device has been

selected for removal, it can no longer be read. Remove the USB storage device and then re-connect it.

Tips for Using a USB Device

If the USB storage device has a built-

in auto recognition program or uses its own driver, it may not work. Some USB storage devices may not

work or may work incorrectly. If you use a USB extension cable, the

USB device may not be recognized or may not work properly. Use only USB storage devices

formatted with the Windows FAT32 or NTFS file system.

For external USB HDDs, it is

recommended that you use devices with a rated voltage of less than 5 V and a rated current of less than

500 mA.

It is recommended to use a USB

hub or hard disk drive with power supplied. (If the power supplied is not enough, the USB storage device may not be detected properly.) It is recommended that you use USB

flash drives of 32 GB or less and USB

HDDs of 2 TB or less. If a USB HDD with power-saving

function does not work properly, turn the power off and on. For more information, refer to the user manual

of the USB HDD.

Data in USB storage device can

be damaged so be sure to back up important files to other devices. Data maintenance is the user's responsibility and the manufacturer is not responsible for data loss.

SMARTSHARE

To use SmartShare™

1 Press the SMART

button on the remote control.

2 Select SmartShare™.

You can watch the photo, music, video and document on the projector by connecting

a USB or home network (DLNA). The photo, music, video and document les of all devices connected to the projector are displayed. (For the document les, only those in

the devices connected via USB are displayed.)

000 001 002 003 004

005 006 007 008 009

Description

Displays photo / music / video / document les on all devices connected to the

projector. Shows how to connect PC, smartphone/device, and USB.

SMARTSHARE

Watching the Videos

In the Movie List, you can watch movies stored on the connected USB device. Controls playback and sets options while viewing videos.

Playing video - warning

Some subtitles created by users may not work properly.

The video and subtitle files should be placed in the same folder. In this case, you

must assign the same names for the video and subtitle files for proper display. Subtitles on an NAS (Network Attached Storage) device may not be supported

depending on the manufacturer and model. We do not support any stream that contains GMC (Global Motion Compensation) or

Qpel (Quarterpel Motion Estimation). Full HD Video: 1920 X 1080

- Only H.264 / AVC profile level 4.1 and lower is supported.

The file size limit is dependent on the encoding environment.

Only Window Media Audio V2 and above is supported.

AAC Main Profile is not supported.

Video files created by some encoders may not be played back.

Video files in formats other than the ones specified here may not be played back.

Playback of video files stored on the USB device that do not support High Speed,

may not work properly.

The projector supports DTS audio codec when the USB/HDMI video file playback.

SMARTSHARE

To control video playback

You can control playback using the following buttons.

Shows the current playing position. Use the or button to move forward or backward.

Item Description

Resumes normal playback. Pauses the video player.

Displays in slow motion.

Whenever this button is pressed, the playback speed is increased or decreased by one unit.

ꕙ

Plays the previous/next le.

Option Sets the option.

Viewing the Photos

You can view photos stored on a connected device.

To control photo view

You can control playback using the following buttons.

Item Description

Selects the previous or next photo. If no picture is selected, all photos in the current folder are displayed in a

slide show. If some photos are selected, those photos are displayed in a slide show.

SMARTSHARE

Set Slide Speed in the Option

You can listen to music while viewing full-size photos.

Set BGM in the Option → Set Photo View. menu.

Rotates photos.

Rotates a photo 90 °, 180 °, 270 °, 360 ° clockwise.

Photos cannot be rotated if their width is greater than the height of the

maximum supported resolution.

Enlarges or reduces the photo. Use the Up/Down/Left/Right buttons to select a page and press the OK button.

Option A setting popup window will appear.

→

Set Photo View. menu.

SMARTSHARE

Listening to Music

You can play audio les stored on the connected device.

To control music playback

You can control playback using the following buttons.

Changes the playing position.

Item Description

ꕙ

Plays the previous/next le.

Pauses the music player. Resumes normal playback. Sets the repeat playback.

Sets the random playback. Plays music with the projector screen turned off.

Sets Option for the music list.

You can control playback using the , , and keys on a standard remote control.

If you use the USB device, time information will be not shown on screen.

SMARTSHARE

Viewing Files

You can see document les stored on a connected device.

Supported File Formats

XLS, DOC, PPT, TXT, XLSX, PPTX, DOCX, PDF

Microsoft Ofce 97/2000/2002/2003/2007 version Adobe PDF 1.0/1.1/1.2/1.3/1.4 version

File Viewer realigns a document, so it may look different from what is displayed

on a PC. For documents that include images, the resolution may look lower during the

realigning process. If the document is large or has many pages, it may take longer to load.

Unsupported fonts may be replaced by other fonts.

The file viewer may not open for Office documents that contain many high resolution

images. In that case, reduce the image file size, save it on a USB storage device and run the file viewer again or connect your PC to the projector and open the file on your PC.

Browsing File Viewer

You can control playback using the following buttons.

Press the Go Page button to move to the previous or next page.

Press the volume button to zoom in or zoom out.

- Press the OK button.

- Press the Up/Down/Left/Right buttons to move to Go Page or Zoom.

Item Description

Go Page Moves to the page you specify.

Zoom Enlarges or reduces the document.

Option Sets Option for File Viewer.

List Returns to a list.

SMARTSHARE

To Set SmartShare™ Related Functions

Select SMART Changes settings related to SmartShare™ content playback.

→ SmartShare™ → Settings.

Advanced Setting

Item Description

My Projector Name Changes the name that appears when searching for the

projector from other devices.

Network Status Checks the network connection. Wi-Fi Direct Allows use of wireless connection functions such as Wi-Fi

Direct and WiDi.

Auto Play on Receive

DivX(R) VOD Registers or releases DivX.

Accepts / rejects content transferred from other devices.

Checks DivX Registration Code for playing DivX-protected videos. Register at http://vod.divx.com. Uses Registration Code to rent or purchase movies at www.divx.com/vod.

When using the DivX Registration Code of another device,

the rented/purchased DivX file cannot be played. Use only the DivX Registration Code granted to this device. Converted files not conforming to DivX Codec Standard may

produce abnormal images and sound.

Delete History

To delete contents history, press Delete History button. Use the contents at Recent

menu.

SmartShare™ supporting file

Maximum data transfer rate: 20 Mbps (Mega bit per second)

External subtitle formats supported: *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0),

*.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX), *.dcs(DLP Cinema)

Internal subtitle formats supported: XSUB (supports internal subtitles generated from

DivX6)

Video Supported Codec

Maximum resolution: 1920 x 1080 @ 30p

Extension Codec

SMARTSHARE

.asf

.wmv

.divx

.avi

.mp4 .m4v .mov

.3gp .3g2

.mkv

.ts

.trp

.tp

.mts

.m2ts

.vob

Video VC-1 Advanced Prole, VC-1 Simple and Main Prole

Audio WMA Standard, WMA 9 Professional

Video

Audio

DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC,

Motion Jpeg, MPEG-4 Part 2

MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),

Dolby Digital, Dolby Digital Plus, LPCM, ADPCM, DTS

Video H.264/AVC, MPEG-4 Part 2

Audio AAC , MPEG-1 Layer III (MP3)

Video H.264/AVC, MPEG-4 Part 2

Audio AAC, AMR-NB, AMR-WB

Video H.264/AVC

Audio HE-AAC, Dolby Digital

Video H.264/AVC, MPEG-2, VC-1

Audio

MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)

Dolby Digital, Dolby Digital Plus, AAC

Video MPEG-1, MPEG-2

Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM

.mpg

.mpeg

Video MPEG-1, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III(MP3), AAC

SMARTSHARE

Audio File

File type Item Info

Bit rate 32 Kbps - 320 Kbps

mp3

Sample freq. 16 kHz - 48 kHz

Support MPEG1, MPEG2, Layer2, Layer3

Available photo file

File type Item

(jpeg, jpg,

jpe)

JPEG

Prole

Minimum: 64 x 64

Maximum: Normal Type: 15360 (W) x 8640 (H) Progressive Type: 1920 (W) x 1440 (H)

SMARTSHARE

To Use the LG Cloud

What is the LG Cloud?

LG Cloud is a service that allows you to enjoy your contents, such as video, music and

photos on your LG Projector, SmartPhone and LG Website at any time, regardless of where you are.

SMART

You can sign up from your LG Smart projector, SmartPhone or LG Website.

The service or membership can only be cancelled at the LG Cloud website

→ More → LG Cloud

(http://www.lgecloud.com).

Movie

Weather

News

Sports UCC

Picture Map Game

SMARTSHARE

To Use the LG Cloud

SMART

Enter the e-mail and password you provided during the sign-up procedure to sign in

to the service.

Main screen layout

This is the main screen you will see rst after signing in.

→ More → LG Cloud

File display area

Folder selection tabs


Sort criteria selection

Selection mode

Video playback

Playback control Add or remove favorites

LG Cloud Move to Home/Notice/My Account/FAQ

Item Description

Move to Home Displays a default screen. Notice Shows notices about the LG Cloud service. My Account Shows the user ID and e-mail address. FAQ Displays the FAQ regarding LG cloud service.


Set options

SMARTSHARE

To Connect DLNA

DLNA stands for Digital Living Network Alliance, which allows you to enjoy

video / music / photo les stored on a

PC or server on your Projector via home networking.

To Connect a DLNAAuthenticated Smartphone

The

Projector

be on the same network.

1 Enable Wi-Fi on the smartphone. 2 Install/run a DLNA app to share

content on the smartphone (It’s called SmartShare on LG phones).

3 Run Share my mobile phone

Content.

4 Select the kind of Content (video/

music/photo) to play.

5 Select the video, music or photo le

to play on the projector.

6 Select Add to Play List. 7 Select projector model name on the

device to replay content. (projector model name is on the label of the device.)

8 Play Shows the selected le on

projector.

and the smartphone should

To Connect DLNA DMR (Digital Media Renderer)

With the Windows 7 or Windows 8 PC operating system or DLNA-certied

device (e.g. mobile phone), music/ videos/photos may be played on projector without installing a separate program.

1 Congure Projector and PC on

the same network. Congure the Windows 7 or Windows 8 PC on the

network.

2 To play a music/video/photo le, right-

click on the le and use the Remote

Playback or PlayTo Windows 7 or Windows 8 feature. For playback on devices like a mobile phone, refer to the model’s user guide.

3 Content will be played on only

one device even if more than one projector or device is connected. Play speed can vary depending on network speed.

SMARTSHARE

To Connect DLNA DMP (Digital Media Player)

With a PC having SmartShare™ PC software, music / video / photo les may be replayed on the projector via home networking.

1 Congure projector and PC on the

same network. The projector and each device should be connected through a single access point to enable DLNA service.

2 Install SmartShare™ PC software

on the PC from the website. Before installation, close all running programs including rewall and anti-virus programs.

3 The sever should be running in order

to watch the shared le on your

projector. For the website information, go to

SMART → Settings → SUPPORT

→ Product/Service Info.. For how to use the SmartShare™ PC

software, refer to the software help.

SMARTSHARE

SmartShare™ PC SW Installing and Setting

Install the SmartShare™ PC SW (DLNA) program on your PC.

1 Download the setup le from the path below in order to use the DLNA function.

http://liu.lge.com/smartshare/release/smartshare.zip

2 Install the downloaded SmartShare™ PC software. 3 You can run the program when installation is complete.

NOTE

DLNA or Media Link service is only available if projector and other devices are

connected via a single router.

PC requirement for installing LG SmartShare™

Item Minimum Specications

CPU

RAM 1 GB or higher 2 GB or higher

VGA

Hard Disk Drive 200 MB or higher

Operating

System

Network

Environment

Program speed can be delayed depending on the system performance and the

network environment.

Intel Pentium4 2.0 G or higher/ AMD Sempron 2000 or higher

64 MB RAM, 1024 x 768 or

higher resolution, and a video

card that supports 16 bit or

more colors

Windows XP (Service Pack 2 or later), Windows Vista, Windows 7,

Windows 8

l Windows Media Player: 11.0.5721.5280 or higher is

recommended

100 MB Ethernet, Wireless LAN (WLAN) IEEE 802.11g or higher

Recommended

Specications

Intel Pentium Dual Core or higher/AMD Athlon 64 x 2 or higher

128 MB RAM, 1024 x 768 or

higher resolution, and a video

card that supports 16 bit or

more colors

SMARTSHARE

In Case of a DLNA Malfunction

If a DLNA feature does not work

properly, check network settings.

A 5-GHz access point is needed to

view 1080p videos via DLNA. A 2.4-GHz access point may cause

frequent buffering or other problems. DLNA may not work properly on a

wireless network. It is recommended to use a wired connection. Multi audio and internal subtitles are

not supported in DLNA mode. If more than one Projector is

connected to a single server in DLNA mode, the content may not play depending on server performance. Subtitles may not be supported

depending on the DLNA device. The DLNA feature may not work

properly in all network environments. The DLNA feature cannot be used

with some access points that do not support multicasting. For more information, refer to access point manual or consult with the manufacturer. Supported file types may differ

depending on the DLNA server environment, even for file types supported by the projector. Too many sub-folders and files

included in one folder may cause a malfunction. Information about the file from DLNA

server may not be displayed correctly. SmartShare™ PC Software is

recommended when watching video subtitles from a DLNA server.

To add a subtitle file later, turn off the

shared folder and reset. DRM files located in SmartShare™

PC Software server are not played.

To Use A Premium Service

SMARTSHARE

SMART

This service gives you easy access to a wide variety of content, such as video,

news, and UCC, at any time, as long as you are connected to the network. Premium content includes specialized country-specific services taking regional cultural sensitivities into account as well as global content.

→ Premium

WEB Movie Map SNS Play

NEWS Comic

Entertainment

Information TV

To Use Paid Content

A fee is payable for some Premium content. Fee-paying services are paid for either

through LG Electronics’ proprietary billing system or through that of the relevant content provider. Before using the LG billing system, you will need to sign up for membership and register payment information on projector or the website (www.lgappstv.com) to purchase paid content. You can sign up for membership on the login screen on your projector or our

website. You can then log into both the projector and the website with one ID.

1 Click Sign In button on the upper-right side of the screen on the home page to sign in. 2 Moves to the desired Premium service. (For some premium services, separate sign-

in is required after signing up for the premium service.)

3 After reviewing the pricing and service information for the content, click the

Purchase button. (There may be limitations on the available period and number of times depending on content.)

4 Once the purchasing process is complete, view your purchased content by clicking

the Buy button.

5 Select your ID on upper menu of Home screen and check history of purchases

from My Page → Payment inquiry. It is also available on My Page → Purchase History of web site (www.lgappstv.com).

SMARTSHARE

To Reset Premium

SMART

Resets premium list, premium information, country setting, and user sign-in

information. Resetting will resolve errors occurring during premium update.

NOTE

Content offered by service providers is subject to change or deletion without prior

notice to enhance their service quality. Refer to the website of the relevant content provider for questions, troubleshooting, or the latest information about content. LG Electronics assumes no legal responsibility for content services and related information, even when a service is discontinued by the service provider. The quality of your premium service may be affected by your Internet connection.

For any questions related to Internet speed or other service problems, consult your Internet service provider. For best service quality, we recommend that you subscribe to an Internet service

providing a speed of 4.0 Mbps (1.5 Mbps or faster). If you experience any Internet

speed problem, contact your Internet service provider. Some content providers may provide content that is unsuitable for minors. Parental

discretion is advised.

→ Premium → Option → Initialization of Premium

To use LG Smart World

SMARTSHARE

SMART

→ LG Smart World

LG Smart World is a projector application service available through Smart projector Service. You can download and enjoy many different apps (for fee or free) including education, entertainment, life and news.

App 1 App 8 App 15

App 2 App 9 App 16

App 3 App 10 App 17

App 4 App 11 App 18

App 5 App 12 App 19

App 6 App 13 App 20

App 7 App 14 App 21

Description

Sign in. When you sign in, ID is displayed. When you select the ID, you can select My Page and Sign Out. Select the app to install.

SMARTSHARE

To Use Search Function

SMART

You can search apps and contents using the Search function of LG Smart Projector.

→ Search

When you enter keywords using the input device, such as the remote control, you can find apps of LG Smart World and some contents of the Premium service. Links are also provided to go for web search. If you are using SmartShareTM, you can also search contents of SmartShareTM. The Search categories and content types vary depending on the country and will be kept updating.

Enter search terms.

Category of search results

Prev. Keywords

All

Premium

YouTube

NEWS

Web

weather

Search results

Detailed information about the search item

To Use the Voice Recognition Function

Using this Function Through Search

1 Go to SMART

text eld.

2 Speak slowly and clearly after the voice recognition window appears. 3 After the voice recognition is completed, the Similar List window pops up. If the pop-

up window does not have the results you want, press Retry to try again. Select the

most similar result, then it will be displayed in the text eld. Press the Search button

to get the result you want.

→ Search. Select the voice recognition icon (

) on the left of the

Using this Function on the Internet

1 Go to SMART

Move the Magic Remote Control

pointer in the text eld on a website

to open the virtual keyboard.

Select the voice recognition icon (

on the left of the text eld on the virtual

keyboard.

→ Internet.

3 Speak slowly and clearly after the

voice recognition window appears.

4 After the voice recognition is

completed, the Similar List window pops up. If the pop-up window does not have the results you want, press Retry to try again. Select the most similar result, then it will be displayed on the text eld. Press the Search button on the website to get the result you want.

SMARTSHARE

)

SMARTSHARE

To Use Voice Mate Function

What Is Voice Mate?

Voice Mate allows you to search desirable programs and content with your voice and adjust the projector.

1 Press the voice recognition (

) button on the magic remote control.

2 When the Voice Display bar is activated on the left of the screen, say what you want

to watch.

Tell me what you want.

“Show me the hottest YouTube video,

and timer-record it (a program).”

WHEEL(OK) button: See voice user guide.

3 Press the Wheel (OK) button with the Voice Search standby to see the supported

language in the voice guide.

SMARTSHARE

How to Use Voice Mate?

To use all the functions and services

of Voice Mate, you need to set Smart Wizard and Time. Set up the network, region, auto tuning, and universal remote control through the Smart Wizard. In order to use Voice Mate, you must

set up the network, time, region, and tuning. Set the language of your country to

use Voice Mate. You can change the language for

Voice Search in

SMART

→ Language → Voice Recognition

Language. You can turn the avatar On/Off in

SMART

→ See Avatar. Point the universal remote control

towards the set-top box when you use Voice Mate with it. When speaking a command, hold the

remote within 10 cm (3.9 inches) of

your face. The voice search may fail when you

speak too fast or too slow. The recognition rate of Voice Mate

may vary depending on the user’s characteristics (voice, pronunciation, intonation, and speed) and the environment (noise and projector volume). If your voice is not recognized

properly, Voice Mate may function regardless of your intention.

→ Settings → OPTION

What Are Other Functions of Voice Mate?

You can access various Projector features using Voice Mate.

Item Description

Channel

Recommendation and Search

Information and Internet

Available functions may vary

depending on the country.

For more supported examples, see

the voice user guide.

You can tune TV

channels and search channel information. Example: “What time is *** on?”

You can recommend

and search TV programs and content files. Example: “Look up ***”

You can also search

other information such as today’s weather.

Example: “How’s the

weather today?”

SMARTSHARE

What Is On Now?

On Now allows you to select and watch recommended programs currently available on your Projector. The Favorite function allows you to select and watch recommended content related to the program you are watching.

To Use On Now

To see in Mini view

SMART

→ On Now

Refreshes all list items and moves to the beginning of the screen simultaneously.

Moves to Full View.

SMARTSHARE

To See in Full View

SMART

For TV channels, you need to complete Auto Tuning to use this service properly.

If you move to a different region, you need to set the region to your current location

in order to use this service. The digital EPG (Electronic Program Guide) information which the TV receives may

be different from the programs on the On Now TV list which uses an external EPG (Electronic Program Guide). You can control a connected set-top box tuner with the magic remote control.

An internet connection is required to use On Now.

The channels in the On Now TV list are provided from the cable broadcasting service

provider. If the provider changes them without notice, the actual TV channels may differ. The channel names of analog cable broadcasting on the On Now TV list are

provided from an external EPG (Electronic Program Guide), so each name refers a cable broadcasting service provider but may not match. The program thumbnail image on the On Now TV list is the representative image

of the program, and it may be different from the image of the actual TV program schedule. If the channel information on the On Now TV list is different from the actual TV

channel or set-top box channel, set the set-top box and channel menu in the On Now Settings.

→ My Card →

Refreshes all the list items and moves the screen up simultaneously.

On Now

Find

Sets the options.

Move to Mini view.

SMARTSHARE

To Use Internet

SMART

Types URL manually on Projector or visits websites added to favorite.

Types in the web address.

❶

Chooses when you open several web browsers.

❷

Add the current page to favorites.

❸

Internet supports up to Flash 11 but does not support platform-dependent

technology like ActiveX. Internet only works with a pre-installed plug-in.

Internet may not play any media file format other than the following:

JPEG / PNG / GIF Internet will be forcibly closed when there is insufficient memory.

For the Internet, fonts installed on the projector are used and may not be displayed

normally depending on the content played. Internet does not support file and font download.

Internet is made for projector so it may have a different function to browsers made

for PC. Internet is a projector browser and may not work properly when playing some

content files.

→ Internet

❶

❸❷

Description

SMARTSHARE

Frequently Asked Questions for Smart Projector

Sign up is required to use LG Smart World. You can sign up on either your Projector or the LG website (www.lgappstv.com). Free apps are available immediately after signing up. You can purchase paid apps using your credit card registered with the website or credits. Paid apps can also be purchased through carrier billing.

Problem Solution

When entering menu, the Initializing message always appears.

There is no content shown on the Premium card.

While using internet features, there is a blank space on some Web pages.

Internet closes automatically when visiting website.

I already signed up on projector. Do I need to sign up again at web site (www.lgappstv.com)?

The Initializing message shows you how

long it takes to reboot the microprocessor and hardware, set up network communications, and communications with SDP (device authentication and basic information download). It takes about

20 seconds and this is a normal process.

Content may not be shown after changing the

country setting on Smart Projector. Change to desired country in SMART OPTION → Service Country Setting.

The internet of the Projector supports up to

Flash 11 and may not replay any file format

other than the following : JPEG, PNG, GIF

If memory is insufficient because of large

volume of image information in the web page, the browser may be forced to close.

If you sign up on your projector, no additional

sign-up on the LG website (www.lgappstv.com) is required. After signing up on the projector, you can sign

into the website by using the same ID and password and entering the additional information to complete the email verification process.

→ Settings →

SMARTSHARE

Problem Solution

Can each family member use a different ID with a single projector?

What should I do if I forget my ID?

I purchased an app from the LG web site (www.lgappstv. com). How can I use it on the projector?

Can I see history of my purchased apps?

I deleted a paid app. Do I have to purchase again to download it?

Can I use apps from LG Smart Projector's LG Smart World on both a projector and a PC?

How can I check the ID currently signed in on the projector?

It is possible to register and use more than one ID on one projector. To check the ID registered with Projector from

SMART

→ Sign In → ID List.

You can check the list of apps purchased by each

ID. However, you can see all apps installed by

each ID in SMART

→ Sign In → My Page.

After signing up on a PC, use the Forgot ID? feature on web site (www.lgappstv.com) when needed. After signing up on Projector, check it from

SMART

→ Sign In → Find ID.

To check purchased apps from the Projector, sign in and open the Purchased Apps menu.

Select the ID at the top of Home and check the app in My Page → Purchased apps.

Select the ID at the top of Home and check the app

in My Page → Purchased apps. Sign in to website (www.lgappstv.com) and then select My Page → Purchase History.

If a purchased app is accidentally deleted, you can download and reinstall it without having to buy it again, as long as it is still in service.

Select the ID at the top of Home and re-download

apps in My Page → Purchased apps. (Previously owned apps may not be re-downloaded or run depending on the software version.)

Please check if the projector model supports LG Smart World. The apps provided from LG Smart Projector's LG Smart World can only be used on an LG Smart Projector. Apps may be purchased from the website (www. lgappstv.com) but cannot be used on a PC or Mac. Use care when purchasing.

Select the ID at the top of Home and check the

currently signed-in ID in My Page → My Information.

Problem Solution

I installed an app on the projector. Where can I check the installed app?

There is a difference between the app size shown on the screen and the actual app size installed on projector.

I forgot my password on the projector. What should I do?

Do I need to store payment information in web site to purchase paid apps?

Can I cancel an app that I have purchased?

Should I use only an email address for my ID?

Select SMART

SMARTSHARE

→ More → MY APPS. All paid

and free apps installed on projector are displayed.

The app size shown in the screen includes the additional space needed for installing apps so it may be different from actually installed app size.

If you only provide the ID and password when signing up on your projector, you cannot recover your password when it is lost. Create a new ID and sign up with the ID. If you provide other information than the ID and password when signing up on your projector or the LG website (www.lgappstv.com), you can recover your password on the website.

The following payment methods are available to purchase paid apps on your projector: credit card, credits, and carrier billing. To purchase paid apps using your credit card or credits, you should have a credit card registered with the LG website (www.lgappstv.com) or have enough credits. Paid apps can also be purchased through carrier billing if your credit card details are not registered with the website or you do have enough credits. If you purchase paid apps on the website, the following payment methods are available: credit card or credits.

As a member you cannot demand refund just because you changed your mind after purchase. If there is a defect in the product or a problem of using the product, which is not caused by your

fault, you can ask for a refund. However, the valid

reason for refund must be provided. For new sign-up members, the ID format has

changed from a combination of alphanumerics to your email address. You can use only an email address for your ID when signing up.

SMARTSHARE

Problem Solution

Do I need to change my ID format to the email address?

For new sign-up members, the ID format has changed from a combination of numbers and alphabets to the email address. If you are already a member, you can still use your existing ID or change it to the email address.

What is the LG account? The LG account allows you to sign into all of the

LG Smart service with a single ID and password. You can use the following services with your LG account: LG Smart Projector, LG Cloud, LG Smart World

(excluding some countries), LG Smart ThinQ, and

LG Smart air conditioning, etc. Additional information may be required depending on the service.

USING ADVANCED FUNCTIONS

To Use Screen Remote

Press the button on the magic remote control. Select a button on the screen remote displayed on the screen using the magic remote control.

The type of buttons on the screen remote varies depending on the region or the type

of a connected device. Image shown may differ from your projector.

Change Device tab

Exits the Screen Remote

Moves the position of the Screen Remote to left or right

TV operation buttons

To Control a Device Connected to the Projector Using the Screen Remote

You can control a device connected via SIMPLINK or MHL using the Screen Remote.

1 Check if the device is connected to the projector. 2 After pressing the button on the magic remote control, select the device you

want to control in the Change Device tab. The screen remote that can control the device appears. This may not work with some buttons.

USING ADVANCED FUNCTIONS

To Use the Universal Control function

For magic remote control only

With the magic remote control, you can control a set-top box, Blu-ray player, home theatre system, etc.

1 Check if a device you want to set is connected to your Projector. 2 After pressing the button on the magic remote control, select the icon of a

device you want in the change device tab. If there is no device you want, press the on the tab, and select the external device you want. Once the setup is complete, the name of the selected device is displayed in the Change Device tab.

3 When you select a device you want in the change device tab, the screen remote that

can control the device appears on the screen.

To change or clear the Universal Control settings

1 After pressing the button on the magic remote control, select the (TV/input

selection) button.

2 Select Change Settings or Cancel Settings at the bottom of the device to be

changed. When change setting, check if the power of the device to be changed is turned on.

You can set one device per type.

With the screen remote, you can only control the devices of a brand or manufacturer

that you can select in the setup screen. If you connect to a network before setting the universal remote control, update for

the latest manufacturer list is available. Some buttons may not work depending on the external device model.

Place the device near the projector for seamless operation.

If the device is in a drawer, open the drawer.

Go to SMART

→ Set the Universal Control and add, delete, or change a device.

→ Universal Control or, SMART

→ Input List

USING ADVANCED FUNCTIONS

To Control a Projector Using a Smartphone

You can download the LG TV Remote app from Google Play Store or Apple App Store and use it on any projector connected with your smartphone.

Now you can enjoy your favorite projector shows on your smartphone. (Some

models only) You can easily enter your account information to log in.

You can add your favorite channels on your smartphone.

You can use the functions such as Premium, MY APPS, and SmartShare™

directly on your smartphone. The text input function is supported, so you can enter text easily. (Text cannot

be entered on some screens.) Select the app's touch pad to control in the same way the pointer of the magic

remote control works. Keypad which allows you to control the set-top box and media devices is

provided. (Some models with specified conditions only.) You can set the projector to the power-saving mode while watching Projector

on your smartphone.

The supported functions may vary depending on the version of the LG TV remote

app.

USING ADVANCED FUNCTIONS

To Use a USB Input Device On a Projector

To Use a USB Wired/wireless Mouse

Connect your mouse to the USB port. Use the mouse to move the pointer on the Projector screen and select the menu you want.

Mouse Magic Remote Control

Left Button OK Button on Magic Remote Control

Wheel Button Wheel Button on Magic Remote Control

The right and the special buttons on the mouse do not work with the Projector.

The usability of a wireless USB mouse and keyboard may be affected by Radio

Frequency environment and the distance.

To Use a USB Wired/wireless Keyboard

Connect your keyboard to the USB port. You can enter text with the keyboard when using the search function and the Internet.

Text cannot be entered on some screens.

It is recommended to use the product which is tested for compatibility with the LG

Projector.

LOGITECH K200, LOGITECH K400, MICROSOFT Comfort Curve 2000,

MICROSOFT MS800, and LG Electronics ST-800

You can change the input language by pressing the language switch key (or the right

Alt key) on your keyboard.

CUSTOMIZING SETTINGS

SETTINGS

1 Press the SETTINGS button.

(Press the SMART

2 Use the or button to select the desired item and press the OK button. 3 Use the , , , or button to set up the desired item and press the OK button. 4 Press the EXIT button when completed.

Menu Description

PICTURE Adjusts the image quality for optimal viewing. SOUND Adjusts the sound quality and volume level. CHANNEL Sets up or edits a channel. TIME Sets the time and time-related features. LOCK Locks or unlocks a channel or a program. OPTION Customizes the general settings. NETWORK Sets the network. SUPPORT Shows the projector information.

button and select Settings.)

CUSTOMIZING SETTINGS

PICTURE Settings

1 Press the SETTINGS button.

(Press the SMART Settings.)

2 Use the or button to select PICTURE and

press the OK button.

3 Use the , , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press the button.

The available picture settings are described as follows.

Item Description

Energy Saving

Picture Mode

Contrast Adjusts the difference between bright and dark regions of the screen. Brightness Adjusts the overall screen brightness.

Reduces power consumption by adjusting screen brightness.

Mode Minimum/

Medium/ Maximum

Selects the picture mode optimized for the viewing environment or the programme. You can also customize advanced options for each mode.

Mode Vivid Maximizes the visual effect of video.

Standard Displays images in standard levels of contrast, brightness,

Cinema Optimizes the image for a movie. Game Optimizes the image for playing games on fast-moving

Expert1/2 Menu for adjusting picture quality that allows experts and

button and select

Applies the pre-set Energy Saving mode.

- If Energy Saving is set to Minimum and the ambient temperature is 35 °C or higher, Energy Saving will be disabled.

- If Peak Mode is enabled, Energy Saving will be disabled.

Heightens contrast, brightness, and sharpness to display

vivid images.

and sharpness.

screens.

amateurs to enjoy the best projector viewing.

- Expert mode is for picture tuning professionals to control

and ne-tune using a specic image. For normal images,

the effects may not be dramatic.

CUSTOMIZING SETTINGS

Item Description

Sharpness Adjusts the sharpness of the borders between bright and dark.

Horizontal and Vertical Sharpness are available only in Expert1/2. Color Adjusts the colors on the screen darker or lighter. Tint Adjusts the red/green color balance. Advanced

Control (Expert Control)

Picture Option

Picture Reset

Aspect Ratio

Picture Wizard II

Customizes the advanced settings.

Sets optional settings.

Resets values customized by the user.

Each picture mode is reset. Select the picture mode you wish to reset.

Resizes the picture.

Use the remote control and follow the instructions of the Picture Wizard

to calibrate and adjust for optimum picture quality without expensive

pattern devices or help from a specialist. Follow the instructions to

obtain the optimum picture quality.

Advanced Control

Item Description

Dynamic Contrast

Dynamic Color

Preferred Color

Super Resolution

Gamma Sets the gradation curve according to the output of the picture signal in

Adjusts contrast and color to the optimal level according to the screen’s brightness.

Adjusts colors for more natural-looking colours.

Skin Color Skin color spectrum can be separately set to implement

the skin color as dened by the user.

Grass Color

Sky Color Sky color is set separately.

Provides a crystal-clear picture by improving the details in areas where the picture is blurry or unclear.

relation to the input signal.

Natural color spectrum (meadows, hills, etc.) can be separately set.

Expert Control

Item Description

Dynamic Contrast

Adjusts contrast and color to the optimal level according to the screen’s brightness.

CUSTOMIZING SETTINGS

Item Description

Super Resolution

Provides a crystal-clear picture by improving the details in areas where the picture is blurry or unclear.

Color Gamut Selects the range of colors that can be expressed.

Standard: Displays the original colors of an input signal

regardless of the display features.

Wide: Makes use of the display's rich colors.

Edge Enhancer Shows clearer and distinctive yet natural edges of the video. xvYCC Displays much richer colors. Color Filter Filters a specic color spectrum in RGB colours to ne-tune colour

saturation and hue accurately.

Expert Pattern Patterns used for expert adjustment. Gamma Sets the gradation curve according to the output of the picture

signal in relation to the input signal.

White Balance Adjusts white balance. Detailed adjustment is possible as shown

below.

a. Method: 2 points

- Pattern: Inner, Outer

- Points: Low, High

- Red/Green/Blue: Adjustable range -50 - +50.

- Apply to all inputs: The values of the White Balance is applied to all the input modes.

b. Method: 20 point IRE

- Pattern: Inner, Outer

- Institute of Radio Engineers (IRE) is the unit indicating the

size of a video signal and can be set to 5, 10, 15, ... 100.You

can ne-tune for each setting as shown below.

- Red/Green/Blue: The adjustment range is -50 - +50.

- Apply to all inputs: The values of the White Balance is applied to all the input modes.

Color Management System

Adjusts Red/Green/Blue/Cyan/Magenta/Yellow colors. Allows an expert to adjust the tint using a test pattern. Six colors (Red/Green/ Blue/Cyan/Magenta/Yellow) can be selectively adjusted without affecting other colors. You may not see colors change on a normal picture even after adjustment.

- Saturation Red/Green/Blue/Yellow/Cyan/Magenta,

Tint Red/Green/Blue/Yellow/Cyan/Magenta, Luminance Red/Green/Blue/Yellow/Cyan/Magenta:

The adjustment range is -30 - +30 each.

* Depending on input signal or other picture settings, the range of detailed items for

adjustment may differ.

CUSTOMIZING SETTINGS

Picture Option

Item Description

Noise Reduction Reduces screen noise in the video. MPEG Noise Reduction Black Level Adjusts the brightness or darkness of the screen to suit the

Real Cinema Optimizes the screen for movie viewing. TruMotion Corrects images to display smoother motion sequences.

Color Temperature Adjusts the overall color of the screen to suit your preference.

Peak Mode Adjusts the brightness to the optimal level for the image.

* If the video signal is 60 Hz, TruMotion may not work.

Eliminates noise generated while creating digital picture signals.

black level of the picture input using the degree of darkness (black level) of the screen.

Mode Smooth De-Judder value is set to 3. Clear De-Judder value is set to 7. User De-Judder can be set manually.

De-Judder:

This function adjusts juddering of

the screen.

Off De-Judder value is set to 0.

You can select Natural, Cool, Medium, or Warm.

- If the image is mostly white, the brightness level increases. If the image mainly consists of red/green/blue/blue green/ magenta/yellow colors, you may not see a change in brightness.

- Peak Mode is only enabled when Picture Mode is set to Vivid and Energy Saving is set to Minimum.

- If Peak Mode is enabled, Energy Saving and Color Temperature are disabled.

CUSTOMIZING SETTINGS

SOUND Settings

1 Press the SETTINGS button.

(Press the SMART Settings.)

2 Use the or button to select SOUND and

press the OK button.

3 Use the , , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press the button.

The available sound settings are described as follows.

Item Description

Smart Sound Mode

Sound Mode Sets the sound mode.

Virtual Surround Plus

Clear Voice II Boosts voice clarity.

button and select

Provides the optimized sound adjusted for each content type.

If the Smart Sound Mode function is enabled, Sound Mode,

Virtual Surround Plus and Clear Voice ll are automatically adjusted.

Mode Standard Suitable for all types of video. Music/ Cinema/ Sport/ Game User Setting Adjusts volume level.

Provides realistic 5.1 channel stereo sound from two speakers.

If Clear Voice ll is set to ON, Virtual Surround plus will not be

chosen.

Sets audio optimized for a specic genre.

100 Hz/ 300 Hz/ 1 kHz/ 3 kHz/ 10 kHz:

Sets EQ by manual adjustment of sound

bands. Reset: Resets the equalizer value changed by

the user.

CUSTOMIZING SETTINGS

Item Description

Volume Mode Sets various modes for volume control.

Mode Auto Volume Sets Auto Volume to On. The volume varies

from channel to channel and program to program. When clicking through the channels, the volume is adjusted automatically to maintain the same level.

Volume Control Using a single volume curve may result in

an inaudible or loud sound depending on the environment. Adjusts volume levels depending on the time of day (day/night).

Sound Out Sets the audio output of the projector.

Mode Projector

Sound is output through the projector speaker.

Speaker External Speaker (Optical/HDMI ARC)

LG Sound Sync (Optical) LG Sound Sync (Wireless)

Sound is output through the speaker connected to the optical port. SIMPLINK is supported.

Digital Sound Out: Sets up Digital Sound

Output.

Sound is output through an LG audio device connected to the optical digital audio output port. Sound is output through a wirelessly connected LG audio device.

Headphone Sound is output through headphones.

Headphones are detected and connected

automatically when the projector is on.

CUSTOMIZING SETTINGS

Item Description

AV Sync. Adjust

Synchronizes video and audio directly when they do not match. If you set AV Sync. Adjust to ON, you can adjust the sound output (Projector speakers or SPDIF) to the screen image.

Mode Projector Speaker

Adjusts the synchronization of the sound from the Projector's internal speakers.

The + and - buttons allow the viewer to

synchronize the audio with the video.

External Speaker

Adjusts how the sound is synced to external speakers, such as an external speaker connected to the digital audio output port, LG audio device and headphone.

The + and - buttons allow the viewer to

synchronize the audio with the video.

Bypass Outputs broadcasting signals or the audio of an

external device without audio delay. Audio may be output before video as it takes time to process video input into the projector.

Sound Option

Balance: Adjusts left/right audio balance.

Setting

CUSTOMIZING SETTINGS

CHANNEL

Auto Tuning

Manual Tuning

Ch.Edit

CHANNEL Settings

1 Press the SETTINGS button.

(Press the SMART

2 Use the or button to select CHANNEL and

press the OK button.

3 Use the , , , or button to set up the desired

item and press the OK button.

- To return to the previous menu, press the button.

The available channel settings are described as follows.

Item Description

Auto Tuning Remembers a channel which is currently broadcasting. You should

Manual Tuning Adjusts programs manually and saves the results.

Channel Edit Edits the saved programs.

button and select Settings.)

use this function when you move to another house or move the projector to other place. It must be used while the antenna is connected and there are channel broadcasting signals.

Channels are not registered properly unless the antenna/cable

is connected correctly. Auto Tuning only finds programs that are currently broadcasting.

Only finds programs that are currently broadcasting. If Lock System is turned on, a pop-up window will appear

asking for password.

For digital broadcasting, signal strength and signal quality can be checked.

Set as favorite program, block/unblock program, skip program etc. of the selected program.

CUSTOMIZING SETTINGS

TIME Settings

1 Press the SETTINGS button.

(Press the SMART

2 Use the or button to select TIME and press

the OK button.

3 Use the , , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press the button.

The available time settings are described as follows.

Item Description

Clock Checks or changes the time while watching projector.

Mode Auto Synchronizes the projector clock to the digital time

Manual Sets the time and date manually if the auto setup

Off Time /On Time

Sleep Timer Turns off the projector after a preset number of minutes.

Auto Off If there is no signal, the projector automatically turns off after the preset

Automatic Standby

Sets On/Off time. Select Off on Repeat to discontinue On Time/Off Time.

To cancel the Sleep Timer, select Off.

time has elapsed. If you do not press any button on the projector or remote control for a certain period, the projector will automatically turns off.

button and select Settings.)

information sent by the TV station.

does not correspond to the current time.

To use On Time/Off Time, set the current time correctly.

Even when the On Time function is on, the projector will turn off

automatically in 120 minutes when no button is pressed within that

time.

LOCK Settings

LOCK

Set Password

Lock System : Off

yBlock Channel

yInput Block

yApplication Lock

1 Press the SETTINGS button.

(Press the SMART Settings.)

2 Use the or button to select LOCK and press

the OK button.

- To enter the LOCK menu, enter the preset 4-digit password. The initial password is set as

0000.

3 Use the , , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press the button.

The available lock settings are described as follows.

Item Description

Set Password

Lock System

Sets or changes projector password.

The initial password is set as 0000.

Permits only specic programs by blocking channels or external input.

Select the Lock System to On. Item Block

Channel

Movie Rating

button and select

Blocks the programs that contain inappropriate contents for children. The programs can be selected but the screen is blank and the audio is muted. To watch a locked program, enter the password.

Blocks the movies that are only broadcasted on the TV and contain inappropriate contents, based on the Motion Picture Association of America (MPAA) rating.

G (General audiences) All ages admitted

PG (Parental guidance suggested) Some material may

not be suitable for children PG-13 (Patents strongly cautioned) Some material may

be inappropriate for children under 13 R (Restricted) Under 17 requires accompanying parent

or adult guardian

NC-17 No one 17 and under admitted.

X Adults only

CUSTOMIZING SETTINGS

Item Description

Lock System

Item TV Rating-

Children

Blocks the children’s TV programs that parents do not want their children to watch. To block other TV programs, you should set the TV Rating-General feature.

Age TV-Y (All children, including children from ages 2-6),

TV-Y7 (Directed to older children, suitable for children age 6 and above) Fantasy Violence TY-Y7 (Directed to older children

– Fantasy violence, suitable for children age 6 and above, containing more intense or combative fantasy violence)

TV RatingGeneral

Blocks the TV programs that you want based on the ratings by using the Parental Control Function (V-Chip).

The V-Chip electronically reads TV program ratings and allows parents to block program that are unsuitable for children.

Age TV-G (General audience, suitable for all ages)

TV-PG (Parental guidance suggested, containing material that are unsuitable for younger children)

TV-14 (Parents strongly cautioned, containing material that are unsuitable for children age 14 and under)

TV-MA (Mature audience only, unsuitable for children age

Dialog (suggestive dialogue) TV-PG or TV-14

Language (coarse language)TV-PG, TV-14, or TV-MA

Sex (sexual situation) TV-PG, TV-14, or TV-MA

Violence TV-PG, TV-14, or TV-MA

Downloadable Rating

This function operates only when TV has received Region5 Rating data. The name of the rating option may differ.

Input Block Application

Block the input sources. Lock the application.

Lock

OPTION Settings

1 Press the SETTINGS button.

(Press the SMART Settings.)

2 Use the or button to select OPTION and

press the OK button.

3 Use the , , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press the button.

The available option settings are described as follows.

Item Description

Language

Service Country Setting

ZIP Code

button and select

Selects Menu Language and Audio Language displayed on the screen.

Item

Menu Language Audio Language

Voice Recognition Language

You can change the country setting of your smart projector. The premium service and LG Smart World that are available for the country you selected will be provided.

If a network is disconnected while setting the service country, it

may not be set properly.

Item Auto Setting A service country is automatically set for your

Manual Setting

You can check the information of area when network is connected.

This function sets your area as the ZIP Code.

You can check the information of area when network is

connected.

Selects a screen menu language.

Selects the desired language when watching digital broadcasting containing several audio languages. (In digital mode only) Select the language to make voice search.

smart projector. A service country can be set manually for your smart projector.

CUSTOMIZING SETTINGS

Item Description

Caption

View subtitles when the TV station provides subtitled programing. Program subtitles work only on digital/analog broadcasts or external input. Change Caption to On and select caption setting. Mode CC 1-4 (Closed Captioning) / Text 1-4

Displays the audio portion of a TV program as

text on the TV screen. CC1 is the most common

mode in use.

Field 1 data channels: two Captions (CC1, CC2), two Text (T1, T2).

Field 2 data channels: two Captions (CC3, CC4), two Text (T3, T4).

Service 1-6

This is only available for the digital broadcasting system.

Digital Option Set up the size and color of the subtitles on

Digital Option. Please select Set by Program or Custom.

Select Custom to adjust minute options such as the subtitles' size and color.

Item Size Selects the wordsize. Font Selects a typeface for the text. Text Color Selects a color for the text. Text Opacity Bg Color Selects a color for the background

Bg Opacity Adjusts the opacity for the

Edge Type Selects an edge type. Edge Color Selects a color for the edges. Window Color Window Opacity

Adjusts the opacity for the text color.

color.

background color.

Selects a color for the window color.

Adjust the opacity for the window color.

CUSTOMIZING SETTINGS

Item Description

Standby Light

Adjusts the LED button indicator.

Item On When the buttons are touched, their indicators

are all turned on at maximum brightness. In standby mode, LED indicators are turned on at

20 % of the maximum brightness.

Off When the buttons are touched, their indicators

are all turned on at maximum brightness. In standby mode, all LED indicators are turned off.

Set the Universal Control

Pointer

With the magic remote control, you can control a set-top box, bluray player, home theatre system, etc.

Sets the speed and shape of the pointer that appears on the Projector screen.

Speed Sets the moving speed of the pointer. Shape Selects a pointer shape from various options. Size Chooses the size of the pointer. Alignment

Set to On. If there is any misalignment between the pointer and the actual direction the remote control indicates, move the magic remote control left and right to realign. The pointer will automatically realign to the centre, making it easier to control.

If it is set to Off, the alignment function will not

work even when you move the magic remote control left and right.

PJT Mode

This function turns the projected image upside down or ips horizontal.

Auto Keystone Auto Keystone provides a rectangular screen image by

automatically adjusting the Keystone number when there is a trapezoidal screen image caused by tilting of the projector.

Item On Automatically adjusts the Keystone number. Off Manually adjusts the Keystone number.

Keystone To prevent the screen image from becoming trapezoidal,

Keystone adjusts the top and bottom width of the image if the projector is not set at a right angle to the screen.

Blank Image Selects a background for blank Image.

CUSTOMIZING SETTINGS

Item Description

Auto Power Makes the projector turn on automatically When the power code is

connected to the projector.

Item On When the power code is connected to the

projector, it turns on automatically.

Off When the power code is connected to the

projector, it goes into standby mode.

High Altitude If the projector is used at an altitude higher than 1200 meters

(4,000 ft), turn this on.

Otherwise, the projector may overheat or its protection function may be activated. If this happens, turn the projector off and then on again after waiting for several minutes.

Auto Input Search

Automatically searches for and displays the input signal type

when it is received. It is available only with external inputs (HDMI,

AV, and Component).

Balloon Help Enables/disables the balloon help. Control Device

Displays the list of control devices connected to the projector.

List See Avatar Turns the Avatar function on or off. Initial Setting

Deletes all optional settings and returns to initial default mode. Once initialization is complete, the projector will turn off and on by itself.

If Lock System is activated, a pop-up password prompt will appear.

Do not turn off the power during initialization.

Mode Setting Selects Home Use or Store Demo. For use at home, select

Home Use. Store Demo is a mode used for store display.

CUSTOMIZING SETTINGS

NETWORK Settings

1 Press the SETTINGS button.

(Press the SMART Settings.)

2 Use the or button to select NETWORK and

press the OK button.

3 Use the , , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press the button.

The available network settings are described as follows.

Item Description

Network Connection

Network Status

Soft AP This function allows you to change a wired Internet connection to

Wi-Fi Direct Wi-Fi Direct is a function that allows your projector to connect with a

Miracast Intel's WiDi

My Projector Name

button and select

Connects a network.

Displays the connection status of the network.

your projector to Wi-Fi, allowing you to connect various external devices or to use wireless Internet.

Soft AP Sets to On/Off. Security Key Sets the Wi-Fi security number.

You can set the security key with a

combination of English letters and numbers

between 8 and 64 characters long. The default setting is “LG123456”.

To enable the Soft AP function, your projector must be turned on

and have a wired Internet connection. Up to four external devices can be connected.

If the Soft AP function is enabled, the Wi-Fi Direct and MiracastTM

functions become unavailable. You must set the Soft AP function to Off to use the Wi-Fi Direct and MiracastTM functions.

Wi-Fi Direct device without Internet connection. The MiracastTM allows you to enjoy video and audio from a portable

device through the projector wirelessly. Intel's WiDi allows you to view a laptop screen through the projector without a cable.

Changes the name that appears when searching for the projector from other devices.

100

CUSTOMIZING SETTINGS

SUPPORT

1 Press the SETTINGS button.

(Press the SMART Settings.)

2 Use the or button to select SUPPORT and

press the OK button.

3 Use the , , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press the button.

The available support settings are described as follows.

Item Description

Software Update Updates to the latest software. Picture Test Check whether a video signal is properly displayed. Sound Test Check whether an audio signal is properly output. Product/Service Info. Shows the product/service information. Initialization of App If problems occur after updates, try initializing the system.

Self Diagnosis Troubleshoots functional problems that can arise while using

button and select

During initialization, the projector will restart automatically.

the product.
