LG VRF Systems
Air Conditioning Technologies
ABOUT LG
ABOUT LG VRF
A Variable Refrigerant Flow (VRF) system is a single refrigerant circuit that connects many indoor units to one
outdoor unit. VRF is a superior way to heat and cool any space, providing improved humidity control, individual set points per indoor unit, and a very quiet comfort experience. In the heat recovery conguration, VRF also allows for heating and cooling simultaneously in different zones, further enhancing energy savings and increasing occupant comfort. Energy efcient and easy to design, install, and maintain, a VRF system has low life cycle cost
compared to other systems on the market today.
Why LG VRF?
The benefits are numerous: less piping for installers, energy efciency for owners, and modern indoor units that complement every setting. Sound levels of LG VRF products are among the lowest in the industry, so units can be installed where noise is an issue. Inverter scroll compressors manufactured by LG optimize system energy efciency.
About LG Electronics USA
LG Electronics USA, Inc., based in Englewood Cliffs, New Jersey, is the North American subsidiary of LG Electronics, Inc., a $48 billion global force and technology leader in consumer electronics, home appliances and mobile communications.
®
LG Electronics, a proud ENERGY STAR
Partner of the Year for ve consecutive years, sells a range of stylish and
innovative home entertainment products, mobile phones, home appliances, commercial displays, air conditioning
systems and solar energy solutions in the United States, all under LG’s “Life’s Good” marketing theme. For more news
and information on LG Electronics, please visit www.LG.com.
LG Electronics USA Air Conditioning Technologies
The LG Electronics USA Air Conditioning Technologies business is based in Alpharetta, Georgia. LG is a leading player in
the global air conditioning market, manufacturing both commercial and residential air conditioners and providing total sustainability and building management solutions. From consumer and individual units to industrial and specialized air conditioning systems, LG provides a wide range of products for heating, ventilating and air conditioning. For more information, please visit www.lghvac.com.
1. High Elevation Piping Distances
NOTE: All piping lengths are equivalent.
3,280 ft.
738 ft.
Longest piping length
Total piping length
131 ft.
between
IDU-IDU
360 ft.
between
ODU-IDU
• cits
3. Quiet Operation
• Quiet indoor unit operation down to 23 dB(A), comparable to the
sound of rustling leaves
50
dB
Conversation
at Home
40
Bird Calls
23
dB
LG Low-Static
Ducted Indoor Unit
dB
Noise Level Comparison (dB)
60
Conversation
in Restaurant
70
Vacuum Cleaner
dB
dB
2. Optimized Heat Recovery Piping
• Flexible piping layout reduces materials and labor costs during
installation
• LG Heat Recovery Unit (HRU) is quiet, compact, lightweight, and does not need condensate drains
1
• Congured for fully independent heating and cooling, ensuring occupant comfort
4. Operation Range
• Industry-leading operation ranges without additional accessories or
performance decits:
• Heating: -13˚F to 61˚F WB
• Cooling: 5˚F to 122 ˚F DB
• Simultaneous Cooling: 14˚F to 81 ˚F DB
1. Down to 35.1 dB(A). See page 40 for HRU specication details.
LG Air Conditioning Technologies
1 2
LG VRF ADVANTAGES
Efficiency
Advanced features for superior efficiency
• Advanced Smart Load Control
Automatically adjusts system target pressures based on outdoor temperature and humidity for increased cooling performance.
• Active Refrigerant Control
Depending on the operating mode and conditions,
the system refrigerant level is automatically adjusted for increased part load and heating efciency.
• Variable Path Heat Exchanger
Depending on the operating mode and conditions,
both the refrigerant ow path and velocity are adjusted for improved efciency.
• Advanced PCB Cooling
Improved cooling performance of the inverter PCB by using liquid refrigerant instead of heat sink
cooling methods.
TRAINING
• LG Inverter Scroll
Innovative high side-shell design creates a more compact unit providing the same capacity output, with greater
reliability in cold climates.
• HiPOR™ (High-Pressure Oil Return) Oil is returned to the compressor through a separate inlet pipe, ensuring that compressor energy is used to compress refrigerant only.
• Smart Oil Control
Eliminates timed oil-return cycles and takes hours off of
the time required to return oil compared to systems that use a timed oil-recovery cycle.
• Intelligent Heating
By monitoring the outdoor humidity, system target
pressures can be reduced to extend heating operation,
delay defrost operation and reduce power consumption.
Design Flexibility
• Higher-Elevation Piping Technology
More floors with fewer systems. LG Multi V 5 eliminates the need to invest in extra systems and saves on installation. Enjoy no heating
capacity losses due to long pipe length.
• Compact & Lightweight
More indoor zones, less outdoor space. When space or access is at a premium, Multi V 5 offers significant cost advantages on large projects.
Performance
Expansive operating range in cooling and heating without
adding accessories
• LG Multi V 5 uses vapor injection technology for
improved heating performance in ambient conditions as low as -13˚F.
• Using a variable path heat exchanger, LG Multi V 5 performs in low ambient conditions to provide cooling
down to 5˚F.
Comfort
• Quiet Operation
Multi V indoor units are among the quietest in the industry, with rated sound levels as low as 23dB(A). In addition to temperature, airflow and dehumidication, extremely low sound levels contribute to a relaxing environment.
• Individualized Zone Control
Multi V systems allow the user to control the space to the exact temperature desired. This further enhances
comfort while promoting reduced power consumption.
• Indoor Air Quality
All Multi V indoor units incorporate a reusable, washable lter. Since distribution and return ducts are not required for this system, dust and duct mold accumulation are reduced, contributing to improved indoor air quality.
Training
The LG US Air Conditioning division is headquartered near Atlanta in Alpharetta, Georgia, along with a full training academy. Additional training academies are located in California, Texas and New Jersey. Since 2008, our academies have trained thousands on the advantages of LG air conditioning systems, and even more have been trained through LG’s online training modules. World class trainers with years of experience teach classes in ductless technology, with topics covering everything from installation to service for the full range of LG air conditioning products. LG also has several
strategically placed partner academies throughout the United States that offer a number of LG training classes as well.
For HVAC professionals, LG offers online instruction via our Learning Management System and classroom training at our
training academies, strategically placed throughout the country. Training is open to all contractors; ask your LG Electronics
authorized distributor for details. For more information and to nd out how you can be part of the next training class near you, visit lg.learnernation.com.
Service Tools
As part of our commitment to innovation, LG has developed innovative ways to enhance the service technician’s experience during routine maintenance or service with these tools:
• LG Monitoring View (LGMV) Software and Mobile App both connect to LG Multi V Systems to allow technicians to troubleshoot accurately and evaluate equipment performance by interfacing directly with the unit. The software provides an accurate picture of an operating system without the need to check system temperatures manually, access the refrigerant circuit for system pressures, or perform time-consuming resistance and voltage tests. This service tool provides the most effective troubleshooting method for LG Multi V equipment.
• LG Telepresence connects technicians in the eld directly to LG Technical Assistance representatives via a live video
feed through the technician’s smartphone, allowing you to bring LG technical support with you to any jobsite.
LG Air Conditioning Technologies
LG Air Conditioning Technologies
3 4
3
4
TABLE OF CONTENTS
AIR SOURCE
Multi V™ 5
Multi V™ S
Multi V™ Space II
WATER SOURCE
Multi V™ Water IV Heat Pump
Multi V™ Water IV Heat Recovery
13
23
24
26
32
Multi V™ Water Mini
38
OUTDOOR UNIT ACCESSORIES
Accessories
LG Multi V IV installation at Motorcars Honda, Cleveland, Ohio
LG Air Conditioning Technologies
5 6
39
OUTDOOR UNIT
LINEUP
OUTDOOR UNIT
Lineup
System Type Frames
Multi V 5
Air
Source
Multi V
Space II
Multi V S
• Heat Pump and Heat Recovery in the same chassis
• Available in 208-
230V and 460V
• Heat Pump System
• Single-Phase Power
• Heat Pump System
• Single-Phase Power
•
= Heat Recovery
•
2 3 4 4.4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 48
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
• • • • •
= Heat Pump
Unit : Tons
Water
Source
Multi V
Water IV
208-230V
Multi V
Water IV
460V
Multi V
Water Mini
• Heat Pump and Heat Recovery Systems
• Heat Pump and Heat
Recovery Systems
• Compact Unit for
Installing Indoors
• Single-Phase Power
• • •
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
LG Air Conditioning Technologies
7 8
INDOOR UNIT
LINEUP
LG indoor units offer a wide range of styles and features to fit all of your cooling and heating needs. With cassettes
that mount flush to the ceiling, ducted units that are completely concealed in the ceiling, and LG's award-winning Art
Lineup
Chassis 5 7 9 12 15 18 24 28 30 36 42 48 54 76 96
Cool Gallery and mirror-finished, wall-mounted units that fit into any décor, the Multi V system offers unparalleled aesthetic design and indoor units to fit into multiple applications.
INDOOR UNIT
Unit : kBtu
Art Cool™
Standard
Ceiling Cassette
Gallery
Mirror
Wall Mount
1-Way
2-Way
4-Way (2’x2’)
4-Way (3’x3’)
Low Static (Bottom Return)
• •
• • • • • • •
• • • • • • • • •
• • • • •
• •
• • • • • •
• • • • • • • • • •
• • • • • •
Ceiling
Concealed Duct
Low Static
(Convertible)
High Static
• • • • • •
• • • • • • • • • • • • •
Vertical AHU
Vertical / Horizontal
• • • • • • • •
With Case
• • • • • •
Floor Standing
Without Case
• • • • • •
Ceiling
Suspended
Convertible
Surface Mounted
LG Air Conditioning Technologies
9 10
Ceiling Suspended
• •
Surface Mounted
• •
AIR SOURCE
SYSTEMS
MULTI V 5
Heat Recovery & Heat Pump 6 to 42 Tons
MULTI V S
Heat Recovery & Heat Pump 2 to 5 Tons
MULTI V SPACE II
Heat Pump
4.4 Tons
LG Air Conditioning Technologies
11 12

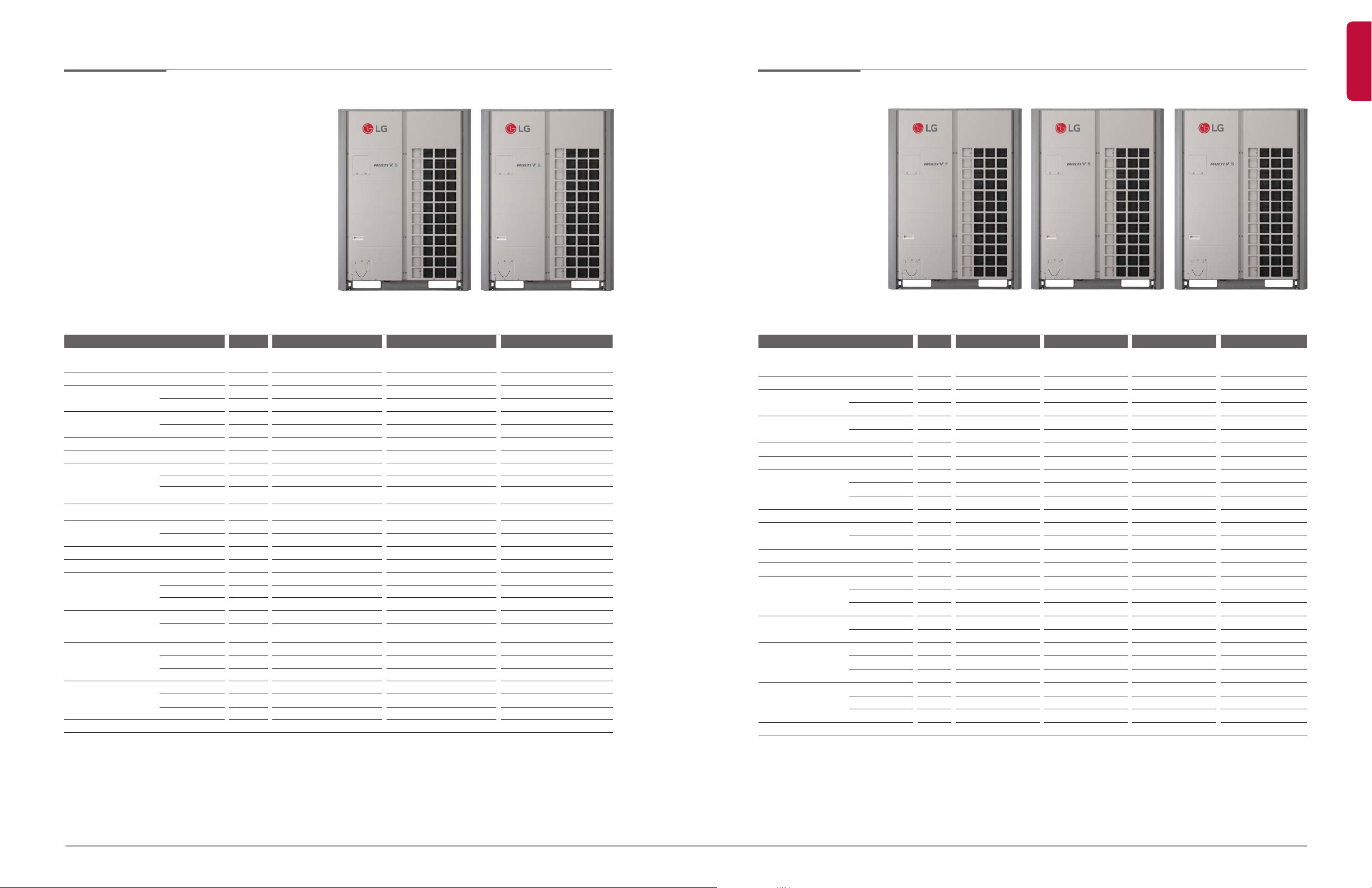

MULTI V 5
MULTI V 5
MULTI V 5
ARUM***BTE5ARUM072BTE5
Specifications Unit ARUM072BTE5 ARUM096BTE5 ARUM121BTE5 ARUM144BTE5
Frames ARUM072BTE5 ARUM096BTE5 ARUM121BTE5 ARUM144BTE5
Tons 6 8 10 12
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 36-3/4 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30
Weight
Sound Pressure
Fan (Propeller) CFM 8,470 11,300 11,300 11,300
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 5-122 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61 -13 - 61
Simultaneous Operation
Net lbs 430 507 507 639
Shipping lbs 452 534 534 666
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 1 1 1 2
Coating Black Coated Fin™ Black Coated Fin™ GBlack Coated Fin™ Black Coated Fin™
Rows/Fins per Inch
Liquid Line in 3/8 3/8 1/2 1/2
L/P Vapor Line in 3/4 7/8 1-1/8 1-1/8
H/P Vapor Line
Type R410A R410A R410A R410A
Charge lbs 14.3 23.2 23.2 26.5
Control EEV EEV EEV EEV
6
5
Btu/h 72,000 96,000 120,000 144,000
Btu/h 69,000 92,000 114,000 138,000
Btu/h 81,000 108,000 135,000 162,000
Btu/h 77,000 103,000 129,000 154,000
3
˚F 14 - 81 14 - 81 14 - 81 14 - 81
dB(A) 58.0 58.0 59.0 60.0
2/17 2/17 2/17 3/17
in 5/8 3/4 3/4 7/8
13 16 20 24
ARUM***BTE5
Specifications Unit ARUM168BTE5 ARUM192BTE5 ARUM216BTE5 ARUM241BTE5
Frames ARUM168BTE5 ARUM192BTE5 ARUM216BTE5 ARUM241BTE5
Tons 14 16 18 20
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30
Weight
Sound Pressure
Fan (Propeller) CFM 11,300 11,300 11,300 11,300
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 5-122 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61 -13 - 61
Simultaneous Operation
Net lbs 639 659 666 666
Shipping lbs 666 688 694 694
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 2 2 2 2
Coating Black Coated Fin™ Black Coated Fin™ Black Coated Fin™ Black Coated Fin™
Rows/Fins per Inch
Liquid Line in 5/8 5/8 5/8 5/8
L/P Vapor Line in 1-1/8 1-1/8 1-1/8 1-3/8
H/P Vapor Line
Type R410A R410A R410A R410A
Charge lbs 26.5 30.9 37.5 37.5
Control EEV EEV EEV EEV
6
5
Btu/h 168,000 192,000 216,000 240,000
Btu/h 160,000 184,000 206,000 222,000
Btu/h 189,000 216,000 243,000 243,000
Btu/h 180,000 206,000 230,000 230,000
3
˚F 14 - 81 14 - 81 14 - 81 14 - 81
dB(A) 61.0 62.0 64.0 65.0
3/17 3/17 3/17 3/17
in 7/8 1-1/8 1-1/8 1-1/8
29 32 35 39
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%. Nominal cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB) and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB). Nominal heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 59°F wet bulb (WB) and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. Temperatures shown are for Simultaneous operation - primarily cooling. The simultaneous operation range (primarily heating) is 14°F to 61°F.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Used in Heat Recovery Systems only.
6. The System Combination Ratio must be between 50 and 130%.
7. Due to our commitment to continued innovation, some specifications may be changed without notification.
LG Air Conditioning Technologies
13 14
MULTI V 5
MULTI V 5
MULTI V 5
ARUM***BTE5
Specifications Unit ARUM264BTE5 ARUM288BTE5 ARUM312BTE5 ARUM336BTE5
Frames
Tons 22 24 26 28
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30
Weight
Sound Pressure
Fan (Propeller) CFM 22,600 22,600 22,600 22,600
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 5-122 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61 -13 - 61
Simultaneous Operation
Net lbs 507+639 507+659 507+666 507+666
Shipping lbs 534+666 534+688 534+694 534+694
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 3 3 3 3
Coating GBlack Coated Fin™
Rows/Fins per Inch 2/17+3/17 2/17+3/17 2/17+3/17 2/17+3/17
Liquid Line in 3/8 + 5/8 3/8 + 5/8 3/8 + 5/8 1/2 + 5/8
L/P Vapor Line in 7/8 + 1-1/8 7/8 + 1-1/8 7/8 + 1-1/8 1-1/8 + 1-1/8
H/P Vapor Line
Type R410A R410A R410A R410A
Charge lbs 23.2+26.5 23.2+30.9 23.2+37.5 23.2+37.5
Control EEV EEV EEV EEV
3
5
Btu/h 264,000 288,000 312,000 336,000
Btu/h 252,000 276,000 298,000 320,000
Btu/h 297,000 324,000 351,000 378,000
Btu/h 283,000 309,000 333,000 359,000
3
˚F 14 - 81 14 - 81 14 - 81 14 - 81
dB(A) 63.0 63.0 65.0 65.0
in 3/4 + 7/8 3/4 + 1-1/8 3/4 + 1-1/8 3/4 + 1-1/8
ARUM096BTE5 ARUM168BTE5
42 45 52 55
ARUM096BTE5 ARUM192BTE5
Black Coated Fin™ Black Coated Fin™ Black Coated Fin™
ARUM096BTE5 ARUM216BTE5
ARUM121BTE5 ARUM216BTE5
ARUM***BTE5
Specifications Unit ARUM360BTE5 ARUM384BTE5 ARUM408BTE5
Frames
Tons 30 32 34
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30
Weight
Sound Pressure
Fan (Propeller) CFM 22,600 22,600 22,600
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61
Simultaneous Operation
Net lbs 639+666 639+666 659+666
Shipping lbs 666+694 666+694 688+694
Type DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 4 4 4
Coating Black Coated Fin™ Black Coated Fin™ GBlack Coated Fin™
Rows/Fins per Inch 3/17 x 2 3/17 x 2 3/17 x 2
Liquid Line in 1/2 + 5/8 5/8 + 5/8 5/8 + 5/8
L/P Vapor Line in 1-1/8 + 1-1/8 1-1/8 + 1-1/8 1-1/8 + 1-1/8
H/P Vapor Line
Type R410A R410A R410A
Charge lbs 26.5+37.5 26.5+37.5 30.9+37.5
Control EEV EEV EEV
6
5
Btu/h 360,000 384,000 408,000
Btu/h 344,000 366,000 390,000
Btu/h 405,000 432,000 459,000
Btu/h 384,000 410,000 436,000
3
˚F 14 - 81 14 - 81 14 - 81
dB(A) 66.0 66.0 66.0
in 7/8 + 1-1/8 7/8 + 1-1/8 1-1/8 + 1-1/8
ARUM144BTE5 ARUM216BTE5
58 61 64
ARUM168BTE5 ARUM216BTE5
ARUM192BTE5 ARUM216BTE5
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%. Nominal cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB) and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB). Nominal heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 59°F wet bulb (WB) and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. Temperatures shown are for Simultaneous operation - primarily cooling. The simultaneous operation range (primarily heating) is 14°F to 61°F.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Used in Heat Recovery Systems only.
6. The System Combination Ratio must be between 50 and 130%.
7. Due to our commitment to continued innovation, some specifications may be changed without notification.
LG Air Conditioning Technologies
15 16
MULTI V 5
MULTI V 5MULTI V 5
ARUM***BTE5
Specifications Unit ARUM432BTE5 ARUM456BTE5 ARUM480BTE5 ARUM504BTE5
Frames
Tons 36 38 40 42
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 155 x 66-1/2 x 30 152 x 66-1/2 x 30 152 x 66-1/2 x 30 152 x 66-1/2 x 30
Weight
Sound Pressure
Fan (Propeller) CFM 33,900 33,900 33,900 33,900
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 5-122 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61 -13 - 61
Simultaneous Operation
Net lbs 507+507+659 507+507+666 507+639+666 507+639+666
Shipping lbs 507+507+688 534+534+694 534+666+694 534+666+694
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 4 4 5
Coating Black Coated Fin™ Black Coated Fin™ Bl ack Coated Fin™ Black Coated Fin™
Rows/Fins per Inch 2/17 x 2 + 3/17 2/17 x 2 + 3/17 2/17 + 3/17 x 2 2/17 + 3/17 x 2
Liquid Line in 1/2 + 1/2 + 5/8 1/2 + 1/2 + 5/8 1/2 + 1/2 + 5/8 1/2 + 1/2 + 5/8
L/P Vapor Line in 1-1/8 + 1-1/8+ 1-1/8 1-1/8 + 1-1/8+ 1-1/8 1-1/8 + 1-1/8+ 1-1/8 1-1/8 + 1-1/8+ 1-1/8
H/P Vapor Line
Type R410A R410A R410A R410A
Charge lbs 23.2+23.2+30.9 23.2+23.2+37.5 23.2+26.5+37.5 23.2+26.5+37.5
Control EEV EEV EEV EEV
6
5
Btu/h 432,000 456,000 480,000 504,000
Btu/h 412,000 434,000 458,000 480,000
Btu/h 486,000 513,000 540,000 567,000
Btu/h 460,000 488,000 513,000 539,000
3
˚F 14 - 81 14 - 81 14 - 81 14 - 81
dB(A) 66.0 66.0 67.0 67.0
in 3/4 + 3/4 + 1-1/8 3/4 + 3/4 + 1-1/8 3/4 + 7/8 + 1-1/8 3/4 + 7/8 + 1-1/8
ARUM121BTE5 ARUM121BTE5 ARUM192BTE5
64 64 64 64
ARUM121BTE5 ARUM121BTE5 ARUM216BTE5
ARUM121BTE5 ARUM144BTE5 ARUM216BTE5
ARUM121BTE5 ARUM168BTE5 ARUM216BTE5
5
ARUM072DTE5
ARUM***DTE5
Specifications Unit ARUM072DTE5 ARUM096DTE5 ARUM121DTE5 ARUM144DTE5
Frames ARUM072DTE5 ARUM096DTE5 ARUM121DTE5 ARUM144DTE5
Tons 6 8 10 12
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 36-3/4 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30
Weight
Sound Pressure
Fan (Propeller) CFM 8,470 11,300 11,300 11,300
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 5-122 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61 -13 - 61
Simultaneous Operation
Net lbs 430 507 507 639
Shipping lbs 452 534 534 666
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 1 1 1 2
Coating Black Coated Fin™ Bl ack Coated Fin™ GBlack Coated Fin™ Black Coated Fin™
Rows/Fins per Inch
Liquid Line in 3/8 3/8 1/2 1/2
L/P Vapor Line in 3/4 7/8 1-1/8 1-1/8
H/P Vapor Line
Type R410A R410A R410A R410A
Charge lbs 14.3 23.2 23.2 26.5
Control EEV EEV EEV EEV
6
5
Btu/h 72,000 96,000 120,000 144,000
Btu/h 69,000 92,000 114,000 138,000
Btu/h 81,000 108,000 135,000 162,000
Btu/h 77,000 103,000 129,000 154,000
3
˚F 14 - 81 14 - 81 14 - 81 14 - 81
dB(A) 58.0 58.0 59.0 60.0
2/17 2/17 2/17 3/17
in 5/8 3/4 3/4 7/8
13 16 20 24
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%. Nominal cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB) and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB). Nominal heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 59°F wet bulb (WB) and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. Temperatures shown are for Simultaneous operation - primarily cooling. The simultaneous operation range (primarily heating) is 14°F to 61°F.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Used in Heat Recovery Systems only.
6. The System Combination Ratio must be between 50 and 130%.
7. Due to our commitment to continued innovation, some specifications may be changed without notification.
LG Air Conditioning Technologies
17 18
MULTI V 5 MULTI V 5
MULTI V 5
ARUM***DTE5
Specifications Unit ARUM168DTE5 ARUM192DTE5 ARUM216DTE5 ARUM241DTE5
Frames ARUM168DTE5 ARUM192DTE5 ARUM216DTE5 ARUM241DTE5
Tons 14 16 18 20
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30 48-7/8 x 66-1/2 x 30
Weight
Sound Pressure
4
Fan (Propeller) CFM 11,300 11,300 11,300 11,300
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
6
Cooling
Heating
Cooling
Heating
1
1
2
2
Btu/h 168,000 192,000 216,000 240,000
Btu/h 160,000 184,000 206,000 222,000
Btu/h 189,000 216,000 243,000 243,000
Btu/h 180,000 206,000 230,000 230,000
Cooling ˚F 5-122 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61 -13 - 61
3
Simultaneous Operation
˚F 14 - 81 14 - 81 14 - 81 14 - 81
Net lbs 639 659 666 666
Shipping lbs 666 688 694 694
dB(A) 61.0 62.0 64.0 65.0
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 2 2 2 2
Coating Black Coated Fin™ Black Coated Fin™ Black Coated Fin™ Black Coated Fin™
Rows/Fins per Inch
3/17 3/17 3/17 3/17
Liquid Line in 5/8 5/8 5/8 5/8
L/P Vapor Line in 1-1/8 1-1/8 1-1/8 1-3/8
H/P Vapor Line
5
in 7/8 1-1/8 1-1/8 1-1/8
Type R410A R410A R410A R410A
Charge lbs 26.5 30.9 37.5 37.5
Control EEV EEV EEV EEV
29 32 35 39
ARUM***DTE5
Specifications Unit ARUM264DTE5 ARUM288DTE5 ARUM312DTE5 ARUM336DTE5
Frames
ARUM096DTE5 ARUM168DTE5
Tons 22 24 26 28
Nominal Capacity
Rated Capacity
Cooling
Heating
Cooling
Heating
1
1
2
2
Btu/h 264,000 288,000 312,000 336,000
Btu/h 252,000 276,000 298,000 320,000
Btu/h 297,000 324,000 351,000 378,000
Btu/h 283,000 309,000 333,000 359,000
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Cooling ˚F 5-122 5-122 5-122 5-122
Operating Range
Heating ˚F -13 - 61 -13 - 61 -13 - 61 -13 - 61
3
Simultaneous Operation
˚F 14 - 81 14 - 81 14 - 81 14 - 81
Dimensions (W×D×H) Body in 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30
Weight
Sound Pressure
4
Net lbs 507+639 507+659 507+666 507+666
Shipping lbs 534+666 534+688 534+694 534+694
dB(A) 63.0 63.0 65.0 65.0
Fan (Propeller) CFM 22,600 22,600 22,600 22,600
Type DC Scroll DC Scroll DC Scroll DC Scroll
Compressor (DC Scroll)
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 3 3 3 3
Heat Exhanger
Coating GBlack Coated Fin™
Rows/Fins per Inch 2/17+3/17 2/17+3/17 2/17+3/17 2/17+3/17
Liquid Line in 3/8 + 5/8 3/8 + 5/8 3/8 + 5/8 1/2 + 5/8
Piping
L/P Vapor Line in 7/8 + 1-1/8 7/8 + 1-1/8 7/8 + 1-1/8 1-1/8 + 1-1/8
H/P Vapor Line
5
in 3/4 + 7/8 3/4 + 1-1/8 3/4 + 1-1/8 3/4 + 1-1/8
Type R410A R410A R410A R410A
Refrigerant
Charge lbs 23.2+26.5 23.2+30.9 23.2+37.5 23.2+37.5
Control EEV EEV EEV EEV
Maximum Number of Indoor Units
6
42 45 52 55
ARUM096DTE5 ARUM192DTE5
ARUM096DTE5 ARUM216DTE5
ARUM121DTE5 ARUM216DTE5
Black Coated Fin™ Black Coated Fin™ Black Coated Fin™
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%. Nominal cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB) and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB). Nominal heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 59°F wet bulb (WB) and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. Temperatures shown are for Simultaneous operation - primarily cooling. The simultaneous operation range (primarily heating) is 14°F to 61°F.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Used in Heat Recovery Systems only.
6. The System Combination Ratio must be between 50 and 130%.
7. Due to our commitment to continued innovation, some specifications may be changed without notification.
LG Air Conditioning Technologies
19 20
MULTI V 5
MULTI V 5
MULTI V 5
ARUM***DTE5
Specifications Unit ARUM360DTE5 ARUM384DTE5 ARUM408DTE5
Frames
Tons 30 32 34
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30 100-1/2 x 66-1/2 x 30
Weight
Sound Pressure
Fan (Propeller) CFM 22,600 22,600 22,600
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61
Simultaneous Operation
Net lbs 639+666 639+666 659+666
Shipping lbs 666+694 666+694 688+694
Type DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 4 4 4
Coating Black Coated Fin™ Black Coated Fin™ GBlack Coated Fin™
Rows/Fins per Inch 3/17 x 2 3/17 x 2 3/17 x 2
Liquid Line in 1/2 + 5/8 5/8 + 5/8 5/8 + 5/8
L/P Vapor Line in 1-1/8 + 1-1/8 1-1/8 + 1-1/8 1-1/8 + 1-1/8
H/P Vapor Line
Type R410A R410A R410A
Charge lbs 26.5+37.5 26.5+37.5 30.9+37.5
Control EEV EEV EEV
6
5
Btu/h 360,000 384,000 408,000
Btu/h 344,000 366,000 390,000
Btu/h 405,000 432,000 459,000
Btu/h 384,000 410,000 436,000
3
˚F 14 - 81 14 - 81 14 - 81
dB(A) 66.0 66.0 66.0
in 7/8 + 1-1/8 7/8 + 1-1/8 1-1/8 + 1-1/8
ARUM144DTE5 ARUM216DTE5
58 61 64
ARUM168DTE5 ARUM216DTE5
ARUM192DTE5 ARUM216DTE5
ARUM***DTE5
Specifications Unit ARUM432DTE5 ARUM456DTE5 ARUM480DTE5 ARUM504DTE5
Frames
Tons 36 38 40 42
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 155 x 66-1/2 x 30 152 x 66-1/2 x 30 152 x 66-1/2 x 30 152 x 66-1/2 x 30
Weight
Sound Pressure
Fan (Propeller) CFM 33,900 33,900 33,900 33,900
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 5-122 5-122 5-122 5-122
Heating ˚F -13 - 61 -13 - 61 -13 - 61 -13 - 61
Simultaneous Operation
Net lbs 507+507+659 507+507+666 507+639+666 507+639+666
Shipping lbs 534+534+688 534+534+694 534+666+694 534+666+694
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 4 4 5
Coating Black Coated Fin™ Bl ack Coated Fin™ Black Coated Fin™ Black Coated Fin™
Rows/Fins per Inch 2/17 x 2 + 3/17 2/17 x 2 + 3/17 2/17 + 3/17 x 2 2/17 + 3/17 x 2
Liquid Line in 1/2 + 1/2 + 5/8 1/2 + 1/2 + 5/8 1/2 + 1/2 + 5/8 1/2 + 1/2 + 5/8
L/P Vapor Line in 1-1/8 + 1-1/8+ 1-1/8 1-1/8 + 1-1/8+ 1-1/8 1-1/8 + 1-1/8+ 1-1/8 1-1/8 + 1-1/8+ 1-1/8
H/P Vapor Line
Type R410A R410A R410A R410A
Charge lbs 23.2+23.2+30.9 23.2+23.2+37.5 23.2+26.5+37.5 23.2+26.5+37.5
Control EEV EEV EEV EEV
6
5
Btu/h 432,000 456,000 480,000 504,000
Btu/h 412,000 434,000 458,000 480,000
Btu/h 486,000 513,000 540,000 567,000
Btu/h 460,000 488,000 513,000 539,000
3
˚F 14 - 81 14 - 81 14 - 81 14 - 81
dB(A) 66.0 66.0 67.0 67.0
in 3/4 + 3/4 + 1-1/8 3/4 + 3/4 + 1-1/8 3/4 + 7/8 + 1-1/8 3/4 + 7/8 + 1-1/8
ARUM121DTE5 ARUM121DTE5 ARUM192DTE5
64 64 64 64
ARUM121DTE5 ARUM121DTE5 ARUM216DTE5
ARUM121DTE5 ARUM144DTE5 ARUM216DTE5
ARUM121DTE5 ARUM168DTE5 ARUM216DTE5
5
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%. Nominal cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB) and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB). Nominal heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 59°F wet bulb (WB) and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. Temperatures shown are for Simultaneous operation - primarily cooling. The simultaneous operation range (primarily heating) is 14°F to 61°F.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Used in Heat Recovery Systems only.
6. The System Combination Ratio must be between 50 and 130%.
7. Due to our commitment to continued innovation, some specifications may be changed without notification.
LG Air Conditioning Technologies
21 22
MULTI V S
MULTI V S
MULTI V SPACE II
MULTI V SPACE II
ARU*****GSS4
Specifications Unit ARUN024GSS4 ARUN038GSS4 ARUN048GSS4 ARUN053GSS4 ARUB060GSS4
Tons 2 3 4 4.4 5
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18 2 x 18
Operating Range
Dimensions (W×D×H) Body in 37-13/32 x 32-27/32 x 13 37-13/32 x 32-27/32 x 13 37-13/32 x 32-27/32 x 13 37-13/32 x 32-27/32 x 13 37-13/32 x 32-27/32 x 13
Weight
Sound Pressure
Fan (Axial Flow Fan) CFM 2,119 3,885 3,885 3,885 3,885
Compressor
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 23 - 122 23 - 122 23 - 122 23 - 122 23 - 122
Heating ˚F -4 - 61 -4 - 61 -4 - 61 -4 - 61 -13 - 61
Net lbs 159 207 207 207 256
Shipping lbs 176 218 218 218 284
Type DC Inverter DC Inverter DC Inverter DC Inverter DC Inverter
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 1 1 1 1 1
Coating Gold Fin / Hydrophillic Gold Fin / Hydrophillic Gold Fin / Hydrophillic Gold Fin / Hydrophillic Gold Fin / Hydrophillic
Rows/Fins per Inch 2/14 2/14 2/14 2/14 3/14
Liquid Line in 3/8 3/8 3/8 3/8 3/8
H/P Vapor Line in - - - - 5/8
L/P Vapor Line in 5/8 5/8 5/8 3/4 3/4
Type R410A R410A R410A R410A R410A
Charge lbs 4.0 6.6 6.6 6.6 8.8
Control EEV EEV EEV EEV EEV
3
Btu/h 24,000 39,500 50,000 55,500 60,000
Btu/h 27,000 44,000 56,500 61,500 64,000
Btu/h 24,000 38,000 48,000 53,000 60,000
Btu/h 27,000 42,000 54,500 59,000 64,000
dB(A) 50 50 51 52 57
4 6 8 9 12
Specifications Unit ARUN053GF2
Tons 4.4
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/1
Power/Communication Wiring No x AWG 2 x 18
Operating Range
Dimensions (W×D×H) Body in 29-1/2 x 70-1/2 x 25-1/2
Weight
Sound Pressure
Fan (Propeller) CFM 3,532
Compressor (DC Inverter)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Cooling ˚F 23 - 118
Heating ˚F -4 - +60
Net lbs 320
Shipping lbs 346
Oil Type PVE/FVC68D
Quantity 1
Coating Gold Fin
Rows/Fins per Inch 2/14
Liquid Line in 3/8
Vapor Line in 3/4
Type R410A
Charge lbs 7.7
Control EEV
3
Btu/h 53,000
Btu/h 59,000
Btu/h 54,000
Btu/h 60,000
dB(A) 68.3 / 52.7
9
ARUN053GF2
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
LG Air Conditioning Technologies
23 24
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
WATER SOURCE
SYSTEMS
LG Multi V Water IV installation at Decorah High School, Decorah, Iowa
MULTI V WATER IV
Heat Pump & Heat Recovery 6 to 48 Tons
MULTI V WATER MINI
Heat Pump 3 to 4.4 Tons

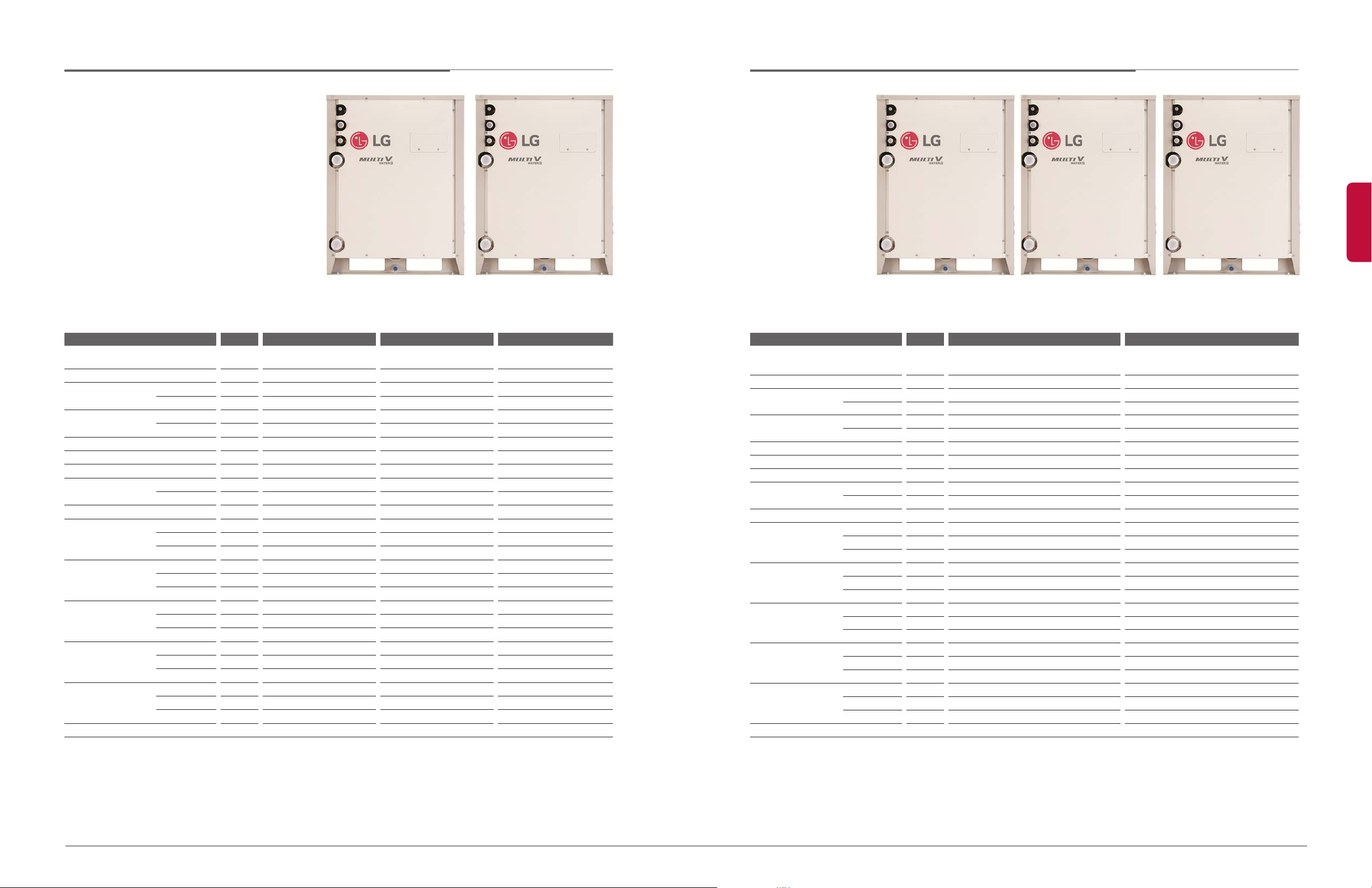

MULTI V WATER IV HEAT PUMP
ARWN***BAS4
Specifications Unit ARWN072BAS4 ARWN096BAS4 ARWN121BAS4 ARWN144BAS4
Frames ARWN072BAS4 ARWN096BAS4 ARWN121BAS4 ARWN144BAS4
Tons 6 8 10 12
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Dimensions (W×D×H) Body in 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 280 280 280
Shipping lbs 302 302 302 302
Cooling ˚F 23 - 113 23 - 113 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113 14 - 113 14 - 113
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 1 1 1 1
Type Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 20.3 25.4 30.4 35.5
Pressure Drop ft wg 3.7 4.7 6.9 9.2
Liquid Line
Vapor Line in 7/8 7/8 1-1/8 1-1/8
Type R410A R410A R410A R410A
Charge lbs 12.8 12.8 12.8 12.8
Control EEV EEV EEV EEV
3
Btu/h 72,000 96,000 120,000 144,000
Btu/h 81,000 108,000 135,000 162,000
Btu/h 69,000 92,000 114,000 138,000
Btu/h 77,000 103,000 129,000 154,000
dB(A) 47/51 50/53 56/56 58/57
in 3/8 3/8 1/2 1/2
13 16 20 23
LG Air Conditioning Technologies
25 26

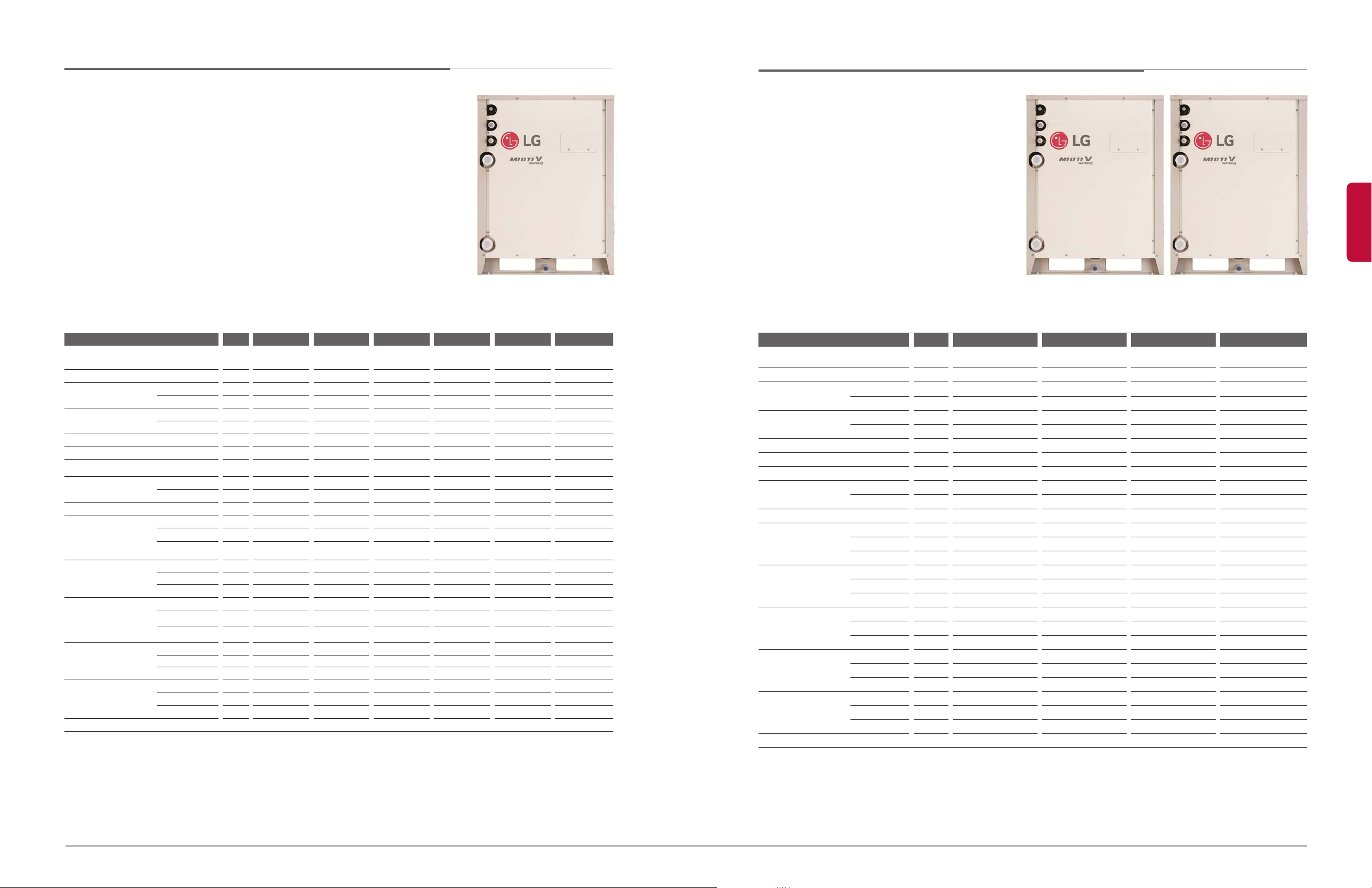

MULTI V WATER IV HEAT PUMP
MULTI V WATER IV HEAT PUMP
MULTI V WATER IV
ARWN***BAS4
Specifications Unit ARWN168BAS4 ARWN192BAS4 ARWN216BAS4 ARWN288BAS4
Frames
Tons 14 16 18 24
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Dimensions (W×D×H) Body in 63-1/2x39-1/4x19-3/4 63-1/2x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 x 2 280 x 2 280 x 2 280 x 2
Shipping lbs 302 x 2 302 x 2 302 x 2 302 x 2
Cooling ˚F 23 - 113 23 - 113 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113 14 - 113 14 - 113
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 2 2 2 2
Type Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 20.3 + 25.4 20.3 + 30.4 20.3 + 35.5 35.5 + 35.5
Pressure Drop ft wg 3.7 + 4.7 3.7 + 6.9
Liquid Line in 3/8 + 3/8 3/8 + 1/2 3/8 + 1/2 1/2 + 1/2
Vapor Line in 7/8 + 7/8 7/8 + 1-1/8 7/8 + 1-1/8 1-1/8 + 1-1/8
Type R410A R410A R410A R410A
Charge lbs 12.8 + 12.8 12.8 + 12.8 12.8 + 12.8 12.8 + 12.8
Control EEV EEV EEV EEV
3
Btu/h 168,000 192,000 216,000 288,000
Btu/h 189,000 216,000 243,000 324,000
Btu/h 160,000 184,000 206,000 274,000
Btu/h 180,000 206,000 232,000 308,000
dB(A) 55/56 54/60 57/57 59/58
ARWN072BAS4 ARWN096BAS4
29 32 35 45
ARWN072BAS4 ARWN121BAS4
ARWN072BAS4
ARWN144BAS4
3.7 + 9.2 9.2 + 9.2
ARWN144BAS4 ARWN144BAS4
ARWN***BAS4
Specifications Unit ARWN360BAS4 ARWN432BAS4
Frames
Tons 30 36
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18
Dimensions (W×D×H) Body in 97-1/4x39-1/4x19-3/4 97-1/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
3
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 x 3 280 x 3
Shipping lbs 302 x 3 302 x 3
Cooling ˚F 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113
Type DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D
Quantity 3 3
Type Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 20.3 + 35.5 + 35.5 35.5 + 35.5 + 35.5
Pressure Drop f t wg 3.7 + 9.2 + 9.2 9.2 + 9.2 + 9.2
Liquid Line in 3/8 + 1/2+1/2 1/2+1/2+1/2
Vapor Line in 7/8 + 1-1/8 +1-1/8 1-1/8 +1-1/8 + 1-1/8
Type R410A R410A
Charge lbs 12.8 + 12.8 + 12.8 12.8 + 12.8 + 12.8
Control EEV EEV
Btu/h 360,000 432,000
Btu/h 405,000 486,000
Btu/h 342,000 410,000
Btu/h 386,000 460,000
dB(A) 56/57 58/62
ARWN072BAS4
ARWN144BAS4 ARWN144BAS4
58 64
ARWN144BAS4 ARWN144BAS4 ARWN144BAS4
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
LG Air Conditioning Technologies
27 28
MULTI V WATER IV HEAT PUMP
MULTI V WATER IV HEAT PUMP
MULTI V WATER IV
ARWN***DAS4
Specications Unit ARWN072DAS4 ARWN096DAS4 ARWN121DAS4 ARWN144DAS4 ARWN168DAS4 ARWN192DAS4
Frames ARWN072DAS4 ARWN096DAS4 ARWN121DAS4 ARWN144DAS4 ARWN168DAS4 ARWN192DAS4
Tons 6 8 10 12 14 16
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18 2 x 18 2 x 18
Dimensions (W×D×H) Body in 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 280 280 309 309 309
Shipping lbs 302 302 302 331 331 331
Cooling ˚F 23 - 113 23 - 113 23 - 113 23 - 113 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113 14 - 113 14 - 113 14 - 113 14 - 113
Type DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 1 1 1 1 1 1
Type Stainless Steel Plate Stainless Steel Pl ate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 20.3 25.4 30.4 35.5 45.7 50.7
Pressure Drop f t wg 3.7 4.7 6.9 4.7 8.0 9.2
Liquid Line in 3/8 3/8 1/2 1/2 1/2 1/2
Vapor Line in 7/8 7/8 1-1/8 1-1/8 1-1/8 1-1/8
Type R410A R410A R410A R410A R410A R410A
Charge lbs 12.8 12.8 12.8 6.6 6.6 6.6
Control EEV EEV EEV EEV EEV EEV
3
Btu/h 72,000 96,000 120,000 144,000 168,000 192,000
Btu/h 81,000 108,000 135,000 162,000 189,000 216,000
Btu/h 69,000 92,000 114,000 138,000 160,000 184,000
Btu/h 77,000 103,000 129,000 154,000 180,000 206,000
dB(A) 47/51 50/53 56/56 58/57 53/57 54/60
13 16 20 23 29 32
ARWN***DAS4
Specications Unit ARWN240DAS4 ARWN288DAS4 ARWN336DAS4 ARWN384DAS4
Frames
Tons 20 24 28 32
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Dimensions (W×D×H) Body in 63-1/2x39-1/4x19-3/4 63-1/2x39-1/4x19-3/4 63-1/2x39-1/4x19-3/4 63-1/2x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 + 309 280 + 309 309 x 2 309 x 2
Shipping lbs 302 + 331 302 + 331 331 x 2 331 x 2
Cooling ˚F 23 - 113 23 - 113 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113 14 - 113 14 - 113
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 2 2 2 2
Type Stainless Steel Plate Stainless Steel Plate Stainless Steel Pl ate Stainless Steel Plate
Flow Rate Nominal GPM 25.4 + 35.5 30.4 + 45.7 45.7 + 45.7 50.7 + 50.7
Pressure Drop ft wg 4.7 + 4.7 6.9 + 8.0
Liquid Line in 3/8 + 1/2 1/2 + 1/2 1/2 + 1/2 1/2 + 1/2
Vapor Line in 7/8 + 1-1/8 7/8 + 1-1/8 1-1/8 + 1-1/8 1-1/8 + 1-1/8
Type R410A R410A R410A R410A
Charge lbs 12.8 + 6.6 12.8 + 6.6 6.6 + 6.6 6.6 + 6.6
Control EEV EEV EEV EEV
3
Btu/h 240,000 288,000 336,000 384,000
Btu/h 270,000 324,000 378,000 432,000
Btu/h 228,000 274,000 320,000 366,000
Btu/h 256,000 308,000 360,000 410,000
dB(A) 57/57 59/58 59/61 56/61
ARWN096DAS4
ARWN144DAS4
39 45 55 61
ARWN121DAS4 ARWN168DAS4
ARWN168DAS4
ARNB168DAS4
8.0 + 8.0 9.2 + 9.2
ARWN192DAS4 ARWN192DAS4
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
LG Air Conditioning Technologies
29 30
MULTI V WATER IV HEAT PUMP
MULTI V WATER IV HEAT RECOVERY
MULTI V WATER IV
ARWN***DAS4
Specications Unit ARWN480DAS4 ARWN576DAS4
Frames
Tons 40 48
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18
Dimensions (W×D×H) Body in 97-1/4x39-1/4x19-3/4 97-1/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 309 x 3 309 x 3
Shipping lbs 331 x 3 331 x 3
Cooling ˚F 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113
Type DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D
Quantity 3 3
Type Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 35.5 + 35.5 + 50.7 50.7 + 50.7 + 50.7
Pressure Drop ft wg 4.7 + 4.7 + 9.2 9.2 + 9.2 + 9.2
Liquid Line in 1/2 + 1/2 + 1/2 1/2 + 1/2 + 1/2
Vapor Line in 1-1/8 + 1-1/8 + 1-1/8 1-1/8 + 1-1/8 + 1-1/8
Type R410A R410A
Charge lbs 6.6 + 6.6 + 6.6 6.6 + 6.6 + 6.6
Control EEV EEV
3
Btu/h 480,000 576,000
Btu/h 540,000 648,000
Btu/h 450,000 545,000
Btu/h 510,000 610,000
dB(A) 60/62 60/62
ARWN144DAS4 ARWN144DAS4
ARWN192DAS4
64 64
ARWN192DAS4 ARWN192DAS4 ARWN192DAS4
ARWB***BAS4
Specications Unit ARWB072BAS4 ARWB096BAS4 ARWB121BAS4 ARWB144BAS4
Frames ARWB072BAS4 ARWB096BAS4 ARWB121BAS4 ARWB144BAS4
Tons 6 8 10 12
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Dimensions (W×D×H) Body in 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 280 280 280
Shipping lbs 302 302 302 302
Cooling ˚F 23 - 113 23 - 113 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113 14 - 113 14 - 113
Synchronous Operation ˚F 23 - 113 23 - 113 23 - 113 23 - 113
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 1 1 1 1
Type Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 20.3 25.4 30.4 35.5
Pressure Drop ft wg
Liquid Line in 3/8 3/8 1/2 1/2
L/P Vapor Line in 7/8 7/8 1-1/8 1-1/8
H/P Vapor Line in 3/4 3/4 3/4 3/4
Type R410A R410A R410A R410A
Charge lbs 12.8 12.8 12.8 12.8
Control EEV EEV EEV EEV
3
Btu/h 72,000 96,000 120,000 144,000
Btu/h 81,000 108,000 135,000 162,000
Btu/h 69,000 92,000 114,000 138,000
Btu/h 77,000 103,000 129,000 154,000
dB(A) 47/51 50/53 56/56 58/57
3.7 4.7 6.9 9.2
13 16 20 23
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
LG Air Conditioning Technologies
31 32
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
MULTI V WATER IV HEAT RECOVERY
MULTI V WATER IV HEAT RECOVERY
MULTI V WATER IV
ARWB***BAS4
Specifications Unit ARWN192BAS4 ARWB216BAS4 ARWB288BAS4
Frames
Tons 16 18 24
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18
Dimensions (W×D×H) Body in 63-1/2x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 x 2 280 x 2 280 x 2
Shipping lbs 302 x 2 302 x 2 302 x 2
Cooling ˚F 23 - 113 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113 14 - 113
Synchronous Operation ˚F 23 - 113 23 - 113 23 - 113
Type DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 2 2 2
Type Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 20.3 + 30.4 20.3 + 35.5 35.5 + 35.5
Pressure Drop ft wg 3.7 + 6.9 3.7 + 9.2 9.2 + 9.2
Liquid Line in 3/8 + 1/2 3/8 + 1/2 1/2 + 1/2
L/P Vapor Line in 7/8 + 1-1/8 7/8 + 1-1/8 1-1/8 + 1-1/8
H/P Vapor Line in 3/4 + 3/4 3/4 + 3/4
Type R410A R410A R410A
Charge lbs 12.8 + 12.8 12.8 + 12.8 12.8 + 12.8
Control EEV EEV EEV
3
Btu/h 192,000 216,000 288,000
Btu/h 216,000 243,000 324,000
Btu/h 184,000 206,000 274,000
Btu/h 206,000 232,000 308,000
dB(A) 54/60 57/57 59/58
ARWN072BAS4 ARWN121BAS4
32 35 45
ARWB072BAS4
ARWB144BAS4
ARWB144BAS4 ARWB144BAS4
3/4 + 3/4
ARWB***BAS4
Specifications Unit ARWB360BAS4 ARWB432BAS4
Frames
Tons 30 36
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/3 208-230/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18
Dimensions (W×D×H) Body in 97-1/4x39-1/4x19-3/4 97-1/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 x 3 280 x 3
Shipping lbs 302 x 3 302 x 3
Cooling ˚F 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113
Synchronous Operation ˚F 23 - 113 23 - 113
Type DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D
Quantity 3 3
Type Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 20.3 + 35.5 + 35.5 35.5 + 35.5 + 35.5
Pressure Drop ft wg 3.7 + 9.2 + 9.2 9.2 + 9.2 + 9.2
Liquid Line in 3/8 + 1/2+1/2 1/2+1/2+1/2
L/P Vapor Line in 7/8 + 1-1/8 + 1-1/8 1-1/8 +1-1/8 + 1-1/8
H/P Vapor Line in 3/4 + 3/4 + 3/4 3/4 + 3/4 + 3/4
Type R410A R410A
Charge lbs 12.8 + 12.8 + 12.8 12.8 + 12.8 + 12.8
Control EEV EEV
3
Btu/h 360,000 432,000
Btu/h 405,000 486,000
Btu/h 342,000 410,000
Btu/h 386,000 460,000
dB(A) 56/57 58/62
ARWB072BAS4
ARWB144BAS4 ARWB144BAS4
58 64
ARWB144BAS4 ARWB144BAS4 ARWB144BAS4
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
LG Air Conditioning Technologies
33 34
MULTI V WATER IV HEAT RECOVERY
MULTI V WATER IV HEAT RECOVERY
MULTI V WATER IV
ARWB***DAS4
Specifications Unit ARWB072DAS4 ARWB096DAS4 ARWB121DAS4 ARWB144DAS4 ARWB168DAS4 ARWB192DAS4
Frames ARWB072DAS4 ARWB096DAS4 ARWB121DAS4 ARWB144DAS4 ARWB168DAS4 ARWB192DAS4
Tons 6 8 10 12 14 16
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18 2 x 18 2 x 18
Dimensions (W×D×H) Body in 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4 29-3/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 280 280 309 309 309
Shipping lbs 302 302 302 331 331 331
Cooling ˚F 23 - 113 23 - 113 23 - 113 23 - 113 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113 14 - 113 14 - 113 14 - 113 14 - 113
Synchronous Operation ˚F 23 - 113 23 - 113 23 - 113 23 - 113 23 - 113 23 - 113
Type DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 1 1 1 1 1 1
Type Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 20.3 25.4 30.4 35.5 45.7 50.7
Pressure Drop ft wg 3.7 4.7 6.9 4.7 8.0 9.2
Liquid Line in 3/8 3/8 1/2 1/2 1/2 1/2
L/P Vapor Line in 7/8 7/8 7/8 1-1/8 1-1/8 1-1/8
H/P Vapor Line in 3/4 3/4 3/4 3/4 3/4 3/4
Type R410A R410A R410A R410A R410A R410A
Charge lbs 12.8 12.8 12.8 6.6 6.6 6.6
Control EEV EEV EEV EEV EEV EEV
3
Btu/h 72,000 96,000 120,000 144,000 168,000 192,000
Btu/h 81,000 108,000 135,000 162,000 189,000 216,000
Btu/h 69,000 92,000 114,000 138,000 160,000 184,000
Btu/h 77,000 103,000 129,000 154,000 180,000 206,000
dB(A) 47/51 50/53 56/56 58/57 53/57 54/60
13 16 20 23 29 32
ARWB***DAS4
Specifications Unit ARWB240DAS4 ARWB288DAS4 ARWB336DAS4 ARWB384DAS4
Frames
Tons 20 24 28 32
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18 2 x 18 2 x 18
Dimensions (W×D×H) Body in 63-1/2x39-1/4x19-3/4 63-1/2x39-1/4x19-3/4 63-1/2x39-1/4x19-3/4 63-1/2x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 280 + 309 280 + 309 309 x 2 309 x 2
Shipping lbs 302 + 331 302 + 331 331 x 2 331 x 2
Cooling ˚F 23 - 113 23 - 113 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113 14 - 113 14 - 113
Synchronous Operation ˚F 23 - 113 23 - 113 23 - 113 23 - 113
Type DC Scroll DC Scroll DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D PVE/FVC68D PVE/FVC68D
Quantity 2 2 2 2
Type Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 25.4 + 35.5 30.4 + 45.7
Pressure Drop ft wg 4.7 + 4.7 6.9 + 8.0 8.0 + 8.0 9.2 + 9.2
Liquid Line in 3/8 + 1/2 1/2 + 1/2 1/2 + 1/2 1/2 + 1/2
L/P Vapor Line in 7/8 + 1-1/8 7/8 + 1-1/8 1-1/8 + 1-1/8 1-1/8 + 1-1/8
H/P Vapor Line in 3/4 + 3/4 3/4 + 3/4 3/4 + 3/4 3/4 + 3/4
Type R410A R410A R410A R410A
Charge lbs 12.8 + 6.6 12.8 + 6.6 6.6 + 6.6 6.6 + 6.6
Control EEV EEV EEV EEV
3
Btu/h 240,000 288,000 336,000 384,000
Btu/h 270,000 324,000 378,000 432,000
Btu/h 228,000 274,000 320,000 366,000
Btu/h 256,000 308,000 360,000 410,000
dB(A) 57/57 59/58 59/61 56/61
ARWB096DAS4
ARWB144DAS4
39 45 55 61
ARWB121DAS4 ARWB168DAS4
ARWB168DAS4 ARWB168DAS4
45.7 + 45.7 50.7 + 50.7
ARWB192DAS4 ARWB192DAS4
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
LG Air Conditioning Technologies
35 36
MULTI V WATER IV HEAT RECOVERY
MULTI V WATER MINI
MULTI V WATER MINI
MULTI V WATER IV
ARWB***DAS4
Specifications Unit ARWB480DAS4 ARWB576DAS4
Frames
Tons 40 48
1
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 460/60/3 460/60/3
Power/Communication Wiring No x AWG 2 x 18 2 x 18
Dimensions (W×D×H) Body in 97-1/4x39-1/4x19-3/4 97-1/4x39-1/4x19-3/4
Weight
Sound Pressure
Water Temperature Range
Compressor (DC Scroll)
Heat Exhanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 309 x 3 309 x3
Shipping lbs 331 x 3 331 x 3
Cooling ˚F 23 - 113 23 - 113
Heating ˚F 14 - 113 14 - 113
Synchronous Operation ˚F 23 - 113 23 - 113
Type DC Scroll DC Scroll
Oil Type PVE/FVC68D PVE/FVC68D
Quantity 3 3
Type Stainless Steel Plate Stainless Steel Plate
Flow Rate Nominal GPM 35.5 + 35.5 + 50.7 50.7 + 50.7 + 50.7
Pressure Drop f t wg 4.7 + 4.7 + 9.2 9.2 + 9.2 + 9.2
Liquid Line in 1/2 + 1/2 + 1/2 1/2 + 1/2 + 1/2
L/P Vapor Line in 1-1/8 + 1-1/8 + 1-1/8 1-1/8 + 1-1/8 + 1-1/8
H/P Vapor Line in 3/4 + 3/4 + 3/4 3/4 + 3/4 + 3/4
Type R410A R410A
Charge lbs 6.6 + 6.6 + 6.6 6.6 + 6.6 + 6.6
Control EEV EEV
3
Btu/h 480,000 576,000
Btu/h 540,000 648,000
Btu/h 450,000 545,000
Btu/h 510,000 610,000
dB(A) 60/62 60/62
ARWB144DAS4 ARWB144DAS4
ARWB192DAS4
64 64
ARWB192DAS4 ARWB192DAS4 ARWB192DAS4
ARWN***GA2
Specifications Unit ARWN038GA2 ARWN048GA2 ARWN053GA2
Tons 3 4 4.4
Nominal Capacity
Rated Capacity
Power Voltage V / Hz / ø 208-230/60/1 208-230/60/1 208-230/60/1
Dimensions (W×D×H) Body in 20-5/8 x 42-1/2 x 13-1/8 20-5/8 x 42-1/2 x 13-1/8 20-5/8 x 42-1/2 x 13-1/8
Weight
Sound Pressure
Water Temperatue Range
Compressor (Inverter Rotary)
Heat Exchanger
Piping
Refrigerant
Maximum Number of Indoor Units
4
1
Cooling
1
Heating
2
Cooling
2
Heating
Net lbs 168 168 168
Shipping lbs 181 181 181
Cooling ˚F 23-113 23-113 23-113
Heating ˚F 23-113 23-113 23-113
Type Inverter Rotary Inverter Rotary Inverter Rotary
Oil Type PVE PVE PVE
Quantity 1 1 1
Type Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
Flow Rate GPM 10.6 13.2 15.9
Pressure Drop ft wg 4.7 6.9 9.5
Liquid Line in 3/4 3/4 3/4
Vapor Line in 3/8 3/8 3/8
Type R410A R410A R410A
Charge lbs 2.2 2.2 2.2
Control EEV EEV EEV
3
Btu/h 38,200 47,800 52,900
Btu/h 42,600 54,600 61,400
Btu/h 38,000 48,000 53,000
Btu/h 42,000 54,000 61,000
dB(A) 52 53 54
6 8 9
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
LG Air Conditioning Technologies
37 38
1. Nominal capacity applied with non-ducted indoor units, and is rated 0 ft. above sea level with 25 ft. of refrigerant line per indoor unit and a 0 ft. level difference between outdoor and indoor units. All capacities are net with a Combination Ratio between 95 and 105%.
Cooling: Indoor 80°F DB, 67°F WB; Outdoor 95°F DB, 75°F WB Heating: Outdoor 70°F DB, 59°F WB; Outdoor 47°F DB, 43°F WB
2. Rated capacity is certified under AHRI Standard 1230. See www.ahrinet.org for information.
3. The System Combination Ratio must be between 50 and 130%.
4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5. Due to our commitment to continued innovation, some specications may be changed without notification.
ACCESSORIES
ZHGDKA51A ZHGDKA52A
ZLABKA51A ZLABKA52A
ZLABGP04A
(for use with Multi V S)
Hail Guard
Low Ambient Baffle Kit
Wind Baffle
ZAGDKA51A
ZAGDKA52A
Air Guide
Air Guide
OUTDOOR
ACCESSORIES
ACCESSORIES
Outdoor Accessories
HEAT RECOVERY UNIT
PRHR022A PRHR032A PRHR042A
Type Model Description Used with
Air Guide
Hail Guard
Low Ambient Baffle Kit
Wind Baffle ZLABGP04A Low Ambient Baffle Kit (two required per unit) Multi V S
ZAGDKA51A Air Guide Multi V 5 (6 Ton Chassis)
ZAGDKA52A Air Guide Multi V 5 (8 to 20 Ton Chassis)
ZHGDKA51A Hail Guards Kit Multi V 5 (6 Ton Chassis)
ZHGDKA52A Hail Guards Kit Multi V 5 (8 to 20 Ton Chassis)
ZLABKA51A Low Ambient Baffle Kit (requires PRVC2) Multi V 5 (6 Ton Chassis)
ZLABKA52A Low Ambient Baffle Kit (requires PRVC2) Multi V 5 (8 to 20 Ton Chassis)
PRHR022A
(2-branch Unit)
PRHR032A
(3-branch Unit)
PRHR042A
(4-branch Unit)
Features
• Max. 32 indoor units can be connected (Max eight indoor units per branch)
• Easy installation with auto pipe detect
• Delivers maximum efciency using the subcooling cycle within the HR Unit
Models Applied
• MULTI V 5 Heat Recovery
• MULTI V WATER IV Heat Recovery
• Multi V S Heat Recovery
Specifications
Specication Unit PRHR022A PRHR032A PRHR042A
2
Number of Indoor Unit Ports
Power Input Watts 26 40 40
Max Port Capacity Each Port Btu/h 54,000 54,000 54,000
Electrical Power Supply (V/Hz/Ø 208-230/60/1 208-230/60/1 208-230/60/1
Piping Port Liquid Line in 3/8 3/8 3/8
Sound Pressure Data Cooling Mode dB(A) 35.2 35.2 35.2
Weight Net Unit Weight lbs 40 45 49
Dimensions
Model Name
Sum of Ports Btu/h 192,000 192,000 192,000
Rated Amps A 0.08 0.12 0.16
Port Vapor Line in 5/8 5/8 5/8
System Liquid Line in 3/8 1/2 5/8
System Vapor Line High in 3/4 7/8 7/8
System Vapor Line Low in 7/8 1-1/8 1-1/8
Heating Mode dB(A) 35.1 35.1 35.1
Simultaneous dB(A) 43.3 43.3 43.3
Shipping Weight lbs 48 54 57
W × D × H
in 17-7/8 x 18-15/16 x 8-5/8 17-7/8 x 18-15/16 x 8-5/8 17-7/8 x 18-15/16 x 8-5/8
2 3 4
39 40
1. All refrigerant pipes require insulation.
2. Each port can allow up to eight indoor units with a maximum capacity of 48k Btu/h per port.
3. All communication cable to be minimum 18 AWG, 2-conductor, stranded, shielded and must comply with applicable local and national code.
4. Kit components must be kept dry and free of debris before installation.
5. Must follow installation instructions in the applicable LG installation manual.
6. Power wiring cable size must comply with the applicable local and national code.
7. This unit comes with a dry nitrogen charge.
8. Due to our commitment to continued innovation, some specications may be changed without notication.
LG Air Conditioning Technologies
NOTESNOTES
LG Air Conditioning Technologies
41 42
Variable Refrigerant Flow (VRF) Multi-Split AC and HP AHRI Standard 1230
LG Electronics USA, Inc.
Air Conditioning Technologies
4300 North Point Parkway, Alpharetta, GA 30022
www.lghvac.com www.lg-vrf.com
Copyright © 2017 LG Electronics. All rights reserved.
Distributed by
PB_VRF_Systems_01_17
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
