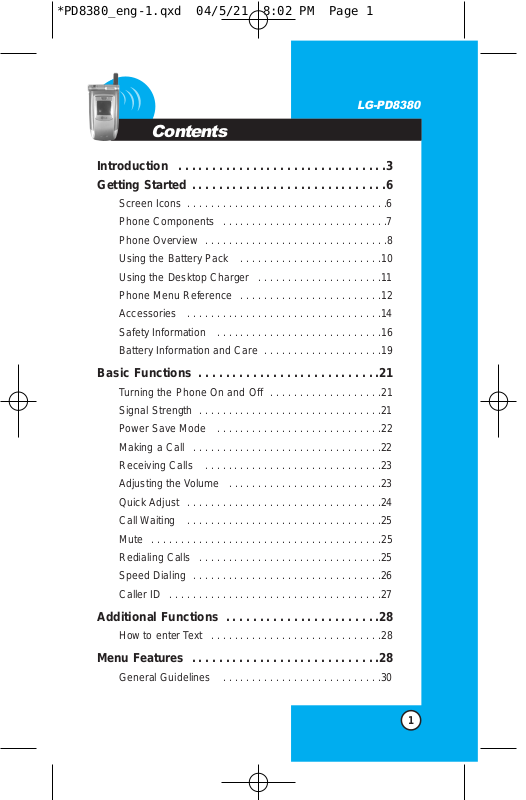

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Screen Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Phone Components . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Using the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . .10

Using the Desktop Charger . . . . . . . . . . . . . . . . . . . . .11

Phone Menu Reference . . . . . . . . . . . . . . . . . . . . . . . .12

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Battery Information and Care . . . . . . . . . . . . . . . . . . . .19

Basic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . .	21
Turning the Phone On and Off . . . . . . . . . . . . . . . . . . .	21
Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	21
Power Save Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .	22
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	22
Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	23
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . .	23
Quick Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	24
Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	25
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	25
Redialing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	25
Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	26
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	27
Additional Functions . . . . . . . . . . . . . . . . . . . . . . .	28
How to enter Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	28

Menu Features . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . .30

1

LG-PD8380

Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Call History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

PIMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Game . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . .72

TIA Safety Information . . . . . . . . . . . . . . . . . . . . . . . . .72

FDA Consumer Update . . . . . . . . . . . . . . . . . . . . . . . .76

2

LG-PD8380

Introduction

Congratulations on your purchase of the advanced and compact PD8380 cellular phone, designed to operate with the latest digital mobile communication technology, Code Division Multiple Access (CDMA). Along with the many advanced features of the CDMA system such as greatly enhanced voice clarity this phone offers:

Large, easy-to-read, 8-line backlight LCD with status icons.

Paging, messaging, voice mail, and caller ID.

20-key keypad.

Long battery stand-by and talk time.

Menu-driven interface with prompts for easy operation and configuration.

Any key answer, auto retry, one-touch and speed dialing with 99 memory locations.

Bilingual (English and Hebrew).

Important Information

This user’s manual provides important information on the use and operation of your phone. Please read all the information carefully prior to using the phone for the best performance and to prevent any damage to or misuse of the phone. Any unapproved changes or modifications void your warranty.

Check Accessories

Your mobile phone comes with a one-slot desktop charger and a rechargeable battery. Please verify that these accessories are included.

3

LG-PD8380

FCC RF Exposure Information

WARNING! Read this information before operating the phone.

In August 1996, the Federal Communications (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies.

The design of this phone complies with the FCC guidelines and these international standards.

CAUTION

Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair call quality, damage the phone, void your warranty and/or result in violation of FCC regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin a minor burn may result. Contact your local dealer for a replacement of antenna.

4

LG-PD8380

Bodily Contact During Operation

This device was tested for typical use with the back of the phone kept 1.5 cm from the body. To comply with

FCC RF exposure requirements, a minimum separation distance of 1.5 cm must be maintained between

the user’s body and the back of the phone, including the antenna whether extended or retracted. Third-party beltclips, holsters, and similar accessories containing metallic components should not be used. Avoid the use of accessories that cannot maintain 1.5 cm distance between the user’s body and the back of the phone and have not been tested for compliance with FCC RF exposure limits.

Vehicle-Mounted External Antenna

(Optional, if available.)

A minimum distance of 8 in (20 cm) must be maintained between the user / bystander and the vehicle-mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, visit the FCC website at www.fcc.gov.

5

LG-PD8380

1Getting Started

Screen Icons

Icons		Descriptions
	Displays the strength of the signal received by the
	phone and current signal strength is indicated by the
	number of bars displayed on the screen.
	No service
	The phone is not receiving a system signal.
	In use
	A call is in progress.
*		No icon indicates the phone is in standby mode.
	Indicates that a text message or voice mail has been
	received
	The Manner Mode selected.

The Power Mode selected.

The General Mode selected.

The Silent Mode selected.

In Alarm mode (alarm clock is set).

Shows your current battery charge strength. (Icon shown fully charged)

6

LG-PD8380

Phone Components

The following shows key components of your mobile phone.

Earpiece

LCD screen	Caller LCD
Camera
Headset Jack	OK Key
Soft Key 1	Soft Key 2

	Side Keys	Navigation Key
		Content Services Key
	Camera Key	Clear Key
		END/PWR Key
	CALL Key

Alphanumeric

Keypad

Manner Mode Lock Mode Key

Key

Data/Charger

Port

Microphone

TARTEDS ETTINGG

7

LG-PD8380

Phone Overview

Caller LCD		When there are incoming calls and
		messages, the LCD flashes.
LCD Screen	Displays messages & indicator icons.
Soft Keys		Soft Key 1
(the names of the		Perfoms variety of functions according to
functions of these		the menu.
keys appear at
the bottom of the		Soft Key 2
screen)		Perfoms variety of functions according to
		the viewing function.
CALL	Allows user to place or answer calls.
END/PWR	to turn power on/off and to end a
		call. Using this key, you can return to the
		main menu display screen.
Alphanumeric		These keys enable you to enter numbers
Keypad		and characters and choose menu items.
Navigation key	:	to select GPS menu.

: Press to Shortcut menu.

: Press to select Volume/Ringer menu.

: Press to check the message Outbox, Inbox.

8

LG-PD8380

Clear Key	When writing a message, press to delete
	a single space or character or press and
	hold to delete entire words.
Lock Mode Key	In standby	mode,	set the lock	function
	by pressing and holding the				key
	about 3 seconds.
Manner Mode Key	In standby	mode,	set the Manner	mode
	by pressing and holding the				key
	about 3 seconds.
Side Keys	Used to adjust the volume during a call.
	Functions	same	as		key
	selecting menus.
	In Standby mode:
	When the folder is open; adjust the key
	volume.
Camera	Press to select Camera.
Content Services Key	Press to select Content Services Menu.
OK	Press to select the menu or connect to				internet	.

TARTEDS ETTINGG

9

LG-PD8380

Using the Battery Pack

Note: It is important to charge the battery fully before the initial use of the phone.

The phone comes with a rechargeable battery. Keep the battery charged while not in use in order to maximize talk and standby time when using the phone.

Installing the Battery

To install the battery, insert the bottom of the battery into the opening on the back of the phone. Then push the battery down until the latch clicks.

Removing the Battery

Turn the power off. Lift the release latch to detach the battery.

Battery Charge Level

The battery charge level is shown at the top right of the LCD screen.

Fully Charged

Fully Discharged

When the battery charge level becomes low, the low battery sensor alerts you in three ways: sounding an audible tone, blinking the battery icon, and displaying LOW BATTERY WARNING! If the battery charge level becomes exceedingly low, the phone automatically switches off and any function in progress is not saved.

10

LG-PD8380

Using the Desktop Charger

The desktop charger has a slot for recharging batteries that accommodates the phone and battery for charging.

Warning! Use only the desktop charger provided with the phone. Using any charger other than the one included with the PD8380 may damage your phone or battery.

1.Plug the charger into a wall outlet. The phone must be charged from a 120 VAC power source.

2.Insert the phone with an installed battery or the battery by itself into the slot of the charger.The red light indicates the battery is charging and the green light indicates the battery is fully charged.

The charge time varies depending upon the battery level and the maximum charge time for a fully discharged battery is 3 hours.

TARTEDS ETTINGG

11

LG-PD8380

Phone Menu Reference

Press Left Soft Key Menu. Press to Scroll.

Names

1.Add New Entry

2.Search

3.Group Settings

4.Group Member

5.Speed Dials

6.Reject List

7.Capacity

8.Delete Names

Messages

1.Create Message

2.Inbox

3.Outbox

4.Voice

5.SMSINFO

6.Archive

7.Drafts

8.Template

9.Delete Messages

1.Del All Inbox

2.Del All Outbox

0.Msg Settings

1.Msg Type

2.Msg Save

3.Vmail Alert

4.Msg Text Color

5.Background Settings

6.Msg Sign

Call History

1.Dialed Calls

2.Received Calls

3.Missed Calls

4.In-Call Memo

5.Entire History

6.Call Timer

1.All Calls

2.Dialed Calls

3.SMS Sent Num

7.Delete History

1.Delete Outgoing

2.Delete Incoming

3.Delete Missed

4.Delete In-Call Memo

5.Delete All

Camera

1.Take Photo

2.Motion Shot

3.Sticker Photo

4.Multi Shot

5.Photo Album

6.Video Album

7.Photo Mail

1.New Msg

2.Outbox

3.Draft

4.Settings

8.Camera Settings

1.Shutter Tones

2.Self Timer Duration

3.Delete Album

12

LG-PD8380

4.Lock All Album

5.Lock Side Shutter

6.Memory Check

PIMS

1.Reminder

2.Alarm Clock

3.Scheduler

4.To Do

5.Anniversary

6.Memo

7.D-Day Counter

8.Calculator

9.Stop Watch

0. World Time

Sounds

1.Tones

2.Effect Sound

3.Alerts

4.Volume

5.System Sound Setting

Settings

1.Display

1.Screens

2.Clock/Calendar

3.Exterior Screens

4.Exterior Clock Type

5.Banner

6.Top Menu Style

7.Menu Color

8.

9. Dialing Font

0. Backlight Settings *. Exterior Brightness

2.Call Settings

1.Call Divert

2.Call Waiting

3.Security

1.Lock Outgoing

2.Lock Phonebook

3.Lock Message

4.Lock CallHistory

5.Lock Phone

6.Emergency Number

7.Change LockCode

8.Hints on LockCode

4.Phone

1.Answer Mode

2.Entry Method

3.Memory Management

4.Line Speed

5.Modem/Fax In

6.My Phone Number

7.Phone Info

Services

1.Internet portal

2.Game & Applications

3.Rings & Pics

4.E-MAIL

5.Voice Portal

6.What’s New

7.GPS

8.Offline Bookmark

9.Gallery

Game

1.Zoo zoo club

2.Space ball

TARTEDS ETTINGG

13

LG-PD8380

Accessories

There are a variety of accessories available for your mobile phone.You can select these options according to your personal communication requirements. Consult your local dealer for availability.

Travel Charger

This charger allows you to charge the battery while away from home or your office. It supports standard U.S. AC120 Volt 60 Hz outlets. It takes 5 hours to charge a completely discharged battery.

Battery

The battery is available for standard battery charge.

Standard

Desktop Charger

The desktop charger allows you to place the phone in the stand for charging. It can charge a completely discharged battery in 3 hours.

14

Cigarette Lighter Charger

You can operate the phone and trickle charge the phone’s battery from your vehicle by using the cigarette lighter charger.

It takes 5 hours to charge a completely discharged battery.

Hands-Free Car Kit (Portable)

The hands-free car kit enables you to attach the phone to the power jack in your car, providing you with handsfree operation. It can charge a completely discharged battery in 5 hours.

Headset

The headset connects to your phone allowing hands-free operation. It includes earpiece, microphone, and integrated call answer/termination button.

LG-PD8380

TARTEDS ETTINGG

15

LG-PD8380

Safety Information

Please read and observe the following information for safe and proper use of your phone and to prevent damage. Also, keep the user’s guide in an accessible place at all the times after reading it.

Explosion, Shock, and Fire Hazards

●Make sure that no sharp-edged items such as animal’s teeth, nails, come into contact with the battery. There is a risk of this causing a fire.

●Do not use harsh chemicals(such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. There is a risk of this causing a fire.

●When riding in a car, do not leave your phone or set up the hands-free kit near to the air bag. If wireless equipment is improperly installed and the air bag is activated, you may be seriously injured.

●Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone.

●Do not drop, strike, or shake your phone severely. Such actions may harm the internal circuit boards of the phone.

●Be careful that children do not swallow any parts such as rubber plugs (earphone, connection parts of the phone, etc.). This could cause asphyxiation or suffocation.

●Do not use your phone in high explosive areas as the phone may generate sparks.

●Do not put your phone in a place subject to excessive dust and keep the minimum required distance between the power cord and heat sources.

16

LG-PD8380

	●	Unplug the power cord prior to cleaning your phone,	ETTINGG
		and clean the power plug pin when it is dirty.	S
			TARTED
	●	Do not damage the power cord by bending, twisting,
		pulling, or heating. Do not use the plug if it is loose as it
		may cause a fire or electric shock.
	●	When using the power plug, ensure that it is firmly
		connected. If it is not, it may cause excessive heat or fire.
	●	Do not place any heavy items on the power cord. Do
		not allow the power cord to be crimped as it may cause
		fire or electric shock.
	●	Do not disassemble the phone.
	●	Do not place or answer calls while charging the phone
		as it may short-circuit the phone and/or cause electric
		shock or fire.
	● If you put your phone in a pocket or bag without
		covering the receptacle of the phone (power plug pin),
		metallic articles (such as a coin, paperclip or pen) may
		short-circuit the phone. Always cover the receptacle
		when not in use.
	●	Do not short-circuit the battery. Metallic articles such as a
		coin, paperclip or pen in your pocket or bag may short-
		circuit the + and – terminals of the battery (metal strips
		on the battery) upon moving. Short-circuit of the terminal
		may damage the battery and cause an explosion.
	●	Never place your phone in a microwave oven as it will
		cause the battery to explode.

17

LG-PD8380

General Warnings and Cautions

●Only use the batteries, antennas, and chargers provided by LG. The warranty will not be applied to products provided by other suppliers.

●Store the battery in a place out of reach of children.

●Using a damaged battery or placing a battery in your mouth may cause serious injury.

●Do not place items containing magnetic components such as a credit card, phone card, bank book or subway ticket near your phone. The magnetism of the phone may damage the data stored in the magnetic strip.

●Do not hold or let the antenna come in contact with your body during a call.

●Talking on your phone for a long period of time may reduce call quality due to heat generated during use.

●When the phone is not used for a long period time, store it in a safe place with the power cord unplugged.

●Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference to the phone.

●Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty.

●Do not use the phone if the antenna is damaged. If a damaged antenna contacts skin, it may cause a slight burn. Please contact an LG Authorized Service Center to replace the damaged antenna.

●Do not use the phone in areas where its use is prohibited. (For example: aircraft).

18

LG-PD8380

●	Do not immerse your phone in water. If this happens,	ETTINGG
	turn it off immediately and remove the battery. If the	S
		TARTED
	phone does not work, take it to an LG Authorized
	Service Center.
●	The power cord on this product will expose you to lead,
	a chemical known to the State of California to cause
	(cancer, and) birth defects or other reproductive harm.
	Wash hands after handling.

Battery Information and Care

●Please dispose of your battery properly or take it to your local wireless carrier for recycling.

●Do not dispose of your battery in fire or with hazardous or flammable materials.

●Never store your phone in temperatures less than -4° F or greater than 122° F.

●Never use an unapproved battery since this could damage the phone and/or battery and could cause the battery to explode.

●The battery does not need to be fully discharged before recharging.

●Use only LG-approved chargers specific to your phone model since they are designed to maximize battery life.

●Do not disassemble or short-circuit the battery.

●Keep the battery’s metal contacts clean.

19

LG-PD8380

●Replace the battery when it no longer provides acceptable performance. The battery can be recharged several hundred times before replacement.

●Recharge the battery after long periods of non-use to maximize battery life.

●Battery life will vary due to usage patterns and environmental conditions.

●Use of extended backlighting, MiniBrowser, and data connectivity kits affect battery life and talk/standby times.

20

LG-PD8380

2 Basic Functions

Turning the Phone On and Off

Turning the Phone On

1)Install a charged battery pack or connect the phone to an external power source such as the cigarette lighter adaptor or car kit.

2)Hold down the Key for 2 seconds until the LCD screen flashes.

NOTE As any other communication device, avoid any unnecessary contact with the antenna while your phone is turned on.

Turning the Phone Off

1)Press and hold until display screen turns off, then release the key.

Signal Strength

The quality of a call depends on the strength of the signal supplied by the operator. The phone shows its signal strength through bars, located at the left top of the screen. If there are more bars (a maximum of six), the phone holds more signal strength. If the signal strength is not satisfactory, try to change the position of the phone. If you are in a building, try to be near to a window, where the reception of the signal may be better.

In some places such as : tunnels, elevators, basements and garages, there may be limitation of the signal supplied by the operator.

21

UNCTIONSF ASICB

LG-PD8380

Power Save Mode

When the phone is in an area without service for about 5 minutes, it stops searching for service and enters into the Power Save Mode. When your phone activates this feature, Power Save is displayed on your screen. The phone automatically checks for service periodically or you can check manually by pressing any key.

Making a Call

Every time you make a call, follow these steps:

1)Make sure that the phone is turned on. If not, hold down for 2 seconds.

2)Type the phone number and then press .

If the phone is locked, type the lock code. The lock code is '0000' by default.

3) To end the call press .

Correcting Dial Errors

If you typed a wrong number, press the Key once to delete the lastly typed digit, or Hold down the Key for 2 seconds to delete all the typed digits at the same time.

22

LG-PD8380

Receiving Calls

1)When the phone rings or vibrates (if the Vibrate Mode

is enabled), open the folder or if the folder is open, press any key (except ) or Key to answer.

If you press once when you receive a call, the phone stops ringing or vibrating and the call remains

unanswered.

2) To end an answered call press .

Adjusting the Volume

The volume keys on the left side (Side Keys) of the phone can be used to adjust the earpiece, ring, and key volumes. The upper key is used to increase and the lower key is used to decrease the volume.

You may adjust the earpiece volume during a call.

The key volume is adjusted through side key only.

The ring volume can be adjusted through the Menu feature.

Ring Volume

1)Press Soft Key 1 Menu.

2)Press Sounds.

3)Press Volume and press Ring Tone.

4)Adjust the volume of the ringer with .

5)Then press to save the ring volume.

UNCTIONSF ASICB

23

LG-PD8380

Quick Adjust

Adjusting Manner Mode

Use Manner Mode in a public place.

1)In standby mode, activate Manner mode quickly by pressing the . (for 3 seconds) instead of using the Menu function.

When Manner Mode is set, Key tone does not sound and Vibrate is the selected ringer type.

NOTE : To cancel Manner mode, press again until General mode set is displayed.

NOTE : Selecting Manner Mode will allow you to maintain your phone under Manner Mode even when you turn it off and turn it back on.

Adjusting Lock Function

Used to prevent other persons from using your phone without your permission.

There are two ways to enable the Lock Function - with one key and by using the Menu.

1)In standby mode, to activate the lock mode quickly, press the (for 3 seconds).

NOTE : To cancel the Lock Mode, Press Soft Key 2 Esc, then enter your password (4 digits). Default value is ‘0000’.

24

LG-PD8380

Call Waiting

Your cellular service provider may offer a call waiting function. While a call is in progress, you may hear two beeps indicating another incoming call. When call waiting is enabled, you may put the active call on hold while you answer the other incoming call. Check with your service provider for information about this function.

1)Press to receive a waiting call.

2)Press again to switch between calls.

Mute

The mute function prevents the other party from hearing your voice, but allows you to hear the other party.

1)Press Soft Key 1 Menu and during a call.

2)To cancel Mute, press Soft Key 1 Menu and again.

Redialing Calls

1)Press to redial the last dialled number(s) in Call History.

You can also dial any of the last 60 Missed/Received/ Dialed numbers stored in the Call History list

Speed Dialing

UNCTIONSF ASICB

25

LG-PD8380

Speed dialing is a convenient feature, which allows you to make phone calls quickly and easily. Your phone recalls the phone number from your personal directory, displays it briefly and then dials it.

To use Speed Dial register a phone number first.

1)Enter memory location number 1 to 99 .

2)Press .

3)To end the call, Press .

One-Touch Speed Dialing: This feature enables you to store your nine most frequently used numbers in your phone book in memory locations (1 through 9)

•For locations 1 through 9, you can use one-touch dialing by pressing and holding the corresponding key to the memory location to be dialed.

or

• Press a digit, then press .

Two-Touch Speed Dialing: This feature enables you to dial numbers in your phone book through two keys (for locations 10 to 99.)

1)Press the first digit.

2)Press and hold the key of the second digit.

or

1) Press the first and second digit, then press .

Caller ID

26
