( ◆ ) Preliminary Specification
()Final Specification
Title 9.7" XGA TFT LCD
LP097X02
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
Customer General
MODEL
www.jxlcd.com
www.jxlcd.com
APPROVED BY SIGNATURE
/
/
/
SUPPLIER LG Display Co., Ltd.
*MODEL LP097X02
Suffix SLQ1
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE
J. K. Kim / S. Manager
REVIEWED BY
G. W. Do / Manager
PREPARED BY
H. H. Lee / Engineer
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 0.1 7. Feb. 2010
Product Engineering Dept.
LG Display Co., Ltd
1 / 28
Product Specification
Contents
LP097X02
Liquid Crystal Display
No ITEM
COVER
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS
3-2 INTERFACE CONNECTIONS
3-3 LVDS SIGNAL TIMING SPECIFICATIONS
3-4 SIGNAL TIMING SPECIFICATIONS
3-5 SIGNAL TIMING WAVEFORMS
www.jxlcd.com
www.jxlcd.com
3-6 COLOR INPUT DATA REFERNECE
3-7 POWER SEQUENCE
4 OPTICAL SFECIFICATIONS
Page
1
2
3
4
5
6
7
8
10
10
11
13
5 MECHANICAL CHARACTERISTICS
6 RELIABLITY
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC
8 PACKING
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS
A APPENDIX. Enhanced Extended Display Identification Data
Ver. 0.1 7. Feb. 2010
17
21
22
22
23
23
24
26
2 / 28
Product Specification
RECORD OF REVISIONS
LP097X02
Liquid Crystal Display
Revision No Revision Date Page Description
0.1 7. Feb. 2010 - First Draft TBD
www.jxlcd.com
www.jxlcd.com
EDID
ver
Ver. 0.1 7. Feb. 2010
3 / 28
LP097X02
Liquid Crystal Display
Product Specification

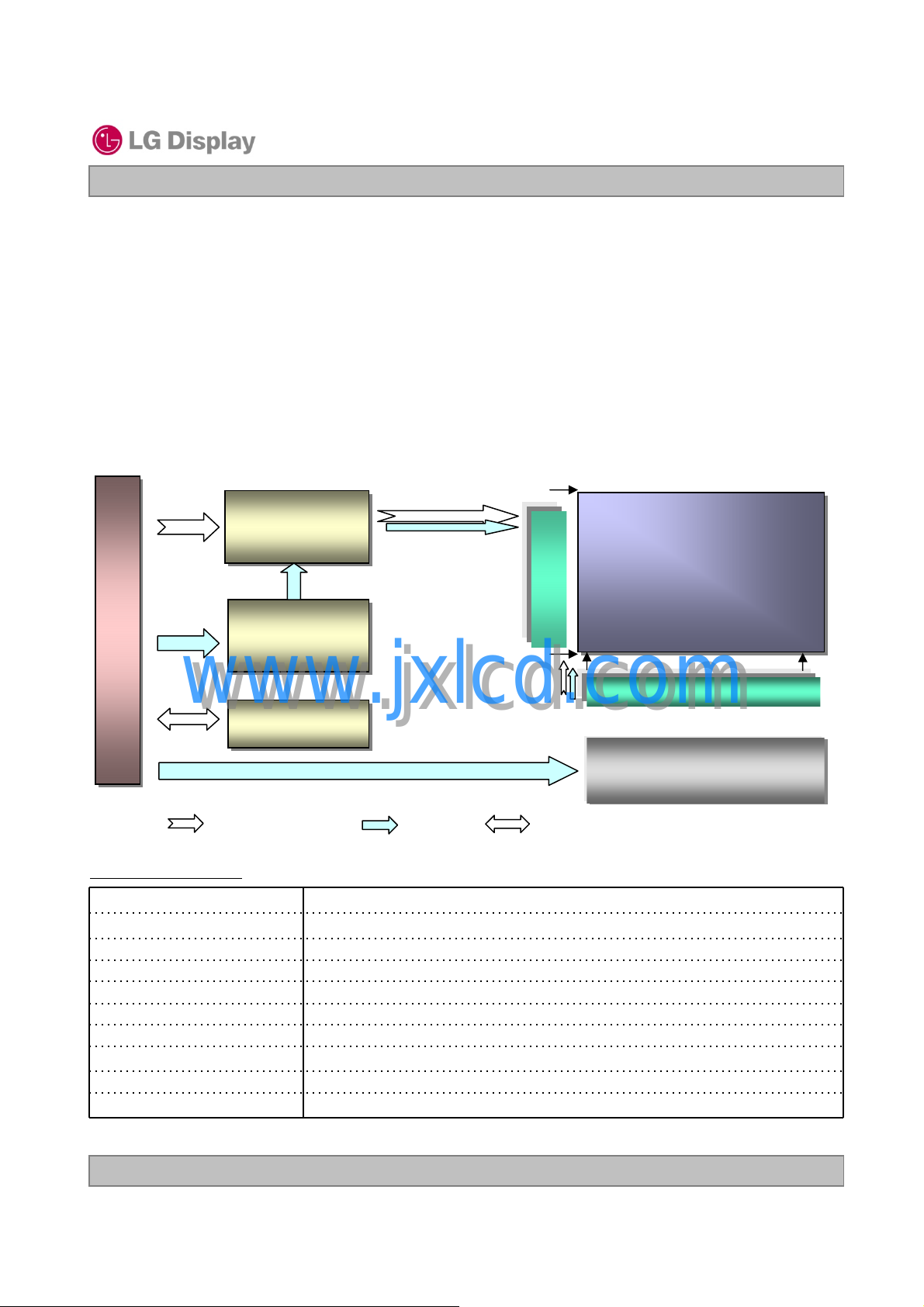

1. General Description
The LP097X02 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally Black mode. This TFT-LCD has 9.7 inches diagonally measured active display area with XGA
resolution(1024 horizontal by 768 vertical p ixel array). Each pixel is divided into Red, Green and Blue subpixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors.
The LP097X02 has been designed to apply the interface method that enables low power, high speed, low EMI.
The LP097X02 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination wi th the vertical a rrangement of the sub-pixels , the LP097X02
characteristics provide an excellent flat display for office automation products such as Notebook PC.
768
1
Gate Driver
TFT-LCD Panel
(1024 x 768)
(LOG_B type)
1
Source Driver Circuit
LED Backlight Ass’y
6LEDs X 6 strings
CN
1
User connector
30
Pin
LVDS &
Timing
Control
Block
POWER
BLOCK
www.jxlcd.com
www.jxlcd.com
EDID
BLOCK
Control & Data Power EDID signal & Power
General Features
Active Screen Size 9.7 inches diagonal
Outline Dimension 210.32(H) × 164.37 (V) × 2.88(D, Max.) mm ※ PCB area : 5.22(Max.)
Pixel Pitch 0.192 mm × 0.192 mm
Pixel Format 1024 horiz. by 768 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
Luminance, White 400 cd/m
Power Consumption Logic : 0.7W(typ.@Mosaic), Back Light : 2.1W (typ.@ I
Weight 143g (Max.)
Display Operating Mode Transmissive mode, normally Black
Surface Treatment Glare, Anti-reflective treatment of the front polarizer, 2H
2
(Typ., @I
=20mA)
LED
= 20mA)
LED
1024
Ver. 0.1 7. Feb. 2010
4 / 28
LP097X02
Liquid Crystal Display
Product Specification

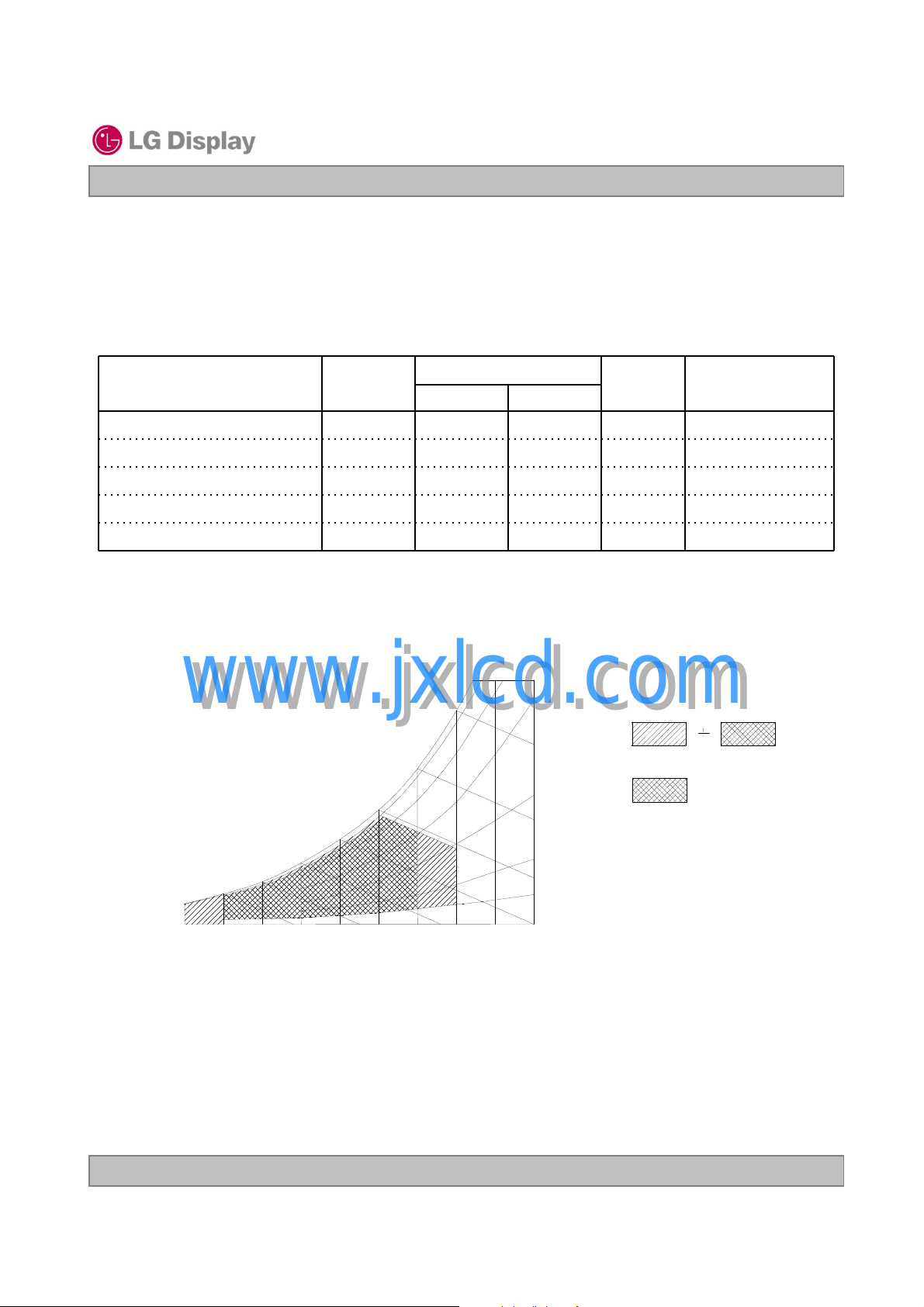

2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
Table 1. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol
Power Input Voltage
Operating Temperature
Storage Temperature
Operating Ambient Humidity
Storage Humidity
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39
www.jxlcd.com
www.jxlcd.com
Wet Bulb
Temperature [℃]
20
10
0
VCC -0.3 4.0 Vdc at 25 ± 5°C
TOP 050°C1
HST -20 60 °C1
HOP 10 90 %RH 1
HST 10 90 %RH 1
°C Max, and no condensation of water.
50
40
30
Values
Min Max
90% 80%
60
Units Notes
60%
Humidity[(%)RH]
Storage
40%
Operation
20%
10%
-20
Ver. 0.1 7. Feb. 2010
10
20 30 40 50
Dry Bulb Temperature [℃]
60 70 800
5 / 28
LP097X02
Liquid Crystal Display
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
The LP097X02 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input which powers the LED BL.
Table 2. ELECTRICAL CHARACTERISTICS
Parameter Symbol
MODULE :
Power Supply Input Voltage VCC 3.0 3.3 3.6 V
Power Supply Input Current I
Power Consumption Pc - 0.7 0.81 Watt 1
Differential Impedance Zm 90 100 110 Ohm 2
LED Backlight :
(Without LED Driver)
LED Driver input Volatge
(on system)
Operating Current per string I
Power Consumption P
Life Time 10,000 - - Hrs 6
www.jxlcd.com
www.jxlcd.com
CC
Mosaic - 212 244 mA 1
VLED 12 V 3
LED
BL
Min Typ Max
52025mA4
Values
2.1 2.6 Watt 5
Unit Notes
DC
Note)
1. The specified current and power consumption are under the Vcc = 3.3V , 25℃, fv = 60Hz condition
whereas Mosaic pattern is displayed and fv is the frame frequency.
2. This impedance value is needed to proper display and measured form LVDS Tx to the mating connector.
3. LED input voltage must be input below than 12V to operate normally for LED Driver.
4. The typical operating current is for the typical surface luminance (L
5. The LED power consumption shown above does not include power of external LED driver circuit
for typical current condition.
6. The life time is determined as the time at which brightness of lamp is 50% compare to that of initial value
at the typical lamp current.
Ver. 0.1 7. Feb. 2010
) in optical characteristics.
WH
6 / 28
LP097X02
Liquid Crystal Display
Product Specification
3-2. Interface Connections
This LCD employs two interface connections, a 30 pin connector is used for the module electronics interface
and the other connector is used for the integral backlight system.
The electronics interface connector is a model 20525-030E-02 manufactured by I-PEX.
Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)
Pin Symbol Description
1 GND Ground
2 VCC Power Supply, 3.3V Typ.
3 VCC Power Supply, 3.3V Typ.
4 V EEDID DDC 3.3V power
5Thermistor
6 Clk EEDID DDC Clock
7 DATA EEDID DDC Data
8 RIN 0- Negative LVDS differential data input
9 RIN 0+ Positive LVDS differential data input
10 GND Ground
11 RIN 1- Negative LVDS differential data input
12 RIN 1+ Positive LVDS differential data input
13 GND Ground
14 RIN 2- Negative LVDS differential data input
15 RIN 2+ Positive LVDS differential data input
16 GND Ground
17 CLKIN- Negative LVDS differential clock input
18 CLKIN+ Positive LVDS differential clock input
19 GND Ground
20 NC
21 Vdc LED Anode (Positive)
22 Vdc LED Anode (Positive)
23 NC
24 Vdc1 LED Cathode (Negative)
25 Vdc2 LED Cathode (Negative)
26 Vdc3 LED Cathode (Negative)
27 Vdc4 LED Cathode (Negative)
28 Vdc5 LED Cathode (Negative)
29 Vdc6 LED Cathode (Negative)
30 Thermistor
www.jxlcd.com
www.jxlcd.com
Connect to thermistor (Customer request)
No Connection
No Connection
Connect to thermistor (Customer request)
Notes
[LVDS Receiver]
SiliconWorks, SW0627B
[Connector]
20525-030E-02 (IPEX), 30pin
[Mating Connector]
I-PEX 20524-030T-01 series
or equivalent (micro-coax type)
[Connector pin arrangement]
LCD front view
1
30
Ver. 0.1 7. Feb. 2010
7 / 28
Product Specification
3-3. LVDS Signal Timing Specifications
3-3-1. DC Specification
LP097X02
Liquid Crystal Display
Description
LVDS Differential Voltage |V
LVDS Common mode Voltage V
LVDS Input Voltage Range V
3-3-2. AC Specification
LVDS Clock to Data Skew Margin
www.jxlcd.com
www.jxlcd.com
Description Symbol Min Max Unit Notes
Symb
ol
| 100 600 mV -
ID
CM
IN
t
SKEW
t
SKEW
Min Max Unit Notes
0.6 1.8 V -
0.3 2.1 V -
- 240 + 240 ps
- 400 + 400 ps
105MHz > Fclk ≥
85MHz > Fclk ≥
95MHz
65MHz
LVDS Clock to Clock Skew Margin (Even
to Odd)
Maximum deviation
of input clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
Ver. 0.1 7. Feb. 2010
t
SKEW_EO
F
DEV
F
MOD
-1/7 + 1/7 T
- ± 3% -
-200KHz -
clk
-
8 / 28
