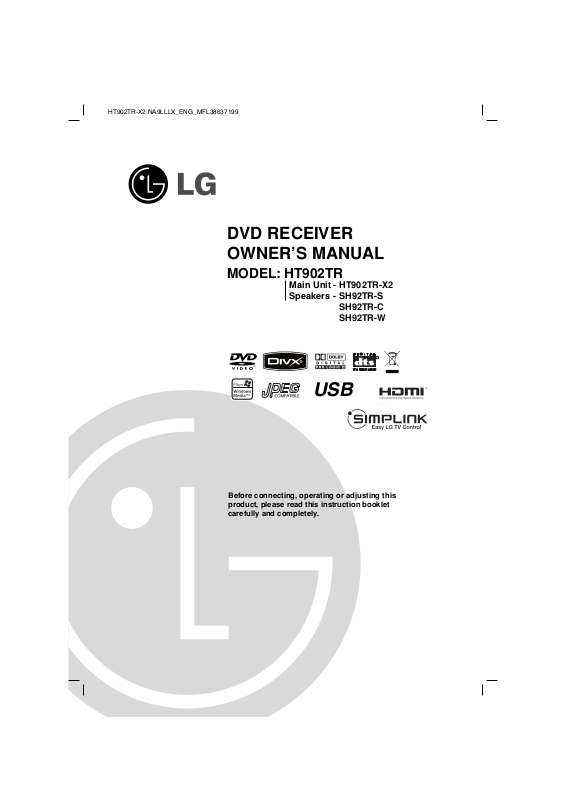

LG HT902TR-X2 User Guide

DVD RECEIVER
OWNER’S MANUAL

MODEL: HT902TR

Main Unit - HT902TR-X2
Speakers - SH92TR-S

SH92TR-C
SH92TR-W

Before connecting, operating or adjusting this
product, please read this instruction booklet
carefully and completely.

HT902TR-X2.NA9LLLX_ENG_MFL38637199

R

USB

2

This lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.

WARNING: Do not install this equipment in a confined space
such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect
it from overheating.
The openings should be never be blocked by placing the
product on a bed, sofa, rug or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer's instruction have been adhered to.

CAUTION:

This product employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future reference.
Should the unit require maintenance, contact an authorized
service center.
Use of controls, adjustments or the performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such
as vases, should be placed on the apparatus.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon
a dedicated circuit;

That is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch
circuits. Check the specification page of this owner's
manual to be certain.

Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug
it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an
authorized servicer.

Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord
exits the appliance.

To disconnect power from the mains, pull out the
mains cord plug. When installing the product, ensure
that the plug is easily accessible.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol
is attached to a product it means the product
is covered by the European Directive
2002/96/EC.

2. All electrical and electronic products should
be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.

3. The correct disposal of your old appliance
will help prevent potential negative
consequences for the environment and
human health.

4. For more detailed information about disposal
of your old appliance, please contact your
city office, waste disposal service or the
shop where you purchased the product.

This product is manufactured to comply
with the EEC DIRECTIVE 89/336/EEC,
93/68/EEC and 2006/95/EC.

CLASS 1 LASER PRODUCT
KLASSE 1

LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1

LASER APPARAT
CLASSE 1

PRODUIT LASER

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.

3

Introduction

Maintenance and Service . . . . . . . . . . . . . . . . .3

Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Front Panel/Rear Panel . . . . . . . . . . . . . . . . . . .5

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . .6

Installation and Setup

TV Connection . . . . . . . . . . . . . . . . . . . . . . . . . .7

Optional Equipment Connection . . . . . . . . . . . .8

Antenna Connection . . . . . . . . . . . . . . . . . . . . .8

Assembling the speaker stand to the speaker .9

Speaker System Connection . . . . . . . . . . . . . . .9

HDMI Connection . . . . . . . . . . . . . . . . . . . . . .10

Displaying Disc Information on-screen . . . . . .11

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . .11

General Operation . . . . . . . . . . . . . . . . . . . .11-14

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . .11

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

5.1 Speaker Setup . . . . . . . . . . . . . . . . . . . . .13

LOCK (Parental Control) . . . . . . . . . . . . . . . .14

OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Operation

General features . . . . . . . . . . . . . . . . . . . . . . .15

Additional features . . . . . . . . . . . . . . . . . . . . .16

Controlling the TV . . . . . . . . . . . . . . . . . . . . . .16

Playing an Audio CD or MP3/WMA file . . . . . .17

Programmed Playback . . . . . . . . . . . . . . . . . .17

Viewing a JPEG file . . . . . . . . . . . . . . . . . . . .18

Playing a DivX Movie file . . . . . . . . . . . . . . . .19

Presetting the Radio Stations . . . . . . . . . . . . .20

Listening to the Radio . . . . . . . . . . . . . . . . . . .20

Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . .21

Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Selecting input source . . . . . . . . . . . . . . . . . . .21

XTS/XTS pro . . . . . . . . . . . . . . . . . . . . . . . . . . .21

VIRTUAL sound . . . . . . . . . . . . . . . . . . . . . . . .21

Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Reference

Language Codes . . . . . . . . . . . . . . . . . . . . . . .22

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Troubleshooting . . . . . . . . . . . . . . . . . . . . .23-24

Specifications . . . . . . . . . . . . . . . . . . . . . . . . .25

Maintenance and Service

Refer to the information in this chapter before
contacting a service technician.

Handling the unit

When shipping the unit

Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally packed
at the factory.

Keeping the exterior surfaces clean



Do not use volatile liquids such as insecticide spray
near the unit.



Do not leave rubber or plastic products in contact
with the unit for a long period of time. since they
leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine,
or thinner, as these might damage the surface of the
unit.

Maintaining the Unit

The DVD/CD Receiver is a high-tech, precision
device. If the optical pick-up lens and disc drive parts
are dirty or worn, the picture quality could be
diminished.

Depending on the operating environment, regular
inspection and maintenance are recommended after
every 1,000 hours of use.

For details, please contact your nearest authorized
service center.

4

Before use

To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future
reference.

This manual provides information on the operation
and maintenance of your DVD/CD Receiver. Should
the unit require service, contact an authorized service
location.

About the Symbol Display

“ ” may appear on your TV display during
operation and indicates that the function explained in
this owner’s manual is not available on that specific
DVD video disc.

Symbol Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols
is applicable only to the disc represented by the
symbol.

DVD

Video CDs

Audio CDs

MP3 files

WMA files

JPEG files

DivX files

Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
works. Copyright 1992-1997 Dolby Laboratories. All rights
reserved.

Manufactured under license from Digital Theater Systems,
Inc. U.S. Pat. No’s. 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,226,616; 6,487,535 and other U.S. and world­wide patents issued and pending. "DTS" and "DTS Digital
Surround” are registered trademarks of Digital Theater
Systems, Inc. Copyright 1996, 2003 Digital Theater
Systems, Inc. All Rights Reserved.

Types of Playable Discs

DVD
(8 cm / 12 cm disc)

Video CD (VCD)
(8 cm / 12 cm disc)

Audio CD
(8 cm / 12 cm disc)

In addition, this unit can play a DVD±R, DVD±RW,
SVCD and CD-R or CD-RW that contains audio titles,
MP3, WMA, JPEG or DivX files.

Notes:



Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD-RW,
DVD+RW) disc itself, some CD-R/RW (or DVD-RW,
DVD+RW) discs may not be played on the unit.



Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.



Do not use irregularly shaped CDs (e.g., heart­shaped

or octagonal). It may result in malfunctions.

Regional Code

This unit has a regional code printed on the rear of the
unit. This unit can play only DVD discs labelled as the
same as the rear of the unit or “ALL”.

Notes on Regional Codes



Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your DVD player’s regional
code or the disc cannot play.



If you try to play a DVD with a different regional
code from your player, the message “Check
Regional Code” appears on the TV screen.

DivX

JPEG

WMA

MP3

ACD

VCD

DVD

Introduction

What is SIMPLINK?

Some functions of this unit are controlled by TV’s
remote control when this unit and LG TV with
SIMPLINK are connected through HDMI
connection.

• Controllable functions by LG TV’s remote control;
Play, Pause, Scan, Skip, Stop, Power Off, etc.

• Refer to the TV owner’s manual for the details of
SIMPLINK function.

• LG TV with SIMPLINK function has the logo as
shown above.

5

Introduction

OPEN/CLOSE button

TUNING(-/+)/SKIP/
SEARCH(../>>)

Remote sensor

AUDIO IN connector

VOLUME controller

POWER

DISPLAY Window

DISC Tray

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent
damage to the unit.

USB port

Connect to a USB port of a memory
device (USB memory etc.)

FUNC.(-)/PLAY(B)

Press and hold down this button
about 3 seconds, then press
repeatedly to select other function.

PAUSE (XX)/
MONO/STEREO (ST.)

STOP (x)

HDMI OUTHDMI OUT

OUT PUT

INPUT

L - AUX - R

MONITOR

Y

COMPONENT VIDEO (PROGRESSIVE SCAN)

FM Antenna connector

AM Loop Antenna connectors

SPEAKER connectors

Power Cord

MONITOR OUT connector

COMPONENT VIDEO OUT terminals

Connect to a TV with Y PB PR inputs.

Front Panel/Rear Panel

OUTPUT (TO TV)
EURO AV socket

Connect to a TV with
SCART jack.

Cooling fan

OPTICAL IN connector

AUX AUDIO Input
(L/R) connector

VIDEO OUT SELECTOR switch

HDMI OUT

HDMI output providing a high quality

interface for digital audio and video.

MIC 1/MIC 2

Connect a microphone to MIC 1 or
MIC 2 or to both sockets.

6

Remote Control

Remote Control Operation Range

Point the remote control at the remote sensor and press the
buttons.



Distance: About 23 ft (7 m) from the front of the remote
sensor



Angle: About 30° in each direction in front of the remote sensor

Remote control battery installation

Remove the battery cover on the rear of the
remote control, and insert two R06 (size

AA) batteries with and aligned
correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

OPEN/CLOSE (ZZ)

Opens and closes

the disc tray.

DVD

Selects the output source (CD/DVD).

PROG./MEMO.

Accesses or removes Program menu.
Enter a radio station’s frequency into
the tuner.

S-TITLE

Selects a subtitle language (DVD).

CLEAR

Removes a track number on the
program menu or a mark on the
MARKER SEARCH menu.

ECHO VOL.(V/v)

Adjusts echo volume

SCAN/SLOW(bb/BB)

Searches backward or forward.
Reverse/ Forward slow playback.

REVERSE/FORWARD SKIP
(../>>)

TITLE

Displays the disc’s Title menu, if
available.

STOP (xx)
PLAY (B)
PAUSE/STEP (XX)
VSM
XTS pro

Supplies more natural and realistic
sound. Supplies great sound effect.

SLEEP

Sets the System to turn off
automatically at a specified time.

MUTE
VOLUME (-/+)

Adjusts speaker volume.

MARKER

Marks a point during playback.

SEARCH

Displays MARKER SEARCH menu.

HDMI

Switches the HDMI mode to HDMI
(active) and OFF (inactive).

DIMMER

Changes brightness of the display
window on the front panel during in
power-on status.

TV

Controls the TV. (LG TV only)
(See page16)

POWER

TUNER

Selects the System’s tuner (FM and AM

bands).

AUX

Selects input source.

USB

Plays the multimedia files

REPEAT

Repeats chapter, track, title, all

REPEAT A-B

Repeats sequence.

AUDIO

Selects an audio language (DVD) or an

audio channel (CD).

SOUND

Selects the sound mode.

MIC VOL.(V/v)

Adjusts microphone volume.

MENU

Accesses the menu on a DVD disc.

ZOOM

SETUP

Accesses or removes setup menu.

DISPLAY

Accesses On-Screen display.

RETURN

Removes the setup menu.

b/B/v/V (left/right/up/down)

Selects an option in the menu.

ENTER

Acknowledges the menu selection.

PRESET (-/+)

Selects programme of Radio.

TUN. (-/+)

Tunes in the desired radio station.

0-9 numerical buttons

Selects a service, programme number
directly or selects numbered options in

a menu.

RESOLUTION

Changes the resolution depending on

your TV.

TUNER

AUX

USB

REPEAT

AUDIO SOUND S-TITLE CLEAR

SCAN - - +SKIP SCAN +

TITLE

STOP PLAY

ZOOM

MENU

OPEN/CLOSE

POWER

SETUP

ENTER

SLEEP

MUTE

DVD

PROG./MEMO.

A-B

PAUSE/STEP

DISPLAY

RETURN

VOL

MARKER SEARCH

RESOLUTION

POWER

INPUT

HDMI DIMMER

PR VOL

7

Installation and Setup

Make one of the following connections, depending on
the capabilities of your existing equipment.

Tips:



Depending on your TV and other equipment you
wish to connect, there are various ways you could
connect the

DVD/CD Receiver

. Use one of the

connections described below.



Please refer to the manuals of your TV, VCR,
Stereo System or other devices as necessary to
make the best connections.

Caution:



Make sure the DVD/CD Receiver is connected
directly to the TV. Select the correct AV input on
your TV.



Do not connect your

DVD/CD Receiver

to TV via
your VCR. The DVD image could be distorted by
the copy protection system.

Video connection

Connect the MONITOR OUT jack from the DVD/CD
Receiver to the VIDEO IN jack on the TV using the
video cable (V).

Component Video (Color Stream®) connection

Connect the COMPONENT VIDEO OUT jacks from
the DVD/CD Receiver to the corresponding jacks on
the TV using an Y P

B PR cable (C).

SCART connection

Connect the EURO AV OUTPUT (TO TV) socket on
the DVD/CD Receiver to the corresponding jacks on
the TV using the scart cable (T).



If your television is a high-definition or “digital
ready” television, you may take advantage of the
DVD/CD Receiver

’s progressive scan output for the

highest video resolution.



If your TV does not accept your resolution setting,
abnormal picture appears on the screen. Please
read owner’s manual for TV then set the resolution
that your TV can accept.

Notes:



The HDMI mode must be set to OFF for VIDEO
OUT and Component video connections.



A picture via scart input is not supported.

Caution

VIDEO OUT SELECTOR switch

In power-off state, select either
COMPONENT VIDEO OUT
(PROGRESSIVE SCAN) or SCART signal of
EURO AV TO TV terminal depending on how
to connect the unit to the TV.

TV Connection

HDMI OUT

Installation and Setup

Rear of DVD/CD Receiver

Rear of TV

VTC

INPUT

MONITOR

L - AUX - R

Y

COMPONENT VIDEO (PROGRESSIVE SCAN)

OUT PUT

VIDEO

COMPONENT VIDEO /

INPUT

PROGRESSIVE SCAN INPUT

L

Y

SCART INPUT

HDMI OUT

8

Optional Equipment

Connection

USB connection (U)

Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.

Removing the USB Device from the unit

1. Choose a different function mode or press STOP

(x) twice in a row.

2. Remove the USB device from the unit.

Notes:



Don’t extract the USB device while operating.



Music files (MP3/WMA), image files (JPEG) and
video files can be played.



This unit can not use a USB HUB.



Recommended Memory Cards.
Compact Flash Card (CFC), Micro Drive (MD), Smart
Media Card (SMC), Memory Stick (MS), Secure Digital
Card (SD), Multi Media Card (MMC), Memory Stick Pro
(MS-Pro)

- Compatible with : FAT16, FAT32

- Only use the memory cards recommended.



Devices which require additional program

installation when you have connected the unit to a

computer are not supported.



In case of a USB HDD, make sure to connect an

auxiliary power cord to the USB HDD for proper

operation. Up to four primary partitions of a drive are

supported. If there is an extension partition, it will not

be supported.



If the drive of USB device is two or more, a drive

folder is displayed on the screen. If you want to

move to the initial menu after you select a folder,

press RETURN.



Digital cameras and mobile phones are not

supported.

AUX IN connection (A)

Connect a Output of auxiliary device to the AUX
AUDIO Input (L/R) Connector.

OPTICAL IN connection (O)

Connect an optical output of DVD Player (or Digital
Device etc) to the OPTICAL IN connector.

AUDIO IN connection (D)

Connect a output of portable device (MP3 or PMP etc)
to the AUDIO input connector.

Antenna Connection

Connect the supplied FM/AM antenna for listening to
the radio.



Connect the AM Loop antenna to the AM antenna
connector.



Connect the FM Wire antenna to the FM antenna
connector.

Notes:



To prevent noise pickup, keep the AM Loop antenna away
from the DVD/CD Receiver and other components.



Be sure to fully extend the FM wire antenna.



After connecting the FM Wire antenna, keep it as
horizontal as possible.

VIDEO

OUT IN

AUDIO (L)

AUDIO (R)

HDMI OUTHDMI OUT

OUT PUT

INPUT

L - AUX - R

MONITOR

Y

COMPONENT VIDEO (PROGRESSIVE SCAN)

OPTICAL

OUT

HDMI OUT

Rear of DVD/CD Receiver

U

O

A

D

Portable device

To AUDIO OUT

To AUDIO IN

AM Loop Antenna
(supplied)

FM Wire Antenna
(supplied)

Auxiliary device

DVD Player
(or Digital
Device, etc)

USB Memory, MP3 Player (or

Memory Card Reader, etc.)

To AUDIO OUT (L/R)

To AV IN AUDIO (L/R)

INPUT

MONITOR

L - AUX - R

Y
COMPONENT VIDEO (PROGRESSIVE SCAN)

OUT PUT

HDMI OUT
