LG HT306SU User Manual

OWNER’S MANUAL

DVD Home Theater
System

Please read this manual carefully before operating
your set and retain it for future reference.

HT306SU (HT306SU, SH36SU-S/C/W)

P/NO : MFL67205716

HT306SU-F2_BINDLL_ENG_5716.indd 1 2011-04-26 �� 2:49:04

Getting Started2

Safety Information

1

Getting Started

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.

WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sucient magnitude to constitute
a risk of electric shock to persons.

The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon
a dedicated circuit;

That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.

CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.

Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.

HT306SU-F2_BINDLL_ENG_5716.indd 2 2011-04-26 �� 2:49:05

Getting Started 3

This device is equipped with a portable battery or
accumulator.

Safe way to remove the battery or the battery
from the equipment:

Remove the old battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put in the appropriate
container at designated collection points. Do not
dispose of batteries or battery together with other
waste. It is recommended that you use local, free
reimburse ment system batteries and accumulators.
The battery shall not be exposed to excessive heat
such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.

yThe appliance is not intended for use by young

children or inrm persons without supervision.

yYoung Children should be supervised to

ensure that they do not play with appliance.

yIf the appliance is supplied from a cord

extension set or an electrical portable outlet
device, the cord extension set on electrical
portable outlet device must be positioned so
that it is not subject to splashing or ingress of
moisture.

Copyrights

It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent
copyrighted material without permission. This
product features the copy protection function
developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and
playing the pictures of these discs picture noise
will appear. This product incorporates copyright
protection technology that is protected by U.S.
patents and other intellectual property rights. Use
of this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p UNIT, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTRE.

You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.

(Mastered/ Live File System : Disc format system for
Windows Vista)

1

Getting Started

HT306SU-F2_BINDLL_ENG_5716.indd 3 2011-04-26 �� 2:49:05

Table of Contents4

Table of Contents

1 Getting Started

2 Safety Information
6 Unique Features
6 – USB Direct Recording
6 – Full HD up-scaling
6 Accessories
7 Introduction
7 – Playable Discs
7 – About the & Symbol Display
7 – Symbol Used in this Manual
7 – Regional Codes
8 – Playable file Requirement
10 Front panel
11 Rear panel
12 Remote control

2 Connecting

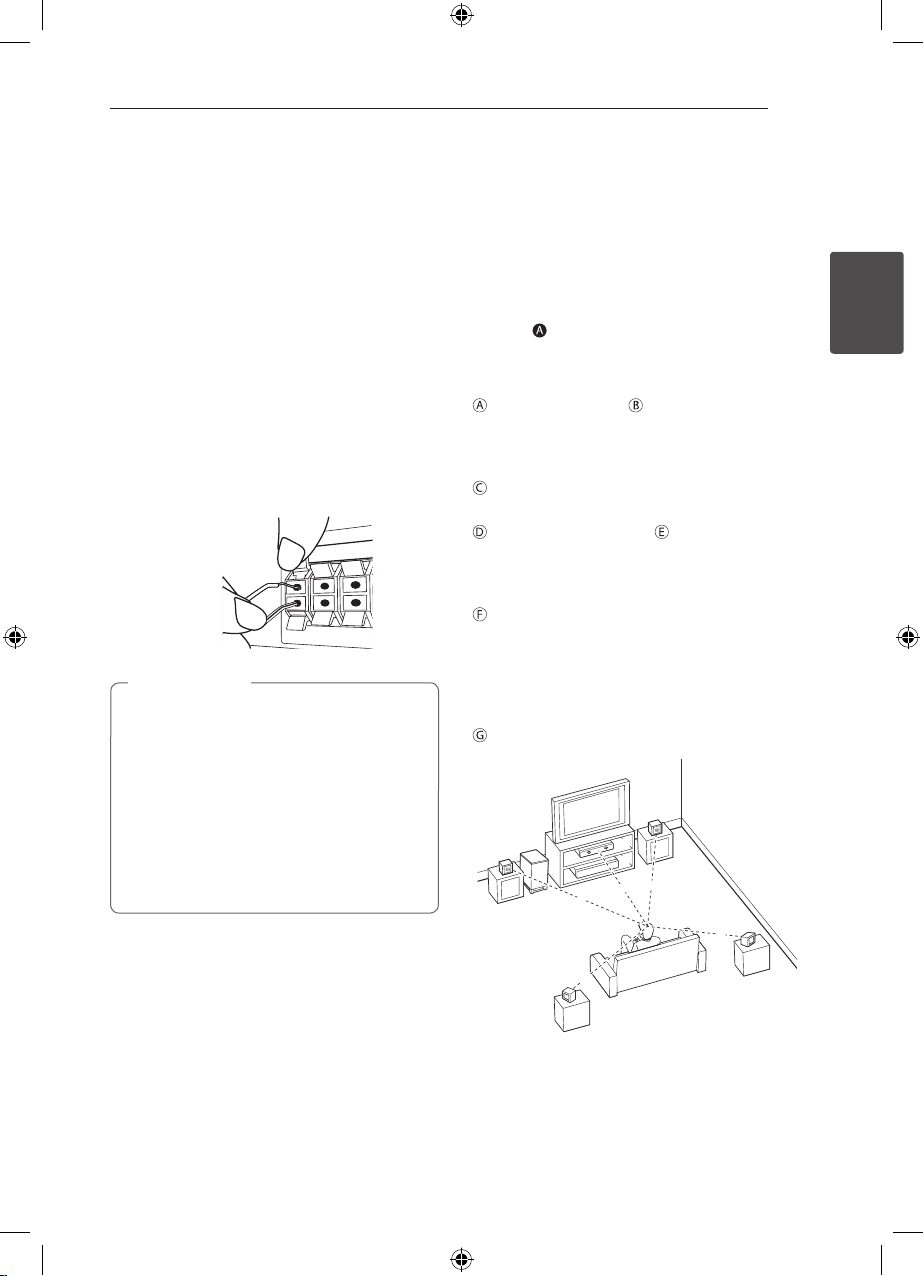

13 Connecting the speakers
13 – Attaching the speakers to the unit
13 – Positioning the System
14 Connections to Your TV

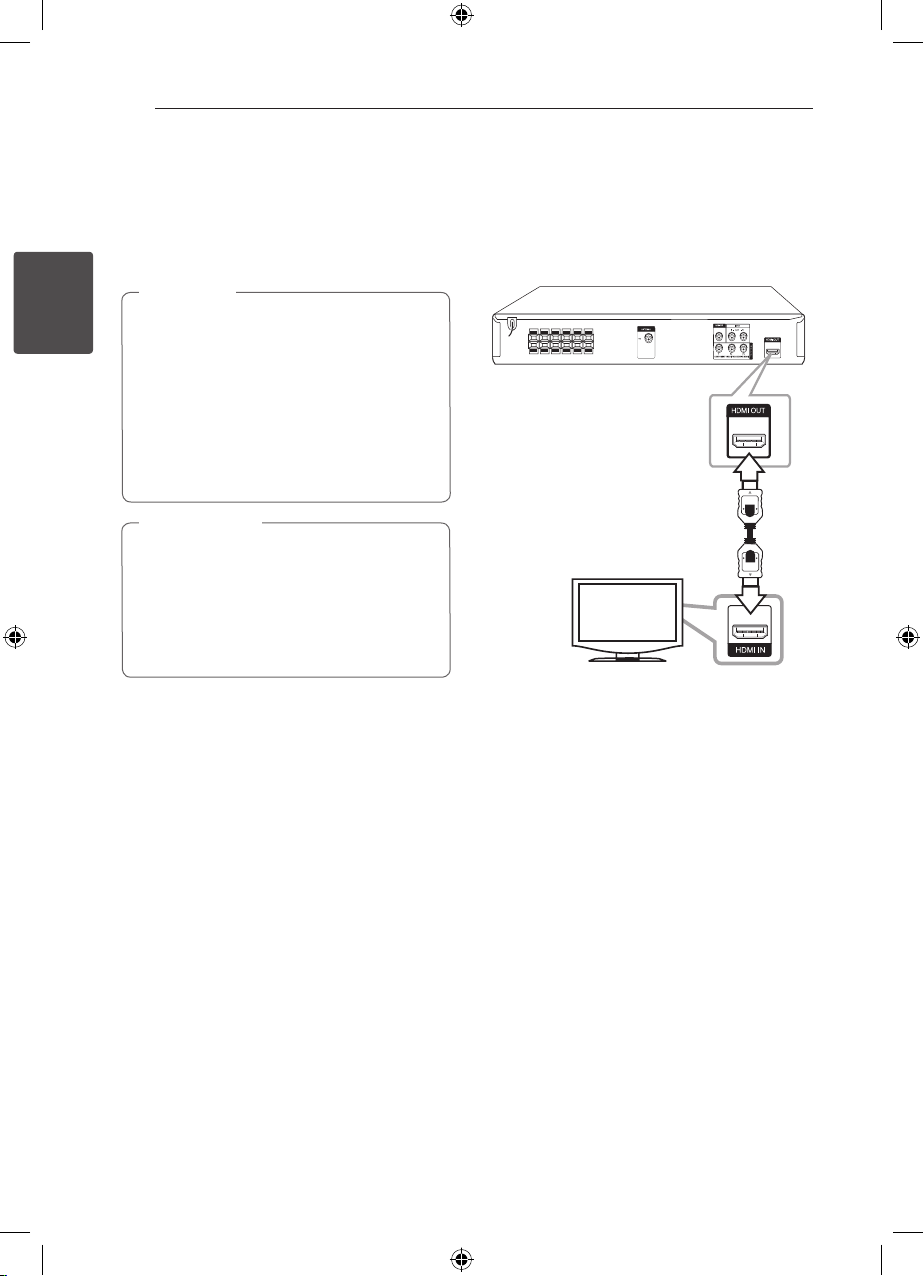

14 – HDMI OUT Connection
15 – Component Video Connection

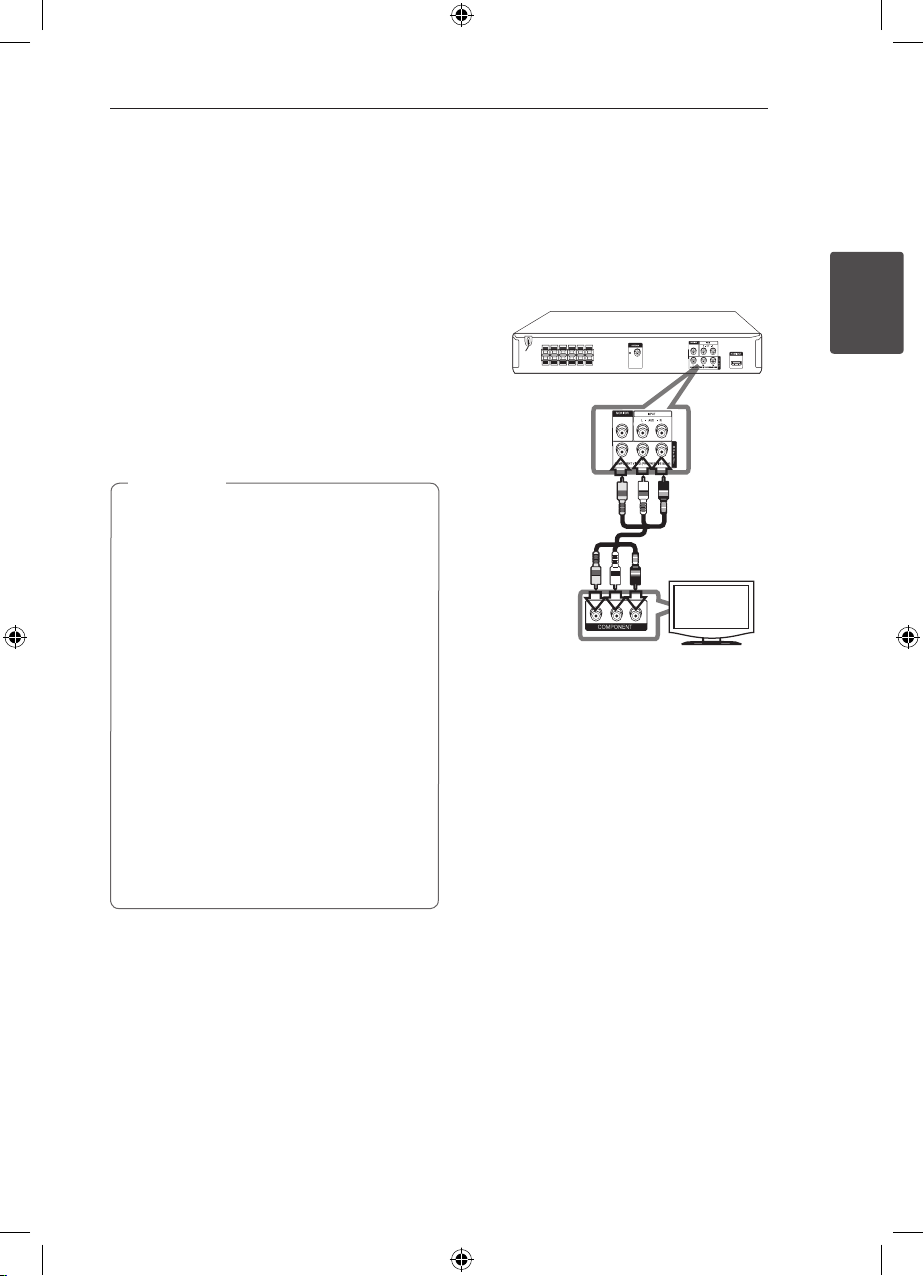

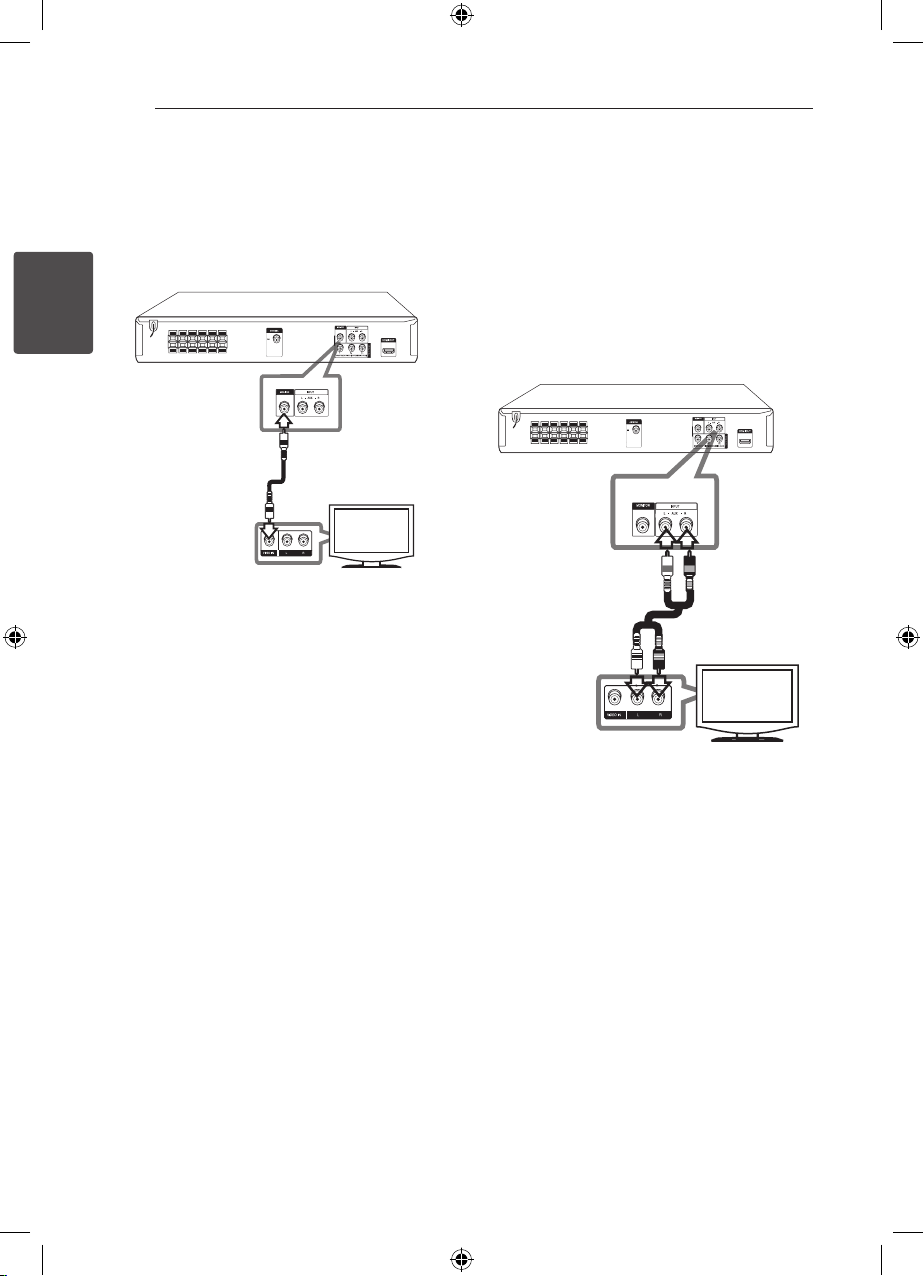

16 – Video Connection
16 Optional Equipment Connection
16 – AUX IN Connection
17 – PORT.(Portable) IN Connection

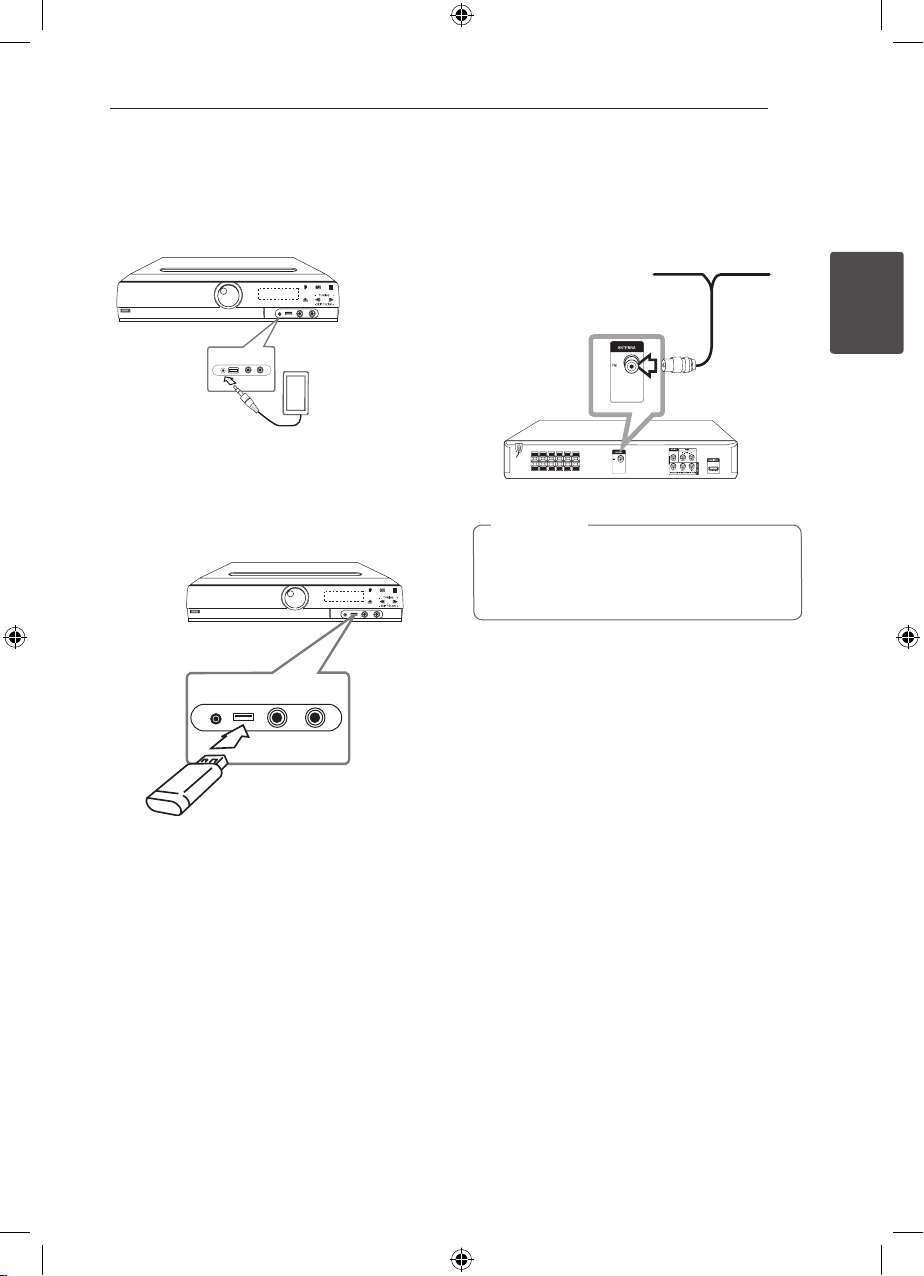

17 – USB Connection
17 – Antenna Connection

4 Operating

23 Basic Operations
24 Other Operations
24 – Displaying Disc Information on-screen
24 – To display the DVD Menu
24 – To display the DVD Title
24 – Selecting a subtitle language
24 – 1.5 times speed playback
25 – Starting play from selected time
25 – Last Scene Memory
25 – Changing the character set to display

DivX® subtitle correctly
25 – Programmed Playback
26 – Viewing a PHOTO file
26 – Viewing photo files as a slide show
26 – Listening to music during slide show
26 – Sleep Timer Setting
26 – Dimmer
27 – Turn off the sound temporarily
27 – Screen Saver
27 – System Select - Optional
27 – VOCAL FADER
27 – Displaying file information

(ID3 TAG )
27 Radio Operations
27 – Listening to the Radio
28 – Presetting the Radio Stations
28 – Deleting all the saved stations
28 – Improving poor FM reception
29 Sound adjustment
29 – Setting the surround mode
30 Advanced Operations
30 – Listening to music from your portable

player or external device.

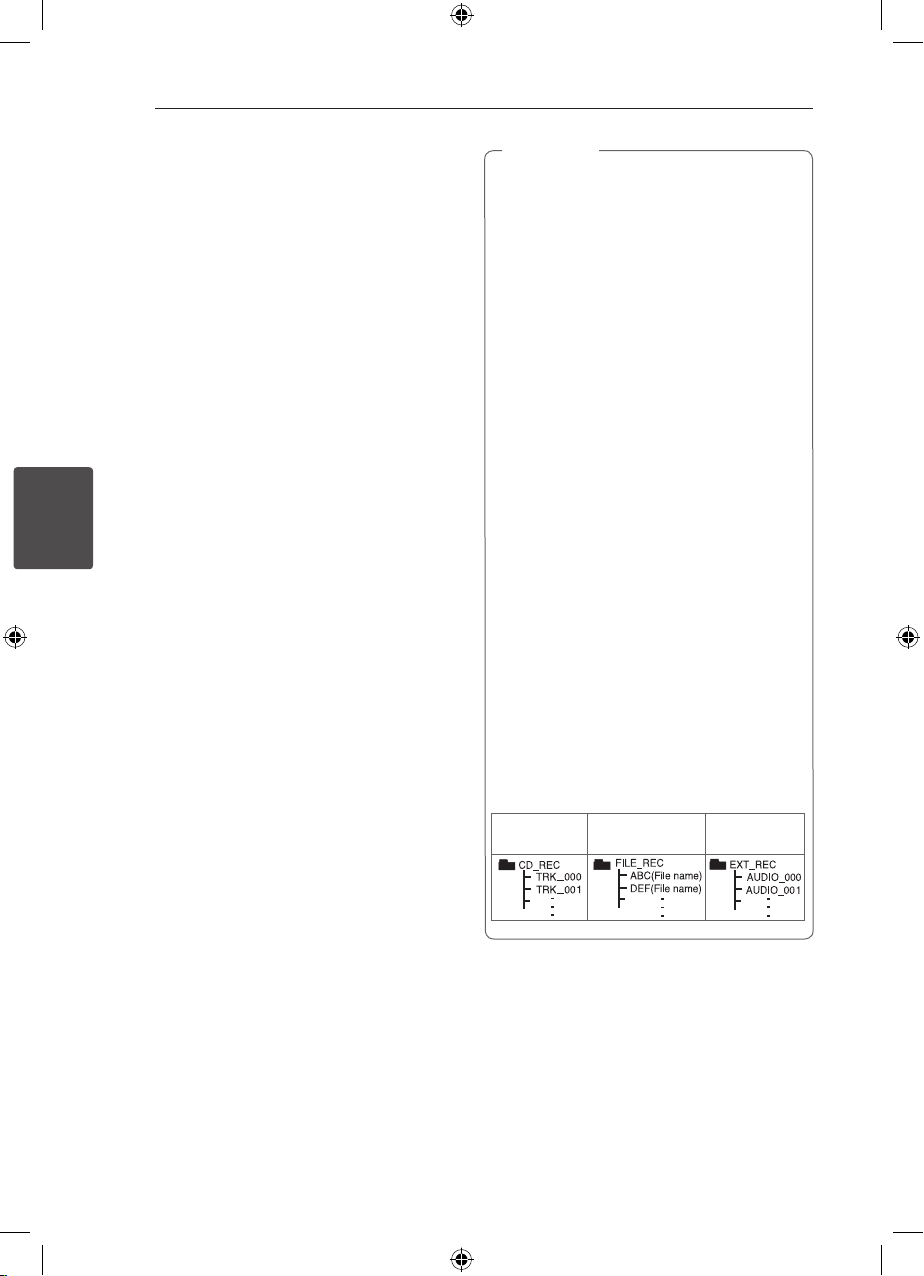

30 – Recording to USB

3 System Setting

18 Adjust the Setup settings
18 – OSD Initial language settings -

Optional
18 – To display and exit the Setup Menu
19 – LANGUAGE
19 – DISPLAY

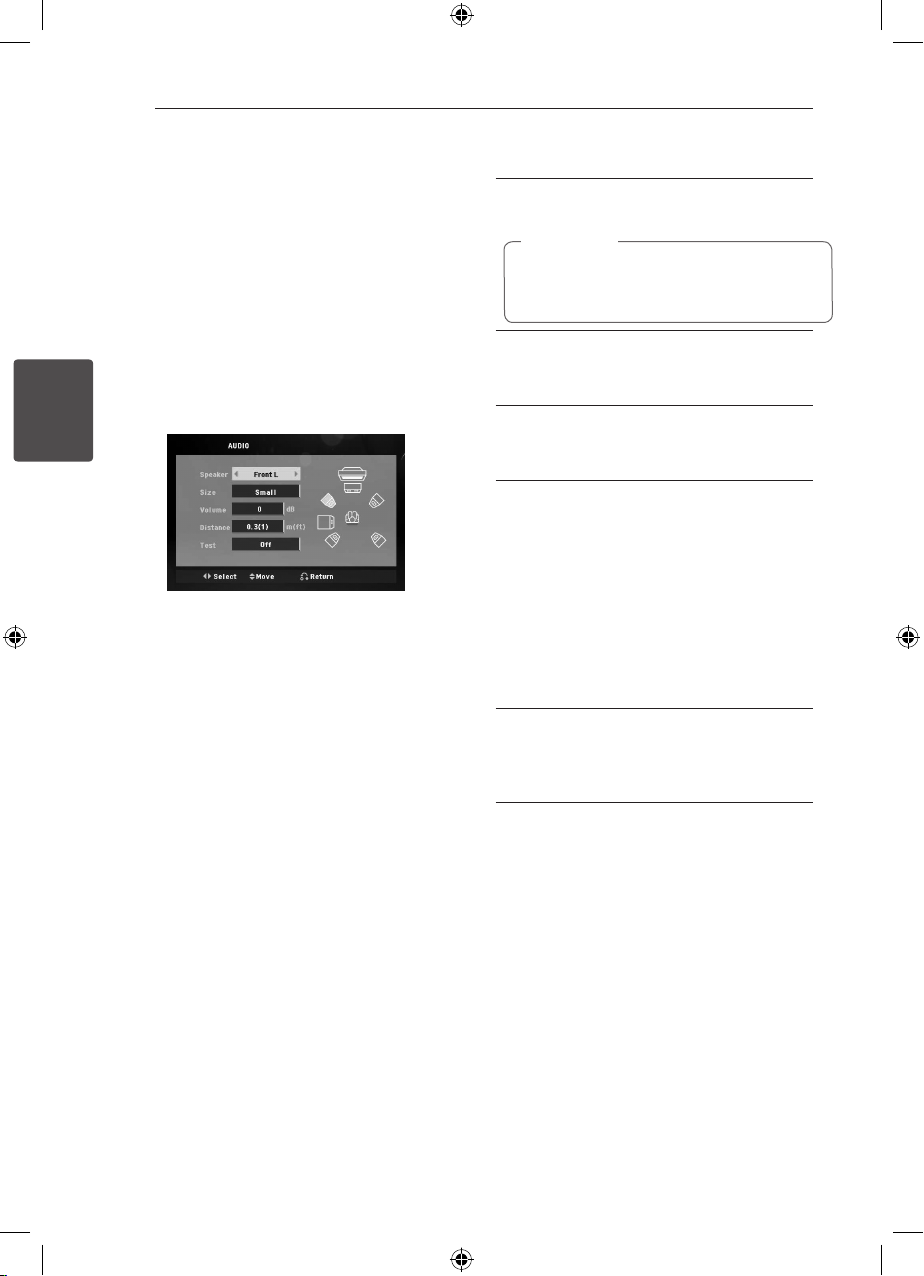

20 – AUDIO
21 – LOCK (Parental Control)
22 – OTHERS

HT306SU-F2_BINDLL_ENG_5716.indd 4 2011-04-26 �� 2:49:05

5 Troubleshooting

31 Troubleshooting

Table of Contents 5

6 Appendix

32 Maintenance
32 – Handling the Unit
32 – Notes on Discs
33 Area Code List
34 Language Code List

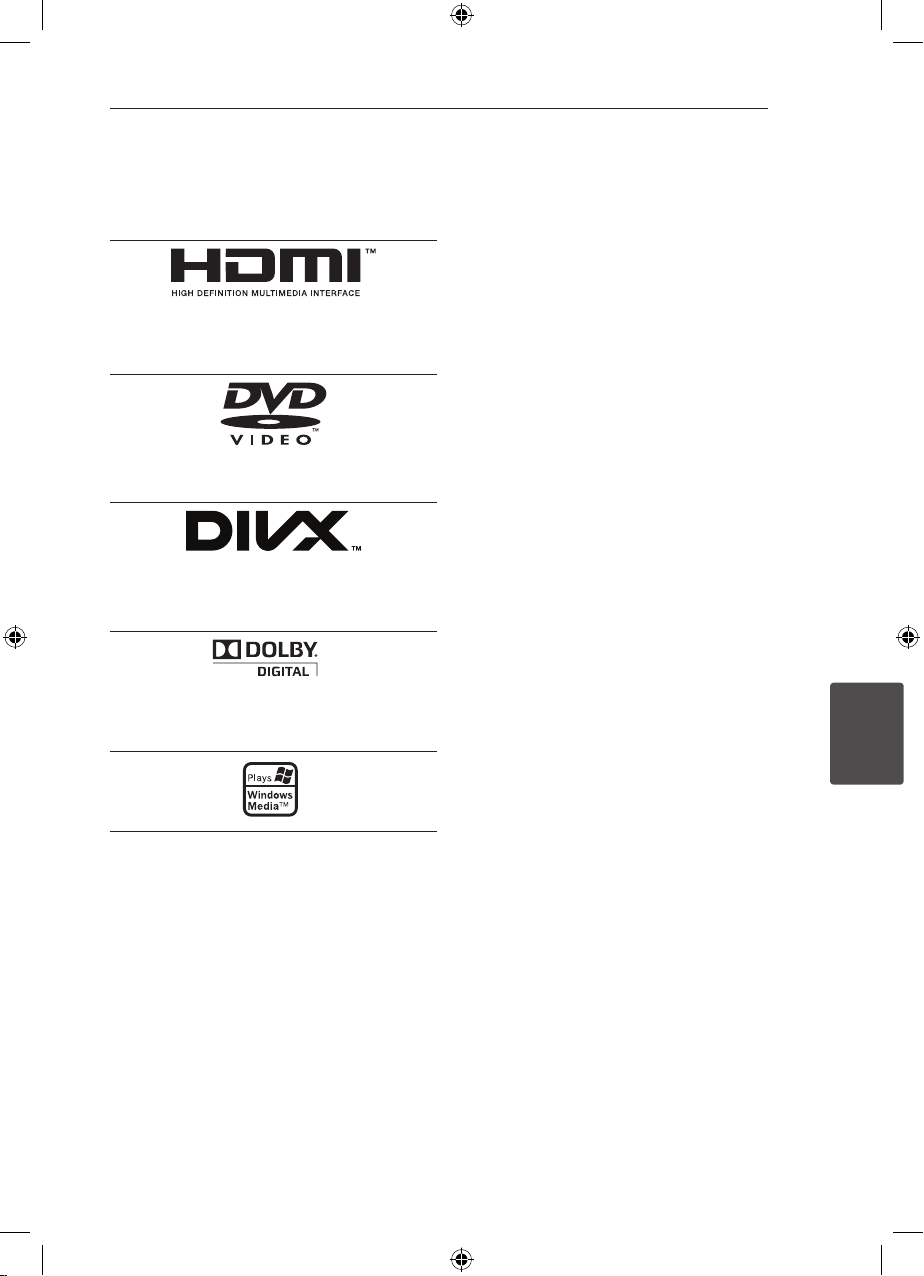

35 Trademarks and Licenses
36 Specifications

1

2

3

4

5

6

HT306SU-F2_BINDLL_ENG_5716.indd 5 2011-04-26 �� 2:49:05

Getting Started6

Unique Features

USB Direct Recording

1

Getting Started

Records music from CD to your USB device.

Full HD up-scaling

Views Full HD picture quality with simple setup.

Accessories

Please check and identify the supplied accessories.

FM Antenna (1)

Video Cable (1) HDMI Cable (1)

Remote Control (1)/

Battery (1)

HT306SU-F2_BINDLL_ENG_5716.indd 6 2011-04-26 �� 2:49:05

Getting Started 7

Introduction

Playable Discs

This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, DivX, MP3, WMA and/or
JPEG les. Some DVD±RW/DVD±R or CD-RW/
CD-R cannot be played on this unit due to the
recording quality or physical condition of the disc,
or the characteristics of the recording device and
authoring software.

DVD-VIDEO (8 cm / 12 cm disc)

Discs such as movies that can be
purchased or rented.

DVD±R (8 cm / 12 cm disc)

Video mode and nalized only.

DVD-RW (8 cm / 12 cm disc)

Video mode and nalized only.
DVD VR format that have been
nalized can not be played in this
unit.

DVD+R: Video mode only.

Supports the double layer disc also.

DVD+RW (8 cm / 12 cm disc)

Video mode and nalized only.

Audio CD: Music CDs or CD-R/CD­RW in music CD format that can be
purchased.

Symbol Used in this Manual

r

t

y

u

i

Note

,

Indicates special notes and operating features.

Caution

>

Indicates cautions for preventing possible damages
from abuse.

DVD-Video, DVD±R/RW in Video
mode or VR mode and nalized

Audio CDs

Video les contained in the
USB/Disc

Audio les contained in the
USB/Disc

Photo les

Regional Codes

This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or “ALL”.

y Most DVD discs have a globe with one or more

numbers in it clearly visible on the cover. This
number must match your unit’s regional code; or
the disc cannot play.

y If you try to play a DVD with a dierent regional

code from your unit, the message “Check
Regional Code” appears on the TV screen.

1

Getting Started

About the & Symbol Display

“&” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that disc.

HT306SU-F2_BINDLL_ENG_5716.indd 7 2011-04-26 �� 2:49:06

Getting Started8

Playable file Requirement

MP3/ WMA music file requirement

MP3/ WMA le compatibility with this unit is limited

1

Getting Started

as follows :

y Sampling frequency : within 32 kHz to

48 kHz (MP3), within 32 kHz to 48 kHz (WMA)

y Bit rate : within 32 kbps to 320 kbps (MP3), 40

kbps to 192 kbps (WMA)

y Support Version : v2, v7, v8, v9

y Maximum les : Under 999

y File extensions : “.mp3”/ “.wma”

y CD-ROM le format : ISO9660/ JOLIET

y We recommend that you use Easy-CD Creator,

which creates an ISO9660 le system.

Photo file requirement

JPEG disc compatibility with this unit is limited as
follows :

y Max pixel in width : 2 760 x 2 048 pixel

y Maximum les : Under 999

y Some discs may not operate due to a dierent

recording format or the condition of disc.

y File extensions: “.jpg”

y CD-ROM le format : ISO9660/ JOLIET

Compatible USB Devices

y MP3 Player : Flash type MP3 player.

y USB Flash Drive : Devices that support USB2.0 or

USB1.1.

y The USB function of this unit does not support

some USB devices.

USB device requirement

y Devices which require additional program

installation connected to a computer, are not
supported.

y Do not extract the USB device while in operation.

y For a large capacity USB, it may take longer than

a few minute to be searched.

y To prevent data loss, back up all data.

y If you use a USB extension cable or USB hub, the

USB device is not recognized.

y Using NTFS le system is not supported. (Only

FAT(16/32) le system is supported.)

y This unit is not supported when the total

number of les is 1 000 or more.

y External HDD, Card readers, Locked devices,

or hard type USB devices are not supported.

y USB port of the unit cannot be connected to PC.

The unit can not be used as a storage device.

HT306SU-F2_BINDLL_ENG_5716.indd 8 2011-04-26 �� 2:49:06

DivX file requirement

DivX le compatibility with this unit is limited as
follows :

y Available resolution:

within 720 x 576 (W x H) pixels.

y The le name of the DivX subtitle should be

entered within 45 characters.

y If there is impossible code to express in the

DivX le, it may be displayed as “ _ “ mark on the
display.

y Frame rate : less than 30 fps.

y If the video and audio structure of recorded

les is not interleaved, either video or audio is
outputted.

y Playable DivX le : “.avi”, “.mpg”, “.mpeg”, “.divx”

y Playable Subtitle format : SubRip (*.srt/ *.txt),

SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)

y Playable Codec format : “DIVX3.xx”, “DIVX4.xx”,

“DIVX5.xx”, “MP4V3”, “3IVX”.

y Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”.

y Sampling frequency : within 32 kHz to

48 kHz (MP3), within 32 kHz to 48 kHz (WMA)

y Bit rate : within 32 kbps to 320 kbps (MP3), 40

kbps to 192 kbps (WMA)

y For Discs formatted in Live le system, you can

not it on this unit.

y If the name of movie le is dierent from that of

the subtitle le, during playback of a DivX le,
subtitle may not be display.

y If you play a DivX le dierent from the DivXspec,

it may not operate normally.

Getting Started 9

1

Getting Started

HT306SU-F2_BINDLL_ENG_5716.indd 9 2011-04-26 �� 2:49:06

Getting Started10

7

1 3 4 6

9 8

2

5

1011

12

Front panel

1

Getting Started

DVD/CD Disc Drawer

a

Display window

b

Open/Close (B)

c

Function (F)

d

Selects the function or input source.

Play/Pause (d/M)

e

Stop (Z)

f

TUNING (-/+)(

g

You can search chapter/ track/ le by pressing
and holding

c/v

c/v

), SKIP/SCAN (-/+)

.

h
i

j

k
l

MIC 1/ 2

USB port
You can play video, image and sound les by
connecting the USB device.

PORT.(Portable) IN port
You can enjoy music from portable device on
your unit.

Volume (VOL.)

Power (1/!)

HT306SU-F2_BINDLL_ENG_5716.indd 10 2011-04-26 �� 2:49:06

Rear panel

7

1

3

4

6

2

5

Getting Started 11

1

Getting Started

Power cord

a

Speaker terminal

b

ANTENNA connector (FM)

c

MONITOR (VIDEO OUT) connector

d

Connect to a TV with video inputs

AUX (L/ R) INPUT connector

e

HDMI OUT connector

f

COMPONENT VIDEO (PROGRESSIVE SCAN)

g

OUTPUT (Y PB PR)
Connect to a TV with Y PB PR inputs.

HT306SU-F2_BINDLL_ENG_5716.indd 11 2011-04-26 �� 2:49:07

Getting Started12

Remote control

1

Getting Started

1

2

3

4

5

Battery Installation

Remove the battery cover on the
rear of the Remote Control, and
insert one (size AAA) battery with

and 5 matched correctly.

4

• • • • • • a • • • • •

FUNCTION : Selects the function
and input source.

SLEEP : Sets the system to turn o
automatically at a specied time.
(Dimmer : The display window will
be darken by half.)

POWER : Switches the unit ON or
OFF.

OPEN/CLOSE : Opens and closes
the disc Drawer.

TITLE : If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.

• • • • • • b • • • • •

DISPLAY : Accesses On-Screen
Display.

MENU : Accesses the menu on a
DVD disc.

SETUP : Accesses or removes
setup menu.

PRESET (WS) : Selects
programme of Radio.

TUN. (-/+) : Tunes in the desired
radio station.

c/v

(up/ down/ left/

) : Goes to next

) : Searches

W/S/A/D

right): Used to navigate on-screen
displays.

ENTER (b) : Acknowledges menu
selection.

RETURN (x) : Moves backwards
in the menu or exits the setup
menu.

REC (X) : USB Direct Recording.

• • • • • • c • • • • •

STOP (Z) : Stops playback or
recording.

PLAY (d), MO./ST. : Starts
playback. Selects Mono/ Stereo.

PAUSE/STEP (M) : Pauses
playback.

SKIP (

C/V

or previous chapter/ track/ le.

SCAN (

backward or forward.

• • • • • • d • • • • •

REPEAT/RANDOM : Selects a play
mode.(Random, repeat)

MUTE : Mutes the sound.

VOL (Volume) (+/-) : Adjusts

speaker volume.

LG EQ (9) : Selects a Natural or
Local Specialization equalizer
eect by using LG EQ.

EQ$ (EQUALIZER eect) :
Chooses sound impressions.

CLEAR : Removes a track number
on the Program List.

SUBTITLE : During playback, press
SUBTITLE repeatedly to select a

desired subtitle language .

0 to 9 numerical buttons :
Selects numbered options in a
menu.

• • • • • • e • • • • •

TV Control buttons : Controls the
TV. (LG TV only)

-You can control the sound
level, input source, and power
switching of LG TVs as well.
Hold POWER (T V) and press
PR/CH (+/–) button repeatedly
until the TV turns on or o.

PROG./MEMO. : Accesses or
removes Program menu.

RESOLUTION : Sets the output
resolution for HDMI and
COMPONENT VIDEO OUT jacks.

MIC VOL(+/-) : Adjusts
microphone volume.

ECHO VOL(+/-) : Adjusts echo
volume.

VOCAL FADER : When you listen
to music, it reduce the vocal of le.

HT306SU-F2_BINDLL_ENG_5716.indd 12 2011-04-26 �� 2:49:07

Connecting 13

Connecting the
speakers

Attaching the speakers to the
unit

To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.

Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).

Speaker connection

Caution

>

yBe careful to make sure children not to put

their hands or any objects into the *speaker
duct.
*Speaker duct: A hole for plentiful bass
sound on speaker cabinet (enclosure).

yThe speakers contain magnet parts, so

color irregularity may occur on the TV
screen or PC monitor screen. Please use the
speakers far away from either TV screen or
PC monitor.

Positioning the System

The following illustration shows an example of
positioning the system.

Note that the illustrations in these instructions dier
from the actual unit for explanation purposes.

For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position ( ).

Speaker Positioning

Front left speaker (L)/ Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as ush with the screen
surface as possible.

Center speaker: Place the center speaker above
or below the monitor or screen.

Surround left speaker (L)/ Surround right
speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.

Subwoofer: The position of the subwoofer is
not so critical, because low bass sounds are not
highly directional. But it is better to place the
subwoofer near the front speakers. Turn it slightly
toward the center of the room to reduce the wall
reections.

Unit

B

A

F

C
G

A

A

A

E

A

2

Connecting

A

D

HT306SU-F2_BINDLL_ENG_5716.indd 13 2011-04-26 �� 2:49:08

Connecting14

Connections to Your
TV

Make one of the following connections, depending
on the capabilities of your existing equipment.

Note

,

yDepending on your TV and other

2

Connecting

equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.

yPlease refer to the manuals of your TV,

Stereo System or other devices as necessary
to make the best connections.

Caution

>

yMake sure the unit is connected directly

to the TV. Tune the TV to the correct video
input channel

yDo not connect your player via your VCR.

The image could be distorted by the copy
protection system.

HDMI OUT Connection

If you have a HDMI TV or monitor, you can connect
it to this player using a HDMI cable(Type A, High
Speed HDMI™ Cable). Connect the HDMI OUT
jack on the player to the HDMI IN jack on a HDMI
compatible TV or monitor.

Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).

HT306SU-F2_BINDLL_ENG_5716.indd 14 2011-04-26 �� 2:49:08

Connecting 15

Resolution Setting

You can change the resolution for component
video and HDMI output.

Press RESOLUTION repeatedly to select the desired
resolution - 480i (or 576i), 480p (or 576p), 720p,
1080i, 1080p

The resolution may not be selected depending on
the connection or TV.

Depending on your TV, some of the resolution
settings may result in the picture disappearing or
an abnormal picture appearing. In this case, press
RESOLUTION repeatedly until the picture re­appears.

You can set 1080p video resolution to enjoy Full
HD picture quality. (Full HD up-scaling)

Note

,

yChanging the resolution when the

connection has already been established
may result in malfunctions. To solve the
problem, turn o the player and then turn
it on again.

yWhen the HDMI connection with HDCP

is not veried, TV screen is changed to
black screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.

yIf there is noise or lines on the screen,

please check the HDMI cable (High Speed
HDMI™ Cable).

yWhen you use HDMI connection, you can

change the resolution for the HDMI output.
Press RESOLUTION repeatedly to select
the desired resolution - 480i (or 576i), 480p
(or 576p), 720p, 1080i, 1080p.

Component Video Connection

Connect the COMPONENT VIDEO (PROGRESSIVE
SCAN) OUTPUT jacks on the unit to the
corresponding input jacks on the TV using Y PB PR
cables.

You can hear the sound through the system’s
speakers.

2

Connecting

HT306SU-F2_BINDLL_ENG_5716.indd 15 2011-04-26 �� 2:49:08

Connecting16

Video Connection

Connect the VIDEO OUT (MONITOR) jack on the
unit to the video in jack on the TV using a video
cable.

You can hear the sound through the system’s
speakers.

2

Connecting

Optional Equipment
Connection

AUX IN Connection

Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.

If your TV has only one output for audio (mono),
connect it to the left (white) audio jack on the unit.

HT306SU-F2_BINDLL_ENG_5716.indd 16 2011-04-26 �� 2:49:09

Connecting 17

PORT. (Portable) IN
Connection

Connect an OUTPUT of portable device (MP3 or
PMP etc) to the PORT. IN connector.

MP3 player, etc...

USB Connection

Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.

Antenna Connection

Connect the supplied FM antenna for listening to
the radio.

Connect the FM Wire antenna to the FM antenna
connector.

Note

,

Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep it
as horizontal as possible.

2

Connecting

Removing the USB Device from the unit

1. Choose a dierent function mode or
press STOP (Z) twice in a row.

2. Remove the USB device from the unit.

HT306SU-F2_BINDLL_ENG_5716.indd 17 2011-04-26 �� 2:49:09

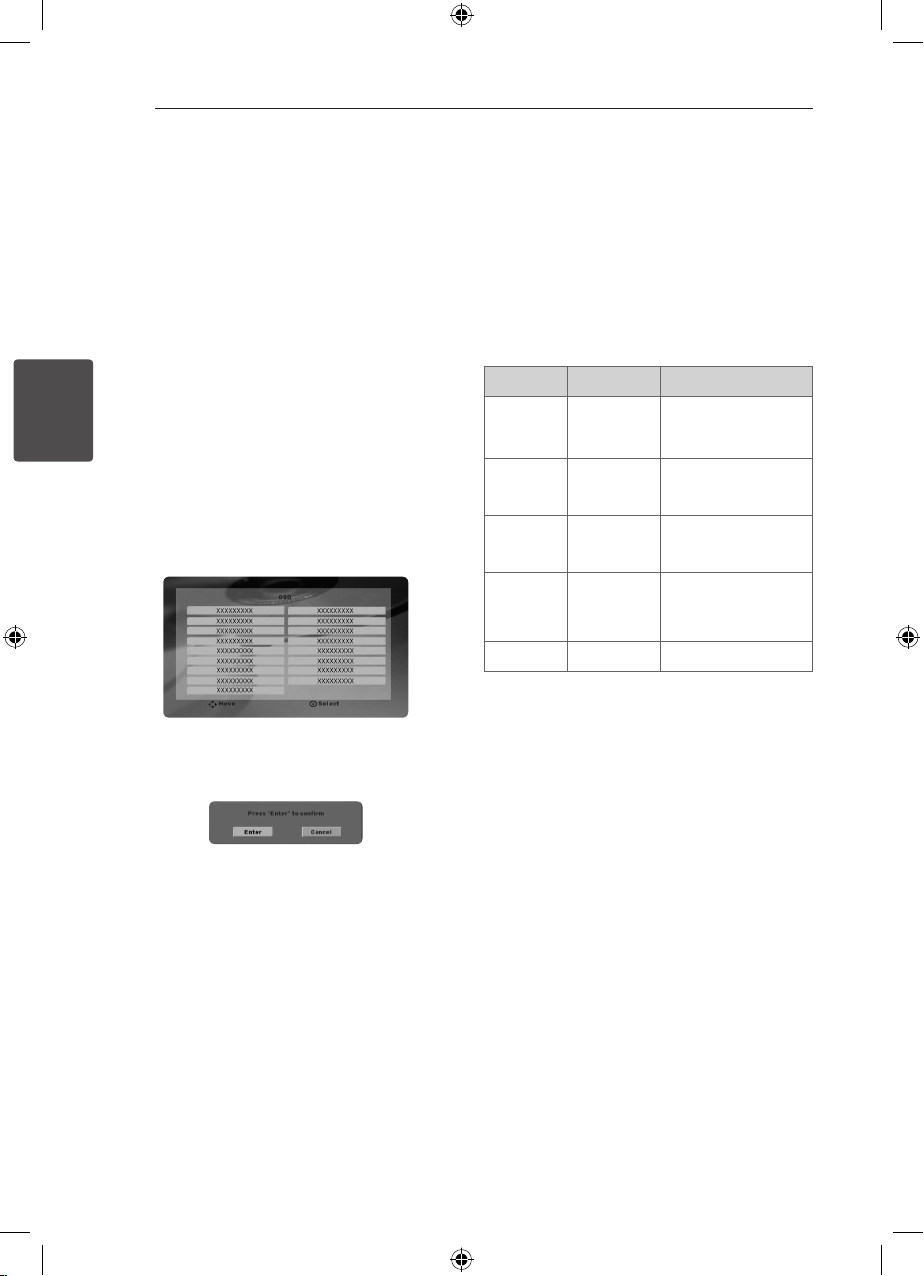

System Setting18

Adjust the Setup
settings

By using the Setup menu, you can make various
adjustments to items such as picture and sound.

You can also set a language for the subtitles and
the Setup menu, among other things. For details on
each Setup menu item, see pages 18 to 22

OSD Initial language settings

- Optional

During the rst use of this unit, the initial language

3

setup menu appears on your TV screen. You must

System Setting

complete initial language selection before using
the unit. English will be selected as the initial
language.

1. Press POWER to turn the unit on. The language
setup menu will appear on the screen.

To display and exit the Setup
Menu

1. Select the DVD/CD or USB function by pressing
FUNCTION.

2. Press SETUP.
Displays the [Setup] Menu.

3. Press SETUP or RETURN to exit in the [Setup]
Menu.

About help menu for Setup

Menu Buttons Operation

w/s

Move

a

Prev.

d

Select

x

b

WS

A

D

RETURN

ENTER To conrm menu.

Moving to another
menu.

Moving to previous
level.

Moving to next level
or selecting menu.

To exit the [Setup]
menu or [5.1 Speaker
Setup].

2. Use

WSAD

ENTER.
The conrm menu will appear.

3. Use AD to select the [Enter] then press ENTER
to nish the language setup.

HT306SU-F2_BINDLL_ENG_5716.indd 18 2011-04-26 �� 2:49:09

to select a language then press

System Setting 19

LANGUAGE

Menu Language

Select a language for the Setup menu and then on
screen display.

Disc Audio / Disc Subtitle / Disc
Menu

Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the
disc was recorded.

[Other]

To select another language, press numeric
buttons and then ENTER to enter the
corresponding 4-digit number according to
the language code list on the page 34. If you
enter the wrong language code, press CLEAR.

[O (for Disc Subtitle)]

Turn o Subtitle.

DISPLAY

TV Aspect

Select which screen aspect to use based on the
shape of your TV screen.

[4:3]

Select when a standard 4:3 TV is connected.

[16:9]

Select when a 16:9 wide TV is connected.

Display Mode

The Display Mode setting works only when the TV
Aspect mode is set to 4:3.

[Letterbox]

Displays a wide picture with bands on the
upper and lower portions of the screen.

[Panscan]

Automatically displays the wide picture on the
entire screen and cuts o the portions that do
not t. (If the disc/le is not compatible with
Pan Scan, the picture is displayed at Letterbox
ratio.)

3

System Setting

HT306SU-F2_BINDLL_ENG_5716.indd 19 2011-04-26 �� 2:49:10

System Setting20

AUDIO

5.1 Speaker Setup

Make the following settings for the built-in 5.1
channel surrounds decoder.

1. Press SETUP.

2. Use WS to select AUDIO menu and then press

.

D

3. Use
and then press D.

4. Press ENTER
The [5.1 Speaker setup] appears.

to select [5.1 Speaker setup] menu

WS

3

System Setting

5. Use AD to select the desired speaker.

6. Adjust options using

7. Press RETURN to conrm your selection. Return
to the previous menu.

WSAD

buttons.

[Speaker]

Select a speaker that you want to adjust.

Note

,

Certain speaker settings are prohibited by the
Dolby Digital licensing agreement.

[Size]

Since the speaker settings are xed, you cannot
change the settings.

[Volume]

Press
selected speaker.

[Distance]

After you connected speakers to your unit,
set the Distance between the speakers and
your listening point if the distance of Center
or Rear speakers is bigger than the distance
of Front speakers. This allows the sound from
each speaker to reach the listener at the same
time. Press
selected speaker. This distance is equivalent to
a dierence of the distance between Center or
Rear speaker and Front speakers.

[Test]

Press
Adjust the volume to match the volume of test
signals memorized in the system.

to adjust the output level of the

AD

to adjust the Distance of the

AD

to test the signals of each speaker.

AD

HT306SU-F2_BINDLL_ENG_5716.indd 20 2011-04-26 �� 2:49:10

System Setting 21

DRC (Dynamic Range Control)

Make the sound clear when the volume is turned
down (Dolby Digital only). Set to [On] for this eect.

Vocal

Select [On] to mix karaoke channels into normal
stereo.

This function is eective for multi-channel karaoke
DVDs only.

HD AV Sync

Sometimes Digital TV encounters a delay between
picture and sound. If this happens you can
compensate by setting a delay on the sound so
that it eectively ‘waits’ for the picture to arrive:
this is called HD AV Sync. Use
control) to scroll up and down through the delay
amount, which you can set at anything between 0
and 300m sec.

(on the remote

WS

Semi Karaoke

When a chapter/ title/ track is fully nished, this
function shows the score in the screen with a
fanfare sound.

[On]

When you nished singing a score will appear
on the screen.

[O]

Fanfare and score do not appears on the
screen.

Note

,

yDVD, DVD Karaoke discs with more than

2 tracks are available discs for the this
function.

yWhen you watch movies, “o ” the Semi

Karaoke at the SETUP menu or enjoy it
without connecting the MIC if the fanfare
or score appears during changing a
chapter.

LOCK (Parental Control)

Initial Setting of the Area Code:

When you use this unit for the rst time, you have
to set the Area Code.

1. Select the [Lock] menu and then press D.

2. Press D.
To access the [Lock] options, you must input
the password you have created. Input a
password and press ENTER. Enter it again and
press ENTER to verify. If you make a mistake
before pressing ENTER, press CLEAR.

3. Select the rst character using WS buttons.

4. Press ENTER and select the second character
using

5. Press ENTER to conrm your Area code
selection.

Rating

Blocks playback of rated DVDs based on their
contents. Not all discs are rated.

1. Select [Rating] on the [Lock] menu then press

.

D

2. Input a password and press ENTER.

3. Select a rating from 1 to 8 using the
buttons.

[Rating 1-8]

Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.

[Unlock]

If you select unlock, parental control is not
active and the disc plays in full.

4. Press ENTER to conrm your rating selection.

WS

buttons.

WS

3

System Setting

HT306SU-F2_BINDLL_ENG_5716.indd 21 2011-04-26 �� 2:49:10

System Setting22

Password

You can enter or change password.

1. Select [Password] on the [Lock] menu and then
press D.

2. Input a password and press ENTER.

To change the password, press ENTER when

the [Change] option is highlighted. Input a
password and press ENTER. Enter it again and
press ENTER to verify.

3. Press SETUP to exit the menu.

Note

,

If you forget your password, you can clear
it using the following steps:

3

System Setting

1. Press SETUP to display the Setup menu.

2. Input the 6-digit number “210499” and
press ENTER. The password is cleared.

Area Code

Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list
on page 33.

1. Select [Area Code] on the [Lock] menu then
press D.

2. Input a password and press ENTER.

3. Select the rst character using WS buttons.

4. Press ENTER and select the second character
using WS buttons.

5. Press ENTER to conrm your Area code
selection.

OTHERS

DivX(R) VOD

ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an ocial DivX
Certied® device that plays DivX video. Visit www.
divx.com for more information and software tools
to convert your les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certied® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX
VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete
your registration.

[Register]

Displays the registration code of your unit.

[Deregister]

Deactivate your unit and display the
deactivation code.

Note

,

All the downloaded videos from DivX VOD
can only be played back on this unit.

HT306SU-F2_BINDLL_ENG_5716.indd 22 2011-04-26 �� 2:49:10

Operating 23

Basic Operations

1. Insert the disc by pressing OPEN/CLOSE or
connect the USB device to the USB port.

2. Select the DVD/ CD or USB function by pressing
FUNCTION.

3. Select a le (or track/ title) you want to play by
pressing

WSAD

Note

,

When playing a disc or USB Flash Drive
containing with DivX, MP3/ WMA and JPEG
les together, you can select menu of les
which you would like to play by pressing
MENU. If “This le has non-supported type
on the unit” pops up, select an appropriate le
by pressing MENU.

.

To Do this

Stop Press

Playback Press

Pause Press

Frame-by-Frame

playback

Skipping to the

next/ previous

chapter/ track/

le

Locating a

point quickly by

playing a le in

fast forward or

fast reverse

Playing

repeatedly or

randomly

Slowing down

the playing

speed

Press M repeatedly to play
title Frame-by-Frame.

During playback, pressC
or V to go to the next
chapter/ track or to return to
the beginning of the current
chapter/ track.

Press C twice briey to step
back to the previous chapter/
track.

During playback, pressc or

v

required scan speed.

To return to normal speed,
press PLAY.

Press REPEAT/RANDOM
repeatedly, and the current
title, chapter or track will be
played back repeatedly or
randomly.

- Random play mode : only
music les.

In the pause mode, press
SCAN (c or v) to
select the required speed.
(The reverse playback is not
supported on Divx les.)

Z

d

M

repeatedly to select the

4

Operating

HT306SU-F2_BINDLL_ENG_5716.indd 23 2011-04-26 �� 2:49:10

Operating24

Other Operations

Displaying Disc Information
on-screen

You can display various information about the disc
loaded on-screen.

1. Press DISPLAY to show various playback
information.
The displayed items dier depending on the
disc type or playing status.

2. You can select an item by pressing WS and
change or select the setting by pressing AD.

- Title – Current title number/ total number of
titles.

4

Operating

- Chapter – Current chapter number/total

- Time – Elapsed playing time.

- Audio – Selected audio language or channel.

- Subtitle – Selected subtitle.

- Angle – Selected angle/total number of angles.

- Sound – Selected sound mode.

If any button is not pressed for a few seconds,
the onscreen display disappears.

number of chapters.

Note

,

To display the DVD Menu

r

When you play a DVD which contains several
menus, you can select the menu you want using
the menu.

1. Press MENU.
The disc’s menu appears.

2. Select the menu by using

3. Press PLAY to conrm.

WSAD

.

To display the DVD Title

r

When you play a DVD which contains several titles,
you can select the title you want using the menu.

1. Press TITLE.
The disc’s title appears.

2. Select the menu by pressing

WSAD

3. Press PLAY to conrm.

.

Selecting a subtitle language

ry

During playback, press SUBTITLE( ] ) repeatedly
to select a desired subtitle language.

1.5 times speed playback

r

The 1.5 speed allows you to watch the pictures and
listen to the sound quicker than playing at a normal
speed.

1. During playback, press PLAY(d) to play at 1.5
times speed. “dX1.5” appears on the screen.

2. Press PLAY(d) again to exit.

HT306SU-F2_BINDLL_ENG_5716.indd 24 2011-04-26 �� 2:49:10

Operating 25

Starting play from selected
time

ry

To start playing at any chosen time on the le or
title.

1. Press DISPLAY during playback.

2. Press WS to select the time clock icon and
“--:--:--” appears.

3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the
numbers you entered. Then input the correct
numbers.
For example, to nd a scene at 1 hour, 10
minutes, and 20 seconds, enter “11020” by using
numerical buttons.

4. Press ENTER to conrm. Playback starts from
the selected time.

Last Scene Memory

r

This unit memorizes the last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the player or
switch o (Stand-by mode) the unit. If you load a
disc that has the scene memorized, the scene is
automatically recalled.

Changing the character set to
display DivX® subtitle correctly

y

If the subtitle does not display properly during
playback press and hold SUBTITLE for about 3
seconds then press AD or SUBTITLE to select
another language code until the subtitle is
displayed properly and then press ENTER.

Programmed Playback

tu

The program function enables you to store your
favourite les from any disc or USB device.

A program can contain 30 tracks/ les.

1. Select the DVD/CD or USB function by pressing
FUNCTION.

2. To add a music(s) on the program list, press
PROG./MEMO. to enter the program edit mode
({ mark appears on the menu).

3. Select a desired music on the [List] by using the

4. Select music from the program list then press

5. Press PROG./MEMO. to exit the program edit

Erasing a file from Program List

1. press PROG./MEMO. to enter the program edit

2. Use WS to select the track that you wish to

3. Press CLEAR.

Erasing the Complete Program List

Use

then press ENTER to add the music to

WS

the program list.

ENTER to start programmed playback.

mode ({ mark disappears on the menu).

mode ({ mark appears on the menu)

erase from the Program list.

WSAD

The programs are also cleared when the disc
or USB device is removed, the unit is switched
to power o or the function is switched to
others.

to select [Clear All] then press ENTER.

Note

,

4

Operating

HT306SU-F2_BINDLL_ENG_5716.indd 25 2011-04-26 �� 2:49:10

Operating26

Viewing a PHOTO file

i

This unit can play discs with photo les.

1. Select the DVD/CD or USB function by pressing
FUNCTION.

2. Press WS to select a folder, and then press
ENTER.
A list of les in the folder appears.
If you are in a le list and want to return to the
previous folder list, use the
remote to highlight and press ENTER.

3. If you want to view a particular le, press
to highlight a le and press ENTER or PLAY.
While viewing a le, you can press STOP to move
to the previous menu (JPEG menu).

WS

Viewing photo files as a slide
show

4

i

Operating

1. Use

WSAD

press ENTER to start slide Show.

2. You can change slide show speed using

when ( ) icon is highlighted.

AD

About help menu for slide show

Menu Buttons Operation

w/s

/

a/d

Prev./ Next

x

Close

b

Hide

to highlight ( ) icon then

W/S

A/D

RETURN

ENTER

buttons on the

WS

Rotating the

Moving to
another le

Closing the slide
show

Hiding the help
menu

Listening to music during slide
show

i

You can listen to music during slide show, if the
disc contain music and photo les together. Use

WSAD

ENTER to start slide show.

Sleep Timer Setting

Press SLEEP one or more times to select delay time
between 10 and 180 minutes, after the unit will
turn o.

To check the remaining time, press SLEEP.

To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.

to highlight (~) icon then press

Note

,

This function is available only in disc.

Note

,

You can check the remaining time before the
unit turns o.

Dimmer

Press SLEEP once. The display window will be
darken by half. To cancel it, press SLEEP repeatedly
until dimmer gets o.

HT306SU-F2_BINDLL_ENG_5716.indd 26 2011-04-26 �� 2:49:10

Operating 27

Turn off the sound temporarily

Press MUTE to mute your unit.

You can mute your unit, for example, to answer
the telephone, the “MUTE” displayed in the display
window.

Screen Saver

The screen saver appears when you leave the unit
in stop mode for about ve minutes.

System Select - Optional

You must select the appropriate system mode for
your TV system. If “NO DISC” appears in the display
window, press and hold PAUSE/STEP (M) for more
than ve seconds to select a system.

VOCAL FADER

You can enjoy the function as karaoke, by reducing
singer vocal of music in the various source. (MP3/
WMA/ CD/ etc.) Press the VOCAL FADER, and
“FADE ON” will appear in display window.

To cancel it, press VOCAL FADER again.

-The quality of the VOCAL FADER may be dierent
depending on the recording conditions of music
les.

Radio Operations

Be sure that both FM aerials are connected. (Refer
to the page 17)

Listening to the Radio

1. Press FUNCTION until FM appears in the display
window.
The last received station is tuned in.

2. Press and hold TUN.(-/+) for about two seconds
until the frequency indication starts to change,
then release. Scanning stops when the unit
tunes in a station.

or

Press TUN.(-/+) repeatedly.

3. Adjust the volume by rotating VOL. on the front
panel or by pressing VOL + or - on the remote
control repeatedly.

4

Operating

Displaying file information
(ID3 TAG )

While playing an MP3 le containing le
information, you can display the information by
pressing DISPLAY.

HT306SU-F2_BINDLL_ENG_5716.indd 27 2011-04-26 �� 2:49:11

Operating28

Presetting the Radio Stations

You can preset 50 stations for FM.

Before tuning, make sure that you have turned
down the volume.

1. Press FUNCTION until FM appears in the display
window.

2. Select the desired frequency by using TUN.

(-/+).

3. Press PROG./MEMO. a preset number will ash
in the display window.

4. Press PRESET (WS) to select the preset
number you want.

5. Press PROG./MEMO..
The station is stored.

6. Repeat the steps 2 to 5 to store other stations.

Deleting all the saved stations

1. Press and hold PROG./MEMO. for two seconds.

4

Operating

“ERASE ALL” will ash up on the unit display.

2. Press PROG./MEMO. to erase all of the saved
radio stations.

Improving poor FM reception

Press PLAY (d) (MO./ST.) on the remote control.
This will change the tuner from stereo to mono and
usually improve the reception.

HT306SU-F2_BINDLL_ENG_5716.indd 28 2011-04-26 �� 2:49:11

Sound adjustment

Setting the surround mode

This system has a number of pre-set surround
sound elds. You can select a desired sound mode
by using EQ/ LG EQ. You can change the EQ/ LG
EQ using AD arrow key while the EQ/ LG EQ
information is displayed on.

The displayed items for the Equalizer may be
dierent depending on sound sources and eects.

On Display Description

NAT PLUS

NATURAL

Local

Specialization

equalizer

AUTO EQ

POP

CLASSIC

JAZZ

ROCK

MP3 OPT

BASS

You can enjoy the natural
sound eect same as a

5.1-channel.

You can enjoy comfortable
and natural sound.

Regionally optimized

sound eect. (DANGDUT/

ARABIC/ PERSIAN/ INDIA/

REGUETON/ MERENGUE/

SALSA/ SAMBA/ CUMBIA/

AFRO)

Realizes the sound equalizer
that is the most similar to the
genre of which is included in
the MP3 ID3 tag of song les.

This program lends an
enthusiastic atmosphere to
the sound, giving you the
feeling you are at an actual
rock pop, jazz or classic
concert.

This function is optimized
for compressible MP3 le. It
improves the treble sound.

During playback, Reinforces
the treble, bass and surround
sound eect.

Operating 29

Note

,

y In some of surround modes, on some

speakers, there’s no sound or low sound. it,
depends on the mode of surround and the
source of audio, it is not defective.

yYou may need to reset the surround mode,

after switching the input, sometimes even
after the sound track changed.

4

Operating

VIRTUAL

NORMAL

HT306SU-F2_BINDLL_ENG_5716.indd 29 2011-04-26 �� 2:49:11

You can enjoy more virtual
surround sound.

You can enjoy the sound
without equalizer eect.

5 Troubleshooting

30

Operating

Advanced Operations

Listening to music from your
portable player or external
device

The unit can be used to play the music from many
types of portable player or external devices.

1. Connect the portable player to the
PORT. IN(PORTABLE IN) connector of the unit.

Or

Connect the external device to the AUX

connector of the unit.

2 Turn the power on by pressing POWER.

3 Select the PORTABLE or AUX function by

pressing FUNCTION.

4 Turn the portable player or external device and

4

Operating

start it playing.

Recording to USB

1. Connect the USB device to the unit.

2. Select a DVD/ CD function by pressing

FUNCTION.

One track recording - You can record to USB after
playing the le you want.

All tracks recording - You can record to USB after
stop.

Program list recording - After showing the
programmed list, you can record it to USB.

3. Start the recording by pressing X REC.

4. To stop recording, press Z STOP.

Note

,

yYou can check the recording percentage

rate for the USB record on the display
window during the recording. (AUDIO,
MP3/ WMA CD Only)

yDuring recording MP3/ WMA, there is no

sound.

yWhen you stop recording during playback,

the le that has been recorded at that time
will be stored. (AUDIO CD Only)

yDo not remove the USB device or turn

o the unit during USB recording. If not,
an incomplete le may be made and not
deleted on PC.

yIf USB recording does not work, the

message like “NO USB”, “ERROR”, “USB FULL”
or “NO REC” is displayed on the display
window.

yMulti card reader device or External HDD

can not be used for USB recording.

yA le is recorded by 128Mbyte when you

record for a long term.

yWhen you stop recording during playback,

the le will not be stored.

yYou may not store more than 999 les.

yThe numbering of the recording le is

entered from the lowest number.
So if you delete some of the recording les,
the next recording le could be the lowest
number among them.

yIt’ll be stored as follows.

AUDIO CD MP3/ WMA

The other

source

The making of unauthorized copies of copy-

protected material, including computer programs,

les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a

criminal oense. This equipment should not be

HT306SU-F2_BINDLL_ENG_5716.indd 30 2011-04-26 �� 2:49:11

used for such purposes.

Be responsible

Respect copyrights

5 Troubleshooting

Troubleshooting

There is little or no sound

Troubleshooting 31

PROBLEM CORRECTION

No power Plug the power cord into the wall outlet securely.

Select the appropriate video input mode on the TV so the picture

No picture

from the unit appears on the TV screen.

Connect the video cables securely to both the TV and unit.

Select the correct input mode of the unit so you can hear the sound
from the unit.

Connect the audio cables into the connection terminals correctly.

Replace with a new audio cable.

The DVD picture quality is poor

A DVD/CD will not play

Humming noise heard while a DVD

or CD is playing

Radio stations can’t be tuned in

properly

The remote control doesn’t work

well / at all

Clean the disc using a soft cloth with outward strokes.

Insert a disc.

Insert a playable disc (check the disc type, colour system and
regional code).

Place the disc with the label or printed side facing upwards.

Enter your password or change the rating level.

Clean the disc using a soft cloth with outward strokes.

Move unit and audio components further away from your TV.

Check the antenna connection and adjust its position.

Attach an external aerial if necessary.

Tune to the station manually.

Preset some radio stations, see page 28 for details.

The remote is not pointed directly at the unit.

Point the remote directly at the unit.

The remote is too far from the unit.

Use the remote within 23 feet (7m) of the unit.

There is an obstacle in the path between the remote control and
the unit.

Remove the obstacle.

The battery in the remote control are at.

Replace the battery with new ones.

5

Troubleshooting

HT306SU-F2_BINDLL_ENG_5716.indd 31 2011-04-26 �� 2:49:11

6 Appendix

Appendix32

Maintenance

Handling the Unit

When shipping the unit

Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.

Keeping the exterior surfaces clean

yDo not use volatile liquids such as insecticide

spray near the unit.

yWiping with strong pressure may damage the

surface.

yDo not leave rubber or plastic products in

contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the

6

optical pick-up lens and disc drive parts are dirty

Appendix

or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold
the disc by the edges so that ngerprints do not
get on the surface. Never stick paper or tape on the
disc.

Storing Discs

After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.

Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for older vinyl records.

HT306SU-F2_BINDLL_ENG_5716.indd 32 2011-04-26 �� 2:49:11

Appendix 33

Area Code List

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian
Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

6

Appendix

HT306SU-F2_BINDLL_ENG_5716.indd 33 2011-04-26 �� 2:49:11

Appendix34

Language Code List

Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

6

Appendix

Afar 6565

Afrikaans 6570

Albanian 8381

Ameharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laothian 7679

Latin 7665

Latvian, Lettish 7686

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

HT306SU-F2_BINDLL_ENG_5716.indd 34 2011-04-26 �� 2:49:11

Trademarks and
Licenses

HDMI, the HDMI logo and High-Denition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.

“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.

DivX®, DivX Certied® and associaated logos
are trademark of DivX, Inc., and are used under
license.

Appendix 35

Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

6

Appendix

HT306SU-F2_BINDLL_ENG_5716.indd 35 2011-04-26 �� 2:49:12

Appendix36

Specifications

General

Power requirements Refer to main label.

Power consumption Refer to main label.

Dimensions (W x H x D) Approx. 360 x 62.5 x 313 mm without foot

Net Weight (Approx.) 2.9 kg

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Outputs

VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

COMPONENT VIDEO OUT

HDMI OUT (video/audio) 19 pin (Type A, HDMI™ Connector)

ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

PORT. IN 0.5Vrms (3.5 mm stereo jack)

System

Laser Semiconductor laser, wavelength: 650 nm

Signal system Standard NTSC/ PAL color TV system

Frequency response 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)

Signal-to-noise ratio More than 80 dB

6

Appendix

Harmonic distortion 0.05 % at 1 W

Dynamic range More than 85 dB

Bus Power Supply (USB) DC 5 V 0 500 mA

(Y ) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

Amplier

Stereo mode 45 W + 45 W (3 Ω at 1 kHz)

Front 45 W + 45 W (3 Ω at 1 kHz)

Surround mode

Tuner

FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

HT306SU-F2_BINDLL_ENG_5716.indd 36 2011-04-26 �� 2:49:12

Center 45 W (3 Ω at 1 kHz)

Surround 45 W + 45 W (3 Ω at 1 kHz)

Subwoofer 105 W (4 Ω at 60 Hz)

Front Speaker (Left/ Right)

Type 1 Way 1 Speaker

Impedance Rated 3 Ω

Input Power 45 W

Max. Input Power 90 W

Net Dimensions (W x H x D) 123 x 100 x 91 mm

Net Weight 0.4 kg

Rear Speaker (Left/ Right)

Type 1 Way 1 Speaker

Impedance Rated 3 Ω

Input Power 45 W

Max. Input Power 90 W

Net Dimensions (W x H x D) 123 x 100 x 91 mm

Net Weight 0.44 kg

Centre Speaker

Type 1 Way 1 Speaker

Impedance Rated 3 Ω

Input Power 45 W

Max. Input Power 90 W

Net Dimensions (W x H x D) 133 x 100 x 91 mm

Net Weight 0.41 kg

Appendix 37

Subwoofer

Type 1 Way 1 Speaker

Impedance Rated 4 Ω

Input Power 105 W

Max. Input Power 210 W

Net Dimensions (W x H x D) 155 x 325 x 265 mm

Net Weight 3.12 kg

Design and specications are subject to change without notice.

HT306SU-F2_BINDLL_ENG_5716.indd 37 2011-04-26 �� 2:49:12

6

Appendix

HT306SU-F2_BINDLL_ENG_5716.indd 38 2011-04-26 �� 2:49:12
