OWNER'S MANUAL

FRIDGE& FREEZER

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

TABLE OF CONTENTS

SAFETY INSTRUCTIONS .......................................................3

IMPORTANT SAFETY INSTRUCTIONS .................................................... 3

INSTALLATION ......................................................................13

Compartments .......................................................................................... 13

Notes for Movement and Transport ..........................................................14

Notes for Installation ................................................................................. 14

Dimensions and Clearances ..................................................................... 15

Ambient Temperature ............................................................................... 15

Removing the Door ...................................................................................16

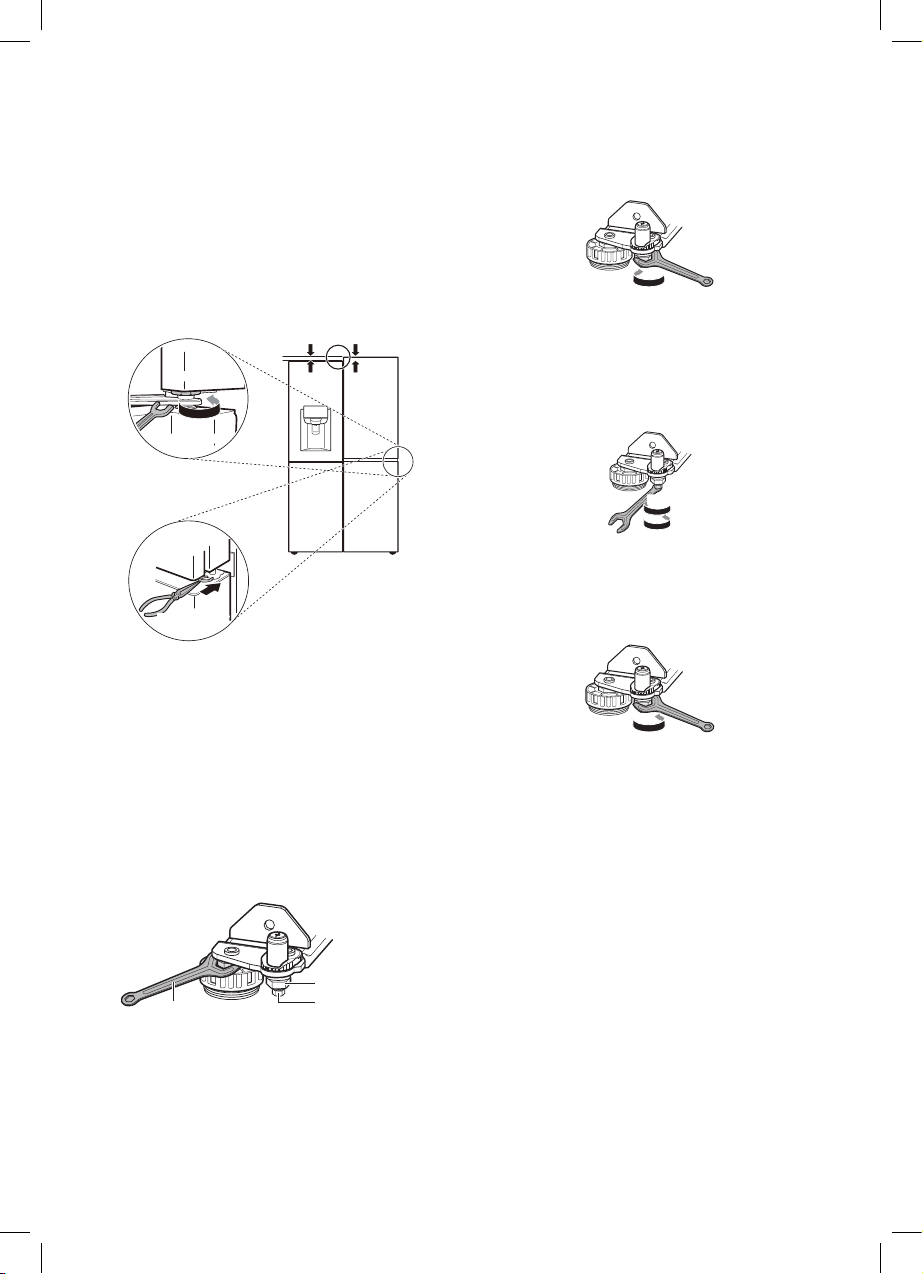

Adjusting the Height of the Door ...............................................................18

Adjusting a Tilted Appliance ...................................................................... 20

Connecting the Water Line ....................................................................... 20

OPERATION ...........................................................................22

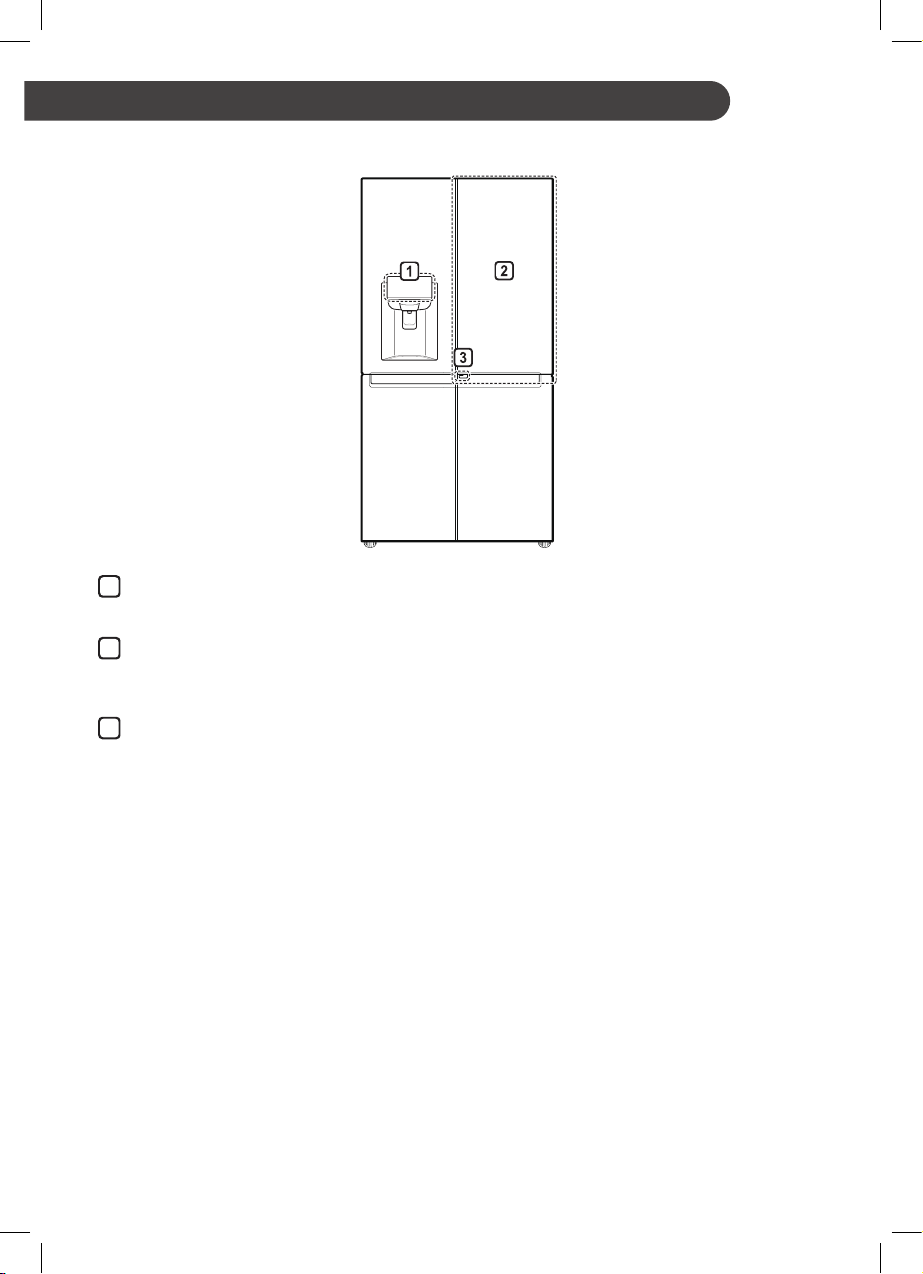

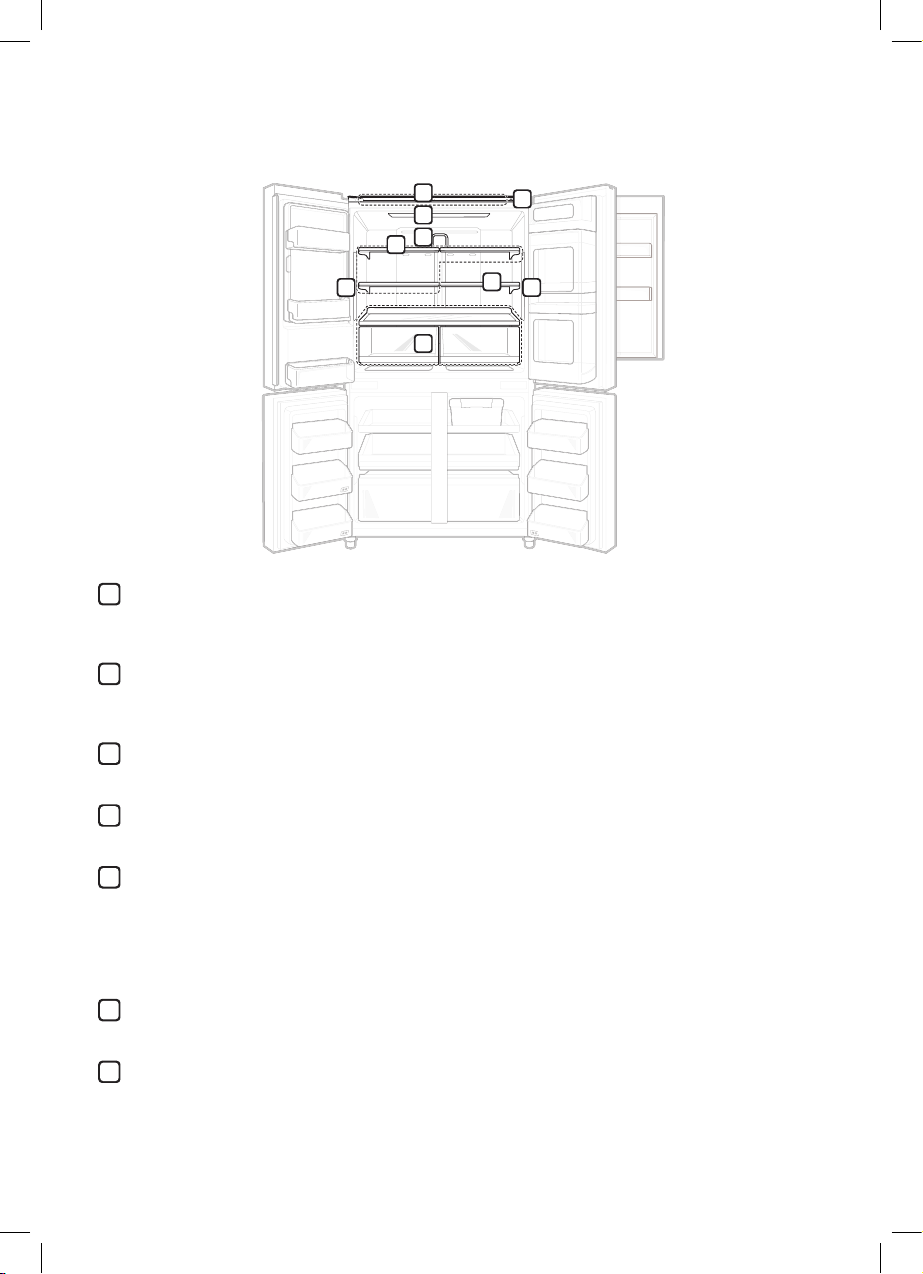

Parts and Functions ..................................................................................22

Notes for Operation .................................................................................. 26

Control Panel ............................................................................................ 28

Extra Space (Optional) ............................................................................. 30

Door Mullion .............................................................................................30

Door in Door (Optional) ............................................................................30

Moving Basket (Optional) ......................................................................... 31

Mini Table (Optional) ................................................................................. 31

Fresh Zone (Optional) ..............................................................................31

Water and Ice Dispenser .......................................................................... 32

Automatic Icemaker .................................................................................. 32

Removing the Ice Storage Bin .................................................................. 33

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SMART FUNCTIONS .............................................................34

Using LG SmartThinQ Application ............................................................34

Using Smart Diagnosis™ .........................................................................36

MAINTENANCE ......................................................................37

Notes for Cleaning .................................................................................... 37

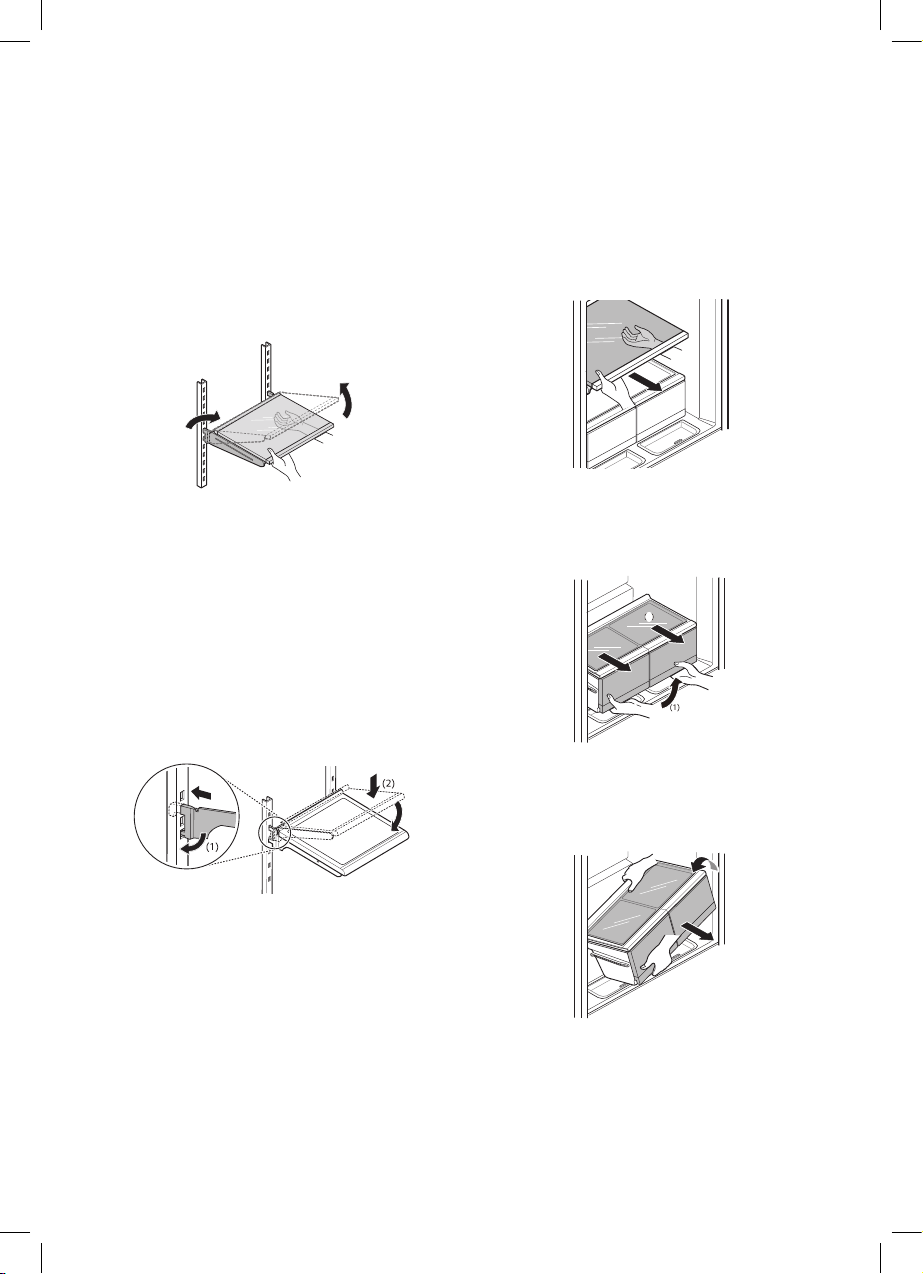

Cleaning the Shelf .................................................................................... 38

Cleaning the Vegetable Box .....................................................................38

Cleaning the Fridge/Freezer Basket ......................................................... 39

Cleaning the Door in Door ........................................................................ 40

Cleaning the Mini Table ............................................................................ 41

Cleaning the Freezer Tray/Drawer ...........................................................42

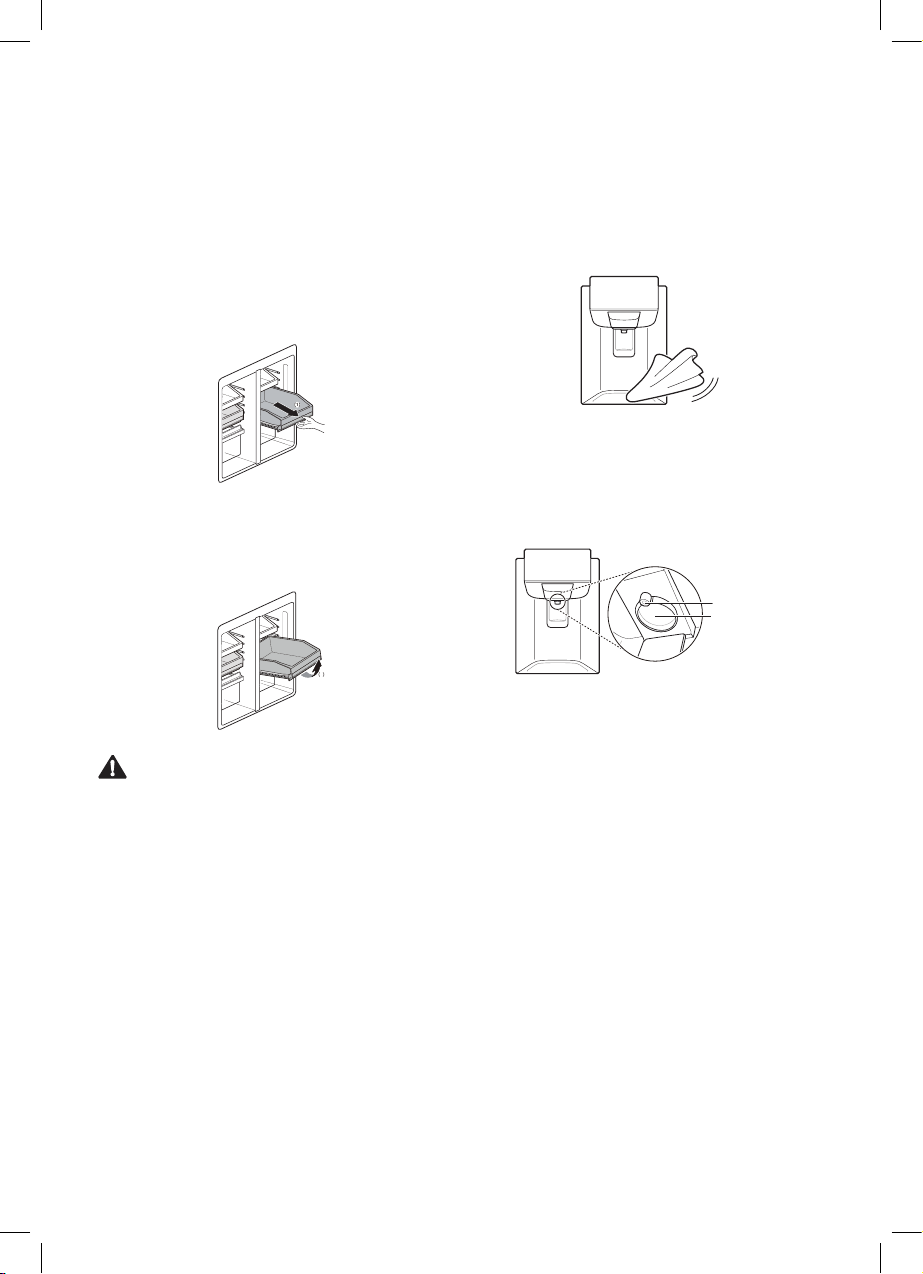

Cleaning the Water Dispenser .................................................................. 42

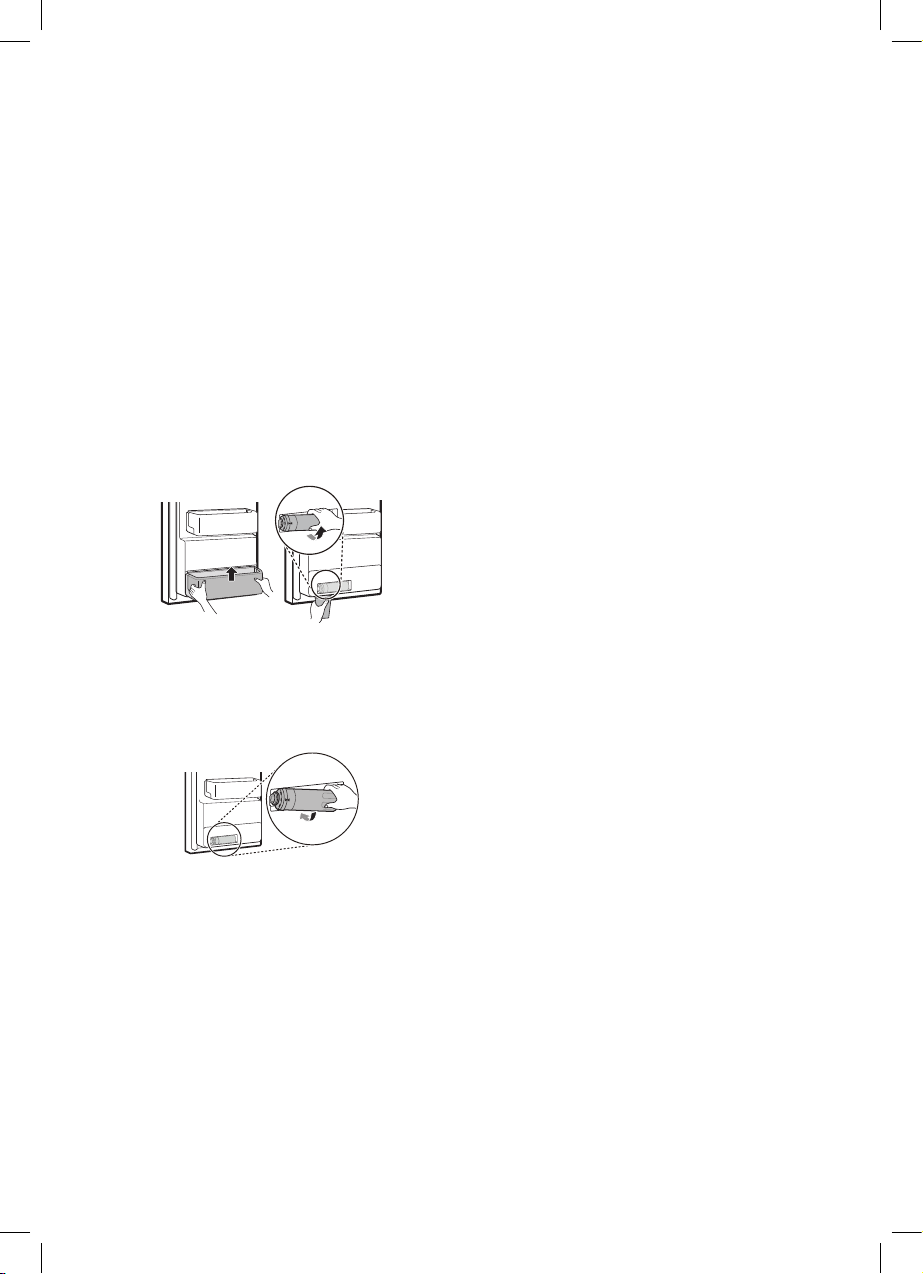

Replacing the Water Filter ........................................................................ 43

TROUBLESHOOTING ...........................................................44

SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

•If the appliance is equipped with a lock (some countries only), keep the key out of reach of children.

Installation

•This appliance should only be transported by two or more people holding the appliance securely.

•Ensure that the socket outlet is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.

•This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.

•If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.

•Do not plug the appliance into a multi socket adapter which does not have a power cable(mounted). Failure to do so may result in fire.

•Do not modify or extend the power cable.

•Avoid using any extension cords or double adaptor. The appliance should be connected to a dedicated power line which is separately fused.

•Do not use a multi socket outlet which is not properly grounded(portable). Upon using a properly-grounded multi socket outlet (portable), use a product with the current capacity of the power code rating or higher. Failure to do so may result in electric shock or fire due to the heat of multi socket outlet. The power may be shut off when the circuit breaker is operated.

•Install the appliance in a place where is easy to unplug the power plug of the appliance.

•Be careful not to point the power plug up or let the appliance lean against the power plug.

•Install the appliance on a firm and level floor.

•Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, or rain or temperatures below freezing.

•Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.

•Be careful not to expose the rear of the appliance when installing.

•Be careful not to let the appliance door fall during assembly or disassembly.

•Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.

•Do not connect a plug adapter or other accessories to the power plug.

Operation

•Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.

•In case of flood, disconnect the power plug and contact the LG Electronics customer information centre.

•Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.

•Do not touch the power plug or the appliance controls with wet hands.

•Do not bend the power cable excessively or place a heavy object on it.

•If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.

•Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.

•Do not apply excessive force or impact to the back cover of the appliance.

•Do not put animals, such as pets into the appliance.

•Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.

•Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.

•Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects(such candles, lamps, etc.), or heating devices(such as stoves, heaters, etc.) on the appliance.

•If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a very eco-friendly gas (isobutane, R600a) as the refrigerant. Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.

•Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.

•Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.

•Fill with potable water only into icemaker or dispenser water tank.

Maintenance

•Disconnect the power cord before cleaning the appliance or replacing the inside lamp (where fitted).

•Securely plug the power plug in the socket outlet after completely removing any moisture and dust.

•Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.

•Do not spray water or inflammable substances(toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.

•Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material.

•Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.

•Do not use a hair drier to dry the inside of the appliance or place a candle inside to remove the odours.

•Do not use mechanical devices or other means to accelerate the defrosting process.

Disposal

•When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.

•Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

Technical Safety

•Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

•Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

•The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with service agent or a similarly qualified person before disposing of them.

•This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

•Refrigerant leaking out of the pipes could ignite or cause an explosion.

•If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1 m² in size for every 8 g of R600a refrigerant inside the appliance.

•The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

•Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

•This appliance is intended to be used in household and similar applications only. It should not be used for commercial, or catering purposes, or in any mobile application such as a caravan or boat.

•Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

•Do not tilt the appliance to pull or push it when transporting.

•Make sure not to get a body part such as a hand or foot stuck while moving the appliance.

Operation

•Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.

•Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.

•The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with wet hands, as this may result in injury.

•Do not place heavy objects on top of the door in door.

•Do not use the door in door as a chopping board and ensure it is not scratched by a sharp tool, as this may cause appliance damage.

•Do not hang from the appliance door, storage room, shelf or fridge door in door or climb up into it.

•Do not store an excessive amount of water bottles or containers for side dishes on the door baskets. The basket may break or your hand may bump into the surrounding structure, causing injury.

•Keep food organized inside the appliance.

•Prevent animals from nibbling on the power cable or water hose.

•Do not open or close the appliance door with excessive force.

•If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.

•Do not damage the pipes of the refrigerant circuit.

•Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.

•Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to sudden temperature changes.

•Never eat frozen foods immediately after they have been taken out in the freezer compartment.

•Do not insert your hands into the mechanical part of the automatic icemaker such as the ice bin or the ice dispenser.

•Do not use a thin crystal cup or chinaware when dispensing.

•Do not remove the cover of the automatic icemaker. Touching any mechanical part of the automatic icemaker. It may result in injury.

•Make sure not to get a hand or foot stuck upon opening or closing the appliance door.

•Do not open the door of the appliance with the door in door open, or do not open the door in door while the door of the appliance is open. The door in door may be struck by the edge of the appliance and damaged.

Maintenance

•Do not insert the shelves upside down. The shelves may fall, causing injury.

•To remove frost from the appliance, contact an LG Electronics customer information centre.

•Dispose of the ice inside the ice bin in the freezer compartment during an extended power outage.

•Connect the water supply line (for plumbed models only) to a potable water source only. Otherwise, impurities in the water may cause illness.

INSTALLATION

Compartments

Spanner Type 1 Spanner Type 2 Owner's Manual

Egg Box (Optional) Ring Sheet Cleaning Cloth

• The appearance or components of the appliance may differ from model to model.

Notes for Movement and Transport

• Remove all food from inside the appliance. Then, transport the appliance only after fixing fragile parts such as shelves and the door handle with tape. Failure to do so may cause appliance damage.

• Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance. Failure to do so may cause damage to the power plug or floor scratch.

• When transporting the appliance, more than two people should transport the appliance carefully. Dropping the appliance, which is extremely heavy, may cause personal injury or appliance failure.

• When transporting the appliance over a long distance, keep the appliance upright. The appliance may fall over, causing malfunctions. Never transport the appliance laying down as it can cause a refrigerant circulation malfunction when it is turned back on again.

Notes for Installation

• Install the appliance on a solid and flat area.

− If the appliance is installed on an uneven floor, it can cause vibration and noise causing the appliance to fall resulting in injury. It could also cause the doors not to close correctly and introduce moisture inside the unit during operation.

− If the appliance front or rear is not level, adjust the front feet so that it can be corrected. Severe cases may need the floor to be packed out with strips of thin timber.

• Avoid placing the unit near heat sources, direct sunlight or moisture.

• Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.

• After connecting the power supply cord (or plug) to the outlet, Wait two or three hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

• After installing the appliance, connect the power plug into a socket outlet. Before moving and discarding the appliance, disconnect the plug from the socket outlet.

Dimensions and Clearances

• Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50 mm of clearance from each adjacent wall when installing the appliance.

Type Depth A Depth B A 912 mm 912 mm B 1797 mm 1797 mm C 924 mm 759 mm D 20 mm 20 mm E 898 mm 733 mm F 904 mm 739 mm G 996 mm 996 mm H 1637 mm 1637 mm

EHFG

Ambient Temperature

• The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone. Do not use the appliance at a temperature exceeding the limit.

• The internal temperature could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on.

• The climate class can be found on the rating label.

Climate Class

SN (Extended Temperate)

N (Temperate) +16 - +32 ST (Subtropical) +16 - +38 T (Tropical) +16 - +43 / +10 - +43*

*Australia, India, Kenya

NOTE

• The appliances rated from SN to T are intended to be used at an ambient temperature between 10 ºC and 43 ºC.

Ambient Temperature Range ºC

+10 - +32

NOTE

• You can determine what type of appliance it is by looking at the label inside the fridge compartment.

Removing the Door

When it is necessary to move the appliance through a narrow opening, removing the doors is the recommended procedure.

WARNING

• Disconnect the power cord, house fuse or circuit breaker before installing or servicing the appliance. Failure to follow these instructions may result in death, fire or electric shock.

Removing the Left Fridge Door

The water supply line is connected to the top right part in the back of the appliance. While pressing the collet towards the the tube connector, remove the connected water tube.

Collet

Tube connector

Water tube

Removing the Left and Right Fridge Door

While pressing down on the hook of the

wire harness connector, remove the connector by pulling it in both directions.

Rotate the hinge lever counterclockwise.

Lift the top hinge free of the hinge lever latch.

Hinge lever latch

Open the door. Remove the top hinge cover

screw (1) and the hinge cover (2).

Hinge cover

CAUTION

• When removing the upper hinge, be sure to support the door as it will fall forwards. It is recommended that two or more people carry out the door removal and refitting.

• When lifting the hinge free of the latch, be careful that the door does not fall forward.

• Place the door, inside facing up, on a non-scratching surface.

Lift the left fridge door upward (1). At this

time, the door should be lifted high enough so that the water tube with the spiral spring (2) has come entirely out.

NOTE

• When moving the left fridge door, be careful not to damage the water tubes. The doors should be laid down on a blanket in a safe area once they have been removed.

• If the water tube end is damaged, it should be trimmed to ensure it does not leak when refitted.

Lift the upper hinge fixed between the appliance and the appliance door and then remove it.

Upper hinge

Door

CAUTION

• Place the door on a non-scratching surface with the inner side facing up.

Lift the door off of the middle hinge pin and

remove the door.

Not straight Damaged Stretched

• While pressing the collet toward the tube connector, gently insert the water tube until only one line is visible. Pull on the water tube to make sure that the tube is tightly fastened.

Collet

Water tube

Insert line

Refitting the Fridge Doors

Mount the doors in the reverse sequence of their removal once the appliance has been passed through all access doors.

+ 39 hidden pages
