OWNER’S MANUAL

Network Video Recorder

Please read this manual carefully before operating your set and retain it for future reference.

MODELS

LRN3040N Series

1308 (V1.0)

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product in the end user.

• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or shall be provided with brushings.

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Warning: Do not install this equipment in a confined space such as a bookcase or similar unit.

Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70.

Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

Caution: This installation should be made by a qualified service person and should conform to all local codes.

Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Caution: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

Caution:

This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure.

To disconnect power from mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2011/65/ EU.

Contact oce for compliance of this product :

LG Electronics Inc. EU Representative, Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Safety Information

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

EEE Compliance with Directive. (for Turkey only)

Safety way to remove the battery or the battery from the equipment:

Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the lile.

Disposal of waste batteries/accumulators

1. When this crossed-out wheeled bin symbol is attached to batteries/accumulators of Your product it means they are covered by European Directive 2006/66/EC.

2. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.

3. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

4. The correct disposal of Your old batteries/ accumulators will help to prevent potential negative consequences for the environment, animal and human health.

5. For more detailed information about disposal of Your old batteries/accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product.

IMPORTANT SAFETY INSTRUCTIONS

Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Safety Information

Safety warnings and Cautions

The following are warnings and cautions for the safety of the users and for the prevention of any property damage. Please read the following

Safety Information

carefully.

WARNING

• Turn off the system before installation. Do not plug in several electric devices to the same outlet.

- This may cause heating, fire, or electric shock.

• Do not place any liquid container on the system, such as water, coffee, or other beverage.

- If liquid is poured onto the system, it can cause a system breakdown or fire.

• Prevent the power cable from being severely bent or having pressure exerted on it by a heavy object.

- This may cause fire.

• Clean the dust around the system on a regular basis. When cleaning the system, always use a dry cloth. Do not use a wet cloth or other organic solvents.

- This may damage the surface of the system and can cause a system breakdown or electric shock.

• Avoid any place with moisture, dust, or soot.

- This can cause fire or electric shock.

• When pulling the power cable from the plug, do so gently. Do not touch the plug with wet hands and avoid using the plug if the holes in the outlet are too loose.

- This may cause fire or electric shock.

• Do not attempt to disassemble, repair, or modify the system on your own. It is extremely dangerous due to the high voltage running through the system.

- This may cause fire, electric shock, or serious injury.

• Check for any danger signs such as a moist floor, a loosened or damaged power cable, or an unstable surface. If you encounter any problems, ask your dealer for assistance.

- This may cause fire or electric shock.

• Keep a distance of at least 15 cm between the back of the system and the wall for the cables connected to the system otherwise, they may be bent, damaged, or cut.

- This may cause fire, electric shock, or injury.

• Install the system in a cool place without direct sunlight and always maintain room temperature. Avoid candlelight and heat generating devices such as heaters. Keep the system away from places where many people pass.

- This may cause fire.

• Install the system on a plain surface with sufficient air ventilation. Do not place the system on an elevated surface.

- This may cause system breakdown or serious injury.

• The power outlet must be placed on the ground, and the voltage range must be within 10 % of the voltage rate. Do not use the same outlet with a hair dryer, iron, refrigerator, or any heating appliances.

- This may cause fire, over heating or electric shock.

• When the system’s battery is depleted, replace it with the same or equivalent type of battery specified by the manufacturer. Depleted batteries should be discarded according to the manufacturer’s instructions.

- This may cause an explosion.

• If the system’s HDD exceeds its life span, you may not be able to recover any data stored inside the HDD. If the video on the system screen appears ‘damaged’ while playing a recording stored inside the system’s HDD, it must be replaced with a new one. Ask for an engineer’s assistance for HDD replacement from your dealer.

- LG Electronics is not responsible for deleted data caused by user mishandling.

• PLEASE DO NOT MOUNT OR UN-MOUNT HDDs WHILE SYSTEM IS POWERED ON.

- This may cause system breakdown.

Safety Information

CAUTION

Please beware of the following precautions before installing the system.

• Avoid positioning the product in any place where the unit may come into contact with moisture, dust, or soot.

• Avoid placing in direct sunlight or near heating appliances.

• Keep the product away from electric sparks or magnetic substances.

• Do not place any conductive material through the ventilation grills.

• Keep the system turned off before installation.

• Ensure enough space is left for cable connections.

• Place the system on a solid surface with sufficient air ventilation. Avoid any surface that vibrates.

• Placing the system near electronic devices such as a radio or a TV may cause the product to breakdown.

• Do not disassemble the product without seeking assistance from LG Electronics.

• Prevent any substances from being inserted into the system.

- This may cause system breakdown.

• Install the system in a place with sufficient air ventilation.

- Keep at least 15 cm distance between the back of the system and the wall, and at least 5 cm distance between the side of the system and the wall.

• Do not install the system in a place with high magnetic, electric wave, or wireless devices such as a radio or a TV.

- Do not install the system in a place with magnetic objects, electric frequencies, or vibration.

• Do not place any heavy object on the system.

- This may cause system breakdown.

• Install the system on a stable, level surface.

- The system may not operate properly.

• Install the system in a place with appropriate moisture and temperature levels.

- Avoid installing the system in a place with high (over 40 °C) or low (under 0 °C) temperature.

• The system can be damaged from a strong impact or vibration. Avoid throwing objects within the vicinity of the system.

• Avoid direct sunlight or any heating appliances.

- Recommended operating temperature is over 0 °C (32 °F).

• Ventilate the air inside the system operation room, and tighten the system cover firmly.

- System breakdown may be caused by an inappropriate environment. It is recommended to use AVR (Automatic Voltage Regulator) for a stable power supply. It is recommended to coil the core-ferrite around the connector of the system to avoid electromagnetic interference.

• The outlet must be placed on the ground.

• If there is strange sound or smell, unplug the power cable immediately and contact the service center.

- This may cause fire or electric shock.

• In order to maintain stable system performance, have your system checked regularly by the service center.

- LG Electronics is not held responsible for system breakdown caused by user mishandling.

- There is a risk of explosion if a battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

• Use the mouse which is supplied from this unit.

- Otherwise, the system may not operate properly.

• Do not connect more than 3 ea of PoE+ IP camera at once. (Up 9 to 2 ea available)

- The system may not operate properly.

• Do not overturn the product during use.

Safety Information

Contents

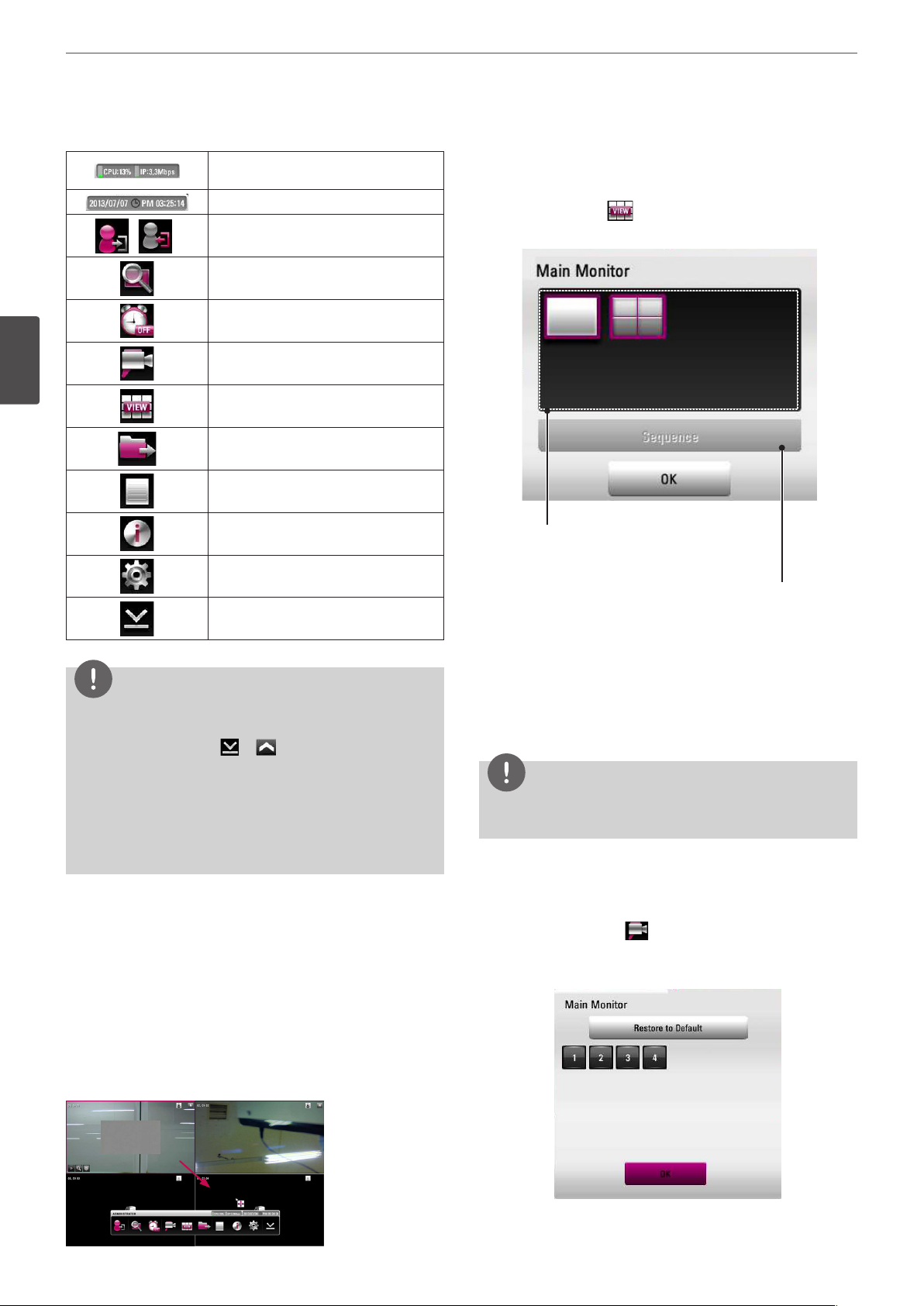

17 General Explanation of the Live

Screen on the Main Monitor

17 Main Monitor Screen

18 Moving the Channel's Position

18 Selecting the Split mode

18 Changing the order of cameras

Safety Information

3 IMPORTANT SAFETY INSTRUCTIONS

Preparation

8 Introduction

8 Features

8 Accessories

9 Front Panel

9 Rear Panel

10 Remote Control

Installation

11 Connections

11 Precautions

19 PTZ Camera Control

20 Using the Digital Zoom function

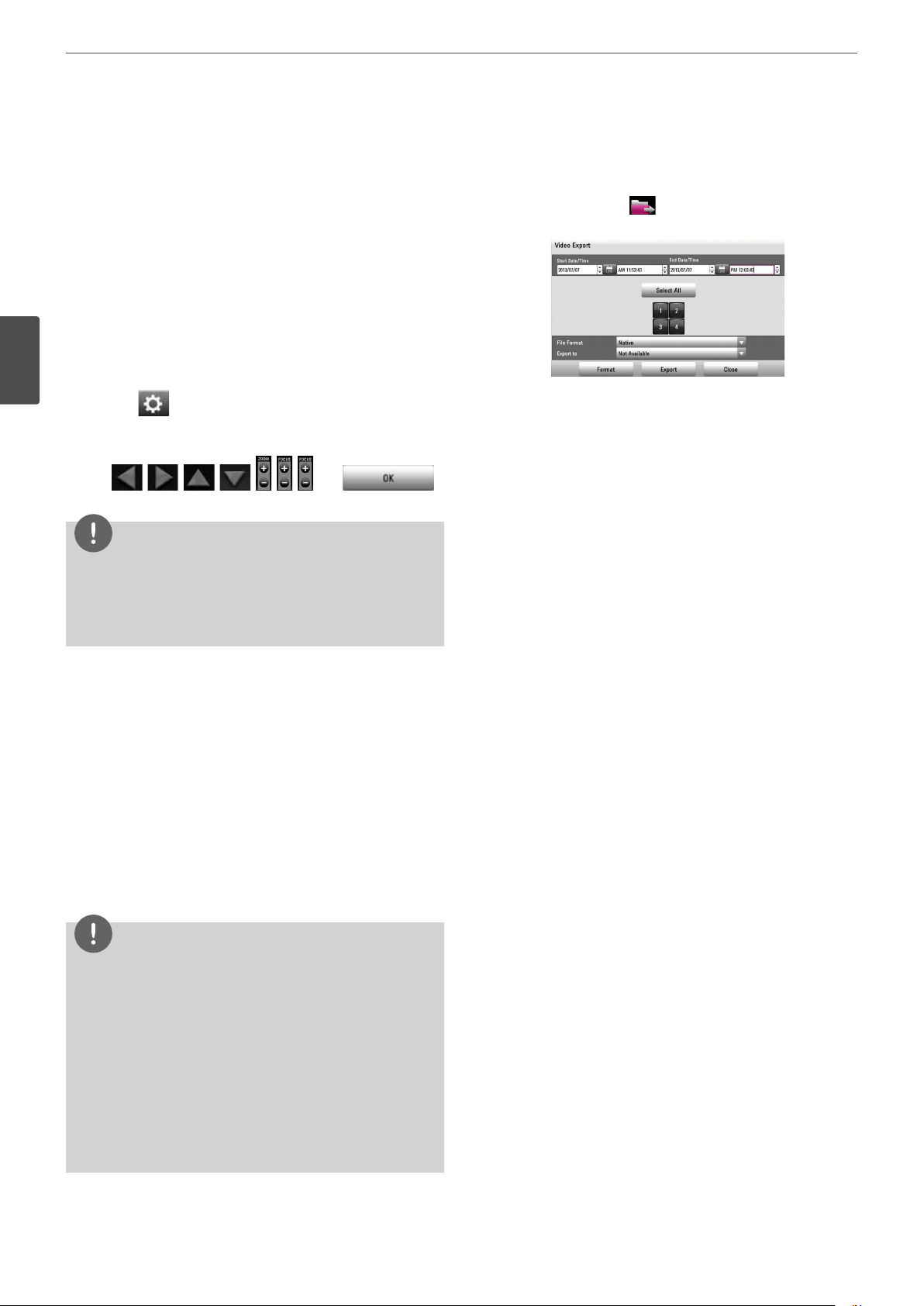

20 Export the recorded data

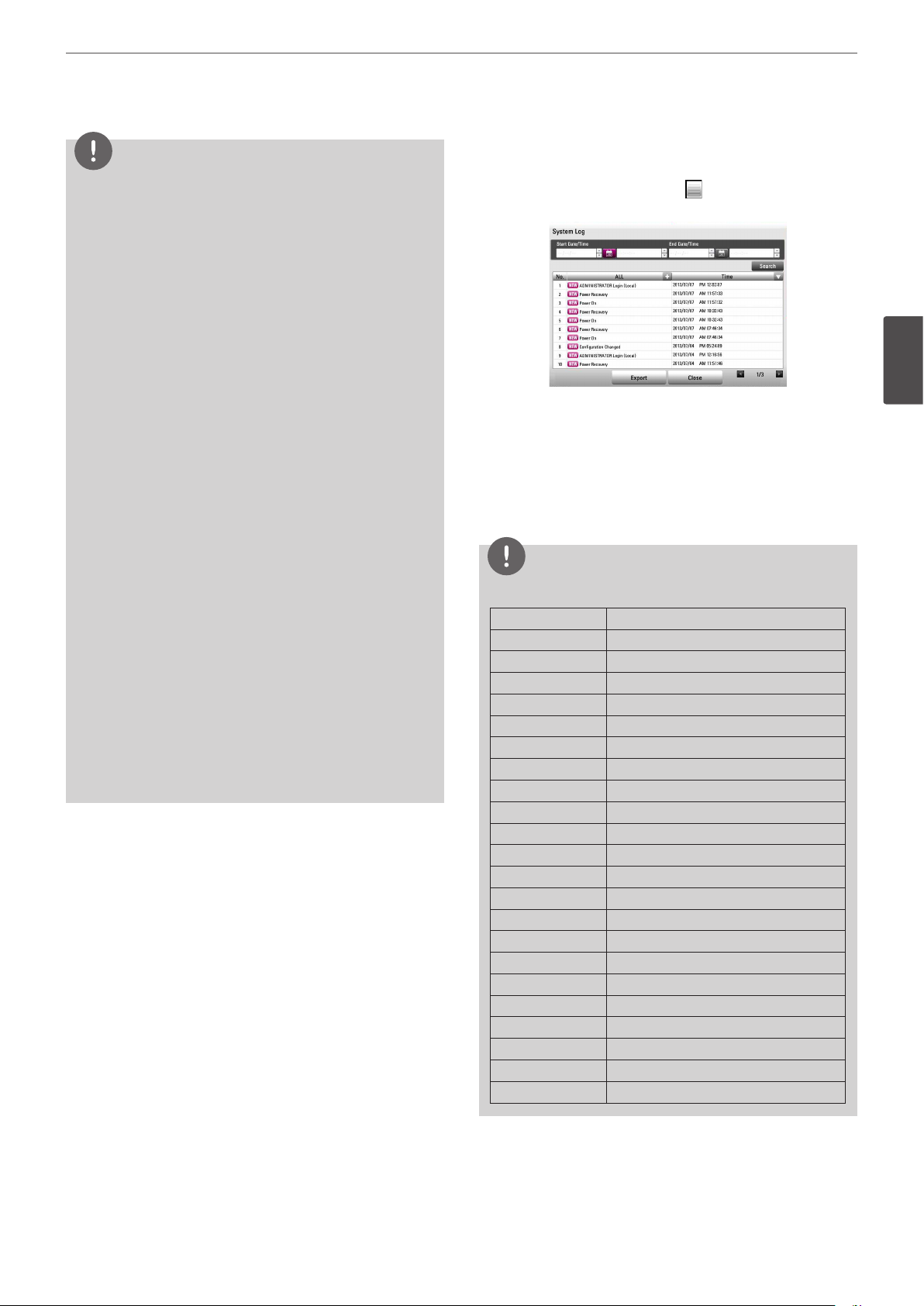

21 Viewing the System Log List

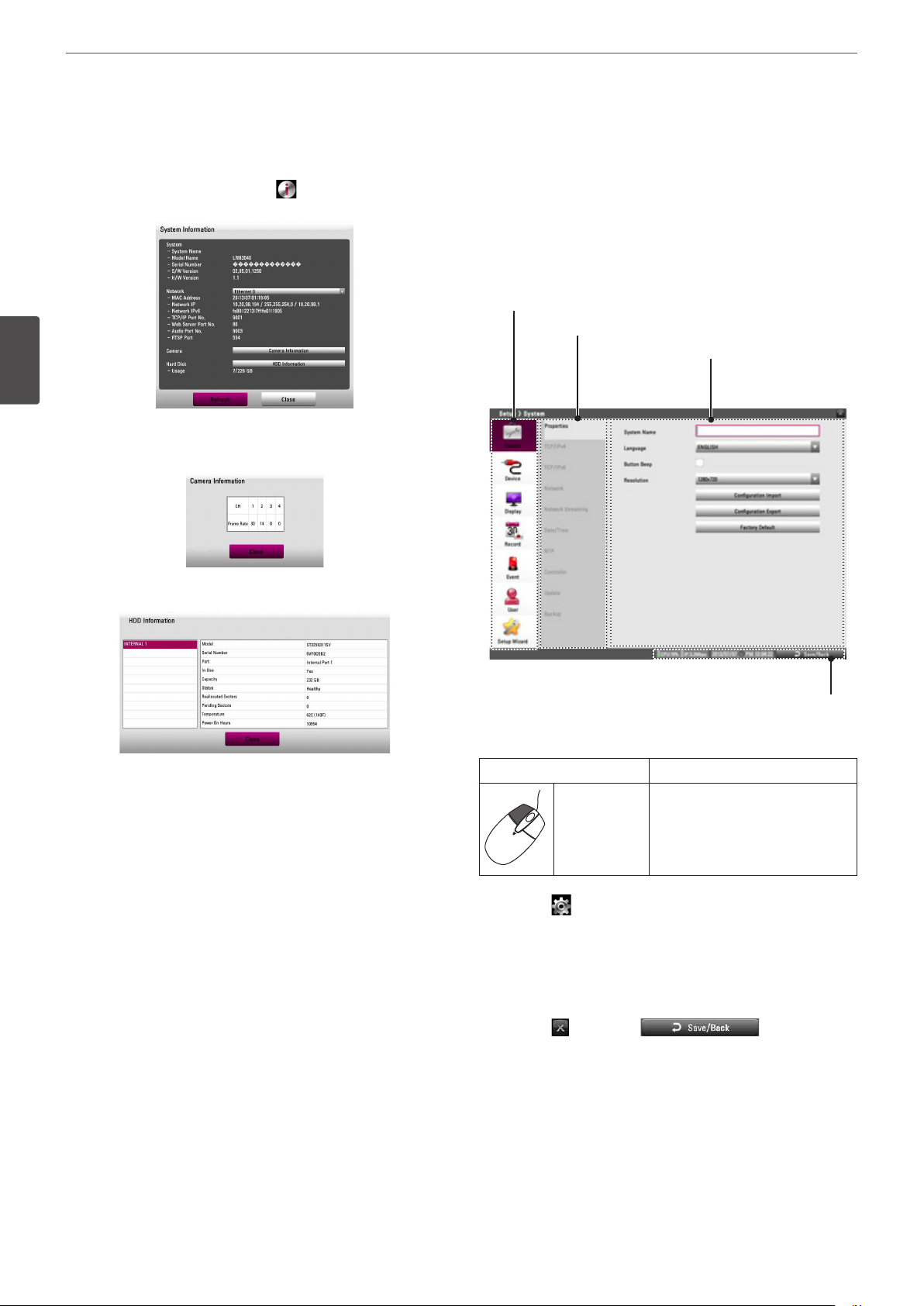

22 Viewing System Information

22 Conﬁguration menu

23 System settings

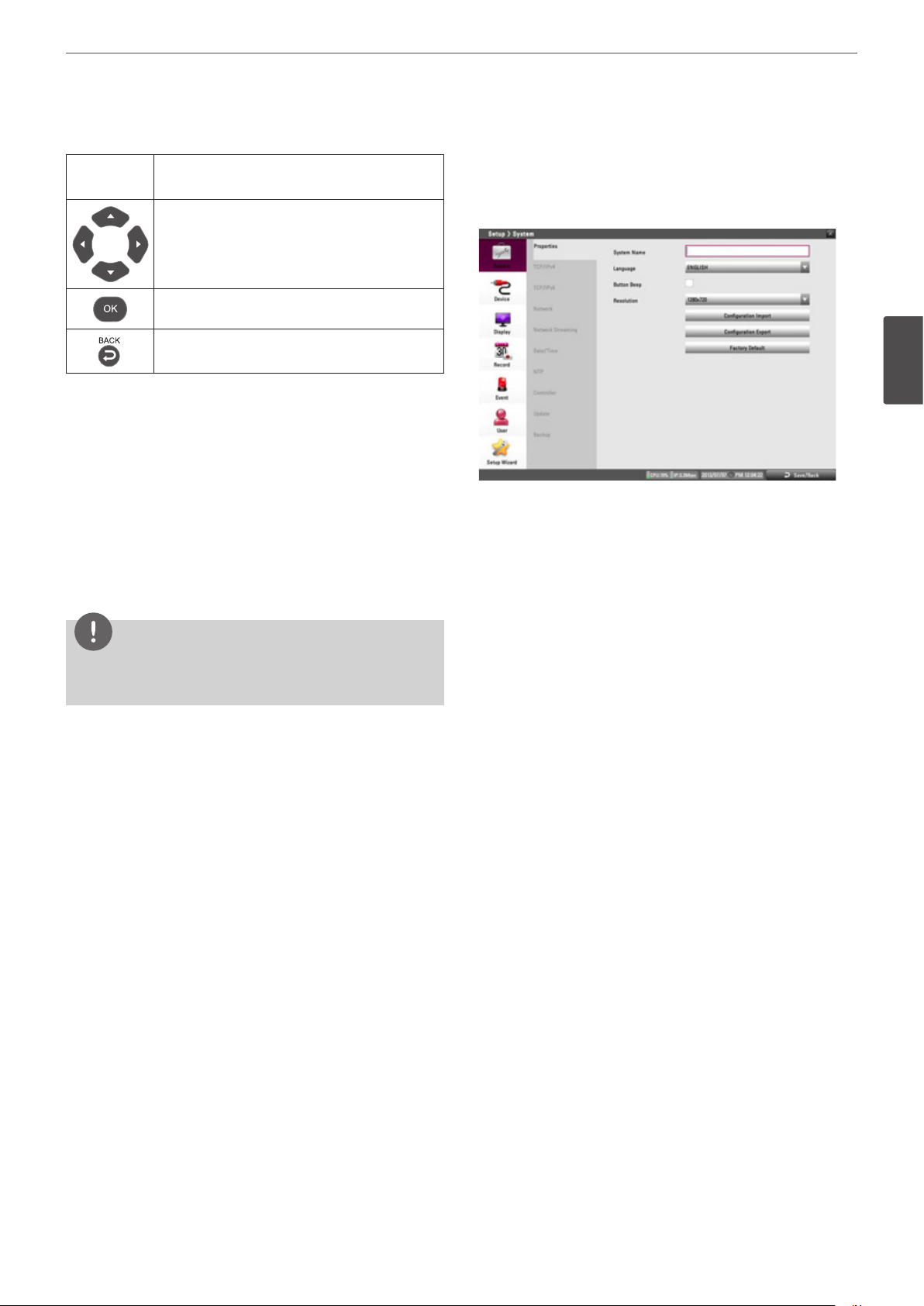

23 Properties

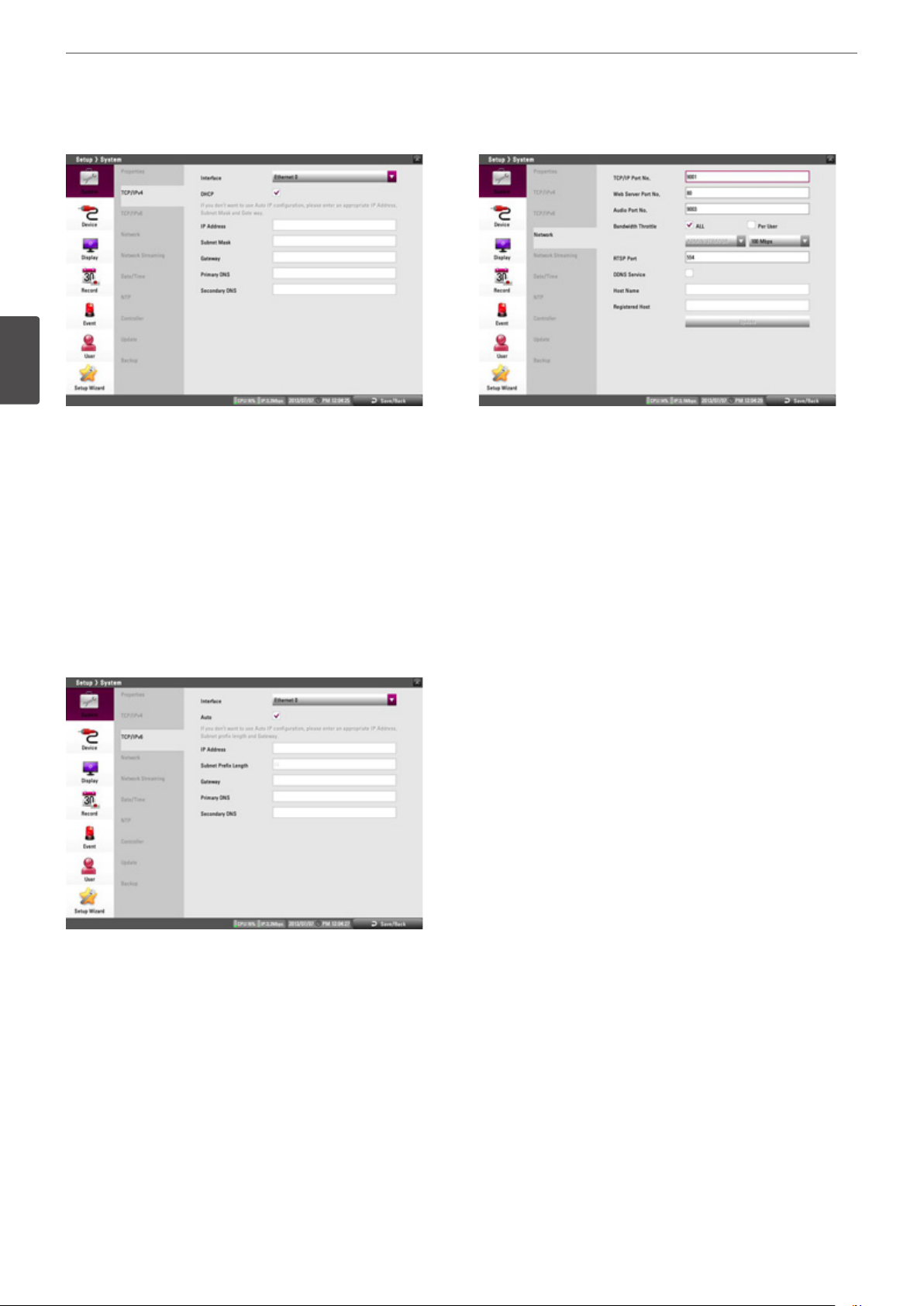

24 TCP/IP v4

24 TCP/IP v6

24 Network

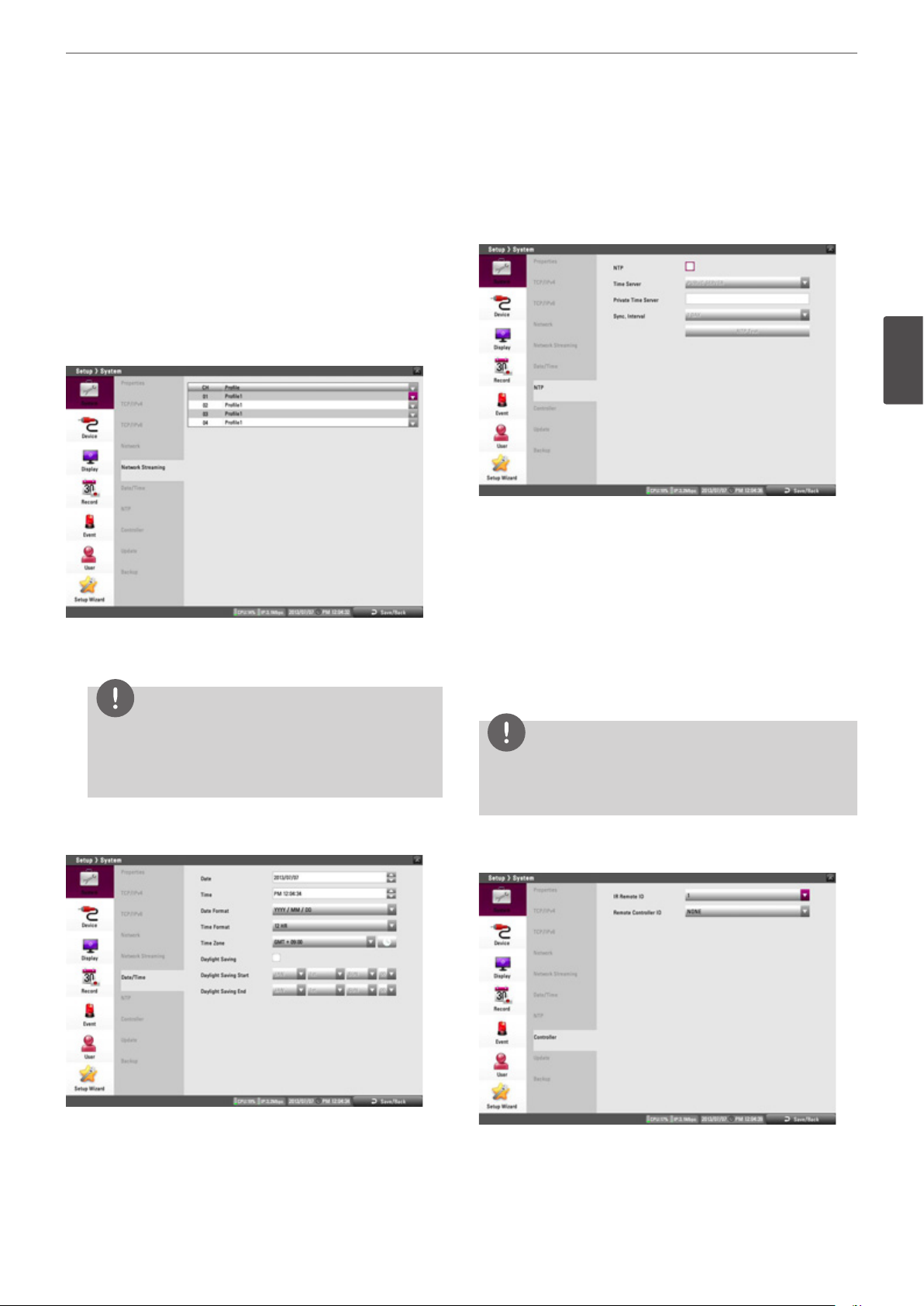

25 Network Streaming

25 Date/Time

25 NTP

25 Controller

26 Update

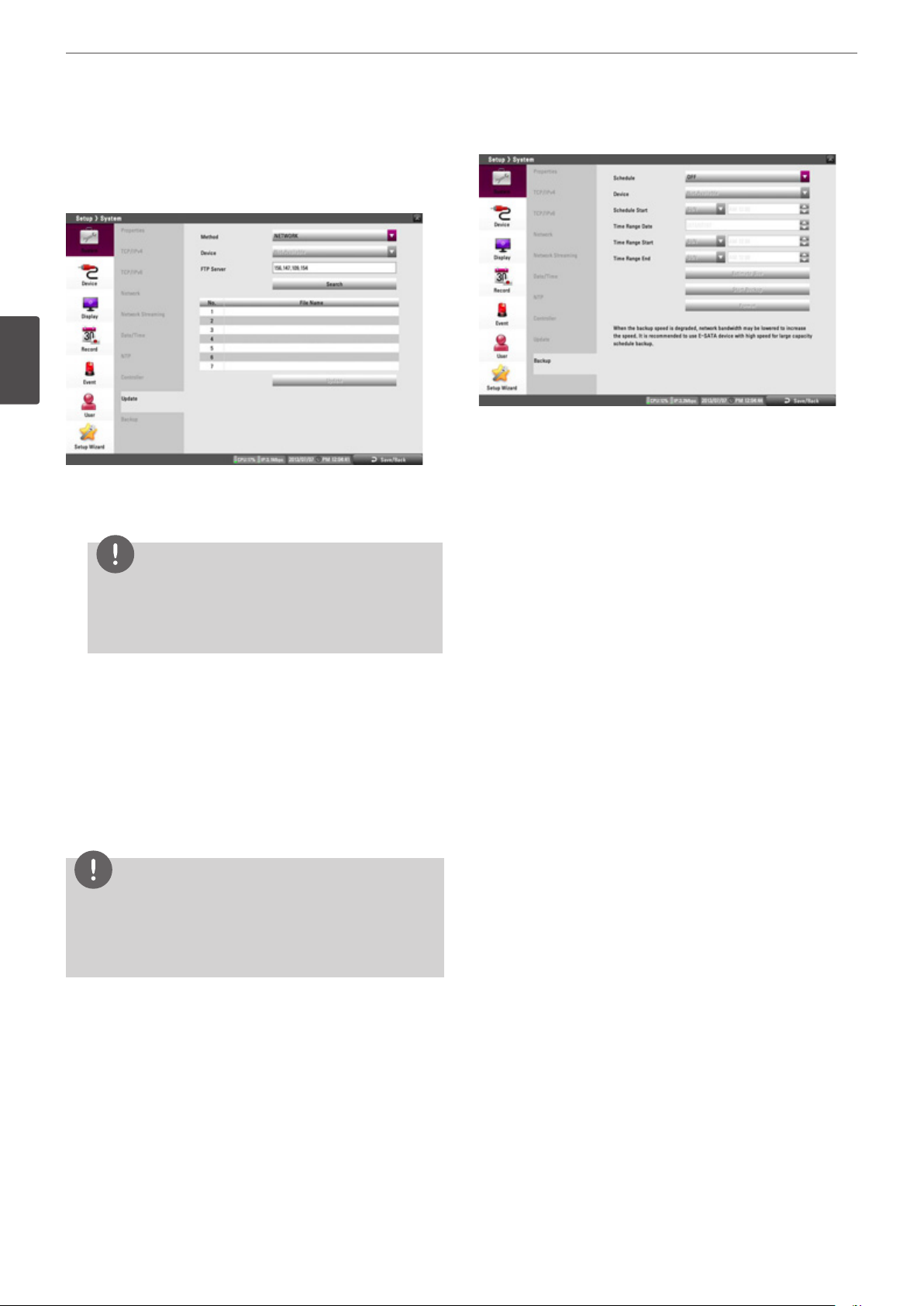

26 Backup

28 Device settings

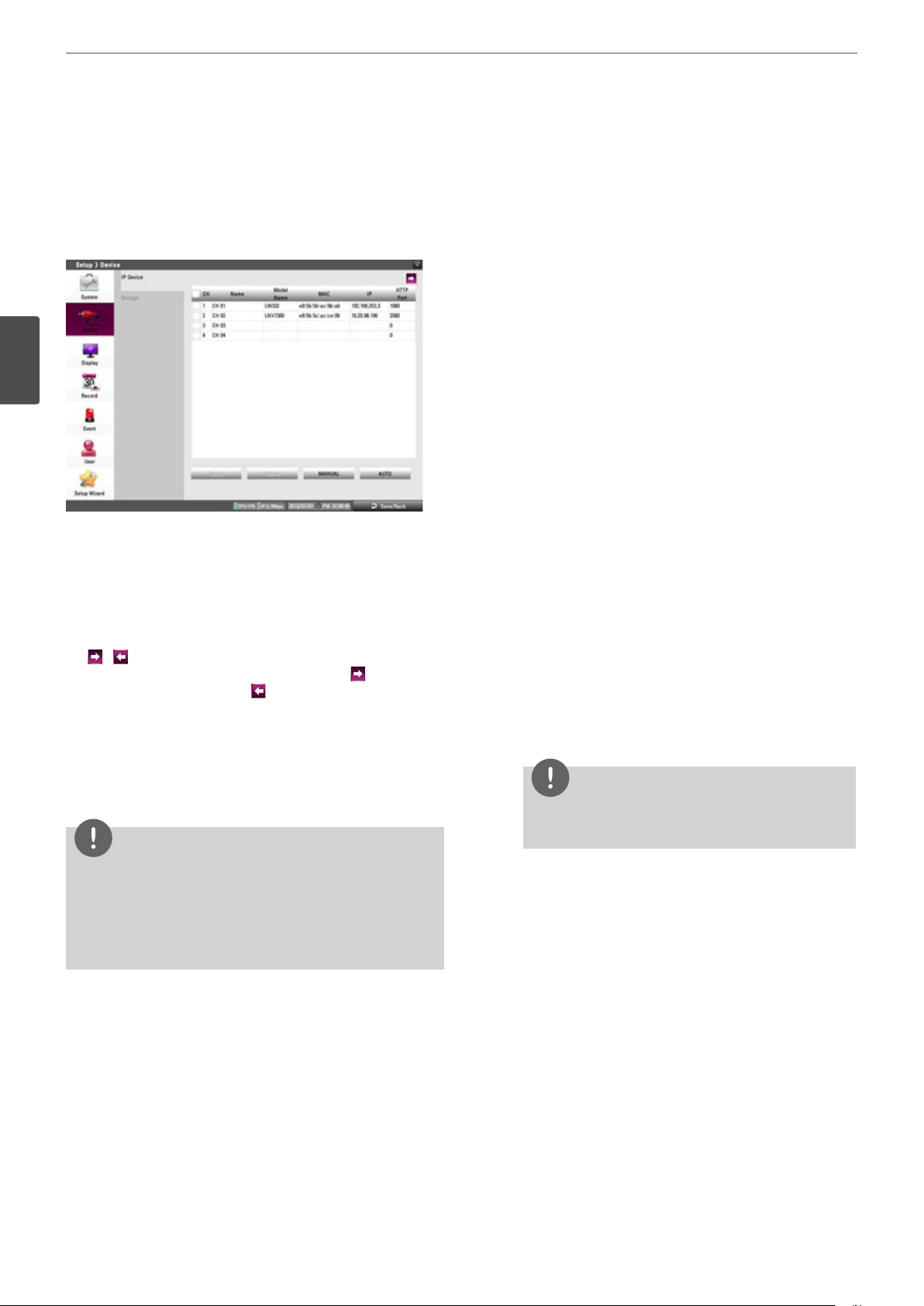

28 IP Device

30 Storage

11 Basic Connection Overview

12 Connecting Display device

12 Connecting Audio device

12 Connecting USB device

13 Connecting E-SATA device

13 Connecting Network

13 Connecting IP Camera

14 Connecting LKD1000 Controller

14 Connecting Alarm Input and Alarm Output

15 HDD INSTALLATION

15 Note for Hard Disk Drive

15 Installing the Hard Disk Drive

16 Replacing the Hard Disk Drive

16 Recommended HDD

17 System Operation

17 System Shutdown

30 Display settings

30 OSD

30 Sequence

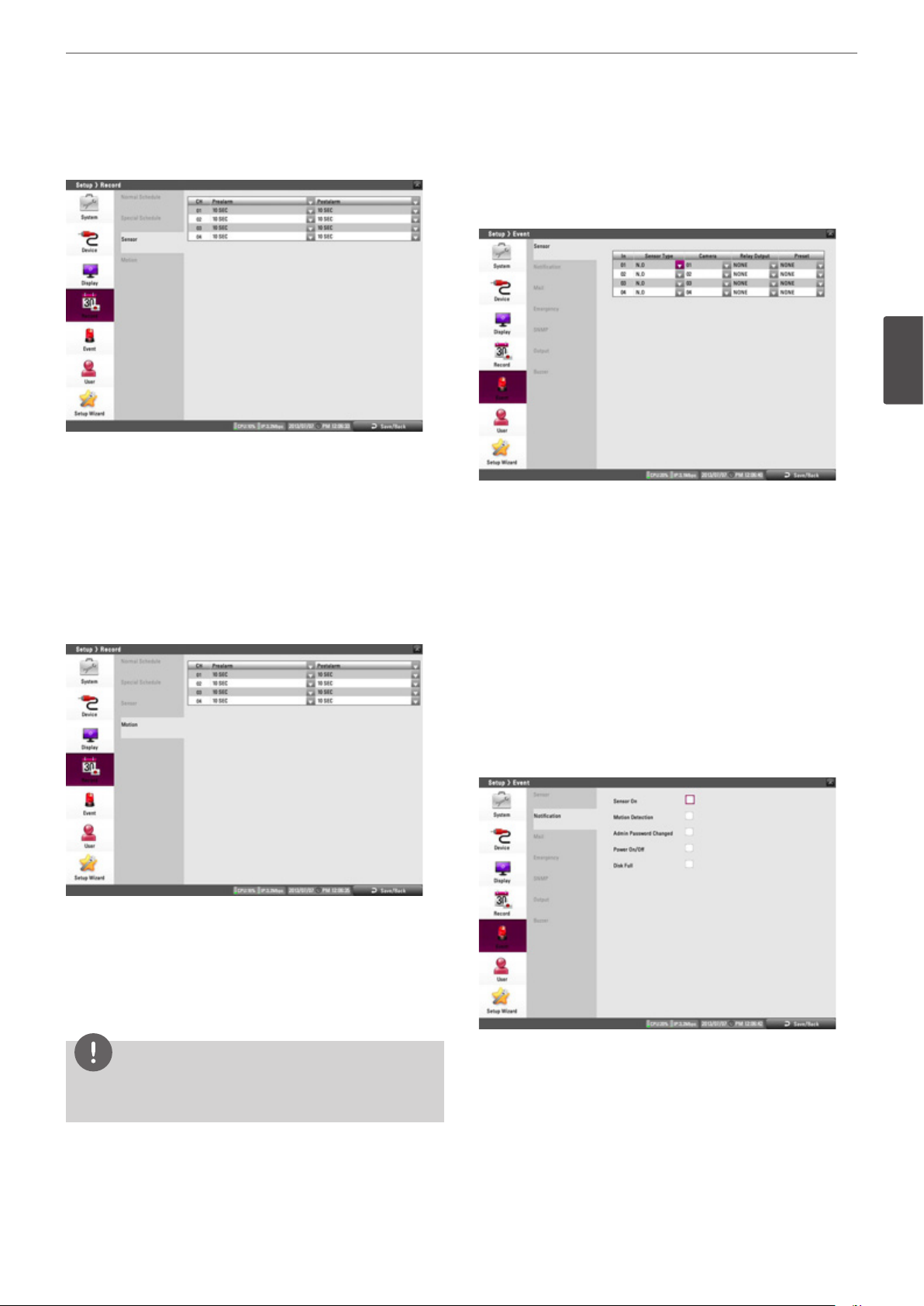

31 Record settings

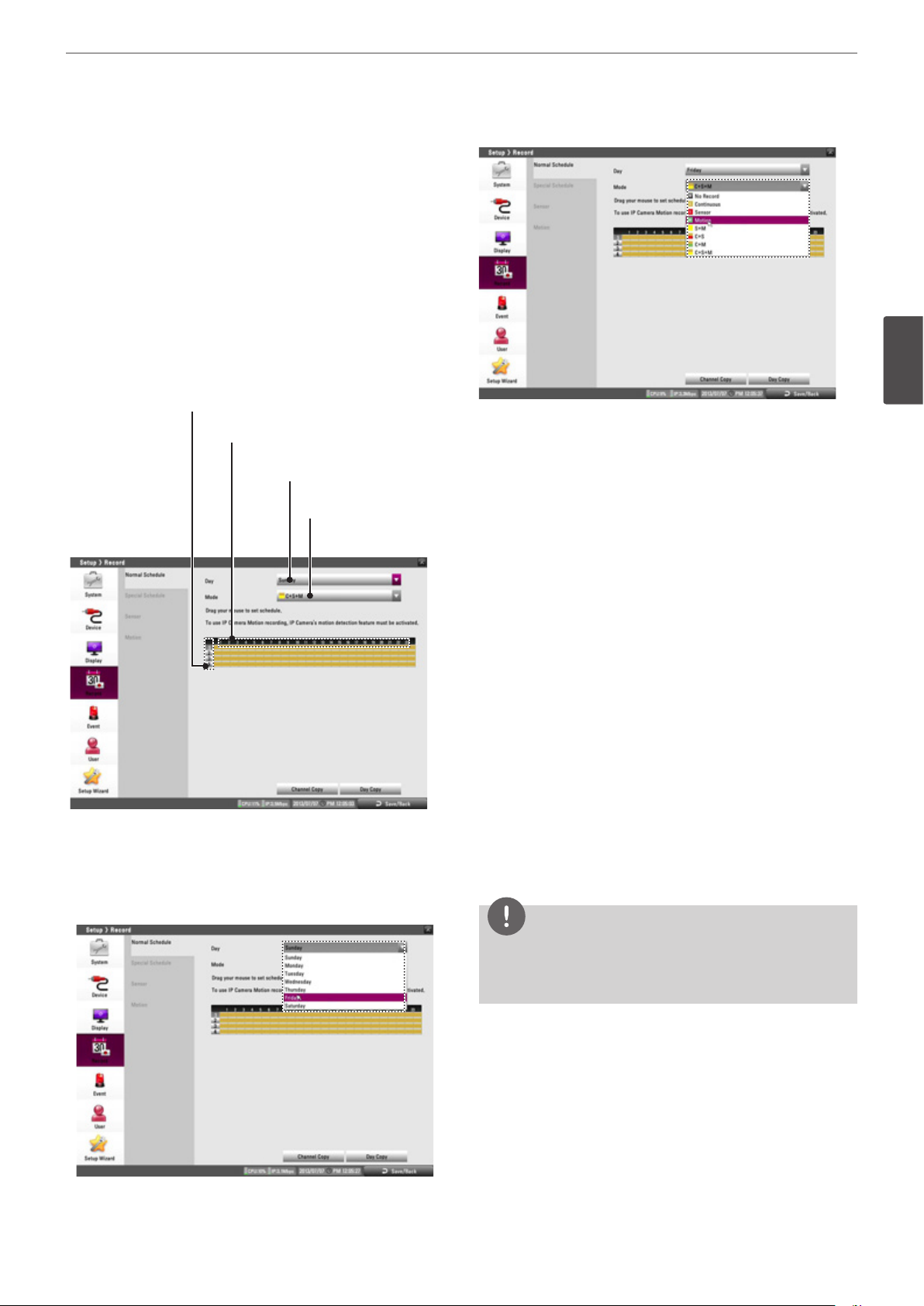

31 Normal Schedule Recording

31 To Set a Recording Schedule for a Typical Day

of the Week (Normal Schedule)

32 To Set a Recording Schedule for a Special Day

(Special Schedule)

32 Copying the Recording Schedule

33 Sensor

33 Motion

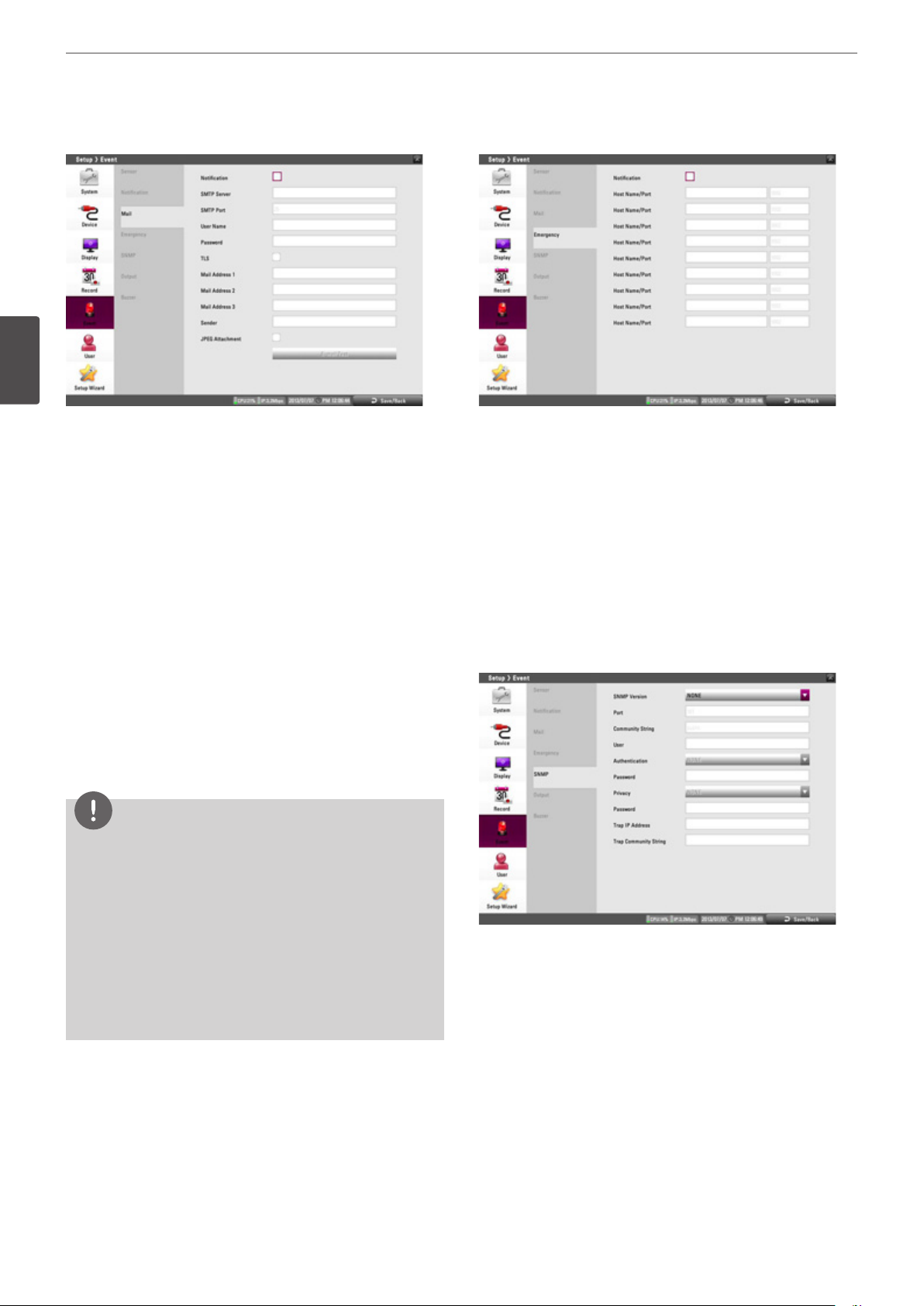

33 Event settings

33 Sensor

33 Notiﬁcation

34 Mail

Contents

34 Emergency

34 SNMP

35 Output

35 Buzzer

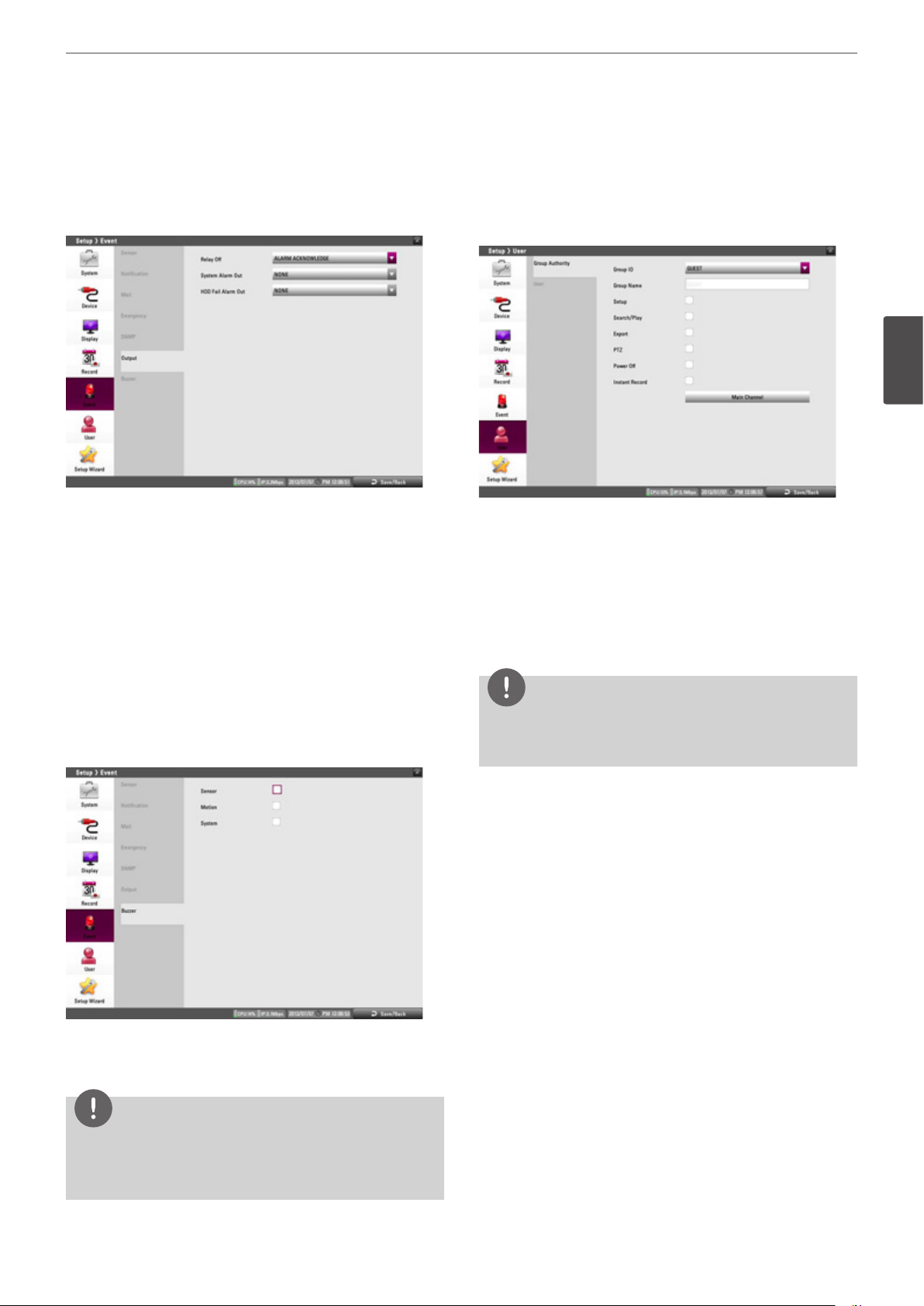

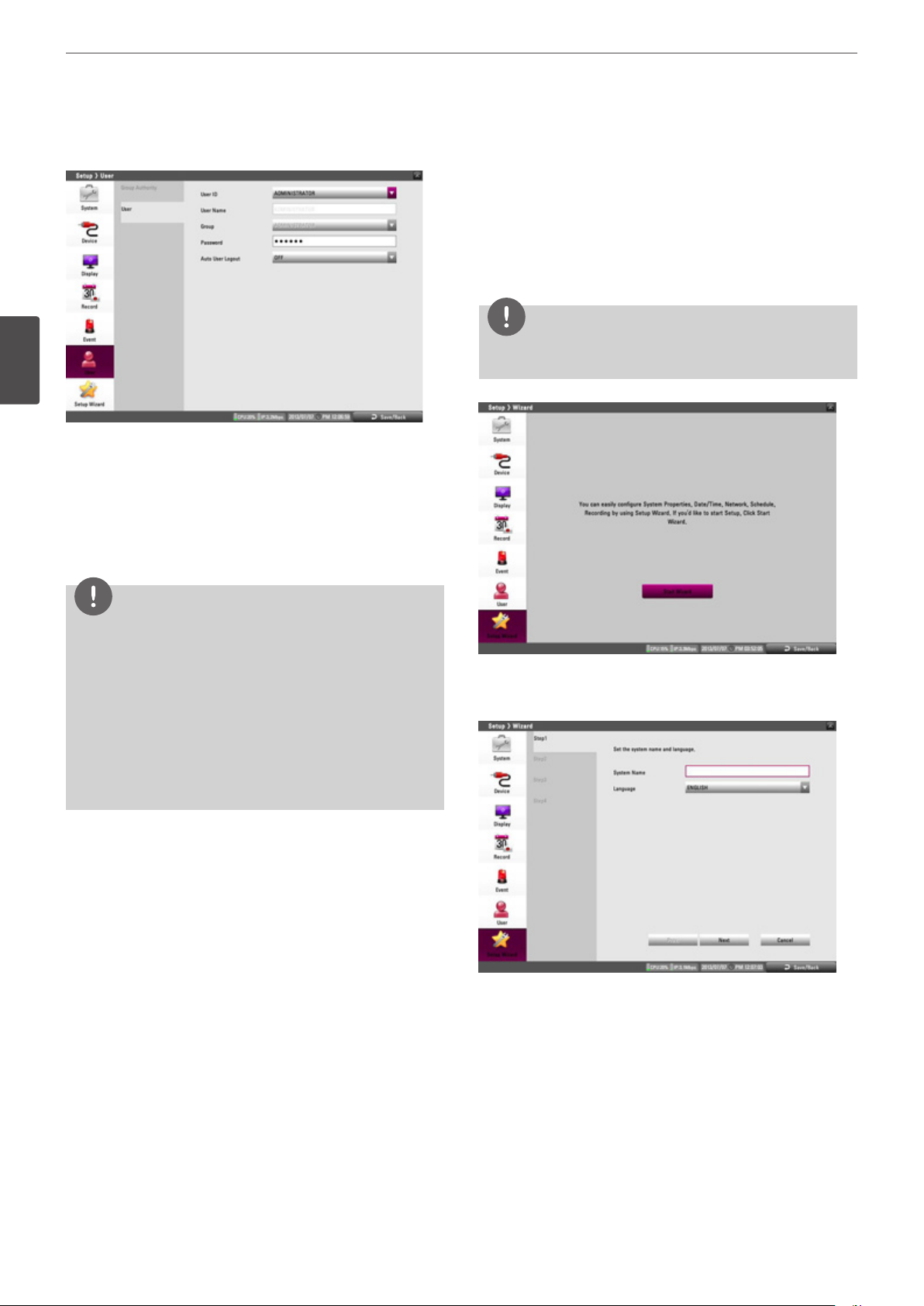

35 User settings

35 Group Authority

36 User

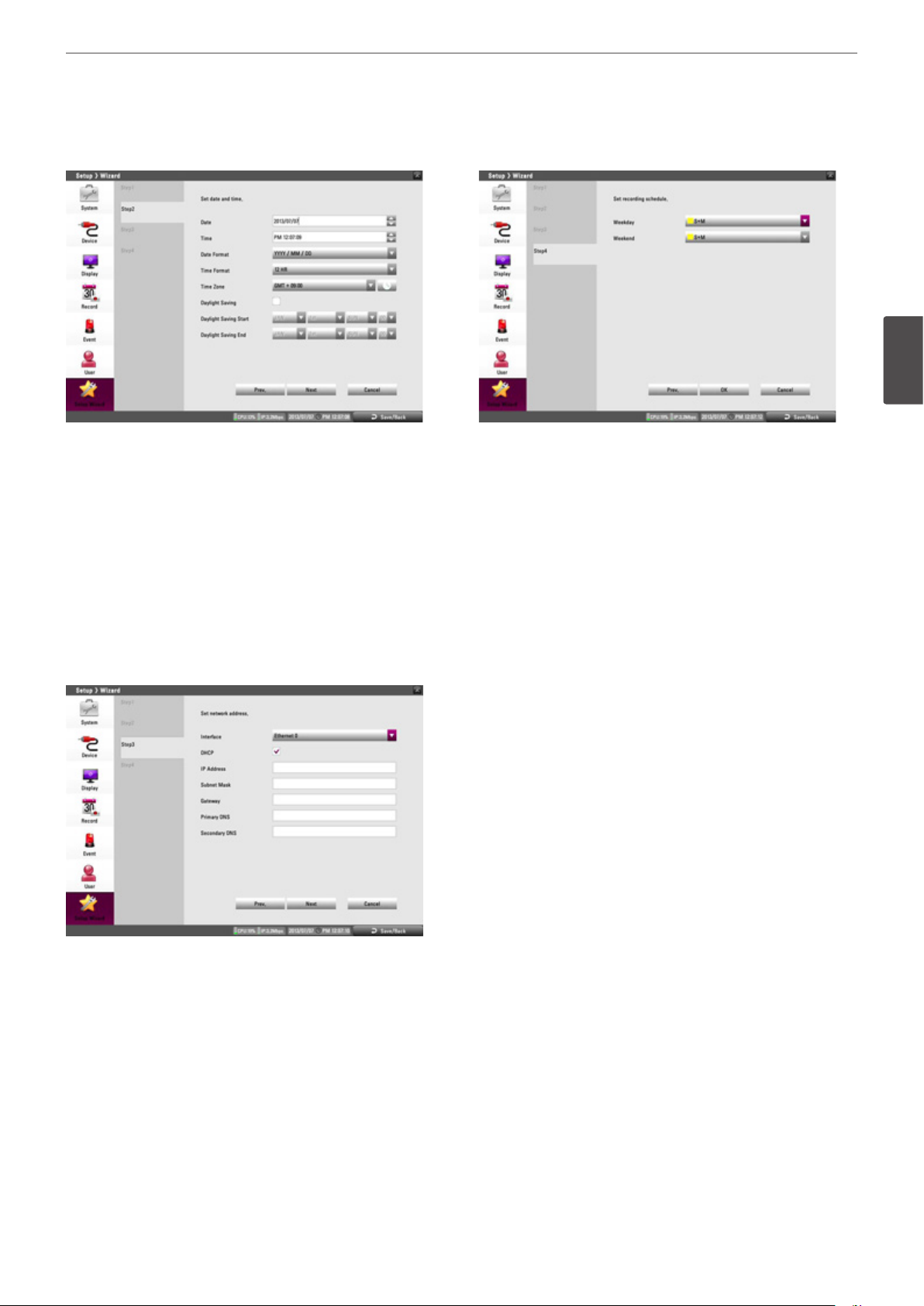

36 Setup Wizard settings

36 Step 1

37 Step 2

37 Step 3

37 Step 4

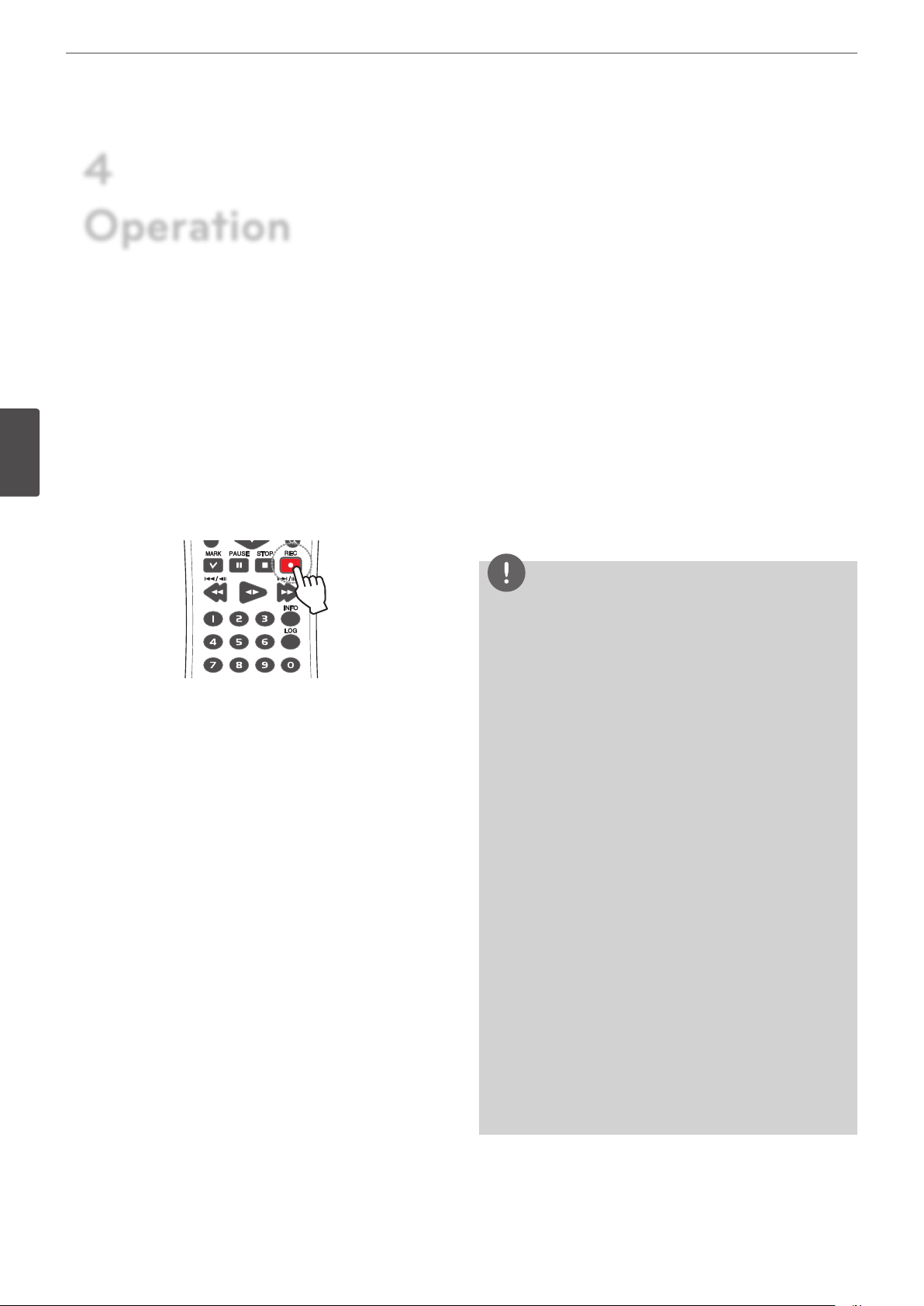

Operation

38 Instant Recording

38 Panic Recording

48 Factory Default Conﬁguration Settings

54 Speciﬁcations

39 Instant Playback

39 Search and Playback

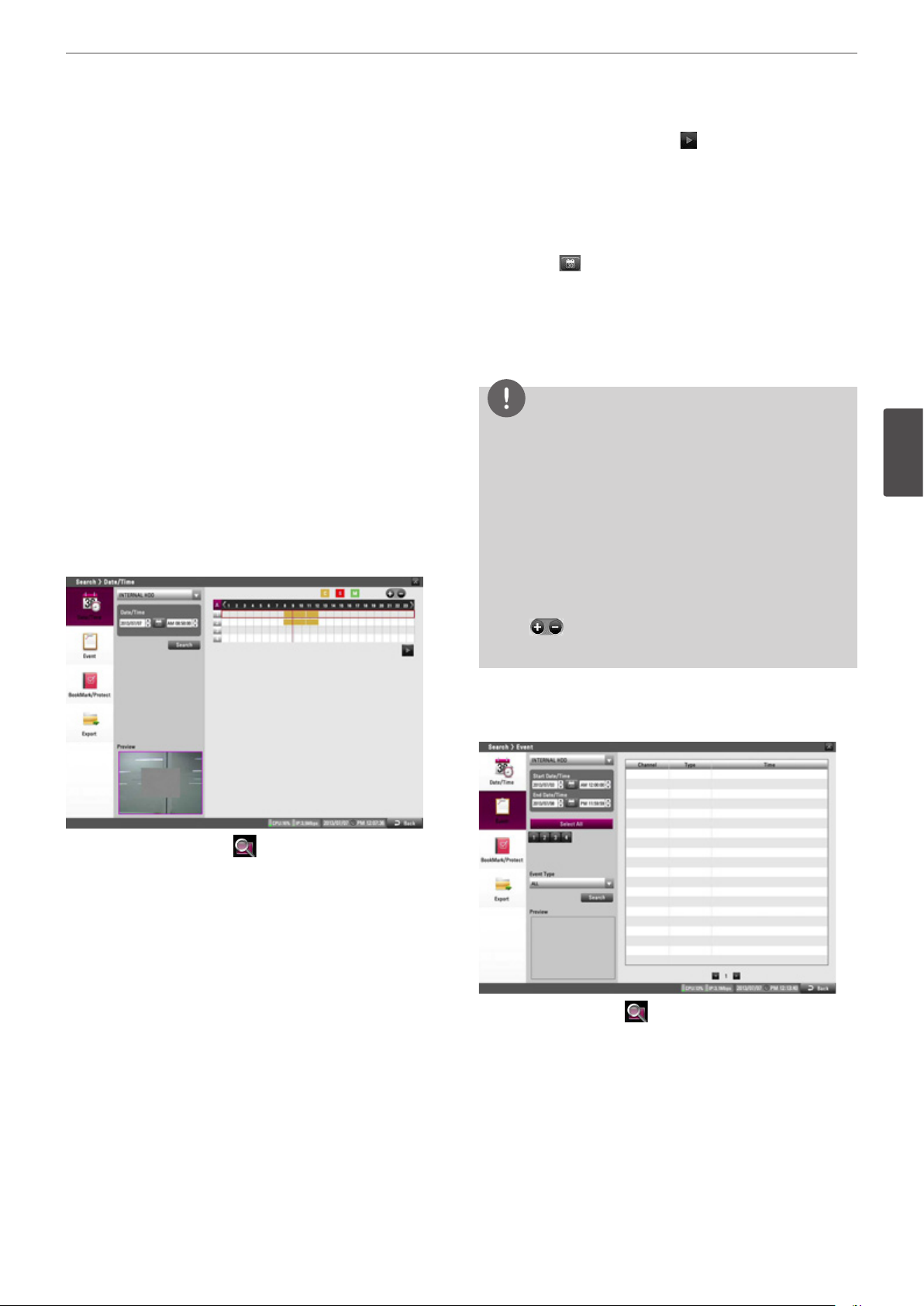

39 Date and Time Search

39 Event Search

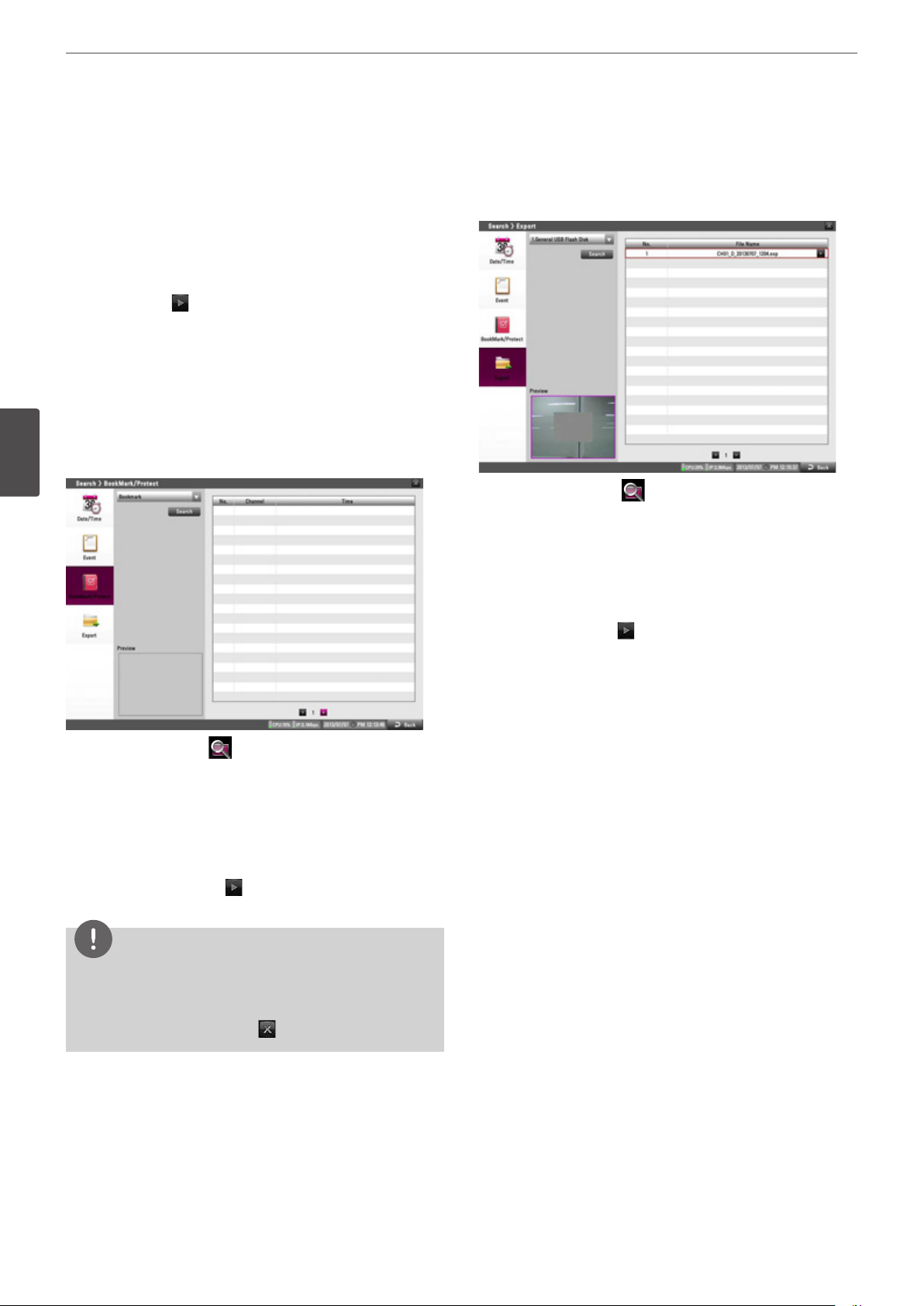

40 Bookmark/Protect Search

40 Export Search

41 Functions Available During Playback

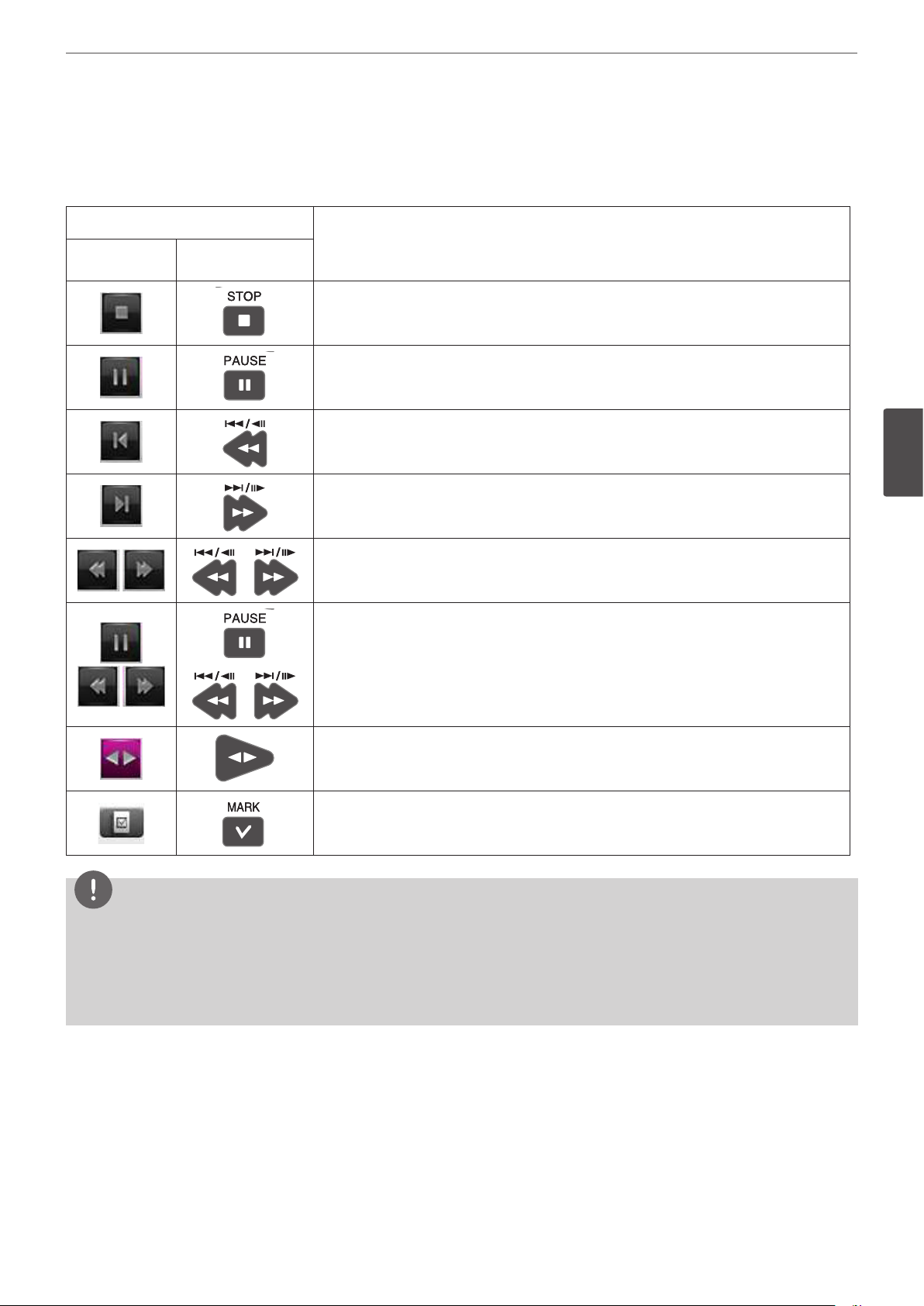

42 Using the playback control menu

42 Using the Protect function

Troubleshooting

Appendix

45 Recommended Devices

45 Recommended USB Memory list

45 Recommended External Device list

46 Supported function list for device

46 Supported IP Camera Audio/Video Codec

47 Time zones

Preparation

2 Preparation

Preparation

Introduction

Model LRN3040N (4 Channel) is used for the description, operation and details provided in this operating guide.

Accessories

CD (Software

and Owner's

Manual)

Mouse

Features

• Stable embedded Linux operating system.

• Journal filing system for HDD file recovery following power

recovery.

• Internal storage expandable to 2 TB.

• Easy operation using various user interface & user friendly GUI.

- Optical mouse, Full function IR remote controller

• Powerful multiplex function.

- Simultaneous live display, recording, playback, network transmission, back-up.

• Various search function.

- Date/time search (calendar search), Event search, Bookmark/Protect search, Export search.

• Pre-alarm recording (Up to 1 minute).

• Powerful record scheduling.

• Instant playback in live mode.

• Perfect audio/video synchr onization.

• Automatic backup by schedule.

• Image authentication (Watermark).

• 2 of USB 2.0 ports for backup interface.

• Setup configuration export/import with USB memory stick.

• Easy system S/W update with USB memory stick or network.

• Clients S/W can manage max 300 servers.

• Max five clients can access one server simultaneously.

• Network bandwidth throttle.

- Automatically adjust a bandwidth according to network speed status of unit.

• Remote alarm notification via client software or E-mail.

• Time and date sync from NTP server.

• Daylight saving mode.

• Covert camera protection.

• Support Gigabit Ethernet.

• E-SATA storage interface.

• Two-way audio.

• User management (User level control).

• PTZ Control.

- IP camera telemetry control (OSD control).

Remote

Control

DC adaptor

SATA cable(s)

HDD fixing

screws

AAA type

batteries

Power Plug

SATA power

cable

Simple

Manual

Front Panel

POWER

HDD LAN

H.264 Network Video Recorder

a b c d e

Remote Sensor: Point the remote control here.

Power Indicator: Lights when the system is powered.

HDD Indicator: Lights when the HDD is accessed.

NET Indicator: Blinks when the network is connected.

USB Port: Connects an external USB device for backup or playback.

Preparation

Rear Panel

OUT

ALARM

RS 485

AUDIO

VGA

- + 1 2 3 4 G 1 2 G

HDMI

OUT

LAN

a b c d e f g h i j k l

AUDIO IN: Connect the audio output of an external device.

AUDIO OUT: Connect to an active speaker with a built-in amplifier.

VGA: Connect a VGA monitor.

HDMI: Connect to monitor or display device with HDMI inputs. (Interface for digital audio and video)

RS-485 Terminals: Connect LKD1000.

ALARM-IN Terminals: Input terminals for alarm (relay) signal.

RELAY-OUT Terminals: Output terminals for alarm (relay) signal.

LAN Port: Connect the ethernet 10/100/1000 Mbps network cable for controlling this unit via a PC network.

CAM Port: Connect the IP Camera. (PoE+ Support) Do not connect more than 3 ea of PoE+ IP camera at once.

E-SATA: Connect the external SATA device.

USB Port: Connect an optional extension USB device.

Power Cord Inlet (DC IN): Connect the power plug.

CAM

USB

5 V 0.5 A

E-SATA

DC 48 V

Preparation

Remote Control

Preparation

Button Description

POWER (1)

VIEW

CAM

ALM.OFF

OSD

SETUP

wsad

COPY

MARK

PAUSE (M)

STOP (Z)

REC (X)

c, C/aM

v, V/Md

Number Buttons

INFO

LOG

PTZ

TOUR

ZOOM + / -

FOCUS + / -

IRIS + / -

SET

CLEAR

MOVE

BACK

Turns system off.

Displays the User Log-In dialog box or logs out.

Set the appropriate system ID to operate via the IR Remote Controller when using the multiple system. Press the ID button then press the number button within 2 seconds to select the system ID of the system. If you set the system ID to “0”, you can control multiple system at the same time.

Displays the split mode menu.

Displays the Monitor menu to set the first camera channel.

Cancels alarm activation and returns the system to the condition before the alarm was activated.

Accesses or minimizes the system control bar.

Displays the setup menu.

Selects or moves between the menu options.

Confirms menu selections.

Copies the recording data to an external device.

Displays the search menu.

Sets the mark point for recording search. You can set the mark point during the single or multi channel playback of recorded data.

Pauses playback.

Stops playback.

Starts or stops recording.

Searches the recorded images in reverse or skips the recorded images.

Playback or reverse playback of recorded images.

Forward searches the recorded images or skips the recorded images.

Selects the PTZ preset number, ID or channel.

Displays the system information window.

Displays the System Log List window.

Switches this unit to PTZ mode to control the connected PTZ camera.

Tours all registered preset positions in the camera.

Zooms in/out on the playback window. If you press ZOOM(+) button during viewing a live channel in full screen mode or playing back a channel in full screen mode, the digital zoom function is activated.

Adjusts the focus of a camera.

Adjusts the iris of a camera.

Registers the PTZ camera’s preset positions.

Deletes a memorized preset position.

Moves the camera to the preset position.

Exits the menu or returns to the previous screen.

3 Installation

Connections

Installation

Precautions

• Depending on the camera and other equipment there are various ways to connect the unit. Please refer to the camera manual or manuals for other devices as necessary for additional connection information.

• Be sure to switch off the camera before installation and connection.

Basic Connection Overview

Connect an external USB device for backup or playback.

OUT

AUDIO

Connect audio (line input).

VGA

HDMI

Connect a mouse device.

ALARM

RS 485

OUT

- + 1 2 3 4 G 1 2 G

LAN

USB

DC 48 V

5 V 0.5 A

CAM

E-SATA

Connect power cord.

Installation

Connect audio amplifier.

Connect the external SATA device.

Connect the IP Camera.

Connect network cable for client control or IP camera input.

Connect the alarm (relay).

Connect alarm sensors.

Connect keyboard (optional).

Connect HDMI type monitor.

Connect VGA monitor.

E-SATA

USB

5 V 0.5 A

DC 48 V

CAM

ALARM

VGA

HDMI

E-SATA

USB

5 V 0.5 A

LAN

DC 48 V

CAM

- + 1 2 3 4 G 1 2 G

OUT

ALARM

RS 485

E-SATA

USB

5 V 0.5 A

DC 48 V

ALARM

E-SATA

USB

5 V 0.5 A

LAN

DC 48 V

CAM

- + 1 2 3 4 G 1 2 G

OUT

ALARM

Installation

Connecting Display device

This unit can be output simultaneously from the HDMI and VGA jack. The video signal connects between the system and the monitor.

VGA Monitor connection

Connect the VGA jacks on the rear of the unit to the corresponding input jacks on the TV or monitor using the VGA cable.

VGA Monitor connection

485

- + 1 2 3 4 G 1 2 G

OUT

Installation

OUT

AUDIO

VGA

HDMI

Connecting Audio device

Connect the AUDIO OUT jacks on the unit to the mono audio in jacks on your audio device.

Microphone and Speaker connection

RS 485

OUT

AUDIO

LAN

VGA

HDMI

Connecting USB device

USB device connection

HDMI Monitor connection

Connect the unit to the HDMI monitor using a HDMI cable (Type A, High Speed HDMITM Cable).

HDMI Monitor connection

AUDIO

VGA

485

- + 1 2 3 4 G 1 2 G

HDMI

OUT

LAN

CAM

POWER

HDD LAN

H.264 Network Video Recorder

USB

DC 48 V

5 V 0.5 A

LAN

CAM

E-SATA

USB Memory device

Insert the memory device into the USB port. The system automatically recognizes the device. The system software can be easily upgraded using a USB memory device.

Installation

USB

DC 48 V

OUT

ALARM

RS 485

USB External device

Connect the external device to the USB port. (Example: External HDD or other external storage.)

Mouse

Connect the USB mouse to operate the system.

Connecting E-SATA device

You can use E-SATA storage for data back-up or recording.

E-SATA device connection

USB

OUT

LAN

CAM

5 V 0.5 A

E-SATA

DC 48 V

LAN connection

Connect the LAN port to an available 10/100/1000 base-T port with a straight ethernet cable (not supplied). The NET indicator on the front panel will be lit.

IP Camera connection

Connect the IP camera. After the installation, check the IP camera settings on the setup menu.

Automatic network configuration

The system can automatically obtain and configure the network interface via DHCP.

Manually configure network

The system may be manually configured by assigning an IP address, subnet mask, gateway and DNS.

NOTE

This unit can be supported IPv4 and IPv6 network.

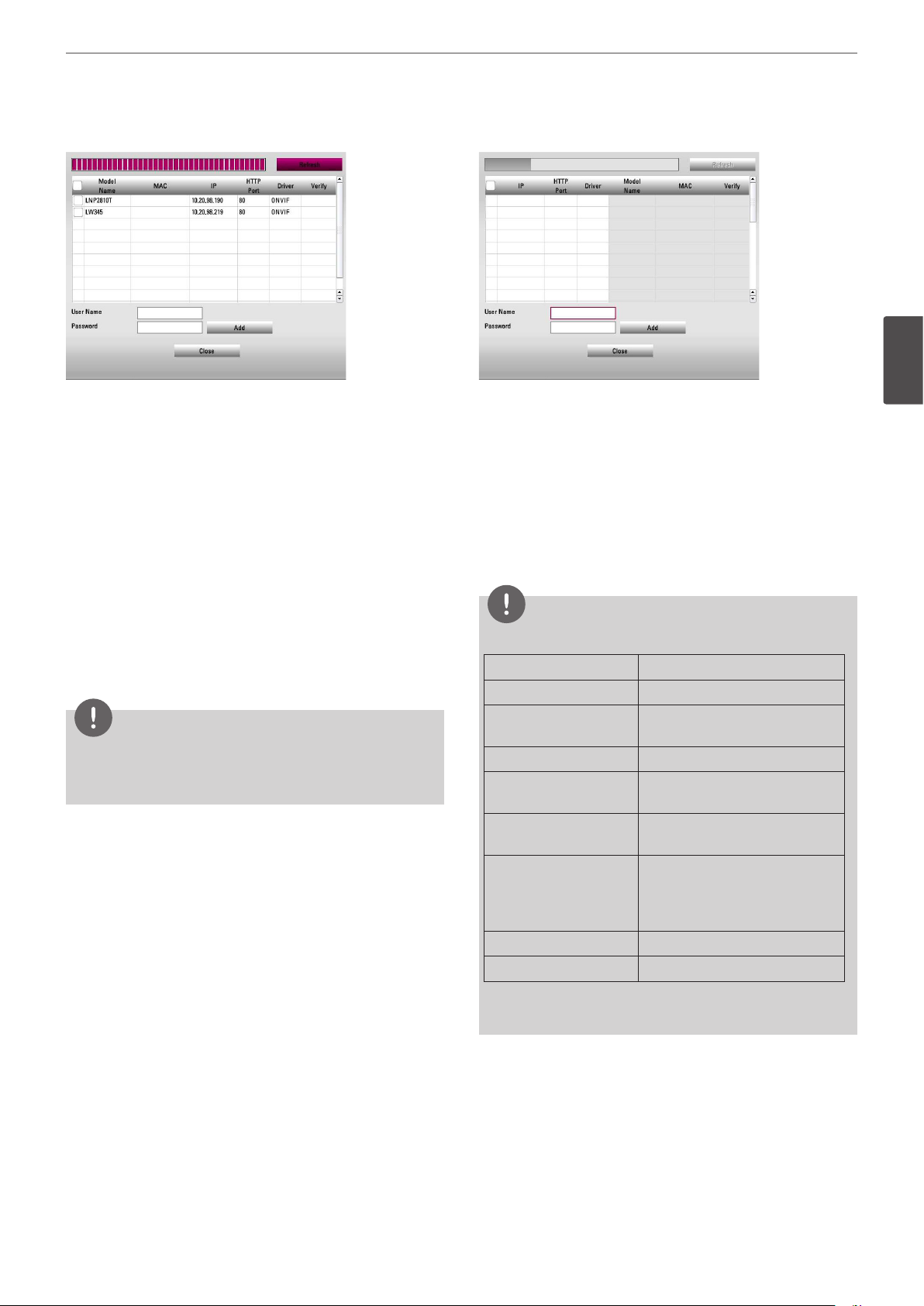

Connecting IP Camera

Connect the IP Camera for Plug and connect.

Installation

NOTE

Connecting Network

You can control and monitor the system via network. With the remote control (monitoring), you can change the system configuration or monitor the image via network. After the installation, check the network settings for the remote control and monitoring work.

Network connection

5 V 0.5 A

E-SATA

Broadband

Service

- + 1 2 3 4 G 1 2 G

LAN

CAM

Router

• To use IP Camera for plug and connect port, should be set to DHCP. It will be changed to Static automatically by the system.

• When you connect a camera, you should set the administrator ID and password of camera as below table.

ID Password

admin admin

root root

root 4321

• The IP camera must be supported ONVIF.

IP Camera connection

ALARM

OUT

LAN

CAM

USB

5 V 0.5 A

DC 48 V

E-SATA

USB

0.5 A

DC 48 V

E-SATA

USB

5 V 0.5 A

LAN

DC 48 V

CAM

- + 1 2 3 4 G 1 2 G

OUT

ALARM

RS 485

E-SATA

USB

5 V 0.5 A

LAN

DC 48 V

CAM

- + 1 2 3 4 G 1 2 G

OUT

ALARM

RS 485

E-SATA

USB

5 V 0.5 A

DC 48 V

CAM

- + 1 2 3 4 G 1 2 G

OUT

ALARM

RS 485

E-SATA

USB

5 V 0.5 A

LAN

DC 48 V

CAM

- + 1 2 3 4 G 1 2 G

OUT

ALARM

RS 485

LAN

- + 1 2 3 4 G 1 2 G

OUT

ALARM

RS 485

TX+TX-

Installation

Connecting LKD1000 Controller

This system has a data terminal. Use this port to connect keyboard (optional).

RS-485 Terminal Description

- (DATA -) Data Transmission/Reception

+ (DATA +) Data Transmission/Reception

GND Shield

Connect the LKD1000 controller to control the system. (Refer to the manuals of the LKD1000 controller for more details.)

Installation

LKD1000 controller connection

ALARM

RS 485

- + 1 2 3 4 G 1 2 G

VGA

HDMI

OUT

LAN

Connecting Alarm Input and Alarm Output

Alarm terminals are used to connect the alarm devices such as sensors, door switches, etc.

Alarm Input

You can connect up to 4 alarm sensors. Each alarm sensor should be connected with G (GND). The signal state is adjustable to N/O (Normal Open) or N/C (Normal Close) through the setup menu.

Sensor input connection

5 V

CAM

AUDIO

VGA

HDMI

LAN

TX+TX-

Alarm

sensor

Alarm

sensor

Controller LKD1000

Terminal No. Description

1 Sensor Input 1

2 Sensor Input 2

3 Sensor Input 3

4 Sensor Input 4

G Ground

Installation

USB

5 V 0.5 A

DC 48 V

- + 1 2 3 4 G 1 2 G

OUT

ALARM

RS 485

LAN

- + 1 2 3 4 G 1 2 G

OUT

ALARM

RS 485

Alarm Output

Connect the alarm device to the alarm output. Alarm signal outputs when an event occur.

Alarm output connection

HDMI

LAN

CAM

E-SATA

Alarm device

Terminal No. Description

G Ground

1 Alarm Output 1

2 Alarm Output 2

NOTE

The internal switching relays are rated for 0.3 A at 125 V AC or 1 A at 30 V DC. If the electric current is higher than that the unit can be damaged.

HDD INSTALLATION

Note for Hard Disk Drive

The internal hard disk drive (HDD) is a fragile piece of equipment. Please follow the guidelines below when using the system to protect against possible HDD failure. We recommend that you back up your important recordings onto an external backup device in order to prevent accidental loss.

Make sure that the power is turned OFF when attaching or removing the HDD.

• Do not move the system while the power is on.

• Do not use the system in excessively hot or humid places, or in

places that may be subject to sudden changes in temperature. Sudden changes in temperature can cause condensation to form inside the system. This can be a cause of HDD failure.

• While the system is switched on, do not unplug from the wall socket or switch the electricity off from the breaker switch.

• If there’s a power failure while the system is on, some data on the HDD may be lost.

• Do not drop the HDD. Also do not put the metallic object such as coins or screwdrivers into the HDD tray.

• When a power failure occurs during recording, avoid adding, replacing or transporting the HDD as the recorded data may be erased. In this case, turn the power back on to boot up the unit normally with the HDD that was being used at the time of the power failure attached. Then add, replace, or transport the HDD.

• The HDD is very delicate. Handle the HDD with care and follow the precautions below because even a tiny shock may damage the internal components of the HDD.

- Do not place the HDD on the desk or table directly. Put a thick cushion under the HDD because even a small shock may damage the internal components of the HDD.

- Do not use an electric screwdriver. Vibrations and shocks caused by an electric screwdriver may damage the internal components of the HDD.

- When replacing the HDD, do not knock the HDD with other components such as another HDD and the HDD tray.

- Do not knock the HDD with tools such as a driver when replacing the HDD.

- Protect the hard disk drives from static electricity.

Installation

Installing the Hard Disk Drive

You can install up to 1 HDD.

Improper installation or setup may disturb HDD recognition or normal product operation. So you should consult with an expert from the store where the product was purchased.

1. Remove the fixing screws on the left/right side and rear panel.

ALARM

RS 485

OUT

AUDIO

VGA

OUT

- + 1 2 3 4 G 1 2 G

HDMI

LAN

USB

DC 48 V

5 V 0.5 A

E-SATA

CAM

Installation

2. Detach the top case by sliding it after removing the screws. You

must lift up the top case verticality.

POWER

HDD LAN

H.264 Network Video Recorder

3. Remove the screws and detach the hard disk mounting brackets from the unit.

Installation

4. Attach the HDD onto the hard disk mounting brackets with four screws.

Replacing the Hard Disk Drive

Turn the power of the unit off and detach the power plug from the outlet.

1. Follow steps 1 to 3 described in “Installing the Hard Disk Drive”.

2. Remove the connector from the HDD.

3. Remove the screws from the hard disk drive on the bottom of the hard disk mounting bracket.

4. Replace the new HDD.

5. Follow steps 4 to 10 described in “Installing the Hard Disk Drive”.

6. After replacing the hard disk drive, insert the power plug into the outlet and turn the power of the unit on. The new HDD is detected and formatted.

NOTE

• Do not use an electric screwdriver to fix them.

automatically.

• Make sure that each of the SATA cables is connected to the connector housing through its holes.

• Do not stack them nor keep them upright.

Recommended HDD

For the latest recommended HDD list, please visit http://www.lgecommercial.com

5. Attach the hard disk mounting brackets with the screws.

6. Connect the HDD power cable. You must use the supplied SATA power cable. The SATA power cable that used for normal PC is not compatible with this unit.

7. Connect the Serial SATA cable.

8. Connect the SATA cable of the HDD to the SATA connector of the main board.

9. Assemble the top case.

10. Fix the screws.

11. When you turn the power of the unit on, the new HDD is detected and formatted automatically.

NOTE

If you do not use the recommended HDD, the system may not be operated normally.

Installation

System Operation

1. Turn on the unit. System booting will commence. The LG logo image will be displayed on the main monitor during the system booting.

2. When the booting is completed the live window will be

displayed. Click the icon on the system control bar or press

the LOGIN button on the remote control to display the log-in window.

3. Select a user name by using the mouse or arrow and the OK button on the remote control. For the first time, you can select the ADMINISTRATOR user name only. You can register a new user with various access rights using the user setup menu.

4. Enter the password by using the virtual keyboard. (Note that the default administrator password is “000000”.)

5. Click the [OK] icon. You can see the live screen and operate the system.

NOTE

If the system is turned off accidently and then turned on again, the system may take a long time to be rebooted.

System Shutdown

General Explanation of the Live Screen on the Main Monitor

Main Monitor Screen

ab c d e f g h

Channel Number

Displays the channel number.

Channel Name

Displays the edited channel name.

Channel FPS

Displays the channel FPS value.

Quick Buttons

The Quick Buttons will appear when the mouse is moved to the camera's live screen. You can use the following functions by clicking it for the selected channel.

Installation

1. First, you must stop playback and exit the setup menu. In playback, press STOP.

2. Press and hold 1 (POWER) button on the remote control until the beep sounds and the logout window will be displayed.

3. Enter the password by using the virtual keyboard.

4. Click the [OK] icon. The system will shutdown.

You can use the playback function.

You can use the digital zoom function.

You can control the PTZ Camera. (optional)

Camera Status Icon

Displays the PTZ camera status.

Displays the input audio status.

Displays the IP camera status.

Gold “C” indicates continuous recording.

Gold “I” indicates Instant recording.

Red “S” indicates sensor triggered recording.

Green “M” indicates motion detection recording.

Gray “N” indicates the channel is not being recorded.

Selected Channel

Displays the selected channel with red box.

Installation

System Control Bar

( )

Displays the CPU usage and Data traffic level of IP cameras.

Displays date and time.

Search: Displays the search menu.

Alarm Off: Turns the alarm off.

Camera: Displays the Monitor menu to set the first camera channel.

Split mode: Displays the menu for selecting the screen division.

Video Export: Displays the export menu.

System Log: Displays the system log list window.

System Information: Displays the system information window.

Selecting the Split mode

You can select the live screen mode to display a full or 4-split on the main monitor.

1. Press VIEW or click icon in the system control bar.

2. Select a screen mode.

Screen split mode

Setup: Displays the setup menu.

Minimizes the System Control Bar.

NOTE

• To display / minimize the system control bar

To display or minimize System Control Bar, press OSD on the remote control or click

• You can also use the system control's options by clicking the right button of the mouse on the Main Monitor screen.

• When data signal color of IP camera is changed yellow or red, reduce bit rate, frame rate, resolution and connections of IP camera.

Live Screen

Displays the current surveillance live screen.

or in the System Control Bar.

Moving the Channel's Position

You can change the camera channel's position in a split screen of the Main Monitor.

1. Select a desired channel by clicking the left button of the mouse.

2. Drag and drop it to a desired location and the channel's position will be changed.

Sequence mode

• Full Screen Mode: You can view the live window in full screen mode.

• Screen Split Mode: Displays selected split screens on the main monitor.

• Sequence: You can view all the channels in sequence. You cannot use sequence mode with the 4 split.

3. Select [OK] and press OK to confirm your selection.

NOTE

To display the screen you want to watch in full screen mode, double click the desired channel.

Changing the order of cameras

You can change the order of the cameras shown on the monitor.

1. Press CAM or click the icon in the system control bar.

2. Select a camera number you want to set as first monitor.

- [Restore to Default] : Camera 1 is set in first monitor.

3. Select [OK] and press OK to confirm your selection.

Installation

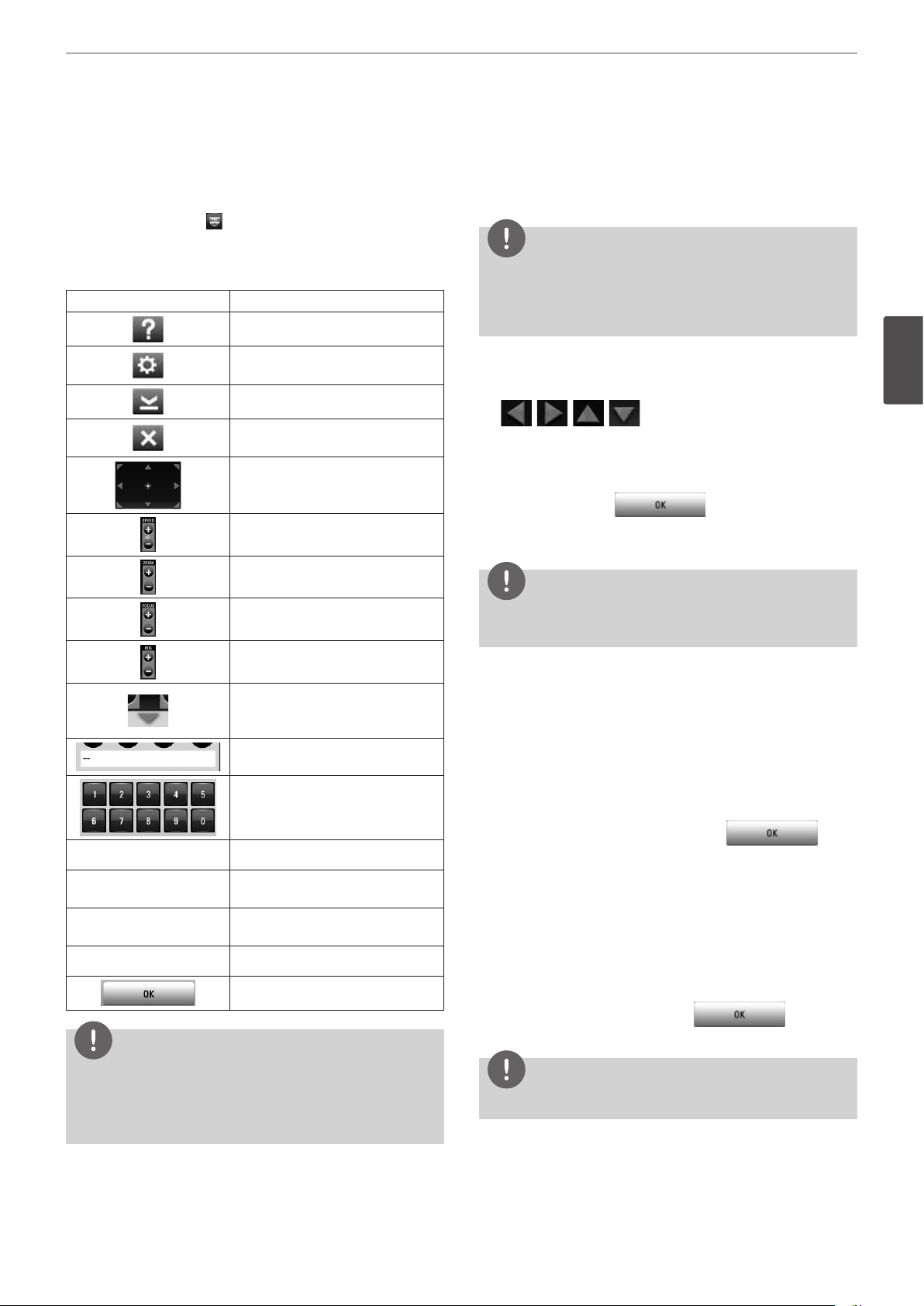

PTZ Camera Control

You can control the cameras connected via Network.

1. Select the PTZ camera channel on the main monitor you want to control.

2. Press PTZ or click the icon that appears when the mouse is moved to PTZ camera's screen. Virtual PTZ remote control is displayed on the main monitor.

3. Use each item to control the PTZ camera.

Button Function

Displays the PTZ control guide.

Displays the setup menu of the PTZ camera.

Minimizes PTZ virtual remote control.

Removes the PTZ virtual remote control.

Use to pan/tilt the camera.

You can select the Pan/Tilt/Zoom speed.

You can adjust the camera zoom.

You can adjust the focus of a camera manually.

You can adjust the iris of a camera manually.

Displays or disappear the preset control options in the virtual PTZ remote control

Displays the Selected Preset number.

Preset Settings

Preset position is the function to register camera monitoring positions (preset positions) associated with position numbers. By entering the position numbers, you can move cameras to the preset positions.

NOTE

• To activate this function, you need to register the preset positions of the PTZ cameras.

• ONVIF preset may not be operated properly with this unit.

To Register Preset Positions

1. Move the camera to a point you wish by using the

, , , buttons.

2. Press SET or click the y icon.

3. Select the preset number you wish to register.

4. Press OK or click the icon.

The position and its number are memorized.

5. Repeat steps 1 to 4 to add additional positions.

NOTE

Preset numbers from 0 to 255 are available on this unit but the actual preset range differs depending on PTZ cameras.

Changing to a Picture in a Preset Position

The following function is available only with cameras provided with the preset function. The preset function makes the combination camera move to the programmed preset position. It is necessary to program preset positions for the combination camera beforehand.

1. Press the MOVE button or click the t icon.

Installation

To input the preset number.

y r

To register preset positions.

To delete a memorized preset position.

To move the camera to the preset position.

To start a preset tour.

Confirm the preset position.

NOTE

You can use some options by clicking the right button of the mouse in PTZ camera control mode.

• PTZ Control Guide: Shows the guide for using the mouse.

• Exit: Exits from the PTZ camera control mode.

2. Use number buttons to enter the memorized preset position’s

index number then press OK or click the icon.

The camera moves to the preset position and the picture of the camera in that position appears on the monitor.

To Clear the Preset Position

You can clear a memorized preset position.

1. Press the CLEAR button or Click the r icon.

2. Use number buttons to enter the memorized preset index

number then press OK or Click the icon to clear

the preset positions.

NOTE

This function may not be available depending on PTZ cameras.

Installation

To Tour The Preset Positions

You can tour all preset positions.

1. Press the TOUR button or Click the

All registered preset positions in the camera will be selected and the camera position image will be switched on the active monitor.

2. You can stop the tour by pressing the TOUR

button or clicking the u icon.

icon.

Setup for PTZ Cameras

You can adapt the camera to your requirements by setting up the respective items in menus.

1. Click the icon.

Installation

The setup menu appears in the selected window of the main monitor.

2. Use , , , , , , , and

buttons to set the options.

NOTE

• Refer to the manuals of the PTZ camera for more details.

• Some PTZ cameras may not operated properly with this unit.

• You cannot control the other functions when the PTZ virtual

remote control is displayed.

Using the Digital Zoom function

You can enlarge the current screen 2-4 times using the digital zoom function on one live channel with full screen mode or one channel playback with full screen mode.

1. Press ZOOM(+) button during viewing a live channel in full screen mode or playing back a channel in full screen mode.

2. You can use the zoom screen as following.

• You can move the position of the zoom screen by using the

w/s/a/d

• You can move the zoom screen by using the mouse. Drag &

drop a point to the specific point to move the zoom screen.

3. Press BACK button to exit.

buttons.

Export the recorded data

This unit can manually copy recorded images and audio from builtin HDD to the external recording devices.

1. Press COPY or click the icon in the system control bar. The [Video Export] menu appears.

2. Set the [Start Date/Time] and [End Date/Time] to search.

•

a/d/w/s

•

w/s

• OK: Selects option or confirms the setting.

3. Select the channel number and press OK. Repeat this step to select multi channels.

4. Select the one of file format on the drop-down list of the [File Format].

• Native: The Native file is saved with the extention of “*.exp”.

The saved native file can playback using the Export Viewer program.

• AVI LG: To playing AVI LG file, you have to install the LG DVR

Codec. If you install the LG Network Client, do not need to install the LG DVR Codec.

• AVI: If you select AVI file format, it can play on any media

player.

5. Select [Export to] then press OK.

6. Use

w/s

7. Press OK to confirm it.

8. Click the [Export] icon to start exporting. The exported data will be authorized by the unit before saving and it can only be played back with the exclusive player.

: Moves to the options.

: Sets the selected option.

to select a target device to export.

NOTE

The zoom function is deactivated when below case.

• When double click the left mouse button.

• Press the specific channel or function button on the remote

control.

• Press the STOP button during the playback.

You can use some options by clicking the right button of the mouse in the digital zoom mode.

• Digital Zoom Control Guide: Shows the guide for using the mouse.

• Exit: Exits from the digital zoom mode.

Installation

NOTE

• Check the export device before you proceed.

• You can also use the COPY button on the remote control for

export function.

• If you use the external device, the external device has to be formatted on this unit.

1. Connect the external device to the USB port on the front

or the rear of the system.

2. Select the [Format] icon then press OK.

Confirm window is displayed after format is completed.

3. Select [OK] and press OK to close the window.

• Check the size of the selected data and free space of the external device. If the device does not have enough space, create space on the device or erase the previously stored data.

• Export can not be executed while the backup is in progress.

• You can search the exported data with the supplied viewer

software.

• When you export the recorded data, the video data, audio data, the system log and event log data will also be exported.

• When you export the recorded data the export viewer program will also be exported in the [ExportViewer] folder of the device. The exported data file name is made automatically as the [Channel name_export date_export time.exp] type.

• Do not remove the USB device while the export is in progress, it may cause a malfunction.

• The warning message appears for the conditions listed below.

- When the start date/time and end date/time are the same value.

- When the start date/time is later than the end date/time.

- The export media does not have enough space.

- When you set the time for data that does not exist.

• An external media has to be formatted on this unit to prevent a malfunction.

Viewing the System Log List

To view the system log list:

1. Press the LOG button or click the icon in the system control bar.

2. Set the [Start Date/Time] and [End Date/Time] to search.

•

a/d/w/s

•

w/s

• OK: Selects option or confirms the setting.

3. Use

a/d

4. Press the BACK button or click the [Close] button to exit the window.

NOTE

Refer to the following system log list.

No. Log Message

1 Power On

2 Power Off

3 Login (Remote)

4 Logout (Remote)

5 Login (Local)

6 Logout (Local)

7 Configuration Changed

8 Configuration Imported

9 Factory Default Set

10 Power Recovery

11 Backup Started

12 Backup Finished

13 Backup Failed

14 Export Started

15 Export Finished

16 Export Failed

17 S/W Updated

18 HDD Damaged

19 HDD Added

20 HDD Deleted

21 HDD Formatted

22 HDD Changed

: Moves to the options.

: Sets the selected option.

to see the previous or next log list.

Installation

Viewing System Information

To view system information:

1. Press the INFO button or click the icon in the system control bar.

Installation

• Ethernet 0: Displays the detail information of the Network.

• Camera Information: Displays the detail information of the

camera framerate.

• HDD Information: Displays the detail information of the

HDD.

Configuration menu

The features and options of the system are configured through the menu. The operations of this unit can be set via a menu displayed on the main monitor. You can select and set the operational conditions by using the buttons on the remote control or using a Mouse connected to the unit.

First level

Second level

Third level

• Refresh: Updates the system information.

2. Press the BACK button or click the [Close] button to exit the window.

Informations

Using a mouse to set a menu

Use the left mouse buttons to set the menu.

Button Function

Left button Use to select a required item.

1. Click the icon on the System control bar with the left mouse button to display a setup menu.

2. Click the desired option with the left mouse button to display the second or third level menu options.

3. Click the desired option with the left mouse button.

4. Set the selected options value.

5. Click the icon or click icon repeatedly to exit setup menu.

If the save message appears, click [OK] with the left mouse button to save the settings.

Installation

Setting the Menu Using the Remote Control Buttons

Remote Control

Use these buttons to select the menu options or adjust the options value.

Select the option or confirm the setting.

Return to the previous menu or level.

1. Press SETUP to display the setup menu.

2. Use display the submenu.

3. Use to display the setting options.

4. Use value.

5. Use your selection.

6. Press BACK repeatedly to exit the Setup menu. If the save message appears, select [OK] and press OK to save the settings.

to select the desired menu item, then press OK to

w/s

to select the desired submenu item, then press OK

w/s

to select the desired option then press OK to set the

w/s

to select the desired setting then press OK to confirm

a/d

Description

NOTE

All the operation explanations are based on using the remote control.

System settings

Properties

Installation

• System Name: Enter the system name by using alphabetic letter, numeric digit and symbols up to 21 characters. The number of maximum characters is depends on the language.

• Language: Select a language for the setup menu and information display.

• Button Beep: Marks up to activate the button beep. The button beep is activated when using the buttons.

• Resolution: Sets the output resolution of the video signal.

• Configuration Import: Import the system configuration data

from the USB memory stick.

• Configuration Export: Export the configuration data from this system to the USB memory stick.

• Factory Default: You can reset the system to its original factory settings. Some options cannot be reset (date, time, daylight saving, time zone and user password settings).

Installation

TCP/IP v4

Installation

• Interface: Select a LAN port you want to use.

• DHCP: Select this option when a DHCP server is installed on the

network to allow IP address assignment. With this setting, the IP address is assigned automatically.

• IP Address: Enter the IP address.

• Subnet Mask: Enter the subnet mask address.

• Gateway: Enter the gateway address.

• Primary DNS: Enter the Primary domain name server that

translates the hostnames into IP address.

• Secondary DNS : Enter the Secondary DNS server address that backups the Primary DNS.

TCP/IP v6

• Interface: Select a LAN port you want to use.

• Auto: Select this option to assign the IP address automatically.

• IP Address: Enter the IP address.

• Subnet Prefix Length: Enter the Subnet Prefix length.

An IPv6 prefix indicates the portion of the address used for routing or identifying an address range.

• Gateway: Enter the gateway address.

• Primary DNS: Enter the Primary domain name server that

translates the hostnames into IP address.

• Secondary DNS : Enter the Secondary DNS server address that backups the Primary DNS.

Network

• TCP/IP Port No.: Enter the TCP/IP Port number. You can watch the live surveillance image over the network with the PC Client program. The factory default TCP/IP port for transmission of video data is 9001 and audio data is 9003. However in some cases it is better to change this port number for added flexibility or security. You can edit this port between 1025 and 65535.

• Web Server Port No.: Enter the Web Sever Port number. You can watch the live surveillance image over the network with a web browser. Typically the TCP port used by HTTP is 80. However in some cases it is better to change this port number for added flexibility or security. You can edit this port to 80 or between 1025 and 65535.

• Audio Port No.: Enter the Audio Port number. You can edit this port between 1025 and 65535.

• Bandwidth Throttle: Select [All] or [Per User] to set the bandwidth value.

- All: Set same bandwidth to all of users.

- Per User: You can set the bandwidth value per each user. Select [User ID] from the left drop-down list. And then, set the bandwidth from right drop-down list

• RTSP Port : Enter the RTSP Port number. You can edit this port between 1 and 65535. Default Port number is 554.

• DDNS Service: Marks up to activate the DDNS function. This free service is very useful when combined with the LG DDNS Server. It allows the user to connect the IP device using the URL, rather than an IP Address. This also solves the problem of having a dynamic IP address.

• Host Name: Enter the host name you want to use. You can not use the “www ”, “mail”, “http”, “ftp”, “com”, “lg”, “lge”, “lgddns”, “lgeddns”, “ddns” for host name.

• Registered Host: The registered host name appears.

• Update: Register the host name you typed in [Host Name] to LG

DDNS server.

How to register DDNS host name

When you use the DDNS function for the first time after you purchased LG DVR/NVR

1. Displays the DVR/NVR setup menu.

2. Select [System] > [Network] option.

3. Marks up for the [DDNS Service] option.

4. Enter the host name in the [Host Name] option.

5. Press the [Update] button. If host registration is properly completed, the host name will be displayed in the [Registered Host] option. If the host name is not registered after updating, please check network connection.

Installation

When you want to change DDNS host name

If you want to change the registered host name to new one, follow as shown below.

1. Enter a new host name in the [Host Name] option.

2. Press the [Update] button. The confirmation window will be displayed to change your host name.

3. Click the [OK] button. When host name is properly changed, the changed host name will be displayed in the [Registered Host] option. If host name is not changed after updating, please check network connection.

Network Streaming

• CH: Displays the channel number.

• Profile: Selects the profile of stream. The [Profile] option is

activated in case of IP Camera only.

NOTE

function.

• Daylight Saving Start: Select the Daylight Saving start time.

• Daylight Saving End: Select the Daylight Saving end time.

NTP

Installation

• NTP: Marks up, if you want to synchronize the system's date and time with those of the time server called NTP. (Network Time Protocol) Specify the NTP server’s name.

• Time Server: For most cases select public. The system will obtain the average time among 5 public servers (time.nist.gov, time-a. nist.gov, time-b.nist.gov, ntp.nasa.gov, clock.isc.org).

• Private Time Server: Enter the private time server’s IP address or host name using the virtual keyboard.

• Sync. Interval: You can set synchronized intervals with the NTP time server to 1 day, 1 week, 1 month and 1 hour.

• NTP Test: Select [NTP Test] to test the NTP server.

If you need to adjust the image size to send to the client, set the stream option of the [IP Device-Profile1 or Profile2]. And then select the proper Profile from the [Network StreamingProfile]. You can control the bandwidth value forward to client.

Date/Time

• Date: Select the current year, month and day.

• Time: Select the current time.

• Date Format: Select the date display format.

• Time Format: Select the time display format.

• Time Zone: Select the time zone in the area where the system is

installed.

• Daylight Saving: Mark up if you want to use the daylight saving

NOTE

If the NTP option is not set to this system, there can be a gap between the system time and actual time. Using NTP is recommended.

Controller

• IR Remote ID: Select the IR Remote ID for this unit. If you use multi systems set the IR Remote ID for each unit.

• Remote Controller ID: Select the Remote Controller ID for this unit. If you use multi systems, set the Remote Controller ID for each unit. You can control the system by using the LKD1000 controller. (For more details refer to the LKD1000 owner’s manual.)

Installation

Update

This function is aimed at upgrade the system software. In this case, the current system settings are not deleted or replaced during the update process.

Installation

1. Selects the update method.

2. Selects the device included update file or enter the FTP server name.

NOTE

If you select the update method to [LOCAL], the [FTP Server] option will be disabled and the [Device] option is activated. And if you select update method to [NETWORK], the [Device] option will be disabled and [FTP Server] option is activated.

3. Select the [Search] button and press OK. The update file is displayed in the list.

4. Choose the update file from the list.

5. Select the [Update] button and press OK. The confirmation window is displayed.

6. Select [OK] to begin the update process or click [Cancel] to stop and exit. After the update process is completed, the [Restart the system] message appears.

7. Click [OK] to restart the system.

NOTE

• Do not turn the power off during the update process to prevent the malfunction.

• Do not remove the external device for update while the update is in progress. It may cause a malfunction.

Backup

• Schedule: You can set the backup schedule.

- OFF: All options are disabled.

- WEEKLY or DAILY: The backup data will be automatically saved according to the setting.

- INSTANT: The backup data is saved manually.

• Device: Select a backup device.

• Schedule Start: Set the schedule start date (A day of the week

and time).

• Time Range Date: Enter the backup time range. Enter the date you want to backup.

• Time Range Start: Enter the start day of the week or time.

• Time Range End: Enter the end day of the week or time.

• Estimate Size: Displays the size of backup data and the free

space of external devices.

• Start Backup: To start backup.

• Erase Media: To erase the media.

Instant Backup

1. Connect the USB device for backup.

2. Select the partition you want to backup.

3. Select INSTANT from the schedule options.

4. Select the backup device.

5. Select the Time Range Date, Time Range Start time, and Time Range End time for backup.

6. Select the [Estimate Size] icon and press OK.

7. Check the size of the selected data and free space. If the device does not have enough space, create space on the device or erase the previously stored data.

8. Select the [Start Backup] icon and press OK to start backup.

9. Exit the setup menu. You can check the backup status on the system control bar in backup progress.

Daily/Weekly backup

1. Connect the USB device for backup.

2. Select WEEKLY or DAILY on the schedule options.

3. Select the backup device.

4. Enter the date and/or time to start backup on the schedule start option.

5. Enter the day of week and/or time on the Time Range Start option.

6. Enter the day of week and/or time on the Time Range End option.

7. Select the [Estimation Size] icon and press OK.

8. Check the size of selected data and free space of USB device. If the USB device does not have enough space, change the USB device to a USB which has enough space or erase data of the connected USB device.

Installation

NOTE

• The backup function is not supported on the external USB CD-ROM driver.

• Available external device for backup.

Device Capacity

USB HDD Up to 2 TB.

E-SATA HDD Up to 2 TB.

• Use the recommended external USB devices for preventing malfunction (See the page 45.).

• For the latest recommended HDD list, please visit http://www.lgecommercial.com

• An external media has to be formatted on this unit to prevent malfunction.

• You cannot use the [Estimate size], [Start Backup] and [Erase Media] options in backup progressing.

• Do not remove the external device while the backup is in progress, it may cause a malfunction.

• If you format the external media by using a PC with FAT32, the media may not be used on this unit.

• Check the size of the selected data and free space of the external device. If the device does not have enough space, create space on the device or erase the previously stored data.

1. Select the [Estimate Size] icon and press OK.

The size of the selected data and free space is displayed.

2. Select [OK] and press OK to close the window.

• You cannot stop the backup when the backup is in progress.

• The warning message will appear for the conditions listed

below.

- When the start time and end time are the same value.

- When the start time is later than the end time.

- When you set the time for data that does not exist.

- When the start time and end time setting are wrong.

- A media does not have enough space.

- When the selected USB device is disconnected.

• You can see the backup progress status on the system control bar.

• The estimated size of backup data is only the approximate size. So you must prepare sufficient space on the media to prevent lack of space.

• At the scheduled recording time, you can check the backup status on the system control bar.

• While export is in progress or searching the backup data from the external USB device, the scheduled backup will not be started. After the export or backup search is finished, scheduled backup will be restarted.

• When you set the schedule backup, the backup data size is estimated from the recording settings of the Setup menu. If the real recorded data size is over the estimated recording data size, the schedule backup may not be activated.

Installation

Device settings

IP Device

Installation

• CH: Displays the channel number.

• Name: Enter the channel name.

• Model Name: Displays the model name of IP device.

• MAC: Displays the Mac address of IP device.

• IP: Displays the IP address of IP device.

• HTTP Port: Enter the HTTP port number. HTTPS is not supported.

• / : You can see other options (Driver, Profile1, Profile2,

RTSP Port, RTP Mode, Audio Recording) to click button. To return previous options, click button.

• Driver: Selects the IP camera driver from the drop-down list.

• Profile1: Select the camera stream on the drop-down box for

recording.

• Profile2: Select the camera stream on the drop-down box for streaming. For smooth live playback, the resolution of [Profile2] set lower than resolution of [Profile1].

NOTE

• When you select full screen mode on the [split mode], [Profile1] operate for streaming automatically.

• When CPU usage occupies more than 90% and then 1 minute goes by, connection of [Profile2] is limited for the stability of system.

• RTSP Port: Enter the RTSP port number.

• RTP Mode: Select the RTP mode from drop-down list.

• Audio Recording: Check the audio recording option.

• Setup: Click the check box of the desired channel and then

press the [Setup] button. The setup window will be displayed.

Audio/Sensor setting

You can configure this option when you select to [LGE] on the [Driver] option. Select [Audio/Sensor] tab of the [Setup] window.

- Audio In: Click the check box if you want to send the audio

from the microphone input connector.

- Audio Type: Select the codec when you send the audio from

the microphone input connector.

- Audio Out: Click the check box to output the audio from the

speaker.

- Sensor: Select the sensor number on the drop-down list.

- In Use: Marks up when you want to activate the sensor.

- Sensor Type: Select the sensor type.

- Relay Output: Select the relay output number on the drop-down list.

- Relay Type: Select the relay type.

- Control Duration: Enter the relay time.

Motion Setting

You can configure this option when you select to [LGE] on the [Driver] option. Select [Motion] tab of the [Setup] window.

1. Click the [Add] button. The motion detect window is displayed. You can add the five windows maximum for motion detection area.

2. Set the [Sensitivity] option.

3. Click the edge or corner of the window box to adjust the window size for motion detection.

4. Click the [Save] button to save the settings.

Stream Setting

If you select to [LGE] on the [Driver] option, select the [Stream] tab. When you select [ONVIF] on the [Driver] option, you can configure the stream setting only. In case of [AXIS], the [Bitrate] and the [Compression] options are activated only.

- Stream (LGE only): Select the video stream.

- In Use (LGE only): Click to activate the stream function.

- Video Codec: Select the video mode (Codec) from the dropdown list.

- Resolution: Select the output image size of the camera.

- Frame Rate: Set the frame rate of the image.

- GOP: It means “Group of Pictures”. The higher the GOP, the better is the video quality of the camera. Edit the value of GOP from 1 to 30. This setting is valid for H.264 video format only.

NOTE

It recommended that you set the [GOP] value same as [Frame Rate].

- GOV (ONVIF only): It means “Group of VOPs”. The VOP is an image frame in the MPEG-4 video stream. Edit the value of GOV from 1 to 30.

- Quality: Select the Quality.

- Stream Quality (LGE only): If the [Quality] option set to VBR, this option is displayed. Select the stream quality from the drop down box, the camera supports five types. (Highest, High, Medium, Low and Lowest)

- Bitrate: If the [Quality] option set to CBR, this option is displayed. Edit the bit rate value from 256 kbps to 10 240 kbps.

- Compession (AXIS only): Enter the compression ratio of video. The lower value you set up, the higher definition picture you get.

• Delete: Click the check box of the desired channel and then press the [Delete] button. Registered channel of IP Camera will be deleted.

Installation

To register the IP device automatically

1. Click the [AUTO] button.

2. The search window will be displayed and start to search the IP device automatically. By stopping or restarting the search, click [Stop] or [Refresh] button.

3. Click the check box of desired device.

4. Enter the [User Name] and the [Password] and then click the [Add] button. When you select several channels, channels are assigned same ID and password.

5. Confirm the result of authentication on the [Verify] option.

• O: The verification is valid.

• X: The verification is invalid. Check the ID and password

again.

• XX: Connection failed.

6. Click the check box of confirmed cameras. Selected cameras are registered channel in order.

7. Click the [CLOSE] button to exit the window.

NOTE

The information of search result such as model name, MAC and others may not be shown depending on security level or connection information.

To register the IP device manually

1. Click the [MANUAL] button.

2. Enter the IP address.

3. Click the check box of desired device.

4. Enter the [User Name] and the [Password] and then click the [Add] button. When you select several channels, channels are assigned same ID and password.

5. Confirm the result of authentication on the [Verify] option.

6. Click the check box of confirmed cameras. Selected cameras are registered channel in order.

7. Click the [CLOSE] button to exit the window.

NOTE

• The Supported IP camera specifications.

Specification Description

Driver LGE, AXIS, ONVIF

Recording mode Continuous, Instant, Motion,

Sensor

Video Codec H.264, MPEG4, MJPEG

Audio recording and playback

Resolution CIF, Half D1(2CIF), D1(4CIF), UXGA,

Stream LGE (Master-0, Slave-0)

PTZ Support

Sensor/Motion input Support

Support

720p, 1080p (Up to 5M)

ONVIF (The stream that is supported from camera) AXIS (H.264, MPEG4, MJPEG)

Installation

• It takes time to search IP devices and the necessary time depends on the network environment.

Installation

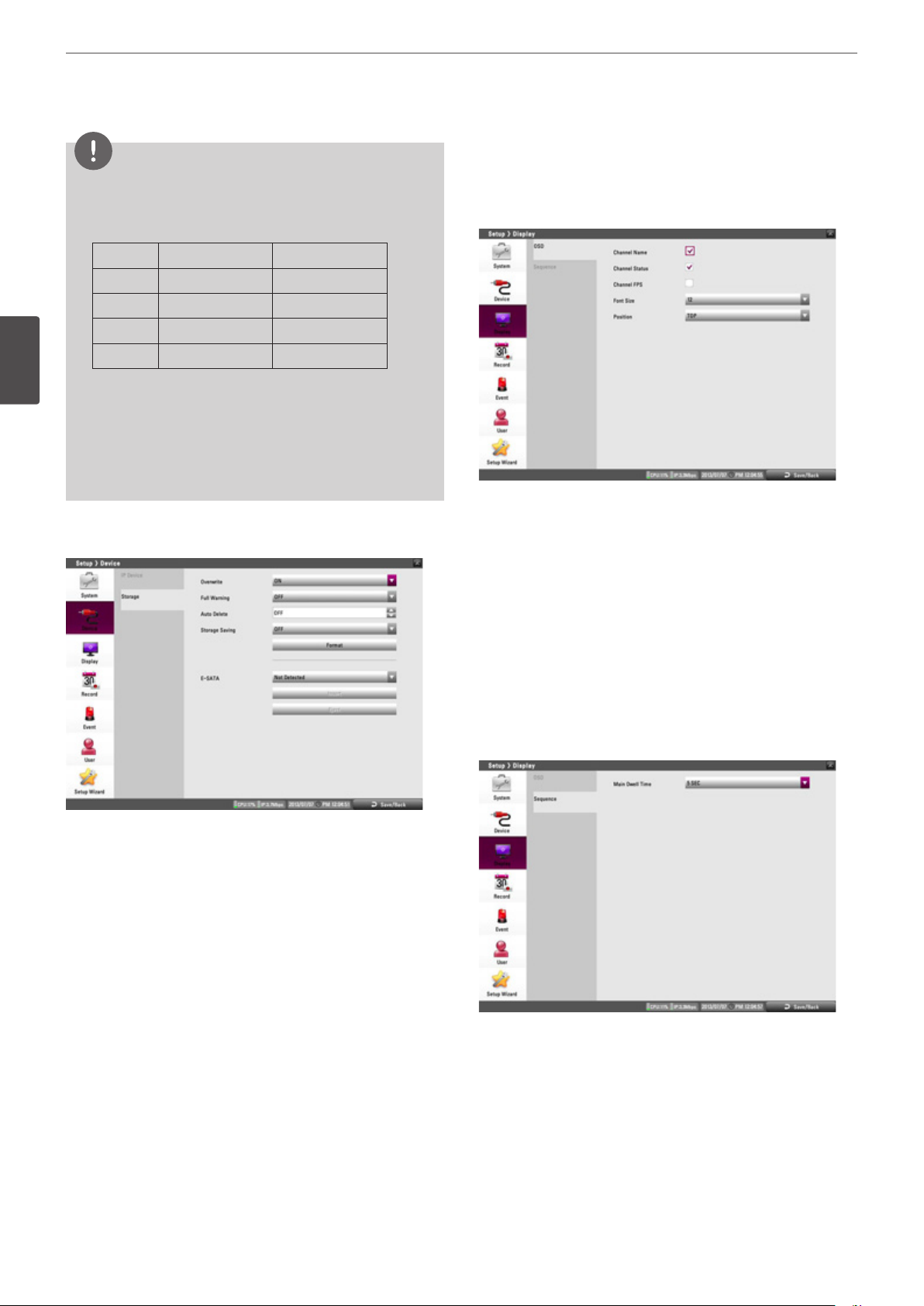

NOTE

• If you register the IP camera for plug and connect, [HTTP Port] and [RTSP Port] number per each channel are assigned as below.

CH HTTP Por t RTSP Port

1 1080 1554

2 2080 2554

3 3080 3554

4 4080 4554

• If you connect the IP Camera which uses PoE for Plug and

Installation

Connect port, it takes 2 or 3 minutes. Wait a moment.

• The information of IP camera for Plug and Connect port is not initialized if you use the [Factory Default] function.

• The IP camera for Plug and Connect port cannot be registered to the system doubly.

Storage

Display settings

OSD

• Channel Name: Mark up to display or remove the channel name in the channel window.

• Channel Status: Mark up to display or remove the channel status in the channel window.

• Channel FPS: Mark up to displays or removes the channel FPS (Frame Per Seconds) in the channel window.

• Font Size: Selects the font size of characters such as the channel name and playback time which displayed on the channel window.

• Position: Selects the position of characters such as the channel name and playback time which displayed on the channel window.

• Overwrite: Sets whether you use Overwrighting function.

• Full Warning: When the HDD has overflowed a warning message

is displayed.

• Auto Delete: Sets the auto delete date. If you set the auto delete date, the recorded data will be deleted except the data within the selected date period of time. The Auto Delete function is activated every 35 minutes.

• Storage Saving : Saves the storage space by reducing the quality of the recorded data.

• Format: Initializes the HDD (Hard Disk Drive). All data on the HDD will be erased.

• E-SATA : Selects the E-SATA device.

• Insert: Uses the selected E-SATA storage for recording data.

• Eject: Uses the selected E-SATA storage for data back-up.

Sequence

You can view all the channels in sequence in the selected screen division mode. You cannot use sequence mode with the 4 split.

• Main Dwell Time: Selects the channel sequence time for main monitor.

Installation

Record settings

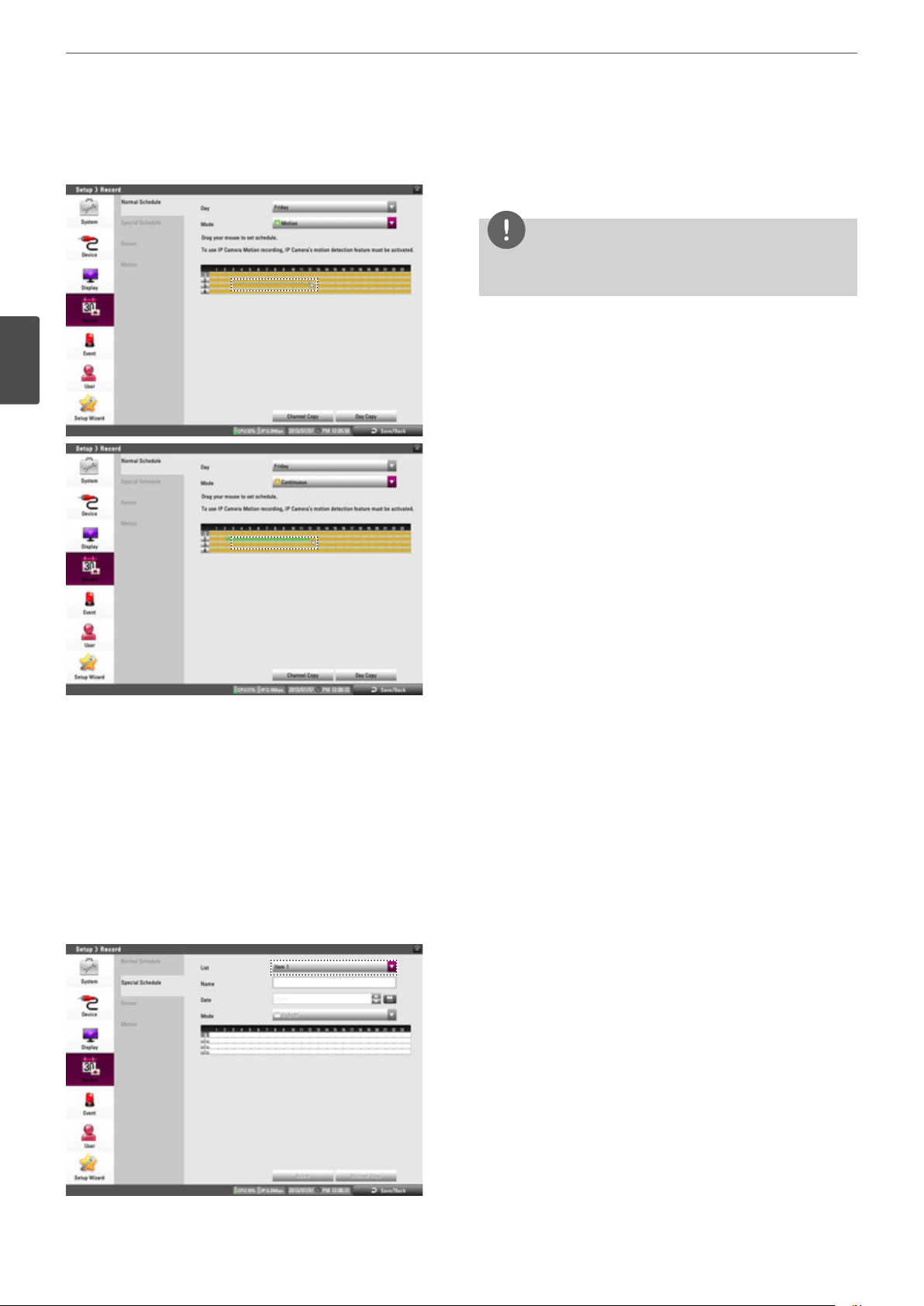

Normal Schedule Recording

A Normal schedule recoding can be activated at preset times, in a repeating pattern on selected weekdays. The system can record according to a schedule set by the user. It can also record manually regardless of date and time. The recording can be made either continuously or triggered by events (Sensor and motion detection).

The recording schedule screen displays one day of the week showing the schedule of all channels over a 24-hour period. For each 1-hour cell block the recording method can be specified. The recording method for each block is shown in color for easy viewing.

Channel numbers

Time Line

Day of the Week

Recording mode

To Set a Recording Schedule for a Typical Day of the Week (Normal Schedule)

2. Select a recording mode.

• Gray (No recording): No schedule recording.

• Gold (Continuous recording): Recording starts automatically

from the preset time.

• Red (Sensor event recording): Recording starts automatically

when the sensor occurs within a designated time.

• Green (Motion event recording): Recording starts

automatically when motion is detected within a designated time.

• Yellow (Sensor+Motion recording): Recording starts

automatically when the sensor signal has input or motion has been detected.

• Gold+Red (Continuous+Sensor event recording): Recording

starts automatically from the preset time. When the sensor occurs within a designated time, changes the continuous recording mode to sensor event recording mode and recording starts automatically.

• Gold+Green (Continuous+Motion event recording):

Recording starts automatically from the preset time. When the motion is detected within a designated time, changes the continuous recording mode to motion event recording mode and recording starts automatically.

• Gold+Yellow (Continuous+Sensor+Motion event recording):

Recording starts automatically from the preset time. When the sensor signal has been input or motion has been detected, changes the continuous recording mode to sensor event recording mode or motion event recording mode and recording starts automatically.

Installation

1. Select a day of the week.

NOTE

In case you set the motion recording setting on the channel of IP camera, the recording starts when Video content analysis event as well as Motion event is occurred.

Installation

3. Drag and drop with left button of the mouse to set the channel and time you want to record. The color of the time block is changed depending on the selected mode.

Installation

3. Use

w/s/a/d

month and date. You can use the calendar icon to select the date.

4. Select the time cell block on the desired channel.

to enter the necessary information for year,

NOTE

If the special day recording schedule is duplicated with the other recordings, only the special day recording is possible.

Copying the Recording Schedule

Copying from the Scheduled Data of the Channel

You can copy the schedule data of the channel to the other channel(s) within the selected day of the week. You cannot copy the schedule data of the IP channel.

1. Select the day of the week and press OK on the [Normal Schedule] or [Special Schedule] menu.

2. Select [Channel Copy] then press OK then the channel selection menu appears.

3. Use

w/s/a/d

the target channel(s). You can cancel the selected channel by pressing OK.

4. Select [OK] then press OK to confirm your selection.

to select a channel then press OK to select

4. Press BACK to move to the previous menu. If the save message appears, select [OK] and press OK to save the settings.

5. Press BACK repeatedly to exit the Setup menu.

To Set a Recording Schedule for a Special Day (Special Schedule)

In addition to the weekly schedule, up to 15 specific date/time periods can be defined. To configure the specific recording schedule select Specific Dates.

1. Select an Item number.

Copying from the Scheduled Data of the Day

You can copy the scheduled day of the week to another day of the week, weekday and weekend.

1. Select the day of week that you want to copy.

2. Select [Day Copy] then press OK then the channel selection menu appears.

3. Use

w/s/a/d

the target date(s). You can cancel the selected channel by pressing OK.

4. Select [OK] then press OK to confirm your selection.

to day of the week then press OK to select

2. Enter the name of the special day. Use the [Name] column and press OK. The virtual keyboard menu appears.

w/s/a/d

to select

Installation

Sensor

Settings concerning sensor recording.

• CH: Displays the channel number.

• Prealarm: Specify the pre-event recording time. When the Event

signal is detected, the system recordes the data before the event during the setting time.

• Postalarm: Specify the post-event recording time. When the Event signal is detected, the system recordes the data after the event during the setting time.

Motion

Settings concerning motion recording.

Event settings

Sensor

Installation

• In: Displays the number of the ALARM-IN terminal.

• Sensor Type: The sensor state can be set to either N.O. (Normally

Open) or N.C. (Normally Closed).

• Camera: Select the camera channel when the sensor event is occurred.

• Relay Output: Select the alarm (relay) output number for the RELAY-OUT terminal for the output alarm (relay) signal.

• Preset: Select the preset number. When the input is activated, the camera moves to the selected preset position and the picture of the camera in that position appears on the monitor.

• CH: Displays the channel number.

• Prealarm: Specify the pre-event recording time. When the Event

signal is detected, the system recordes the data before the event during the setting time.

• Postalarm: Specify the post-event recording time. When the Event signal is detected, the system recordes the data after the event during the setting time.

NOTE

The Prealarm recording time may shorten depending on the setting and recording status of camera.

Notification

Marks up when you want to activate the selected option. If the selected notification option is activated, the device will notify the user about the information of selected option by E-mail.

• Sensor On: Sends an e-mail when a sensor has occurred.

• Motion Detection: Sends an e-mail when a motion detection

has occurred.

• Admin Password Changed: Sends an e-mail when the administrator password has been changed.

• Power On/Off: Sends an e-mail when power is on or off.

• Disk Full: Sends an e-mail when the HDD has fully recorded.

Installation

Mail

Installation

• Notification: Mark up to be notified the unit's operating information according to notification settings by e-mail.

• SMTP Server: Enter the SMTP Server address. If notification option is not mark up and the SMTP server option is empty, the SMTP Port, User Name, Password and TLS options cannot be set.

• SMTP Port: Enter the SMTP Port Number. Typically the port used for SMTP is 25. However in some cases it is better to change this port number for added flexibility or security. You can edit this port between 1 and 65535.

• User Name: Enter the user name.

• Password: Enter the password.

• TLS: Mark up if you use the TLS (Transport Layer Security)

function.

• Mail Address (1 to 3): Enter the mail address. You can input up to 3 e-mail addresses.

• Sender: Enter the sender.

• JPEG Attachment: Click the check box to send a mail which

want to attach a JPEG file.

• E-mail Test: Select [E-mail Test] to test sending an e-mail.

Emergency

• Notification: Mark up to be notified the emergency agent about the unit's operating information according to your notification settings.

• Host Name/Port: Enter the Host Name and port number of the emergency agent program. The factory default port for this function is 9002. However in some cases it is better to change this port number for added flexibility or security. You can edit this port between 1025 and 65535. You can set up to 9 Host Name and port numbers.

SNMP

The Simple Network Management Protocol (SNMP) is an application protocol to exchange the management information of network devices.

NOTE

• The SMTP server, SMTP port no., user name or password settings are optional. The system can send e-mail directly without the use of an SMTP server or MTA (message transfer agent). In certain cases all e-mail should be forwarded to a specific SMTP server. Specify the server host name or IP address in such a case. For more detail on SMTP setup, ask your network administrator and/or mail service provider.

• [JPEG Attachment] option is operated when event of [Sensor In], [Motion Detection] and [Text In] is occurred.

• In case of an IP Camera, ONVIF JPEG Snapshot feature must be supported to attach a JPEG file.

• SNMP Version: Selects a SNMP version if SNMP is allowed to access to this device.

• Port: Enter the number for SNMP port.

• Community String (V2 only): Specifies the SNMP management

community in which you want to enable this system (e.g. lgecommunity or public).

• User (V3 only): Enter the security name for the SNMP.

• Authentication (V3 only): Select a mode for the SNMP

Authentication. (MD5 or SHA)

• Password (V3 only): Enter the password for the SNMP Authentication.

• Privacy (V3 only): Select a privacy mode for the SNMP Authentication. (DES or AES)

• Password (V3 only): Enter the password for the privacy mode.

• Trap IP Address: Specifies the IP address of the computer you

intend to use as your network management station and to which SNMP traps will be sent.

Installation

• Trap Community String: Specifies the SNMP trap community in which you want to enable this system (e.g. lgecommunity or public).

Output

• Relay Off

- ALARM ACKNOWLEDGE: Use the ALM.OFF button to stop alarm.

- POST-ALARM TIME: The alarm is stopped after post-alarm time.

• System Alarm Out: Outputs the alarm (relay) signal via the selected alarm out terminal number when the system has some problem. If you do not use this function, select [NONE] option.

• HDD Fail Alarm Out: Outputs the alarm (relay) signal via the selected alarm out terminal number when the HDD is failed. If you do not use this function, select [NONE] option.

Buzzer

Marks up when you want to activate the selected option.

User settings

Group Authority

You can register a new user group with various access rights.

Installation

• Group ID: Select the group ID to assign authority.

- GUEST: The GUEST group has the limited authority of the system. Users in this group are available to see the live image and to set the covert function of the channel.

- ADMINISTRATOR: The ADMINISTRATOR group has the unlimited authority of the system. Users in this group are available to use all of the functions.

- [Group 01] to [Group 08]: Users in this group are available to set the authority of the function manually.

NOTE

The GUEST and ADMINISTRATOR group are set initially for the authority. You cannot change the initial settings and group name (GUEST and ADMINISTRATOR).

• Group Name: If you select one of the group numbers from the Group ID option, you can register the group name. Enter the group name.

- Setup, Search/Play, Export, PTZ, Power Off, Instant Record: Set the authority for the selected group. Mark up the option to activate it.

• Main Channel: Selects the channel to allow the operation for the group user. The LG logo is displayed on the covert channel(s).

• Sensor: Makes a sound when a sensor occurs.

• Motion : Makes a sound when a motion is detected.

• System: Makes a sound when the HDD has a bad sector.

NOTE

• Data cannot be saved in HDD which is occurred bad sector.

• When HDD has bad hold, can jot operate normally. Replace

the HDD immediately .

Installation

User

You can set the user name for the selected User ID.

Installation

1. Select [User ID] from the drop-down list.

2. Enter the user name of the selected user ID.

3. Select the user group from the drop-down list.

4. Enter the Password.

5. Select the auto user logout time from the drop-down list.

6. Press BACK button to display the confirmation window.

7. Select [OK] to save the setting or [Cancel] to cancel the setting.

Setup Wizard settings

The Setup Wizard appears on the screen when you turn on the unit for the first time or select [Setup Wizard] on the Setup menu. You can set the system name, display language, date, time, network settings, recording schedule and recording mode on the initial setup wizard.

NOTE

If you run the Setup Wizard when system setup has already been completed, the data previously configured could be deleted.

NOTE

• It is strongly recommended that you change the password of the administrator for the protection of the security of personal information. Do not leave 000000 as the default password. Make sure that you keep your password and write it down in a safe place so that you do not forget it.

• If you set the user ID to [ADMINISTRATOR], you cannot change the [User Name] and [Group] option but you can change the password.

• The user name and password are case-sensitive.

• The password must be entered more than 4 characters.

Step 1

Set system name and display language.

• System Name: Enter the system name by using alphabetic letter, numeric digit and symbols up to 21 characters. The number of maximum characters is depends on the language.

• Language: Select a language for the setup menu and information display.

Installation

Step 2

Set date and time.

• Date: Select the current year, month and day.

• Time: Select the current time.

• Date Format: Select the date display format.

• Time Format: Select the time display format.

• Time Zone: Select the time zone in the area where the system is

installed.

• Daylight Saving: Mark up when you use the daylight saving function.

• Daylight Saving Start: Select the Daylight Saving start time.

• Daylight Saving End: Select the Daylight Saving end time.

Step 4

Set recording schedule.

Installation

• Weekday: Sets the recording mode to weekday (Mon-Fri).

• Weekend: Sets the recording mode to weekend (Sat-Sun).

Step 3

Set network address for LAN ports.

• Interface: Select a LAN port you want to use.

• DHCP: Select this option when a DHCP server is installed on the

network to allow IP address assignment. With this setting, the IP address is assigned automatically.

• IP Address: Enter the IP address.

• Subnet Mask: Enter the subnet mask address.

• Gateway: Enter the gateway address.

• Primary DNS: Enter the Primary domain name server that

translates the hostnames into IP address.

• Secondary DNS : Enter the Secondary DNS server address that backups the Primary DNS.

Operation

4 Operation

Instant Recording

Images from a camera will be recorded on the built-in hard disk. Ensure all the cameras are connected and that time and date have been set correctly. Before you start recording, first check the repeat recording settings in the recording menu of the system setup, and then make the recording settings.

1. Press the REC button and then press the channel button you

Operation

want to record. The recording type indicator turns gold on the selected channel screen of the monitor.

2. Press the REC button and then press the channel button you want to stop recording. If you stop instant recording, the recording mode will be changed into the scheduled recording mode (Continuous/ Sensor / Motion records). If the schedule is not set, the recording type indicator turns gray on the selected channel screen of the main monitor.

Panic Recording

You can record the all channels at the same time.

This function can operate video input channel only.

1. Press and hold the REC button until the Recording Type indicator turns gold on the all live channel screens. All channels of system starts recording immediately.

2. Press and hold the REC button until the Recording Type indicator turns gray on the all live channel screens. All channels of system stops recording immediately.

NOTE

• External recording devices can be used as copy areas for images recorded on the hard disk. It is able to record images on the external recording devices directly.

• You can record instantly with the left mouse button.

1. Move the cursor to the desired channel screen on the

main monitor.

2. Click the recording type indicator with the left mouse

button and recording starts. Click it once again and the instant record stops and the recording type indicator will be changed into the scheduled recording mode (Continuous / Sensor / Motion record). If the schedule is not set, the recording type indicator turns gray.

• You can use the instant recording also for the channels scheduled such as sensor, motion or continuous.

• Once you stop instant recording, the recording type indicator will be changed to the scheduled recording mode.

• You can not record the Instant and Continuous recording in following conditions.

- A HDD is not attached.

- A HDD is not formatted.

- The channel has no video input for display.

- Overwrite is set to “OFF”.

- The schedule (Sensor/Motion) record is not set.

• Priority of record.

Instant record > Sensor record > Motion record > Continuous record.

• The Warning message is displayed when the HDD problem occurs during the recording.

Operation

Instant Playback

It is possible to play a recorded image without stopping recording.

1. Select a channel you want to playback.

2. Press ad (Play) button to play a recorded image of the previous 1 or 2 minutes of recording. The playback image will be displayed on the full screen window.

3. Press Z (STOP) button to stop the playback.

Search and Playback

The various search functions of this unit can be used to go to the beginning of the desired picture. Press SEARCH to display the search menu.

Date and Time Search

Use to search recorded pictures by specifying date, hour and minute.

7. Press ad (Play) button or click button to start playback. The picture(s) is (are) displayed on the main monitor.

8. Press STOP (Z) to stop playback and return to the search menu.

9. Press BACK repeatedly to exit the [Date/Time] menu.

Using the calendar icon to select a date

1. Select the icon then press OK.

2. Press BACK to move to the [w] or [s] option selecting a year and a month.

3. Press OK repeatedly to select a desired year and month.

4. Use

w/s/a/d

5. Select [OK] button and press OK to confirm the settings.

to select a date then press OK.

NOTE

• While the backup is in progress, you can not search the data on the backup device.

• Do not remove the external USB device from the USB device whilst the backup search is in progress. It may cause a malfunction.

• Recorded data shown on the time graph will be displayed in different colors depending on the recording type.

- Gold: Continuous recording.

- Red: Sensor recording.

- Green: Motion-detection recording.

• Use intervals.

button to view the detailed time by 6 hour

Operation

1. Press SEARCH or click the icon on the System Control Bar

and [Search] menu appears.

2. Use

3. Select the desired source device.

• INTERNAL HDD: Plays back or searches recorded contents of

• Source Device: Plays back or searches backup contents of

4. Set the year, month, date and time.

•

• OK: Selects the column or confirms the setting.

5. Select the [Search] icon then press OK. The search result is displayed.

6. Use this step to select the other channels.

button to select the [Date/Time] icon then press OK.

w/s

the internal HDD device.

the source device.

: Moves to the previous or next column.

a/d

: Changes the value at the current position.

w/s

button to select the channel and press OK. Repeat

w/s

Event Search

Search a recorded picture by date and type of event.

1. Press SEARCH or click icon on the System Control Bar and

[Search] menu appears.

2. Use

3. Select the desired source device.

4. Set the year, month, date and time.

•

• OK: Selects the column or confirms the setting.

button to select the [Event] icon then press OK.

w/s

: Moves to the previous or next column.

a/d

: Changes the value at the current position.

w/s

Operation

5. Use

w/s/a/d

button to confirm the selection. If you want to select the all channels, marks up the [Select All] option.

6. Select the [Event Type] from the drop-down list.

7. Select the [Search] button then press OK. The event list menu appears. You can see the images through preview screen if you select a data in Event list.

8. Select a recording data on the event list then press ad (Play) button or click button to play back the selected data. The picture is displayed on the main monitor.

9. Press STOP (Z) to stop playback and return to the event list menu.

10. Press BACK repeatedly to exit the event search menu.

button to select the channel and press OK

Bookmark/Protect Search

Searches the recorded data included a bookmark or the protected section.

Operation

Export Search

Searches an exported data in the external device. If you want to use this function, you have to connect the external device otherwise the warning message will be displayed. Check the export device before you proceed.

1. Press SEARCH or click icon on the System Control Bar and

[Search] menu appears.

2. Use

3. Select the desired source device.

4. Select the [Search] icon then press OK. The exported file list menu appears.

5. Select the exported file on the exported file list then press ad (Play) button or click to start playback. The picture is displayed on the main monitor.

6. Press STOP ( list menu.

button to select the [Export] icon then press OK.

w/s

) to stop playback and return to the exported file

1. Press SEARCH or click icon on the System Control Bar and

[Search] menu appears.

2. Select the [Bookmark] or [Protect] from drop-down list.

3. Select the [Search] icon then press OK. The Bookmark (or Protect) list appears.

4. Use OK.

5. Press ad (Play) or click button to play back the selected data.

button to select a bookmark (or protect) then press

w/s

NOTE

• Backup data cannot be played back by a Bookmark/Protect Search.

• If you want to delete the bookmark/protect on the list, select the recording data and select

button and press OK.

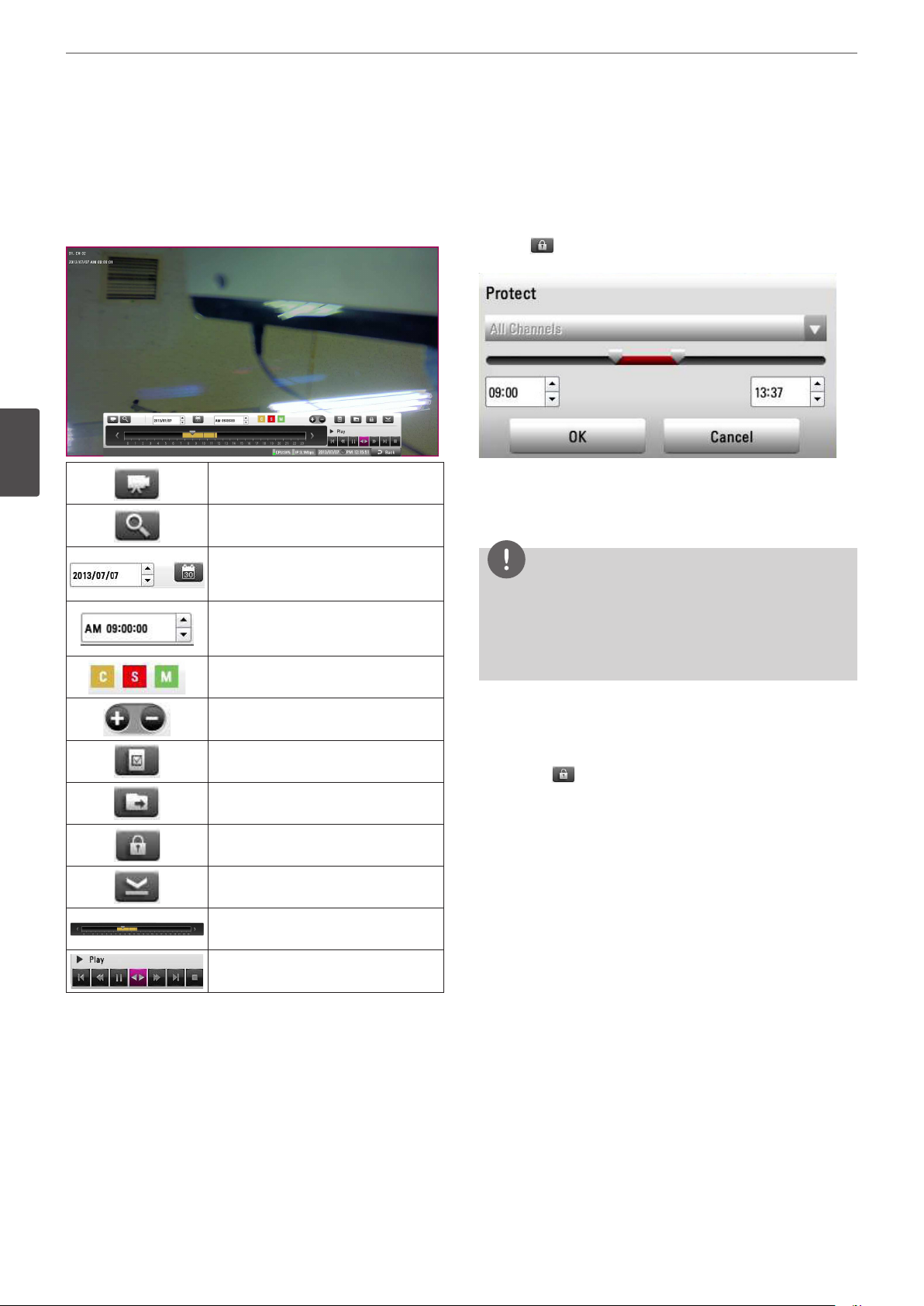

Functions Available During Playback

Button

Playback

Control Menu

Remote Control

Stops playback.

Pauses playback.

Jumps to the beginning of the current data recorded on the same date. (press the button for more than 2 seconds.)

Function

Operation

Jump to the last 1 minute of the current data recorded on the same date. (press the button for more than 2 seconds.)

Press repeatedly to select the required scan speed. (dd,

aaaa, aaaaa

Press repeatedly to play frame-by-frame in pause mode.

Press to play reverse or normal playback.

Press MARK at a desired point to be marked during playback. Up to 15 points can be marked.

)

ddd, dddd, ddddd

or aa,

aaa

NOTE

• You can play the backup or export data in normal speed only.

• If you use the reverse frame skip function, a frame may be skipped.

• Multi channel play works only in the date/time search function.

• If you double-click the channel during the multiple channel playback, the selected channel will be played on the full screen. And if you

double-click the channel during playing in full screen mode, it will return to the previous playback condition.

Operation

Using the playback control menu

You can use various playback function using playback control menu.

1. Play a data recorded.

Playback control menu appears at the bottom of the screen.

Operation

Selects the channel you want to play.

Enlarge the current screen using the digital zoom function.

Displays the date of the data recorded. You can choose the date you want to see.

Displays the time of the data recorded. You can choose the time you want to see.

Displays the record mode.

Using the Protect function

This function allows you to protect the recorded data against being automatically overwritten.

How to select Protect section.

1. Click icon on the Playback control menu. The [Protect] menu appears.

2. If you want to change the time period, select starting and ending point of a part that you want to protect.

3. Click the [OK] icon and the part is protected. The protected data is shown shaded in the timeline area.

NOTE

• Protect function dose not work when two or more protected parts overlap or when no data does not exist in the selected part.

• The protected section can be released when the time is set in the past or by Auto delete function.

Increases or decreases the time interval of the Time Line.

Registers a bookmark.

Displays the [Export] menu.

Displays the [Protect] menu.

Minimizes the Playback control menu.

Displays the current position, recording mode and recording section.

Playback control buttons

How to release the Protect section.

1. Select any position in the protected section on the Playback control menu.

2. Click the icon. The confirm message appears.

3. Click the [OK] icon. The protected data is released.

5 Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptoms Cause & Solution

Check the power cable is connected correctly.

Troubleshooting

The system power does not turn on.

The system power is turned on but no video data is displayed on the monitor.

The camera numbers are displayed on the screen but the camera images are not displayed.

The camera video is shown on the screen but the system does not record the video.

Check the input voltage is correct.

If the system power does not turn on even if the power cable is connected correctly, please contact the service center.

Check the monitor power cable is connected properly.

Make sure the monitor is turned on.

Unplug the power cable and plug it in again.

Check the power cable on the camera is connected correctly.

Check the LAN cable is connected correctly.

Check the IP Camera cable is connected correctly.

Turn off the NVR system and turn it on again.

Check the recording mode in the record setting menu.

Check the HDD detection status in the System Information window. If the HDD detection status is abnormal, check the HDD formatting and the connection of the HDD.

Check the recordable disk space in the HDD.

Troubleshooting

It is impossible to search through the recorded video.

Check the overwrite option in the setup menu for overwrite recording.

Check the IP Camera's motion detection feature. To use IP Camera Motion recording, IP Camera's motion detection feature must be activated.

Check if there is recorded video data at the time that you are trying to search on the table.

If there is no recorded video data, check the recording mode in the record setting menu.

Check the HDD detection status in the system information window. If the HDD detection status is abnormal, check the HDD formatting and the connection of the HDD.

Check the user type. The search function is not available for an unauthorized user.

Troubleshooting

Symptoms Cause & Solution

Audio data recorded with video data is not playing.

Check the audio recording option is correctly set for the camera you wish to record audio.

Check the speaker on the rear of system are connected correctly.

Check the connected speaker is working properly.

Check the type of sensor in the camera setting is the same as with the connected sensor.

Troubleshooting

The connected sensor is not operating.

The connected PTZ camera is not operating.

An E-mail sent from this product was not received.

Check the system is set to use the sensor in the recording schedule window in the recording setting menu.

Check the sensor is properly connected to the ALARM-IN.

Check the user type. The PTZ camera control is not available for a normal user.

E-mail reception failed without SMTP server setting.

• Make sure the network is correctly set.

• Make sure the mail address is input correctly.

• Check the spam mail setting of the input mail address.

(If you set the spam mail, some mails are deleted automatically or classified in the spam mail box)

• Some of SMTP mail services do not support an E-mails from private SMTP servers. In this case use the public SMTP server.

E-mail reception failed even if the SMTP server was set.

• When the [Please check the SMTP information or internet cable] message is displayed.

- Check the SMTP server address.

- Check the SMTP port number. (Default setting is 25)

- Check the network settings.

• When the [Please check the authentication information] message is displayed.

- Check the user name.

- Check the password.

• The mail reception failed without error message.

- Check the receiver’s mail address.

- Check your E-mail is not classified as a spam mail on the receiver's mail setting.

The remote control does not work properly.

Check the batteries in the remote control.

Check the ID setting for the remote control. (See the page 25.)

NOTE

If you observe any of the following symptoms:

• Some of the front panel LEDs do not light.

• The system does not operate normally.

You can reboot the system as follows:

1. Turn off the system and turn it on again after a few seconds.

2. When the recorder does not work normally after rebooting, contact the service center.

6 Appendix

Recommended Devices

Recommended USB Memory list

No. Maker Model Name Capacity

1 LG Electronics XTICK SPIN 2 G

2 LG Electronics XTICK UF1 32 G

3 Lexar Jump Drive 1 G

4 Memorive SLC 2 G

5 TRANSCEND JF 16 G

6 SKYDRV x2 2 G

7 SANDISK Cruzer 16 G

8 Samsung Electronics SUM-LSB8 8 G

9 Samsung Electronics SUM-PSB 32 G

Appendix

NOTE

• Some USB memory devices other than the ones on the above table may not work properly, even if this system reads them.

• For the latest recommended USB list, please visit http://www.lgecommercial.com

Recommended External Device list

Device Capacity File system

USB HDD Up to 2 TB.

E-SATA HDD Up to 2 TB.

NOTE

The E-SATA device with the FireLynx Series of Malgn Technology is supported only for data storage. Other device or manufacture may cause a malfunction.

FAT 32 (This file system is compatible with Windows and Linux system.)

XFS (Linux file system) This file system is not compatible with Windows system.

Backup search function for the

client program

Yes

Appendix

Supported function list for device

Device Instant backup Schedule backup Export Conguration Import/Export

USB memory O O O O

USB HDD O O O O

E-SATA HDD O O O O

NOTE

If you use a USB memory stick or USB HDD for configuration import/export you must disconnect the other external USB devices.

Supported IP Camera Audio/Video Codec

Item Codec

Video H.264 Base/Main Profile, JPEG, MPEG4

Audio G.711, G.726, AAC, PCMU 8 Khz, PCMA 8 Khz

Appendix

Time zones

Appendix

Timezone name

Eniwetok, Kwajalein EK -12:00

Midway Island, Samoa MIS -11:00

Hawaii HAW -10:00

Alaska ALA -09:00 -08:00

Pacific Time (US and Canada); Tajuana PST -08:00 -07:00

Mountain Time (US and Canada), Chihuahua, La Paz, Mazatlan, Arizona

Central Time (US and Canada), Saskatchewan, Guadalajara, Mexico City, Monterrey, Central America

Eastern Time (US and Canada), Indiana (East), Bogota, Lima, Quito EST -05:00 -04:00

Atlantic Time (Canada), Caracas, La Paz, Santiago AST -04:00

Newfoundland NWF -03:30 -02:30

Brasilia, Buenos Aires, Georgetown, Greenland BBA -03:00

Mid-Atlantic MAT -02:00

Azores, Cape Verde Islands AZO -01:00

Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London, Casablanca, Monrovia GMT 0 +01:00

Amsterdam, Belgrade, Bratislava, Budapest, Ljubljana, Prague, Sarajevo, Skopje, Warsaw, Zagreb, Brussels, Copenhagen, Madrid, Paris, Berlin, Bern, Rome, Stockholm, Vienna, West Central Africa

Athens, Istanbul, Minsk AIM +02:00 +03:00

Bucharest, Cairo, Pretoria, Jerusalem, Harare, Pretoria BCP +02:00 +03:00

Helsinki, Riga, Israel, Kyiv, Sofia, Tallinn, Vilnius HRI +02:00 +03:00

Baghdad, Kuwait, Riyadh, Nairobi BKR +03:00 +04:00

Moscow, St.Petersburg, Volgograd MSV +03:00 +04:00

Tehran THE +03:30 +04:30

Abu Dhabi, Muscat, Baku, Tbilisi, Yerevan ABT +04:00

Kabul KAB +04:30

Ekaterinburg, Islamabad, Karachi, Tashkent EIK +05:00

Bombay, Calcutta, Madras, New Delhi, Chennai, Kolkata BCD +05:30

Almaty, Dhaka, Colombo, Astana, Sri Jayawardenepura, Novosibirsk ADC +06:00

Yangon MMT +06:30

Bangkok, Hanoi, Jakarta, Krasnoyarsk BHJ +07:00

Beijing, Changqing, Hong Kong, Uramqi BHU +08:00

Perth, Singapore, Taipei, Beijing, Chongqing, Hong Kong SAR, Urumqi, Kuala Lumpur, Irkutsk, Ulaan Bataar

Osaka, Sapporo, Tokyo OST +09:00

Seoul, Yakutks SYA +09:00

Adlaide, Darwin ADA +09:30

Brisbane, Guam, Port Moresby BGP +10:00

Canberra, Melbourne, Sydney CMS +10:00

Hobart, Vladivostok HVL +10:00

Magadan, Solomon Islands, New Caledonia MSN +11:00 +12:00

Auckland, Wellington AWE +12:00

Fiji Islands, Kamchatka, Marshall Islands FKM +12:00

Timezone

Abbreviation

MST -07:00 -06:00

CST -06:00 -05:00

AMS +01:00 +02:00

SST +08:00

Timezone DST

Appendix

Factory Default Configuration Settings

Appendix

1st level 2nd level 3rd level Default Value

System Name NULL YES

Language The option depends on the model. YES

Button Beep OFF YES

Properties

TCP/IP4

System

TCP/IP6

Resolution 1024*768 NO

Configuration Import - -

Configuration Export - -

Factory Default - -

Interface Ethernet0 -

DHCP ON YES

IP Address NULL YES

Subnet Mask NULL YES

Gateway NULL YES

Primary DNS NULL YES

Secondary DNS NULL YES

Interface Ethernet0 -

Auto ON YES

IP Address NULL YES

Subnet Prefix Length 64 YES

Gateway NULL YES

Primary DNS NULL YES

Secondary DNS NULL YES

Factory Default

setting

Network

Network Streaming

TCP/IP Port No. 9001 YES

Web Server Port No. 80 YES

Audio Port No. 9003 YES

Bandwidth Throttle ALL / 100 Mbps YES

RTSP Port 554 YES

DDNS Service OFF YES

Host Name NULL YES

Registerd Host NULL YES

Update - -

CH - -

Profile Profile1 YES

Date Current Date NO

Time Current Time NO

Date Format YYYY/MM/DD YES

Appendix

System

Date/Time

NTP

Controller

Update

Time Format 12 HR YES

Time Zone The option depends on the model. NO

Daylight Saving OFF NO

Daylight Saving Start JAN, 1st, SUN, 00 NO

Daylight Saving End JAN, 1st, SUN, 00 NO

NTP OFF YES

Time Server

Private Time Server

Sync. Interval 1 DAY YES

NTP Test - -

IR Remote ID 1 YES

Remote Controller ID NONE YES

Method LOCAL YES

Device - YES

FTP Server - YES

Search - -

PUBLIC SERVER

NULL

YES

Appendix

Backup

No. - -

File Name NULL -

Update - -

Schedule OFF YES

Device - YES

Schedule Start SUN, 12:00:00 AM YES

Time Range Date Current Date YES

Time Range Start SUN, 00:00 YES

Time Range End SUN, 00:00 YES

Estimate Size - -

Start Backup - -

Erase Media - -

Appendix

CH CH 01 -

Name CH 01 to CH 04 YES

Model Name NONE YES

MAC NULL YES

IP NULL YES

HTTP Port 80 YES

Driver NULL

Profile1 NULL

Appendix

Device

IP Device

Storage

Profile2 NULL

RTSP Port

RTP Mode

Stream NULL YES

Audio Recording OFF YES

Setup - -

Delete - -

Auto - -

Manual - -

Overwrite ON YES

Full Warning OFF YES

Auto Delete OFF YES

Storage Saving OFF NO

Format - -

E-SATA - -

554

UDP

YES

Display

Insert - -

Eject - -

Channel Name ON YES

Channel Status ON YES

OSD

Sequence Main Dwell Time 5 SEC YES

Channel FPS OFF YES

Font Size 12 YES

Position TOP YES

Day Current day of the week NO

Appendix

Record

Normal Schedule

Special Schedule

Sensor

Motion

Mode C+S+M NO

Channel Copy - -

Day Copy - -

List Item 1 YES

Name NULL YES

Date --/-- YES

Mode C+S+M NO

Delete - -

Channel Copy

Prealarm 10 SEC YES

Postalarm 10 SEC YES

CH - -

Prealarm 10 SEC YES

Postalarm 10 SEC YES

Event

Sensor

Notification

In - YES

Sensor Type N.O YES

Camera 01 to 04 YES

Relay Output NONE YES

Preset NONE YES

Sensor On OFF YES

Motion Detection OFF YES

Admin Password Changed OFF YES

Power On/Off OFF YES

Disk Full OFF YES

Appendix

Notification OFF YES

SMTP Server NULL YES

SMTP Port 25 YES

User Name NULL YES

Password NULL YES

Appendix

Event

Mail

Emergency

SNMP

TLS OFF YES

Mail Address 1 NULL YES

Mail Address 2 NULL YES

Mail Address 3 NULL YES

Sender

JPEG Attachment

E-mail Test - -

Notification OFF YES

Host Name NULL YES

Port 9002 YES

SNMP Version NONE YES

Port 161 YES

Community String public YES

User NULL YES

Authentication NONE YES

Password NULL YES

NULL

OFF

YES

Output

Buzzer

Privacy NONE YES

Password NULL YES

Trap IP Address NULL YES

Trap Community String NULL YES

Relay Off ALARM ACKNOWLEDGE YES

System Alarm Out NONE YES

HDD Fail Alarm Out NONE YES

Sensor OFF YES

Motion OFF YES

System OFF YES

Group ID GUEST YES

Group Name GUEST YES

Setup OFF YES

Search/Play OFF YES

Appendix

User

Group Authority

User

Export OFF YES

PTZ OFF YES

Power Off OFF YES

Instant Record OFF YES

Main Channel All Enable YES

User ID

User Name

Group ADMINISTRATOR YES

Password "000000" YES

Auto User Logout OFF YES

ADMINISTRATOR

YES

Appendix

Specifications

Model LRN3040N Series

Input IP 4 Ch (Up to 5 Mega-pixel)

Appendix

Video

Audio

Alarm

Display

Output

Notification

Playback Speed

Screen Division Full, 4

Search Mode Date/Time, Event, Export, Protect, Bookmark

Display Speed Up to 120 fps @ 1280 x 720

Division Mode Full, 4

VGA 1

HDMI 1

Input 1

Output 1

Input 4

Output 2

Buzzer Support

e-mail Support

Remote S/W

(Client S/W)

Emergency S/W Support

FF / Reverse 4 Steps (1x - 16x)

Frame Advance Forward / Backward

Support

Storage

Backup Backup Interface USB 2.0 (x2), Network, e-SATA,

Network

Operating Temperature / Humidity 0 ºC to 40 ºC / 0 % RH to 80 % RH

Internal HDD Max Capacity 2 TB (1 HDDs)

External HDD Interface Type E-SATA

Network Connection Ethernet 10/100/1000 Mbps

Bandwidth Control Yes

Power DC 48 V, 2A (Adaptor AC 100~240V, 50/60 Hz)

Power Consumption Maximum 18 W (without HDD)

Dimension (W x D x H) 264 mm x 240 mm x 44 mm

Net Weight 1.50 kg (without HDD), 2.12 kg (with HDD)

NOTE

Design and specifications are subject to change without notice.

LG Electronics FP910 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Information

IMPORTANT SAFETY INSTRUCTIONS

Preparation

Introduction

Accessories

Features

Front Panel

Rear Panel

Remote Control

Connections

Installation

Precautions

Basic Connection Overview

Connecting Display device

Connecting Audio device

Connecting USB device

Connecting E-SATA device

Connecting IP Camera

Connecting Network

Connecting LKD1000 Controller

Connecting Alarm Input and Alarm Output

HDD INSTALLATION

Note for Hard Disk Drive

Installing the Hard Disk Drive

Replacing the Hard Disk Drive

Recommended HDD

System Operation

System Shutdown

General Explanation of the Live Screen on the Main Monitor

Main Monitor Screen

Selecting the Split mode

Moving the Channel's Position

Changing the order of cameras

PTZ Camera Control

Using the Digital Zoom function

Export the recorded data

Viewing the System Log List

Viewing System Information

Configuration menu

System settings

Properties

TCP/IP v4

TCP/IP v6

Network

Network Streaming

Date/Time

Controller

Update

Backup

Device settings

IP Device

Storage

Display settings

Sequence

Record settings

Normal Schedule Recording

To Set a Recording Schedule for a Typical Day of the Week (Normal Schedule)

Copying the Recording Schedule

To Set a Recording Schedule for a Special Day (Special Schedule)

Sensor

Motion

Event settings

Sensor

Notification

Mail

Emergency

SNMP

Output

Buzzer

User settings

Group Authority

User

Setup Wizard settings

Step 1

Step 2

Step 4
