LG FP700P, FB790G Schematic

COLOR MONIT OR

SER VICE MANUAL

Website:http://biz.LGservice.com

E-mail:http://www.LGEservice.com/techsup.html

CAUTION

BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

MODEL: F700P (FB790G-UL)

CHASSIS NO. : CA-1 14

F ACTORY MODEL: FB790G

*( ) ID LABEL Model No.

1. PICTURE TUBE

Size : 17 inch (Flat Slot Mask)
DefIection Angle : 90°
Neck Diameter : 29.1 mm
Phosphor : P22
Slot Pitch : 0.24 mm
Face Treatment : W-ARASC (Anti-Reflective and

Anti-Static Coating),
Internal Anti-Glare

2. SIGNAL

2-1. Horizontal & Vertical Sync

1) Input Voltage Level: Low= ≤0.8V, High= ≥2.1V

2) Sync Polarity : Positive or Negative

2-2. Video Input Signal

1) Voltage Level : 0~0.7 Vp-p
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.7 Vp-p

2) Input Impedance : 75 Ω

3) Video Color : R, G, B Analog

4) Signal Format : Refer to the Timing Chart

2-3. Signal Connector

15 Pin D-Sub Connector

2-4. Scanning Frequency

Horizontal : 30~96 kHz
Vertical : 50~160 Hz

3. POWER SUPPLY

AC 100~240V, 50/60HZ, 2.5A Max
AC 200~240V, 50Hz, 1.5A Max.(PFC version)

3-2. Power Consumption

4. DISPLAY AREA

4-1. Active Video Area :

• Max Image Size - 325.4 x 244.1mm (12.91" x 9.61")

• Preset Image Size - 310 x 230 mm (12.20" x 9.06")
4-2. Display Color : Full Colors
4-3. Display Resolution : 1600 Dots x 1200Lines
4-4. Video Bandwidth : 203MHz

5. ENVIRONMENT

5-1. Operating Temperature: 0°C~40°C (32°F~103°F)

(Ambient)

5-2. Relative Humidity : 10%~90%

(Non-condensing)

5-3. Altitude : 10,000 ft

6. DIMENSIONS (with TILT/SWIVEL)

Width : 415.0 mm (16.34")
Depth : 432.0 mm (17.00")
Height : 413.0 mm (16.25")

7. WEIGHT (with TILT/SWIVEL)

Net Weight : 18 kg (39.68 lbs)
Gross Weight : 20.5 kg (45.20 lbs)

8. USB Specifications

USB Standard :

Rev. 1.0 complied self-powered hub

Downstream power supply

: 500mA for each (MAX)
Communication speed : 12 Mbps (Full), 1.5 Mbps (Low)
USB port : 1 Upstream port

4 Downstream ports

CONTENTS

SPECIFICATIONS

- 2 -

SPECIFICATIONS ................................................... 2

SAFETY PRECAUTIONS ........................................ 3

TIMING CHART ....................................................... 4

OPERATING INSTRUCTIONS ................................ 5

CONTROL LOCATIONS ......................................... 7

WIRING DIAGRAM ................................................. 8

DISASSEMBLY ....................................................... 9

BLOCK DIAGRAM ................................................. 10

DESCRIPTION OF BLOCK DIAGRAM................... 11

ADJUSTMENT ...................................................... 13

TROUBLESHOOTING GUIDE .............................. 15

EXPLODED VIEW.................................................. 22

REPLACEMENT PARTS LIST .............................. 24

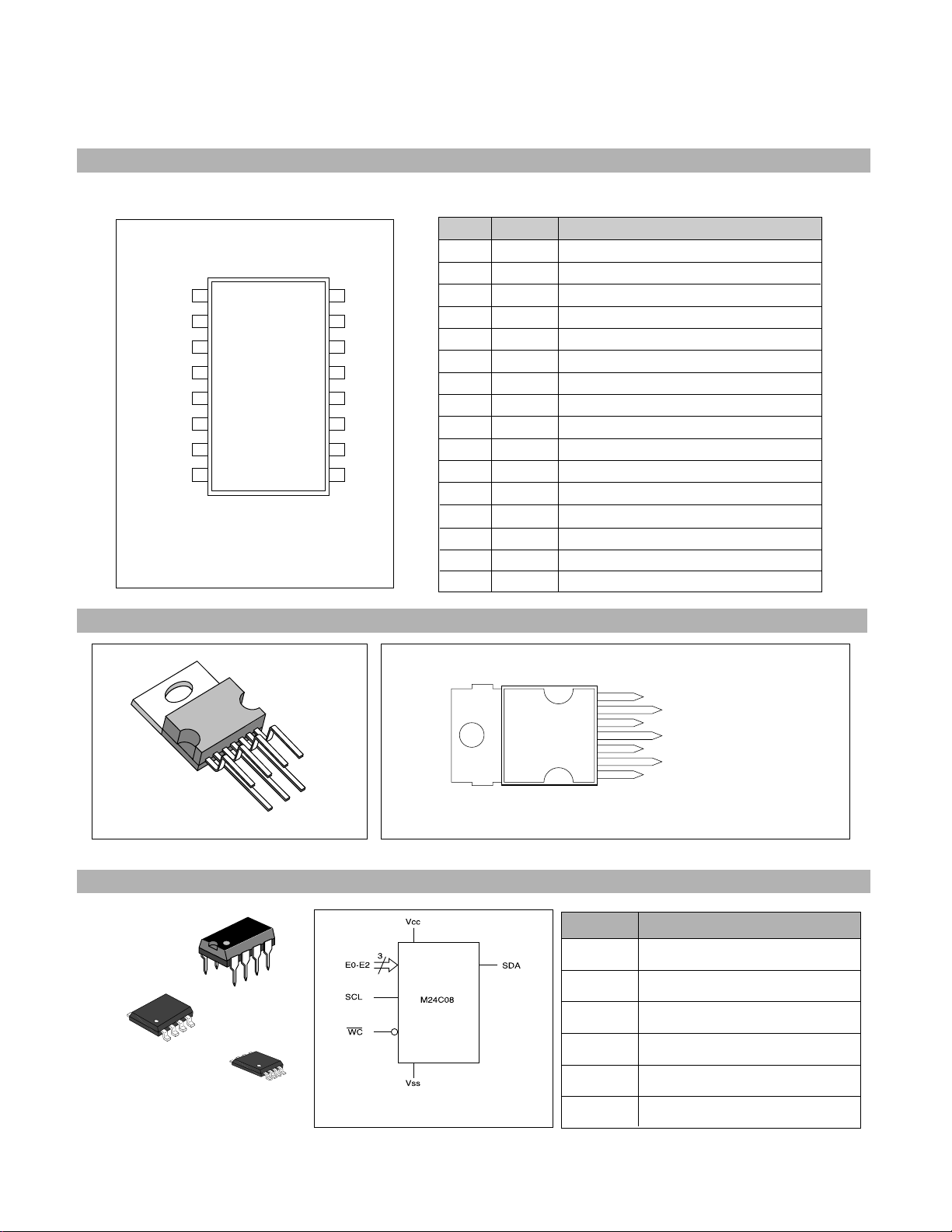

PIN CONFIGURATION .......................................... 31

SCHEMATIC DIAGRAM......................................... 32

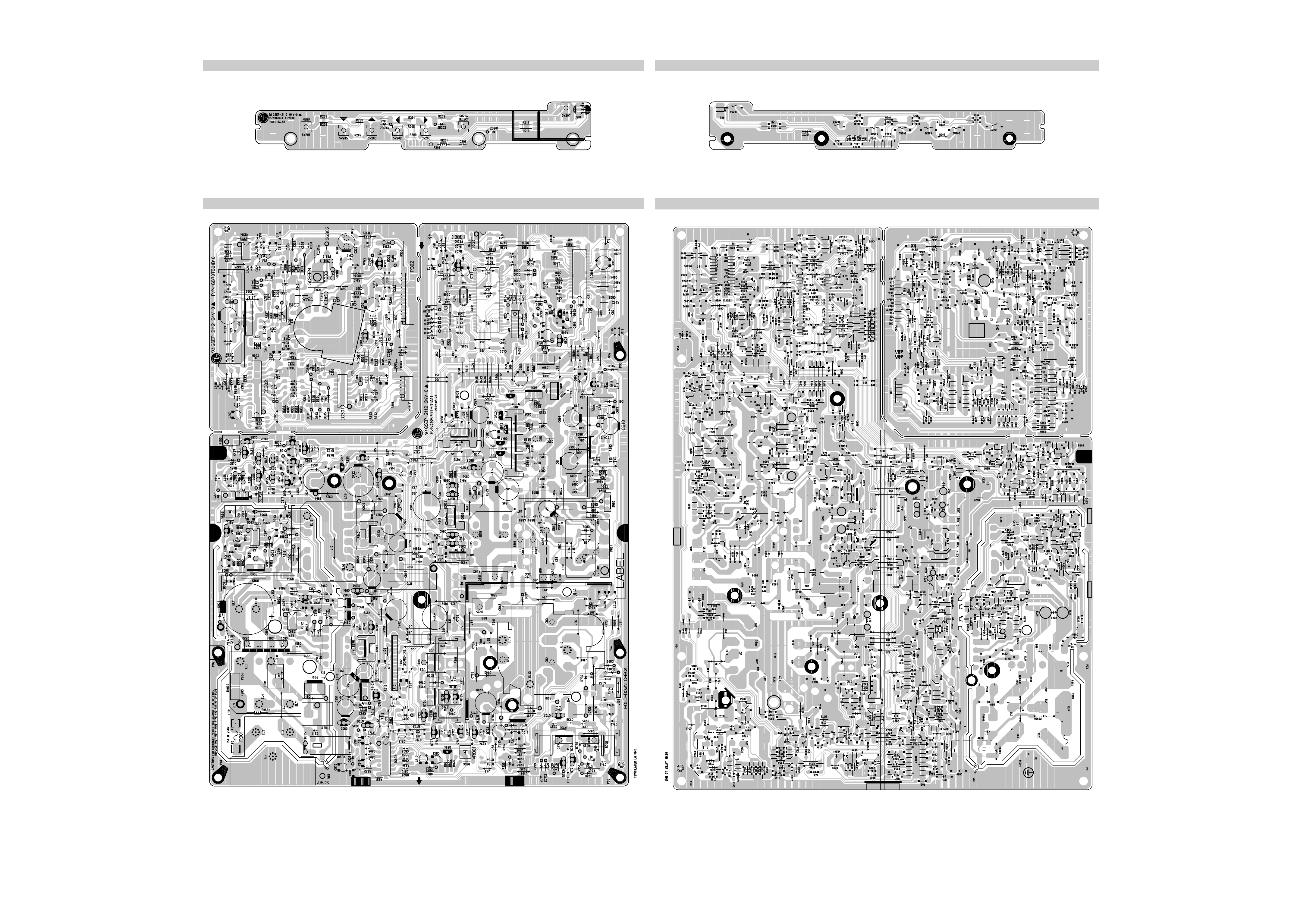

PRINTED CIRCUIT BOARD................................... 34

MODE

MAX

NORMAL (ON)

STAND-BY
SUSPEND

OFF

H/V SYNC

ON/ON
OFF/ON
ON/OFF

OFF/OFF

POWER CONSUMPTION (USB)

less than 110W (130W)
less than 83W (104W)
less than 8W (30W)
less than 8W (30W)
less than 1W (20W)

LED COLOR

GREEN
GREEN

ORANGE

ORANGE

SAFETY PRECAUTIONS

- 3 -

SAFETY-RELATED COMPONENT WARNING!

There are special components used in this color monitor
which are important for safety. These parts are marked

on the schematic diagram and the replacement

parts list. It is essential that these critical parts should be

replaced with the manufacturer's specified parts to
prevent X-radiation, shock, fire, or other hazards. Do not
modify the original design without obtaining written
permission from manufacturer or you will void the original
parts and labor guarantee.

CAUTION:

No modification of any circuit should be
attempted.
Service work should be performed only after
you are thoroughly familiar with all of the
following safety checks and servicing
guidelines.

SAFETY CHECK

Care should be taken while servicing this color monitor
because of the high voltage used in the deflection circuits.
These voltages are exposed in such areas as the
associated flyback and yoke circuits.

FIRE & SHOCK HAZARD

An isolation transformer must be inserted between the

color monitor and AC power line before servicing the
chassis.

• In servicing, attention must be paid to the original lead
dress specially in the high voltage circuit. If a short
circuit is found, replace all parts which have been
overheated as a result of the short circuit.

• All the protective devices must be reinstalled per the
original design.

• Soldering must be inspected for the cold solder joints,
frayed leads, damaged insulation, solder splashes, or
the sharp points. Be sure to remove all foreign
materials.

IMPLOSION PROTECTION

All used display tubes are equipped with an integral
implosion protection system, but care should be taken to
avoid damage and scratching during installation. Use only
same type display tubes.

X-RADIATION

The only potential source of X-radiation is the picture tube.
However, when the high voltage circuitry is operating
properly there is no possibility of an X-radiation problem.
The basic precaution which must be exercised is keep the
high voltage at the factory recommended level; the normal
high voltage is about 26kV. The following steps describe
how to measure the high voltage and how to prevent X­radiation.

Note : It is important to use an accurate high voltage

meter calibrated periodically.

• To measure the high voltage, use a high impedance
high voltage meter, connect (–) to chassis and (+) to
the CDT anode cap.

• Set the brightness control to maximum point at full
white pattern.

• Measure the high voltage. The high voltage meter
should be indicated at the factory recommended level.

• If the meter indication exceeds the maximum level,
immediate service is required to prevent the possibility
of premature component failure.

• To prevent X-radiation possibility, it is essential to use
the specified picture tube.

CAUTION:

Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

TIMING CHART

- 4 -

VIDEO

SYNC

D

A

E

F

BC

kHz

µs
µs
µs
µs
µs
µs

Hz
ms
ms
ms
ms
ms
ms

MODE 1

–

43.269

23.112

17.778

5.334

1.556

1.556

2.222

–

85.008

11.763

11.093

0.670

0.023

0.069

0.578

640

X

480

85Hz

Yes

MODE 2

+

53.674

18.631

14.222

4.409

0.569

1.138

2.702
+

85.061

11.756

11.178

0.578

0.019

0.056

0.503

800

X

600

85Hz

Yes

MODE 3

+

68.677

14.561

10.836

3.725

0.508

1.016

2.201
+

84.997

11.765

11.183

0.582

0.015

0.044

0.523

1024

X

768

85Hz

Yes

MODE 4

+

91.146

10.971

8.127

2.844

0.406

1.016

1.422
+

85.024

11.762

11.235

0.527

0.011

0.033

0.483

1280

X

1024
85Hz

Yes

MARK

A
B
C
D
E
F

A
B
C
D
E
F

MODE

FACTORY PRESET MODE

Resolution

Recall

H
O
R

I
Z
O
N
T
A
L

V
E
R
T

I
C
A
L

Sync Polarity

Frequency

Total Period

Video Active Time

Blanking Time

Front Porch

Sync Duration

Back Porch

Sync Polarity

Frequency

Total Period

Video Active Time

Blanking Time

Front Porch

Sync Duration

Back Porch

VESA

OPERATING INSTRUCTIONS

- 5 -

REAR VIEW FRONT VIEW

Front Control Panel

See Front Control Panel

Power Button

USB port

D-Sub Signal Connector

AC Power Socket

1. Power Button

This button is used to turn the monitor ON and
OFF.

2. Power Indicator

This Indicator lights up green when the monitor
operates normally. If the monitor is in stand-by,
suspend or DPMS off mode, this indicator color
changes to amber.

3. MENU (or OSD) Button

Use this button to enter or exit the on screen
display.

4. Button

Use these buttons to choose or adjust items in
the on screen display.

5. SELECT (or SET) Button

Use this button to enter a selection in the on
screen display..

100

100

12543

The Contrast and Brightness functions are also available in
the On Screen Display (OSD) menu.

Button
Button

Bring up Contrast adjustment
Bring up Brightness adjustment

Universal Serial Bus

- 6 -

USB connection (Option)

(1) Connect the upstream port of the monitor to the downstream port of the USB
compliant PC or another hub using the USB cable.
(2) Connect the USB compliant peripherals to the downstream ports the monitor.

*USB(Universal Serial Bus) is supported WINDOWS98 and Higher.

Making use of USB (Universal Serial Bus)*

USB(Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your
computer. By using the USB, you will be able to connect your mouse, keyboard, printer, and other peripherals to
your monitor instead of having to connect them to your computer. This will give you greater flexibility in setting
up your system. USB allows you to connect chain up to 120 devices on a single USB port, and you can “hot”
plug (attach them while the computer is running) or unplug them while maintaining Plug and Plug auto detection
and configuration. This monitor has an integrated self-powered USB hub, allowing up to 4 other USB devices to
be attached it.

USB Downstream Ports

Connect the cables from USB compliant
peripherals-such as keyboard, mouse,
printer, scanner, etc.

USB Upstream Port

To USB downstream port
of the USB compliant PC
or another hub cable

USB Upstream connector USB Downstream connector

CONTROL LOCATIONS

- 7 -

VR901
: B Adjustment (192V Line)

+

VR801
: High Voltage Adjustment (26kV)

WIRING DIAGRAM

- 8 -

P301

P302

P303

Signal
Cable

AC
Socket

FBT

P801

S+

S-

P901

P910

P702

P453

P451

P402

P201

P401

P502

DISASSEMBLY

- 9 -

1. TILT/SWIVEL & BACK COVER REMOVAL

1) Set the monitor face downward.

2) Carefully remove the Tilt/Swivel by pulling it upward.

3) Pressing the latch (a), Back cover by pushing it upward. (See Figure. 1)

4) Release the latch (c). (See Figure. 2 and Tip Spec.)

5) Slide the Back Cover away from the Front Cabinet of the monitor.

2. TOTAL CHASSIS ASSEMBLY REMOVAL

1) Set the monitor face downward.

2) Pressing the latch (a), Main Chassis
by pushing it upward.

Back Cover

Cabinet

(b)

Tip Spec.

A(Width) : 5.0~15.0mm
B(Depth) : 0.6~0.9mm
C(Height) : 12.0mm

Figure. 1

Figure. 2

(a)

(a)

CDT

(a)

C

Tip

B

A

BLOCK DIAGRAM

- 10 -

SIGNAL

INPUT

SUB

TRANS

(T903)

DESCRIPTION OF BLOCK DIAGRAM

- 11 -

1. Line Filter & Associated Circuit.

This is used for suppressing noise of power input line
flowing into the monitor and/or some noise generated
in this monitor flowing out through the power input
line.
That is to say, this circuit prevents interference
between the monitor and other electric appliances.

2. Degauss Circuit & Coil.

The degauss circuit consists of the degaussing coil,
the PTC (Positive Temperature Coefficient) thermistor
(TH901), and the relay (RL901). This circuit eliminates
abnormal color of the screen automatically by
degaussing the slot mask in the CDT when turn on the
power switch.
When you need to degauss while using the monitor,
select DEGAUSS on the OSD menu.

3. SMPS (Switching Mode Power Supply).

This circuit works with power of 100~240V or
200~240V (50/60Hz) specially for PFC version.

The operation procedure is as follows:

1) AC input voltage is rectified and smoothed by
the bridge diode (D901) and the capacitor (C905).

2) The rectified voltage (DC voltage) is applied to the
primary coil of the transformer (T901).

3) The control IC (IC901) generates switching pulse
to turn on and off the primary coil of the
transformer (T901) repeatedly.

4) Depending on the turn ratio of the transformer, the
secondary voltages appear at the secondary coil of
the transformer (T901).

5) These secondary voltages are rectified by each
diode (D924, D926, D923, D922, D921, D920) and
operate the other circuits. (Deflection, Video
Amplifier, etc.)

4. Display Power Management Circuit.

This circuit control power consumption of the monitor
by detecting H and V sync signal. There are stand-by
and suspend mode. When no horizontal or vertical
sync signal input, the circuit consists of Q913, Q915
and IC401 control signal becomes stand-by and
suspend mode. It’s power consumption is below 8W.
When no horizontal and vertical sync signal input, it’s
power consumption is below 1W.

5. X-ray Protection.

This circuit detects the rectified DC voltage comes
from the FBT pin 4. If the high voltage of the FBT
reaches up to about 30kV (abnormal state), H.V
control (IC802) detects. It stops B+voltage supplied to
the FBT (T701), and high voltage is not be generated,
(In the normal state, the high voltage is about 26kV.)

6. Micom(Microprocessor) Circuit.

The operating procedure of Micom (Microprocessor)
and its associated circuit is as follows:

1) H and V sync signal is supplied from Signal Cable t o t he
Micom (IC401).

2) The Micom (IC401) distinguishes polarity and
frequency of H and V sync.

3) The Micom controls each OSD function signals.
(H-size, H-position, V-size, etc.)

4) The controlled data of each mode is stored in IC402.
User can adjust screen condition by each OSD
function. The data of the adjust screen condition is
stored automatically.

7. Horizontal and Vertical Synchronous Processor.

This circuit generates the horizontal drive pulse and
the vertical drive pulse by taking sync-signal from
Signal Cable. This circuit consists of the
TDA4841(IC801) and the associated circuit.

8. Oscillating Circuit for D/D Converter.

This circuit generates the pulse wave which has the
horizontal period by taking the output of the
TDA4841(IC801).

9. D/D (DC to DC) Converter.

This circuit supplies DC voltage to the horizontal
deflection output circuit by decreasing DC 192V which
is the secondary voltage of the SMPS in accordance
with the input horizontal sync signal.

10. D/D Drive & Convert Circuit.

This circuit is used for supplying B+voltage to
horizontal deflection output transistor (Q801).

11. Horizontal Deflection Output Circuit.

This circuit makes the horizontal deflection by
supplying the saw-tooth current to the horizontal
deflection yoke.

- 12 -

12. High Voltage Output & FBT (Flyback Transformer).

The high voltage output circuit is used for generating
pulse wave to the primary coil of the FBT (Flyback
Transformer (T701)). A boosted voltage (about 26kV)
appears at the secondary of the FBT and it is supplied
to the anode of the CDT.
And there are another output voltages such as the
dynamic focus voltage.

13. H-Linearity Correction Circuit.

This circuit corrects the horizontal linearity for each
horizontal sync frequency.

14. Vertical Output Circuit.

This circuit takes the vertical wave from the
TDA4841(IC801) and performs the vertical deflection
by supplying the saw-tooth wave current from the
TDA8172 (IC601) to the vertical deflection yoke.

15. Dynamic Focus Output Circuit.

This circuit takes H and V parabola wave from the
TDA4841(IC801), and amplifies these waves to offer
to the FBT (T701).

16. H & V Blanking and Brightness Control.

This circuit eliminates the retrace line by supplying a
negative pulse to the G1 of the CDT.

17. Image Rotation (Tilt) Circuit.

This circuit corrects the tilt of the screen by supplying
the image rotation signal to the tilt coil which is
attached to the CDT near the deflection.

18. Static Convergence Control Circuit.

This circuit corrects the convergence of the screen by
supplying the convergence signal to the 4H (STC) coil
which is attached to the CDT near the deflection.

19. Moire Reduction Circuit

This circuit reduce interference between the periodical
display pattern and the CDT's slot (or dot).
The positions of every other one dot video signal
beams (red, green, and blue beam) are shifted finely,
thus reducing interference.

20. OSD Circuit.

This circuit is used for performing the OSD (On­Screen- Display) function.
When a user selects the OSD Select/Adjustment
control, the adjustment status displays on the screen.

21. Video Pre-Amp Circuit.

This circuit amplifies the analog video signal from 0-

0.7V to 0-4V. This circuit is operated by taking the
clamp, R, G, B drives, and contrast signals from the
Micom (IC401).

22. Video Output Amp Circuit.

This circuit amplifies the video signal which comes
from the video pre-amp circuit and amplified video
signal is applied to the CDT cathode.

ADJUSTMENT

- 13 -

GENERAL INFORMATION

All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several adjustments may be required.
Adjustment should be following procedure and after
warming up for a minimum of 30 minutes.

• Alignment appliances and tools.

- IBM compatible PC.

- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)

- EPROM or EEPROM with saved each mode data.

- Alignment Adaptor and Software.

- Digital Voltmeter.

- White Balance Meter.

- Luminance Meter.

- High-voltage Meter.

AUTOMATIC AND MANUAL DEGAUSSING

The degaussing coil is mounted around the CDT so that
automatic degaussing when turn on the monitor. But a
monitor is moved or faced in a different direction, become
poor color purity cause of CDT magnetized, then press
DEGAUSSING on the OSD menu.

ADJUSTMENT PROCEDURE & METHOD

-Install the cable for adjustment such as Figure 1and run

the alignment program on the DOS for IBM compatible PC.

-Set external Brightness and Contrast volume to max position.

1. Adjustment for B+ Voltage.

1) Display cross hatch pattern at Mode 4.

2) Adjust C921 (+) voltage to 192V ± 0.2V with VR901.

2. Adjustment for High-Voltage.

1) Display cross hatch pattern at Mode 4.

2) Adjust CDT Anode voltage to 26kV ± 0.2kV with

VR801.

3. Adjustment for Horizontal Raster Center.

1) Display cross hatch pattern at Mode 4.

2) Adjust the Back Raster should be center of the

screen with SW801.

4. Adjustment for Factory Mode (Preset Mode).

1) Display cross hatch pattern at Mode 1~4.

2) Run alignment program for FB790G on the IBM
compatible PC.

3) EEPROM → ALL CLEAR → Y(Yes) command.

<Caution> Do not run this procedure unless the
EEPROM is changed. All data in EEPROM (mode
data and color data) will be erased.

4) COMMAND → PRESET START → Y(Yes)
command.

5) DIST. ADJ. → FOS. ADJ command.

6) Adjust H-POSITION as arrow keys to center of the
screen.

7) Adjust H-SIZE as arrow keys to 310 ± 2mm.

8) Adjust V-POSITION as arrow keys to center of the
screen.

9) Adjust V-SIZE as arrow keys to 230 ± 2mm.

10) Adjust TRAPEZOID as arrow keys to be the best
condition.

11) Adjust TILT as arrow keys to be the best condition.

12) Display cross hatch pattern at Mode 4.

13) DIST. ADJ. → BALANCE DATA command.

14) Adjust balance of Pin-Balance as arrow keys to be
the best condition.

15) Adjust parallelogram as arrow keys to be the best
condition.

16) Save of the Mode.

17) Save of the System.

18) Display from Mode 4 and repeat above from
number 6) to 15).

19) COMMAND → PRESET EXIT → Y (Yes) command.

5. Adjustment for White Balance and Luminance.

1) Set the White Balance Meter.

2) Press the DEGAUSSING on the OSD menu for
demagnetization of the CDT.

3) Display color 0,0 pattern at Mode 4.

4) COMMAND → PRESET START → Y(Yes)
command.

5) Set Bightness and Contrast to max position.

6) COLOR ADJ. → LUMINANCE command of the
alignment program.

7) COLOR ADJ. → BIAS ADJ. command of the
alignment program.

8) Check whether blue color or not at R-BIAS and G­BIAS to min position, Sub-Brightness to 90 position,
B-BIAS to 75 position. If it's not blue color, the
monitor must repair.

9) Adjust Screen control on the FBT to 0.15 ± 0.02FL
of the raster luminance.

10)Adjust R-BIAS and G-BIAS command to x=0.283 ±

0.006 and y=0.298 ± 0.006 on the White Balance
Meter with PC arrow keys.

- 14 -

11) Display color 15,0 box pattern(70x70mm) at mode 4.

12)DRIVE ADJ command.

13) Set B-DRIVE to 100 at DRIVE of the alignment
program.

14) Adjust R-DRIVE and G-DRIVE command to white
balance x=0.283 ± 0.003 and y=0.298 ± 0.003 on
the White Balance Meter with PC arrow keys.

15) Adjust SUB-CONTRAST command to 47±1FL of
the raster luminance.

15)Display color 15,0 full white patten at Mode 4.

16)COLOR ADJ. → LUMINANCE → ABL command.

17) Adjust ABL to 32 ± 1FL of the luminance.

18) Exit from the program.

6. Adjustment for Focus.

1)

Display H character in full screen at Mode 4.

2)

Adjust two Focus control on the FBT that focus
should be the best condition.

- 15 -

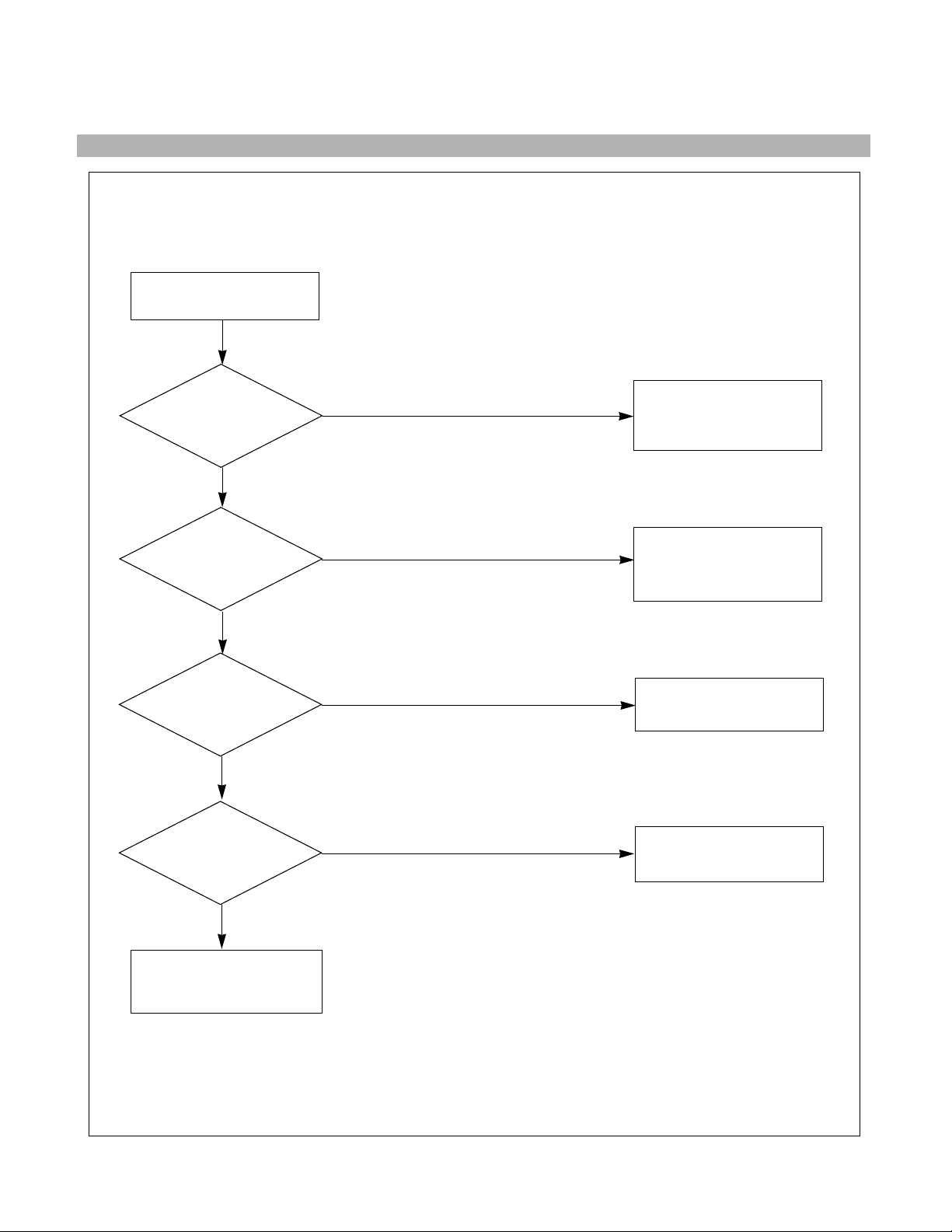

TROUBLESHOOTING GUIDE

1. NO POWER

NO POWER

(POWER INDICATOR OFF)

TROUBLE IN
BRIDGE DIODE
(D901)

TROUBLE IN
FUSE (F901)

TROUBLE IN
IC901

CHECK

FUSE OK?

(F901)

CHECK

D901

BRIDGE DIODE?

NO

YES

YES

NO

NO

CHECK

C905(+) VOLTAGE
145VDC at 110V input
310VDC at 220V input

TROUBLE IN
D924, D926, D923,
D922, D921, D920

TROUBLE IN
Q912, Q913, Q915, Q914,
IC905, IC904, IC902

YES

NO

CHECK

D924, D926, D923,

D922, D921, D920 ?

YES

- 16 -

2. NO CHARACTER

CHECK

IC302 PIN 5, 6, 7 ?

CHECK

IC302 PIN 18, 19, 20,

PIN 6 (5V) ?

CHECK

IC303 PIN 1, 3, 5

PIN10 (12V),

PIN 6 (80V) ?

TROUBLE IN
P301, SIGNAL CABLE,
PC SIGNAL

TROUBLE IN
IC302, P302

TROUBLE IN

IC303

TROUBLE IN
CDT SOCKET

NO

YES

NO

NO

YES

YES

CHECK

R, G, B CATHODE

VOLTAGE?

TROUBLE IN

IC304

NO

YES

NO CHARACTER

- 17 -

3. NO RASTER

NO VIDEO

(POWER INDICATOR

GREEN or AMBER)

CHECK

POWER INDICATOR

GREEN or AMBER ?

CHECK

SCREEN CONTROL

KNOB OF FBT

CHECK

VOLTAGE AT

D924/D926 CATHODE (192V)

D923 CATHODE (80V)

IC904 OUT (12V)

D921 CATHODE

(6.3V)?

CHECK

IC401 (MICOM) PIN 6

5V (HIGH), IC801 PIN 10

12V (HIGH)?

ROTATE SCREEN
CONTROL KNOB TO
CLOCKWISE or
COUNTER CLOCKWIES

TROUBLE IN
IC401 (MICOM),
IC801

TROUBLE IN
CDT SOCKET, BOARD

TROUBLE IN PRIMARY
CIRCUIT OF T901

TROUBLE IN
P302 SIGNAL CABLE

AMBER

GREEN

OK

YES

NO

YES

NO

- 18 -

4. NO VERTICAL DEFLECTION

NO V-DEFLECTION

(ONE HORIZONTAL LINE)

CHECK

IC601 Pin 2

(15V) ?

CHECK

IC601 PIN 4

(-12V)?

TROUBLE IN
T901 15V LINE

TROUBLE IN
T901 -12V LINE

TROUBLE IN
IC601, V-CIRCUIT

NO

NO

YES

YES

CHECK

IC801 PIN 12

(SAWTOOTH WAVE)?

TROUBLE IN
IC801

NO

YES

- 19 -

5. TROUBLE IN DPM

CHECK

IC401 (MICOM)

PIN 40, 41 (H/V INPUT)

SIGNAL?

CHECK
IC401 PIN 9, 8
WAVEFORM?

CHECK

IC401 PIN 6
(5V, HIGH)?

CHECK

IC401 PIN 13, 14 ?

CHECK PC,
(PC IS NOT GOING INTO
DPM MODE)

TROUBLE IN
X401, IC401

TROUBLE IN
IC401

TROUBLE IN
IC401

TROUBLE IN
T901 or PC

NO H / V SYNC SIGNAL

INPUT H/V SYNC

NO

NO

NO

DPMS TABLE

Mode

Item

NORMAL

STAND-BY

SUSPEND

OFF

H / V SYNC

ON / ON
OFF / ON
ON / OFF

OFF / OFF

LED
GREEN
AMBER
AMBER
AMBER

VIDEO

NORMAL

OFF(0V)
OFF(0V)
OFF(0V)

YES

YES

CHECK

B+ LINE

(12V, 15V, 80V,

5V) ?

TROUBLE IN

Q913, Q915

NO

YES

STAND-BY/SUSPEND/

DPMS OFF MODE FAILURE

- 20 -

6. NO DEGAUSSING

CHECK

IC401 PIN 6

(5V)?

CHECK

Q920 COLLECTOR

VOLTAGE

(0.5V)?

CHECK

P901?

CHECK
RL901?

TROUBLE IN
IC401 (MICOM)

TROUBLE IN
D925

TROUBLE IN
P901

TROUBLE IN
RL901

TROUBLE IN
TH901,
DEGAUSSING COIL

NO DEGAUSSING

NO

NO

NO

NO

YES

YES

YES

YES

- 21 -

7. TROUBLE IN OSD

CHECK

IC301 PIN 5

(NEGATIVE H-PULSE

COMES IN ?)

CHECK

IC301 PIN 18

(V-PULSE COMES IN?)

CHECK

IC301 PIN 13, 14, 15

(IS THERE ANY SIGNAL

WHEN OPERATING FRONT

CONTROL ?)

NO OSD

TROUBLE IN
IC302

TROUBLE IN
P302

TROUBLE IN
P302

TROUBLE IN
IC301, IC401

YES

YES

YES

NO

NO

NO

CHECK

IC301 PIN 4

(5V) ?

TROUBLE IN
P302

NO

YES

- 22 -

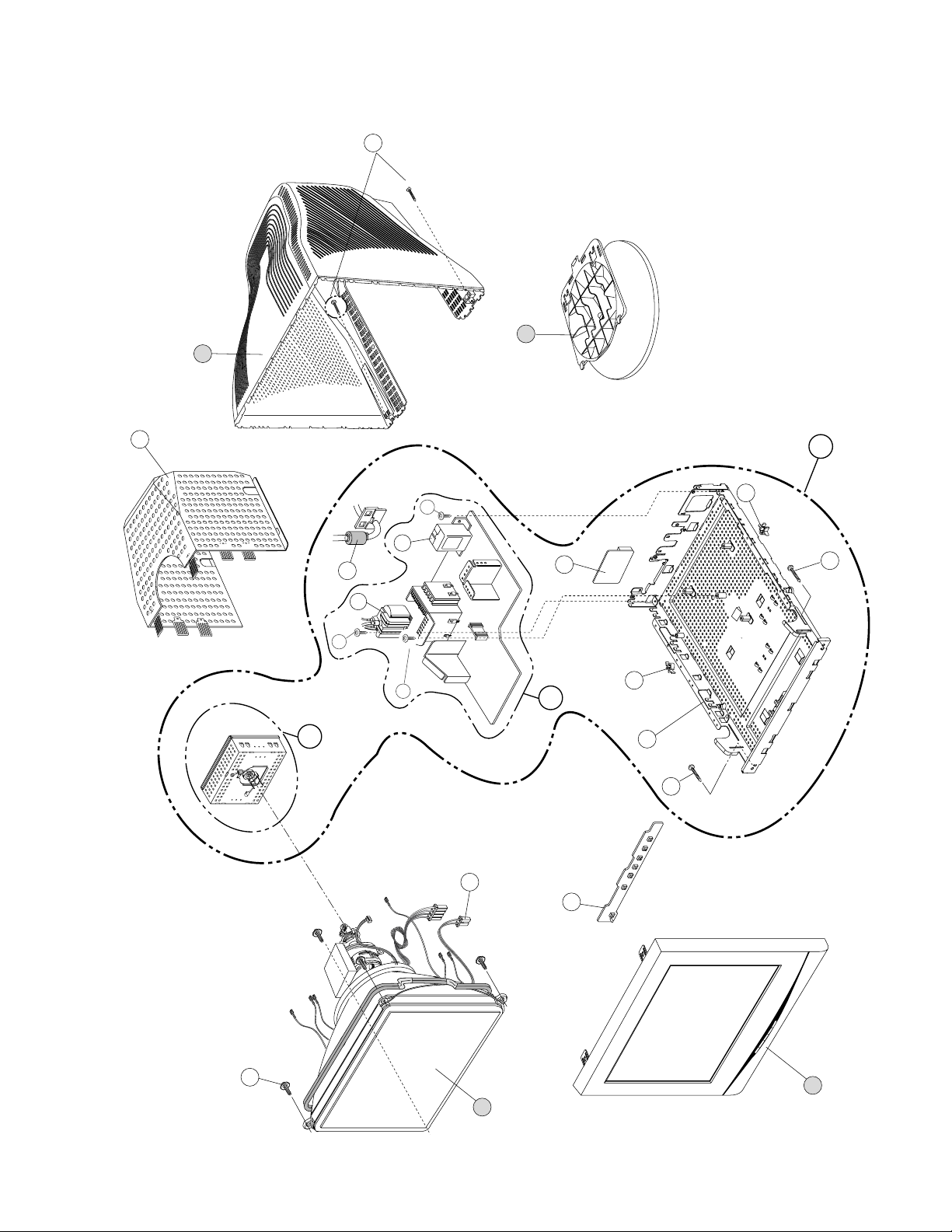

EXPLODED VIEW

9

8

2

5

6

12

11

11

7

B

C

A

10

13

13

1

16

14

a

b

c

3

4

15

- 23 -

EXPLODED VIEW PARTS LIST

Ref. No.

1
2

3

4
5
6
7
8

9
10
11
12
13
14
15
16

A

B

C

a

b

c

Part No.

3091TKC074B

2423GC3E41W

3809TKC042E
3809TKC042B

3043TKK085A

339-002H
6140TC2014B
6871TST299A
6174T13010C
6200TJB001H
6850TA9006A

4930TKK031C

4950TKK368B

332-102E
6871TUT005F
4815TKT016B

332-102E
3313T17265B
3313T17265C

6871TMT316B
6871TMT316C

6871TVT287A

332-112F

1SZZTER001A

339-008C

Description

CABINET ASSEMBLY, FB790G BRAND 068
CDT(CIRC), M41QBF423X 15NPLD LG-PHILIPS Displays 95KHZ 29.1 mm
BACK COVER ASSEMBLY, FB790G 041 PFC,USB
BACK COVER ASSEMBLY, FB790G 3808TKC041A 96KHZ (NON PFC)
TILT SWIVEL ASSEMBLY, 2ND FLATRON 3042TKT060A (17")
SCREW ASSY, PHP+5*20(FZMY)+GW18 NEW TYPE
COIL,DEGAUSSING, - GET D-COIL,0.5*130TS,1410,WITH PURITY,FB770G
PWB(PCB) ASSEMBLY,SUB, FB790G CONTROL TOTAL BRAND CA-114
FBT (FLY BACK TRANSFORMER), FQM19A008,EB990G SAMSUNG 19"
FILTER(CIRC),EMC, 02MD1 DELTA BK W/O GND
CABLE,D-SUB UL 2990-9C(7.5) AT 1560MM GRAY(85964) FB775G DM
HOLDER, PCB FIX , PC+ABS
METAL SHIELD FB790G 2ND FLATRON
SCREW, PTP+4*16(MSWR/FZMY)
PWB(PCB) ASSEMBLY,USB, FB995E ETC TOTAL BRAND
SHIELD ASSEMBLY, TOP 2ND FLATRON
SCREW, PTP+4*16(MSWR/FZMY)
MAIN TOTAL ASSEMBLY, FB790G BRAND CA-114
MAIN TOTAL ASSEMBLY, FB790G BRAND CA-114 (NON PFC)
PWB(PCB) ASSEMBLY,MAIN, FB790G ALEUU BRAND CA-114 TOTAL
PWB(PCB) ASSEMBLY,MAIN, FB790G ALRUU BRAND CA-114 TOTAL (NON PFC)
PWB(PCB) ASSEMBLY, VIDEO, FB790G TOTAL BRAND CA-114
SCREW,DRAWING, D3.5 L10.0 MSWR/FZMY +SW3.5+RW3.5
SCREW, D3.0 L10.0 MSWR/FZMY DOUBLE
SCREW ASSY MP+3*10(FZMY)+SW3+RW3

- 24 -

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C201 0CN1040K949 0.1M 50V Z F TA52
C301 0CE477CF618 470UF SHL 16V M FL TP5
C302 0CE107CF638 100UF SHL,SD 16V M FM5 TP 5
C303 181-288B MKT 100V 104JTR PHS26104
C304 181-288N MKT 100V 103JTR PHS86103
C305 181-288N MKT 100V 103JTR PHS86103
C306 0CN1040K949 0.1M 50V Z F TA52
C307 0CN1040K949 0.1M 50V Z F TA52
C308 0CN1040K949 0.1M 50V Z F TA52
C309 181-288B MKT 100V 104JTR PHS26104
C310 0CK1040K945 0.1UF 50V Z F TR
C312 181-288B MKT 100V 104JTR PHS26104
C313 181-288B MKT 100V 104JTR PHS26104
C314 181-288B MKT 100V 104JTR PHS26104
C315 181-288B MKT 100V 104JTR PHS26104
C316 0CK10302940 0.01M 2KV Z F S
C317 0CE106CN638 10UF SHL,SD 100V M FM5 TP 5
C318 181-288B MKT 100V 104JTR PHS26104
C319 0CK10302940 0.01M 2KV Z F S
C320 0CE107CN630 100U SHL 100V M FM5
C321 0CE107EF638 100UF KMG 16V M FM5 TP 5
C322 0CN1040K949 0.1M 50V Z F TA52
C323 0CE476EN618 47UF KMG 100V M FL TP 5
C324 181-288B MKT 100V 104JTR PHS26104
C325 0CC3300K415 33P 50V J NP0 TP
C326 181-288B MKT 100V 104JTR PHS26104
C327 181-288B MKT 100V 104JTR PHS26104
C329 181-288B MKT 100V 104JTR PHS26104
C330 181-288B MKT 100V 104JTR PHS26104
C332 181-288E MKT 100V 474JTR PHS 26474
C333 181-288E MKT 100V 474JTR PHS 26474
C334 181-288E MKT 100V 474JTR PHS 26474
C336 0CK1010W515 100P 500V K B TS
C337 181-288B MKT 100V 104JTR PHS26104
C340 0CE227CF638 220UF SHL,SD 16V M FM5 TP 5
C341 181-288B MKT 100V 104JTR PHS26104
C342 0CC2200W415 22PF 500V J NP0 TR
C343 0CK1010K515 100PF 50V K B TR
C345 0CK22202510 2200P 2KV K B S
C346 0CC47001505 47PF 1KV K SL TR
C347 0CC47001505 47PF 1KV K SL TR
C348 0CK1040K945 0.1UF 50V Z F TR
C349 181-288E MKT 100V 474JTR PHS 26474
C350 0CK2210K515 220P 50V K B TS
C355 0CK1040K945 0.1UF 50V Z F TR
C356 0CN6810K519 680P 50V K B TA52
C401 0CC5600K415 56P 50V J NP0 TP
C402 0CE476CH638 47UF SHL,SD 25V M FM5 TP 5

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C403 0CK2710K515 270P 50V K B TS
C404 0CK2710K515 270P 50V K B TS
C405 0CK2710K515 270P 50V K B TS
C406 0CC0400K115 4P 50V D NP0 TS
C407 0CC0400K115 4P 50V D NP0 TS
C408 0CN1040K949 0.1M 50V Z F TA52
C410 0CK1040K945 0.1UF 50V Z F TR
C417 0CK1040K945 0.1UF 50V Z F TR
C418 0CN1040K949 0.1M 50V Z F TA52
C452 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C453 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C454 0CK1040K945 0.1UF 50V Z F TR
C455 0CK1040K945 0.1UF 50V Z F TR
C456 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C457 0CK1040K945 0.1UF 50V Z F TR
C459 0CK1010K515 100PF 50V K B TR
C501 0CE1074F638 100UF SRA,SS 16V M FM5 TP 5
C502 0CE1074F638 100UF SRA,SS 16V M FM5 TP 5
C503 0CE4754K638 4.7M SRA 50V M FM5 TP(5)
C504 0CE1074F638 100UF SRA,SS 16V M FM5 TP 5
C505 0CH6330K416 33PF 50V J NP0 2012 R/TP
C506 0CH6330K416 33PF 50V J NP0 2012 R/TP
C507 0CE1054K638 1 UF SRA,SS 50V M FM5 TP 5
C508 0CH3104K946 100000PF 50V Z F 2012 R/TP
C509 0CH3103K516 10000PF 50V K B 2012 R/TP
C510 0CH3104K946 100000PF 50V Z F 2012 R/TP
C511 0CE1054K638 1 UF SRA,SS 50V M FM5 TP 5
C512 0CH3104K946 100000PF 50V Z F 2012 R/TP
C513 0CH3104K946 100000PF 50V Z F 2012 R/TP
C514 0CH3104K946 100000PF 50V Z F 2012 R/TP
C515 0CH3104K946 100000PF 50V Z F 2012 R/TP
C516 0CE1074F638 100UF SRA,SS 16V M FM5 TP 5
C601 0CQ4721N419 0.0047U 100V J POLY NI TP5
C602 0CE225CK638 2.2UF SHL,SD 50V M FM5 TP 5
C603 0CN2220K519 2200PF 50V K B TA52
C604 0CN1040K949 0.1M 50V Z F TA52
C605 181-288Q MKT 100V 154JTR PHS26154
C606 0CK2220W515 2200P 500V K B TS
C608 0CE108CF618 1000UF SHL 16V M FL TP5
C610 0CE227EK618 220UF KMG 50V M FL TP 5
C611 0CE108CH618 1000UF SHL 25V M FL TP5
C615 181-288Q MKT 100V 154JTR PHS26154
C616 0CQ1231N419 0.0120UF 100V J PE NI TP
C619 0CE475CN638 4.7UF SHL,SD 100V M FM5 TP 5
C701 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C702 0CE227EN630 220UF KMG 100V M FM5 BULK
C704 0CBZTBU003J 392J 20.0*12.5*7.5*10.0 800V J
C705 0CE336CN638 33UF SHL,SD 100V M FM5 TP 5
C707 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5

REPLACEMENT PARTS LIST

CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,

READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.

* NOTE : S SAFETY Mark

AL ALTERNATIVE PARTS

CAPACITORS

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C708 0CE476CQ618 47U SHL 200V M FL TP5
C709 181-477A 102J 19.5*12.0*7.0*7.5 250V J
C710 0CC3300K415 33P 50V J NP0 TP
C711 0CQ4721N419 0.0047U 100V J POLY NI TP5
C712 0CK2220K515 2200P 50V K B TS
C713 0CE107CH638 100UF SHL,SD 25V M FM5 TP 5
C730 0CE476CH638 47UF SHL,SD 25V M FM5 TP 5
C731 0CE105CK638 1UF SHL,SD 50V M FM5 TP 5
C732 0CK1040K945 0.1UF 50V Z F TR
C735 0CC1000W105 10PF 500V D SL TR
C736 0CC1000W105 10PF 500V D SL TR
C737 0CQ2221N419 2200PF 100V J PE NI TP
C738 0CE685CN638 6.8UF SHL,SD 100V 20% TP 5 FM5
C740 0CK10302945 0.01UF 2KV Z F TR
C741 0CQ2231N419 0.022UF 100V J PE NI TP
C742 0CK4710K515 470PF 50V K B TR
C743 0CE106CN638 10UF SHL,SD 100V M FM5 TP 5
C771 0CK6810K515 680P 50V K B TS
C772 0CK4710W515 470P 500V K B TS
C801 0CQ3321N419 3300P 100V J POLY NI TP
C802 181-288B MKT 100V 104JTR PHS26104
C803 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C804 181-288D MKT 100V 473JTR PHS26473
C805 181-475E 222J 11.5*10.0*6.0*5.0 100V J
C806 0CE227CH638 220UF SHL,SD 25V M FM5 TP 5
C807 181-288B MKT 100V 104JTR PHS26104
C808 0CC1000K115 10P 50V D NP0 TS
C809 0CK1020K515 1000PF 50V K B TR
C810 0CE105CK638 1UF SHL,SD 50V M FM5 TP 5
C811 0CE476CH638 47UF SHL,SD 25V M FM5 TP 5
C812 0CE107CH638 100UF SHL,SD 25V M FM5 TP 5
C813 0CE106CK638 10UF SHL,SD 50V M FM5 TP 5
C814 0CK5610K515 560P 50V K B TS
C815 0CE227CF638 220UF SHL,SD 16V M FM5 TP 5
C817 0CE476CH638 47UF SHL,SD 25V M FM5 TP 5
C818 181-288J MKT 100V 563JTR PHS26563
C819 181-477U 333J 19.5*13.0*7.5*7.5 250V J
C821 0CK1040K945 0.1UF 50V Z F TR
C823 0CK1010K515 100PF 50V K B TR
C832 0CK10102515 100PF 2KV K B TR
C835 0CBZTTA001S 123J 23.0*16.0*9.5*7.5 800V J
C841 0CE107CR650 100UF SHL 250V M FM7.5 BULK
C842 0CBZTTA002A 2000F D 2.5KV J M/PP NI TP7.5
C843 0CQ3321N419 3300P 100V J POLY NI TP
C844 0CBZTTA002A 2000F D 2.5KV J M/PP NI TP7.5
C845 181-288B MKT 100V 104JTR PHS26104
C846 0CE477CF638 470UF SHL TYPE 16V M FM5 TP 5
C847 0CQ2221N419 2200PF 100V J PE NI TP
C848 0CK47101515 470P 1KV K B TS
C849 0CK6810W515 680P 500V K B TS
C850 0CK1040K945 0.1UF 50V Z F TR
C851 0CK1040K945 0.1UF 50V Z F TR
C852 0CN1040K949 0.1M 50V Z F TA52
C854 181-482G 334J 18.0*18.0*11.0*7.5 250V J
C855 181-303A 104J 20.5*18.5*10.5*10.0 250V
C856 181-482C 154J 18.0*14.0*8.0*7.5 250V J
C857 181-305N 105J 26.0*22.5*14.0*15.0 250V

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C858 181-303A 104J 20.5*18.5*10.5*10.0 250V
C859 181-477X 563J 19.5*15.5*9.0*7.5 250V J
C860 0CN1040K949 0.1M 50V Z F TA52
C861 0CN1040K949 0.1M 50V Z F TA52
C863 0CN1040K949 0.1M 50V Z F TA52
C864 0CN1040K949 0.1M 50V Z F TA52
C865 0CE105CK638 1UF SHL,SD 50V M FM5 TP 5
C891 0CZZTFT001J ECQB1H562JM3 562J 50V TP5.0 MA
C892 0CZZTFT001M ECQB1H103JM3 103J 50V TP5.0 MA
C893 181-288B MKT 100V 104JTR PHS26104
C894 0CZZTFT001L ECQB1H822JM3 822J 50V TP5.0 MA
C895 181-288B MKT 100V 104JTR PHS26104
C896 181-288Q MKT 100V 154JTR PHS26154
C902 0CKZTTA003C SC E 472M 14.0FF7 250V TP7.5 S
C903 0CK10101515 100PF 1KV K B TR
C904 181-304V 393J 19.5*15.5*9.5*10.0 400V J
C905 181-296F 330UF SMH(30*40) 400V M VNSN
C906 0CE475CN638 4.7UF SHL,SD 100V M FM5 TP 5
C907 0CE335CK638 3.3UF SHL,SD 50V M FM5 TP 5
C908 0CK1040K945 0.1UF 50V Z F TR
C909 181-288T MKT 100V 223KTR PHS85223
C910 0CZZTFT001P ECQB1H153JM3 153J 50V TP5.0 MA
C912 0CE475CN638 4.7UF SHL,SD 100V M FM5 TP 5
C915 0CE476CH638 47UF SHL,SD 25V M FM5 TP 5
C916 0CKZTTA003C SC E 472M 14.0FF7 250V TP7.5 S
C917 0CKZTTA003C SC E 472M 14.0FF7 250V TP7.5 S
C920 0CK22101515 220P 1KV K B TP5
C921 0CE227CR650 220UF SHL 250V M FM7.5 BULK
C922 0CE227EN630 220UF KMG 100V M FM5 BULK
C923 0CK10101515 100PF 1KV K B TR
C925 0CE228CH618 2200U SHL 25V M FL TP5
C926 0CE108EF618 1000UF KMG 16V M FL TP 5
C927 0CE108CH630 1000UF SHL 25V M FM5 BULK
C928 0CE108EF618 1000UF KMG 16V M FL TP 5
C929 0CK1020K515 1000PF 50V K B TR
C930 181-288H MKT 100V 333JTR PHS 86333
C950 0CE228ED630 2200UF KMG,RD 10V 20% BULK FM5
C951 0CE228CD618 2200U SHL 10V M FL TP5
C952 181-288L MKT 100V 823JTR PHS26823
C953 0CE477CF638 470UF SHL TYPE 16V M FM5 TP 5
C954 0CK10301945 10000PF D 1KV Z F(Y5V) TR
C955 0CE334CK638 0.33UF SHL,SD 50V 20% TP 5 FM5
C956 0CE336CK638 33UF SHL,SD 50V M FM5 TP 5
C957 0CK1030K945 0.01UF 50V Z F TR
C958 0CE476CH638 47UF SHL,SD 25V M FM5 TP 5
C970 0CE476CH638 47UF SHL,SD 25V M FM5 TP 5

D201 0DL305029BA LTL-305DJ-0C2 TP LITEON GREEN/
D301 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D302 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D303 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D304 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D305 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D306 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D307 0DS124409AA 1SS244 TP ROHM KOREA

- 25 -

DIODEs

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

D308 0DS124409AA 1SS244 TP ROHM KOREA
D309 0DS124409AA 1SS244 TP ROHM KOREA
D310 0DS124409AA 1SS244 TP ROHM KOREA
D311 0DS124409AA 1SS244 TP ROHM KOREA
D312 0DS124409AA 1SS244 TP ROHM KOREA
D313 0DS124409AA 1SS244 TP ROHM KOREA
D314 0DS124409AA 1SS244 TP ROHM KOREA
D315 0DS124409AA 1SS244 TP ROHM KOREA
D318 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D319 0DR140059DA 1N4005TB52 TP LITEON DO41 600V
D401 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D402 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D404 0RD4701Q609 4.70K 1/4W(3 5% TA52
D405 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D451 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D452 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D453 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D454 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D456 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D457 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D501 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D502 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D503 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D504 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D505 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D506 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D507 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D508 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D509 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D510 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323 20
D511 0DS226009AA KDS226 TP KEC SOT-23 80V 300M
D512 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 20
D513 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 20
D514 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 20
D515 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 20
D601 0DD100009DE RGP10G TP G.I DO204AL 400V 1A
D602 0DD100009DE RGP10G TP G.I DO204AL 400V 1A
D611 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D701 0DR400409AB UF4004 TP G.I DO204AL 400V 1A
D702 0DR400409AB UF4004 TP G.I DO204AL 400V 1A
D703 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D704 0DD100009DE RGP10G TP G.I DO204AL 400V 1A
D706 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D707 0DD100009DA RGP10J TP G.I DO204AL 600V 1A
D708 0DRFJ00011A YG339D6F208 FUJI ST TO220 -400
D709 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D731 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D732 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D733 0DD400709CB UF4007 TP G.I DO204AL 1000V 1
D734 0DD400709CB UF4007 TP G.I DO204AL 1000V 1
D735 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D736 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D737 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D738 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D739 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D771 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D772 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

D773 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D801 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D802 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D803 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D804 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D805 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D808 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D811 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D812 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D831 0DR260400AA S2L60-4004P15 BK SHINDENGEN NO
D833 0DR140059DA 1N4005TB52 TP LITEON DO41 600V
D834 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D835 0DD140009AA EK14 V(1) TP SANKEN E/EO-TMD 4
D836 0DD140009AA EK14 V(1) TP SANKEN E/EO-TMD 4
D837 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D838 0DR200000EA FMQ-G2FMS BK SANKEN NON 1500V
D839 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D840 0DD100009DA RGP10J TP G.I DO204AL 600V 1A
D861 0DD140009AA EK14 V(1) TP SANKEN E/EO-TMD 4
D901 0DD360000DB D3SB60 SHINDENKEN
D902 0DD400709CB UF4007 TP G.I DO204AL 1000V 1
D903 0DD100009DE RGP10G TP G.I DO204AL 400V 1A
D904 0DD100009DA RGP10J TP G.I DO204AL 600V 1A
D905 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D906 971-0054 TIN 50MM TAPING
D908 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D910 0DR153979AA 1N5397GP TP G.I DO201AD 600V 1
D920 0DRSD00079A D2L20U SHINDENGEN TP DO-204AC
D921 0DRSD00079A D2L20U SHINDENGEN TP DO-204AC
D922 0DR320400AA S3L20U-4004P15 BK SHINDENGEN N
D923 0DR360000AB D3L60 BK SHINDENGEN ITO220 6
D924 0DR260400AA S2L60-4004P15 BK SHINDENGEN NO
D925 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D926 0DR260400AA S2L60-4004P15 BK SHINDENGEN NO
D927 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
D928 971-0054 TIN 50MM TAPING
D929 0DD100009DE RGP10G TP G.I DO204AL 400V 1A
D940 0DD400709CB UF4007 TP G.I DO204AL 1000V 1
D941 0DD100009DE RGP10G TP G.I DO204AL 400V 1A
D942 0DR520000AA D5LC20U BK SHINDENGEN ITO220
D943 0DD100009DE RGP10G TP G.I DO204AL 400V 1A
D946 0DS141489AB 1N4148 TP GRANDE DO-34 500MW 1
ZD201 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD202 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD203 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD303 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD306 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD402 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD403 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD404 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD405 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD407 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD408 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD409 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD410 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD703 0DZ510009BE GDZ5.1B TP GRANDE DO34 500MW 5
ZD711 0DZ910009AH MTZJ9.1B TP ROHM-K DO34 500MW

- 26 -

- 27 -

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

ZD712 0DZ560009AG GDZJ5.6B TP GRANDE DO-34 500MW
ZD802 0DZ180009BD GDZJ18B TP GRANDE DO34 0.5W 18
ZD804 0DZ180009BD GDZJ18B TP GRANDE DO34 0.5W 18
ZD901 0DZ240009BJ GDZJ24B TP GRANDE DO34 500MW 2
ZD902 0DZ470005AA MTZ 4.7B TP ROHM-K DO34 500MW

IC301 0IPRPNV009A NT68275-00027 NOVATEK 16P, DIP
IC302 0IPRPNS008A LM1267NA NATIONAL SEMICONDUCTO
IC303 0IPRPNS007A LM2463TA NATIONAL SEMICONDUCTO
IC304 0IPRPNS005A LM2480NA NATIONAL SEMICONDUCTO
IC401 0IZZTSZ179A WT62PI WELTREND 42 ST MTP EB99
IC402 0ISG240860A M24C08-BN6 8DIP BK 8K SERIAL I
IC501 0ITI204600B TUSB2046B 32PQFP R/TP USB HUB
IC502 0ITI204400A TPS2044DR 16SOP TP QUAD POWER
IC503 0ITI764330A TPS76433DBVR SOT23(DBV) TP 0.1
IC601 0ISG817200A TDA8172
IC801 0IPRPPH005A TDA4841PS PHILIPS 32P,SDIP ST
IC802 0IMI625010A M62501P 16P4 BK INTERFACE PWM
IC901 0ISS384300A KA3843B 8P SDIP BK PWM CONTROL
IC902 0IPMGFF001A ICE2B265 INFINEON 8 DIP ST SMP
IC904 0ISS781200F KA7812
IC906 0ILI817000E LTV-817M B 4P BK PHOTO COUPLER
IC916 0ILI817000E LTV-817M B 4P BK PHOTO COUPLER
IC917 0IKE431000B KIA431 (TP)

L304 0LA1000K119 100UH K 2.3*3.4 TP
L305 0LA0390K119 0.39UH K 2.3*3.4 TP
L306 0LA0390K119 0.39UH K 2.3*3.4 TP
L307 0LA0390K119 0.39UH K 2.3*3.4 TP
L308 971-0054 TIN 50MM TAPING
L309 971-0054 TIN 50MM TAPING
L310 971-0054 TIN 50MM TAPING
L501 125-155P BFS2550R2FG SAMWHA 2.5*5.0MM R
L701 6140TBZ009C NO CORE 10UH 0.12*15MM 50.5T F
L801 6140TYZ011B - GET DR14*15 EB990G H-LIN
L805 150-985P DR12*15 6MH 0.25MM 365.5T H­L806 150-985N DR10*10 4.7UH 0.16MM 322.5T
L901 6140TBZ032B EE42SI PFC 49MH 0.42MM 230 +/­L910 150-985F DR10*10 10UH 0.5MM 14.5T (PFC)
FB201 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A
FB301 125-155A BFD3510R2FG SAMWHA 3.5*10MM RA
FB302 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A
FB303 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A
FB304 125-155A BFD3510R2FG SAMWHA 3.5*10MM RA
FB305 125-155A BFD3510R2FG SAMWHA 3.5*10MM RA
FB306 125-022J FERRITE KQ-1 JS 3.5*5.0MM AXIA
FB307 125-022J FERRITE KQ-1 JS 3.5*5.0MM AXIA
FB308 125-022J FERRITE KQ-1 JS 3.5*5.0MM AXIA
FB309 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A
FB310 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A
FB312 125-155A BFD3510R2FG SAMWHA 3.5*10MM RA
FB313 125-155K BFS3550A0FG SAMWHA 3.5*5.0MM A
FB314 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

FB315 125-155A BFD3510R2FG SAMWHA 3.5*10MM RA
FB316 125-155A BFD3510R2FG SAMWHA 3.5*10MM RA
FB317 125-155A BFD3510R2FG SAMWHA 3.5*10MM RA
FB401 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A
FB402 125-155N BFD3565R2FG SAMWHA 3.5*6.5MM R
FB403 125-155L BFS3580A0FG SAMWHA 3.5*8.0MM A
FB841 125-155P BFS2550R2FG SAMWHA 2.5*5.0MM R
FB902 125-155H BFS3510A0FG SAMWHA 3.5*10MM AX
FB903 125-155C BFD3514R2FG SAMWHA 3.5*14MM RA
FB904 125-155H BFS3510A0FG SAMWHA 3.5*10MM AX
FB905 125-155C BFD3514R2FG SAMWHA 3.5*14MM RA
FB906 125-155H BFS3510A0FG SAMWHA 3.5*10MM AX
FB907 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A

Q301 0TR390409CA 2N3904 TP SAMSUNG TO92 NPN
Q302 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q450 0TR131009BA BFQ 131 TP PHILIPS SOT54 NPN V
Q451 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q452 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q453 0TR320209AA KTC3202-Y(KTC1959) TP KEC TO92
Q454 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q455 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q456 0TR320209AA KTC3202-Y(KTC1959) TP KEC TO92
Q457 0TR564009AB KSB564AC-YTA TP SANSUNG TO92 P
Q458 0TR320209AA KTC3202-Y(KTC1959) TP KEC TO92
Q459 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q611 0TR320709AA KTC3207(KTC2482) TP KEC TO92L
Q701 0TR320509AB KTC3205-Y(KTC2236A) TP KEC TO9
Q704 0TFFN10003B INFINEON SPA07N60C3 ST TO220F
Q705 0TR320209AA KTC3202-Y(KTC1959) TP KEC TO92
Q706 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q707 0TR390409CA 2N3904 TP SAMSUNG TO92 NPN
Q708 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q721 0TR390409CA 2N3904 TP SAMSUNG TO92 NPN
Q722 0TR390600CA 2N3906 TP SAMSUNG TO92 NPN
Q723 0TR390409CA 2N3904 TP SAMSUNG TO92 NPN
Q724-L 0TR463300AB 2SC4633(LS-CB11) BK SANYO LS­Q725-R 0TRFC10001A FAIRCHILD KSC5042F-YDTU ST TO2
Q771 0TR920009AB KSP92 TP SAMSUNG TO92 HIGH VOL
Q801 0TR558900BA 2SC5589(LG,W/M) BK TOSHIBA TO3
Q802 0TR471009AA KSD471AC-Y TP SAMSUNG TO92 NP
Q803 0TR564009AB KSB564AC-YTA TP SANSUNG TO92 P
Q806 0TR471009AA KSD471AC-Y TP SAMSUNG TO92 NP
Q807 0TR564009AB KSB564AC-YTA TP SANSUNG TO92 P
Q808 0TR127009AA KTA1270-Y(KTA562TM) TP KEC TO9
Q810 0TR114009AB DTC114ES TP ROHM-K SPT NPN
Q832 0TF283509AA 2SK2835(TP) TP TOSHIBA 200V 5A
Q833 0TF306000AA 2SJ306 BK SANYO -250V -3A TO2
Q834 0TR231609AA KSC2316-Y TP SAMSUNG TO92L NP
Q836 0TF630000CA IRFS630A BK SAMSUNG 200V 6.5A
Q837 0TF630000CA IRFS630A BK SAMSUNG 200V 6.5A
Q838 0TF630000CA IRFS630A BK SAMSUNG 200V 6.5A
Q839 0TF640000CA IRFS640A BK SAMSUNG 200V 9A T
Q841 0TR114009AB DTC114ES TP ROHM-K SPT NPN
Q842 0TR114009AB DTC114ES TP ROHM-K SPT NPN

COILs & COREs

ICs

TRANSISTORs

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Q843 0TR114009AB DTC114ES TP ROHM-K SPT NPN
Q844 0TR114009AB DTC114ES TP ROHM-K SPT NPN
Q901 0TFFN10003C INFINEON SPA07N60C3(E8153) ST
Q903 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q912 0TR127309AA KTA1273-Y(KTA966A) TP KEC TO92
Q913 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q914 0TR928009AB KSA928A-Y TP SAMSUNG TO92L PNP
Q915 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92
Q920 0TR319809AA KTC3198-Y(KTC1815) TP KEC TO92

R201 0RD1001Q609 1K 1/4W(3 5% TA52
R202 0RD1600Q609 160 1/4W(3 5% TA52
R203 0RD2200Q609 220 1/4W(3 5% TA52
R204 0RD2200Q609 220 1/4W(3 5% TA52
R205 0RD1001Q609 1K 1/4W(3 5% TA52
R206 0RD1600Q609 160 1/4W(3 5% TA52
R207 0RD3300Q609 330 1/4W(3 5% TA52
R208 0RD3300Q609 330 1/4W(3 5% TA52
R209 0RD5600Q609 560 1/4W(3 5% TA52
R210 0RD3600Q609 360 1/4W(3 5% TA52
R211 0RD5100Q609 510 1/4W(3 5% TA52
R301 0RD0752Q609 75 1/4W(3 5% TA52
R302 0RD0752Q609 75 1/4W(3 5% TA52
R303 0RD0752Q609 75 1/4W(3 5% TA52
R304 0RD0332Q609 33 1/4W(3 5% TA52
R305 0RD0332Q609 33 1/4W(3 5% TA52
R306 0RD0332Q609 33 1/4W(3 5% TA52
R307 0RD5601Q609 5.60K 1/4W(3 5% TA52
R308 0RD1002Q609 10K 1/4W(3 5% TA52
R309 0RD5601Q609 5.60K 1/4W(3 5% TA52
R310 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R311 0RN1002F409 10K 1/6W 1 TA52
R312 0RD0472Q609 47 1/4W(3 5% TA52
R313 0RD1000Q609 100 1/4W(3 5% TA52
R314 0RD1001Q609 1K 1/4W(3 5% TA52
R315 0RD1000Q609 100 1/4W(3 5% TA52
R316 0RD1000Q609 100 1/4W(3 5% TA52
R317 0RD1002Q609 10K 1/4W(3 5% TA52
R318 0RD1001Q609 1K 1/4W(3 5% TA52
R319 0RD1000Q609 100 1/4W(3 5% TA52
R320 0RD1000Q609 100 1/4W(3 5% TA52
R321 0RD1002Q609 10K 1/4W(3 5% TA52
R322 0RD1501Q609 1.50K 1/4W(3 5% TA52
R323 0RD1102Q609 11K 1/4W(3 5% TA52
R324 0RD1000Q609 100 1/4W(3 5% TA52
R325 0RD1002Q609 10K 1/4W(3 5% TA52
R326 0RD1000Q609 100 1/4W(3 5% TA52
R327 0RD2201Q609 2.20K 1/4W(3 5% TA52
R328 0RD2201Q609 2.20K 1/4W(3 5% TA52
R329 0RD2201Q609 2.20K 1/4W(3 5% TA52
R330 0RD1001Q609 1K 1/4W(3 5% TA52
R331 0RD0472Q609 47 1/4W(3 5% TA52
R332 0RD0472Q609 47 1/4W(3 5% TA52
R333 0RD0472Q609 47 1/4W(3 5% TA52
R334 0RD1000Q609 100 1/4W(3 5% TA52

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R335 0RD1000Q609 100 1/4W(3 5% TA52
R336 0RD1500Q609 150 1/4W(3 5% TA52
R337 0RD1800Q609 180 1/4W(3 5% TA52
R338 0RD1200Q609 120 1/4W(3 5% TA52
R339 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R340 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R341 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R342 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R343 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R344 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R347 0RD1000Q609 100 1/4W(3 5% TA52
R359 0RD0102Q609 10 1/4W(3 5% TA52
R401 0RD3300Q609 330 1/4W(3 5% TA52
R402 0RD1000Q609 100 1/4W(3 5% TA52
R405 0RD4701Q609 4.70K 1/4W(3 5% TA52
R406 0RD4701Q609 4.70K 1/4W(3 5% TA52
R407 0RD1000Q609 100 1/4W(3 5% TA52
R412 0RD1000Q609 100 1/4W(3 5% TA52
R413 0RD2202Q609 22K 1/4W(3 5% TA52
R414 0RD2202Q609 22K 1/4W(3 5% TA52
R415 0RD2202Q609 22K 1/4W(3 5% TA52
R416 0RD2202Q609 22K 1/4W(3 5% TA52
R419 0RN4701F409 4.70K 1/6W 1% TA52
R420 0RD4701Q609 4.70K 1/4W(3 5% TA52
R421 0RD2001Q609 2K 1/4W(3 5% TA52
R422 0RD4701Q609 4.70K 1/4W(3 5% TA52
R423 0RD1000Q609 100 1/4W(3 5% TA52
R424 0RN2001F409 2K 1/6W 1% TA52
R425 0RD2001Q609 2K 1/4W(3 5% TA52
R426 0RD2001Q609 2K 1/4W(3 5% TA52
R427 0RD4701Q609 4.70K 1/4W(3 5% TA52
R428 0RD1000Q609 100 1/4W(3 5% TA52
R429 0RD1000Q609 100 1/4W(3 5% TA52
R430 0RD1801Q609 1.80K 1/4W(3 5% TA52
R431 0RD1801Q609 1.80K 1/4W(3 5% TA52
R432 0RD1301Q609 1.30K 1/4W(3 5% TA52
R440 0RD1000Q609 100 1/4W(3 5% TA52
R443 0RD1001Q609 1K 1/4W(3 5% TA52
R451 0RD4701Q609 4.70K 1/4W(3 5% TA52
R452 0RD4701Q609 4.70K 1/4W(3 5% TA52
R453 0RD1500Q609 150 1/4W(3 5% TA52
R454 0RD6201Q609 6.20K 1/4W(3 5% TA52
R455 0RN0270G609 0.27 1/4W 5 TA52
R456 0RD0622A609 62 OHM 1/2 W (7.0) 5% TA52
R457 0RD4701Q609 4.70K 1/4W(3 5% TA52
R458 0RD4701Q609 4.70K 1/4W(3 5% TA52
R459 0RD1500Q609 150 1/4W(3 5% TA52
R460 0RD8201Q609 8.20K 1/4W(3 5% TA52
R461 0RD8201Q609 8.20K 1/4W(3 5% TA52
R462 0RD1500Q609 150 1/4W(3 5% TA52
R463 0RD2201Q609 2.20K 1/4W(3 5% TA52
R464 0RX0472K607 47 OHM 2 W 5% TA62
R465 0RD1001Q609 1K 1/4W(3 5% TA52
R473 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R493 0RD1000Q609 100 1/4W(3 5% TA52
R494 0RD1000Q609 100 1/4W(3 5% TA52
R501 0RH1502D622 15K 1/10W 5 D.R/TP

- 28 -

RESISTORs

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R502 0RH1502D622 15K 1/10W 5 D.R/TP
R503 0RH1502D622 15K 1/10W 5 D.R/TP
R504 0RH0222D622 22 1/10W 5 D.R/TP
R505 0RH0222D622 22 1/10W 5 D.R/TP
R506 0RH0222D622 22 1/10W 5 D.R/TP
R507 0RH1502D622 15K 1/10W 5 D.R/TP
R508 0RH0222D622 22 1/10W 5 D.R/TP
R509 0RH0222D622 22 1/10W 5 D.R/TP
R511 0RH1502D622 15K 1/10W 5 D.R/TP
R512 0RH1502D622 15K 1/10W 5 D.R/TP
R513 0RH1502D622 15K 1/10W 5 D.R/TP
R514 0RH1502D622 15K 1/10W 5 D.R/TP
R515 0RH1502D622 15K 1/10W 5 D.R/TP
R516 0RH1502D622 15K 1/10W 5 D.R/TP
R517 0RH0222D622 22 1/10W 5 D.R/TP
R518 0RH1502D622 15K 1/10W 5 D.R/TP
R519 0RH1502D622 15K 1/10W 5 D.R/TP
R520 0RH1502D622 15K 1/10W 5 D.R/TP
R521 0RH1501D622 1.5K OHM 1 / 10 W 2012 5.00% D
R522 0RD4701Q609 4.70K 1/4W(3 5% TA52
R522 0RH0222D622 22 1/10W 5 D.R/TP
R523 0RH1502D622 15K 1/10W 5 D.R/TP
R525 0RH1501D622 1.5K OHM 1 / 10 W 2012 5.00% D
R527 0RH1502D622 15K 1/10W 5 D.R/TP
R528 0RH0222D622 22 1/10W 5 D.R/TP
R529 0RH1002D622 10K OHM 1 / 10 W 2012 5.00% D
R531 0RH0101D622 1.0 1/10W 5 TA
R532 0RH1502D622 15K 1/10W 5 D.R/TP
R533 0RH0222D622 22 1/10W 5 D.R/TP
R534 0RH0222D622 22 1/10W 5 D.R/TP
R567 0RD1001Q609 1K 1/4W(3 5% TA52
R601 0RN5601F409 5.60K 1/6W 1% TA52
R602 0RN2201F409 2.20K 1/6W 1% TA52
R603 0RN9101F409 9.10K 1/6W 1% TA52
R604 0RN1802F409 18K 1/6W 1% TA52
R605 0RN8201F409 8.20K 1/6W 1% TA52
R606 0RN1801F409 1.80K 1/6W 1% TA52
R607 0RD1800A609 180 OHM 1/2 W (7.0) 5% TA52
R608 0RD0151A609 1.5 OHM 1/2 W (7.0) 5% TA52
R609 0RN0101H409 1.0 1/2W 1 TA52
R615 0RD2001Q609 2K 1/4W(3 5% TA52
R616 0RD3001Q609 3K 1/4W(3 5% TA52
R617 0RD4700Q609 470 OHM 1/4 W (3.4) 5% TA52
R618 0RD1002Q609 10K 1/4W(3 5% TA52
R619 0RD1001Q609 1K 1/4W(3 5% TA52
R620 0RD0152Q609 15 1/4W(3 5% TA52
R701 0RMZTWD001C 47 OHM 7 W 5% RWR PD-TYPE
R702 0RD1002Q609 10K 1/4W(3 5% TA52
R703 0RD3301Q609 3.30K 1/4W(3 5% TA52
R704 0RD2201Q609 2.20K 1/4W(3 5% TA52
R705 0RB0150K609 0.15 OHM 2 W 5% TA52
R706 0RD1003Q609 100K 1/4W(3 5% TA52
R707 0RD5601Q609 5.60K 1/4W(3 5% TA52
R710 0RD0472Q609 47 1/4W(3 5% TA52
R711 0RN1502F409 15K 1/6W 1% TA52
R712 0RD1003Q609 100K 1/4W(3 5% TA52
R713 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R714 0RD1001Q609 1K 1/4W(3 5% TA52
R716 0RD1004Q609 1M OHM 1/4 W (3.4) 5% TA52
R717 0RD1000Q609 100 1/4W(3 5% TA52
R718 0RN0111H509 1.1 OHM 1/2 W 2.00% TA52
R719 0RD0332Q609 33 1/4W(3 5% TA52
R730 0RD4702Q609 47K 1/4W(3 5% TA52
R731 0RD1000Q609 100 1/4W(3 5% TA52
R732 0RD1001Q609 1K 1/4W(3 5% TA52
R733 0RD1802Q609 18K 1/4W(3 5% TA52
R734 0RD2001Q609 2K 1/4W(3 5% TA52
R735 0RD5601Q609 5.60K 1/4W(3 5% TA52
R736 0RX1001K607 1K OHM 2 W 5.00% TA62
R737 0RD1004A609 1.0M OHM 1/2 W (7.0) 5% TA52
R738 0RD3601Q609 3.60K 1/4W(3 5% TA52
R739 0RD3300Q609 330 1/4W(3 5% TA52
R740 0RN1503G409 150K 1/4W 1 TA52
R743 0RX1303K607 130K OHM 2 W 5.00% TA62
R744 0RX1303K607 130K OHM 2 W 5.00% TA62
R745 0RD0751Q609 7.5 OHM 1/4 W (3.4) 5% TA52
R746 0RX1502J609 15KOHM 1 W 5% TA52
R747 0RD3001A609 3.0K OHM 1/2 W (7.0) 5% TA52
R748 0RD3300Q609 330 1/4W(3 5% TA52
R749 0RD5600Q609 560 1/4W(3 5% TA52
R750 0RN3602F409 36K 1/6W 1 TA52
R751 0RD2000Q609 200 1/4W(3 5% TA52
R764 0RD0472Q609 47 1/4W(3 5% TA52
R771 0RD1101Q609 1.1K OHM 1/4 W (3.4) 5% TA52
R773 0RD6202A609 62K OHM 1/2 W (7.0) 5% TA52
R774 0RD4302Q609 43K 1/4W(3 5% TA52
R775 0RD3300Q609 330 1/4W(3 5% TA52
R776 0RD7502Q609 75K 1/4W(3 5% TA52
R780 0RD1001Q609 1K 1/4W(3 5% TA52
R801 0RD1502Q609 15K 1/4W(3 5% TA52
R802 0RN2202F409 22K 1/6W 1% TA52
R803 0RD3302Q609 33K 1/4W(3 5% TA52
R805 0RD1002Q609 10K 1/4W(3 5% TA52
R806 0RD1002Q609 10K 1/4W(3 5% TA52
R807 0RD1001Q609 1K 1/4W(3 5% TA52
R808 0RD1001Q609 1K 1/4W(3 5% TA52
R809 0RN3902F409 39K 1/6W 1% TA52
R810 0RD1001Q609 1K 1/4W(3 5% TA52
R811 0RD1001Q609 1K 1/4W(3 5% TA52
R812 0RD2201Q609 2.20K 1/4W(3 5% TA52
R813 0RD2401Q609 2.40K 1/4W(3 5% TA52
R814 0RN1202F409 12K 1/6W 1% TA52
R815 0RN4700F409 470 1/6W 1 TA52
R818 0RD2701Q609 2.70K 1/4W(3 5% TA52
R822 0RN3601F409 3.6K 1/6W 1 TA52
R823 0RD2703Q609 270K 1/4W(3 5% TA52
R824 0RN4700F409 470 1/6W 1 TA52
R825 0RN1002F409 10K 1/6W 1 TA52
R826 0RN1002F409 10K 1/6W 1 TA52
R827 0RN1002F409 10K 1/6W 1 TA52
R830 0RD1002Q609 10K 1/4W(3 5% TA52
R831 0RN1102F409 11K 1/6W 1% TA52
R835 0RD4700Q609 470 OHM 1/4 W (3.4) 5% TA52
R836 0RD1002A609 10K OHM 1/2 W (7.0) 5% TA52

- 29 -

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R837 0RN1202F409 12K 1/6W 1% TA52
R838 0RD0101Q609 1 1/4W(3 5% TA52
R841 0RD5601Q609 5.60K 1/4W(3 5% TA52
R842 0RMZTWD001A 4.7 OHM 5 W 5% B RWR
R843 0RX1003J609 100KOHM 1 W 5% TA52
R846 0RD0332A609 33 OHM 1/2 W (7.0) 5% TA52
R847 0RD1000A609 100 OHM 1/2 W (7.0) 5% TA52
R848 0RD0471A609 4.7 OHM 1/2 W (7.0) 5% TA52
R849 0RX1300J609 130 OHM 1 W 5% TA52
R850 0RMZTWD001C 47 OHM 7 W 5% RWR PD-TYPE
R851 0RD4701Q609 4.70K 1/4W(3 5% TA52
R853 0RD4701Q609 4.70K 1/4W(3 5% TA52
R855 0RD4701Q609 4.70K 1/4W(3 5% TA52
R857 0RD3001Q609 3K 1/4W(3 5% TA52
R859 0RD0102Q609 10 1/4W(3 5% TA52
R860 0RD2000Q609 200 1/4W(3 5% TA52
R861 180-465Y RWR 1.2OHM 7W.(V-TYPE)
R862 0RN0390J607 0.39 1W 5% TA62
R871 0RX1800K607 180 OHM 2 W 5% TA62
R872 0RD2401Q609 2.40K 1/4W(3 5% TA52
R873 0RD0122A609 12 OHM 1/2 W (7.0) 5% TA52
R874 0RX0332K607 33 OHM 2 W 5% TA62
R875 0RX0432K607 43 OHM 2 W 5% TA62
R876 0RN3002F409 30K 1/6W 1% TA52
R891 0RN2701F409 2.70K 1/6W 1% TA52
R892 0RN6800F409 680 1/6W 1% TA52
R893 0RD3301Q609 3.30K 1/4W(3 5% TA52
R894 0RN2202F409 22K 1/6W 1% TA52
R895 0RD1000Q609 100 1/4W(3 5% TA52
R896 0RD1000Q609 100 1/4W(3 5% TA52
R901 180-465H 0.24 OHM 5W 5% (NON PFC)
R902 0RD0472Q609 47 1/4W(3 5% TA52
R903 0RD0752Q609 75 1/4W(3 5% TA52
R905 0RX4702K665 47K OHM 2 W 5% SF
R908 0RN0220H609 0.22 1/2W 5% TA52
R909 0RD1002Q609 10K 1/4W(3 5% TA52
R910 0RD1802Q609 18K 1/4W(3 5% TA52
R911 0RN6800F409 680 1/6W 1% TA52
R912 0RD1001Q609 1K 1/4W(3 5% TA52
R913 0RB0120K607 0.12 OHM 2 W 5% TA62
R914 0RD1500Q609 150 1/4W(3 5% TA52
R915 0RD8203Q609 820KOHM 1/4 W (3.4) 5% TA52
R916 0RD8203Q609 820KOHM 1/4 W (3.4) 5% TA52
R917 0RD1000Q609 100 1/4W(3 5% TA52
R918 0RD1003Q609 100K 1/4W(3 5% TA52
R919 0RD2002Q609 20K 1/4W(3 5% TA52
R920 0RD0332Q609 33 1/4W(3 5% TA52
R921 0RD0332Q609 33 1/4W(3 5% TA52
R922 0RD5101Q609 5.10K 1/4W(3 5% TA52
R924 0RD1500Q609 150 1/4W(3 5% TA52
R925 0RD1001Q609 1K 1/4W(3 5% TA52
R926 0RD4701Q609 4.70K 1/4W(3 5% TA52
R928 0RX0331K607 3.3 OHM 2 W 5% TA62
R941 0RD2703A609 270K OHM 1/2 W (7.0) 5% TA52
R942 971-0054 TIN 50MM TAPING
R949 0RN0220H609 0.22 1/2W 5% TA52
R950 0RD1002Q609 10K 1/4W(3 5% TA52

DATE: 2002. 5. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R951 0RD1101A609 1.1K OHM 1/2 W (7.0) 5% TA52
R952 0RD4701Q609 4.70K 1/4W(3 5% TA52
R953 0RD1002Q609 10K 1/4W(3 5% TA52
R954 0RD4700A609 470 OHM 1/2 W (7.0) 5% TA52
R955 0RD4701Q609 4.70K 1/4W(3 5% TA52
R961 0RD3900Q609 390 1/4W(3 5% TA52
R970 0RX4702K607 47KOHM 2 W 5% TA62
R971 0RD2703Q609 270K 1/4W(3 5% TA52
R972 0RD2703Q609 270K 1/4W(3 5% TA52
R973 0RD0392Q609 39 1/4W(3 5% TA52
R974 0RB0101J609 1 OHM 1 W 5% TA52
R975 0RD0222Q609 22 1/4W(3 5% TA52
R976 0RD1000Q609 100 1/4W(3 5% TA52
R977 0RD4701Q609 4.70K 1/4W(3 5% TA52
R978 0RN1501F409 1.5K 1/6W 1 TA52
R979 0RN1501F409 1.5K 1/6W 1 TA52
R981 0RD1001Q609 1K 1/4W(3 5% TA52
R990 0RD0512Q609 51 1/4W(3 5% TA52
R991 0RD5101Q609 5.10K 1/4W(3 5% TA52
R992 0RD5101Q609 5.10K 1/4W(3 5% TA52

F901 0FZZTTH001B TIME LAG HBC 5A/250V,215 005,L
J113 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A
J313 0RD0152Q609 15 1/4W(3 5% TA52
J331 0RD0152Q609 15 1/4W(3 5% TA52
J332 0RD0152Q609 15 1/4W(3 5% TA52
J43 0RD4700Q609 470 OHM 1/4 W (3.4) 5% TA52
J82 125-155J BFS2550A0FG SAMWHA 2.5*5.0MM A
RL901 6920TBB006A DY3M-DC12V DONGYANG 250VAC 5A
SC301 6620TBD003A PCS701E PARK ELEC. 10PIN 14/36
SC901 6200TJB001H 02MD1 DELTA BK W/O GND
SG301 6918TAT005E MTAS-201M GIGA AXIAL TAPING
SG302 165-004A AG20PT 152F-L3N/S-23 HANDOK RA
SG303 6918TAT005E MTAS-201M GIGA AXIAL TAPING
SG304 6918TAT005E MTAS-201M GIGA AXIAL TAPING
SG305 6918TAT005E MTAS-201M GIGA AXIAL TAPING
SG701 165-004A AG20PT 152F-L3N/S-23 HANDOK RA
SW201 140-058D SKHV10911A LGEC NON 12 20 HORI
SW202 140-058D SKHV10911A LGEC NON 12 20 HORI
SW203 140-058D SKHV10911A LGEC NON 12 20 HORI
SW204 140-058D SKHV10911A LGEC NON 12 20 HORI
SW205 140-058D SKHV10911A LGEC NON 12 20 HORI
SW206 140-058D SKHV10911A LGEC NON 12 20 HORI
SW207 140-058D SKHV10911A LGEC NON 12 20 HORI
SW801 140-079C SLS-1301 SW NON 30 0 HORIZENTA
T701 6174T13010C “FQM19A008,EB990G SAMSUNG 19”””
T801 6140TDZ009A - GET EER2834,DUMMY,EB990G
T802 6170TCZ008A EE2218 1.3MH FB995C
T901 6170TMZ130A EER4445S 135UH V-18PIN EB990G
T903 6170TMZ131A EE2525F 820UH V-10PIN EB790G S
TH901 6322TB4R51A J503P61D4R5Q270S JAHWA 4.5 oh
TH902 6322TA080AB

TP8D15 DAEWOO +/- 15% 110/220V (NON PFC)
VR801 180-035Q EVN-DJAA03B24 (MEC),20KB
VR901 180-035C EVN-DJAA03B22 (MEC),200B
X401 6202TTB003B HC-49/U HARMONY RADIAL 12MHZ 3
X501 6202TTB001A HC-49/U SUNNY E 6.000000MHZ 30

- 30 -

OTHERs

PIN CONFIGURATION

- 31 -

PWM output terminal
Power supply terminal
Trigger Input terminal
This pin is used to set oscillating frequency
This pin is used for AGC setting
Output terminal of error signal
Input terminal of Over Voltage Protection
Input terminal of Under Voltage Protection
Postive Input terminal of Buffer Amp
Output terminal of Buffer Amp
Postive Input terminal of OP Amp
Negative Input terminal of OP Amp
Output terminal of OP Amp
Dead time control terminal(Soft start function)
Output terminal of reference voltage (5V)
Ground terminal

M62501P /FP

M62501

1
2
3
4
5
6
7
8

PWM OUT

Vcc

TIN
Cosc
Cagc

POUT

OVP
UVP

GND
VREF
DTC
FB
IN ­IN +
BO
BI

16
15
14
13
12
11
10

9

PIN CONFIGURATION(TOP VIEW)

Outlone P: 16P4

FP: 16P2S

PIN NO.

Symbol

PWM OUT

Vcc

TIN
CAGC
CAGC
P.OUT

OVP
UVP

BI
BO
IN

+

IN

-

FB

DTC

VREF

GND

Functional Description

Teerminal Number and The facillty

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

TDA8172 Vertical Deflection Output Circuit

1

7

7
6
5
4
3
2
1

NON-INVERTING INPUT
OUTPUT STAGE SUPPLY
OUYPUT
GROUND
FLYBACK GENERATOR
SUPPLY VOLTAGE
INVERTING INPUT

Pin Configuration

M24C08 Serial I2C BUS EEPROM

SYMBOL

E0-E2
SDA
SCL

WC
Vcc
Vss

DESCRIPTION

Chip Enable Input
Serial Data Address Input/Output
Serial Clock

Write Control
Supply Voltage
Ground

1

PSDIP8 (BN)

0.25mm Frame

8

1

1

SO8 (MN)
150mil Width

TSSOP8 (DW)
169mil Width

8

8

Logic Dirgram

SDA
SCL

DDC SCL
DDC SDA

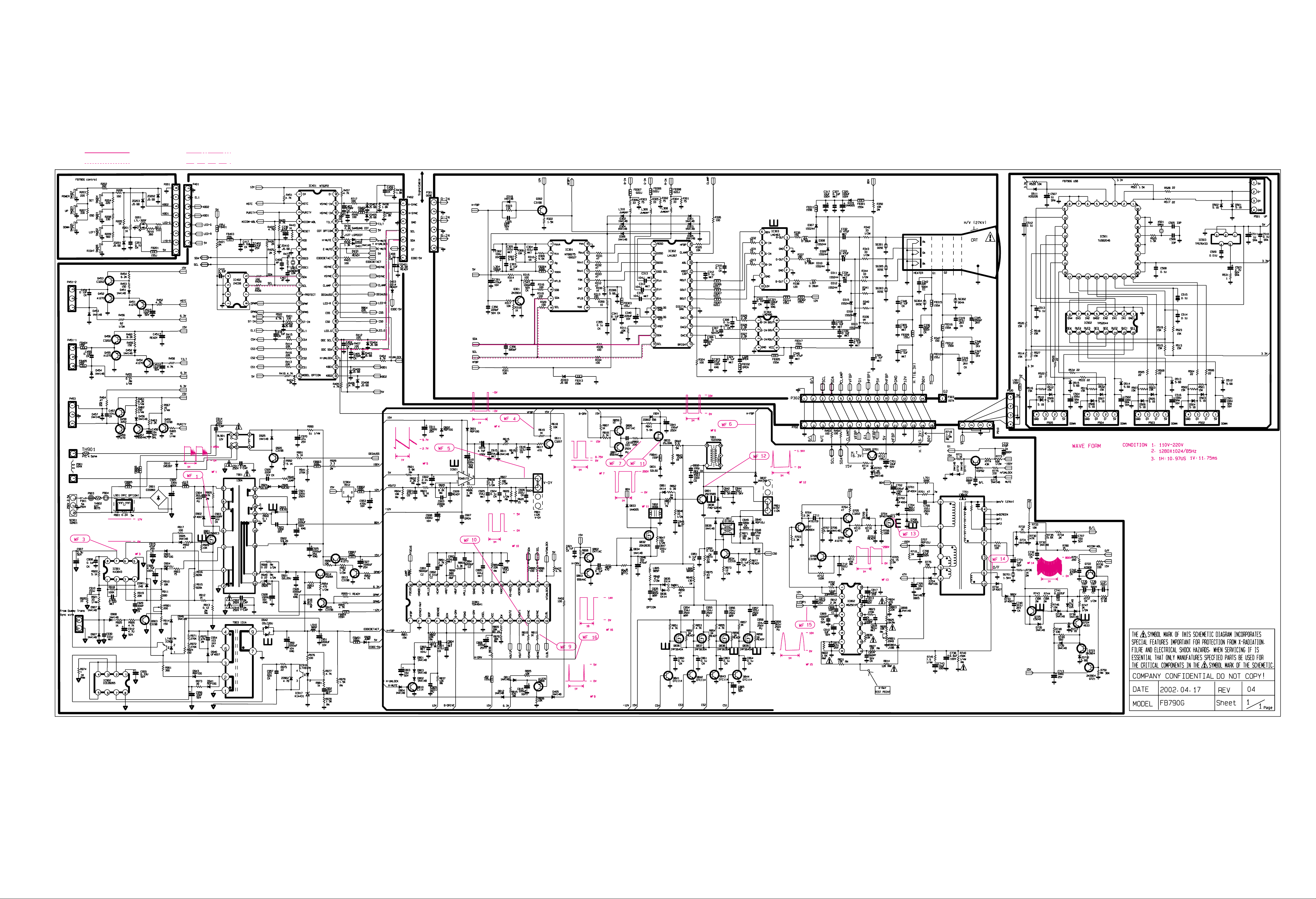

SCHEMATIC DIAGRAM

NOTICE

Since this is a basic schematic diagram.
The value of components and some partial connection are
sucject to be changed for improvement without notice.

- 32 -

- 33 -

PRINTED CIRCUIT BOARD

1. CONTROL BOARD (Component Side)

3. MAIN BOARD (Component Side)

2. CONTROL BOARD (Solder Side)

4. MAIN BOARD (Solder Side)

- 34-

- 35 -

May . 2002

P/NO : 3828TSL086A Printed in Korea
