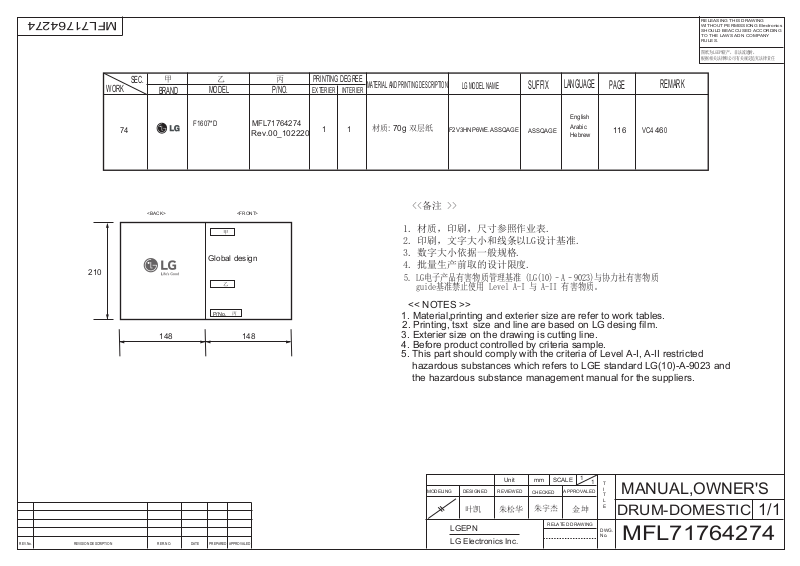

LG F1607WD User Guide [he]

MFL71764274

RELEASING THIS DRAWING WITHOUT PERMISSIONG Electronics SHOULD BEACCUSED ACCORDING TO THE LAWS ADN COMPANY RULES.

图纸为LGEPN资产，非法流通时，根据相关法律和公司有关规定追究法律责任 

210

SEC.

WORK

甲

BRAND

乙丙

MODEL

F1607*D

甲

Global design

乙

MFL71764274

Rev.00_102220

P/NO.

PRINTING DEGREE

EXTERIER

INTERIER

1 1

MATERIAL AND PRINTING DESCRIPTION

材质: 70g 双层纸

LG MODEL NAME

F2V3HNP6WE.ASSQAGE

SUFFIX

ASSQAGE

LANGUAGE

English

Arabic Hebrew

PAGE

116

REMARK

VC4 460

<<备注 >>

1. 材质，印刷，尺寸参照作业表.

2. 印刷，文字大小和线条以LG设计基准.

3. 数字大小依据一般规格.

4. 批量生产前取的设计限度.

5. LG电子产品有害物质管理基准 (LG(10)–A–9023)与协力社有害物质 guide基准禁止使用 Level A-I 与 A-II 有害物质。

REV.No.

REVISION DESCRIPTION

丙

P/No.

148 148

RER.NO.

DATE PREPARED

APPROVALED

<< NOTES >>

1. Material,printing and exterier size are refer to work tables.

2. Printing, tsxt size and line are based on LG desing film.

3. Exterier size on the drawing is cutting line.

4. Before product controlled by criteria sample.

5. This part should comply with the criteria of Level A-I, A-II restricted hazardous substances which refers to LGE standard LG(10)-A-9023 and the hazardous substance management manual for the suppliers.

APPROVALED

金坤

T I

MANUAL,OWNER'S

T L E

DRUM-DOMESTIC

DWG. No.

MFL71764274

MODELING DESIGNED

叶凯朱松华

LGEPN

LG Electronics Inc.

Unit

REVIEWED

mm SCALE

CHECKED

朱宇杰

RELATED DRAWING

1/1

global_main.book.book Page 1 Thursday, October 22, 2020 2:31 PM

OWNER'S MANUAL

WASHING MACHINE

ENGLISH

F1607*D

MFL71764274

Rev.00_102220

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

www.lg.com

global_main.book.book Page 2 Thursday, October 22, 2020 2:31 PM

TABLE OF CONTENTS

This manual may contain images or content that may be different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE........................................................... 3

WARNING............................................................................................................3

INSTALLATION

Parts and Specifications ....................................................................................8

Installation Place Requirements ....................................................................10

Unpacking the Appliance ................................................................................11

Levelling the Appliance ...................................................................................12

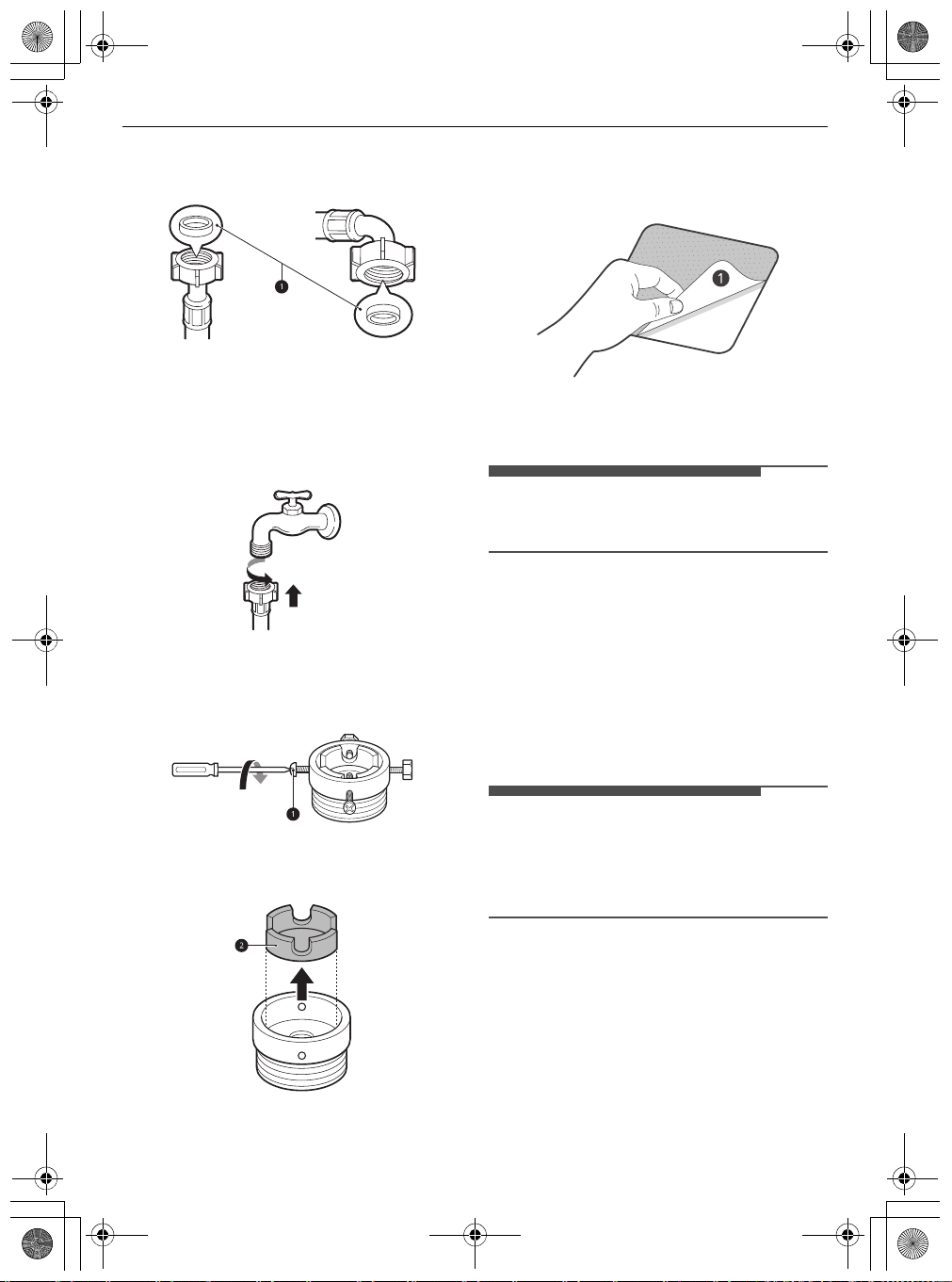

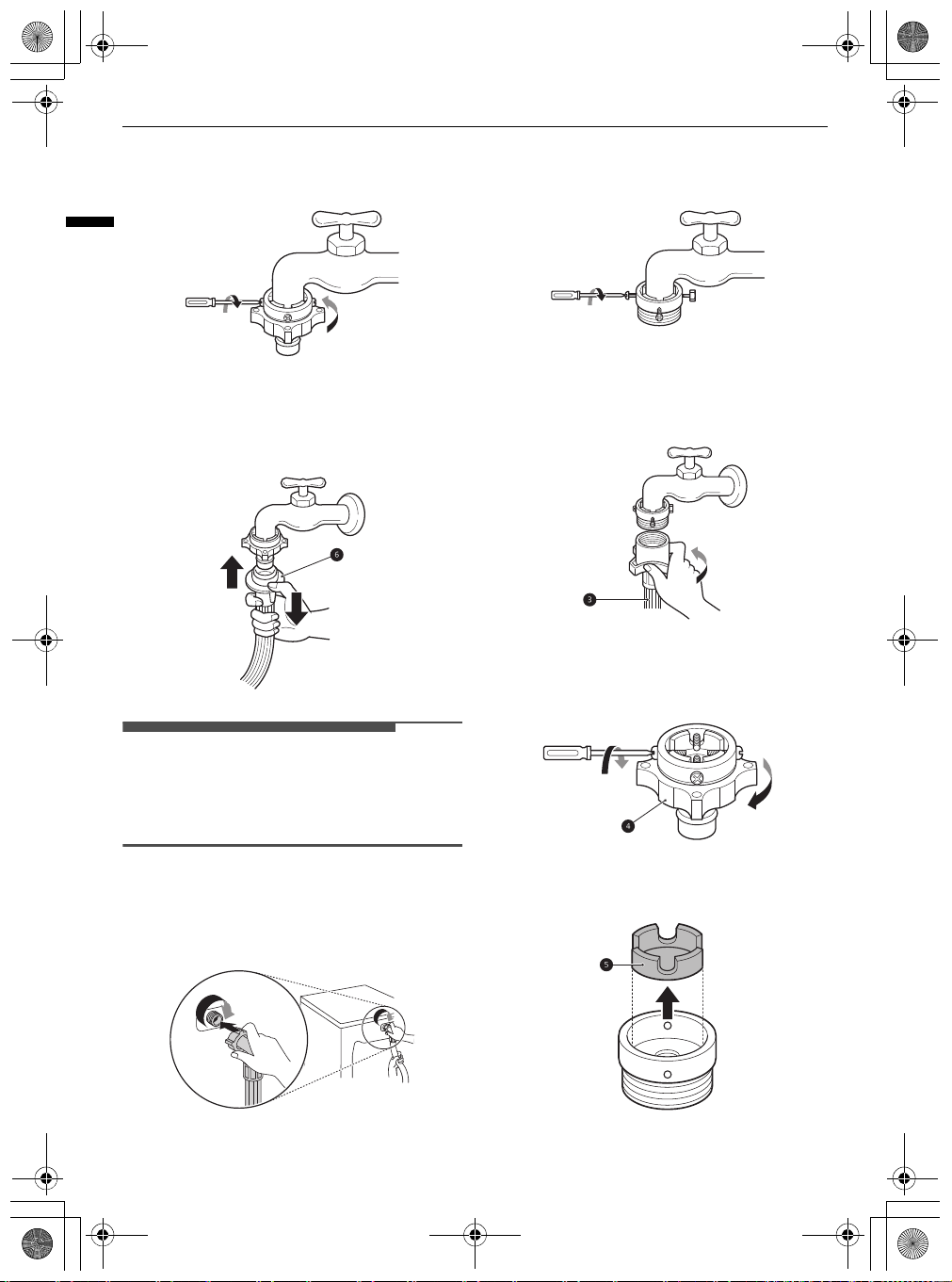

Connecting the Water Supply Hose...............................................................13

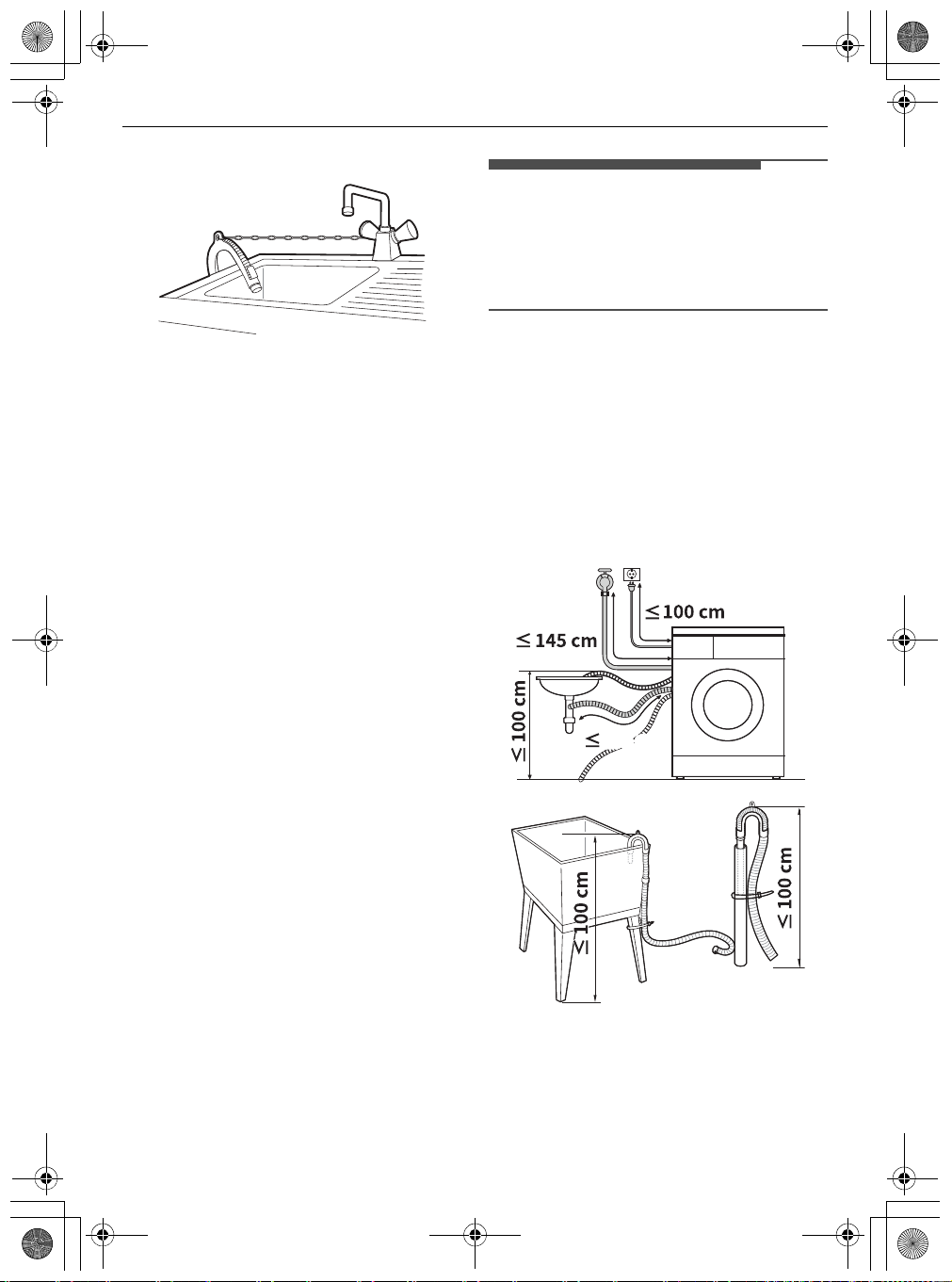

Installing the Drain Hose ................................................................................16

OPERATION

Operation Overview.........................................................................................17

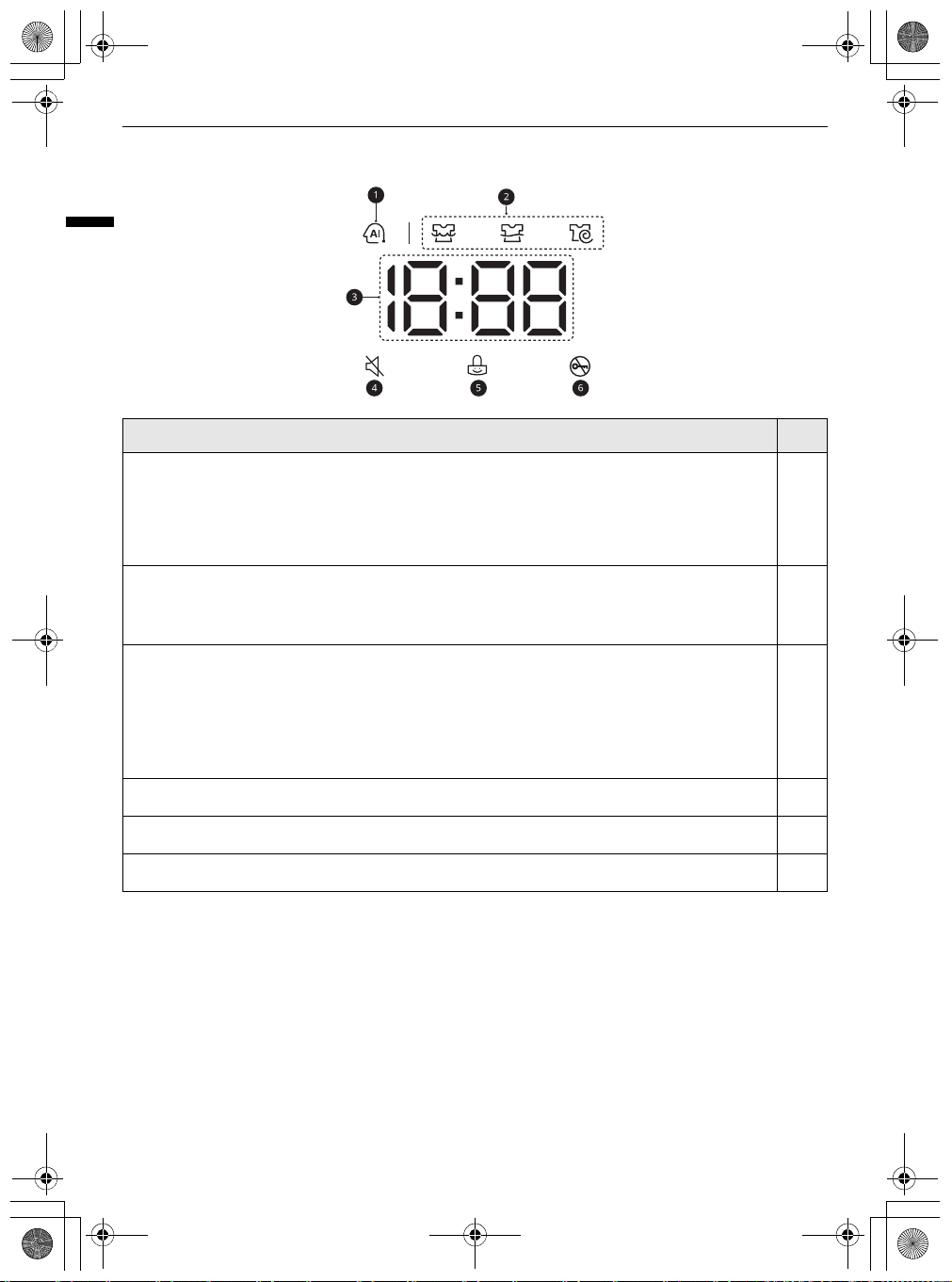

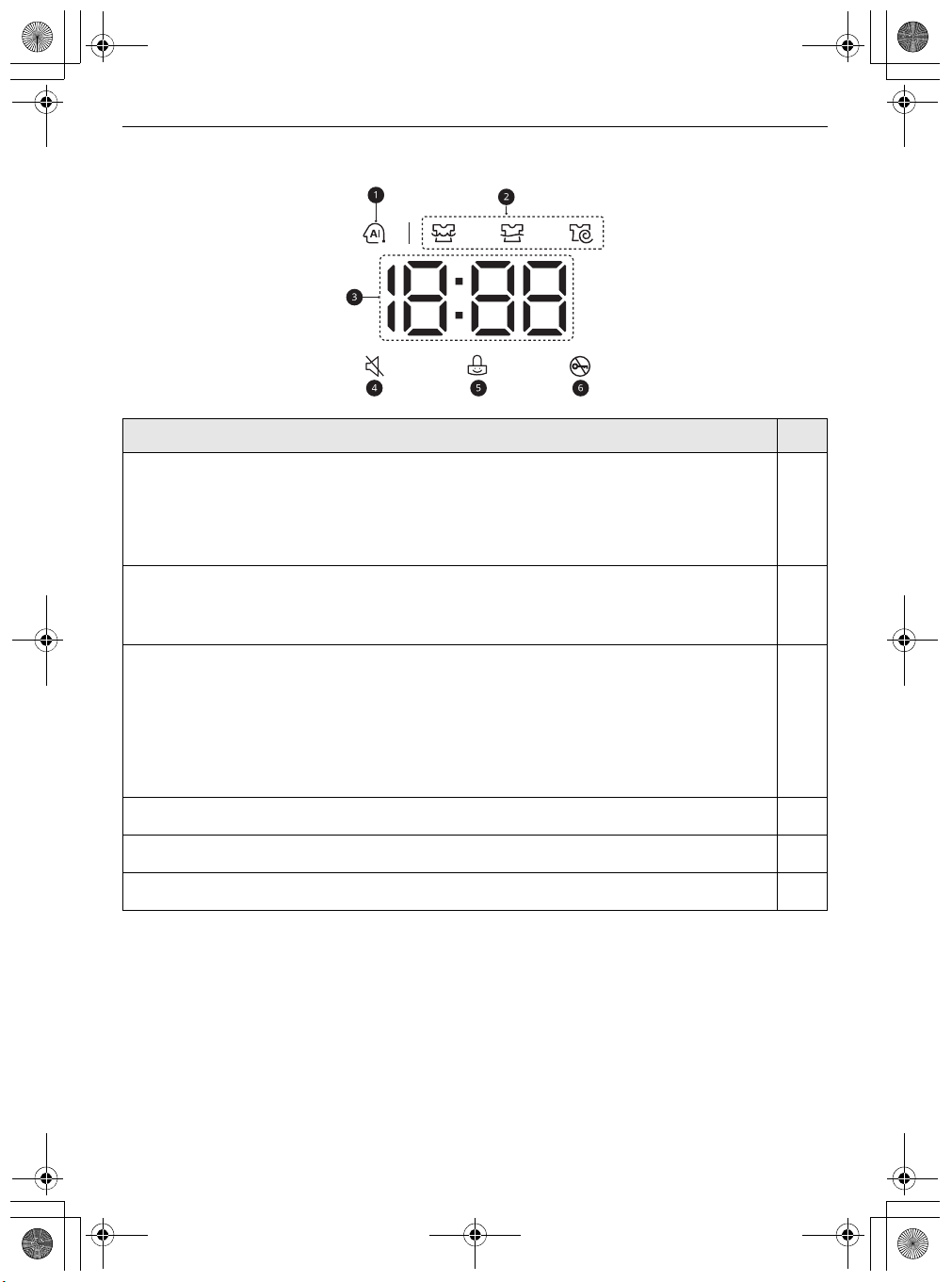

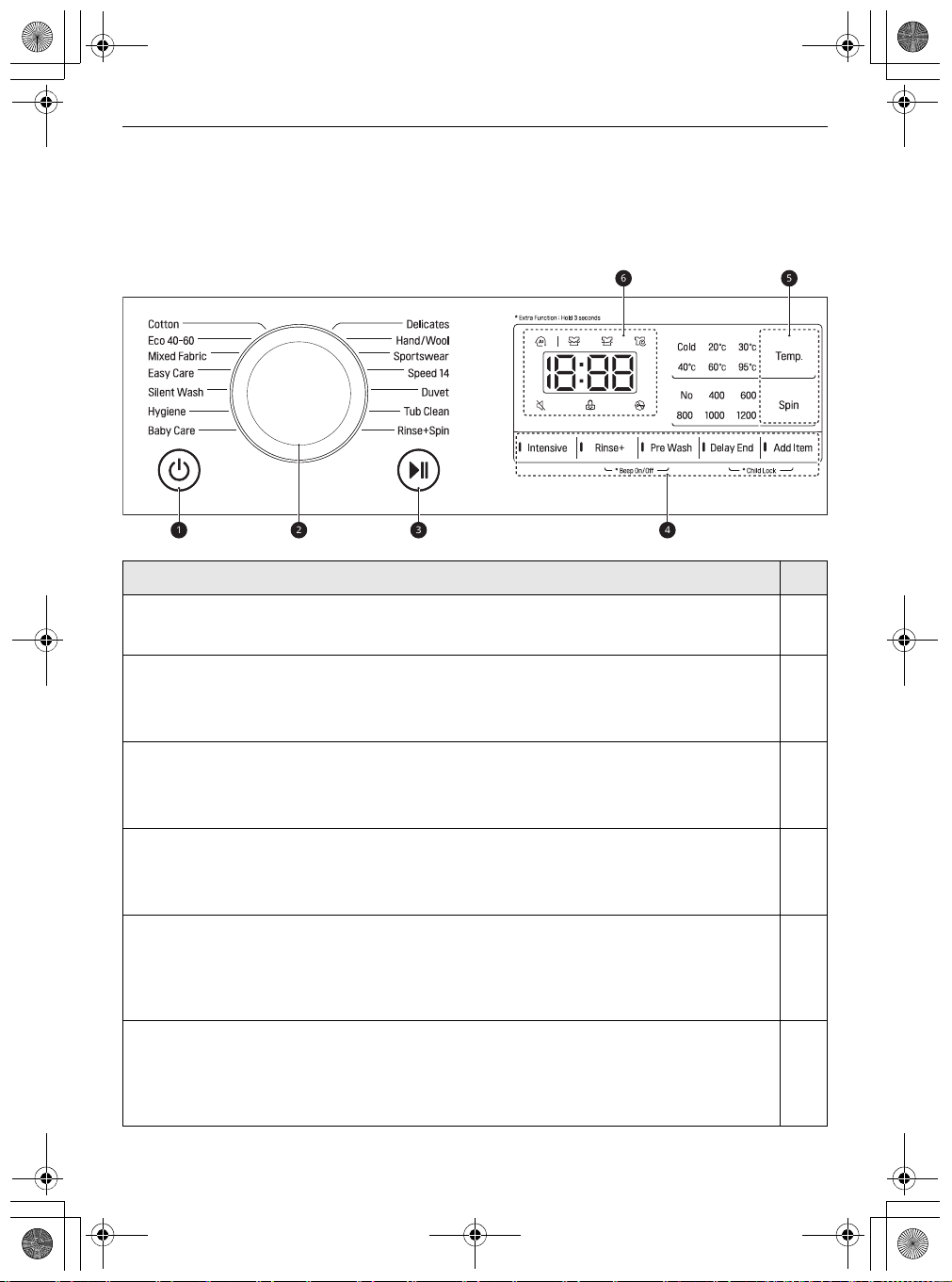

Control Panel ....................................................................................................18

Preparing the Wash Load ...............................................................................20

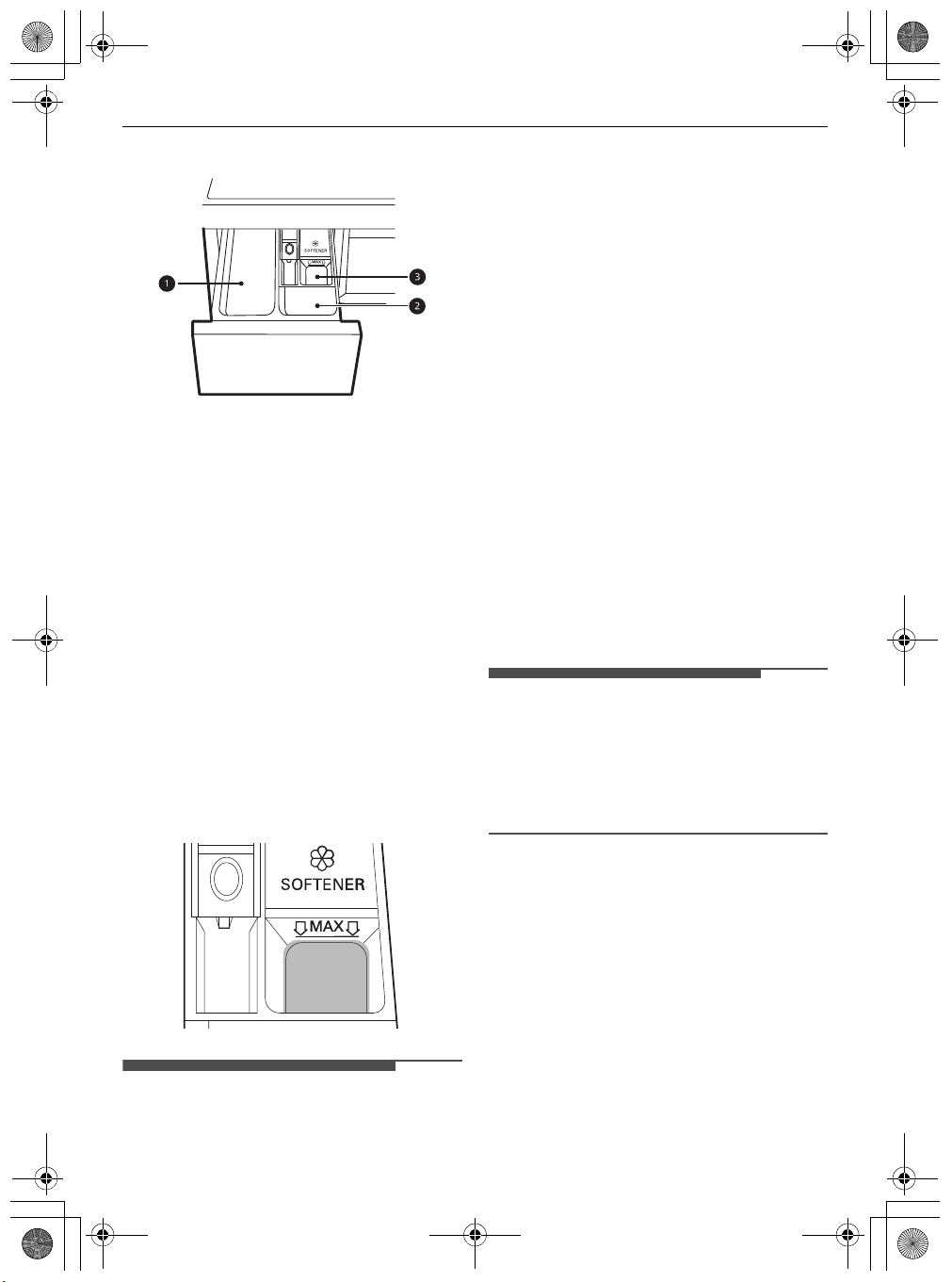

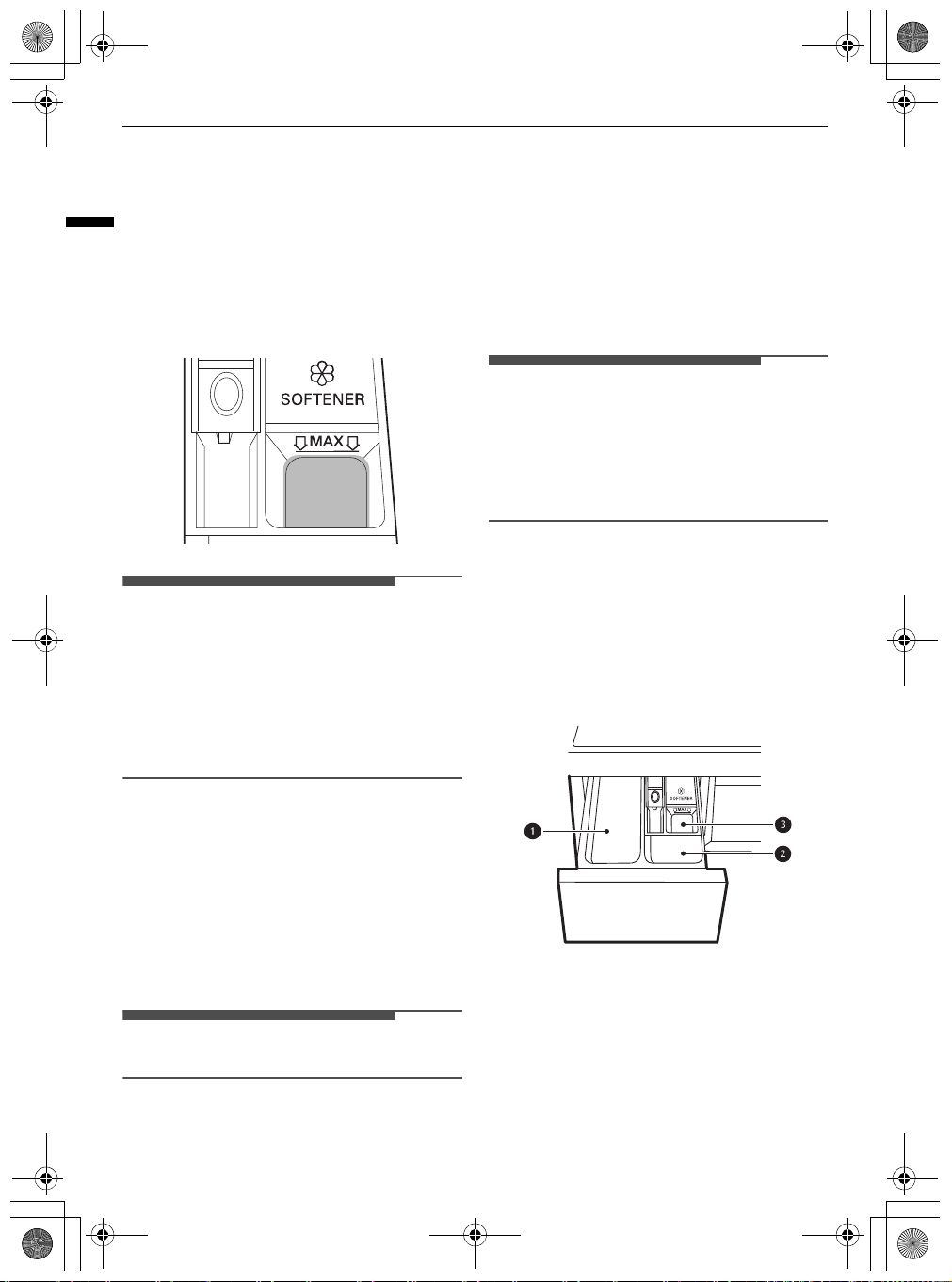

Adding Detergents and Softeners .................................................................20

Programme Table ............................................................................................23

Extra Options and Functions ..........................................................................27

SMART FUNCTIONS

LG ThinQ Application.......................................................................................30

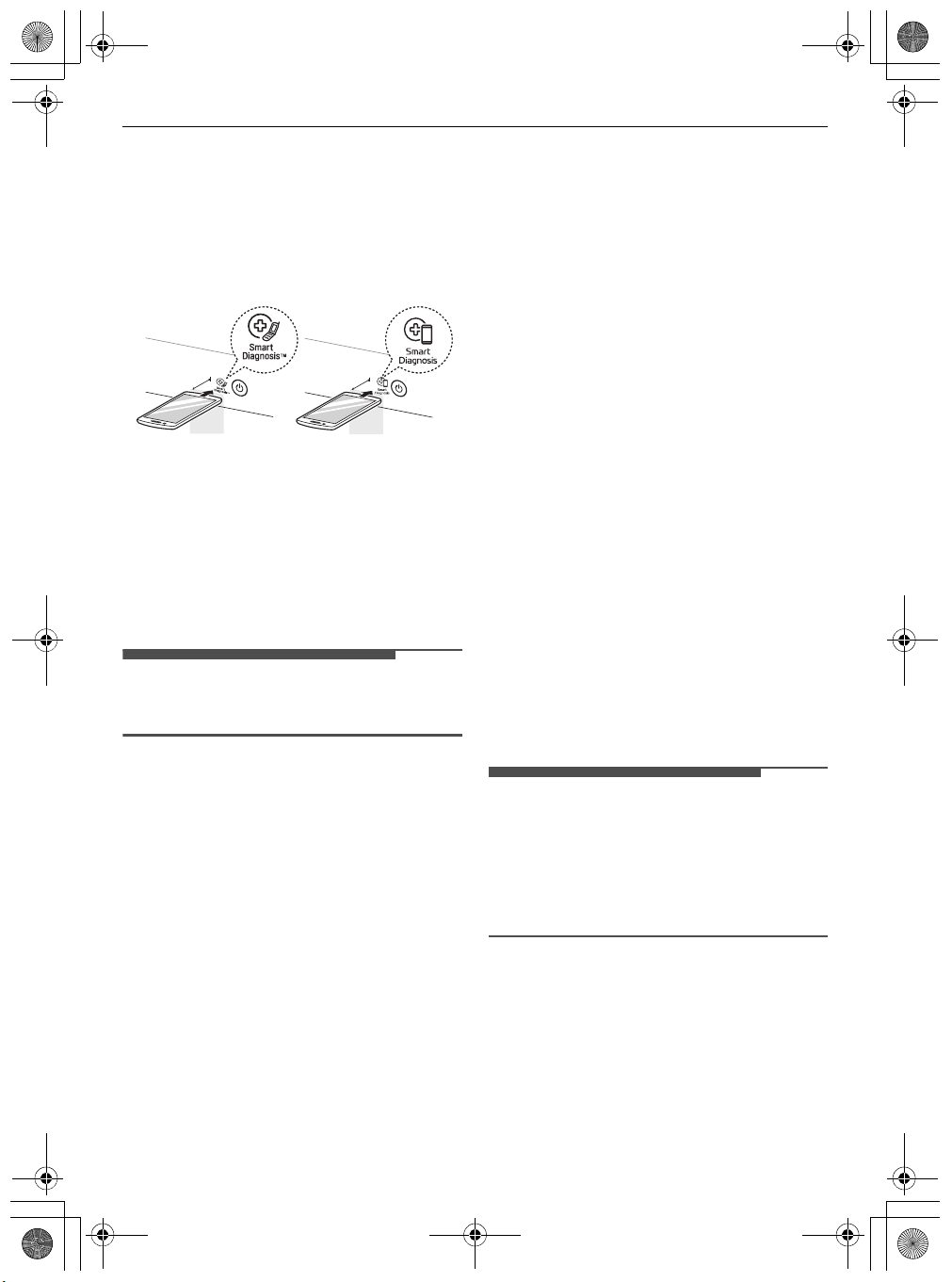

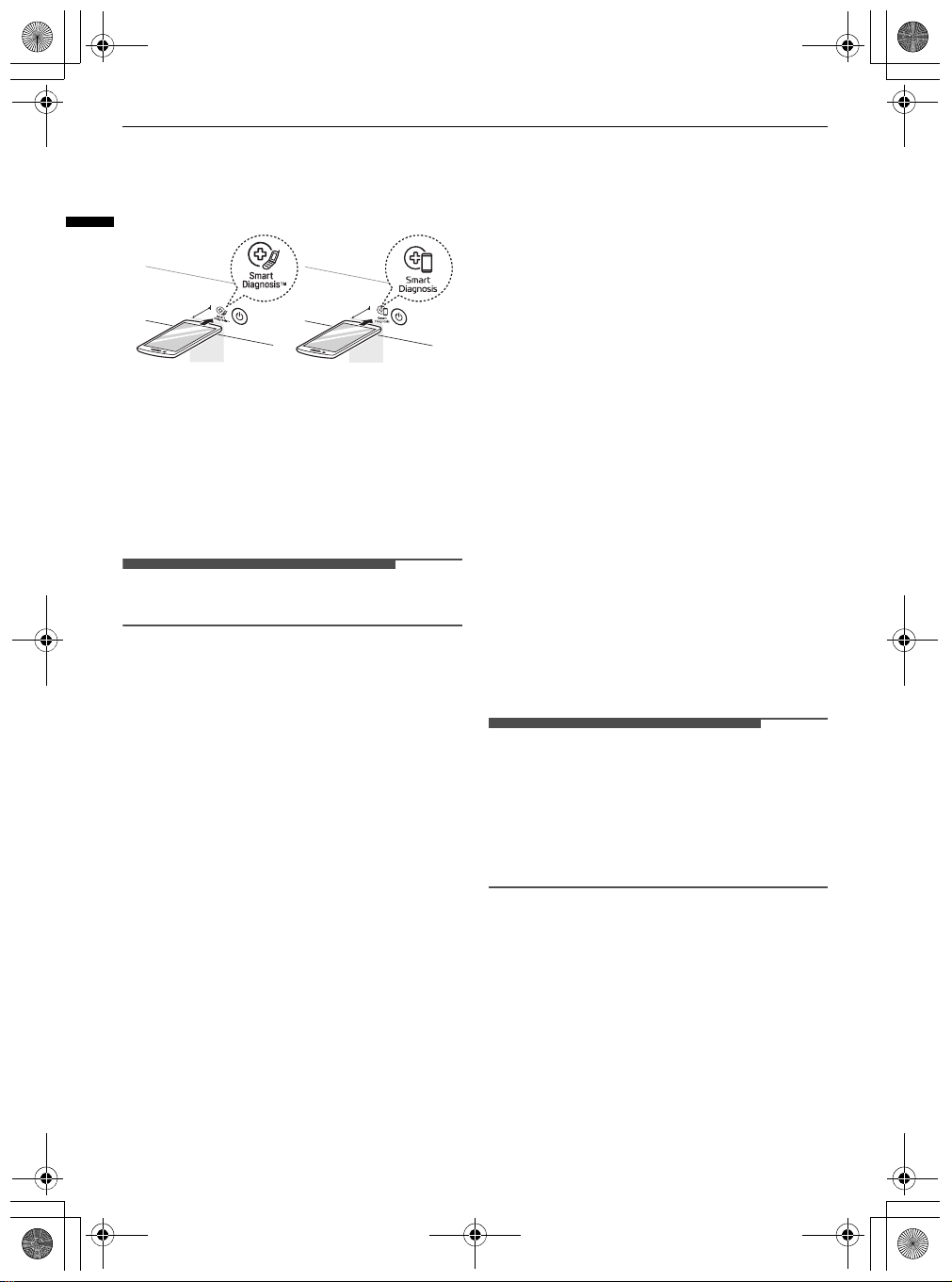

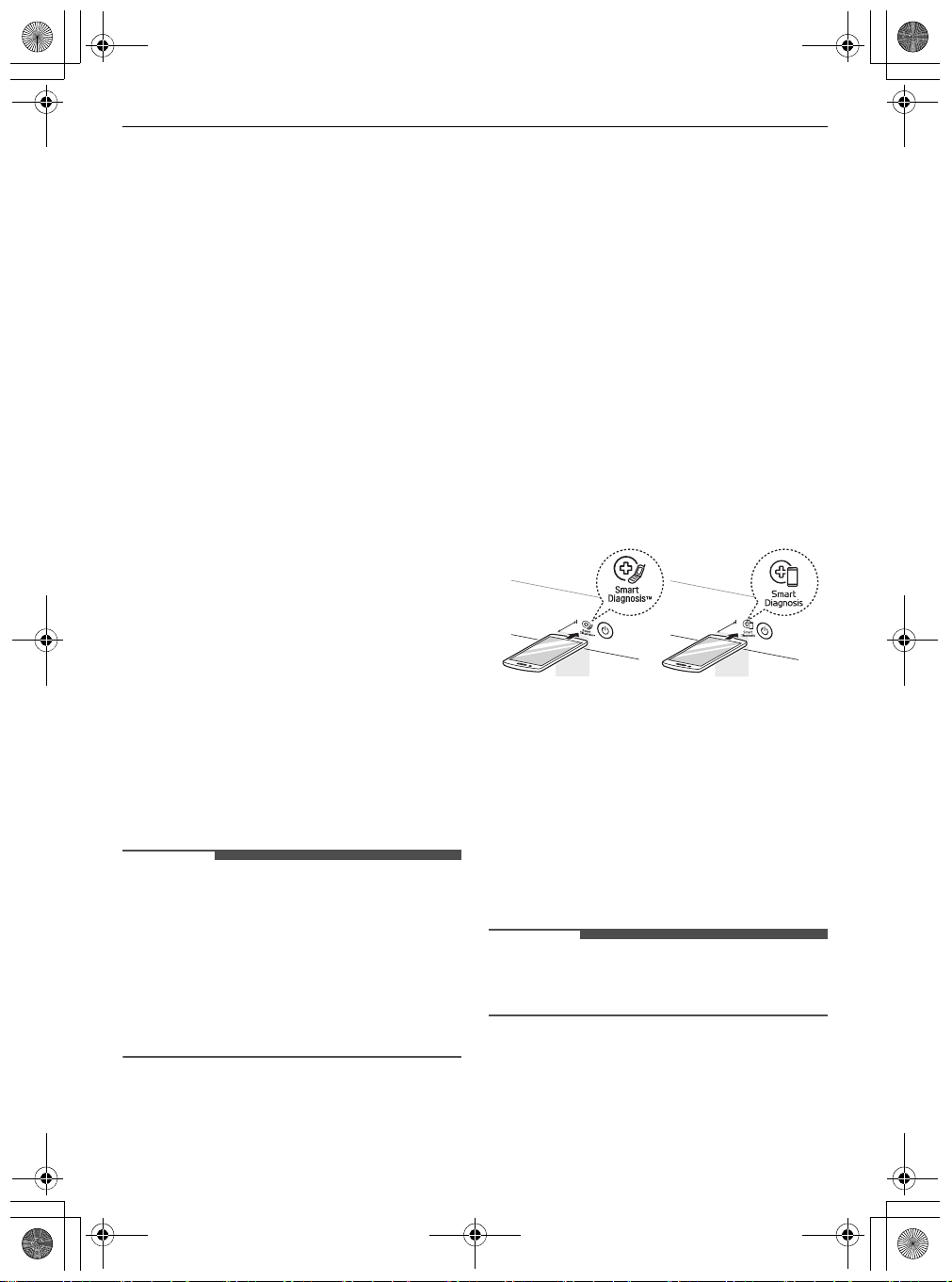

Smart Diagnosis ...............................................................................................30

MAINTENANCE

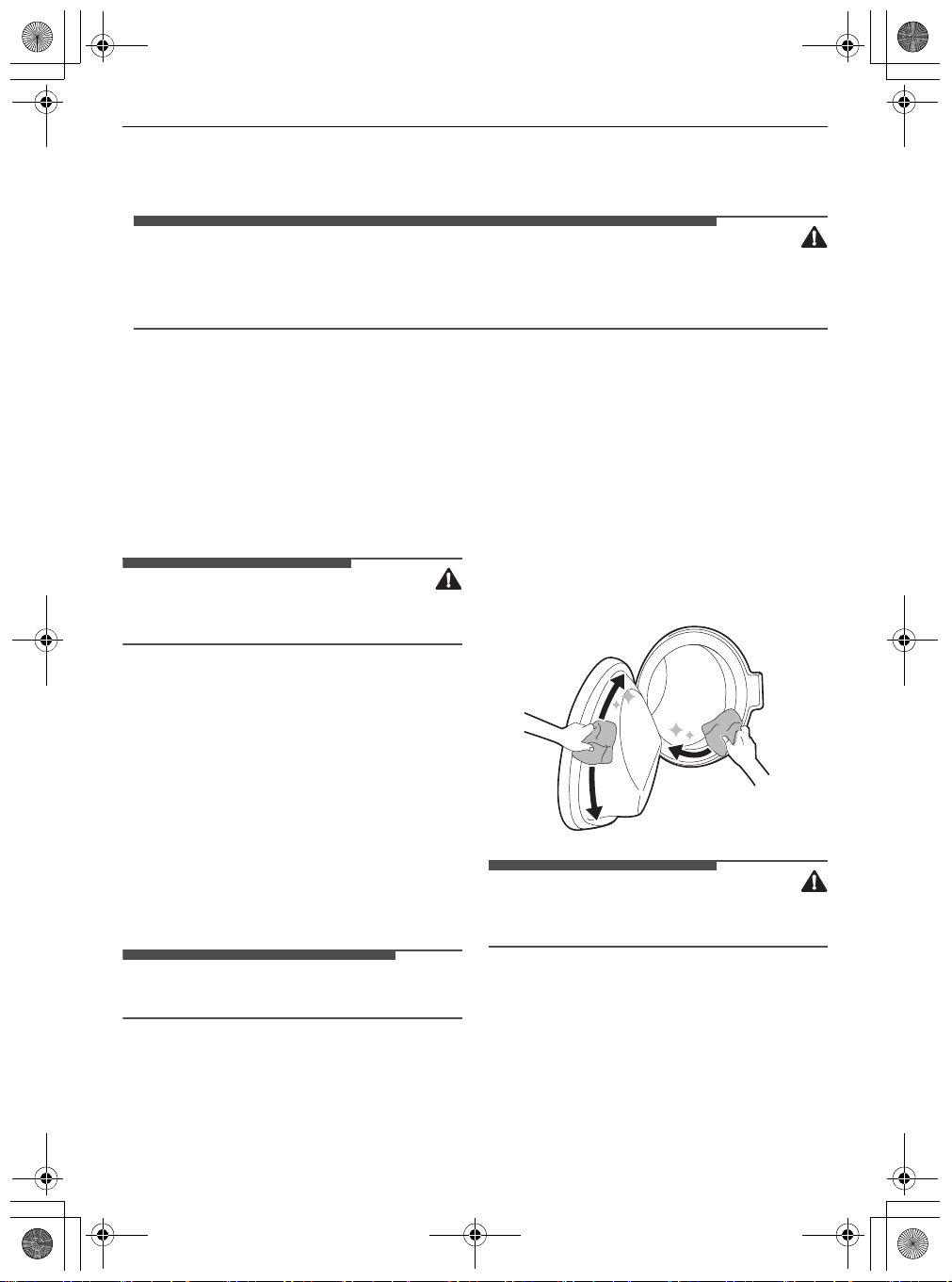

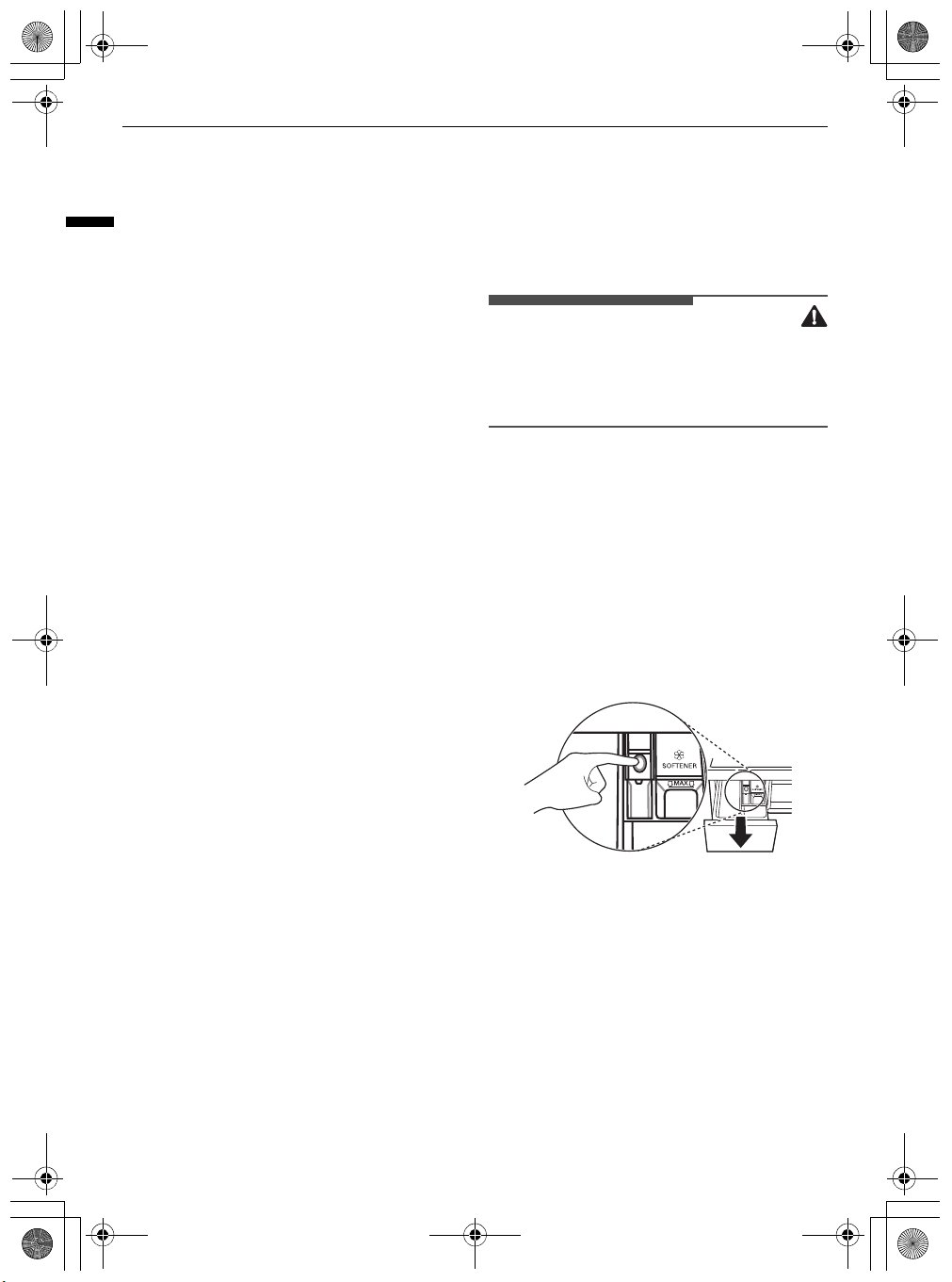

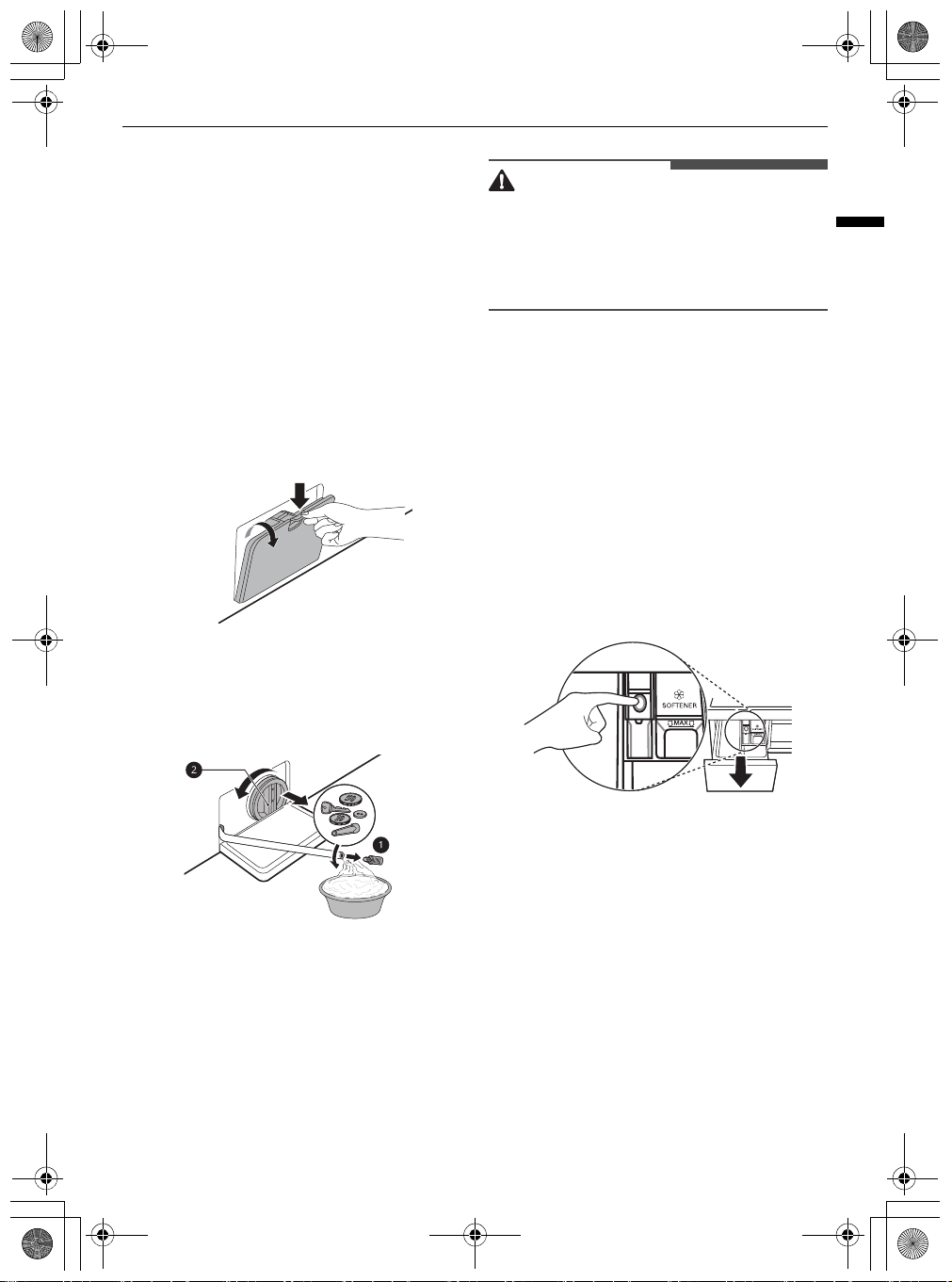

Cleaning After Every Wash..............................................................................31 Cleaning the Appliance Periodically & Performing an Emergency Water

Evacuation.........................................................................................................32

TROUBLESHOOTING

Before Calling for Service................................................................................35

WARNING

global_main.book.book Page 3 Thursday, October 22, 2020 2:31 PM

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

Safety Messages

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

ENGLISH

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Technical Safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

global_main.book.book Page 4 Thursday, October 22, 2020 2:31 PM

SAFETY INSTRUCTIONS

• Children should be supervised to ensure that they do not play with the appliance.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Use a new hose or hose-set supplied with the appliance. Reusing old hoses can cause a water leak and subsequent property damage.

• Ventilation openings must not be obstructed by a carpet.

• This appliance is intended to be used in household only.

• The inlet water pressure must be between 50 kPa and 800 kPa.

Maximum Capacity

The maximum capacity in some cycles for dry clothes to be washed is

The recommended maximum capacity for each washing programme may differ. To get good wash results, please refer to

Table

OPERATION

chapter for further details.

Programme

Installation

• Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

• This appliance should only be transported by two or more people holding the appliance securely.

• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.

• Make sure the power plug is completely pushed into the power outlet.

• Do not plug the appliance into multiple outlet sockets, power boards, or an extension power cable.

global_main.book.book Page 5 Thursday, October 22, 2020 2:31 PM

SAFETY INSTRUCTIONS

• Do not modify the power plug provided with the appliance. If it does not fit the power outlet, have a proper outlet installed by a qualified electrician.

• This appliance is equipped with a power cord having an equipmentearthing / grounding conductor (earthing pin) and a grounding power plug. The power plug must be plugged into an appropriate outlet socket that is installed and earthed / grounded in accordance with all local codes and ordinances.

• Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded.

• This appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the appliance, in such a way that a full opening of the appliance door is restricted.

Operation

ENGLISH

• Do not apply any sharp objects to the control panel in order to operate the appliance.

• Do not attempt to separate any panels or disassemble the appliance.

• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owner's Manual. Use only authorized factory parts.

• Do not push down the door excessively, when the appliance door is open.

• Do not put animals, such as pets into the appliance.

• Do not wash rugs, mats, shoes or pet blankets, stuffed toys, or any other items other than clothes or sheets, in this machine.

• Keep the area underneath and around the appliance free of combustible materials such as lint, paper, rags, chemicals, etc.

• Do not leave the appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.

global_main.book.book Page 6 Thursday, October 22, 2020 2:31 PM

SAFETY INSTRUCTIONS

• Do not put in, wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as waxes, wax removers, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene, petrol, spot removers, turpentine, vegetable oil, cooking oil, acetone, alcohol, etc.). Improper use can cause fire or explosion.

• Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, gasoline, thinner, petroleum, insecticide, air freshener, cosmetics, etc.) near the appliance.

• Never reach into the appliance while it is operating. Wait until the drum has completely stopped.

• Do not touch the door during a high temperature programme.

• In case of a water leak from the appliance or flood, disconnect the power plug and contact the LG Electronics customer information centre.

• Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they should be replaced after 5 years.

• If there is a gas leakage (isobutane, propane, natural gas, etc.) within the home, do not touch the appliance or power plug and ventilate the area immediately.

• If the drain hose or inlet hose is frozen during winter, use it only after thawing.

• Keep all washing detergents, softener and bleach away from children.

• Do not touch the power plug or the appliance controls with wet hands.

• Do not bend the power cable excessively or place a heavy object on it.

• Avoid touching any water that is drained from the appliance during the wash.

• Make sure that drainage is working properly. If water is not drained properly, your floor may get flooded.

global_main.book.book Page 7 Thursday, October 22, 2020 2:31 PM

SAFETY INSTRUCTIONS

• When the air temperature is high and the water temperature is low, condensation may occur and thus wet the floor.

• Wipe off dirt or dust on the contacts of the power plug.

Maintenance

• Disconnect the appliance from the power supply before cleaning the appliance. Setting the controls to the OFF or stand by position does not disconnect this appliance from the power supply.

• Securely plug the power plug in the outlet socket after completely removing any moisture and dust.

• Do not spray water inside or outside the appliance to clean it.

• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the outlet socket.

• Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.

ENGLISH

Disposal

• Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse.

• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

• Remove the door before disposing of or discarding this appliance to avoid the danger of children or small animals getting trapped inside.

NOTE

global_main.book.book Page 8 Thursday, October 22, 2020 2:31 PM

INSTALLATION

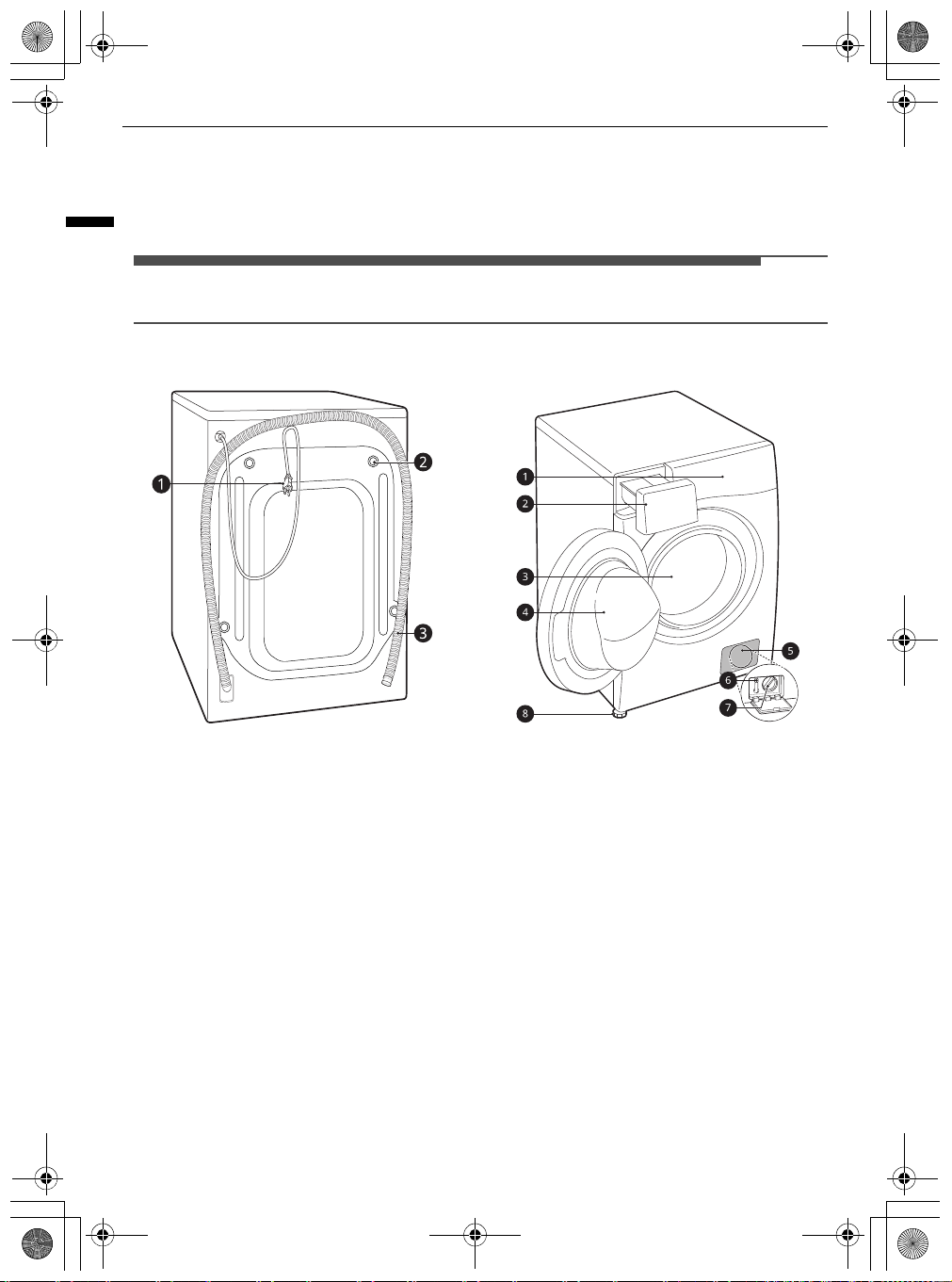

Parts and Specifications

• Appearance and specifications may change without notice to improve the quality of the appliance.

Front View

Control Panel

Detergent Dispenser Drawer

Drum

Door

Cover Cap

Drain Plug

Drain Pump Filter

Levelling Feet

Rear View

Power Plug

Transit Bolts

Drain Hose

global_main.book.book Page 9 Thursday, October 22, 2020 2:31 PM

INSTALLATION

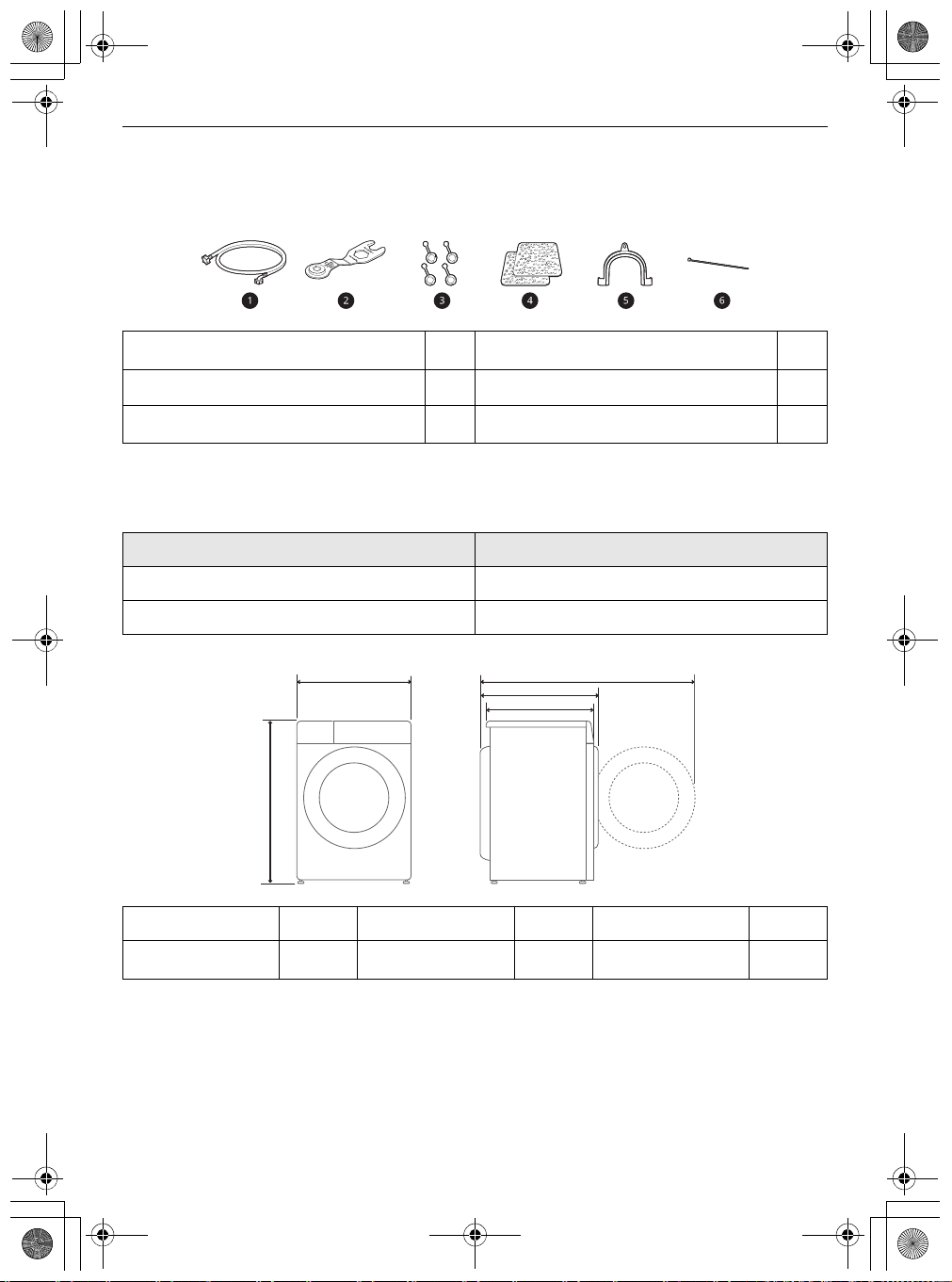

Accessories

*1 The included accessories vary depending on the model you purchased.

Cold Supply Hose

Spanner

Caps for Covering Transit Bolt Holes

Anti–slip Sheets

Elbow Bracket for Securing Drain Hose

Tie Strap

Specifications

Model F1607*D

Power Supply 220‒240 V~, 50 Hz

Product Weight 56 kg

Dimension(mm)

D’’ D’ D

ENGLISH

W 600 D 475 D'' 1015

H850D'535

WARNING

NOTE

CAUTION

global_main.book.book Page 10 Thursday, October 22, 2020 2:31 PM

INSTALLATION

Installation Place Requirements

Before installing the appliance, check the following information to make sure that the appliance should be installed in a correct place.

Installation Location

• This appliance must be installed on firm flooring to minimize vibration during the spin cycle. Concrete flooring is best, being far less prone to vibration during the spin cycle than wooden floorboards or a carpeted surface.

• If it is impossible to avoid positioning the appliance next to a gas cooker or coal burning stove, an insulation (850 X 600 mm) covered with aluminum foil on the side facing the cooker or stove must be inserted between the two appliances.

• Ensure that when the appliance is installed, it is easily accessible for an engineer in the event of a breakdown.

• When installing the appliance, adjust all four feet using the transit bolt spanner provided to ensure the appliance is stable.

• This appliance must only be used for domestic household purposes and should not be used in mobile applications.

• Never try to level any uneven floor by putting pieces of wood, cardboard or similar materials under the appliance.

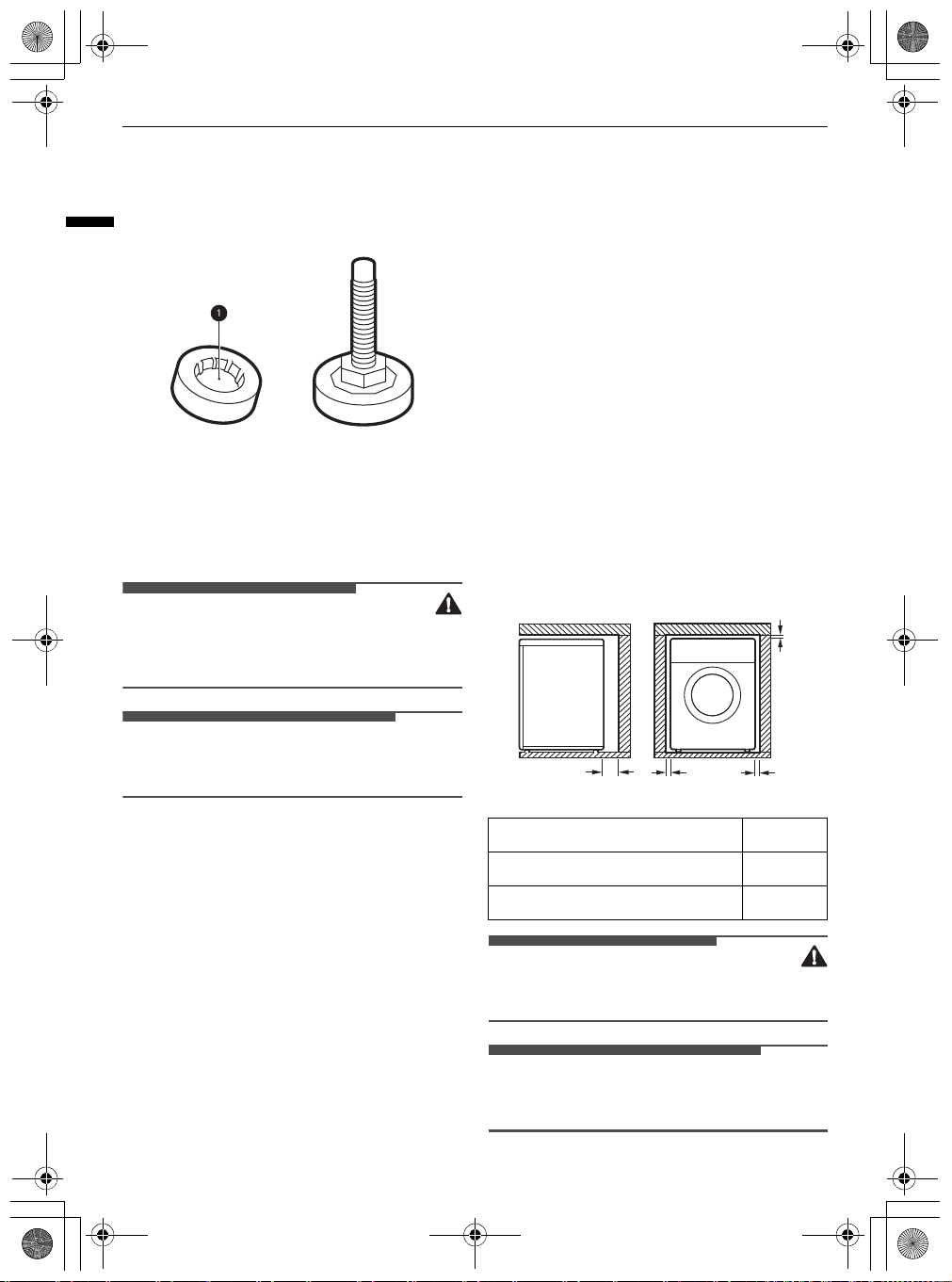

Wooden Floors (Suspended Floors)

When installing the appliance on wooden floors, use rubber cups to reduce excessive vibration and unbalance. Timber or suspended type flooring may contribute to excessive vibration and unbalance, errors and malfunction.

Floor Installation

To ensure sufficient clearance for water inlet hoses, drain hose and airflow, allow minimum clearances of at least 20 mm at the sides and 100 mm behind the appliance. Be sure to allow for wall, door, or floor moldings that may increase the required clearances.

100 mm

5 mm

20 mm

• To reduce vibration, we recommend placing at least 15 mm thickness of rubber cups each adjusting foot of the appliance, secured to at least two floor beams with screws.

• If possible, install the appliance in one of the corners of the room, where the floor is more stable.

• Fit the rubber cups to reduce vibration.

• If the appliance is installed on the unstable floor (e.g. wooden floor), the warranty does not cover any damages and cost occurred due to the installation on the unstable floor.

under

NOTE

WARNING

global_main.book.book Page 11 Thursday, October 22, 2020 2:31 PM

• You can purchase rubber cups (part No.

4620ER4002B

) from the LG service centre.

Ventilation

• Make sure that air circulation around the appliance should not be impeded by carpets, rugs, etc.

Ambient Temperature

• Do not install the appliance in rooms where freezing temperatures may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

• If the appliance is delivered in winter and temperatures are below freezing, place the appliance at room temperature for a few hours before putting it into operation.

INSTALLATION

grounded/earthed in accordance with all local codes and ordinances.

Unpacking the Appliance

Lifting the Appliance Off the Foam Base

* This feature may vary depending on the model purchased.

After removing the carton and shipping material, lift the appliance off the foam base.

ENGLISH

Electrical Connection

• Do not use an extension cord or double adapter.

• Always unplug the appliance and turn off the water supply after use.

• Connect the appliance to an earthed socket in accordance with current wiring regulations.

• The appliance must be positioned so that the plug is easily accessible.

• Power outlet must be within 1 meter of either side of the appliance.

• Repairs to the appliance must only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local authorised LG repairer.

• The power plug must be plugged into an appropriate outlet socket that is installed and

• Make sure the tub support the base and is not stuck to the bottom of the appliance.

• If you must lay the appliance down to remove the carton base appliance and lay it carefully on its side. Do not lay the appliance on its front or back.

, always protect the side of the

* comes off with

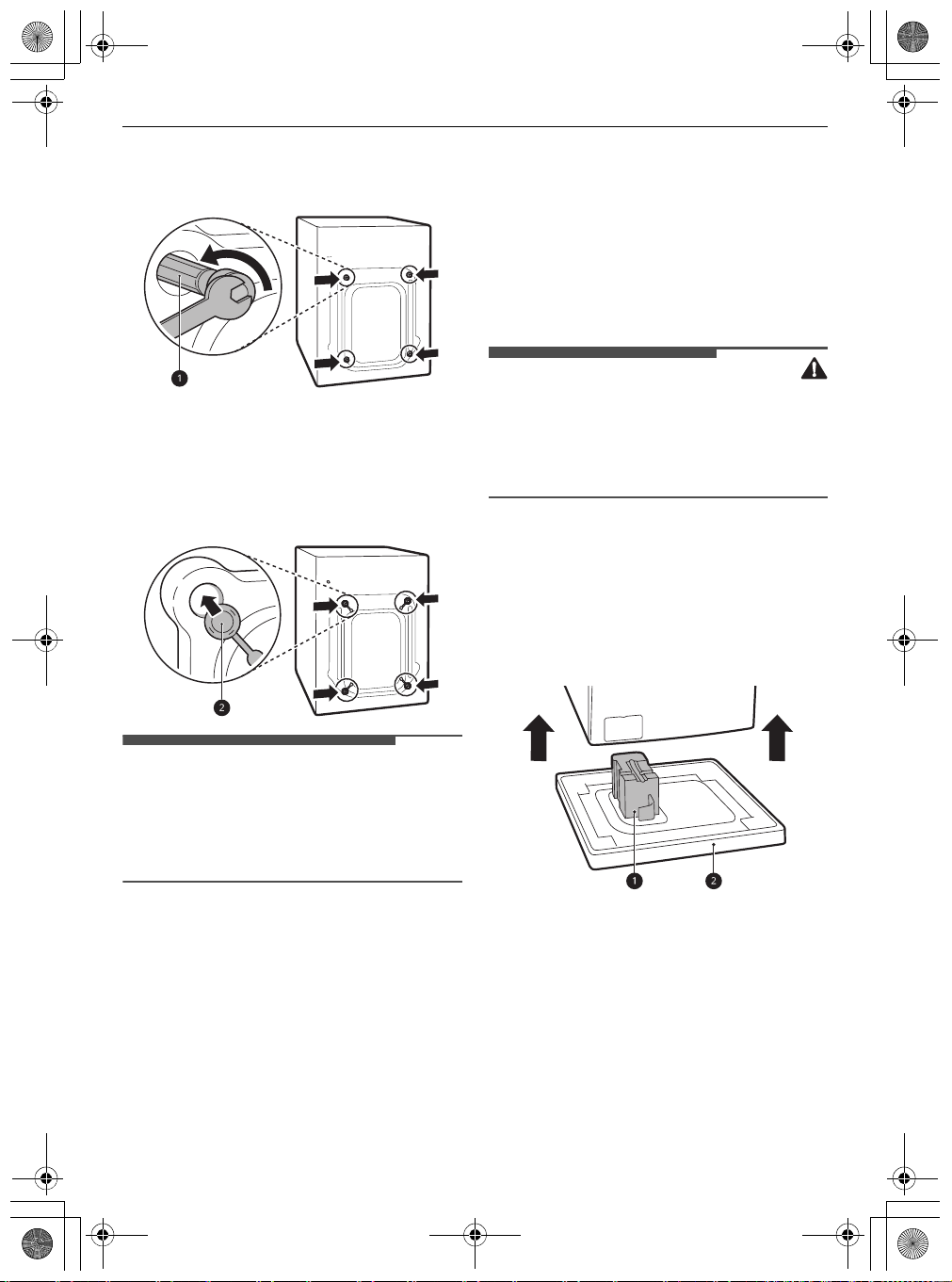

Removing the Transit Bolt Assemblies

To prevent the appliance from severe vibration and breakage, remove transit bolts and retainers.

NOTE

global_main.book.book Page 12 Thursday, October 22, 2020 2:31 PM

INSTALLATION

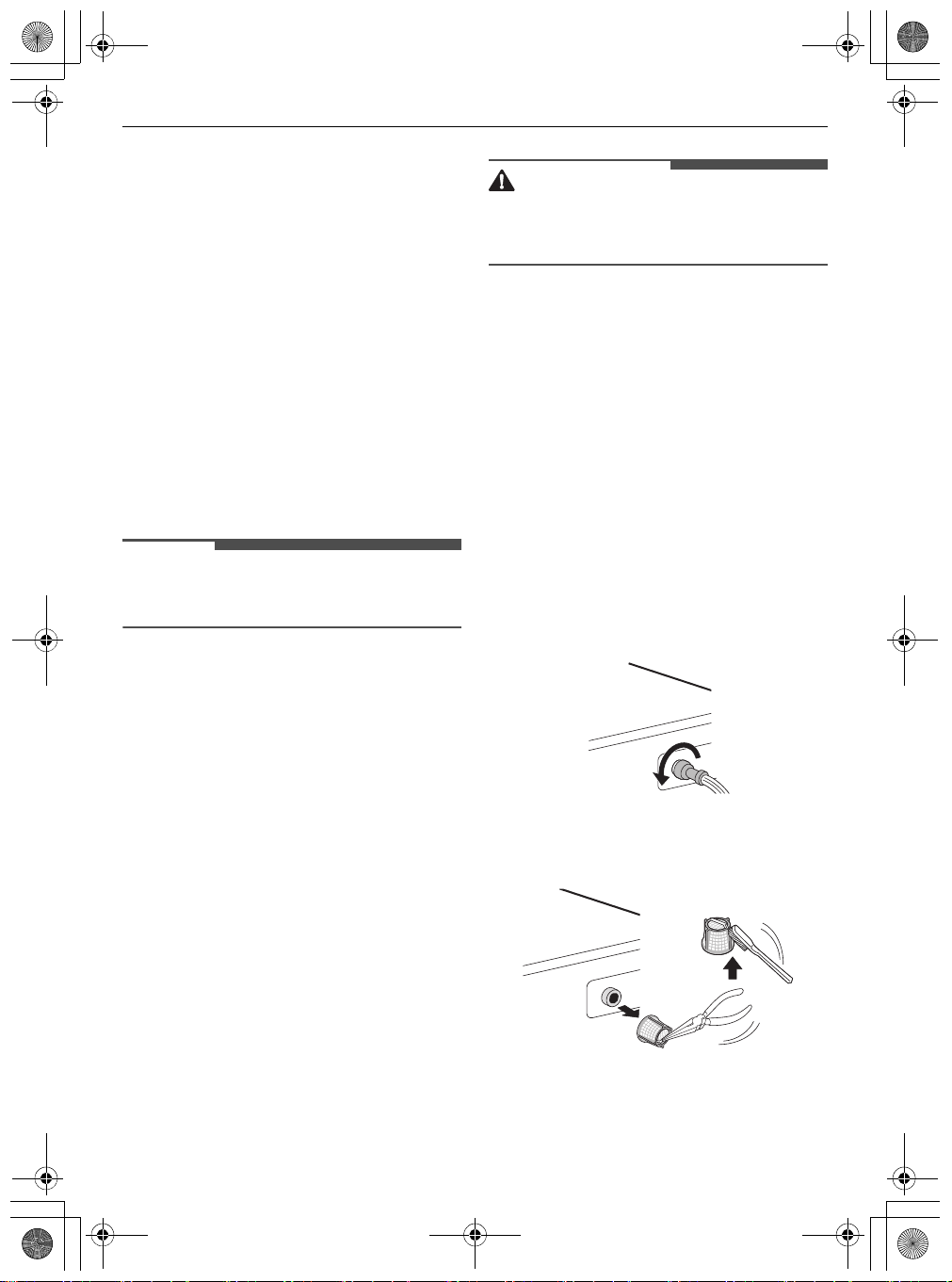

Starting with the bottom two transit bolts a, use the spanner (included) to fully loosen all transit bolts by turning them counterclockwise.

Remove the bolt assemblies by wiggling them slightly while pulling them out.

Install the hole caps.

• Locate the hole caps accessory pack or attached on the back.

included in the

• If the appliance rocks when pushing the top plate of the appliance diagonally, adjust the feet again.

• Check whether the appliance is perfectly level after installation.

• Timber or suspended type flooring may contribute to excessive vibration and unbalance. Reinforcement or bracing of the timber floor may need to be considered to stop or reduce excessive noise and vibration.

Adjusting and Levelling the Feet

When installing the appliance, the appliance should be aligned and perfectly level. If the appliance is not aligned and level properly, the appliance may be damaged or may not operate properly.

Turn the levelling feet as required if the floor is uneven.

• Do not insert pieces of wood etc. under the feet.

• Make sure that all four feet are stable and resting on the floor.

• Save the transit bolts and retainers for future use.

• Transport this appliance for the prevention of breakage as below:

- The transit bolts are reinstalled.

- The power cord is secured to the back of the

appliance.

Levelling the Appliance

Checking the Level

When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (check both directions).

• Do not install the washing machine on a plinth, stand or elevated surface unless it is

NOTE

global_main.book.book Page 13 Thursday, October 22, 2020 2:31 PM

manufactured by LG Electronics for use with this model.

Check if the appliance is perfectly level using a spirit level

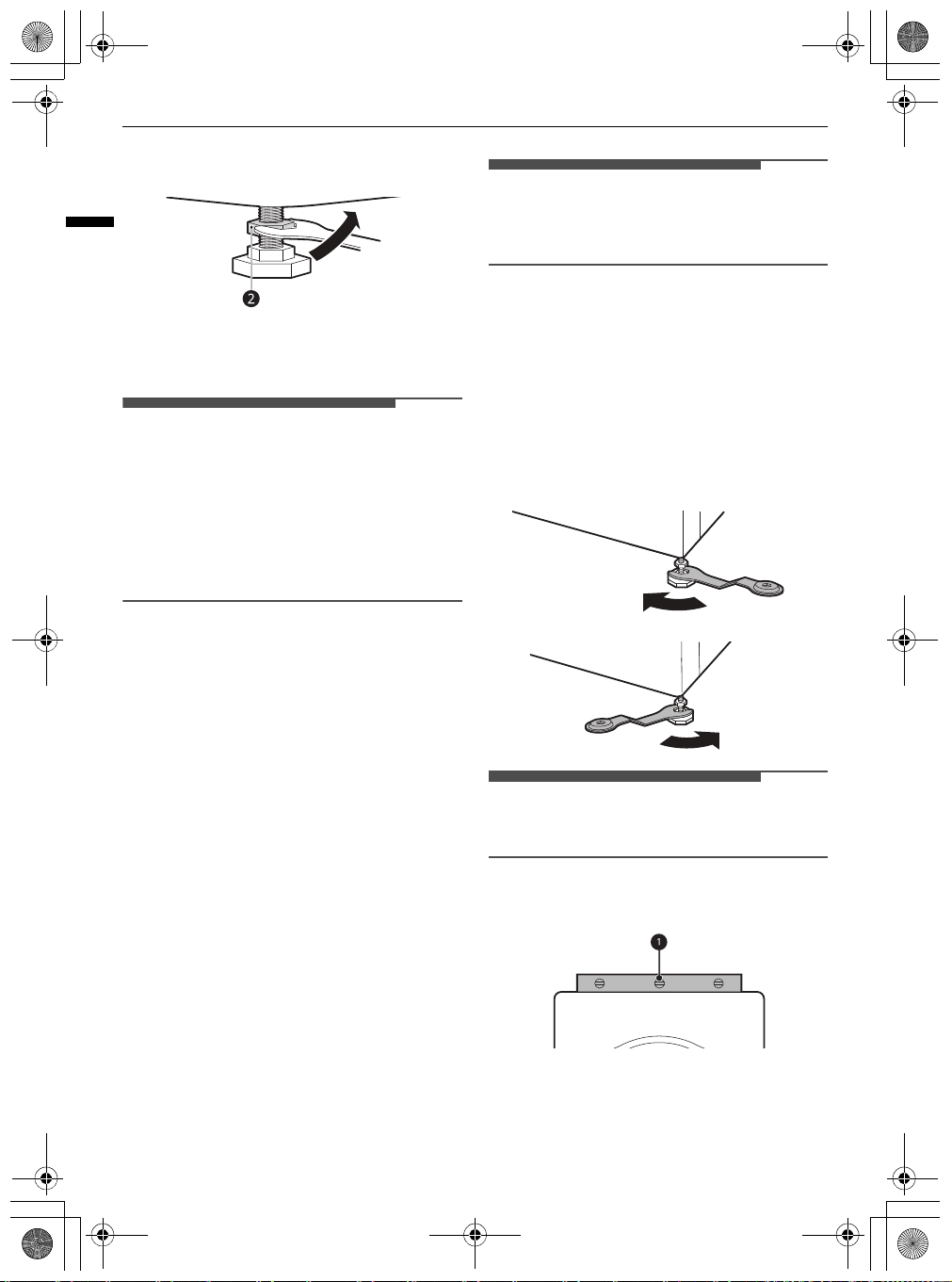

Secure the levelling feet with the lock nuts b by turning anti-clockwise against the bottom of the appliance.

INSTALLATION

slip sheets under the levelling feet and adjust the level.

Clean the floor to attach the anti-slip sheets.

• Use a dry rag to remove and clean foreign objects and moisture. If moisture remains, the anti-slip sheets may slip.

Adjust the level after placing the appliance in the installation area.

Place the adhesive side a of the anti-slip sheets on the floor.

• The most effective way is to install the antislip sheets under the front feet. If it is difficult to place the sheets under the front feet of the appliance, attach them under the rear feet.

ENGLISH

Check if all lock nuts at the bottom of the appliance are secured properly.

• Proper placement and levelling of the appliance will ensure long, regular, and reliable operation.

• The appliance must be 100% horizontal and stand firmly in position on a hard flat floor.

• It must not ‘Seesaw’ across corners under the load.

• Do not let the feet of the appliance get wet. Failure to do so may cause vibration or noise.

Using Anti-Slip Sheets

This feature may vary depending on the model purchased.

If you install the appliance on a slippery surface, it may move because of excessive vibration. Incorrect levelling may cause malfunction through noise and vibration. If this occurs, install the anti-

Put the appliance on the anti-slip sheets.

• Do not attach the adhesive side slip sheets to the feet of the appliance.

• Additional anti-slip sheets are available at LG Electronics service centre.

of anti-

Connecting the Water Supply Hose

Note for Connection

• Water pressure must be between

800 kPa

(0.5‒8.0 kgf/cm²). If the water pressure is more than should be installed.

800 kPa

, a decompression device

50 kPa

and

NOTE

global_main.book.book Page 14 Thursday, October 22, 2020 2:31 PM

INSTALLATION

• Periodically check the condition of the water supply hose and replace the water supply hose if necessary.

• Do not overtighten the water supply hose or use mechanical devices to tighten onto the inlet valves.

• No further backflow protection required for connection to the water inlet.

Checking the Rubber Seal

Two rubber seals a are supplied with the water supply hose. They are used to prevent water leaks. Connection to taps is sufficiently tight.

• Do not use mechanical devices such as multi grips to tighten the water supply hose. Ensure that the curved end of the water supply hose is connected to the appliance.

Connecting Screw-Type Hose to Tap Without Thread

Loose the 4 fixing screws a.

Remove the guide plate b if the tap is too large to fit the adapter.

Push the adapter onto the end of the tap so that the rubber seal is connected to be watertight. Tighten the 4 fixing screws.

Connecting the Hose to the Water Tap

Connecting Screw-Type Hose to Tap with Thread

Screw the supply hose connector onto the water supply tap.

Push the inlet hose c vertically upwards so that the rubber seal within the hose can adhere

NOTE

global_main.book.book Page 15 Thursday, October 22, 2020 2:31 PM

completely to the tap and then tighten the hose by screwing it to the right.

Connecting One Touch Type Hose to Tap Without Thread

Unscrew the adapter ring plate d and loose the 4 fixing screws.

INSTALLATION

watertight. Tighten the 4 fixing screws and the adapter ring plate.

Pull the connector latch plate f down, push the inlet hose onto the adapter, and release the connector latch plate. Make sure the adapter locks into place.

ENGLISH

Remove the guide plate e if the tap is too large to fit the adapter.

Push the adapter onto the end of the tap so that the rubber seal is connected to be

• After connecting the water inlet hose to the water tap, turn on the water tap to flush out foreign substances (dirt, sand, sawdust, and etc.) in the water lines. Let the water drain into a bucket, and check the water temperature.

NOTE

global_main.book.book Page 16 Thursday, October 22, 2020 2:31 PM

INSTALLATION

Connecting the Hose to the Appliance

Screw the supply hose to the water inlet valve on the back of the appliance.

• Do not connect the hose to the hot water supply for models with one water inlet. Connect to the cold water supply only.

• After completing connection, if water leaks from the hose, repeat the same steps. Use the most conventional type of tap for the water supply. In case that the tap is square or too big, remove the guide plate before inserting the tap into the adaptor.

• Make sure that the hose should not be kinked or trapped.

• Securing the drain hose correctly will protect the floor from damage due to water leakage.

105 cm

• If the drain hose is too long, do not force it back into the appliance. This will cause abnormal noise.

• When installing the drain hose to a sink, secure it tightly with string.

Installing the Drain Hose

Installing the Drain Hose with the Elbow Bracket

The drain hose should not be placed higher than

100 cm

above the floor. Water in the appliance may

not drain or may drain slowly.

CAUTION

global_main.book.book Page 17 Thursday, October 22, 2020 2:31 PM

OPERATION

Operation Overview

Using the Appliance

Before the first wash, select the programme and add a half amount of the detergent. Start the appliance without clothes. This will remove possible residues and water from the drum that may have been left during manufacturing.

Sort clothes and load items.

• Sort clothes by fabric type, soil level, colour and load size as needed. Open the door and load items into the appliance.

• Before closing the door, ensure that all clothes and items are inside the tub and not overhanging on the rubber door seal where they will become caught when the door is closed. Failing to do so will cause damage to the door seal and the clothes.

Cotton

wash

OPERATION

• Add the proper amount of detergent to the detergent dispenser. If desired, add bleach or fabric softener to the appropriate areas of the dispenser.

Turn on the appliance.

Power

• Press the appliance.

Choose the desired cycle.

• Press the cycle button repeatedly or turn the cycle selector knob until the desired cycle is selected.

• Now select a wash temperature and spin speed. Pay attention to the fabric care label of your clothes.

Begin cycle.

• Press the cycle. The appliance will agitate briefly without water to measure the weight of the load. If the pressed within a certain time, the appliance will shut off and all settings will be lost.

button to turn on the

Start/Pause

button to begin the

button is not

ENGLISH

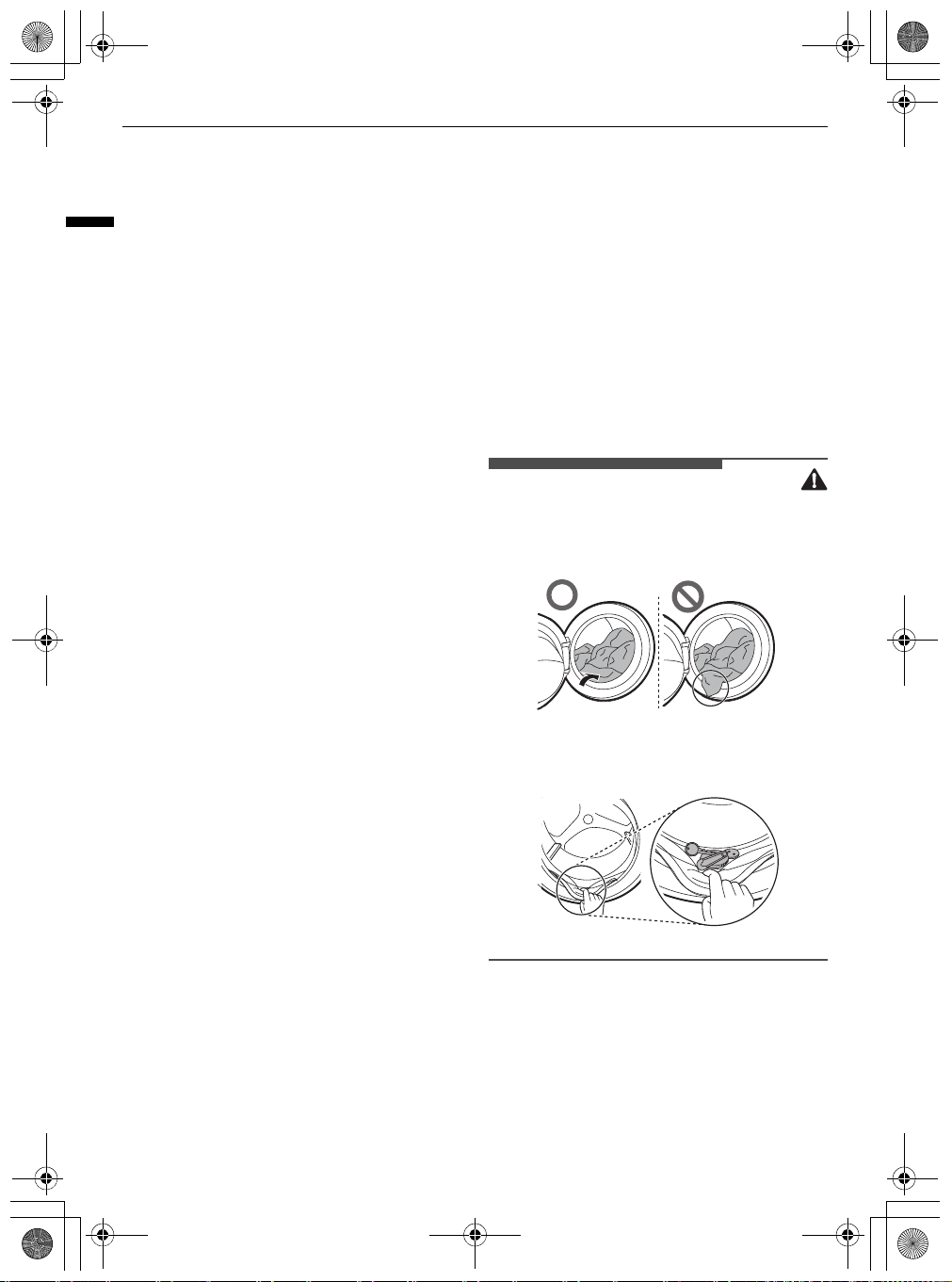

• Remove items from the flexible door seal gasket to prevent clothing and door seal damage.

Add cleaning products or detergent and softener.

End of cycle.

• When the cycle is finished, a melody will sound. Immediately remove your clothing from the appliance to reduce wrinkling. Check around the door seal when removing the load for small items that may be caught in the seal.

global_main.book.book Page 18 Thursday, October 22, 2020 2:31 PM

OPERATION

Control Panel

The actual control panel may differ from model to model.

Control Panel Features

Description

Power On/Off Button

• Press this button to turn the washing machine on.

Programme Knob

• Programmes are available according to the clothes type.

• The lamp will light up to indicate the selected programme.

Start/Pause Button

• This button is used to start the wash cycle or pause the wash cycle.

• If a temporary stop of the wash cycle is needed, press this button.

Extra Options and Functions

• To use the extra functions, press and hold the corresponding button for 3 seconds. The corresponding symbol lights up in the display.

• This allows you to select an additional programmes and will light when selected.

Customizing Washing Programme Buttons

Use these buttons to adjust the water temperature or spin speed settings for the selected programme.

• The current settings are shown in the display.

• Press the button for that option to select other settings.

global_main.book.book Page 19 Thursday, October 22, 2020 2:31 PM

Description

Display

• The display shows the settings, estimated remaining time, options, and status messages. When the appliance is turned on, the default settings in the display will illuminate.

• While the load weight is sensed automatically, the display on the control panel blinks.

Time and Status Display

Description

AI DD

•

AI DD

M provides the appropriate drum rotation actions after load sensing is completed.

•

is activated when the

operated.

Cotton, Mixed Fabric

, and

Easy Care

programmes are selected and

OPERATION

ENGLISH

Programme Status Indicators

• When a washing programme is running, LED for the active stage will blink, and the LEDs for the remaining stages will remain steady. Once a stage is complete, the LED will turn off. If a cycle is paused, the active stage LED will stop blinking.

Estimated Time Remaining

• When a washing programme is selected, the default time for that programme is displayed. This time will change as options are selected.

• If the display shows the load size. This is normal.

• The time shown is only an estimate. This time is based on normal operating conditions. Several external factors (load weight, room temperature, incoming water temperature, etc.) can affect the actual time.

lights up when the beep is off.

lights up when the control panel is locked except for the

lights up when the programme starts and the door is locked.

---

, then the time will be displayed after the load sensing has detected

Power

button.

NOTE

global_main.book.book Page 20 Thursday, October 22, 2020 2:31 PM

OPERATION

Preparing the Wash Load

Sort the wash load for best washing results, and then prepare the clothes according to the symbols on their care labels.

Sorting the Clothes

• For best washing results, sort your clothes according to the care label stating fabric type and washing temperature. Adjust the spin speed or spin intensity in accordance with the fabric type.

• Soil level (Heavy, Normal, Light): Separate clothes according to soil level. If possible, do not wash heavily soiled items with lightly soiled ones.

• Colour (White, Lights, Darks): Wash dark or dyed clothes separately from whites or light colours. Mixing dyed clothes with light clothes can result in dye transfer or discolouration of lighter clothes.

• Lint (Lint producers, Collectors): Wash separately lint producing fabrics from lint collecting fabrics. Lint producers can result in pilling and linting on the lint collectors.

• The dashes under the symbol give you information about the type of fabric and the maximum allowance of mechanical stress.

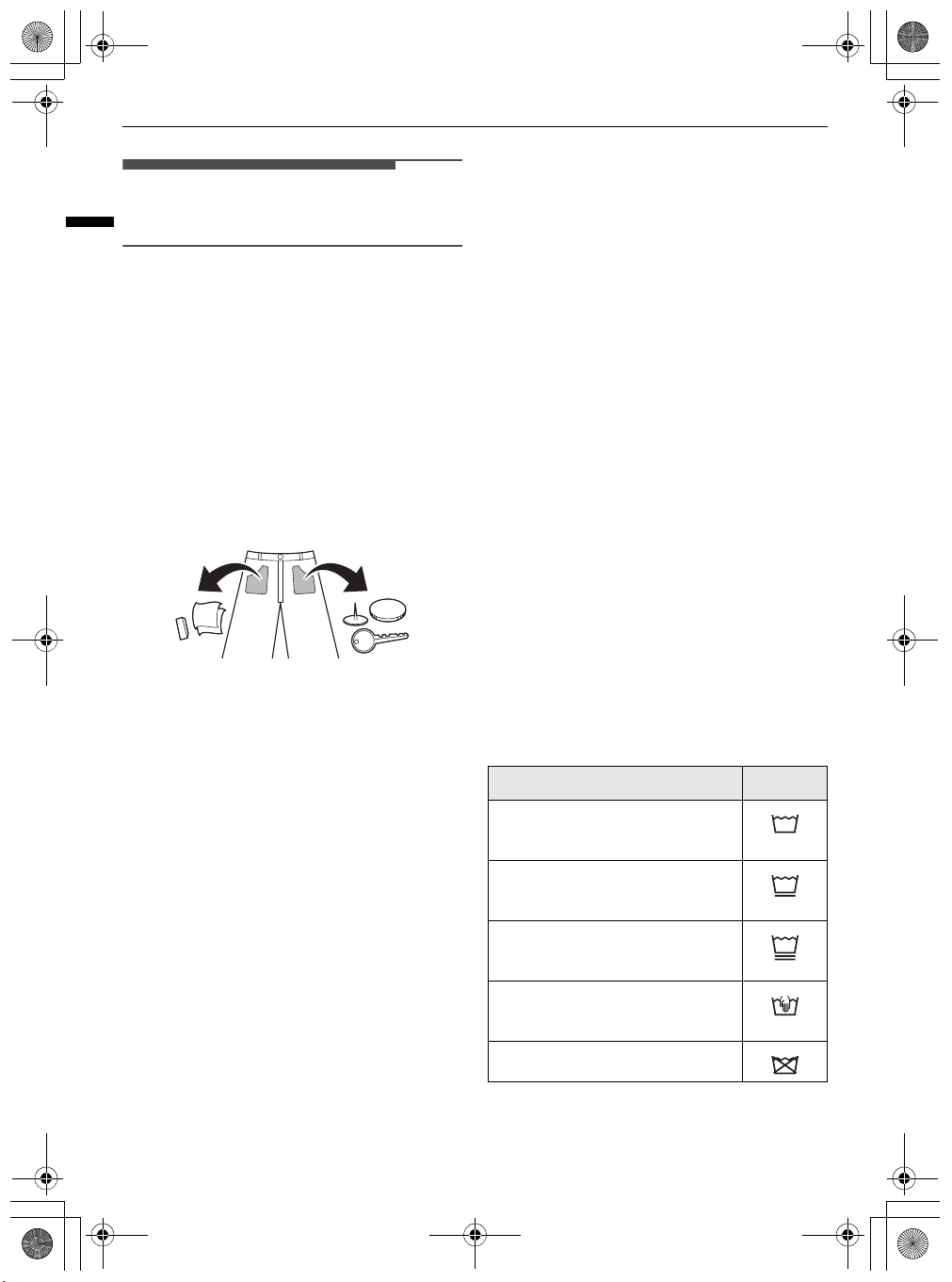

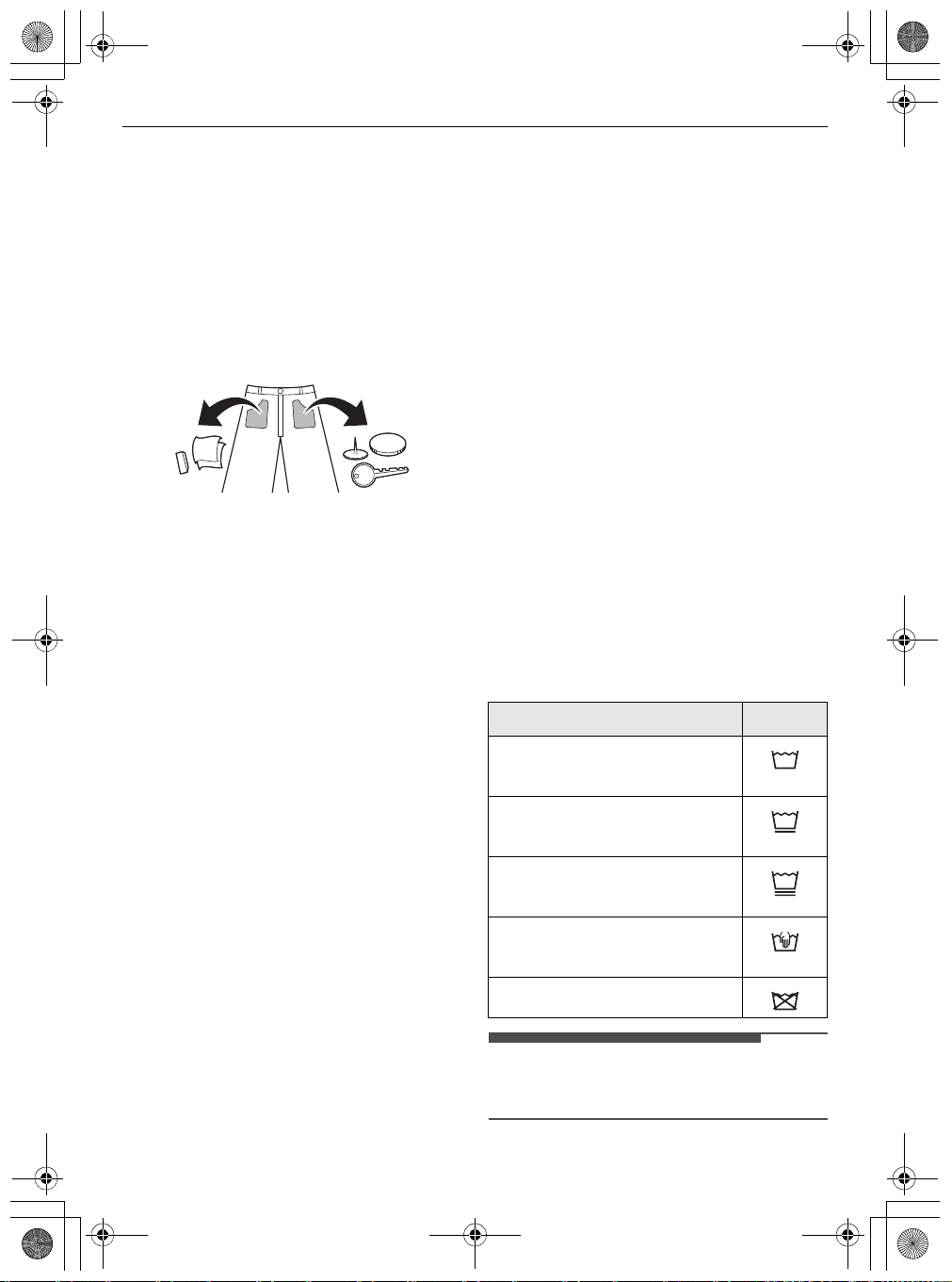

Checking the Clothes before Loading

• Combine large and small items in a load. Load large items first.

• Large items should not be more than half of the total wash load. Do not wash single items. This may cause an unbalanced load. Add one or two similar items.

• Check all pockets to make sure that they are empty. Items such as nails, hair clips, matches, pens, coins and keys can damage both your appliance and clothes.

Checking the Clothes Care Label

The symbols tell you about the fabric content of your garment and how it should be washed.

Symbols on the Care Labels

Symbol Wash / Fabric type

• Normal Wash

• Cotton, Mixed Fabrics

• Easy Care

• Synthetic, Mixed Fabrics

• Special Delicate Wash

• Delicates

• Hand Wash Only

• Wool, Silk

• Do not wash

• Wash delicates (stockings, underwired bras) in a wash net.

• Close zippers, hooks and strings to make sure that these items do not snag on other clothes.

• Pre-treat dirt and stains by brushing a small amount of detergent dissolved water onto stains to help lift dirt.

Adding Detergents and Softeners

Detergent Dosage

• Detergent should be used according to the instruction of the detergent manufacturer and selected according to type, colour, soiling of the fabric and the washing temperature. Use only

NOTE

global_main.book.book Page 21 Thursday, October 22, 2020 2:31 PM

detergents that are suitable for Drum (front load) type washers.

• If too many suds occur, reduce the detergent amount.

• If too much detergent is used, too many suds can occur and this will result in poor washing results or cause heavy load to the motor.

• If you wish to use liquid detergent, follow the guidelines provided by the detergent manufacturer.

• You can pour liquid detergent directly into the main detergent drawer if you are starting the wash cycle immediately.

• Do not use liquid detergent if you are using the

Delay End Wash

immediately and may harden in the drawer or the tub.

• Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. For best results, avoid overdosing the detergent. Failing to do so will cause oversudsing.

• Refer to the label of the clothes, before adding the detergent and choosing the water temperature.

• Use only suitable detergents for the respective type of clothing:

- Liquid detergent is often designed for special

- Powdered detergent is suitable for all types of

- For better washing results of white and pale

- Detergent is flushed from the dispenser at the

function, or if you have selected

option, as the liquid will dispense

applications, e.g. for coloured fabric, wool, delicate or dark clothes.

fabric.

garments, use powdered detergent with bleach.

beginning of the wash cycle.

Pre

OPERATION

• Minimum load: 1/3 of full load.

Using the Dispenser

To add detergent dosage to the dispenser:

Open the dispenser drawer.

Add the detergent and softener into the appropriate compartments.

Main wash detergent compartment

Pre-wash detergent compartment

Liquid fabric softener compartment

Gently close the detergent dispenser drawer before starting the cycle.

• Slamming the drawer closed may result in the detergent overflowing into another compartment or dispensing into the drum earlier than programmed.

• Be careful not to get a hand caught in the drawer while closing.

• It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

ENGLISH

• Do not let the detergent harden. Doing so may lead to blockages, poor rinse performance or odour.

• Full load: According to manufacturer’s recommendation.

• Part load: 1/2 of the normal amount.

Fabric Softener Compartment

This compartment holds liquid fabric softener, which is automatically dispensed during the final rinse cycle. Either powdered or liquid fabric softener may be used.

• Pour fabric softer to the maximum fill line. Pouring excessive fabric softener over the

NOTE

global_main.book.book Page 22 Thursday, October 22, 2020 2:31 PM

OPERATION

maximum fill line can cause it to dispense too early, which may stain the clothes.

• Do not pour fabric softener directly onto the clothes in the wash drum, doing so will cause dark staining on the clothes that will be difficult to remove.

• Do not leave the fabric softener in the detergent drawer for more than 1 day. Fabric softener may harden. Softener may remain in the dispenser if it is too thick. The softener should be diluted if the consistency is too thick so that it can flow easily.

• Do not open the drawer when water is being supplied during the wash.

• Solvents (benzene, etc.) must never be used.

Adding Water Softener

A water softener, such as anti-limescale can be used to cut down on the use of detergent in areas with high water hardness level.

• First add detergent, and then the water softener. Dispense according to the amount specified on the packaging.

Adding Detergent Tablets

Detergent tablets can also be used when washing.

Open the door and put detergent tablets into the drum before loading the clothes.

Load the clothes into the drum and close the door.

• Do not put tablets into the dispenser.

global_main.book.book Page 23 Thursday, October 22, 2020 2:31 PM

OPERATION

Programme Table

Washing Programme

Cotton 40 °C (Cold to 95 °C) Max. Load: Rating

Description Washes normally soiled clothes by combining various drum motions.

• Pressing the

Cotton

Eco 40-60 40 °C (40 °C to 60 °C) Max. Load: Rating

Description Washes normally soiled cotton clothes declared to be washable at 40 °C or 60 °C.

Mixed Fabric 40 °C (Cold to 60 °C) Max. Load 4 kg

Description Washes mixed fabrics simultaneously.

• Use for various kind of fabrics except special garments (silk/delicate, sports wear, dark clothes, wool, duvet/curtains).

Easy Care 40 °C (Cold to 60 °C) Max. Load 4 kg

Description Washes clothes that do not need ironing after washing.

• Use for Polyamide, acrylic, polyester.

Start/Pause

programme to begin immediately, using the default settings.

button without selecting a programme will cause the

ENGLISH

Silent Wash 40 °C (Cold to 60 °C) Max. Load 4 kg

Description Washes clothes with less noise and vibration than other washing programmes.

• Use for lightly soiled white cotton (underwear).

Hygiene 60 °C Max. Load 4 kg

Description Washes clothes at a high temperature.

Baby Care 60 °C Max. Load 4 kg

Description Washes baby clothes with gentle motion and better performance.

Delicates 20 °C (Cold to 40 °C) Max. Load 1.5 kg

Description Washes machine-washable lingerie, sheer and lacy clothes.

NOTE

global_main.book.book Page 24 Thursday, October 22, 2020 2:31 PM

OPERATION

Hand/Wool 30 °C (Cold to 40 °C) Max. Load 2 kg

Description Washes hand-washable and machine-washable delicate clothes such as washable

wool, lingerie, dresses etc.

• Use detergent for machine washable woolens

Sportswear 40 °C (Cold to 40 °C) Max. Load 2 kg

Description Washes special garments like sports and outdoor wear.

• Use for water-repellent fabric laminate used on clothing.

Speed 14 20 °C (20 °C to 40 °C) Max. Load 2 kg

Description Washes small loads of lightly soiled clothes for approximately 14 minutes.

Duvet Cold (Cold to 40 °C)

Description Washes large items such as bed covers, pillows, sofa covers, etc.

Tub Clean - -

Description This function helps clean the inside of your appliance's tub.

Rinse+Spin - Max. Load: Rating

Description Rinses and spins clothes. Use fabric softener if needed.

• Set program at “

• Select the appropriate water temperature for chosen wash programme. Always follow garment manufacturer’s care label or instructions when washing to avoid damage to clothes.

• Select the proper wash temperature and spin speed for the desired programmes.

• Actual water temperature may differ from the declared cycle temperature.

• Neutral detergent is recommended.

Cotton, Intensive

+ 60 ℃ + 1200 rpm” option for test in conformity with IEC60456.

Max. Load 2.5 kg (1 down

duvet)

Extra Options

•

Rinse+, Delay End

and

Add Item

options can be selected for every washing programme in this table.

global_main.book.book Page 25 Thursday, October 22, 2020 2:31 PM

OPERATION

Programme Intensive Pre Wash

Cotton

Eco 40-60

Mixed Fabric

Easy Care

Silent Wash

Hygiene

Baby Care

Delicates

Hand/Wool

Sportswear

Speed 14

Duvet

ENGLISH

Selectable Maximum Spin Speed

Programme

Cotton

Eco 40-60

Mixed Fabric

Easy Care

Silent Wash

Hygiene

Baby Care

Delicates

Hand/Wool

Sportswear

Default Available

1200 rpm All

1000 rpm All

1200 rpm All

800 rpm Up to 1000 rpm

1200 rpm All

1000 rpm Up to 1000 rpm

800 rpm Up to 800 rpm

Spin Speed

NOTE

global_main.book.book Page 26 Thursday, October 22, 2020 2:31 PM

OPERATION

Programme

Speed 14

Duvet

• Actual maximum spin speed may vary depending on the load conditions. The values above are rounded to the nearest hundred.

Default Available

400 rpm All

1000 rpm Up to 1000 rpm

Spin Speed

NOTE

global_main.book.book Page 27 Thursday, October 22, 2020 2:31 PM

Extra Options and Functions

You can use the extra options and functions to customize the programmes.

Customizing a Washing Programme

Each programme has default settings that are selected automatically. You may also customize these settings using these buttons.

Temp.

This button selects the wash temperature for the selected programme.

• Press the is lit.

• Select the water temperature suitable for the type of load you are washing. Follow the garment fabric care labels for best results.

Spin

The spin intensity level can be selected by pressing this button repeatedly.

• Press the

Temp.

button until the desired setting

Spin

button to select spin speed.

OPERATION

Add detergent.

Select a washing programme.

Customize the washing programme (

Spin, Rinse+

Press the

and

Intensive

Start/Pause

) as necessary.

button.

Only Using a Spin Function

Prepare the clothes and load the drum.

Press the

• Do not select a washing programme and do

Press the

Power

button.

not add a detergent.

Spin

button.

Start/Pause

button.

Temp.

ENGLISH

• If No is selected by pressing the will still rotate for a short time to drain quickly.

Rinse+

This function is recommended for people with detergent allergies.

• Press the

Intensive

This function is used to wash normal and heavily soiled clothes.

• Press the

Rinse+

button for adding rinse once.

Intensive

button.

Spin

button, it

Follow the next steps to customize a washing programme:

Prepare the clothes and load the drum.

Press the

Power

button.

• If you select the washing programme, you will be unable to select a spin only. If this occurs, press

Power

button twice to cycle the machine off and

back on.

Using Basic Options

You can customize the programmes by using the following basic options:

Pre Wash

This option is recommended when washing a heavily soiled load.

Press the

Select a washing programme.

Press the

Power

button.

Pre Wash

Start/Pause

button as necessary.

button.

NOTE

global_main.book.book Page 28 Thursday, October 22, 2020 2:31 PM

OPERATION

Add Item

You can use this option in order to add or remove clothes after the washing programme has started.

Press the

Select a washing programme.

Press the

Open the door after it unlocks itself and add or remove necessary clothing items.

Close the door and press the button.

• For safety reasons, the door remains locked when the water level or temperature inside of the drum is high. It is not possible to add clothes at this time.

Power

button.

Start/Pause

Add Item

button as necessary.

button.

Start/Pause

time may vary due to water temperature, clothes and other factors.

• To cancel the function, the be pressed.

• Avoid using liquid detergent for this function.

Power

button should

Settings

Child Lock

Use this option to disable the controls. This function can prevent children from changing cycles or operating the appliance.

• Once this function is set, all buttons are locked except the

• When the controls are locked, remaining time are alternatively shown on the display during the wash while this function is engaged.

• Turning off the power will not reset this function. You must deactivate this function before you can access any other functions.

Power

button.

and the

Delay End

You can set this function so that the appliance starts automatically and finishes after a specified time interval.

Press the

Select a washing programme.

Press the

• Except for LED of the on the control panel will be turned off within 20 minutes. This feature may vary depending on the model purchased.

• The delay time is the time to the end of the programme, not the start. The actual running

Power

button.

Delay End

Start/Pause

Delay End

button as necessary.

button.

button, all LEDs

Locking the Control Panel

Turn on the power.

Press and hold the buttons at the same time for 3 seconds to activate this function.

• A beeper will sound, and the display.

Unlocking the Control Panel

Turn on the power.

Press and hold the buttons at the same time for 3 seconds to deactivate this function.

Beep On/Off

This appliance plays a melody when it starts and stops.

Delay End

and

Add Item

will appear on

and

Add Item

global_main.book.book Page 29 Thursday, October 22, 2020 2:31 PM

• Press and hold the buttons simultaneously for 3 seconds to deactivate/activate this function.

Rinse+

and

Pre Wash

OPERATION

ENGLISH

+ 87 hidden pages
