LG F14WM9TS1 Owner’s Manual [en,fr,de]

MFL69739850

RELEASING THIS DRAWING WITHOUT PERMISSION LG Electronics SHOULD BE ACCUSED ACCORDING TO THE LAWS AND COMPANY RULES.

WORK

SEC.

210

BRAND

CUSTOMER MODEL

F14WM9TS1

P/NO.

MFL69739850

LANGUAGE

ENGLISH

A**QEDG

OFFSET WHITE 80 g

F* J6 V (Y)(W)(0~9)(W)(S)

A**QWDG

GERMAN FRENCH

ITALIAN

PAGE

188

Titan C4 SPA 9kg

Washing Machine

REMARK

1. Material, printing and exterier size are refer to work tables.

148 148

2. Printing, text size and line are based on LG design film.

3. Exterier size on the drawing is cutting line.

4. Before product controlled by criteria sample.

should comply with LG standard of LG(63)-A-5501-34

DR COMPLETED

PDF

ILLUSTRATOR

TRIG.

MODELING

APPROVEDPREPAREDDATEREF. NO.REV. NO. REVISION DESCRIPTION

A.Walaszczyk

01.02.2017

LGEWR

LG Electronics Inc.

UNIT SCALE

REVIEWEDDESIGNED

M.Grabek S.Kozłowski D.Yang

01.02.2017 01.02.2017 01.02.2017

CHECKED APPROVED

RELATED DWG.

MANUAL,OWNER’S

T L E

DRUM-EXPORT1/1

DWG. No.

MFL69739850

F 4 J6 V (Y)(W)(0~9)(W)(S)

F 2 J6 V (Y)(W)(0~9)(W)(S)

F14WM*, F12WM*

MFL69739850 Rev.00_12122016

TABLE OF CONTENTS

SAFETY INSTRUCTIONS ................................................. 3

IMPORTANT SAFETY INSTRUCTIONS ....................................................3

Disposal of Your Old Appliance ..............................................................8

INSTALLATION ............................................................... 9

Parts ...................................................................................................9

Accessories ..........................................................................................9

Specifications .....................................................................................10

Installation Place Requirements ...........................................................11

Unpacking and Removing Transit Bolts .................................................12

Using Anti-Slip Sheets (Optional) .........................................................13

Wooden Floors (Suspended Floors) ..................................................... 13

Leveling the Appliance ........................................................................14

Connecting the Water Supply Hose ......................................................14

Installing the Drain Hose .................................................................... 17

OPERATION .................................................................. 18

Using the Washing Machine ................................................................18

Sorting Laundry ................................................................................. 19

Adding Cleaning Products ................................................................... 20

Control Panel ..................................................................................... 22

Programme Table ............................................................................... 23

Option Programme ............................................................................. 27

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the

manufacturer.

SMART FUNCTIONS ...................................................... 30

Using the Smart Diagnosis™ Function ..................................................30

Using the Tag On Function ..................................................................31

Using the Application ......................................................................... 31

MAINTENANCE ............................................................. 32

Cleaning Your Washing Machine ..........................................................32

Cleaning the Water Inlet Filter............................................................. 32

Cleaning the Drain Pump Filter ............................................................ 33

Cleaning the Dispenser Drawer ........................................................... 34

Tub Clean (Optional) ..........................................................................34

Caution on Freezing During Winter ...................................................... 35

TROUBLESHOOTING ..................................................... 37

Diagnosing Problems .......................................................................... 37

Error Messages ..................................................................................40

WARRANTY ................................................................... 42

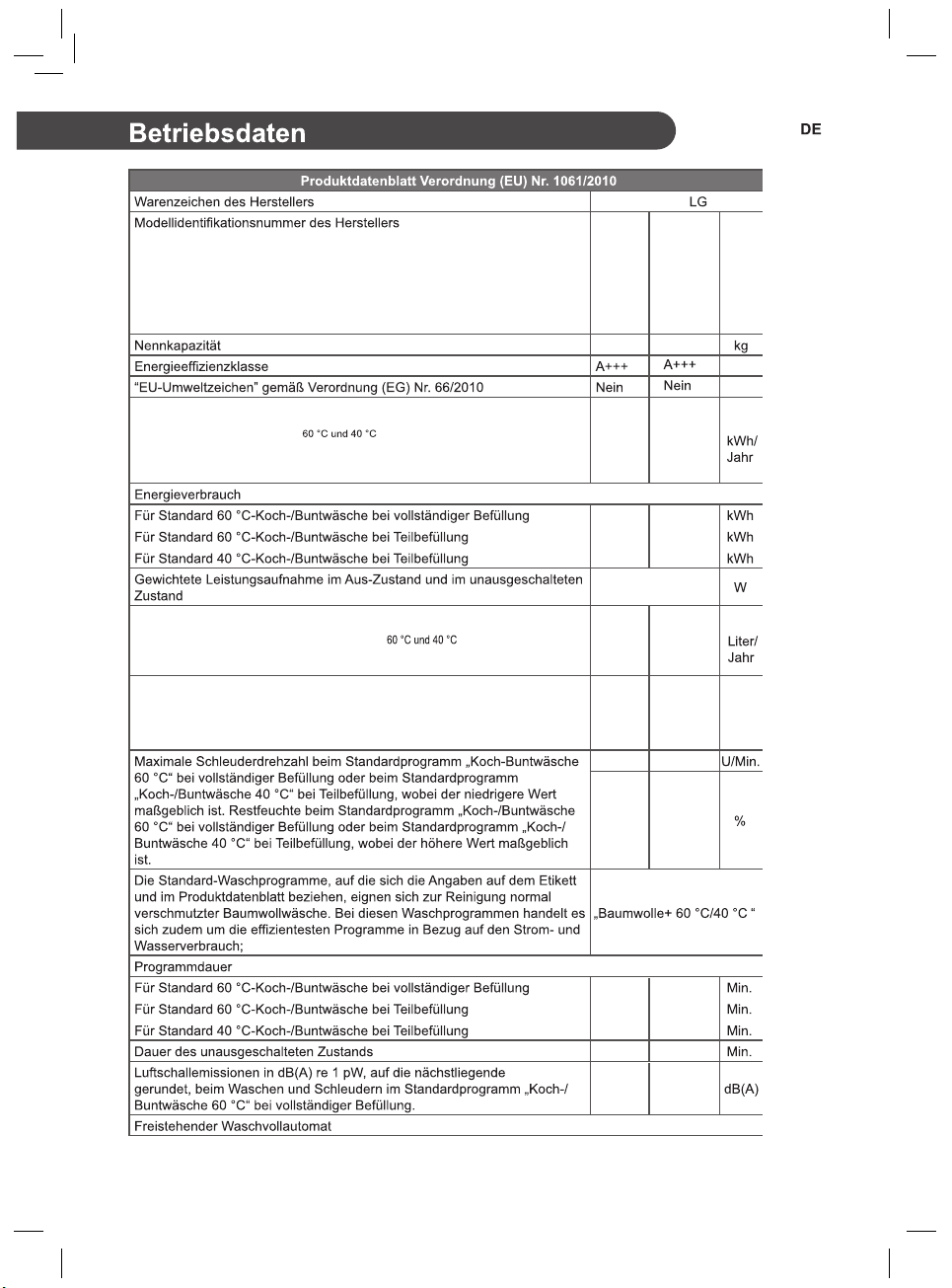

OPERATING DATA ........................................................ 45

SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

This symbol is displayed to the indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, re, death, electric shock,

injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Installation

•Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

•This appliance should only be transported by two or more people holding the appliance securely.

•Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, or rain or temperatures below freezing.

•Tighten the drain hose to avoid separation.

•If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.

•Do not plug multiple socket outlets, an extension power cable or adapter with this appliance.

•This appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the appliance, in such a way that a full opening of the appliance door is restricted.

•This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

•This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.

•Improper connection of the equipment-grounding conductor can

result in risk of electric shock. Check with a qualied electrician

or service personnel if you are in doubt as to whether the appliance is properly grounded.

•Do not modify the power plug provided with the appliance.

If it does not t the outlet, have a proper outlet installed by a qualied electrician.

Operation

•Do not attempt to separate any panels or disassemble the appliance. Do not apply any sharp objects to the control panel in order to operate the appliance.

•Do not repair or replace any part of the appliance. All repairs

and servicing must be performed by qualied service personnel unless specically recommended in this Owner’s Manual. Use

only authorized factory parts.

•Do not put animals, such as pets into the appliance.

•Keep the area underneath and around the appliance free of combustible materials such as lint, paper, rags, chemicals, etc.

•Do not leave the appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.

•Use new hose or hose-set supplied with the appliance. Reusing old hoses can cause a water leak and subsequent property damage.

•Never reach into the appliance while it is operating. Wait until the drum has completely stopped.

•Do not put in, wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.).

Improper use can cause re or explosion.

•In case of ood, disconnect the power plug and contact the LG Electronics customer information centre.

•Do not push down the door excessively, when the appliance door is open.

•Do not touch the door during a high temperature programme.

•Do not use ammable gas and combustible substances (benzene, gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

•If the drain hose or inlet hose is frozen during winter, use it only after thawing.

•Keep all washing detergents, softener and bleach away from children.

•Do not touch the power plug or the appliance controls with wet hands.

•Do not bend the power cable excessively or place a heavy object on it.

•Do not wash rugs, mats, shoes or pet blankets, or any other items other than clothes or sheets, in this machine.

•This appliance must only be used for domestic household purposes and should not be used in mobile applications.

•If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately.

Maintenance

•Securely plug the power plug in the socket outlet after completely removing any moisture and dust.

•Disconnect the appliance from the power supply before cleaning the appliance. Setting the controls to the OFF or stand by position does not disconnect this appliance from the power supply.

•Do not spray water inside or outside the appliance to clean it.

•Never unplug the appliance by pulling on the power cable.

Always grip the power plug rmly and pull straight out from the

socket outlet.

Disposal

•Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse.

•Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

•Remove the door before disposing of or discarding this appliance to avoid the danger of children or small animals getting trapped inside.

Disposal of Your Old Appliance

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.

• Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.

• You can take your appliance either to the shop where you purchased the product,

or contact your local government waste ofce for details of your nearest authorised

WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling.

INSTALLATION

Parts

Transit bolts

Power plug

Drawer

Control panel

Drum

Door

Drain hose

Drain plug

Drain pump lter

Cover cap

(Location may vary depending on products)

Adjustable feet

Accessories

Cold supply hose (1EA)

(Option: Hot (1EA))

Spanner Anti–slip sheets (Optional)

Model

F 4 J6 V (Y)(W)(0~9)(W)(S)

F 2 J6 V (Y)(W)(0~9)(W)(S)

F14WM*, F12WM*

Wash Capacity 9 kg

Power Supply 220 - 240 V~, 50 Hz

Size 600 mm (W) x 560 mm (D) x 850 mm (H)

Product Weight 62 kg

Permissible Water pressure 0.1 - 1.0 MPa (1.0 - 10.0 kgf / cm²)

•

ve the quality of the product.

ter supply.

Installation Place Requirements

Location

Level Floor :

is 1°.

Power Outlet : Must be within 1.5 meters of either side of the location of the appliance.

Do not overload the outlet with more than one

•

appliance.

Additional Clearance : For the wall, 10 cm: rear /2 cm: right & left side

Do not place or store laundry products on top of the

•

appliance at any time.

These products may damage the nish or controls.

•

Allowable slope under the entire appliance

Do not install your appliance in rooms where freezing

•

temperatures may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

Ensure that when the appliance is installed, it is

•

easily accessible for an engineer in the event of a breakdown.

With the appliance installed, adjust all four feet

•

using the transit bolt spanner provided to ensure the appliance is stable, and a clearance of approximately 20 mm is left between the top of the appliance and the underside of any work-top.

If the appliance is delivered in winter and temperatures

•

are below freezing, place the appliance at room temperature for a few hours before putting it into operation.

WARNING

This equipment is not designed for maritime use or for

•

use in mobile installations such as caravans, aircraft etc.

WARNING

The plug must be plugged into an appropriate outlet

•

that is properly installed and grounded in accordance with all local codes and ordinances.

Positioning

Install the appliance on a at hard oor.

•

Make sure that air circulation around the appliance is

•

not impeded by carpets, rugs, etc.

Never try to correct any unevenness in the oor with

•

pieces of wood, cardboard or similar materials under the appliance.

If it is impossible to avoid positioning the appliance

•

next to a gas cooker or coal burning stove, an insulation (85x60 cm) covered with aluminum foil on the side facing the cooker or stove must be inserted between the two appliances.

Electrical Connection

Do not use an extension cord or double adapter.

•

Always unplug the appliance and turn off the water

•

supply after use.

Connect the appliance to an earthed socket in

•

accordance with the current wiring regulations.

The appliance must be positioned so that the plug is

•

easily accessible.

Repairs to the appliance must only be carried out

•

by qualied personnel. Repairs carried out by

inexperienced persons may cause injury or serious malfunctioning. Contact your local service centre.

Unpacking and Removing Transit Bolts

Lift the appliance off the foam base.

• After removing the carton and shipping material, lift the appliance off the foam base. Make sure the tub support comes off with the base and is not stuck to the bottom of the appliance.

• If you must lay the appliance down to remove the carton base, always protect the side of the appliance and lay it carefully on its side. Do not lay the appliance on its front or back.

Tub Support (Optional)

Carton base

Install the hole caps.

• Locate the hole caps included in the accessory pack and install them in the shipping bolt holes.

Cap

NOTE

• Save the bolt assemblies for future use. To prevent damage to internal components, Do not transport the washing machine without reinstalling the transit bolts.

• Failure to remove transit bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washing machine. The cord is secured to the back of the washing machine with a shipping bolt to help prevent operation with transit bolts in place.

Remove the bolt assemblies.

• Starting with the bottom two transit bolts, use the spanner (included) to fully loosen all transit bolts by turning them counterclockwise. Remove the bolt assemblies by wiggling them slightly while pulling them out.

Shipping

bolt

Retainer

Using Anti-Slip Sheets (Optional)

If you install the appliance on a slippery surface, it may move because of excessive vibration. Incorrect leveling may cause malfunction through noise and vibration. If this occurs, install the anti-slip sheets under the leveling feet and adjust the level.

Clean the oor to attach the anti-slip sheets.

Use a dry rag to remove and clean foreign

•

objects and moisture. If moisture remains, the anti-slip sheets may slip.

Adjust the level after placing the appliance in the

installation area.

Place the adhesive side of the anti-slip sheets on

the oor.

It is most effective to install the anti-slip sheets

•

under the front legs. If it is difcult to place the

pads under the front legs, place them under the back legs.

This side up

Wooden Floors (Suspended Floors)

Wooden oors are particularly susceptible to vibration.

•

To reduce vibration we recommend you place rubber

•

cups at least 15 mm thick under each foot of the

appliance, secured to at least two oor beams with

screws.

Rubber cup

If possible install the appliance in one of the corners of

•

the room, where the oor is more stable.

Fit the rubber cups to reduce vibration.

•

NOTE

•Proper placement and leveling of the washing machine will ensure long, regular, and reliable operation.

•The washing machine must be 100% horizontal and

Adhesive side

Ensure the appliance is level.

Push or rock the top edges of the appliance

•

gently to make sure that the appliance does not rock. If the appliance rocks, level the appliance again.

NOTE

You can obtain anti-slip sheets from the LG Service

•

Centre.

•It must not ‘Seesaw’ across corners under the load.

•

wax and other lubricant coatings.

•Do not let the feet of the washing machine get wet. Failure to do so may cause vibration or noise.

•You can obtain rubber cups from

the LG Service Centre.

Leveling the Appliance

If the oor is uneven, turn the adjustable feet as

required (Do not insert pieces of wood etc. under the feet). Make sure that all four feet are stable

and resting on the oor and then check that the

appliance is perfectly level (Use a spirit level).

• Once the appliance is level, tighten the lock nuts up towards the base of the appliance. All lock nuts must be tightened.

Raise Lower

Lock nut

Tighten all 4

lock nuts securely

Diagonal Check

• When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (check both directions). If the appliance rocks when pushing the machine top plate diagonally, adjust the feet again.

NOTE

• Timber or suspended type ooring may contribute to excessive vibration and unbalance.

• If the washing machine is installed on a raised platform, it must be securely fastened in order to eliminate the risk of falling off.

Connecting the Water Supply Hose

• Water pressure must be between 0.1 MPa and

1.0 MPa (1.0‒10.0 kgf/cm2).

• Do not strip or crossthread when connecting supply hose to the valve.

• If the water pressure is more than 1.0 MPa, a decompression device should be installed.

• Periodically check the condition of the hose and replace the hose if necessary.

Checking the Rubber Seal on the Water Supply Hose

Two rubber seals are supplied with the water inlet hoses. They are used for preventing water leaks. Make sure the connection to taps is

sufciently tight.

Hose connector

Rubber seal

Hose connector

Rubber seal

Connecting Hose to Water Tap

Connecting Screw-Type Hose to Tap with Thread

Screw the hose connector onto the water supply tap.

Connecting Screw-Type Hose to Tap Without Thread

Loose the four xing screws.

connector

Fixing screw

Upper

Rubber seal

Push the adapter onto the end of the tap

so that the rubber seal forms a watertight

connection. Tighten the four xing screws.

Push the supply hose vertically upwards

so that the rubber seal within the hose can adhere completely to the tap and then tighten it by screwing it to the right.

Plate

Supply

hose

Connecting One Touch Type Hose to Tap Without Thread

Unscrew the adapter ring plate and loose the

four xing screws.

Remove the guide plate if the tap is too large

to t the adapter.

Guide plate

Ring plate

Remove the guide plate if the tap is too large

to t the adapter.

Guide plate

Push the adapter onto the end of the tap

so that the rubber seal forms a watertight

connection. Tighten the four xing screws

and the adapter ring plate.

Pull the connector latch plate down, push the

supply hose onto the adapter, and release the connector latch plate. Make sure the adapter locks into place.

Latch plate

Connecting Hose to Appliance

Attach the hot water line to the hot water supply on the back of the washer. Attach the cold water line to the cold water supply on the back of the washer.

Cold water

supply

NOTE

• After completing connection, if water leaks from the hose, repeat the same steps. Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the guide plate before inserting the tap into the adaptor.

Using the Horizontal Tap

Horizontal tap

Hot water supply

NOTE

• Before connecting the supply hose to the water

tap, turn on the water tap to ush out foreign

substances (dirt, sand, sawdust, and etc.) in the water lines. Let the water drain into a bucket, and check the water temperature.

Extension tap

Square tap

Installing the Drain Hose

• The drain hose should not be placed higher

than 100 cm above the oor. Water in the

appliance may not drain or may drain slowly.

• Securing the drain hose correctly will protect

the oor from damage due to water leakage.

• If the drain hose is too long, do not force it back into the appliance. This will cause abnormal noise.

~ 100 cm

~ 145 cm

~ 105 cm

max. 100 cm

• When installing the drain hose to a sink, secure it tightly with string.

• Securing the drain hose correctly will protect

the oor from damage due to water leakage.

Laundry tub

max. 100 cm

Hose retainer

Tie strap

max. 100 cm

OPERATION

Using the Washing Machine

Before the rst wash, select a washing

programme, allow the washing machine to wash without clothing. This will remove residue and water from the drum that may have been left during manufacturing.

Sort laundry and load items.

• Sort laundry by fabric type, soil level, colour and load size as needed. Open the door and load items into the washing machine.

Add cleaning products and/or detergent and

softener.

• Add the proper amount of detergent to the detergent dispenser drawer. If desired, add bleach or fabric softener to the appropriate areas of the dispenser.

Choose the desired washing cycle.

• Press the cycle button repeatedly or turn the cycle selector knob until the desired cycle is selected.

Begin cycle.

• Press the Start/Pause button to begin the cycle. The washing machine will agitate

briey without water to measure the weight

of the load. If the Start/Pause button is not pressed within 5 minutes, the washing machine will shut off and all settings will be lost.

End of cycle.

• When the cycle is nished, a melody will sound. Immediately remove your clothing from the washing machine to reduce wrinkling. Check around the door seal when removing the load for small items that may be caught in the seal.

Turn on the washing machine.

• Press the Power button to turn on the

washing machine.

Sorting Laundry

Look for a care label on your clothes.

• This will tell you about the fabric content of your garment and how it should be washed.

• Symbols on the care labels.

Wash temperature

Normal machine wash

Permanent press

Delicate

Hand wash

Do not wash

Sorting laundry.

• To get the best results, sort clothes into loads that can be washed with the same wash cycle.

• Different fabrics need to be washed at varying temperatures and spin speeds.

• Always sort dark colours from pale colours and whites. Wash separately as dye and lint transfer can occur causing discolouration of white and pale garments. If possible, do not wash heavily soiled items with lightly soiled ones.

− Soil (Heavy, Normal, Light) : Separate clothes according to amount of soil.

− Colour (White, Lights, Darks): Separate white fabrics from coloured fabrics.

− Lint (Lint producers, Collectors): Wash lint producers and lint collectors separately.

Caring before loading.

• Combine large and small items in a load.

Load large items rst.

• Large items should not be more than half the total wash load. Do not wash single items. This may cause an unbalanced load. Add one or two similar items.

• Check all pockets to make sure that they are empty. Items such as nails, hair clips, matches, pens, coins and keys can damage both your washing machine and your clothes.

• Close zippers, hooks and strings to make

sure that these items don’t snag on other

clothes.

• Pre-treat dirt and stains by brushing a small amount of detergent dissolved water onto stains to help lift dirt.

• Check the folds of the exible gasket (gray) and remove any small articles.

CAUTION

• Check inside the drum and remove any items from a previous wash.

• Remove any clothing or items from the exible gasket to prevent clothing and gasket damage.

Adding Cleaning Products

Detergent Dosage

• Detergent should be used according to the instruction of the detergent manufacturer and selected according to type, colour, soiling of the fabric and washing temperature.

• If too much detergent is used, too many suds can occur and this will result in poor washing results or cause heavy load to the motor.

• If you wish to use liquid detergent follow the guidelines provided by the detergent manufacturer.

• You can pour liquid detergent directly into the main detergent drawer if you are starting the cycle immediately.

• Do not use liquid detergent if you are using Time delay, or if you have selected Pre Wash, as the liquid may harden.

• If too many suds occur, reduce the detergent amount.

• Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. For best results, avoid oversudsing.

• Refer to the label of the clothes, before chooseing the detergent and water temperature.

• When using the washing machine, use designated detergent for each type of clothing only:

− General powdered detergents for all types of fabric

− Powdered detergents for delicate fabric

− Liquid detergents for all types of fabric or designated detergents only for wool

• For better washing performance and whitening, use detergent with the general powdered bleach.

• Detergent is ushed from the dispenser at the beginning of the cycle.

NOTE

• Do not let the detergent harden. Doing so may lead to blockages, poor rinse performance or odour.

• Full load : According to manufacturer’s recommendation.

• Part load : 3/4 of the normal amount

• Minimum load : 1/2 of full load

Adding Detergent and Fabric Softener

Adding Detergent

• Main wash only →

• Pre wash+Main wash →

NOTE

• Too much detergent, bleach or softener may

cause an overow.

• Be sure to use the appropriate amount of detergent.

Adding Fabric Softener

• Do not exceed the maximum ll line. Overlling can cause early dispensing of the fabric softener, which may stain clothes. Close the dispenser drawer slowly.

• Do not leave the fabric softener in the detergent drawer for more than 2 days (Fabric softener may harden).

• Softener will automatically be added during the last rinse cycle.

• Do not open the drawer when water is being supplied.

• Solvents (benzene, etc.) must not be used.

NOTE

• Do not pour fabric softener directly on the clothes.

Adding Water Softener

• A water softener, such as anti-limescale (e.g. Calgon) can be used to cut down on the use of detergent in extremely hard water areas.

Dispense according to the amount specied

on the packaging. First add detergent and then the water softener.

• Use the quantity of detergent required for soft water.

Using Tablet

Open the door and put tablets into the drum.

Load the laundry into the drum and close the

door.

Control Panel

Power Button

• Press the Power button to turn the

washing machine on.

Start/Pause Button

• This Start/Pause button is used to start

the wash cycle or pause the wash cycle.

• If a temporary stop of the wash cycle is

needed, press the Start/Pause button.

Display

• The display shows the settings, estimated time remaining, options, and status messages. When the product is turned on, the default settings in the display will illuminate.

• The display shows estimate time remaining. While the size of the load is being calculated automatically, blinking

or ‘Detecting’ appears.

Programme Knob

• Programmes are available according to laundry type.

• Lamp will light up to indicate the selected programme.

Options

• This allows you to select an additional programme and will light when selected.

• Use these buttons to select the desired programme options for the selected cycle.

Programme Table

Washing Programme

Programme Description Fabric Type Proper Temp.

Cotton

(Koch-/ Buntwäsche)

Cotton+

(Baumwolle+)

Easy Care Suitable for casual

(Pflegeleicht)

Mix

(Mix)

Baby Steam Care

(Babybekleidung)

Allergy Care

(Allergy Care)

Duvet

(Bettdecken)

Sports Wear

(Sportswear)

Silent Wash

(Nachtprogramm)

Provides better performance by combining various drum motions.

Provides optimised washing performance for large amount of laundry with less energy consumption.

shirts that do not need ironing after washing.

Enables various fabrics to be washed simultaneously.

Provides clothes care with gentle motion and better performance by steam.

For large items such as bed cover, pillows, sofa covers, etc.

Suitable for sports wear such as jogging clothes and running wear.

Provides less noise and vibration and saves money by using overnight electricity.

Coloured fast garments (shirts, nightdresses, pajamas, etc) and normally soiled cotton load (underwear).

Polyamide, acrylic, polyester

Various kind of fabrics except special garments (silk/delicate, sports wear, dark clothes, wool, duvet/ curtains).

Loundry for babies and infants

Cotton, underwear, sheets and baby clothes.

Cotton bedding except special garments (delicates, wool, silk,

pillows, blankets, sofa

Coolmax, Gore-tex,

Color fast garments (shirts, nightdresses, pajamas, etc) and lightly soiled white cotton

(underwear).

40 °C

(Cold to 95 °C)

60 °C

(Cold to 60 °C)

40 °C

(Cold to 60 °C)

40 °C

(Cold to 40 °C)

60 °C

40 °C

(Cold to 40 °C)

40 °C

(Cold to 60 °C)

Maximum

Load

Rating

3.0 kg

4,5 kg

3,0 kg

1 single size

2.0 kg

4,5 kg

60°C

40°C

Programme Description Fabric Type Proper Temp.

Maximum

Load

If it's possible for clothes to

Dark Wash

(Dunkle Wäsche)

Quick 30 (Kurz 30)

decolourate, please use this cycle.

The cycle prevent decolorization. (Please use detergent for colored fabrics.)

Provides fast washing time for small loads and lightly soiled clothes.

Dark garments made from

cotton or mixed fabrics.

Colored laundry which is lightly soiled fast.

20 °C

(Cold to 40 °C)

2.0 kg

20 °C

(Cold to 40 °C)

This cycle is for hand and

Gentle Care

(Schonend/Wolle)

clothes such as washable wool, lingerie, dresses etc. (Use detergent for machine

washable

Stain Care

(Flecken)

W stain such as wine, juice, dirt, etc. (Water temperature

is increased step by step

machine washable delicate

woolens).

ash off several kinds of

wool, hand washable clothes, delicate, easily damaged laundry

(Cold to 30 °C)

cotton blended fabrics, NO delicate clothes

(30 °C to 60 °C)

20 °C

40 °C

1.5 kg

3.0 kg

for washing various stains.)

Download Cycle

(Download/Neu)

• Water Temperature: Select the appropriate water temperature for chosen wash programme. Always follow garment manufacturer’s care label or instructions when washing.

• Set program at "Cotton+ 40 °C (Half Load)", "Cotton+ 60 °C (Half Load)", "Cotton+ 60 °C (Full Load)" option for test in conformity with EN60456 and

Regulation 1015/2010.

− Standard 60 °C cotton program : Cotton+

− Standard 40 °C cotton program : Cotton+

− (They are suitable to clean normally soiled cotton laundry.)

− washing that type of cotton laundry.)

• Actual water temperature may differ from the declared cycle temperature.

• The test results depend on water pressure, water hardness, water inlet temperature, room

For downloadable cycles. If you did not download any cycles, the default is Rinse+Spin.

(Full Load)

(Half Load)

electricity supply and chosen additional options.

NOTE

• Neutral detergent is recommended.

Extra Options

Programme

Delay End

Rinse+

Pre Wash Intensive Crease Care

Time Save

Cotton ● ● ● ● ●

Cotton+

Easy Care

Mix ● ● ● ● ●

Baby Steam Care

Allergy Care

Duvet ● ● ●

Sports Wear

Silent Wash

Dark Wash

Quick 30 ● ● ●

Gentle Care

Stain Care

: This option is automatically included in the cycle and can not be deleted.

● ● ● ●

● ● ● ● ●

● ●

● ● ● ●

●

● ● ●

● ●

●

● ●

●

●*

●

● ●

●

Operating Data

Programme

Cotton

Cotton+

Easy Care

Mix

Baby Steam Care

Allergy Care

Duvet Sports Wear Silent Wash

Dark Wash

Quick 30

Gentle Care

Stain Care

242

Max RPM

1400

1400 1400 1000 1400 1000 1400 1000

800 1000 1400

1400

800 1400

1400rpm 1200rpm

44 %

1200

1200 1200 1000 1200 1000 1200 1000

800 1000 1200 1200

800 1200

9 kg 9 kg9 kg

0,40

0,65

Option Programme

Delay End

You can set a time delay so that the washing

Press the Power button.

Select a washing programme.

Press the Delay End button to set time

required.

Press the Start/Pause button.

NOTE

• The delay time is the time to the end of the programme, not the start. The actual running time may vary due to water temperature, wash load and other factors.

• To cancel the Time Delay function, the power button should be pressed.

• Avoid using liquid detergent for this option.

Pre Wash

If the laundry is heavily soiled, the Pre Wash programme is recommended.

Press the Power button.

Intensive

If the laundry is normal and heavily soiled, Intensive option is effective.

Press the Power button.

Select a cycle.

Press the Intensive button.

Press the Start/Pause button.

Crease Care

If you want to prevent creasing, the Crease Care programme is recommended.

Press the Power button.

Select a washing programme.

Press the Crease Care button.

Press the Start/Pause button.

Select a washing programme.

Press the Pre Wash button.

Press the Start/Pause button.

Temp.

The Temp. button selects the wash and rinse temperature combination for the selected programme. Press this button until the desired setting is lit. All rinses use cold tap water.

• Select the water temperature suitable for the type of load you are washing. Follow the garment fabric care labels for best results.

Rinse

Spin

• Spin speed level can be selected by pressing the Spin button repeatedly.

• Spin Only

Press the Power button.

Press the Spin button to select RPM.

Press the Start/Pause button.

NOTE

• When you select No Spin, it will still rotate for a short time to drain quickly.

Time Save

This option can be used to reduce the time of a wash programme. It is best used on lightly s oiled loads.

Press the Power button.

Select a washing programme.

Press the Time Save button.

Press the Start/Pause button.

Rinse+

Add rinse once.

Add Item

Laundry can be added or removed after the washing programme is started.

Press the Add Item button when the LED is turned on.

Add or remove laundry.

Close the door and Press the Start/Pause button.

NOTE

• For safety reasons, the door remains locked when the water level or temperature is high. It is not possible to add laundry during this time.

• If the water temperature in the drum is high, wait until it cools down.

CAUTION

• When adding laundry, make sure to completely push it into the drum. If laundry gets stuck in the door latch hole, the rubber packing may be damaged, causing water leakage and malfunction.

• Forcing the door open may cause part damage, destruction, or safety problems.

• If you open the door while there are a lot of suds and water in the drum, the suds or water

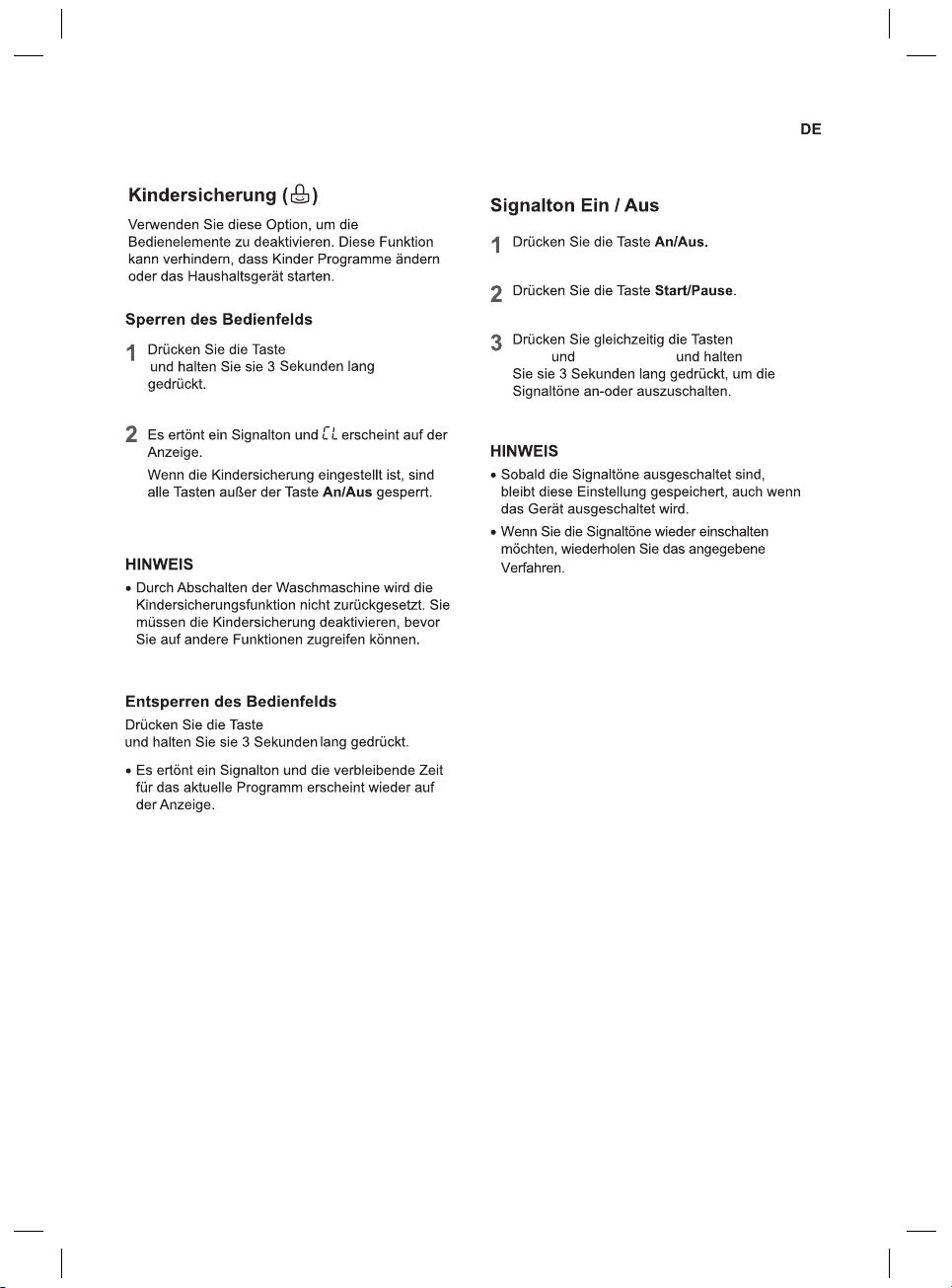

Child Lock ( )

Use this option to disable the controls. This feature can prevent children from changing cycles or operating the appliance

Locking the Control Panel

Press and hold the Child Lock

button for three seconds.

A beeper will sound, and will appear on

the display. When the Child Lock is set, all buttons are

locked except the Power button.

NOTE

• Turning off the power will not reset the child lock function. You must deactivate child lock before you can access any other functions.

Unlocking the Control Panel

Press and hold the Child Lock button for three seconds.

• A beeper will sound and the remaining time for the current programme will reappear on the display.

Beep On / Off

Press the Power button.

Press the Start/Pause button.

Press and hold the Temp and Delay End

button simultaneously for 3 seconds to

set the Beep on/off function.

NOTE

• Once the Beep on/off function is set, the setting is memorized even after the power is turned off.

• If you want to turn the Beeper off, simply repeat this process.

+ 159 hidden pages
