OWNER’S MANUAL

WASHING MACHINE

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

F1450HT1L

MFL69042585

www.lg.com

TABLE OF CONTENTS

SAFETY INSTRUCTIONS ......................................03

Important Safety Instructions ............................................................... 05

INSTALLATION .......................................................08

Specifications ......................................................................................08

Accessories .........................................................................................08

Installation Place Requirements .......................................................... 09

Unpacking and Removing Shipping Bolts ...........................................10

Using Non-Skid Pads (Optional).......................................................... 11

Wooden Floors (Suspended Floors) .................................................... 11

Leveling the Washing Machine ............................................................12

Connecting Inlet Hose .........................................................................12

Installation of Drain Hose ....................................................................15

This manual is produced for a group of products and may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

OPERATION ...........................................................16

Using the Washing Machine ................................................................16

Sorting Iaundry ....................................................................................17

Adding Cleaning Products ................................................................... 18

Control Panel ....................................................................................... 20

Programme Table ................................................................................21

Option Cycle ........................................................................................ 26

Dry (Optional) ......................................................................................28

Using Smart Function (Optional) ......................................................... 30

MAINTENANCE ......................................................31

Cleaning your Washing Machine .........................................................31

Cleaning the Water Inlet Filter .............................................................31

Cleaning the Drain Pump Filter ...........................................................32

Cleaning the Dispenser Drawer...........................................................33

Tub Clean (Optional) ...........................................................................33

Caution on Freezing During Winter ..................................................... 34

Using the Smart Diagnosis™ Function ...............................................36

TROUBLESHOOTING ............................................37

Diagnosing Problems ..........................................................................37

Error Messages ...................................................................................39

WARRANTY ............................................................41

SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the product.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

This symbol is displayed to the indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

ENGLISH

WARNING

can cause serious injury or death.

CAUTION

can cause the minor injury or damage the product.

- This indicates that the failure to follow the instructions

WARNING

To reduce the risk of re, electric shock, or injury to persons when using

your product, basic safety precautions should be followed, including the following.

CHILDREN IN THE HOUSEHOLD

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

GROUNDING REQUIREMENTS

WARNING

For your safety, the information in this manual must be followed to

minimize the risk of re, explosion, or electric shock, or to prevent

property damage, injury to persons, or death.

•This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

•This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

•Improper connection of the equipment-grounding conductor can result in risk of electric

shock. Check with a qualied electrician or service person if you are in doubt as to

whether the appliance is properly grounded.

•Do not modify the plug provided with the appliance. If it does not t the outlet, have a

proper outlet installed by a qualied electrician.

Important Safety Instructions

WARNING

To reduce the risk of re, electric shock, or injury to persons when using

your product, basic safety precautions should be followed, including the following.

ENGLISH

Installation

•Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug. It can cause electric shock or injury.

•This appliance is heavy. Two or more people may be needed to install and move the appliance. Failure to do so can result in injury.

•Store and install this appliance where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to do so can result in leakage.

•Tighten the drain hose to avoid separation. Splashing of water may cause electric shock.

Operation

•Do not use a sharp object like drill or pin to press or separate an operation unit. It can cause the electric shock or injury.

•Only an authorized repair person from LG Electronics service centre should disassemble, repair, or modify the product. Improper service may cause

injury, electric shock or re.

•Do not spray the water inside or outside the product to clean it. Water can damage the insulation, causing electric

shock or re.

•Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc. Improper use can cause

re or explosion.

•If the supply cord is damaged, it must be replaced by the manufacturer or

its service agents or similarly qualied

person in order to avoid a hazard.

•The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

•Do not put living animals, such as pets into the product. It may cause injury.

•Do not leave this appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.

•Never reach into this appliance while it is operating. Wait until the drum has completely stopped. Failure to do so may result in injury.

•Do not put in, wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.). Improper

use can cause re or explosion.

•In case of ood, stop using the product and contact the LG Electronics service centre. Contact with water can cause electric shock.

•If the drain hose or inlet hose is frozen during winter, use it only after thawing.

Freezing may cause re or electric

shock, and frozen parts may cause product malfunction or reduction in product life span.

•Keep all washing detergents, softener and bleach away from children. These products contain poisonous materials.

•Do not plug multiple products into multiple socket-outlets or extension

cords. This can cause re.

•Remove the power plug when you clean the product. Not removing the plug may result in electric shock or injury.

•Do not push down the door excessively, when the appliance door is open. Doing so may topple over the appliance and it can cause the injury.

•Use new hose-sets supplied with the appliance. Old hose-sets should not be reused. Water leakage may cause property damage.

•Do not touch the door during steam cycles, drying or high-temperature washing. The door surface can become very hot. Allow the door lock to release before opening the door. Failure to do so may result in injury.

•Do not use inammable gas and combustible substances (benzene, gasoline, thinner, petroleum, alcohol, etc.) around the product. It may cause

explosion or re.

•Do not touch the power plug with wet hands. It can cause the electric shock or injury.

•When pulling out the power plug from an outlet, hold the power plug, not the cable. Damage of the cable can cause the electric shock or injury.

•Do not bend the power cable excessively or place a heavy object on top of it. Damage of the power cable

can cause electric shock or re.

ENGLISH

Technical Safety for Using the Tumble Dryer

•Do not dry unwashed items in the appliance.

•Items that have been soiled with substances such as cooking oil, vegetable oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the appliance.

•Fabric softeners or other similar products should be used according to the fabric softener instructions.

•Remove all objects from pockets such as lighters and matches.

Disposal

•Before discarding an old appliance, unplug it. Render the plug useless. Cut off the cable directly behind the appliance to prevent misuse.

•Dispose of the packaging material (such as vinyl and styrofoam) away from children. The packaging material can suffocate a child.

•Remove the door to the washing compartment before this appliance is removed from service or discarded to avoid the danger of children or small animals getting trapped inside. Failure to do so can result in serious injury to persons or death.

•Never stop this appliance before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

•This appliance is not to be used if industrial chemicals have been used for cleaning.

•Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows

tted with foam rubber pads should not

be dried in this appliance.

INSTALLATION

Specications

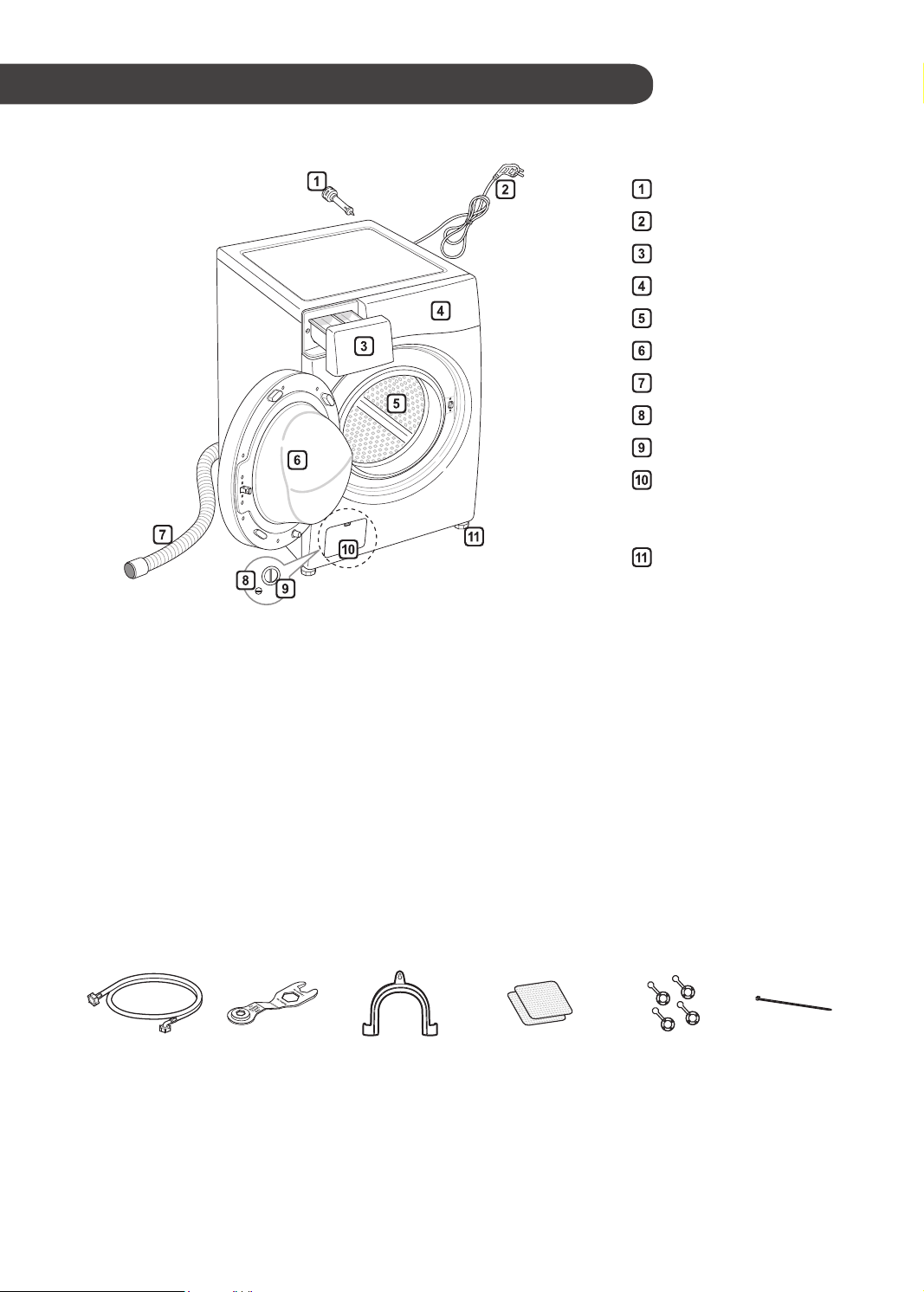

Transit bolts

Power plug

Drawer

Control panel

Drum

Door

Drain hose

Drain plug

Drain pump lter

Cover cap

(Location may vary depending on products)

Adjustable feet

•Power supply : 220 ‒ 240 V~, 50 Hz

•Size : 600 mm (W) x 610 mm (D) x 850 mm (H)

•Product weight : 71 kg

•Wash Capacity : 10,5 kg (Wash) / 7 kg (Dry)

•Permissible water pressure : 0,1 ‒ 1,0 MPa (1,0‒10,0 kgf / cm2)

•Appearance and specications may vary without notice to improve the quality of the product.

Accessories

Inlet hose (1EA)

(Option : Hot / Cold

(2EA))

Spanner Elbow Bracket (for

securing drain hose)

Anti–slip sheets

(2EA)

(Optional)

Caps for covering

shipping bolt holes

Tie strap

(Optional)

ENGLISH

Installation Place Requirements

Location

10 cm 2 cm 2 cm

Level oor :

machine is 1°.

Power outlet :

of the location of the washing machine.

•Do not overload the outlet with more than one appliance.

Additional Clearance :

/2 cm: right & left side

•Do not place or store laundry products on top of the washing machine at any time.

•These products may damage the nish or controls.

Positioning

•Install the washing machine on a at hard oor.

•Make sure that air circulation around the washing machine is not impeded by carpets, rugs, etc.

•Never try to correct any unevenness in the oor with pieces of wood, cardboard or similar materials under the washing machine.

•If it is impossible to avoid positioning the washing machine next to a gas cooker or coal burning insulation (85x60 cm) covered with aluminum foil on the side facing the cooker or stove must be inserted between the two appliances.

Allowable slope under the entire washing

Must be within 1,5 meters of either side

For the wall, 10 cm: rear

•Do not install your washing machine in rooms where freezing temperatures may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

•Please ensure that when the washing machine is installed, it is easily accessible for an engineer in the event of a breakdown.

•With the washing machine installed, adjust all four feet using the transit bolt spanner provided to ensure the appliance is stable, and a clearance of approximately 20 mm is left between the top of the washing machine and the underside of any work-top.

•This equipment is not designed for maritime use or for use in mobile installations such as caravans, aircraft etc.

Electrical Connection

•Do not use an extension cord or double adapter.

•Always unplug the washing machine and turn off the water supply after use.

•Connect the washing machine to an earthed socket in accordance with current wiring regulations.

•The washing machine must be positioned so that the plug is easily accessible.

•Repairs to the washing machine must only be carried

out by qualied personnel. Repairs carried out by

inexperienced persons may cause injury or serious malfunctioning. Contact your local service centre.

•If the washing machine is delivered in winter and temperatures are below freezing, place the washing machine at room temperature for a few hours before putting it into operation.

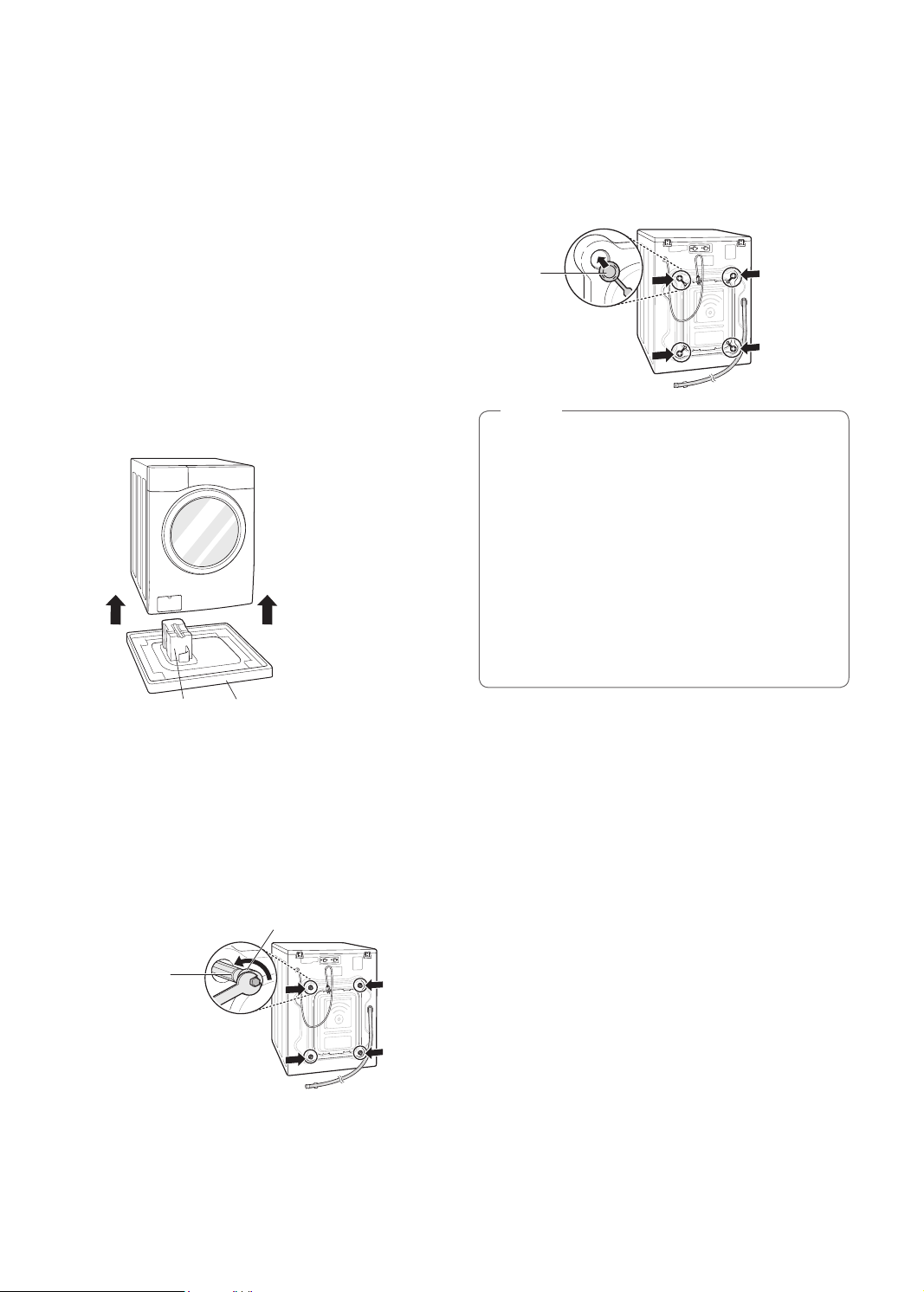

Unpacking and Removing Shipping Bolts

Lift the washing machine off the foam base.

•After removing the carton and shipping material, lift the washing machine off the foam base. Make sure the tub support comes off with the base and is not stuck to the bottom of the washing machine.

•If you must lay the washing machine down to remove the carton base, always protect the side of the washing machine and lay it carefully on its side. DO NOT lay the washing machine on its front or back.

Install the hole caps.

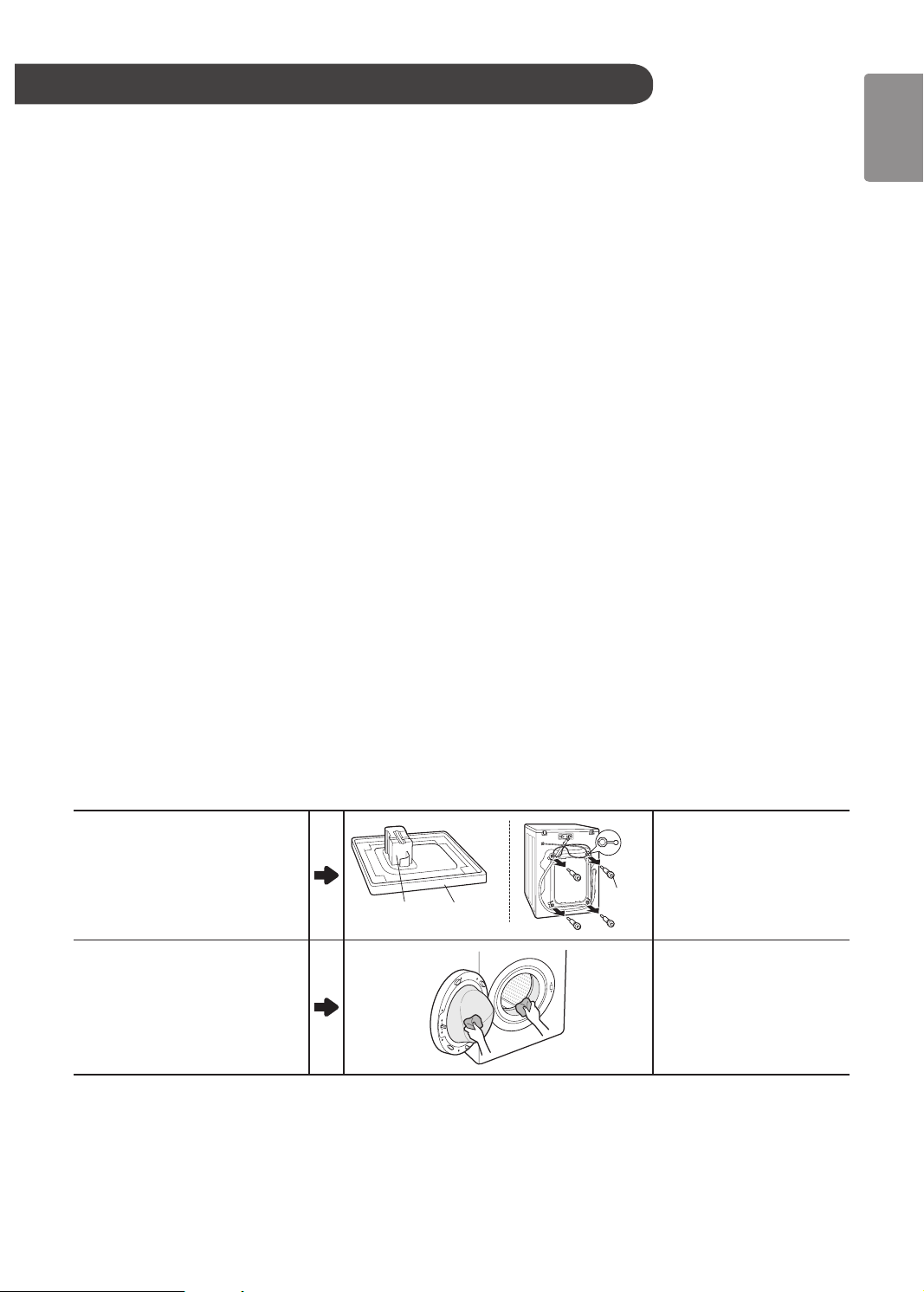

•Locate the hole caps included in the accessory pack and install them in the shipping bolt holes.

Cap

NOTE

•Save the bolt assemblies for future use. To prevent damage to internal components, DO NOT transport the washing machine without reinstalling the shipping bolts.

•Failure to remove shipping bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washing machine. The cord is secured to the back of the washing machine with a shipping bolt to help prevent operation with shipping bolts in place.

Tub Support

(Optional)

Remove the bolt assemblies.

•Starting with the bottom two shipping bolts, use the spanner (included) to fully loosen all shipping bolts by turning them counterclockwise. Remove the bolt assemblies by wiggling them slightly while pulling them out.

Shipping

bolt

Carton base

Retainer

ENGLISH

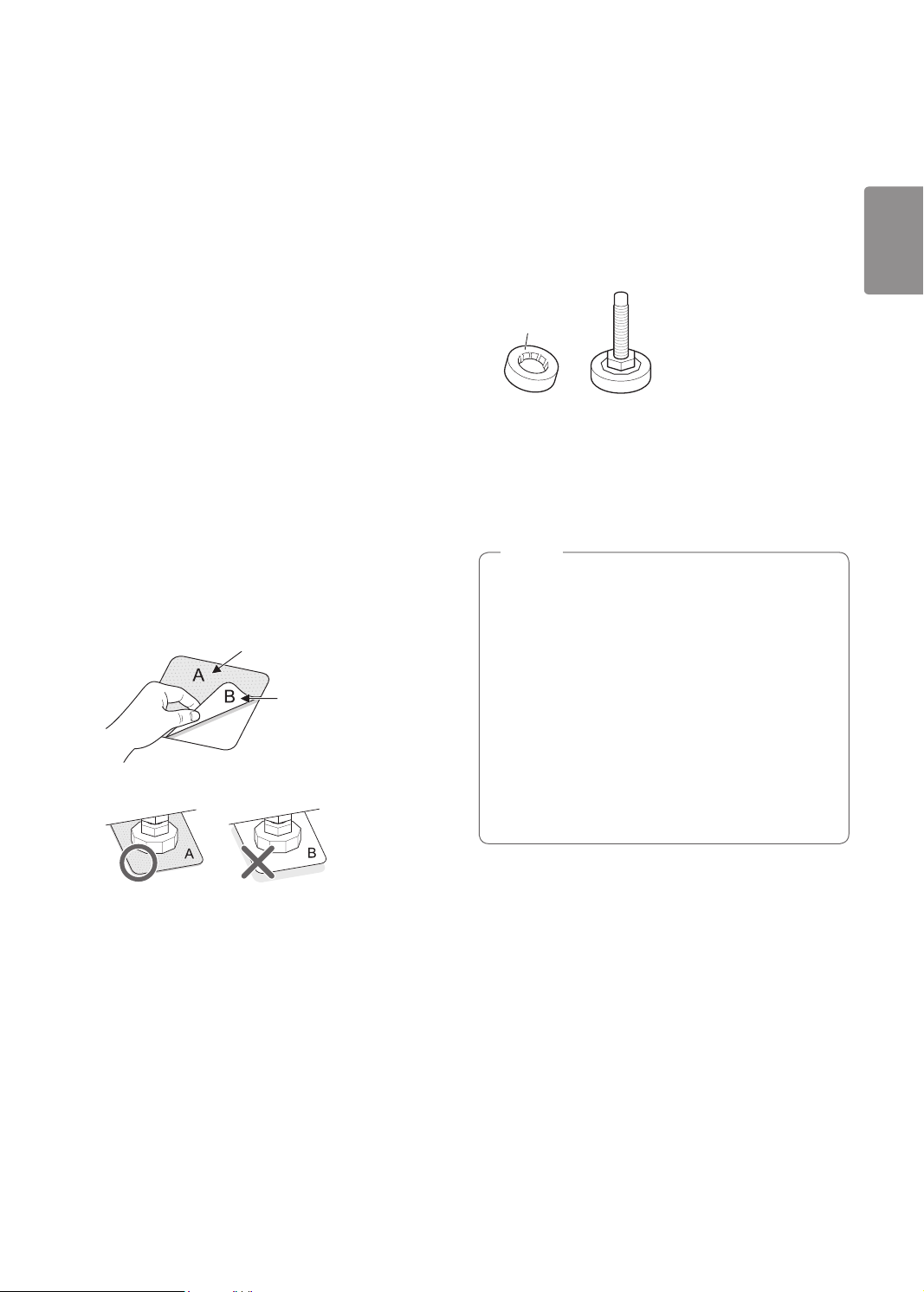

Using Non-Skid Pads (Optional)

If you install the washing machine on a slippery surface, it may move because of excessive vibration. Incorrect leveling may cause malfunction through noise and vibration. If this occurs, install the non-skid pads under the leveling feet and adjust the level.

Clean the oor to attach the non-skid pads.

•Use a dry rag to remove and clean foreign objects and moisture. If moisture remains, the non-skid pads may slip.

Adjust the level after placing the washing machine

in the installation area.

Place the adhesive side of the non-skid pad on the

oor.

•It is most effective to install the non-skid pads

under the front legs. If it is difcult to place the

pads under the front legs, place them under the back legs.

This side up

Adhesive side

Wooden Floors (Suspended Floors)

•Wooden oors are particularly susceptible to vibration.

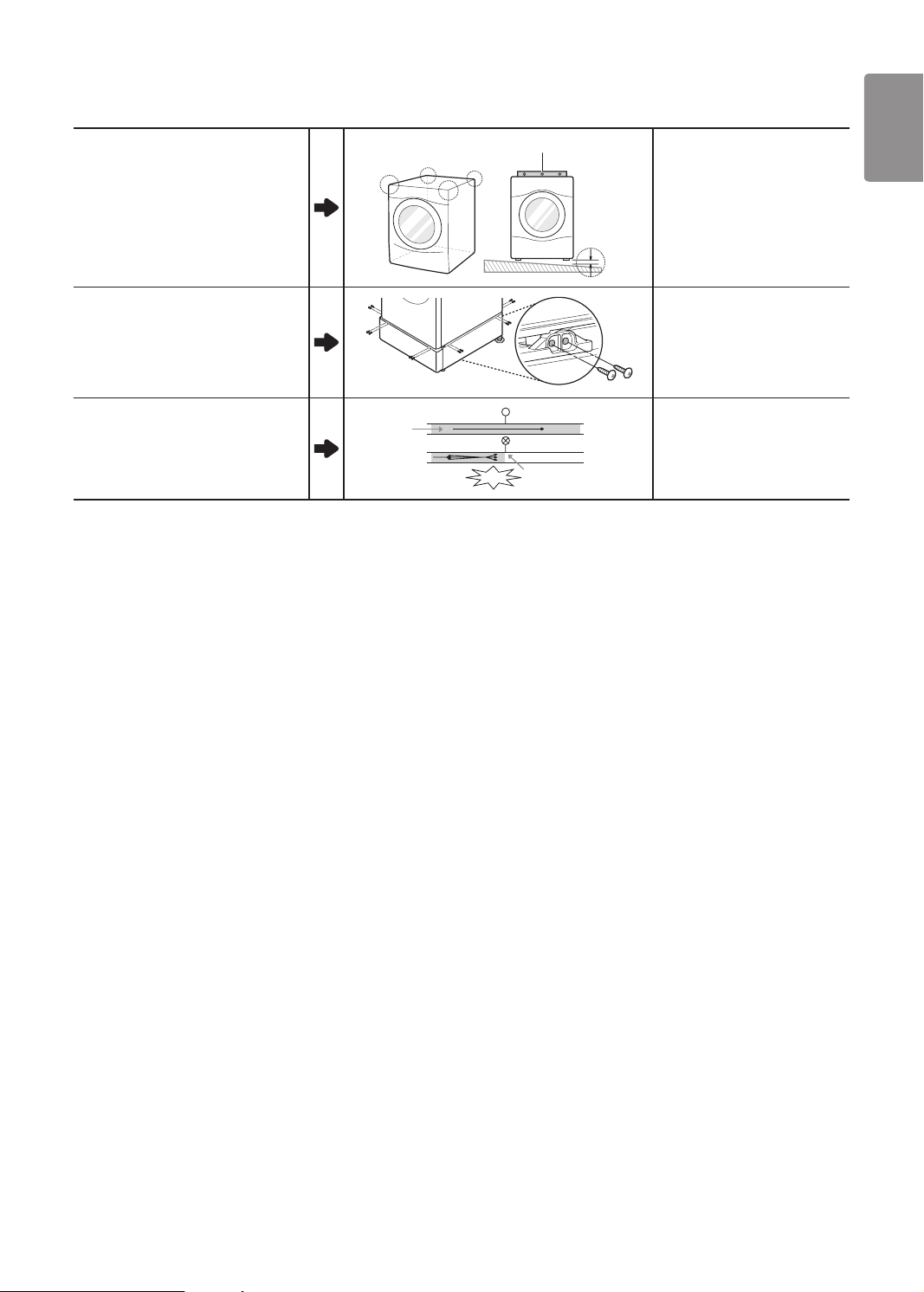

•To prevent vibration we recommend you place rubber cups at least 15 mm thick of the each foot of the

washing machine, secured to at least two oor beams

with screws.

Rubber Cup

•If possible install the washing machine in one of the

corners of the room, where the oor is more stable.

•Fit the rubber cups to reduce vibration.

•You can obtain rubber cups (p/no.4620ER4002B) from the LG Service Centre.

NOTE

•Proper placement and leveling of the washing machine will ensure long, regular, and reliable operation.

•The washing machine must be 100% horizontal

and stand rmly in position.

•It must not ‘Seesaw’ across corners under the load.

•The installation surface must be clean, free from

oor wax and other lubricant coatings.

•Do not let the feet of the washing machine get wet. Failure to do so may cause vibration or noise.

Ensure the washing machine is level.

•Push or rock the top edges of the washing machine gently to make sure that the washing machine does not rock. If the washing machine rocks, level the washing machine again.

Leveling the Washing Machine

Connecting Inlet Hose

If the oor is uneven, turn the adjustable feet as required

(Do not insert pieces of wood etc. under the feet). Make

sure that all four feet are stable and resting on the oor

and then check that the appliance is perfectly level (Use a spirit level).

•Once the washing machine is level, tighten the lock nuts up towards the base of the washing machine. All lock nuts must be tightened.

Raise

Lock Nut

Lower

Tighten all 4

locknuts securely

•Diagonal Check When pushing down the edges of the washing machine top plate diagonally, the washing machine should not move up and down at all (Check both directions). If the washing machine rocks when pushing the machine top plate diagonally, adjust the feet again.

•Water supply pressure must be between 0,1 MPa and

1,0 MPa (1,0‒10,0 kgf/cm2).

•Do not strip or crossthread when connecting inlet hose to the valve.

•If the water supply pressure is more than 1,0 MPa, a decompression device should be installed.

•Periodically check the condition of the hose and replace the hose if necessary.

Checking Rubber Seal Inlet Hose

Two rubber seals are supplied with the water inlet hoses. They are used for preventing water leaks. Make sure the

connection to taps is sufciently tight.

Hose connector

Rubber seal

NOTE

•Timber or suspended type ooring may contribute to excessive vibration and unbalance.

•If the washing machine is installed on a raised platform, it must be securely fastened in order to eliminate the risk of falling off.

Hose connector

Rubber seal

ENGLISH

Connecting Hose to Water Tap

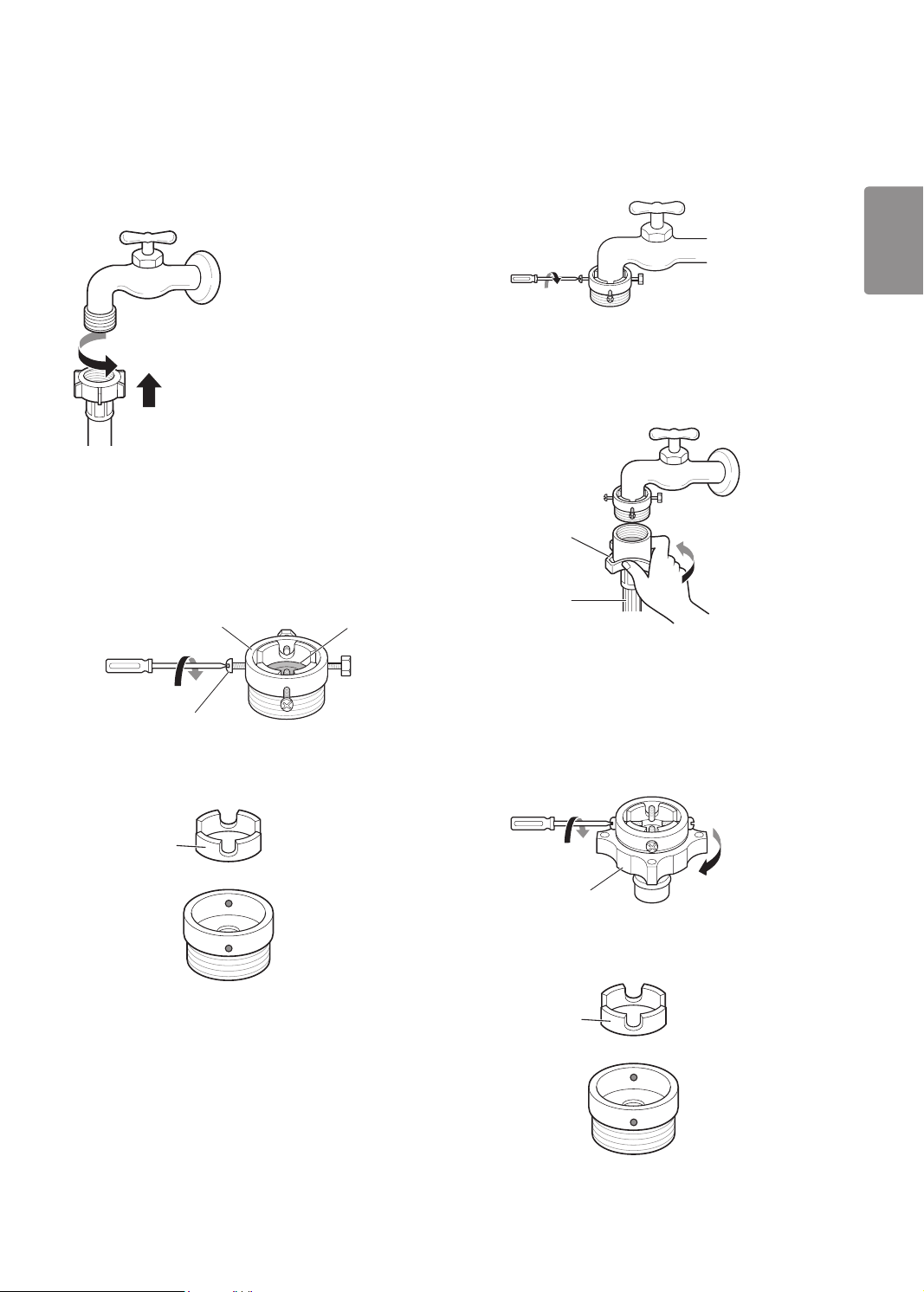

Connecting screw-type hose to tap with thread

Screw the hose connector onto the water supply tap.

Connecting screw-type hose to tap without

thread

Loose the four xing screws.

Upper

connector

Rubber seal

Push the adapter onto the end of the tap so that

the rubber seal forms a watertight connection.

Tighten the four xing screws.

Push the inlet hose vertically upwards so that the

rubber seal within the hose can adhere completely to the tap and then tighten it by screwing it to the right.

Plate

Inlet hose

Fixing screw

Remove the guide plate if the tap is too large to t

the adapter.

Guide plate

Connecting one touch type hose to tap without

thread

Unscrew the adapter ring plate and loose the four

xing screws.

Ring plate

Remove the guide plate if the tap is too large to t

the adapter.

Guide plate

Push the adapter onto the end of the tap so that

the rubber seal forms a watertight connection.

Tighten the adapter ring plate and the four xing

screws.

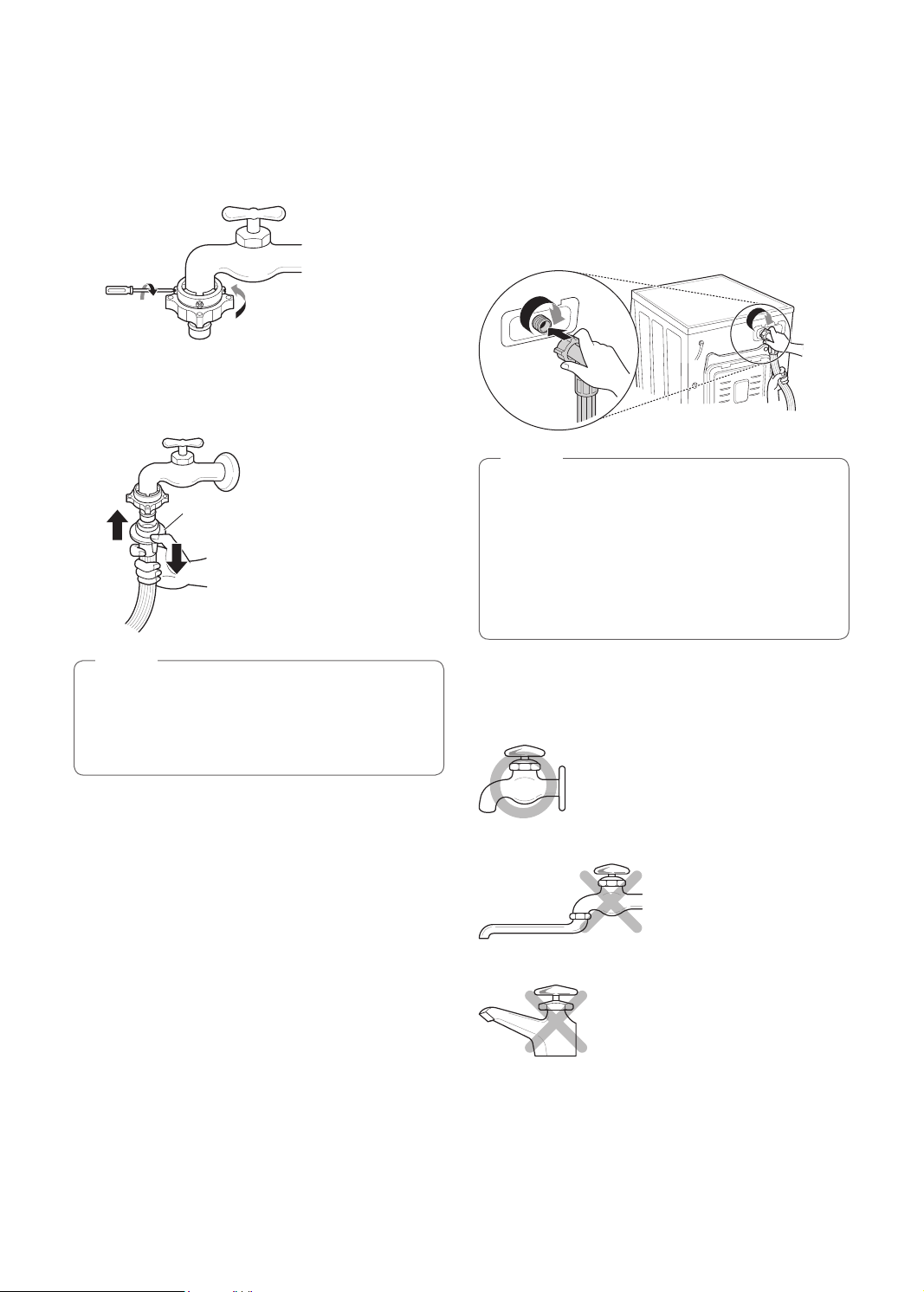

Pull the connector latch plate down, push the inlet

hose onto the adapter, and release the connector latch plate. Make sure the adapter locks into place.

Latch plate

Connecting Hose to Washing Machine

Make sure that there are no kinks in the hose and that they are not crushed.

When your washing machine has two valves.

•The Inlet hose with the red connector is for the hot water tap.

NOTE

•After completing connection, if water leaks from the hose, repeat the same steps. Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the guide plate before inserting the tap into the adaptor.

NOTE

•After connecting the inlet hose to the water

tap, turn on the water tap to ush out foreign

substances (dirt, sand, sawdust, etc.) in the water lines. Let the water drain into a bucket, and check the water temperature.

Using the horizontal tap

Horizontal tap

Extension tap

Square tap

Installation of Drain Hose

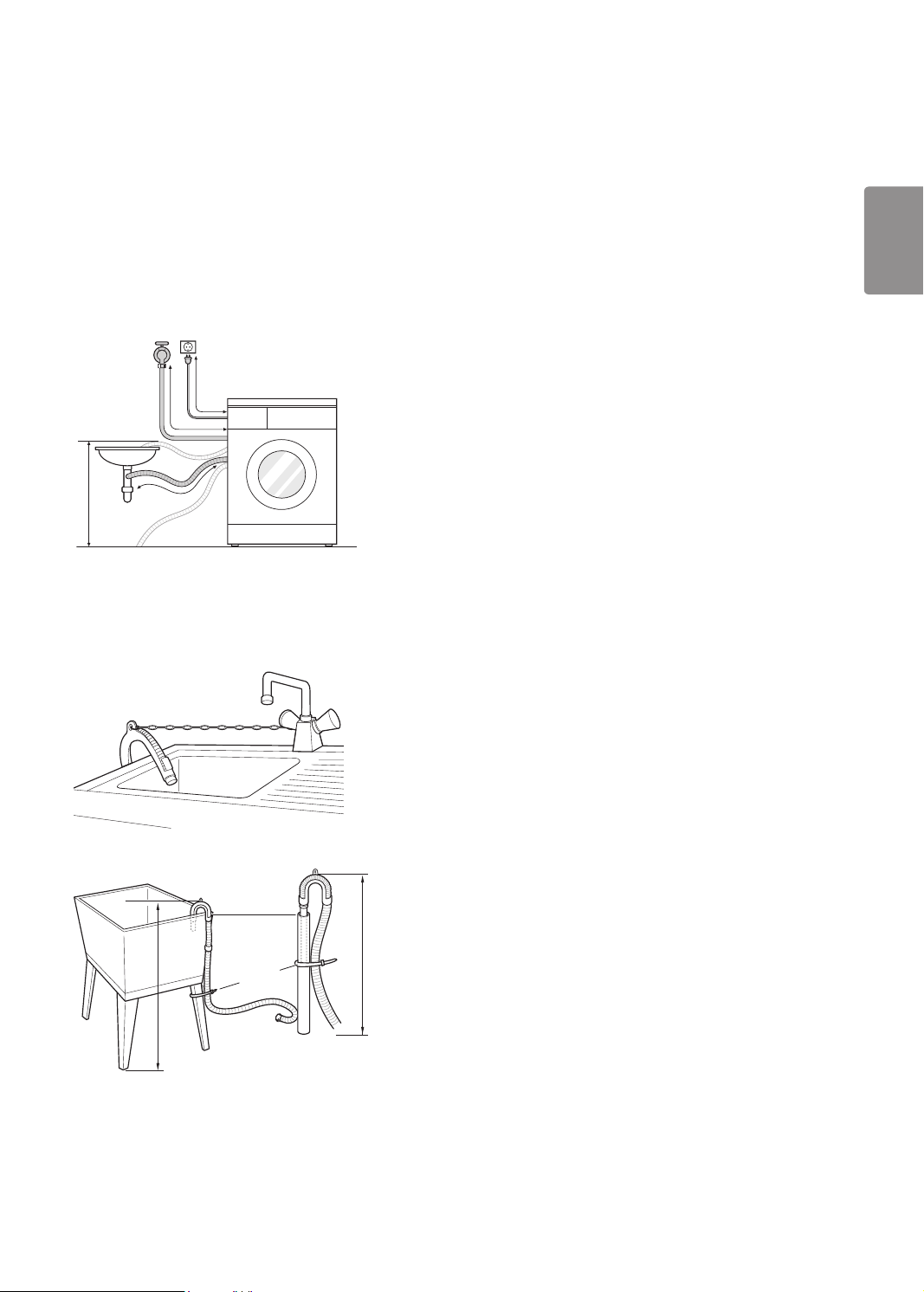

•The drain hose should not be placed higher than 100

cm above the oor. Water in the washing machine

may not drain or may drain slowly.

•Securing the drain hose correctly will protect the oor from damage due to water leakage.

•If the drain hose is too long, do not force it back into the washing machine. This will cause abnormal noise.

about 100 cm

about 145 cm

ENGLISH

max. 100 cm

about 105 cm

•When installing the drain hose to a sink, secure it tightly with string.

•Securing the drain hose correctly will protect the oor from damage due to water leakage.

Laundry tub

Hose

retainer

Tie strap

max. 100 cm

OPERATION

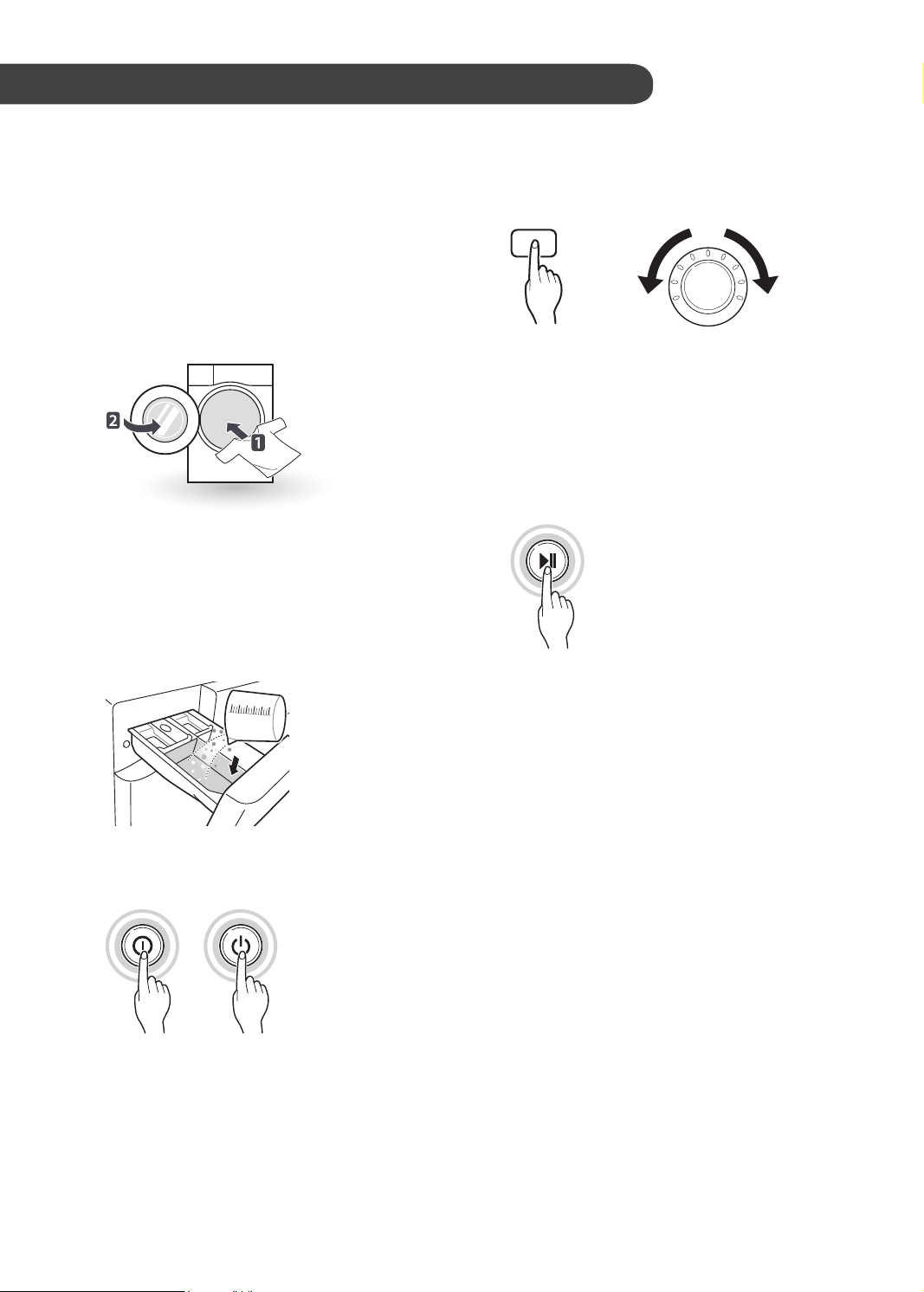

Using the Washing Machine

Before the rst wash, select a cycle (Cotton 60 °C, add

a half load of detergent), allow the washing machine to wash without clothing. This will remove residue and water from the drum that may have been left during manufacturing.

Sort laundry and load items.

•Sort laundry by fabric type, soil level, colour and load size as needed. Open the door and load items into the washing machine.

Add cleaning products and/or detergent and

softener.

•Add the proper amount of detergent to the detergent dispenser drawer. If desired, add bleach or fabric softener to the appropriate areas of the dispenser.

Choose the desired washing cycle.

•Press the Cycle button repeatedly or turn the cycle selector knob until the desired cycle is selected.

Begin cycle.

•Press the

The washing machine will agitate briey without

water to measure the weight of the load. If the

Start/Pause

minutes, the washing machine will shut off and all settings will be lost.

End of cycle.

•When the cycle is nished, a melody will sound. Immediately remove your clothing from the washing machine to reduce wrinkling. Check around the door seal when removing the load for small items that may be caught in the seal.

Start/Pause

button is not pressed within 5

button to begin the cycle.

Turn on the washing machine.

•Press the machine.

Power

button to turn ON the washing

ENGLISH

Sorting Iaundry

Look for a care label on your clothes.

•This will tell you about the fabric content of your garment and how it should be washed.

•Symbols on the care labels.

Wash temperature

Normal machine wash

Permanent press

Delicate

Hand wash

Do not wash

Sorting laundry.

•To get the best results, sort clothes into loads that can be washed with the same wash cycle.

•Different fabrics need to be washed at varying temperatures and spin speeds.

•Always sort dark colours from pale colours and whites. Wash separately as dye and lint transfer can occur causing discolouration of white and pale garments. If possible, do not wash heavily soiled items with lightly soiled ones.

– Soil (Heavy, Normal, Light)

Separate clothes according to amount of soil.

– Colour (White, Lights, Darks)

Separate white fabrics from coloured fabrics.

– Lint (Lint producers, Collectors)

Wash lint producers and lint collectors separately.

Caring before loading.

•Combine large and small items in a load. Load

large items rst.

•Large items should not be more than half the total wash load. Do not wash single items. This may cause an unbalanced load. Add one or two similar items.

•Check all pockets to make sure that they are empty. Items such as nails, hair clips, matches, pens, coins and keys can damage both your washing machine and your clothes.

•Close zippers, hooks and strings to make sure that these items don’t snag on other clothes.

•Pre-treat dirt and stains by brushing a small amount of detergent dissolved water onto stains to help lift dirt.

•Check the folds of the exible gasket (gray) and remove any small articles.

•Check inside the drum and remove any items from a previous wash.

•Remove any clothing or items from the exible gasket to prevent clothing and gasket damage.

Adding Cleaning Products

Detergent Dosage

•Detergent should be used according to the instruction of the detergent manufacturer and selected according to type, colour, soiling of the fabric and washing temperature.

•If too much detergent is used, too many suds can occur and this will result in poor washing results or cause heavy load to the motor.

•If you wish to use liquid detergent follow the guidelines provided by the detergent manufacturer.

•You can pour liquid detergent directly into the main detergent drawer if you are starting the cycle immediately.

•Do not use liquid detergent if you are using Time delay, or if you have selected Pre Wash, as the liquid may harden.

•If too many suds occur, reduce the detergent amount.

•Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. For best results, avoid oversudsing.

•Refer to the label of the clothes, before chooseing the detergent and water temperature:

•When using the washing machine, use designated detergent for each type of clothing only:

– General powdered detergents for all types of fabric

– Powdered detergents for delicate fabric

– Liquid detergents for all types of fabric or

designated detergents only for wool

•For better washing performance and whitening, use detergent with the general powdered bleach.

•Detergent is ushed from the dispenser at the beginning of the cycle.

NOTE

•Do not let the detergent harden. Doing so may lead to blockages, poor rinse performance or odour.

•Full load : According to manufacturer’s recommendation.

•Part load : 3/4 of the normal amount

•Minimum load : 1/2 of full load

Adding Detergent and Fabric Softener

Adding detergent

•Main wash only →

•Pre wash+Main wash →

NOTE

•Too much detergent, bleach or softener may

cause an overow.

•Be sure to use the appropriate amount of detergent.

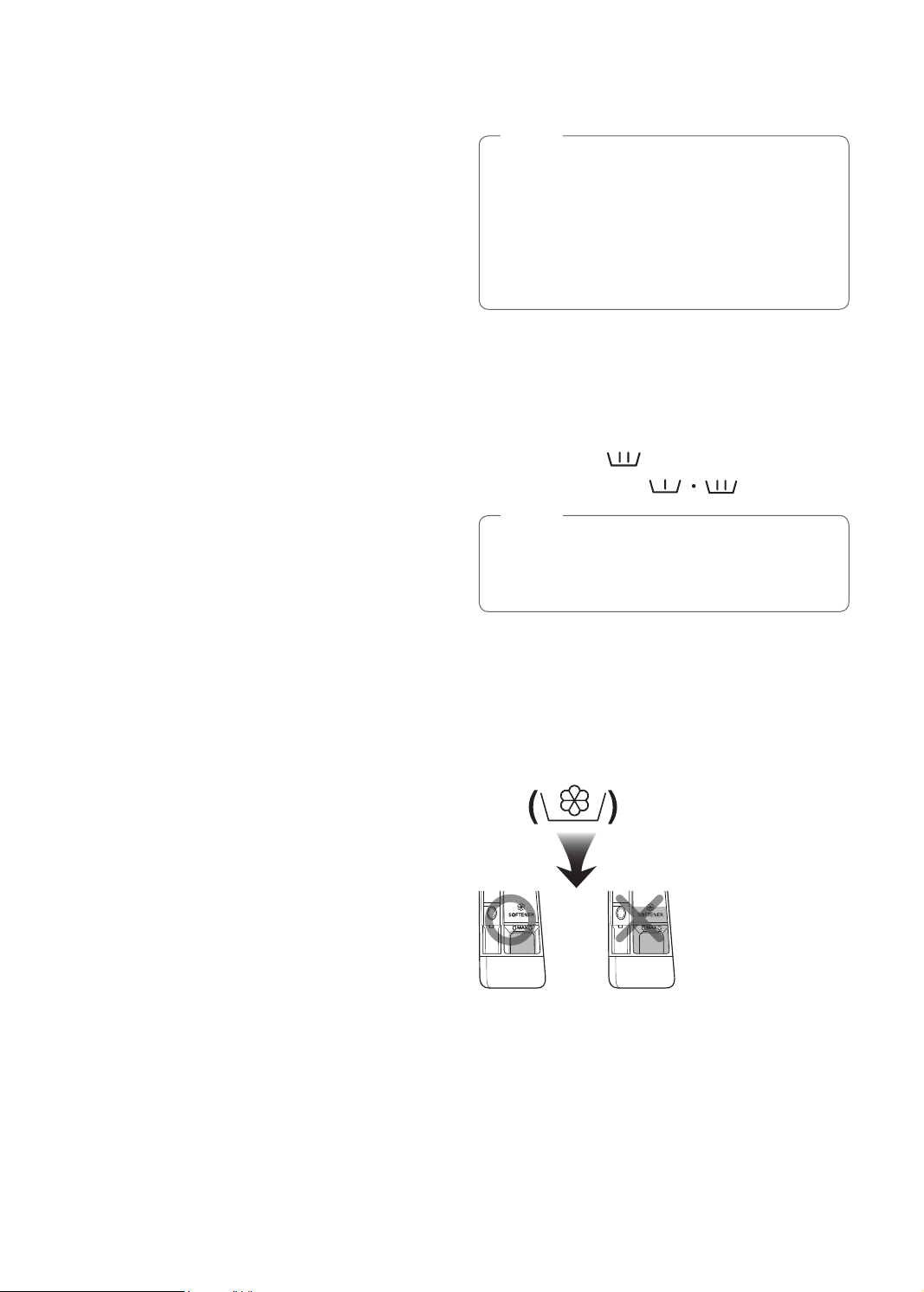

Adding fabric softener

•Do not exceed the maximum ll line. Overlling can cause early dispensing of the fabric softener, which may stain clothes. Close the dispenser drawer slowly.

ENGLISH

•Do not leave the fabric softener in the detergent drawer for more than 2 days (Fabric softener may harden).

•Softener will automatically be added during the last rinse cycle.

•Do not open the drawer when water is being supplied.

•Solvents (benzene, etc) should not be used.

NOTE

•Do not pour fabric softener directly on the clothes.

Adding water softener

•A water softener, such as Anti-limescale (e.g. Calgon) can be used to cut down on the use of detergent in extremely hard water areas. Dispense according to

the amount specied on the packaging. First add

detergent and then the water softener.

•Use the quantity of detergent required for soft water.

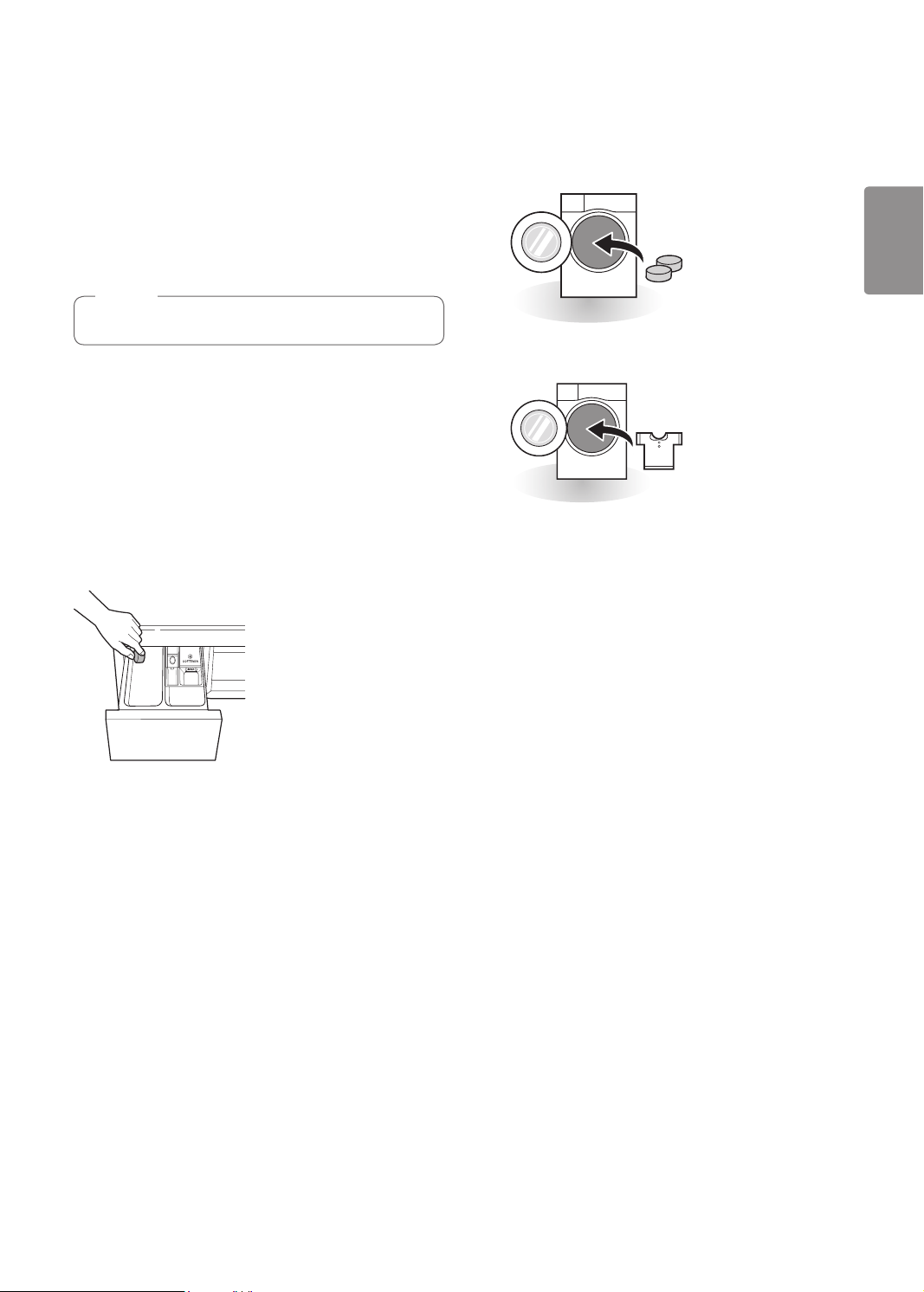

Using tablet

Open the door and put tablets into the drum.

Load the laundry into the drum and close the door.

Control Panel

Power button

•Press the machine on.

•Press and hold the

to turn the washing machine off.

Start/Pause button

•This wash cycle or pause the wash cycle.

•If a temporary stop of the wash cycle is needed, press the

Display

•The display shows the settings, estimated time remaining, options, and status messages. When the product is turned on, the default settings in the display will illuminate.

• : The display shows estimate time remaining. While the size of the load is being calculated automatically, blinking or ‘Detecting’ appears.

• : The water temperature is displayed when pressing the

• : The spin speed level is displayed when pressing the

Power

Start/Pause

Temp.

Schleudern

button to turn the washing

Power

button for 1 second

button is used to start the

button.

Programme Button

•Programmes are available according to laundry type.

•Lamp will light up to indicate the selected programme.

Options

•This allows you to select an additional cycle and will light when selected.

•Use these buttons to select the desired cycle options for the selected cycle.

Programme Table

Washing Programme

ENGLISH

Programme Description Fabric Type

Cotton

(Vải bông)

Cotton Large

(Giặt tiết kiệm)

Easy Care

(Giặt nhẹ)

Mix

(Đồ hỗn hợp)

Allergy Care

(Giặt ngừa dị

ứng)

Direct Wear

(Sấy nhanh)

Steam Refresh

(Làm mới bằng

Hơi nước)

Provides better performance by combining various drum motions.

Provides optimised washing performance for large amount of laundry with less energy consumption.

This cycle is suitable for casual shirts that do not need ironing after washing.

Enables various fabrics to be washed simultaneously.

Helps to remove allergens such as house mites, pollen, and cat fur.

This cycle provides washing to drying within 80mins at once for light

soiled 1‒3 shirts.

Helps to remove wrinkles within 20mins with steam. (Clothes may be wet. You can put them on after hang

out to dry for 10‒30min).

Coloured fast garments (shirts, nightdresses, pajamas, etc) and normally soiled cotton load (underwear)

Polyamide, acrylic, polyester

Various kind of fabrics except

special garments (silk/delicate, sports wear, dark clothes, wool, duvet/curtains)

Cotton, underwear, pillow covers, bed sheets, baby wear

Cotton mixed, polyester mixed dress shirts, blouses

Proper

Temp.

40 °C

(Cold to

95 °C)

60 °C

(Cold to

60 °C)

40 °C

(Cold to

60 °C)

40°C

(Cold to

40 °C)

60 °C

20 °C

No choice

Maximum

Load

Rating

4,0 kg

3 items

Duvet

(Chăn lông vũ)

Sports Wear

(Đồ thể thao)

Quick 30

(Giặt nhanh 30

phút)

This cycle is for large items such as bed cover, pillows, sofa covers, etc.

This cycle is suitable for sports wear such as jogging clothes and running wear.

This cycle provides a fast washing time for small loads and lightly soiled clothes.

Cotton bedding except special garments (delicates, wool, silk,

etc.) with lling: duvets, pillows,

blankets, sofa covers with light

lling.

Coolmax, gore-tex, eece and

sympatex

Lightly soiled colour laundry

40°C

(Cold to

40°C)

20°C

(Cold to

40°C)

1 single

size

3,0 kg

Programme Description Fabric Type

Proper

Temp.

Maximum

Load

Wash+Dry

(Giặt+Sấy)

Gentle Care

(Giặt nhẹ

nhàng)

Stain Care

(Vết bẩn khó

giặt)

Download Cycle

(Chu trình tải

xuống)

•Water Temperature: Select the appropriate water temperature for chosen wash cycle. Always follow garment manufacturer’s care label or instructions when washing.

This cycle provides a nonstop process of washing and drying in the same cycle.

This cycle is for hand and machine

washable delicate clothes such as

washable wool, lingerie, dresses etc. (Use detergent for machine washable woolens).

Wash off several kinds of stain

such as wine, juice, dirt, etc. (Water

temperature is increased step by step for washing various stains.)

For downloadable cycles. If you did not download any cycles, the default is Rinse+Spin.

A small amount of laundry which can be dried

Wool, hand washable clothes,

delicate, easily damaged laundry

Cotton blended fabrics,

NO delicate clothes

40°C

(Cold to

95°C)

20°C

(Cold to

30°C)

40°C

(30°C to

60°C)

7,0 kg

1,5 kg

3,0 kg

NOTE

•Neutral detergent is recommended.

Drying Programme

Programme Description Fabric Type Maximum Load

ENGLISH

Eco ( )

Cupboard ( )

Normal Eco ( )

Iron ( )

Low Temp. ( )

Time 30 min. ( )

Time 60 min. ( )

Time 120 min. ( )

•Set programme at ‘Wash: Cotton Large 60 °C+1400 rpm’ to test in accordance with TCVN 8526:2013.

A special cycle to reduce water usage during the dry cycle.

For cottons. Select this cycle to reduce cycle time and energy usage during the dry cycle.

For energy dry cycle.

For easy iron, nish drying in damp

condition.

For less clothes damage, it dries in low temperature.

You can change the drying time according to the maximum load.

Cotton or linen fabrics such as cotton towels, t-shirts, and linen laundries

Cotton or linen fabrics, ready to iron at the end of cycle

Easy care textiles, synthetic fabrics

suitable for Easy Care, Mix programme washable clothes

Cotton, towel

Rating

0,5 kg

1,5 kg

3,0 kg

NOTE

•Select maximum selectable spin speed of washing programme to ensure drying results.

•Where the amount of laundry to be washed and dried in one programme does not exceed the maximum weight permitted for the drying programme, washing and drying in one continuous sequence is recommended.

Extra Options

Programme Delay

Cotton

(Vải bông)

Cotton Large

(Giặt tiết kiệm)

Easy Care

(Giặt nhẹ)

Mix

(Đồ hỗn hợp)

Allergy Care

(Giặt ngừa dị

ứng)

Direct Wear

(Sấy nhanh)

Steam Refresh

(Làm mới bằng

Hơi nước)

Steam

Wash

Steam

Softer

Favorite

Pre

Wash

Time

Save

Intensive Rinse+ Dry

● ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ● ●

● ●* ● ● ● ●

● ● ●*

●* ●

Duvet

(Chăn lông vũ)

Sports Wear

(Đồ thể thao)

Quick 30

(Giặt nhanh 30

phút)

Wash+Dry

(Giặt+Sấy)

Gentle Care

(Giặt nhẹ

nhàng)

Stain Care

(Vết bẩn khó

giặt)

* : This option is automatically included in the cycle and can not be deleted.

● ● ● ● ● ●

● ● ● ● ●

● ● ● ● ● ●

● ● ● ● ● ● ● ●*

● ● ●

● ● ●* ● ●

Operating Data

ENGLISH

Programme Max RPM

Cotton (Vải bông)

Cotton Large (Giặt tiết kiệm)

Easy Care (Giặt nhẹ)

Mix (Đồ hỗn hợp)

Allergy Care (Giặt ngừa dị ứng)

Direct Wear (Sấy nhanh)

Steam Refresh (Làm mới bằng Hơi nước)

Duvet (Chăn lông vũ)

Sports Wear (Đồ thể thao)

Quick 30 (Giặt nhanh 30 phút)

Wash+Dry (Giặt+Sấy)

Gentle Care (Giặt nhẹ nhàng)

Stain Care (Vết bẩn khó giặt)

1400

1000

1400

1000

800

1400

800

1400

Option Cycle

Steam (Optional)

Delay ( )

You can set a time delay so that the washing machine

will start automatically and nish after a specied time

interval.

Press the

Select a washing programme.

Press the

NOTE

•The delay time is the time to the end of the programme, not the start. The actual running time may vary due to water temperature, wash load and other factors.

Power

button.

Delay

button and set time required.

Start/Pause

button.

Steam Wash features enhanced washing performance with low energy consumption. Steam Softener sprays steam after a spinning cycle to reduce creases and

make the laundry uffy.

Press the

For Steam Wash option, select steam cycles. For

Steam Softener option, select Cotton or Cotton Large, Mix, Easy Care.

The following cycle is selected depending on the

number of times you press the

•Once: Steam Wash

•Twice: Steam Softener

•Three times: Steam Wash and Steam Softener

Press the

Power

button.

Start/Pause

button.

Steam

button.

Steam Wash ( )

•For heavily stained clothes, underwear or baby clothes.

•Available with the Cotton, Cotton Large, Mix, Easy Care, Duvet, Allergy Care, Steam Refresh, Wash+Dry cycles.

•Do not use Steam Wash for easily discoloured clothes and delicates such as wool, silk.

Steam Softener ( )

•Good to soften and uff fabrics after air drying.

•Available with the Cotton, Cotton Large, Mix, Easy Care cycles.

•Do not use Steam Softener for easily discoloured clothes and delicates such as wool, silk.

•Depending on the kind of fabric, softening performance may be different.

ENGLISH

Favorite

Favorite programme allows you to store a customized wash cycle for future use.

Press the

Select a washing programme.

Select the cycle (Washing method, number of

rinses, spin speed, water temperature etc.).

Press and hold the

The favorite programme is now stored for future use.

To reuse the programme, select favorite programme and press the

Power

Start/Pause

button.

Favorite

button.

button for 3 seconds.

Pre Wash ( )

If the laundry is heavily soiled, the Pre Wash cycle is recommended.

Press the

Power

button.

Temp.

The temperature combination for the selected cycle. Press this button until the desired setting is lit. All rinses use cold tap water.

•Select the water temperature suitable for the type of load you are washing. Follow the garment fabric care labels for best results.

button selects the wash and rinse

Rinse ( )

Rinse+ ( )

Add rinse once.

Spin

•Spin speed level can be selected by pressing the button repeatedly.

•Spin Only

Press the

Power

button.

Spin

Select a washing programme.

Press the

Pre Wash

Start/Pause

button.

Wash ( )

Time Save ( )

This option can be used to reduce the time of a wash

programme. It is best used on lightly soiled loads.

Intensive ( )

If the laundry is normal and heavily soiled, the option is effective.

Intensive

Press the

NOTE

•When you select ‘No Spin(0)’, it will still rotate for a short time to drain quickly.

Spin

button to select RPM.

Start/Pause

button.

Child Lock ( )

Dry (Optional) ( )

Select this function to lock the buttons on the control assembly to prevent tampering.

Locking the control panel

Press and hold the

seconds.

A beeper will sound, and ‘ ’ will appear on the

display.

When the child lock is set, all buttons are locked except the

Power

Child Lock

button.

button for 3

NOTE

•Turning off the power will not reset the child lock function. You must deactivate child lock before you can access any other functions.

Unlocking the control panel

Press and hold the

•A beeper will sound and the remaining time for the current programme will reappear on the display.

Child Lock

button for 3 seconds.

Beep On / Off

Press the

Press and hold the

simultaneously for 3 seconds to set the Beep on/off function.

Power

button.

Start/Pause

Temp.

button.

and

Steam

button

Use the your Automatic cycles to dry most loads. Electronic sensors measure the temperature of the exhaust to increase or decrease drying temperatures for faster reaction time and tighter temperature control.

•Cold water tap must be left on during drying cycles.

•This washing machine’s automatic process from washing to drying can be selected easily.

•For most even drying, make sure all articles in the clothes load are similar in material and thickness.

•Do not overload the washing machine by stufng too many articles into the drum. Items must be able to tumble freely.

•If you open the door and remove the load before the

washing machine has nished its cycle, remember to

press the

•By pressing the Time (30-60-120)-Eco-Iron-Low Temp.-Normal Eco

•After the end of dry, ‘ ’ is displayed. ‘ ’ means crease decreasing. The drying cycle is already done. Press any buttons and take out clothes. If you do not press the after about 4 hours.

Start/Pause

Dry

button, you can select: Cupboard-

Start/Pause

button.

button, the programme ends

NOTE

•When you turn the washing machine off of the drying cycle, the drying fan motor can be operated to save itself for 30 seconds. Then the washing machine will display ‘ cooling fan.

•Be careful when removing your clothing from the washing machine, as the clothing or washing machine may be hot.

’ on the panel. ‘ ’ means

NOTE

•Once the Beep on/off function is set, the setting is memorized even after the power is turned off.

•If you want to turn the Beeper off, simply repeat this process.

+ 64 hidden pages
