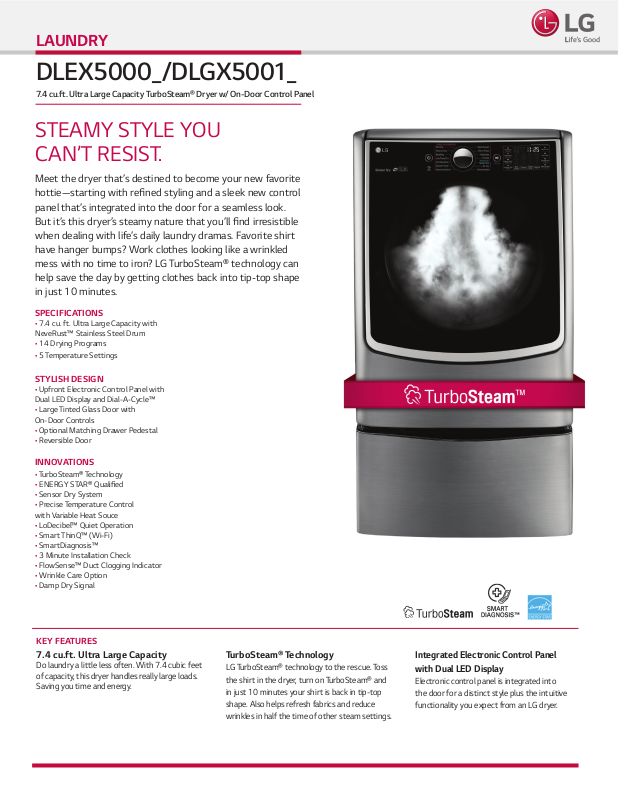

LAUNDRY
DLEX5000_/DLGX5001_
7.4 cu.ft. Ultra Large Capacity TurboSteam® Dryer w/ On-Door Control Panel
STEAMY STYLE YOU
CAN’T RESIST.
Meet the dryer that’s destined to become your new favorite
hottie—starting with rened styling and a sleek new control
panel that’s integrated into the door for a seamless look.
But it’s this dryer’s steamy nature that you’ll nd irresistible
when dealing with life’s daily laundry dramas. Favorite shirt
have hanger bumps? Work clothes looking like a wrinkled
mess with no time to iron? LG TurboSteam® technology can
help save the day by getting clothes back into tip-top shape
in just 10 minutes.
SPECIFICATIONS
• 7.4 cu. ft. Ultra Large Capacity with
NeveRust™ Stainless Steel Drum
• 14 Drying Programs
• 5 Temperature Settings
STYLISH DESIGN
• Upfront Electronic Control Panel with
Dual LED Display and Dial-A-Cycle™
• Large Tinted Glass Door with
On-Door Controls
• Optional Matching Drawer Pedestal
• Reversible Door
INNOVATIONS
• TurboSteam® Technology
• ENERGY STAR® Qualied
• Sensor Dry System
• Precise Temperature Control
with Variable Heat Souce
• LoDecibel™ Quiet Operation
• Smart ThinQ™ (Wi-Fi)
• SmartDiagnosis™
• 3 Minute Installation Check
• FlowSense™ Duct Clogging Indicator
• Wrinkle Care Option
• Damp Dry Signal
KEY FEATURES
7.4 cu.ft. Ultra Large Capacity
Do laundry a little less often. With 7.4 cubic feet
of capacity, this dryer handles really large loads.
Saving you time and energy.
TurboSteam® Technology
LG TurboSteam® technology to the rescue. Toss
the shirt in the dryer, turn on TurboSteam® and
in just 10 minutes your shirt is back in tip-top
shape. Also helps refresh fabrics and reduce
wrinkles in half the time of other steam settings.
Integrated Electronic Control Panel
with Dual LED Display
Electronic control panel is integrated into
the door for a distinct style plus the intuitive
functionality you expect from an LG dryer.
![](/html/1b/1b8e/1b8ee1429c219ae5c5a7cba76536f0f92b65641fb03a84ff481da5ae2499ca07/bg2.png)
LAUNDRY
DLEX5000_/DLGX5001_
7.4 cu.ft. Ultra Large Capacity TurboSteam® Dryer w/ On-Door Control Panel
CAPACITY
Capacity 7.4 cu. ft.
ENERGY
ENERGY STAR® Qualified •
APPEARANCE
Design Look On-Door Front Control Panel
Intelligent Electronic Controls with Dual LED Display •
Touch Buttons •
Dial-A-Cycle™ •
DRYER PROGRAMS
No. of Programs 14
Progra ms (Sensor Dry)
SteamSanitary™, Bedding, L owTemp Dry, Anti-Bacter ial, Sports Wear, Download/Super Dry
Progra ms (Manual Dry)
No. of Options 13
Options
Child Lock, Wi-Fi Connect, Dr um Light, Energy Saver, TurboSteam®, Smart Grid, Remote Star t
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dr y, More Dr y, Normal Dry, Less Dr y, Damp Dry
Manual Dr y Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation •
End of Cycle Signal •
Drum Light •
Reversible Door •
FlowSense™ Duct Clogging Indic ator •
Venting Op tion Electric: 4 Way Ventin g / Gas: 3 Way Venting
Leveling Legs 4 Adjust able Legs
Remaining Time Displ ay/Status Indicator(s) •
3 Minute Installat ion Check •
SmartDiagnosis™ • (v 3.0)
Smart T hinQ™ (Wi-Fi) Smart Grid Ready, Energy Monitor ing,
Black Box, Remote Control, Home Chat
MATERIALS AND FINISHES
NeveRus t™ Stainless Steel Dr um •
Cabinet Painted Steel
Control Panel Plastic
Top Cover Painted Steel
Door Glass/Chrome
Door Cover Dark Black Tinted Square Cover
Available Colors White (W), Graphite Steel (V)
Cotton /Normal, Perm. Press/Ca sual, Towels, Delic ates, Heavy Du ty, TurboSteam®,
Speed Dr y, Air Dry
More Time, Less Time, Custom Program, PGM Save, Damp Dr y Signal, Wrinkle Care,
OPTIONS
Pedesta l WDP4W, WDP4V
Pedest al (WxHxD) 27" x 13 3/5" x 28 2/5"
DIMENSIONS
Produc t (WxHxD) 27" x 38 13/16" x 32 13/16" (54" with door op en)
Carton (WxHxD) 29 1/2" x 42 1/4" x 33 1/5"
Weight (Pro duct/Carton) Electric 148.6lbs / 168.1lbs
Weight (Pro duct/Carton) Gas 151.7lbs / 171.2lbs
LIMITED WARRANTY
UPC CODES
DLEX5000V Electric Dryer (Graphite Steel) 048231 015301
DLEX5000W Electric Dryer (White) 048231 015318
DLGX5001V Gas Dr yer (Graphite Steel) 048231 015325
DLGX5001W Gas Dr yer (White) 048231 015332
WM5000HVA Washer (Graphite Steel) 048231 015288
WM5000HWA Washer (White) 048231 015295
WDP4V Pedestal (Graphite Steel) 048231 011198
WDP4W Pedestal (White) 048231 011211
WD100CV Sidekick™ Pedest al Washer (Graphite Steel) 048231 015165
WD100CW Sidekick™ Pedest al Washer (White) 048231 015172
1 Year Parts and Labor
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric)
Type Gas/Electric
BTU 20,000
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
LG.com
Design, features and specifications are subject to change without notice. Non-metric weights and measurements
are approximate.
