OWNER’S MANUAL

Smart 3D Blu-ray™ Home Theater System

Please read this manual carefully before operating your set and retain it for future reference.

BH9430PW (BH9430PW, S93T1-S/C/W, S93B1-S, T2, W3-4) BH9431PW (BH9431PW, S93T3-S/C, S93T1-W, S93B3-S, T2, W3-4)

P/NO : SAC35693704

www.lg.com

Getting Started2

Safety Information

Getting Started

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.

instructions in the literature accompanying the product.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands

after handling.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a conned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)

CAUTION : CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Use of controls, adjustments or the performance of procedures other than those specied herein may result in hazardous radiation exposure.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specication page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Getting Started 3

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the

old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects lled with liquids, such as vases, shall be placed on the apparatus.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

yReorient or relocate the receiving antenna.

yIncrease the separation between the equipment

and receiver.

yConnect the equipment into an outlet on a

circuit dierent from that to which the receiver is connected.

yConsult the dealer or an experienced radio/TV

technician for help.

CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

FCC RF Radiation Exposure Statement : This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. End users must follow the specic operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

CAUTION: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.

Responsible Party : LG Electronics USA, Inc.1000 Sylvan Avenue Englewood Clis, NJ 07632

TEL. : +1-800-243-0000

Getting Started

Getting Started4

Notes on copyrights

yBecause AACS (Advanced Access Content

System) is approved as content protection

Getting Started

system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc., of AACS protected content. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.

yFurthermore, BD-ROM Mark and BD+ are

additionally used as content protection systems for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected content. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please contact an authorized Customer Service Center.

yMany BD-ROM/DVD discs are encoded with

copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.

yThis product incorporates copyright protection

technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

yUnder the U.S. Copyright laws and Copyright

laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminal liability.

Caution

yWatching a 3D content for a long period

time may cause dizziness or tiredness.

yIt is not recommended to watch a movie

in 3D mode for inrm, child and pregnant woman.

yIf you are experiencing headache, tiredness

or dizziness while viewing content in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

Getting Started 5

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Getting Started

Table of Contents6

Table of Contents

1 Getting Started

2 Safety Information 8 Introduction 8 – Playable discs and symbols used in

this manual

9 – About the “7” symbol display 9 – Regional code 10 Remote Control 11 Front Panel 11 Rear Panel 12 Positioning the system 13 Speaker Connection 13 – Attaching the speakers to the player 13 – Attaching the rear speakers to the

wireless receiver 14 Wireless speakers connection 14 – Wireless speakers connection,

manually

2 Connecting

15 Connecting to your TV 16 – What is SIMPLINK? 16 – ARC (Audio Return Channel) function 16 – Resolution setting 17 Antenna connection 18 Connections with external device 18 – AUX Connection 18 – OPTICAL IN connection 19 – HDMI IN 1/2 connection 20 Connecting to your Home Network 20 – Wired network connection 21 – Wired network setup 22 – Wireless network connection 22 – Wireless network setup

3 System Setting

25 Initial Setup 26 Settings 26 – Adjust the setup settings 27 – [NETWORK] menu 28 – [DISPLAY] menu 29 – [LANGUAGE] menu 30 – [AUDIO] menu 31 – [LOCK] menu 32 – [OTHERS] menu

4 Operating

34 Sound Effect 34 3D Sound Effect 35 Home Menu Display 35 – Using [HOME] menu 35 – Using the Smart Share 36 Playing the Linked Devices 36 – Playing a disc 36 – Playing Blu-ray 3D disc 37 – Playing a file on disc/USB device 38 – Playing a file on a network server 39 Using Home Network Server for PC 39 – Installing Nero MediaHome 4

Essentials 39 – Sharing files and folders 40 – About Nero MediaHome 4 Essentials 40 – System requirements 41 General Playback 41 – Basic operations for video and audio

content 41 – Basic operations for photo content 41 – Using the disc menu 42 – Resume playback 42 – Last scene memory 43 On-Screen Display 43 – To control video playback 44 – To control photo view 45 Advanced Playback 45 – Repeat playback 45 – Repeating a specific portion 45 – Playing from selected time 46 – Selecting a subtitle language 46 – Hearing a different audio 46 – Watching from a different angle

Table of Contents 7

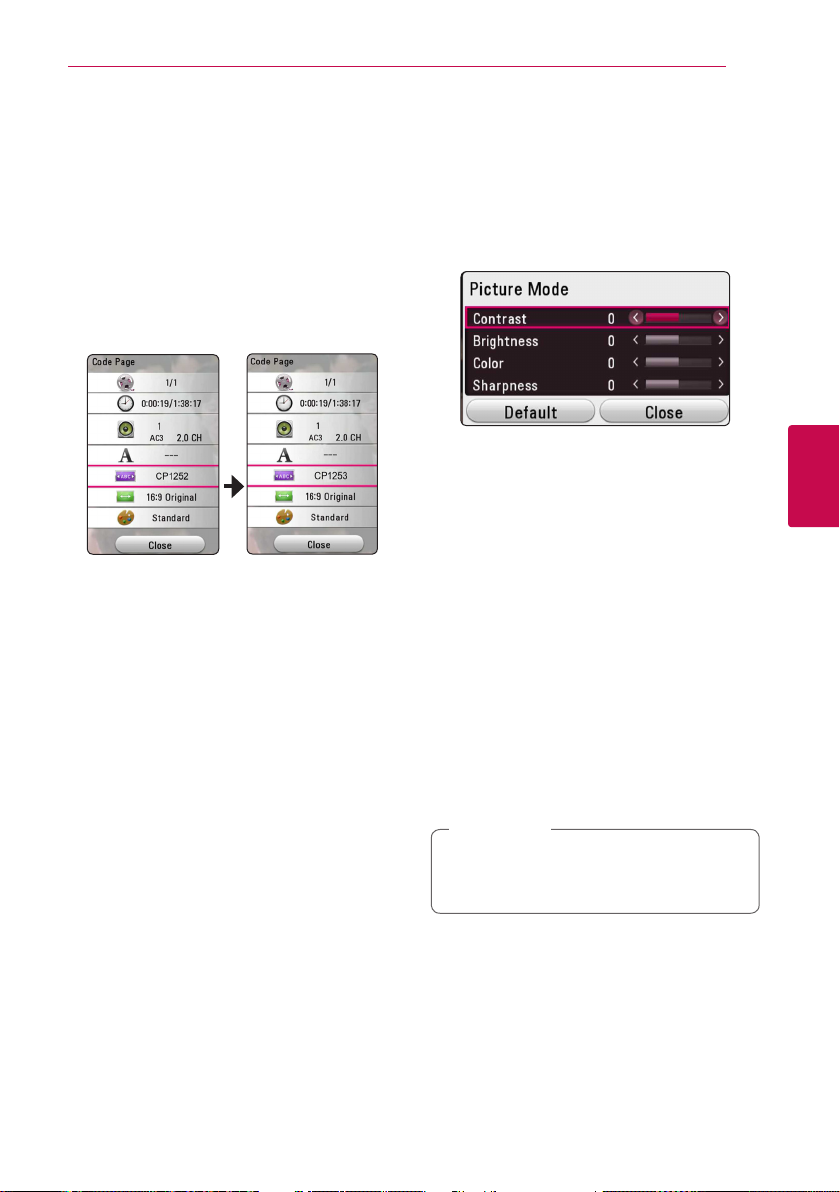

46 – Changing the TV Aspect Ratio 47 – Changing subtitle Code Page 47 – Changing the Picture Mode 47 – Viewing content information 48 – Changing content list view 48 – Selecting a subtitle file 49 – Listening to music during slide show 49 – Converting 2D content to 3D 50 Advanced Features 50 – Wi-Fi Direct™ 51 – Enjoying Miracast™ 51 – Enjoying BD-Live™ 52 – Audio CD recording 52 – Recording from FM radio or AUX

source 53 – LG Tag On 53 – LG AV Remote 53 – Private Sound Mode 54 – Viewing information from Gracenote

Media Database 55 Playing the iPod 55 – Enjoying iPod on the screen 55 – Enjoying the iPod IN mode 57 Radio Operations 57 – Listening to the radio 57 – Presetting the Radio Stations 57 – Deleting a saved station 57 – Deleting all the saved stations 57 – Improving poor FM reception 58 Using an USB keyboard or mouse 58 Using the Premium 59 Using the LG Smart World 59 – Signing in 60 – Searching online content 60 Using the My Apps Menu 61 Using Bluetooth technology 61 – Listening to music stored on the

Bluetooth devices

5 Troubleshooting

63 Troubleshooting 63 – General 64 – Network 65 – Picture 65 – Sound 65 – Customer Support 65 – Open Source Software Notice

6 Appendix

66 Controlling a TV with the Supplied

Remote Control

66 – Setting up the remote to control your

TV 67 Network Software Update 67 – Network update notification 67 – Software update 69 Additional Information 69 – File requirement 70 – AVCHD (Advanced Video Codec High

Definition) 71 – About DLNA 71 – Certain system requirements 71 – Compatibility notes 72 Audio Output Specifications 73 Area Code List 74 Language Code List 75 Trademarks and Licenses 78 Specifications 80 Maintenance 80 – Handling the unit 80 – Notes on discs 81 Important Information relating to Network

Services

Some of the content in this manual may dier from your player depending on the software of the player or your service provider.

Getting Started8

Introduction

Playable discs and symbols used in this manual

Getting Started

Media/Term Logo Symbol Description

yDiscs such as movies that can be purchased or

rented.

y“Blu-ray 3D” discs and “Blu-ray 3D ONLY” discs.

yBD-R/RE discs that are recorded in BDAV format.

yBD-R/RE discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

yDiscs such as movies that can be purchased or

rented.

yVideo mode and nalized only

ySupports the dual layer disc also

Finalized AVCHD format

yDVD±R/RW discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

Blu-ray

DVD-ROM

DVD-R

DVD-RW

DVD+R

DVD+RW

(12 cm)

y u i

DVD-RW (VR)

(12 cm)

Audio CD

(12 cm)

CD-R/RW

(12 cm)

Note –

Caution –

y u i

VR mode and nalized only

Audio CD

yCD-R/RW discs that contain Video, Audio or

Photo les.

yISO 9660+JOLIET, UDF and UDF Bridge format

Indicates special notes and operating features.

Indicates cautions for preventing possible damages from abuse.

Note

yDepending on the conditions of the

recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

yDepending on the recording software & the

nalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.

yBD-R/RE, DVD±R/RW and CD-R/RW discs

recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player’s lens.

yIf you record a disc using a personal

computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

yThis player requires discs and recordings to

meet certain technical standards in order to achieve optimal playback quality.

yPre-recorded DVDs are automatically set to

these standards. There are many dierent types of recordable disc formats (including CD-R containing MP3 or WMA les) and these require certain pre-existing conditions to ensure compatible playback.

yCustomers should note that permission

is required in order to download MP3 / WMA les and audio from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

yYou have to set the disc format option

to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista)

Getting Started 9

About the “7” symbol display

“7” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specic media.

Regional code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or “ALL”.

Getting Started

Getting Started10

Remote Control

Getting Started

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert two R03 (size AAA) batteries with 4 and 5 matched correctly.

• • • • • • a • • • • • •

(POWER): Switches the player

ON or OFF.

(OPEN/CLOSE): Ejects a disc.

FUNCTION: Changes input mode.

0-9 numerical buttons: Selects

numbered options in a menu.

CLEAR: Removes a number when setting the password or network connection.

REPEAT (h): Repeats a desired section or sequence.

• • • • • • b • • • • •

c/v

backward or forward.

C/V

next or previous chapter / track / le.

Z z M

SPEAKER LEVEL: Sets the sound level of desired speaker.

SOUND EFFECT: Selects a sound eect mode.

VOL +/-: Adjusts speaker volume.

OPTICAL/TV SOUND: Changes

input mode to optical directly.

MUTE: Mute the unit.

• • • • • • c • • • • •

HOME ( ): Displays or exits the [Home].

3D SOUND: Selects a 3D sound eect mode.

INFO/MENU (m): Displays or exits On-Screen Display.

Direction buttons: Selects an option in the menu.

PRESET +/-: Selects programme of Radio.

TUNING +/-: Tunes in the desired radio station.

(SCAN): Searches

(SKIP): Goes to the

(STOP): Stops playback.

(PLAY): Starts playback.

(PAUSE): Pauses playback.

ENTER (b): Acknowledges menu

selection.

BACK ( ): Exits the menu or returns to the previous screen.

TITLE/POPUP: Displays the DVD title menu or BD-ROM’s popup menu, if available.

DISC MENU: Accesses menu on a disc.

• • • • • • d • • • • •

Colored (R, G, Y, B) buttons:

- Use to navigate BD-ROM menus. They are also used as shortcut buttons for specic menus.

- B button: Selects mono/ stereo in FM mode.

SUBTITLE: Selects a subtitle language.

AUDIO: Selects an audio language or audio channel.

SLEEP: Sets a certain period of time after which the unit will switch to o.

MUSIC ID: When connected to the network, can provide information about the current song while movie playback.

: This button is not available.

(REC): Records from an Audio

CD, FM radio, or AUX source to USB.

TV Control Buttons: See page 66.

Front Panel

Getting Started 11

Getting Started

Disc Slot

Operation buttons

(OPEN/CLOSE)

(PLAY / PAUSE)

(STOP)

F (Function)

Changes the input source or function.

VOL. -/+

/I (POWER)

iPod/ iPhone/ iPad/ USB Port

Display Window

Remote Sensor

Rear Panel

Caution

Precautions in using the touch buttons

yUse the touch buttons with clean and dry

hands.

- In a humid environment, wipe out any moisture on the touch buttons before using.

yDo not press the touch buttons hard to

make it work.

- If you apply too much strength, it can damage the sensor of the touch buttons.

yTouch the button that you want to work in

order to operate the function correctly.

yBe careful not to have any conductive

material such as metallic object on the touch buttons. It can cause malfunctions.

AC power cord

Speakers connectors

Cooling Fan

AUX (L/R) INPUT

OPTICAL IN

WIRELESS connector

Antenna Connector

USB Port (for connecting an USB keyboard or

mouse)

HDMI IN 1/2

HDMI OUT TO TV

LAN port

Getting Started12

DEE

ABA

DEE

EFG

Positioning the system

The following illustration shows an example of positioning the system. Note that the illustrations

in these instructions dier from the actual unit for

Getting Started

explanation purposes. For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (

Caution

yBe careful to make sure children not to put

their hands or any objects into the *speaker duct. *Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).

yPlace the center speaker at a safe distance

from the child’s reach. Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.

yThe speakers contain magnetic parts, so

colour irregularity may occur on the CRT TV screen or PC monitor screen. Please use the speakers away from the TV screen or PC monitor screen.

yBefore using the subwoofer, remove the

protective vinyl.

yThis product is specially designed to

produce the eect of the 3D Sound. Other speakers may not operate normally when connected.

Front left and Front top left speaker (L)

(S93T1-S/S93T3-S)/

Front right and Front top right speaker (R)

(S93T1-S/S93T3-S):

Place the front speakers to the sides of the monitor or screen and as ush with the screen surface as possible.

Center speaker (S93T1-C/S93T3-C):

Place the center speaker above or below the monitor or screen.

Surround left and Surround top left

speaker (L) (S93B1-S/S93B3-S)/

Surround right and Surround top right

speaker (R) (S93B1-S/S93B3-S):

Place these speakers behind your listening position, facing slightly inwards.

Subwoofer (S93T1-W):

The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reections.

Unit

Getting Started 13

Speaker Connection

Attaching the speakers to the player

1. Connect speaker cords to the player. Each speaker connector is color-coded. Use matching color connector for corresponding speakers. When connecting speaker cords to the player, insert the connector until it clicks.

Connector color Speaker Position

Green Center Center

Orange Sub woofer

Red

White

2. Connect the speaker cord to the connector on the speaker.

Front right and Front top right

Front left and Front top left

Any front position

Front right

Front left

Attaching the rear speakers to the wireless receiver

Connect the rear speakers to the wireless receiver with the speaker cords.

Use matching color label for corresponding speakers. When connecting speaker cords to the wireless receiver, insert the connector until it clicks.

Label color / Connector color

Grey

Blue

Speaker Position

Rear right and Rear top right

Rear left and Rear top left

Rear right

Rear left

Getting Started

Getting Started14

Wireless speakers connection

1. Insert the Wireless TX till the marked line into

Getting Started

the WIRELESS connector on the rear of the unit.

Line

2. Connect the power cord of the wireless receiver to the outlet.

3. When you turn on the player, the wireless speakers connection will be completed automatically.

-When the connection is completed, you can see the icon ( ) on the display window.

LED indicator of wireless receiver

LED Color Operation

Yellow (Blink)

Yellow The connection is completed.

Red

O (No display)

The connection is not completed.

The connection is in standby mode or failed.

The AC power cord is unplugged.

Note

yDo not insert other than the Wireless TX

dedicated for this unit into the WIRELESS connector. This unit might be damaged or it may not be removed easily.

yIf there is a strong electromagnetic wave

product nearby, interference may occur. Put the unit (wireless receiver and main unit) away from there.

yIt takes a few seconds (and may take longer)

for the Wireless TX and the wireless receiver to communicate with each other.

yThe available range is 20 m for wireless

connection in an open place.

Wireless speakers connection, manually

You can set up wireless speakers connection manually, when your connection is not completed. Refer to the “Connect wireless speakers” on page 31.

Connecting 15

Connecting to your TV

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High Speed HDMI™ Cable). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor.

Rear of the unit

HDMI Cable

Not Included

Set the TV’s source to HDMI (refer to TV’s owner’s manual).

Note

Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.

Additional information for HDMI

yWhen you connect a HDMI or DVI compatible

device make sure of the following:

-Try switching o the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

-The connected device’s video input is set correctly for this unit.

-The connected device is compatible with 720x480p, 1280x720p, 1920x1080i or 1920x1080p video input.

yNot all HDCP-compatible HDMI or DVI devices

will work with this player.

-The picture will not be displayed properly with non-HDCP device.

Note

yIf a connected HDMI device does not accept

the audio output of the player, the HDMI device’s audio sound may be distorted or may not output.

yWhen you use HDMI connection, you can

change the resolution for the HDMI output. (Refer to “Resolution setting” on page 16)

ySelect the type of video output from the

HDMI OUT jack using [HDMI Color Setting] option on the [Settings] menu (page 29).

yChanging the resolution when the

connection has already been established may result in malfunctions. To solve the problem, turn o the player and then turn it on again.

yWhen the HDMI connection with HDCP

is not veried, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.

yIf there are noises or lines on the screen,

please check the HDMI cable (length is generally limited to 4.5 m (15 ft.)).

Connecting

Connecting16

What is SIMPLINK?

Some functions of this unit are controlled by the TV’s remote control when this unit and LG TV’s with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop, Power O, etc.

Refer to the TV owner’s manual for the details of

Connecting

SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as shown above.

Note

Depending on the disc type or playing status, some SIMPLINK operation may dier from your purpose or not work.

ARC (Audio Return Channel) function

The ARC function enables an HDMI capable TV to send the audio stream to HDMI OUT of this player.

To use this function:

-Your TV must support the HDMI-CEC and ARC function and the HDMI-CEC and ARC must be set to On.

-The setting method of HDMI-CEC and ARC may dier depending on the TV. For details about ARC function, refer to your TV manual.

-You must use the HDMI cable (Type A, High Speed HDMI™ cable with Ethernet).

-You must connect with the HDMI IN that supports the ARC function using the HDMI OUT on this player.

-You can connect only one Home Theater to TV compatible with ARC.

Note

To activate [SIMPLINK / ARC] function, set this option to [On]. (page 33)

Resolution setting

The player provides several output resolutions for HDMI OUT jack. You can change the resolution using [Settings] menu.

1. Press HOME ( ).

2. Use ENTER (b). The [Settings] menu appears.

3. Use press D to move to the second level.

4. Use then press ENTER (b) to move to the third level.

5. Use press ENTER (b) to confirm your selection.

to select the [Settings] and press

A/D

to select [DISPLAY] option then

W/S

to select the [Resolution] option

W/S

to select the desired resolution then

W/S

Note

yIf your TV does not accept the resolution

you have set on the player, you can set resolution to 480p as follows:

1. Press HOME ( menu.

2. Press Z (STOP) for more than 5 seconds.

yIf you select a resolution manually and then

connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].

yIf you select a resolution that your TV

does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.

yThe 1080p video output frame rate may

be automatically set to either 24 Hz or 60 Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

) to disappear the HOME

Connecting 17

Antenna connection

Connect the supplied antenna for listening to the radio.

Rear of the unit

Note

After connecting the FM wire antenna, be sure to fully extend it.

Connecting

Connecting18

Connections with external device

AUX Connection

You can enjoy the sound from an external component through the speakers of this system.

Connect the analog audio output jacks of your

Connecting

component into the AUX L/R (INPUT) on this unit. And then select the [AUX] option by pressing FUNCTION.

You can also use the F (Function) button on the front panel to select the input mode.

Rear of the unit

White

Red

OPTICAL IN connection

You can enjoy the sound from your component with a digital optical connection through the speakers of this system.

Connect the optical output jack of your component into the OPTICAL IN jack on the unit. And then select the [OPTICAL] option by pressing FUNCTION. Or press OPTICAL/TV SOUND to select directly.

You can also use the F (Function) button on the front panel to select the input mode.

Rear of the unit

Optical Cable Not Included

To the digital optical output jack of your component

To the audio output jacks

of your component

(T V, VCR, etc.)

HDMI IN 1/2 connection

You can enjoy the pictures and sound from your component through this connection.

Connect the HDMI OUT jack of your component into the HDMI IN 1 or 2 jack on this unit. And then select the [HDMI IN 1/2] option by pressing FUNCTION.

You can also use the F (Function) button on the front panel to select the input mode.

Rear of the unit

To the HDMI OUT jack of your component (set-top box, digital satellite receiver, video game machine, etc.)

HDMI Cable Not Included

Connecting 19

Connecting

Note

yYou cannot change the video resolution in

the HDMI IN 1/2 mode. Change the video resolution of the connected component.

yIf the video output signal is abnormal when

your personal computer is connected to HDMI IN 1/2 jack, change the resolution of your personal computer to 480p, 720p, 1080i or 1080p.

yThe player sends audio from the HDMI

inputs to both the HDMI output and to the unit’s speakers.

Connecting20

Connecting to your Home Network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module. By connecting the unit to a broadband home network, you have access to services such as

software updates, BD-Live interactivity and online

Connecting

content services.

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.

Please refer to the documentation for your network device for further instructions.

Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable.

Note

yWhen plugging or unplugging the LAN

cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.

yDo not connect a modular phone cable to

the LAN port.

ySince there are various connection

congurations, please follow the specications of your telecommunication carrier or internet service provider.

yIf you want to access content from DLNA

servers, this player must be connected to the same local area network with them via a router.

yTo set your PC as a DLNA server, install the

supplied Nero MediaHome 4 on your PC. (page 39)

Broadband service

Router

DLNA certied servers

Rear of the unit

Connecting 21

Wired network setup

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player’s network setting to be adjusted. Adjust the [NETWORK] setting as follow.

Preparation

Before setting the wired network, you need to connect the broadband internet to your home network.

1. Select [Connection Setting] option in the [Settings] menu then press ENTER (b).

2. Read the preparations for the network settings and then press ENTER (b) while [Start] is highlighted.

Advanced Setting

If you want to set the network settings manually, use [Network Setting] menu and press ENTER (b).

1. Use

2. Use

to select [Advanced Setting] on the

W/S

to select [Wired] and press ENTER

W/S

(b).

W/S/A/D

between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

Note

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using

and numerical buttons. If you make a

A/D

mistake while entering a number, press CLEAR to clear the highlighted part.

to select the IP mode

W/S/

Connecting

Network will automatically be connected to the unit.

3. Select [Next] and press ENTER (b) to apply network settings.

Network connection status is displayed on the screen.

4. Press ENTER (b) while [OK] is highlighted to finish the wired network settings.

Connecting22

Wireless network connection

Another connection option is to use an Access Point or a wireless router. The network conguration and connection method may vary depending on the equipment in use and the network environment.

Connecting

Wireless

Communication

DLNA certied servers

Access Point or Wireless Router

Broadband service

Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

For best performance, a direct wired connection from this player to your home network’s router or cable/DSL modem is always the best option. If you do chose to use the wireless option, note that performance can sometimes be aected by other electronic devices in the home.

Wireless network setup

For the wireless network connection, the player needs to be set up for network communication. This adjustment can be done from the [Settings] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network.

Preparation

Before setting the wireless network, you need to:

-connect the broadband internet to the wireless home network.

-set the access point or wireless router.

-note the SSID and security code of the network.

1. Select [Connection Setting] option in the [Settings] menu then press ENTER (b).

2. Read the preparations for the network settings and then press ENTER (b) while [Start] is highlighted.

If wired network is not connected to the unit, all available networks are displayed on the screen.

3. Use network and press ENTER (b).

If you have security on your access point, you need to input the security code as necessary.

If you use other characters than the english alphabet or digits for the SSID name of your access point or wireless router, it may be displayed dierently.

to select a desired SSID of wireless

W/S

Note

yWEP security mode generally have 4 keys

available on an access point setting. If your access point or wireless router use WEP security, enter the security code of the key “No.1” to connect on your home network.

yAn Access Point is a device that allows you

to connect to your home network wirelessly.

4. Use

W/S/A/D

between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

Note

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using

and numerical buttons. If you make a

A/D

mistake while entering a number, press CLEAR to clear the highlighted part.

5. Select [Next] and press ENTER (b) to apply network settings.

Network connection status is displayed on the screen.

6. Select [OK] and press ENTER (b) to complete the network connection.

to select the IP mode

W/S/

Advanced Setting

If you want to set the network settings manually, use [Network Setting] menu and press ENTER (b).

1. Use

2. Follow the instructions of each connection

to select [Advanced Setting] on the

W/S

to select [Wireless] and press ENTER

W/S

(b).

[AP List] - Scans all available access points or wireless routers within range and display them as a list.

[Network name (SSID)] – Your access point may not be broadcasting its network name (SSID). Check your access point settings through your computer and either set your access point to broadcast SSID, or manually enter the network name in [Network name(SSID)].

[PBC] – If your access point or wireless router that supports the PBC (Push Button Configuration) method, select this option and press the Push Button on your access point within 120 counts. You do not need to know the network name (SSID) and security code of your access point.

[PIN] – If your access point supports the PIN Code configuration method based on WPS(WiFi Protected Setup), select this option and note the code number on the screen. And then, enter the PIN number on a setting menu of your access point to connect. Refer to the documentation for your network device.

method on the screen.

Note

To use PBC and PIN network connection, security mode of your access point must be set to OPEN or AES.

Connecting 23

Connecting

Connecting24

Notes on network connection

yMany network connection problems during

set up can often be xed by re-setting the router or modem. After connecting the player to the home network, quickly power o and/ or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

yDepending on the internet service provider (ISP),

Connecting

the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

yOur company is not responsible for any

malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

yThe features of BD-ROM discs made available

through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.

ySome internet content may require a higher

bandwidth connection.

yEven if the player is properly connected and

congured, some internet content may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

ySome internet connection operations may not

be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

yAny fees charged by an ISP including, without

limitation, connection charges are your responsibility.

yA 10 Base-T or 100 Base-TX LAN port is required

for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

yYou must use a Router to use xDSL service.

yA DSL modem is required to use DSL service and

a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

yThe use of a “Router” may not be allowed or its

usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

yThe wireless network operate at 2.4 GHz

radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be aected by interference from them.

yTurn o all unused network equipment in

your local home network. Some devices may generate network trac.

yFor the purpose of the better transmission,

placing the player from the access point as close as possible.

yIn some instances, placing the access point or

wireless router at least 0.45 m (1.5 ft.) above the oor may improve the reception.

yMove closer to the access point if possible or re-

orient the player so there is nothing between it and the access point.

yThe reception quality over wireless depends on

many factors such as type of the access point, distance between the player and access point, and the location of the player.

ySet your access point or wireless router to

Infrastructure mode. Ad-hoc mode is not supported.

System Setting 25

Initial Setup

When you turn on the unit for the rst time, the initial setup wizard appears on the screen. Set the display language and network settings on the initial setup wizard.

1. Press 1 (POWER).

The initial setup wizard appears on the screen.

2. Use

W/S/A/D

and press ENTER (b).

3. Read and prepare the preparations for the network settings and then press ENTER (b) while [Start] is highlighted.

to select a display language

5. Use

W/S/A/D

between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

6. Select [Next] and press ENTER (b) to apply network settings.

Network connection status is displayed on the screen.

For details on network settings, refer to “Connecting to your Home Network” on page

20.

7. Select [Next] and press ENTER (b).

to select the IP mode

System Setting

If wired network is connected, the network connection setting will automatically be finished.

4. All available networks are displayed on the screen. Use or desired SSID of wireless network and press ENTER (b).

If you have security on your access point, you need to input the security code as necessary.

to select [Wired Network]

W/S

Read and prepare the preparations for the wireless speaker setting.

8. Select [Next] and press ENTER (b).

System Setting26

9. Press ENTER (b) to verify the test tone signals of the speakers.

After verifying the test tone signals, press ENTER (b) while [Stop] is highlighted. Select [Next] and press ENTER (b).

10. You can listen to TV sound through this unit’s speaker automatically when TV is turned on. TV

System Setting

and this unit should be connected with optical cable.

Press W to move and press or [Off ]. Select [Next] and press ENTER (b).

11. Check all the settings that you have set in the previous steps.

A/D

to select [On]

Settings

Adjust the setup settings

You can change the settings of the player in the [Settings] menu.

1. Press HOME ( ).

2. Use ENTER (b). The [Settings] menu appears.

3. Use press D to move to the second level.

to select the [Settings] and press

A/D

to select the first setup option, and

W/S

Press ENTER (b) while [Finish] is highlighted to finish the initial setup settings. If there is any settings to be changed, use select 1 and press ENTER (b).

W/S/A/D

4. Use press ENTER (b) to move to the third level.

5. Use ENTER (b) to confirm your selection.

to select a second setup option, and

W/S

to select a desired setting, and press

W/S

System Setting 27

[NETWORK] menu

The [NETWORK] settings are needed to use the software update, BD-Live and online content services.

Connection Setting

If your home network environment is ready to connect the player, the player needs to be set the wired or wireless network connection for network communication. (See “Connecting to your Home Network” on page 20.)

Connection Status

If you want to check the network status on this player, select the [Connection Status] options and press ENTER (b) to check whether a connection to the network and the internet have been established.

BD-LIVE connection

You can restrict Internet access when BD-Live functions are used.

[Permitted]

Internet access is permitted for all BD-Live content.

[Partially permitted]

Internet access is permitted only for BD-Live content which have content owner certicates. Internet access and AACS Online functions are prohibited for all BD-Live content without a certicate.

[Prohibited]

Internet access is prohibited for all BD-Live content.

Smart Service Setting

[Country Setting]

Select your area for displaying proper online content service.

[Initialize]

y[Deactivate Netix]

Deactivates your player. To activate the Netix again, contact to the service provider.

y[Netix ESN]

Display its unique Netix ESN (Electronic Serial Number) that allows you to use the Netix streaming.

y[Deactivate VUDU]

Deactivates your player. To activate the Vudu again, contact to the service provider.

Device Name

You can make a network name using virtual keyboard. This player will be recognised by the name you are entering on your home network.

Wi-Fi Direct

This player is a Wi-Fi Direct™ certied device. Wi-Fi Direct™ is the technology that devices to connect each other without connecting to an Access point or a router. Press ENTER (b) to display the Wi-Fi Direct menu. Refer to page 50 for the device connection.

Network Play

This function allows you to control the playback of media streamed from DLNA media server by a DLNA certied smartphone. Most DLNA certied smartphone has a function to control the playback media on your home network. Set this option to [On] for allowing your smartphone to control this unit. Refer to instructions of your DLNA certied smartphone or the application for more detailed information.

System Setting

System Setting28

Note

yThis unit and the DLNA Certied

Smartphone must be connected to the same network.

yTo use the [Network Play] function using a

DLNA certied smartphone, press HOME (

) to display the home menu before

connecting to this unit.

yWhile controlling the unit using the

[Network Play] function, the remote control may not work.

yAvailable le formats described on page 69

are not always supported on [Network Play] function.

System Setting

[DISPLAY] menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected. Displays pictures cropped to ll your TV screen. Both sides of the picture are cut o.

[16:9 Original]

Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to ll the entire screen.

Resolution

Sets the output resolution of the HDMI video signal. Refer to page 16 for details about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[480p]

Outputs 480 lines of progressive video.

Ultra HD Upscaling

This feature allows the unit to up-scale the original video resolution to Ultra HD resolution and output via HDMI connection.

[Auto]

If you connect a display capable of displaying Ultra HD resolution, this unit will output video signals in Ultra HD resolution automatically.

[O ]

The unit will turn o the Up-scaling feature.

Note

yThis unit will output video signals in Ultra

HD resolution when it plays BD-ROM disc formatted in 24 Hz.

yThe playback pictures may be momentarily

interrupted when the resolutions switch.

Note

You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

System Setting

1080p Display Mode

When the resolution is set to 1080p, select [24 Hz] for smooth presentation of lm material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input.

Note

yWhen you select [24 Hz], you may

experience some picture disturbance when the video switches video and lm material. In this case, select [60 Hz].

yEven when [1080p Display Mode] is set to

[24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 60 Hz to match the video source format.

HDMI Color Setting

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.

[YCbCr]

Select when connecting to a HDMI display device.

[RGB]

Select when connecting to a DVI display device.

[LANGUAGE] menu

Display Menu

Select a language for the [Settings] menu and onscreen display.

Disc Menu / Disc Audio / Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the disc was recorded.

[Other]

Press ENTER (b) to select another language. Use number buttons then press ENTER (b) to enter the corresponding 4-digit number according to the language code list on page

74.

[O] (Disc Subtitle only)

Turn o Subtitle.

Note

Depending on the disc, your language setting may not work.

System Setting

3D Mode

Select the type of output mode for Blu-ray 3D disc playback.

[O ]

Blu-ray 3D disc playback will output as 2D mode like a normal BD-ROM disc playback.

[On]

Blu-ray 3D disc playback will output as 3D mode.

Home Menu Guide

This function allows you to display or delete the guide bubble on the [HOME] menu. Set this option to [On] for displaying guide.

System Setting30

[AUDIO] menu

Each disc has a variety of audio output options. Set the player’s Audio options according to the type of audio system you use.

Note

Since many factors aect the type of audio output, see “Audio Output Specications” on page 72 for details.

Digital Output

[PCM Stereo] (HDMI only)

System Setting

Select if you connect this unit’s HDMI OUT jack to a device with two-channel digital stereo decoder.

[PCM Multi-Ch] (HDMI only)

Select if you connect this unit’s HDMI OUT jack to a device with multi-channel digital decoder.

[DTS Re-Encode] (HDMI only)

Select if you connect this unit’s HDMI OUT jack to a device with DTS decoder.

[BitStream] (HDMI only)

Select if you connect this unit’s HDMI OUT jack to a device with LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and DTS-HD decoder.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a lower volume without losing clarity of sound.

[O ]

Turns o this function.

[On]

Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output.

[Auto]

The dynamic range of the Dolby TrueHD audio output is specied by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode.

Note

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

Note

yWhen [Digital Output] option is set to [PCM

Multi-Ch], the audio may output as PCM Stereo if the PCM Multi-Ch information is not detected from HDMI device with EDID.

yIf the [Digital Output] option is set to [DTS

Re-Encode], the DTS Re-Encode audio is outputted for BD-ROM discs with secondary audio and the original audio is outputted for the other discs (like [BitStream]).

yThis setting is not available on the input

signal from an external device.

System Setting 31

Connect wireless speakers

When the unit is manufactured, the ID is already set. If interference occurs or you use a new wireless unit, an ID should be set again.

Speaker Setup

To obtain the best possible sound, use the speaker setup display to specify the volume of the speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level.

[Speaker]

Select a speaker that you want to adjust.

[Volume]

Adjust the output level of each speaker.

[Distance]

Adjust the distance between each speaker and the listening position.

[Test/ Stop test tone]

The speakers will emit a test tone.

[OK]

Conrms the setting.

HD AV Sync

Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it eectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use A D to scroll up and down through the delay amount, which you can set at anything between 0 and 300 ms.

System Setting

Auto Volume

With Auto Volume function on, the unit automatically adjusts the outputted volume level to make it raised or lowered if the sound is too loud or small. So you can enjoy the sound at comportable level not too loud or small.

[LOCK] menu

The [LOCK] settings aect only Blu-ray Disc and DVD playback.

To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created. If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (b) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press ENTER (b) to create a new password.

[Change]

Enter the current password and press ENTER (b). Enter a 4-digit password twice, and press ENTER (b) to create a new password.

System Setting32

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.

2. Select [Password] option in the [Settings] menu.

3. Use Number buttons to enter “210499”. The password is cleared.

Note

If you make a mistake before pressing ENTER (b), press CLEAR. Then input the correct password.

DVD Rating

Blocks playback of rated DVD based on their

System Setting

content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[Unlock]

If you select [Unlock], parental control is not active and the disc plays in full.

Blu-ray Disc Rating

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding ratings recorded on them.

Note

yThe [Blu-ray Disc Rating] will be applied

only for the Blu-ray disc that containing the Advanced Rating Control.

yFor the region using MPAA rating level, refer

to the table below as an example.

Blu-ray Disc Rating MPAA Rating

0 G

8 PG 13 PG-13 17 R 18 NC-17

255 Not restricted

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 73.

[OTHERS] menu

Pointer

Sets the speed and size of an USB mouse’s pointer.

[Speed]

Sets the moving speed of an USB mouse.

[Size]

Chooses the pointer size of an USB mouse.

Note

The Pointer function is optimized for convenience of Internet usage.

System Setting 33

Auto Power Off

The screen saver appears when you leave the player in Stop mode for about 5 minutes. If you set this option to [On], the unit automatically turns o within 20 minutes since the Screen Saver is displayed. Set this option to [O] to leave the screen saver until the unit is operated by the user.

Note

When you set [Auto Power O] function in setting menu on, this unit will be o itself to save electronic consumption in the case main unit is not connected to external device and is not used for 25 minutes.

So does this unit after six hours since Main unit has been connected to other device using analog input.

TV Sound Connecting

You can listen to TV sound through this unit’s speaker automatically when TV is turned on. TV and this unit should be connected with optical cable.

Press W to move and press [Off ]. Select [OK] and press ENTER (b).

to select [On] or

A/D

Initialize

[Factory Set]

You can reset the player to its original factory settings.

[Blu-ray Storage Clear]

Initializes the BD-Live content from the connected USB storage.

Note

If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the online services and network settings again.

Software

[Information]

Displays the current software version.

[Update]

You can update the software by connecting the unit directly to the software update server (page 67).

SIMPLINK / ARC

-The SIMPLINK function allows you to control this unit with LG TV’s remote control.

-The ARC function enables an HDMI capable TV to send the audio stream to HDMI OUT of this player.

Set this option to [On] for activating [SIMPLINK / ARC] function. (page 16)

System Setting

Operating34

Sound Effect

You can select a suitable sound mode. Press SOUND EFFECT repeatedly until the desired mode appears on the front panel display or the TV screen. The displayed items for the equalizer maybe dierent depending on sound sources and eects.

[Natural Plus]: You can enjoy the natural sound eect same as 9.1 channel.

[Natural]: You can enjoy comfortable and natural sound.

[Bypass]: Software with multichannel surround audio signals is played according to the way it was recorded.

[Bass Blast]: Reinforce the bass sound eect from front left and right speaker and subwoofer.

[Clear Voice]: This mode makes voice sound clear, improving the quality of voice sound.

[Game]: You can enjoy more virtual sound while

playing video games.

Operating

[Night]: This may be useful when you want to watch movies at low volumes late at night.

[Up Scaler]: When listening to MP3 les or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources.

[Loudness]: Improves bass and treble sound.

[User EQ]: You can adjust the sound by raising or

lowering the level of specic frequency.

Setting the [User EQ]

1. Use

2. Use

Select [Cancel] option then press ENTER (b) to cancel the setting. Select [Reset] option then press ENTER (b) to reset the all adjustments.

to select the desired frequency.

W/S

to select the desired level.

A/D

3D Sound Effect

3D Sound features deliver sound not only towards the front or rear but also to the top, creating a wider spot so you can enjoy more immersive and cinematic surround sound. Press 3D SOUND repeatedly until the desired mode appears on the front panel display or the TV screen.

[3D Music]: This mode delivers outstanding surround sound, providing a concert hall-like music experience in your home.

[3D Movie]: This mode delivers outstanding surround sound, providing a theater-like movie experience in your home.

Operating 35

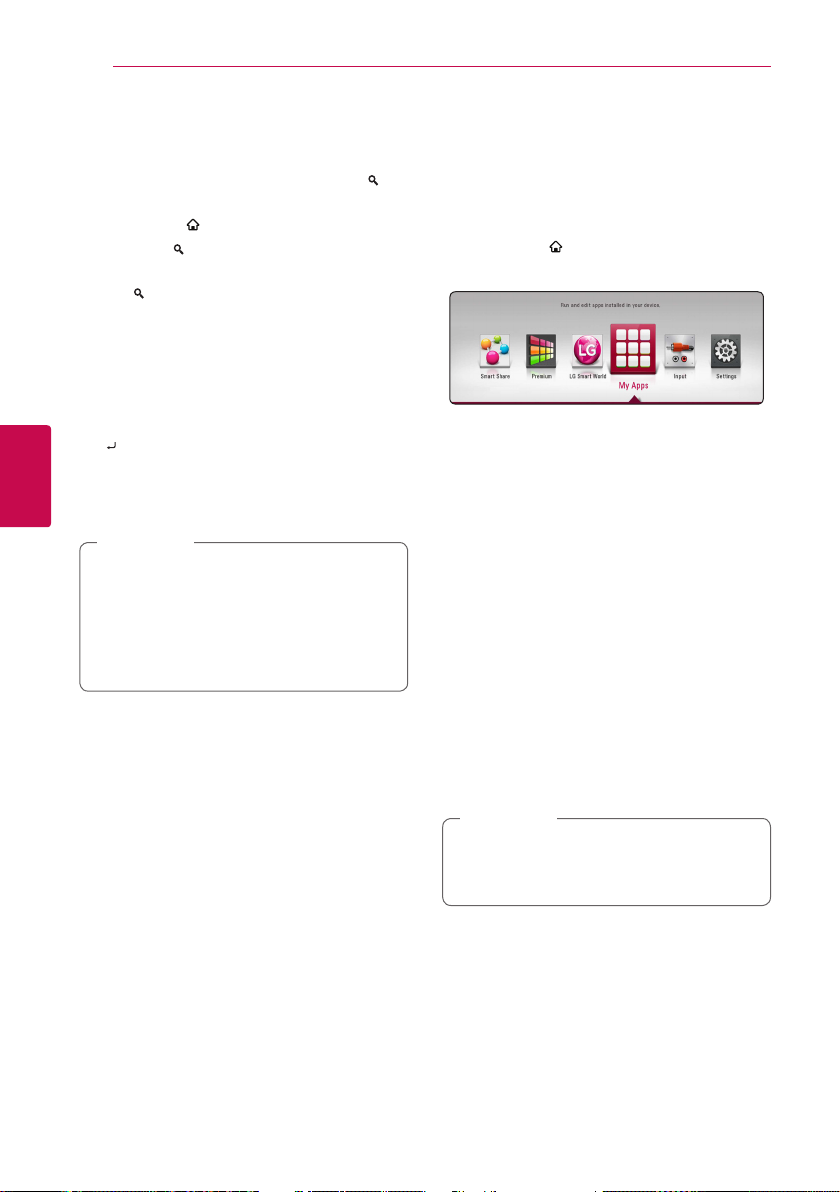

Home Menu Display

Using [HOME] menu

The home menu appears when you press HOME ( ). Use

W/S/A/D

press ENTER (b).

Note

Depending on the region, the [LG Smart World], [My Apps] service and [Search] function may not be available.

a [Smart Share] - Displays Smart Share menu. b [Premium] - Displays the Premium home

screen. (page 58)

c [LG Smart World] - Displays LG Apps titles

provided to the unit. (page 59)

d [My Apps] - Displays the [My Apps] screen.

(page 60)

e [Input] - Changes input mode. f [Settings] - Adjusts the system settings. g [Search] - Searches for desired LG Apps and

Using the Smart Share

You can play video, photo and audio content on the unit by inserting a disc, connecting an USB device or using home network (DLNA).

1. Press HOME ( ) to display the home menu.

2. Select [Smart Share] and press ENTER (b).

Displays all linked device.

Displays video, photo or audio content.

Displays the le or folder on linked device.

Operating

Operating36

Playing the Linked Devices

Playing a disc

erot

1. Insert a disc in the disc slot. For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.

2. Press HOME ( ) and then select [Smart Share].

3. Select disc icon.

Note

yPlayback functions described in this manual

are not always available in every les and media. Some functions can be restricted depending on many factors.

Operating

yDepending on the BD-ROM titles, an USB

device connection may be needed for the proper playback.

yUnnalized DVD-VR format discs may not

be played in this player.

ySome DVD-VR discs are made with CPRM

data by DVD RECORDER. This unit cannot support these kinds of discs.

Playing Blu-ray 3D disc

This player can play the Blu-ray 3D disc which contains separate views for the left and right eyes.

Preparation

In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to:

Check your TV is 3D capable and has HDMI

input(s).

y Wear 3D glasses to enjoy the 3D experience

if it is necessary.

Check whether the BD-ROM title is the Blu-

ray 3D disc or not.

Connect an HDMI cable (Type A, High

Speed HDMI™ Cable) between the player’s HDMI output and TV’s HDMI input.

1. Press HOME ( ), and set the [3D Mode] option on the [Settings] menu to [On] (page 29).

2. Insert a disc in the disc slot. The playback starts automatically.

3. Refer to the owner’s manual of your 3D-ready TV for the further instruction.

You may need to adjust the display settings and focus on your TV’s setting for the improved 3D eect.

Caution

yWatching a 3D content for a long period

time may cause dizziness or tiredness.

yIt is not recommended to watch a video

in 3D mode for inrm, child and pregnant woman.

yIf you are experiencing headache, tiredness

or dizziness while viewing content in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

Operating 37

Playing a file on disc/USB device

yui

This player can play video, audio and photo les contained in the disc or USB device.

1. Insert a data disc in the disc slot or connect an USB device.

When you connect the USB device on the HOME menu, the player plays an audio le contained in the USB storage device automatically. If the USB storage device is containing various types of les, a menu for the le type selection will appear.

File loading may takes few minutes depending on the number of content stored in the USB storage device. Press ENTER (b) while [Cancel] is selected to stop loading.

2. Press HOME ( ).

3. Select [Smart Share] and press ENTER (b).

Notes on USB device

yThis player supports USB ash drive/external

HDD formatted in FAT32 and NTFS when accessing les (music, photo, movie). However, for BD-Live and Audio CD recording, use the USB ash drive / external HDD formatted in FAT32.

yThis unit can support up to 4 partitions of the

USB device.

yDo not extract the USB device during operation

(play, etc.).

yAn USB device which requires additional

program installation when you have connected it to a computer, is not supported.

yUSB device: USB device that supports USB1.1

and USB2.0.

yVideo, audio and photo les can be played. For

details of operations on each le, refer to relevant pages.

yRegular back up is recommended to prevent

data loss.

yIf you use an USB extension cable, USB HUB or

USB Multi-reader, the USB device may not be recognized.

ySome USB device may not work with this unit.

yDigital camera and mobile phone are not

supported.

yUSB Port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

Operating

4. Select the desired linked device in the category.

5. Select [Movie], [Photo] or [Music].

6. Select a file using

(PLAY) or ENTER (b) to play the file.

W/S/A/D

, and press

Operating38

Playing a file on a network server

yui

This player can play video, audio and photo les located in a DLNA server through your home network.

1. Check the network connection and settings (page 20).

2. Press HOME ( ).

3. Select [Smart Share] and press ENTER (b).

4. Select a DLNA media server in the category.

5. Select [Movie], [Photo] or [Music].

Operating

6. Select a file using

(PLAY) or ENTER (b) to play the file.

W/S/A/D

, and press

Note

yThe le requirements are described on page

69.

yThe thumbnail of the unplayable les can

be displayed, but those cannot be played on this player.

yThe subtitle le name and video le name

have to be the same and located at the same folder.

yThe playback and operating quality may be

aected by your home network condition.

yYou may experience connection problems

depending on your server’s environment.

yTo set your PC as a DLNA server, install the

supplied Nero MediaHome 4 on your PC. (page 39)

Operating 39

Using Home Network Server for PC

DLNA stands for Digital Living Network Alliance, which allows users to access video, photo and audio les stored in server and enjoy them on TV via home networking.

Before connecting to PC to play a le , Nero MediaHome 4 Essentials program should be installed on your PC.

Installing Nero MediaHome 4 Essentials

Windows

Start up your computer, and insert the supplied CDROM disc into your computer’s CD-ROM drive. An installation wizard will walk you through the quick and uncomplicated installation process. To install Nero MediaHome 4 Essentials, proceed as follows:

1. Close all Microsoft Windows programs and exit any anti-virus software that may be running.

2. Insert the supplied CD-ROM disc into your computer’s CD-ROM drive.

3. Click [Nero MediaHome 4 Essentials].

4. Click [Run] to start installation.

5. Click [Nero MediaHome 4 Essentials]. The installation is prepared and the installation wizard appears.

6. Click the [Next] button to display the serial number input screen. Click [Next] to go to the next step.

7. If you accept all conditions, click [I accept the License Conditions] check box and click [Next]. Installation is not possible without this agreement.

8. Click [Typical] and click [Next]. The installation process is started.

9. If you want to take part in the anonymous collection of data, select the check box and click the [Next] button.

10. Click the [Exit] button to complete the installation.

MAC OS X

1. Start up your computer, and insert the supplied CD-ROM disc into your computer’s CD-ROM drive.

2. Browse the CD-ROM drive and open the “MediaHome_4_Essentials_MAC” folder.

3. Double-click the “Nero MediaHome.dmg” image le. The Nero MediaHome window is opened.

4. In the Nero MediaHome window, drag the Nero MediaHome icon either to the Applications folder within the window or to any other desired location.

5. You can now start the application by doubleclicking the Nero MediaHome icon in the location you dragged it to.

Sharing files and folders

On your computer, you must share the folder contained video, audio and/or photo content to play them on this player.

This parts explains the procedure for selecting the shared folders on your computer.

1. Double-click the “Nero MediaHome 4 Essentials” icon.

2. Click [Network] icon on the left and dene your network name in the [Network name] eld. The Network name you enter will be recognized by your player.

3. Click [Shares] icon on the left.

4. Click [Local Folders] tab on the [Shares] screen.

5. Click [Add] icon to open the [Browse Folder] window.

6. Select the folder containing the les you want to share. The selected folder is added to the list of shared folders.

7. Click [Start Server] icon to start the server.

Note

yIf the shared folders or les are not displayed

on the player, click the folder on the [Local Folders] tab and click [Rescan Folder] at the [More] button.

yVisit www.nero.com for more information

and software tools.

Operating

Operating40

About Nero MediaHome 4 Essentials

Nero MediaHome 4 Essentials is a software for sharing video, audio and photo les stored on your computer to this unit as a DLNA-compatible digital media server.

Note

yThe Nero MediaHome 4 Essentials CD-

ROM is designed for PCs and should not be inserted in this player or in any product other than a PC.

yThe supplied Nero MediaHome 4 Essentials

CD-ROM is a customized software edition only for sharing les and folders to this player.

yThe supplied Nero MediaHome 4 Essentials

software does not support following functions: Transcoding, Remote UI, TV control, Internet services and Apple iTunes.

yThe supplied Nero MediaHome 4 Essentials

software can be downloaded at

-Windows : http://www.nero.com/ download.php?id=nmhlgewin

-Mac OS : http://www.nero.com/ download.php?id=nmhlgemac

yThis manual explains operations with

the English version of Nero MediaHome 4 Essentials as examples. Follow the explanation referring to the actual operations of your language version.

System requirements

Windows PC

yWindows® XP (Service Pack 2 or higher), Windows

Vista® (no Service Pack required), Windows® 7 (no Service Pack required), Windows® XP Media Center Edition 2005 (Service Pack 2 or higher), Windows Server® 2003

yWindows Vista® 64-bit edition (application runs

in 32-bit mode)

yWindows® 7 64-bit edition (application runs in

32-bit mode)

yHard drive space: 200 MB hard drive space for a

typical installation of Nero MediaHome standalone

y1.2 GHz Intel® Pentium® III or AMD

Sempron™ 2200+ processors

yMemory: 256 MB RAM

yGraphics card with at least 32 MB video memory,

minimum resolution of 800 x 600 pixels, and 16bit color settings

yWindows® Internet Explorer® 6.0 or higher

yDirectX® 9.0c revision 30 (August 2006) or higher

yNetwork environment: 100 Mb Ethernet, WLAN

Macintosh

yMac OS X 10.5 (Leopard) or 10.6 (Snow Leopard)

yMacintosh computer with an Intel x86 processor

yHard drive space: 200 MB hard drive space for a

typical installation of Nero MediaHome standalone

yMemory: 256 MB RAM

Operating 41

General Playback

Basic operations for video and audio content

To stop playback

Press Z (STOP) during playback.

To pause playback

Press M (PAUSE) during playback. Press d (PLAY) to resume playback.

To play frame-by-frame (Video)

Press M (PAUSE) during video playback. Press M (PAUSE) repeatedly to play Frame-by-Frame playback.

To scan forward or backward

Press c or v to play fast forward or fast reverse during playback.

You can change the various playback speeds by pressing c or v repeatedly.

To slow down the playing speed

While the playback is paused, press v repeatedly to play various speeds of slow motion.

To skip to the next/previous chapter/track/file

During playback, press C or V to go to the next chapter/track/le or to return to the beginning of the current chapter/track/le.

Press C twice briey to step back to the previous chapter/track/le.

In the le list menu of a server, there may have many types of content in a folder together. In this case, press C or V to go to the previous or next content with same type.

Basic operations for photo content

To play a slide show

Press d (PLAY) to start slide show.

To stop a slide show

Press Z (STOP) while slide show.

To pause a slide show

Press M (PAUSE) while slide show. Press d (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press A or D to go to the previous or next photo.

Using the disc menu

ero

To display the disc menu

The menu screen may be displayed rst after loading a disc which contains a menu. If you want to display the disc menu during playback, press DISC MENU.

Use

W/S/A/D

menu items.

To display the Popup menu

Some BD-ROM discs contain Popup menu that appears during playback.

Press TITLE/POPUP during playback, and use

S/A/D

items.

buttons to navigate through

buttons to navigate through menu

Operating

Operating42

Resume playback

eroyt u

The unit records the point where you pressed the

(STOP) depending on the disc.

If “MZ (Resume Stop)” appears on the screen briey, press d (PLAY) to resume playback (from the scene point). If you press Z (STOP) twice or unload the disc, “Z(Complete Stop)” appears on the screen. The unit will clear the stopped point.

Note

yThe resume point may be cleared when a

button is pressed (for example; 1 (POWER),

(OPEN/CLOSE), etc).

yOn BD-ROM discs with BD-J, the resume

playback function does not work.

Operating

yIf you press Z (STOP) once during BD-ROM

interactive title playback, the unit will be in Complete Stop mode.

Last scene memory

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch o the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note

yLast Scene Memory function for a previous

disc is erased once a dierent disc is played.

yThis function may not work depending on

the disc.

yOn BD-ROM discs with BD-J, the last scene

memory function does not work.

yThis unit does not memorize settings of

a disc if you switch o the unit before commencing to play it.

Operating 43

On-Screen Display

You can display and adjust various information and settings about the content.

To control video playback

eroy

You can control playback and set options while watching videos.

During playback, press INFO/MENU (m).

a Progress bar - Displays the current position

and total playing time.

b [Disc Menu] - Accesses menu on a disc. c [Title/Popup] - Displays the DVD title menu

or BD-ROM’s popup menu, if available.

d [Option] - Displays playback information. e [Music ID] - When connected to the network,

can provide information about the current song during video playback.

f [Repeat] - Repeats a desired section or

sequence. (page 45)

g [3D] - Adjusts the 3D setting. (page 49)

Displaying content information onscreen

eroy

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b).

a Title – Current title number/total number of

titles

b Chapter – Current chapter number/total

number of chapters

c Time – Elapsed playing time/total playback

time

d Audio – Selected audio language or channel e Subtitle – Selected subtitle. f Angle – Selected angle/total number of

angles

g TV Aspect Ratio – Selected TV aspect ratio h Picture Mode – Selected picture mode i Movie Information – Select this option and

press ENTER (b) to display movie information from Gracenote Media Database (BD-ROM/ DVD only).

A/D

, and press

Operating

Operating44

Note

yIf no button is pressed for a few seconds,

the on-screen display disappears.

yA title number cannot be selected on some

discs.

yAvailable items may dier depending on

discs or titles.

yIf an interactive Blu-ray Disc is playing back,

some setting information is displayed on the screen but prohibited to be changed.

yTo use the [Movie Information] option, the

player must be connected to the broadband internet for accessing the Gracenote Media Database.

yLG is a licensee of Gracenote technology

and is not responsible or liable for information from the Gracenote Media Database.

Operating

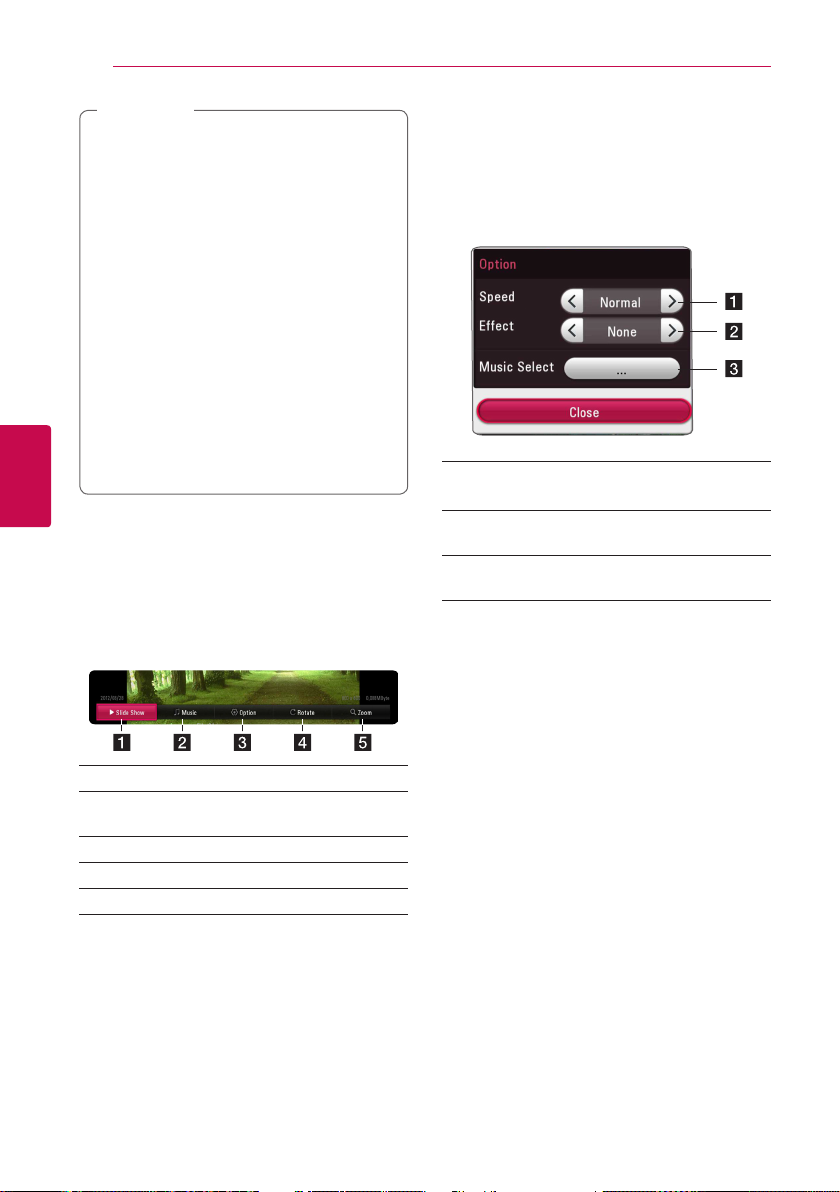

To control photo view

Controls playback and sets options while viewing pictures in full screen.

You can control playback and set options while viewing pictures in full screen.

While viewing pictures, press INFO/MENU (m).

Setting the slide show option

You can use various options during viewing a photo in full screen.

1. While viewing pictures, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

a [Speed] - Use

speed between photos in a slide show.

b [Eect] - Use

effect between photos in a slide show.

c [Music Select] – Select the background music

for the slide show (page 49).

A/D

to select a transition

A/D

, and press

A/D

to select a delaying

a [Slideshow] - Starts or pause slide show. b [Music] - Select the background music for the

slide show (page 49).

c [Option] - Displays slide show options. d [Rotate] - Rotates the photo clockwise. e [Zoom] - Displays the [Zoom] menu.

Operating 45

Advanced Playback

Repeat playback

erotu y

Blu-ray Disc / DVD / Video les

During playback, press REPEAT (h) to select a desired repeat mode.

A-B – Selected portion will be repeated continually.

Chapter – The current chapter will be played back

repeatedly.

Title – The current title will be played back repeatedly.

All – All the titles or les will be played back repeatedly.

O – Returns to normal playback.

To return to normal playback, press CLEAR.

Audio CDs/Audio les

During playback, press REPEAT (h) repeatedly to select a desired repeat mode.

– Selected portion will be repeated continually.

(Audio CD only)

Track– The current track or le will be played

back repeatedly.

All – All the tracks or les will be played back

repeatedly.

All – All the tracks or les will be played

back repeatedly in random order.

– The tracks or les will be played back in

random order.

To return to normal playback, press CLEAR.

Note

This function may not work on some disc or title.

Repeating a specific portion

eroty

This player can repeat a portion you have selected.

1. During playback, press REPEAT (h) to select [A-B] and press ENTER (b) at the beginning of the portion you wish to repeat.

2. Press ENTER (b) at the end of the portion. Your selected portion will be repeated continually.

3. To return to normal playback, press CLEAR.

Note

yYou cannot select a portion less than 3

seconds.

yThis function may not work on some disc or

title.

Playing from selected time

eroy

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

3. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to nd a scene at 2 hours, 10 minutes, and 20 seconds, enter “21020”.

Press forward or backward.

4. Press ENTER (b) to start playback from selected time.

yThis function may not work on some disc or

titles.

yThis function may not work depending on

the le type and ability of the DLNA server.

to skip the playback 60 seconds

A/D

Note

A/D

, and press

Operating

Operating46

Selecting a subtitle language

eroy

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

3. Use

4. Use By pressing ENTER (b), you can set various subtitle options.

5. Press BACK (1) to exit the On-Screen display.

Some discs allow you to change subtitle selections only via the disc menu. If this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu.

to select the [Subtitle] option.

W/S

to select desired subtitle language.

A/D

Note

A/D

Operating

Hearing a different audio

eroy

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

3. Use

4. Use audio track or audio channel.

ySome discs allow you to change audio

selections only via the disc menu. In this case, press TITLE/POPUP or DISC MENU button and choose the appropriate audio from the selections on the disc menu.

yImmediately after you have switched sound,

there may be a temporary discrepancy between the display and actual sound.

yOn BD-ROM disc, the multi audio format

(5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display.

yYou can select the [Audio] option on the

On-Screen display directely by pressing AUDIO button.

to select the [Audio] option.

W/S

to select desired audio language,

A/D

Note

A/D

, and press

Watching from a different angle

If the disc contains scenes recorded at dierent camera angles, you can change to a dierent camera angle during playback.

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

3. Use

4. Use

5. Press BACK (1) to exit the On-Screen display.

Changing the TV Aspect Ratio

to select the [Angle] option.

W/S

to select desired angle.

A/D

, and press

eoy

You can change the TV aspect ratio setting during playback.

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

3. Use option.

4. Use

5. Press BACK (1) to exit the On-Screen display.

Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Settings] menu is not changed.

to select the [TV Aspect Ratio]

W/S

to select desired option.

A/D

Note

A/D

, and press

Operating 47

Changing subtitle Code Page

If the subtitle is displayed in broken letter, you can change the subtitle code page to view the subtitle le properly.

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

3. Use

4. Use

5. Press BACK (1) to exit the On-Screen display.

to select the [Code Page] option.

W/S

to select desired code option.

A/D

, and press

Changing the Picture Mode

eroy

You can change the [Picture mode] option during playback.

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

3. Use

4. Use

5. Press BACK (1) to exit the On-Screen display.

to select the [Picture Mode] option.

W/S

to select desired option.

A/D

, and press

Setting the [User setting] option

1. During playback, press INFO/MENU (m).

2. Select an [Option] using ENTER (b)

4. Use

W/S

5. Use

A/D

and press ENTER (b).

6. Use

W/S/A/D

options.

Select [Default] option then press ENTER (b) to reset the all video adjustments.

7. Use

W/S/A/D

and press ENTER (b) to nish setting.

to select the [Picture Mode] option.

to select the [User setting] option,

A/D

to adjust the [Picture Mode]

to select the [Close] option,

Viewing content information

The player can display the content information.

1. Select a le using

2. Press INFO/MENU (m) to display the option menu.

The le information appears on the screen.

During video playback, you can display the le information by pressing TITLE/POPUP.

Note

The information displayed on the screen may not correct comparing actual content information.

W/S/A/D

, and press

Operating

Operating48

Changing content list view

yui

On the [Smart Share] menu, you can change the content list view.

Press red (R) colored button repeatedly.

Operating

Selecting a subtitle ﬁle

If the subtitle le name is dierent from the video le name, you need to select the subtitle le on the [Movie] menu before playing the movie.

1. Use

W/S/A/D

wish to play in the [Movie] menu.

2. Press ENTER (b).

Press ENTER (b) again to deselect the subtitle le. Selected subtitle le will be displayed when you play the video le.

Note

yIf you press Z (STOP) during playback, the

subtitle selection is cancelled.

yThis function is not available for playing le

on a server via home network.

to select the subtitle le you

Operating 49

Listening to music during slide show

You can display photo les while listening to audio les.

1. While viewing a photo in full screen, press INFO/ MENU (m) to display the option menu.

2. Select an [Option] using ENTER (b).

3. Use press ENTER (b) to display the [Music Select] menu.

4. Use (b).

Available device may differ depending on the location of the current photo file.

5. Use play.

to select [Music Select] option, and

W/S

to select a device, and press ENTER

W/S

Photo location Available Device

Disc, USB Disc, USB

DLNA server DLNA server

to select a file or a folder you wish to

W/S

A/D

, and press

Converting 2D content to 3D

eroy

This function allows you to convert 2D content to 3D. You can adjust 3D’s depth and distance on the [3D] option while playing back.

1. During playback, press INFO/MENU (m).

2. Select a [3D], and press ENTER (b).

3. Use

W/S/A/D

Select [Default] option then press ENTER (b) to reset the all adjustments.

4. Use

W/S/A/D

and press ENTER (b) to nish setting.

Note

yWhen you have set to Ultra HD resolution,

if you select the [On] in [3D], the Ultra HD resolution is automatically changed to the original resolution.

yMovie les which is upper 30 fps (frame

rate) may not be converted to 3D.

to select desired options.

to select the [Close] option,

Operating

Select g and press ENTER (b) to display the upper directory.

Note

When selecting audio le from a server, folder selection is not available. Only le selection is available.

6. Use D to select [OK], and press ENTER (b) to complete music selection.

Operating50

Advanced Features

Wi-Fi Direct™

Connecting to a Wi-Fi Direct™ certified device

yui

This player can play movie, music and photo les located in a Wi-Fi Direct™ certied device. The Wi-Fi Direct™ technology make the player to be directely connected to a Wi-Fi Direct™ certied device without connecting to a network device such as an access point.

On Wi-Fi Direct™ certied device

1. Turn on the Wi-Fi Direct™ certied device and run its Wi-Fi Direct function.

2. Run DLNA application on the device.

Operating

On your player

3. Select [NETWORK] option in the [Settings] menu then press ENTER (b).

4. Select [Wi-Fi Direct] option, and press ENTER (b).

5. Select a Wi-Fi Direct™ device on the list using

, and press ENTER (b).

W/S

If you want to rescan available Wi-Fi Direct™ device, Select the [Refresh List] and press ENTER (b).

To select a server from the device list, files or folders must be shared by DLNA server from the connected Wi-Fi Direct™ device.

6. Select [Movie], [Photo] or [Music] using

7. Select a le using

, and press ENTER (b).

A/D

ENTER (b) to play the le.

Note

yFor the purpose of the better transmission,

placing the player from the Wi-Fi Direct™ certied server as close as possible.

yThis unit can connect only 1 device at a

time. Multiple connection is not available.

yIf this player and a Wi-Fi Direct™ device

are connected to the different local area network, Wi-Fi Direct™ connection may not available.

yIf a Wi-Fi Direct™ certified device is not in

Wi-Fi direct standby mode, this product can not find the device.

yWhen you connect a Wi-Fi Direct™

certified device to your player, PIN network connection is not supported.

yThis product cannot connect to a Wi-Fi

direct™ device which is in Group Owner mode.

W/S/A/D

, and press

W/S/

Wi-Fi Direct™ connection will be proceeded. follow the procedure on the screen.

Operating 51

Enjoying Miracast™

You can mirror Miracast certied device’s screen and sound onto TV screen through your player wirelessly.

On Miracast™ certied device

1. Turn on the Miracast certied device and run its [Miracast] function.

On your player

2. Press HOME ( ).

3. Select [Miracast] and press ENTER (b).

4. Select a Miracast device on the list using and press ENTER (b).

Miracast function will be proceeded automatically.

If you want to rescan available Miracast device, select [Refresh List] and press ENTER (b).

Note

yFor the purpose of the better mirroring,

place Miracast certied device from the player as close as possible.

yThis unit can connect only 1 device at a

time. Multiple connection is not available.

yWhile mirroring, Wireless network or Wi-Fi

Direct cannot be used simultaneously.

yIf a Miracast certified device is not in

[Miracast] standby mode, this player cannot find the device.

yDepending on your wireless network

condition, mirroring may be unstable.

yWhile mirroring, the screen may be cut o

depending on your TV’s setting. In this case, please adjust the display settings on your TV.

W/S

Enjoying BD-Live™

BD-ROM supporting BD-Live that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings (page 20).

2. Insert an USB storage device to the USB port on the front panel.

An USB storage device is needed to download bonus content.

3. Press HOME ( ), and set the [BD-LIVE connection] option on the [Settings] menu (page 27).

Depending on a disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted].

4. Insert a BD-ROM with BD-Live.

The operations may dier depending on the disc. Refer to the manual supplied with the disc.

Caution

Do not extract the connected USB device while content is being downloaded or a Blu-ray disc is still in the disc slot. Doing so may damage the connected USB device and BD-Live features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

Note

ySome BD-Live content may be restrictively

accessed in some territories by content provider’s own decision.

yIt may take up to several minutes to load

and start enjoying BD-Live content.

yFor BD-Live, use the USB ash drive /

external HDD formatted in FAT32 only.

Operating

Operating52

Audio CD recording

You can record one desired track or all of the tracks in Audio CD to an USB storage device.

1. Insert an USB storage device to the USB port on the front panel.

2. Insert an Audio CD into the player. The playback starts automatically.

3. Press (X) REC button to start [CD Recording].

Stop mode

Recording

track

Recording

time

All of the tracks playing track

4X speed

Recording from FM radio or AUX source

You can record from FM radio or AUX source to an

Operating

USB storage device.

1. Insert an USB storage device to the USB port on the front panel.

2. In FM radio mode, tune to the desired radio station (See “Radio Operations” on page 57) or in AUX mode, start playback from the external source (See “AUX Connection” on page 18).

3. Press (X) REC button on the remote control.

-The recording is saved as a le in “EXT_REC” folder.

During

playback

normal speed.

Note

yFor recording, use the USB ash drive /

external HDD formatted in FAT32 only.

yAudio track is recorded to an audio le with

192 kbps. FM radio and AUX source are recorded to an audio le with 128 kbps.

yAudio CD recording time in the table is

approximate.

yActual recording time for USB storage

device varies depending on the USB storage device’s ability.

yMake sure that there is minimum of 50 MB

free space is needed when recording into the USB storage device.

yThe length of the recording source should

be longer than 20 seconds for the proper recording.

yDo not turn o this player or extract the

connected USB storage device during the recording.

Caution

The recording or copying features on this player are provided for your personal and non-commercial use. The making of unauthorized copies of copy-protected material, including computer programs, les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal oense. This equipment should not be used for such purposes. LG expressly disclaims any responsibility for illegal distribution or use of unauthorized content in commercial purpose.

Be Responsible

Respect Copyrights

Operating 53

LG Tag On

LG Tag On allows you to install and open “LG AV Remote” app to NFC-enabled phone.

1. Stick the supplied LG Tag On sticker on this player.

Note

We suggest you rst think carefully about the sticker position, because it is dicult to remove after sticking it once.

2. Tag the back of your NFC-enabled phone over the LG Tag On sticker.

-If “LG AV Remote” app is not installed on your NFC-enabled phone, the linked screen with “LG AV Remote” app is displayed.

-If “LG AV Remote” app is installed on your NFC-enabled phone, “LG AV Remote” app is activated.

Note

yYou must activate the NFC feature of your

NFC-enabled phone for Android 4.0 or later.

yIf your NFC-enabled phone’s screen is

locked, it will not read the LG Tag On sticker.

yIf your smart phone case is plated with

chrome, NFC is unavailable. Depending on your case’s material or thickness, NFC may not be read well.

Private Sound Mode

By downloading “LG AV Remote” application on your smart phone or tablet, you can connect your headsets, and enjoy the sound from your player on your smart devices.

This feature transmits video signal to TV through HDMI and audio signal to smart phone or tablet through Wi-Fi. For more detailed information, please refer to the Help menu on “LG AV Remote” application.

Operating

LG AV Remote

You can control this player with your iPhone or Android phone via your home network. This player and your phone must be connected to your wireless network device such as access point. Visit “Apple iTunes” or “Google Android Market (Google Play Store)” for detailed information of “LG AV Remote”.

Operating54

Viewing information from Gracenote Media Database

The player can access the Gracenote Media Database and load the music information so that Track name, Artist Name, Genre and other text information can be displayed on the list.

Audio CD

When you insert an Audio CD, the player starts playback automatically and loads the music title from the Gracenote Media Database.

If there is no music information from the database, music titles will not appear on the screen.

Music ﬁle

Select a music le using INFO/MENU (m) or MUSIC ID. The player accesses to Gracenote Media Database for the music information.

Operating

Blu-ray Disc/DVD/Movie ﬁle

1. While listening to a music from the movie being played, press INFO/MENU (m).

2. Select a [Music ID] using ENTER (b).

The player starts loading the music information from the Gracenote Media Database.

Note

You can also start loading the music information directly by pressing MUSIC ID.

W/S/A/D

A/D

and press

, and press

Note

yThe player must be connected to the

broadband internet for accessing the Gracenote Media Database.

yIf the music information is not in the

Gracenote Media Database, message appears on the screen.

yDepending on the cases, it will takes a few

minutes to load music information from the Gracenote Media Database.

yInformation may be displayed in broken

letters, if the language you selected is not available on the Gracenote Media Database.

yThis function is not available for on-line

content and content in DLNA servers.

yLG is a licensee of Gracenote technology

and is not responsible or liable for information from the Gracenote Media Database.

yAudio CDs that users made for their only

private purposes cannot be supported in this feature because they are not in the Gracenote Media Database.

ySupported music le extensions :

mp3, wma, m4a, wav

Playing the iPod

You can enjoy the sound with your iPod. For details about iPod, refer to the iPod’s User Guide.

Operating 55

Preparation

Before connecting the iPod, turn this unit o and reduce the volume of this unit to its minimum.

Note

Use the iPod cable supplied with your iPod.

1. Connect the iPod to the USB port on the front panel. If you turn this unit on, your iPod is automatically turned on and recharging starts.

When you connect the iPod on the HOME

menu, the player plays a music automatically.

2. Select a le using ENTER (b) to play the le.

W/S/A/D

, and press

Enjoying iPod on the screen

1. Connect the iPod to the USB port on the front panel.

2. Press HOME ( ).

3. Select [Smart Share] using iPod on the menu.

4. Select a le using ENTER (b) to play.

You can search easily a content by power scroll on the screen.

Select a power scroll using D and select the initial of the desired content.

W/S/A/D

A/D

, select the

, and press

Power scroll

Press REPEAT (h) to select a desired repeat mode :Track (;), All (:), Shuffle All (l :), Shuffle (l), Off (No display)

Note

If the iPod’s OSD language is selected to simple chinese, the power scroll function is not operated correctly.

Enjoying the iPod IN mode

Please control directly from your iPod. You can control your music in your iPod with the supplied remote control.

1. Connect the iPod to the USB port on the front panel. If you turn this unit on, your iPod is automatically turned on and recharging starts.

2. Press FUNCTION to select iPod in mode.

W/S/A/D

ENTER (b) Starts playback the music.

or d (PLAY)

(Press and hold)

c/v

C/V

Selects an option in the menu.

To pause while it is playing. To resume playing, press M or d (PLAY) again.

Fast-forward or rewind a song

Skip the playback forward or backward .

Operating

Operating56

Note

yAn error message “CHECK” or “Connected

iPod model is not supported.” appears when:

-your iPod is not available for the function to be operated.

yAn error message “CHECK” or “Please update

your iPod’s software.” appears when:

-your iPod has an old software version.

Update your iPod software to latest

version.

yIf this unit displays an error message, follow

the message. An error message “CHECK” or “Please check your iPod.” appears when:

-the communication between this unit and your iPod is failed.

Connect & reconnect your iPod in this

unit.

-your iPod is not connected rmly.

-this unit recognises your iPod as unknown device.

yYour iPod is exceptionally low on power.

The battery needs to be charged.

If you charge the battery while iPod

is extremely low in power, it may take longer to charge.

yCompatibility with your iPod may vary

depending on the type of your iPod.

yiPod touch, iPhone and iPad have any

dierence in operation other than iPod. You may need any additional control to use them with this unit. (e.g. “slide to unlock”)

yIf you use an application, make a call, or

send and receive SMS text message, etc. on iPod touch, iPhone or iPad, disconnect it from to the USB port of this unit and then use it.

yDepending on your iPod’s software version,

it may not be possible to control your iPod from this unit. We recommend installing the latest software version.

yThis unit supports the models as follows.

- iPad nano 4G, 5G, 6G, 7G

- iPod touch 3G, 4G, 5G

- iPhone 3GS, 4, 4S, 5

- iPad, iPad2, iPad3, iPad4

- iPad mini

yIf you have a problem with your iPod, please

visit www.apple.com/support/ipod.

Operating 57

Radio Operations

Be sure that the antenna is connected. (Refer to the page 17)

Listening to the radio

1. Press FUNCTION until TUNER (FM) appears in the display window. The last received station is tuned in.

2. Press and hold TUNING (-/+) for about two seconds until the frequency indication starts to change. Scanning stops when the unit tunes in a station. Or Press TUNING (-/+) repeatedly.

3. Adjust the volume by pressing VOL (+/-).

Presetting the Radio Stations

You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume.

1. Press FUNCTION until the TUNER (FM) appears in the display window.

2. Select the desired frequency by using TUNING (-/+).

3. Press ENTER (b) a preset number will ash in the display window.

4. Press PRESET (-/+) to select the preset number you want.

5. Press ENTER (b). The station is stored.

6. Repeat the steps 2 to 5 to store other stations.

Deleting a saved station

1. Press PRESET (- / +) to select a preset number you want to delete.

2. Press CLEAR, the preset number will blink in the display window.

3. Press CLEAR again, to delete the selected preset number.

Deleting all the saved stations

Press and hold CLEAR for two seconds. “ERASE ALL” will ash up. Press CLEAR again. Then all the saved stations are deleted.

Improving poor FM reception

Press B (blue) (MONO/STEREO) colored button on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

Operating

Operating58

Using an USB keyboard or mouse

You can connect an USB keyboard and/or mouse to type text and navigate menus.

1. Connect an USB keyboard or mouse to the USB port on the rear panel.

2. Use the keyboard to type text, or the mouse to navigate menus.

Note

The following keyboards and mice are recommended.

-Logitech Wireless Combo MK520

-Logitech Wireless Combo MK320

-Logitech Wireless Combo MK260

-Microsoft Wireless Desktop 5000

-Microsoft Wireless Desktop 3000

Operating

-Microsoft Wireless Desktop 2000

-Microsoft Wireless Desktop 800

Using the Premium

You can use various content services via Internet with the Premium feature.

1. Check the network connection and settings (page 20).

2. Press HOME ( ).

3. Select the [Premium] using ENTER (b).

4. Select an online service using and press ENTER (b).

Note

yFor detailed information of each service,

contact to the content provider or visit support link of the service.

yThe content of Premium services and

service related information, including user interface, is subject to changes. Please refer to the web site of each service for most upto-date information.

yUsing Premium features with wireless

network connection may result in improper streaming speed by interference from household devices that are using radio frequencies.

yIf you want to change the country setting,

go to [Settings] > [NETWORK] > [Smart Service Setting] > [Country Setting]. Select [Manual] and press ENTER (b) on [Country Setting] menu.

, and press

A/D

W/S/A/D

Operating 59

Using the LG Smart World

You can use the LG application services on this player via Internet. You can easily nd and download various applications from LG Smart World.

1. Check the network connection and settings (page 20).

2. Press HOME ( ).

3. Select the [LG Smart World], and press ENTER (b).

4. Select a category using (b).

5. Use

W/S/A/D

press ENTER (b) to display the information.

6. Press ENTER (b) while [Install] icon is highlighted. The application will be installed to the player.

To install an application to the player, user needs to sign in. Refer to page 59 for more information of signning in.

7. Press red (R) colored button to display the [My Apps] screen.

8. Select the installed application and press ENTER (b) to excute it.

Note

yDepending on the region, the [LG Smart

World], [My Apps] service and [Search] function may not be available.

yTo install a paid application, you need to be

a paid member. Visit www.lgappstv.com for more information.

to select an application, and

, and press ENTER

A/D

Signing in

To use the [LG Smart World] feature, you need to sign in with your account.

1. On the home menu, select [ ] icon and press ENTER (b).

2. Fill the [ID] and [Password] field using the virtual keyboard.

If you do not have an account, press red (R) colored button to register.

3. Use

W/S/A/D

ENTER (b) to sign in with your account.

If you select the [Auto Sign In] check box, your ID and password are remembered and automatically signed in without entering them.

Note

To view the information of your account and applications, select [ ] icon and press ENTER (b) on home menu, and select [My Page] option.

to select [OK], and press

Operating

Operating60

Searching online content

If you are having diculties nding specic content from online services, you can use the all-in-one search function by entering keywords in the [ ] menu.

1. Press HOME ( ).

2. Select the [ ] icon on the home menu using

W/S/A/D

The [ ] menu appears on the screen.

3. Press ENTER (b). The virtual keyboard appears automatically.

4. Use

W/S/A/D

ENTER (b) to confirm your selection on the virtual keyboard.

5. When you finish entering the keyword, select [ ] and press ENTER (b) to display search result.

6. Use

W/S/A/D

and press ENTER (b) to move to the selected

Operating

content directly.

yDepending on the region, the [LG Smart

World], [My Apps] service and [Search] function may not be available.

yThe search function does not search

content in every online services. It works only in certain online services.

, and press ENTER (b).

to select letters then press

to select a desired content,

Note

Using the My Apps Menu

You can move or delete an installed application in the [My Apps] menu.

1. Press HOME ( ).

2. Select the [My Apps], and press ENTER (b).

3. On the [My Apps] menu, press red (R) colored button.

Move an application

1. Select an application, and press ENTER (b) to display the options.

2. Use (b).

3. Use to move to, and press ENTER (b).

Delete an application

1. Select an application, and press ENTER (b) to display the options.

2. Use ENTER(b).

3. Use to confirm.

Depending on the region, the [LG Smart World], [My Apps] service and [Search] function may not be available.

to select [Move], and press ENTER

W/S

W/S/A/D

W/S

A/D

Note

to select a position you want

to select [Delete], and press

to select [OK], and press ENTER (b)

Operating 61

Using Bluetooth technology

About Bluetooth

Bluetooth® is wireless communication technology for short range connection.

The available range is within 10 meters.

(The sound may be interrupted when the connection interfered by the other electronic wave or you connect the bluetooth in the other rooms.) Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology. Available Devices : Mobile phone, MP3, Laptop, PDA

Bluetooth Profiles

In order to use Bluetooth wireless technology, devices must be able to interpret certain profiles. This unit is compatible with following profile.

A2DP (Advanced Audio Distribution Profile)

Listening to music stored on the Bluetooth devices

Pairing your unit and Bluetooth device

Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device’s user guide. Once a pairing operation is performed, it does not need to be performed again.

1. Select the Bluetooth function by using the FUNCTION. Appears “BT READY” in display window.

2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device.Your unit appears as “LG-HTS”.

3. When this unit successfully paired with your Bluetooth device, Bluetooth LED of this unit lights up and “BTPAIRED” appears in the display window.

Note

Depending on the Bluetooth device type, some device have a dierent pairing way.

Operating

4. Listen to music. To play a music stored on your Bluetooth device, refer to your Bluetooth device’s user guide.

Note

If you change the function of the unit, the Bluetooth function is disconnected, operate pairing again.

Operating

Operating62

Note

yThe sound may be interrupted when

the connection interfered by the other electronic wave.

yYou cannot control the Bluetooth device

with this unit.

yPairing is limited one Bluetooth device per

one unit and multi-pairing is not supported.

yAlthough the distance between your

Bluetooth and the set is less than 10m, there are obstacles between both, your Bluetooth device cannot be connected.

yDepending on the type of the device,

you may not be able to use the Bluetooth function.

yWhen not connected the Bluetooth, “BT

READY” appears on the display window.

yThe Electrical malfunction due to devices

using same frequency such as Medical equipment, Microwaves or wireless LAN devices, the connection will be disconnected.

yWhen someone stands and interrupts

communication between Bluetooth device and the player, the connection will be disconnected.

yIf the gotten away of the distance between

Bluetooth and the unit, the sound quality is lower and lower the connection will disconnect when the space between the Bluetooth and the unit gets out of the operating range of Bluetooth.

yThe device with Bluetooth wireless

technology is disconnected, if you turn o the main unit or put the device away from the main unit more than 10m.

Troubleshooting 63

Troubleshooting

General

Symptom Cause & Solution

The Power does not turned on. yPlug the power cord into the wall outlet securely.

The unit does not start playback.

The connected USB storage device is not recognized.

The angle cannot be changed. yMulti-angles are not recorded on the DVD Video being played.

Cannot play video, photo or audio les.

The remote control does not work properly.

The unit is plugged in, but the power will not turn on or o.

The unit is not operating normally.

yInsert a playable disc. (Check the disc type, color system, and regional

code.)

yPlace the disc with the playback side down.

yClean the disc.

yCancel the Rating function or change the rating level.

yTry using dierent USB cable, some USB cables may not support

enough current for normal USB operation.

yIf you use an USB extension cable or USB HUB, the USB devices may

not be recognized.

yAn USB device which requires additional program installation when

you have connected it to a computer is not supported.

yThis unit supports only USB Flash Drive and USB External HDD with

FAT32 or NTFS format.

yThe les are not recorded in a format that the unit can play.

yThe unit does not support the codec of the video le.

yThe remote control is not pointed at the remote sensor of the unit.

yThe remote control is too far from the unit.

yThere is an obstacle in the path of the remote control and the unit.

yThe batteries in the remote control are exhausted.

You can reset the unit as follows.

yUnplug the power cord, wait at least ve seconds, and then plug it in

again.

Troubleshooting

Troubleshooting64

Network

Symptom Cause & Solution

BD-Live feature does not work. yThe connected USB storage may not have enough space. Connect

Streaming video services (such as YouTube™, etc.) are often stopped or “buer” during playback.

Media servers are not displayed on the device list.

Cannot connect the player to

the access point or wireless

Troubleshooting

LAN router.

Access point is not displayed on the “Access point name” list.

the USB storage with at least 1GB free space.

yEnsure that the unit is correctly connected to the local area network

and can access the internet (page 20).

yYour broadband speed may not fast enough to use the BD-Live

features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

yThe [BD-LIVE connection] option in the [Settings] menu is set to

[Prohibited]. Set the option to [Permitted].

yYour broadband service speed may not be fast enough to stream

video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

yThe rewall or anti-virus software on your media server is running.

Turn o the rewall or anti-virus software running on your media server.

yThe player is not connected to the local area network that your media

server is connected.

yThe wireless communication may be interrupted from household

devices that are using radio frequencies. Move the player away from them.

yThe access point or wireless LAN router may not broadcast its SSID.

Set your access point to broadcast its SSID through your computer.

yYour network device such as access point may not set with available

frequency range and channel that this player can support. Try setting the frequency range and channel on the network device setting.

Troubleshooting 65


Symptom Cause & Solution

There is no picture. ySelect the appropriate video input mode on the TV so the picture

Picture noise appears yYou are playing a disc recorded in a colour system that is dierent

from the unit appears on the TV screen.

yConnect the video connection securely.

yCheck the [HDMI Color Setting] in the [Settings] menu is set to the

appropriate item that conforms to your video connection.

yYour TV may not support the resolution you have set on the player.

Change the resolution that your TV accepts.

yThe player’s HDMI OUT jack is connected to a DVI device that does

not support copyright protection.

from your TV.

ySet the resolution which your TV accepts.

Blu-ray 3D disc playback does not output 3D views.

yConnect the player to your TV with HDMI cable (Type A, High Speed

HDMI™ Cable).

yYour TV may not support “HDMI 3D mandatory format”.

yThe [3D Mode] option in the [Settings] menu is set to [O ].

Set the option to [On].

Sound

Symptom Cause & Solution

There is no sound or the sound is distorted.

yThe unit is in scan, slow motion, or pause mode.

yThe sound volume is low.

yCheck the speaker cable connection. (page 13)

Customer Support

You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http://www.lg.com/global/support or contact LG Electronics customer care center.

Open Source Software Notice

To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit http://opensource.lge.com. All referred license terms, warranty disclaimers and copyright notices are available to download with the source code.

Troubleshooting

Appendix66

Controlling a TV with the Supplied Remote Control

You can control your TV using the buttons below.

By pressing You can

(TV POWER) Turn the TV on or o.

Switch the TV’s input source between the TV and other input sources.

Scan up or down through memorized channels.

Appendix

AV/INPUT

PR/CH

W/S

VOL +/– Adjust the volume of the TV

Note

Depending on the unit being connected, you may not be able to control your TV using some of the buttons.

Setting up the remote to control your TV

You can operate your TV with the supplied remote control. If your TV is listed in the table below, set the appropriate manufacturer code.

1. While holding down 1 (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table below).

Manufacturer Code number

LG 1(Default), 2

Zenith 1, 3, 4

GoldStar 1, 2

Samsung 6, 7

Sony 8, 9

Hitachi 4

2. Release the 1 (TV POWER) button to complete setting.

Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

Appendix 67

Network Software Update

Network update notification

From time to time, performance improvements and/or additional features or services may be made available to units that are connected to a broadband home network. If there is new software available and the unit is connected to a broadband home network, the player will inform you about the update as follows.

Option 1:

1. The update menu will appear on the screen when you turn off the player.

2. Use press ENTER (b).

to select a desired option and then

A/D

Software update

You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update server.

Note

yBefore updating the software in your player,

remove any disc and USB Device from the player.

yBefore updating the software in your player,

turn the player o and then turn it back on.

yDuring the software update procedure,

do not turn o the player or disconnect AC power, or do not press any button.

yIf you cancel the update, turn o the power

and turn it on for stable performance.

yThis unit cannot be updated to previous

software version.

1. Check the network connection and settings (page 20).

2. Select [Software] option in the [Settings] menu then press ENTER (b).

3. Select [Update] option, and press ENTER (b).

[OK] Starts the software update.

[Cancel]

Exits the update menu and turns the power o.

Option 2:

If the software update is available from the update server, the “Update” icon appears in the Home menu. Press blue (B) colored button to start the update procedure.

The player will check for the newest update.

Note

yPressing ENTER (b) while checking for the

update will end the process.

yIf there is no update available, the Message,

“No update is found.” appears. Press ENTER (b) to return to the [Home Menu].

Appendix

Appendix68

4. If newer version exists, the message “Do you want to download it?” appears.

5. Select [OK] to start update. (Selecting [Cancel] will end the update.)

6. The player starts downloading the newest update from the server. (Downloading will takes several minutes depending on your home network condition)

7. When downloading is completed, the message, “Download is complete. Do you want to update?” appears.

8. Select [OK] to start updating. (Selecting [Cancel] will end the update and downloaded file will not be re-usable. To update software the next time, the software update procedure has to be started from the beginning again.)

Caution

Do not turn o the power during the software update.

9. When update is completed, the power will be turned off automatically in a few seconds.

10. Turn the power back on. The system now operates with the new version.

Note

The Software Update function may not work properly depending on your internet environment. In this case, you can obtain

Appendix

the latest software from the authorized LG Electronics Service Center then update your player. Refer to “Customer Support” on page

65.

Additional Information

File requirement

Video files

Appendix 69

File

Location

Disc, USB

DLNA

Audio files

File

Location

Disc,

USB

DLNA

File

Extension

“.avi”, “.mpg”, “.mpeg”, “.mkv ”, “.mp4”, “.asf”, “.wmv”, “.m4v ” (DRM free), “.vob”, “.3gp”, “.mov”, “.trp”, “.m2t”, “.mpe”, “.m1v”, “.m2v”, “.wm”, ”.v ”, “.ts”, “.dat”

“.avi”, “.mpg”, “.mpeg”, “.mkv ”, “.mp4”, “.asf”, “.wmv”, “.m4v ” (DRM free), “.mov”, “.trp”, “.m2t”, “.mpe”, “.m1v”, “.m2v”, ”.v”, “.ts”

File

Extension

“mp3”, “.wma”, “.wav”, “.m4a” (DRM free), “.ac”

“mp3”, “.wma”, “.wav”, “.m4a” (DRM free)

Codec Format

XVID, MPEG1 SS, H.264/MPEG-4 AVC, MPEG2 PS, MPEG2 TS, VC-1 SM (WMV3)

Sampling Frequency Bitrate Note

within 32 - 48 kHz (WMA), within 16 - 48 kHz (MP3)

Audio

Format

Dolby Digital, DTS, MP3, WMA, AAC, AC3

within 32 - 192 kbps (WMA), within 32 - 320 kbps (MP3)

SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), SubViewer

1.0 (.sub), SubViewer 2.0 (.sub/. txt), TMPlayer (.txt), DVD Subtitle System (.txt)

Subtitle

Some wav les are not supported on this player.

Appendix

Photo files

File

Location

Disc, USB,

DLNA

ySupplied bundle DLNA server for Macintosh edition has limitations in le compatibility, such as ASF, WMA

and WMV.

File

Extension

“.jpg”, “.jpeg”, “.png”, “.gif ”

Recommended

Size

Less than 4,000 x 3,000 x 24 bit/pixel Less than 3,000 x 3,000 x 32 bit/pixel

Note

Progressive and lossless compression photo image les are not supported.

Appendix70

Appendix

Note

yThe le name is limited to 180 characters.

yMaximum les/Folder: Less than 2000 (total

number of les and folders)

yDepending on the size and number of the

les, it may take several minutes to read the content on the media.

yFile compatibility may dier depending on

the server.

yBecause the compatibility on DLNA server

are tested on the bundle DLNA server (Nero MediaHome 4 Essentials Windows edition) environment, le requirements and playback functions may dier depending on media servers.

yThe le requirements on page 69 are not

always compatible. There may have some restrictions by le features and media server’s ability.

yPlaying video subtitle les are only available

on DLNA media server created by supplied Nero MediaHome 4 Essentials software on this player package.

yThe les from removable media such as USB

drive, DVD-drive etc. on your media server may not be shared properly.

yThis unit cannot support the ID3 Tag

embedded MP3 le.

yThe total playback time of audio le

indicated on the screen may not correct for VBR les.

yHD video les contained on the CD/DVD or

USB 1.0/1.1 may not played properly. Blu-ray Disc or USB 2.0 are recommended to play back HD video les.

yThis player supports H.264/MPEG-4 AVC

prole Main, High at Level 4.1. A le with higher level may not be supported.

yThis player does not support les that are

recorded with GMC

*1 GMC – Global Motion Compensation

*2 Qpel – Quarter pixel

or Qpel

Note

yA “avi” le which is encoded “WMV 9 codec”

is not supported.

yThis player supports UTF-8 les even it

contains Unicode subtitle content. This player can not support the pure Unicode subtitle les.

yDepending on the types of le or ways of

recording, it may not play back.

yA disc which was recorded by multi-session

on normal PC is not supported on this player.

yTo be playback a video le, video le name

and Subtitle le name must be the same.

yWhen you play a video le with a extension

such as “.ts”, “.m2ts”, “.mts”, “.tp”, “.Trp” or “.m2t”, your player may not support subtitle les.

yThe total playback time of audio le

indicated on the screen may not correct for VBR les.

yVideo / Audio codec compatibility may

dier depending on video le.

AVCHD (Advanced Video Codec High Definition)

yThis player can playback AVCHD format discs.

These discs are normally recorded and used in camcorders.

yThe AVCHD format is a high denition digital

video camera format.

yThe MPEG-4 AVC/H.264 format is capable of

compressing images at higher eciency than that of the conventional image compressing format.

yThis player can playback AVCHD discs using

“x.v.Color” format.

ySome AVCHD format discs may not play

depending on the recording condition.

yAVCHD format discs need to be nalized.

y“x.v.Color” oers a wider color range than normal

DVD camcorder discs.

Appendix 71

About DLNA

This Player is a DLNA Certied digital media player that can display and play video, photo and audio content from your DLNA-compatible digital media server (PC and Consumer Electronics).

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network.

The DLNA certication logo makes it easy to nd products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Certain system requirements

For high denition video playback:

yHigh denition display that has HDMI input jack.

yBD-ROM disc with high denition content.

yHDMI or HDCP capable DVI input on your display

device is required for some content (as specied by disc authors).

Compatibility notes

yBecause BD-ROM is a new format, certain disc,

digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Center.

yThis unit allows you to enjoy functions such

as picture-in-picture, secondary audio and Virtual packages, etc., with BD-ROM supporting BONUSVIEW (BD-ROM version 2 Prole 1 version

1.1). Secondary video and audio can be played from a disc compatible with the picture-inpicture function. For the playback method, refer to the instructions in the disc.

yViewing high-denition content and up-

converting standard DVD content may require a HDMI-capable input or HDCP-capable DVI input on your display device.

ySome BD-ROM and DVD discs may restrict the

use of some operation commands or features.

yYou can use an USB device to store some disc

related information, including downloaded online content. The disc you are using will control how long this information is retained.

Appendix

Appendix72

Audio Output Specifications

Jack/Setting

Source

Dolby Digital PCM 2ch PCM 5.1ch DTS Dolby Digital

Dolby Digital Plus PCM 2ch PCM 5.1ch DTS Dolby Digital Plus

Dolby TrueHD PCM 2ch PCM 5.1ch DTS Dolby TrueHD

DTS PCM 2ch PCM 5.1ch DTS DTS

DTS-HD PCM 2ch PCM 5.1ch DTS DTS-HD

Linear PCM 2ch PCM 2ch PCM 2ch DTS Linear PCM 2ch

Linear PCM 5.1ch PCM 2ch PCM 5.1ch DTS Linear PCM 5.1ch

Linear PCM 7.1ch PCM 2ch PCM 5.1ch DTS Linear PCM 7.1ch

*1 The secondary and interactive audio may not

be included in the output bitstream if [Digital Output] option is set to [BitStream]. (Except LPCM Codec : the output always include interactive and secondary audio.)

*2 This player automatically selects the HDMI

audio according to the decoding capability of the connected HDMI device even though [Digital Output] option is set to [BitStream].

*3 If the [Digital Output] option is set to [DTS re-

encode], the audio output is limited to 48 kHz and 5.1Ch. If the [Digital Output] option is set to [DTS re-encode], the DTS Re-encode audio

Appendix

is outputted for BD-ROM discs, and the original audio is outputted for the other discs (like [BitStream]).

PCM Stereo

PCM

Multi-Ch

HDMI OUT

DTS Re-encode

yThe audio is outputted as PCM 48 kHz/16 bit for

MP3/WMA le and PCM 44.1kHz/16 bit for Audio CD during playback.

yWith digital audio connection (HDMI OUT),

Disc Menu button sounds of BD-ROM may not be heard if the [Digital Output] option is set to [BitStream].

yIf the audio format of the digital output does

not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

yMulti-channel Digital Surround Sound via

digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

yThis setting is not available on the input signal

from an external device.

BitStream

*1 *

Appendix 73

Area Code List

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Appendix

Appendix74

Language Code List

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Appendix

Afar 6565

Afrikaans 6570

Albanian 8381

Amharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laotian 7679

Latin 7665

Latvian, Lettish 7686

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Trademarks and Licenses

Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™, BONUSVIEW™ and the logos are trademarks of the Blu-ray Disc Association.

Appendix 75

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

Java is a trademark of Oracle and/or its aliates.

The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

“x.v.Color” is a trademark of Sony Corporation.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The Wi-Fi CERTIFIED Logo is a certication mark of the Wi-Fi Alliance.

The Wi-Fi Protected Setup Mark is a trademark of the Wi-Fi Alliance.

“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

Appendix

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specically to iPod, iPhone, or iPad, respectively, and has been certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may aect wireless performance.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certication marks of the Digital Living Network Alliance.

Appendix76

Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. [Licensed Audyssey Trademark] is a [registered] trademark of Audyssey Laboratories.

Gracenote®, Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

Music recognition technology and related data are provided by Gracenote®.

Gracenote® End User License Agreement

This application or device contains software from Gracenote, Inc. of Emeryville, California (“Gracenote”). The software from Gracenote (the “Gracenote Software”) enables this application to perform disc and/or le identication and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases (collectively,

Appendix

“Gracenote Servers”) and to perform other functions. You may use Gracenote Data only by means of the intended End-User functions of this application or device.

You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name.

The Gracenote service uses a unique identier to track queries for statistical purposes. The purpose of a randomly assigned numeric identier is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems sucient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote Software or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commerciallyproduced lm and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2012 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Appendix 77

Appendix

Appendix78

Specifications

General

Power requirements Refer to main label on the rear panel.

Power consumption Refer to main label on the rear panel.

Dimensions (W x H x D) Approx. 444 mm x 65 mm X 292.5 mm (17.5” x 2.6” x 11.5”)

Net Weight (Approx.) 3.5 kg (7.7 lbs)

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Inputs/Outputs

HDMI IN/OUT (video/audio) 19 pin ( Type A, HDMI™ Connector)

ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

DIGITAL IN (OPTICAL) 3 V (p-p), Optical jack x 1

Tuner

FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Amplier

Power output (8 Ω/ 4 Ω/ 3 Ω), (RMS), THD 10 %

Total 1460 W

Front 180 W x 2

Appendix

Center 180 W

Rear 180 W x 2

Sub-Woofer 200 W (Passive)

3D Eect - Front Top 90 W x 2

3D Eect - Rear Top 90 W x 2

System

Laser Semiconductor laser

wavelength 405 nm / 650 nm

Signal system Standard NTSC color TV system

LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX

Wireless LAN (internal antenna)

Bus Power Supply (USB) DC 5 V 0 2.1 A (Front) / DC 5 V 0 300 mA (Rear)

Integrated IEEE 802.11n (5 GHz and 2.4 GHz bands) wireless networking access, compatible with 802.11a/b/g Wi-Fi networks.

Speakers

Front speaker (Left/ Right) (S93T1-S/S93T3-S)

Type 2 Way 3 speaker Max. Input power

Impedance Rated 4 Ω

Input Power 180 W Net Weight

Rear speaker (Left/ Right) (S93B1-S/S93B3-S)

Type 2 Way 2 speaker Max. Input power

Impedance Rated 4 Ω

Input Power 180 W Net Weight

Center speaker (S93T1-C/S93T3-C)

Type 1 Way 1 speaker Max. Input power

Impedance Rated 4 Ω

Input Power 180 W Net Weight

Subwoofer (S93T1-W)

Type 1 Way 1 speaker Max. Input power

Impedance Rated 3 Ω

Input Power 200 W Net Weight

Front Top Speaker (Left/Right)

Type 1 Way 1 speaker Max. Input power 180 W

Impedance Rated 8 Ω

Input Power 90 W Net Weight

Rear Top Speaker (Left/Right)

Type 1 Way 1 speaker Max. Input power 180 W

Impedance Rated 8 Ω

Input Power 90 W Net Weight

Net Dimensions (W x H x D)

360 W

270 mm X 1300 mm X 270 mm (10.6” X 51.2” X 10.6”)

5.3 kg (11.7 lbs)

360 W

88 mm X 294 mm X 85 mm (3.5” X 11.6” X 3.3”)

1.2 kg (2.6 lbs)

360 W

360 mm X 81 mm X 70 mm (14.2” X 3.2” X 2.8”)

1.1 kg (2.4 lbs)

400 W

251 mm X 336 mm X 310 mm (9.9” X 13.2” X 12.2”)

5.9 kg (13 lbs)

Built in Front speakers

Built in Rear speakers

Appendix 79

Appendix

Wireless receiver (W3-4)

Power requirements Refer to main label on the bottom of the receiver.

Power consumption Refer to main label on the bottom of the receiver.

Dimensions (W x H x D) 245 mm X 190 mm X 80.2 mm (9.6” X 7.5” X 3.2”)

Net Weight (Approx.) 1.21 kg (2.7 lbs)

yDesign and specications are subject to change without notice.

Appendix80

Maintenance

Handling the unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Keeping the exterior surfaces clean

yDo not use volatile liquids such as insecticide

spray near the unit.

yWiping with strong pressure may damage the

surface.

yDo not leave rubber or plastic products in

contact with the unit for a long period of time.

Maintaining the unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty

or worn, the picture quality could be diminished.

Appendix

For details, please contact your nearest authorized service center.

Notes on discs

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that ngerprints do not get on the surface. Never stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Important Information relating to Network Services

All information, data, documents, communications, downloads, les, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content (“Content”) and all services and oerings (“Services”) provided or made available by or through any third party (each a “Service Provider”) is the sole responsibility of the Service Provider from whom it originated.

The availability of and access to Content and Services furnished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider’s website for the most up-todate information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers.

Please note that LGE is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services.

Appendix 81

Appendix

LG BH9431PW User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Information

Getting Started

Introduction

Playable discs and symbols used in this manual

About the “7” symbol display

Regional code

Remote Control

Front Panel

Rear Panel

Positioning the system

Speaker Connection

Attaching the speakers to the player

Attaching the rear speakers to the wireless receiver

Wireless speakers connection

Wireless speakers connection, manually

Connecting to your TV

Connecting

What is SIMPLINK?

ARC (Audio Return Channel) function

Resolution setting

Antenna connection

Connections with external device

AUX Connection

OPTICAL IN connection

HDMI IN 1/2 connection

Connecting to your Home Network

Wired network connection

Wired network setup

Wireless network connection

Wireless network setup

Initial Setup

System Setting

Settings

Adjust the setup settings

[NETWORK] menu

[DISPLAY] menu

[LANGUAGE] menu

[AUDIO] menu

[LOCK] menu

[OTHERS] menu

Sound Effect

Operating

3D Sound Effect

Home Menu Display

Using [HOME] menu

Using the Smart Share

Playing the Linked Devices

Playing a disc

Playing Blu-ray 3D disc

Playing a file on disc/USB device

Playing a file on a network server

Using Home Network Server for PC

Installing Nero MediaHome 4 Essentials

Sharing files and folders

About Nero MediaHome 4 Essentials

System requirements

General Playback

Basic operations for video and audio content

Basic operations for photo content

Using the disc menu

Resume playback

Last scene memory

On-Screen Display

To control video playback

To control photo view

Advanced Playback

Repeat playback

Repeating a specific portion

Playing from selected time

Selecting a subtitle language

Hearing a different audio

Watching from a different angle

Changing the TV Aspect Ratio

Changing subtitle Code Page

Changing the Picture Mode

Viewing content information
