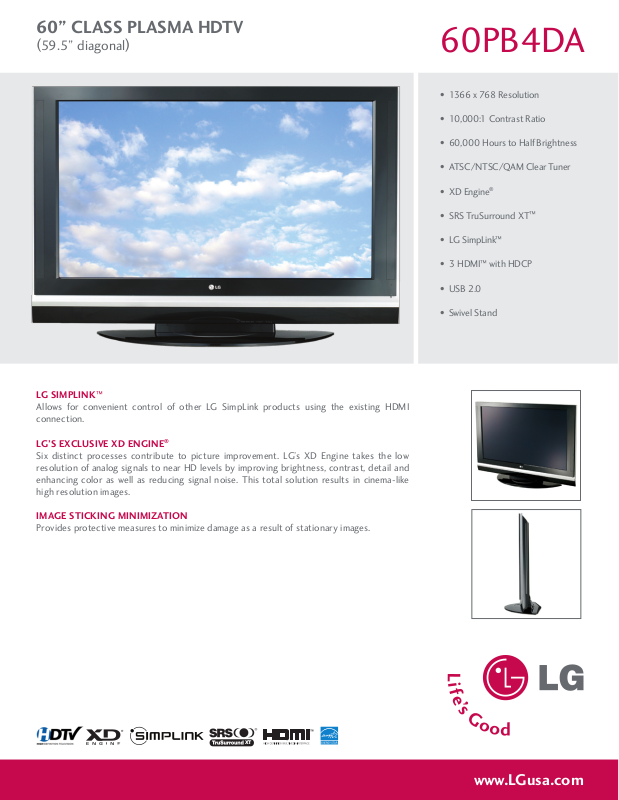

60” CLASS PLASMA HDTV
(
59.5” diagonal
)
60PB4DA
• 1366 x 768 Resolution
• 10,000:1 Contrast Ratio
• 60,000 Hours to Half Brightness
• ATSC/NTSC/QAM Clear Tuner
LG SIMPLINK
Allows for convenient control of other LG SimpLink products using the existing HDMI
connection.
LG’S EXCLUSIVE XD ENGINE
Six distinct processes contribute to picture improvement. LG’s XD Engine takes the low
resolution of analog signals to near HD levels by improving brightness, contrast, detail and
enhancing color as well as reducing signal noise. This total solution results in cinema-like
high resolution images.
™
®
• XD Engine
• SRS TruSurround XT
• LG SimpLink
• 3 HDMI™ with HDCP
• USB 2.0
• Swivel Stand
®
™
™
IMAGE STICKING MINIMIZATION
Provides protective measures to minimize damage as a result of stationary images.
www.LGusa.com
60.9”
40”
41.4”
18 ”
3.9”
23.6”
15.7”
40.4”
HDMI/DVI IN
RGB IN
COMPONENT IN
AV IN 1
Y PB PR
3
2
1
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
OPTICAL COAXIAL
VIDEO L
(MONO) R
S-VIDEO
AUDIO OUT
AUDIO
VIDEO AUDIO
2
1
RGB(PC)
AUDIO
(RGB/DVI)
L R
ANTENNA/
CABLE IN
60” CLASS PLASMA HDTV
(
59.5” diagonal
)
60PB4DA
TV
ATSC/NTSC/QAM Clear Tuner •
VIDEO
Nat ive Disp lay Resol utio n 1366 x 768p
Contrast Ratio 10,000:1
Brightness (cd/m²) 1200
Panel Life 60,000 Hours
XD Engine® •
High Contrast Screen Filter Glass Filter
Image Sticking Minimization 3 Modes
Digital Comb Filter 3D
Co lor Tempe ratur e C ontr ol 4 M odes
Aspect Ratio Adjustment 7 Modes
Enhanced Noise Reduction (Video Noise Filter) •
Enhanced Line Doubler •
3:2 Pull-Down Correction 3:2 (480i)
Picture Selection Mode 5 Modes
Black Stretcher (Black Level Enhancer) •
DTV Signal Strength Indicator •
ACM (Active Color Management) •
Color Processor 14 Bit
AUDIO
Mono/Stereo/Dual (MTS/SAP) •
A ud i o O ut p u t P ow e r (Wa tt s - TH D 10% ) 10W + 10W
Speaker System Details 1 Way 2 System
Dolby® Digital Decoder •
S u r ro u n d S y s te m Ty p e S RS Tr u S u r r o un d X T ™
Bass/Treble/Balance Controls •
AUDIO (CONTINUED)
AVL (Auto Volume Leveler) •
EZ Sound (Sound Status Mode) 6 Modes
Mute •
1080p SOURCE INPUT
HDMI™ 60p/30p/24p
Component 60p/30p/24p
RGB 60p
SPECIAL FEATURES
Auto Input Detect •
Custom Input Labels •
Back (Previous Channel) •
Parental Control w/V-Chip •
Closed Caption •
LG SimpLink™ (HDMI CEC) •
Trilingual Menus English, Spanish, French
Auto Channel Programming •
Channel Add/Delete •
Favorite Channel •
Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off (When no Video is Present) •
REAR AUDIO/VIDEO INPUTS/OUTPUTS
RF In (Antenna/Cable) 1
L/R Audio/Composite Video In 1
L/R Audio Out 1
S-Video In 1
HD Component Video In (Y,Pb,Pr) + L/R Audio 2
REMOTE REAR AUDIO/VIDEO INPUTS/OUTPUTS SIDE
REAR AUDIO/VIDEO INPUTS/OUTPUTS (CONTINUED)
D i g i t a l A u d i o O u t 2 ( 1 C o a x i a l / 1 O p t i c a l )
HDMI™/HDCP Input 3
RGB In (D-Sub 15pin) - PC 1
PC Audio Input 1
RS-232c In (Control/Service) 1
Remote Control In (IR) 1
SIDE AUDIO/VIDEO INPUTS/OUTPUTS
L/R Audio/Composite Video In 1
S-Video In 1
USB 2.0 1
CABINET/ACCESSORIES
Cabinet Style Table Top
Cabinet Color Gloss Black
Remote Control Type Universal
VESA® Compatible (W x H) 600mm x 400mm
POWER
Consumption (Typical) 580 W
Stand-by Consumption 1W
Energy Star Compliant •
SPECIFICATIONS
Dimensions w/Out Stand (W x H x D) 60.9" x 40" x 3.9"
Weight w/Out Stand 135.6 lbs.
Dimensions w/Stand (W x H x D) 60.9" x 41.4" x 18"
Weight w/Stand 170.9 lbs.
Dimensions w/Packaging (W x H x D) 66.9" x 43.9" x 21.6"
Weight In Package 186.5 lbs.
UPC 719192172364
Limited Warranty 2 Year Parts/Labor
LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 (800)243-0000
© 2007 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. “LG Life’s Good” is a trademark of LG Corp.
All other trademarks are the property of their respective owners.
Design, features and specifications subject to change without notice. 01/29/08
