LG 55LK530-UC Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LT03B

MODEL : 55LK530 55LK530-UC

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL66980417 (1101-REV00)

Only for training and service purposes

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ......................................................................... 3

SPECIFICATION....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 10

EXPLODED VIEW .................................................................................. 19

SVC. SHEET ...............................................................................................

Only for training and service purposes

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Only for training and service purposes

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Only for training and service purposes

1. Application range

This spec sheet is applied all of the 32”, 37”, 42” LCD TV with LA06A chassis and 26” LCD TV with LA06B chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC

2) Relative Humidity: 65 ± 10 %

3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz) * Standard Voltage of each product is marked by models

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement.

4. General Specification(TV)

No Item Specification Remark

1 Receivable System 1) ATSC / NTSC-M 2 Available Channel 1) VHF : 02 ~ 13

2) UHF : 14 ~ 69

3) DTV : 02 ~ 69

4) CATV : 01 ~ 135

5) CADTV : 01 ~ 135 3 Input Voltage 1) AC 100 - 240V~ 50/60Hz Mark : 110V, 60Hz (N.Ame 4 Market North America 5 Screen Size 42 inch Wide(1920x1080) FHD + 60Hz 42LV3700-UD

47 inch Wide(1920x1080) FHD + 60Hz 47LV3700-UD 42 inch Wide(1920x1080) FHD + 120Hz 42LK550-UA, 42LK530-UC 47 inch Wide(1920x1080) FHD + 120Hz 47LK550-UA, 47LK530-UC

55 inch Wide(1920x1080) FHD + 120Hz 55LV3700-UD, 55LK530-UC 6 Aspect Ratio 16:9 7 Tuning System FS 8 LCD Module T420HW08-V1 (Edge LED) AUO 42LV3700-UD

LC470EUE-SDV1 (Edge LED) LGD 47LV3700-UD

LC550EUF-SDA1 (Edge LED) LGD 55LV3700-UD

V420H2-LH5 (CCFL) CMI 42LK550-UA

LC420WUF-SCA2 (EEFL) LGD 42LK550-UA, 42LK530-UC

LC470WUF-SCA2 (EEFL) LGD 47LK550-UA, 47LK530-UC

LC550WUD-SCA2 (EEFL) LGD 55LK530-UC 9 Operating Environment Temp : 0 ~ 40 deg

Humidity : ~ 80 %

10 Storage Environment Temp : -20 ~ 60 deg

Humidity : -85 %

- 7 -

Only for training and service purposes

5. Chrominance & Luminance

No Item Min Typ

Max Unit

Remark

280

cd/m†

42LV3700-UD

230

cd/m†

47LV3700-UD

320 400

cd/m†

55LV3700-UD

360 450 cd/m† 42LK550-UA, 42LK530-UC

CU-035KL74 ,AU-055KL74 054 063

1

Max Luminance (Center 1-point / Full White Pattern)

360 450

cd/m†

55LK530-UC

1.3 All Modules(except 42LV3700-UD)

2 Luminance uniformity

1.33

42LV3700-UD

036.0 XRED

033.0 Y

023.0 XGREEN 0

26.0 Y

051.0 XBLUE

040.0 Y

082.0 X

Color coordinate (42 Edge LED)

WHITE

Y

Typ.

-0.03

0.290

Typ.

+0.03

42LV3700-UD

DB

T

X DER

DBT Y

DB

T X NEERG

DBT

Y

DB

T X EU

LB

DBT Y

972.0 X ET

IHW

Color coordinate (47 Edge LED)

Y

Typ.

-0.03

0.292

Typ.

+0.03

47LV3700-UD

DBT

X DER

DBT Y DBT X NEERG

3

Color coordinate (55 Edge LED)

Y

Typ.

-0.03

TBD

Typ.

+0.03

55LV3700-UD

DBT X

EU

LB

DBT Y

972.0 X ETIHW

292.0

Y

536.0 X

RED

323.0 Y

882.0 XGREEN

006.0 Y

841.0 XBLUE

050.0 Y

082.0 X

Color coordinate (42 CCFL)

WHITE

Y

Typ.

-0.03

0.290

Typ.

+0.03

42LK550-UA(CMI)

636.0 XRED 5

33.0 Y

192.0 XGREEN

3

06.0 Y 6

41.0

XBLUE

160.0 Y

972.0

X

Color coordinate (42 CCFL)

WHITE

Y

Typ.

-0.03

0.292

Typ.

+0.03

42LK550-UA(LGD)

42LK530-UC(LGD)

936.0 XRED

4

33.0

Y

0

92.0

XGREEN

606.0 Y

641.0

X

BLUE

850.0 Y

972.0 X

Color coordinate (47 CCFL)

WHITE

Y

Typ.

-0.03

0.292

Typ.

+0.03

47LK550-UA

47LK530-UC

- 8 -

Only for training and service purposes

7

36.0

X

RED

333.0 Y

Color coordinate (55 CCFL)

GREEN X

Typ.

-0.03

0.287

Typ.

+0.03

55LK530-UC

506.0 Y

541.0 XBLUE 4

60.0 Y

972.0 XWHITE

292.0 Y

A/

N

ytimrofinu etanidrooc roloC 4

3200:1 4000:1 42LV3700-UD 1000:1 1400:1 47LV3700-UD 1100:1 1600:1 55LV3700-UD 1100:1 3000:1 42LK550-UA(CMI) 1100:1 1500:1 42LK530-UC 1100:1 1450:1 47LK530-UC

Contrast ratio (Module)

1100:1 1450:1 55LK530-UC 40,000 50,000

42LV3700-UD

40,000 50,000

47LV3700-UD

40,000 50,000

55LV3700-UD

5

Contrast ratio (DCR)

40,000 50,000

42/47LK550-UA, 42/47/55LK530-UC

COOL 0.254

0.258

0.269

0.273

0.284

0.288

13000K

MEDIUM 0.270

0.278

0.285

0.293

0.300

0.308

9300K

6 Color

Temperature

WARM 0.298

0.314

0.313

0.329

0.324

0.344

6500K

** The W/B Tolerance is –0.015 for picture quality by DQA. (1) Video input: 204 Gray (85% of full white pattern) (1) Backlight UI setting

- Cool (100), Medium (100), Warm (30)

(2) Color temp UI setting

- Warm (W50), Medium (0), Cool (C50)

- 9 -

Only for training and service purposes

6. Component Video Input (Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 67.500 60 148.50 HDTV 1080P

10. 1920*1080 67.432 59.94 148.352 HDTV 1080P

11. 1920*1080 27.000 24.000 74.25 HDTV 1080P

12. 1920*1080 26.97 23.976 74.176 HDTV 1080P

13. 1920*1080 33.75 30.000 74.25 HDTV 1080P

14. 1920*1080 33.71 29.97 740176 HDTV 1080P

7. RGB Input (PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1360*768 47.712 60.015 85.50 VESA(WXGA) X

7. 1920*1080 66.587 59.934 138.50 WUXGA O

Only for training and service purposes

- 10 -

8. HDMI input (PC/DTV)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) X

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1280*768 47.776 59.870 79.5 CVT(WXGA) O

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

9. 1920*1080 67.500 60.000 148.50 HDTV 1080P O

DTV 1 720*480 31.47 60 27.027 SDTV 480P O 2 720*480 31.47 59.94 27.00 SDTV 480P O 3 1280*720 45.00 60.00 74.25 HDTV 720P O 4 1280*720 44.96 59.94 74.176 HDTV 720P O 5 1920*1080 33.75 60.00 74.25 HDTV 1080I O 6 1920*1080 33.72 59.94 74.176 HDTV 1080I O 7 1920*1080 67.500 60 148.50 HDTV 1080P O 8 1920*1080 67.432 59.939 148.352 HDTV 1080P O 9 1920*1080 27.000 24.000 74.25 HDTV 1080P O

10 1920*1080 26.97 23.976 74.176 HDTV 1080P O 11 1920*1080 33.75 30.000 74.25 HDTV 1080P O 12 1920*1080 33.71 29.97 74.176 HDTV 1080P O

Only for training and service purposes

- 11 -

ADJUSTMENT INSTRUCTION

1. Application range

This spec. sheet applies to LA12B Chassis applied LCD TV all models manufactured in TV factory

2. Specification

2.1 Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation transformer will help protect test instrument.

2.2 Adjustment must be done in the correct order.

2.3 The adjustment must be performed in the

circumstance of 25±5°C of temperature and 65±10% of relative humidity

2.4 The input voltage of the receiver must keep 100~240V~, 50/60Hz.

2.5 The receiver must be operated for about 5 minutes

prior to the adjustment when module is in the circumstance of over 15.

In case of keeping module is in the circumstance of 0°C, it should be placed in the circumstance of above 15°C for 2 hours

In case of keeping module is in the circumstance of below -20°C, it should be placed in the circumstance of above 15°C for 3 hours.

Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Adjustment items

3.1 Main PCBA Adjustments

• EDID downloads for HDMI and RGB-PC

Remark

Above adjustment items can be also performed in Final Assembly if needed. Adjustment items in both PCBA and final assembly stages can be checked by using the INSTART

Menu 1.ADJUST CHECK.

3.2 Final assembly adjustment

• White Balance adjustment

• RS-232C functionality check

• Factory Option setting per destination

• Shipment mode setting (IN-STOP)

• GND and HI-POT test

3.3. Appendix

• Tool option menu, USB Download (S/W Update, Option and Service only)

• Manual adjustment for ADC calibration and White balance.

• Shipment conditions, Channel pre-set

Chassis Model Name

Module

type

Local

dimming

THX Remark

42/47/55LV3700-UA Edge LED

X X

1 point W/B adjustment

42/47LK550-UA,

42/47/55LK530-UA

Lamp

LA12B

- 12 -

Only for training and service purposes

4. MAIN PCBA Adjustments

4.1. MAC Address, ESN Key and Widevine Key download

4.1.1. Equipment & Condition

1) Play file: keydownload.exe

4.1.2. Communication Port connection

1) Key Write: Com 1,2,3,4 and 115200(Baudrate)

2) Barcode: Com 1,2,3,4 and 9600(Baudrate)

4.1.3. Download process

1) Select the download items

2) Mode check: Online Only

3) Check the test process

- US, Canada models: DETECT MAC_WRITE WIDEVINE_WRITE

- Korea, Mexico models: DETECT MAC_WRITE WIDEVINE_WRITE

4) Play: START

5) Check of result: Ready, Test, OK or NG

6) Printer out (MAC Address Label)

4.1.4. Communication Port connection

1) Connect: PCBA Jig RS-232C Port == PC RS-232C Port

4.1.5. Download

1) US, Canada models (11Y LCD TV + MAC + Widevine +

ESN Key)

2) Korea, Mexico models (11Y LCD TV + MAC + Widevine Only)

4.1.6. Inspection

- In INSTART menu, check these keys.

4.2. LAN port Inspection (Ping Test)

4.2.1. Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program.

- IP number: 12.12.2.2

4.2.2. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

- 13 -

Only for training and service purposes

4.3 EDID Download

4.3.1 Overview

• It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

4.3.2 Equipment

(1) Since EDID data is embedded, EDID download JIG, HDMI

cable and D-sub cable are not need.

(2) Adjust by using remote controller.

4.3.3 Download method (1) Press Adj. key on the Adj. R/C, (2) Select 11. PCM EDID D/L menu. (3) By pressing Enter key, EDID download will begin (4) If Download is successful, OK is display, but If Download

is failure, NG is displayed.

(5) If Download is failure, Re-try downloads. * Caution) When EDID Download, must remove RGB/HDMI

Cable.

4.3.4 EDID DATA # HDMI 1(C/S : 7FC9) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : 7FB9) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : 7FA9) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# RGB(C/S : 89) EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07 10 | 07 67 03 0C 00 10 00 B8 2D E3 05 03 01 02 3A 80 20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01 30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25 70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 C9

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07 10 | 07 67 03 0C 00 20 00 B8 2D E3 05 03 01 02 3A 80 20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01 30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25 70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 B9

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07 10 | 07 67 03 0C 00 30 00 B8 2D E3 05 03 01 02 3A 80 20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01 30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25 70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 A9

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 4F 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 89

- 14 -

- AC3 EDID Data # HDMI 1(C/S : 7F58)

EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 2(C/S : 7F48) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# HDMI 3(C/S : 7F38) EDID Block 0, Bytes 0-127 [00H-7FH]

EDID Block 1, Bytes 128-255 [80H-FFH]

# RGB(C/S : 98) EDID Block 0, Bytes 0-127 [00H-7FH]

Only for training and service purposes

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 07 07 67 03 0C 00 10 00 B8 2D E3 05 03 01 20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40 70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 58

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 07 07 67 03 0C 00 20 00 B8 2D E3 05 03 01 20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40 70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 48

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39 60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 07 07 67 03 0C 00 30 00 B8 2D E3 05 03 01 20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40 70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 38

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00 30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 98

- 15 -

Only for training and service purposes

5. Final Assembly Adjustment

5.1. White Balance Adjustment

5.1.1. Overview

5.1.1.1. W/B adj. Objective & How-it-works

- Objective: To reduce each Panel’s W/B deviation

- How-it-works: When R/G/B gain in the OSD is at 192, it means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

- Adj. condition : normal temperature

1) Surrounding Temperature: 25±5ºC

2) Warm-up time: About 5 Min

3) Surrounding Humidity: 20% ~ 80%

4) Before White balance adjustment, Keep power on status, don’t power off

5.1.1.2. Adj. condition and cautionary items

• Lighting condition in surrounding area surrounding lighting should be lower 10 lux. Try to isolate adj. area into dark surrounding.

• Probe location: Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the module surface (80°~ 100°)

• Aging time

1) After Aging Start, Keep the Power ON status during 5 Minutes.

2) In case of LCD, Back-light on should be checked using no signal or Full-white pattern.

5.1.2. Equipment

1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED : CH14)

2) Adj. Computer (During auto adj., RS-232C protocol is

needed)

3) Adjust Remocon

4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model:217, Pattern:78)

-> Only when internal pattern is not available

5.1.3. Equipment connection

5.1.4. Adjustment Command (Protocol) (1) RS-232C Command used during auto-adj.

2) Adjustment Map

5.1.5. Adjustment method

• Auto adj. method

1) Set TV in adj. mode using POWER ON key

2) Zero calibrate probe then place it on the center of the Display

3) Connect Cable(RS-232C)

4) Select mode in adj. Program and begin adj.

5) When adj. is complete (OK Sing), check adj. status pre mode (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

• W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

5.1.6 Reference (White Balance Adj. coordinate and color temperature)

• Luminance: 216 Gray

• Standard color coordinate and temperature using CS-

1000

• Standard color coordinate and temperature using CA-210 (CH 14)

Colo r Analyzer

Comp ut er

Pattern Ge n e r ator

RS-232C

Probe

Signal Source

* If TV internal pattern is used, not needed

Mode Color Coordination Temp ∆UV

xy

COOL 0.269 0.273 13000K 0.0000

MEDIUM 0.285 0.293 9300K 0.0000

WARM 0.313 0.329 6500K 0.0000

Mode Color Coordination Temp ∆UV

xy

COOL 0.269±0.002 0.273±0.002 13000K 0.0000

MEDIUM 0.285±0.002 0.293±0.002 9300K 0.0000

WARM 0.313+0.002 0.329±0.002 6500K 0.0000

- 16 -

Only for training and service purposes

• Standard color coordinate and temperature using CA210(CH-14) – by aging time

Only for LGD Edge LED (47LV3700-UD / 55LV3700-UD)

- 42LV3700-UD : AUO Module , This model doesn’t use this table.

5.2 Tool Option setting & Inspection per countries

5.2.1. Overview

• Tool option selection is only done for models in Non-USA North America due to rating

• Applied model: LA12B Chassis applied to CANADA and

MEXICO

5.2.2. Country Group selection

• Press ADJ key on the Adj. R/C, and then select Country Group Menu

• Depending on destination, select KR or US, then on the

lower Country option, select US, CA, MX. Selection is done using +, - KEY

5.2.3. Tool Option Inspection

• Press Adj. key on the Adj. R/C, and then check Tool option.

5.3 Check the EYE-Q function

Step 1) Turn on the TV. Step 2) Press EYE button in adjust remote control. Step 3) Stay 6 seconds with Eye Q sensor hidden located on

the front of the set.

Step 4) Check the “Sensor Data” on the screen and check

whether the value is lower thanafter 6 seconds, the value does not go below 10, Eye Q sensor is not working properly. Then, change the sensor.

Step 5) Remove hand from the Eye Q II sensor and stay for 6

seconds.

Step 6) Check whether the “Back Light (xxx)” value has risen

on the screen. If after 6 seconds and the value still does not go high, the eye Q II sensor is not working

properly. Replace the sensor.

Cool Medium Warm

x y x y x y

GP3

Aging time

(Min)

269 273 285 293 313 329

1 0-2 279 288 295 308 319 338 2 3-5 278 286 294 306 318 336 3 6-9 277 285 293 305 317 335 4 10-19 276 283 292 303 316 333 5 20-35 274 280 290 300 314 330 6 36-49 272 277 288 297 312 327 7 50-79 271 275 287 295 311 325 8 80-149 270 274 286 294 310 324

Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 42LV3700-UD 4534 66 7295 21642 8917 667 47LV3700-UD 440 66 7295 21640 8789 667

55LV3700-UD 33211 66 7295 21640 8789 665 42LK550-UA(CMI)

34918 258 5258 5770 25173 5318

42LK550-UA(LGD)

32870 258 5256 5770 25173 7366 47LK550-UA 32872 258 5256 5770 25173 7366 42LK530-UC 32854 258 5256 5770 25173 7366 47LK530-UC 32856 258 5256 5770 25173 7366 55LK530-UC 32859 258 5258 5770 25173 5318

- 17 -

Only for training and service purposes

6. HDMI ARC Function Inspection

6.1 Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220

↑)

- HDMI Cable (for 1.4 version)

6.2 Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

(2) Check the sound from the TV Set

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

* Remark: Inspect in Power Only Mode and check SW version

in a master equipment

6.3 Ship-out mode check (In-stop)

• After final inspection, press In-Stop key of the Adj. R/C and check that the unit goes to Stand-by mode.

7. AUDIO output check

7.1 Audio input condition

(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal (0.7Vrms)

7.2 Specification

8. GND and Hi-pot Test

8.1. Method

8.1.1. GND & HI-POT auto-check preparation (1) Check the POWER CABLE and SIGNAL CABE

insertion condition

8.1.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test). (Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

8.2. Checkpoint

• TEST voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

• TEST time: 1 second

• TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE & NEUTRAL

• LEAKAGE CURRENT: At 0.5mArms

Item Min Typ Max Unit Remark

Audio practical max Output, L/R (Distortion=10% max Output)

9.0

8.5

10.0

8.9

12.0

9.9 W Vrms

(1) Measurement condition

- EQ/AVL/Clear Voice: Off

(2) Speaker (8ü Impedance)

- 18 -

Only for training and service purposes

9. USB S/W Download (Option, Service only)

1. Put the USB Stick to the USB socket

2. Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low, it didn’t work. But your downloaded version is High, USB data is automatically detecting

3. Show the message “Copying files from memory”

4. Updating is starting.

5. Updating Completed, The TV will restart automatically

6. If your TV is turned on, check your updated version and

Tool option. (Explain the Tool option, next stage)

* If downloading version is more high than your TV have, TV can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1. Push "IN-START" key in service remote controller.

2. Select "Tool Option 1" and Push “OK” button.

3. Punch in the number. (Each model has their number.)

10. Optional adjustments

10.1 Manual White balance Adjustment

10.1.1. Adj. condition and cautionary items (1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark surrounding.

(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

1) After Aging Start, Keep the Power ON status during 5 Minutes.

2) In case of LCD, Back-light on should be checked using no signal or Full-white pattern.

10.1.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)

(2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model: 217, Pattern: 78)

10.1.3. Adjustment (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface. (3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-

Balance then press the cursor to the right (KEY

G

). When

KEY(

G

) is pressed 216 Gray internal pattern will be

displayed. (4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value. (5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

• If internal pattern is not available, use RF input. In EZ Adj.

menu 6.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

Only for training and service purposes

- 19 -

300

200

810

820

830

541

520

400

540

840

850

900

910

550

800

120

510500

530

A2

A5

A21

A10

LV2

LV1

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

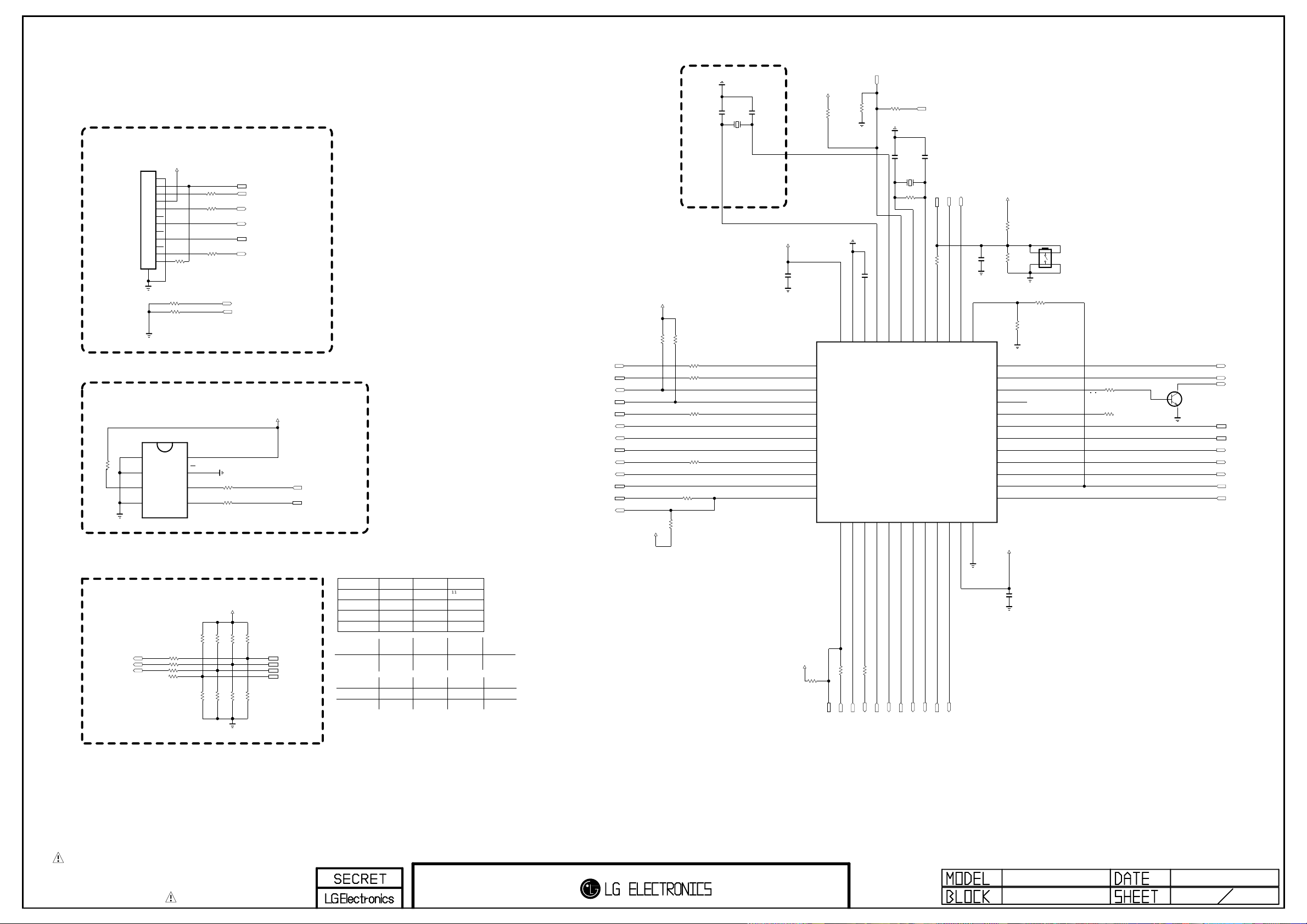

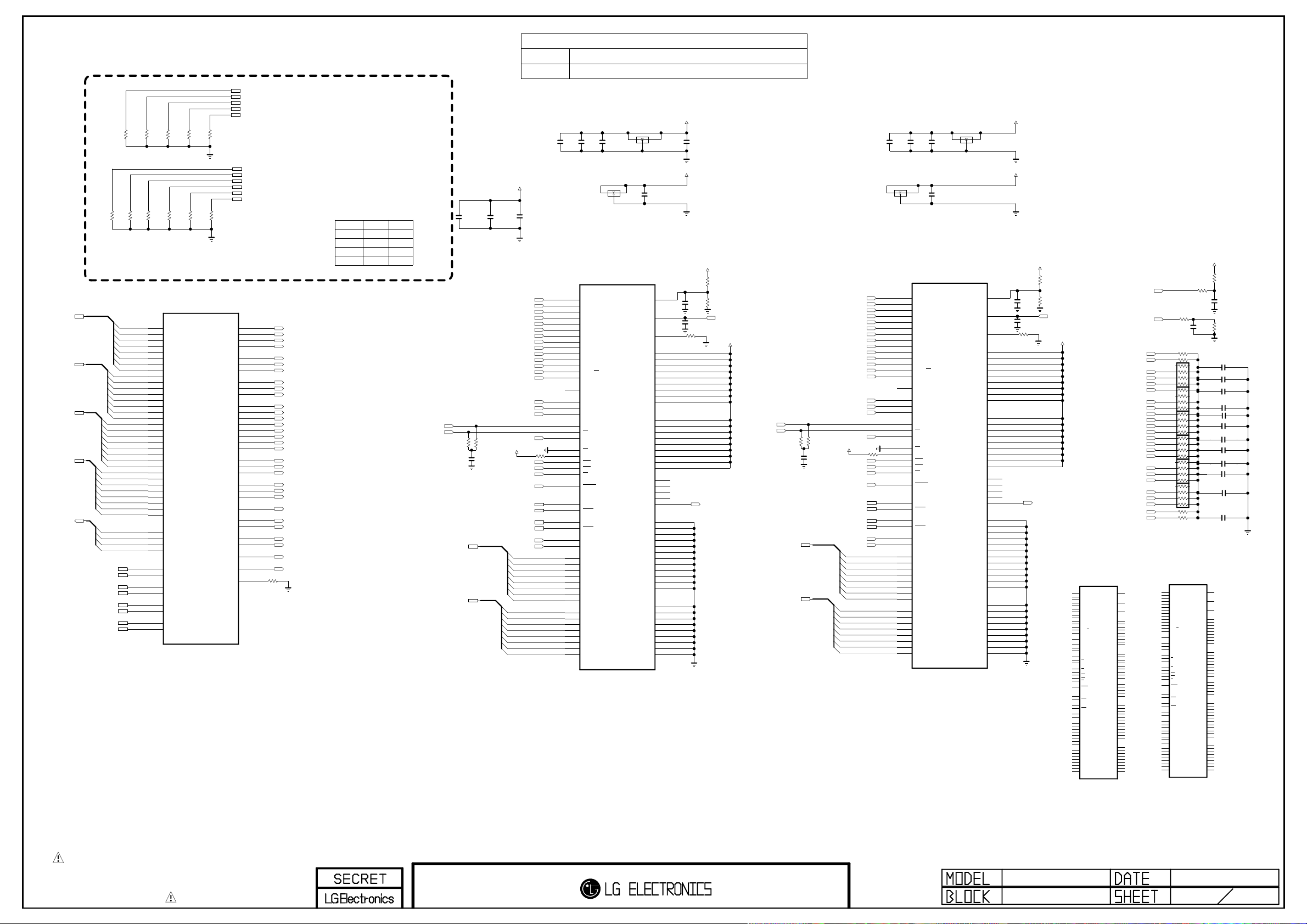

NAND FLASH MEMORY 8Gbit

+3.3V_Normal

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

5

6

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

NAND_RBb

NAND_REb

NAND_CEb

NAND_CEb2

NAND_CLE

NAND_ALE

Write Protection

- High : Normal Operation

- Low : Write Protection

NAND_WEb

FLASH_WP

R107 2.7K

R148

+3.3V_Normal

R103

4.7K

16Gbit

R149 0

16Gbit

0

C102 4700pF

C101

0.1uF

OPT

IC102

TC58DVG3S0ETA00

NAND_8Gbit

16Gbit

IC102-*1

TH58DVG4S0ETA20

NC_1

1

NC_28

48

NC_27

47

NC_26

46

NC_25

45

I/O8

44

NAND_DATA[7]

I/O7

43

NAND_DATA[6]

I/O6

42

NAND_DATA[5]

I/O5

41

NAND_DATA[4]

NC_24

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

PSL

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

16Gbit

R151

+3.3V_Normal

C104 10uF

NAND_DATA[3]

NAND_DATA[2]

NAND_DATA[1]

NAND_DATA[0]

0

10V

C103

0.1uF

NAND_DATA[0-7]

RY/BY2

RY/BY1

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

CE1

CE2

CLE

ALE

RE

WE

WP

DEV_NAND_16Gbit

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NC_26

48

NC_25

47

NC_24

46

NC_23

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_22

40

PSL

39

NC_21

38

VCC_2

37

VSS_2

36

NC_20

35

NC_19

34

NC_18

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_17

28

NC_16

27

NC_15

26

NC_14

25

Boot ROM Device Select - (FA4,FAD7,FAD2,FAD1)

+3.3V_Normal

R113 10K

R114 10K

OPT

R117 10K OPT

R118 10K

R122 10K

R123 10K

OPT

R127 10K OPT

R128 10K

0000: ST Micro M25P or compatible Serial Flash 0010: 8-bit 512Mbit 512B page SLC NAND Flash devices 0100: 8-bit 128, 256Mbit 512B page SLC NAND Flash devices 0110: 8-bit 1Gbit 2KB page SLC NAND Flash devices 1000: 8-bit 2Gbit, 4Gbit, 8Gbit 2KB page SLC NAND Flash devices 1010: 8-bit 16Gbit, 32Gbit 4KB page SLC NAND Flash devices (O)

CI_ADDR[4]

0001: 8-bit 8/16/32Gbit 2KB page MLC NAND Flash devices

NAND_DATA[7]

0011: 8-bit 16/32Gbit 4KB page MLC NAND Flash devices 0101: 8-bit 32Gbit 8KB page MLC NAND Flash devices

NAND_DATA[2]

0111: 3B dual IO Serial Flash

NAND_DATA[1]

1001: BB dual IO Serial Flash 1011: fast Serail Flash > 50Mhz 1100: OneNAND Flash (always 16-bit) 1110: Reserved 1101, 1111: Reserved

NAND ECC (FA3, FA2, FALE)

+3.3V_Normal

R119

R115

R111 10K

OPT

R112 10K

10K

R116 10K OPT

10K OPT

R120 10K

CI_ADDR[3] CI_ADDR[2] NAND_ALE

000 = ECC disabled 001 = ECC 1-bit repair 010 = ECC 4-bit BCH (O) 011 = ECC 8-bit BCH, 27 byte spare 100 = ECC 12-bit BCH, 27 byte spare 101 = ECC 8-bit BCH, 16 byte spare 110, 111 = Reservedd

DUAL COMPONENT

IC102 1ST : EAN60999801 2ND : T-TC58DVG3S0ETA00

IC102-*1

Strap Setting

+3.3V_Normal

R154

R157

10K

OPT

R155

R158

10K

NAND_DATA[0]: 0: System is LITTLE endian (O) 1: System is BIG endian

CI_ADDR[7]: 0: Disable EDID automatic Downloading from Flash (O) 1: Enable EDID automatic Downloading from Flash

NAND_DATA[6] : 0: Disable OSC clock output on chip Pin (O) 1: Enable OSC clock output on chip pin.

CI_ADDR[6]: 0: Host MIPS run at 500 MHz (O) 1: Host MIPS run at 250 MHz

NAND_CLE: 0: Differential Oscillators TVM not bypassed (O) 1: Differential Oscillators TVM bypassed

NAND_DATA[4]: 0: 27MHz TVM Crystal Frequency 1: 54MHz TVM Crystal Frequency (O)

R160 10K

OPT

R161 10K

R164 10K

OPT

R165 10K

R167 10K

OPT

R168 10K

R175 10K

OPT

R176 10K

R177 10K

R178 10K

OPT

R170 10K

R171 10K

OPT

CI_ADDR[9],CI_ADDR[11],CI_ADDR[12],CI_ADDR[13] TVM Crystal oscillator bias/gain control 0000: 210uA 0001: 390uA 0010: 570uA 0011: 730uA 0100: 890uA (O) 0111: 1290uA 1000: 1416uA 1111: 2196uA 0101, 0110, 1001, 1010, 1011, 1100, 1101, 1110: Reserved

CI_ADDR[8]: 0: RESETOUTb (in On/Off only) stay asserted until software releases them. 1: Fix amount of delay for de-assertion on RESETOUTb (in On/IOff only) at end of RESETb pulse (O)

NAND_DATA[3]: 0: MIPS will boot from external flash (O) 1: MIPS will boot from ROM

NAND_DATA[5]: 0: FLASH MODE (O) 1: BSC_SLAVE(BBS) MODE

R179 10K

OPT

R180 10K

R181 10K

OPT

R182 10K

R183 10K

R184 10K

OPT

R187 10K

OPT

R188 10K

R192 10K

OPT

R193 10K

NAND_DATA[0] CI_ADDR[7] NAND_DATA[6] CI_ADDR[6] NAND_CLE NAND_DATA[4] CI_ADDR[9] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13] CI_ADDR[8] NAND_DATA[3] NAND_DATA[5]

+3.3V_Normal

R101

R105

4.7K

R104

4.7K

R195

4.7K

HDMI_CLKHDMI_CLK+

HDMI_RX0HDMI_RX0+

HDMI_RX1HDMI_RX1+

HDMI_RX2HDMI_RX2+

HDMI_ARC

LGE35230(BCM35230KFSBG)

B5 C5

A4 B4

A3 B3

A2 B2

W2

V4 W4

V3 V2

D13

E6

R106 3K

IC101

HDMI0_CLKN HDMI0_CLKP

HDMI0_D0N HDMI0_D0P

HDMI0_D1N HDMI0_D1P

HDMI0_D2N HDMI0_D2P

CEC

DDC0_SCL DDC0_SDA

HDMI0_HTPLG_IN HDMI0_HTPLG_OUT

HDMI0_ARC HDMI0_RESREF

LT0VCAL_MONITOR

TXOUT0_L0N TXOUT0_L0P TXOUT0_L1N TXOUT0_L1P TXOUT0_L2N TXOUT0_L2P

TXCLK_LN

TXCLK_LP TXOUT0_L3N TXOUT0_L3P TXOUT0_L4N TXOUT0_L4P

TXOUT0_U0N TXOUT0_U0P TXOUT0_U1N TXOUT0_U1P TXOUT0_U2N TXOUT0_U2P

TXCLK_UN

TXCLK_UP TXOUT0_U3N TXOUT0_U3P TXOUT0_U4N TXOUT0_U4P

TXOUT1_L0N TXOUT1_L0P TXOUT1_L1N TXOUT1_L1P TXOUT1_L2N TXOUT1_L2P

TXCLK1_LN

TXCLK1_LP TXOUT1_L3N TXOUT1_L3P TXOUT1_L4N TXOUT1_L4P

TXOUT1_U0N TXOUT1_U0P TXOUT1_U1N TXOUT1_U1P TXOUT1_U2N TXOUT1_U2P

TXCLK1_UN

TXCLK1_UP TXOUT1_U3N TXOUT1_U3P TXOUT1_U4N TXOUT1_U4P

GPIO_BL_ON

BL_PWM/GPIO

AE27 AE28 AF27 AF28 AG27 AG28 AE26 AF26 AH27 AG26 AF25 AE25

AH26 AG25 AE24 AD24 AH25 AF24 AE23 AD23 AG24 AF23 AC22 AD22

AG23 AH23 AE22 AE21 AF22 AH22 AG22 AF21 AG21 AF20 AD21 AC21

AG20 AH20 AD19 AE19 AF19 AH19 AE18 AD18 AG19 AF18 AG18 AF17

AC18 AH16 AG16

TXB4P TXB4N TXB3P TXB3N TXBCLKP TXBCLKN TXB2P TXB2N TXB1P TXB1N TXB0P TXB0N

TXA4P TXA4N TXA3P TXA3N TXACLKP TXACLKN TXA2P TXA2N TXA1P TXA1N TXA0P TXA0N

TXD4P TXD4N TXD3P TXD3N TXDCLKP TXDCLKN TXD2P TXD2N TXD1P TXD1N TXD0P TXD0N

TXC4P TXC4N TXC3P TXC3N TXCCLKP TXCCLKN TXC2P TXC2N TXC1P TXC1N TXC0P TXC0N

+3.3V_Normal

R194

2.7K

R108 10K

RGB_DDC_SDA

RGB_DDC_SCL

BBS CONNECT

P101

TJC2508-4A

1

2

3

4

C105

2.2uF 10V

Q101 BSS83

Q102 BSS83

+3.3V_Normal

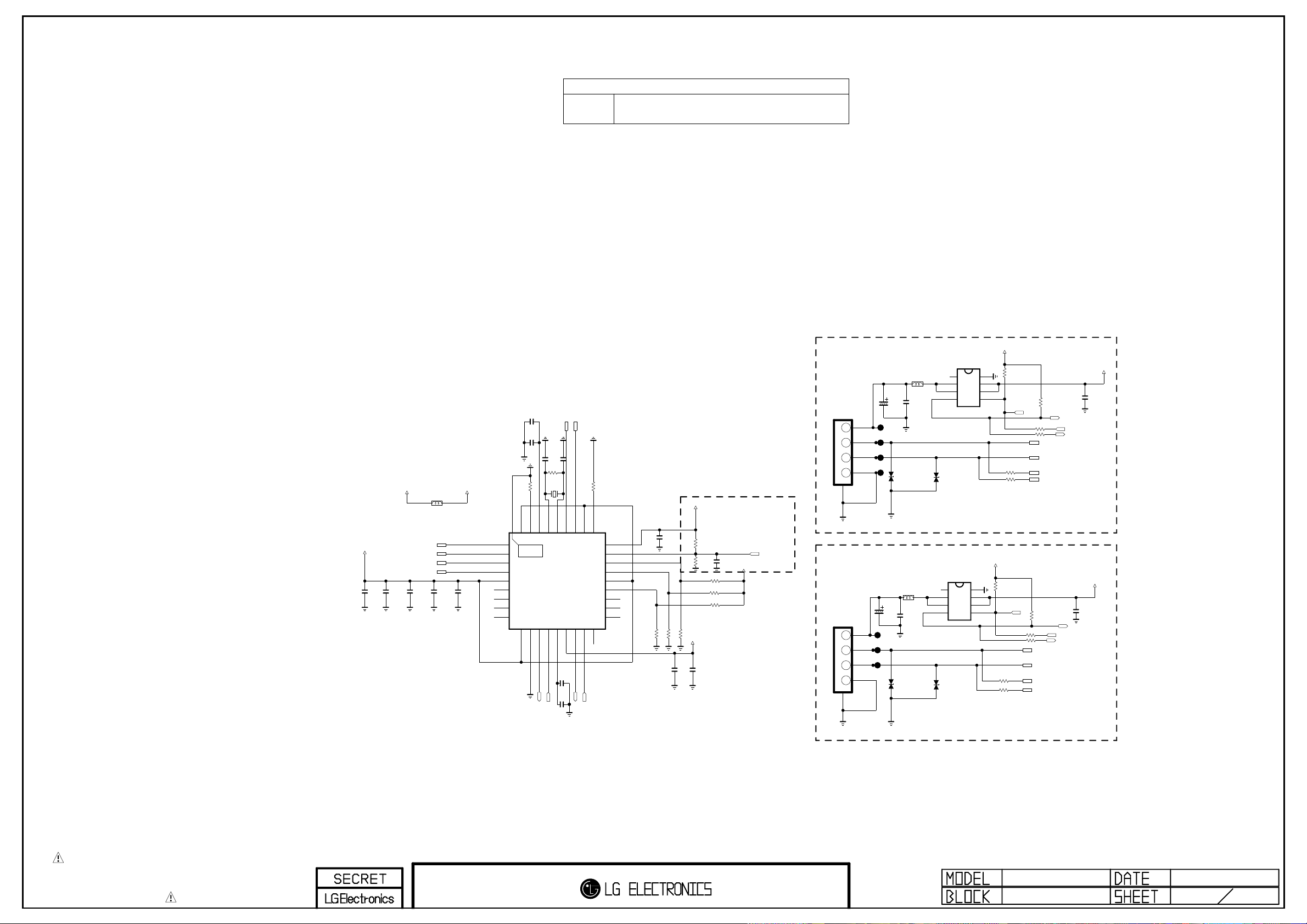

VCC

SCL

SDA

GND

A_DIM

SBD

G

SBD

G

C106

4.7uF

+3.3V_Normal

R196 10K

C118

0.1uF 16V

+3.3V_Normal

R198 10K

C119

0.1uF 16V

SDA0_3.3V SCL0_3.3V

SCL2_3.3V

R110

R109

1.5K

SDA2_3.3V

1.5K R199 22 R197 22

DVB_S Option: apply EU Satellite model

FOR HDMI STANDARD APPLY ONLY WHEN CONNECT TO PULL-UP GPIO

+3.3V_Normal

R121

1.2K

C107 33pF 50V

DVB_S

+3.3V_Normal

R124 1K

OPT

R125 1K

R126

1.2K

C108 33pF 50V

DVB_S

R129

1.2K

C109 33pF 50V

5V_HDMI_3

R130

OPT

2K

R132 4.7K

+3.3V_Normal

C111 0.01uF C112 0.1uF

54MHz_XTAL_P

54MHz_XTAL_N

R131

1.2K

C110 33pF 50V

PCM_5V_CTL

5V_HDMI_1

5V_HDMI_2

5V_HDMI_4

JTAG_RESET SOC_RESET

LNB_INT

SC_ID

BCM_RX BCM_TX

R135 R136 33

+3.3V_Normal

R141 4.7K

R142 22 R143 22

R144 22 R145 22

R139 0

LGE35230(BCM35230KFSBG)

AG6

TVM_XTALIN

AF6

TVM_XTALOUT

V5

IRRXDA

AB4

FP_IN0

Y4

FP_IN1

AA4

SPARE_ADC1

Y5

SPARE_ADC2

AB2

FS_IN1

AB5

FS_IN2

U3

VGA_SDA

U2

VGA_SCL

Y2

RDA

Y1

TDA

33

AA3

BSCDATAA

AA2

BSCCLKA

H3

RDB/GPIO

H2

TDB/GPIO

H4

BSC_S_SCL

H5

BSC_S_SDA

F25

NMIB

W5

POWER_CTRL

U5

AON_HSYNC

U4

AON_VSYNC

W3

AON_GPIO_36

W1

AON_GPIO_37

AB6

AON_RESETOUTB

Y6

TVM_BYPASS

Y3

RESETB

G24

RESETOUTB

J6

TMODE

W6

TESTEN

F7

VDAC_VREG

E7

VDAC_RBIAS

BCM REFRENCE is 562ohm

R140 560 1%

OPT

OPT OPT

OPT

JTAG

IC101

FAD_7 FAD_6 FAD_5 FAD_4 FAD_3 FAD_2 FAD_1 FAD_0

FALE FCEB_0 FCEB_1 FCEB_2 FCEB_3

NFWPB

FRDYB

FA_0

FA_1

FA_2

FA_3

FA_4

FA_5

FA_6

FA_7

FA_8

FA_9

FA_10 FA_11 FA_12 FA_13 FA_14 FA_15

TRSTB

TDI/GPIO

TMS/GPIO TCK/GPIO

DINT/GPIO

AVS_VFB AVS_VSENSE AVS_RESETB

AVS_NDRIVE_1 AVS_PDRIVE_1

VDAC_1 VDAC_2

FWE FRD

TDO

AB1 AB3 AC1 AC2 AC3 AD2 AD3 AE2

AG1 AF1 AC5 AE6 AG5

AF3 AG2 AE3 AA5

AF2 AE1 AC4 AD5 AD4 AE4 AE5 AD6 AH3 AF4 AH4 AG4 AF5 AG3 AH2 AH5

R146 10K

AD15 AF14 AH14 AD14 AG14 AC16

AH7 AG7 AD7 AF7 AH8

C6 D7

NAND_DATA[7] NAND_DATA[6] NAND_DATA[5] NAND_DATA[4] NAND_DATA[3] NAND_DATA[2] NAND_DATA[1] NAND_DATA[0]

NAND_ALE NAND_CEb NAND_CEb2 /CI_CE1 /CI_CE2

FLASH_WP NAND_WEb NAND_REb /PCM_WAIT

NAND_CLE NAND_RBb

CI_ADDR[2] CI_ADDR[3] CI_ADDR[4] CI_ADDR[5] CI_ADDR[6] CI_ADDR[7] CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13] CI_ADDR[14]

NAND_DATA[0-7]

R147 1K

JTAG

DTV/MNT_V_OUT

CI_ADDR[2-14]

+3.3V_Normal

R150 1K

JTAG

R153 1K

JTAG_RESET

R156 1K

JTAG

R159 1K

JTAG

R162 1K

JTAG

R163 1K

JTAG

R166 1K

JTAG

NVRAM

+3.3V_Normal

VCC

8

WP

7

SCL

6

SDA

5

Write Protection

- Low : Normal Operation

- High : Write Protection

R190 33

R191 33

SCL3_3.3V

SDA3_3.3V

R169 0

R173

R172

4.7K

OPT

R174

4.7K

IC103

M24M01-HRMN6TP

OPT

NC

1

E1

2

A8’h

E2

3

VSS

4

54MHz X-TAL

C113 10pF

3

X-TAL_2

4

GND_2

54MHz

X101

C114

CRYSTAL_BCM_Sunny

10pF

EAW58812611

SUNNY ELECTRONICS CORPORATION

X101-*2

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_Lihom

EAW60763703

LIHOM CO., LTD.

P102

12505WS-10A00

JTAG

/TRST

1

TDI

2

TDO

3

TMS

4

TCK

5

/RST

6

DINT

7

VIO

8

GND

9

GND

10

11

GND

2

1

4

3

GND_1

X-TAL_1

GND_2

X-TAL_2

R185 0

R186 0

R189 1M OPT

54MHz_XTAL_N

54MHz_XTAL_P

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN & NAND FLASH

2010.09.18

1

57

+3.3V_Normal

FHD

R252

1K

HD

R262

1K

FE_TS_DATA[0-7]

OLED

LCD

BCM internal FRC

00 11

1 100

HIGH

Support

CHBO_TS_CLK

CHBO_TS_SERIAL

CHBO_TS_SYNC

CHBO_TS_VAL_ERR

R251

1K

BCM_FRC/URSA5

R261

1K

NO_FRC/FRC2

R250

FRC2/URSA5

R260

NO_FRC/BCM_FRC

MODEL OPTION

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7 Enable Disable

NO_FRC

DDR speed

T2 Tuner

S Tuner

PHM

R253

R263

1K

R254

1K

OPT

R264

1K

LG FRC2

LOW

HDFHD

LCDOLED

16001333

Not Support

Not SupportSupport

R255

1K

T2_TUNER

R265

1K

NO_T2_TUNER

external URSA5

SIDE_USB_OCD1

SIDE_USB_OCD2

PCM_TS_DATA[0-7]

R201 0

F/NIM_EU_CN

PCM_MDI[0-7]

OPT

R202

0

R256

1K

S_TUNER

R266

1K

NO_S_TUNNER

+3.3V_Normal

R286 10K

WIFI

TU_TS_CLK

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

PHM

NO_PHM

R287 10K WIFI

R257

1K

R267

1K

R203 0 R204 0 R205 0 R206 0

R207 0 R208 0 R209 0

C201 100pF

OPT

F/NIM_EU_CN F/NIM_EU_CN

F/NIM_EU_CN

PCM_MDI[0] PCM_MDI[1] PCM_MDI[2] PCM_MDI[3] PCM_MDI[4] PCM_MDI[5] PCM_MDI[6] PCM_MDI[7]

R211

6.04K EPHY_TDP

EPHY_TDN EPHY_RDP EPHY_RDN

R210

4.87K 1%

SIDE_USB_DM SIDE_USB_DP

SIDE_USB_CTL1

WIFI_DM WIFI_DP

SIDE_USB_CTL2

PCM_TS_CLK

PCM_TS_DATA[0] PCM_TS_DATA[1] PCM_TS_DATA[2] PCM_TS_DATA[3] PCM_TS_DATA[4] PCM_TS_DATA[5] PCM_TS_DATA[6] PCM_TS_DATA[7]

PCM_TS_SYNC

PCM_TS_VAL

F/NIM_EU_CN

F/NIM_EU_CN F/NIM_EU_CN F/NIM_EU_CN

TU_TS_SYNC

TS_VAL_ERR

PCM_MCLKI

PCM_MISTRT

PCM_MIVAL_ERR

/PCM_IRQA

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3 MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6 MODEL_OPT_7

LGE35230(BCM35230KFSBG)

F26 D26

F27 F28 E27 E26

F5 E5

C2 D1

E1 D2

B1 C1

C3 C4

M4 L5 M5 L6 N3 N1 N2 M3 M2 L4 N4

K6 J4 K5 J2 J3 K2 K1 K3 L1 L3 L2

P4 T2 R3 R2 P3 P2 P1 R6 N5 T4 P5

R4 U1 T3 T1 T5

IC101

EPHY_VREF EPHY_RDAC

EPHY_TDP EPHY_TDN EPHY_RDP EPHY_RDN

USB_MONCDR USB_RREF

USB_PORT1DN USB_PORT1DP

USB_PWRFLT_1/GPIO USB_PWRON_1/GPIO

USB_PORT2DN USB_PORT2DP

USB_PWRFLT_2/GPIO USB_PWRON_2/GPIO

TCLKA/GPIO TDATA_0/GPIO TDATA_1/GPIO TDATA_2/GPIO TDATA_3/GPIO TDATA_4/GPIO TDATA_5/GPIO TDATA_6/GPIO TDATA_7/GPIO TSTRTA/GPIO TVLDA/GPIO

TCLKD/GPIO TDATD_0/GPIO TDATD_1/GPIO TDATD_2/GPIO TDATD_3/GPIO TDATD_4/GPIO TDATD_5/GPIO TDATD_6/GPIO TDATD_7/GPIO TSTRTD/GPIO TVLDD/GPIO

MPEG_CLK/GPIO MPEG_D_0/GPIO MPEG_D_1/GPIO MPEG_D_2/GPIO MPEG_D_3/GPIO MPEG_D_4/GPIO MPEG_D_5/GPIO MPEG_D_6/GPIO MPEG_D_7/GPIO MPEG_SYNC/GPIO MPEG_DATA_EN/GPIO

MCIF_RESET/GPIO MCIF_SCLK/GPIO MCIF_SCTL/GPIO MCIF_SDI/GPIO MCIF_SDO/GPIO

PCI_DEVSELB/GPIO

PCI_FRAMEB/GPIO

C225

0.22uF

6.3V

VI_IFP0 VI_IFM0

VDDR_AGC

AGC_SDM_2 AGC_SDM_1

GPIO_0 GPIO_1 GPIO_2 GPIO_3

PCI_VIO_0 PCI_VIO_1 PCI_VIO_2

GPIO_4 GPIO_5 GPIO_6

GPIO_7 GPIO_70 GPIO_71 GPIO_72 GPIO_73 GPIO_74 GPIO_75 GPIO_76 GPIO_77 GPIO_78 GPIO_79

PCI_AD05 PCI_AD06 PCI_AD07

PCI_AD08 PCI_AD09/GPIO PCI_AD10/GPIO PCI_AD11/GPIO PCI_AD12/GPIO PCI_AD13/GPIO PCI_AD14/GPIO PCI_AD15/GPIO PCI_AD16/GPIO PCI_AD17/GPIO PCI_AD18/GPIO PCI_AD19/GPIO PCI_AD20/GPIO PCI_AD21/GPIO

PCI_AD22

PCI_AD23

PCI_AD24

PCI_AD25

PCI_CBE00 PCI_CBE01/GPIO PCI_CBE02/GPIO

PCI_CBE03

PCI_IRDYB/GPIO

PCI_PAR/GPIO

PCI_PERRB/GPIO

PCI_REQ1B PCI_SERRB/GPIO PCI_STOPB/GPIO PCI_TRDYB/GPIO

+0.9V_CORE

C221

0.1uF

C17 B17 D15

B16 A16

A15 C16 G28 G26

+3.3V_Normal

W14 W15 W13

J5 R5 V6 H6 AE15 AF15 AG15 AF16 AD16 AE16 AG17 AH17 AE17 AD17

AB13 AC15 AB12 AB11 AE14 AG13 AH13 AF13 AE13 AD12 AF12 AG10 AF10 AE10 AD10 AE9 AE8 AC10 AC11 AC8 AB8

AC14 AG12 AH10 AB7

AG11 AD11 AE11 AD13 AE12 AC12 AC13 AH11 AF11

C223

0.01uF

C203 10uF 10V

close to soc

Non_CHB

R212 1K

closed to soc

R213 2K

C216 0.01uF

R280 22

R214 22

R215 22 R281 22 R282 22

R216 22

R218 22

R220 22

R221 22

R222 22

R283 22

R223 22

R284 22

R224 22

R235

R225 0

R226 22

R285 22

R227 22

C207

C205

4.7uF

10uF

10V

C217

16V

100

0.1uF R241

C218

100

0.1uF R242

16V

M_REMOTE_RX

CI_DET M_RFModule_RESET

EPHY_ACTIVITY EPHY_LINK

DTV_ATV_SELECT RF_SWITCH_CTL_2

INSTANT_MODE

BCM_L/DIM BCM_L/DIM

100

OPT

NFM18PS105R0J

C233

6.3V

GND

C232

4.7uF 10V

C209

4.7uF 10V

IF_P

IF_N

IF_AGC

3D_SYNC

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3

SC_DET/COMP2_DET

CHB_RESET

TW9910_RESET

AV2_CVBS_DET RF_BOOSTER_CTL DSUB_DET PCM_RST

MODEL_OPT_4 DC_MREMOTE DD_MREMOTE

COMP1_DET

MODEL_OPT_5

3D_GPIO_0 MODEL_OPT_6 MODEL_OPT_7

ERROR_OUT

RF_SWITCH_CTL

3D_GPIO_1

3D_GPIO_2

OUTIN

C234

0.1uF

C211

0.1uF

+3.3V_Normal

R228 22 R230 22

BCM_L/DIM

R231 100

L/DIM0_MOSI L/DIM0_SCLK

NFM18PS105R0J

C204

6.3V

OUTIN

GND

C236

0.1uF

C213

0.1uF

BLM18PG121SN1D

C229

0.1uF

R240

2.7K

+3.3V_Normal

R231-*1 0

FRC2_RESET

URSA_RESET

NFM18PS105R0J

C238

4.7uF 10V

C215

0.01uF

L201

NON_NTP

PWM_DIM L/DIM0_VS

4.7K

C244

6.3V

GND

C220

0.1uF

+3.3V_Normal

4.7K

R232

URSA_RESET

+0.9V_CORE

+3.3V_Normal

OUTIN

+1.5V_DDR

C222

0.01uF

R233

1.2K

C227 33pF 50V

R232-*1

FRC2_RESET

R234

1.2K

C231 33pF 50V

C247 22uF

C248 10uF

10V

NON_NTP

FRC_RESET

SDA1_3.3V SCL1_3.3V

POWER 2.5V

+2.5V_BCM35230

Place Cap Very close to R22 Ball

L202

BLM18PG121SN1D

C249 10uF 10V

L203

BLM18PG121SN1D

C251

0.1uF 16V

+2.5V_BCM35230

BLM18PG121SN1D

C250

4.7uF 10V

+1.5V_DDR

Place Cap

Very close to R22 Ball

C242

0.1uF

+3.3V_Normal

C253 10uF 10V

EPHY_VDD25

C252

4.7uF 10V

L204

C254

4.7uF

MLG1005S22NJT

C224

L220

1uF 25V OPT

+0.9V_CORE

AADC_AVDD25

C256

0.1uF

C255

0.1uF

VAFE3_VDD25

C257

0.1uF

+0.9V_CORE

C226

0.1uF 16V OPT

+3.3V_Normal

+2.5V_BCM35230

L205

BLM18PG121SN1D

C258

0.1uF

+2.5V_BCM35230

C260

C259

4.7uF

10uF 10V

+2.5V_BCM35230

VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDC_9 VDDC_10 VDDC_11 VDDC_12 VDDC_13 VDDC_14 VDDC_15 VDDC_16 VDDC_17 VDDC_18 VDDC_19 VDDC_20 VDDC_21 VDDC_22 VDDC_23 VDDC_24 VDDC_25 VDDC_26 VDDC_27 VDDC_28 VDDC_29 VDDC_30 VDDC_31 VDDC_32 VDDC_33 VDDC_34 VDDC_35 VDDC_36 VDDC_37 VDDC_38 VDDC_39 VDDC_40 VDDC_41 VDDC_42

POR_VDD

VDDR1_1 VDDR1_2 VDDR1_3 VDDR1_4 VDDR1_5 VDDR1_6 VDDR1_7 VDDR1_8 VDDR1_9 VDDR1_10 VDDR1_11 VDDR1_12

DDR_LDO_VDDO

VDDR3_1 VDDR3_2 VDDR3_3 VDDR3_4 VDDR3_5 VDDR3_6 VDDR3_7 VDDR3_8 VDDR3_9 VDDR3_10 VDDR3_11

AON_VDDC_1 AON_VDDC_2 AON_POR_VDD

AON_VDDR3

AON_VDDR10_1 AON_VDDR10_2

IC101

LGE35230(BCM35230KFSBG)

V12

V7 M10 N10 P10 R10 T10 U10 V10 W10 V13 L11 M11 N11 P11 R11 T11 U11 V11 W11 V14 L18 M18 N18 P18 R18 T18 U18 V18 W18 V15 L19 M19 N19 P19 R19 T19 U19 V19 W19 V16 V17

L10

L22

AA28

V28 R28 M28 J28 K23 M22 T22 T23 U22 Y22

R22

G15 H22 G23 AB9

K7

AB15

L7

AB14

M7

N6

P6

AA6 AA7

Y7

U7

T7

T6

C261 10uF 10V

C262 10uF

L206

BLM18PG121SN1D

L207

BLM18PG121SN1D

K10

VSS_1

K11

VSS_2

K12

VSS_3

L12

VSS_4

M12

VSS_5

N12

VSS_6

P12

VSS_7

R12

VSS_8

T12

VSS_9

U12

VSS_10

W12

VSS_11

K13

VSS_12

L13

VSS_13

M13

VSS_14

N13

VSS_15

P13

VSS_16

R13

VSS_17

T13

VSS_18

U13

VSS_19

W16

VSS_20

K14

VSS_21

L14

VSS_22

M14

VSS_23

N14

VSS_24

P14

VSS_25

R14

VSS_26

T14

VSS_27

U14

VSS_28

K15

VSS_29

L15

VSS_30

M15

VSS_31

N15

VSS_32

P15

VSS_33

R15

VSS_34

T15

VSS_35

U15

VSS_36

K16

VSS_37

L16

VSS_38

M16

VSS_39

N16

VSS_40

P16

VSS_41

R16

VSS_42

T16

VSS_43

U16

VSS_44

K17

VSS_45

L17

VSS_46

M17

VSS_47

N17

VSS_48

P17

VSS_49

R17

VSS_50

T17

VSS_51

U17

VSS_52

W17

VSS_53

K18

VSS_54

K19

VSS_55

H7

VSS_56

G14

VSS_57

AB16

VSS_58

R7

VSS_59

M6

VSS_60

AB23

VSS_61

P7

VSS_62

W7

VSS_63

J7

VSS_64

N7

VSS_65

AB10

VSS_66

AC23

VSS_67

AC6

VSS_68

G19

VSS_69

AA22

VSS_70

J23

VSS_71

J22

VSS_72

K22

VSS_73

J25

VSS_74

N22

VSS_75

N23

VSS_76

M25

VSS_77

P22

VSS_78

R25

VSS_79

V22

VSS_80

W22

VSS_81

W23

VSS_82

V25

VSS_83

AA25

VSS_84

ADAC_AVDD25

C263

4.7uF

C265

4.7uF

PLL_VAFE_AVDD25

C264

4.7uF

C271

C267

0.01uF

0.1uF

C266

C270

0.1uF

C269

0.1uF

C268

0.1uF

C272

0.01uF

4.7uF C277

VAFE2_VDD25

CORE 0.9V

+0.9V_CORE

L209

BLM18PG121SN1D

C274 22uF

+0.9V_CORE

L210

BLM18PG121SN1D

+0.9V_CORE

L211

BLM18PG121SN1D

POWER 3.3V

+3.3V_Normal

Place as close as possible to the pad

use only for A0/B0 chip

C210-*1 220pF 50V

BCM_A0/B0

PLL_VAFE_AVDD25

+0.9V_CORE

Place as close as possible to the pad

C281

0.1uF

C282

0.1uF

L212

VAFE2_DVDD

VAFE3_DVDD

C208 390pF 50V

C206 390pF 50V

+0.9V_CORE

USB_AVDD33

C283

0.1uF

+3.3V_Normal

+2.5V_BCM35230

VDAC_AVDD33

BCM_C0

PLL_MIPS_AVDD

C273

0.1uF

BLM18PG121SN1D

C284 22uF

BLM18PG121SN1D

L213

BLM18PG121SN1D

ADAC_AVDD25

EPHY_VDD25

HDMI_AVDD33

C275

0.1uF OPT

USB_AVDD33

C212 390pF 50V

C210 390pF 50V

PLL_MAIN_AVDD

C276

0.01uF

OPT

HDMI_AVDD

C280

0.1uF

PLL_AUD_AVDD

4.7uF

PLL_VAFE_AVDD

C279

4.7uF

BLM18PG121SN1D

VAFE2_VDD25

VAFE3_VDD25

Place as close as possible to the pad

PLL_VAFE_AVDD

C202 390pF 50V

L214

C285

4.7uF

L215

+3.3V_Normal

AADC_AVDD25

HDMI_AVDD

USB_AVDD

C214 390pF 50V

PLL_AUD_AVDD

+3.3V_Normal

C288

0.1uF

C290

0.1uF

L216

BLM18PG121SN1D

C289

0.1uF

+0.9V_CORE

HDMI_AVDD33

C291

4.7uF

USB_AVDD

VAFE3_DVDD

C287

4.7uF

VDAC_AVDD33

C286

4.7uF

LGE35230(BCM35230KFSBG)

F19

AADC_AVDD25

D25

ADACA_AVDD25

D24

ADACC_AVDD25

E24

ADACD_AVDD25

F24

EPHY_BVDD25

E25

EPHY_AVDD25

D5

HDMI0_AVDD

D4

HDMI0_AVDD33

AE20

LT0VDD25_1

AD20

LT0VDD25_2

AC20

LT0VDD25_3

AB20

LT0VDD25_4

D14

SPDIF_IN_AVDD25

E4

USB_AVDD

D3

USB_AVDD33

D6

VDAC_AVDD33

D18

VAFE2_DVDD

E17

VAFE2_AVDD25_1

D16

VAFE2_AVDD25_2

D17

VAFE2_DVDD25

D9

VAFE3_DVDD

D8

VAFE3_AVDD25_1

E8

VAFE3_AVDD25_2

F9

VAFE3_AVDD25_3

E9

VAFE3_DVDD25

F8

POR_VDD25

G25

PLL_AUD_AVDD

K4

PLL_MAIN_AVDD

AD25

PLL_MIPS_AVDD

D11

PLL_VAFE_AVDD

D12

PLL_VAFE_AVDD25

AE7

TVM_OSC_AVDD

U6

AUX_AVDD33

C278

0.1uF

L219

BLM18PG121SN1D

C292 22uF

L217

BLM18PG121SN1D

L218

BLM18PG121SN1D

C293

0.1uF

IC101

AADC_AVSS

ADACA_AVSS ADACC_AVSS ADACD_AVSS

EPHY_AVSS

HDMI0_AVSS_1 HDMI0_AVSS_2

LT0VSS_1 LT0VSS_2 LT0VSS_3 LT0VSS_4 LT0VSS_5 LT0VSS_6 LT0VSS_7

SPDIF_IN_AVSS

USB_AVSS_1 USB_AVSS_2

VDAC_AVSS

VAFE2_VSS_1 VAFE2_VSS_2 VAFE2_VSS_3 VAFE2_VSS_4 VAFE2_VSS_5 VAFE2_VSS_6 VAFE2_VSS_7

VAFE3_VSS_1 VAFE3_VSS_2 VAFE3_VSS_3 VAFE3_VSS_4 VAFE3_VSS_5 VAFE3_VSS_6

PLL_MIPS_AVSS

TVM_OSC_AVSS

VAFE2_DVDD

C299

C296

0.1uF

4.7uF

PLL_MAIN_AVDD

C294

C297

4.7uF

0.1uF

PLL_MIPS_AVDD

C295

C298

4.7uF

0.1uF

F20

G22 G21 F22

F23

F6 G6

AB22 AB21 AB19 AC19 AB18 AB17 AC17

F15

G7 G8

G9

G20 E18 G18 G17 F18 G16 F16

G13 G12 F12 G11 G10 F10

AD26

AC7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN POWER

2

50

AV2_CVBS_IN

INCM_VID_AV2

INCM_VID_COMP1

C303 0.1uF C304 0.1uF R303

36

TU_CVBS

AV1_CVBS_IN

INCM_VID_AV1

TU_SIF

DSUB_R+

INCM_R

DSUB_B+

INCM_B

COMP1_Y COMP1_Pr COMP1_Pb

EU

R325-*1

10

C317 0.1uF C318 0.1uF R304

36

C320 0.1uF C321 0.1uF

R311 36

C322 0.1uF C323 0.1uF R312

36

R310 0

SC_R/COMP2_Pr

SC_G/COMP2_Y

SC_B/COMP2_Pb

INCM_VID_SC/COMP2

SC_CVBS_IN

INCM_VID_SC

NON_EU R325 0

INCM_TUNER

R306 75 1%

OPT

+2.5V_BCM35230

C319 0.1uF

R305 240

OPT

INCM_SIF

DSUB_G+

INCM_G

C325 0.1uF C326 0.1uF R316

36

R313 10K

+2.5V_BCM35230

R314 12K

C324 0.1uF R315

120

OPT

C327 0.1uF C328 0.1uF R317

36

DSUB_HSYNC DSUB_VSYNC

C329 0.1uF C330 0.1uF C331 0.1uF C332 0.1uF

C333 0.1uF C334 0.1uF C335 0.1uF C336 0.1uF

R318 0

SC_FB

R319 10K OPT

R320 12K OPT

LGE35230(BCM35230KFSBG)

B6 A6 C7 A7 B7 C8

C13 A13

C9 A9 B9 B8

C11 A10 B10 C10

D10 F13

A12 C12 B12 B11

E12 E14

E15 F17 E16 F14 E11

C18 B18 A18 C19 A19 B19 C20 B20

E19 D19 E10 F11

IC101

VI_R VI_INCM_R VI_G VI_INCM_G VI_B VI_INCM_B

HSYNC_IN VSYNC_IN

VI_Y1 VI_PR1 VI_PB1 VI_INCM_COMP1

VI_SC_R1 VI_SC_G1 VI_SC_B1 VI_INCM_SC1

VI_FB_1/GPIO VI_FS1

VI_SC_R2 VI_SC_G2 VI_SC_B2 VI_INCM_SC2

VI_FB_2/GPIO VI_FS2

VI_L1 VI_C1_1 VI_INCM_LC1_1 VI_C1_2 VI_INCM_LC1_2

VI_CVBS1 VI_INCM_CVBS1 VI_CVBS2 VI_INCM_CVBS2 VI_CVBS3 VI_INCM_CVBS3 VI_CVBS4 VI_INCM_CVBS4

VI_SIF1_1 VI_INCM_SIF1_1 VI_SIF1_2 VI_INCM_SIF1_2

Near

Near Near

P801

JK1101

JK1104

TU2101/2 TU2201/2/3

JK1102

JK1103 JK2501

VIDEO INCM

Run Along DSUB_R Trace

Run Along DSUB_G Trace

Run Along DSUB_B Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN Trace

Run Along AV2_CVBS Trace

Run Along TUNER_CVBS_IF_P Trace

Run Along AV1_CVBS Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN/SC R,G,B Trace

INCM_R

INCM_G

INCM_B

INCM_VID_COMP1

INCM_VID_AV2

INCM_TUNER

INCM_VID_AV1

INCM_VID_SC/COMP2

SCL3_3.3V SDA3_3.3V

+3.3V_Normal

R302

R301

1.2K

C301

C302 33pF

33pF

50V

PHONE JACK

INCM_AUD_SC/COMP2

M_REMOTE_TX

PC_L_IN PC_R_IN

AV1_L_IN AV1_R_IN

INCM_AUD_AV1

AV2_L_IN AV2_R_IN

INCM_AUD_AV2

SC/COMP2_L_IN SC/COMP2_R_IN

C305 1uF 10V C306 1uF 10V C307 1uF 10V

C308 1uF 10V C309 1uF 10V C310 1uF 10V

C311 1uF 10V C312 1uF 10V C313 1uF 10V

C314 1uF 10V C315 1uF 10V C316 1uF 10V

SPDIF_INC_P SPDIF_INC_N

SPDIF_IND_P SPDIF_IND_N

I2SSCK_IN/GPIO I2SWS_IN I2SSD_IN/GPIO

AADC_LINE_L1 AADC_LINE_R1 AADC_INCM1

AADC_LINE_L2 AADC_LINE_R2 AADC_INCM2

AADC_LINE_L3 AADC_LINE_R3 AADC_INCM3

AADC_LINE_L4 AADC_LINE_R4 AADC_INCM4

AADC_LINE_L5 AADC_LINE_R5 AADC_INCM5

AADC_LINE_L6 AADC_LINE_R6 AADC_INCM6

AADC_LINE_L7 AADC_LINE_R7 AADC_INCM7

IC101

I2SSCK_OUTA/GPIO

I2SWS_OUTA/GPIO

I2SSD_OUTA0/GPIO

I2SSOSCK_OUTA/GPIO

I2SSD_OUTA1/GPIO I2SSD_OUTA2/GPIO

I2SSCK_OUTC/GPIO

I2SWS_OUTC/GPIO I2SSD_OUTC/GPIO

I2SSOSCK_OUTC/GPIO

I2SSCK_OUTD/GPIO

I2SWS_OUTD/GPIO I2SSD_OUTD/GPIO

I2SSOSCK_OUTD/GPIO

SPDIF_OUTA/GPIO

LGE35230(BCM35230KFSBG)

B15 C15

C14 B14

G4 F4 G5

C25 B24 A24

E22 E23 D23

C24 C23 B23

E21 D21 D22

B22 C22 A22

F21 D20 E20

A21 C21 B21

AUDMUTE_0/GPIO

AUDMUTE_1

ADAC_AL_N ADAC_AL_P

ADAC_AR_N ADAC_AR_P

ADAC_CL_N ADAC_CL_P

ADAC_CR_N ADAC_CR_P

ADAC_DL_N ADAC_DL_P

ADAC_DR_N ADAC_DR_P

AF8 AF9 AG9 AC9 AD8 AD9

E2 F2 E3 F3

G2 G3 G1 H1

B13

AG8 E13

C28 C27

D28 D27

C26 A27

B27 B28

B25 A25

A26 B26

R326 100 R327 100 R328 100 R329 100

TU_RESET_SUB

HP_DET AV1_CVBS_DET TU_RESET

SC_RE1 SC_RE2INCM_AUD_PC /RST_HUB S2_RESET

SPDIF_OUT

HP_LOUT_N HP_LOUT_P

HP_ROUT_N HP_ROUT_P

SCART1_Lout_N SCART1_Lout_P

SCART1_Rout_N SCART1_Rout_P

C337 22pF

OPT

C338 22pF

OPT

C339 22pF OPT

C340 33pF

OPT

AUD_SCK AUD_LRCK AUD_LRCH AUD_MASTER_CLK

Near

JK1102

JK1103 JK2501

JK1104 JK801

TU2101/2 TU2201/2/3

R321 0

R322 0

R323 0

R324 0

AUDIO INCM

Route Between AV1_L_IN & AV1_R_IN Trace

Route Between SC/COMP2_L_IN & SC/COMP2_R_IN Trace

Route Between AV2_L_IN & AV2_R_IN Trace

Route Between PC_L_IN & PC_R_IN Trace

Route Along With TUNER_SIF_IF_N

INCM_AUD_AV1

INCM_AUD_SC/COMP2

INCM_AUD_AV2

INCM_AUD_PC

INCM_SIF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN AUDIO/VIDEO

3

50
