ASSEMBLING AND PREPARING
5
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
RGB Cable
M6
Screw (4ea)
Ring Core
Cable holder
(2ea)
CD (Owner's Manual, SuperSign
Program, SuperSign Manual) /
Card
POWER
INPUT
ENERGY
MONITOR
OFF
ON
SAVING
. , !ABCDEF
GHIJKLMNO
PQRSTUV
WXYZ
1/a/A
CLEAR
- * #
MARK
ARC
P
A
BRIGHT
PSM
G
NESS
E
MUTE
AUTO
S.MENU
MENU
OK
EXIT
BACK
TILE
ID
OFF
ON
Power Cord DVI Cable
IR Receiver Guide bracket
M4 x 10L
Screw (4ea)
ENGLISH
ENG
Remote control and Batteries
Power cable holder U-shaped fixture RS-232C Cable
CAUTION
Do not use any pirated items to ensure the safety and product life span.
y
Any damages or injuries by using pirated items are not covered by the warranty.
y
NOTE
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
y
of product functions.
How to Use a Ring Core
y
A ring core reduces electromagnetic waves emitted from the IR receiver.
Loop the cable through the core once, before using it as illustrated.
Ring Core
Page 7
ASSEMBLING AND PREPARING
6
ENGLISH
Parts
ENG
< 47WV30MS/47WV30BR >
RS-232C
(CONTROL)
DVI OUT DVI IN
RGB OUT
USB LAN
/DVI
RGB IN
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
COMPONENT IN
VIDEO AV IN AUIDO
SPEAKER
(8Ω)
Connection panel
< 47WV30BS/47WV30-BAAM/47WV30-BAAL >
RS-232C
(CONTROL)
DVI OUT DVI IN
RGB OUT
USB LAN
/DVI
RGB IN
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
COMPONENT IN
AUDIO
SPEAKER
(8Ω)
Connection panel
Page 8
ASSEMBLING AND PREPARING
7
To install in a Portrait Layout
When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).
Remove L-brackets before Installation
Remove the L-brackets from each corner of the monitor before installing it.
ENGLISH
ENG
NOTE
Keep the removed L-brackets and use them when moving the monitor later.
Page 9
ASSEMBLING AND PREPARING
8
ENGLISH
Moving Handles
ENG
Moving the device in a vertical position
Hold the vertical handles on the left and right
sides or the left and right handles on the back of
the display.
Vertical handle
on the side
Moving the device in a horizontal position
Have the screen facing down and hold the vertical
handles on the left and right sides.
Left and right handles
at the back
Vertical handle
on the side
CAUTION
Be careful not to directly touch the panel or expose it to shock when moving the monitor.
y
Hold the monitor with the handles as the corners of the front panel are sharp, which may cause an
y
injury.
Page 10
ASSEMBLING AND PREPARING
9
STORAGE METHOD FOR PANEL PROTECTION
Correct Method Incorrect Method
Panel
Panel
If the product needs to be set upright, hold both
sides of the product, and tilt backward carefully
for. Do not let the panel not to touch the floor.
If the product is tilted onto the bezel, the bottom of
the panel may be damaged.
ENGLISH
ENG
Panel
When laying down the product, lay a cushion on a
flat floor. Put the product on it with the panel of
the product facing down.
Cushion
Panel
If there is not a cushion available, ensure the floor is
clean and then lay the product down carefully with the
panel facing either upward or downward.
be careful for objects not to fall on the panel.
At this time,
Panel
If the product is tilted onto the edge of the panel,
the panel may be damaged.
Page 11
ASSEMBLING AND PREPARING
10
ENGLISH
Installing on a wall
ENG
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
If you want to mount the monitor on the wall (optional), attach the wall mounting bracket to the rear
of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
Use the wall mount plate and screws that comply
with the VESA standard.
Use the wall mount plate and screws conforming
to the VESA standard.
NOTE
10 cm
10 cm
10 cm
20 cm
10 cm
CAUTION
Disconnect the power cord first, and then
y
move or install the Monitor set. Otherwise
electric shock may occur.
If you install the Monitor set on a ceiling or
y
slanted wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
y
cause damage to the Monitor set and void
your warranty.
Use the screws and wall mounts that
y
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
NOTE
Use the screws that are listed on the VESA
y
standard screw specifications.
The wall mount kit includes an installation
y
manual and necessary parts.
The wall mount bracket is optional. You can
y
obtain additional accessories from your local
dealer.
The length of screws may differ depending
y
on the wall mount. Be sure to use the proper
length.
For more information, refer to the
y
instructions supplied with the wall mount.
Do not install the product in a place with
y
no ventilation (e.g., on a bookshelf or in a
closet) or on a carpet or cushion. If there is
no other option but to mount the product on
the wall, make sure that sufficient ventilation
is provided before installation.
- Failure to do so may result in a fire due to
the increase in the internal temperature.
Page 12
ASSEMBLING AND PREPARING
11
EXTERNAL EQUIPMENT SETUP
IR RECEIVER
This allows a remote control sensor to be placed
in a custom location. Then that display can control
other displays via an RS-232 cable. Refer to page
19 for more information.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
ENGLISH
ENG
Page 13
ASSEMBLING AND PREPARING
12
ENGLISH
Tiling Displays
ENG
How to Join Sets - Installing Set 1
* The numbers assigned in this example (#1, #2, #3, #4) are used to demonstrate the installation procedure
*Example of 2 x 2 tiling
to ensure it is easy to follow. These numbers have nothing to do with the Set ID that is used to operate the
remote control. Set the guide bracket into the bracket groove using screws and mount the set to the wall
mount plate or the wall.
Guide bracket
Screws for xing the
VESA wall mount
Guide bracket
Wall mount plate
<Rear view of the set with the wall mount plate>
* The wall mount plate is shaded in gray in the illustration to help you see it.
Screws for fixing
the guide bracket
Page 14
ASSEMBLING AND PREPARING
How to Join Sets - Installing Set 2
Join Set 2 to Set 1 using the guide brackets on the top side of Set 1 and mount the two sets to the wall
mount plate or the wall.
Remove the guide brackets after mounting the sets.
<The sets joined with the guide brackets> <The sets after removing the guide brackets>
13
ENGLISH
ENG
Guide bracket
<Rear view of the set with the wall mount plate>
Remove the
guide brackets
How to remove the guide brackets
* Unscrew the guide bracket screws from the rear of the set and remove the guide brackets.
* Once the screws are removed, the guide brackets will drop. You need to remove them through the gap
on the sides of the set.
* This can be done only when there is enough space between the set and the wall mount plate or the wall
to unscrew the screws. (Please check whether there is enough space to remove the screws before fixing
the guide brackets.)
<Removing the guide bracket through
the side gap>
Page 15
14
How to Join Sets - Installing Set 3
ENGLISH
ENG
Fix the guide brackets to Set 3 following the steps above, and loosely mount the set to the wall mount
plate or the wall.
ASSEMBLING AND PREPARING
#2
#1 #3
<Joined Sets 1 and 2> <Set 3 to be joined>
Minimize the space between the sides of the sets using the U-shaped fixture.
When the sets are joined with the minimum amount of space between them, rmly mount them to the wall
mount plate or the wall.
When the sets are firmly mounted to the wall, remove the U-shaped fixtures.
U-shaped xture
U-shaped xture
Page 16
ASSEMBLING AND PREPARING
How to Join Sets - Installing Set 4
Loosely mount Set 4 to the wall mount plate or the wall and minimize the space between the sets using
the U-shaped fixtures.
When Set 4 is firmly mounted to the wall, remove the U-shaped fixtures.
Remove the guide brackets. See <How to Join Sets - Installing Set2,3>.
Now the 2 x 2 tiling is complete.
You can tile in various combinations, such as 3 x 3.
Set 4 joined to the rest of the sets
(2 x 2 tiling)
15
ENGLISH
ENG
Wall mount plate or wall
Display set
NOTE
The guide brackets for tiling should only be used to join sets and should be removed once they are joined.
y
The guide brackets should only be used as the assisting tool when tiling sets. The load applied to each set
y
should be supported by the wall mount plate or the wall using a VESA wall mount (800 x 400).
(Each set must be firmly mounted to the wall mount plate or the wall.)
y
The guide brackets must be removed once the sets are joined. When joining the sets without removing the
y
guide brackets, extra caution is required to prevent damage due to the set weight.
The U-shaped fixtures must also be removed after mounting the set to the wall mount plate or the wall.
y
You may mount the set without using the guide brackets or the U-shaped xtures; this does not affect the
y
performance of the device.
Page 17
ASSEMBLING AND PREPARING
16
ENGLISH
Inserting the Cable Holder
ENG
As illustrated, insert two cable holders into the
holes at the bottom rear of the set to organize the
cable bundles.
As illustrated, screw the power cable holder into
the hole on the bottom rear of the set to hold the
power cables together. (This is to put the power
cables inside the holder.)
Page 18
REMOTE CONTROL
G
S
G
C
1
4
G
5
JKL6MNO
7
PQ
9
0
- * #
C
R
ON
F
MONITOR
MUTE
T
N
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABCDEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
17
REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please
read this manual carefully and use the Monitor set correctly.
To replace batteries, open the battery cover, replace
batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery
cover. To remove the batteries, perform the installation
actions in reverse.
CAUTION
Do not mix old and new batteries, as this
y
may damage the remote control.
Make sure to point the remote control at the
y
remote control sensor on the Monitor.
Make sure to point the remote control to the remote control sensor on the Monitor set.
POWER
MONITOR
ON
1
. , !2ABC3DEF
. , !2ABC3DEF
4
GHI5JKL6MNO
HI
7
PQRS8TUV
RS8TUV
1/a/A
1/a/A
MENU
BACK
ID
ON
ENGLISH
ENG
INPUT
INPUT
ENERGY
ENERGY
OFF
OF
AVIN
SAVING
9
WXYZ
WXYZ
CLEAR
LEA
0
- * #
MARK
MARK
ARC
AR
P
A
BRIGHT
BRIGH
PSM
PSM
G
ESS
NESS
E
MUTE
AUTO
S.MENU
OK
EXIT
TILE
OFF
Power On / Off
Switches the set on from
standby or off to standby.
Monitor On / Off
Turn off the monitor and then
turn it back on.
applicable.
1/a/A
This button selection is not
PSM
Selects the Picture Status
Mode.
Volume Up/Down
Adjusts the volume.
Energy Saving
Adjust the Energy Saving
mode of the SET.
INPUT
If you press the button once, the
following Input Signal Window
will appear. Select the signal
type you want using the button.
Number and Alphabet
Type numbers.
The alphabet selection is not
applicable.
Clear
This button selection is not
applicable.
ARC
Selects the Aspect Ratio Mode.
BRIGHTNESS
Moves to the previous or next
screen.
MUTE
Switches the sound on or off.
Page 19
18
OK
S
U
U
ON
E
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABCDEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
MONITOR
PSM
BRIGHT
NESS
POWER
ENGLISH
ENG
REMOTE CONTROL
MENU(See p.43)
Selects a menu.
Clears all on-screen displays
and returns to Set viewing
Allows you to navigate the
on-screen menus and adjust
the system settings to your
from any menu.
Up/Down/Left/Right
preference.
MENU
MUTE
AUTO
S.MENU
POWER
INPUT
ENERGY
MONITOR
OFF
ON
SAVING
1
. , !2ABC3DEF
4
GHI5JKL6MNO
7
9
WXYZ
PQRS8TUV
1/a/A
CLEAR
0
- * #
MARK
ARC
P
A
BRIGHT
PSM
G
NESS
E
MUTE
AUTO
AUTO
S.MENU
.MEN
MENU
MEN
OK
XIT
EXIT
BACK
BACK
TILE
IL
ID
ID
OFF
OFF
ON
AUTO
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)
OK
Accepts your selection or
back one step in an interactive
displays the current mode.
Allows the user to move
application.
BACK
ID ON/OFF
Allows you to set the Picture
ID or turn it off. Use this
button to control the individual
monitors connected in RS-
232C mode. (It works properly
only when Set IDs are
assigned.)
USB Menu control
Controls media playback.
BACK
ON
S.MENU
(SuperSign Menu Key)
OK
This button selection is not
applicable.
EXIT
EXIT
TILE
ID
OFF
Clears all on-screen displays
and returns to Monitor set
viewing.
TILE
Selects the TILE Mode.
Page 20
REMOTE CONTROL
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABCDEF
GHI
JKLMNO
PQRSTUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABCDEF
GHIJKLMNO
PQRSTUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
19
Displaying the device name connected to an input port
Display which devices are connected to which
external input ports.
1 Access the Input list screen and press the blue
(input label) button on the remote control.
2 You can assign an input label for every input
except USB.
Input Label
NOTE
External inputs supported: AV, Component,
y
RGB, HDMI, DVI-D. (AV only support 47WV30BR and 47WV30MS)
Labels available : VCR, DVD, Set top box,
y
Satellite, Game, PC, Blue-ray, HD-DVD
The input labels are displayed on the Input
y
Label screen or at the top left of the screen
when you change the external input setting.
For DTV/PC-compatible signals, such as
y
1080p 60 Hz, the screen settings may
change according to the input label. The Just
Scan option is available if a PC is connected
as an external device. (1080p only support
47WV30BR and 47WV30MS)
47WV30-BAAL/47WV30-BAAM/47WV30BS
y
does not support AV input.
ENGLISH
ENG
AV
Component
RGB
HDMI
DVI-D
Close
Page 21
REMOTE CONTROL
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABCDEF
GHI
JKLMNO
PQRSTUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABCDEF
GHIJKLMNO
PQRSTUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
20
ENGLISH
Picture ID
ENG
Picture ID is used to change the settings of a
specific set (display) using a single IR receiver for
multi-vision. The set receiving the IR signal communicates with another set via the RS232 connector. Each set is identified by a Set ID. If you assign the Picture ID using the remote control, only
displays with the same Picture ID and Set ID can
be controlled remotely.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
IR Receiver
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
Picture ID
Off
Close
RS-232C OUT
RS-232C IN
2 If you press the left/right buttons or press the
ON button repeatedly, the Picture ID cycles
through OFF and 1 to 4.Assign the ID you
want.
Picture ID
Off
Close
If you assign the Set ID to each set with
y
multi-vision, and then assign the Picture ID
using the red button on the remote control,
the key command is displayed for the set
with the same Set ID and Picture ID. A set
with different Set IDs and Picture IDs cannot
be controlled by IR signals.
Refer to the Set ID on page 46 for assigning
y
a Set ID.
The maximum value of the Picture ID can be
y
set in the Total Set ID menu.
Please refer to the Installation Manual for
y
more information on the assignment of a
Total Set ID.
2X2 Multi-Vision (Total Set ID: 4)
Set IDs are assigned as shown in the picture.
1 Press the ID On (Red) button on the remote con-
trol.
NOTE
For example, if the Picture ID is assigned
y
to 2, the upper right display (Set ID: 2) can
be controlled by IR signals.
For each set, you can change the settings
y
for the PICTURE, AUDIO, TIME, OPTION,
NETWORK and MY MEDIA menus or the
hot keys on the remote control.
If you press the ID OFF (Green) button,
y
the Picture IDs for all sets are turned off. If
you then press any button on the remote
control, all sets will start working again.
The Picture ID function may not work dur-
y
ing MY MEDIA operating.
Page 22
USING THE MONITOR SET
RGB OUT
RGB IN
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
DVI IN
/DVI
21
USING THE MONITOR SET

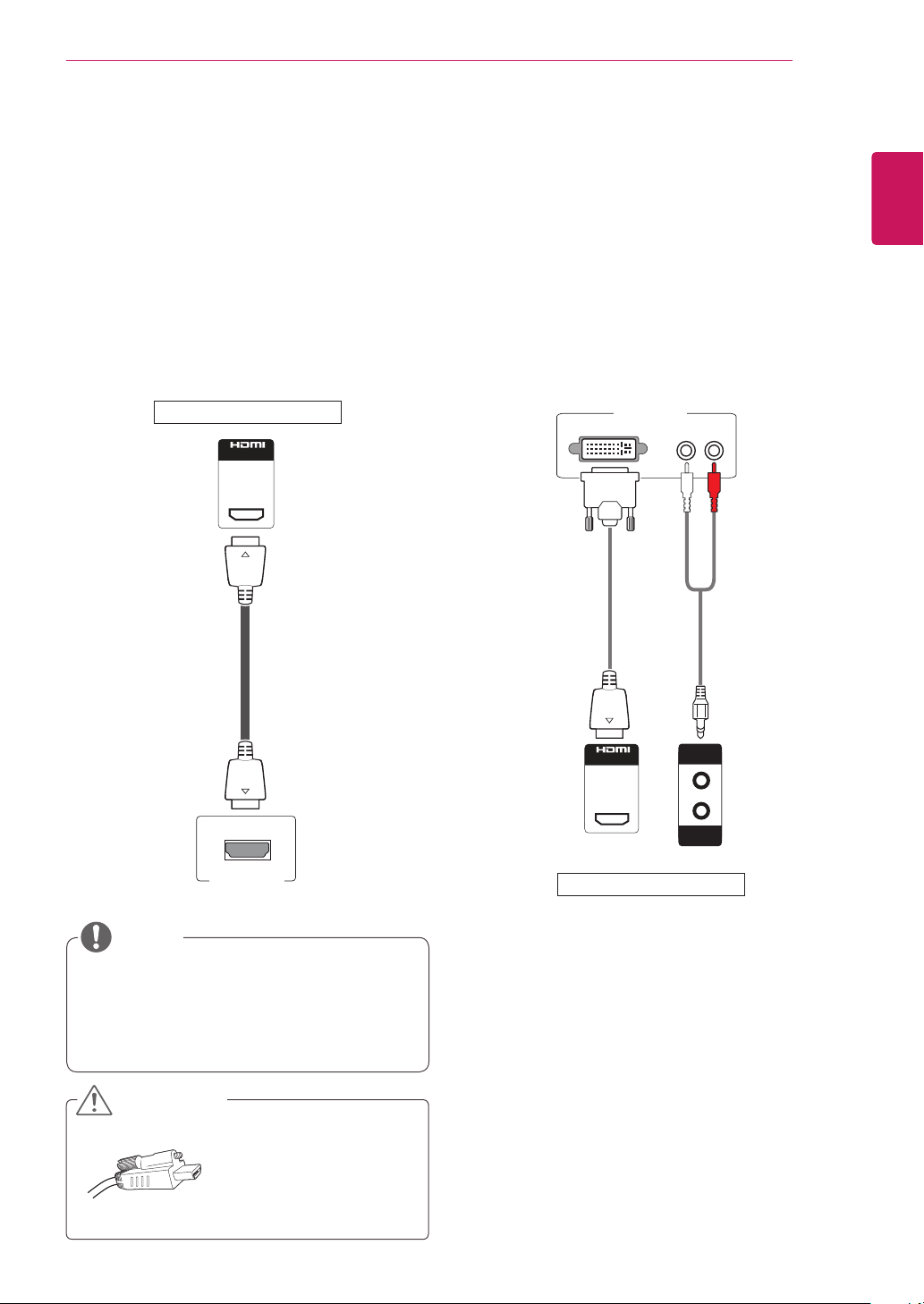

Connecting to a PC
NOTE
It is recommended to you use an HDMI
y
connection for the best image quality.
CAUTION
Connect the signal
y
input cable and tighten
it by turning the screws
clockwise.
RGB connection
Transmits an analog video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the D-sub 15 pin cable as shown the
following illustrations. Select RGB input source on
the monitor.
ENGLISH
ENG
Back of the Monitor Set
PC
NOTE
Apple computers may
y
require an adapter
to connect to this
monitor. Call or visit
their web site for more
information.
CAUTION
Do not press the screen with your finger for
y
this damage the screen.
Avoid displaying a fixed image on the
y
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
Page 23
USING THE MONITOR SET
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
/DVI
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
DVI IN
/DVI
22
DVI connection
ENGLISH
ENG
Transmits the digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the DVI cable as shown the following
illustrations.
Select DVI-D input source on the monitor.
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown
in the following illustrations. Select HDMI input
source on the monitor.
Back of the Monitor Set
Back of the Monitor Set
PC
NOTE
If you do not use an optional external
y
speaker, connect the PC to the Monitor set
with audio cable.
Use a shielded signal interface cable, such
y
as D-sub 15 pin signal cable and DVI to
HDMI cable, with a ferrite core to maintain
standard compliance for the product.
If you want to use HDMI-PC mode, you must
y
set the input label to PC mode.
(not included)
PC
NOTE
Use a High Speed HDMI™ Cable.
y
Please check the PC environment if you
y
cannot hear the sound in HDMI mode.
If you want to use HDMI-PC mode, you must
y
set the input label to PC mode.
It may not be compatible if you use HDMI-PC
y
mode.
Page 24
USING THE MONITOR SET
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
DVI IN
/DVI
23
Audio connection
Transmits the audio signals from your PC to the
Monitor set. Connect the PC and the Monitor set
with the Audio cable as shown in the following
illustrations. You should set PC as an input label
to connect the PC to the Monitor set with an Audio
connection.
Back of the Monitor Set
(not included)
IR Receiver connection
Allows the use of a wired remote or IR receiver
extension.
Back of the Monitor Set
ENGLISH
ENG
PC
NOTE
To ensure the best sound quality and
y
minimize noise, keep the cable as short as
possible.
Page 25
USING THE MONITOR SET
24
ENGLISH
Adjusting the screen
ENG
Selecting an image mode
Display images using optimized settings by
selecting one of the preset image modes.
1
2
3
4
5
Press MENU to access the main menus.
Press the Navigation buttons to scroll to
PICTURE and press OK.
Press the Navigation buttons to scroll to
Picture Mode and press OK.
Press the Navigation buttons to scroll to an
image mode you want and press OK.
Mode Description
Vivid Adjusts the video image for the retail
environment by enhancing the Contrast,
Brightness, Color, and Sharpness.
Standard Adjusts the image for the normal
environment.
Cinema Optimizes the video image for the
cinematic look and enjoy movies as if you
are in a movie theater.
Sports Optimizes the video image for high and
dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast
gaming screen such as PCs or games.
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Customizing image options
Customize basic and advanced options of each
image mode for the best screen performance.
Press MENU to access the main menus.
1
Press the Navigation buttons to scroll to
2
PICTURE and press OK.
Press the Navigation buttons to scroll to
3
Picture Mode and press OK.
Press the Navigation buttons to scroll to an
4
image mode you want and press OK.
Select and adjust following options, and then
5
press OK.
Option Description
Backlight Adjusts the brightness of the screen
by controlling the LCD backlight. If
you decrease the brightness level,
the screen becomes darker and the
power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient
of the video signal. You may use
Contrast when the bright part of the
image is saturated.
Brightness Adjusts the base level of the signal in
the image. You may use Brightness
when the dark part of the image is
saturated.
Sharpness Adjusts the level of crispness in the
edges between the light and dark
areas of the picture. The lower the
level, the softer the image.
Color Adjusts the balance between Red
and Green levels.
Tint Adjusts intensity of all Colors.
Color
Temperature
Set to warm to enhance hotter Colors
such as red, or set to cool to make
picture bluish.
Page 26
USING THE MONITOR SET
25
Advanced
Control
Reset
When you are finished, press EXIT.
6
When you return to the previous menu, press
BACK.
Customizes the advanced options.
See more information about advanced
options See p.46.
Restores the options to the default
setting.
Customizing PC display options
Customize options of each image mode for the
best image quality.
This function works in the following mode:
y
RGB[PC] mode.
Press MENU to access the main menus.
1
Press the Navigation buttons to scroll to
2
PICTURE and press OK.
Press the Navigation buttons to scroll to
3
Screen and press OK.
Select and adjust following options, and then
4
press OK.
Adjusting the sound
Selecting an sound mode
Play the sound in its optimized settings by
selecting one of the preset sound modes.
Press MENU to access the main menus.
1
Press the Navigation buttons to scroll to
2
AUDIO and press OK.
Press the Navigation buttons to scroll to Sound
3
Mode and press OK.
Press the Navigation buttons to scroll to a
4
sound mode you want and press OK.
Mode Description
Standard Selects when you want standard-quality
sound.
Music Selects when you listen to music.
Cinema Selects when you watch movies.
Sports Selects when you watch sports events.
Game Selects when you play games.
When you are finished, press EXIT.
5
When you return to the previous menu, press
BACK.
ENGLISH
ENG
Option Description
Resolution Selects a proper Resolution.
Auto
Configure
Position/
Size/Phase
Reset Restores the options to the default
When you are finished, press EXIT.
5
When you return to the previous menu, press
BACK.
Sets to adjust the screen Position, Size
and Phase automatically. The displayed
image may be unstable for a few seconds
while the configuration is in progress.
Adjusts the options when the image is
not clear, especially when characters are
shaky, after the auto configuration.
setting.
Page 27
USING THE MONITOR SET
26
Customizing sound options
ENGLISH
ENG
Customize options of each sound mode for the
best sound quality.
1
2
3
4
5
6
Press MENU to access the main menus.
Press the Navigation buttons to scroll to
AUDIO and press OK.
Press the Navigation buttons to scroll to Sound
Mode and press OK.
Press the Navigation buttons to scroll to a
sound mode you want and press OK.
Select and adjust following options, and then
press OK.
Option Description
Infinite
Sound
Treble Controls the dominant sounds in the
Bass Controls the softer sounds in the
Reset Resets the sound mode to the default
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
LG's Infinity Sound option provides
5.1 channel stereo sound from two
speakers.
output. When you turn up the treble, it
will increase the output to the higher
frequency range.
output. When you turn up the bass, it
will increase the output to the lower
frequency range.
setting.
Using additional options
Adjusting aspect ratio
Resize the image to view the image at its optimal
size by pressing ARC while you are watching
Monitor set.
CAUTION
If a fixed image displays on the screen for a
y
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.
If the aspect ratio is set to 4:3 for a long
y
period of time, image burn may occur on
the letterboxed area of the screen.
NOTE
You can also change the image size by
accessing the main menus.
MODE
AV Component RGB DVI-D HDMI
ARC
16:9 o o o o o o o
Just Scan x o x o x o x
1:1 x x o x o x o
4:3 o o o o o o o
Zoom o o x o x o x
Cinema
Zoom
o o x o x o x
PC DTV PC DTV PC
Page 28
USING THE MONITOR SET
27

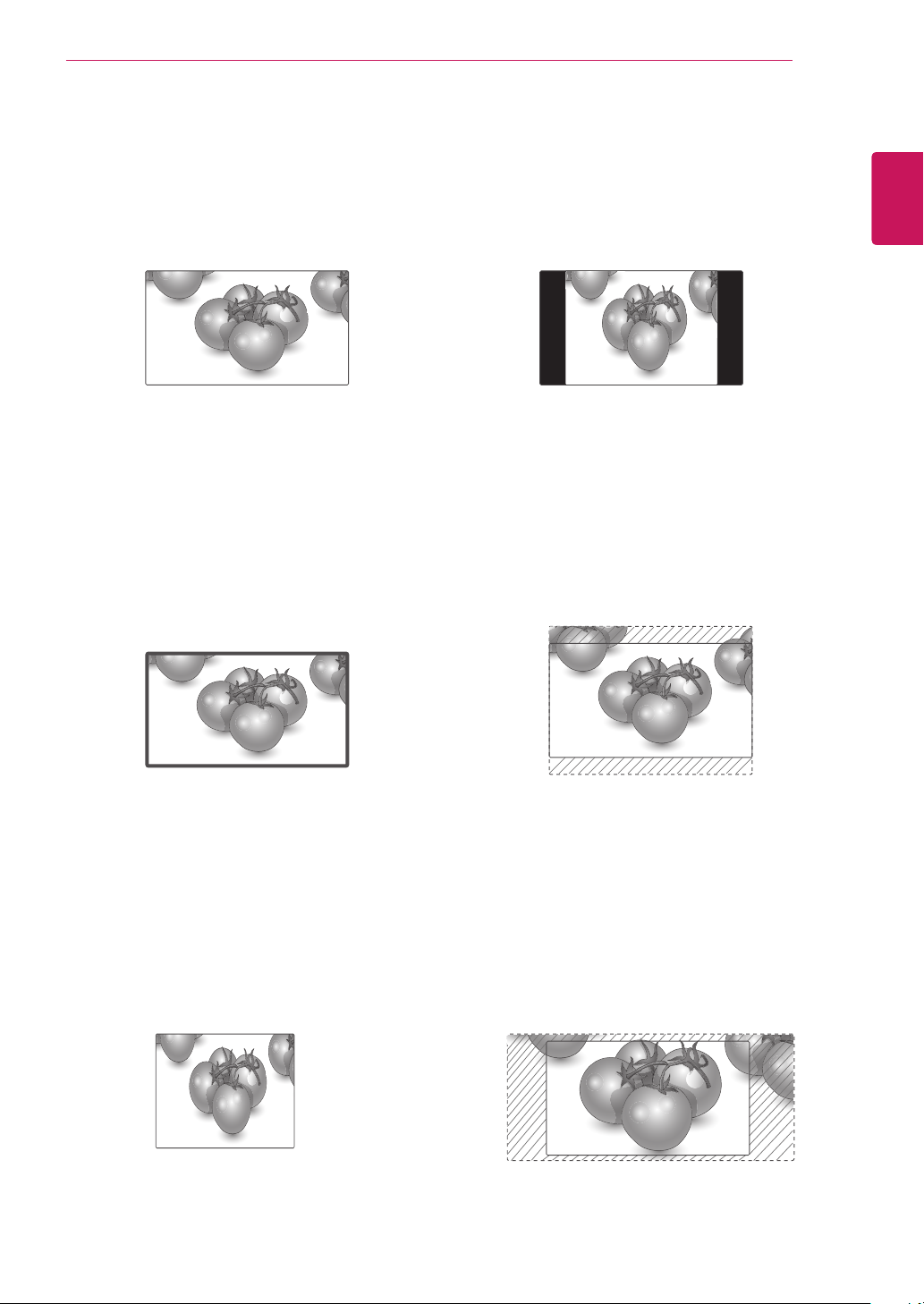

- 16:9 : This selection will allow you to adjust the
picture horizontally, in linear proportion, to fill the
entire screen(useful for viewing 4:3 formatted
DVDs).
- Just Scan : This Selection will allow you view
the picture of best quality without loss of original
picture in high resolution image. Note: If there is
noise in original Picture, You can see the noise
at the edge.
- 4:3 : This selection will allow you to view a
picture with an original 4:3 aspect ratio, black
bars will appear on both the left and right of the
screen.
- Zoom : This selection will allow you to view the
picture without any alteration, while filling the
entire screen. However, the top and bottom of
the picture will be cropped.
ENGLISH
ENG
Just Scan
- 1:1 : The aspect ratio is not adjusted from the
original. (Only HDMI PC, DVI-D PC, RGB PC)
* Pictures with resolution higher than 1366X768
are adjusted to the 1366x768 while maintaining
the original aspect ratio.
- Cinema Zoom : Choose Cinema Zoom when
you want to enlarge the picture in correct
proportion. Note: When enlarging or reducing
the picture, the image may become distorted.
Page 29
ENTERTAINMENT
28
ENGLISH
ENTERTAINMENT
ENG

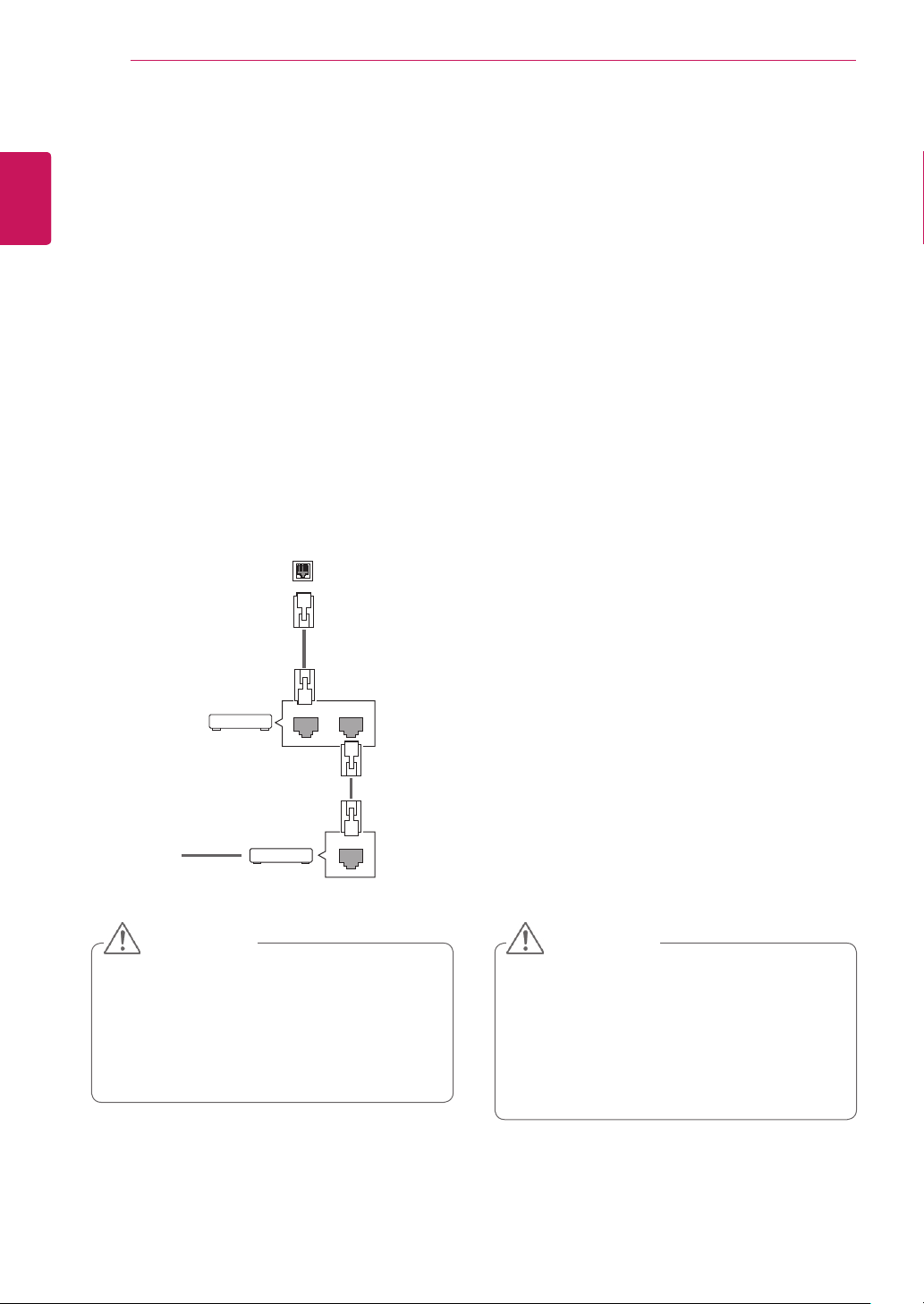

Connecting to a wired network
(Depending on model)
Connect the display to a local area network (LAN)
via the LAN port as shown on the following illustration and set up the network settings.
Only supports wired network connection.
After making a physical connection, a small
number of netmworks may require the display network settings to be adjusted. For most netmworks,
the display will connect to automatically without
any adjustments.
For detailed information, contact your internet
provider or router manual.
Router
Router
LAN
LAN WAN
To set up the network seetings: (Even if your display has already connected automatically, running
setup again will not harm anything),
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Setting and press OK.
4 If you already set Network Setting, select
Resetting. The new connection settings resets
the current network settings.
5 Select IP Auto Setting or IP Manual Setting.
- If selecting IP Manual Setting, press the
Navigation and Number buttons. IP addresses will need to be input manually.
- IP Auto Setting: Select this if there is a
DHCP server (Router) on the local area network (LAN) via wired connection, the display
will automatically be allocated an IP address.
If you’re using a broadband router or broadband modem that has a DHCP (Dynamic
Host Configuration Protocol) server function.
The IP address will automatically be determined.
6 When you are finished, press EXIT.
@
Internet
Internet
Cable modem
Cable modem
CAUTION CAUTION
y Do not connect a modular phone cable to
the LAN port.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
ETHERNET
y Network setting menu will not be availa-
ble until the display connected to physical
network.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
Page 30
ENTERTAINMENT
29
NOTE
y If you want to access the Internet directly
on your display, the internet connection
should always be on.
y If you cannot access the Internet, check
the network conditions from a PC on your
network.
y When you use Network Setting, check
the LAN cable or check if DHCP in the
router is turned on.
y If you do not complete the network set-
tings, the network may not work properly.
Tips for Network setting
y Use a standard LAN cable with this display. Cat5
or better with a RJ45 connector.
y Many network connection problems during set
up can often be fixed by re-setting the router
or modem. After connecting the display to the
netmwork, quickly power off and/or disconnect
the power cable of the netmwork router or cable
modem. Then power on and/or connect the
power cable again.
y Depending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the applicable
terms of service. For details, contact your ISP.
y LG is not responsible for any malfunction of the
display and/or the internet connection feature
due to communication errors/malfunctions associated with your internet connection, or other
connected equipment.
y LG is not responsible for problems within your
internet connection.
y You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
y Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
Internet connection.
y Any fees charged by an ISP including, without
limitation, connection charges are your responsibility.
y A 10 Base-T or 100 Base-TX LAN port is
required when using a wired connection to this
display. If your internet service does not allow for
such a connection, you will not be able to connect the display.
y A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with your
ISP, you may not be able to use the internet
connection feature contained in this display or
you may be limited to the number of devices you
can connect at the same time. (If your ISP limits
sub-scription to one device, this display may
not be allowed to connect when a PC is already
connected.)
y The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
Network Status
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
Option Description
Setting Return to the network setting menu.
Test
Close Return to the previous menu.
Test the current network status after set-
ting the network.
ENGLISH
ENG
Page 31
ENTERTAINMENT
30
Connecting USB storage de-
ENGLISH
ENG
vices
Connect USB storage devices such as a USB
flash memory, external hard drive to the display
and use multimedia features (See "Browsing files"
on page 31).

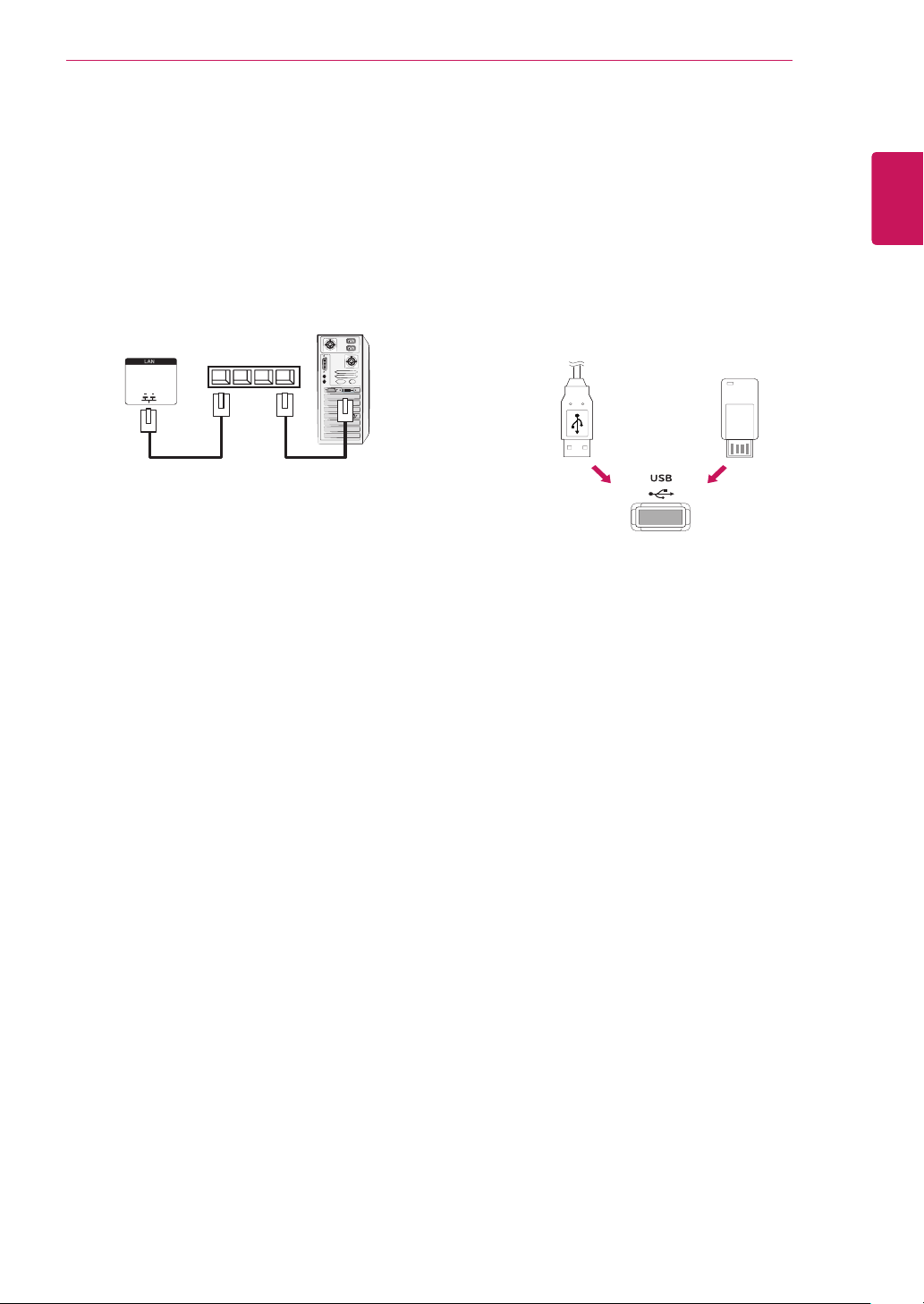

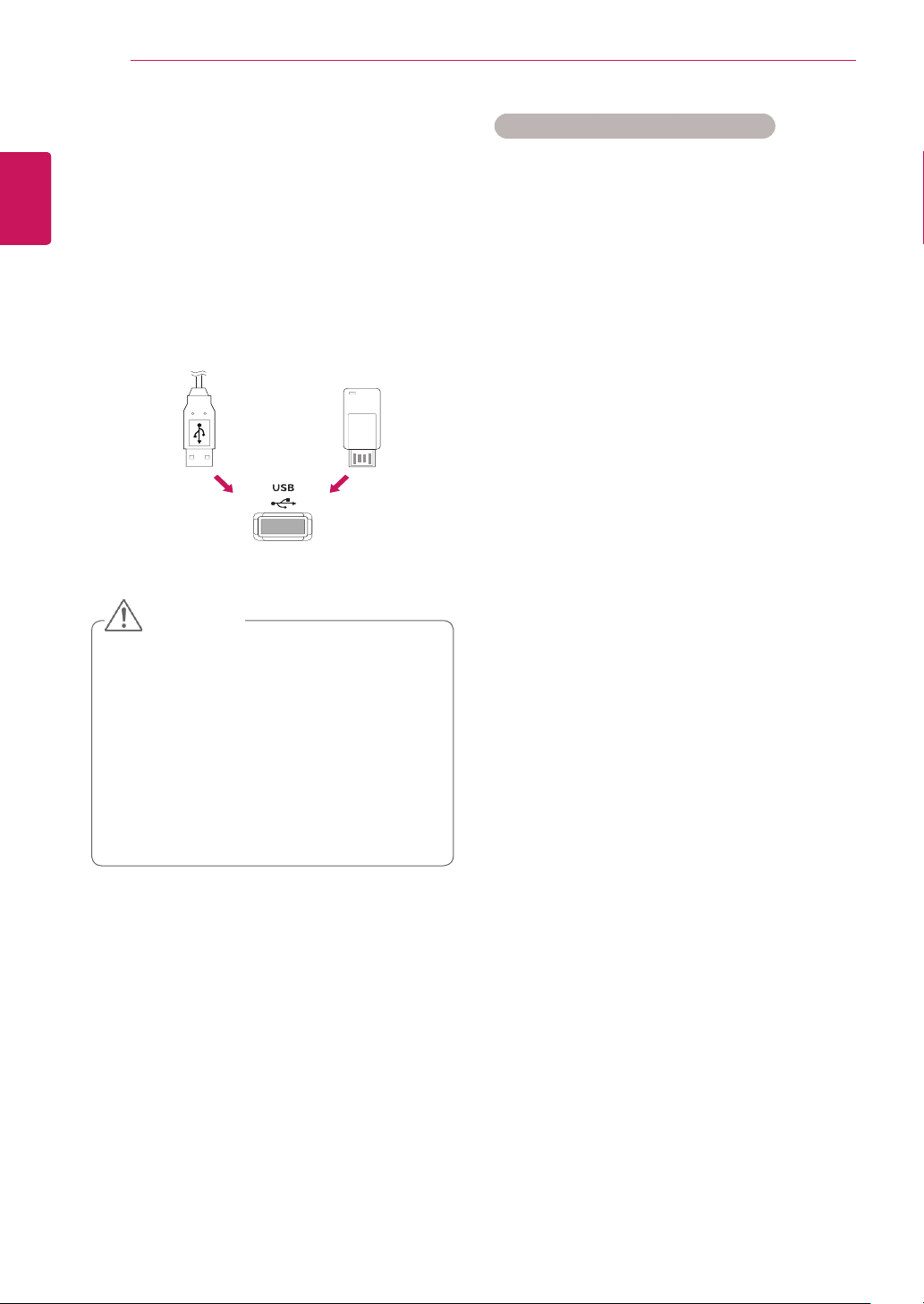

Connect a USB flash memory or USB memory
card reader to the Display as shown on the following illustration. The My media screen appears.
or
CAUTION
y Do not turn the display off or remove a
USB storage device while my mediaMenu is activated, as this could result in
loss of files or damage to the USB storage device.
y Back up your files saved on a USB stor-
age device frequently, as you may lose
or damage the files and this may be not
covered by the warranty.
Tips for using USB storage devices
y Only a USB storage device is recognizable.
y If the USB storage device is connected
through a USB hub, the device is not recognizable.
y A USB storage device using an automatic
recognition program may not be recognized.
y A USB storage device which uses its own
driver may not be recognized.
y The recognition speed of a USB storage
device may depend on each device.
y Please do not turn off the display or unplug
the USB device when the connected USB
storage device is working. When such device
is suddenly separated or unplugged, the
stored files or the USB storage device may
be damaged.
y Please use only a USB storage device which
was formatted as a FAT32 file system or
NTFS file system provided with the Windows operating system. In case of a storage
device formatted as a different utility program
which is not supported by Windows, it may
not be recognized.
y Please connect power to a USB storage
device(over 0.5 A) which requires an external
power supply. If not, the device may not be
recognized.
y Please connect a USB storage device with
the cable provided by the device maker.
y Some USB storage devices may not be sup-
ported or operated smoothly.
y File alignment method of USB storage
device is similar to Window XP and filename
support of up to 100 English characters.
y Be sure to back up important files since data
stored in a USB memory device may be
damaged. We will not be responsible for any
data loss.
Page 32
ENTERTAINMENT
31
y If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source. We do not guarantee an USB
cable for an external power source.
y If your USB memory device has multiple
partitions, or if you use a USB multi-card
reader, you can use up to 4 partitions or USB
memory devices.
y If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
y If the USB memory device does not work
properly, disconnect and reconnect it.
y How fast a USB memory device is detected
differs from device to device.
y If the USB is connected in Standby Mode,
specific hard disk will automatically be
loaded when the display is turned on.
y The recommended capacity is 1 TB or less
for a USB external hard disk and 32 GB or
less for USB memory.
y Any device with more than the recommended
capacity may not work properly.
y If a USB external hard disk with a “Energy
Saving” function does not work, turn the
hard disk off and on again to make it work
properly.
y USB storage devices below USB 2.0 are
supported as well. But they may not work
properly in the movie list.
y Maximum of 999 folders or files can be rec-
ognized under one folder.

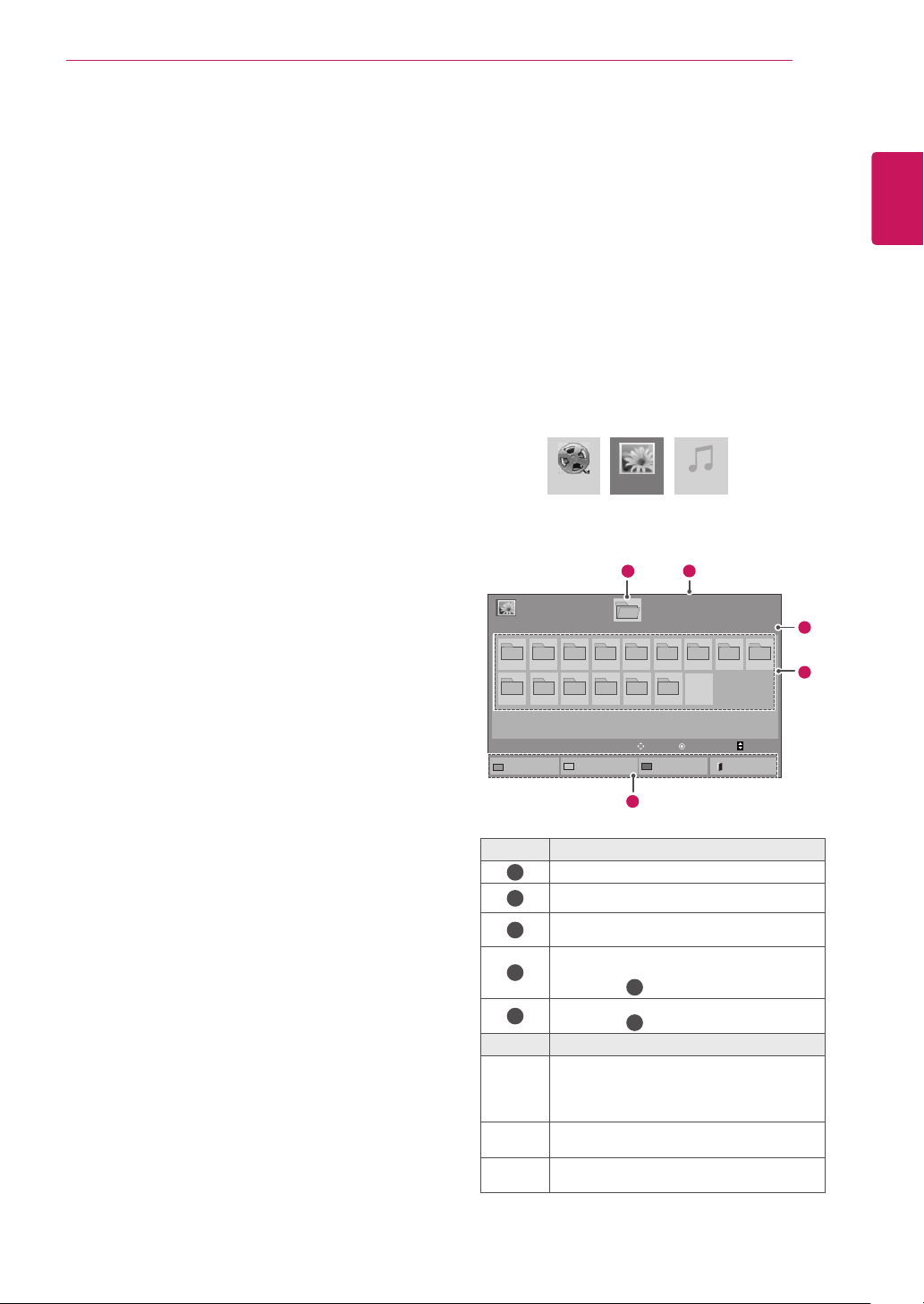

Browsing files
Access the photo, music, or movie lists and browse
files.
Connect a USB storage device.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to My
3
Media and press OK.
Press Navigation buttons to scroll to MUSIC
4
LIST, PHOTO LIST or MOVIE LIST and press
OK.

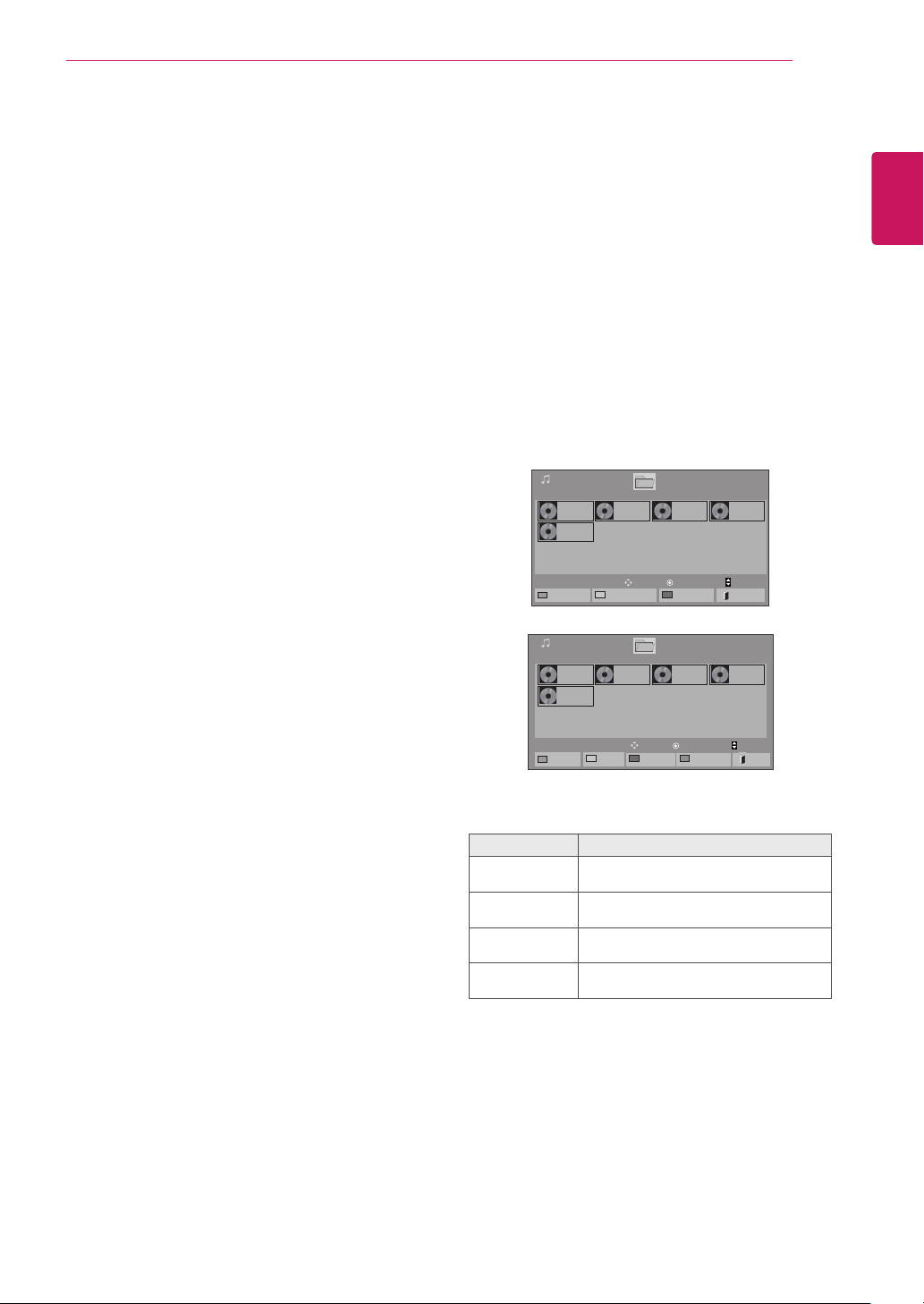

Movie List Music ListPhoto List
Move
Mark Mode
2
Page 1/1
View
Page 1/1
008
009
PAGE Page Change
Exit
4
5
11
Photo List
USB External
001
002 003 004 005 006 007
010 011 012 013 014 015
To Music List
Drive1
Change Numbers
3
No. Description
Moves to upper level folder
1
Current page/Total pages
2
Corresponding buttons on the
3
remote control
Current page/ total pages of
contents under the folder
4
focused on
Contents under the folder
5
focused on
1
1
Buttom Description
Repeatedly, press the GREEN button to
Green
button
converted to Photo List->Music List,
Music List->Movie List or Movie List-
>Photo List.
Yellow
button
button
A method to view in 5 large thumbnail
or simple list.
Blue
Convert to Mark Mode.
ENGLISH
ENG
Page 33
ENTERTAINMENT
32
ENGLISH
ENG
Supported file format
Type Supported file format
Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,
TS,TRP,TP,ASF,WMV,FLV)
Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.
vob/*.mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.
wmv/*.flv/*.avi(motion-jpeg)/*.
mp4(motion-jpeg)/*.mkv(motion-jpeg))supporting file
Video format : DivX3.11, DivX4.12,
DivX5.x, DivX6, Xvid1.00, Xvid1.01,
Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2,
Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1,
JPEG, Sorenson H.263
Audio format : Dolby Digital, AAC, Mpeg,
MP3, LPCM, HE-AAC, ADPCM, WMA
Bit rate : within 32 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/*.sub
(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.
txt(TMPlayer)/*.psb(PowerDivX)
Internal Subtitle format : only, XSUB (It is
the subtitle format used in DivX6 files)
Photo JPEG
Baseline : 64 x 64 to 15360 x 8640
Progressive : 64 x 64 to 1920 x 1440
y You can play JPEG files only.
y Non-supported files are displayed in the
form of predefined icon.
Only 3D Models
File
Extensions
2D jpeg
jpg
jpe
3D mpo supported
Item Profile
supported
file format
photo size yMin:
file format
photo size y4:3 size:
ySOF0:
baseline
ySOF1:
Extend
Sequential
ySOF2:
Progressive
64 X 64
yMax-Normal
Type:
15360
(W) X 8640 (H)
yProgressive
Type:
1920
(W) X 1440 (H)
mpo
3,648 x 2,736
2,592 x 1,944
2,048 x 1,536
y3:2 size:
3,648 x 2,432
Music
MP3
Bit rate 32 to 320
y Sampling rate MPEG1 Layer3 : 32 kHz,
44.1 kHz, 48 kHz
y Sampling rate MPEG2 Layer3 : 16 kHz,
22.05 kHz, 24 kHz
y Sampling rate MPEG2.5 Layer3 : 8 kHz,
11.025 kHz, 12 kHz
Viewing movies
This display will play media files from a USB drive
or a DLNA server on your network.
1 Press the Navigation buttons to scroll to My
Media and press OK.
2 Press the Navigation buttons to scroll to Movie
List and press OK.
3 Press the Navigation buttons to scroll to a
folder you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
Page 34
ENTERTAINMENT
33

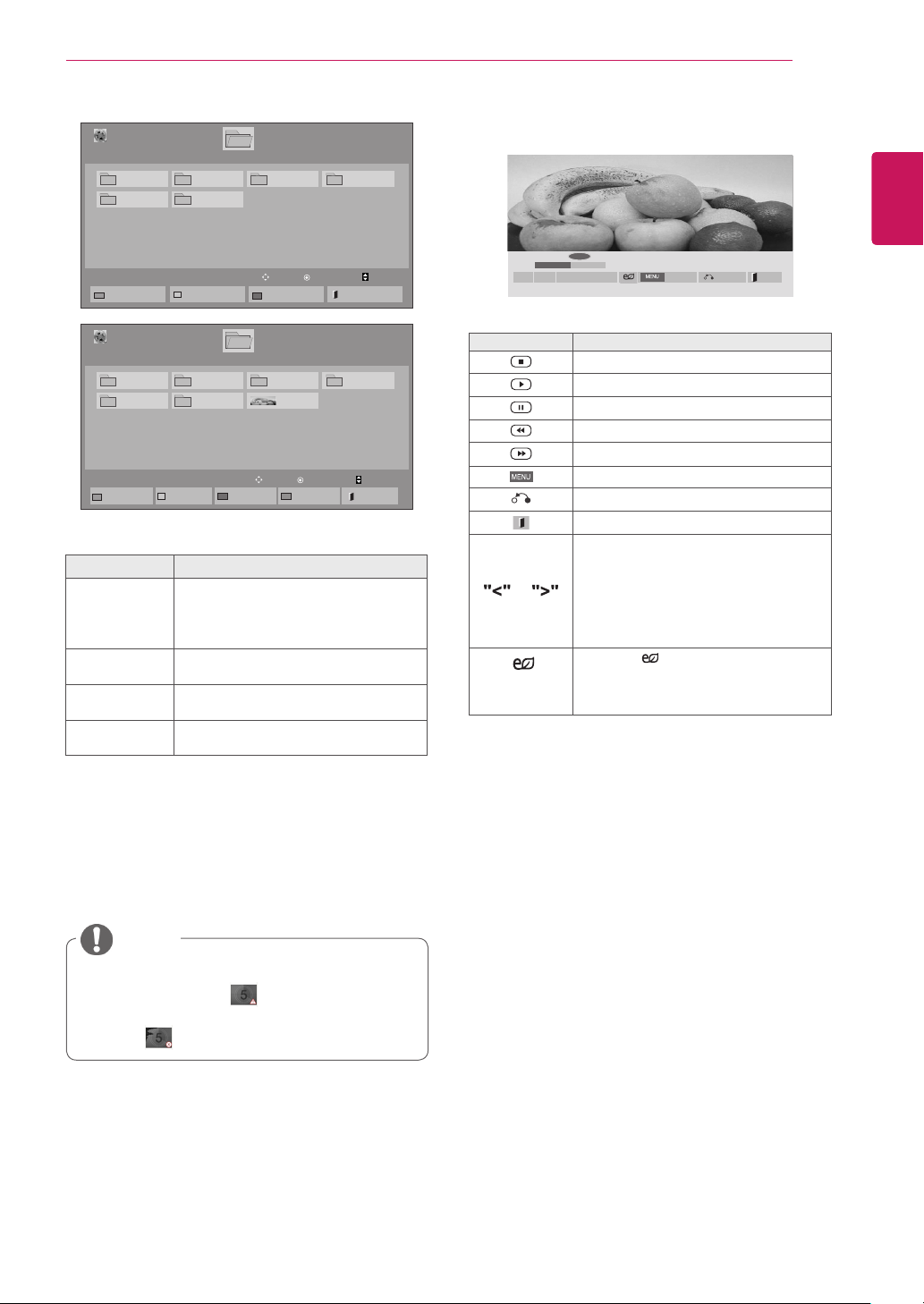

003
Move
Mark Mode
003
Move
Page 1/1
Page 1/1
051. Apple_ ......
02:30:25
Exit Mark Mode
View
View
004
PAGE Page Change
Exit
004
PAGE Page Change
Exit
Movie List
USB External
001 002
005 006
To Photo list
Movie List
Mark Mode
USB External
001 002
005 006
Play Marked
Mark All
Drive1
Change Numbers
Drive1
Unmark All
Menu Description
Play Marked Play the selected movie file.
Once a movie file finishes playing,
the next selected one will be played
automatically.
Mark All Mark all movie files on the screen.
Unmark All Deselect all marked movie files.
Page 1/1
Page 1/1
6 Control playback by using the following buttons.
◄►
►
■
◄◄
►
II
Button Description
Stops the playback
Plays a video
Pauses or resumes the playback
Scans backward in a file
Scans forward in a file
Show the Option menu.
Hide the menu on the full-sized screen.
Return to Movie List.
Skips to specific points in a file dur-
ing playback. The time of a specific
or
point will appear on the status bar. In
some files, this function may not work
properly.
Press the ENERGY SAVING button
ENERGY
SAVING
repeatedly to increase the brightness
of your screen.
►►
01:02:30 / 02:30:25
Option
Hide Exit
ENGLISH
ENG
Exit Mark Mode Exit the Mark Mode.
5 Play a movie.
NOTE
y Non-supported files are displayed the preview
image by icon only .
y Abnormal files are displayed in the form of
bitmap .
Page 35
ENTERTAINMENT
34
ENGLISH
ENG
Tips for using playing video files
y Some user-created subtitles may not work
properly.
y Some special characters are not supported
in subtitles.
y HTML tags are not supported in subtitles.
y Subtitles in languages other than the sup-
ported languages are not available.
y The screen may suffer temporary interrup-
tions (image stoppage, faster playback, etc.)
when the audio language is changed.
y A damaged movie file may not be played
correctly, or some player functions may not
be usable.
y Movie files produced with some encoders
may not be played correctly.
y If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
y Videos with resolution higher than
1920X1080 at 25/30P may not play properly
depending on the frame.
y Movie files other than the specified types and
formats may not work properly.
y Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG : 10 Mbps)
y We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264/
AVC.
y DTS Audio codec is not supported.
y A movie file more than 30 GB in file size is
not supported for playback.
y A DivX movie file and its subtitle file must be
located in the same folder.
y A video file name and its subtitle file name
must be identical for it to be displayed.
y Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
y Files encoded with GMC(Global Motion
Compensation) may not be played.
When you are watching the movie by Movie
y
List function, you can adjust an image by
Energy Saving key on the remote control.
User setup for each image mode does not
operate.
Video options
1 Press MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set
Video Play., Set Video. or Set Audio. and
press OK.
NOTE
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
y When replaying the video file after stopping,
you can play from where it stopped previously.
Page 36
MAINTENANCE
35
When you select the Set Video Play,,
1 Press the Navigation buttons to scroll to show
the Picture Size, Audio Language, Subtitle
Language or Repeat.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Menu Description
Picture Size Selects your desired picture
format during movie play.
Audio
Language
Subtitle Lan-
guage
Language Activated for SMI subtitle and
Code Page Can select the font for subtitle.
Sync Adjusts the time synchronisation of
Position Changes the position of the
Size Selects your desired Subtitle size
Repeat Turn on/off repeat function of
Changes the Language Group of the
audio during movie play. Files
with a single audio track cannot be
selected.
Turn on/off the subtitle.
can select the language within the
subtitle.
When set to default, same font as
general menu will be used.
the subtitle from -10 secs to +10 secs
by steps of 0.5 secs during movie
play.
subtitle either up or down during
movie play.
during movie play.
movie playback. When turned on, the
file within the folder will be played
back repeatedly. Even when the
repeated playback
is turned off, it can run the playback if
the file name is similar to the previous
file.
Code Page Support Language
Latin1 English, Spanish, French,
German, Italian, Swedish, Finnish,
Dutch, Portuguese, Danish, Roma-
nian, Norwegian, Albanian, Gaelic,
Welsh, Irish, Catalan,Valencian
Latin2 Bosnian, Polish, Croatian, Czech,
Slovak, Slovenian, Serbian,
Hungarian
Latin4 Estonian, Latvian, Lithuanian
Cyrillic Bulgarian, Macedonian, Russian,
Ukrainian, Kazakh
Greek Greek
Turkish Turkish
NOTE
y Only 10,000 of sync blocks can be supported
within the subtitle file.
y When playing a video, you can adjust the
Picture Size by pressing the RATIO button.
y Subtitles in your language are only sup-
ported when the OSD menu is also in this
language.
y The code page options may be disabled de-
pending on the language of the subtitle files.
y Select the appropriate code page for the
subtitle files.
ENGLISH
ENG
Page 37
MAINTENANCE
36
When you select the Set Video,,
ENGLISH
ENG
1 Press the Navigation buttons to scroll to make
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to show
2 Press the Navigation buttons to scroll to make

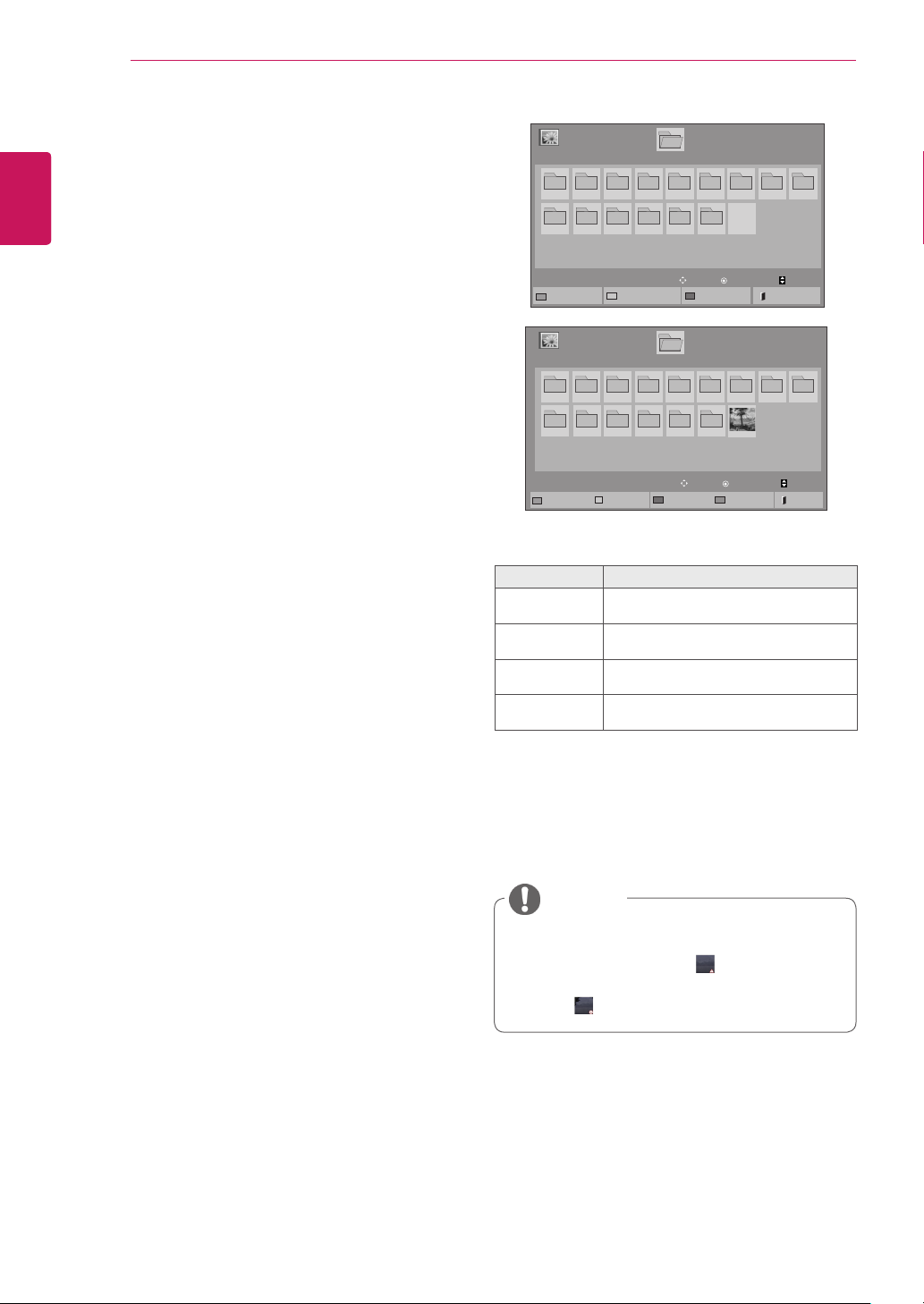

Viewing photos
View image files saved in a USB storage device.
The displays on the screen may differ from the
model.
1 Press the Navigation buttons to scroll to My
2 Press the Navigation buttons to scroll to Photo
3 Press the Navigation buttons to scroll to a
4 Press the Navigation buttons to scroll to a file
appropriate adjustments.
the Sound Mode, Clear Voice II or Balance.
appropriate adjustments.
Media and press OK.
List and press OK.
folder you want and press OK.
you want and press OK.
Move
Move
Mark Mode
Page 1/1
View
Page 1/1
View
Exit Mark Mode
Page 1/1
008
009
PAGE Page Change
Exit
Page 1/1
008
009
PAGE Page Change
Exit
Photo List
USB External
001
002 003 004 005 006 007
010 011 012 013 014 015
To Music List
Photo List
Mark Mode
USB External
001
002 003 004 005 006 007
010 011 012 013 014 015
View Marked
Mark All
Drive1
Change Numbers
Drive1
Unmark All
Menu Description
View Marked Display the selected photo file.
Mark All Mark all photo files on the screen.
Unmark All Deselect all marked photo files.
Exit Mark Mode Exit the Mark Mode.
5 View photos.
NOTE
y Non-supported files are displayed the pre-
view image by icon only .
y Abnormal files are displayed in the form of
bitmap .
Page 38
MAINTENANCE
37

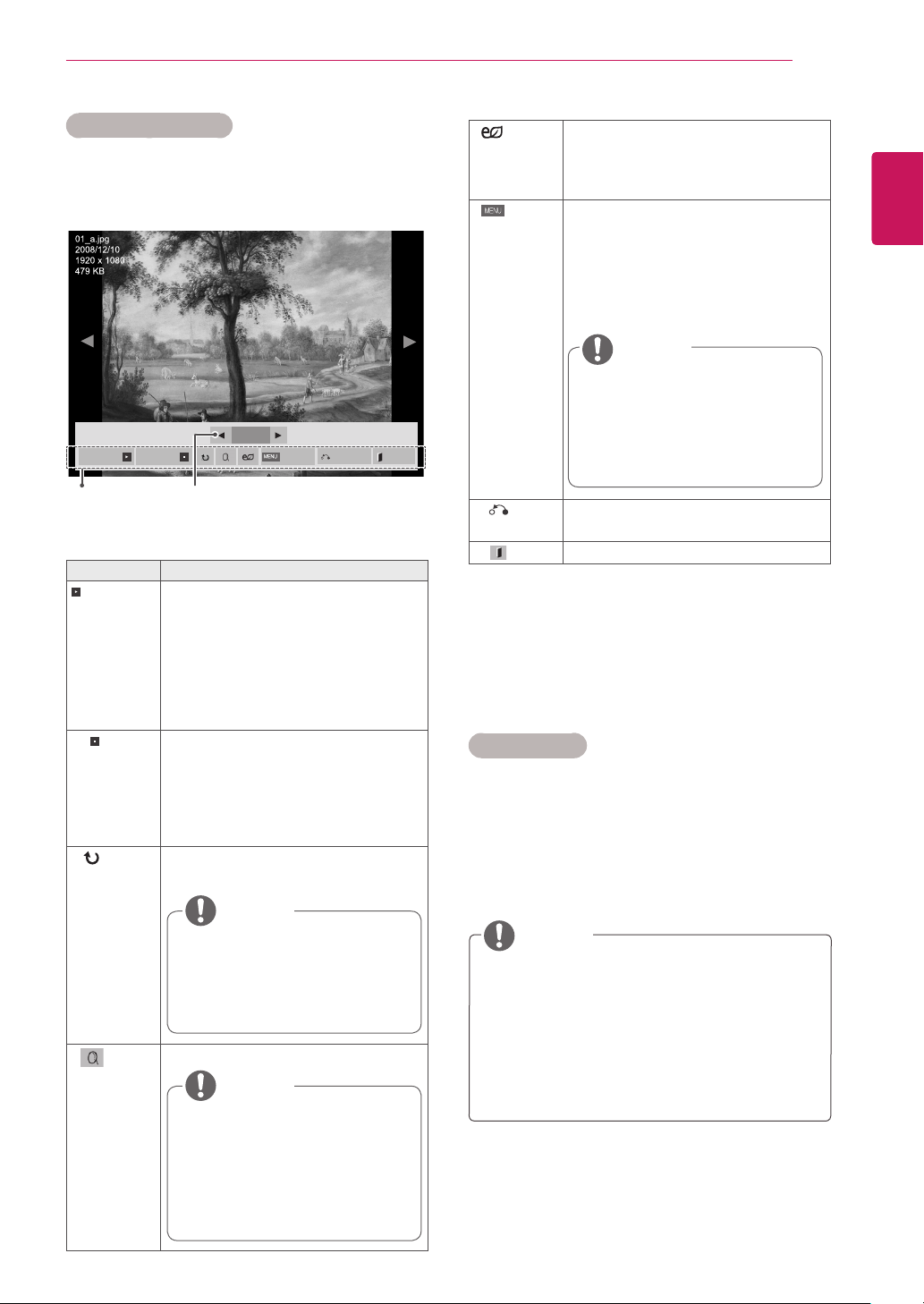

Using photo options
Use the following options while viewing photos.
2/13
Slideshow BGM
Option
Hide
Number of selected photosOptions
Option Description
Slideshow Starts or stops a slideshow with selected
photos.
If there are no selected photos, all pho-
tos saved in the current folder display
during a slideshow.
Select Option to set the speed and view
mode of the slideshow.
BGM Turns the background music on or off.
To set the background music folder,
select Option.
You can adjust Option by MENU button
on the remote control.
Rotate
Rotates photos clockwise (90°, 180°,
270°, 360°).
ENER-
GY SAVING
Option
Press the ENERGY SAVING button
repeatedly to change the brightness of
your screen.
y Slide Speed: Selects a slideshow
speed (Fast, Medium, Slow).
y TransitionEffect: Set the view mode
of the slideshow.
y BGM: Selects a music folder for the
background music.
ENGLISH
ENG
NOTE
y You cannot change the music
folder while the background
music is playing.
y You can only select the MP3
Exit
Hide
EXIT
folder saved on the device that
currently displays the photo.
Hides the option window.
To display the options, press OK.
Return to Photo List.
Photo options
1 Press MENU to show the Option menus.
2 Press the Navigation buttons to scroll to Set
Photo View., Set Video. or Set Audio. and
press OK.
Zoom
NOTE
y The supported photo size is
limited. You cannot rotate a
photo if the resolution of the
rotated width is larger than the
supported resolution size.
Enlarges the image to 200% or 400%.
NOTE
y Zoom to 200% or 400% only
work for image of 1372×772
pixel size or larger.
y For image of 960×540 pixel
size or larger, only zoom to
400% works properly.
NOTE
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
Page 39
38
When you select the Set Photo View,
ENGLISH
ENG
1 Press the Navigation buttons to scroll to select Slide Speed,Transition Effect or BGM.
2 Press the Navigation buttons to scroll to make appropriate adjustments.
MAINTENANCE

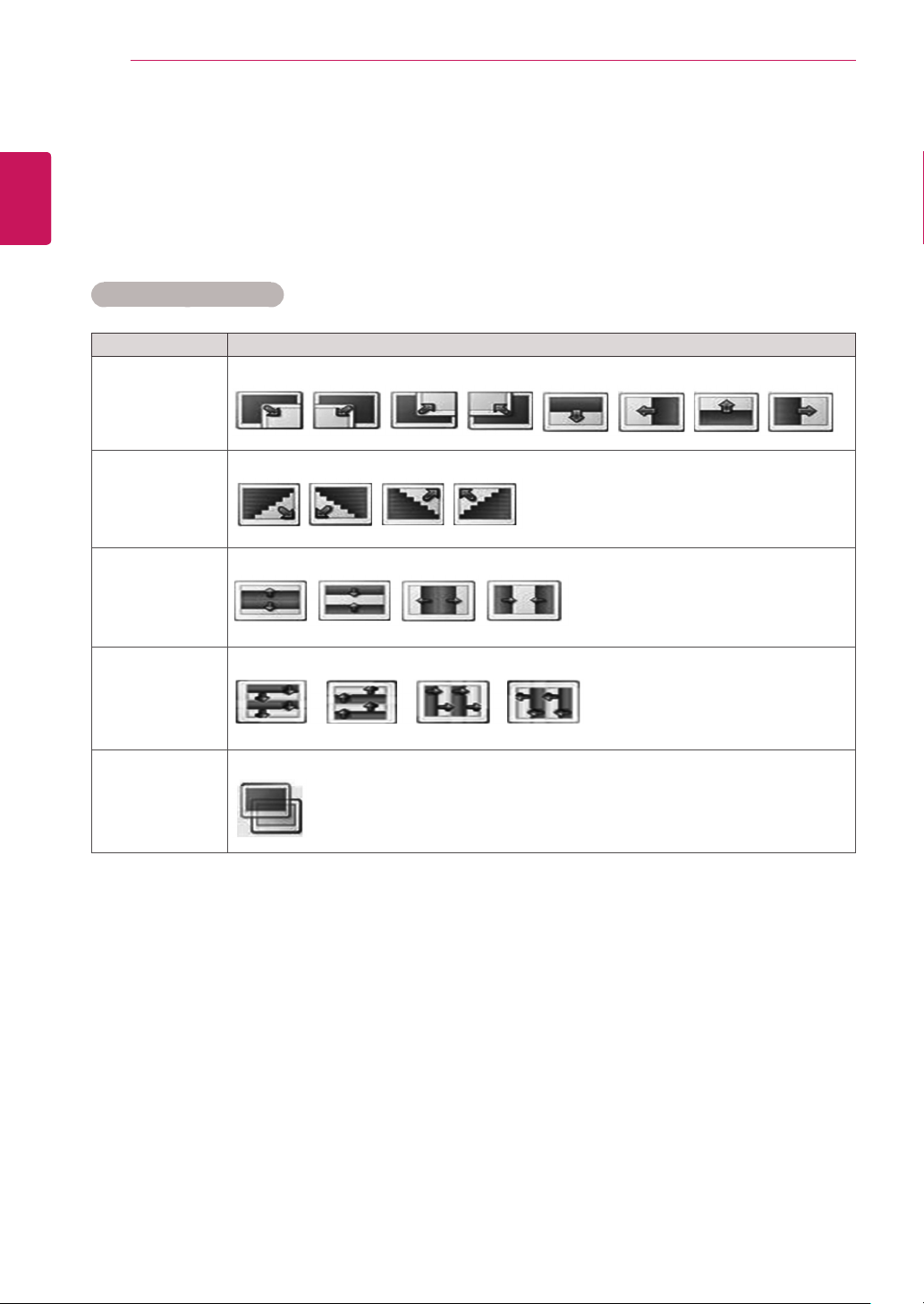

Transition Effect Option
Option Description
Sliding Pushes the current slide out of view as it plays to the next slide.
Stairs Pushes the current slide in a staircase shape as it plays to the next slide.
Door Open
/Close
Shutter Pushes the current slide like drawing or pulling down the blind as it plays to the next slide
Fade In Fades the slide out slowly before playing to the next slide.
Pushes the current slide like opening or closing the door as it plays to the next slide.
Page 40
MAINTENANCE
39
When you select the Set Video,
1 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,
1 Press the Navigation buttons to scroll to show
the Sound Mode, Clear Voice II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Listening to music
1 Press the Navigation buttons to scroll to My Me-
dia and press OK.
2 Press the Navigation buttons to scroll to Music
List and press OK.
3 Press the Navigation buttons to scroll to a folder
you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
Move
Page 1/1
Drive1
003. B03.mp3
00:00
View
Mark Mode
Page 1/1
Drive1
003. B03.mp3
00:00
Page 1/1
004. - B04.mp3
00:00
PAGE Page Change
Exit
Page 1/1
004. - B04.mp3
00:00
USB External
To Movie List
USB External
Music List
001. - B01.mp3
00:00
005. - B05.mp3
00:00
Music List
Mark Mode
001. - B01.mp3
00:00
005. - B05.mp3
00:00
002. -B02.mp3
00:00
Change Numbers
002. -B02.mp3
00:00
ENGLISH
ENG
Move
View
Play Marked
Mark All
Unmark All
Exit Mark Mode
PAGE Page Change
Menu Description
Play Marked Display the selected music file.
Mark All Mark all music files on the screen.
Unmark All Deselect all marked music files.
Exit Mark Mode Exit the Mark Mode.
5 Play music.
Exit
Page 41
MAINTENANCE
40

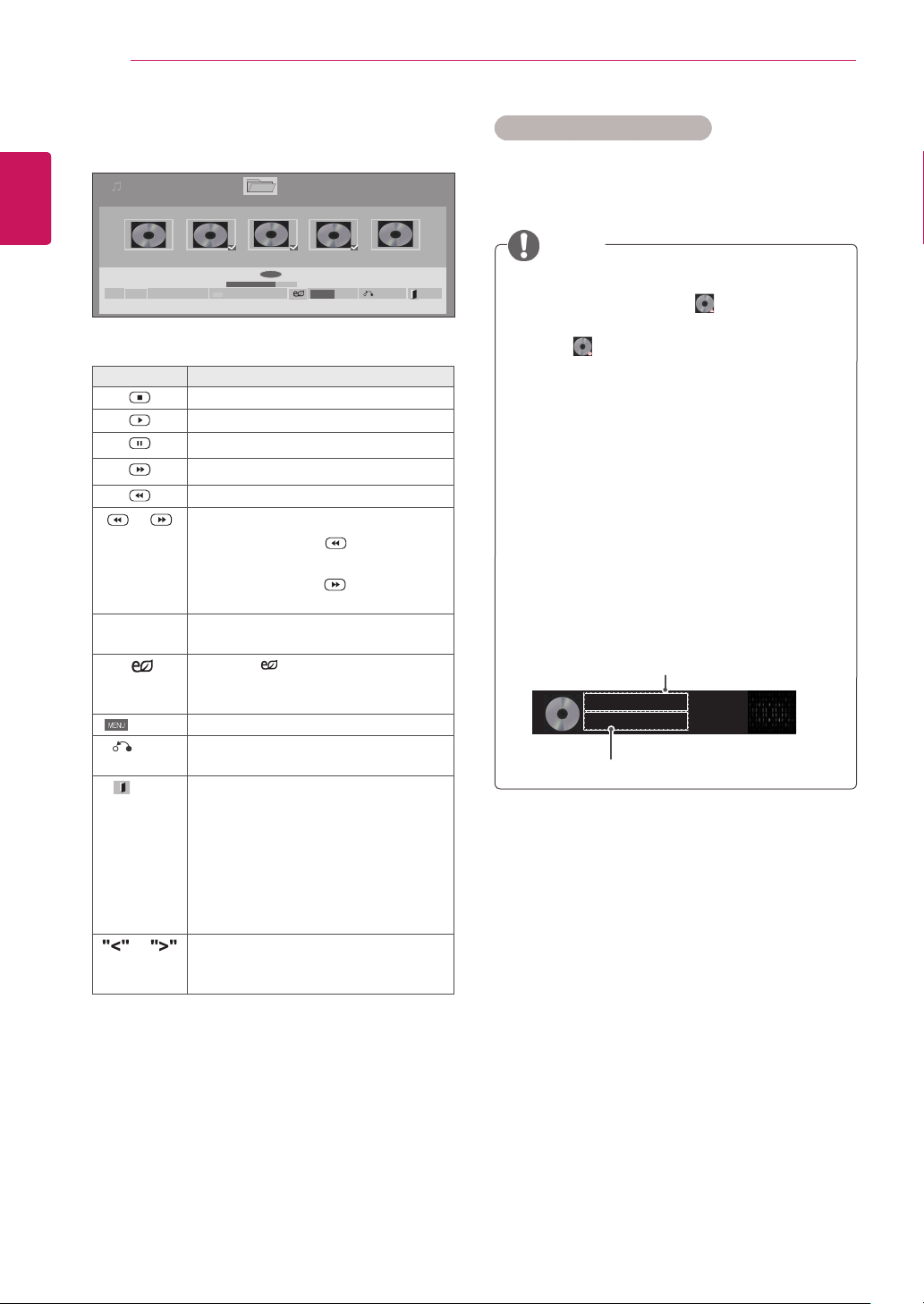

6 Control playback by using the following buttons.
ENGLISH
ENG
Music List
3 le(s) Marked
004. - B04.mp3
00:00
005. - B05.mp3
■
►
005. - B05.mp3
00:00
◄◄
►►
II
Drive1 Page 1/1
►
►
Play with Photo
006. - B06.mp3
00:00
◄►
007. - B07.mp3
00:00
02:30 / 03:25
MENU
Button Description
Stops playback
Plays a music file
Pauses or resumes playback
Skips to the next file
Skips to the previous file
or When playing,
When you press the button, the previous music file will be played.
When you press the button, the next
music file will be played.
Green
button
Start playing the selected music files and
then move to the Photo List.
Press the ENERGY SAVING button
ENERGY
SAVING
Option
Hide
repeatedly to change the brightness of
your screen.
Show the Option menu.
Hides the option window.
To display the options, press OK.
EXIT
When you press the EXIT button while
the Music player is displayed, only the
music will be stopped and the player will
not return to normal viewing.
When you press the EXIT button while
the music is stopped or while the music
player is hidden, the player will return to
normal viewing.
or
When using the < or > button during
playback a cursor indicating the position
can be played.
Page 1/1
Option
008. - B08.mp3
00:00
Hide Exit
Tips for playing music files
Thi s uni t can not su ppo rt th e ID3 Ta g
y
embedded MP3 files.
NOTE
y Non-supported files are displayed the pre-
view image by icon only .
y Abnormal files are displayed in the form of
bitmap .
y A damaged or corrupted music does not play
but displays 00:00 in playtime.
y A music downloaded from a paid service with
copyright protection does not start but displays inappropriate information in playtime.
y If you press OK, r buttons, screen saver is
stopped.
y The PLAY(s), Pause(t), r , w, v but-
tons on the remote control are also available
in this mode.
y You can use the w button to select the next
music and the v button to select the previous music.
file name
002. B02.mp3
► 00:31 / 04:04
Time elapsed /Duration
Page 42
MAINTENANCE
41
Music options
1 Press MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set Au-
dio Play. or Set Audio. and press OK.
NOTE
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
When you select the Set Audio Play.,
1 Press the Navigation buttons to scroll to select
the Repeat or Random.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to select
the Sound Mode, Clear Voice II or Balance.
DivX® VOD Guide
ENGLISH
ENG
DivX® VOD Registration
In order to play purchased or rented DivX® VOD
contents, you should register your device with 10
digit DivX registration code from your device at
www.divx.com/vod.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to DivX
Reg. Code and press OK.
5 View the registration code of your display.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
You must register your device to
play DivX protected videos.
Registration code : **********
Register at http://vod.divx.com
Close
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
NOTE
y While you are checking the registration
code, some buttons may not work.
y If you use the DivX registration code
of another device, you cannot play the
rented or purchased DivX file. Make sure
to use the DivX registration code assigned to your TV.
y The video or audio files that are not con-
verted by the standard DivX codec may
be corrupted or not be played.
y The DivX VOD code allows you to acti-
vate up to 6 devices under one account.
Page 43
42
ENGLISH
ENG
You should deregister your device with 8 digit DivX
deregistration code from your device at www.divx.
com/vod.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to MY
3 Press the Blue button.
4 Press the Navigation buttons to scroll to Deacti-
5 Press the Navigation buttons to select Yes to
MAINTENANCE
DivX® VOD Deregistration
MEDIA and press OK.
vation and press OK.
confirm.
Deregistration code :
********
Deregister at http://vod.divx.com
Continue with registration?
Yes No
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
NOTE
Once the deregistration is executed, you
y
must register your device again to see
DivX® VOD contents.
Page 44
CUSTOMIZING SETTINGS
43
CUSTOMIZING SETTINGS

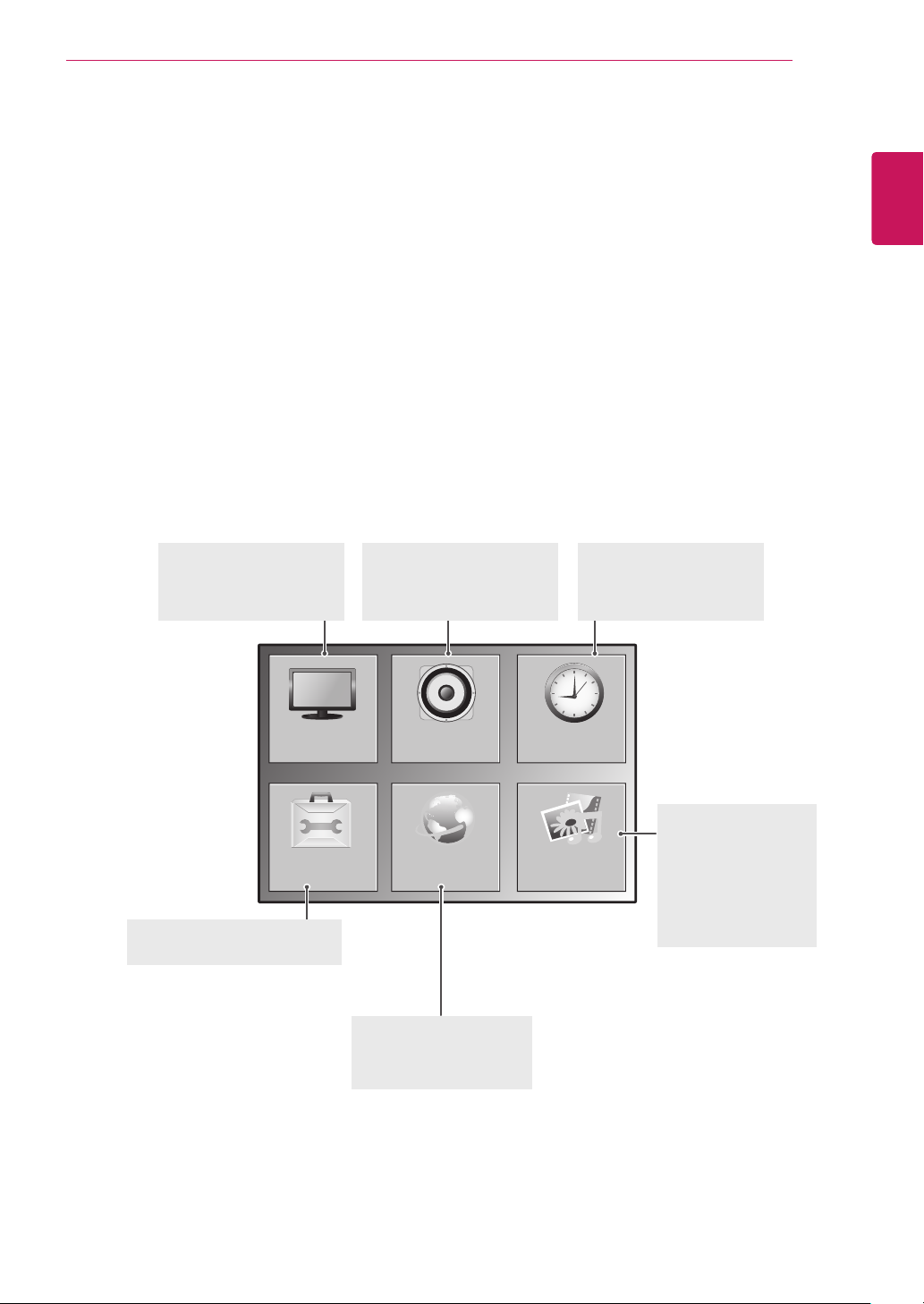

Accessing main menus
Press MENU to access the main menus.
1
Press the Navigation buttons to scroll to one of the following menus and press OK.
2
Press the Navigation buttons to scroll to the setting or option you want and press OK.
3
When you are finished, press EXIT.
4
When you return to the previous menu, press BACK.
PICTURE (See p.44)
Adjusts the image size,
quality, or effect
AUDIO (See p.47)
Adjusts the sound quality,
effect, or volume level
TIME (See p.48)
Sets the time, date or
Timer feature
ENGLISH
ENG
OPTION
OPTION (See p.49)
Customizes the general settings
AUDIO
NETWORK
NETWORK (See p.53)
Set s u p the ne two r k
setting.
TIME
MY MEDIA
MY MEDIA
(See p.30)
Display and play
movie, photo and
music content
stored on your USB
Page 45
CUSTOMIZING SETTINGS
44
ENGLISH
PICTURE settings
ENG
1
2
3
4
The available picture settings are described in the following:
Move
R G
W C
Press MENU to access the main menus.
Press the Navigation buttons to scroll to PICTURE and
press OK.
Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
• Aspect Ratio : 16:9
ꔋ
• Energy Saving : Off
• Smart Energy Saving
• Picture Mode : Standard
• Backlight 70
• Contrast 100
• Brightness 50
• Sharpness 50
• Color 60
• Tint 0
• Color Temp. 0
• Advanced Control
• Picture Reset
• Screen
Setting Description
Aspect Ratio Changes the image size to view images at its optimal size (See p.26).
Energy
Saving
Sets to automatically adjust the screen brightness corresponding to the surroundings.
Option
Off The backlight is off.
Minimum/
Selects the brightness level of the backlight.
Medium/
Maximum
Screen off The screen turns off in 3 seconds.
Smart Energy
Saving
Adjusts the backlight and contrast depending on the screen brightness.
* 47WV30-BAAL does not support this function.
Level
On Enables the Smart Energy Saving function to save power consumption as much
as the value set in the smart energy saving rate.
Off Disables the Smart Energy Saving function.
Picture Mode Selects one of the preset image or customizes options in each mode for the best Monitor set screen
performance. You are also able to customize advanced options of each mode.
The available preset picture modes vary depending on the Monitor set .
Mode
Vivid Adjusts the video image for the retail environment by enhancing the contrast,
brightness, Color, and sharpness.
Standard Adjusts the image for the normal environment.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a
movie theater.
Sport Optimizes the video image for high and dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
OK
Page 46
CUSTOMIZING SETTINGS
Setting Description
SCREEN
(In RGB-PC
Mode Only)
Customizes the PC display options in RGB mode.
Option
Resolution Selects a proper resolution.
Auto Configure Sets to adjust the screen position, clock, and phase automatically.
Position/Size/
Phase
Reset Restores the options to the default setting.
The displayed image may be unstable for a few seconds while the configuration is
in progress.
Adjusts the options when the picture is not clear, especially when characters are
shaky, after the auto configuration.
Basic image options
Setting Description
Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the
Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the
Brightness Adjusts the base level of the signal in the picture. You may use Brightness when the dark
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.
Color Adjusts the balance between red and green levels.
Tint Adjusts intensity of all Colors.
Color Temperature Set to warm to enhance hotter Colors such as red, or set to cool to make picture bluish.
Advanced Control Customizes the advanced options.
Picture Reset Restores the options to the default setting.
brightness level, the screen becomes darker and the power consumption will be reduced
without any video signal loss.
bright part of the picture is saturated.
part of the picture is saturated.
The lower the level, the softer the image.
45
ENGLISH
ENG
NOTE
If the 'Picture Mode' setting in the Picture menu is set to Vivid, Standard, Cinema, Sport or Game the subsequent
y
menus will be automatically set.
You cannot adjust color and tint in the RGB-PC / HDMI-PC mode.
y
When using the Smart Energy Saving function, the screen may look saturated in the white area of a still image.
y
If Energy Saving is set to Minimum, Medium, or Maximum, the Smart Energy Saving function is disabled.
y
Page 47
46
ENGLISH
ENG
CUSTOMIZING SETTINGS
Advanced image options
Setting Description
Dynamic Contrast
(Off/Low/Medium/
High)
Dynamic Color
(Off/Low/High)
Clear White
(Off/Low/High)
Skin Color It detects the skin area of video and adjusts it to express a natural skin color.
Optimizes the contrast automatically according to the brightness of the reflection.
(This function can be used only under Component.)
Adjusts the Color of the reflection automatically to reproduce natural colurs as close as
possible.(This function can be used only under Component.)
Make the white area of screen brighter and more white.
Noise Reduction
(Off/Low/Medium/High)
Digital Noise
Reduction
(Off/Low/Medium/High)
Gamma
(Low/Medium/High)
Black Level
Low/High
Removing the noise up to the point where it does not damage the original picture. (This
function can be used only under Component.)
This option reduces the noise produced while creating digital video signals.
Set your own gamma value.
On the monitor, high gamma values display whitish images and low gamma values display
high contrast images.
yLow: The reflection of the screen gets darker.
yHigh: The reflection of the screen gets brighter.
Function works in the following mode - Component, HDMI, DVI-D adjusts the contrast and the
brightness of the screen using the black level of the screen.
Page 48
CUSTOMIZING SETTINGS
47

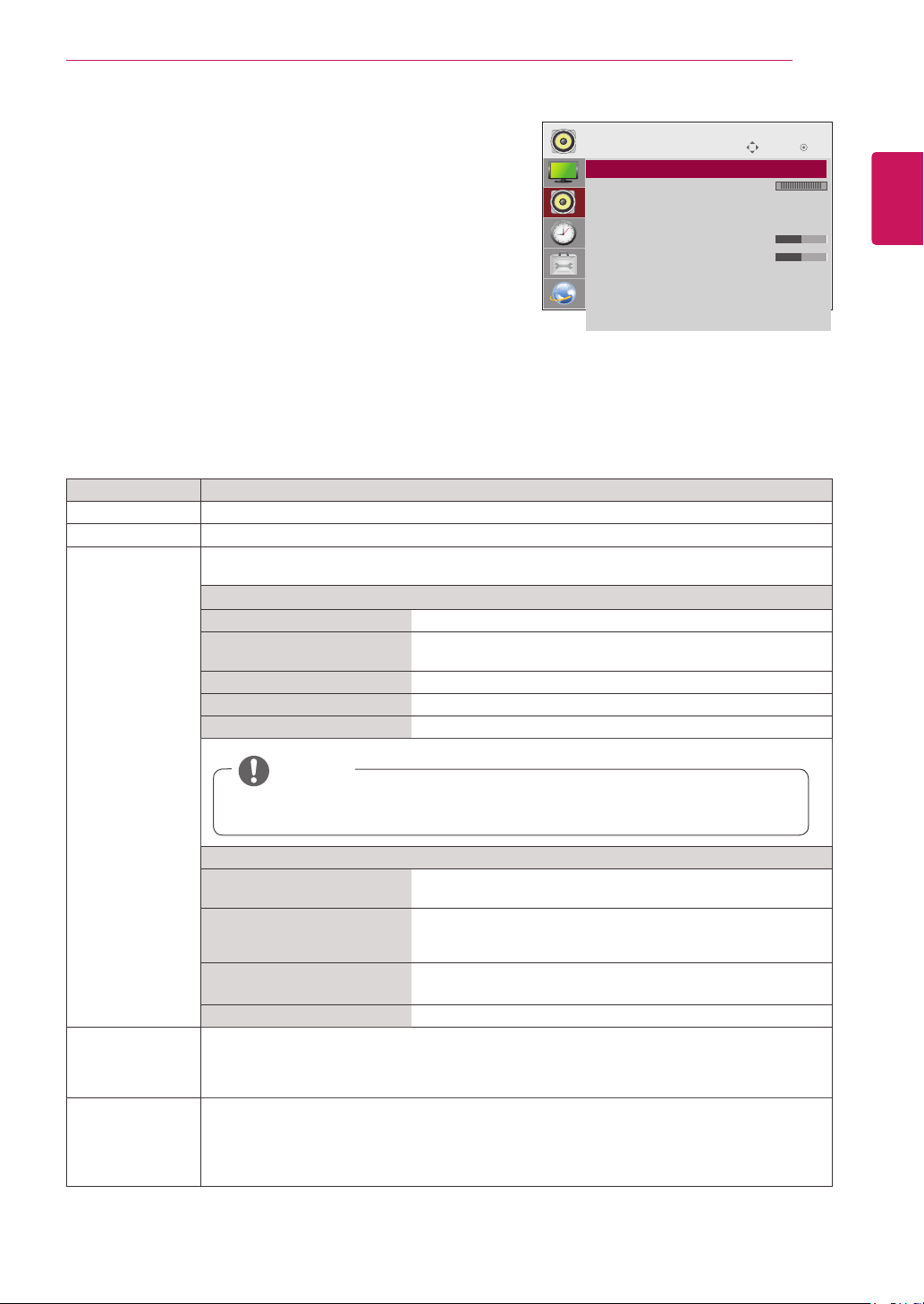

AUDIO settings
Press MENU to access the main menus.
1
Press the Navigation buttons to scroll to AUDIO and press
2
OK.
Press the Navigation buttons to scroll to the setting or
3
option you want and press OK.
- To return to the previous level, press BACK.
When you are finished, press EXIT.
4
AUDIO
• Clear Voice II : Off
ꔋ
• Balance 0
• Sound Mode : Standard
• Infinite Sound: Off
• Treble 50
• Bass 50
• Reset
• Digital Audio Input : Audio In
• Speaker : On
Move
L R
When you return to the previous menu, press BACK.
The available audio options are described in the following:
Setting Description
Clear Voice ll By differentiating the human sound range from others, it helps users listen to human voices better.
Balance Use this function to balance sound from the left and right speakers.
Sound Mode The best sound tone quality will be selected automatically depending on the video type that you're
currently watching.
Mode
Standard The most commanding and natural audio.
Music Select this option to enjoy the original sound when listening to
the music.
Cinema Select this option to enjoy sublime sound.
Sports Select this option to watch sports broadcasting.
Game To enjoy dynamic sound when playing a game.
OK
ENGLISH
ENG
NOTE
If sound quality or volume is not at the level you want, it is recommended to use a separate home
theater system or amplier to cope with different user environments.
Option
Infinite Sound LG's Infinity Sound option provides 5.1 channel stereo sound
Treble Controls the dominant sounds in the output. When you turn up
Bass Controls the softer sounds in the output. When you turn up the
Reset Resets the sound mode to the default setting.
Digital Audio
Input
Speaker *The speaker is sold separately.
HDMI: Outputs the sound of digital signals in digital input (HDMI) mode through the external
monitor speaker connected to the speaker out port of the monitor.
Audio In: Outputs the sound received from the Audio In port in digital input (HDMI) mode through
the external speaker connected to the speaker out port of the monitor.
On: Outputs the sound through the external speaker connected to the speaker out port of the
monitor.
Off: Outputs the sound through the external speaker connected to the speaker out port of the
monitor. Use this option when using an external sound device.
from two speakers.
the treble, it will increase the output to the higher frequency
range.
bass, it will increase the output to the lower frequency range.
Page 49
CUSTOMIZING SETTINGS
48

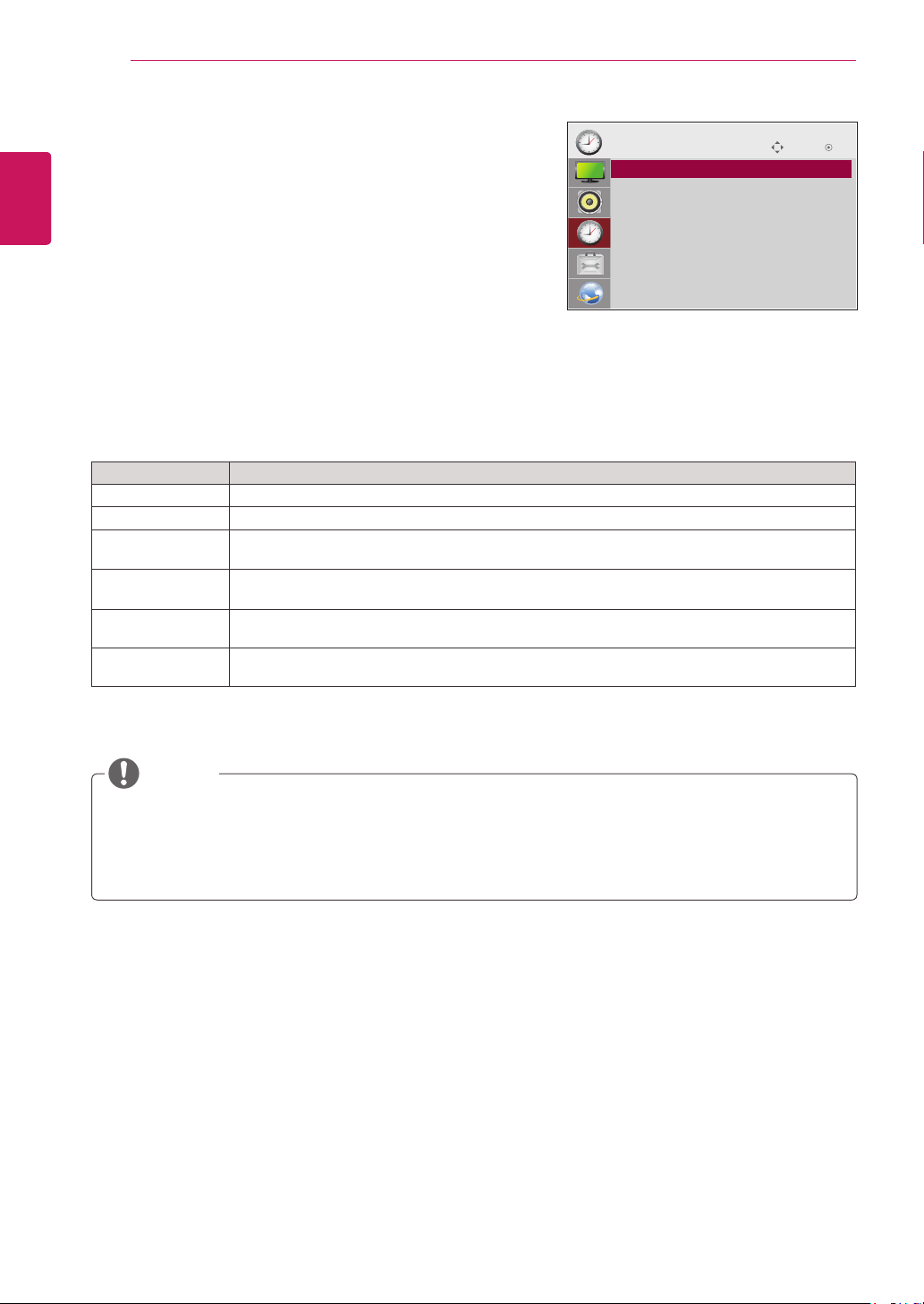

TIME settings
ENGLISH
ENG
1
2
3
4
The available time settings are described in the following:
Move OK
Press MENU to access the main menus.
Press the Navigation buttons to scroll to TIME and press OK.
Press the Navigation buttons to scroll to the setting or option
you want and press OK.
TIME
• Clock
ꔋ
• Off Time : Off
• On Time : Off
• Sleep Timer : Off
• Power On Delay : Off
• Auto Off : Off
• Automatic Standby : Off
- To return to the previous level, press BACK.
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Setting Description
Clock Sets the time feature.
On/Off Time Sets the time to turn on or off the Monitor set.
Sleep Timer Sets the length of time until the Monitor set to turns off. When you turn the Monitor set off and
Power on delay When connecting multiple monitors and turning the power on, the monitors are turned on
Auto off If Auto off is active and there is no input signal, the set switches to off mode automatically after 15
Automatic
Standby
turn it on again, the Sleep Timer will be set to off.
individually to prevent overload.
minutes.
If you do not use the monitor for more than 4 hours, it will be in standby mode automatically.
NOTE
Once the on or off time is set, these functions operate daily at the preset time.
y
The scheduled power-off function works properly only when the device time is set correctly.
y
When the scheduled power-on and power-off times are the same, the power-off time has priority over the power-on time
y
if the set is turned on, and vice versa if the set is turned off.
Page 50
CUSTOMIZING SETTINGS
49
OPTION settings
Press MENU to access the main menus.
1
Press the Navigation buttons to scroll to OPTION and press
2
OK.
Press the Navigation buttons to scroll to the setting or
3
option you want and press OK.
- To return to the previous level, press BACK.
When you are finished, press EXIT.
4
OPTION
• Language
ꔋ
• ISM Method : Normal
• DPM Select : Off
• Fail Over : Off
• Factory Reset
• Set ID : 1
• Tile Mode
• Portrait Mode
• Fan
• Product/Service Info.
Move OK
When you return to the previous menu, press
BACK.
The available option settings are described in the following:
Setting Description
Language To choose the language in which the control names are displayed.
ISM Method Leaving a fixed image on the screen for a long time may cause damage to the screen and cause
image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize
the residual image prevention function on the product, and when the product is not used, turn off
the power. Burn-in and related problems are not covered by the warranty on this product.
Setting
Normal Sets it if image sticking is never a problem
Orbiter May help prevent ghost images. However, it is best not to allow any fixed
Inversion This function inverts th e panel c olo r of t he scre en. T he panel color is
White wash Removes a ghost image on the screen.
DPM Select A user can choose to turn the power saving mode on / off.
Fail Over If there is no input signal, it automatically switches to another input with signal.
* 47WV30-BAAL does not support this function.
Setting
Off Stops auto switch of the input source.
Auto Switches to another input source with video signal if no video signal comes
Manual Selects the priority of input source for auto switch.
Factory Reset Select this option to return to the default factory settings.
image to remain on the screen. To avoid a permanent image on the screen,
the screen will move every 2 minutes.
automatically inverted every 30 minutes.
Use sparingly. Watch the sets normally for a while before using this feature to
see if the ghost image disappears on its own.
from the current input source.
When several input sources are found, the input source with a higher priority
will be selected.
ENGLISH
ENG
Page 51
50
ENGLISH
ENG
CUSTOMIZING SETTINGS

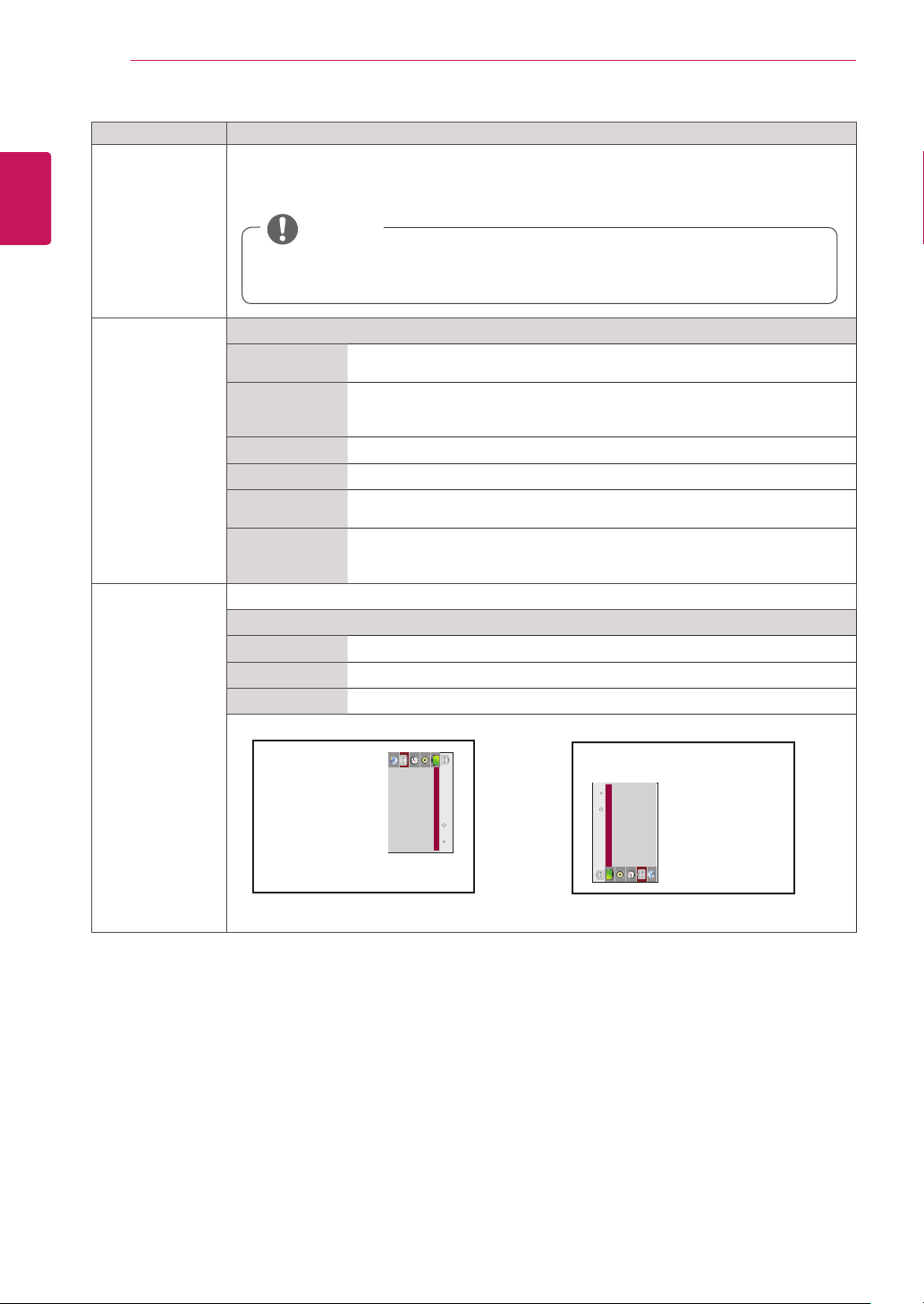

Setting Description
Set ID You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to 255) using the button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
NOTE
If you change SET ID No, the value of ‘Power On Delay’ will be set to (SET ID No)/3(sec)
to prevent power consumption overload.
ex) SET ID No = 31 → Power On Delay = 10(=31/3)
Tile Mode Setting
Tile Mode You can display the image on multiple sets and view it in a larger size. To use
the Tile Mode on multiple sets with same signal.
Auto Config. This option optimizes the screen when you connect the set to a new computer
or change to a different mode. If you are not satisfied with the adjustment, you
can manually change the "Position" or "Size".
Position You can set the position.
Size You can set the size.
Natural The image is omitted by the distance between the screens to be naturally
shown.
Reset Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to
Full screen.
Portrait mode Rotate OSD clockwise (Off, 90°,270°)
Option
Off Do not rotate OSD
90° Rotate OSD clockwise 90°.
270° Rotate OSD clockwise 270°.
90°
TIME
ꔋ
• Auto Off : Off
• Automatic Standby : Off
• Power On Delay : Off
• On Time : Off
• Sleep Timer : Off
• Clock
• Off Time : Off
Move OK
Move OK
• Clock
• Off Time : Off
• On Time : Off
• Sleep Timer : Off
• Power On Delay : Off
• Auto Off : Off
• Automatic Standby : Off
ꔋ
TIME
270°
Page 52
Setting Description
Fan Setting
Mode This option indicates the monitor's internal temperature and controls the fan.
Hysteresis The difference in temperature between when the fan is switched on and when
Set Temperature Set the temperature at which the fan is switched on.
Current
Temperature
• Auto: Switches the fan on and off according to the set temperature.
• On: The fan is always switched on.
• Manual: Switches the fan on and off according to user settings.
it is off.
Current temperature inside the set.
NOTE
We recommend that you use the Auto mode to prevent any malfunctions resulting from
y
incorrect fan settings.
If the interior temperature of the set exceeds 80°C, the set will be turned off
y
automatically for safety reasons.
CUSTOMIZING SETTINGS
51
ENGLISH
ENG
Product/Service
Info.
Displays the model name, software version, serial number, IP address, MAC address and home
page.
Page 53
52
ENGLISH
ENG
This monitor can be tiled with additional monitors to create a large tiled display.
CUSTOMIZING SETTINGS

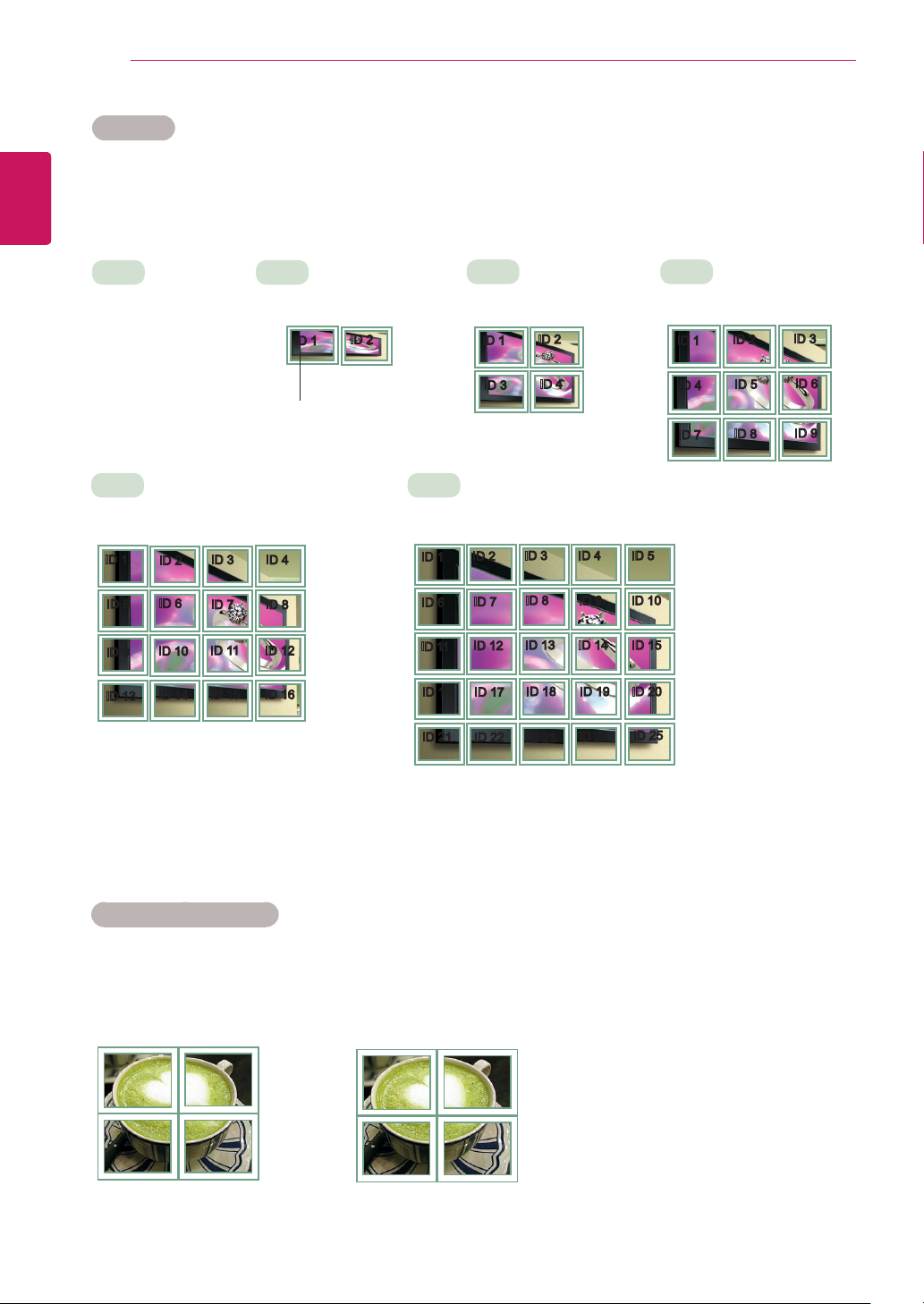

Tile Mode
Off
When the Tile Mode
option is disabled
4X4
When using 16 monitors
ID 1
ID 5
ID 9
ID 13
ID 2
ID 6
ID 10
ID 14
ID 3
ID 7
ID 11
ID 15
2X1
When using 2 monitors
ID 1
ID 2
Tile ID
ID 4
ID 8
ID 12
ID 16
2X2
When using 4 monitors
ID 1
ID 3
ID 2
ID 4
5X5
When using 25 monitors
ID 3
ID 2
ID 1
ID 8
ID 7
ID 6
ID 13
ID 12
ID 11
ID 17
ID 22
ID 18
ID 23
ID 16
ID 21
ID 4 ID 5
ID 9 ID 10
ID 14 ID 15
ID 19
ID 20
ID 24
ID 25
3X3
When using 9 monitors
ID 1
ID 4
ID 7
ID 2
ID 5
ID 8
ID 3
ID 6
ID 9
Tile Mode - Natural mode
When active, the part of the image that would normally be displayed in the gap between the monitors is
omitted.
Before After
Page 54
CUSTOMIZING SETTINGS
53
NETWORK settings
Press MENU to access the main menus.
1
Press the Navigation buttons to scroll to NETWORK and
2
press OK.
Press the Navigation buttons to scroll to the setting or
3
NETWORK
• Player Name Setting
ꔋ
• Network Setting
• Network Status : Not connected
• Server IP Setting
• Server IP Status : Not connected
option you want and press OK.
- To return to the previous level, press BACK.
When you are finished, press EXIT.
4
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Setting Description
Player Name
Setting
Network Setting Configure the network settings.
Network Status Display the network status.
Server IP Setting Sets the IP address of the computer (server) on which SuperSign Elite-W Lite server is installed.
Server IP Status Displays the connection status with the server.
Sets the player name used in SuperSign Elite-W Lite server.(Up to 20 characters)
- Internet is connected : Extermally connected
- Netmwork is connected : Only internally connected
- Not connected : When there is no network connection
- Not connected : When there is no network connection with SuperSign Elite-W Lite server
- Waiting for approval : When network connection with SuperSign Elite-W Lite server has been
made, but access to server has not been approved by the server
- Rejected : When network connection with SuperSign Elite-W Lite server has been made, but
access to server has been rejected by the server
- Internet is connected : When network connection with SuperSign Elite-W Lite server has been
made and access to server has also been approved by the server
Move OK
ENGLISH
ENG
NOTE
y Network setting menu will not be available until the display connected to physical network.
Page 55
MAKING CONNECTIONS
HD Receiver
DVD
54
ENGLISH
ENG
HDMI - (See p.55)
Component - (See p.56)
AV - (See p.56)

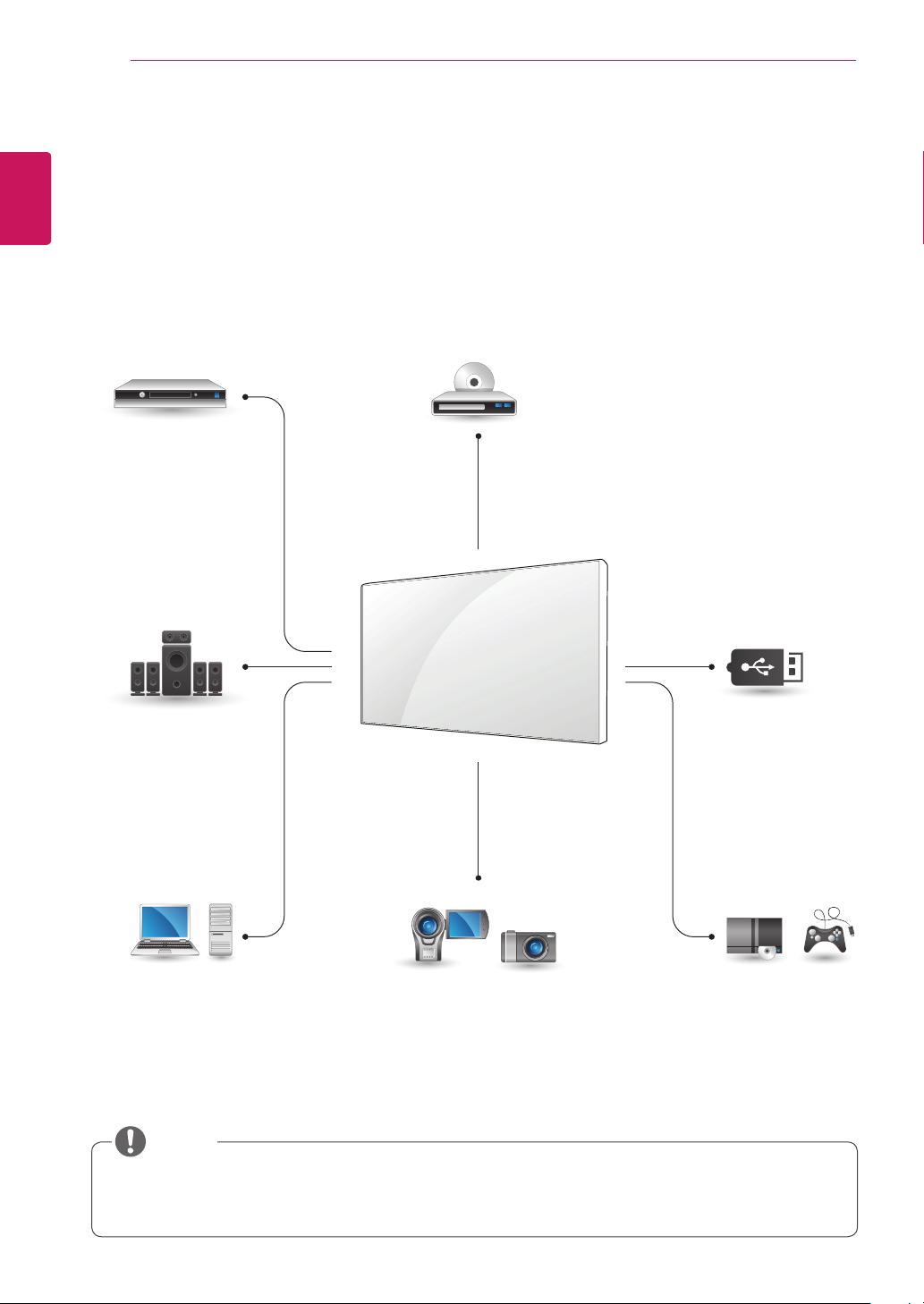

MAKING CONNECTIONS
Connect various external devices to the ports on the Monitor set’s back panel.
Find an external device you want to connect to your Monitor set shown in the following illustration.
1
Check the connection type of the external device.
2
Go to the appropriate illustration and check the connection details.
3
HDMI - (See p.55)
Component - (See p.56)
AV - (See p.56)
Speaker
USB
HDMI - (See p.22)
DVI - (See p.22)
RGB - (See p.21)
y If you connect a gaming device to the Monitor set, use the cable supplied with the gaming device.
y AV(CVBS) can be supported only in 47WV30BR and 47WV30MS models.
PC
NOTE
Camcorder/Camera
HDMI - (See p.55)
Component - (See p.56)
AV - (See p.56)
Memory storage
- (See p.57)
Gaming device
HDMI - (See p.55)
Component - (See p.56)
AV - (See p.56)
Page 56
MAKING CONNECTIONS
COMPONENT IN
VIDEO AV IN AUIDO
COMPONENT IN
VIDEO AV IN AUIDO
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
/DVI
AV (CVBS)
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
/DVI
55
Connecting to a HD receiver, DVD or VCR player
Connect a HD receiver, DVD, or VCR player to the
Monitor set and select an appropriate input mode.
HDMI connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the HDMI
cable as shown on the following illustration.
Back of the Monitor Set
DVI - HDMI connection
Transmits the digital video signal from an external
device to the Monitor set. Connect the external
device and the Monitor set with the DVI-HDMI
cable as shown in the following illustration. To
transmit an audio signal, connect an optional audio
cable.
Peripheral
(not included)
(not included)
ENGLISH
ENG
(not included)
Peripheral
NOTE
Use a High Speed HDMI™ Cable.
y
High Speed HDMI™ Cables are tested to
y
carry an HD signal up to 1080p and higher.
Dolby Digital is not supported.
y
CAUTION
When connecting
y
an HDMI cable as
illustrated, remove
the screw on the
HDMI connector first.
Back of the Monitor Set
Page 57
MAKING CONNECTIONS
COMPONENT IN
VIDEO AV IN AUIDO
COMPONENT IN
VIDEO AV IN AUIDO
AV (CVBS)
COMPONENT IN
VIDEO AV IN AUIDO
AV (CVBS)
56

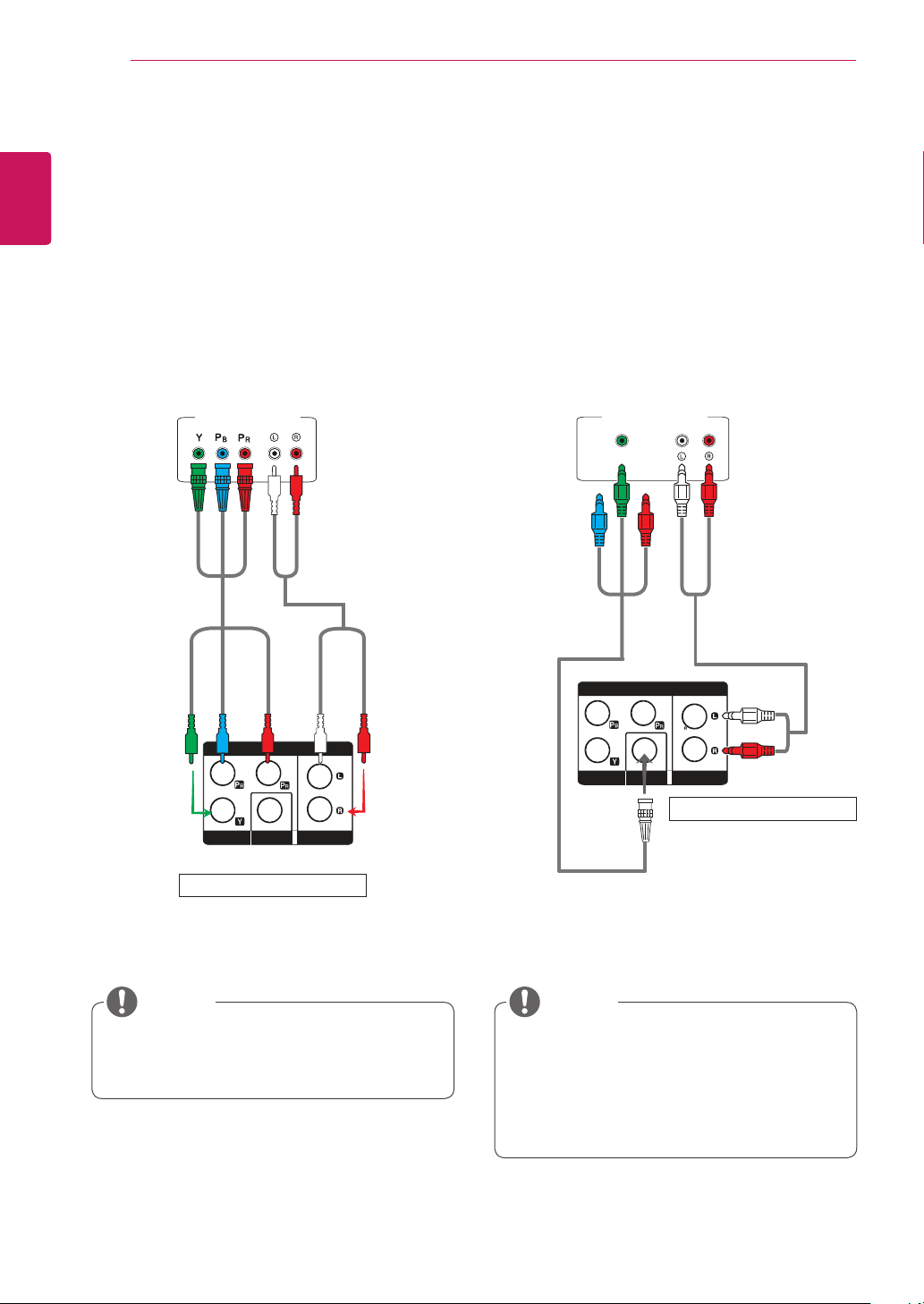

Component connection
ENGLISH
ENG
Transmits the analog video and audio signals from
an external device to the Monitor set. Connect
the external device and the Monitor set with a
component cable as shown on the following
illustration. To transmit an audio signal, connect an
optional audio cable.
Peripheral
(not included) (not included)
AV connection (Only 47WV30BR and 47WV30MS)
Transmits the analog video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the RCA
cable as shown on the following illustration. To
transmit an audio signal, connect an optional audio
cable.
Peripheral
(not included)
(not included)
Back of the Monitor Set
y AV(CVBS) can be supported only in 47WV-
30BR and 47WV30MS models.
Back of the Monitor Set
NOTENOTE
For AV (CVBS) connection, the red and blue
y
cables in a shared interface are not in use.
y AV(CVBS) can be supported only in 47WV-
30BR and 47WV30MS models.
Page 58
MAKING CONNECTIONS
57
Connecting to the LAN
LAN connection
Connect the LAN cable.
Using a router(Switching Hub)
A
LAN
Product
Using the Internet.
B
Switching Hub
PC
Connecting to a USB
Connect a USB storage device such as s USB
flash memory, external hard drive, MP3 player or
a USB memory card reader to the Monitor set and
access the USB menu to use various multimedia
files. "Connecting USB storage devices" on See
p.30 and “Browsing files” on See p.31
or
ENGLISH
ENG
Page 59
MAKING CONNECTIONS
DVI-INDVI-OUT DVI-INDVI-OUTDVI-INDVI-OUT
58
ENGLISH

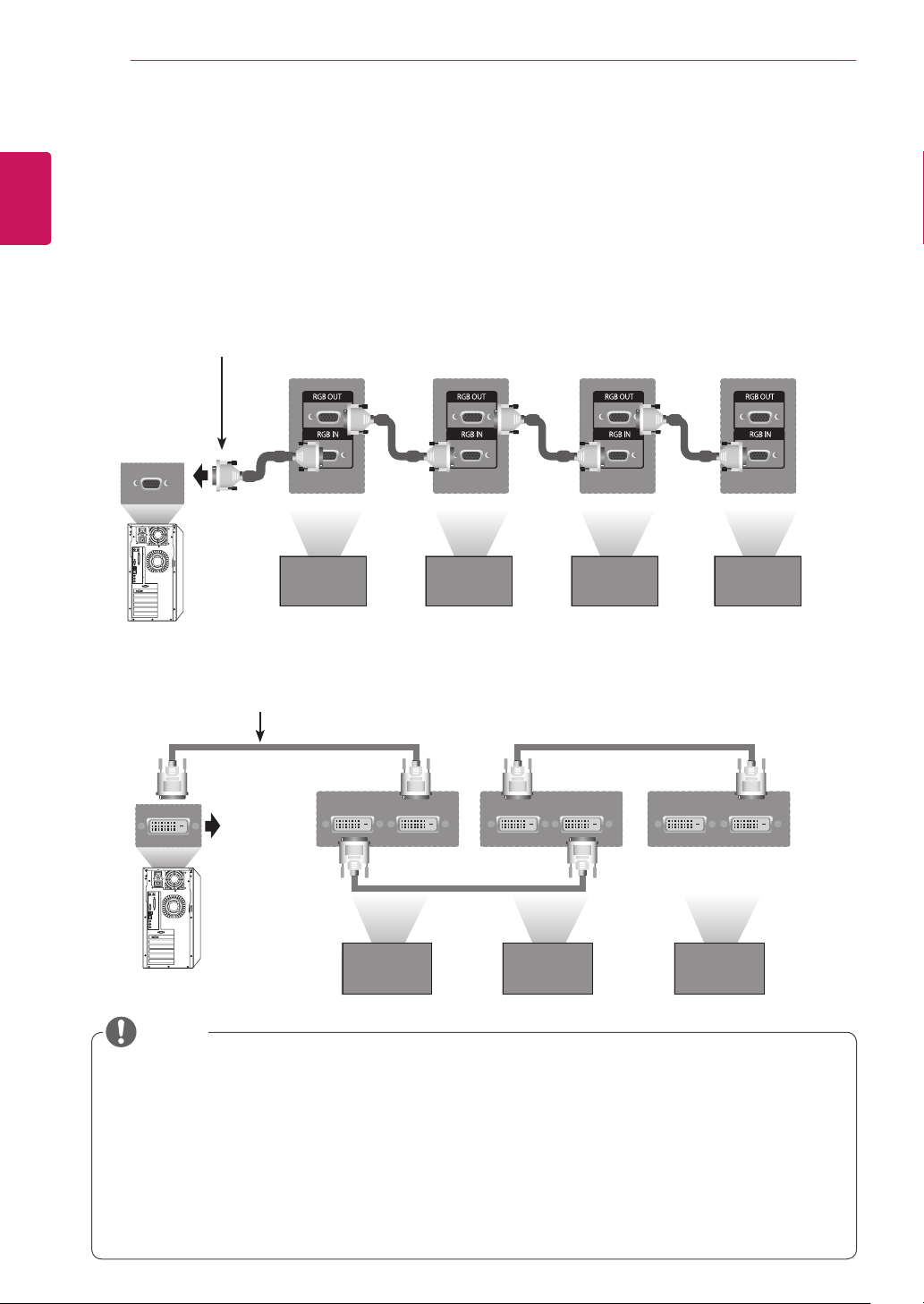

Daisy Chain Monitors
ENG
Use this function to share the RGB video signal with other monitors without having to use a separate signal
splitter box.
• To use different products connected to each other Connect one end of the signal input cable (15-pin
RGB Cable
D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN
connector of other products
15-pin D-Sub Signal Cable
(Max 3m)
Set 1 Set 2 Set 3 Set 4
DVI Cable
DVI Cable
(Max 3m)
Set 1 Set 2 Set 3
NOTE
y "Input signal may be degraded or lost when multiple monitors are connected. For DVI, in general, up
to 12 monitors can be connected via the DVI Out port (at the recommended resolution) if the signal
is stable and there is no cable loss. (If you want to connect more than this number of monitors, we
recommended that you use a distributor.)
y When the tile mode is configured via DVI cables, only the monitor that receives first signals can play
HDCP-encrypted content. (The DVI Out port does not support HDCP).
y If the signal cable between the product and your PC is too long, make sure to use the DVI (RGB)
booster or DVI (RGB) optical cable.
y If input signals are received through the HDMI/DP cable, multiple monitors cannot be connected via
the DVI Out port"
Page 60
TROUBLESHOOTING
59
TROUBLESHOOTING
No image is displayed
Problem Resolution
Is the product power cord
connected?
Power is on, power indicator
is blue but the screen appears
extremely dark.
Does the 'Invalid Format'
message appear?
Does the 'No Signal' message
appear?
y See if the power cord is properly connected to the outlet.
y Adjust brightness and contrast again.
y Backlight may need repair.
y The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
* Maximum resolution (47WV30MS,47WV30BR)
RGB : 1920 X 1080 @ 60 Hz
HDMI/DVI : 1920 X 1080 @ 60 Hz
* Maximum resolution (47WV30BS,47WV30-BAAM,47WV30-BAAL)
RGB : 1366 X 768 @ 60 Hz
HDMI/DVI : 1366 X 768 @ 60 Hz
y The signal cable between PC and product is not connected. Check
the signal cable.
y Press the 'INPUT' menu in the remote Control to check the input
signal.
ENGLISH
ENG
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver? y Install the product driver, which is provided with the product, or
download it from the web site. (http://www.lg.com)
y See if the plug&play function is supported by referring to the video
card user manual.
Page 61
60
ENGLISH
ENG
TROUBLESHOOTING
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong? yD-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Position OSD
menu.
ySee if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel "Display" Setting menu.
Do thin lines appear on the
background screen?
Horizontal noise appears or the
characters look blurred.
The screen is displayed
abnormally.
y D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Clock OSD
menu.
yD-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Phase OSD
menu.
y The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
The audio function does not work.
Problem Resolution
No sound? ySee if the audio cable is connected properly.
Sound is too dull. ySelect the appropriate equalize sound.
Sound is too low. y Adjust the volume.
yIf you use a fixed image for a long time, the pixels may be damaged
quickly. Use the ISM mode.
yAdjust the volume.
y See if the sound is set properly.
Page 62
TROUBLESHOOTING
61
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
Screen color is unstable or
mono-colored.
Do black spots appear on the
screen?
The operation does not work normally.
Problem Resolution
The power suddenly turned off. yIs the sleep timer set?
Remote controller doesn’t work. yRemote controller will not work in case SET ID and Picture ID are
y Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
yCheck the connection status of the signal cable. Or, re-insert the PC
video card.
y Several pixels (red, green, white or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
y Check the power control settings. Power interrupted.
different.
ENGLISH
ENG
Page 63
SPECIFICATIONS
62
ENGLISH
SPECIFICATIONS
ENG
LCD Panel
Video Signal
Input Connector
Power
Dimensions
(Width x Height x
Depth) / Weight
Screen Type 47" class (46.9" diagonal) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1192.8 mm
Pixel Pitch 0.5415 mm (H) x 0.5415 mm (V)
Max. Resolution
(47WV30MS,47WV30BR)
Max. Resolution
(47WV30BS,47WV30-BAAM,
47WV30-BAAL)
Recommended Resolution RGB : 1366 X 768 @ 60 Hz
Horizontal Frequency RGB : 30 kHz to 68 kHz
Vertical Frequency RGB : 56 Hz to 75 Hz
Synchronization Type Separate Sync, Composite Sync, Digital, SOG
Rated Voltage AC 100-240 V~ 50 / 60 Hz 2.2 A
Power Consumption On Mode : 220 W Max.
RGB : 1920 X 1080 @ 60 Hz
HDMI/DVI : 1920 X 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
RGB : 1366 X 768 @ 60 Hz
HDMI/DVI : 1366 X 768 @ 60 Hz
- It may not be supported depending on the OS or video card type.
HDMI/DVI : 1366 X 768 @ 60 Hz
- It may not be supported depending on the OS or video card type.
HDMI/DVI : 30kHz to 68 kHz
HDMI/DVI : 56 Hz to 63 Hz
15-pin D-Sub type(RGB), Component, HDMI/DVI(digital),
AV(CVBS), RS-232C, LAN, USB
* AV(CVBS) can be supported only in 47WV30BR and
47WV30MS models.
Off Mode : ≤ 0.5 W
* Wall Bracket available VESA dimensions:
800 mm x 400 mm
1047 mm x 592 mm x 91.1 mm / 29 kg
Environmental
conditions
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
0 °C to 40 °C
10 % to 80 %
-20 °C to 60 °C
5 % to 95 %
* Applicable only for models that support the speakers
Audio
RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
Page 64
PC supported mode
Resolution
*1 720 x 400 31.468 70.8
*2 640 x 480
*3 800 x 600
4 832 x 624
*5 1024 x 768
*6 1280 x 720
*7 1366 x 768
*8 1280 x 1024
*9 1360 X 768 47.72 59.799
*10 1920 X 1080 67.5 60 (Only 47WV30BR, 47WV30MS)
Horizontal
Frequency(kHz)
31.469 59.94
37.879 60.317
49.725 74.55
48.363 60
44.772 59.855
47.71 59.79
63.981 60.02
Vertical
Frequency(Hz)
SPECIFICATIONS
1 to 10: RGB Mode
* : HDMI/DVI mode
63
ENGLISH
ENG
DTV Mode
Resolution AV/Component HDMI(DTV)
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1080p x o
Page 65
RS-232 CONTROL
64
ENGLISH
RS-232 CONTROL
ENG

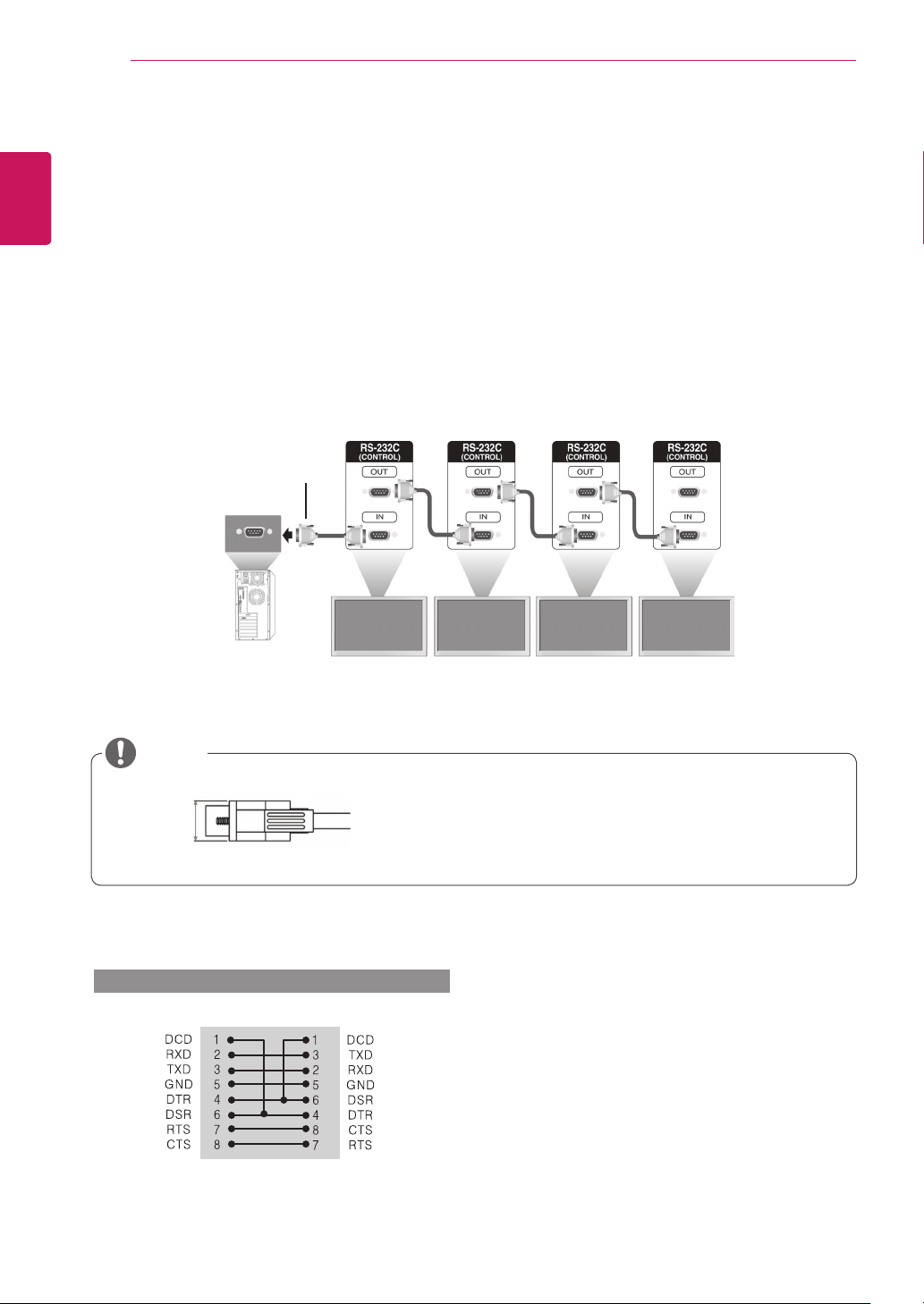

Connecting the cable
Connect the RS-232C cable as shown in the picture.
You can control several products at a time by connecting them to a single PC.
y
In the Option menu, Set ID must be between 1 and 255 without being duplicated.
y
The RS-232C protocol is used for communication between the PC and product. You can turn the
y
product on/off, select an input source or adjust the OSD menu from your PC. This monitor features
two RS-232 ports. One input and one output. This allows you to daisy-chain monitors without having
to use a splitter box.
RS-232C Cable
PC
Set 1 Set 2 Set 3 Set 4
NOTE
15 mm or
less
RS-232C Configurations
8-Wire Configurations (Cross-over RS-232C cable)
PC Set
D-Sub 9
(Female)
D-Sub 9
(Female)
Use RS-232C cables as shown in the picture.
y
If a cable bigger than the ones shown in the picture is used
y
in the connector, the connection may not be flawless due to
interference between the cables.
Pin 1 of RS-232C Out should be connected with Pin 4 of RS-
y
232C In.
Communication Parameter
Baud Rate : 9600 buad Rate (UART)
y
Data Length : 8 bit
y
Parity Bit : None
y
Stop Bit : 1bit
y
Flow Control : None
y
Communication Code : ASCII code
y
Use a crossed (reverse) cable
y
Page 66
RS-232 CONTROL
65
Command Reference List
COMMAND
1 2
01 Power k a 00H to 01H
02 Input Select x b Refer to ‘02. Input Select’
03 Aspect Ratio k c Refer to ‘03. Aspect Ratio’
04 Energy Saving j q Refer to ‘04. Energy Saving’
05 Picture mode d x 00H to 04H
06 Contrast k g 00H to 64H
07 Brightness k h 00H to 64H
08 Sharpness k k 00H to 64H
09 Color k i 00H to 64H
10 Tint k j 00H to 64H
11 Color Temperature x u 00H to 64H
12 H Position f q 00H to 64H
13 V Position f r 23H to 41H
14 H Size f s 00H to 64H
15 Auto configuration j u 01H
16 Balance k t 00H to 64H
17 Sound mode d y 01H to 05H
18 Treble k r 00H to 64H
19 Bass k s 00H to 64H
20 Speaker d v 00H to 01H
21 Volume Mute k e 00H to 01H
22 Volume Control k f 00H to 64H
23 Time 1(Years/ Months/ Days) f g Refer to ’23. Time 1’
24 Time 2(Hours/ Minutes/Seconds) f x Refer to ’24. Time 2’
25 Off Timer(Repeat mode/ Time) f d Refer to ‘25. Off Timer’
26 On Timer(Repeat Mode/ Time) f e Refer to ’26. On Timer’
27 On Timer Input f u Refer to ’27. On Timer Input’
28 Sleep Time f f 00H to 08H
29 Power On Delay f h 00H to 64H
30 Automatic Standby m n 00H to 01H
31 Auto Off f g 00H to 01H
32 Language f i 00H to 0AH
33 ISM mode j p Refer to ‘33. ISM Method’
34 DPM Select f j 00H to 01H
35 Fail Over Select m i 00H to 02H
36 Fail Over Input Select m j Refer to ’36. Fail Over Input Select’
37 Reset f k 00H to 03H
38 Tile Mode d d Refer to ’38. Tile Mode’
39 Tile Mode Check d z FFH
40 Tile ID d i Refer to ’40. Tile ID’
DATA
(Hexadecimal)
ENGLISH
ENG
Page 67
RS-232 CONTROL
66
ENGLISH
ENG
COMMAND
1 2
41 Tile H Position d e 00H to 64H
42 Tile V Position d f 23H to 41H
43 Tile H Size d g 00H to 64H
44 Natural Mode (In Tile mode) d j 00H to 01H
45 FAN Control d o 00H to 02H
46 FAN Fault check d w FFH
47 Temperature Value d n FFH
48 Key m c Refer to ‘48. Key’
49 OSD Select k l 00H to 01H
50 Elapsed time return d l FFH
51 Serial No. Check f y FFH
52 S/W Version f z FFH
53 White Balance Red Gain j m 00H to FEH
54 White Balance Green Gain j n 00H to FEH
55 White Balance Blue Gain j o 00H to FEH
Note : During USB operations such as Dvix or EMF, all commands except Power(ka) and Key(mc) are
y
DATA
(Hexadecimal)
not executed and treated as NG.
Page 68
RS-232 CONTROL
67
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command1]: First command to control the set.
y
[Command2]: Second Command to control the set.
y
[Set ID]: Set ID wants to communicate with the set. Command for test is 00.
y
[DATA]: Information passed to the set.
y
[Cr]: Carriage Return. ASCII code ‘0x0D’.
y
[ ]: White Space. ASCII code ‘0x20’.
y
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
In a like manner, if other functions transmit ‘FF’ data based on this format, Acknowledgement data
y
feedback presents status about each function.
Note: In this mode, display will send the acknowledgement after power on processing completion.
y
There might be a time delay between command and acknowledgement.
Refer to ‘Real data mapping’ for hexadecimal data to decimal data.
y
No acknowledgement signal will be sent from display, if Set ID in transmission signal is set to
y
‘00’(=0x00).
Supports
Model
47WV30-BAAL
Data
This table displays the models which the command supports(O: Supports, X: Not supports)
y
The command does not have this table supports all displays.
y
20H x o
40H o x
90H o o
47WV30BS
47WV30-BAAM
47WV30BR
47WV30MS
ENGLISH
ENG
Page 69
RS-232 CONTROL
68
ENGLISH
ENG
01. Power (Command: k a)
- To control power On/Off the display.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data
00: Power Off
01: Power On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
* Note: In this mode, display will send the
acknowledgement after power on processing
completion. There might be a time delay between
command and acknowledgement.
02. Input Select (Command: x b)
- To select input source for display.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data
20: AV
40: Component
60: RGB PC
70: DVI-D(PC)
80: DVI-D(DTV)
90: HDMI(DTV)
A0: HDMI(PC)
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
* Use this feature depending on your model
Supports
Model
Data
20H x o
40H o o
60H o o
70H o o
80H o o
90H o o
A0H o o
47WV30BS
47WV30-BAAM
47WV30-BAAL
47WV30BR
47WV30MS
03. Aspect Ratio (Command: k c)
- To adjust the screen format.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data
01: 4:3
02: 16:9
04: Zoom
09: Just Scan(720p or higher)/ 1:1
10~1F: Cinema Zoom 1~16
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
04. Energy Saving (Command: j q)
- To control the energy saving function.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: Minimum
02: Medium
03. Maximum
05. Screen Off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
05. Picture Mode (Comman : d x)
- To select the picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data
00: Vivid
01: Standard
02. Cinema
03. Sport
04: Game
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
Page 70
RS-232 CONTROL
69
06. Contrast (Command: k g)
- To adjust screen contrast.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data
00~64: Contrast 0~100
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
- To adjust screen brightness.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data
00~64: Brightness 0~100
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
- To adjust screen color.
* Only available for AV/ Component input.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data
00~64: Color 0~100
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
- To adjust screen tint.
* Only available for AV/ Component input.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data
00~64: Tint 0~100 (R50 ~ G50)
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
ENG
08. Sharpness (Command: k k)
- To adjust screen sharpness.
* Only available for AV/ Component input.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data
00~64: Sharpness 0~100
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
11. Color Temperature (Command: x u)
- To adjust color temperature.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data
00~64: Warm 50~Cool 50
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
Page 71
RS-232 CONTROL
70
ENGLISH
ENG
12. H Position (Command: f q)
- To set the Horizontal position.
* Only available for Tile Off mode.
Transmission
[f][q][ ][Set ID][ ][Data][Cr]
Data
00~64: Left 50 ~ Right 50
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
13. V Position (Command: f r)
- To set the Vertical position.
* Only available for Tile Off mode.
Transmission
[f][r][ ][Set ID][ ][Data][Cr]
Data
23~41: Bottom 15~Top 15
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
15. Auto Configuration (Command: j u)
- To adjust picture position and minimize image
shaking automatically.
* Only available for RGB input.
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data
01: Set
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
16. Balance (Command: k t)
- To adjust sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data
00~64: Left 50~Right 50
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
14. H Size (Command: f s)
- To set the Horizontal size.
* Only available for Tile Off mode.
Transmission
[f][s][ ][Set ID][ ][Data][Cr]
Data
00~64: Size -50 ~ +50
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
17. Sound Mode (Comman : d y)
- To select the sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data
01: Standard
02: Music
03: Cinema
04: Sport
05. Game
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
Page 72
RS-232 CONTROL
71
18. Treble (Command: k r)
- To adjust treble.
Transmission
[k][r][ ][Set ID][ ][Data][Cr]
Data
00~64: Treble 0~100
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
19. Bass (Command: k s)
- To adjust bass.
Transmission
[k][s][ ][Set ID][ ][Data][Cr]
Data
00~64: Bass 0~100
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
21. Volume Mute (Command: k e)
- To select volume mute on/off.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data
00: Volume mute on(volume off)
01: Volume mute off(volume on)
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
22. Volume Control (Command: k f)
- To adjust volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data
00~64: Volume 0~100
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
ENG
20. Speaker (Command: d v)
- To select speaker on/off.
Transmission
[d][v][ ][Set ID][ ][Data][Cr]
Data
00: Speaker Off
01. Speaker On
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
23. Time 1(Year/ Month/ Day) (Command: f a)
- To set the Time 1(Year/ Month/ Day values.
Transmission
[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00~14: 2010 ~ 2030
Data2
01~0C: January ~ December
Data3
01~1F: 1 ~ 31
* Enter “fa [Set ID] ff” for checking Time 1 values.
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Page 73
RS-232 CONTROL
72
ENGLISH
ENG
24. Time 2(Hour/ Minute/ Second) (Command: f x)
- To set the Time 2(Hour/ Minute/ S) values.
Transmission
[f][x][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00~17: 00 ~ 23 hours
Data2
01~3B: 00 ~ 59 minutes
Data3
01~3B: 00 ~ 59 seconds
* Enter “fx [Set ID] ff” for checking Time 2 values.
* This command won’t work if Time 1 has not been
set in advance.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
26. On Timer(Repeat Mode/ Time) (Command: f d)
- To set the On Timer(Repeat Mode/ Time) function.
Transmission
[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00: Repeat Off
01: Repeat Once
02. Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06. Repeat on Sunday
Data2
00~17: 00 ~ 23 Hours
Data3
00~3B: 00 ~ 59 Minutes
* Enter “fd [Set ID] ff” for checking On Timer(Repeat
mode/ Time) values.
* Check if Time1 and Time2 have been set before
setting this function.
* On Timer Input command should be executed
followed just after executing this command to set On
Timer schedule properly.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
25. Off Timer(Repeat Mode/ Time) (Command: f e)
- To set the Off Timer(Repeat Mode/ Time) function.
Transmission
[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00: Repeat Off
01: Repeat Once
02. Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06. Repeat on Sunday
Data2
00~17: 00 ~ 23 Hours
Data3
00~3B: 00 ~ 59 Minutes
* Enter “fe [Set ID] ff” for checking Off Timer(Repeat
mode/ Time) values.
* Check if Time1 and Time2 have been set before
setting this function.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Page 74
RS-232 CONTROL
73
27. On Timer Input (Command: f u)
- To set the On Timer Input function.
Transmission
[f][u][ ][Set ID][ ][Data][Cr]
Data
20: AV
40: Component
60. RGB
70: DVI
90: HDMI
* Check if Time1, Time2, and On Timer(Repeat
Mode/ Time) functions have been set before setting
this function.
* On Timer(Repeat Mode/ Time) command should
be executed in advance this command to set On
Timer schedule properly.
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
Supports
Model
Data
20H x o
40H o o
60H o o
70H o o
90H o o
47WV30BS
47WV30-BAAM
47WV30-BAAL
47WV30BR
47WV30MS
28. Sleep Time (Command: f f)
- To set sleep time.
Transmission
[f][f][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: 10min.
02: 20min.
03: 30min.
04: 60min.
05: 90min.
06: 120min.
07: 180min.
08: 240min.
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
29. Power On Delay (Command: f h)
- To set the schedule delay when the power is turned
on(unit: second).
Transmission
[f][h][ ][Set ID][ ][Data][Cr]
Data
00~64: 0~100sec.
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
ENG
30. Automatic Standby (Command: m n)
- To set the Automatic Standby function
Transmission
[m][n][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: 4 Hours Off
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
Page 75
RS-232 CONTROL
74
ENGLISH
ENG
31. Auto Off (Command: f g)
- To set the Auto Off function
Transmission
[f][g][ ][Set ID][ ][Data][Cr]
Data
00: Auto Off Off
01: Auto Off On
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
32. Language (Command: f i)
- To set language for OSD.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data
00: Korean
01: Chinese
02: Japanese
03: English
04: French
05: German
06: Italian
07: Portuguese
08: Spanish(EU)
09: Russian
0A: Persian
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
34. DPM Select (Command: f j)
- To select DPM(Display Power Management) to
save evergy.
Transmission
[f][j][ ][Set ID][ ][Data][Cr]
Data
00: DPM Off
01: DPM On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
35. Fail Over Select (Command: m i)
- To select Fail Over mode.
* 47WV30-BAAL does not support Fail Over Select
command.
Transmission
[m][i][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: Auto
02: Manual
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
33. ISM Method (Command: j p)
- To select ISM method for avoiding having a fixed
image remain on screen.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data
01: Inversion
02: Orbiter
04: White Wash
08. Normal
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
Page 76
RS-232 CONTROL
75
36. Fail Over Input Select (Command: m j)
- To select fail over mode.
* Only available in Fail Over manual mode.
* 47WV30-BAAL does not support Fail Over Select
command.
Transmission
[m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data
60: RGB
70: DVI-D*
90: HDMI*
* Use 0x70 as data for DVI-D input, 0x90 as data for
HDMI input, regardless their input lables.
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Data
1~3(Priority 1~3)
60: RGB
70: DVI-D**
90: HDMI**
** Returns 0x70 as Data for DVI-D port, 0x90 as
Data for HDMI port, regardless their input labels.
37. Reset (Command: f k)
- To execute the Picture, Screen and Factory reset
function,
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data
00: Picture Reset
01: Screen Reset
02: Factory Reset
03: Audio Reset
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
38. Tile mode (Command: d d)
- To select a Tile Mode Off/ On and Tile Row/
Column size.
Transmission
[d][d][ ][Set ID][ ][Data][Cr]
Data
00 ~ FF: 1st byte - Tile Column value
2nd byte - Tile Row value
*00, 01, 10, 11 means Tile Mode Off.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
39. Tile Mode Check (Command: d z)
- To check Tile Mode status.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data
FF: Check Tile Mode status
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Data1
00: Tile Mode Off
01: Tile Mode On
Data2
01~0F: Tile Column Value
Data3
01~0F: Tile Row Value
40. Tile ID (Command: d i)
- To set Tile ID.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data
01 ~ E1:Tile ID 01 ~ 225**
FF: Read Tile ID
** Data could not be set over (Tile Row) x (Tile
Column)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
ENG
Page 77
RS-232 CONTROL
76
ENGLISH
ENG
41. Tile H Position (Command: d e)
- To set the Horizontal position
* Only available when Tile Mode On.
Transmission
[d][e][ ][Set ID][ ][Data][Cr]
Data
00~64: -50 ~ 50
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
42. Tile V Position (Command: d f)
- To set the Vertical Position.
* Only available when Tile Mode On.
Transmission
[d][f][ ][Set ID][ ][Data][Cr]
Data
23~41: -15 ~ 15 (for RGB)
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
44. Natural Mode (in Tile Mode) (Comman : d j)
- To assign the Tile Natural mode for Tiling function.
Transmission
[d][j][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
45. FAN Control (Command: d o)
- To set Fan control on/off.
Transmission
[d][o][ ][Set ID][ ][Data][Cr]
Data
00: Auto
01: On
02: Manual
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
43. Tile H Size (Command: d g)
- To set the Horizontal size.
* Only available when Tile Mode On.
Transmission
[d][g][ ][Set ID][ ][Data][Cr]
Data
00~64: -50 ~ 50
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
46. FAN Fault Check (Command: d w)
- To set Fan control on/off.
Transmission
[d][w][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[w][ ][Set ID][ ][OK/NG][Data][x]
Page 78
IR CODES
77
47. Temperature Value (Command: d n)
- To read the inside temperature of the display.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
48. Key (Command: m c)
- To send IR remote control code.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data
IR_KEY_CODE
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
When display is in the standby mode, display will
turn on by Power button of remote control only.
50. Elapsed Time Return (Command: d l)
- To read the panel used time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* Returned data means used hours in hexadecimal.
51. Serial No. Check (Command: f y)
- To read the serial numbers.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
ENG
49. OSD Select (Command: k l)
- To select OSD(On Screen Display) on/off
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data
00: OSD off
01: OSD on
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
52. S/W Version (Command: f z)
- To read the software version.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
Page 79
78
ENGLISH
ENG
IR CODES
53. White Balance Red Gain (Command: j m)
- To adjust white balance red gain.
Transmission
[j][m][ ][Set ID][ ][Data][Cr]
Data 00~FE: Red gain 0~254
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
54. White Balance Green Gain (Command: j n)
- To adjust white balance green gain.
Transmission
[j][n][ ][Set ID][ ][Data][Cr]
Data 00~FE: Green gain 0~254
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
55. White Balance Blue Gain (Command: j o)
- To adjust white balance blue gain.
Transmission
[j][o][ ][Set ID][ ][Data][Cr]
Data 00~FE: Blue gain 0~254
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
Page 80
IR CODE (Hex) Function Remark
08 POWER Remocon Botton
C4 MONITOR ON Remocon Botton
C5 MONITOR OFF Remocon Botton
95 Evergy Saving Remocon Botton
0B INPUT Remocon Botton
10 Number 0 Remocon Botton
11 Number 1 Remocon Botton
12 Number 2 Remocon Botton
13 Number 3 Remocon Botton
14 Number 4 Remocon Botton
15 Number 5 Remocon Botton
16 Number 6 Remocon Botton
17 Number 7 Remocon Botton
18 Number 8 Remocon Botton
19 Number 9 Remocon Botton
02 VOL+ Remocon Botton
03 VOL- Remocon Botton
E0 BRIGHTNESS ∧ (Page Up) Remocon Botton
E1 BRIGHTNESS ∨ (Page Down) Remocon Botton
79 ARC (MARK) Remocon Botton
4D PSM Remocon Botton
09 MUTE Remocon Botton
43 MENU Remocon Botton
99 AUTO Remocon Botton
40
41
06 > Remocon Botton
07 < Remocon Botton
44 OK Remocon Botton
28 BACK Remocon Botton
7B TILE Remocon Botton
5B EXIT Remocon Botton
72 ID ON(Red) Remocon Botton
71 ID OFF(Green) Remocon Botton
63 Yellow Remocon Botton
61 Blue Remocon Botton
B1 ■ Remocon Botton
B0 ► Remocon Botton
BA ll Remocon Botton
8F ◄◄ Remocon Botton
8E ►► Remocon Botton
∧
∨
Remocon Botton
Remocon Botton
IR CODES
79
ENGLISH
ENG
Page 81
To obtain the source code under GPL, LGPL,
MPL and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping and handling)
upon email request to [email protected].
This offer is valid for three (3) years from the
date on which you purchased the product.
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
NOTE
y ENERGY STAR(EPA) can not be supported
in 47WV30-BAAL model.
ENERGY STAR(EPA)
support
47WV30MS
47WV30BR
47WV30BS
47WV30-BAAM
47WV30-BAAL
o
o
o
o
x
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
Page 82
P/NO : 3840TRL098E (0801-REV00)
Loading...
