1024 x 768p Resolution

High resolution format produces
extremely detailed imagery

Improved! 10,000:1 Contrast Ratio

Extremely sharp contrast between
light and dark images

Improved! 1500 cd/m2High Brightness

Renders an incredibly bright picture,
even in well-lit areas

Image Sticking Minimization, Pixel
Orbitor, and White Wash Features

Reduce phosphor burn and prolong
the life of the plasma

Aspect Ratio Correction

RS-232 Control and Discrete
IR Controls

Fan-Free Operation

Front Panel Controls

HDMI with HDCP

Side Video/Audio Inputs

Integrated ATSC/NTSC Tuner/256 QAM

Integrated Speakers

2 Year Warranty

XD Engine

Integrated Speakers and
Removable Stand (Included)

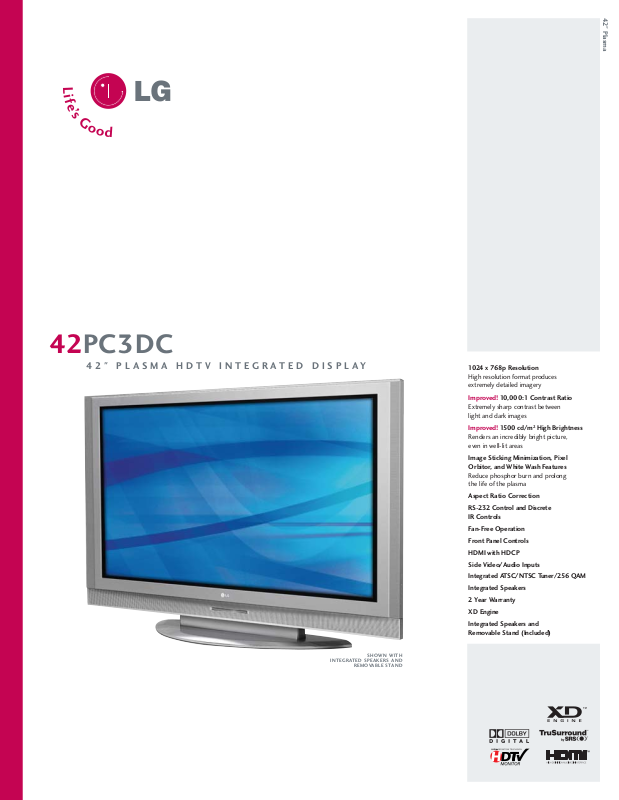

42PC3DC

42" PLASMA HDTV INTEGRATED DISPLAY

SHOWN WITH

INTEGRATED SPEAKERS AND

REMOVABLE STAND

42" Plasma

DIMENSIONS

42PC3DC 42" Plasma HDTV Integrated Display

DIMENSIONS

Monitor (W x H x D) 44.45" x27.36" x 3.88"
Weight 55.8 Lbs.
Monitor with Stand (W x H x D) 44.45"x29.51"x15.73"
Weight with Stand 64.4 Lbs.
Shipping Carton (W x H x D) 47.36" x 30.55" x 13.07"
Shipping Weight 74 Lbs.

CABINET/ACCESSORIES

Cabinet Style Table Top
Table Stand Included
Cabinet Color 1-Tone Titan Silver
Remote Control Universal
VESA

™

Compatible Yes

VIDEO

Screen Size 42" Wide Format
Integrated ATSC/NTSC Tuner/ Yes

256 Q AM
Display Resolution 1024 x 768p
Contrast Ratio 10,000:1
Brightness 1,500 cd/m

2

Panel Life 60,000 hours
Viewing Angle Over 160°
Program Guide Yes (PSIP)
Comb Filter 3D Y/C
Color Temperature Adjustment 3 Modes
Aspect Ratio Adjustment 7 Modes
3:2 Pull-down Cinema Correction 480i
EZ Video/Picture Selection Mode 7 Modes
XD Engine

™

(w/IEP) Yes
Adaptive Picture Mode Yes
Enhanced Noise Reduction Yes
Black Stretcher Yes
DTV Signal Strength Yes
High Contrast Screen Clear Filter

w/Non-glare Coating

VIDEO (CONTINUED)

Image Sticking Prevention Yes
Decoder Formats (MPEG 2, MPEG 2

MPEG 4, DivX, WMA 9)

DISPLAY

Display Frequency 15.73 to 60Hz
Displayable Colors 16.77M
Color Gradation Filter Yes
Input Signal NTSC, HD, SD, VGA,

SVGA, XGA

AUDIO

Audio Output Power 15W x 2
(Watts RMS per ch)

Speaker System Details (4) 2-Way Speakers

(2) Woofers

(2) Tweeters
Number of Speakers 4 Each
SRS TruSurround XT

™

Yes
3D EchoSound System Yes
BBE Yes
Bass/Treble/Balance Yes
EZ SoundRite

™

(Volume Leveler) Yes
EZ Sound/Sound Selection Mode 6 Modes
Mute Yes
Mono/Stereo/SAP Yes

SPECIAL FEATURES

Custom Input Labels Yes
Defeatable Inputs (Automatic) Yes
Freeze Yes
Discrete IRCodes Yes
Favorite Channel Selection/Surf Yes
Trilingual Menus English/Spanish/French
On/Off Timer Yes
Sleep Timer Yes
Auto Off Yes (When no video is

present: 10 Minutes)

SPECIAL FEATURES (CONTINUED)

Flashback (Previous Channel) Yes
Parental Control with V-Chip Yes
EZ Menus Yes

(High Performance Interface)
EZ Scan (Auto Programming) Yes
Closed Caption Yes
Screen Adjust (PC Mode) Yes

JACK PACK

RF Inputs 2
Rear Component Video Input 2

(480i, 480p, 720p, 1080i)
S-Video Inputs 1 Rear, 1 Side
Composite Inputs 1 Rear, 1 Side
Audio L/R Inputs 3 Rear, 1 Side
Rear Composite Video Out 1
Audio L/R Outputs 1
RGB In (15-Pin Connector) 1
PC Sound (RGB, HDMI/DVI 1 (Phone Type)

Associated Audio In)
HDMI

™

with HDCP 1
Digital Audio (Optical) Out 1
RS-232C In (Software Upgrade Yes

Interface and Control)
Remote Control In (IR) Yes

REQUIRED APPROVALS

UL, C-UL, NOM UL, C-UL, FCC (B)

SERVICE/LIMITED WARRANTY

Warranty: Parts/Labor 2 Year/2 Year

ACCESSORIES (SUPPLIED)

Remote Control Yes
Power Cord Yes – 6 Feet

ACCESSORIES (OPTIONAL)

Wall Mount PWMT200

SIDE JACK PANEL

REAR JACK PANEL

www.LGcommercial.com

LG Electronics U.S.A., Inc. 2000 Millbrook Drive, Lincolnshire, IL 60069 Customer Service: 1-888-865-3026
Dimensions and weights are approximate. Design and specifications subject to change without notice. Dolby and the double-D symbol are registered
trademarks of Dolby Laboratories. SRS and the SRS symbol are registered trademarks of SRS Labs, Inc. in the U.S. and selected foreign countries.
TruSurround XT

™

is a trademark of SRS Labs, Inc. All other corporate and brand names are trademarks of their respective owners. The “LG Life’s Good”,

Super IPS, and XD are registered trademarks of LG Electronics U.S.A., Inc. ©2006 LG Electronics U.S.A., Inc. Printed in the USA. LG32LC2DC0506

Front View Top ViewSide View Back View

(R)(L)

AUDIO

VIDEO

AV OUT

AV IN 1

VIDEO

AUDIO

(R)(L)

COMPONENT IN 2

(480i, 480p, 720p, 1080i)

COMPONENT IN 1

S-VIDEO

(480i, 480p, 720p, 1080i)

AUDIO

AUDIO

(R)(L)PrPbY

(R)(L)PrPbY

NI OEDIV-S

HDMI/DVI IN

DIGITAL AUDIO OUT

(OPTICAL)

RS-232c IN

(CONTROL SERVICE)

ANTENNA IN

CABLE IN

AUDIO IN (RGB/DVI) REMOTE CONTROL IN

RGB IN (PC/DTV)

A

R( NI OID

U

)

)

L(

UA NI OID

I OEDIV

N
