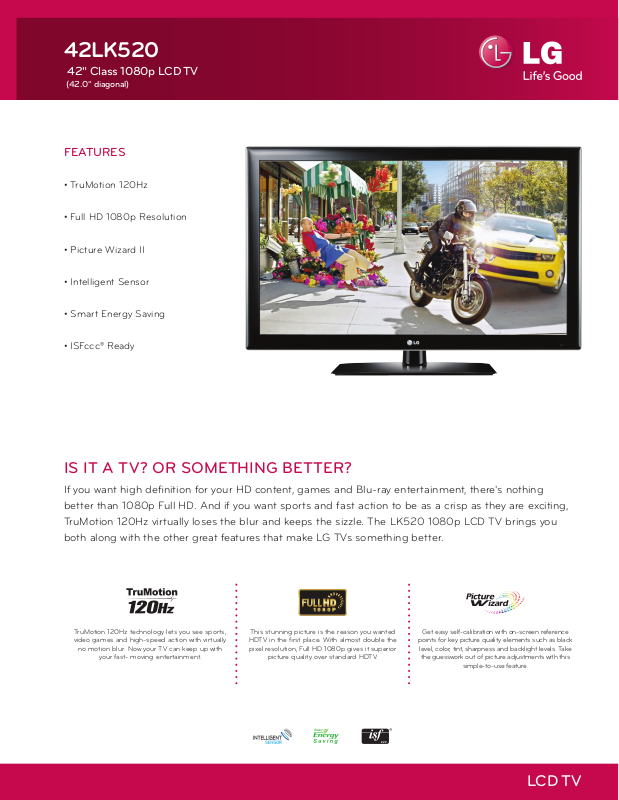

42LK520
42" Class 1080p LCD TV
(42.0" diagonal)
FEATURES
• TruMotion 120Hz
• Full HD 1080p Resolution
• Picture Wizard II
• Intelligent Sensor
• Smart Energy Saving
• ISFccc® Ready
IS IT A TV? OR SOMETHING BETTER?
If you want high definition for your HD content, games and Blu-ray entertainment, there's nothing
better than 1080p Full HD. And if you want sports and fast action to be as a crisp as they are exciting,
TruMotion 120Hz virtually loses the blur and keeps the sizzle. The LK520 1080p LCD TV brings you
both along with the other great features that make LG TVs something better.
TruMotion 120Hz technology lets you see sports,
video games and high-speed action with virtually
no motion blur. Now your TV can keep up with
your fast- moving entertainment.
This stunning picture is the reason you wanted
HDTV in the rst place. With almost double the
pixel resolution, Full HD 1080p gives it superior
picture quality over standard HDTV.
Get easy self-calibration with on-screen reference
points for key picture quality elements such as black
level, color, tint, sharpness and backlight levels. Take
the guesswork out of picture adjustments with this
simple-to-use feature.
LCD TV
![](/html/ae/aefd/aefd2eac33e8f743d38625b08b1bf8e673cf1be237b7d0323668e54d107f9887/bg2.png)
42LK520
42" Class 1080p LCD TV
PANEL SPECIFICATIONS
Screen Size 42" Class (42.0" Diagonal)
Resolution 1920 x 1080p
TruMotion (Frame Rate) 120Hz
Contrast Ratio (DCR) 150,000:1
BROADCASTING SYSTEM
Analog NTSC
Digital ATSC/NTSC/Clear QAM (1 Tuner)
VIDEO
XD Engine •
Aspect Ratio Correction 6 Modes (16:9/Just Scan/Original/4:3/Zoom/
Color Temperature Control 3 Modes (Warm/Medium/Cool)
Picture Mode 8 Modes (Intelligent Sensor/Vivid/Standard/Cinema/
Just Sc an
0% Over Scan
24p Real Cinema (24p 5:5/2:2
Pull Down)
Expert Mode/ISFccc Ready •
THX Certified Display
(w/Bright Room Mode)
xvYCC •
AV Mode (Picture & Sound) • (Cinema/Game/Sport)
Picture Wizard II
(Easy Self Calibration)
Cinema Zoom)
Sport/Game/isf Expert 1/isf Expert 2)
HDMI 1080p/1080i/720p
Component 1080p/1080i/720p
RF 1080i/720p
• (HDMI 1080 24p)
•
•
AUDIO
Mon o/Ster eo/Du al (M TS/SAP ) •
Audio Ou tpu t (Wat ts - THD 10%)
Speaker System 1 Way 2 Spea kers
Dolby Digital Decoder •
Surro und Sys tem Infin ite Sur round
Bass/Treble/Balance •
Auto Volume Leveler •
Sound Mode 5 Modes (Standard/Music/Cinema/Game/Sports)
Clear Voi ce II •
10W + 10W
SPECIAL FEATURES
Smart Energy Saving •
Intelligent Sensor •
1080p So urce In put HDMI 60p/30 p/24p
AV Input Navigation •
Input Labeling •
Child Lock •
Closed Caption •
SIMPLINK™ (HDMI CEC) •
Ecological Trademark EPA 4.1
Component 60p/30 p/24p
RGB 60p (W XGA)
CONVENIENCE FEATURES
Language English/Spanish/French/Korean
Auto Tuning/Programming •
Channel Add/Delete •
Favorite Channel Programming •
Auto/Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off (Sleep) •
AV INPUTS/OUTPUTS
RF In (Antenna/Cable) 1 (Rear)
AV In 2 (1 Side, 1 Rear)
Component Video In (Y, Pb, Pr) + Audio
2 (Rear)
AV INPUTS/OUTPUTS
HDMI™/HDCP Input 3 (2 Rear, 1 Side)
USB 2.0 1 (Side)
Digital Audio Out (Optical) 1 (Rear)
RGB In (D-Sub 15 Pin) - PC 1 (Rear)
PC Audio Input 1 (Rear)
RS-232C (Control/Service) 1 (Rear)
Headphone Out 1 (Side)
CABINET
Swivel 20º/20º
VESA Compatible • (200mm x 200mm)
Remote Control Standard
POWER
Voltage, Hz 100V ~ 240V, 50/60Hz
Consumption (Max.) 160W
Consumption (Average) 90W
Standby Mode <0.1W
DIMENSIONS/WEIGHT
TV without Stand (WxHxD) 40.3" x 24.4" x 3.0"
TV with Stand (WxHxD) 40.3" x 27.0" x 10.3"
Shipping Dimensions (WxHxD) 43.6" x 30.3" x 9.0"
TV without Stand Weight 30.6 lbs
TV with Stand Weight 34.2 lbs
Shipping Weight 41.9 lbs
WARRANTY/UPC
Limited Warranty 1 Year Parts & Labor
UPC 719192579903
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
LG.com
Design, features and sp ecif ications are subjec t to change without notice.
Non-metric weights and measurements are approximate.
