Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this
information to your dealer when you require service.

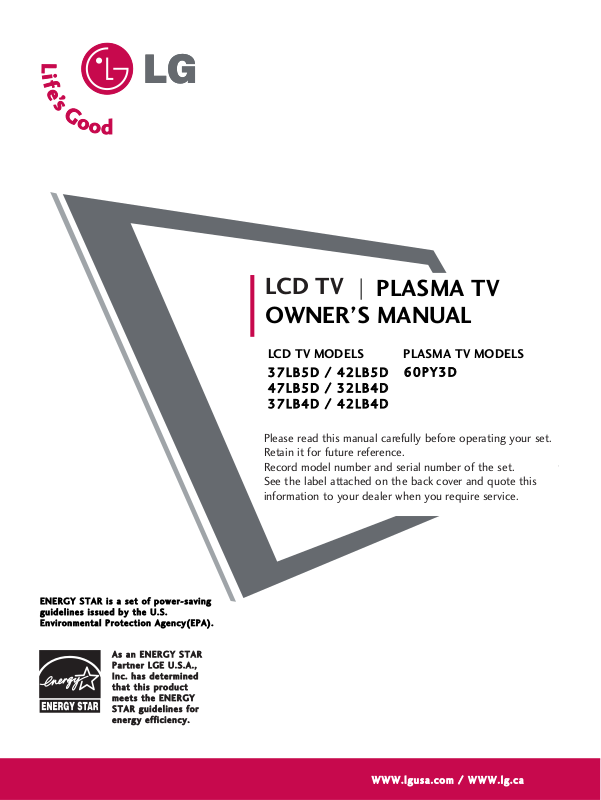

LCD TV

OWNER’S MANUAL

LCD TV MODELS

3377LL BB55DD // 4422LLBB55DD
4477LL BB55DD // 3322LLBB44DD
3377LL BB44DD // 4422LLBB44DD

EENNEERRGGYY SSTT AARR ii ss aa ss eett ooff ppoo wweerr--ssaa vvii nngg
gguuiidd eellii nn eess iiss ss uu ee dd bbyy tthhee UU.. SS..
EEnnvv iirroonnmmeenn ttaall PPrroottee cctt iioonn AA gg ee nn ccyy((EEPPAA))..

WWWWWW..llgguussaa.. cc oo mm // WWWWWW..ll gg ..ccaa

PLASMA TV MODELS

6600PP YY33DD

PLASMA TV

is a trademark of SRS Labs, Inc.
TruSurround XT technology is incorporated under
license from SRS Labs, Inc.

LG TV with this logo displays Full HD(high-defini­tion) 1080p native resolution by receiving and pro­cessing a Full HD 1080p signal.

LG TV with this logo can play MP3 music from a
MP3 player, such as iPOD, and JPEG images from a
digital camera through the USB unit.

With HDMI CEC support of LG’s audio/video device
connected to the HDMI (high-definition multimedia
interface), LG TV with this logo works easily with one
remote control.

It has three HDMI ports that connect audio and
video devices with one cable and produces the high­est quality digital images and sound.

R

TruSurround XT

Manufactured under license from Dolby Laboratories.
“

Dolby

“and the double-D symbol are trademarks of

Dolby Laboratories.

High-definition television. High-resolution digital
television broadcast and playback system composed
of roughly a million or more pixels, 16:9 aspect-ratio
screens, and AC3 digital audio. A subset of digital
television, HDTV formats include 1080i and 720p
resolutions.

HDMITM, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing."

LG's own special digital image generator, consisting
of a full digital image processor, six different main
picture quality factors.

R

TruSurround XT

1

WARNING / CAUTION

WARNING / CAUTION

To prevent fire or shock hazards, do not expose
this product to rain or moisture.

FCC NOTICE

Class B digital device

This equipment has been tested and found to com­ply with the limits for a Class B digital device, pur­suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio fre­quency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or televi­sion reception, which can be determined by turning
the equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment
and receiver.

- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con­nected.

- Consult the dealer or an experienced radio/TV
technician for help.

Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.

CAUTION

Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product

The lightning flash with arrowhead
symbol, within an equilateral triangle,

is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of elec­tric shock to persons.

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important
operating and maintenance (servicing) instruc­tions in the literature accompanying the

appliance.

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELEC­TRIC SHOCK, DO NOT EXPOSE THIS PRO-

DUCT TO RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV sys­tem installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code pro­vides guidelines for proper grounding and, in
particular, specifies that the cable ground shall
be connected to the grounding system of the
building, as close to the point of the cable

entry

as practical.

Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.

Do not use this apparatus near water

Clean only with dry cloth.

Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

Do not install near any heat sources such as
radiators, heat registers, stoves, or other appa­ratus (including amplifiers)that produce heat.

Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong, The wide blade
or the third prong are provided for your safe­ty. If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.

Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.

Only use attachments/accessories specified
by the manufacturer.

2

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a se­parate booklet or sheet, or be located before any operating instructions in an instruction for installation for

use and supplied with the apparatus.
This information shall be given in a language acceptable to the country where the apparatus is intended to

be used.
The important safety instructions shall be entitled “Important Safety Instructions”. The following safety

instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safe­ty information may be included by adding statements after the end of the following safety instruction list. At
the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may
be placed immediately adjacent to that safety instruction :

Owner Manual

Owner ManualOwner Manual

Owner Manual

Owner Manual

Owner Manual

Owner Manual

O

w

n

e

r M

a

n

u

a

l

Owner Manual

3

Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms
or when unused for long periods of time.

Refer all servicing to qualified service person­nel. Servicing is required when the apparatus
has been damaged in any way, such as power­supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has exposed to rain
or moisture, does not operate normally, or has
been dropped.

CAUTION concerning the Power Cord :
Most appliances recommend they be placed
upon a dedicated circuit; that is, a single out­let circuit which powers only that appliance
and has no additional outlets or branch cir­cuits. Check the specification page of this
owner's manual to be certain.

Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, exten­sion cords, frayed power cords, or damaged
or cracked wire insulation are dangerous. Any
of these conditions could result in electric
shock or fire. Periodically examine the cord of
your appliance, and if its appearance indicates
damage or deterioration, unplug it, disconti-

nue use of the appliance, and have the cord
replaced with an exact replacement part by an

authorized servicer. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the
cord exits the appliance.

Outdoor Use Marking :
WARNING - To Reduce The Risk Of Fire Or

Electric Shock, Do Not Expose This Appliance
To Rain Or Moisture

Wet Location Marking : Apparatus shall not be
exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall
be placed on or over apparatus.

GROUNDING

Ensure that you connect the earth ground
wire to prevent possible electric shock. If
grounding methods are not possible, have a
qualified electrician install a separate circuit
breaker.

Do not try to ground the unit by connecting
it to telephone wires, lightening rods, or gas
pipes.

DISCONNECTING DEVICE FROM MAINS
Main plug is the disconnecting device. The

plug must remain readily operable.

Owner Manual

Owner Manual

Owner Manual

Owner Manual

Power Supply

Short-circuit Breaker

4

CONTENTS

WARNING / CAUTION

. . . . . . . . . . . . . . . . . . . . . . . . . . .

1

SAFETY INSTRUCTIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

FEATURES OF THIS TV . . . . . . . . . . . . . . . . 6

PREPARATION

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . 8

Back Panel Information . . . . . . . . . . . . . . . . . . . 10

Attaching the TV to a Wall . . . . . . . . . . . . . . . . . 12

Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . 13

Back Cover for Wire Arrangement . . . . . . . . . . . 14

Desktop Pedestal Installation . . . . . . . . . . . . . . . 16

Vesa Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . 16

Antenna or Cable Connection . . . . . . . . . . . . . . 17

EXTERNAL EQUIPMENT SETUP

HD Receiver Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

DVD Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

VCR Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Other A/V Source Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PC Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

USB In Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Audio Out Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

WATCHING TV / CHANNEL CONTROL

Remote Control Functions . . . . . . . . . . . . . . . . . .34

Turning on TV . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . 37

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . 38

On-Screen Menus Selection . . . . . . . . . . . . . . . . 39

Channel Setup

- Auto Scan ( Auto Tuning) . . . . . . . . . . . . . . 40

- Add / Delete Channel ( Manual Tuning) . . 41

- Channel Editing . . . . . . . . . . . . . . . . . . . . . . .42

Input List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

SimpLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Entry Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Photo List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Music List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

PICTURE CONTROL

Picture Size (Aspect Ratio) Control . . . . . . . . . .54

Preset Picture Settings

- Picture Mode - Preset . . . . . . . . . . . . . . . . 55

- Color Tone - Preset . . . . . . . . . . . . . . . . . . .56

Manual Picture Adjustment

- Picture Mode - User Mode . . . . . . . . . . . . 57

- Color Tone - User Mode. . . . . . . . . . . . . . .58

XD - Picture Improvement Technology . . . . . . . . . . . 59

Advanced - Cinema 3:2 Pulldown Mode . . . . . . 60

Advanced - Black( Darkness) Level . . . . . . . . . . 61

Advanced - TruM . . . . . . . . . . . . . . . . . . . . . . . . . 62

Picture Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Image Sticking Minimization( ISM) Method . . . . . . . 64

Low-Power Picture Mode . . . . . . . . . . . . . . . . . . 65

SOUND & LANGUAGE CONTROL

Auto Volume Leveler ( Auto Volume) . . . . . . . . . 66

Preset Sound Settings( Sound Mode) . . . . . . . . 67

Sound Setting Adjustment - User Mode . . . . . . . . 68

Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Stereo / SAP Broadcast Setup . . . . . . . . . . . . . . 71

TV Speakers On/ Off Setup . . . . . . . . . . . . . . . . 72

Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . 73

On-Screen Menus Language Selection . . . . . . . 74

Caption Mode

- Analog Broadcasting System Captions . . . . 75

- Digital Broadcasting System Captions . . .77

- Caption Option . . . . . . . . . . . . . . . . . . . . .78

MEDIAMEDIAMEDIA

HOST HOST HOST

MEDIA

HOST

5

TIME SETTING

Clock Setting

- Auto Clock Setup . . . . . . . . . . . . . . . . . . . 79

- Manual Clock Setup . . . . . . . . . . . . . . . . . .80

Auto On/ Off Time Setting . . . . . . . . . . . . . . . . .81

Sleep Time Setting . . . . . . . . . . . . . . . . . . . . . . . .82

Auto Shut-off Setting . . . . . . . . . . . . . . . . . . . . . 83

PARENTAL CONTROL / RATINGS

Set Password & Lock System . . . . . . . . . . . . . . . 84

Channel Blocking . . . . . . . . . . . . . . . . . . . . . . . . 86

Movie & TV Rating . . . . . . . . . . . . . . . . . . . . . . . 87

External Input Blocking . . . . . . . . . . . . . . . . . . . . 90

Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

APPENDIX

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .91

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Product Specifications . . . . . . . . . . . . . . . . . . . . 94

Programming the Remote Control . . . . . . . . . . 96

IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

External Control through RS-232C . . . . . . . . . 102

6

FEATURES OF THIS TV

What is a Plasma TV ?

Using plasma is the best way to achieve flat panel
displays with excellent image quality and large screen
sizes that are easily viewable. The Plasma TV can be
thought of as a descendant of the neon lamp and or
a series of fluorescent lamps.

How does it work?

Plasma TV is an array of cells, known as pixels, which
are comprised of three sub-pixels, corresponding to
the colors red, green, and blue. Gas in a plasma state
is used to react with phosphors in each sub-pixel to
produce colored light (red, green, or blue). These
phosphors are the same types used in Cathode Ray
Tube (CRT) devices such as televisions and common
computer monitors.

Plasma TV offers a rich, dynamic display because
each sub-pixel is individually controlled by advanced
electronics to produce over 16 million different col­ors. This means that you get perfect images that are
easily viewable in a display that is fewer than five
inches thick.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally
broad viewing angle of over 160 degrees. This means
that the display is clear and visible to viewers any­where in the room.

Wide Screen

The wide screen offers a theater-like experience in
your own home.

Multimedia

Connect your plasma display to a PC and use it for
conferencing, games, and Internet browsing. The
Picture-in-Picture feature allows you to view your PC
and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install
your plasma display in a variety of locations where
conventional TVs do not fit.

The Plasma TV Manufacturing Process: a few
minute colored dots may be present on the
Plasma TV screen

The Plasma TV is composed of 0.9

to 2.2 million

cells. A few cell defects will normally occur in the
Plasma TV manufacturing process. Several tiny,
minute colored dots visible on the screen should be
acceptable. This also occurs in other Plasma TV
manufacturers' products. The tiny dots appearing
does not mean that this Plasma TV is defective. Thus
a few cell defects are not sufficient cause for the
Plasma TV to be exchanged or returned. Our pro­duction technology minimizes these cell defects dur­ing the manufacture and operation of this product.

Cooling Fan Noise (This feature is not available for all models.)

In the same way that a fan is used in a PC computer
to keep the CPU (Central Processing Unit) cool, the
Plasma TV is equipped with cooling fans to cool the
Monitor and improve its reliability. Therefore, a cer­tain level of noise could occur while the fans are
operating and cooling the Plasma TV.

The fan noise doesn't have any negative effect on
the Plasma TV's efficiency or reliability. The noise
from these fans is normal during the operation of
this product. We hope you understand that a certain
level of noise from the cooling fans is acceptable and
is not sufficient cause for the Plasma TV to be
exchanged or returned.

FOR LCD TV

If the TV feels cold to the touch, there may be a
small “flicker” when it is turned on. This is normal,
there is nothing wrong with TV.

Some minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue spots.
However, they have no adverse effect on the moni­tor's performance.

Avoid touching the LCD screen or holding your fin­ger(s) against it for long periods of time. Doing so
may produce some temporary distortion effects on
the screen.

OOnn DDiissppoossaall
a. The fluorescent lamp used in this product con-

tains a small amount of mercury.

b. Do not dispose of this product with general

household waste.

c. Disposal of this product must be carried out in

accordance to the regulations of your local
authority.

PREPARATION

7

ACCESSORIES

Owner's Manual

1.5V

1.5V

Owner’s Manual Batteries

75 Ω Round Cable

Remote Control

Cable Management

2- TV Bracket Bolts

2- TV Brackets,

2- Wall Brackets

Twist Holder

Arrange the wires with the twist holder.

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please
contact the dealer where you purchased the product.

User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard
compliance for the product.

TV INPUT

STB

BACK

4-bolts for stand assembly

Refer to p. 13

3322//3377 iinncchheess oonnllyy

■

Slightly wipe stained spot on the exterior only with the polishing

cloth for the product exterior if there is stain or fingerprint on

surface of the exterior.

■

Do not wipe roughly when removing stain. Please be cautions of

that excessive power may cause scratch or discoloration.

Polishing Cloth

OOppttiioonn EExxttrraass

D-sub 15 pin Cable

Power Cord

CD Manual

LCD TV PLASMA TV

Owner's Manual

http://www.lgusa.com

www.lg.ca

Copyright© 2007 LGE,
All Rights Reserved.

PREPARATION

TV INPUT

STB

MENU

BR

IG

-

T

H

H

T

+

RIG
B

K
N
LI

P

SIM

T

IMER

RATIO

BACK

APM

M/C EJECT

AUTO DEMO

CC

PREPARATION

8

PREPARATION

FRONT PANEL CONTROLS

■

Here shown may be somewhat different from your TV.

R

Remote Control Sensor

Power/Standby Indicator

• illuminates red in standby mode.

• illuminates green when the set is
switched on.

CHANNEL
(

EE,DD

) Buttons

VOLUME
(

FF,GG

) Buttons

ENTER Button

MENU Button

INPUT Button

POWER Button

32/37/42LB4D

Intelligent Eye

Adjusts picture
according to the
surrounding con­ditions.

CH

VOL

ENTER

MENU

INPUT

/I

PREPARATION

9

CHANNEL
(

EE,DD

) Buttons

VOLUME
(

FF,GG

) Buttons

ENTER Button

MENU Button

INPUT Button

POWER Button

37/42/47LB5D

Remote Control Sensor

Power/Standby Indicator

• illuminates red in standby mode.

• illuminates green when the set is
switched on.

Intelligent Eye

Adjusts picture
according to the
surrounding con­ditions.

CH

VOL

ENTER

MENU

INPUT

/I

PREPARATION

10

PREPARATION

AV IN 2

L/MONO

R

AUDIO

VIDEO

S-VIDEO

USB IN

AV IN 2

L/MONO

R

AUDIO

VIDEO

USB IN

USB Input

S-VIDEO Input

Connect S-Video out from
an S-VIDEO device.

AUDIO/VIDEO Input

Connect audio/video out­put from an external device
to these jacks.

AV IN 2V IN 2

L/L/MONOMONO

R

AUDIOAUDIO

VIDEOVIDEO

S-VIDEO

USB INUSB IN

AV IN 2

L/ MONO

R

AUDIO

VIDEO

USB IN

BACK PANEL INFORMATION

32/37/42LB4D

USB Input

S-VIDEO Input

Connect S-Video out from an S­VIDEO device.

AUDIO/VIDEO Input

Connect audio/video output from
an external device to these jacks.

S-VIDEO

37/42/47LB5D

AV IN 2V IN 2

L/L/MONOMONO

R

AUDIOAUDIO

VIDEOVIDEO

USB INUSB IN

32 inch

37/42 inches

■

Here shown may be somewhat different from your TV.

PREPARATION

11

HDMI/DVI IN

Connect a HDMI signal to 1, 2 or 3.
Or DVI (VIDEO)signal to the 1, 2 or 3 port
with a DVI to HDMI cable.

COMPONENT IN

Connect a component video/audio device to
these jacks.

RGB(PC)

AUDIO (RGB/DVI)

Connect the monitor output from a PC to the
appropriate input port.

RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

REMOTE CONTROL PORT

Connect your wired remote control.

AV (Audio/Video) IN 1

Connect audio/video output from an external
device to these jacks.

S-VIDEO

Connect S-Video out from an S-VIDEO device.

AUDIO OUT

Connect analog audio to various types of
equipment.

DIGITAL AUDIO OUT

Connect digital audio to various types of
equipment.

Note: In standby mode, these ports do not work.

ANTENNA/CABLE IN

Connect over-the air signals to this jack.
Connect cable signals to this jack.

Power Cord Socket

For operation with AC power.
Caution :
Never attempt to operate the TV on DC power.

AV IN 2

L/ MONO

R

AUDIO

VIDEO

S-VIDEO

USB IN

RGB

/DVI

ANTENNA/
CABLE IN

PREPARATION

12

PREPARATION

ATTACHING THE TV TO A WALL

32/37/42LB4D 37/42/47LB5D

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.
Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,
potentially causing injury or damaging the product.
Caution: Please make sure that children don’t climb on or hang from the TV.

■

Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.
*Insert the eye-bolts and tighten them securely in the upper holes.

Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately ) to
the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

■

Use a sturdy rope (not provided as parts of the
product, must purchase separately) to tie the
product. It is safer to tie the rope so it becomes
horizontal between the wall and the product.

■

Here shown may be somewhat different from your TV.

PREPARATION

13

STAND INSTALLATION (Only 32/37 inches models)

1

2

3

Carefully place the product screen side down on
a cushioned surface that will protect product and
screen from damage.

Assemble the product stand with the product as
shown.

Install the 4 bolts securely, in the back of the
product in the holes provided.

PREPARATION

14

PREPARATION

BACK COVER FOR WIRE ARRANGEMENT

32/37/42LB4D

Connect the cables as necessary.

To connect an additional equipment, see the
EExxtteerrnnaall eeqquuiippmmeenntt CCoonnnneeccttiioonnss

section.

Install the

CCAA BBLLEE MMAANNAA GG EEMMEE NN TT

as shown.

Bundle the cables using the supplied twist
holder.

Hold the

CC AABBLL EE MMAA NN AAGG EEMM EENNTT

with both

hands and pull it upward.

NOTE

GG

Do not hold the CABLE MANAGEMENT when moving the product.

- If the product is dropped, you may be injured or the product may be broken.

How to remove the cable management

CABLE MANAGEMENT

TWIST HOLDER

1

2

3

■

Here shown may be somewhat different from your TV.

PREPARATION

15

37/42/47LB5D

Connect the cables as necessary.

To connect an additional equipment, see the

EExxtteerrnnaall eeqquuiippmmeenntt CCoonnnneeccttiioonnss

section.

Install the

CCAA BBLLEE MMAANNAA GG EEMMEE NN TT

as shown.

Bundle the cables using the supplied twist
holder.

Hold the

CC AABBLL EE MMAA NN AAGG EEMM EENNTT

with both

hands and pull it upward.

NOTE

GG

Do not hold the CABLE MANAGEMENT when moving the product.

- If the product is dropped, you may be injured or the product may be broken.

How to remove the cable management

CABLE MANAGEMENT

TWIST HOLDER

1

2

3

■

Here shown may be somewhat different from your TV.

PREPARATION

16

PREPARATION

DESKTOP PEDESTAL INSTALLATION

For proper ventilation, allow a clearance of 4 in. on each side and the top, 2.36 in. on the bottom, and 4 in.
from the wall.

4 inches

4 inches

R

4 inches

4 inches

37/42/47LB5D

32/37/42LB4D

4 inches

4 inches

4 inches

4 inches

VESA WALL MOUNTING

This product accepts a VESA-compliant mounting interface pad. (optional)
There 4 threaded holes are available for attaching the bracket.

GG

Screw length needed depends on the wall mount used. For further information, refer to the VESA
Wall Mounting Instruction Guide.

NOTE

37/42/47LB5D

32/37/42LB4D

AV IN 2

L/MONO

R

AUDIO

VIDEO

S-VIDEO

USB IN

AV IN 2

L/MONO

R

AUDIO

VIDEO

USB IN

400mm
(32 inches only: 100mm)

400mm

600mm
(32 inches only: 200mm)

600mm

PREPARATION

17

1. Antenna (analog or digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections. For optimum picture quality, adjust antenna direc­tion if needed.

2. Cable

ANTENNA/
CABLE IN

ANTENNA/
CABLE IN

Wall
Antenna
Socket

Outdoor
Antenna
(VHF, UHF)

Cable TV
Wall Jack

Multi-family Dwellings/Apartments
(Connect to wall antenna socket)

RF Coaxial Wire (75 ohm)

RF Coaxial Wire (75 ohm)

Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)

Be careful not to bend the bronze wire
when connecting the antenna.

Copper Wire

The TV will let you know when the analog, cable, and digital channel scans are complete.

NOTE

ANTENNA/
CABLE IN

■

To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.

■

If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.

■

If the antenna is not installed properly, contact your dealer for assistance.

Antenna

UHF

Signal
Amplifier

VHF

3. Using both cable and antenna

Cable TV
Wall Jack

Antenna

RF Coaxial Wire (75 ohm)

RF Coaxial Wire (75 ohm)

Diplexer

(Signal

Combinner)

ANTENNA/
CABLE IN

ANTENNA OR CABLE CONNECTION

AV IN 2

L/MONO

R

AUDIO

VIDEO

S-VIDEO

USB IN

AV IN 2

L/MONO

R

AUDIO

VIDEO

USB IN

HD RECEIVER SETUP

This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you
do receive digital signals from a digital set-top box or other digital external device, refer to the figure as
shown below.

This TV supports HDCP (High-bandwidth Digital Contents Protection)protocol for Digital Contents
(

480p,720p,1080i).

Y L RPB PR

(DVI)

When connecting Component cable

1. How to connect

Connect the video outputs (Y, P

B, P

R

)

of the digital set

top box to the

CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11

jacks on
the set. Match the jack colors
(Y = green, P

B = blue, and PR = red).

Connect the audio output of the digital set-top box to
the

CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11

jacks on the set.

2. How to use

■

Turn on the digital set-top box.
(

Refer to the owner’s manual for the digital set-top box.

)

■

Select

CCOOMMPPOONNEENNTT 11

input source with using the

IINNPPUUTT

button on the remote control.

■

If connected to

CCOOMMPPOONNEENNTT IINN 22

input, select

CCOOMMPPOO--

NNEENNTT 22

input source.

Signal

Component 1/2

Yes

Yes

Yes

Yes

Yes

HDMI/DVI1, 2 or 3

No

Yes

Yes

Yes

Yes

2

1

EXTERNAL EQUIPMENT SETUP

18

1

2

480i

480p

720p

10 8 0 i

10 8 0 p

10 8 0 p

* Only 37/42/47LB5D models

EXTERNAL EQUIPMENT SETUP

When connecting D-sub 15pin cable

RGB

L R

RGB OUTPUT

(DVI)VI)

HDMI-DTV OUTPUT

Connect the RGB output of the digital set-top box to
the

RRGGBB ((PPCC

))

jack on the set.

Connect the audio outputs of the set-top box to the
AAUUDDIIOO ((RRGGBB//DDVVII

))

jack on the set.

1. How to connect

2. How to use

■

Turn on the PC and the set.

■

Select

RRGGBB--PPCC

input source with using the

IINNPPUUTT

button

on the remote control.

When connecting HDMI cable

Connect the digital set-top box to

HHDDMMII//DDVV II IINN11

,

22

or

33

jack on the set.

No separated audio connection is necessary.

1. How to connect

2. How to use

■

Turn on the digital set-top box.
(

Refer to the owner’s manual for the digital set-top box.

)

■

Select

HHDDMMII11,HHDDMMII22 orHHDDMMII33

input source with using

the

IINNPPUUTT

button on the remote control.

■

If the digital set-top box player does not support Auto HDMI,
you need to set the output resolution appropriately.

2

1

2

1

EXTERNAL EQUIPMENT SETUP

19

1

2

1

EXTERNAL EQUIPMENT SETUP

20

EXTERNAL EQUIPMENT SETUP

When connecting HDMI to DVI cable

RGB

Connect the DVI output of the digital set-top box to the

HHDDMMII//DDVV II IINN11, 22

or

33

jack on the set.

Connect the audio output of the digital set-top box to the

AAUUDDIIOO((RRGGBB//DDVVII

))

jack on the set.

1. How to connect

■

Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.

)

■

Select

HHDDMMII11,HHDDMMII22 orHHDDMMII33

input source with using the

IINNPPUUTT

button on the remote control.

2. How to use

2

1

1

2

3

RGB

DVI-DTV OUTPUT

L R

EXTERNAL EQUIPMENT SETUP

21

DVD SETUP

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV

YPBP

R

Video output ports

on DVD player

Y

Y

Y

Y

PB

Pb

B-Y

Cb

P

R

Pr

R-Y

Cr

Y L RPB PR

When connecting Component cable

Connect the video outputs (Y, PB, PR

)

of the DVD to

the

CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11

jacks on the set.
Match the jack colors
(

Y = green, P

B = blue, and PR = red

)

.

Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTT IINN AAUU DD IIOO 11

jacks on the set.

1. How to connect

2. How to use

■

Turn on the DVD player, insert a DVD.

■

Select

CCOOMMPPOONNEENNTT 11

input source with using the

IINNPPUUTT

button on the remote control.

■

If connected to

CCOOMMPPOONNEENNTT IINN 22

input, select

CCOOMM--

PPOONNEENNTT 22

input source.

■

Refer to the DVD player's manual for operating instruc­tions.

2

1

1 2

When connecting with an S-Video cable

HDMI-DVD OUTPUT

L R

S-VIDEO

AUDIO

Connect the S-VIDEO output of the DVD to the
SS--VVIIDDEEOO

input on the set.

Connect the audio outputs of the DVD to the

AAUUDDIIOO

input jacks on the set.

1. How to connect

2. How to use

■

Turn on the DVD player, insert a DVD.

■

Select

AAVV11

input source with using the

IINN PP UUTT

button on

the remote control.

■

If connected to

AAVV IINN 22

, select

AAVV22

input source.

■

Refer to the DVD player's manual for operating instructions.

When connecting HDMI cable

Connect the HDMI output of the DVD to the
HHDDMMII//DDVV II IINN11, 22 or33

jack on the set.

No separated audio connection is necessary.

1. How to connect

2. How to use

■

Select

HHDDMMII11,HHDDMMII22 orHHDDMMII33

input source with using

the

IINNPPUUTT

button on the remote control.

■

Refer to the DVD player's manual for operating instruc­tions.

■

If the DVD does not support Auto HDMI, you need to set
the output resolution appropriately.

2

1

2

1

22

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

1 2

1

VCR SETUP

When connecting with an antenna

■

To avoid picture noise (interference), leave an adequate distance between the VCR and TV

■

Use the ISM feature in the Option menu to avoid having a fixed image remain on the screen for a long pe­riod of time. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible
on the screen.

L R

S-VIDEO VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

ANTENNA/ANTENNA/
CABLE INCABLE IN

Wall Jack

Antenna

Connect the RF antenna out socket of the VCR to the

AAnntteennnnaa

socket on the set.

Connect the antenna cable to the RF antenna in socket of the VCR.

1. How to connect

■

Set VCR output switch to 3 or 4 and then tune TV to the same channel number.

■

Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.

)

2. How to use

2

1

23

EXTERNAL EQUIPMENT SETUP

1

2

EXTERNAL EQUIPMENT SETUP

24

EXTERNAL EQUIPMENT SETUP

When connecting with a RCA cable

Do not connect to both Video

and S-Video at the same time.

CAUTION

L R

S-VIDEOVIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

ANTENNA/
CABLE IN

L R

S-VIDEO VIDEO

OUTPUT
SWITCH

ANT IN

ANT OUT

ANTENNA/
CABLE IN

Connect the

AAUUDDIIOO/VVIIDDEEOO

jacks between TV and
VCR. Match the jack colors(Video = yellow, Audio Left =
white,and Audio Right = red)

1. How to connect

2. How to use

■

Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.

)

■

Select

AAVV11

input source with using the

IINN PP UUTT

button on

the remote control.

■

If connected to

AAVV IINN 22

, select

AAVV22

input source.

If you have a mono VCR, con­nect the audio cable from the
VCR to the

AAUU DD IIOO

LL// MM OO NNOO

jack of the set.

NOTE

When connecting with an S-Video cable

Connect the S-VIDEO output of the VCR to the

SS--

VV II DDEE OO

input on the set. The picture quality is

improved; compared to normal composite (RCA cable

)

input.

Connect the audio outputs of the VCR to the

AAUUDDIIOO

input jacks on the set.

1. How to connect

2. How to use

■

Insert a video tape into the VCR and press PLAY on the VCR.
(

Refer to the VCR owner’s manual.

)

■

Select

AAVV11

input source with using the

IINNPPUUTT

button on the

remote control.

■

If connected to

AAVV IINN 22

, select

AAVV22

input source.

1

2

1

1

1

2

EXTERNAL EQUIPMENT SETUP

25

OTHER A/V SOURCE SETUP

Camcorder

Video Game Set

Connect the

AAUUDDIIOO/VVIIDDEEOO

jacks between TV and

external equipment. Match the jack colors

.

(

Video = yellow, Audio Left = white, and Audio Right = red

)

1. How to connect

2. How to use

■

Select

AAVV11

input source with using the

IINNPPUUTT

button on

the remote control.

■

If connected to

AAVV IINN 22

input, select

AAVV22

input source.

■

Operate the corresponding external equipment.

1

S-VIDEO

L R

VIDEO

L R

VIDEO

1

Camcorder

Video Game Set

32 inches

37/42/47 inches

1

EXTERNAL EQUIPMENT SETUP

26

EXTERNAL EQUIPMENT SETUP

PC SETUP

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

GG

Check the image on your TV. There may be noise associated
with the resolution, vertical pattern, contrast or brightness in
PC mode. If noise is present, change the PC output to another
resolution, change the refresh rate to another rate or adjust
the brightness and contrast on the VIDEO menu until the
picture is clear. If the refresh rate of the PC graphic card can
not be changed, change the PC graphic card or consult the
manufacturer of the PC graphic card.

NOTE

RGBRGB

RGB OUTPUT

AUDIO

RGB

When connecting D-sub 15 pin cable

Connect the RGB output of the PC to the

RRGGBB

((

PPCC

))

jack on the set.

Connect the PC audio output to the

AAUUDDIIOO

((

RRGGBB//DDVVII

))

jack on the set.

1. How to connect

2. How to use

■

Turn on the PC and the set.

■

Select

RRGGBB--PPCC

input source with using the

IINNPPUUTT

button

on the remote control.

2

1

1 2

EXTERNAL EQUIPMENT SETUP

27

When connecting HDMI to DVI cable

GG

If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.

GG

If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the

best picture quality, adjust the output resolution of PC graphics card's output resolution to 1360x768,
60Hz.(37/42/47LB5D models: 1920x1080, 60Hz)

NOTE

DVI-PC OUTPUT

AUDIO

RGBRGB

Connect the DVI output of the PC to the

HHDDMMII//DDVVII IINN11, 22

ou

33

jack on the set.

(Use the HDMI to DVI cable)

Connect the PC audio output to the

AAUUDDIIOO((RRGGBB//DDVVII

))

jack on the set.

1. How to connect

■

Turn on the PC and the set

■

Select

HHDDMMII11,HHDDMMII22 orHHDDMMII33

input source with using the

IINNPPUUTT

button on the remote control.

2. How to use

2

1

1

2

EXTERNAL EQUIPMENT SETUP

28

EXTERNAL EQUIPMENT SETUP

GG

Depending on the graphics card, DOS mode may

not work if a HDMI to DVI Cable is in use.

GG

Check the image on your TV. There may be noise

associated with the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is
present, change the PC output to another resolu­tion, change the refresh rate to another rate or
adjust the brightness and contrast on the PIC­TURE menu until the picture is clear. If the refresh
rate of the PC graphic card can not be changed,
change the PC graphic card or consult the manu­facturer of the PC graphic card.

GG

Avoid keeping a fixed image on the screen for a

long period of time. The fixed image may become
permanently imprinted on the screen.

GG

The synchronization input form for Horizontal and

Vertical frequencies is separate.

NOTES

EXTERNAL EQUIPMENT SETUP

29

Supported Display Specifications (RGB/HDMI-PC

)

Horizontal Vertical

Frequency(KHz)Frequency(Hz

)

31.468 70.09

31.469 70.08

31.469 59.94

37.861 72.80

37.50 0 75 .0 0

35.156 56.25

37.879 60.31

48.077 72.18
46 .875 75 .0 0

48.363 60.00

56.476 70.06

60.023 75.02

47.776 59 .870

60.289 74.893

47.712 60.015

60.981 60.020

79.976 75.025

75.00 60.00

67.50 60.00

Resolution

720x400

1360x768

640x350

* RGB-PC mode only: 1280x768(H-60.289, V-74.893)

640x480

800x600

1024x768

Supported Display Specifications (HDMI-DTV

)

Horizontal Vertical

Frequency(KHz)Frequency(Hz

)

31.47 60.00

31.47 59.94

45.00 60.00

44.96 59.94

33.75 60.00

33.72 59.94

67.50 60.00

67.432 59 .939

27.00 24.00

26.97 23.94

33.75 30.00

33.71 29.97

Resolution

720x480

1280x720

1920x1080

1280x1024

1600x1200

1920x1080

1280x768

1280x768

Supported Display Specifications (Y, CB /PB,CR /P

R

)

Horizontal Vertical

Frequency(KHz)Frequency(Hz

)

15.73 60.00

15.73 59.94

31.47 59.94

31.47 60.00

45.00 60.00

44.96 59.94

33.75 60.00

37.72 59.94

67.50 60.00

67.432 59 .939

27.00 24.00

26.97 23.94

33.75 30.00

33.71 29.97

Resolution

1280x720

1920x1080

720x480

EXTERNAL EQUIPMENT SETUP

30

EXTERNAL EQUIPMENT SETUP

Screen Setup for PC mode

Overview

When the RGB input, of the set is connected to a PC Output, Select
RGB-PC with using the

IINNPPUUTT

button on the remote control.

When you change the resolution, select the proper resolution in
present input to see the best picture appearance.

Picture Mode

Color Temperature

XD

Advanced

Aspect Ratio

Picture Reset

Screen

G

Selection ( Gor ) leads you to
thescreen adjustment menu.

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

Press the

MMEENNUU

button and then useDDor EEbutton

to select the

PPIICCTTUURREE

menu.

Press the

GG

button and then useDDor EEbutton to

select

SSccrreeeenn

.

Press the

GG

button to enter the screen adjustment

menu.

2

3

1

EXTERNAL EQUIPMENT SETUP

31

Resolution

Position

GG

Size

Phase

Reset

Move Prev

Resolution

Position

Size

Phase

Reset

GG

Initialize Settings.

Yes

No

Prev

Select

OK

RReessoolluuttiioonn

XGA(1024, 1280, 1360) isn’t
distinguished because of having

the same H/V Sync Time.
This function is you to select the
Default Sync Time.

PPoossiittiioonn

This function is to adjust picture
to left/right and up/down as you
prefer.

SSiizzee

This function is to minimize any
vertical bars or stripes visible on
the screen background. And the
horizontal screen size will also
change.

PPhhaassee

This function allows you to
remove any horizontal noise and
clear or sharpen the image of char­acters.

Use DDor EEbutton to select

RReessoolluuttiioonn, PPoossiittiioonn, SSiizzee

,

or

PPhhaassee

.

Press the

EENNTTEERR

button and then use

DD / EE

or

FF / GG

button to make appropriate adjustments.

■

The

PPhhaassee

adjustment range is

--1166~++1166

.

■

The

SSiizzee

adjustment range is

--3300~++3300

.

Press the

EENNTTEERR

button.

Adjustment for screen Resolution, Position, Size, Phase, Reset

Use DDor EEbutton to select

RReesseett

.

Press the

EENNTTEERR

button and then use

FF

or GGbutton to

select

YYeess

.

Press the

EENNTTEERR

button.

Initializing (Reset to original factory values

)

2

3

1

2

3

1

To initialize the adjusted values.

EXTERNAL EQUIPMENT SETUP

32

EXTERNAL EQUIPMENT SETUP

USB IN SETUP

The TV has a special signal output capability which allows you to hook up the second TV or monitor.

AV IN 2V IN 2

L/L/MONOMONO

R

AUDIOAUDIO

VIDEOVIDEO

S-VIDEO

USB INUSB IN

Connect the USB device to the

UUSSBB IINN

jacks on the

side of TV.

1. How to connect

1

2. How to use

■

After connecting the

UUSSBB IINN

jacks, you use the

function. (

GG

pp..4477

)

MEDIAMEDIA

HOST HOST

1

AV IN 2

L/ MONO

R

AUDIO

VIDEO

S-VIDEO

USB IN

AV IN 2V IN 2

L/L/MONOMONO

R

AUDIOAUDIO

VIDEOVIDEO

USB INUSB IN

1

32 inches

37/42/47 inches

or

or

EXTERNAL EQUIPMENT SETUP

33

AUDIO OUT SETUP

Send the TV’s audio to external audio equipment via the Audio Output (Optical)port.

GG

When connecting with external audio equipment, such as

amplifers or speakers, please turn the TV speakers off.
(

GG

pp..7722

)

NOTE

GG

Do not look into the optical output port. Looking at the

laser beam may damage your vision.

CAUTION

Connect one end of an optical cable to the TV Digital
Audio (Optical)Output port.

Connect the other end of the optical cable to the digi­tal audio (optical)input on the audio equipment.

Set the “TV Speaker option - Off” in the AUDIO menu.
(

GG

pp..7722

). See the external audio equipment instruction

manual for operation.

1. How to connect

2

3

1

1

2

L R

S-VIDEO

Analog

Digital

Connect audio outputs to the TV’s

AAUUDDIIOO OOUUTT

or

DDIIGGIITTAALL AAUUDDIIOO OOUUTT CCOOAAXXIIAALL

jacks.

Set the “TV Speaker option - Off” in the AUDIO menu.
(

GG

pp..7722

). See the external audio equipment instruction

manual for operation.

2

1

1

WATCHING TV / CHANNEL CONTROL

34

REMOTE CONTROL FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

APM

CC

AUTO DEMO

M/C EJECT

TV INPUTTV INPUT

STBSTB

MENU

BRIGHT +

B

RIGHT -

TIMER

RATIO

SIMP

LINK

BACKBACK

TV INPUT

STB

BACK

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

MEDIA HOSTMEDIA HOST

MEDIA HOST

MEDIA HOST

BRIGHT +/-

THUMBSTICK

(Up/Down/Left

Right/ENTER)

EXIT

TIMER

RATIO

SIMPLINK

VOLUME UP

/DOWN

MUTE

FAV

CHANNEL

UP/DOWN

BACK

— (DASH)

■

Controls the mode.

■

Control video cassette recorders or DVD players.

Displays the main menu.

■

Adjust brightness on screen.

■

It turns to the default settings brightness by changing

mode source.

■

Navigate the on-screen menus and adjust the system

settings to your preference.

Clear all on-screen displays and return to TV viewing from
any menu.

Select the amount of time before your TV turns off auto­matically.

GG

pp..8822

Change the aspect ratio.

GG

pp..5544

See a list of AV devices connected to TV.

When you toggle this button, the SimpLink menu appears
at the screen.

Increase/decrease the sound level.

Switch the sound on or off.

pp..3388

Scroll through the programmed Favorite channels.

Select available channels.

Tune to the last channel viewed.

Used to enter a program number for multiple
program channels such as 2-1, 2-2, etc.

MEDIAMEDIA

HOST HOST

mode control

buttons

MEDIAMEDIAMEDIA

HOST HOST HOST

MEDIA

HOST

NUMBER button

VCR/DVD

buttons

MENU

WATCHING TV /CHANNEL CONTROL

WATCHING TV / CHANNEL CONTROL

35

TV INPUT

STB

BACK


SOUND

SAP

CC

MARK

USB EJECT

MEDIA HOST

Turns your TV or any other programmed equipment on or off, depending on the mode.

In AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2 and HDMI3 input sources, screen returns to
the last TV channel.

External input modes rotate in regular sequence: Antenna, Cable, AV1-2, Component 1-2, RGB-PC,
HDMI1, HDMI2, HDMI3 (Antenna, Cable, AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2,
HDMI3 input sources are linked automatically, only if these are connected ).

Select the remote operating mode: TV, DVD, VCR, AUDIO, CABLE or STB.
* If the mode of another product is selected, a button on the remote control which is not used

for the selected product can control the TV.

Enter to the mode.

MEDIAMEDIA

HOST HOST

Inside the Sliding Cover


SOUND

SAP

CC

MARK

USB EJECT

Adjust the factory preset picture depend
on the viewing environment.

Select the appropriate type of sound for

type of program.

Select MTS sound: Mono, Stereo, and SAP
analog mode. Change the audio language
DTV mode.

GG

pp.. 7711

Select the Caption On/Off.

GG

pp..7755

Enter the selected functions.

GG

pp..4499

Remove the USB device.

GG

pp..3322

Installing Batteries

■

Open the battery compartment cover on the
back side and install the batteries matching cor­rect polarity (+with +,-with -).

■

Install two 1.5V AA batteries. Don’t mix old or
used batteries with new ones.

■

Close cover.

■

Use a remote control up to 7 meters distance and 30
degree (left/right) within the receiving unit scope.

■

Dispose of used batteries in a recycle bin to pre­serve environment.

Remote control effective range

POWER

TV INPUT

INPUT

MODE

MEDIAMEDIAMEDIA

HOST HOST HOST

MEDIA

HOST

37/42/47LB5D

32/37/42LB4D

MARK

SOUND

USB EJECT


SAP

BACK

CC

R

LIVE TV

INPUT

MODE

D

-

A

Y

Y

A

+

D

LIVE TV

INPUT

MODE

D

-

A

Y

Y

A

+

D

WATCHING TV / CHANNEL CONTROL

36

WATCHING TV /CHANNEL CONTROL

TURNING ON TV

NOTE

GG

If you intend to be away on vacation, disconnect
the power plug from the wall power outlet.

GG

When the TV is turned on, the indicator will blink
red before the picture is seen.

First, connect power cord correctly.
At this moment, the TV switches to standby mode.

■

In standby mode, press the

(

or ON/OFF),

IINNPPUUTT

,

CCHH

((

DD

or

EE

))

button on the TV or press the

PPOOWWEERR

,

IINNPPUUTT, TTVV IINNPPUUTT, CCHH

((

DD

or

EE

))

,

NNuummbbeerr ((00~99

))

but-

ton on the remote control.

Select the viewing source by using the

IINNPPUUTT

button on

the remote control.

■

This TV is programmed to remember which mode it was
last set to, even if you turn the TV off.

When finished using the TV, press the

PPOOWWEERR

button on

the remote control. The TV reverts to standby mode.

TV INPUT

STB


SOUND

SAP

CC

MARK

USB EJECT

BACK

MEDIA HOST

2

3

1

MENU

INPUT

STB

MEDIA HOST

BRI

G

HT +

MPLINK

I

S

RATIO

TV INPUT

RIG

B

-

T

H

TIMER

BACK

CC

SAP

SOUND


MARK

USB EJECT

WATCHING TV / CHANNEL CONTROL

37

CHANNEL SELECTION

Press the

CCHH

DD

or

EE

or

NNUUMMBBEERR

buttons to select a

channel number.

TV INPUT

STB

TIMER

RATIO

SIMPLINK


SOUNDSOUND

SAPSAP

CCCC

MARKMARK

USB EJECTUSB EJECT

BACKBACK

TV INPUT

STB

BACK


SAP

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

CC

MARK

USB EJECT

TV INPUT

STB

BACK


SOUND

SAP

MARK

USB EJECT

MEDIA HOST

MEDIA HOST

MEDIA HOST

MEDIA HOST

1

WATCHING TV / CHANNEL CONTROL

38

WATCHING TV /CHANNEL CONTROLWATCHING TV /CHANNEL CONTROL

VOLUME ADJUSTMENT

Press the

VVOOLL

DD

or

EE

button to adjust the volume.

If you want to switch the sound off, press the

MMUUTTEE

but-

ton.

You can cancel the Mute function by pressing the

MMUUTTEE

or

VVOOLL

DD

or

EE

button.

Adjust the volume to suit your personal preference.

TV INPUTTV INPUT

STBSTB

MENU

BR

IGHT +

BRI

GHT -

TIMER

RATIO

S

IMPLINK

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

M

ED

IA

H

O

ST

MEDIA HOST

MEDIA HOST

MEDIA HOST

MEDIA HOST

2

3

1

WATCHING TV / CHANNEL CONTROL

39

ON-SCREEN MENUS SELECTION

Press the

MMEENNUU

button and then use DDor EEbutton to select each menu.

Press the

GG

button and then use

DD EE FF GG

button to display the available menus.

Your TV's OSD (On Screen Display)may differ slightly from what is shown in this manual.

SETUP


TIME

Auto Tuning

Manual Tuning

Channel Edit

2

1

AUDIO

Picture Mode : User1

Color Temperature : Cool

XD

Advanced

Aspect Ratio : 16:9

Picture Reset

Screen

Sound Mode : Standard

Auto Volume : On

Balance : 0

TV Speaker : On

Clock : Oct 19, 2006, 03:44 AM

Off Time : Off

On Time : Off

Sleep Time : Off

Auto Sleep : Off

Language :

English

Input Label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Lock System : Off
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block

OPTION

LOCK

Only Plasma TV model

Lock System : Off
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block

For USA

For Canada

WATCHING TV / CHANNEL CONTROL

40

WATCHING TV /CHANNEL CONTROL

Auto Tuning

G

Manual Tuning

Channel Edit

Selection ( Gor ) leads you to
the Auto Tuning screen.

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

MEDIA HOST

MEDIA HOST

MEDIA HOST

MEDIA HOST

Press the

MMEENNUU

button and then use DDor EEbut-

ton to select the

SSEETTUUPP

menu.

Press the

GG

button and then use DDor EEbutton to

select

AAuuttoo TTuunniinngg

.

Press the

EENNTTEERR

button to begin the channel

search. Allow

AAuuttoo TTuunniinngg

to complete the channel

search cycle for

AANNTTEENNNNAA

and

CCAABBLLEE

.

Automatically finds all channels available through antenna or
cable inputs, and stores them in memory on the channel list.

Run Auto Tuning again after any Antenna/Cable connection
changes.

A password is required to gain access to Auto Tuning menu if
the Lock System is turned on.

Auto Tuning

Manual Tuning

Channel Edit

Selection ( Gor ) leads
you to the Auto Tuning
screen.

2

3

1

NOTE

Analog TV antenna
Digital DTV antenna
Analog CATV cable

Digital CADTV cable

Processing Auto Tuning...

DTV Ch.23

Found Channel(s): 16

Press to stop the current
scan and start ANALOG
ANTENNA channel scan.

MENU Prev

Next

Auto Tuning

Manual Tuning

Channel Edit

CHANNEL SETUP

Auto Scan(Auto Tuning)

TV INPUT

STB

M

ED

IA

H

O

ST

MENU

HT -

G

BRI

TIMER

BRIGHT +

IMPLINK

S

TIO

A

R

WATCHING TV / CHANNEL CONTROL

41

Auto Tuning

Manual Tuning

G

Channel Edit

A password is required to gain access to Manual Tuning
menu if the Lock System is turned on.

If selecting DTV or CADTV input signal, you can view the
on-screen signal strength monitor to see the quality of
the signal being received.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

SSEETTUUPP

menu.

Press the

GG

button and then use DDor EEbutton to

select

MMaannuuaall TTuunniinngg

.

Press the

GG

button and then use DDor EEbutton to

select DTV, TV, CADTV, and CATV.

Press the

GG

button and then use DDor EEbutton to

select channel number you want to add or delete.

Press the

EENNTTEERR

button to add or delete for the

channel number.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

TV INPUTTV INPUT

STBSTB

BRIGHT +

BRI

G

HT -

TI

ME

R

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

M

ED

IA

H

O

ST

MEDIA HOST

MEDIA HOST

MEDIA HOST

MEDIA HOST

Select channel type and
RF-channel number.

DTV 2

4

5

6

2

3

1

Auto Tuning

Manual Tuning

Channel Edit

Select channel type and
RF-channel number.

DTV

GG

12

Press to delete the channel.

DTV 12-0

DD
EE

Bad Normal Good

Auto Tuning

Manual Tuning

Channel Edit

Add/Delete Channel(Manual Tuning)

NOTE

GG

This digital channel number is a physical channel

number, which is different from the normal channel
number shown in Channel Edit.

WATCHING TV / CHANNEL CONTROL

42

WATCHING TV /CHANNEL CONTROL

Press the

MMEENNUU

button and then use DDor EEbutton

to select the

SSEETTUUPP

menu.

Press the

GG

button and then use DDor EEbutton to

select

CChh aannnneell EE ddiitt

.

Press the

GG

button. You will now see a screen filled

with channel numbers and a preview picture.

Use

DD EE FF GG

button to select a channel and then

use the

EENNTTEERR

button to add or delete it. Press

FFAAVV

button to add the channel to the Favorite List.
The surfing icon will appear in front of that channel
number.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

TV INPUTTV INPUT

STBSTB

BR

IGHT +

BRI

G

HT -

TI

ME

R

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

M

ED

IA

H

O

S

T

MEDIA HOST

MEDIA HOST

MEDIA HOST

MEDIA HOST

From the default channel list created from the Auto Tuning
channel search, you can create two different types of channel
lists in memory: “custom list” and “favorite channel list”.

A custom list can be created by toggling each channel on or off
with ENTER button. The channels in the Custom List are dis­played in black and the channels deleted from the Custom List
are displayed in gray. Once a channel is highlighted you can add
or delete the channel by referring to the small window at the
top-left corner of the screen.

You can create your own Favorite List. Use the

FFAAVV

button on
the remote control when a channel is highlighted and then add
or delete the channel to/from your Favorite List.

Auto Tuning

Manual Tuning

Channel Edit

G

Selection (Gor ) leads you to the
channel edit screen.

4

5

2

3

1

Auto Tuning

Manual Tuning

Channel Edit

Channel Editing

WATCHING TV / CHANNEL CONTROL

43

INPUT LIST

AAnntteennnnaa

: Select it when watching the DTV/TV.

CCaabbllee

: Select it when watching the CADTV/CATV.

AAVV 11,, AAVV 22

: Select it when watching the VCR or external equipment.

CCoommppoonneenntt 11--22

: Select it when using the DVD or the Digital set-top box depend on connector.

RRGGBB--PPCC

: Select it when using PC depend on connector.

HHDDMMII,, HHDDMMII22,, HHDDMMII33

: Select it when using DVD, PC or Digital set-top box depend on connector.

Antenna

Cable

AV 1

AV 2

Component1

EE

Input List

AV 2

Press the

IINNPPUUTT

button to display external device that is

connected to the unit, on screen.
Press the

EENNTTEERR

button to change the input to the active

external device. Use the

DD

or

EE

button to select the

input source.

TV INPUT

STBSTB

MENU

BR

I

GH

T +

B

RIGH

T -

TIMER

RATIO

S

IMPLINK

INPUT

M

ED

IA

H

O

ST

MEDIA HOST

AAnntteennnnaa CCaabbllee

If all external input sources are connected:

If no external input sources are not connected:

If there is any external input source connected:

(ex: When connected only to AV 2)

AAnntteennnnaa CCaabbllee

AAVV11

AAnntteennnnaa CCaabbllee AAVV22

AAVV22 CCoommppoonneenntt11

HHDDMMII22 HHDDMMII11 RRGGBB--PPCC CCoommppoonneenntt22

2

3

1

HHDDMMII33

WATCHING TV / CHANNEL CONTROL

44

WATCHING TV /CHANNEL CONTROLWATCHING TV /CHANNEL CONTROL

This operates only for the devices with the

logo. Please check the logo.

This allows you to control and play other AV devices
connected to the display through HDMI cable without

additional cables and settings.

TV INPUTTV INPUT

STBSTB

MENU

BRIGHT

+

B

RIGH

T -

TIMER

RATIO

SIM

P

LINK

M

ED

IA

H

O

ST

MEDIA HOST

TV INPUT

STB

MEDIA HOST

MENU

Connect the HDMI/DVI IN 1, 2 or 3 terminal of the
TV to the rear terminal (HDMI output) of the
SimpLink device with the HDMI cable.

After connecting the HDMI jack for the home theater
with simpLink function in the above method, connect
the DIGITAL AUDIO OUT OPTICAL on the back of
the TV to the DIGITAL AUDIO OUT terminal on the
back of the simpLink device with the Optical cable.

Press the

MMEENNUU

button and then use

DD

or EEbutton

to select the

OOPPTTIIOONN

menu.

Press the

GG

button and then use DDor EEbutton to

select

SSiimm pp LLiinnkk

.

Press the

GG

button and then useDDor EEbutton to

select

OOnn

.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

4

2

3

1

Language : English

Input label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

Language

Input label

SimpLink

G

Key Lock

Caption

ISM Method

Low Power

Set ID

Off
On

NOTE

GG

When operating the external device with SimpLink, press the TV button among the MODE button on
the remote control.

GG

When you switch the Input source with the INPUT button on the remote control, you can stop the
operation of device worked by SimpLƒink.

GG

When you select or operate the media device with home theater function, the speaker automatically
switches to home theater speaker (HT speaker).

GG

When you execute ‘Photo List, Music List ’function during DVD playback included in home theater sup­ported the SimpLink stops and the applicable function is executed after switching the input to TV.

SimpLink Preparations

5

WATCHING TV / CHANNEL CONTROL

45

SimpLink Functions

DDiirreecc tt PPllaa yy
After connecting AV devices to TV, you can directly control the devices and play media

without additional settings.

SSeellee cc tt AAVV ddee vv iicc ee
Enables you to select one of AV devices connected to TV and play it.

DDiisscc ppllaayybbaacckk
Control connected AV devices by pressing the

, , , , , ,

,

DDEE

FF GG

,

EENNTT EE RR

buttons and buttons for play, pause, stop, fast reverse, fast forward,

chapter skip.

PPoo wwee rr ooff ff aall ll dd eevviiccee ss
When you power off TV, all connected devices are turned off.

SSww ii tt cc hh aauu dd ii oo -- oo uutt
Offers an easy way to switch audio-out.

(A device, which is connected to TV through HDMI cable but does not support
Simplink, does not provide this function)

SimpLink Menu

DDIISSCC ppllaa yybbaacckk

: Select and play discs.
When multiple discs are available, the
titles of the discs are conveniently dis­played at the bottom of the screen.

VVCCRR ppllaayybbaa cckk

: Play and control the

connected VCR.

HHDDDD RR eeccoorrddii nn ggss ppllaa yybb aacckk

: Play and

control recordings stored in HDD.

AAuuddiioo OOuutt ttoo HH TT ssppee aakkee rr//AAuuddiioo
OOuutt ttoo TTVV

: Select HT speaker or TV

speaker for Audio Out.

TTVV vviieewwiinngg

: Switch to the previous TV

channel regardless of the current mode.

GG

Selected Device

GG

When no device is

connected (displayed in gray)

GG

When a device is

connected (displayed in
bright color)

1

2

3

4

5

TV INPUTTV INPUT

STBSTB

MENU

BR

I

GH

T +

B

RIG

H

T -

TIM

ER

R

A

TIO

S

I

MPLINK

M

ED

IA

H

O

S

T

MEDIA HOST

SIMPL

IN

KSIMPL

IN

K

After selecting the

TT VV

button of the MODE on the remote control,

press the

SSIIMMPPLLIINNKK

button.

Use

DD EE FF GG

button to select the desired device and then press

the

EENNTTEERR

button.

Control connected AV devices by pressing the

, , ,

,,,

,

DDEE

FF GG

,

EENNTT EE RR

buttons.

2

1

3

1

2

3

4

5

WATCHING TV / CHANNEL CONTROL

46

WATCHING TV /CHANNEL CONTROLWATCHING TV /CHANNEL CONTROL

INPUT LABEL

Sets a label to each input source which is not in use when you
press INPUT button.

Press the

MMEENNUU

button and then use

DD

or EEbut-

ton to select the

OOPPTTIIOONN

menu.

Press the

GG

button and then useDDor EEbutton to

select

IInnppuutt LLaabbeell

.

Press the

GG

button and then useDDor EEbutton to

select the source: AV1, AV2, Component1,
Component2, RGB-PC, HDMI1, HDMI2 or HDMI3.

Press the

FF

or GGbutton to select the label.

Press

EEXXIITT

button to return to TV viewing or press

MMEENNUU

button to return to the previous menu.

TV INPUTTV INPUT

STBSTB

BR

IGHT +

BRI

GHT -

TI

ME

R

R

A

TIO

S

I

M

P

LINK

MENU

TV INPUT

STB

TV INPUT

STB

TV INPUT

STB

TV INPUT

M

ED

IA

H

O

ST

MEDIA HOST

MEDIA HOST

MEDIA HOST

MEDIA HOST

Language

Input label

G

SimpLink

Key Lock

Caption

ISM Method

Low Power

Set ID

AV1 Cable Box

AV2 VCR

Component1 DVD

Component2 Set Top Box

RGB-PC VCR

HDMI1 Game

HDMI2 Satellite

HDMI3 Cable Box

2

3

4

1

5

Language : English

Input label

SimpLink : Off

Key Lock : Off

Caption : Off

ISM Method : Orbiter

Low Power : Off

Set ID : 1

NOTE

GG

When selecting the PC of HDMI mode, the picture is changed to full screen.

MEDIA HOST

47

MEDIAMEDIAMEDIA

HOST HOST HOST

MEDIA

HOST

When you connect a USB device or press the button, this screen is
displayed, automatically.

In USB device, you can not add a new folder or delete the existing folder.

M

ED

IA

H

O

ST

MEDIA HOST

ENTRY MODES

Press the

DD

or EEbutton to select the desired item.

Press the

EENNTTEERR

button to move to

PPhhoottoo LLiisstt orMMuussiicc LLiisstt

of

USB device.

Press the

UUSSBB EEJJEECCTT

button of remote control before removing

the USB device.

1

2

NOTE

3

BACKBACK


SOUNDSOUND

SAPSAP

MARKMARK

USB EJECTUSB EJECT

CCCC

[Media Host Menu]

Press the

UUSSBB EEJJEECCTT

button of remote control before removing the USB device.
Only a USB storage device is recognizable.
If the USB storage device is connected through a USB hub, the device is not recognizable.
A USB storage device using an automatic recognition program may not be recognized.
A USB storage device which uses its own driver may not be recognized.
In case of a card reader, up to four memory cards are concurrently recognizable.
The recognition speed of a USB storage device may depend on each device.
Please do not turn off the TV or unplug the USB device when the connected USB storage

device is working. When such device is suddenly separated or unplugged, the stored files or
the USB storage device may be damaged. To unplug the USB storage device, please press the

UUSSBB EEJJEECCTT

button on the remote control, and then unplug it safely.

Please do not connect the USB storage device which was artificially maneuvered on the PC.
The device may cause the product to malfunction or fail to be played. Never forget to use only
a USB storage device which has normal music files or image files.

Please use only a USB storage device which was formatted as a FAT or a NTFS file system pro­vided with the Windows operating system. In case of a storage device formatted as a different
utility program which is not supported by Windows, it may not be recognized.

In case of a hard disk drive (HDD) formatted as NTFS, writing and deletion are not allowable.
Please connect power to a USB storage device which requires an external power supply. If not,

the device may not be recognized.
Please connect a USB storage device with cable is offered by USB maker. If connected with

cable is not offered by USB maker or an excessively long cable, the device may not be recog­nized.

Some USB storage devices may not be supported or operated smoothly.
If the name of a folder or file is too long, it will not be displayed or recognized.

MEDIA HOST

48

MEDIAMEDIA

HOST HOST

Screen Components

Current page/Total pages
Total number of marked

thumbnail photos
Corresponding buttons
on the remote control

Usable USB memory

It’s available to playback the photo file(*.jpg) in the USB device.

The On Screen Display may be different from your set. Images
are an example to assist with the TV operation.

PHOTO LIST
