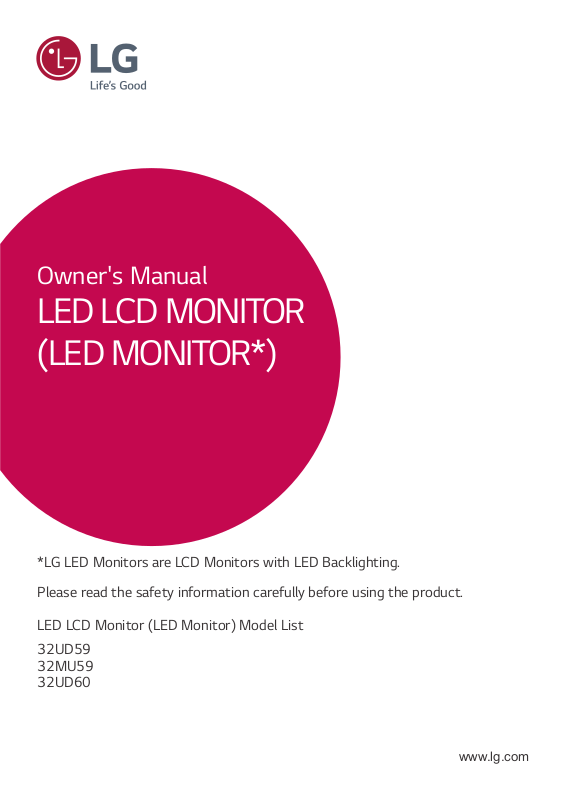

Page 1
Owner's Manual
LED LCD MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
Please read the safety information carefully before using the product.
LED LCD Monitor (LED Monitor) Model List
32UD59
32MU59
32UD60
www.lg.com
Page 2
2
Contents
ENGLISH
ENG
CONTENTS
3 LICENSE
4 ASSEMBLING AND PREPARING
4 Product Components
5 Supported Drivers and Software
6 Component and Button Description
6 - How to Use the Joystick Button
7 Input Connector
8 Moving and Lifting the Monitor
9 Installing the Monitor
9 - Assembling the stand base
11 - Using the cable holder
11 - Installing onto a table
12 - Adjusting the stand height
12 - Adjusting the angle
13 - Using the Kensington lock
13 - Installing the wall mount plate
14 - Installing to a wall
17 USER SETTINGS
17 Activating the Main Menu
17 - Main Menu Features
18 User Settings
18 - Menu Settings
22 TROUBLESHOOTING
24 SPECIFICATIONS
24 32UD59/32MU59/32UD60
25 Factory Support Mode (Preset Mode, PC)
25 HDMI
25 DisplayPort
26 HDMI Timing (Video)
26 Power LED
15 USING THE MONITOR
15 Connecting to a PC
15 - HDMI connection
15 - DisplayPort connection
16 Connecting to AV Devices
16 - HDMI connection
16 Connecting to External Devices
16 - Connecting Headphones
Page 3
3
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
ENGLISH
ENG
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP
Directive:
* This monitor is set to be turned off automatically after 4 hours when you turn on the display and there are no adjustments made to the display.
* To disable this setting, change the option "Automatic Standby" in the OSD menu to "Off ".
Page 4
ENGLISH
ENG
4
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are missing components, contact the retail store where you purchased the product. Note that the product and components may look
different from those shown here.
or
CD(Owner's Manual) /
Card
HDMI Cable
(This cable is not included
in all countries.)
CAUTION
Power Cord
(Depending on the country)
DisplayPort Cable
(This cable is not included in
all countries.)
Stand BaseStand Body
AC-DC Adapter
Cable Holder
AC-DC Adapter
(Depending on the country)
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
It is recommend that use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image noises.
y
NOTE
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to improve the
y
performance of the product.
To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
y
where you purchased the product.
Page 5
Supported Drivers and Software
Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product
package.
Drivers and Software Installation Priority 32UD59/32MU59/32UD60
Monitor Driver Recommended O
OnScreen Control Recommended O
Dual Controller Optional O
Required and Recommended: You can download and install the latest version from the enclosed CD or from the
y
LGE website (www.lg.com).
Optional: You can download and install the latest version from the LGE website (www.lg.com).
y
5
ENGLISH
ENG
Page 6
ENGLISH
ENG
6
Component and Button Description
Joystick Button
Power LED
On: power is on
y
Off: power is off
y
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your
finger.
Basic Functions
Press the joystick button once with your finger to turn on the
monitor.
Press and hold the joystick button once with your finger to turn off the
monitor.
You can control the volume by moving the joystick button left/right.
◄/►
Power on
Power off
Volume
Control
NOTE
The joystick button is located at the bottom of the monitor.
y
Page 7
Input Connector
7
ENGLISH
ENG
Page 8
8
ENGLISH
ENG
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regardless of its shape or size.
It is advisable to place the monitor in the original
y
box or packing material before attempting to
move it.
Before moving or lifting the monitor, disconnect
y
the power cord and all cables.
Hold the top and bottom of the monitor frame
y
firmly. Do not hold the panel itself.
CAUTION
As far as possible, avoid touching the monitor
y
screen. This may result in damage to the screen or
some of the pixels used to create images.
If you use the monitor panel without the stand
y
base, its joystick button may cause the monitor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.
When holding the monitor, the screen should face
y
away from you to prevent it being scratched.
When moving the monitor, avoid any strong shock
y
or vibrations to the product.
When moving the monitor, keep it upright, never
y
turn the monitor on its side or tilt it sideways.
Page 9
9
Installing the Monitor
Assembling the stand base
1
CAUTION
To protect the screen from scratches, cover the
y
surface with a soft cloth.
2
4
ENGLISH
ENG
Stand Body
5
Stand Body
Stand Base
3
or
Page 10
ENGLISH
ENG
10
CAUTION
Illustrations in this document represent typical
y
procedures, so they may look different from the
actual product.
Do not carry the monitor upside down by just
y
holding the stand base. This may cause the
monitor to fall off the stand and could result in
personal injury.
When lifting or moving the monitor, do not
y
touch the monitor screen. The force applied to
the monitor screen may cause damage to it.
Do not apply foreign substances (oils, lubricants,
y
etc.) to the screw parts when assembling the
product. (Doing so may damage the product.)
Applying excessive force when tightening screws
y
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
NOTE
You can disassemble the stand in the reverse order
y
of the assembly.
Page 11
11
Using the cable holder
Arrange the cables using the cable holder as shown in
the illustration.
Cable Holder
Installing onto a table
Lift the monitor and place it on the table in an up-
1
right position.
Place at least 100 mm / 4 inches away from the
wall to ensure sufficient ventilation.
100 mm / 4 inches
100 mm / 4 inches
100 mm / 4 inches
Connect the power adapter to the monitor and then
2
plug the power cord into the wall outlet.
100 mm / 4 inches
ENGLISH
ENG
or
Press the joystick button on the bottom of the
3
monitor to turn on the monitor.
CAUTION
Unplug the power cord prior to moving or install-
y
ing the monitor. There is risk of electric shock.
Page 12
12
ENGLISH
ENG
Adjusting the stand height
Handle the monitor with both hands for safety.
1
The height can be adjusted up to 4.72 inches.
2
4.72 inches
Adjusting the angle
Place the monitor in an upright position, mounted
1
on the stand base.
Adjust the angle of the screen. The angle of the
2
screen can be adjusted forwards or backwards for a
comfortable viewing experience.
Front SideRear Side
WARNING
WARNING
Do not put your fingers or hand
y
between the screen and the
base (chassis) when adjusting
the screen's height.
NOTE
The left or right side of the monitor head can be
y
slightly rotated up or down (up to 3°). Adjust the
horizontal level of the monitor head.
Monitor head
To avoid injury to the fingers when adjusting the
y
screen, do not hold the lower part of the monitor's frame as illustrated below.
Be careful not to touch or press the screen area
y
when adjusting the angle of the monitor.
Page 13
13
Using the Kensington lock
The Kensington security system connector is located at
the back of the Monitor set.
For more information on installation and usage, refer to
the Kensington lock user manual or visit the website at
http://www.kensington.com.
Connect the Kensington security system cable between
the Monitor set and a table.
Installing the wall mount plate
This monitor supports the specification of the standard
wall mount plate or compatible device.
Place the screen face down. To protect the screen
1
from scratches, cover the surface with a soft cloth.
Remove the four screws tightened on the back of
2
the monitor.
Place the wall mount plate onto the monitor and
3
align it with the screw holes.
Tighten the four screws to fix the plate to the
4
monitor using a screwdriver.
NOTE
The wall mount plate is sold separately.
y
For more information on installation, refer to the
y
wall mount plate's installation guide.
Be careful not to use excessive force when
y
mounting the wall mount plate, as this can damage the monitor's screen.
ENGLISH
ENG
NOTE
Use of the Kensington lock is optional. The acces-
y
sories can be purchased at your local electronics
store.
Page 14
14
Wall Mount (A x B)
y
ENGLISH
ENG
Installing to a wall
Install the monitor at least 100 mm / 4 inches away
from the wall and leave about 100 mm / 4 inches of
space at each side of the monitor to ensure sufficient
ventilation. Detailed installation instructions can be
obtained from your local retail store. Please refer to
the manual to install and set up a tilting wall mounting
bracket.
100 mm / 4 inches
100 mm / 4 inches
100 mm / 4 inches
100 mm / 4 inches
To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed
to the monitor and to the wall.
If you use screw longer than standard, the monitor
1
might be damaged internally.
A
B
B
CAUTION
Unplug the power cord before moving or
y
installing the monitor to avoid electric shocks.
Installing the monitor on the ceiling or on a
y
slanted wall may result in the monitor falling
off, which could lead to injury. Please use the
genuine LG wall mounting bracket. For more
information, contact your local retail store or a
qualified installer.
Applying excessive force when fastening screws
y
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
Use the wall mounting bracket and screws
y
that conform to the VESA standard. Damage
caused by the use or misuse of inappropriate
components will not be covered by the product
warranty.
Screw length from outer surface of back cover
y
should be under 8 mm(0.31 inches).
Wall mount Pad
If you use improper screw, the product might be
2
damaged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Wall Mount (A x B) 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate
(Optional)
RW120
Back Cover
Wall mount Pad
Back Cover
Standard screw
Max. 8mm (0.31 inches)
NOTE
Use the screws specified by the VESA standard.
y
The wall mount kit includes the installation guide
y
and all necessary parts.
The wall mounting bracket is optional. The acces-
y
sories can be purchased at your local retail store.
The length of the screw may differ for each wall
y
mounting bracket. Ensure the correct length
screw is used.
For more information, please refer to the user
y
manual for the wall mounting bracket.
Page 15
15
USING THE MONITOR
Connecting to a PC
This monitor supports the *Plug and Play feature.
y
*Plug and Play: A feature that allows you to add
a device to your computer without having to
reconfigure anything or install any manual drivers.
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
32UD59
32MU59
NOTE
If you use HDMI PC, it can cause compatibility
y
problem.
Use a certified cable with the HDMI logo attached.
y
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
Recommended HDMI cable types
y
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
DisplayPort connection
Transmits the digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor using the DisplayPort cable as illustrated below.
Press the menu button and then select the input option
from the input menu.
ENGLISH
ENG
32UD60
NOTE
There may be no video or audio output depending
y
on the DP version of the PC.
If you use generic cables not certified by LG, the
y
screen may not display or there may be image
noises.
Page 16
16
ENGLISH
ENG
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
32UD59
32MU59
Connecting to External Devices
Connecting Headphones
Connect peripherals to the monitor via the headphones
port. Connect as illustrated.
(sold separately)
NOTE
32UD60
NOTE
If you use HDMI PC, it can cause compatibility
y
problem.
Use a certified cable with the HDMI logo attached.
y
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
Recommended HDMI cable types
y
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
Peripheral devices are sold separately.
y
If you use angled earphones, it may cause a prob-
y
lem with connecting another external device to
the monitor. Therefore, it is recommended to use
straight earphones.
Angled Straight
Depending on the audio settings of the PC and
y
external device, headphones and speaker functions
may be limited.
Page 17
17
USER SETTINGS
Activating the Main Menu
Press the joystick button on the bottom of the monitor.
1
Move the joystick up/down (▲/▼) and left/right (◄/►) to set the options.
2
Press the joystick button once more to exit the main menu.
3
Joystick Button
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Main menu disabled Adjusts the monitor volume level.
◄
Main menu enabled Enters the Input feature.
Main menu disabled Adjusts the monitor volume level.
►
Main menu enabled Enters the Menu features.
Main menu disabled Displays information on the current input.
▲
Main menu enabled Turns off the monitor.
Main menu disabled Displays information on the current input.
▼
Main menu enabled Enters the Game features.
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off the
monitor this way at any time, including when the OSD is on.)
ENGLISH
ENG
Main Menu Features
Power Off
MenuInput Exit
Game
Main Menu Description
Menu Configures the screen settings.
Game Sets the picture mode for gaming.
Input Sets input mode.
Power Off Turns off the monitor.
Exit Exits the main menu.
Page 18
ENGLISH
ENG
18
User Settings
Menu Settings
To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
1
Configure the options by moving the joystick up/down/left/right.
2
To return to the upper menu or set other menu items, move the joystick to◄ or pressing ( / Ok) it.
3
If you want to exit the OSD menu, move the joystick to ◄ until you exit.
4
Quick Settings Input Picture General
CAUTION
Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
Each option is described below.
Menu > Quick Settings Description
Brightness
Contrast
Volume Adjusts the volume level.
Adjusts the color contrast and brightness of the screen.
NOTE
You can adjust Mute / Unmute by moving the joystick button to▼in the Volume menu.
y
Color Temp Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Menu > Input Description
Input List Selects the input mode.
Aspect Ratio Adjusts the aspect ratio of the screen.
Full Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.
1:1 The aspect ratio is not adjusted from the original.
NOTE
The display may look the same for Full Wide , Original, and 1:1 options at the recommended
y
resolution (3840 x 2160).
There is no 1:1 menu on FreeSync Mode. ( Go to Picture → Game Adjust → FreeSync, to set
y
FreeSync Option)
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for video.
Dark Room 1 This mode adjusts the brightness to the optimal level for working in a dark environment.
Dark Room 2 This mode sets the brightness to a lower level than Dark Room 1.
Color
Weakness
This mode is for users who cannot distinguish between red and green. It enables users
with color weakness to easily distinguish between the two colors.
Page 19
FPS Game 1 This mode is optimized for FPS games.
FPS Game 2 It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark
RTS Game This mode is optimized for RTS Game.
Custom (Game) In this mode, users can customize various elements including game-related options.
FPS games.
NOTE
If the picture mode is changed, the screen may flicker or the resolution of your PC screen may be
y
affected.
Picture Adjust Brightness Adjusts the brightness of the screen.
Contrast Adjusts the contrast of the screen.
Sharpness Adjusts the sharpness of the screen.
SUPER RESOLUTION+ High Optimized picture quality is displayed when a user wants crystal clear
Middle The optimized picture quality is displayed when a user wants images
Low The optimized picture quality is displayed when a user wants smooth and
Off Select this option for everyday viewing. SUPER RESOLUTION+ is
images. It is effective for high quality video or game.
between low and high modes for comfortable viewing. It is effective
for UCC or SD video.
natural images. It is effective for slow-moving pictures or still images.
turned off in this mode.
19
ENGLISH
ENG
NOTE
Because this is a function to increase the sharpness of low resolution pictures,
y
it is not recommended to use the function for normal text or for desktop
icons. Doing so may result in unnecessarily high sharpness.
Black Level Sets the offset level (for HDMI only).
HDMI ULTRA HD Deep
Color
yOffset: as a reference for a video signal, this is the darkest color the monitor can
display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current
Provides sharper images when connected to a device supporting ULTRA HD Deep Color.
Resolution
3840 x 2160
1) Supported when HDMI ULTRA HD Deep Color is set to On.
contrast ratio of the screen.
4K@60 Hz Support Format
Frame rate
(Hz)
59.94
60.00
NOTE
If the connected device does not support UHD Resolution the feature may
y
not work properly.
If a problem occurs, set the HDMI ULTRA HD Deep Color option to Off.
y
1)
Color Depth / Chroma Sampling
8 bit 10 bit
YCbCr 4:2:0
YCbCr 4:2:2
YCbCr 4:4:4 -
RGB 4:4:4 -
DFC On Adjusts the brightness automatically according to the screen.
Off Disables the DFC feature.
Page 20
20
ENGLISH
ENG
Game Adjust Response Time Sets a response time for displayed pictures based on the speed of the screen.
FreeSync Provides seamless and natural images by synchronizing the vertical frequency of the
For a normal environment, it is recommended that you use Normal. For a fastmoving picture, it is recommended that you use Fast.
Setting to Fast may cause image sticking.
Fast Sets the response time to Fast.
Normal Sets the response time to Normal.
Slow Sets the response time to Slow.
Off Does not use the response time improvement feature.
input signal with that of the output signal.
CAUTION
Supported Interface: DisplayPort,HDMI.
y
Supported Graphic Card : A graphic card that supports AMD’s FreeSync is
y
necessary.
Supported Version : Make sure to update the graphic card to the latest driver.
y
For more information and requirement, refer to AMD website at http://www.
y
amd.com/FreeSync
Extended Enable wider frequency range of FreeSync function than basic
Basic Enable basic frequency range of FreeSync function.
Off FreeSync function off.
Black Stabilizer You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen.
(You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases
the dynamic contrast on the screen.
Color Adjust Gamma Mode 1, Mode 2,
Mode 3,
Mode 4 If you do not need to adjust the gamma settings, select Mode 4.
Color Temp Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Red You can customize the picture color using Red, Green, and Blue colors.
Green
Blue
Six Color Meets the user requirements for colors by adjusting the hue and saturation of
the six colors (Red, Green, Blue, Cyan, Magenta and Yellow) and then saving the
settings.
Hue Adjusts the tone of the screen colors.
Saturation Adjusts the saturation of the screen colors. The lower the value,
Picture Reset Do you want to Picture reset your settings?
No Cancel the selection.
Yes Returns to the default settings.
mode.
The screen may flicker during the game play.
The higher the gamma value, the darker the image becomes.
Likewise, the lower the gamma value, the lighter the image
becomes.
the less saturated and brighter the colors become. The higher
the value, the more saturated and darker the colors become.
Page 21
Menu > General Description
Language Sets the menu screen to the desired language.
SMART ENERGY
SAVING
Power LED Turns the power LED on the bottom of the monitor on or off.
Automatic Standby Feature that automatically turns off the monitor when there is no movement on the screen for a period
DisplayPort 1.2 Enable Enables DisplayPort 1.2.
High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
Off Disables the SMART ENERGY SAVING feature.
On The power LED turns on automatically.
Off The power LED turns off.
of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
Disable Disables DisplayPort 1.2.
NOTE
Be sure to configure this option according to the DisplayPort version supported by your
y
graphics card. Set this option to Disable if your graphics card does not support DisplayPort 1.2.
Buzzer This feature lets you set the sound generated from Buzzer when your monitor powers on to
On or Off.
On Enables your monitor`s Buzzer.
Off Disables your monitor`s Buzzer.
OSD Lock This feature disables the configuration and adjustment of menus.
On Enables OSD Lock.
Off Disables OSD Lock.
21
ENGLISH
ENG
NOTE
All features are disabled except Brightness, Contrast, Volume, Input, OSD Lock in General, and
y
the Exit button.
OSD Size User can select OSD Size to Large or Small.
Reset Do you want to reset your settings?
No Cancel the selection.
Yes Returns to the default settings.
NOTE
Saving Data depends on the Panel. So, these values may be different from each panel and/or panel vendor. If the SMART EN-
y
ERGY SAVING option is High or Low, monitor luminance become higher or lower depending on the source.
Page 22
22
ENGLISH
ENG
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged
in?
Is the power LED on?
Is the power on and the power LED
displaying white?
Is the OUT OF RANGE message
being displayed?
Is the No Signal message being
displayed?
The OSD lock message is being displayed.
Are some functions not available
when you press the Menu button?
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
Check if the power cord is correctly plugged into the power outlet.
y
Check the power cable connection and press the power button.
y
Check that the connected input is enabled (Menu > Input > Input list).
y
This occurs when signals transferred from the PC (graphics card) are out
y
of the horizontal or vertical frequency range of the monitor. Please see
the Product Specification section of this manual to set the appropriate
frequency.
This is displayed when the signal cable between the PC and the monitor is
y
missing or disconnected. Check the cable and reconnect it.
The OSD is locked. Go to Menu > General and set OSD Lock to Off.
y
Displaying a still image for a prolonged time may cause damage to the
y
screen, resulting in the retention of the image.
To extend the lifetime of the monitor, use a screensaver.
y
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate
resolution?
If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen
y
may be flickering. Change the resolution to 1080P or the recommended
resolution.
NOTE
Vertical frequency In order to display an image, the screen must be refreshed dozens of times per second, like a fluorescent
y
lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh rate, and is represented by
Hz.
Horizontal frequency The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided by the
y
horizontal interval, the result is the number of horizontal lines displayed per second. This is called horizontal frequency and is
represented by kHz.
Page 23
NOTE
Check if the graphics card's resolution or frequency is within the range allowed by the monitor and set it to the
y
recommended (optimal) resolution in Control Panel > Display > settings.
Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed
y
screen, a truncated display area, or misalignment of the display.
The setting methods may be different depending on the computer or operating system, and some resolutions
y
may not be available depending on the performance of the graphics card. If this is the case, contact the
manufacturer of the computer or graphics card for assistance.
Some graphics cards may not support 3840 x 2160 resolution. If the resolution cannot be displayed, contact the
y
manufacturer of your graphics card.
The display color is abnormal.
Does the display appear discolored
(16 colors)?
Does the display color appear
unstable or monochrome?
Are there spots on the screen?
Set the color to 24 bit (true color) or higher. In Windows, go to control
y
Panel > Display > Settings > Color Quality.
Check if the signal cable is connected properly. Reconnect the cable or
y
reinsert the PC's graphics card.
When using the monitor, pixilated spots (red, green, blue, white, or black)
y
may appear on the screen. This is normal for an LCD screen. It is not an
error, nor is it related to the monitor's performance.
23
ENGLISH
ENG
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
No sound from the headphone port or speaker.
Are images displayed using
DisplayPort or HDMI input without
sound?
Monitor does not work with external device such as AV Receiver, Blu-ray Player, DVD Player, Set-Top box, HDMI Repeater, etc.
Does the connected device support
UHD resolution (HDMI 2.0)?
Be sure to install the display driver from the display driver CD (or diskette)
y
that comes with your display. Or, you can also download the driver from
our web site: http://www.lg.com.
Make sure to check if the video card supports Plug&Play function.
y
Try increasing the volume using the button on the monitor.
y
Set the audio output of the PC to the monitor you are using. On Microsoft
y
Windows, go to Control Panel > Hardware and Sound > Sound > set the
monitor as default device.
Some devices may have compatibility issues, e.g. no display, no sound, and
y
abnormal color.
Set the HDMI ULTRA HD Deep Color to Off, go to Menu > Picture >
y
Picture Adjust > HDMI ULTRA HD Deep Color.
Page 24
24
ENGLISH
ENG
SPECIFICATIONS
32UD59/32MU59/32UD60
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.181 mm x 0.181 mm
Resolution Maximum Resolution 3840 x 2160 @ 60 Hz
Recommended Resolution 3840 x 2160 @ 60 Hz
Video Signal
Input Connector
Power input 19 V 3.3 A
Power
consumption
(Typ.)
AC/DC adaptor Type DA-65G 19, Asian Power Devices Inc. production
Environmental
Conditions
Dimension Monitor Size (Width x Height x Depth)
Weight (Without
Packaging)
Horizontal Frequency 30 kHz to 135 kHz
Vertical Frequency 56Hz to 61 Hz
32UD59 32MU59
32UD60
On mode: 39 W Typ. (ENERGY STAR® standard)*
50 W Typ. (Outgoing condition)**
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.3 W
Or type LCAP39, LIEN CHANG ELECTRONIC ENTERPRISE production
Output: 19 V 3.42 A
Operating Condition Temperature: (32 °F to 104 °F); Humidity: < 80%
Storing Condition Temperature: (-4 °F to 140 °F); Humidity: < 85%
With Stand 28.67 inches x 18.04 inches x 9.32 inches
Without Stand 28.67 inches x 16.72 inches x 1.96 inches
With Stand 15.65 lbs
Without Stand 11.68 lbs
HDMI IN1, HDMI IN2, DP(DisplayPort) IN, H/P(Headphone) OUT
HDMI IN, DP(DisplayPort) IN, H/P(Headphone) OUT
Product specifications shown above may be changed without prior notice due to upgrade of product functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
** The On mode power consumption is measured with LGE test standard ( Full White pattern , Maximum
resolution).
Page 25
Factory Support Mode (Preset Mode, PC)
HDMI
25
ENGLISH
ENG
Display Modes (Resolution)
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45 60 +/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60 60 +/+
1920 x 1080 67.5 60 +/-
2560 x 1440 88.79 59.95 +/-
3840 x 2160 67.5 30 +/-
3840 x 2160 135 60 +/-
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
DisplayPort
Display Modes (Resolution)
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45 60 +/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60 60 +/+
1920 x 1080 67.5 60 +/-
2560 x 1440 88.79 59.95 +/-
3840 x 2160 66.66 30 +/-
3840 x 2160 133.32 60 +/-
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V) Remarks
When HDMI ULTRA HD Deep
Color is set to ON.
Polarity(H/V) Remarks
Page 26
ENGLISH
ENG
26
HDMI Timing (Video)
Factory support mode
(Preset Mode)
480p 31.5 60
720p 45.0 60
1080p 67.5 60
2160p 135 60
Horizontal
Frequency(kHz)
Power LED
Mode LED Color
On Mode White
Sleep Mode Off
Off Mode Off
Vertical
Frequency(Hz)
Remarks
When HDMI ULTRA HD Deep Color is
set to ON.
Page 27
To obtain the source code under GPL, LGPL, MPL, and other
open source licenses, that is contained in this product,
please visit http://opensource.lge.com.In addition to the
source code, all referred license terms, warranty disclaimers
and copyright notices are available for download.LG
Electronics will also provide open source code to you on
CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping, and
handling) upon email request to opensource@lge.com. This
offer is valid for three (3) years from the date on which you
purchased the product.
Declaration of Conformity
Trade Name: LG
Model : 32UD59/32MU59/32UD60
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
*above information is only for USA FCC Regulatory
This device meets the EMC requirements for home
appliances (Class B) and is intended for home usage. This
device can be used in all regions. Read the owner's manual
(CD) carefully and keep it at hand. Please note that the
label attached to the product provides information for
technical support.
MODEL
SERIAL
EN ER GY STA R® is a se t of po wer-s aving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).
As an ENERGY STAR
Inc. has determined that this product meets the
ENERGY STAR
Re fer to ENERGYSTA R.g ov f or more inf orm ation on the
ENERGY STAR
®
program.
®
Partner LGE U. S. A.,
®
guidelines for energy efciency.
Loading...
