OWNER’S MANUAL
LG Digital
Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it for future reference.
32SM5B |
32SM5KB |
43SM3B |
43SM5B |
43SM5KB |
49SM3B |
49SM5B |
49SM5KB |
55SM3B |
55SM5B |
55SM5KB |
|
65SM5B |
65SM5KB |
|
www.lg.com
2
ENGLISH
TABLE OF CONTENTS
3 SAFETY PRECAUTIONS
3Precautions in installing the product
4Precautions to the AC adapter and electrical power
5Precautions in moving the product
5Precautions in using the product
5Mounting on a wall
6LICENSES
7ASSEMBLY AND PREPARATION
8Optional Accessories
10 Parts and Buttons
10 Assembling the Memory Cover
11Connecting the Stand
12Connecting the Speakers
14Connecting the IR Sensor
15Portrait Layout
16Attaching and removing the LG Logo Bracket

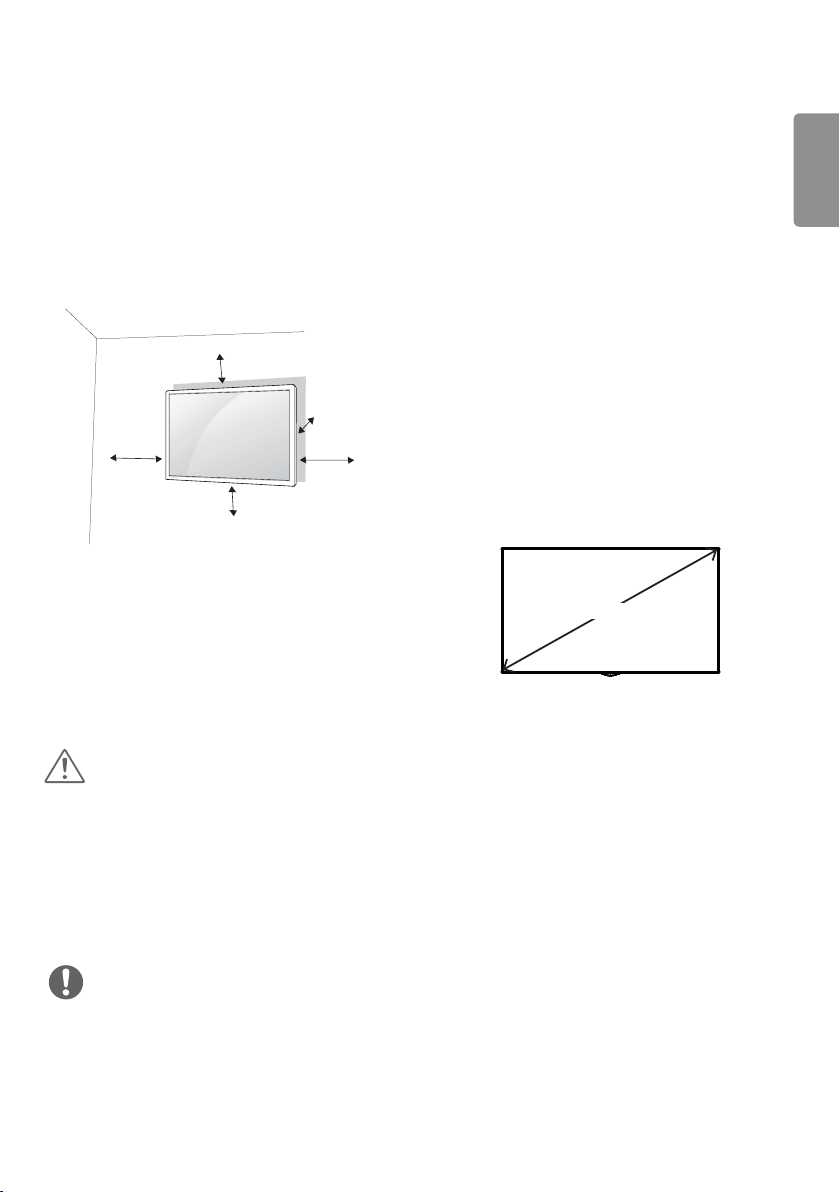

17 Installing on a Wall

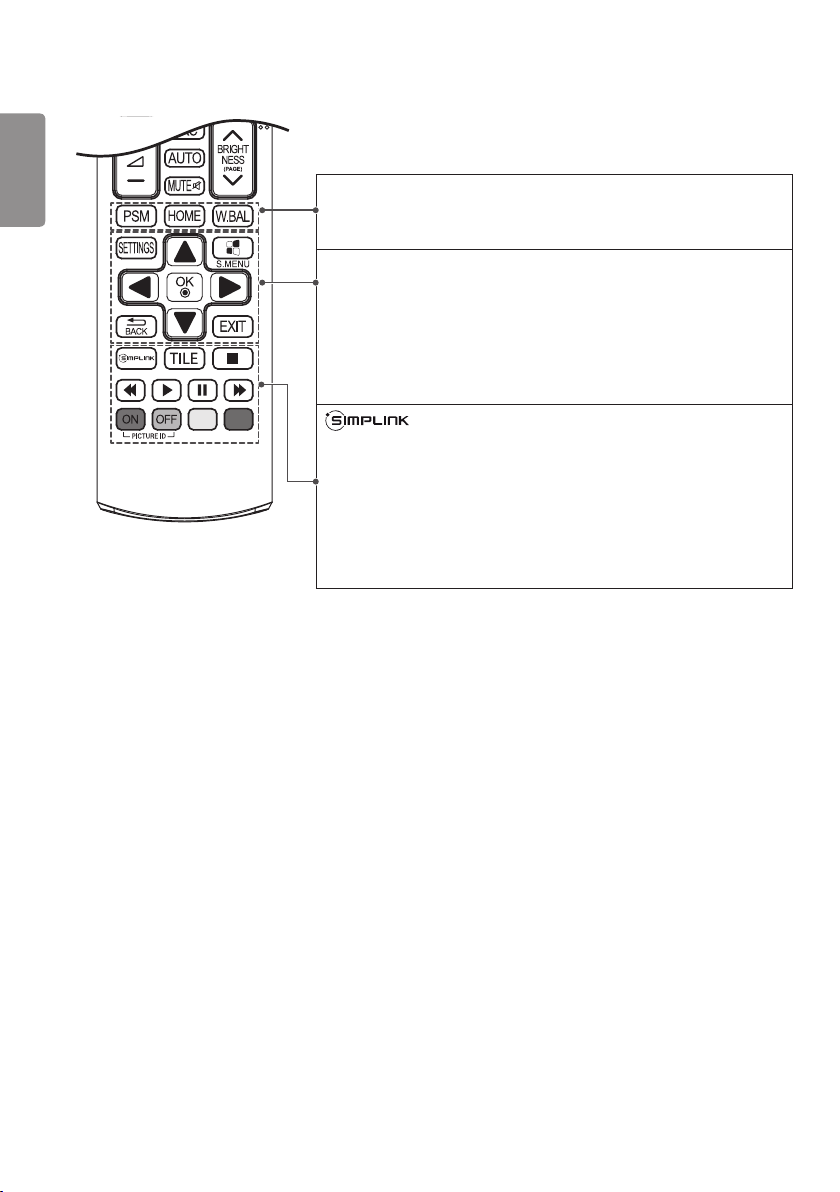

19 REMOTE CONTROL
21 MAKING CONNECTIONS
21 Connecting to a PC
21External Device Connection
22Using the Input List
23TROUBLESHOOTING
26 PRODUCT SPECIFICATIONS
Safety precautions
Please read these safety precautions carefully before using the product.
WARNING
If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or the product may be damaged.
WARNING
•• Indoor Use Only.
Precautions in installing the product
WARNING
•• Keep away from heat sources like electrical heaters.
►►Electrical shock, fire, malfunction or deformation may occur.
•• Keep the packing anti-moisture material or vinyl packing out of the reach of children.
►►Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the
reach of children.
•• Do not put heavy objects on the product or sit upon it.
►►If the product collapses or is dropped, you may be injured. Children
must pay particular attention.
•• Do not leave the power or signal cable unattended on the pathway.
►►The passerby can falter, which can cause electrical shock, fire, product
breakdown or injury.
•• Install the product in a neat and dry place.
►►Dust or moisture can cause electrical shock, fire or product damage.
•• If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the service center.
►►If you continue to use without taking proper measures, electrical
shock or fire can occur.
•• If you dropped the product or the case is broken, turn off the product and unplug the power cord.
►►If you continue to use without taking proper measures, electrical
shock or fire can occur. Contact the service center.
•• Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.
►►It can cause injury to human, problem to product and damage the
display.
•• Do not let the product fall or drop when connecting it with an external device.
►►This may cause injury and/or damage to the product.
•• When connecting it with a game device, keep a distance of four times as long as the diagonal measurement of the screen from the device.
3
•• Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize the residual image prevention function on the product, and when the product is not used, turn off the power. Burn-in and related problems are not covered by the warranty on this product.
•• Do NOT install this product on a wall where there is high risk of exposure to oil fumes or mist.
►►This may damage product and cause is to fail.
CAUTION
•• Make sure the product ventilation hole is not blocked. Install the product in a suitably wide place. (more than 100 mm from the wall)
►►If you install the product too close to the wall, it may be deformed or
fire can break out due to internal heat.
•• Do not block the ventilation hole of the product by a tablecloth or curtain.
►►The product can be deformed or fire can break out due to overheating
inside the product.
•• Install the product on a flat and stable place that has no risk of dropping the product.
►►If the product is dropped, you may be injured or the product may
be broken.
•• Install the product where no EMI occurs.
•• Keep the product away from direct sunlight.
►►The product can be damaged.
•• If you install the product in a place that does not meet the recommended conditions, this may cause serious damage to the product’s picture quality, life cycle and appearance. Please check with LG or a qualified installer before installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a long period of time (airport and train station), failure to do so will invalidate the warranty.
•• Do not install the product in an area with poor ventilation (e.g.on a bookshelf, in a closet) or outside and avoid placing on cushions or carpets.
•• In addition, do not install it where there are heating objects such as lighting equipment.
ENGLISH
►►If the product falls because of the short cable, this may cause injury and/or damage to the product.
|
4 |
ENGLISH |
Precautions to the AC adapter and |
electrical power |
|
WARNING |
•• If water or any foreign substance goes inside the product (TV, monitor, power cord, or AC adapter), disconnect the power cord immediately and contact the service center.
►►Otherwise, this may cause a fire or electric shock due to damage to
the product.
•• Do not touch the power plug or AC adapter with wet hands. If the pins of the plug are wet or dusty, wipe and dry them before use.
►►Otherwise, this may cause a fire or electric shock.
•• Make sure to completely insert the power cord into the AC adapter.
►►If loosely connected, the poor connection may cause a fire or electric
shock.
•• Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc.
►►The use of non-approved products may cause a fire or electric shock.
•• When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force.
►►The power line can be damaged, which may cause electric shock
or fire.
•• Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects.
►►Damaged power cords may cause a fire or electric shock.
•• Never disassemble, repair or modify the power cord or AC adapter.
•• Make sure to connect the power cable to the grounded current.
•• Use the rated voltage only.
•• In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous.
►►It can cause electric shock.
•• Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a power bar with a
grounding terminal designed for exclusive use with the computer.
►►A fire can break out due to overheating.
•• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.
►►You may be electrocuted due to excess moisture.
•• If you don't intend to use the product for a long time, unplug the power cable from the product.
►►Covering dust can cause a fire, or insulation deterioration can cause
electric leakage, electric shock or fire.
•• Fix the power cable completely.
►►If the power cable is not fixed completely, a fire can break out.
•• Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal.
►►You may be electrocuted.
•• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.
CAUTION
•• Be sure to keep the outlet, AC adapter, and pins of the power plug clean from dust and etc.
►►This may cause a fire.
•• Do not unplug the power cord while the product is in use.
►►Electrical shock can damage the product.
•• Use only the power cord supplied with the unit. If you use another power cord, make sure that it is certified by the applicable national standards when not provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.
•• The appliance coupler is used as the disconnect device.
•• Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily accessible.
Precautions in moving the product
WARNING
•• Make sure to turn off the product.
•• Make sure to remove all cables before moving the product.
•• Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged product can cause electric shock or fire. Contact an authorized the service center for repair.
•• Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger apparatus. Do not press against or put stress on the front panel of the apparatus.
CAUTION
•• Do not shock the product when moving it.
►►You may be electrocuted or the product can be damaged.
•• Do not dispose the product-packing box. Use it when you move.
Precautions in using the product
WARNING
•• Do not disassemble, repair or modify the product at your own discretion.
►►Fire or electric shock accident can occur.
►►Contact the service center for check, calibration or repair.
•• When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.
•• Keep the product away from water.
►►Fire or electric shock accident can occur.
•• Do not shock or scratch the front and sides of the screen with metallic objects.
►►Otherwise, it may cause damage to the screen.
•• Avoid high temperatures and humidity.
CAUTION
•• Do not put or store inflammable substances near the product.
►►There is a danger of explosion or fire due to careless handling of the
inflammable substances.
•• When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners or alcohol)
•• Take a rest from time to time to protect your vision.
•• Keep the product clean at all times.
•• Take a comfortable and natural position when working with a product to relax the muscles.
•• Take a regular break when working with a product for a long time.
•• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
•• Keep the proper distance from the product.
5
•• Set the appropriate resolution and clock by referring to the User’s Guide.
►►Your vision can be impaired.
•• Use authorized detergent only when cleaning the product. (Do not use benzene, thinner or alcohol.)
►►Product can be deformed.
•• Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).
•• Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace and electric heaters.
•• Do NOT place non-rechargeable batteries in charging device.
•• Using headsets (earphones) for a long time or listening loudly can cause damage to your hearing.
•• Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining.
•• Do not use products using high voltage around the Monitor. (e.g., a bug zapper)
►►Monitor may have malfunction as its electrical shock.
Mounting on a wall
•• Do NOT install this product by yourself as you may injure yourself or cause damage to product. Please contact Service personnel authorised by Manufacturer.
ENGLISH
►►Your vision may be impaired if you look at the product too closely.
ENGLISH
6
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.
To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license.
Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents]
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
NOTE
•• The warranty will not cover any damage caused by using the product in an excessively dusty environment.
7
ASSEMBLY AND PREPARATION
CAUTION
•• Always use genuine components to ensure safety and product performance.
•• The product warranty will not cover damage or injury caused by the use of counterfeit components.
NOTE
•• The accessories provided with your product may vary depending on the model or region.
•• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
•• SuperSign Software & Manual
-Downloading from the LG Electronics website.
-Visit the LG Electronics website (www.lgecommercial.com/supersign) and download the latest software for your model.
ENGLISH
8
ENGLISH
Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.
Screws
|
|
|
|
Diameter 4.0 mm x Pitch 0.7 mm |
||
|
|
Stand |
|
Length |
|
|
|
|
Spacers |
Model |
Quantity |
||
|
|
|
|
(including |
||
|
|
32SM5* |
- |
|
spring washer) |
|
|
Stand |
43SM5* |
|
32SM5* |
10 mm |
6 EA |
|
|
|
|
|
||
|
43SM3B |
|
43SM5* |
14 mm |
8 EA |
|
ST-322T |
32SM5* |
|
||||
49SM5* |
|
43SM3B |
||||
|
|
|
||||
ST-432T |
43SM5*/43SM3B |
49SM3B |
2 EA |
49SM5* |
14 mm |
8 EA |
|
49SM5*/55SM5* |
55SM5* |
|
49SM3B |
||
ST-492T |
|
|
|
|||
49SM3B/55SM3B |
55SM3B |
|
55SM5* |
14 mm |
8 EA |
|
|
|
|||||
ST-652T |
65SM5* |
65SM5* |
|
55SM3B |
||
|
|
|
||||
|
65SM5* |
16 mm |
8 EA |
|||
|
|
|
|
|||
Stand kit
Speakers |
Cable holder/ |
Screws |
SP-5000 |
Cable Tie |
Diameter 4.0 mm x |
|
|
|
|
|
Pitch 0.7 mm x |
|
|
Length 8 mm |
|
|
(including spring washer) |
Speaker kit
Screws
Diameter 4.0 mm x Pitch 1.6 mm x Length 10 mm
(Only for **SM5B, **SM3B model)
9
ENGLISH
Media Player |
Screws |
CD (Owner's Manual)/ |
|
Cards |
|||
MP500/ MP700 |
|
||
|
|
Media Player kit
( It may not be supported depending on the model.)
KT-OPSA |
Screws |
Connecting |
Card |
Power Cord |
|
|
Cable |
(Easy Setup Guide) |
|
OPS kit
KT-SP0
Pixel sensor kit
NOTE
•• Cable holder/cable tie may not be available in some areas or for some models.
•• Optional accessories are available for some models. If necessary, please purchase them separately.
•• Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.
•• Before you attach the OPS kit or Media Player, connect the cable to the port.
10
Parts and Buttons
ENGLISH |
- The image may be different according to the |
|
|
|
model. |
Assembling the Memory Cover
Assemble the cover with a screw as illustrated to prevent the USB memory from theft.
1
2
|
Buttons |
yy |
:Changes the input source. |
yy |
: Accesses the main menus, or saves your |
|
input and exits the menus. |
yy |
: Adjust the up and down. |
yy |
: Moves left and right. |
yy |
: Displays the current signal and mode. |
yy
/I: Turns the power on or off.
|
11 |
|||
Connecting the Stand |
|
|
|
|
43/49/55/65SM5* |
|
43/49/55SM3B |
||
- For certain models only.
- The image may be different according to the
model.
1
32SM5*
1
2
2
3
ENGLISH
Loading...
