Owner's Manual
LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
Please read this manual carefully before operating
your set and retain it for future reference.
LED MONITOR MODEL
32MP58HQ
www.lg.com
TABLE OF CONTENTS
2
ENGLISH
CONTENTS
3 LICENSE
4 ASSEMBLING AND PREPAR-
4 Unpacking
6 Parts and buttons
6 - How to Use the Joystick Button
7 - Input Connector
8 Moving and Lifting the Monitor
9 Setting up the Monitor set
9 - Attaching the Stand Base
10 - Detaching the Stand Base
11 - Mounting on a table
12 - Using the cable holder
14 - Mounting on a wall
ING
28 TROUBLESHOOTING
30 SPECIFICATIONS
31 Preset Modes (Resolution)
31 Indicator
32 PROPER POSTURE
32 Proper posture for using the Monitor set.
15 USING THE MONITOR SET
15 Connecting to a PC
15 - D-SUB connection
15 - HDMI connection
16 Connecting to AV Devices
16 - HDMI connection
17 Connecting to External Devices
17 - Peripheral device connection
18 CUSTOMIZING SETTINGS
19 Customizing settings
19 - Menu Settings
19 - -Quick Settings
21 - -Picture
24 - -General
25 - -Auto Configuration
26 - -Reset
27 - -Picture mode
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
LICENSE
3
ENGLISH
ENG
The following content is only applied to the monitor which is sold in Europe market and which needs to
meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
ASSEMBLING AND PREPARING
4
ENGLISH
ENG
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
D-SUB Cable
CD(Owner's Manual) /
Card
Power Cord
( Depending on the country )
( This cable is not included in all
countries. )
or
AC-DC Adapter
AC-DC Adapter
( Depending on the country )
Stand Body
HDMI Cable
( This cable is not included in all
countries. )
Stand Base
Cable Holder
ASSEMBLING AND PREPARING
5
CAUTION
Do not use any unapproved accessories to ensure the safety and product life span.
y
Any damages or injuries by using unapproved accessories are not covered by the warranty.
y
NOTE
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
y
of product functions.
ENGLISH
ENG
ENGLISH
ENG
ASSEMBLING AND PREPARING
6
Parts and buttons
Joystick Button/
Power Indicator
On: power is on
y
Off: power is off
y
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Press the joystick button once with your finger to turn on the
monitor.
Press and hold the joystick button once with your finger to turn off
the monitor.
You can control the volume by moving the joystick button left/right.
◄/►
Power on
Power off
Volume
Control
NOTE
The joystick button is located at the bottom of the monitor.
y
Parts and buttons
Input Connector
ASSEMBLING AND PREPARING
7
ENGLISH
ENG
ASSEMBLING AND PREPARING
8
ENGLISH
ENG
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe transportation regardless of its shape or size.
It is advisable to place the monitor in the
y
original box or packing material before attempting to move it.
Before moving or lifting the monitor, discon-
y
nect the power cord and all cables.
Hold the top and bottom of the monitor frame
y
firmly. Do not hold the panel itself.
When holding the monitor, the screen should
y
face away from you to prevent it being
scratched.
When moving the monitor, avoid any strong
y
shock or vibrations to the product.
When moving the monitor, keep it upright,
y
never turn the monitor on its side or tilt it
sideways.
CAUTION
As far as possible, avoid touching the moni-
y
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
Setting up the Monitor set
ASSEMBLING AND PREPARING
9
Attaching the Stand Base
1
Please put a soft cloth on a low table or box
1
to protect the screen of the monitor.
Please put the monitor on the soft cloth with
2
the screen facing down.
Please push the
1
3
of the arrow as shown below and assemble
together.
Please use a driver(-) or coin to insert thumb
2
screw and turn right arrow direction lock.
* It is necessary to thoroughly tighten it with
Thumb Screw
Stand Base
, or the monitor will shake.
in the direction
Stand Base
ENGLISH
ENG
Please grab the
2
push it in the direction of the arrow to
body
.After assembling, you must check if the
Stand body
Stand body
latched in or not.
in one hand, and
hinge
Stand body
Please set the Monitor upright, and install the
4
necessary cable.
* Must use one type input cable. Don't use
more than two types cable together.
ENGLISH
ENG
ASSEMBLING AND PREPARING
10
Detaching the Stand Base
Please remove the cable installed to the monitor.
1
Please put a soft cloth on a low table or box to
1
2
protect the screen of the monitor.
2
Please pull the
the arrow as shown below and disassemble
as shown below.
After fixing the monitor in one hand, remove the
4
Stand body
of the arrow as shown below.
Stand Base
by pulling it strongly in the direction
in the direction of
Please put the monitor on the soft cloth with
2
the screen facing down.
1
Please use the driver(-) or coin insert thumb
3
screw and turn left arrow direction unlock.
* If it is difficult to remove, you can push the
Latch with a small flat-head screw driver or a
flat-headed tool and disassemble as shown
below.
ASSEMBLING AND PREPARING
11
CAUTION
Illustrations in this document represent typical pro-
y
cedures, so they may look different from the actual
product.
Do not carry the monitor upside down by just hold-
y
ing the stand base. This may cause the monitor to
fall off the stand and could result in personal injury.
When lifting or moving the monitor, do not touch
y
the monitor screen. The force applied to the monitor screen may cause damage to it.
If you use the monitor panel without the stand
y
base, its joystick button may cause the moni-tor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.

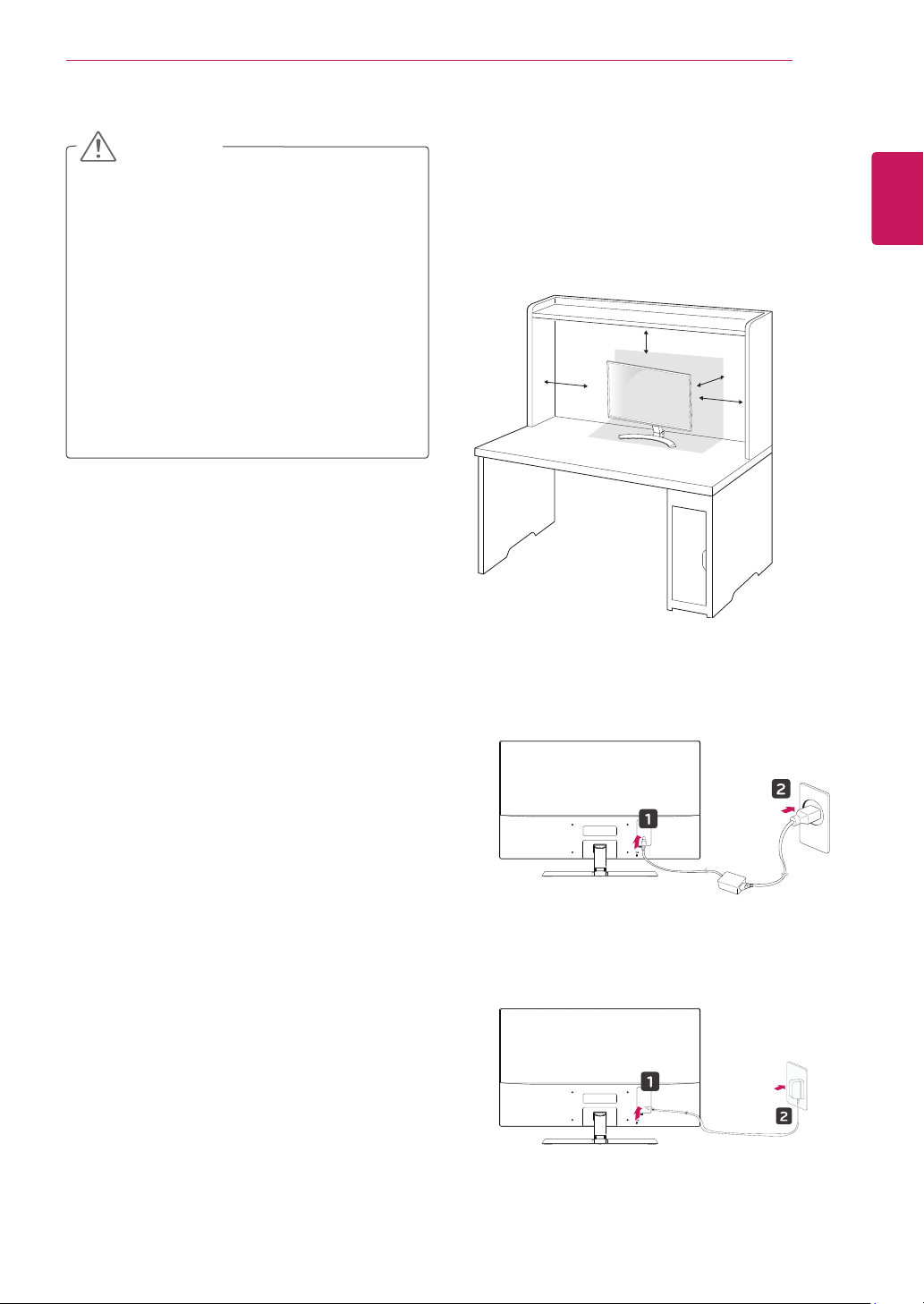

Mounting on a table
Lift and tilt the Monitor set into its upright
1
position on a table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
10 cm
10 cm
10 cm
10 cm
ENGLISH
ENG
Connect the AC-DC Adapter and Power Cord
2
to a wall outlet.
or
ENGLISH
ENG
ASSEMBLING AND PREPARING
12
Press the joystick button on the bottom of the
3
monitor to turn on the monitor.
CAUTION
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
WARNING
When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Using the cable holder
Cable holder
Do not touch or press the screen when
adjusting the angle of the monitor.
Do not hold this set like below picture.Monitor
screen can detach from stand base and injure
your body.
ASSEMBLING AND PREPARING
13
NOTE
Tilt from +10 to -5 degrees up or down to adjust
the angle of the Monitor set to suit your view.
Front Rear
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
Connect the Kensington security system cable
between the Monitor set and a table.
http://www.kensington.com
.
ENGLISH
ENG
NOTE
The Kensington security system is optional.
You can obtain it from most electronics stores.
ENGLISH
ENG
ASSEMBLING AND PREPARING
14

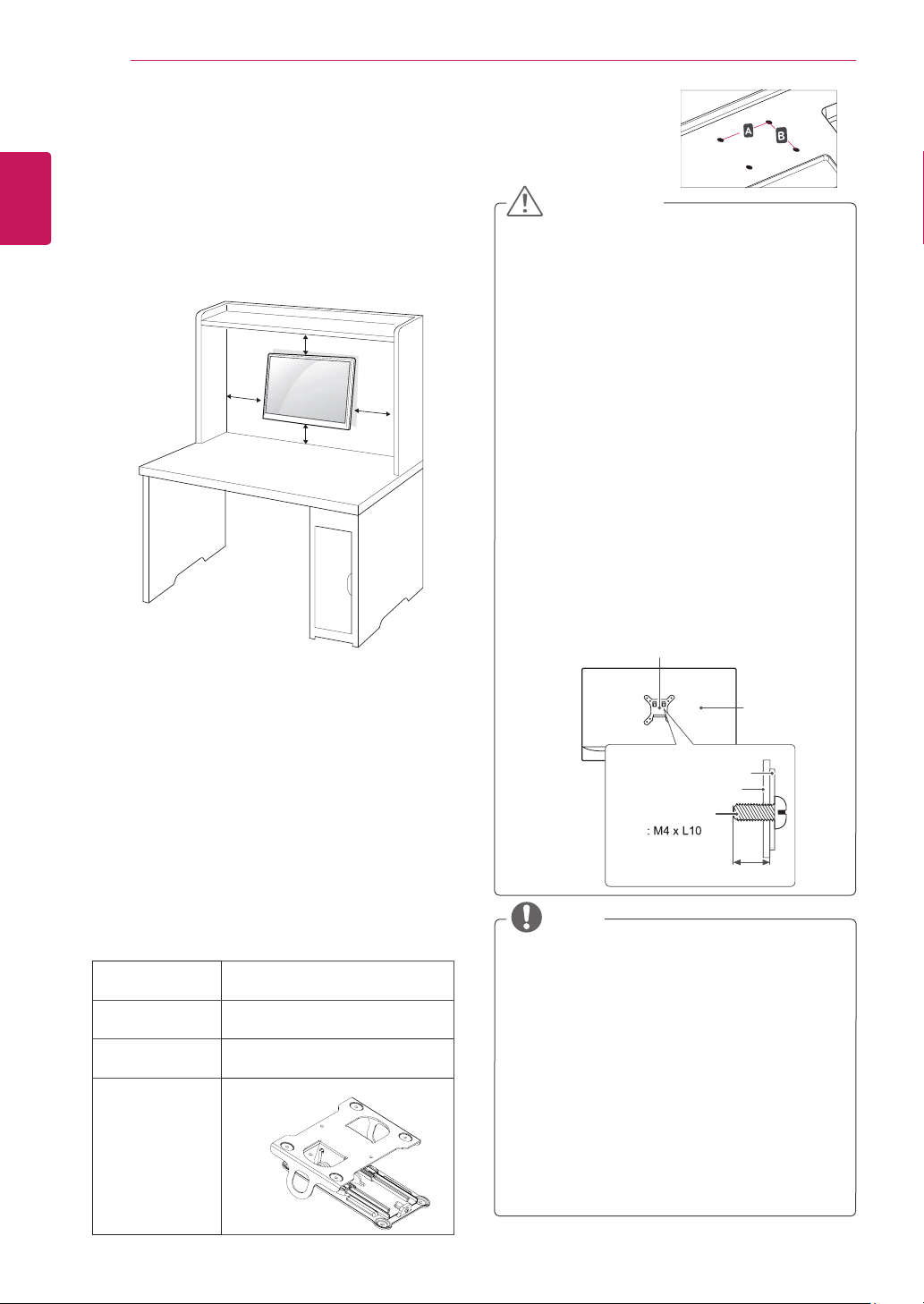

Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
10 cm
10 cm
10 cm
10 cm
Wall Mount (A X B)
y
CAUTION
Disconnect the power cord first, and then
y
move or install the Monitor set. Otherwise
electric shock may occur.
If you install the Monitor set on a ceiling or
y
slanted wall, it may fall and result in severe
injury.
Use only an authorized LG wall mount
y
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
y
cause damage to the Monitor set and void
your warranty.
Use only screws and wall mounts that meet
y
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
Screw length from outer surface of back
y
cover should be under 8mm.
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1 If you use screw longer than standard, the moni-
tor might be damaged internally.
2 If you use improper screw, the product might be
damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
Wall Mount
(A X B)
Standard
screw
Number of
screws
Wall Mount
Plate
(Optional)
200 x 100
M4 x L10
4
RW240
(M4 x L25)
Wall mount Pad
Back Cover
Wall mount Pad
Back Cover
Standard screw
Max.8mm
NOTE
Use the screws that are listed on the VESA
y
standard screw specifications.
The wall mount kit will include an installation
y
manual and necessary parts.
The wall mount bracket is optional. You can
y
obtain additional accessories from your local
dealer.
The length of screws may differ depending
y
on the wall mount. Be sure to use the proper
length.
For more information, refer to the instructions
y
supplied with the wall mount.
USING THE MONITOR SET
15
USING THE MONITOR SET
Connecting to a PC
Your Monitor set supports Plug & Play*.
y
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown in
the following illustrations.
ENGLISH
ENG
NOTE
When using a D-Sub signal input cable
y
connector for Macintosh
Mac adapter
y
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
NOTE
If you use HDMI PC, it can cause compatibility
y
problem.
Use a certified cable with the HDMI logo
y
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
Recommended HDMI cable types
y
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
USING THE MONITOR SET
16
ENGLISH
CAUTION
Connect the signal input cable
y
and tighten it by turning the
screws clockwise.
Do not press the screen with
y
your finger for a long time as this may
result in temporary distortion on the screen.
Avoid displaying a fixed image on the
y
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
NOTE
When you want to use two PC in our Monitor,
y
please connect the signal cable(D-SUB/
HDMI) respectively in Monitor set.
If you turn the Monitor set on while it is cold,
y
the screen may flicker. This is normal.
Some red, green, or blue spots may appear
y
on the screen. This is normal.
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from
your AV devices to the monitor. Connect your AV
device to the monitor with the HDMI cable as illustrated below.
NOTE
If you use HDMI PC, it can cause compatibility
y
problem.
Use a certified cable with the HDMI logo
y
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
Recommended HDMI cable types
y
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
USING THE MONITOR SET
17
Connecting to External Devices
Peripheral device connection
Connect peripheral devices to the monitor using
headphone ports.
(sold separately)
NOTE
Peripheral devices are sold separately.
y
Cables with angled plugs may have clear-
y
ance issues, use straight plugs when possible.
ENGLISH
ENG
Angle Type Straight Type
NOTE
Headphones or speakers may not work nor-
y
mally, depending on the server PC settings.
CUSTOMIZING SETTINGS
18
CUSTOMIZING SETTINGS
ENGLISH
ENG
Activating the Main Menu
Press the joystick button on the bottom of the monitor.
1
Move the joystick up/down (▲/▼) and left/right(◄/►) to
2
set the options.
Press the joystick button once more to exit the main
3
menu.
Button Menu Status Description
Main menu disabled
Main menu enabled
Main menu disabled
◄
Main menu enabled
Main menu disabled
►
Main menu enabled
Main menu disabled
▲
Main menu enabled
Main menu disabled
▼
Main menu enabled
Enables the main menu.
Exits the main menu.
(Holding down the button to turn off the monitor: You can turn off
the monitor this way at any time, including when the OSD is on.)
Adjusts the monitor volume level.
Enables the main menu.
Enters the menu features.
Adjusts the monitor volume level.
Enables the main menu.
Operates the Input change.
Enables the main menu.
Enters the picture mode feature.
Enables the main menu.
Turns off the monitor.
Power Indicator
Joystick Button
Main Menu Features
Main
Menu
Menu
Mode
Input
Monitor
off
Exit
Description
Configures the screen settings.
Select picture mode to achieve the best
display effect.
You can operate the change of input sig nals.
• When two input signals over are con nected
and select the input menu, input signal(D-SUB/
HDMI) will be changed sequentially.
• When only one signal is connected, it is automatically detected. The default setting is D-SUB.
Turns off the monitor.
Exits the main menu.
CUSTOMIZING SETTINGS
Color Adjust
Auto
Configuration
19
Customizing settings
Menu Settings
-Quick Settings
To view the
1
OSD menu
, press the
bottom of the monitor and then enter the
Quick Settings >
Go to
2
Configure the options following the instructions that appear in the
3
Brightness
bottom right corner.
To return to the upper menu or set other menu items, move the
4
joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until you
5
exit.
Each option is described below.
Menu > Quick Settings Description
Brightness
Contrast
Volume Adjusts the volume.
Adjusts the color contrast and brightness of the screen.
joystick button
Menu
at the
.
by moving the joystick.
ENGLISH
ENG
NOTE
Jog joystick button down (
y
enable/disable the Mute function.
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
SMART ENERGY
SAVING
* SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.
High
Low
Off Disables SMART ENERGY SAVING .
Enables SMART ENERGY SAVING you can save energy with this energy- high efficient
function.
Enables SMART ENERGY SAVING you can save energy with this energy- low
efficient function.
) in the Volume menu will
NOTE
The display may look the same for Wide, Original options at the recommended resolution (1920 x
y
1080).
The ratio is disabled in the interlaced signal.
y
CUSTOMIZING SETTINGS
20
ENGLISH
ENG
NOTE
Saving Data depends on the Panel. So,those values should be different from each panel and panel
y
vendor.If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or
lower depend on source.
-Picture
To view the
1
OSD menu
, press the
the bottom of the monitor and then enter the
Go to
2
Configure the options following the instructions that
3
by moving the joystick.
appear in the bottom right corner.
To return to the upper menu or set other menu items,
4
move the joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick
5
to ◄ until you exit.
Each option is described below.
joystick button
Menu
at
.
Auto
Configuration
CUSTOMIZING SETTINGS
Color Adjust
21
ENGLISH
ENG
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be ad-
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Color
weakness
Game Optimizes the screen for gameplay.
justed.
screen more bright, you can control brightness in Menu OSD.
more bright, you can control brightness in Menu OSD.
This mode is for users who cannot distinguish between red and green.It enables users
with color weakness to easily distinguish between the two colors.
NOTE
This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen,
y
please turn off this function.
This function can’t distinguish some colors in some images.
y
CUSTOMIZING SETTINGS
22
ENGLISH
ENG
Picture Adjust SUPER RESOLU-
TION+
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
Response Time Sets a response time for displayed pictures based on the speed of
Over Scan To select the range of output image for DTV timing in HDMI input.
DFC Adjusts the brightness automatically according to the screen.
Black Stabilizer Black Stabilizer
High Optimized picture quality is displayed when a user
Middle The optimized picture quality is displayed when a
Low The optimized picture quality is displayed when a user
Off Select this option for everyday viewing. SUPER
yOffset:
the monitor can display.
High The picture of the screen gets brighter.
Low The picture of the screen gets darker.
the screen. For a normal environment, it is recommended that you
use Normal. For a fast-moving picture, it is recommended that you
use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Sets the response time to Off.
(only for HDMI input)Recommend overscan function to turn on when
connect AV equipment.
: You can control the black contrast to have better visibility in dark
scenes.
Increasing the Black Stabilizer value brightens the low gray level
area on the screen. (You can easily distinguish objects on dark
game screens.)
Reducing the Black Stabilizer value darkens the low gray level area
and increases the dynamic contrast on the screen.
wants crystal clear images. It is effective forhigh quality
video or game.
user wants images between low and highmodes for
comfortable viewing. It is effective for UCC or SD
video.
wants smooth and natural images. It iseffective for
slow-moving pictures or still images.
RESOLUTION+ is turned off in this mode.
as a reference for a video signal, this is the darkest color
CUSTOMIZING SETTINGS
23
Color Adjust Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2, Off
Color Temp Selects the factory default picture color.
Six Color Meets the user requirements for colors through adjusting the color
Reset Returns the color settings to the default settings.
Display Horizontal To move image left and right.
Vertical To move image up and down.
Clock To minimize any vertical bars or stripes visible on the screen
Phase To adjust the focus of the display. This item allows you to remove
on
the monitor, high gamma values display whitish images and low
gamma
values display blackish images.
If user don't want adjusted gamma, user can select Gamma off.
Warm:
Sets the screen color to a reddish tone.
Medium:
Cool:
Custom
Red
Green
Blue
and saturation of the six colors(
Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue,
Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_
Hue, Yellow_Saturation
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower
the value, less saturated and bright the colors become. The higher
the value, the more saturated and dark the colors become.
background.The horizontal screen size will also change.
any horizontal noise and clear or sharpen the image of characters.
Sets the screen color between a red and blue tone.
Sets the screen color to a bluish tone.
You can customize the picture color using Red,
Green, and Blue colors.
Red_Hue, Red_Saturation, Green_
) and saving the settings.
ENGLISH
ENG
ENGLISH
ENG
CUSTOMIZING SETTINGS
24
-General
.
General
OSD menu
by moving the joystick.
, press the
To view the
1
ton
at the bottom of the monitor and then enter the
Menu
Go to
2
Configure the options following the instructions that
3
appear in the bottom right corner.
To return to the upper menu or set other menu items,
4
move the joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick
5
to ◄ until you exit.
joystick but-
Each option is described below.
Menu > General Description
Language To choose the language in which the control names are displayed.
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
Automatic Standby The monitor will automatically switch to standby mode after a certain period.
Resolution User can set the desired resolution.This option is enabled only when the screen resolution on
your computer is set to the following(D-SUB only).
NOTE
The function is enabled only when the screen resolution on your computer is set to the
following, except that the PC output wrong resolution.
1024x768, 1280x768, 1360x768, 1366x768,Off
1280x960, 1600x900,Off
1440x900, 1600x900,Off
OSD Lock Prevents incorrect key input.
On Key input is disabled.
NOTE
All functions except for the OSD Lock mode and the Exit button for Brightness, Contrast, Volume, Input, and General are disabled.
Off Key input is enabled.
-Auto Configuration
To view the
1
bottom of the monitor and then enter the
Go to
2
Configure the options following the instructions that appear in the
3
bottom right corner.
To return to the upper menu or set other menu items, move the
4
joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until
5
you exit.
OSD menu

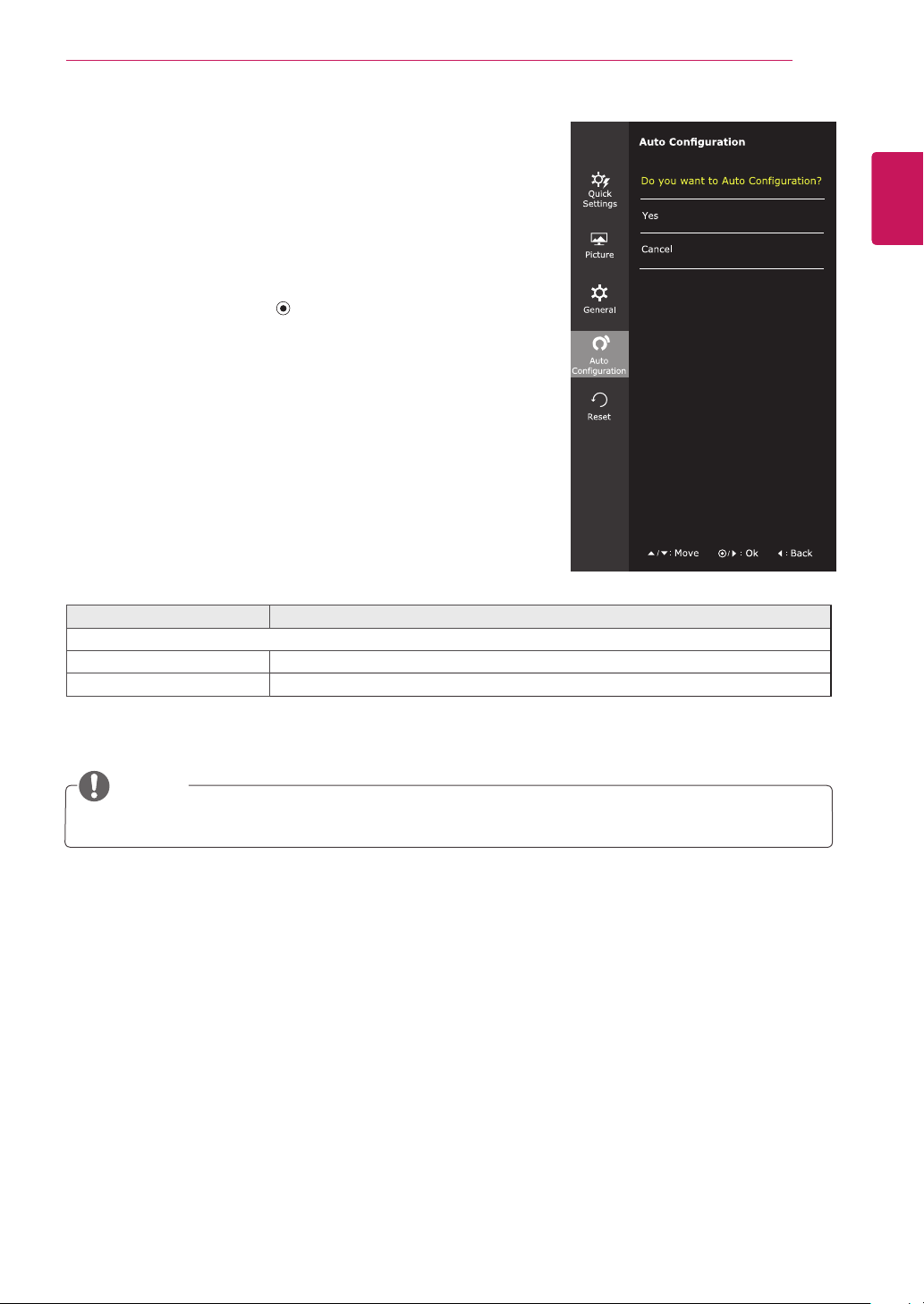

Auto Configuration
, press the
by moving the joystick.
joystick button
Menu
.
at the
CUSTOMIZING SETTINGS
25
ENGLISH
ENG
Each option is described below.
Menu > Auto Configuration Description
Do you want to Auto confuguration?
Yes Operate the Auto configuration for optimal display in D-SUB.
Cancel Cancel the select.
NOTE
This function will be enable only in analog input.
y
ENGLISH
ENG
CUSTOMIZING SETTINGS
26
-Reset
To view the
1
ton
at the bottom of the monitor and then enter the
Menu
Go to
2
Configure the options following the instructions that
3
appear in the bottom right corner.
To return to the upper menu or set other menu items,
4
move the joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick
5
to ◄ until you exit.
Each option is described below.
Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.
OSD menu
.
Reset
by moving the joystick.
, press the
joystick but-
CUSTOMIZING SETTINGS
27
-Picture mode
Press the joystick button on the bottom of the monitor.
1
Picture mode
Go to
2
Configure the options following the instructions that appear in the
3
bottom.
Each option is described below.
Joystick Button >
Picture Mode
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be
by moving the joystick button to ▲.
Description
adjusted.
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Color weakness
Game Optimizes the screen for gameplay.
screen more bright, you can control brightness in Menu OSD.
screen more bright, you can control brightness in Menu OSD.
This mode is for users who cannot distinguish between red and green.It enables
users with color weakness to easily distinguish between the two colors.
ENGLISH
ENG
TROUBLESHOOTING
28
ENGLISH
ENG
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
Is the power indicator light on?
Is the power indicator flickering?
Do you see an "OUT OF RANGE"
message on the screen?
Do you see a "NO SIGNAL"
message on the screen?
Can 't you control some functions in OSD?
Can't you select some menu in
OSD?
Display image is incorrect
Display Position is incorrect.
On the screen background, vertical
bars or stripes are visible.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
yCheck and see if the power cord is connected properly to the power
outlet.
yPress the Power button.
yIf the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
yTry to turn on the PC.
yThis message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
yWhen the monitor is on "No-Signal" in 5 minutes, the monitor goes to
DPM mode.
yYou can unlock the OSD controls at any time by entering the OSD
lock menu and changing items to off.
yEnter the Auto Configuration function and select the "Yes" item to
automatically adjust your display image to the ideal setting.
yEnter the Auto Configuration function and select the "Yes" item to
automatically adjust your display image to the ideal setting.
yEnter the Auto Configuration function and select the "Yes" item to
automatically adjust your display image to the ideal setting.
yCheck Control Panel ► Display ► Settings and adjust the display to
the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
TROUBLESHOOTING
CAUTION
Control Panel ► Display ► Settings
Check
y
changed. If yes, readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
y
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
y
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
Display image is incorrect
The screen color is mono or
abnormal.
The screen blinks.
yCheck if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
yMake sure the video card is properly inserted in the slot.
ySet the color setting higher than 24 bits (true color) at
► Settings
yCheck if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
and see if the frequency or the resolution were
Control Panel
.
29
ENGLISH
ENG
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
The screen is flickering.
Did you select the recommended
resolution?
yBe sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
yMake sure to check if the video card supports Plug&Play function.
yIf the selected resolution is HDMI
be flickering. Change the resolution to the recommended resolution
1080P
.
1080i
60/50 Hz, the screen may
SPECIFICATIONS
30
ENGLISH
ENG
SPECIFICATIONS
32MP58HQ
Display Screen Type Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Pixel Pitch 0.36375 mm x 0.36375 mm (Pixel Pitch)
Resolution Max 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Power
Consumption
Power Input 19 V 2.0 A
AC-DC Adapter
Dimensions
(Width x Height x
Depth)
Weight 6.5 kg
Tilt Range -5° to 10°
Environmental
conditions
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Video Input Signal Input 15 pin D-SUB Connector,HDMI Connector
Plug & Play DDC 2B(Analog),DDC 2B(HDMI)
On Mode : 34 W (ENERGY STAR® standard)*
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
Type ADS-45SN-19-3 19040G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21C, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26B-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
OUTPUT:
With Stand 726.6 mm x 204.8 mm x 491.9 mm
Without Stand 726.6 mm x 94.1 mm x 430.1 mm
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Vertical Frequency 56 Hz to 61 Hz (D-SUB)
Input Form Separate Sync.
Input Form RGB Analog (0.7 Vp-p/ 75 ohm),Digital
19 V 2.1 A
0 °C to 40 °C
≤ 80 %
-20 °C to 60 °C
≤ 85 %
56 Hz to 61 Hz (HDMI)
Digital
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
* ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
Preset Modes (Resolution)
D-SUB/HDMI PC Timing
SPECIFICATIONS
31
ENGLISH
ENG
Display Modes (Resolution)
640 x 480 31.469 60 -/-
800 x 600 37.879 60 +/+
1024 x 768 48.363 60 -/-
1280 x 1024 63.981 60 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.5 60 +/+ Recommend Mode
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
HDMI Timing(Video)
Factory support mode
(Preset Mode)
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080P 56.25 50 O
1080P 67.50 60
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
HDMI
O
Recommend Mode
Indicator
Mode LED Color
On Mode White (Only 15 seconds)
Sleep Mode Blinking White
Off Mode Off
PROPER POSTURE
32
ENGLISH
ENG
horizontally outright.
PROPER POSTURE
Proper posture for using the Monitor set.
Adjust the
Monitor set and
your posture to
allow you to view
images at the
optimal viewing
angle.
Place your hands
gently on the
keyboard, keeping
your arms bent at
the elbows and
Adjust the location of the
Monitor set to avoid it
reflecting light.
Declaration of Conformity
Trade Name: LG
Model : 32MP58HQ
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
*above information is only for USA FCC Regulatory
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
ENERGY STAR® is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).
As an ENERGY STAR® Partner LGE
U. S. A., Inc. has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
Refer to ENERGYSTAR.gov for more information
on the ENERGY STAR® program.
Loading...
