LG 32LS3400-DA Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

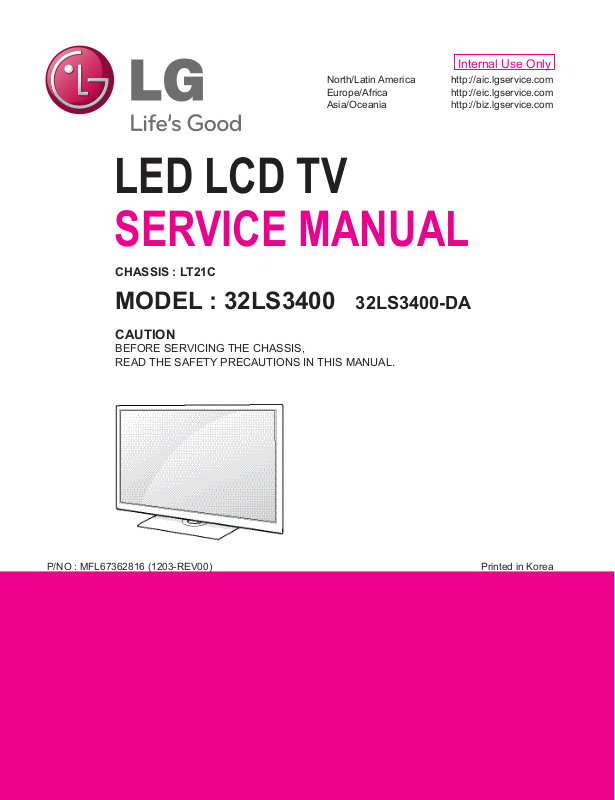

LED LCD TV

SERVICE MANUAL

CHASSIS : LT21C

MODEL : 32LS3400 32LS3400-DA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67362816 (1203-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION .............................................................. 10

TROUBLE SHOOTING ............................................................................ 19

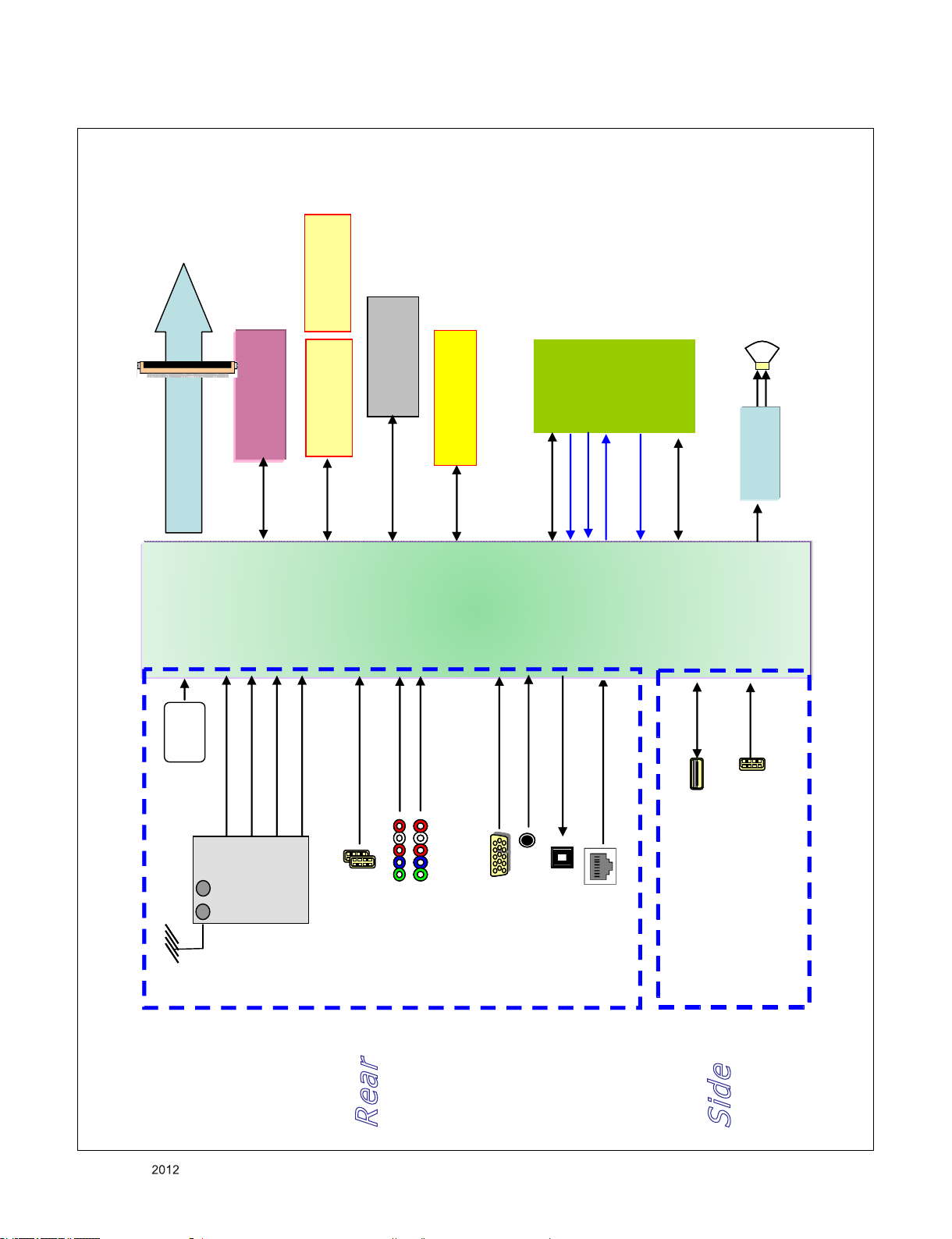

BLOCK DIAGRAM .................................................................................. 25

EXPLODED VIEW .................................................................................. 26

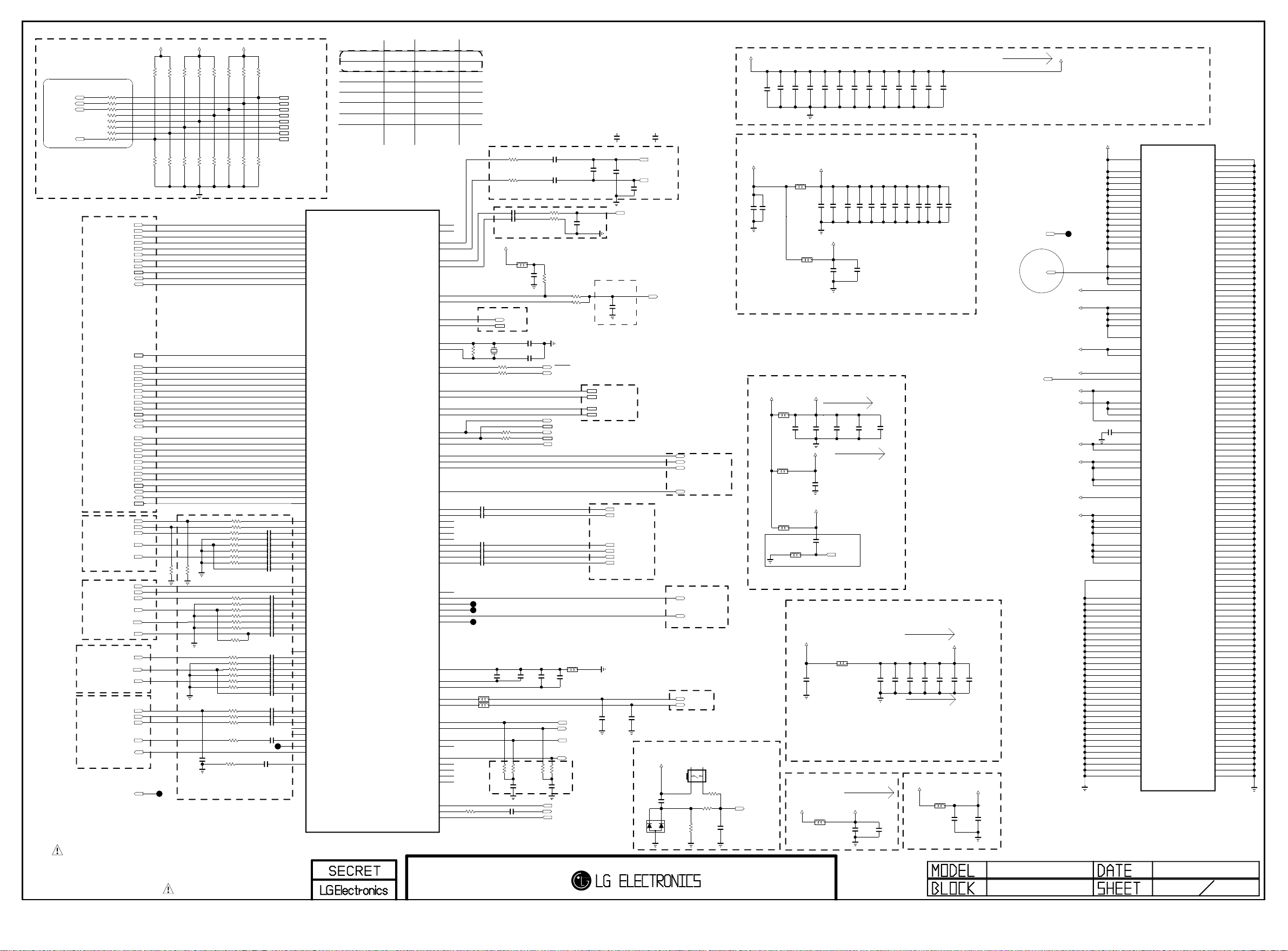

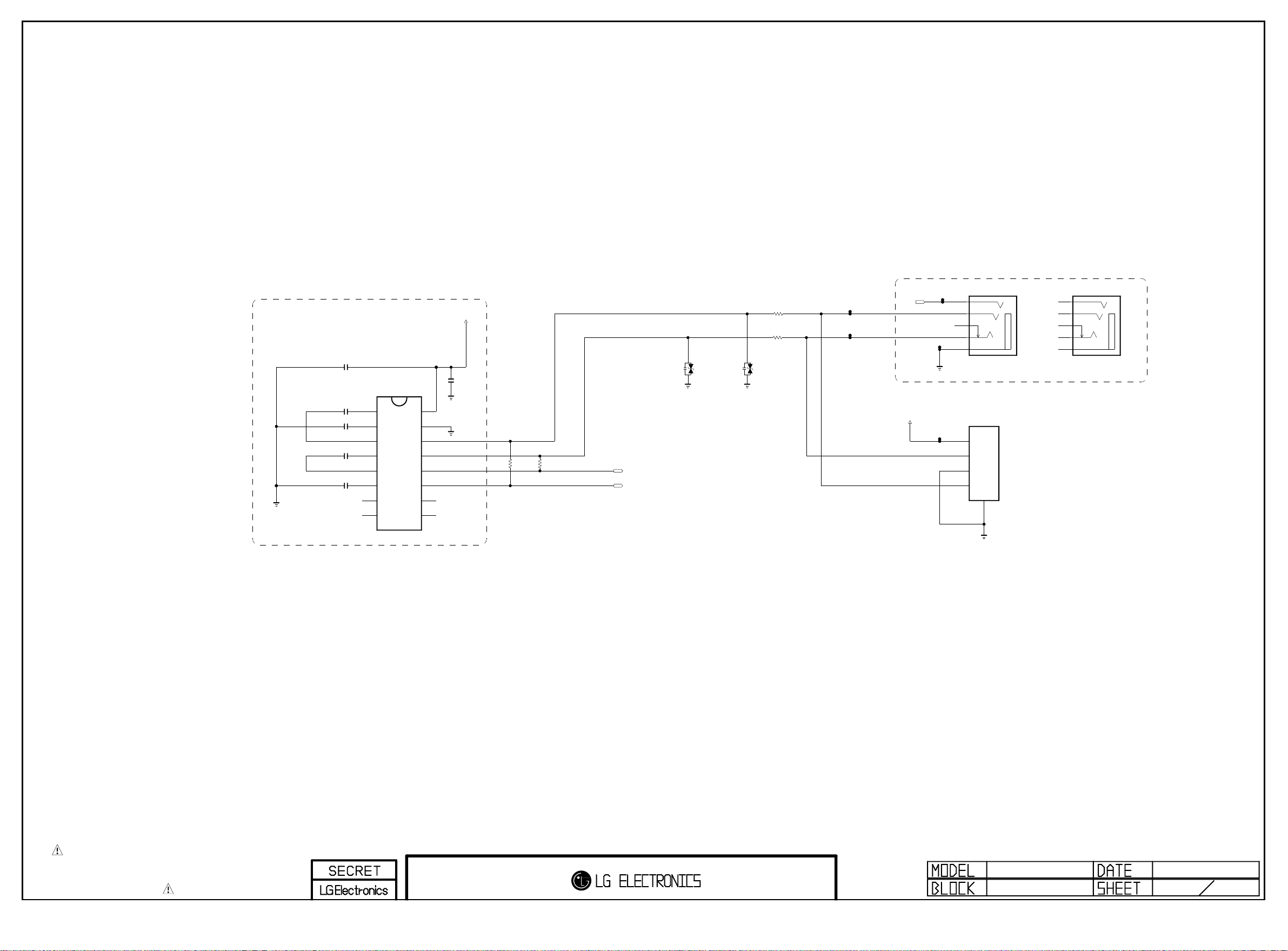

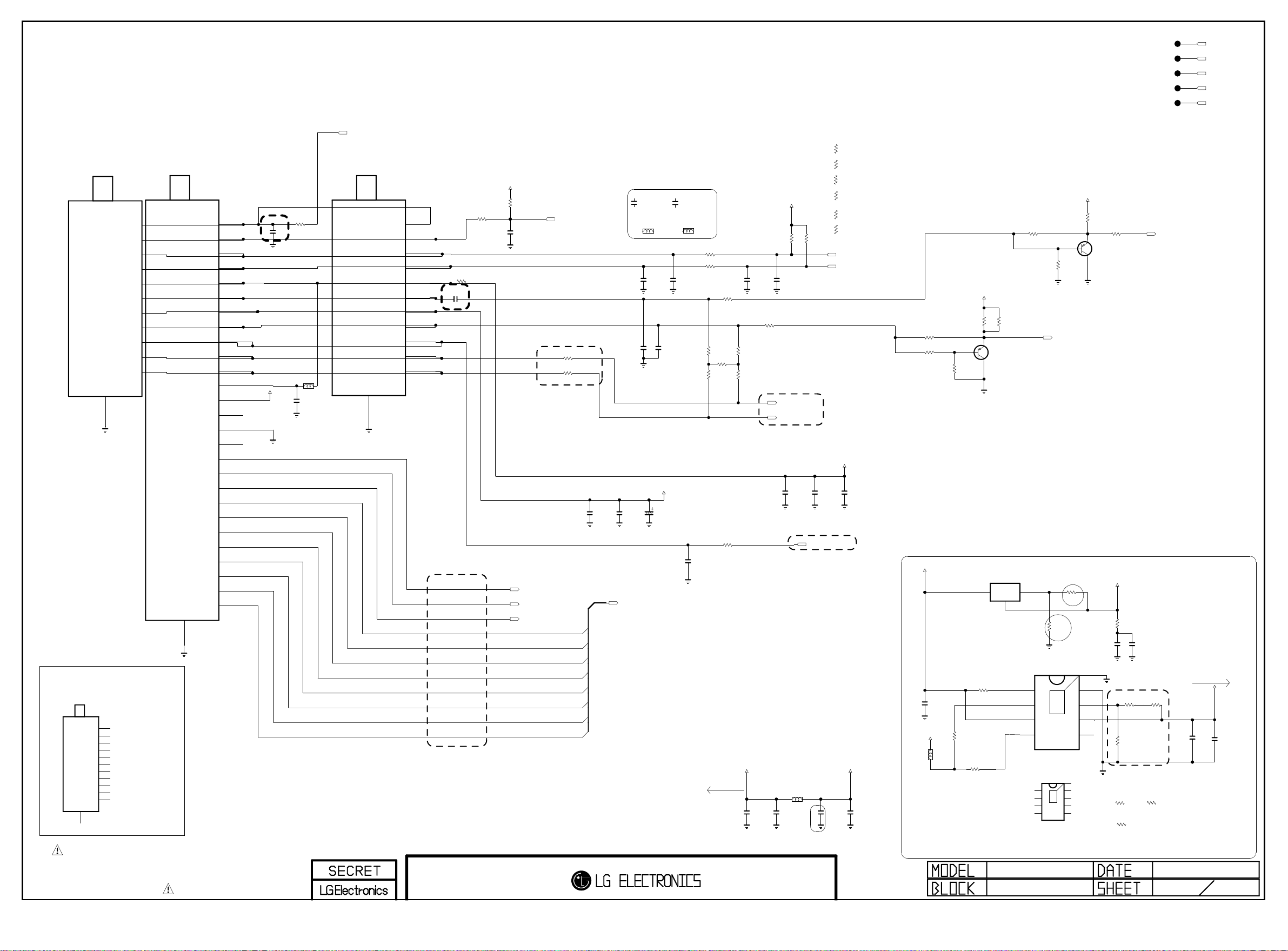

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of th e cir cuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exp ose d metallic par t. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied LCD TV with LT21B/C Chassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage

- Taiwan : 110V 60Hz

- Colombia : 100~240V@50/60Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed ea ch drawing and s pe cificatio n b y p art number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

Only for training and service purposes

- 4 -

4. General Specification

No Item Specication Remark

1. Screen Size 31.55 inch LC320EUN-SEM2

31.50 inch T320HVN01.0(60Hz/FHD/AUO)

31.51 inch LC320DXN-SER2(60Hz/HD)

31.55 inch LC320WUN-SCA2(60Hz/FHD/EEFL)

31.51 inch LC320EXN-SEA2(60Hz/HD)

31.50 inch T320XVN01.1(60Hz/HD/AUO)

31.51 inch LC320WXN-SCA2(10 years module)

31.51 inch LC320DXN-SEU2(60Hz/FHD)

31.55inch LC320EUN-SEF2(T120)

42.02 inch LC420DUN_SEU2(60Hz/FHD)

42.92 inch LC420EUE-SEF1(T120)

46.96 inch LC470EUE-SEF1(T120)

42.02 inch LC420WUE-SCA2(60Hz/FHD/EEFL)

42.02 inch T420HVN02.1(60Hz/FHD/EEFL/AUO)

54.64 inch LC550EUE-SEF1(T120)

46.96 inch LC470EUE-SEM1(60Hz/FHD)

42.02 inch LC420EUE-SEM1(60Hz/FHD)

42.02 inch LC420DUN_SER2(60Hz/FHD)

42.00 inch T420HVN01.1(60Hz/FHD/AUO)

2. Aspect Ratio 16:9 All

3. LCD Module 31.55” Color WUXGA TFT-LCD Module LC320EUN-SEM2

31.50” Color WUXGA TFT-LCD Module T320HVN01.0(60Hz/FHD/AUO)

31.55” Color WUXGA TFT-LCD Module LC320WUN-SCA2(60Hz/FHD/EEFL)

31.51” Color WXGA TFT-LCD Module LC320EXN-SEA2(60Hz/HD)

31.51” Color WXGA TFT-LCD Module LC320DXN-SER2(60Hz/HD)

31.51” Color WUXGA TFT-LCD Module LC320DXN-SEU2(60Hz/FHD)

31.50” Color WXGA TFT-LCD Module T320XVN01.1(60Hz/HD/AUO)

31.55” Color WXGA TFT-LCD Module LC320WXN-SCA2(10 years module)

31.55” Color WUXGA TFT-LCD Module LC320EUN-SEF2(T120)

42.02” Color WUXGA TFT-LCD Module LC420DUN_SEU2(60Hz/FHD)

46.96” Color WUXGA TFT-LCD Module LC470EUE-SEF1(T120)

42.02” Color WUXGA TFT-LCD Module LC420EUE-SEF1(T120)

54.64” Color WUXGA TFT-LCD Module LC550EUE-SEF1(T120)

46.96” Color WUXGA TFT-LCD Module LC470EUE-SEM1(60Hz/FHD)

42.02” Color WUXGA TFT-LCD Module LC420DUN_SER2(60Hz/FHD)

42.02” Color WUXGA TFT-LCD Module LC420EUE-SEM1(60Hz/FHD)

42.00” Color WUXGA TFT-LCD Module T420HVN01.1(60Hz/FHD/AUO)

42.02” Color WUXGA TFT-LCD Module LC420WUE-SCA2(60Hz/FHD/EEFL)

42.02” Color WUXGA TFT-LCD Module T420HVN02.1(60Hz/FHD/EEFL/AUO)

Only for training and service purposes

- 5 -

4. Operating Environment 1) Temp. : 0 ~ 50 deg All

2) Humidity : 10 ~ 90%

5. Storage Environment 1) Temp. : -20 ~ 60 deg All

2) Humidity : 10 ~ 90%

6. Input Voltage AC100 ~ 240V, 50/60Hz All

7. Power Consumption 59W 31.55” FHD(LED) LC320EUN-SEM2

87W 31.51” HD(EEFL) LC320WXN-SCA2(10 years module)

31.55” FHD(LED-T120-FPR) LC320EUN-SEF2(T120)

46.96” FHD(LED-T120-FPR) LC470EUE-SEF1(T120)

42.02” FHD(LED-T120-FPR) LC420EUE-SEF1(T120)

54.64” FHD(LED-T120-FPR) LC550EUE-SEF1(T120)

46.96” FHD(LED 60Hz) LC470EUE-SEM1(60Hz/FHD)

31.55” FHD(EEFL) LC320WUN-SCA2(60Hz/FHD/EEFL)

42.02” FHD(LED 60Hz) LC420DUN_SEU2(60Hz/FHD)

42.02” FHD(LED 60Hz) LC420EUE-SEM1(60Hz/FHD)

42.00” FHD(LED 60Hz) T420HVN01.1(60Hz/FHD/AUO)

31.50” FHD(LED 60Hz) T320HVN01.0(60Hz/FHD/AUO)

43W 31.50” HD(LED 60Hz) T320XVN01.1(60Hz/HD/AUO)

31.50” HD(LED 60Hz) LC320EXN-SEA2(60Hz/HD)

42.02” FHD(LED 60Hz) LC420DUN_SER2(60Hz/FHD)

31.51” FHD(LED 60Hz) LC320DXN-SEU2(60Hz/FHD)

31.51” HD(LED 60Hz) LC320DXN-SER2(60Hz/HD)

42.02” FHD(EEFL 60Hz) LC420WUE-SCA2(60Hz/FHD/EEFL)

42.02” FHD(EEFL 60Hz) T420HVN02.1(60Hz/FHD/EEFL/AUO)

8. LCD Module Maker Inch (H) × (V) × (D)

(Outline Demension) LGD 31.55 727.4 X 429.0 X 22.7 LC320EUN-SEM2

LGD 31.51 760.0 X 450.0 X 43.0 LC320WXN-SCA2(10 years module)

LGD 31.55 727.4 X 429.0 X 22.7 LC320EUN-SEF2(T120)

LGD 42.02 960.4 X 560.4 X 17.4 LC420EUE-SEF1(T120)

LGD 31.51 760.0 X 450.0 X 32.5 LC320DXN-SER2(60Hz/HD)

LGD 46.96 1070.6 X 622.0 X 22.0 LC470EUE-SEF1(T120)

LGD 54.64 1244.6 X 720.9 X 22.0 LC550EUE-SEF1(T120)

LGD 46.96 1070.6 X 622.0 X 22.0 LC470EUE-SEM1(60Hz/FHD)

LGD 42.02 960.4 X 560.4 X 17.4 LC420EUE-SEM1(60Hz/FHD)

AUO 42.00 930.24 X 523.26 T420HVN01.1(60Hz/FHD/AUO)

AUO 31.50 727.4 X 429 X 20 T320HVN01.0(60Hz/FHD/AUO)

AUO 31.50 735.4 X 433.8 X 10.8 T320XVN01.1(60Hz/HD/AUO)

LGD 31.51 735.4 X 433.0 X 10.8 LC320EXN-SEA2(60Hz/HD)

LGD 42.02 983.0 X 576.0 X 35.5 LC420DUN_SEU2(60Hz/FHD)

LGD 31.51 760.0 X 450.0 X 32.5 LC320DXN-SEU2(60Hz/FHD)

LGD 42.02 983.0 X 576.0 X 35.5 LC420DUN_SER2(60Hz/FHD)

LGD 42.02 983.0 X 576.0 X 46.0 LC420WUE-SCA2(60Hz/FHD/EEFL)

LGD 31.55 760.0 X 450.0 X 48.0 LC320WUN-SCA2(60Hz/FHD/EEFL)

AUO 42.02 983.0 X 576.0 X 52.65 T420HVN02.1(60Hz/FHD/EEFL/AUO)

Only for training and service purposes

- 6 -

5. External Input Support Format

5.1. Component(Y, Pb, Pr)

No. Resolution H-freq(kHz) V-freq(Hz) Remark

1. 720×480 15.73 60.00 SDTV, DVD 480i

2. 720×480 15.63 59.94 SDTV, DVD 480i

3. 720×480 31.47 59.94 480p

4. 720×480 31.50 60.00 480p

5. 720×576 15.625 50.00 SDTV, DVD 625 Line

6. 720×576 31.25 50.00 HDTV 576p

7. 1280×720 37.50 50.00 HDTV 720p

8. 1280×720 44.96 59.94 HDTV 720p

9. 1280×720 45.00 60.00 HDTV 720p

10. 1920×1080 28.125 50.00 HDTV 1080i

11. 1920×1080 33.75 60.00 HDTV 1080i

12. 1920×1080 33.72 59.94 HDTV 1080i

13. 1920×1080 56.250 50 HDTV 1080p

14. 1920×1080 67.43/67.5 59.94/60 HDTV 1080p

5.2. RGB Input (PC) : RGB-PC EDID DATA : Refer to adjust specification.

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock (MHz) Proposed Remark

1. 640*350 31.468 70.085 25.174 For only DOS mode

2. 720*400 31.468 70.08 28.321 For only DOS mode

3. 640*480 31.469 59.94 25.17 VESA

4. 800*600 37.879 60.31 40.00 VESA(SVGA)

5. 800*600 37.879 60.31 40.00 VESA

6. 1024*768 48.363 60.00 65.00 VESA(XGA)

7. 1152*864 54.347 60.052 79.999 XGA Plus

8. 1360*768 47.72 59.8 84.75 WXGA

9. 1280*1024 63.981 60.02 108.00 SXGA FHD model

10. 1920*1080 66.587 59.93 138.625 WUXGA FHD model

Input 848*480 60Hz, 852*480 60Hz => 640*480 60Hz Display

Only for training and service purposes

- 7 -

5.3. HDMI EDID DATA : Refer to adjust specification

5.3.1. PC mode

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks

1. 640*350 31.468 70.085 25.174 DOS

2 720*400 31.468 70.08 28.321 DOS

3. 640*480 31.469 59.94 25.17 VESA

4 800*600 37.879 60.31 40.00 VESA

5. 1024*768 48.363 60.00 65.00 VESA(XGA)

6. 1360*768 47.72 59.8 84.75 WXGA

7. 1280*1024 63.981 60.02 108.00 SXGA FHD Model

8. 1920*1080 67.5 60 148.5 WUXGA FHD Model

9. 1280*1024 63.981 60.02 108.00 SXGA FHD model

10. 1920*1080 66.587 59.93 138.625 WUXGA FHD model

5.3.2. DTV mode

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1. 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716 / 33.75 29.976 / 30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P

Only for training and service purposes

- 8 -

5.3.3. 3D mode

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks

*** HDMI 1.4

1 1280*720 75 50 148.5 HDTV 720P Frame packing

2 1280*720 37.5 50 74.25 HDTV 720P Side by Side(half), Top and Bottom

3. 1280*720 89.9 59.94 148.35 HDTV 720P Frame packing

90 60 148.5

4 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom

5 1920*1080 53.95 23.95 148.35 HDTV 1080P Frame packing

54 24 148.5

6 1920*1080 27 24 74.25 HDTV 108 0P Side by Side(half), Top and Bottom

7 1920*1080 33.7 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom

8 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top and bottom

9 1920*1080 56.25 50 148.5 HDTV 1080P Side by Side(half), Top and bottom,

10 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom

11 1920*1080 28.1 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom

*** HDMI 1.3

1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom

2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom

3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom

4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom

5 1920*1080 27.00 24.00 74.25 HDTV 1080P

6 1920*1080 33.75 30.00 74.25 HDTV 1080P

7 1920*1080 67.50 60.00 148.5 HDTV 1080P

8 1920*1080 56.25 50 148.5 HDTV 1080P

Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

Only for training and service purposes

- 9 -

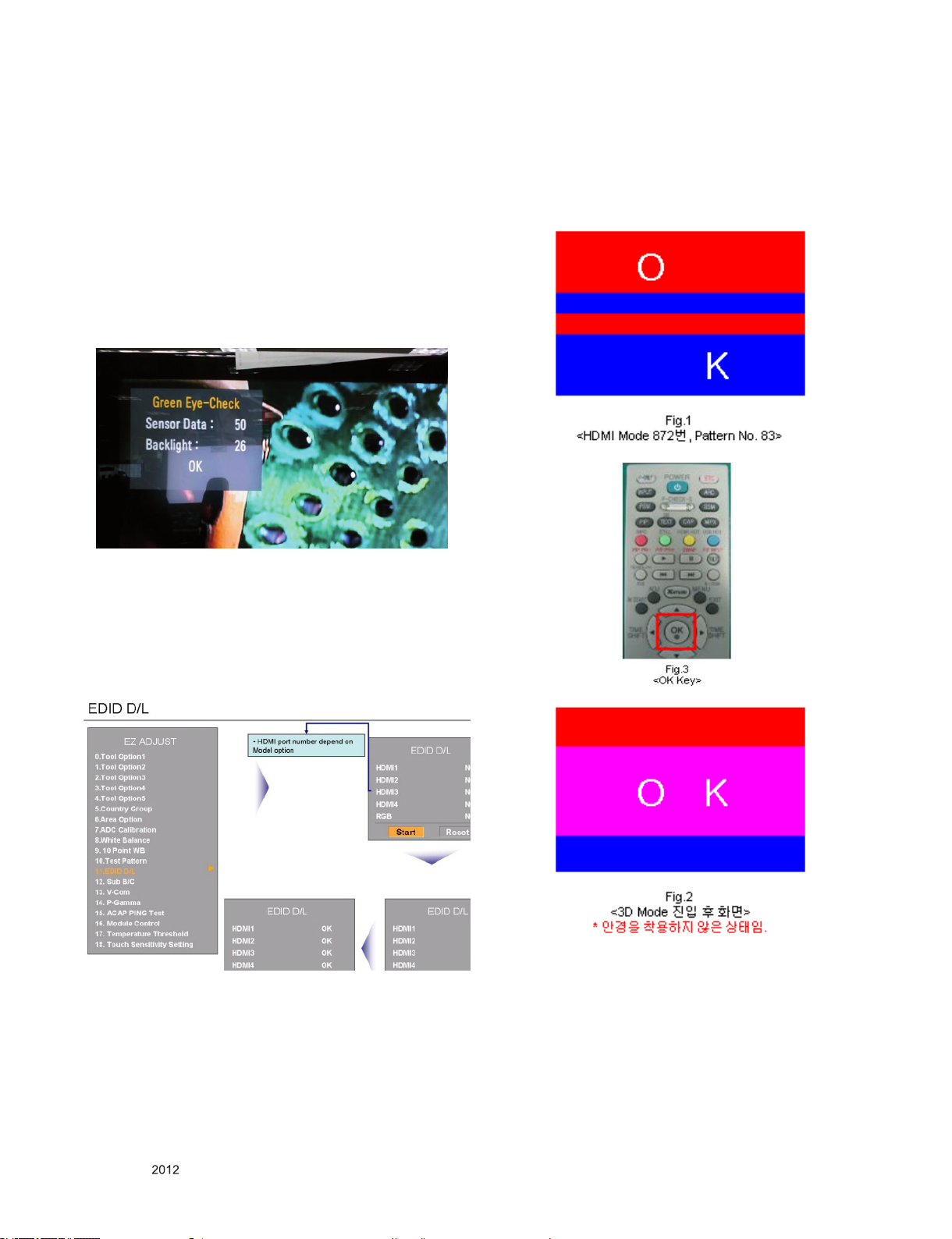

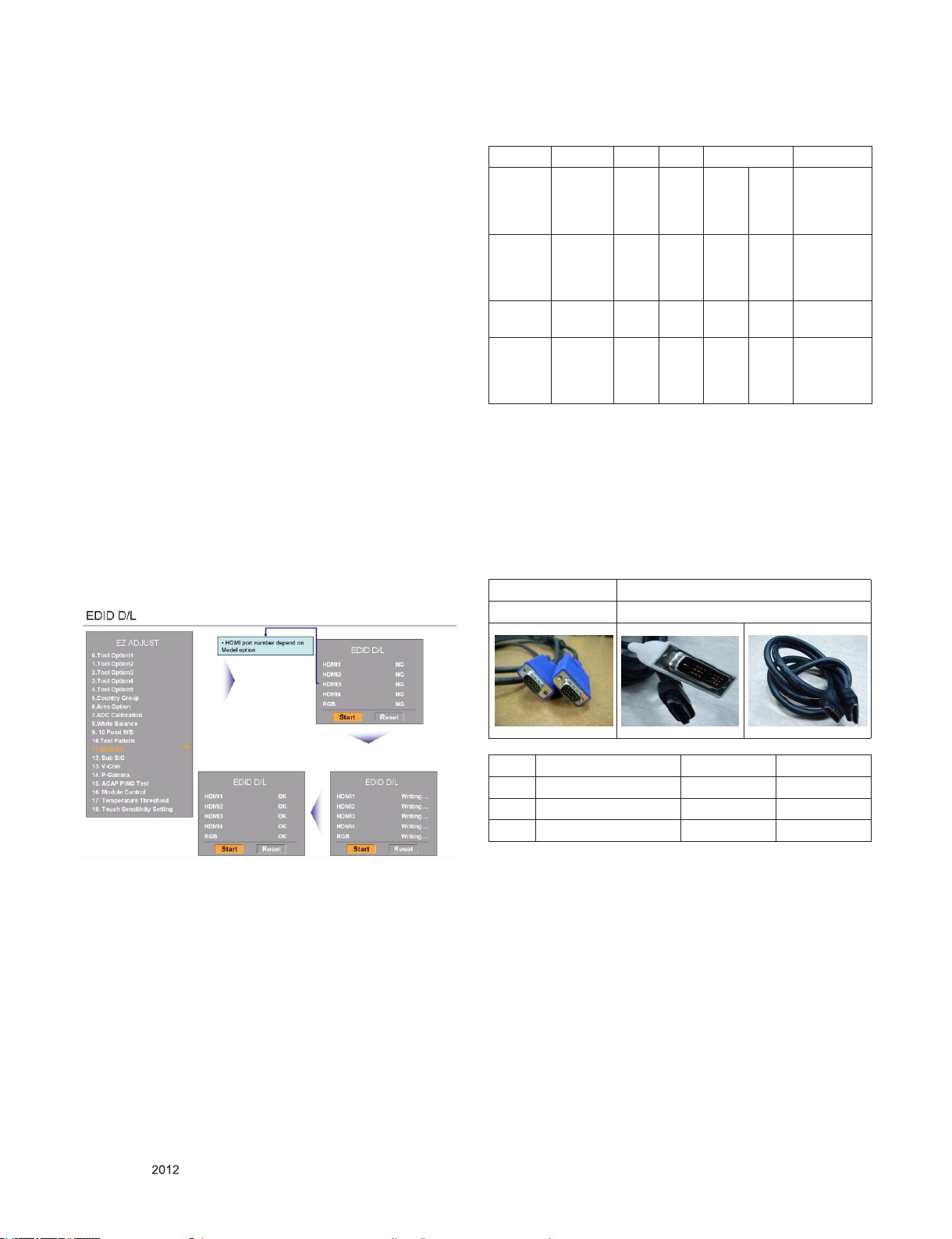

ADJUSTMENT INSTRUCTION

1. Application

This spec sheet is applied all of the LCD TV with LT21A/B/C chassis

2. Designation

(1) Th e adju stment is ac cordi ng to the order which is

designated and which must be followed, according to the

plan whic al Unit: Product Specification Standard. (2) Power adjustment : Free Voltage. (3) Magnetic Field Condition: Nil. (4) Input signal Unit: Product Specification Standard. (5) Reserve after operation: Above 5 Minutes (Heat Run). Temperature : at 25 ºC±5 Relative humidity : 65 ± 10% Input voltage : 220V, 60Hz

The receiver must be operated for about 5 minutes prior to the adjustment when module is in the circumstance of over 15°C.

In case of keeping module is in the circumstance of 0°C, it should be placed in the circumstance of above 15°C for 2 hours In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C for 3 hours,.

ºC

3. Main PCB check process

* APC – After Manual-Insert, executing APC * Boot file Download

(1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

(2) Set as below, and then click “Auto Detect” and check “OK”

message.

If “Error ” i s d is pl ayed, Check co nn ection betwe en

computer, jig, and set.

(3) Click “Read” tab, and then load download file (XXXX.bin)

by clicking “Read”

(1)

filexxx.bin

(4) Click “Connect” tab. If “Can’t ” is displaye d, Check

connection between computer, jig, and set.

(2)

(3)

[Caution] When still image is displayed for a period of 20 minutes or longer, there can some afterimage in the black level area.

(6) Adjustment equipments : Color Analyzer (CA-210 or

CA-110), DDC Adjustment Jig equipment, SVC remote

controller (7) Push The “IN STOP KEY” – For memory initialization.

Case1 : Software version up

1) After downloading S/W by USB , TV set will reboot

automatically

2).Push “In-stop” key

3).Push “Power on” key

4).Function inspection

5).After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1). When TV set is entering on the assembly line, Push

“In-stop” key at first.

2).Push “Power on” key for turning it on. => If you push “Power on” key, TV set will recover channel

information by itself.

3).After function inspection, Push “In-stop” key.

Please Check the Speed

To use speed between

from 200KHz to 400KHz

(5) Click “Auto” tab and set as below. (6) Click “Run”. (7) After downloading, check “OK” message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

Only for training and service purposes

- 10 -

* USB DOWNLOAD(*.epk file download)

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low, it didn't work. But your downloaded version is High, USB data is automatically detecting

(3) Show the message "Copying files from memory"

(4) Updating is staring.

* After downloading, have to adjust Tool

Option again.

(1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push "OK" button. (3) Punch in the number. (Each model has their number.) (4) Completed selecting Tool option.

Model Module

47LM5800-DB LGD 103 2525 9499 13224 5122

42LM5800-DB LGD 102 2525 9499 13224 7170

32LM5800-DB LGD 100 35293 9499 13224 5154

55LM4600-DB LGD 89 2525 9499 13224 5122

47LM4600-DB LGD 87 2525 9499 13224 5122

42LM3400-DB LGD 2525 9499 13224 5154

32LM3400-DB LGD 2525 9499 13224 5154

32LS5600-DA LGD 340 35293 9499 13224 5154

47LS4600-DA LGD 327 2525 9499 13224 5122

42LS4600-DA LGD 326 2525 9499 13224 5122

32LS4600-DA LGD 324 2525 9499 13224 5154

32LS3500-DA LGD 292 494 9499 13224 736

32LS3500-DA AUO 4388 494 9499 13224 736

42LS3400-DA LGD 494 9499 13224 736

32LS3400-DA LGD 494 9499 13224 736

42CS560-DA AUO 4134 494 9243 13224 736

42CS560-DA LGD 38 494 9243 13224 704

32CS560-DA LGD 36 494 9243 13224 737

42CS460-DA LGD 22 494 9243 13224 704

42CS460-DA AUO 4118 494 9243 13224 736

32CS460-DA LGD 20 494 9243 13224 736

Tool

option1

Tool

option2

Tool

option3

Tool

option4

Tool

option5

(5) After updating is complete, The TV will restart automatically. (6) If TV turns on, check your updated version and Tool option.

(refer to the next page about tool option)

* If downloading version is higher than your TV have, TV

can lost all channel data. In thi s case, you have to channel recover. If all channel data is cleared, you didn't have a DTV/ATV test on production line.

Only for training and service purposes

- 11 -

3.1. ADC Process

3.1.1. ADC

■ Enter Service Mode by pushing “ADJ” key,

■ Enter Internal ADC mode by pushing “►” key at “6. ADC

Calibration”

3.2. Function Check

3.2.1. Check display and sound

■ Check Input and Signal items. (cf. work instructions)

(1) TV (2) AV (CVBS) (3) COMPONENT (480i) (4) RGB (PC : 1024 x 768 @ 60hz) (5) HDMI (6) PC Audio In * Display and Sound check is executed by Remote controller.

3.2.2. MAC Address

3.2.2.1. Equipment & Condition

▪ Play file: Serial.exe ▪ MAC Address edit ▪ Input Start / End MAC address

=> Caution : Using ‘power on’ button of the Adjustment R/C,

power on TV.

※ ADC Calibration Protocol (RS232C/USB)

NO Item CMD 1 CMD 2 Data 0

Enter Adjust MODE

ADC adjust ADC

※ Adjust Sequence

▪ aa 00 00 [Enter Adjust Mode] ▪ xb 00 40 [Component1 Input (480i)] ▪ ad 00 10 [Adjust 480i Comp1] ▪ xb 00 60 [RGB Input (1024*768)] ▪ ad 00 10 [Adjust 1024*768 RGB] ▪ aa 00 90 End Adjust mode

* Required equipment : Adjustment R/C.

Adjust ‘Mode In’

Adjust

A A 0 0 When transfer the

‘Mode In’, Carry the command.

A D 1 0 Automatically adjust-

ment (The use of a internal pattern)

3.2.2.2 Download method

3.2.2.2.1. Communication Prot connection Connect: Connection : PCBA (USB Port) -> USB to Se rial Ad apter

(UC-232A) -> RS-232C cable -> PC(RS-232C port)

3.2.2.2.2. MAC Address Download

▪ Com 1,2,3,4 and 115200(Baudrate)

Only for training and service purposes

- 12 -

3.2.3. LAN Inspection

3.2.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

3.2.3.2. LAN inspection solution

▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ setting automatic IP ▪ Setting state confirmation ▪ If automatic setting is finished, you confirm IP and MAC

Address.

3.2.5. Model name & Serial number Download

3.2.5.1. Model name & Serial number D/L

■ Press “Power on” key of service remocon.(Baud rate :

115200 bps)

■ Connect RS232C/USB cable to Side USB Jack.

■ Write Serial number by use RS-232C to Side USB.

■ Must check the serial number at Instart menu.

3.2.5.2. Method & notice (1) Serial number D/L is using of scan equipment. (2) Setting of scan equipment operated by Manufacturing

Technology Group.

(3) Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory by D-book 4.0

※ Manual Download (Model Name and Serial Number)

If the TV se t is dow nload ed By OTA or Ser vice man, Sometimes model name or serial number is initialized. (Not always) It is impossible to download by bar code scan, so It need Manual download.

▪ Press the ‘instart’ key of ADJ remote controller. ▪ Go to the menu ‘6.Model Number D/L’ like below photo. ▪ Input the Factory model name(ex 42LD450-TA) or Serial

number like photo

3.2.4. LAN PORT INSPECTION(PING TEST)

3.2.4.1. Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program. *IP Number : 12.12.2.2

3.2.4.2. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) Remove LAN CABLE

▪ Check the model name Instart menu -> Facto ry nam e

displayed (ex 42LE7500-TA)

▪ Check the Diagnostics (DTV country only) -> Buyer model

displayed (ex 42LE7500-TA)

=> Caution : Not to push the INSTOP KEY after completion if

the function inspection.

Only for training and service purposes

- 13 -

4. Total Assembly line process

4.1. Adjustment Preparation

■ W/B Equipment condition

CA210 : CH 9, Test signal : Inner pattern (80IRE) – in case of

CCFL back light

CA210 : CH14, Test signal : Inner pattern (80IRE) – in case of

LED back light

■ Above 5 minutes H/run in the inner pattern. (“power on” key of

adjust remote control)

X=0.269

Cool 13,000k K

Color Temperature

Medium 9,300k K

Warm 6,500k K

■ In case of Edge LED module, the color coordinates is changing

by aging, so you have to use the below table.

Cool Medium Warm

H/R Time(Min)

1 0-2 min 280 291 296 311 319 340

2 3-5 min 278 288 294 308 317 338

3 6-9 min 276 285 292 305 315 335

4 10-19 min 274 282 290 302 313 332

5 20-35 min 273 279 289 299 312 329

6 36-49 min 270 276 287 296 310 326

7 50-79 min 269 273 286 293 308 323

8 Over 80 min 269 273 285 293 308 323

x y x x y x

269 273 285 293 313 329

(±0.002) Y=0.273 (±0.002)

X=0.285 (±0.002) Y=0.293 (±0.002)

X=0.313 (±0.002) Y=0.329 (±0.002)

42/32CS560-DA 42/32CS460-DA 42/32LS4600-DA (except LGD moduel)

LED Module(LGD).

<Test signal> Inner pattern (204 Gray 80IRE)

● Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (Illumination is less than 10ux).

(2) Adhere closely the Color Analyzer ( CA210 ) to the module

less than 10cm distance, keep it with the surface of the Module and Color Analyzer’s Prove vertically.(80~100°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others, check the back light on.

● Auto adjustment Map(RS-232C)

RS-232C COMMAND [ CMD ID DATA ] Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

MIN

CENTER

(DEFAULT)

MAX

** Caution ** Color Temperature : COOL, Medium, Warm. One of R Gain/G Gain/ B Gain should be kept on 0xC0, and adjust other two lower than C0. (when R/G/B Gain are all C0, it is the FULL Dynamic Range of Module)

*Manual W/B process using adjusts Remote control.

■After enter Service Mode by pushing “ADJ” key,

■Enter White Balance by pushing “►” key at “7. White Balance”.

※ Connecting picture of the measuring instrument (On Automatic control)

Inside PATTERN is used when W/B is controlled. Connect to auto controller or push Adjustment R/C POWER-ON -> Enter the mode of White-Balance, the pattern will come out.

Only for training and service purposes

※ After You finish all adjustments, Press “In-start” button and

compare Tool option and Area option value with its BOM, if it is correctly same then unplug the AC cable.

If it is not same, then correct it same with BOM and unplug AC

cable. For correct it to the model’s module from factory JIG model.

※ Push The “IN STOP KEY” after completing the function

inspection. And Mechanical Power Switch must be set “ON”.

- 14 -

+ 31 hidden pages
