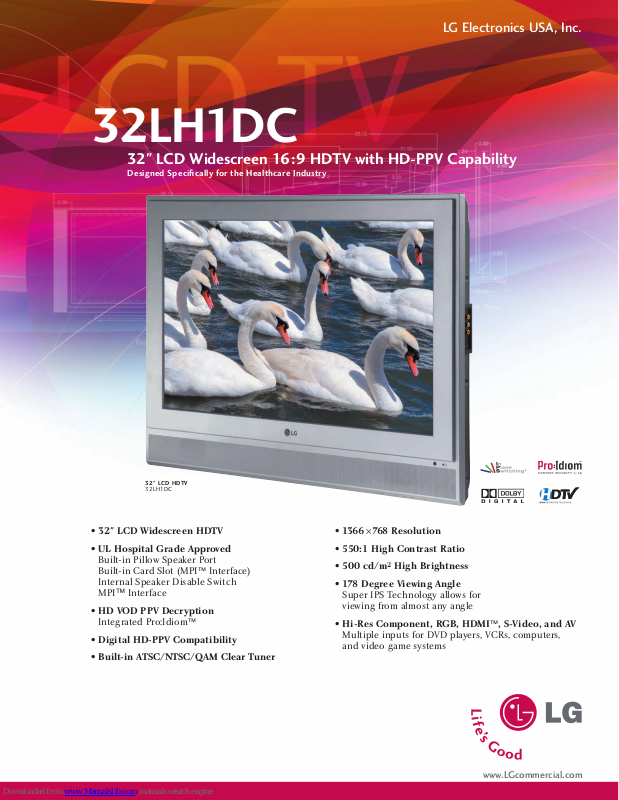

LG 32LH1DC Specifications
LG Electronics USA, Inc.
32LH1DC
32" LCD Widescreen 16:9 HDTV with HD-PPV Capability
Designed Specically for the Healthcare Industry
32" LCD HDTV
32LH1DC
• 32" LCD Widescreen HDTV
• UL Hospital Grade Approved
Built-in Pillow Speaker Port
Built-in Card Slot (MPI
Internal Speaker Disable Switch
MPI™ Interface
• HD VOD PPV Decryption
Integrated Pro:Idiom
• Digital HD-PPV Compatibility
• Built-in ATSC/NTSC/QAM Clear Tuner
™
Interface)
™
• 1366
• 550:1 High Contrast Ratio
• 500 cd/m
• 178 Degree Viewing Angle
• Hi-Res Component, RGB, HDMI™, S-Video, and AV
✕ 768 Resolution
2
High Brightness
Super IPS Technology allows for
viewing from almost any angle
Multiple inputs for DVD players, VCRs, computers,
and video game systems
www.LGcommercial.com
DVI/PC AUDIO
IN
HDMI/DVI
IN
RS-232C
PC IN
DIGITAL AUDIO
OUT (OPTICAL)
UPDATE
S-VIDEO
IN
RS-232C
SELECT
CONTROL
NORMAL
(DTV)
COMPONENT (DVD/DTV) 1
COMPONENT (DVD/DTV) 2
VIDEO INAUDIO IN
VIDEO IN
YYPbPbPr
Pr
(L)
(L)
(R)
(R)
AUDIO IN
VIDEO 1
VIDEO IN(R)AUDIO (L)
VIDEO 3/S-VIDEO VIDEO 3
VIDEO IN(R)AUDIO (L)
L
R
AUDIO
INPUT
VIDEO
INPUT
2OEDIV
SPEAKER
SWITCH
NORMAL
SPEAKER
PILLOW
SPEAKER
AC IN
FUTURE
USE
PILLOW
JACK IN
L
R
AUDIO
INPUT
VIDEO
INPUT
2OEDIV
LG Electronics USA, Inc.
FRONT VIE W
BOTTOM VI EWTOP VIEW
SIDE VIE W BACK VIEW
27.5 5
1.88
5.07
15.52
22.60
2.25
32.05
1.68 1.68
2.25
2.00
1.63
1.32
.94
.28
.49
1.61
3.25
12.09 12.09
32.05
6.08
8.64
7.87
7.87
BOTTOM VI EWTOP VIEW
SIDE VIE W BACK VIEW
1.63
1.32
.94
.28
.49
1.61
3.25
12.09 12.09
32.05
6.08
8.64
7.87
7.87
BOTTOM VI EWTOP VIEW
12.09 12.09
32.05
6.08
8.64
7.87
7.87
32LH1DC 32"LCDWidescreenHDTV
BOTTOM SEALED CONTROL PANEL
SPECIFICATIONS
PANEL
Screen Size 32"
Aspect Ratio 16: 9
Native Resolut ion 1366× 768
Pixels (H×V×3) 3,1 47, 2 64
Brightness 50 0 cd/ m
2
Contrast Ratio 550 :1
Viewing Angle (H ×V) 178°×178°
Color Depth 16.7 Million
Lamp Life 60, 000 Hours (typ. )
Response Time 8 ms
™
Super IPS
Yes
VIDEO
NTSC Tuner Built-in
ATSC /Q AM Tuner s Built-in
ATSC with H D-PP V Built-in
All Format Conver ter Yes
1080i/720p/480p/480i» 768p
Comb Filter 3D Digital
Digital Progressive Scan Yes
Color Temperature Cool, Normal, Warm
Enhanced Video Yes
Advanced Ghost Canceler Yes
3: 2 Pull D own ( Film Mo de) Yes
Aspect Ratio Control Yes
Pict ure Con trol Mild , Dynam ic, Manual ,
Standard
Noise Reduction Yes
REAR INPUTS
RF In ATSC /N TSC/ QA M Clear
Tuner
High Resolution Componen t 2
Composite Video Input s 2
Audio Inputs 4
REA R INPU TS CON T’D.
DVI/ PC Audio In (Mini Jack) Yes
RGB In (PC Input) Yes
™
HDMI
Input Yes
S-Video Yes
RS-2 32C Ser vice Onl y
SPDI F Out ( Optica l) Ye s
™
MPI
(RJ11) Yes
Pillow Speaker Jack Yes
SIDE INPUTS
Composite Video Yes
Audio Inputs Yes
REQUIRED APPROVALS
UL, C-UL , FCC Yes
Hospital Grade UL Approved Yes
AUDIO
Auto Volume Leveler Yes
Audio Power 7W (3.5W× 2)
Dolby Digital Decoder™ Ye s
Mono/Stereo/ SAP Yes
Bass/ Treble /Balance Yes
Internal Speaker On/Off
Sound Mode Standard, Music, Movie,
Sports, News , Manual
SPECIAL FEATURES
TV Link Pr otocol Ye s
Discrete IR Codes Ye s
Commercial Installation Menu Yes
Last Source Power-on Recall Yes
Auto Power Option Ye s
Channel Edit/ Label Yes
Menu Languages English /Spanish/F rench
SPEC IAL F EATURE S CONT ’D.
Audio Languages English /Spanish/ French
On /Of f Timer Yes
Clock Yes
Captions Yes
Flashback, Captions Yes
Auto Off Yes
Remote
Not included
OPTIONAL REMOTES
Installer Remote 124-213 -07
Patient Remote 124 -213-08
Quickset II “Clone” Programmer LT2 002
CABINET
Color Silver
Dimensions (W × H × D) 32.05" ×22.60" × 3.25"
Packaging ( W× H × D ) 36.22" ×28.74"× 14.57"
Weight 34 .17 L bs.
Weight With Packaging 44 .75 L bs.
Speakers Built-in
™
VESA
Standard Mount
Inter face
Yes (200 mm ×200 mm screw
spacing )
UL Hospital Grade AC Cord Yes
Stand
Not included
POWER
Power Source 100–240V (50/60Hz)
Direct AC Input
Power Consumption 145W
SERVICE/LIMITED WARRANTY
Warranty (Par ts/Labor) 1 Year
UPC CODE
719192 17252 4
REAR JACK PANEL
www.LGcommercial.com
LG ELECTRONICS USA, INC.
Commercial Products Division
2000 Millbrook Drive, Lincolnshire, IL 60069 Customer Service: 1-888-865-3026
Contact your LG Regional Sales Manager Toll-Free at 877-793-6484
Dimensions and weights are approximate. Design and specifications subject to change without notice. VESA™ is a registered trademark of Video Electronics Standards
Association. In Plane Switching is a trademark of LG Philips LCD Ltd. All other corporate and brand names are trademarks of their respective owners. The “LG Life’s Good”
is a registered trademark of LG Electronics USA, Inc. Pro:Idiom™ and MPI™ are trademarks of Zenith Electronics Corporation.
©2007 LG Electronics USA, Inc. Printed in the USA. August 2007 17715LG32LH1DC0807
