LG 32LH250H Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LA96C

MODEL : 32LH250H

32LH250H-UB

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL62195519 (1006-REV00)

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 2 -

CONTENTS

CONTENTS ............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION....................................................................................... 6

ADJUSTMENT INSTRUCTION ................................................................ 9

TROUBLE SHOOTING .......................................................................... 16

BLOCK DIAGRAM.................................................................................. 22

EXPLODED VIEW .................................................................................. 24

SVC. SHEET ...............................................................................................

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s
exposed
METALLIC PARTS

Good Earth Ground
such as WATER PIPE,
CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 4 -

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.

2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500

°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.

(500

°F to 600°F)

b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500

°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as
possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as
possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as
possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as
possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 6 -

1. Application Range

This specification sheet is applied to the LCD TV used LA96C
chassis.

2. Specification

Each part is tested as below without special appointment

1) Temperature : 25 ± 5°C (77 ± 9ºF), CST : 40 ± 5ºC

2) Relative Humidity : 65 ±10%

3) Power Voltage : Standard input voltage
(100-240V@ 50/60Hz)
* Standard Voltage of each products is marked by models

4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to
the adjustment.

3. Test method

1) Performance : LGE TV test method followed.

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC : FCC, ICE, IEC specification

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

4. General Specification(TV)

No Item Specification Remark

1 Receivable System 1) VSB/64 & 256 QAM/NTSC-M
2 Available Channel VHF : 02 ~ 13

UHF : 14 ~ 69
DTV : 02 ~ 69
CATV : 01 ~ 135

CADTV : 01 ~ 135
3 Input Voltage 1) AC 100 ~ 240V 50/60Hz
4 Market North America
5 Screen Size 32 inch Wide(1366 x 768) FHD 32LH250H-UB
6 Aspect Ratio 16:9
7 Tuning System FS
8 LCD Module T315XW03-V1 AUO 32LH250H-UB
9 Operating Environment Temp : 0 ~ 40 deg

Humidity : ~ 80 %

10 Storage Environment Temp : -20 ~ 60 deg

Humidity : -85 %

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 8 -

7. RGB input (PC)

8. HDMI input (PC/DTV)

6. Component Video Input (Y, C

B/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 67.500 60 148.50 HDTV 1080P

10. 1920*1080 67.432 59.94 148.352 HDTV 1080P

11. 1920*1080 27.000 24.000 74.25 HDTV 1080P

12. 1920*1080 26.97 23.976 74.176 HDTV 1080P

13. 1920*1080 33.75 30.000 74.25 HDTV 1080P

14. 1920*1080 33.71 29.97 74.176 HDTV 1080P

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC

1 640*350 31.469 70.08 25.17 DOS
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
7 1280*768 47.776 59.87 79.50 CVT(WXGA) O
8 1360*768 47.720 59.799 84.75 CVT(WXGA) O

DDC

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC

1. 640*480 31.469 59.94 25.17 VESA(VGA) O

2. 800*600 37.879 60.31 40.00 VESA(SVGA) O

3. 1024*768 48.363 60.00 65.00 VESA(XGA) O

4. 1280*768 47.776 59.87 79.50 CVT(WXGA) O

5. 1360*768 47.720 59.799 84.75 CVT(WXGA) O
DTV
1 720*480 31.47 60 27.027 SDTV 480P
2 720*480 31.47 59.94 27.00 SDTV 480P
3 1280*720 45.00 60.00 74.25 HDTV 720P
4 1280*720 44.96 59.94 74.176 HDTV 720P
5 1920*1080 33.75 60.00 74.25 HDTV 1080I
6 1920*1080 33.72 59.94 74.176 HDTV 1080I
7 1920*1080 67.500 60 148.50 HDTV 1080P
8 1920*1080 67.432 59.939 148.352 HDTV 1080P
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
10 1920*1080 26.97 23.976 74.176 HDTV 1080P
11 1920*1080 33.75 30.000 74.25 HDTV 1080P
12 1920*1080 33.71 29.97 74.176 HDTV 1080P

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

1. Application Object

This spec sheet is applied all of the LCD TV with LA96C
chassis.

2. Designation

2.1 The adjustment is according to the order which is

designated and which must be followed, according to the
plan which can be changed only on agreeing.

2.2. Power Adjustment: Free Voltage

2.3. Magnetic Field Condition: Nil.

2.4. Input signal Unit: Product Specification Standard

2.5. Reserve after operation: Above 15 Minutes

2.6. Adjustment equipments: Color Analyzer (CA-210 or CA-

110), Pattern Generator (MSPG-925L or Equivalent),
DDC Adjustment Jig equipment, SVC remote controller

Caution : When still image is displayed for a period of 20
minutes or longer (especially where W/B scale is strong.
Digital pattern 13ch and/or Cross hatch pattern 09ch),
there can some afterimage in the black level area.

3. Method of PTC MICOM Download

3.1 Connection of MICOM JIG

1) Connect port(3) with Power Code

2) Connect jack(1) with PTC Micom.

3) Connect USB Cable to the computer

4) Download Program execution (SAP Configuration)

• Notice!
Because PTC Download JIG has internal memory, it can save
download files using download program (SAP Configuration).
Push the START button (4) after file saving, then it execute
download.

3.2 Execution of download program (SAP
Configuration)

3.2.1 Execution of SAP Configuration

1. Select HCS12

2. Target Frequency Settings :
A. Checking the factor -> Use Specified Target Frequency…,

Unsecure target….

B. Insert Target Bus Frequency -> 7372800

3. Specify Algorithm: 9S12dt128_128k .12P

4. Specify S Record: select download file.

5. Checking factor: Erase Device, Blank Check Device,
Program Device, Verify Device

• Notice!

Don’t check other checking boxes. You must follow fig.

6. Push the ‘Save Image to Cyclone PRO’ button, files
transfer from PC to the Download JIG.

- 9 -

ADJUSTMENT INSTRUCTION

1

2

3 4

- 10 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

3.3 PTC download by USB

a. Attach the USB Memory to TV
b. MENU > OPTION

-> press left arrow key once

-> press the key ‘7’ for 7 times

c. Select PTC Software.

d. Select downloading file. (*.s19)
e. Downloading.

- When the downloading is completed, TV will reset itself
automatically.

- If you fail to download, retry to download with PC.

- Do not remove USB in downloading.

4. Main PCB check process

* APC - After Manual-Insult, executing APC

4.1 Download

4.1.1 Boot file Download

1. Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.

2. Set as below, and then click “Auto Detect” and check “OK”
message If display “Error”, Check connect computer, jig,
and set.

3. Click “Read” tab, and then load download file (XXXX.bin) by
clicking “Read”

4. Click “Connect” tab.

If display “Can’t ”, Check connect computer, jig, and set.

5. Click “Auto” tab and set as below

6. Click “Run”.

7. After downloading, check “OK” message.

(3)

filexxx.bin

(1)

(4)

Please Check the Speed :
To use speed between
from 200KHz to 400KHz

filexxx.bin

(5)

(7) .OK

(5)

(6)

- 11 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

* USB DOWNLOAD(*.epk file download)

1. Put the USB Stick to the USB socket

2. Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low, it
didn’t work. But your downloaded version is High, USB data
is automatically detecting

3. Show the message “Copying files from memory”

4. Updating is staring.

5. Updating Completed, The TV will restart automatically.

6. If your TV is turned on, check your updated version and Tool
option. (explain the Tool option, next stage)

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn’t have a
DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1. Push "Adj" key in service remote controller.

2. Select "Tool Option 1~ 4" and Push “OK” button.

3. Punch in the number. (Each model has their number.)

4. Completed selecting Tool option

4. Board-level adjustment

4.1 ADC adjustment

4.1.1 Overview
ADC adjustment is needed to find the optimum black level and
gain in Analog-to-Digital device and to compensate RGB
deviation.

4.1.2 Equipment & Condition

1) Jig (RS-232C protocol)

2) Input : MSPG-925FS(Model : 209 ,Pattern : 65, Only
component))

3) RGB Adjust use internal pattern.

4.1.3 Adjustment

4.1.3.1 Method

• Using RS-232, adjust items listed in 3.1 in the order shown in

“4.1.3.3”.

4.1.3.2 Adj. protocol

Ref.) ADC adj. RS232C Protocol_Ver1.0

4.1.3.3 Adj. order

• ad 00 00 [Enter ADC adj. mode]

• ad 00 10 [Adjust 480i Comp1/1080p Comp1/1024*768 RGB]

• ad 00 90 End adj.

Model

Tool option1 Tool option1 Tool option1 Tool option1

37LH260H-UB

33056 1576 33056 1024

42LH260H-UB

26769 1576 33056 1024

32LH250H-UB

18499 1576 33056 1024

Protocol Command Set ack
Enter adj. ad 00 00 d 00 OK00x
mode
Begin adj. ad 00 10
Return adj. OKx (Success)
result NGx (Fail)
Read adj. (main) (main)
data ad 00 20

000000000000000000000000007c007b006dx
(sub ) (Sub)
ad 00 21

000000070000000000000000007c00830077x

Confirm adj. ad 00 99 NG 03 00x (Fail)

NG 03 01x (Fail)

NG 03 02x (Fail)

OK 03 03x (Success)

End adj. ad 00 90 d 00 OK90x

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 12 -

5. ADC Process

5.1 PC input ADC

5.1.1 Auto RGB Gain/Offset Adjustment

• Convert to PC in Input-source.

• Signal equipment displays.
Output Voltage : 700 mVp-p

- Impress Resolution XGA (1024 x 768 @ 60Hz)

Model : 60 in Pattern Generator
Pattern : 65 in Pattern Generator (MSPG-925 SERISE)

Adjustment pattern (PC)

• Adjust by commanding AUTO_COLOR_ADJUST.

5.1.2 Confirmation

• We confirm whether “0xAA (RGB)” address of EEPROM
“0xA2” is “0xAA” or not.

• If “0xAA (RGB)” address of EEPROM “0xA2” isn’t “0xAA”, we
adjust once more.

• We can confirm the ADC values from “0xA4~0XA9 (RGB)”
addresses in a page “0xA2”

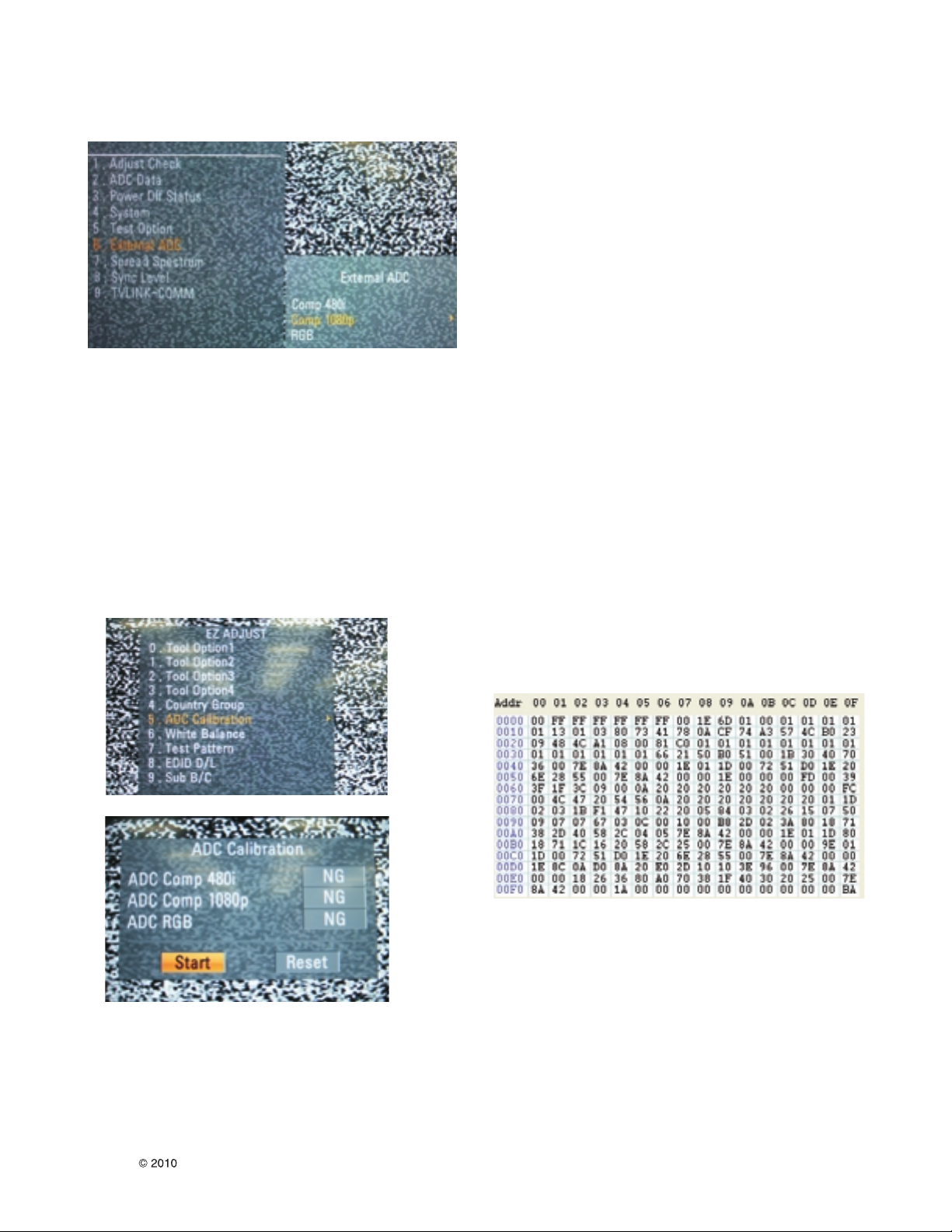

* Manual ADC process using Service Remocon. After enter
Service Mode by pushing “ADJ” key, execute “ADC Adjust” by
pushing “•” key at “ 5. ADC Calibration” and click “Start”.

5.2 COMPONENT input ADC

5.2.1 Component Gain/Offset Adjustment

• Convert to Component in Input-source.

• Signal equipment displays.

- Impress Resolution 480i

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 13 -

MODEL: 209 in Pattern Generator(480i Mode)
PATTERN : 65 in Pattern Generator( MSPG-925 SERISE)

- Impress Resolution 1080p

MODEL: 223 in Pattern Generator(1080p Mode)
PATTERN: 65 in Pattern Generator( MSPG-925 SERISE)

5.2.2 Confirmation

• We confirm whether “0xB3 (480i)/0xBC (1080p)” address of
EEPROM “0xA2” is “0xAA” or not.

• If “0xB3 (480i)/0xBC(1080i)” address of EEPROM “0xA2”
isn’t “0xAA”, we adjust once more.

• We can confirm the ADC values from “0xAD~0XB2
(480i)/0XB6~BB(1080p)” addresses in a page “0xA2”

* Manual ADC process using Service Remocon. After enter
Service Mode by pushing “ADJ” key, execute “ADC Adjust” by
pushing “•” key at “ 5. ADC Calibration” and then click “Start”.

- Impress Resolution 480i/1080p/RGB

5.3 Function Check

5.3.1 Check display and sound

• Check Input and Signal items. ( cf. work instructions)

1.TV

2. AV (CVBS/ S-Video)

3.COMPONENT (480i)

4.RGB (PC : 1024 x 768 @ 60hz)

5.HDMI

6.PC Audio In and H/P Out
* Display and Sound check is executed by Remote controller.

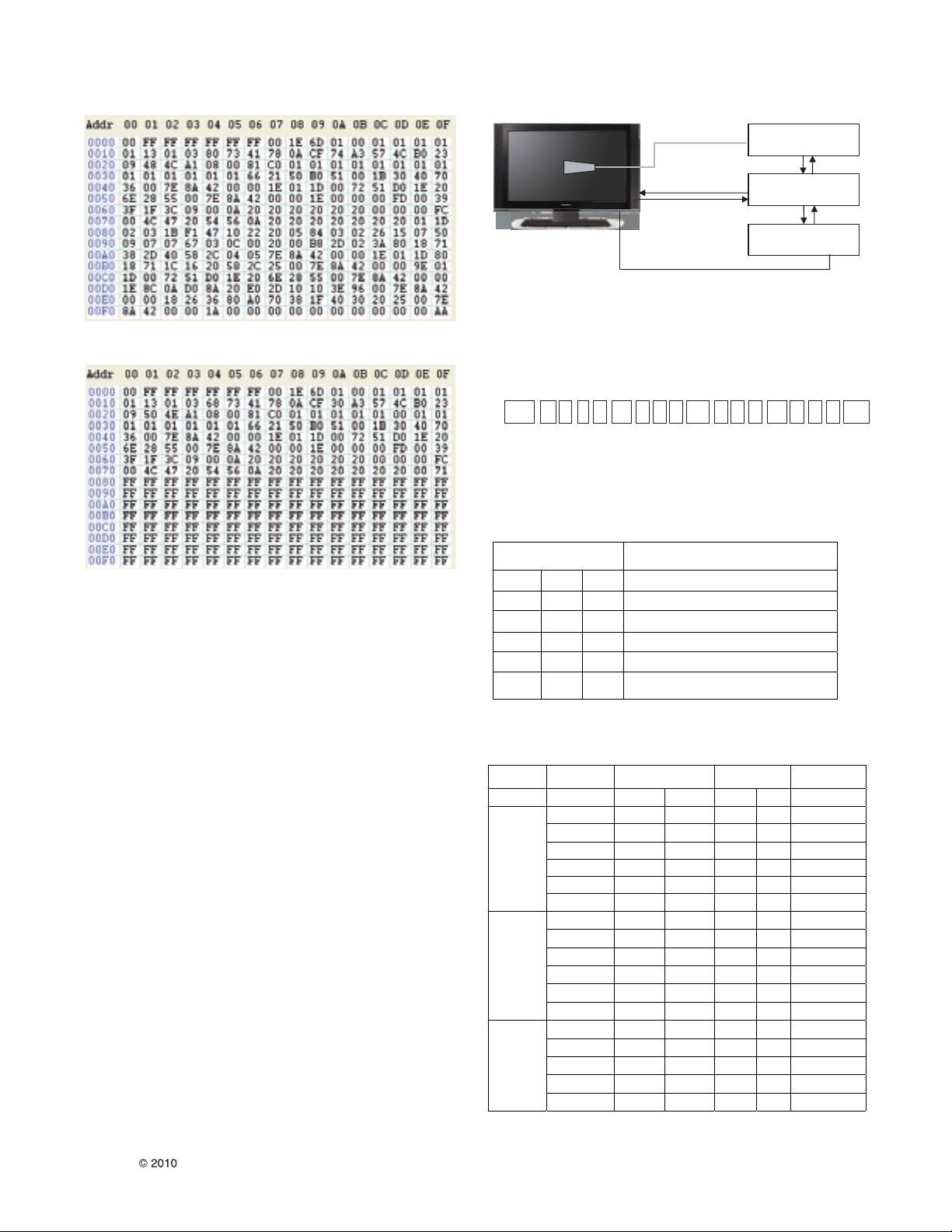

5.4 EDID(The Extended Display Identification Data)
/ DDC(Display Data Channel) download

5.4.1 Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity of
user input. It is a realization of “Plug and Play”.

5.4.2 Equipment

• Adj. R/C

• Since embedded EDID data is used, EDID download jig,
HDMI cable and D-sub cable are not need.

5.4.3 Download method

1) Press Adj. key On the Adj. R/C, press Adj. key then select

EDID D/L. By pressing Enter key, EDID download will
begin.

2) If Download is successful, OK is displayed.

3) If Download is a failure, NG is displayed.

4) Re-try download.

5.4.4 EDID DATA

•Reference: Download is only possible in POWER ON MODE.

• HDMI I [C/S: 1DBA]

• HDMI II [C/S: 1DAA]

• RGB [C/S: 71FF]

6. Final Assembly adj.

6.1 White Balance adj.

6.1.1 Overview

•W/B adj.: Objective & How-it-works

- Objective: To reduce each Panel’s W/B deviation

- How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range.
In order to prevent saturation of Full Dynamic
range and data, one of R/G/B is fixed at 192,
and the other two is lowered to find the
desired value.

6.1.2 Equipment

1) Color Analyzer : CA-210 (NCG: CH 9 / WCG: CH12 /LED

Module:CH14)

2) Adj. Computer (During auto adj., RS-232C protocol is

needed)

3) Adj. R/C

4) Video Signal Generator MSPG-925F 720p/216Gray

(Model:217, Pattern:78)

-> Only when internal pattern is not available

•Color Analyzer Matrix should be calibrated using CS-1000

6.1.3 Equipment connection map

6.1.4 Adj. Command (Protocol)

•Protocol
<Command Format>

- LEN: Number of Data Byte to be send

- CMD: Command

- VAL: FOS Data

- CS: Checksum of sent Data

- A: Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

•Adj. Map

- Applied model:

- 14 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

Color Analyzer

Computer

RS-232C

# Pattern Generator

* If TV internal pattern is used,not needed

Signal Source

Probe

RS-232C

RS-232C

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A

STOP

RS-232C COMMAND
[CMD ID DATA]

Explanation

Wb 00 00 Begin White Balance adjust.
Wb 00 10 Begin Gain adjust (internal white pattern)
Wb 00 1f End Gain adjust
Wb 00 20 Begin Offset adjust (internal white pattern)
Wb 00 2f End Offset adjust
Wb 00 ff End White Balance adjust(internal pattern

disappears )

Item Command

(lower case ASCII)

Data Range
(Hex.)

Default
(Decimal)

CMD1 CMD2 MIN MAX

R Gain j g 00 C0 TBD
G Gain j h 00 C0 TBD
B Gain j i 00 C0 TBD
R Cut TBD
G Cut TBD

Cool

B Cut TBD
R Gain j a 00 C0 TBD
G Gain j b 00 C0 TBD
B Gain j c 00 C0 TBD
R Cut TBD
G Cut TBD

Medium

B Cut TBD
R Gain j d 00 C0 TBD
G Gain j e 00 C0 TBD
B Gain j f 00 C0 TBD
R Cut TBD

Warm

G Cut TBD

6.1.5 Adj. method

6.1.5.1 Auto adj. method

1) Set TV in adj. mode using POWER On Key

2) Zero calibrate probe then place it on the center of the
Display

3) Connect Cable(RS-232C)

4) Select mode in adj. Program and begin adj.

5) When adj. is complete (OK Sign), check adj. status per
mode (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

• Adj. must begin w/ command “wb 00 00”, and end w/“wb 00

ff”and adj. offset if needed.

6.1.5.2 Manual adj. method

Dynamic contrast : off
Dynamic color : off
OPC : Off
Energy saving mode : Off

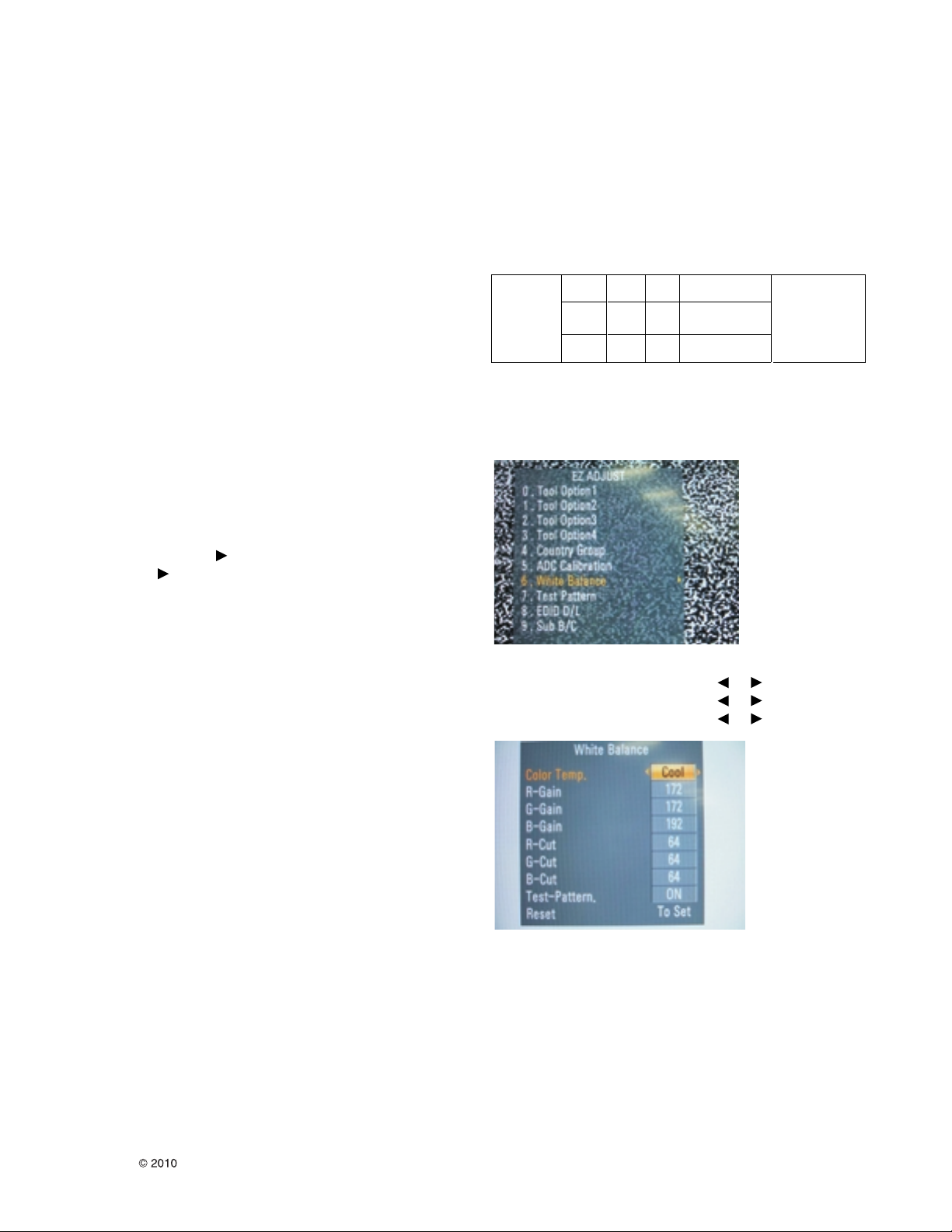

1) Set TV Picture Mode to Standard and in Advanced Control,
set Dynamic Contrast and Color ‘Off’.

2) Set TV in adj. mode using POWER On Key

3) Press ADJ key -> EZ adjust using adj. R/C

4) Using CH + / - KEY, select 10.TEST PATTERN then press
Enter to place in HEAT RUN mode and wait for 30 minutes.

5) Zero calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10 cm of the surface.

6) Press ADJ key -> 7. White-Balance then press the cursor
to the right (KEY )

(When is pressed Full White internal pattern will be
displayed)

7) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.

8) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature

•If internal pattern is not available, use HDMI input. In EZ Adj.

menu 7.White Balance, you can select one of 3 options:
None, Inner, HDMI. Default is inner. By selecting HDMI, you
can adjust using HDMI signal.

• Adj. condition and cautionary items

1) Lighting condition in surrounding area
Surrounding lighting should be lower than 10 lux. Try to
isolate adj. area into dark surrounding.

2) Probe location

- LCD: Color Analyzer (CA-210) probe should be within 10cm

and perpendicular of the module surface (80°~ 100°)

- In case of LCD, B/L on should be checked using no signal or

Full white Pattern

6.1.6 Reference (White Balance adj. coordinate and color
temperature)

6.1.6.1 Adjustment Preparation

• W/B Equipment condition

CA210: CH 9, Test signal: Inner pattern (85IRE)

• Above 5 minutes H/run in the inner pattern. (“power on” key

of adjust remote control)

• 15 Pin D-Sub Jack is connected to the AUTO W/B

EQUIPMENT.

• Adjust Process will start by execute I2C Command (Inner

pattern (0xF3, 0xFF)).

∆ Manual White Balance adjust process using Service Remo-

con. After enter Service Mode by pushing “ADJ” key, enter
“White Balance” by pushing “•” key at “ 6. White Balance”.
(CA-210, CH-9)

*Adjust “R/G/B - GAIN” by pushing “”, “” key at “Cool”
*Adjust “R/G/B - GAIN” by pushing “”, “” key at “Medium”
*Adjust “R/G/B - GAIN” by pushing “”, “” key at “Warm”

- 15 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

Cool 11,000 K

X=0.276 ± 0.003
Y=0.283 ± 0.003

Medium 9,300 K

X=0.285 ± 0.003
Y=0.293 ± 0.003

Color

Temperature

Warm 6,500 K

X=0.313 ± 0.003
Y=0.329 ± 0.003

<Test Signal>

Inner pattern

(216gray, 85 IRE)

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 16 -

TROUBLESHOOTING

1. Power-up boot check

Check stand-by Voltage.

P701 10pin : +3.5V_ST

Check X100 clock

Check Power connector

and AC S/W on?

OK

No

OK

Check Q706 Output.

12V, 5V

Replace Power board.

Replace X100.

OK

Check Fuse.

OK

No

Check P701 PWR_ON.

1pin : 3.5V

OK

Re-download software.

No

OK

Check Multi Voltage

P701 7pin : 12V, 2pin : 24V

Replace Power board

No

Replace Mstar(IC100) or Main board

OK

Replace Q706

No

Check inverter control & error

P701 24pin : Low
P701 18pin : high

OK

Check Power board or Module

No

Check Mstar LVDS output

R812, R813,..., R821

Replace Mstar(IC100) or Main board

No

OK

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 17 -

2. Digital TV Video

Check RF cable & Signal.

Check Tuner 5V Power

IC1001 4pin

OK

OK

Check Check Demodulator Input

Clock(X1005)

Check IC1002
(19",22")Check IC1002.

No

Check IF_P/N Signal

OK

Replace Tuner.

No

Replace X1005.

No

OK

Check Mstar LVDS output

R812, R813,..., R821

Check IC1004(LGDT) Output

- AR1070, AR1071

OK

Replace IC1004.

No

Replace Mstar(IC100) or Main board.

No

3. Analog TV Video

Check RF cable.

Check Tuner 5V Power.

IC1001 4pin

OK

Check CVBS signal.

TU1001 #19 Pin

Check IC1002
Check IC1005(19",22")

No

OK

Bad Tuner.

No

OK

Check Mstar LVDS output Replace Mstar(IC100) or Main board.

No

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 18 -

4. Component Video

Check Component Cable.

Check JK1200.

OK

Check input signal format.

Is it supported?

OK

Replace Jack.

No

OK

Check Mstar LVDS output Replace Mstar(IC100) or Main board.

No

5. RGB Video

Check RGB Cable conductors for

damage.

Check JK1204.

OK

OK

Check input signal format.

Is it supported?

OK

Check signal R/G/B/H/V-Sync

C113, C108, C114, R146, R149

Replace Jack.

No

Check EDID.

OK

Replace the defective IC or re-download EDID data

No

Check other set.
If no problem, check signal line.

No

OK

Check Mstar LVDS output Replace Mstar(IC100) or Main board.

No

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 19 -

6. AV Video

Check AV Cable for damage or open conductor.

Check JK1200(*JK1202).

OK

Check input signal format.

Is it supported?

OK

Replace Jack.

No

OK

Check Mstar LVDS output Replace Mstar(IC100) or Main board.

No

Check HDMI Cable conductors for

damage of open conductor.

Check JK500, 501, 502

OK

OK

Check input signal format.

Is it supported?

OK

Check EDID & EEPROM

IC500, 501, 502.

I2C Signal (#5, #6)

Replace Jack.

No

Replace the defective IC or re-download
EDID data.

No

Check HDCP key NVRAM(IC105)

power & I2C Signal (#5, #6)

Replace the defective IC.

No

OK

Check HDMI Signal

Check other set.
If no problem, check signal line.

No

Replace Main board.

No

OK

7. HDMI Video

OK

Check Mstar LVDS output

Replace Mstar(IC100) or Main board.

No

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 20 -

8. All Source Audio

Check Mstar I2S Output

R604, R605, R606

Check IC500 Power

*24V, 3.3V, 1.8V.

OK

OK

Make sure you can’t hear any audio.

OK

Check Mstar AUDIO_MASTER_CLK

OK

Check Connector & P600

Check Regulator IC601, IC704

No

Check signal line. Or replace IC100.

No

Replace Mstar(IC100) or Main board.

No

Check Output Signal P600 1, 2, 3, 4 pin.

OK

Replace NTP(Audio AMP) IC500

No

Replace connector if found to be damaged.

No

OK

Check speaker resistance

and connector damage.

Replace speaker.

No

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 21 -

10. Analog TV Audio

Check RF Cable.

OK

Check SIF buffer signal. Check SIF Signal line.

No

OK

Check Tuner 5V Power

TU1001 4pin

Check IC1002.
Check IC1005(19”, 22”).

No

Bad Tuner
Replace Tuner.

No

OK

Follow procedure All source audio

trouble shooting guide.

Replace Mstar(IC100)
or Main board.

No

9. Digital TV Audio

Check Tuner 5V Power

TU1001 4pin.

Check IC1002.
Check IC1005(19”, 22”)

No

OK

Check IF_P/N Signal. Bad Tuner. Replace Tuner Bad Tuner.

No No

OK

Check Demodulator Input Clock(X1005). Replace X1005.

No

OK

Check IC400(LGDT) Output

- AR1070, AR1071

Replace IC400.

No

OK

Check Output Signal

P600 1, 2, 3, 4 pin

Replace NTP3100L
(Audio AMP) IC500

No

OK

Check speaker resistance

and connector damage.

Replace speaker.

No

OK

Check Connector & P600

Replace connector
if found to be damaged.

No

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 22 -

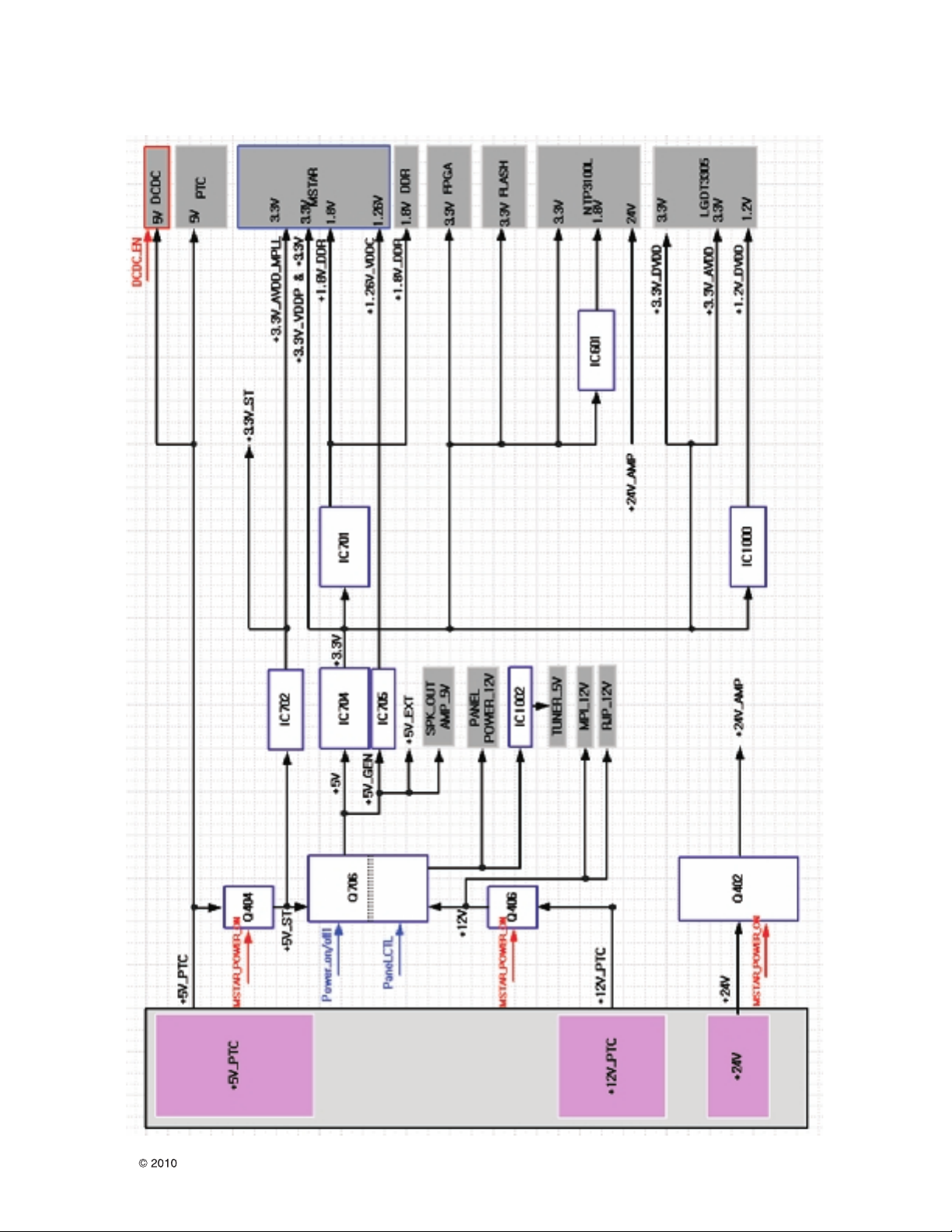

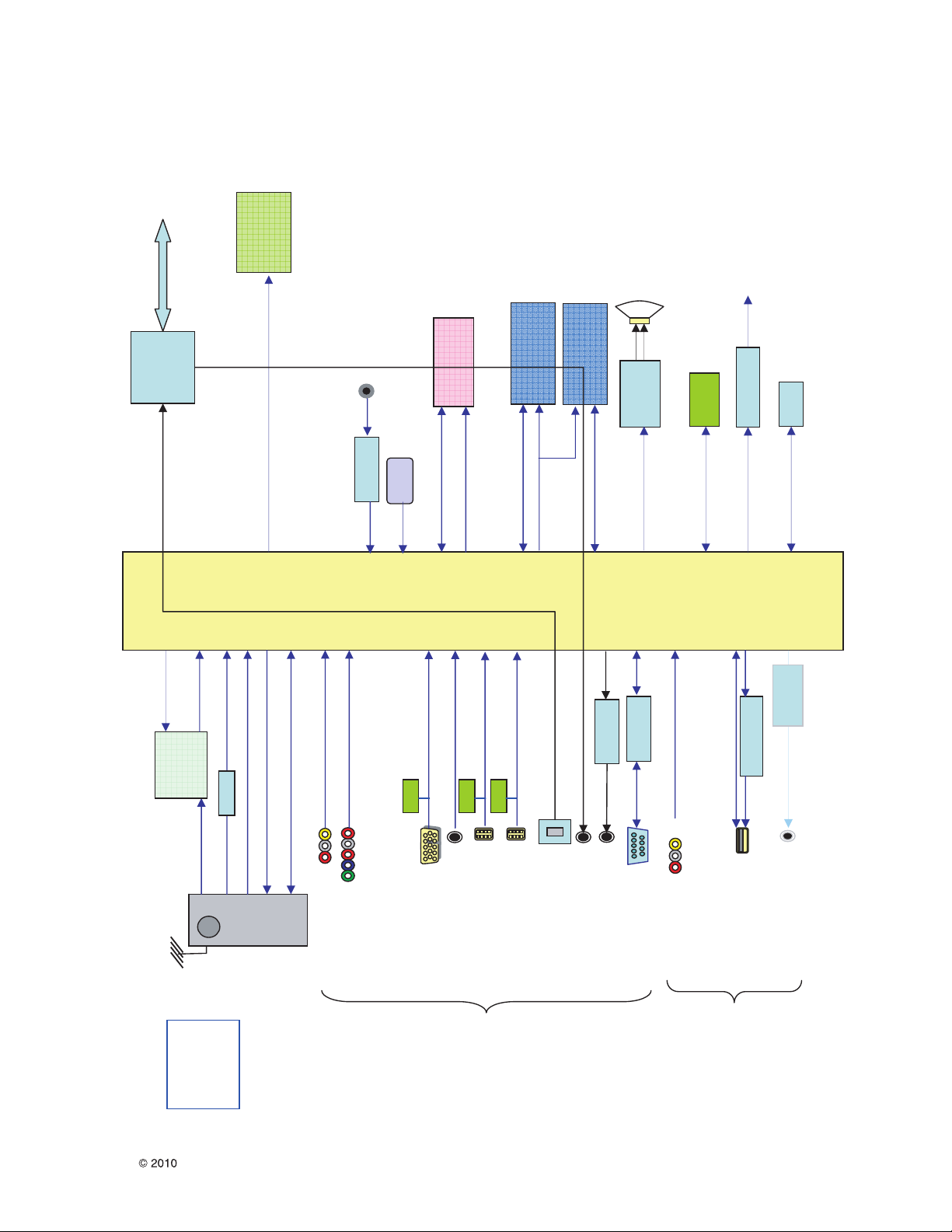

BLOCK DIAGRAM

- 23 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

D-sub RGB

HDMI 1

Side AV

CVBS, L/R

DDR2 (512Mbit)

Qimonda / Hynix

NAND Flash

(256Mb)

Digital AMP

NTP3100A

RS-232C (Ctrl./SVC)

I2S

EEPROM

512Kb

RGB/H/V

Half-NIM Tuner

DDR_Data[0:15], DQS, DM …

Addr.[ ], ctrl. data

MAX3232

Saturn6

Saturn6

(ATSC

(ATSC

US)

US)

MPEG2/4

Linux

Scaler

PIP : x

Headphone(opt)

Data [0 … 7]

IF +/-

SIF

TU_CVBS

Reset / IF_AGC …

SDA/SCL_5V

JTAG

CLK,TDI,TDO,MS,RST

Addr[0…1], CS …

Audio L/R

Audio L/R (for RGB)

HDMI 2

Audio L/R

Out

RX/TX RX/TX

JACK PACK

JACK PACK

at REAR

at REAR

JACK PACK

JACK PACK

at SIDE

at SIDE

SCL, SDA_3.3V

TR Buffer

VSB

Demod.

X-tal

Reset Switch

Reset IC

12MH

z

TS In[0…7]

TS_clk, SOP, Val

H/P Amp.

EEPROM

EEPROM

EEPROM

Data[16:31]

DDR2 (512Mbit)

Qimonda / Hynix

AV

Component 1

Y Pb Pr, L/R

CVBS, L/R

Speaker Out(8ohm)

USB2.0

SCL, SDA_3.3V

IO Expander

SCL,

SDA_3.3V

GPIO

DP/D

M

O.C. Protector

+5V+5V

LCD Module

LVDS

MPEG2,

LINUX

AMP

PTC

MPI Control

RJP

RJP Control

IR OUT

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 24 -

Copyright LG Electronics. Inc. All right reserved.
Only for training and service purposes

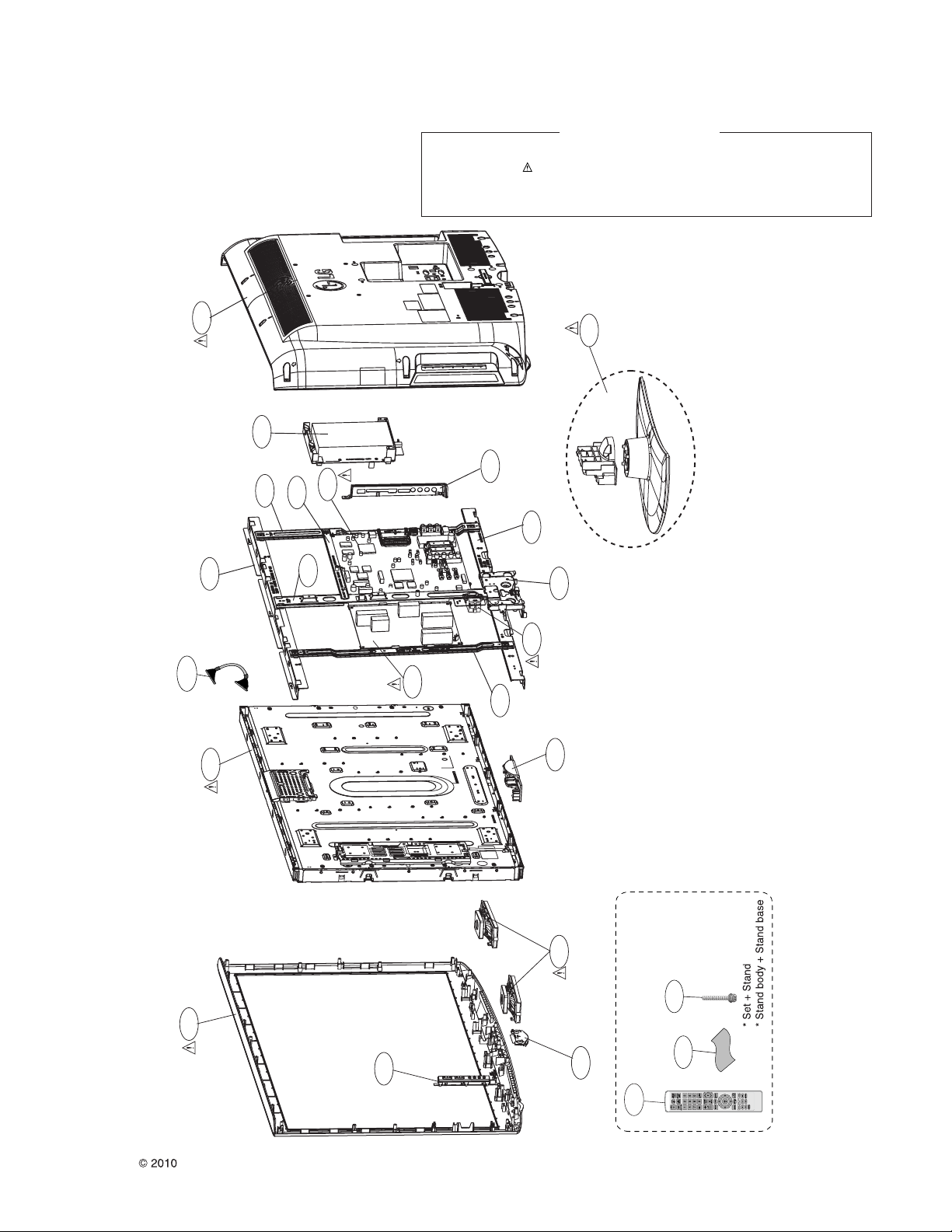

EXPLODED VIEW

300

510

500

120

200

810

900

806

801

520

802

550

530

803

804

540

805

590

800

400

A5

A10

LV1

A2

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

PStoPDF trial version. http://www.oakdoc.com

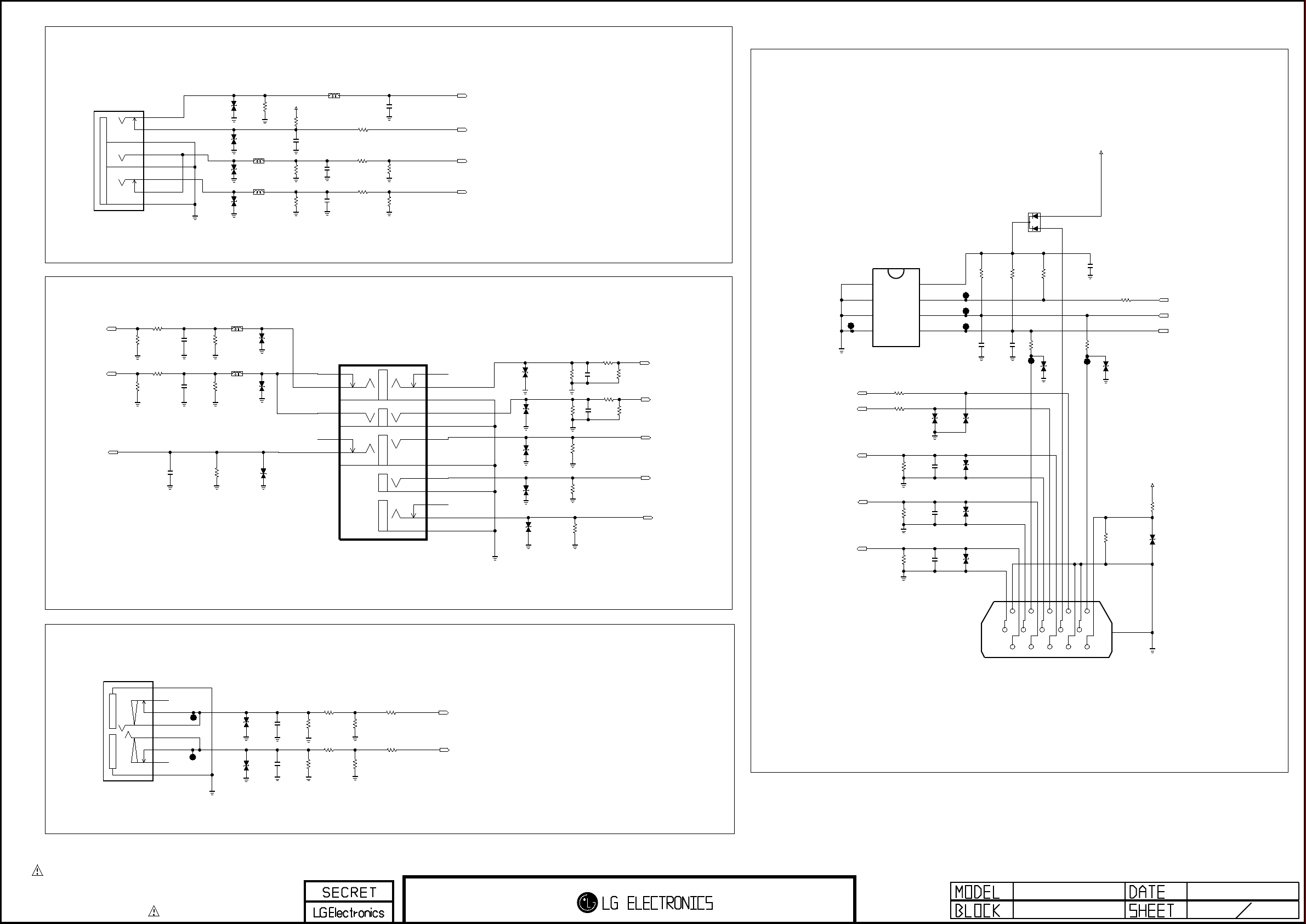

SIDE_AV

JK1202

PPJ218-01

4A

5A

2A

3B

2B

4C

5C

2C

[YL]O_SPRING

[YL]CONTACT

[YL]U_CAN

[WH]C_LUG

[WH]U_CAN

[RD]O_SPRING

[RD]CONTACT

[RD]U_CAN

OPT

OPT

OPT

D1215
ADUC30S03010L
30V

D1221
ADMC5M03200L

5.6V
L1206

BG2012B080TF

D1213
ADMC5M03200L

5.6V
L1207

BG2012B080TF

D1214
ADMC5M03200L

5.6V

R1238

75

R1248

C1219

100pF

10K

+3.3V

R1246
470K

R1247
470K

L1208

BG2012B080TF

C1224

100pF

C1225
100pF

008:D26

C1227
100pF

OPT

R1254
1K

R1259

10K

50V

R1258

50V

R1264

12K

10K

R1263

12K

SIDEAV_CVBS_IN

009:P28
SIDEAV_SW

008:R33

SIDEAV_L_IN

008:R33
SIDEAV_R_IN

R,G,B PC&DDC

D1223

ENKMC2838-T112

C

+5V_ST_PTC

A1

A2

COMPONENT1,AV1

R1205

R1207

R1210

10K

C1250

R1211

10K

C1252

47pF

100pF

C1251

100pF

50V

12K

12K

AV_R_IN

AV_L_IN

AV_CVBS_IN

008:R32

008:R32

008:D26

IC1200

AT24C02BN-10SU-1.8

A0

1

A1

2

A2

D1242

ADMC5M03200L

L1218

L1217

ADMC5M03200L

D1243

5.6V

5.6V

OPT

OPT

D1245

OPT

[RD]CONTACT-L

[RD]O-SPRING-L

[WH]C-LUG-L

[YL]CONTACT-L

[YL]O-SPRING-L

ADUC30S03010L

30V

JK1200

PPJ228-01

[RD]CONTACT-S

6H

5H

7G

6F

5F

3E

[RD]O-SPRING-S

4E

[RD]E-LUG_2

9E

[WH]C-LUG-S

8D

[WH]E-LUG

9D

[RD]C-LUG-S

8C

[RD]E-LUG_1

9C

[BL]C-LUG-S

8B

[BL]E-LUG

9B

[GN]CONTACT-S

3A

[GN]O-SPRING-S

4A

[GN]E-LUG

ADUC30S03010L

9A

OPT

OPT

OPT

D1208

D1212
ADMC5M03200L

OPT

30V

5.6V

D1211
ADMC5M03200L

5.6V

D1210
ADUC30S03010L
30V

D1209

ADUC30S03010L

30V

OPT

R1245

470K

R1244

470K

R1243
75

R1242
75

R1241

R1251
10K

C1221
1000pF
50V

R1252
10K

C1220
1000pF
50V

75

R1255
12K

R1256
12K

008:D31

COMP1_R_IN

008:R33

COMP1_L_IN

008:R33

COMP1_PR

008:D31

COMP1_PB

008:D31

COMP1_Y

008:D29

008:D29

008:D28

008:D29

008:D29

DSUB_VSYNC

DSUB_HSYNC

DSUB_B

DSUB_G

DSUB_R

BG2012B080TF

R1206

470K

50V

BG2012B080TF

R1208

470K

50V

R1215

75

1%

3

GND

4

R1232

0

0 R1233

ADUC30S03010L

R1234
75

R1235
75

R1236

75

VCC

8

WP

7

SCL

6

SDA

5

D1207

30V

C1216

0.1uF
OPT

C1217

0.1uF
OPT

C1218

0.1uF
OPT

C1222

18pF

50V

D1216

ADUC30S03010L
30V

D1217
30V

D1218
ADUC30S03010L

30V

D1219
ADUC30S03010L

30V

R1249

4.7K

ADMC5M03200L

C1223
18pF

50V

D1222

5.6V

OPT

R1253

4.7K

R1257
22

R1262

10K

R1265
22

C1228

16V

0.1uF

R1269

100

D1224

ADMC5M03200L

5.6V
OPT

SIGN25

0

R1268

OPT

008:AP22;002:S21;002:S8

ISP_TXD

008:AB27;008:AR31

+5V_GENERAL

R1270

OPT

10K

D1225
ADMC5M03200L

5.6V

OPT

EEPROM_WP

ISP_RXD
008:AB27

PC AUDIO

JK1205

PEJ024-01

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3

6A

7A

4

5

7B

6B

8

E_SPRING

T_TERMINAL1

B_TERMINAL1

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

SHIELD_PLATE

OPT

OPT

D1234

5.6V
ADMC5M03200L

D1235

5.6V

ADMC5M03200L

C1240

100pF

50V

C1241

100pF

50V

R1297
470K

R1298
470K

R1300
10K

R1301
10K

R1304

12K

R1303
12K

R1305
0

R1307
0

PC_R_IN

008:R32

PC_L_IN
008:R31

KCN-DS-1-0089

JK1204

11

12

6

7

1

2

32/37/42 AUO

IN/OUT

13

14

15

8

9

3

4

16

10

5

1

14

PStoPDF trial version. http://www.oakdoc.com

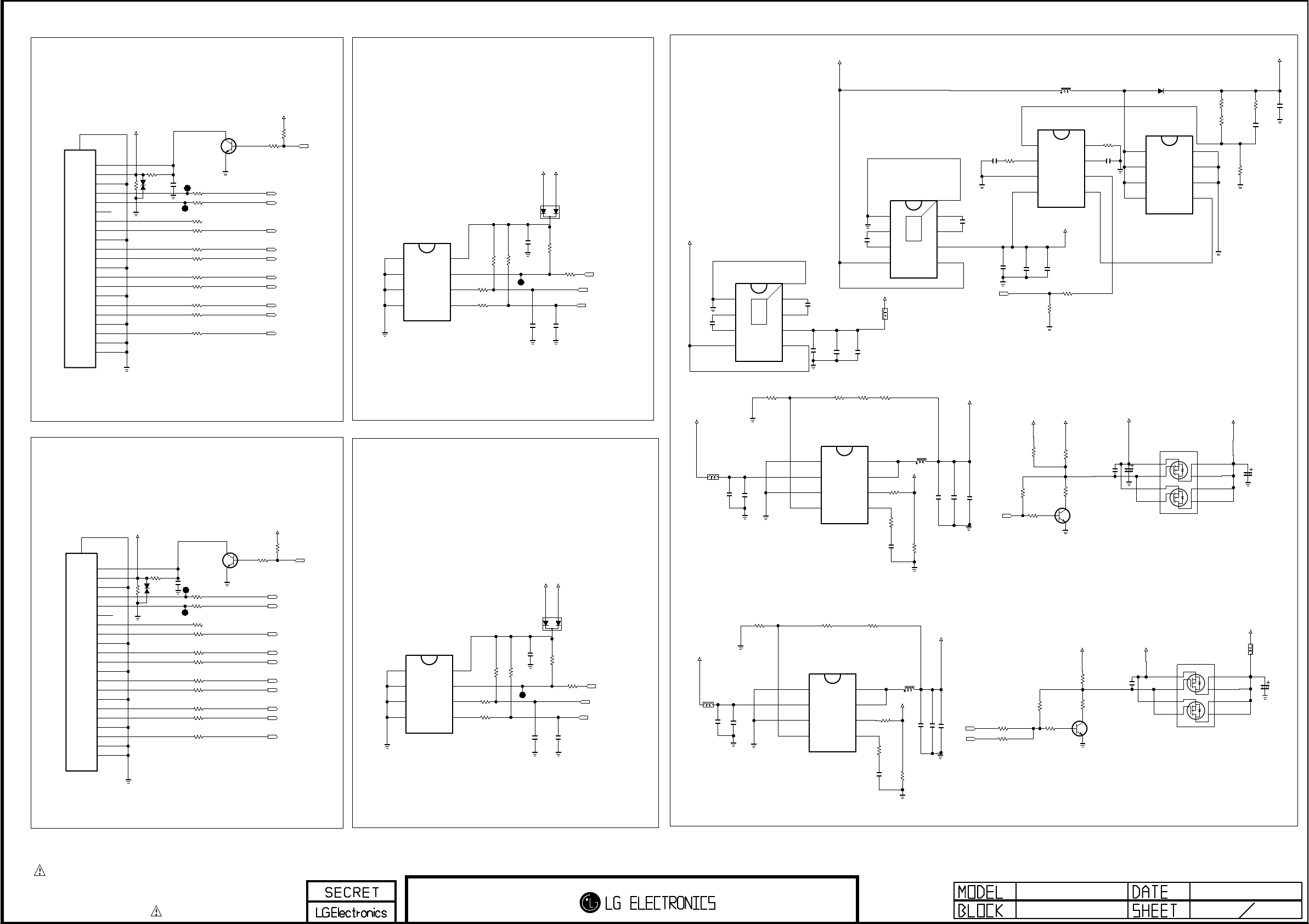

HDMI1

22

QJ41193-CFEE1-7F

JK500

HDMI2

22

QJ41193-CFEE1-7F

JK501

2010_PWR BLOCK

PGND

VIN

AGND

AOZ1073AIL

FB

C6001

2.2uF
10V

2010_PWR

C6002
10uF
25V

AOZ1073AIL

FB

R4007

4.7K

IC4000

1

2

3

4

+3.5V_ST

R4009

5.1K
1/10W

5%

2010_PWR

IC4001

1

2

3

4

1%

2010_PWR

C4004

2010_PWR

C6003
47uF
10V

2.2uF
10V

2010_PWR

C4030
100uF
16V

2010_PWR

D4000
MBRA340T3G

40V

2010_PWR

Q4008

Si4800BDY

D8

8

D7

7

D6

6

D5

5

3.3V

1S2

2G2

3S1

4G1

2010_PWR

Q4007

AO4813

1S2

2G2

3S1

4G1

1

2

3

4

2010_PWR

Q4009

AO4813

S1

S2

S3

G

8 D2_2

7 D2_1

6 D1_2

5 D1_1

R4045

2010_PWR
R4046

2010_PWR

8 D2_2

7 D2_1

6 D1_2

5 D1_1

100K

1%

30K

1%

R4047

2010_PWR

+5V_ST

2010_PWR

L4005

22uH

2010_PWR

IC4003

BD9306AFVM

FB

8

R4032

R4031

R4030

2010_PWR

C4015
10uF
25V

2010_PWR

0

0

1K

OPT

COMP

GND

VCC

2010_PWR

C4019
47uF
10V

+5V_ST_PTC

R4039
22K

1K

R4035

R4037
10K

2010_PWR

7

6

5

+5V_ST_PTC

C4021
47uF
10V

2010_PWR

R4042

OPT

22K

OPT

2010_PWR

Q4005

2SC3875S(ALY)

B

1K

R4036

R4038
10K

2010_PWR

2010_PWR
R4034

0
R4033
47K

5V_ST

C

E

R4043
10K

2010_PWR

R4044

OPT

2010_PWR

Q4006

2SC3875S(ALY)

B

C4013

0.1uF

2010_PWR

IC4002

SC632ULTRT

GND

1

C1+

2

C1-

3

IN

4

+5V_ST_PTC

OPT

L6000

2010_PWR
C6004
47uF
10V

R4015

R4018

200

47K

1/10W

1%

5%

LX_2

8

LX_1

7

EN

10K

6

R4024

COMP

5

R4022

11K

1/10W

5%

C4008
1000pF
50V

R4012
27K

1%

2010_PWR

L4003

R4016

3.6uH

+12V

10K

C4010

R4017

2010_PWR

11K

1/10W

5%

47K

2010_PWR

LX_2

8

LX_1

7

EN

6

COMP

5

C4007
1000pF
50V

+12V

10uF

10V

R4021

9

THERMAL

2010_PWR

L4004

3.6uH

2010_PWR

C4014

47K

R4027

10uF

[EP]GND

C2-

8

7

6

5

10V

0.1uFC4011

C2+

OUT

EN

3.3V

2010_PWR

2010_PWR

0.1uFC4018

2010_PWR

C4012
22uF
16V

C4009

2.2uF
10V

009:N25;009:AU17

DCDC_EN

5V_ST

2010_PWR

C4020
22uF
16V

MSTAR_POWER_ON

002:AE6;004:AG4;009:N27

008:AR31;004:Q27;004:T24

POWER_ON/OFF1

MSTAR_POWER_ON

002:AG13;004:AG4;009:N27

2010_PWR

R4041

15K

3.3V

0

R4040

20K

RT

1

C4023

100pF

CT

2

50V

ENB

3

GD

4

5V_ST

2010_PWR
C4027

2.2uF
25V

OPT

C4028

10uF

16V

C

E

EDID

+3.3V_ST

5V_HDMI_1

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

20

21

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

20

21

R552

R501

820

OPT

GND

008:Q29;002:R11

5V_HDMI_2

R502

820

AVRL161A1R1NT
OPT

GND

1K

VR500

AVRL161A1R1NT

R553

1K

VR501

C501

0.1uF
16V

JP504

JP502

R509

R569

R570

R571

R572

R573

R574

R575

R576

C502

0.1uF

16V

R511

R507

R508

R577

R578

R579

R580

R581

R582

R583

R584

JP503

JP505

2SC3052

0

0

0

0

0

0

0

0

0

2SC3052

0R506

0

0

0

0

0

0

0

0

0

0

C

Q504EB

0R510

0

C

Q505EB

R513
10K

008:D39

008:D39

008:D39

008:D39

008:D38

008:D38

008:D38

008:D38

+3.3V_ST

R514
10K

008:D35;002:S7

008:D37

008:D37

008:D36

008:D36

008:D35

R556
47K

OPT

008:D37

DDC_SDA_1

008:D38;002:R20

DDC_SCL_1

008:D37;002:R21

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

R557

47K

OPT

008:D35

008:D35;002:R7

DDC_SDA_2

DDC_SCL_2

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

008:D36

D0+_HDMI2

008:D36

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

008:D36

D2+_HDMI2

HPD2

HPD1

CAT24C02WI-GT3

A0

A1

A2

VSS

EDID

VSS

IC500

1

2

HDMI1

3

4

IC501

CAT24C02WI-GT3

A0

1

A1

2

HDMI2

A2

3

4

A1

D501

ENKMC2838-T112

C509

0.1uF
50V

JP500

C512
8pF
50V

OPT

A1

D502

ENKMC2838-T112

C510

0.1uF
50V

JP501

C513
8pF
50V

OPT

5V_HDMI_1

A2

C

R542
10K

OPT

OPT

5V_HDMI_2

A2

C

R543
10K

OPT

C515
8pF
50V

OPT

C516
8pF
50V

R545
100

R546
100

EEPROM_WP

DDC_SCL_1

DDC_SDA_1

EEPROM_WP

DDC_SCL_2

DDC_SDA_2

+3.5V_ST

C6000

2.2uF
10V

+12V

2010_PWR

L4001

MLB-201209-0120P-N2

C4002

0.1uF

+12V

2010_PWR

L4000

MLB-201209-0120P-N2

C4000

0.1uF
16V

16V

GND

C1+

C1-

IN

2010_PWR

IC6000

SC632ULTRT

1

2

3

4

C4003
22uF
16V

R4050
10K

C4001
22uF
16V

THERMAL

1%

9

R4003
10K

1%

[EP]GND

C2-

8

C2+

7

OUT

6

EN

5

PGND

VIN

AGND

+5V_GENERAL

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

R531

R530

22

22

R533

R532

R536

R539

4.7K

4.7K

+5V_GENERAL

R537

R540

4.7K

4.7K

22

22

R4048

C4034

1K

15K

+3.3V

2010_PWR

1%

C4036
220uF
16V
2010_PWR

BLM18PG121SN1D

2010_PWR

C4035

22uF

25V

2010_PWR

100pF
50V

L4009

2010_PWR

C4037
220uF
16V

12V_DCDC

2010_PWR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

32/37/42 AUO

HDMI

2 14

PStoPDF trial version. http://www.oakdoc.com

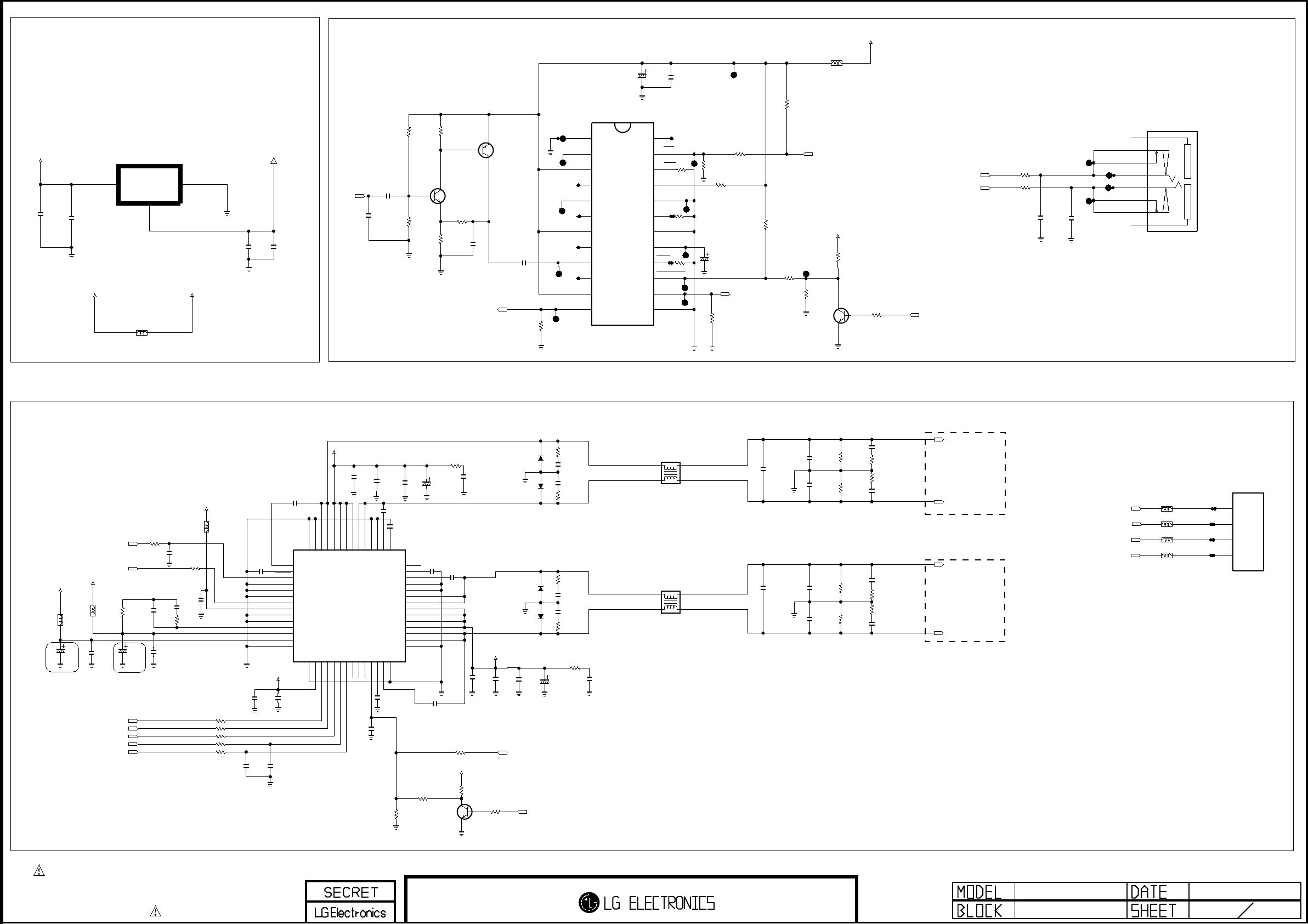

+1.8V_AMP & +24V_AMP

IC601

+3.3V

C646
22uF
16V

AZ1117H-1.8TRE1(EH13A)

INPUT

3

2

OUTPUT

C647

0.1uF
16V

+24V_AUDIO

L602

CB3216PA501E

1

ADJ/GND

+24V_AMP

+1.8V_AMP

GND

C648

C649

0.1uF

22uF
16V

16V

EXTERNAL SPEAKER OUT

R2225

1K

10K

C

Q1103

B

2SC3875S(ALY)

E

R2227

R2226

390

1.6K

003:AF24

3K

B

OPT

C2141

0.1uF

EXT_SPK_L-

E

C

EXT_SPK

008:V28

C2139
15pF
50V

C2140

10uF

R2223

6.3V

R2224

2SA1530A-T112-1R

Q1104

C2142

+5V_GENERAL

L300

CB3216PA501E

C2143

C2144

10uF

0.1uF

16V

OPT

R2236

6.8K

OPT

R2238

R2237
100

SUB_MUTE

008:AB19;003:AC20

+5V_GENERAL

R2239

9.1K

T_SPRING

R_SPRING

E_SPRING

8

6B

7B

5

4

7A

6A

3

PEJ024-01

JK300

SHIELD_PLATE

T_TERMINAL2

EXT_SPK_L-

003:P20

EXT_SPK_L+

003:W20

4.7K
R2240

C

E

B

Q1105

2SC3052

4.7K

R2242

SUB_MUTE

008:AB19;003:Z25

R2250

R2251

0

0

C2148

C2149

1uF

1uF

OPT

OPT

10V

10V

B_TERMINAL2

B_TERMINAL1

T_TERMINAL1

IC300

TPA6011A4PWPRG4

PGND_1

1

ROUT-

2

PVDD_1

3

RHPIN

4

RLINEIN

5

RIN

6

VDD

7

LIN

8

1uF

10V

R2228

LLINEIN

9

LHPIN

10

PVDD_2

11

LOUT-

12

1K

ROUT+

24

SE/BTL

23

HP/LINE

22

R2231

0

VOLUME

21

SEDIFF

20

SEMAX

19

R2229

OPT

AGND

18

BYPASS

17

FADE

OPT

16

R2230

SHUTDOWN

15

LOUT+

14

PGND_2

13

R2233

1uF
50V

100

C2145

1K

R2232

R2234

3.3K

OPT

R2235

EXT_SPK_L+

003:AF24

NTP3100L

AUDIO_MASTER_CLK

+1.8V_AMP

+1.8V_AMP

L603

MLB-201209-0120P-N2

C600

10uF

16V

Mstar Application

008:V26
008:V26
008:V26

008:AI4;010:B8

008:AI4;010:B10

008:AB21

AMP_RST

008:V26

L604

MLB-201209-0120P-N2

C601

0.1uF
16V

MS_LRCH
MS_LRCK

MS_SCK

SDA_SUB/AMP

SCL_SUB/AMP

R600

0

C603
10uF

SPK_L+

SPK_L-

SPK_R+

SPK_R-

003:AK13

003:AK13

003:AK12

003:AK12

+24V_AMP

R625

3.3

1uF16V

C623
22000pF

50V

R627

C624

22000pF

50V

+3.3V_ST

C643

0.01uF

47K

+24V_AMP

C626

0.01uF
50V

C615

0.01uF
50V

C620

0.1uF

PVDD1B_1

OUT1B_2

49

48

22

23

MONITOR_0

MONITOR_1

C617
1uF
10V

OUT1B_1

PGND1B_2

47

46

24

25

FAULT

MONITOR_2

C616
33pF
50V
OPT

50V

PGND1B_1

BST1B

45

44

26

27

BST2B

VDR2B

C618
22000pF
50V

C619
1uF
16V

SIGN91

VDR1B

43

28

PGND2B_1

42
41
40
39
38
37
36
35
34
33
32
31
30
29

1uF

C609
33pF
50V

C611

10V

DGND_PLL
AGND_PLL

AVDD_PLL
DVDD_PLL

+1.8V_AMP

C610
10uF

10V

22000pF

BST1A

VDR1A

RESET

DVSS_1

VSS_IO

CLK_I

VDD_IO

TEST0

C612
33pF
50V

C614

LFM

50V

C613

0.1uF
16V

PVDD1B_2

PVDD1A_1

PVDD1A_2

OUT1A_1

OUT1A_2

PGND1A_1

PGND1A_2

51

52

53

54

55

56

1
2
3

AD

4
5
6

IC600
7
8

EAN60664001
9

10
11

NTP-3100L
12
13
14

15

DVSS_2

DVDD

50

16

17

18

19

20

21

SCL

SDA

BCK

WCK

SDATA

+3.3V

L605

R601
100

C606

1000pF

50V

C604
100pF

50V

C605

0.1uF

16V

16V

C607
1000pF

50V

R602

3.3K

0.1uF

R603
0

C608

MLB-201209-0120P-N2

SIGN102

100R604
100R605
100R606
100R607
100R608

C625

0.1uF
50V

NC
VDR2A
BST2A
PGND2A_2
PGND2A_1
OUT2A_2
OUT2A_1
PVDD2A_2
PVDD2A_1
PVDD2B_2
PVDD2B_1
OUT2B_2
OUT2B_1
PGND2B_2

C602

68uF

C622

SIGN85

C627

0.1uF
50V

POWER_DET

D603

C645

0.1uF
50V

100V

D602
100V

100V

D604
100V

D601

R613

5.6

OPT

C629
1000pF

SIGN75

50V

C630
1000pF

C628
68uF

SIGN76

SIGN69

50V

R614

5.6

R615

5.6

C631
1000pF

50V

C632
1000pF

50V

R616

5.6

R626

3.3

C644

0.01uF
50V

OPT

OPT

OPT

L606
DA-8580
EAP38319001

2S

1S 1F

L607
DA-8580
EAP38319001

2S

1S 1F

C635

2F

2F

C633

0.47uF
50V

C634

0.47uF

50V

0.1uF
50V

C636

0.1uF
50V

C637

0.1uF
50V

C638

0.1uF

50V

R617

4.7K

R618

4.7K

R619

4.7K

R620

4.7K

SIGN97

SIGN73

SIGN89

C639

0.01uF
50V

R621

3.3

R622

3.3
C640

0.01uF
50V

C641

0.01uF
50V

R623

3.3

R624

3.3
C642

0.01uF
50V

SPEAKER_L

SPEAKER_R

003:AD16

003:AD14

003:AD12

003:AD9

SPK_L+

SPK_L-

SPK_R+

SPK_R-

L608

120-ohm

L609
120-ohm

L611
120-ohm

L610
120-ohm

SIGN88

SIGN68

WAFER-ANGLE

4

3

2

1

P600

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R609

R611

R610

33K

OPT

10K

0

Q600

2SC3052

C

E

R612

B

10K

AMP_MUTE

008:C13

32/37/42 AUO

Audio Amp

3 14

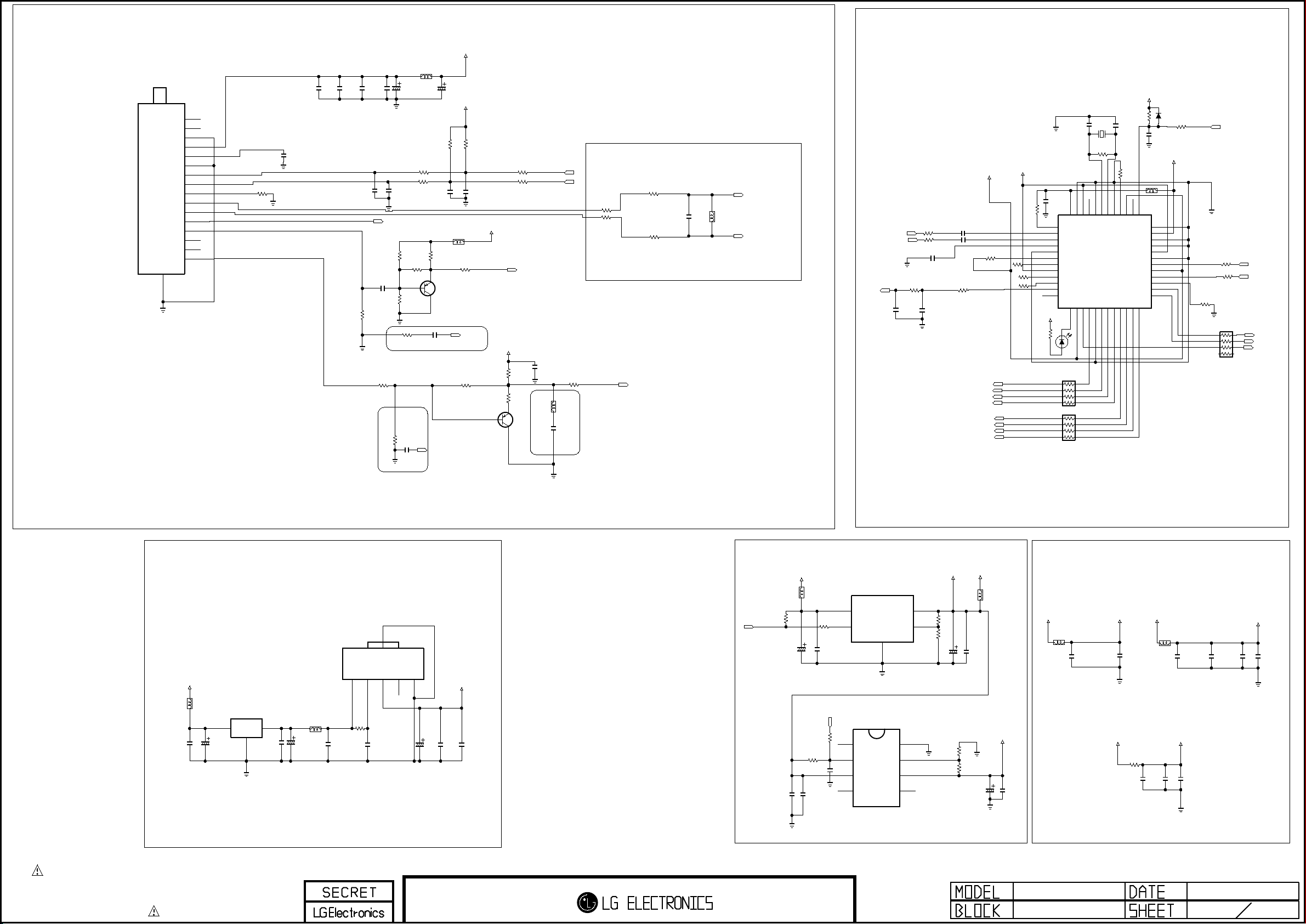

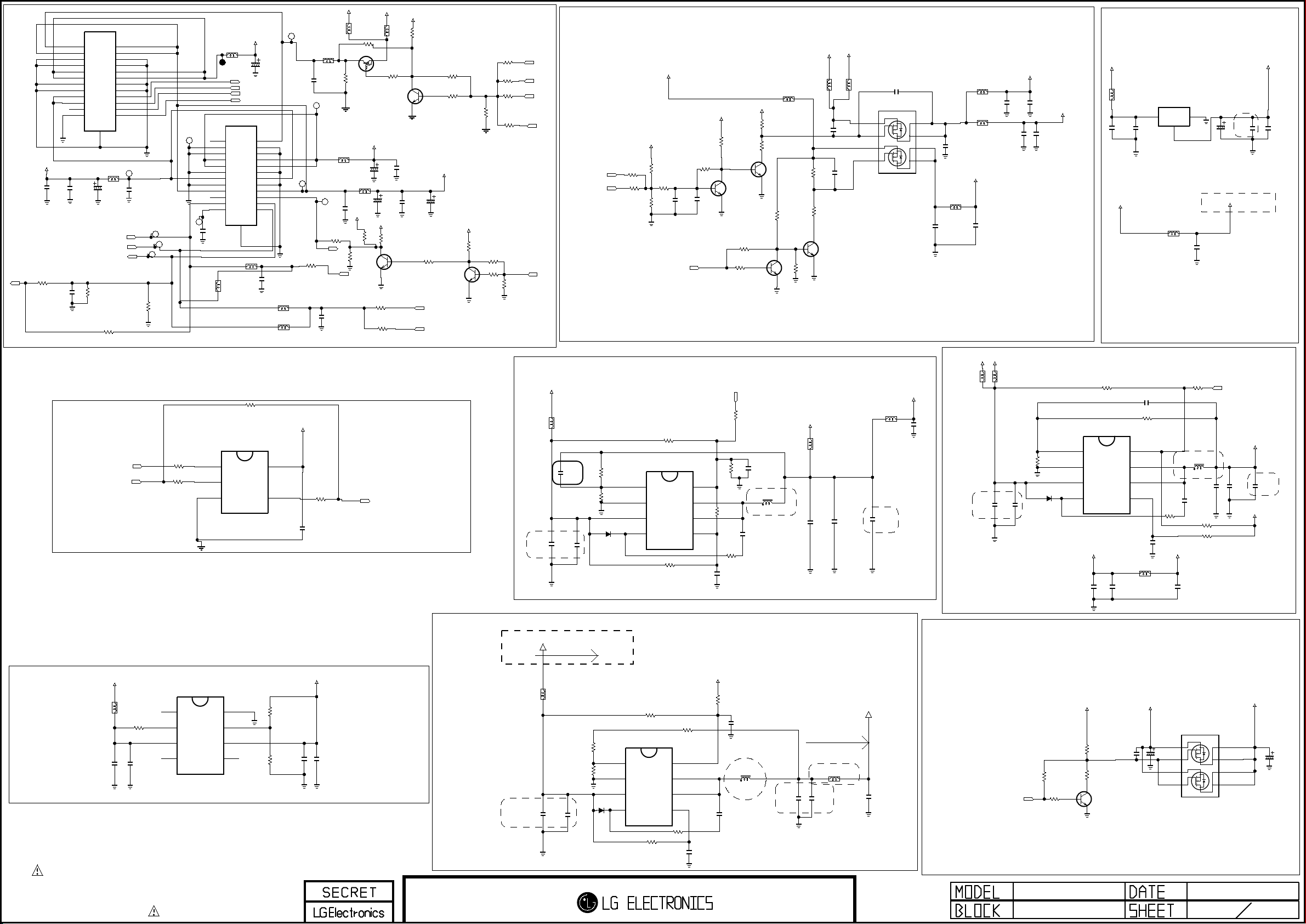

+3.5V_ST

+5V_ST_PTC

L4013

2009_PWR

1

R706

C726

220uF
16V

68uF
35V

+5V_GENERAL

2009_PWR

R717

2010_PWR

3.3K

C

0

R777

0

R778

OPT

+5V_ST_PTC

10K

C

Q700

E

OPT
C730
22uF
16V

C723

1uF
50V

2SC3875S(ALY)

008:AF11;007:O20;007:Z21

4.7K

R705

B

+24V_AUDIO

R719
10K

PWM_DIM

OPC_OUT

007:O20;007:Z21

68uF
35V

C727

R702

10K

Q708

R703

OPT

0

SIGN192

+3.3V_ST

C

E

R701
120K
OPT

R720
10K

R759

R760
10K

B

OPT

OPT

PStoPDF trial version. http://www.oakdoc.com

BG2012B121F

R776

4.7K

L701

R708

CB4532UK121E

2009_PWR

C719

0.1uF

R714

C922

1uF
25V
OPT

L4012

2010_PWR

33K

OPT

L706

50V

100

R411

OPT

RT1P141C-T112

Q701

3

2

2SC3875S(ALY)

+5V_ST_PTC

2009_PWR

L704

CB4532UK121E

C721

+3.3V

R741

3.3K

R715

6.8K

OPT

Q702EB

2SC3052

A_DIM

008:AF11

ERROR_OUT

008:AB20

OPT

C731

22uF

16V

37/42INCH
R772

4.7K

+12V

PWR ON

GND/P.DIM2

C728

0.1uF
50V

C920

0.1uF

16V

OPT

24V
GND
GND

3.5V

3.5V
GND
GND

12V
12V
12V

FM20020-24

C722

47uF

25V

24V

2

1

24V

4

3

GND

6

5

GND

8

7

3.5V

9

10

3.5V

12

11

GND

14

13

GND/V-sync

15

16

INV ON

18

17

A.DIM

19

20

P.DIM1

21

22

Err OUT

23

24

2010_PWR

25

P701

L707

MLB-201209-0120P-N2

A_DIM_10

DIM_10

ERROR_OUT_10

R773

0

OPT

32INCH

R774

4.7K

C720
50V

OPT

0.1uF

R775

OPT

+3.5V_ST

2010_PWR

L721

C795
220uF
16V

2010_PWR

INV_ON_DEBUG
A_DIM_10

DIM_10
ERROR_OUT_10

P700

FM20020-24

2009_PWR

NC

1
3
5
7
9

10
12

11

14

13
15

16
18

17
19

20

21

22

23NC24

25

L906

BLM18PG121SN1D

OPT

OPT

2
4
6
8

GND
GND

5.2V

5.2V

GND

12V

GND

24V

NC

A.DIM

C794

0.1uF
50V

L905

0

PWR ON
GND
GND

5.2V

5.2V
GND
12V
GND
24V
INV ON
Err OUT
PWM_DIM

C921
1uF
25V

L907

37/42INCH

L908

32INCH

C711

15pF

50V

INV_ON_DEBUG

OPT

R771

0

OPT

R751

0

OPT

0

R752

008:AR31;002:AE6;004:T24

0

R2543

0

R721
10K
OPT

POWER_ON_DELAY

RELAY_PTC

004:E14;009:U27

POWER_ON/OFF1

OR_RELAY_ON

004:L14

008:AR32

INV_CTL

+5V & PANEL POWER

+12V

+3.3V_ST

R718

008:V17;004:Q28

POWER_ON_DELAY

POWER_ON/OFF1

008:AR31;002:AE6;004:Q27

R745

R746

10K

0

R726
10K

0

R725

4.7uF
120K
OPT

PANEL_CTL
008:AR32

C761

6.3V
OPT

R750

C762

4.7uF

6.3V
OPT

Stand-by +3.3V

+5V_ST

5V_ST

C708
10uF

6.3V

MSTAR CORE ON

+3.3V_ST

C710

0.1uF
16V

+5V

C752
22uF
16V

PANEL_POWER

L728

L715

CB3216PA501E

L714

CB3216PA501E

C755
22uF
25V

C757
10uF

C758

C756

0.1uF

10uF

16V

+5V_GENERAL

C760

0.1uF

10V

16V

L4010

C742

R740
47K

C

E

10uF

Q705
2SC3052

L4011

2010_PWR

OPT

C743

4.7uF
25V

2009_PWR

L708

CB3216PA501E

C

E

Q707

2SC3052

2SC3052

OPT

R728
10K

R727
10K

Q703

+5V_ST

R729

10K

R730
560

C

B

E

OPT

Q704

2SC3052

B

R739

47K

R732
22K

B

C

R735

22K

E

+5V_ST

R747

10K
OPT

0

B

C749

0.1uF

Q706

AO4813

1S2

8 D2_2

2G2

7 D2_1

3S1

6 D1_2

4G1

5 D1_1

CB3216PA501E

C748
1uF

25V

+5V_ST

SIGN150

C704
10uF
10V

L729

CB3216PA501E

+3.3V_ST

C705

0.1uF
16V

IC702

AP1117E33G-13

IN

3

OUT

L703

BLM18PG121SN1D

ADJ/GND

1

2

C717

0.1uF
16V

C2254
16V
220uF

+3.3V_AVDD_MPLL

R2550

0

+5V_ST_PTC

IC706

74LVC1G32GW

RL_ON

008:AR33

RELAY_PTC

004:Q27;009:U27

+1.8V for Saturn5 DDR

+3.3V

BLM18PG121SN1D

L702

R710

3.3K

C712
10uF

10V

C713

0.1uF
16V

OPT

0

R2541

OPT

0

R2540

IC701

SC4215ISTRT

NC_1

1

EN

2

VIN

3

NC_2

4

R1/R2 : 27K / 20K => Vout=1.88
R1/R2 : 15K / 12K => Vout=1.80
R1/R2 : 12K / 9.1K => Vout=1.85

B

1

A

2

GND

3

GND

8

ADJ

7

VO

6

NC_3

5

VCC

5

OPT

R713

9.1K
1%

Y

4

R711

12K
1%

+1.8V_DDR

C714
22uF

16V

C2253

0.1uF
16V

R2542

OPT

OR_RELAY_ON

0

C715

0.1uF
16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

004:Q26

Placed on SMD-TOP

C IN

+5V

C732
22uF

16V

Placed on SMD-TOP

+5V_GENERAL

CB3216PA501E

C786

C787

22uF

22uF

L716

CB3216PA501E

Vout=0.8*(1+R1/R2)

C411

56K

560pF

1/10W

50V

1%

R769
18K
1/10W
1%

C733

22uF

OPT

465 mA @85% efficiency

L711

Vout=0.8*(1+R1/R2)

Close to IC

R723

22K

1/10W

1%

R722
75K

1/8W

1%

OPT

+3.3V

R770

Close to IC

R1

R2

D700

OPT

100V

1N4148W_DIODES

R1

R2

GND

OPT

D703

100V

1N4148W_DIODES

FB

IN

BS

008:AR30;004:AM17;005:AA6

POWER_EN

R756

EN/SYNC

SW_2

SW_1

VCC

R421
100K
5%

C737
1uF
10V

OPT

R737

0

OPT

R733
10K

IC704

MP2212DN

FB

1

GND

2

IN

3

BS

4

R734

1/10W

8

7

6

5

10
1%

+1.26 Core for Saturn5

+3.3V

R738

1/10W

IC705

MP2212DN

1

2

$0.24

3

4

R731

OPT

10K

Close to IC

1/8W

EN/SYNC

8

SW_2

7

SW_1

6

VCC

5

R744

0

R724

10

24KR736

C788

1uF
16V

1/10W

10K

4.9A 0.0150OHM 34MHZ

NR8040T3R6N

C789

0.1uF
50V

100

82K
R422

C741

0.1uF
50V

MAX 3A

C790

0.1uF
16V

OPT

$0.07

L726

3.6uH

1uF
10V

C412

L710

3.6uH

NR8040T3R6N

C OUT

C791
22uF
16V

+3.3V

C751

10uF

L720

2009_PWR

BLM18PG121SN1D

C746

0.1uF

6.3V

16V

+1.26V_VDDC

1600 mA

3A, DCR=0.025 ohm

L717

BLM18PG121SN1D

C792
22uF
16V

Placed on SMD-TOP

BLM18PG121SN1D

Placed on SMD-TOP

C793

0.1uF

C750
22uF
16V

L727

CB3216PA501E

+3.3V_FE

C780

0.1uF
16V

+5V_ST ON

+24V_AUDIO

+12V

L734
OPT

Placed on SMD-TOP

C763
22uF
16V

OPT

002:AE6;002:AG13;009:N27

MSTAR_POWER_ON

L735
CB3216PA501E
OPT

Close to IC

C764
22uF

16V
OPT

13K
1/8W
1%

R761

OPT

+5V_EXT

R2

OPT

D704

100V

1N4148W_DIODES

1K

R412

OPT

2009_PWR

2SC3875S(ALY)

R413
10K

Q403

FB

GND

IN

BS

R414
22K

B

MP2212DN

1

2

3

4

+5V_GENERAL

C765
10uF

10V

+5V_ST_PTC

C

E

R415

2.2K

1/10W

IC703

R762
10K

OPT

C766

0.1uF
16V

C405

2.2uF

C767

R763

EN/SYNC

8

SW_2

7

SW_1

6

VCC

5

CB3216PA501E

+5V_ST_PTC

25V

Close to IC

1000pF

OPT

Close to IC

L736

OPT

68K

R1

R764

C768
1uF
10V
OPT

2009_PWR

C406
100uF
16V

008:AR30;004:X17;005:AA6

OPT

R765

100

L737

3.6uH

OPT

C770

0.1uF
50V
OPT

0

OPT

R767

R766

+5V_EXT

C769
1uF
10V

2009_PWR

Q404

AO4813

1S2

2G2

3S1

4G1

C771
22uF
16V
3216

OPT

OPT

10K

OPT
10

37LH250H 09.05.19

Power

8 D2_2

7 D2_1

6 D1_2

5 D1_1

POWER_EN

OPT

C772

0.1uF
16V

+5V_GENERAL

4 14

+5V_EXT

+5V_ST

OPT

C773

0.1uF
16V

PI Result

C407
220uF
16V

2009_PWR

PStoPDF trial version. http://www.oakdoc.com

TUNER

+5V_TU

L1003

500

C1007

C1005

C1011

17

SHIELD

TU1001
TDVW-H104P

NC_1

1

NC_2

2

GND_1

3

+B1[5V]

4

RF_AGC

5

GND_2

6

DATA

7

CLOCK

8

AS

9

DIF[+]

10

DIF[-]

11

IF_AGC

12

SIF

13

NC_3

14

AUDIF

15

VIDEO

16

R1031

C1008

0.1uF

0.01uF
25V

OPT

C1027
100pF
50V

0

OPT

0.1uF

50V

50V

C1015
100pF

50V

10uF
10V

C1017
100pF
50V

C1013
220uF
16V

R1023

R1022

IF_AGC

R1007

12K

R1009

R1008

10K

R1016

OPT

OPT

47

R1004

2.2K
OPT

C1009

0.01uF
50V

C2250
220uF
16V

+5V_TU

R1013

R1017

4.7K

4.7K

22

22

OPT

C1024
27pF

50V

R1010
470

0

E

B

C

0.1uF

C1021

OPT

L1004

ISA1530AC1

Q1000

R1003
0

SIFMO

OPT

C1025
27pF
50V

6.8uH

MStar Option

R1005
0

R1006

C1012

10K

0.047uF

OPT

50V

R1018
0

OPT

ISA1530AC1

Q1001

+5V_TU

+5V_TU

B

R1026

R1027

R1019
270

R1020

E

C

270

FE_SIF

0

0

L1001

(I2C Channel 6)

FE_TUNER_SDA

FE_TUNER_SCL

50V

0.1uF

C1014

C1004

82pF
50V

R1032
R1033

R1021
0

FM Rejection Option

0
0

FE_VMAIN

008:D24

0

1/10W
5%

0

1/10W
5%

L1013

L1014

C1006

47pF

L1002
270nH

Close to tuner

IF_N

IF_P

LGDT3305

R1061

IF_P

IF_N

R1062

0.1uF

C1066

0.1uF

R1060

SIGN273

1K

IF_AGC

C1067

0.1uF

100

100

C1068

0.01uF

0.01uF

R1063

+3.3V_DVDD_PVSB

C1069
C1070

R1064

1K

TS_0
TS_1
TS_2
TS_3

TS_4
TS_5
TS_6
TS_7

+1.2V_DVDD_PVSB

100

R1065

R1066

R1067

OPT

R1068

5.1K
OPT

0

OPT
OPT

+3.3V_DVDD_PVSB

470

R1069

TS_0
TS_1
TS_2
TS_3

TS_4
TS_5
TS_6
TS_7

C2138

0.1uF
50V

1
2
3
4
5
6
7
8
9
10
11
12

VROA
VINA2
VINA1
INCAP
VSSAAD10A

I2CSEL

ANTCON

VDD

I2CRPT_SCL

I2CRPT_SDA

IF OUT

RF OUT

AR1070

AR1071

48

13

LD1000

C1071

27pF

47

VSSAD10

VCCAAD10A

TPERR

VDD33

14

100

100

X1005

25MHz

46

45

44

XM

VSS

VDD

IC1004

LGDT3305

TPDATA[0]

TPVALID

15

16

17

VSS33

43

XTALO

TPDATA[1]

18

1MR1072

42

XTALI

TPDATA[2]

19

41

VSS33

TPDATA[3]

20

C1072
27pF

0

R1073

40

21

SLIM_SCAN

TPDATA[4]

+3.3V_AVDD_PVSB

R1074
47K

CB3216PA501E

37

38

39

OPM

VDD33

TPDATA[5]

TPDATA[6]

22

23

24

C1073
1uF

10V

+3.3V_AVDD_PVSB

L1219

NRST

36

PLLAVSS

35

PLLAVDD

34

VSS33

33

VSS

32

VDD

31

VSS

30

SCL

29

VDD33

28

SDA

27

NIRQ

26

TPSOP

25

TPCLK

TPDATA[7]

1N4148W
D1000

R1075

OPT

R1076

OPT

VSB_RESET

R1077

22

R1078

22

AR1079
100
1/16W

FE_DEMOD_SCL

FE_DEMOD_SDA

TS_SYNC
TS_CLK
TS_VALID

TUNER 5V

PANEL_POWER

L1012

C1081

0.1uF
16V

INPUT

C1082
100uF
16V

IC1003

AS7809DTRE1

1

2

VCOMO

MStar Option

IC1002

GND2

KIA78R05F

6

1

2VC3

4NC5

VIN

C1036

0.33uF
16V

R1028

100

OPT

OPT

C1037

0.1uF
16V

L1010

OUTPUT

3

C1034

GND

0.1uF
16V

BG2012B800

C1035

100uF

16V

VOUT

GND1

C1039

47uF
16V

C1040

0.1uF

+5V_TU

C1041

0.01uF
25V

The value of coil & cap’ could be changed to optimized each

MLB-201209-0120P-N2

VSB_CTRL

Mercury Option

+5V_GENERAL

L1000

OPT

R1001

4.7K
OPT

C1002
100uF

16V

OPT

008:AR30;004:X17;004:AM17

C1077

2.2uF
25V

R1036

C1078

2.2uF
25V

POWER_EN

R1035

20K

C1076

16V

OPT

R1002
1K

100
OPT

1uF

C1003

0.1uF
50V
OPT

VIN

EN

NC_1

EN

VIN

NC_2

2

1

SC4215ISTRT

1

2

3

4

OPT

IC1001

SC156515M-1.8TR

3

GND

IC1000

8

7

6

5

4

5

GND

ADJ

VO

NC_3

+3.3V_PVSB

VO

R1014

OPT

15K

ADJ

R1015

OPT

8.2K

C1018
100uF

16V

R1011

R1012

V0 = 0.8(R1+R2) / R2

LGDT3305 POWER

+3.3V_FE

L1005

500

C1020

0.1uF
50V

+1.2V_PVSB

R2

20K

R1

10K

C1019
100uF

C1079

0.1uF

16V

50V

VSB +3.3V B+ BLOCK

+3.3V_PVSB

L1007

C1023

10uF
3216

+3.3V_AVDD_PVSB

500

C1026

0.1uF

16V

50V

VSB +1.0V B+ BLOCK

+1.2V_PVSB

R1034

0

1/4W
5%

3216

C1038
10uF
16V

+3.3V_PVSB

L1008

500

C1028

10uF

16V

3216

+1.2V_DVDD_PVSB

C1043

0.1uF
50V

C1044

0.1uF
50V

C1030

0.1uF

+3.3V_DVDD_PVSB

C1032

0.1uF

50V

C1033

0.1uF

50V

50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H

Tuner/3305

09.05.19

5 14

PStoPDF trial version. http://www.oakdoc.com

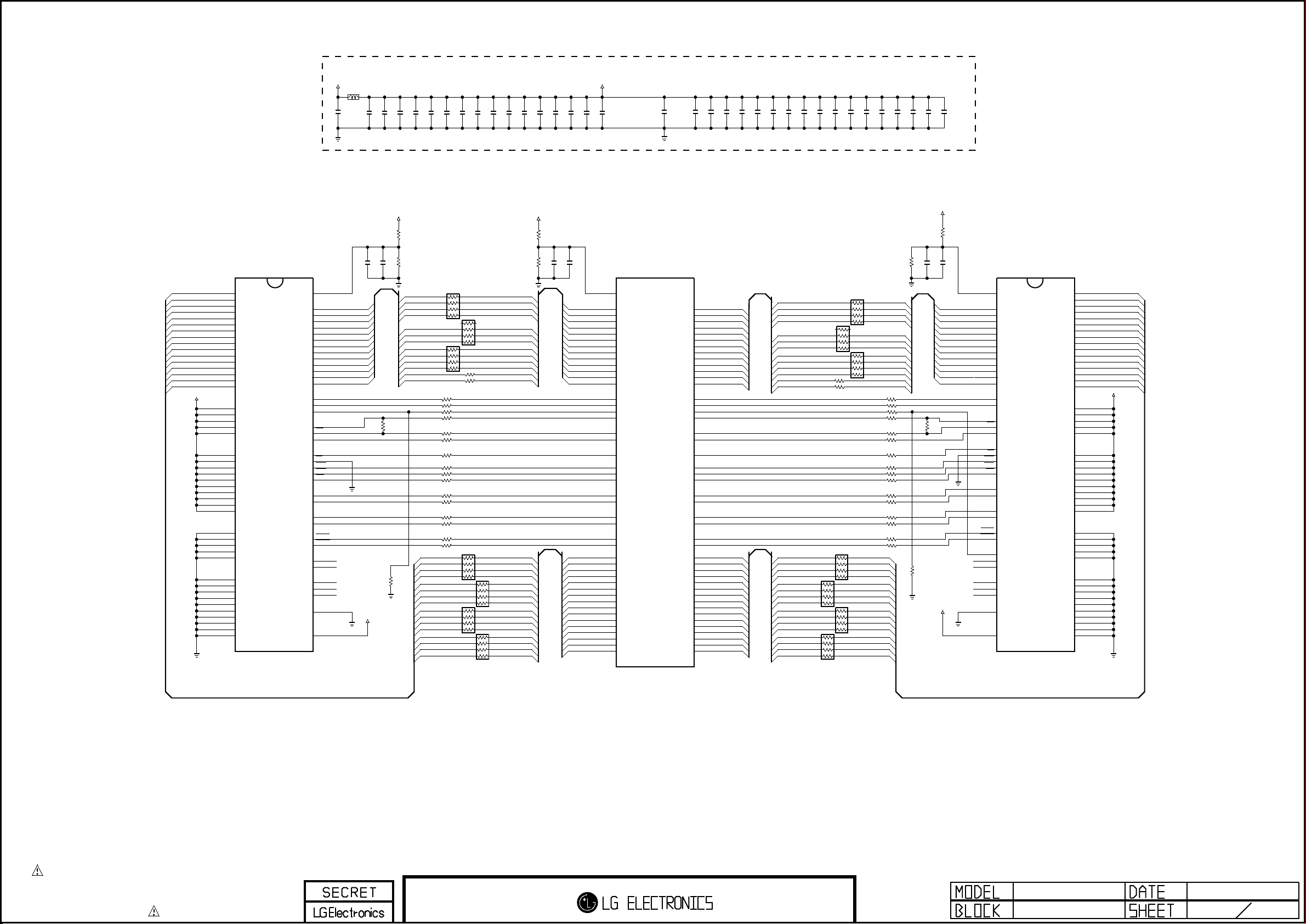

DDR

DDR2 1.8V By CAP - Place these Caps near Memory

+1.8V_DDR

L1

BLM18PG121SN1D

C1

0.1uF
C3

10uF

0.1uF

C5

C6

0.1uF

0.1uF

0.1uF

C8

C7

C9

0.1uF

0.1uF

0.1uF

C11

C10

C12

0.1uF

+1.8V_S_DDR

C22

C13

10uF

0.1uF

0.1uF

C14

C17

C15

0.1uF

0.1uF

0.1uF

0.1uF

C20

C19

C21

0.1uF
C24

C23

C25

0.1uF

0.1uF

10uF

C30

0.1uF

10uF

C31

C29

0.1uF

0.1uF

C27

C34

C32

C33

0.1uF

0.1uF

0.1uF

C36

C37

C35

0.1uF

0.1uF

0.1uF

C41

C39

C38

0.1uF

0.1uF

0.1uF

C43

0.1uF

+1.8V_S_DDR

1%

1K

R4

0.1uF

C4

SDDR_A[0-12]

OPT

150

R2

SDDR_ODT

OPT

R48

0

1K 1%R5

SDDR_A[5]
SDDR_A[3]
SDDR_A[1]
SDDR_A[10]

SDDR_A[9]
SDDR_A[12]
SDDR_A[7]

SDDR_A[0]
SDDR_A[2]
SDDR_A[4]
SDDR_A[6]
SDDR_A[11]
SDDR_A[8]

SDDR_D[11]
SDDR_D[12]
SDDR_D[9]
SDDR_D[14]

SDDR_D[4]

SDDR_D[1]
SDDR_D[6]

SDDR_D[15]
SDDR_D[8]
SDDR_D[10]
SDDR_D[13]

SDDR_D[7]
SDDR_D[0]
SDDR_D[2]
SDDR_D[5]

AR1

56

56

AR3

AR2

56

R21

56
56R22

56R6
56R7
0R49
33R8

33R9
56R10

56R11

56R12
56R13
56R14

56R15

56R16

56R17

56R18

56R19

56R20

AR4

56

AR6

AR5

56

AR7

HY5PS1G1631CFP-S6

IC1

VDDQ10

VDDQ9
VDDQ8
VDDQ7
VDDQ6
VDDQ5
VDDQ4
VDDQ3
VDDQ2
VDDQ1

VSSQ10

VSSQ9
VSSQ8
VSSQ7
VSSQ6
VSSQ5
VSSQ4
VSSQ3
VSSQ2
VSSQ1

VDD5
VDD4
VDD3
VDD2
VDD1

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VSS5
VSS4
VSS3
VSS2
VSS1

DQ0

G8

DQ1

G2

DQ2

H7

DQ3

H3

DQ4

H1

DQ5

H9

DQ6

F1

DQ7

F9

DQ8

C8

DQ9

C2
D7
D3
D1
D9
B1
B9

A1
E1
J9
M9
R1

A9
C1
C3
C7
C9
E9
G1
G3
G7
G9

A3
E3
J3
N1
P9

B2
B8
A7
D2
D8
E7
F2
F8
H2
H8

SDDR_D[0]
SDDR_D[1]
SDDR_D[2]
SDDR_D[3]
SDDR_D[4]
SDDR_D[5]
SDDR_D[6]
SDDR_D[7]
SDDR_D[8]
SDDR_D[9]
SDDR_D[10] BDDR2_A[0]

SDDR_D[0-15]

SDDR_D[11]
SDDR_D[12]
SDDR_D[13]
SDDR_D[14]
SDDR_D[15]

+1.8V_S_DDR

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

BA2

L1

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

SDDR_A[0]
SDDR_A[1]
SDDR_A[2]
SDDR_A[3]
SDDR_A[4]
SDDR_A[5]
SDDR_A[6]
SDDR_A[7]
SDDR_A[8]

SDDR_A[9]
SDDR_A[10]
SDDR_A[11]
SDDR_A[12]

SDDR_BA[0]
SDDR_BA[1]

SDDR_CKE

1000pF

C2

SDDR_CK

/SDDR_RAS
/SDDR_CAS

/SDDR_WE

SDDR_DQS0_P
SDDR_DQS1_P

SDDR_DQM0_P
SDDR_DQM1_P

SDDR_DQS0_N
SDDR_DQS1_N

+1.8V_S_DDR

ADDR2_A[5]
ADDR2_A[3]
ADDR2_A[1]

ADDR2_A[10]

ADDR2_A[9]

ADDR2_A[12]

ADDR2_A[7]
ADDR2_A[0]

ADDR2_A[2]
ADDR2_A[4]
ADDR2_A[6]
ADDR2_A[11]
ADDR2_A[8]

ADDR2_BA[1]
ADDR2_BA[2]

ADDR2_MCLK

/ADDR2_MCLK

ADDR2_CKE

ADDR2_ODT

/ADDR2_RAS
/ADDR2_CAS

/ADDR2_WE

ADDR2_DQS0_P
ADDR2_DQS1_P

ADDR2_DQM0_P
ADDR2_DQM1_P

ADDR2_DQS0_N
ADDR2_DQS1_N

ADDR2_D[11]
ADDR2_D[12]

ADDR2_D[9]

ADDR2_D[14]

ADDR2_D[4]
ADDR2_D[3]SDDR_D[3]
ADDR2_D[1]

56

ADDR2_D[6]

ADDR2_D[15]

ADDR2_D[8]
ADDR2_D[10]
ADDR2_D[13]

ADDR2_D[7]

ADDR2_D[0]

ADDR2_D[2]

ADDR2_D[5]

56

+1.8V_S_DDR

R23

R24

ADDR2_BA[0]

1K 1%

0.1uF

1K 1%

C16

ADDR2_A[0-12]

ADDR2_D[0-15]

1000pF

LGE3369A (SATURN6 NON RM)

C18

D15

A_MVREF

C13

ADDR2_A[0]
ADDR2_A[1]
ADDR2_A[2]
ADDR2_A[3]
ADDR2_A[4]
ADDR2_A[5]
ADDR2_A[6]
ADDR2_A[7]
ADDR2_A[8]
ADDR2_A[9]
ADDR2_A[10]
ADDR2_A[11]
ADDR2_A[12]

ADDR2_D[0]
ADDR2_D[1]
ADDR2_D[2]
ADDR2_D[3]
ADDR2_D[4]
ADDR2_D[5]
ADDR2_D[6]
ADDR2_D[7]
ADDR2_D[8]
ADDR2_D[9]
ADDR2_D[10]
ADDR2_D[11]
ADDR2_D[12]
ADDR2_D[13]
ADDR2_D[14]
ADDR2_D[15]

A22

B13

C22
A13
A23

C12

B23

B12

C23

B22
A12
A24

C24

B24
D24

B14

A14
D23

D14

D13
D12
D22

B18

C17

C18
A19

A18

B17

B15
A21
A15

B21

C21

C14

C20

C15

C16

C19

B16

B20
A20
A16

B19
A17

A_DDR2_A0
A_DDR2_A1
A_DDR2_A2
A_DDR2_A3
A_DDR2_A4
A_DDR2_A5
A_DDR2_A6
A_DDR2_A7
A_DDR2_A8
A_DDR2_A9
A_DDR2_A10
A_DDR2_A11
A_DDR2_A12

A_DDR2_BA0
A_DDR2_BA1
A_DDR2_BA2
A_DDR2_MCLK

/A_DDR2_MCLK
A_DDR2_CKE

A_DDR2_ODT

/A_DDR2_RAS
/A_DDR2_CAS
/A_DDR2_WE

A_DDR2_DQS0
A_DDR2_DQS1

A_DDR2_DQM0
A_DDR2_DQM1

A_DDR2_DQSB0
A_DDR2_DQSB1

A_DDR2_DQ0
A_DDR2_DQ1
A_DDR2_DQ2
A_DDR2_DQ3
A_DDR2_DQ4
A_DDR2_DQ5
A_DDR2_DQ6
A_DDR2_DQ7
A_DDR2_DQ8
A_DDR2_DQ9
A_DDR2_DQ10
A_DDR2_DQ11
A_DDR2_DQ12
A_DDR2_DQ13
A_DDR2_DQ14
A_DDR2_DQ15

IC100

B_DDR2_A0
B_DDR2_A1
B_DDR2_A2
B_DDR2_A3
B_DDR2_A4
B_DDR2_A5
B_DDR2_A6
B_DDR2_A7
B_DDR2_A8

B_DDR2_A9
B_DDR2_A10
B_DDR2_A11
B_DDR2_A12

B_DDR2_BA0
B_DDR2_BA1
B_DDR2_BA2

B_DDR2_MCLK

/B_DDR2_MCLK

B_DDR2_CKE

B_DDR2_ODT

/B_DDR2_RAS
/B_DDR2_CAS

/B_DDR2_WE

B_DDR2_DQS0
B_DDR2_DQS1

B_DDR2_DQM0
B_DDR2_DQM1

B_DDR2_DQSB0
B_DDR2_DQSB1

B_DDR2_DQ0
B_DDR2_DQ1
B_DDR2_DQ2
B_DDR2_DQ3
B_DDR2_DQ4
B_DDR2_DQ5
B_DDR2_DQ6
B_DDR2_DQ7
B_DDR2_DQ8

B_DDR2_DQ9
B_DDR2_DQ10
B_DDR2_DQ11
B_DDR2_DQ12
B_DDR2_DQ13
B_DDR2_DQ14
B_DDR2_DQ15

T26
AF26
T25
AF23
T24
AE23
R26
AD22
R25
AC22
AD23
R24
AE22

AC23
AC24
AB22
V25

V24
AB23

U26

U25
U24
AB24

AB26
AA26

AC25
AC26

AB25
AA25

W25
AE26
W24
AF24
AF25
V26
AE25
W26
Y26
AD25
Y25
AE24
AD26
Y24
AD24
AA24

BDDR2_A[0]
BDDR2_A[1]
BDDR2_A[2]
BDDR2_A[3]
BDDR2_A[4]
BDDR2_A[5]
BDDR2_A[6]
BDDR2_A[7]
BDDR2_A[8]

BDDR2_A[9]
BDDR2_A[10]
BDDR2_A[11]
BDDR2_A[12]

BDDR2_D[0]

BDDR2_D[1]

BDDR2_D[2]

BDDR2_D[3]

BDDR2_D[4]

BDDR2_D[5]

BDDR2_D[6]

BDDR2_D[7]

BDDR2_D[8]

BDDR2_D[9]
BDDR2_D[10]
BDDR2_D[11]
BDDR2_D[12]
BDDR2_D[13]
BDDR2_D[14]
BDDR2_D[15]

BDDR2_A[0-12]

BDDR2_D[0-15]

BDDR2_A[9]
BDDR2_A[3]
BDDR2_A[1]
BDDR2_A[10]

BDDR2_A[5]
BDDR2_A[12]
BDDR2_A[7]

BDDR2_A[2]
BDDR2_A[4]
BDDR2_A[6]
BDDR2_A[11]
BDDR2_A[8]

BDDR2_BA[0]
BDDR2_BA[1]
BDDR2_BA[2]

BDDR2_MCLK

/BDDR2_MCLK

BDDR2_CKE

BDDR2_ODT

/BDDR2_RAS
/BDDR2_CAS

/BDDR2_WE

BDDR2_DQS0_P
BDDR2_DQS1_P

BDDR2_DQM0_P
BDDR2_DQM1_P

BDDR2_DQS0_N
BDDR2_DQS1_N

BDDR2_D[11]
BDDR2_D[12]
BDDR2_D[9]
BDDR2_D[14]

BDDR2_D[4]
BDDR2_D[3]
BDDR2_D[1]
BDDR2_D[6]

BDDR2_D[15]
BDDR2_D[8]
BDDR2_D[10]
BDDR2_D[13]

BDDR2_D[7]
BDDR2_D[0]
BDDR2_D[2]
BDDR2_D[5]

+1.8V_S_DDR

R47

1K

1%

H5PS5162FFR-S6C

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC4

L1

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

512M_HYNIX1G_HYNIX

IC2

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VDD5
VDD4
VDD3
VDD2
VDD1

VDDQ10
VDDQ9
VDDQ8
VDDQ7
VDDQ6
VDDQ5
VDDQ4
VDDQ3
VDDQ2
VDDQ1

VSS5
VSS4
VSS3
VSS2
VSS1

VSSQ10
VSSQ9
VSSQ8
VSSQ7
VSSQ6
VSSQ5
VSSQ4
VSSQ3
VSSQ2
VSSQ1

TDDR_D[0]
TDDR_D[1]
TDDR_D[2]
TDDR_D[3]
TDDR_D[4]
TDDR_D[5]
TDDR_D[6]
TDDR_D[7]
TDDR_D[8]

TDDR_D[9]
TDDR_D[10]
TDDR_D[11]
TDDR_D[12]
TDDR_D[13]
TDDR_D[14]
TDDR_D[15]

+1.8V_S_DDR

TDDR_D[0-15]

G8
G2
H7
H3
H1
H9

F1
F9
C8

C2
D7
D3
D1
D9

B1

B9

A1

E1

J9

M9

R1

A9

C1

C3

C7

C9

E9
G1
G3
G7
G9

A3

E3

J3

N1

P9

B2

B8
A7
D2
D8

E7

F2

F8
H2
H8

C42

C40

1000pF

0.1uF

R44

1K

1%

AR13

TDDR_A[9]
TDDR_A[3]
TDDR_A[1]

56

56R27
56R28

AR14

56

56

56

56

TDDR_D[11]
TDDR_D[12]

TDDR_D[9]

TDDR_D[14]

TDDR_D[4]
TDDR_D[3]
TDDR_D[1]
TDDR_D[6]

TDDR_D[15]

TDDR_D[8]
TDDR_D[10]
TDDR_D[13]

TDDR_D[7]

TDDR_D[0]

TDDR_D[2]

TDDR_D[5]

TDDR_A[10]

TDDR_A[5]
TDDR_A[12]
TDDR_A[7]
TDDR_A[0]
TDDR_A[2]
TDDR_A[4]
TDDR_A[6]
TDDR_A[11]
TDDR_A[8]

OPT

56R29
56R30
0R50

TDDR_BA[2]

33R31

33R32
56R33

56R34

56R35

56R36
56R37

/TDDR_WE

56R38
56R39

56R40
56R41

TDDR_DQM1_P

56R42
56R43

TDDR_DQS1_N

AR12

AR10

AR8

56
AR11

AR9

56

TDDR_A[0-12]

TDDR_MCLK

R45

R51
0

TDDR_BA[0]
TDDR_BA[1]

OPT

150

TDDR_CKE

+1.8V_S_DDR

TDDR_A[0]
TDDR_A[1]
TDDR_A[2]
TDDR_A[3]
TDDR_A[4]
TDDR_A[5]
TDDR_A[6]
TDDR_A[7]
TDDR_A[8]
TDDR_A[9]
TDDR_A[10]
TDDR_A[11]
TDDR_A[12]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H

DDR2 6 14

09.05.19

PStoPDF trial version. http://www.oakdoc.com

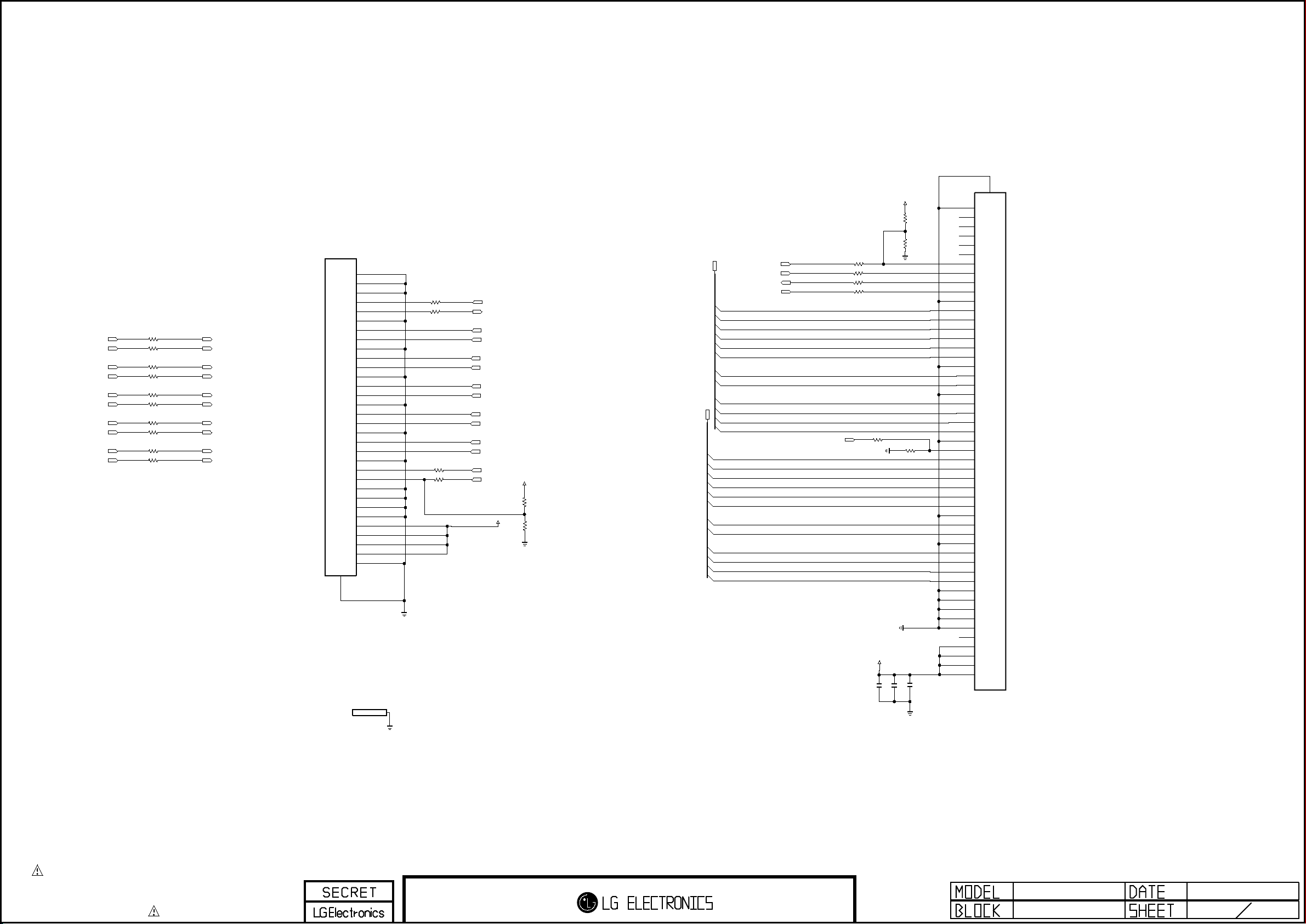

LVDS

Except FHD

P800

FI-X30SSL-HF

GND

1

2

TXA1-[9]

TXA1+[8]

TXA2-[7]

TXA2+[6]

TXAC-[5]

TXAC+[4]

TXA3-[3]

TXA3+[2]

TXA4-[1]

TXA4+[0]

0
Except FHD

0

Except FHD

R849

0

Except FHD

0

R850

Except FHD

0
Except FHD

0

Except FHD

R853

0

Except FHD

0

Except FHD

R855

0

Except FHD

0

Except FHD

R847
R848

R851

R852

R854

R856

LVDS_TXA3+

LVDS_TXA3-

LVDS_TXAC+

LVDS_TXAC-

LVDS_TXA2+

LVDS_TXA2-

LVDS_TXA1+

LVDS_TXA1-

LVDS_TXA0+

LVDS_TXA0-

33

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

MDS61887701

GND

GAS1

R857

R858

R860

OPT

R859

OPT

0

0

OPT

0

OPT

0

PWM_DIM

OPC_OUT

LVDS_TXA3+

LVDS_TXA3-

LVDS_TXAC+

LVDS_TXAC-

LVDS_TXA2+

LVDS_TXA2-

LVDS_TXA1+

LVDS_TXA1-

LVDS_TXA0+

LVDS_TXA0-

OPC_EN

LVDS_SEL

PANEL_POWER

008:AF11;004:M20;007:Z21

004:M19;007:Z21

008:AQ28;007:Z20
008:AR30;007:Z21

+3.3V_ST

10K

OPT

R861

0

OPT

R4000

TXA4+[0]

TXA4-[1]

TXA3+[2]

TXA3-[3]

TXAC+[4]

TXAC-[5]

TXA2+[6]

TXA2-[7]

TXA1+[8]

TXA1-[9]

TXA0+[10]

TXA0-[11]

TXB4+[0]

TXB4-[1]

TXB3+[2]

TXB3-[3]

TXBC+[4]

TXBC-[5]

TXB2+[6]

TXB2-[7]

TXB1+[8]

TXB1-[9]

TXB0+[10]

TXB0-[11]

008:AR30;007:O14

LVDS_SEL

PWM_DIM

OPC_OUT

OPC_EN

BIT_SEL

FHD
P801

TF05-51S

+3.3V_ST

OPT
R862
10K

0

OPT

R844

25V

22uF

R863

0R845

OPT

0.1uF
1000pF

C2257

C2258

OPT

0

R841

OPT

0

R840

OPT

0

R842

OPT

0

R843

0

OPT

PANEL_POWER

C2259

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H 09.05.19

LVDS

7

14

PStoPDF trial version. http://www.oakdoc.com

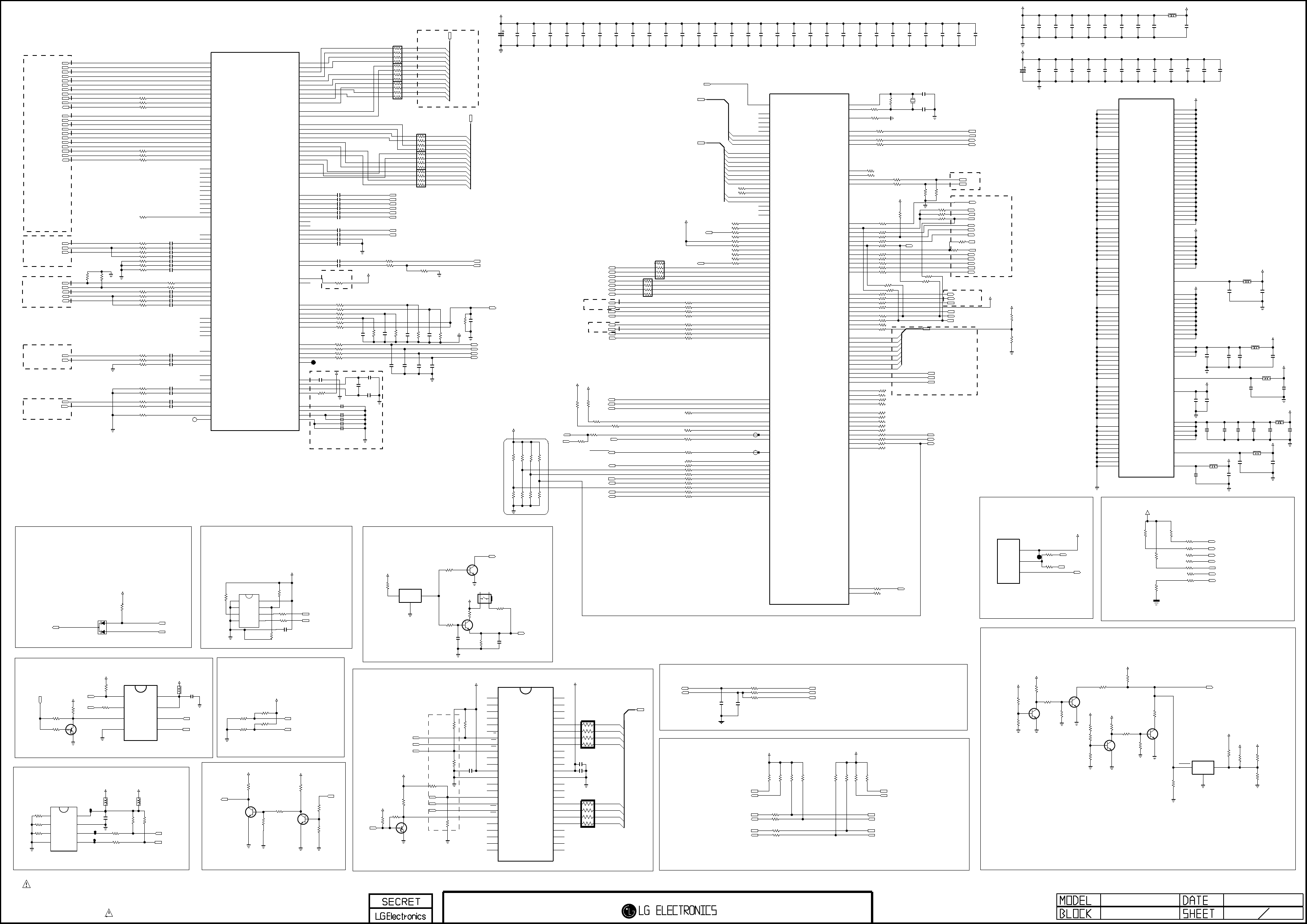

TXB0+[10],TXB0-[11],TXB1+[8],TXB1-[9],TXB2+[6],TXB2-[7],TXB3+[2],TXB3-[3],TXB4+[0],TXB4-[1],TXBC+[4],TXBC-[5]

IC100

SPDIF_OUT

AUOUTR0/HP_ROUT

AUOUTL0/HP_LOUT

AUOUTR1/SC1_ROUT

AUOUTL1/SC1_LOUT

AUOUTR2/SC2_ROUT

AUOUTL2/SC2_LOUT

I2S_OUT_MCK

I2S_OUT_WS

I2S_OUT_BCK

I2S_OUT_SD

I2S_IN_SD

LVA0P

LVA0M

LVA1P

LVA1M

LVA2P

LVA2M

LVA3P

LVA3M

LVA4P

LVA4M

LVACKP

LVACKM

LVB0P

LVB0M

LVB1P

LVB1M

LVB2P

LVB2M

LVB3P

LVB3M

LVB4P

LVB4M

LVBCKP

LVBCKM

AUR0
AUL0
AUR1
AUL1
AUR2

AUL2

AUR3
AUL3
AUR4
AUL4
AUR5
AUL5

SIF0P

SIF0M

SPDIF_IN

VCLAMP

REFM

REXT

AUCOM
AUVRM

AUVRP

AUVAG

REFP

AE16
AD16
AD15
AF16
AF15
AE15
AD13
AF14
AF13
AE13

AE14
AD14

AE20
AD20
AD19
AF20
AF19
AE19
AD17
AF18
AF17
AE17

AE18
AD18

AA3
Y1
AE1
AF3
AE3

AE2

AA1
AB1
AB2
AC2
AB3
AC3

W3
W2

F11
E9

AF1
AF2
AD3
AD1
AC1
AD2

A8
B7
C7
D8
C8

TP804

K4

C127

H4
J4
G4

R152

1%

AE5
AE4
AF4
AD4

2.2uFC134

C135

2.2uF

C136

2.2uF

C137

2.2uF

2.2uFC138

C139

2.2uF

C142

2.2uF

2.2uFC143

2.2uFC144

2.2uFC145

0.1uFC146

0.1uFC147

22R159

Only 250H

100

OPT

R164

100

OPT

R165

100

OPT

R166

100

OPT

R167

100

R168

100

R169

22R160
22R161
22R162
22R163

+3.3V

0.1uF

390

0.1uFC128

10uF

C129

0.1uFC130

C132

1uF

4.7uFC133

Close to IC

as close as possible

CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1

CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2

HDMI 1/2

DDC_SDA_2
DDC_SCL_2
HPD2

COMP1_PR

COMP1_Y

COMP1_PB

COMPONENT1

DSUB_HSYNC
DSUB_VSYNC

DSUB_R

DSUB_G

DSUB

DSUB_B

SIDEAV_CVBS_IN

AV_CVBS_IN

CVBS

FE_VMAIN

TV

VCOMO

002:H22
002:H22
002:H21
002:H22
002:H20
002:H21
002:H19
002:H20

002:H24;002:R20
002:H23;002:R21

002:I25

002:H9
002:H9
002:H8
002:H9
002:H7
002:H8
002:H6
002:H7

002:H11;002:R7
002:H10;002:S7

002:I12

001:U16
001:U13
001:U14

R107

10K
001:AB17
001:AB17

001:AB12
001:AB14
001:AB15

001:O27
001:D15

005:T17

005:M15

R109

LGE3369A (SATURN6 NON RM)

F1

RXACKP

F2

RXACKN

G2

RXA0P

G3

RXA0N

H3

RXA1P

G1

RXA1N

H1

RXA2P

H2

R2113

0

R2114

0
100R2115

R2116

0

R2117

0
100R2118

100R145

47

R120

47R121
47

R122

470

R123

47

R124

47R125
47

R126

10K

R127

47

R128

47
47R129
470

R130

47R114
47R137
47R138

47R140
47R141

R139

100
100

R117

100

R2122

C102
C103
C104

C106
C107

R149
C113

C108
C114
C109

C112

0.047uFC101

0.047uF

0.047uF
1000pF

0.047uFC105

0.047uF

0.047uF

22R146
22

0.047uF

0.047uF

0.047uF
1000pF

0.047uF

0.047uFC118

0.047uFC119

0.047uFC124

0.047uFC125

0.047uFC122

0.047uFC123

TP803

RXA2N

A1

DDCD_A_DA

B2

DDCD_A_CK

A2

HOTPLUG_A

C3

RXBCKP

B1

RXBCKN

C1

RXB0P

C2

RXB0N

D2

RXB1P

D3

RXB1N

E3

RXB2P

D1

RXB2N

E1

DDCD_B_DA

F3

DDCD_B_CK

E2

HOTPLUG_B

AE8

RXCCKP

AD8

RXCCKN

AD9

RXC0P

AF8

RXC0N

AF9

RXC1P

AE9

RXC1N

AE10

RXC2P

AD10

RXC2N

AE7

DDCD_C_DA

AF7

DDCD_C_CK

AD7

HOTPLUG_C

J3

CEC

N2

HSYNC0/SC1_ID

N1

VSYNC0/SC1_FB

P2

RIN0P/SC1_R

R3

GIN0P/SC1_G

R1

BIN0P/SC1_B

P3

SOGIN0/SC1_CVBS

P1

RINM

T3

BINM

R2

GINM

K3

HSYNC1/DSUB_HSYNC

K2

VSYNC1/DSUB_VSYNC

L1

RIN1P/DSUB_R

L3

GIN1P/DSUB_G

K1

BIN1P/DSUB_B

L2

SOGIN1

V1

RIN2P/COMP_PR+

V2

GIN2P/COMP_Y+

U1

BIN2P/COMP_PB+

V3

SOGIN2

J5

VSYNC2

U3

CVBS1/SC1_CVBS

U2

CVBS2/SC2_CVBS

T1

CVBS3/SIDE_CVBS

T2

VCOM1

M1

CVBS4/S-VIDEO_Y

M2

CVBS6/S-VIDEO_C

N3

CVBS5

M3

CVBS7

W1

CVBS0/RF_CVBS

Y3

VCOM0

Y2

CVBSOUT0/SC2_MNTOUT

AA2

CVBSOUT1

C148

0.1uF

C195

0.1uF

C194

0.1uF

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8

VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15

VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22
VDDC_23
VDDC_24
VDDC_25
VDDC_26
VDDC_27

VDDP_1
VDDP_2
VDDP_3
VDDP_4
VDDP_5
VDDP_6
VDDP_7
VDDP_8

L101

C199

0.1uF

+3.3V

C196

0.1uF

C2105

0.1uF

+1.26V_VDDC

D16
D17
D18
D19
D20
H18
H19
H20
J20
K20
L20
M20
P7
R7
T7
T22
U7
U20
U22
V7
V22
W11
W12
W19
W20
W22
Y22

H9
H10
H11
H12
N20
P20
W9
W10

W7

+1.8V_DDR

G12
G13
H13
H14
H15
H16
W14
W15
W16
W17
W18

H17
T20
V20

R20

H7

C191

0.1uF

J7
K7
L7
M7
N7

W8

H8

C2110

0.1uF

+3.3V_VDDP

C200

0.1uF

+3.3V_AVDD_MPLL

C201
10uF
10V

C204

0.1uF

L102

BLM18PG121SN1D

C192

0.1uF

C206

0.1uF

C2111
10uF

+3.3V

BLM18PG121SN1D

C215

0.1uF

C205

0.1uF

C208

0.1uF

L109

L106

BLM18PG121SN1D

C209

0.1uF

BLM18PG121SN1D

C211

0.1uF

C202

0.1uF

L107

BLM18PG121SN1D

C210

0.1uF

+3.3V

C203

0.1uF

C219

0.1uF

+3.3V

C216

0.1uF

L108

L103

BLM18PG121SN1D

C207

0.1uF

+3.3V

C217

0.1uF

+3.3V

C218

0.1uF

+3.3V

C214

0.1uF

+3.3V_VDDP

+1.26V_VDDC

C167

0.1uF

C168

0.1uF

C170

0.1uF

C171

0.1uF

C173

0.1uF

C174

0.1uF

C176

C179

0.1uF

C180

0.1uF

C184

0.1uF

C185

0.1uF

0.1uF

C177

0.1uF

LGE3369A (SATURN6 NON RM)

E16

GND_2

E17

GND_3

E18

GND_4

F7

GND_5

L9

GND_6

L10

GND_7

L11

GND_8

L12

GND_9

L13

GND_10

L14

GND_11

L15

GND_12

L16

GND_13

L17

GND_14

L18

GND_15

M9

GND_16

M10

GND_17

M11

GND_18

M12

GND_19

M13

GND_20

M14

GND_21

M15

GND_22

M16

GND_23

M17

GND_24

M18

GND_25

N4

GND_26

N9

GND_27

N10

GND_28

N11

GND_29

N12

GND_30

N13

GND_31

N14

GND_32

N15

GND_33

N16

GND_34

N17

GND_35

N18

GND_36

P4

GND_37

P9

GND_38

P10

GND_39

P11

GND_40

P12

GND_41

P13

GND_42

P14

GND_43

P15

GND_44

P16

GND_45

P17

GND_46

P18

GND_47

R4

GND_48

R9

GND_49

R10

GND_50

R11

GND_51

R12

GND_52

R13

GND_53

R14

GND_54

R15

GND_55

R16

GND_56

R17

GND_57

R18

GND_58

T5

GND_59

T9

GND_60

T10

GND_61

T11

GND_62

T12

GND_63

T13

GND_64

T14

GND_65

T15

GND_66

T16

GND_67

T17

GND_68

T18

GND_69

U5

GND_70

W13

GND_71

Y21

GND_72

AA23

GND_73

JTEG

C164

+3.3V_ST

R2578

R2579

0.1uF

+1.8V_DDR

C165
330uF
OPT

10K

OPT

0

C175

C169

5V_HDMI_2

001:O24
001:O25
001:U18
001:U17
001:D19
001:D18

001:N7
001:N6

R171

AR104

AR105

AR106

FHD LVDS

AR107

AR108

AR109

TXB3-[3]

TXB3+[2]

TXB4-[1]

TXB4+[0]

TXB2-[7]
TXB2+[6]
TXBC-[5]

TXBC+[4]
TXB0-[11]

TXB0+[10]

TXB1-[9]
TXB1+[8]

22

22

22

TXA3-[3]

TXA3+[2]

TXA4-[1]

TXA4+[0]

TXA2-[7]
TXA2+[6]
TXAC-[5]
TXAC+[4]

TXA0-[11]

TXA0+[10]

TXA1-[9]
TXA1+[8]

005:P21

FE_SIF

005:N19

0R2220

SIFMO

22

FHD

22

FHD

22

FHD

SIDEAV_R_IN
SIDEAV_L_IN
COMP1_R_IN
COMP1_L_IN
AV_R_IN
AV_L_IN

PC_R_IN
PC_L_IN

47
47R172

003:L24

EXT_SPK

330uF

OPT

0.1uF

C166

C163

0.1uF

C172

0.1uF

ISP Debug port for S5

R800

22K

C800

0.01uF

R170

R173

22K

22K

C153

C151

0.01uF

0.01uF

OPT

OPT

OPT

C150

0.1uF

C149

0.1uF

10V

R176

C159

0.01uF

OPT

OPT

OPT

C154

C152

22pF

22pF

OPT

OPT

22K

R177

22K

C160

0.01uF

OPT

C155
22pF
OPT

OPT

C157
22pF

OPT

---------------------­ HIGH LOW
D6 LCD PDP
D7 B_LVDS A_LVDS
E11 MOVING : PWM R/B
B9 FHD HD

----------------------

003:E12

AUDIO_MASTER_CLK

003:E6

MS_LRCK

003:E6

MS_SCK

003:E7

MS_LRCH

+3.3V_ST

10K

10K

10K

R280

R281

R282

Except FHD

D6 D7 E11 B9

0

OPT

FHD

R284

OPT

R285

0

0

R286

FHD

10K

R283

0

R287

Except FHD

008:G14;008:AR32

SB_MUTE

POWER_DET

0.1uF

012:Z7

012:Q9

R831

R274

OPT

C178

0.1uF

+3.3V_ST

R832

4.7K

/PF_CE0
/PF_CE1

EEPROM_SCL
EEPROM_SDA

ISP_RXD
ISP_TXD

MSTAR_RX

MSTAR_TX

+3.3V_ST

4.7K

R2191

SYS_RESET

AMP_RST

ERROR_OUT

NTP_MUTE

BIT_SEL
SUB_MUTE

/PF_OE
/PF_WE
PF_ALE

PF_WP
/F_RB

SDA0
SCL0

PWM0
PWM1
PWM2

100R827

0

IR_mstar

C183

0.1uF

C188

0.1uF

008:S8
008:T6
008:S8
008:T5
008:T5
008:R4
008:S8

008:G4;008:N14;008:AN6
008:G4;008:N14;008:AN6

008:AN5
008:AN5

001:AK20

008:AR31;001:AK19

008:M9;008:AK11
008:M9;008:AK11

008:AK10

100R828

SIGN495

008:K6

010:G18

003:E12

004:A21
008:G13

007:AB16

003:Z25;003:AC20

C193

0.1uF

AR102

C198

0.1uF

AR103

22

C2104

0.1uF

PCM_D[5-7]

PCM_A[0-7,10-11]

+5V_GENERAL

/PCM_CE

22

R215
R216

R217
R218

R191
R192
R183
R184

R196
R200

R248

R201

R179
R2160

C2109

0.1uF

S6_Reset

/PCM_OE

100R195

100
100
100
100R221
100
100R219
100R255
22
100

C2119

C2115

0.1uF

0.1uF

008:X13

0
0
0
0

22
22
33
33

0R2190

0R193

0R112

SIGN487
SIGN486

SIGN459

C2120

0.1uF

PCM_D[5]
PCM_D[6]
PCM_D[7]

PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]

PCM_A[10]
PCM_A[11]

OPT
OPT

C2123

0.1uF

C2124

0.1uF

C2125

0.1uF

LGE3369A (SATURN6 NON RM)

D4

HWRESET

AC16

PCMD0/CI_D0

AA15

PCMD1/CI_D1

AA16

PCMD2/CI_D2

AC6

PCMD3/CI_D3

Y10

PCMD4/CI_D4

Y11

PCMD5/CI_D5

Y12

PCMD6/CI_D6

Y13

PCMD7/CI_D7

AB16

PCM_A0/CI_A0

AC15

PCM_A1/CI_A1

AC14

PCM_A2/CI_A2

AB14

PCM_A3/CI_A3

AC12

PCM_A4/CI_A4

AB8

PCM_A5/CI_A5

AC13

PCM_A6/CI_A6

AA9

PCM_A7/CI_A7

OPT
OPT

AB5

33R2172
33R2123

33R2477
33R2478
33R2479
33R2480
10KR2481
10KR2482
33R2483
33R2484
33R2485
33R2486

TP806

TP807

PCM_A8/CI_A8

AA4

PCM_A9/CI_A9

V4

PCM_A10/CI_A10

Y4

PCM_A11/CI_A11

AB9

PCM_A12/CI_A12

AA7

PCM_A13/CI_A13

AD6

PCM_A14/CI_A14

AA14

PCM_RST/CI_RST

AB18

PCM_CD/CI_CD

Y5

/PCM_OE

AB15

PCM_REG/CI_CLK

AA10

PCM_WAIT/CI_WACK

AC8

/PCM_IRQA

AC7

/PCM_WE

AA5

PCM_IOWR/CI_WR

W4

PCM_IOR/CI_RD

T4

/PCM_CE

AE6

/PF_CE0

AF6

/PF_CE1

AA12

/PF_OE

AA11

/PF_WE

AC9

PF_ALE

Y14

PF_AD15

AB11

F_RBZ

F8

UART2_TX/SCKM

D11

UART2_RX/SDAM

AB21

DDCR_DA

AC21

DDCR_CK

J1

DDCA_CLK

J2

DDCA_DA

W5

UART_RX2

V5

UART_TX2

AB13

PWM0

AB12

PWM1

AD12

PWM2

AA13

PWM3

A4

SAR0

B4

SAR1

F4

SAR2

E4

SAR3

C4

IRIN

AC11

GPIO44

D9

GPIO96

D10

GPIO88

D7

GPIO90/I2S_OUT_MUTE

E11

GPIO91

E8

GPIO97

E10

GPIO98

D6

GPIO99

D5

GPIO103/I2S_OUT_SD3

C5

GPIO102

C2127

C2126

0.1uF

0.1uF

IC100

TESTPIN/GND

GPIO_PM0/GPIO134
GPIO_PM1/GPIO135
GPIO_PM2/GPIO136
GPIO_PM3/GPIO137

GPIO_PM4/GPIO138
GPIO_PM5/INT1/GPIO139
GPIO_PM6/INT2/GPIO140

GPIO131/LDE/SPI_WPn1

GPIO130/LCK

GPIO132/LHSYNC/SPI_WPn

GPIO60/PCM2_RESET/RX1

GPIO62/PCM2_CD_N/TX1

LHSYNC2/I2S_OUT_MUTE/RX1

LVSYNC/GPIO133

GPIO79/LVSYNC2/TX1

UART2_RX/GPIO84
UART2_TX/GPIO85
UART1_RX/GPIO86
UART1_TX/GPIO87

GPIO42/PCM2_CE_N

GPIO43/PCM2_IRQA_N

ET_TX_CLK

C2128

0.1uF

SPI_DO
/SPI_CS
SPI_CK

USB_DP_1
USB_DM_1
USB_DM_2

USB_DP_2

TS0_D0
TS0_D1
TS0_D2
TS0_D3
TS0_D4
TS0_D5
TS0_D6
TS0_D7

TS0_SYNC

TS0_VLD
TS0_CLK

TS1_D0

TS1_SYNC

TS1_VLD
TS1_CLK

ET_TXD0
ET_TXD1

ET_RXD0
ET_RXD1

ET_TX_EN

ET_MDC

ET_MDIO

ET_COL

XOUT

SPI_DI

C2130

0.1uF

R801
R802

R244
R245

R830

R2175

R238

R2557

R267

R2187

R829

R111

0

0

R2556

C2131

0.1uF

0R231

0R232

PM_TS[0]
PM_TS[1]
PM_TS[2]
PM_TS[3]
PM_TS[4]
PM_TS[5]
PM_TS[6]
PM_TS[7]

OPT
OPT
OPT
OPT

OPT
OPT

OPT

OPT

OPT

OPT

33R225

33R226
33R227

+3.3V_ST

100R237

100
100
100R251
100

100R2193
100R220

100
0R239
0R240

OPT

OPT

0R202

22R2185

0R203

22R2186

33

33R268
0R2194

0

100R2173

100

100R2174

100R2176

100
100R235
100R243
100R110
100R2188
100R249
100R250

100R2189

100

C2129

0.1uF

B3

XIN

A3

E6

AE11
AF12
AE12
AD11

B5
A5
AC10
AB10

E5
F5
G5
H5
F6
G6
H6
AC17
AB17
AF11
AA18
AA17

E7
AC18
C6
F9
F10
A6
B6
AF5
AF10

AA8
Y8
Y9
AB7
AA6
AB6
U4
AC5
AC4
AD5
AB4

AB19
AA20
AC19
AA19

C10
B11
A9
C11
C9
B10
A10
B9
A11

C2133

R2558

0.1uF

RX_G6

012:C8

R2559

R254

C2134

0.1uF

20pFC186

20pFC187

15K

OPT

OPT

OPT

008:AI6;005:R24

008:AI6;005:R24

008:AN4
008:AN4

100

010:AO19

C2132

0.1uF

R252

X100

1M

12MHz

0R233
0R234

10K

R253

004:X17;004:AM17;005:AA6

100

100

PM_TS[0-7]

010:AO21
010:AO21
010:AN22

FROM FPGA

002:S21;002:S8;001:AK20

005:X10

005:AM26;010:G19

R256

15K
OPT

OPT
OPT

100

PM_TS[0-7]

PM_TS_SYNC

PM_TS_VALID

PM_TS_CLK

EEPROM_WP
VSB_CTRL
VSB_RESET

C2135

0.1uF

008:I9
008:E10
008:E10

008:I9

C2136

0.1uF

C2137

0.1uF

SPI_DI
SPI_DO
SPI_CS

SPI_CK

USB

USB_DM

USB_DP

Stand-by GPIO

RL_ON

100R236
100R108

100R2221

004:Q21
004:W21

002:AE6;004:Q27;004:T24

R2222

R246

OPT

007:O14;007:Z21

008:B10

FE_TUNER_SCL

OPC_EN

FE_TUNER_SDA

USB_OCD

PTC_TX_MSTAR

PTC_RX_MSTAR

008:G14;008:Z22

SB_MUTE

POWER_DET

TX_F5

INV_CTL

PANEL_CTL

POWER_ON/OFF1

POWER_DET

100

100

ISP_TXD

POWER_EN

LVDS_SEL

Flash_WP_1
SDA1
SCL1

I2C for Tuner_5V

013:G22
013:G21

012:K7

013:N23
012:K9

012:D13

004:E15

5V_HDMI_1

008:AB27;001:AK19

POWER SQ Check

BLM18PG121SN1D

C189

0.1uF

C190

0.1uF

IC100

AVDD_DDR_1
AVDD_DDR_2
AVDD_DDR_3
AVDD_DDR_4
AVDD_DDR_5
AVDD_DDR_6
AVDD_DDR_7
AVDD_DDR_8

AVDD_DDR_9
AVDD_DDR_10
AVDD_DDR_11

AVDD_MEMPLL_1
AVDD_MEMPLL_2
AVDD_MEMPLL_3

AVDD_MPLL

+3.3V

AVDD_AU

AVDD_LPLL

AVDD_33_1
AVDD_33_2
AVDD_33_3
AVDD_33_4
AVDD_33_5

AVDD_DM

AVDD_USB

Audio Mute

AMP_MUTE

003:Q4

Serial FLASH MEMORY

008:AR30

SPI_CS

+3.3V

008:AR36

OPT

0R101

B

0

Q100

KRC103S

R103

SPI_DO

10K

C

E

008:AR36

Flash_WP_1

R102

EEPROM

IC104

AT24C512BW-SH-T

0

R2127

0

R2125

0

R2126

A0

1

A1

2

A2

3

GND

4

VCC

8

WP

7

SCL

6

SDA

5

D102

ENKMC2838-T112

A1

C

A2

for BOOT

+3.3V

MX25L3205DM2I-12G

R105

4.7K

R104

33

+3.3V

L104

C100

0.1uF

R2111

CS#

SO

WP#

GND

33

33R2112

+3.3V_ST

R131

3.3K

008:Z22;008:AR32

IC101

1

2

3

4

+5V_GENERAL

R118

4.7K
OPT

008:AB20

VCC

8

HOLD#

7

SCLK

6

SI

5

L105
OPT

R132

4.7K
OPT

008:N14;008:AB28;008:AN6

008:N14;008:AB28;008:AN6

SB_MUTE

NTP_MUTE

+3.3V

EEPROM_SCL

EEPROM_SDA

HDCP EEPROM

L110

0.1uF
C126

SPI_CK

008:AR35

008:AR36

SPI_DI

IR_mstar

R106

4.7K

SIGN483

A0

1

$0.199

A1

2

A2

3

VSS

4

R2577

4.7K

VCC

8

WP

7

SIGN482

SCL

R181

6

SDA

R182

5

C197

SIGN484

R2576

0

OPT

IC105

CAT24WC08W-T

MCU BOOT STRAP

10 : BOOT 51

11 : BOOT RISC

R147

R148

+5V_ST_PTC

008:AB22

2SC3875S(ALY)

OPT

OPT

Q1405EB

R2544

C

+3.3V

1KR150

1K

1K

1KR151

+5V_ST_PTC

10K

1/10W

5%

4.7K
R2546
2SC3875S(ALY)

R2545

10K

1/10W

5%

+5V_ST

Addr:10101--

EEPROM_SCL

22

22

EEPROM_SDA

0.1uF

PWM0

PWM1

R2547

10K

C

Q1406EB

008:G4;008:AB28;008:AN6

008:G4;008:AB28;008:AN6

008:AB24;008:AK11

008:AB24;008:AK11

1/10W

5%

009:Y8;011:M21

R2548

100K

1/10W

5%

R2549

100K

1/10W

5%

S5 Reset

+3.3V_ST

R187

0

IC103

MAX810RTR

VCC

3

1

GND

NAND FLASH MEMORY

/PF_CE0

H : Serial Flash

L : NAND Flash

/PF_CE1
H : 16 bit
L : 8 bit

/F_RB

008:AB29

/PF_OE

008:AB29
/PF_CE0

008:AB30

+3.3V

IR

+3.3V_ST

R258
10K
OPT

PF_WP

008:AB29

R180
0

R153

10K

Q101
KRC103S

OPT

/PF_CE1

008:AB30
PF_ALE

008:AB29
/PF_WE

008:AB29

OPT

P1

GIL-G-03-S3T2

R2195

OPT

R2196

20K

1.5K

+12V

1

2

3

+5V_GENERAL

OPT

B

OPT

10K

C

E

R2197

R2198

Q102
2SC3052

POWER_ON_DELAY

+3.3V_ST

R228

100

B

C

Q107

B

2SC3052

E

013:L24

100R224

USB_CTL

100

OPT

POWER DETECT

C

E

Q108
2SC3052

SW100

R134
10K

A7

GPIO67

12

4 3

100

R135

S6_Reset
C121
10uF

6.3V

GPIO68

B8

R242

R188

4.7K

RESET

2

R133
10K

C120

4.7uF
10V

PWM Dimming

IC102

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

CLE

ALE

R/B

RE

CE

WE

WP

HY27US08121B-TPCB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

+3.3V

1K

3.9KR158

R156

R157

1K

OPT

OPT

R154
1K

R155

1K

VCC_1

0.1uFC131

NC_28

NC_27

NC_26

NC_25

I/O7

I/O6

I/O5

I/O4

NC_24

NC_23

PRE

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

+3.3V

AR100

C161

10uF 6.3V

AR101

R185

004:K21

A_DIM

004:M20;007:O20;007:Z21

PWM_DIM

C181

C182

1uF

PCM_A[0-7]

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

22

0.1uFC162

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

I2C

008:AQ28;005:R24
008:AQ29;005:R24

005:AN21;010:B7
005:AN21;010:B9

003:E6;010:B8

003:E6;010:B10

1uF

OPT

FE_TUNER_SDA

FE_TUNER_SCL

FE_DEMOD_SDA
FE_DEMOD_SCL

SDA_SUB/AMP
SCL_SUB/AMP

R186
R189

+5V_GENERAL

1.2K
100
100

OPT

R197

OPT

4.7K

008:M9;008:AB24

008:M9;008:AB24

008:AB23

R2106

4.7K

OPT

0R2100
0R2101

0R2104
0R2105

1.2KR2107

1.2KR2108

PWM0
PWM1
PWM2

1.2KR2109

1.2KR2110

R260

+3.3V

4.7K

R266

4.7K

SDA0
SCL0

SDA1
SCL1

EEPROM_SDA
EEPROM_SCL

008:AB28

008:AB28

008:G4;008:N14;008:AB28
008:G4;008:N14;008:AB28

008:AR30
008:AR30

0 R4001

HD

FHD

0 R4002

TXAC+[4]

1K

PANEL_POWER

LVDS_TXAC+

INV_ON_DEBUG

004:G27;004:J22

B

OPT

R2199

2.2K

C

Q103
2SC3052

E

+24V_AUDIO

OPT

OPT

SIGN490

SIGN489

R2201

33K

R2202

R2203
2K

0R2192

OPT

OPT

0

SIGN501

B

OPT

+5V

C

E

R2204
10K

+3.3V_ST

Q104
2SC3052

1KR2205

R300

10K

R2200
10K

SIGN488

2K

B

R2206

R303

1K

R301

10K

OPT

R302

10K

R2211
0

OPT

C

Q105

OPT

2SC3052

E

0R304

PCM_A[11]

0R305

OPT

R306

OPT

R307

008:Z22;008:AR32;008:AR31;003:P6;009:P28

NCP803SN293

RESET

R2212

OPT

PCM_D[5]

0

PCM_D[7]

0

/PCM_CE

0R308

/PCM_OE

0R309

PCM_A[10]

0R310

PCM_D[6]

POWER_DET

+5V_ST_PTC

IC107

2

R2561

3K

VCC

3

1

GND

+12V

OPT

JTINT

/JTRST

JTCK

JTMS
JTDO

JTDI

/RST

LIPS

R2218

15K

+24V_AUDIO

PSU

R2216

30K

R2217

5.6K

Mstar IR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

KIM SUNG KYEONG

37LH250H

MAIN IC

09.05.19
8 14

PStoPDF trial version. http://www.oakdoc.com

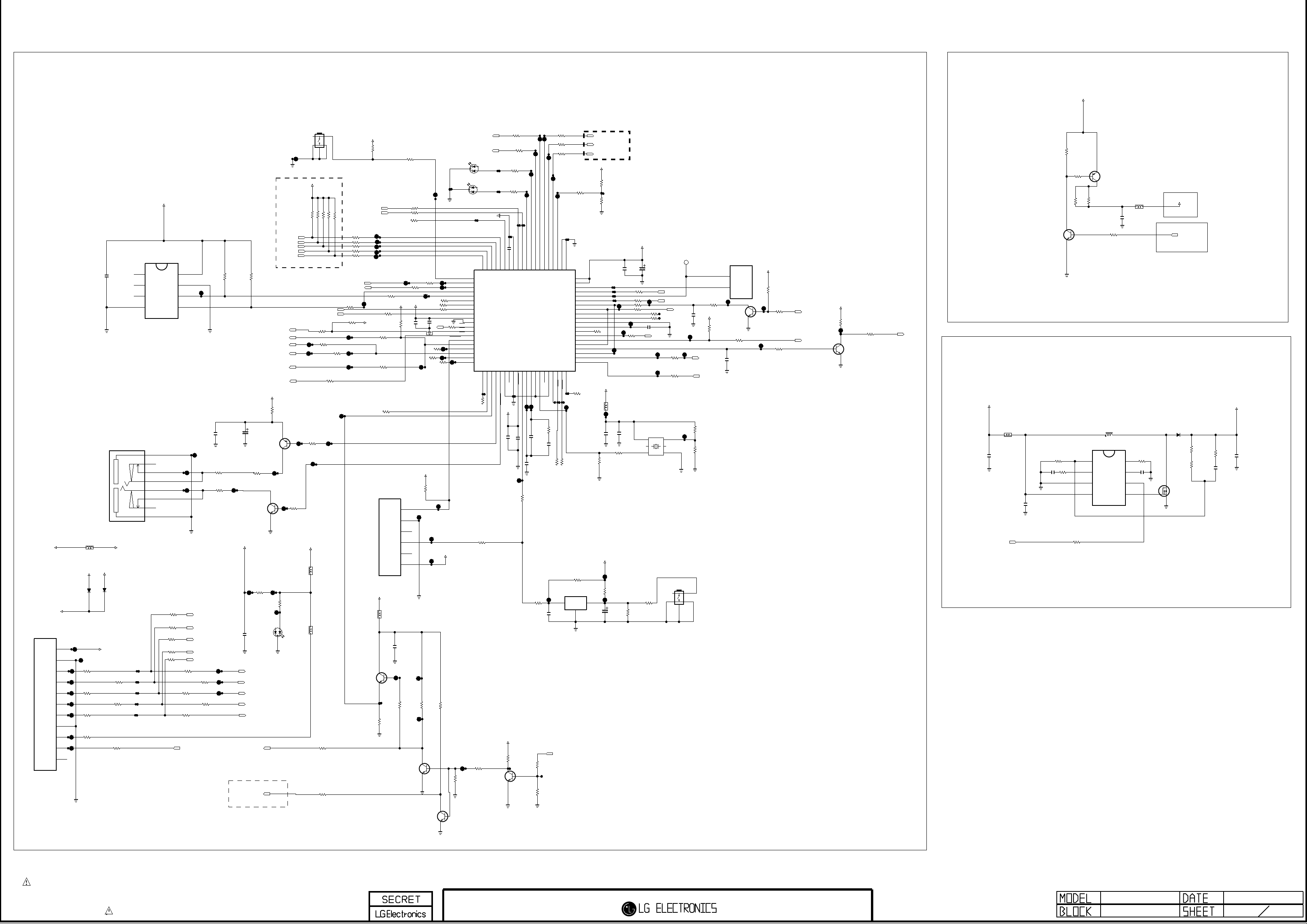

b_LAN MPI pin3 power control

PTC

+5V_ST_PTC

+12V_C

P1201

SMW200-11

12V

1

GND

2

BUFFERED_MPI

3

MPI_DOUT

4

SPI_DATA_OUT

5

SPI_DATA_IN

6

SPI_CLOCK

7

GND

8

VCC

9

IR_IN_MODEM

10

GAME CONT

11

L1220

MLB-201209-0120P-N2

+12V

40V D1246

R2252
0

1/10W
5%

R2253
0

1/10W
5%

R2254
0

1/10W
5%

R2255
0

1/10W
5%

GND

12V_DCDC

D1247

40V

+12V_C

C2150

0.1uF
50V

R2257
0

1/10W
5%

R2259
0

1/10W
5%

R2258
0

1/10W
5%

PEJ024-01

JK1206

5VST

NC_1

NC_2

NC_3

VSS

1

2

3

4

8

SHIELD_PLATE

6B

T_TERMINAL2

7B

B_TERMINAL2

5

T_SPRING

4

R_SPRING

7A

B_TERMINAL1

6A

T_TERMINAL1

3

E_SPRING

5VST

IC1203

FM24C16A

NON_BLAN

NON_BLAN

NON_BLAN

009:M8

VDD

8

WP

7

SCL

6

SDA

5

009:AJ28;014:S6

0 R2555

009:AO27;014:Y7

R2554

0

009:AJ27;014:Y14

0 R2552

009:N26;014:S13

0 R2553

009:N25;014:Y13
NON_BLAN
0 R2551

NON_BLAN

BLAN

BLAN

BLAN

R2262
0

BLAN

R2260
0

BLAN

R2261
0

IR_IN_MODEM

R2265
0

R2266
0

BUFFERED_MPI_DIN

MPI_DOUT

SPI_DATA_OUT

SPI_DATA_IN

SPI_CLOCK

R2263
0

R2264
0

011:M8

011:M8
011:M9

011:M9

011:M10

R2267

10K

R2268

10K

008:Z22;008:AR32;008:AR31;008:BC11;003:P6

MSTAR_POWER_ON

009:AD27

009:AE28

009:I12;014:S13

009:I12;014:Y13

SPI_DATA_IN

002:AF20;009:AU17

5VST

C2151

0.1uF
50V

C2152
10uF
16V

330
R2270

2SC3875S(ALY)

Q1107EB

5VST

R2269
0

C2153
10uF
16V

014:S6

DUM_BUFFERED_MPI_DIN

014:R7

DUM_MPI_DOUT

014:S14

DUM_SPI_DATA_OUT

014:S12

DUM_SPI_DATA_IN

014:Y12

DUM_SPI_CLOCK

IR_IN_MODEM

to b_LAN IR input

b_IR_IN_MODEM

UPDATE

SW900

SKHMPWE010

1 2

5

RJP

5VST

10KR2279

10K

10K

R2275

R2276

RJP_CTRL4
RJP_CTRL3

RJP_CTRL2
RJP_CTRL1
RJP_CTRL0

012:J8;012:Z7
012:D9;012:Q8

SIDEAV_SW

001:O26

POWER_DET

002:AE6;002:AG13;004:AG4

SCK

MISO

SPI_CLOCK

DCDC_EN

R2271

10

2SA1530A-T112-1R

Q1108

E

B

C

C

4.7K
R2273

009:Q27;009:S28;009:S28;009:T20;009:W23;009:AD31

R2272

330

OPT

A2[RD]

A1[GN]

OPT

LD900

C

SAM2333

009:H8

014:N19;014:Y23

0

R2278
0

R2331

R2274

4.7K

VCC1

L1221

MLB-201209-0120P-N2

L1222

MLB-201209-0120P-N2

R2277
100

R2527
100

43

10K

R2281

R2280

OPT

R2283

PTC_DEBUG_RX

PTC_DEBUG_TX

R2282
100

100

011:N25

011:N25

R2284
0

R2285
10K

OPT

2SC3875S(ALY)

5VST

LED_AM
LED_GR

100R2286
100R2287

100R2288
100R2289

100R2290

Q1109EB

R2291

2.2K

R2297

OPT

R2296

VCC1

R2293
0

R2294
100

GIL-G-06-S3T2

5VST

L1223

CM3216F100KE

C

R2292

100K

22

P1202

0

VCC1

0

R2299

R2295

1

2

3

4

5

6

R2298

2SC3875S(ALY)

4.7K

C2154

0.1uF
50V

10K

R2301

R2302

R2300

4.7K

0

0

100R2314

0R2303

VCC1

1uF
10V

C2155

VCC1

R2305

R2304

100K

C

Q1110EB

2SC3875S(ALY)

R2306
0

R2312
R2309
R2310

0.1uF
50V

C2156

RELAY_PTC

004:E14;004:Q27

MODC/TAGHI/BKGD

R2308
0

R2307
0

10K

5VST

R2528

100K

C

Q1403EB

R2313

0
0
0

0R2311

OPT

LD904

LD903

RXD2/PM4
TXD2/PM5

SDA/PM6

SCL/PM7
FAULT0/PQ0
FAULT1/PQ1
FAULT2/PQ2
FAULT3/PQ3

IS0/PQ4

0

IS1/PQ5
IS2/PQ6

IOC04/PT0
IOC05/PT1
IOC06/PT2
IOC07/PT3
IOC14/PT4

R2316

10K

1/10W

VDDX

C

PM3

VSSX

5%

SAM2333
C

SAM2333

R2317

UART_SWA

012:AA5

012:O6

UART_SWB

A1[GN]
A2[RD]

A1[GN]
A2[RD]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

R2318

R2315
0

4.7K
2SC3875S(ALY)

PP1/PW01

PP0/PW00

79

80

21

22

IOC15/PT5

IOC16/PT6

0

PP2/PW02

78

23

IOC17/PT7

R2324
330

R2325
330

OPT
R2323
1K

R2322
1K

C2158

0.22uF
25V

PM1/DA1

VSS1

VDD1

PP5/PW05

PP4/PW04

PP3/PW03

73

74

75

76

77

IC1204

MC9S12E128CFUE

24

25

26

27

28

VSSR

VDDR

ECLK/PE4

PW10/IOC24/PU0

PW11/IOC25/PU1

XCLKS/NOACC/PE7

VCC1

1uF

0.1uF

C2157

C2160

5VST

R2320

10K

1/10W

5%

C

Q1111EB

PAD14/AN14/KWAD14

PAD15/AN15/KWAD15

PM0/DA0

69

70

71

72

31

32

29

30

XFC

RESET

VDDPLL

C2161
220pF
50V

R2326

0

PAD10/AN10/KWAD10

PAD11/AN11/KWAD11

PAD12/AN12/KWAD12

PAD13/AN13/KWAD13

65

66

67

68

33

34

35

36

TEST

XTAL

EXTAL

VSSPLL

R2330

4.7K

C2162
1000pF
50V

R2334
100

0R900

008:O6;011:M21

R2328

100K

1/10W

5%

R2329

100K

1/10W

5%

R2335
330

R2332
330

R2333
330

VRL

VSSA

PAD08/AN08/KWAD08

PAD09/AN09/KWAD09

61

62

63

64

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41

40

37

38

39

IRQ/PE1

XIRQ/PE0

PW12/IOC26/PU2

PW13/IOC27/PU3

C2163

0.01uF
50V

R2336

0

IC900

KIA7042AF

O

3

G

C900

OPT

IR

R2338
330

VRH
VDDA
PAD07/AN07/KWAD07
PAD06/AN06/KWAD06
PAD05/AN05/KWAD05
PAD04/AN04/KWAD04
PAD03/AN03/KWAD03
PAD02/AN02/KWAD02
PAD01/AN01/KWAD01
PAD00/AN00/KWAD00
VSS2
VDD2
PS7/SS
PS6/SCK
PS5/MOSI
PS4/MISO
PS3/TXD1
PS2/RXD1
PS1/TXD0
PS0/RXD0

0
R2339

10KR901

I

1

2

bLAN_CTRL_PTC_1

bLAN_CTRL_PTC_0

bLAN_POWER_MANAGE

5VST

R2342
30K

R2343

8.2K

0 R2340

5VST

L1224

CM3216F100KE

C2165
1uF
10V

R2341

10K

5VST

R902
1K

C901
10uF
16V

R2344
10K

C2166

0.1uF
50V

R903

C2167

0.1uF
50V

1K R2349

1K R2347

0 R2345

22K

VCC1

0

0

OUTPUT

R2348
R2346

C2168

1uF
50V

R2350
R2351

0.22uFC2169

SCK

009:N27

X900

7.37280MHz

6SV1

NC

5

4

1KR904

0
0

2

3

011:U24
KEY_CTL_0

011:U24
KEY_CTL_1

R2352
0

R2353
0

VC

TRI-STATE

GND

RESET

SKHMPWE010

1 2

MISO

009:N26

SW901

PTC_RX_5V

43

5

R2354

R2355

4.7K

4.7K

C2170
47pF
50V

R2357
100

5VST

R2356

10K

PTC_TX
012:C8

PTC_RX_5V

012:J7;012:K14

GIL-G-02P

2

1

2SC3875S(ALY)

C2171
47pF
50V

OPT

P1203

C

Q1112EB

R2358
100

5VST

R2359

470K

R2361

4.7K

R2360

4.7K

BUFFERED_MPI_DIN

009:I14;014:S6

SPI_DATA_OUT

009:I13;014:Y14

B

5VST

R2362

4.7K

C

E

Q1113
2SC3875S(ALY)

R2363
100

MPI_DOUT

009:I13;014:Y7

2SC3875S(ALY)

12V_DCDC_2009_PWR

5VST

2009_PWR

MLB-201209-0120P-N2

L5000

2009_PWR
C5000
22uF
25V

2009_PWR

2009_PWR
C5001

2.2uF
16V

002:AF20;009:N25

DCDC_EN

C5002

Q909EB

0.1uF

5%

2009_PWR
15K

1%

R5000

2009_PWR
R5001

1K

C

1/10W

+12V_C_MPI

10K

R947

3.3K
R948

R2574

200

R5002

0

1W

COMP

R2575

GND

VCC

B

200

1W

BD9306AFVM

FB

8

7

6

5

E

2N3906S-RTK

Q910

C

2009_PWR

L5001

22uH

IC5000

2009_PWR

L902

MLB-201209-0120P-N2

C912
220pF
50V

R953

3.3K
1/10W

5%

MPI_5V or 12V (PIN3) Select Control from b-LAN

2009_PWR
R5003

20K

RT

1

C5003

100pF

CT

2

50V

2009_PWR

ENB

3

GD

4

G

BEXT_5V

2009_PWR

D5000

40V

D

Q5000
AO3438

2009_PWR

S

MPI_5V or 12V

b_com_PWCTRL

014:K21

R5004

2009_PWR

R5005

2009_PWR

100K

002:AO28;009:E16

12V_DCDC

1KR5006

2009_PWR

C5004

C5005

2009_PWR
100pF
50V

2009_PWR

22uF
25V

1%

30K

1%

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H

09.05.19
9

14PTC&DCDC

PStoPDF trial version. http://www.oakdoc.com

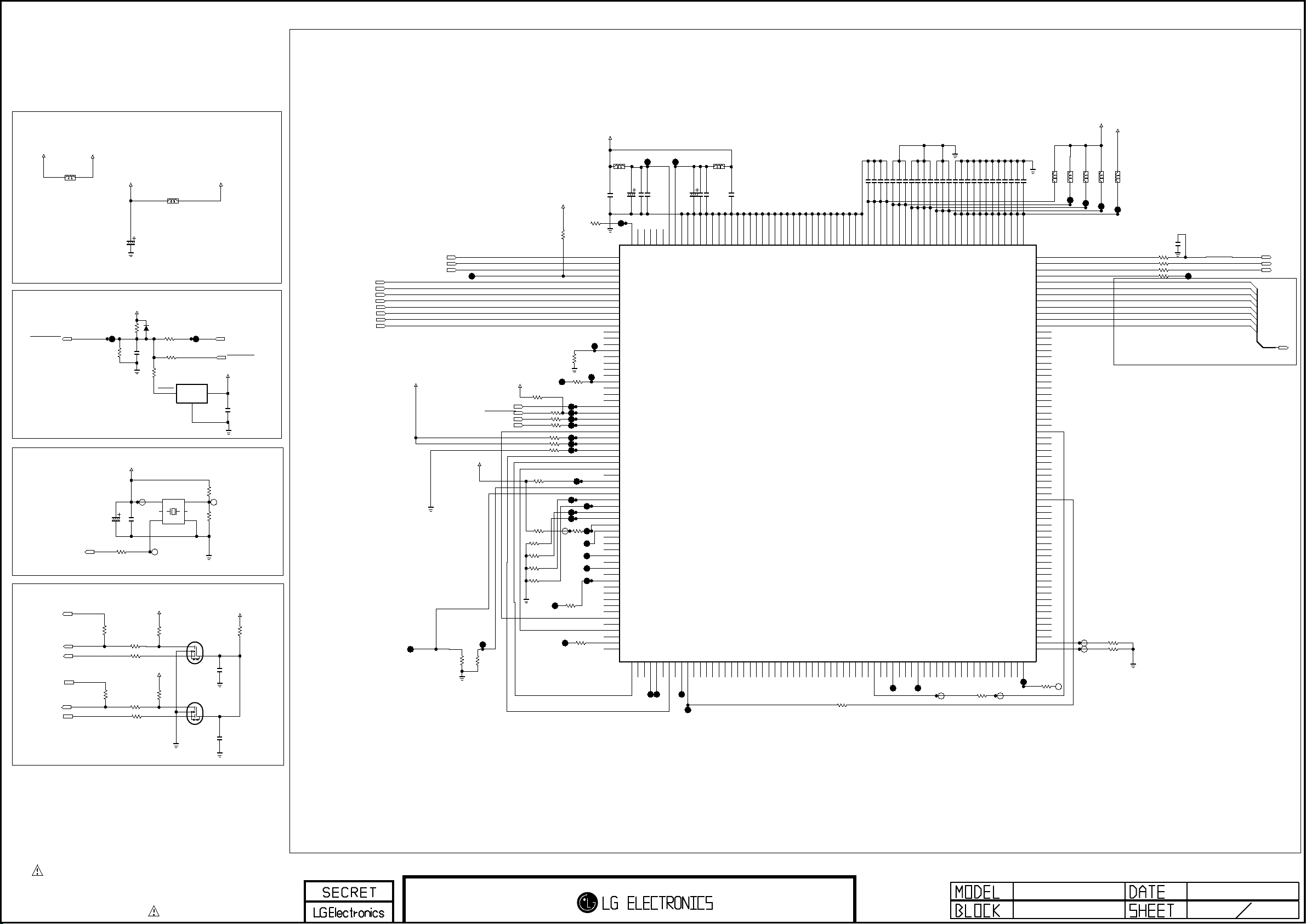

FPGA

FPGA POWER

+3.3V

RESET

FPGA_RESET

27MHz

010:Q17

I2C

SCL_SUB/AMP

008:AI4;003:E6

MSCL_3.3V

FE_DEMOD_SCL

008:AI5;005:AN21

SDA_SUB/AMP

008:AI4;003:E6

MSDA_3.3V

FE_DEMOD_SDA

008:AI5;005:AN21

MLB-201209-0120P-N2

L1227

010:Q17

DE_H_SYSCLK

3.3V_Proidiom

C2176
10uF
16V

3.3V_Proidiom +VCCINT_1.5V

MLB-201209-0120P-N2

L1228

C2177
100uF
16V

3.3V_Proidiom

OPT

1N4148W

R2390

D1250

10K

OPT

R2393
100

OPT

C2179

OPT

R2394

1uF

100

25V

R2563

4.7K

IC1210

OPT

R2564

100

MAX809RTR

RESET

2

3.3V_Proidiom

X1006

27MHz

6

R2385

R2386

C2178

0.1uF
16V

22R2387

3.3V_Proidiom

OPT

0

OPT

0

0

0

0

0

R2391

R2446

R2447

3.3V_Proidiom

R2392

R2448

R2449

25
34

10K

D
B

S
Q1114
BSS83

10K

D
B

S
Q1115
BSS83

010:T25;010:AJ26

1

GND

1

008:AP22;005:AM26

VSB_RESET

008:AB21

SYS_RESET

3.3V_Proidiom

VCC

3

C2255
1uF
25V

OPT

+5V_GENERAL

G

C2180

0.1uF
16V

OPT

G

C2181

0.1uF
16V

OPT

TS_0
TS_1

TS_2
TS_3
TS_4
TS_5
TS_6
TS_7

3.3V_Proidiom

TS_CLK

TS_VALID

TS_SYNC

R2399
0

010:B19

010:C12

3.3V_Proidiom

DE_H_SYSCLK

FPGA_RESET

MSCL_3.3V
MSDA_3.3V

R2401

0

005:AN19

005:AN19

005:AN19

005:AF17
005:AF17
005:AF17
005:AF17

005:AF16
005:AF16
005:AF16
005:AF16

1K

R2397

TS_0
TS_1
TS_2
TS_3

TS_4
TS_5
TS_6
TS_7

3.3V_Proidiom

R2406

GND

1K
R2402

1K

R2403

1K

R2404

R2405

OPT

3.3V_Proidiom

10K

10KR2409

10KR2408

OPT

0

OPT

R2418

IO2_41/TP_DATA[7]
IO2_36/TP_DATA[6]
IO2_31/TP_DATA[5]
IO2_25/TP_DATA[4]
IO2_23/TP_DATA[3]
IO2_18/TP_DATA[2]
IO2_14/TP_DATA[1]

IO2_8/TP_DATA[0]

10K

R2422

GND

R2420

22R2415
22R2416
22R2417

10KR2412
10KR2413
10KR2414

R2421
0

R2419
0

R2423

+VCCINT_1.5V

MLB-201209-0120P-N2

0R2424

IO2_29/TP_SOP

IO2_21/TP_VALID

IO2_17/TP_ERR

IO1_29

0

IO1_10
IO1_11
IO1_12

IO2_48/RESET
IO3_37/I2C_SCK
IO3_34/I2C_SDA

CONF_DONE

NCONFIG

DATA0

IO1_21SO

IO1_22/ASDO

NSTATUS

MSEL0
MSEL1

IO1_1/INIT_DONE

IO1_13
IO1_14
IO1_15
IO1_16
IO1_17
IO1_18
IO1_19
IO1_20
IO1_23
IO1_24
IO1_25
IO1_26
IO1_27
IO1_28
IO1_30
IO1_31
IO1_32
IO1_33
IO1_34
IO1_35

0

CLK1

IO1_2
IO1_3
IO1_4
IO1_5
IO1_6
IO1_7
IO1_8
IO1_9

CLK0

DCLK

NCEO

3.3V_Proidiom
+VCCINT_1.5V

MLB-201209-0120P-N2

16V

GNDG_PLL2

GNDA_PLL2

J12

J11

T2

R3

IO4_2

IO4_3

0.1uF

C2190

GNDG_PLL1

GNDA_PLL1

J5

J6

P4

R4

IO4_4

IO4_5

0.01uFC2191

16V

GND_26

T16

T4

IO4_6

L1231

GND_25

T12

R5

IO4_7

GND_24

T5

M5

IO4_9

GND_23

T1

M6

IO4_10

1uF

C2192

GND_22

L11

N5

IO4_11

50V

GND_21

L9

N6

IO4_12

GND_20

L8

R6

IO4_14

GND_19

L6

M7

IO4_15

GND_18

K10

T6

IO4_16

GND_17

K8

R7

IO4_17

GND_16

GND_15

GND_14

GND_13

GND_12

GND_11

GND_10

GND_9

GND_8

J9

J7

K6

H10

GND_7

F9

H8

G9

G7

F11

G11

IC1209

LGDT1129

N7

T8

M8

N8

M10

T9

N9

T11

N10

N11

IO4_19

IO4_21

IO4_22

IO4_23

IO4_25

IO4_27

IO4_29

IO4_31

IO4_32

IO4_36

GND_6

F8

N12

IO4_37

GND_5

F6

M9

IO4_38

GND_4

A12

M11

IO4_39

GND_3

A5

M12

IO4_40

0R2425

GND_2

A16

R12

IO4_42

GND_1

A1

T13

IO4_43

0.1uF

0.1uF

16V

C2194

C2193

VCCIO2_4

VCCIO2_3

F7

A3

R13

R14

IO4_44

IO4_45

0.1uF

0.1uF

16V

16V

C2196

C2195

VCCIO2_2

VCCIO2_1

F10

A14

P13

T15

IO4_46

IO4_47

0.1uF

0.1uF

16V

16V

C2198

C2197

VCCIO3_3

VCCIO3_2

C16

R15

IO3_1

IO4_48

0.1uF

16V

C2199

VCCIO3_1

K11

N13

IO3_2

0.1uF

16V

C2200

VCCIO4_4

P16

P14

IO3_3

0.1uF

16V

C2201

VCCIO4_3

T14

P15

IO3_4

0.1uF

16V

C2202

VCCIO4_2

L10

R16

IO3_5

16V

L7

N15

0.1uF

0.1uF

16V

C2204

C2203

VCCIO4_1

VCCIO1_3

P1

T3

N16

K12

IO3_6

IO3_7

0.1uF

0.1uF

16V

16V

C2205

C2206

VCCIO1_2

VCCIO1_1

C1

G6

K14

L12

IO3_8

IO3_9

0.1uF

0.1uF

16V

16V

C2208

C2207

VCCINT_12

VCCINT_11

T7

T10

N14

M13

IO3_10

IO3_11

0.1uF

0.1uF

16V

16V

C2209

C2210

VCCINT_10

VCCINT_9

K9

K7

M14

L13

IO3_12

IO3_13

R2426
0

0.1uF

0.1uF

16V

16V

C2212

C2211

VCCINT_8

VCCINT_7

J10

M15

IO3_14

IO3_15

16V

J8

M16

0.1uF

0.1uF

16V

C2214

C2213

VCCINT_6

VCCINT_5

H9

H7

L14

L15

IO3_16

IO3_17

0.1uF

0.1uF

16V

16V

C2216

C2215

VCCINT_4

VCCINT_3

G10

L16

IO3_18

IO3_19

0.1uF

16V

C2217

VCCINT_2

G8

K16

IO3_20

0.1uF

16V

C2218

VCCINT_1

A10

K15

IO3_21

A7

J16

16V

IO4_34/CH_CLK

R11

IO4_20/CH_VALID

R8

IO4_26/CH_SOP

R9

IO4_30/CH_ERR

R10

IO4_8/CH_DATA[0]

P5

IO4_13/CH_DATA[1]

P6

IO4_18/CH_DATA[2]

P7

IO4_24/CH_DATA[3]

P8

IO4_28/CH-DATA[4]

P9

IO4_33/CH_DATA[5]

P10

IO4_35/CH_DATA[6]

P11

IO4_41/CH_DATA[7]

P12

IO2_34

E7

IO2_33

A6

IO2_32

B7

IO2_43

A4

IO2_30

D7

IO2_28

A8

IO2_27

E8

IO2_26

D8

IO2_44

B4

IO2_24

E10

IO2_45

C4

IO2_22

D9

IO2_20

A9

IO2_19

D10

IO2_16

A11

IO2_15

B11

IO2_46

B3

IO2_13

D11

IO2_12

D12

IO2_11

E9

IO2_10

E11

IO2_9

E12

IO2_47

A2

IO2_7

B12

IO2_6

A13

IO2_5

B13

IO2_4

C13

IO2_3

B14

IO2_2

A15

IO2_1

B15

IO3_43

D13

IO3_42

C14

IO3_41

C15

IO3_40

B16

IO3_39

G12

IO3_38

H13

IO3_36

E13

IO3_35

F12

IO3_33

D15

IO3_32

D16

IO3_31

E15

IO3_30

E16

IO3_29

F15

IO3_28

F13

IO3_27

F14

IO3_26

F16

IO3_25

G15

IO3_24

G13

IO3_23

G14

IO3_22

H12

CLK2

G16

CLK3

H16

L1232

L1234

L1235

L1233

MLB-201209-0120P-N2

MLB-201209-0120P-N2

L1236

MLB-201209-0120P-N2

MLB-201209-0120P-N2

MLB-201209-0120P-N2

INNER LAYER PATERN

0R2435
0R2436

0R2431

100R2441
100R2442
100R2443

100R2444
PM_TS[0]
PM_TS[1]
PM_TS[2]
PM_TS[3]
PM_TS[4]
PM_TS[5]
PM_TS[6]
PM_TS[7]

OPT
C2219
62pF
50V

008:AP25

PM_TS_CLK

008:AP25

PM_TS_VALID

008:AP25

PM_TS_SYNC

008:AP27

PM_TS[0-7]

L1230

0.01uFC2188

0.1uF

1uF

C2186

3.3uF
16V

16V

50V

C2187

C2185

IO2_40

IO2_39

IO2_38

E5

E6

D5

H1
B8
B9
B10
C5
C6
C7
C8
C9
C10
C11
C12
M1
C3
C2
B1
G5
F4
D3
E4
F5
E3
D2
E2
G1
B2
D14
E14
K4
K13
H3

NCE

J4
H2
G4
K3
H4
J13
J3
J2

TCK

J14

TDO

H15

TMS

J15

TDI

H14
D4
D1
F3
G3
F2
E1
G2
F1
H5
J1
K2
L3
K1
L1
L2
N1
M2
N2
M3
L5
M4

N3

K5

L4

IO1_36

IO1_37

IO1_38

IO2_37

D6

R1

IO1_39

IO2_42

B5

P2

IO1_40

IO2_35

B6

P3

IO1_41

C2189

3.3uF

VCCA_PLL2

VCCA_PLL1

H6

H11

N4

R2

IO4_1

IO1_42

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H

FPGA

09.05.19

10 14

PStoPDF trial version. http://www.oakdoc.com

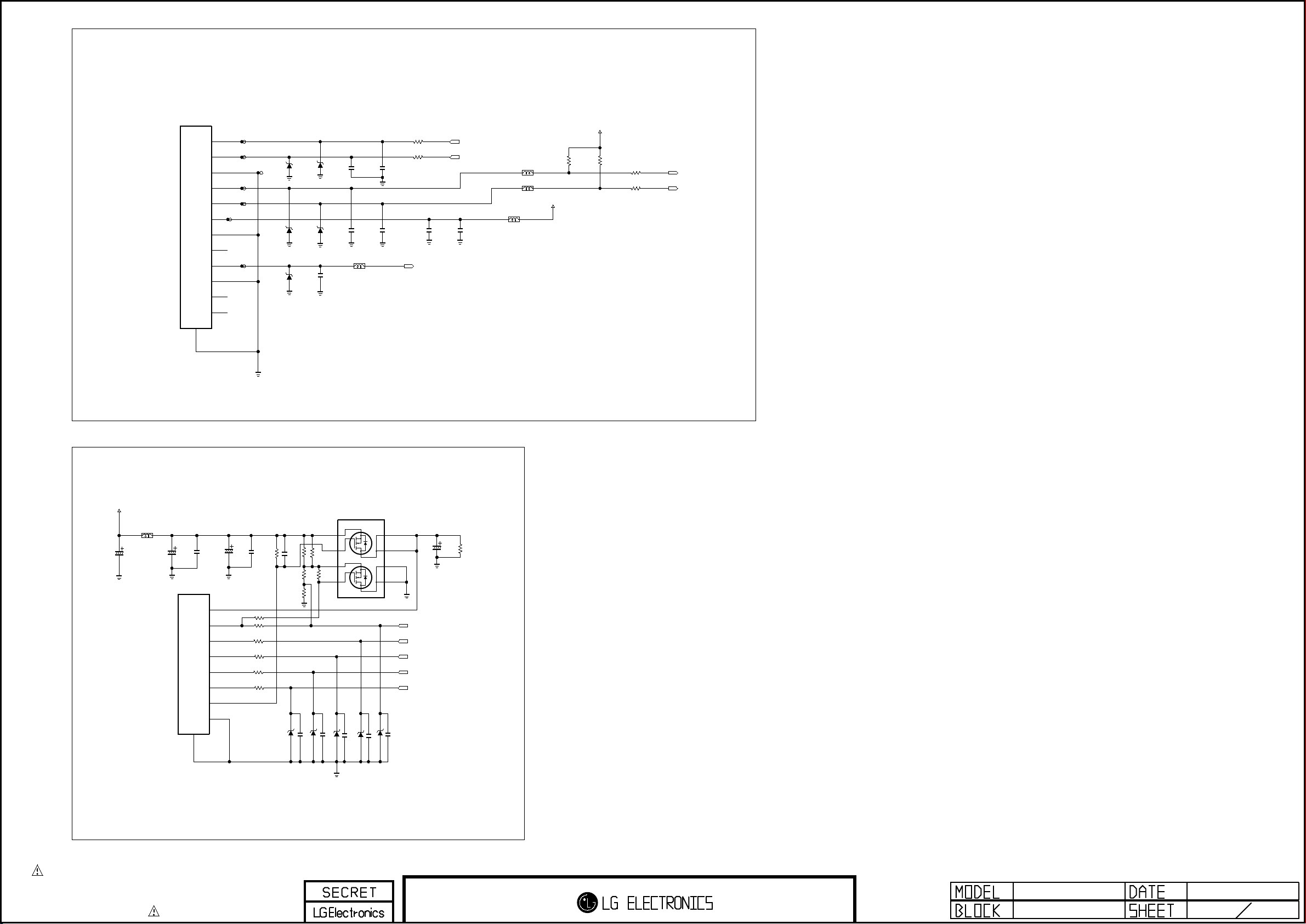

IR & LED & CONTROL

P1100

12507WS-12L

50V

1000pF

C1104

0.1uF

R1104

R1105

C1106

1000pF

C1105

008:O6;009:Y8

0

0

50V

IR

LED_GR

LED_AM

C1108
16V

009:R32

009:R33

0.1uF

LED_B

1

LED_R

2

GND

3

KEY1

4

KEY2

5

5V_ST

6

GND

7

NC

8

IR

9

GND

10

NC

11

NC

12

13

GND

ZD1111

5.6B

D1101

UDZS5.1B

5.1V

ZD1110

5.6B

D1102

UDZS5.1B

5.1V

ZD1112

5.6B

C1101
100pF

50V

50V

1000pF

C1102

0.1uF

L1100

BG2012B080TF

C1103

BG2012B080TF

BG2012B080TF

L1102

CB3216PA501E

L1103

L1104

+5V_ST_PTC

+5V_ST_PTC

R1110

4.7K

4.7K

R1113

R1115

R1116

100

100

009:AD29

009:AD28

KEY_CTL_0

KEY_CTL_1

RJP

+12V

MLB-201209-0120P-N2

C2220
47uF
25V

L1237

C2221
47uF
25V

JK1100

MJ-657PT-8-SD

9

9

C2222

0.01uF

1

2

3

4

5

6

7

8

Q1118

AO4813

S2

1

2K

2K

C2224

0.01uF

100R2464

100R2465

R2470

100R2466

100R2468

100R2469

OPT

C2256

4.7uF
25V

10K

R2472

5.1K

R2473

5.1K

OPT

5.1VZD1105

C2223

47uF

25V

1

2

R2467

3

4

5

6

7

8

0.01uFC2225

R2471

5.1VZD1106

R2560

100K

R2474

0.01uFC2226

G2

2

S1

3

G1

4

5.1VZD1107

0.01uF

C2227

5.1VZD1108

0.01uFC2228

8

7

6

5

5.1VZD1109

D2_2

D2_1

D1_2

D1_1

0.01uFC2229

RJP_CTRL0

RJP_CTRL1

RJP_CTRL2

RJP_CTRL3

RJP_CTRL4

C2230
47uF
25V

009:N30

009:N31

009:N31

009:N31

009:N31

R2476
10K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H

IR&RJP

09.05.19
11 14

PStoPDF trial version. http://www.oakdoc.com

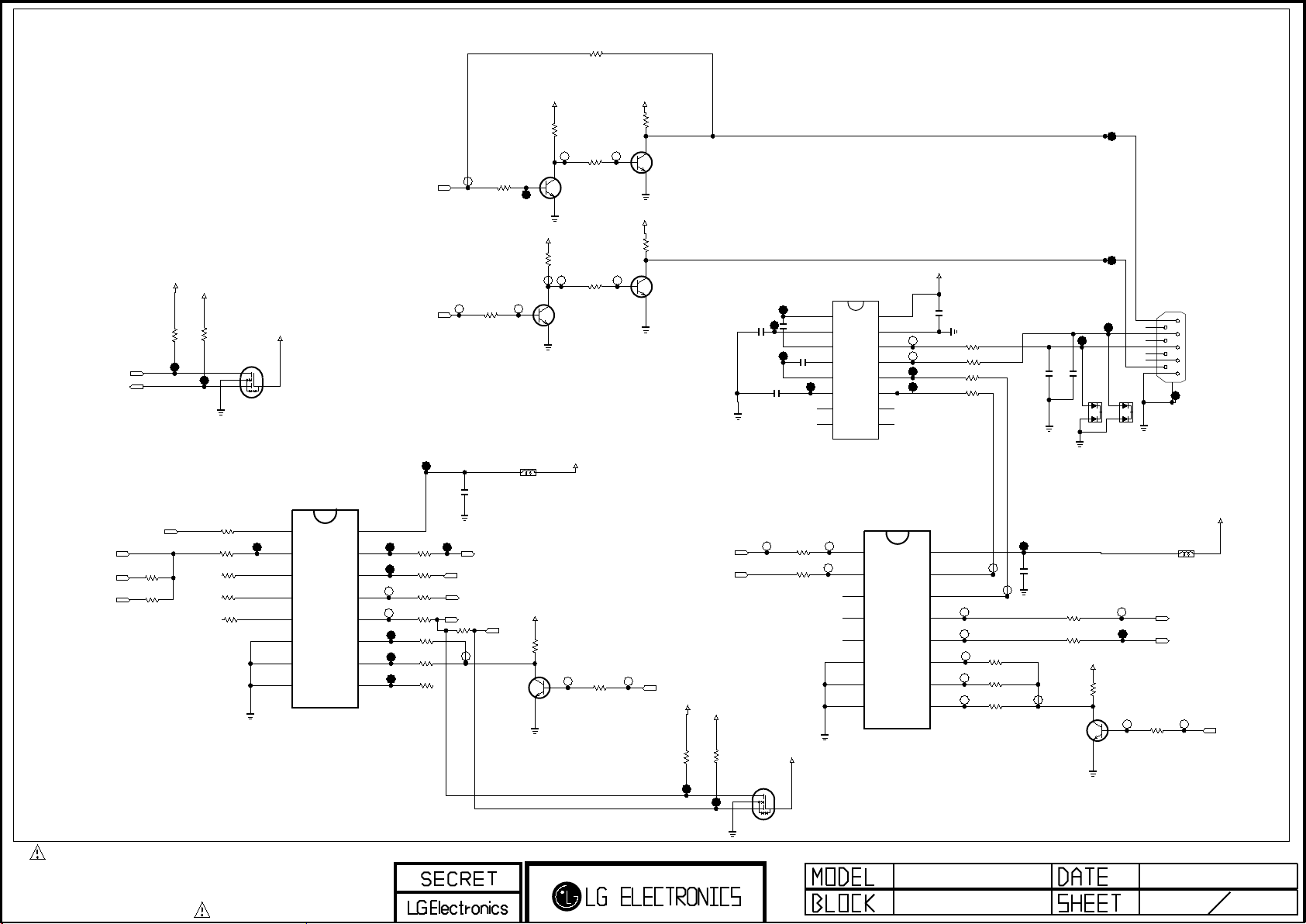

UART

R925

OPT

012:J8

008:AQ27

012:K17

009:AF26

008:AO31

PTC_RX_MSTAR_5V

PTC_RX_MSTAR

009:Q29;012:Q8

PTC_TX_1

PTC_TX

RX_G6

PTC_DEBUG_TX

+5V_ST_PTC

0R907

0R958

R2521

4.7K

+3.3V_ST

R910

R909

R2522

4.7K

R955

R956

R957

012:C9

PTC_TX_1

+5V_ST_PTC

Q902

2SC3875S(ALY)

B

10KR917

22K

C

E

R922

+5V_ST_PTC

Q903

2SC3875S(ALY)

B

1KR923

R927
22K

C

E

Serial Port

+5V_ST_PTC

+5V_ST_PTC

R921
22K

Q901

C

2SC3875S(ALY)

10KR912

B

+5V_ST_PTC

L900

MLB-201209-0120P-N2

008:AQ28

012:D13

009:Q29;012:Z7

+5V_ST_PTC

TX_F5

008:AR32

C

Q905EB

R926
10K

E

IC901

MC14053BDR2G

1

2

3

4

5

6

7

8

009:AF25;012:J7

16

15

14

13

12

11

10

9

+3.3V_ST

Q1200

BSS83

D
B
S

G

GND

Y1

0

OPT

OPT

OPT

OPT

Y0

0

Z1

0

100

Z

Z0

0

INH

VEE

VSS

PTC_RX_5V

C902

0.1uF

VDD

Y

R913

0

0

0

0

100R918

100R919

100R920

PTC_TX_MSTAR

PTC_RX_MSTAR_5V

PTC_DEBUG_RX

009:AF25;012:K14

PTC_RX_5V

OPT

0 R959

2SC3875S(ALY)

R914

X

R915

X1

OPT

R916

X0

A

B

C

OPT

1KR924

Q904

2SC3875S(ALY)

B

1KR929

R928
22K

C

E

008:AB27

009:Q29;012:D9

UART_SWB

+5V_ST_PTC

MSTAR_TX

PTC_DEBUG_TX

009:W35

+3.3V_ST

R1200

4.7K

R1201

4.7K

+5V_ST_PTC

IC902

ST3232CDR

C1+

C904

C903

0.047uF

0.33uFC905

+3.3V_ST

G

C906

0.33uF

V+

C1-

C2+

C2-

V-

T2OUT

R2IN

100R930

100R931

0.33uF

Q1201
BSS83

D
B
S

GND

VCC

16

1

GND

15

2

T1OUT

14

3

R1IN

13

4

R1OUT

12

5

T1IN

11

6

T2IN

10

7

R2OUT

8

9

IC903

MC14053BDR2G

Y1

1

Y0

2

Z1

3

Z

4

Z0

5

INH

6

VEE

7

VSS

8

C907

0.1uF

100R932

100R934

C909
220pF

0R935

100R933

VDD

16

Y

15

X

14

X1

13

X0

12

A

11

B

10

C

9

C908

0.1uF

100R936

100R937

100R938

2SC3875S(ALY)

RxD

C910

220pF

D900

SDC15

A1

A2

100R939

100R940

+5V_ST_PTC

C

Q906EB

R941
10K

A1

C

A2

D901

SDC15

C

P900

KCN-DS-1-0088

1

6

2

7

3

8

4

9

5

10

+5V_ST_PTC

L901

MLB-201209-0120P-N2

MSTAR_RX

PTC_DEBUG_RX

1KR942

008:AB27

009:Q29;012:J8

UART_SWA

009:W36

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H

UART 12 14

09.05.19

PStoPDF trial version. http://www.oakdoc.com

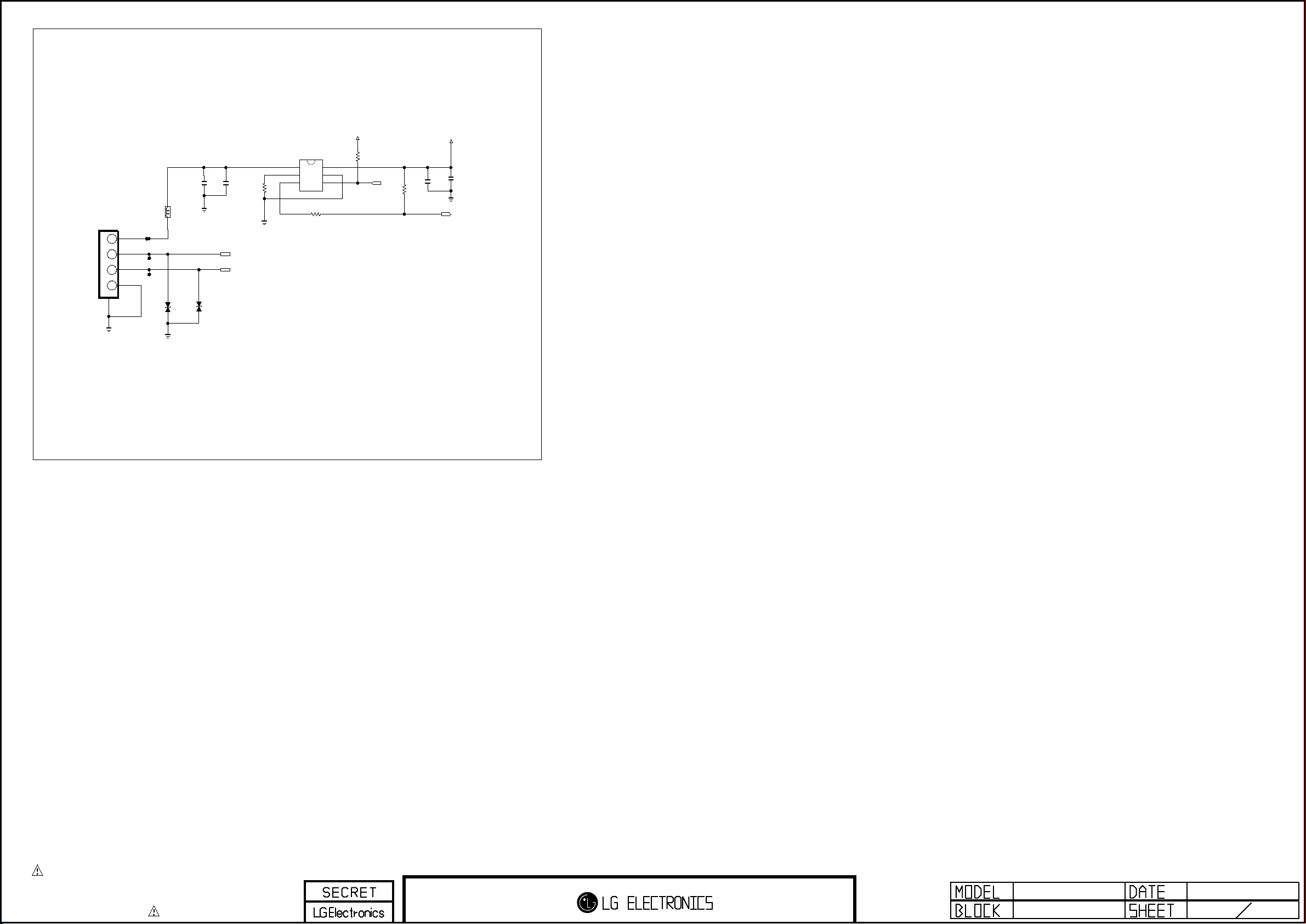

USB JACK (DOWN LOAD ONLYU)

VOUT

ILIMIT

FAULT/

R2513

180

P1207

1234

USB DOWN STREAM

KJA-UB-4-0004

5

SIGN799

L1300

CB3216PA501E

D1304

ADMC5M03200L

5.6V

C2251
47uF
10V

008:AR34

008:AR34

D1305

ADMC5M03200L

5.6V

C2252
47uF
10V

USB_DM

USB_DP

USB +5V Over Current Protection --> USB Jack

MIC2009YM6-TR

6

5

4

IC1304

R2514
47

+3.3V

R2515

VIN

1

GND

2

ENABLE

3

4.7K

USB_CTL

R2518

10K

C2248

10uF
10V

+5V_EXT

USB_OCD

C2249

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H

USB JACK

09.05.19

13 14

PStoPDF trial version. http://www.oakdoc.com

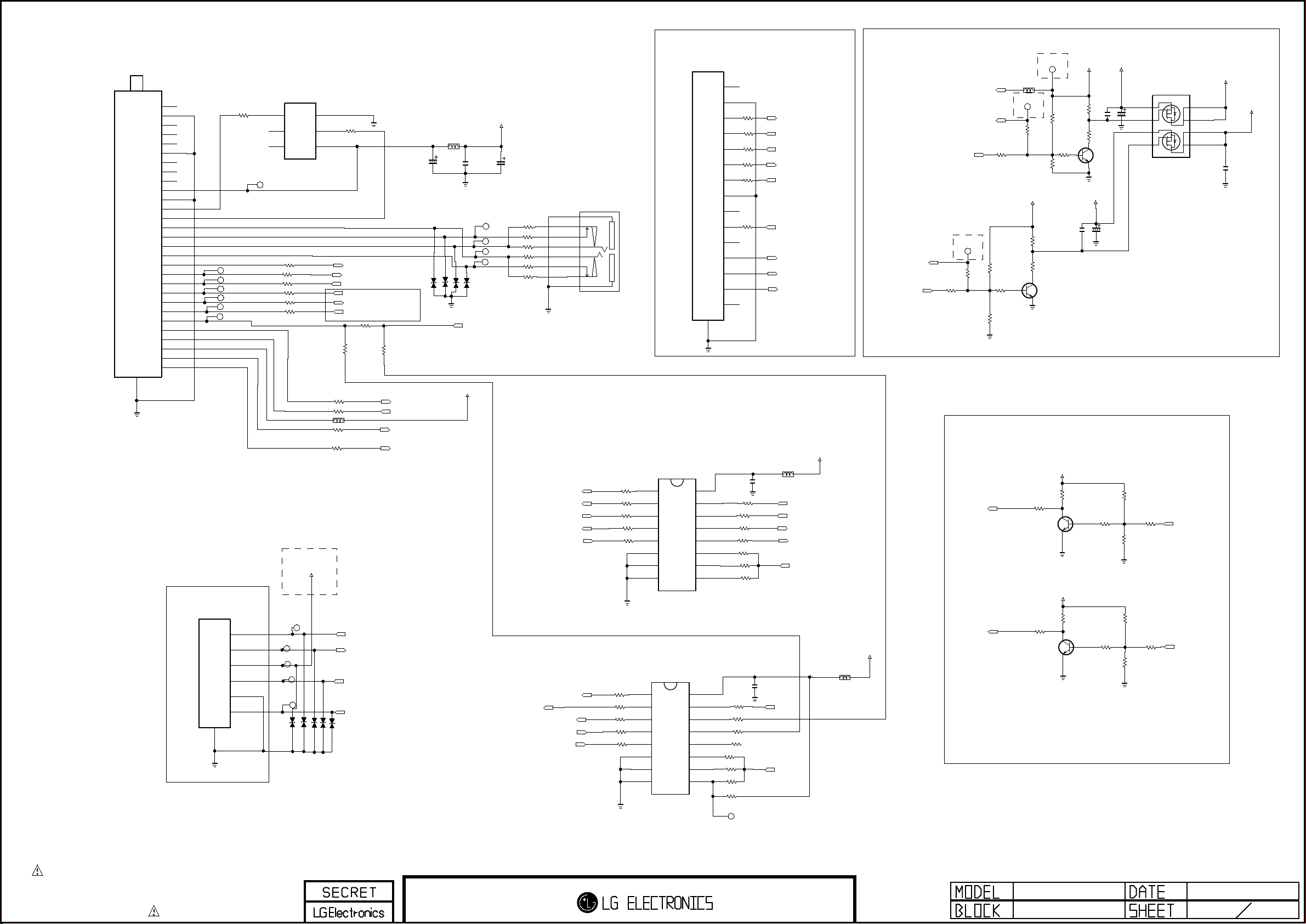

B-LAN

BLAN

TU1002
TMMB-H001P(W/O Tuner)

RF_OUT[NC]

1

GND_1

2

+3.3V

3

TSCL

4

TSDA

5

GND_2

6

IF_AGC

7

DIF-P

8

DIF-N

9

+5V

10

GND_3

11

JP2-P1

12

JP2-P4

13

J1-P2

14

J1-P3

15

J1-P4

16

J1-P5

17

PTS

18

JP1-P3

19

JP1-P4

20

JP1-P5

21

JP1-P6

22

JP1-P7

23

JP1-P10

24

J2-P1

25

J2-P2

26

J2-P3

27

J2-P4

28

J2-P6

29

30

SHIELD

GND

b_LAN MPI JACK

MJ-623PT-6-S-SD

BLAN

JK1401

R2529

0

1

2

3

4

5

6

7

R2519

R1409
R1402

R1403

R1404

R1405

BLAN
P1400

YFDW254-06S

1

5

0

0

0

0

0

0

POWER LINE

BEXT_5V

OPT

D1408

30V

2

R2530

43

6

b_com_PWCTRL

b_MPI_DIN

b_MPI_DOUT

b_SPI_DATA_OUT

b_SPI_DATA_IN

b_SPI_CLOCK

***Lines is same length as Possible as

R1400

R2562

0

OPT

R1410

0

R1407

0

L1401

MLB-201209-0120P-N2

R1406

0

R1401

0

BEXT_MPI_OUT

BEXT_MPI_DIN

BEXT_Game_Control_Latch

BEXT_IR_MODEM

014:L15

5.6V

5.6V

5.6V

OPT

OPT

OPT

D1402

D1403

D1400

5.6V

OPT

D1401

0

014:S7;014:Y26

014:S7;014:Y26

014:Y24;014:Y13

OPT

009:BA31

014:S14;014:Y25

014:S13;014:Y25

0

R2539

0

BEXT_MPI_OUT

BEXT_MPI_DIN

BEXT_Game_Control_Latch

BEXT_IR_MODEM

014:K7

014:L17

014:L17

MLB-201209-0120P-N2

D1404

014:K9

014:K9

014:L16

BLAN

OPT

C1411
100uF
16V

5.6V

L502

D1405

D1406

5.6V

OPT
GND

BEXT_5V

C1412

0.22uF
50V

D1407

5.6V

5.6V

OPT

OPT

b_IR_IN_MODEM

014:K8

+5V_BLAN

BLAN

C1413
100uF
16V

009:M6;014:Y23

014:K20;014:Y25

009:K10

014:K20;014:Y25

009:I12;009:N26

009:K10

DUM_MPI_DOUT

009:I14;009:AJ28

R1418
0

R1414
0

R1413
0

R1415
0

R1416
0

R1417
0

GND

b_SPI_DATA_OUT

DUM_SPI_DATA_OUT

b_SPI_DATA_IN

DUM_SPI_DATA_IN

014:K21;014:Y26

009:K11

014:K21;014:Y26

BUFFERED_MPI_DIN

DUM_BUFFERED_MPI_DIN

009:K11

E_SPRING

T_TERMINAL1

B_TERMINAL1

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

SHIELD_PLATE

SPI_DATA_IN

b_MPI_DOUT

b_MPI_DIN

JIG WAFER

BLAN

JK1400

PEJ024-01

3

6A

7A

4

5

7B

6B

8

BLAN

P1405

12505WS-15A00

16

GND

GND

NC

1

GND

2

R2568

MPI IN

0

3

R2569

MPI OUT

0

4

R2570

PM4

0

5

R2571

PM2

0

6

R2572

PM1

0

7

GND

8

NC

9

R2573

PTO

0

10

NC

11

5V ON

12

12V ON

13

5VST

14

NC

15

b_MPI_DIN

014:K21;014:S7

b_MPI_DOUT

014:K21;014:S7

b_SPI_DATA_OUT

014:K20;014:S14

b_SPI_DATA_IN

014:K20;014:S13

b_SPI_CLOCK

014:K20;014:Y13

b_IR_IN_MODEM

009:M6;014:N19

bLAN_CHECK_5VON

014:AF26

bLAN_CHECK_12VON

014:AD21

bLAN_CHECK_5V

014:AF27

B-LAN POWER

bLAN_POWER_MANAGE

009:AA35;014:AD21

bLAN_CHECK_12VON

014:Y21

bLAN_POWER_MANAGE

009:AA35;014:AF25

bLAN_CHECK_5V

014:Y21

bLAN_CHECK_5VON

014:Y22

5VST_JIG

BLAN CHECK

R1904
47K

R2565

10K

R2537

R1905

47K

OPT

R1906
0

OPT

22K

L1404

MLB-201209-0120P-N2

5VST_JIG

BLAN CHECK

R628
47K

+12V_C

R1909
47K

R1910
47K

Q908

B

5VST_JIG

BLAN CHECK

R2566

10K

C

E

2SC3875S(ALY)

5VST

5VST

8 D2_2

7 D2_1

6 D1_2

5 D1_1

+5V_BLAN

C1906
22uF
25V

+12V_C_MPI

BLAN

Q507

AO4813

R630

C801

22K

2.2uF

OPT

C1903

2.2uF

25V

R631

2.2K

C

Q506

B

E

2SC3875S(ALY)

+12V_C

C1904

BLAN

47uF
25V

25V

R629

22K

OPT

R2567
0

0

R1093

C802

BLAN

100uF
16V

1S2

2G2

3S1

4G1

B-LAN ON/OFF Control

R1419

R1420

R1421

R1422

R1423

R1434

R1435

R1436

R1437

R1438

0

0

0

0

0

0

0

0

0

0

MC14053BDR2G

Y1

1

Y0

2

Z1

3

Z

4

Z0

5

INH

6

VEE

7

VSS

8

***MPI_OUT bypass

BLAN

IC1400

MC14053BDR2G

Y1

1

Y0

2

Z1

3

Z

4

Z0

5

INH

6

VEE

7

VSS

8

BLAN

IC1401

C1415

R1454

R1449

R1450

R2538
10K

OPT

0.1uF

0

0

0

0

0

0

0

0

0

OPT

0

OPT

0

OPT

0

0

0

VDD

16

Y

15

X

14

13

12

11

10

16

15

14

13

12

11

10

9

R1453

X1

R1452

X0

R1451

A

R1448

B

C

9

VDD

Y

R1431

X

R1430

X1

R1429

X0

R1428

A

R1425

B

R1426

C

R1427

C1414

0.1uF

MPI_DOUT

009:I13;009:AO27

bLAN_CTRL_1

+5V_ST_PTC

L1403

MLB-201209-0120P-N2

SPI_DATA_OUT

009:I12;009:N25

SPI_CLOCK

014:K20;014:Y24

b_SPI_CLOCK

DUM_SPI_CLOCK

bLAN_CTRL_0

009:I13;009:AJ27

009:K9

+5V_ST_PTC

L1402

MLB-201209-0120P-N2

bLAN_CTRL_0

014:Y12

bLAN_CTRL_1

014:Y5

+5V_ST_PTC

R1462

2SC3875S(ALY)

R2531

2SC3875S(ALY)

0

C

Q1402EB

+5V_ST_PTC

0

C

Q1404EB

R1463

10K

R2532

10K

R1466

10K

4.7KR1464

OPT

4.7KR2533

OPT

R1465

0

10K

R2534

0

R2535

0R1467

0R2536

bLAN_CTRL_PTC_0

009:AA35

bLAN_CTRL_PTC_1

009:AA36

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

37LH250H

B-LAN

09.05.19

14 14
