LG 32LF7300 Schematic

LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS :
MODEL : 32LF7300 32LF7300-ZD
Internal Use Only
CONTENTS
CONTENTS .......................................................................................2
PRODUCT SAFETY ................................................................................3
SPECIFICATION ......................................................................................6
ADJUSTMENT INSTRUCTION .............................................................14
TROUBLE SHOOTING ..........................................................................22
BLOCK DIAGRAM..................................................................................30
WIRING DIAGRAM.................................................................................32
EXPLODED VIEW .................................................................................34

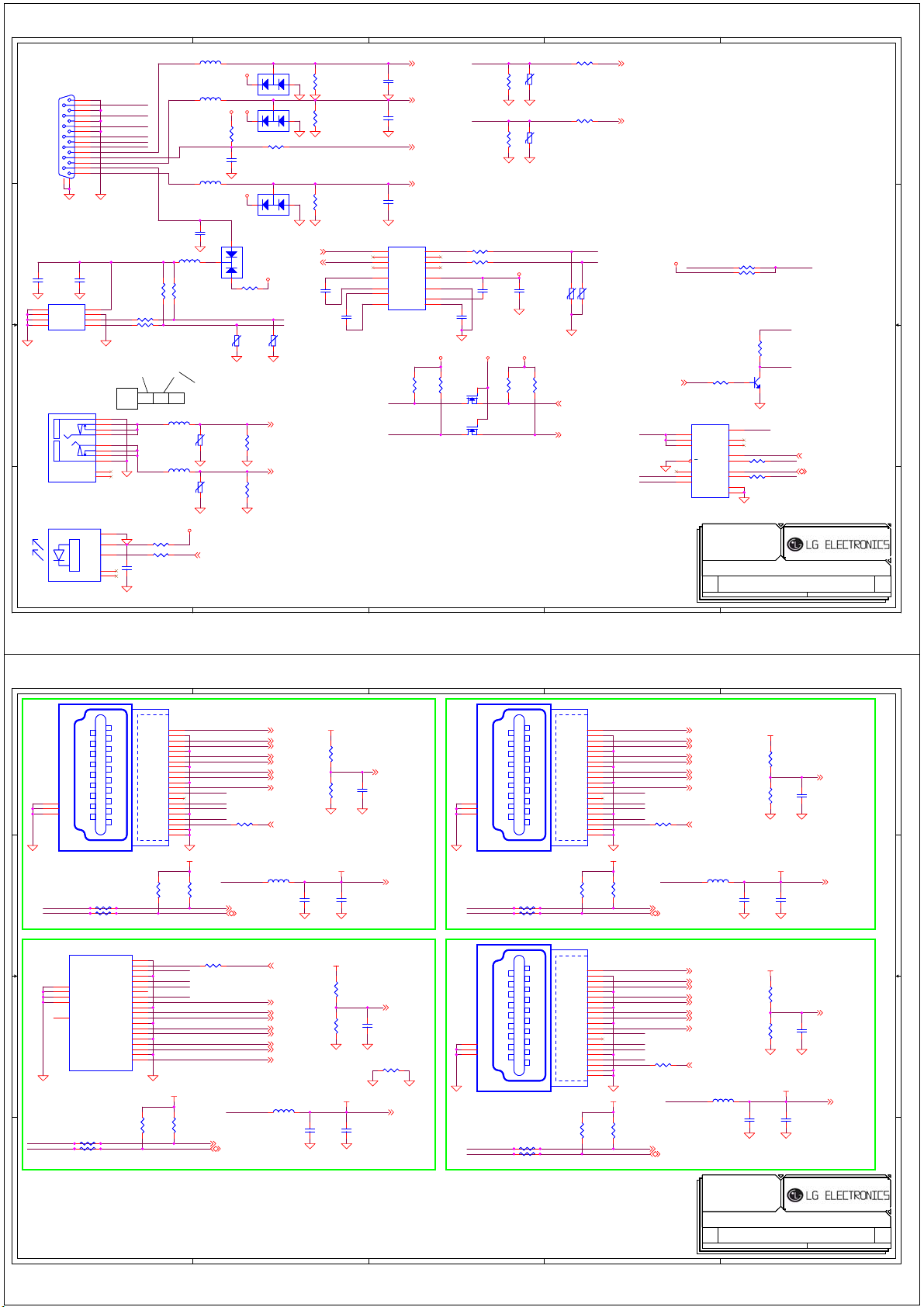

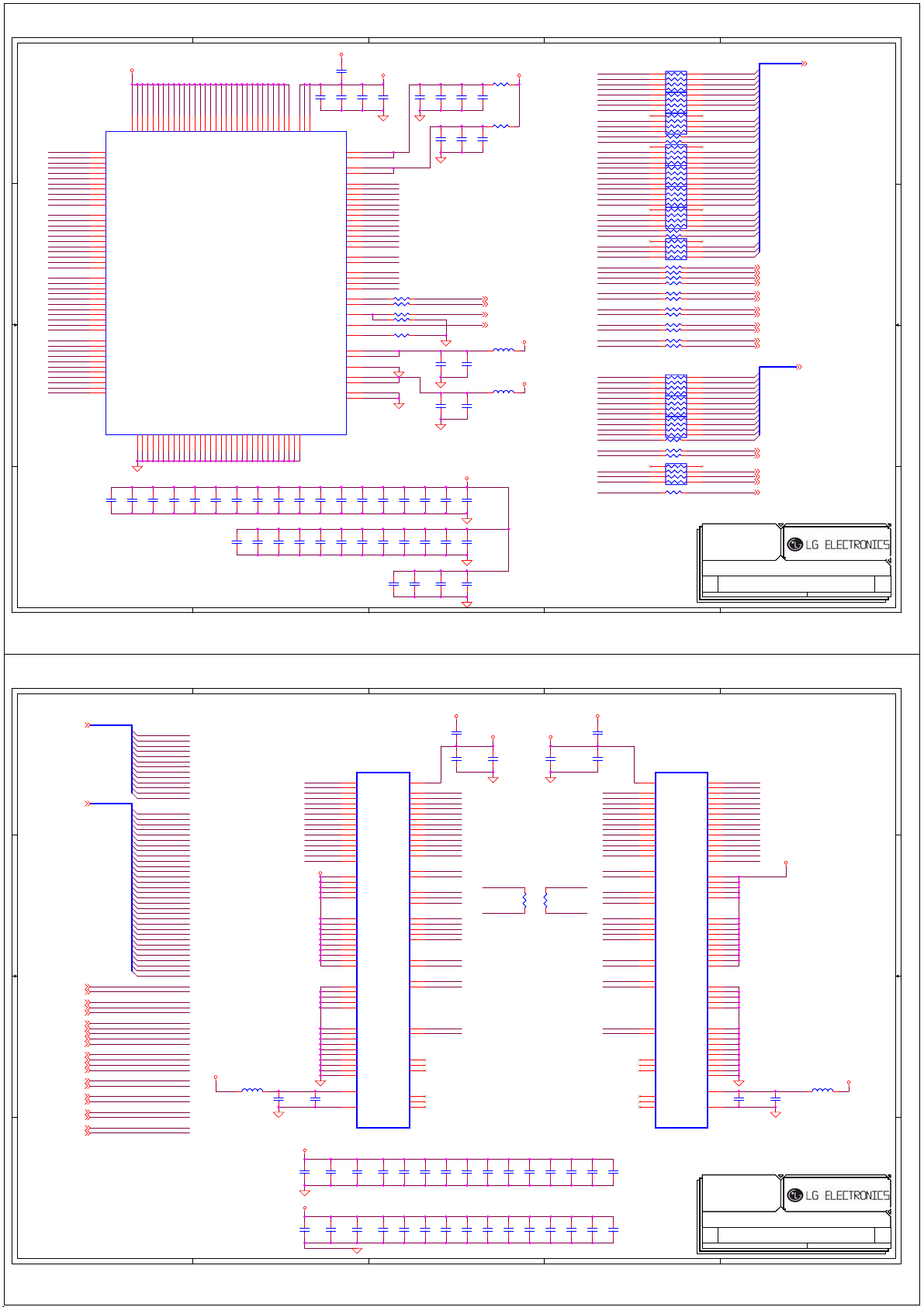

SCHEMATIC DIAGRAMME.................................................................. 38
Copyright © 2009 LG Electronics. Inc. All right reserved. -2- LGE Internal Use Only Only for training and service purposes
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.
It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the meDVXUHGUHVLVWDQFHVKRXOGEHEHWZHHQ0ȍDQG0ȍ When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.
Leakage Current Hot Check circuit
Copyright © 2009 LG Electronics. Inc. All right reserved. -3- LGE Internal Use Only Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 4 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.
2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its assemblies.
4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.
7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500ૡF to 600
2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle(0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500F to 600F)
b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuit board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500F to 600F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
F.
Copyright © 2009 LG Electronics. Inc. All right reserved. -4- LGE Internal Use Only Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.
Removal
1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.
2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.
Power Output, Transistor Device Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).
1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.
At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit board.
3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.
Fuse and Conventional Resistor Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.
Copyright © 2009 LG Electronics. Inc. All right reserved. -5- LGE Internal Use Only Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application Range. 3. Test method
This spec sheet is applied to the 32"/42" LCD TV used LF7300, LH3300 chassis. 3.1 Performance : LGE TV test method followed.
3.2 Demanded other specification
2. Specification
Each part is tested as below without special appointment
2.1 Temperature : 25±5°C(77±9°F), CST : 40±5°C
2.2 Relative Humidity : 65±10%
2.3 Power Voltage : Standard input voltage (100-240V ~50/60Hz)
• Standard Voltage of each products is marked by models
2.4 Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM .
2.5 The receiver must be operated for about 5 minutes prior to the adjustment.
4. General Specification
No Item Specification Remark
1 Display Screen Device 32”/42” wide Color Display Module
Safety : CE, IEC specification EMC : CE, IEC
2 Aspect Ratio 16:9
3 Operating Environment
4 Storage Environment
5 Input Voltage AC100 - 240V ~50/60Hz
6 Power Consumption
7 Module Size
Pixel Pitch
8
CCFL
Back Light
10 Display Colors 10-bit(D), 1.06 Billion Color
11 Coating 3H, AG
Temp. : 5 ~ 35 deg Humidity : 10 ~ 90%
Temp. : -20 ~ 50 deg Humidity : 10 ~ 90 %
Power ON
32LF7300 170
42LF7300 215
32LH3300 165
42LH3300 205
32LF7300 760.0(H) x 450.0(V) x 48.0(D)
42LF7300 983.0(H) x 576.0(V) x 46.0(D)
32LH3300 760.0(H) x 450.0(V) x 48.0(D)
42LH3300 983.0(H) x 576.0(V) x 46.0(D)
32LF7300 0.36375(H) x 0.36375(V)
42LF7300 0.4845(H) x 0.4845(V)
32LH3300 0.36375(H) x 0.36375(V)
42LH3300 0.4845(H) x 0.4845(V)
32LF7300 EEFL
42LF7300 EEFL
32LH3300 EEFL
42LH3300 EEFL
MAKER : 32” – LGD 42”–LGD
LGE SPEC.
A unit : W
A unit : mm
A unit : mm
Copyright © 2009 LG Electronics. Inc. All right reserved. -6- LGE Internal Use Only Only for training and service purposes
5. MODEL General Specification
No Item Specification Remark
1) PAL-B/G,I,D/K
1 Broadcasting system
2) SECAM B/G, D/K
2) DVB-T
3) DVB-C
2 Receiving system
3 SCART Jack (2EA) PAL, SECAM
4 Video Input RCA(1EA) PAL, SECAM, NTSC Side
5 Component Input (1EA)
6 RGB Input RGB-PC Analog(D-SUB 15PIN)
7 HDMI Input (3EA)
8 Audio Input (3EA)
Analog : Upper Heterodyne Digital : DVB-T(COFDM), DVB-C(QAM)
Y/Cb/Cr Y/Pb/Pr
HDMI1-DTV/DVI HDMI2-DTV HDMI3-DTV HDMI4-DTV
AV3 COMPONENT PC
SCART1 Jack is Full SACRT and support RF-OUT(TV-OUT) SCART2 jack is Half SCART and support MNT-OUT
PC(HDMI version 1.3) Support HDCP
HDMI4 (LF7300 Chassis ONLY)
L/R Input
9 SDPIF out (1EA) In digital mode only
10 Headphone out(1EA) Side
JPEG, MP3, Service LF7300 Chassis
11 USB(1EA)
Service Only LH3300 Chassis
12 PCMCIA(1EA) CI(CAM Interface) Side
Copyright © 2009 LG Electronics. Inc. All right reserved. -7- LGE Internal Use Only Only for training and service purposes
6. Chroma & Brightness
6.1 32LF7300 LCD Module (LC320WUD)
No Item Min Typ Max Unit Remark
PSM : Vivid, CSM : Cool, White(100 IRE) Dynamic contrast : off Dynamic color L off
1 Luminance, white
Luminance (white)
400 500 - cd/m²
Var iatio n 1. 3
2 View angle (R/L, U/D) 178/178 - degree
3 Contrast ratio 900 1300 -
0.279
0.292
0.638
0.334
0.291
0.607
0.145
Typ.
+0.03
PSM : Vivid, CSM : Cool, White(80 IRE) Dynamic contrast : off Dynamic color L off
4 Color Coordinate
White
Red
Green
X
Y
X
Y
X
Typ.
-0.03
Y
X
Blue
Y
0.062
1) Standard Test Condition (The unit has been ‘ON’)
2) Stable for approximately 30 minutes in a dark environment at 25±2_
3) The values specified are at approximate distance 50Cm from the LCD surface
4) Ta= 25±2°C, V
=12.0V, fV=60Hz, Dclk=74.25MHz VBR_A=1.65V, ExtVBR_B=100%
LCD
6.2 42LF7300 LCD Module (LC420WUF)
No Item Min Typ Max Unit Remark
PSM : Vivid, CSM : Cool, White(100 IRE) Dynamic contrast : off Dynamic color L off
1 Luminance, white
Luminance (white)
400 500 - cd/m²
Var iatio n 1. 3
2 View angle (R/L, U/D) 178/178 - degree
3 Contrast ratio 1000 1400 -
0.279
0.292
0.638
0.334
0.290
0.606
0.144
Typ.
+0.03
PSM : Vivid, CSM : Cool, White(80 IRE) Dynamic contrast : off Dynamic color L off
4 Color Coordinate
White
Red
Green
X
Y
X
Y
X
Typ.
-0.03
Y
X
Blue
Y
0.064
1) Standard Test Condition (The unit has been ‘ON’)
2) Stable for approximately 30 minutes in a dark environment at 25±2_
3) The values specified are at approximate distance 50Cm from the LCD surface
4) Ta= 25±2°C, V
Copyright © 2009 LG Electronics. Inc. All right reserved. -8- LGE Internal Use Only Only for training and service purposes
=12.0V, fV=120Hz, Dclk=74.25MHz, IBL = 135mArms
LCD
6.3 32LH3300 LCD Module (LC320WUN)
No Item Min Typ Max Unit Remark
PSM : Vivid, CSM : Cool, White(100 IRE) Dynamic contrast : off Dynamic color L off
1 Luminance
Luminance (white)
400 500 - cd/m²
Var iatio n 1. 3
2 View angle (R/L, U/D) 178/178 - degree
3 Contrast ratio 1000 1400
0.279
0.292
0.638
0.334
0.291
0.607
0.145
Typ.
+0.03
PSM : Vivid, CSM : Cool, White(80 IRE) Dynamic contrast : off Dynamic color L off
4 Color Coordinate
White
Red
Green
X
Y
X
Y
X
Typ.
-0.03
Y
X
Blue
Y
0.062
1) Standard Test Condition (The unit has been ‘ON’)
2) Stable for approximately 30 minutes in a dark environment at 25±2_
3) The values specified are at approximate distance 50Cm from the LCD surface
4) Ta= 25±2°C, V
=12.0V, fV=60Hz, Dclk=74.25MHz VBR_A=1.65V, VBR_B=3.3V
LCD
6.4 42LH3300 LCD Module (LC420WUE)
No Item Min Typ Max Unit Remark
PSM : Vivid, CSM : Cool, White(100 IRE) Dynamic contrast : off Dynamic color L off
1 Luminance, white
Luminance (white)
400 500 - cd/m²
Var iatio n 1. 3
2 View angle (R/L, U/D) 178/178 - degree
3 Contrast ratio 900 1300 -
0.279
0.292
0.638
0.334
0.290
0.606
0.144
Typ.
+0.03
4 Color Coordinate
White
Red
Green
X
Y
X
Y
X
Typ.
-0.03
Y
X
Blue
Y
0.064
1) Standard Test Condition (The unit has been ‘ON’)
2) Stable for approximately 30 minutes in a dark environment at 25±2_
3) The values specified are at approximate distance 50Cm from the LCD surface
4) Ta= 25±2°C, V
=12.0V, fV=60Hz, Dclk=74.25MHz IBL=135mArms
LCD
PSM : Vivid, CSM : Cool, White(80 IRE) Dynamic contrast : off Dynamic color L off
Copyright © 2009 LG Electronics. Inc. All right reserved. -9- LGE Internal Use Only Only for training and service purposes
7. SET Optical Feature
(Measurement Condition: Full white/ User Mode : Contrast[100], Brightness[50], Color Temp[Normal], Back Light[100]) Æ Measure the black luminance after 30 seconds.
Luminance (cd/m
No Item Module
AV, COMPONENT, HDMI AV, COMPONENT, HDMI
1 32 inch LPL 450 1200
2 37 inch LPL 450 1200
3 42 inch LPL 450 1200
4 47 inch LPL 450 1200
2
)
C/R(min)
Remark
8. Component Video Input (Y, PB, PR)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remark
1 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)
3 720*576 15.625 50.00 13.500
4 720*480 31.47 59.94 27.000 SDTV 480P
5 720*480 31.50 60.00 27.027 SDTV 480P
6 720*576 31.25 50.00 27.000 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45.00 60.00 74.250 HDTV 720P
9 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz
10 1920*1080 33.72 59.94 74.176 HDTV 1080I
11 1920*1080 33.75 60.00 74.250 HDTV 1080I
12 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,
13 1920×1080 56.25 50 148.50 HDTV 1080P
14 1920×1080 67.433 59.94 148.50 HDTV 1080P
SDTV, DVD 576I(625I) 50Hz
15 1920×1080 67.5 60 148.50 HDTV 1080P
Copyright © 2009 LG Electronics. Inc. All right reserved. -10- LGE Internal Use Only Only for training and service purposes
9. RGB PC
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Remark
1. 720*400 31.468 70.08 28.32
2. 640*480 31.469 59.94 25.17 VESA
3. 800*600 37.879 60.31 40.00 VESA
4. 1024*768 48.363 60.00 65.00 VESA(XGA)
5. 1280*768 47.78 59.87 80.125 VESA(WXGA)
6 1360*768 47.72 59.80 84.625 VESA(WXGA)
7 1280*1024 63.98 60.02 108. SXGA
8 1400*1050 65.317 59.979 121.75 SXGA
9. 1920*1080 66.587 59.934 138.5 WUXGA
10. HDMI Input (DTV)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remark
1 640*480 31.649 59.94 25.175 SDTV 480p 60Hz
2 640*480 31.469 60 25.20 SDTV 480p 60Hz
3 720*480 31.47 59.94 27.00 SDTV 480p 60Hz
4 720*480 31.50 60 27.027 SDTV 480p 60Hz
5 720*576 31.25 50.00 27.00 SDTV 576p 50Hz
6 1280*720 37.50 50.00 74.176 HDTV 720p 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720p 60Hz
8 1280*720 45.00 60 74.250 HDTV 720p 60Hz
9 1920*1080 28.125 50.00 74.250 HDTV 1080i 50Hz
10 1920*1080 33.72 59.94 74.176 HDTV 1080i 60Hz
11 1920*1080 33.75 60 74.250 HDTV 1080i 60Hz
12 1920*1080 27.00 24.00 74.25 HDTV 1080p 24Hz
13 1920*1080 33.750 30 74.25 HDTV 1080p 30Hz
14 1920*1080 56.25 50.00 148.50 HDTV 1080p 50Hz
15 1920*1080 67.433 59.94 148.352 HDTV 1080p 60Hz
16 1920*1080 67.50 60 148.50 HDTV 1080p 60Hz
Copyright © 2009 LG Electronics. Inc. All right reserved. -11- LGE Internal Use Only Only for training and service purposes
11. HDMI Input (PC Mode)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*400 31.468 70.08 28.32 HDCP
2. 640*480 31.469 59.94 25.17 VESA HDCP
3. 800*600 37.879 60.31 40.00 VESA HDCP
4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP
5. 1280*768 47.78 59.87 80.125 VESA(WXGA) HDCP
6 1360*768 47.72 59.80 84.625 VESA(WXGA) HDCP
7 1280*1024 63.98 60.02 108. SXGA HDCP
8 1400*1050 65.317 59.979 121.75 SXGA HDCP
9. 1920*1080 66.587 59.934 138.5 WUXGA HDCP
Copyright © 2009 LG Electronics. Inc. All right reserved. -12- LGE Internal Use Only Only for training and service purposes
12. Mechanical specification
12-1. 32LF7300-ZD
No.
Product
1. Dimension
Product
2.
Weight
12-2. 42LF7300-ZD
No.
Product
1. Dimension
Product
2.
Weight
12-3. 32LH3300-ZC
No.
Product
1. Dimension
Product
2.
Weight
Item Content Unit Remark
Width (W) Length (D) Height (H) mm
Before Packing
After Packing
Only SET
With BOX
Item Content Unit Remark
Before Packing
After Packing
Only SET 20.7 Kg With Stand
With BOX 24.8
Item Content Unit Remark
Before Packing
After Packing
Only SET 12.4
With BOX 14.6
797.0
986.0 193.0 665.0
Width (W) Length (D) Height (H) mm
1026.2
1330.0
Width (W) Length (D) Height (H) mm
805.0
982.0
227.3 734.0 mm
12.8
14.7
293.8 734.0
257.0
224.0 583.0
189.0
772.0
625.0
mm
Kg With Stand
Kg
mm
mm
Kg
mm
mm
With Stand
Box Out Size
With Stand
Box Out Size
With Stand
Box Out Size
12-4. 42LH3300-ZC
No.
Product
1. Dimension
Product
2.
Weight
Item Content Unit Remark
Width (W) Length (D) Height (H) mm
Before Packing
After Packing
Only SET 18.6 Kg With Stand
With BOX 23.6
1028.0
1330.0
297.0 715.4
228.0
770.0
mm
mm
Kg
With Stand
Box Out Size
Copyright © 2009 LG Electronics. Inc. All right reserved. -13- LGE Internal Use Only Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. USB DOWNLOAD
To update the system software, use only the “USB IN SERVICE ONLY” jack on the rear of the TV. Otherwise you will fail to update.
(The USB IN jack on the side of the TV works for the music or photo service.)
1-1) sub Micom Download
a) Put the “hmx_lf7300.hdf” file into the USB.
b) Connect the USB device to the
c) Power Off and Power On. d) Then, the new software is upgrading automatically
( Be cautious that you do NOT power off during SW uprade)
“USB IN” jack on the side of the TV.
e) Finishing the version uploading, you have to pull out USB stick , then turn off the f) Turn on the
z SW upgrade is done successfully, the TV is lost all channel data.
In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.
Copyright © 2009 LG Electronics. Inc. All right reserved. -14- LGE Internal Use Only Only for training and service purposes
AC Power and check the SW version that you updated.
AC Power.
1-2) TV Software Download
a) Put the “hmx_lf7300.hdf” in the USB.
b) Connect the USB device to the
c) Power Off and Power On. d) Then, the new SW is upgrading automatically (Be cautious that that you do NOT power off during SW uprade )
“USB IN” jack on the side of the TV.
e) Finishing the version uploading, you have to put USB stick and turn off the AC Power.
Turn on the AC Power and check the SW version that you updated.
f)
z If downloading version is more high than your TV have, TV can lost all channel data.
In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.
Copyright © 2009 LG Electronics. Inc. All right reserved. -15- LGE Internal Use Only Only for training and service purposes
22..OTA DOWNLOAD
Auto update case.
a) Click the Software Update. b) Click the Auto Update.
c) If the OTA is detected, the below message appears.
c-1) Select “Yes”. c-2) The TV is reboot and OTA process starts. c-3) Select “No” c-4) OTA process does not start.
Manual Update Case.
a) Click the Software Update.
b) Click the Manual Update.
c) Change the channel or frequency for OTA TP.
d) Click “Search” button
e) If the OTA is detected, the below message appears.
d) The TV is reboot and OTA process starts. e) If the OTA is not detected, the below message appears.
e-1) Select “Yes”. e-2) The tv is reboot and OTA process starts. e-3) Select “No” e-4) OTA process does not start.
f) The TV is reboot and OTA process shows.
g) If the OTA is not detected, the below message appears.
Copyright © 2009 LG Electronics. Inc. All right reserved. -16- LGE Internal Use Only Only for training and service purposes
3. EDID DOWNLOAD
3-1. Panel Setting
a) You should change the panel size by going to the Factory Mode,
(press “Menu”, “1”, “2”, “4”, 7” and “5” keys on a remocon.)
b) Select suitable panel in the Factory mode.(refer to the below table)
32LF7300-ZD : Panel Select Æ “LG_1080P_LC320WUD_100” 42LF7300-ZD : Panel Select Æ “LG_1080P_LC420WUF_100”
32LH3300-ZC : Panel Select Æ “LG_1080P_LC320WUN_50” 42LH3300-ZC : Panel Select Æ “LG_1080P_LC420WUE_50”
Copyright © 2009 LG Electronics. Inc. All right reserved. -17- LGE Internal Use Only Only for training and service purposes
3-2. EDID Setting
a) You should change the panel size by going to the Factory Mode, press “Menu”, “1”, “2”, “4”, 7” and “5” keys on a
remote.
b) You have to select “Engineering Menu” in Factory mode.
c) Enter “ EDID Download” by pushing “OK” key.
(Factory mode Æ Engineering menu Æ EDID Download select)
32LF7300-ZD
32LH3300-ZC
(Factory mode Æ Engineering menu Æ EDID Download select)
(Factory mode Æ Engineering menu Æ EDID Download select)
42LF7300-ZD
42LH3300-ZC
(Factory mode Æ Engineering menu Æ EDID Download select)
Copyright © 2009 LG Electronics. Inc. All right reserved. -18- LGE Internal Use Only Only for training and service purposes
Loading...
+ 40 hidden pages
