SETTING UP THE TV

Attaching the stand

SETTING UP THE TV

A-3

Image shown may differ from your TV. 19/22/26LS35**

Stand Body

Stand Base

32LS35**

Stand Base

Stand Body

4EA

P4 x 16

Model 19/22LS35** 26LS35**

Standard screw P4 x 16 M4 x 14

Number of screw 2EA 2EA

4EA

M4 x 14

SETTING UP THE TV

A-4

26CS46** 32/42CS46**, 32/42LS340*

4EA

M4 x 20

Stand Body

Stand Base

4EA

M4 x 20

Stand Body

Stand Base

4EA

M4 x 20

4EA

M4 x 20

SETTING UP THE TV

A-5

32LS345*, 32LS341*, 32LS348*

Stand Body

2EA

P4 x 16

Stand Base

42LS345*, 42LS341*, 42LS348*

4EA

P4 x 16

Stand Body

Stand Base

M4 x 20

4EA

M4 x 14

SETTING UP THE TV

A-6

CAUTION

When attaching the stand to the TV

set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches. Make sure that the screws are inserted

correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

NOTE

Remove the stand before installing the TV

on a wall mount by performing the stand attachment in reverse.

Tidying cables

Gather and bind the cables with the cable holder. (Only 19LS35**)

Cable Holder

(Only 22/26LS35**)

Cable Holder

(Only 32LS35**, 32/42LS345*, 32/42LS341*, 32/42LS348*)

Cable Holder

CAUTION

Do not move the TV by holding the cable

holder, as the cable holders may break, and injuries and damage to the TV may occur.

(Only 26/32/42CS46**, 32/42LS340*)

1 Gather and bind the cables with the cable

management.

2 Fix the cable management rmly to the TV.

Cable Management

CAUTION

Do not move the TV by holding the cable

management, as the cable management may break, and injuries and damage to the TV may occur.

SETTING UP THE TV

NOTE

(Only 32LS345*, 32LS341*, 32LS348*)

When removing Protection Cover from

bottom of TV insert your fingers into hole of cover hold firmly and pull upwards towards you to remove.

Protection cover

A-7

Not using the Desk-Type Stand

(Only 26/32/42CS46**, 32/42LS340*, 32LS345*, 32LS341*, 32LS348*)

• When installing the wall mounting bracket,

use the Protection cover. This will protect the opening from accumulating dust and dirt.

Push the supplied protection cover into the opening at the bottom of the TV until it locks in place.

Protection cover

OWNER’S MANUAL

LED LCD TV / LCD TV

Please read this manual carefully before operating your set and retain it for future reference.

www.lg.com

TABLE OF CONTENTS

ENGLISH

ENG

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 INSTALLATION PROCEDURE

10 ASSEMBLING AND PREPARING

10 Unpacking 15 Parts and buttons 16 Lifting and moving the TV 17 Mounting on a table 19 Mounting on a wall

20 REMOTE CONTROL

21 ENTERTAINMENT

21 Wired Network Connection 21 Network setting

22 USING THE USER GUIDE

23 MAINTENANCE

23 Cleaning your TV 23 - Screen, frame, cabinet and stand 23 - Power cord

23 TROUBLESHOOTING

WARNING

If you ignore the warning message, you

may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may

be slightly injured or the product may be damaged.

NOTE

The note helps you understand and use

the product safely. Please read the note carefully before using the product.

LICENSES / OPEN SOURCE SOFTWARE NOTICE

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays DivX video. Visit divx.com for more information and software tools to convert your les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.

ENGENGLISH

“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”

“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274”

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com . In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

ENGLISH

ENG

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

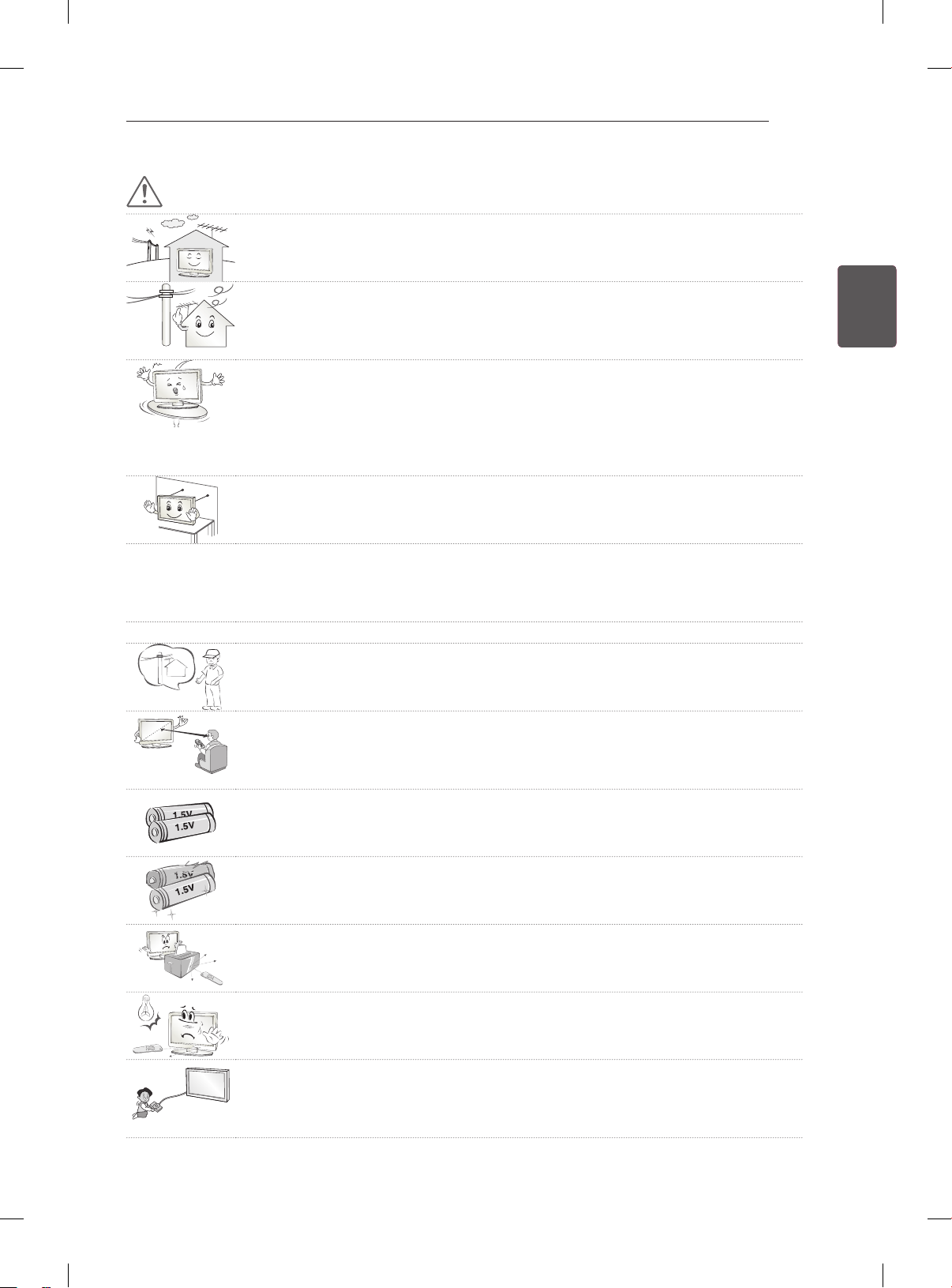

WARNING

Do not place the TV and remote control in the following environments:



- A location exposed to direct sunlight



- An area with high humidity such as a bathroom



- Near any heat source such as stoves and other devices that produce heat



- Near kitchen counters or humidifiers where they can easily be exposed to steam



or oil

- An area exposed to rain or wind



- Near containers of water such as vases



Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust.



This may cause a fire hazard.

Mains plug is the disconnecting device. The plug must remain readily operable.



Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or



covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect the power cable to the grounded current. (Except for devices



which are not grounded.) You may be electrocuted or injured.

Fix the power cable completely.



If the power cable is not fixed completely, a fire can break out.

Ensure the power cord does not come into contact with hot objects such as a



heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables.



Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from



flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting a TV it on the wall, make sure not to install TV by hanging power



and signal cables on the back of the TV. It may cause fire, electric shock.

Desiccant

SAFETY INSTRUCTIONS

Do not plug too many electrical devices into a single multiple electrical outlet.



Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices.



Otherwise, this may result in injury or damage to the product.

Keep the packing anti-moisture material or vinyl packing out of the reach of



children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV.



Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to protect a child from eating them.



Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/



screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product.



There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

ENGENGLISH

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the



product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner



or benzene). Fire or electric shock accident can occur.

Do not allow a impact shock or any objects to fall into the product, and do not drop



onto the screen with something. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm.



You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and



ventilate. It may cause a fire or a burn by a spark.

SAFETY INSTRUCTIONS

ENGLISH

ENG

Do not disassemble, repair or modify the product at your own discretion.



Fire or electric shock accident can occur. Contact the service center for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local



service centre.

- The product has been impacted by shock



- The product has been damaged



- Foreign objects have entered the product



- The product produced smoke or a strange smell



This may result in fire or electric shock.

If you don’t intend to use the product for a long time, unplug the power cable from



the product. Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with



liquids, such as vases, shall be placed on the apparatus.

SAFETY INSTRUCTIONS

CAUTION

Install the product where no radio wave occurs.



There should be enough distance between an outside antenna and power lines to



keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces.



Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product



from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional



parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.



When installing the antenna, consult a qualified service man.



This may create a fire hazard or an electric shock hazard.

ENGENGLISH

We recommend that you maintain a distance of at least 2 to 7 times the diagonal



screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery.



This could cause damage to the remote control.

Do not mix new batteries with old batteries.



This may cause the batteries to overheat and leak.

Make sure there are no objects between the remote control and its sensor.



Signal from the remote control may be disturbed by sun light or other strong light.



In this case, darken the room.

When connecting external devices such as video game consoles, make sure the



connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

SAFETY INSTRUCTIONS

ENGLISH

ENG

Do not turn the product On/Off by plugging-in or unplugging the power plug to the



wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from



overheating.

- The distance between the product and the wall should be more than 10 cm.



- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in



a cupboard).

- Do not install the product on a carpet or cushion.



- Make sure the air vent is not blocked by a tablecloth or curtain.



Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long



periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or



deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet.



This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted,



kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail,



pencil or pen, or make a scratch on it.

Avoid touching the screen or holding your finger(s) against it for long periods of



time. Doing so may produce some temporary distortion effects on the screen.

When cleaning the product and its components, unplug the power first and wipe it



with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power



source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it.



If the wires inside the power cable are disconnected, this may cause fire.

When moving the product, make sure you turn the power off first. Then, unplug the



power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

SAFETY INSTRUCTIONS

When moving or unpacking the product, work in pairs because the product is



heavy. Otherwise, this may result in injury.

Contact the service center once a year to clean the internal parts of the product.



Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the



apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “flicker” when it is turned



on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six



million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing



position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

ENGENGLISH

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video



game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound



“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depend-ing on the product. This generated sound does not affect the performance and reliability of the product.

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

ENGLISH

ENG

NOTE

Image shown may differ from your TV. Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. The available menus and options may differ from the input source or product model that you are

using. New features may be added to this TV in the future. The TV can be placed in standby mode in order to reduce the power consumption. And the TV should

be turned off if it will not be watched for some time, as this will reduce energy consumption. The energy consumed during use can be significantly reduced if the level of brightness of the picture

is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included. 2 Attach the stand to the TV set. 3 Connect an external device to the TV set.

ASSEMBLING AND PREPARING

Unpacking

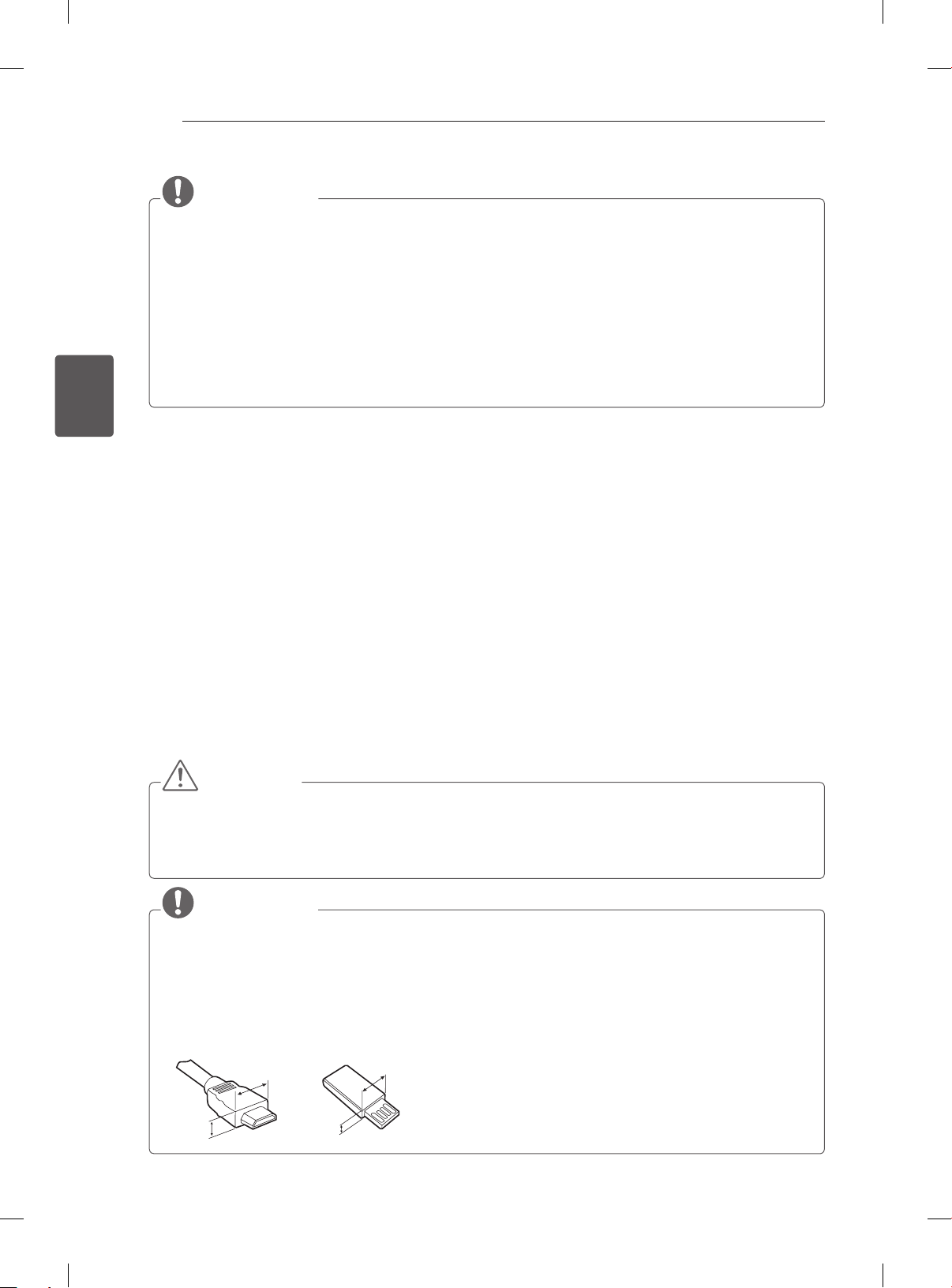

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

Do not use any unapproved items to ensure the safety and product life span. Any damages or injuries by using unapproved items are not covered by the warranty. Some models have a thin film attached on to the screen and this must not be removed.

NOTE

The items supplied with your product may vary depending on the model. Product specifications or contents of this manual may be changed without prior notice due to upgrade

of product functions. For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

10 mm

18 mm

Remote control and batteries (AAA)

(See p. 20)

Cable holder

(Depending on model) (See p. A-6)

Adapter

(Only 19/22/26LS35**) (See p. B-3)

Stand Screw

2EA, M4 x 14 (Only 26LS35**) (See p. A-3)

ASSEMBLING AND PREPARING

Owner’s manual

Polishing cloth

(Depending on model) Use this to remove dust from the cabinet.

Stand Screw

2EA, P4 x 16 (Only 19/22LS35**) (See p. A-3)

Stand Screw

4EA, P4 x 16 4EA, M4 x 14 (Only 32LS35**, 42LS345*, 42LS341*, 42LS348*) (See p. A-3, A-5)

ENGENGLISH

Stand Screw

8EA, M4 x 20 (Only 26/32/42CS46**, 32/42LS340*) (See p. A-4)

Desk-mount screw

(Only 32LS35**, 26/32/42CS46**, 32/42LS34**) (See p. 17)

Protection cover

(Only 26CS46**) (See p. A-7)

Protection cover

(Only 42CS46**, 42LS340*) (See p. A-7)

Isolator

(Depending on model) (See p. 13)

Stand Screw

2EA, P4 x 16 4EA, M4 x 20 (Only 32LS345*, 32LS341*, 32LS348*) (See p. A-5)

Power Cord

Protection cover

(Only 32CS46**, 32LS340*) (See p. A-7)

Protection cover

(Only 32LS345*, 32LS341*, 32LS348*) (See p. A-7)

ENGLISH

ENG

ASSEMBLING AND PREPARING

Stand Body / Stand Base

(Only 19/22/26LS35**) (See p. A-3)

Stand Body / Stand Base

(Only 32LS35**) (See p. A-3)

Stand Body / Stand Base

(Only 26CS46**) (See p. A-4)

Stand Body / Stand Base

(Only 32/42CS46**, 32/42LS340*) (See p. A-4)

Stand Body / Stand Base

(Only 32LS345*, 32LS341*, 32LS348*) (See p. A-5)

Stand Body / Stand Base

(Only 42LS345*, 42LS341*, 42LS348*) (See p. A-5)

ASSEMBLING AND PREPARING

NOTE

Antenna Isolator Installation Guide

- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.

» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact

might be heated and excessive heat might cause an accident.

- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.

- Before starting, be sure that the TV antenna is connected.

Wall

ANTENNA/

CABLE IN

Cable / Antenna

Isolator

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

1. Connect to TV.

2. Connect to Set-Top box.

ENGENGLISH

“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a re hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

ENGLISH

ENG

ASSEMBLING AND PREPARING

CAUTION

Power Cord Installation Guide

- If the power cord provided with TV looks like the below picture, please ensure that it is inserted in the right direction.

TV Power Cord

Correct Wrong

ASSEMBLING AND PREPARING

INPUT

SETTINGS

INPUT

SETTINGS

INPUT

Parts and buttons

A type : 19/22/26/32LS35**, 26/32/42CS46**,

32/42LS340*

Screen

Remote control and intelligent sensors

Power indicator

Speakers

Touch buttons

ENGENGLISH

B type : 32/42LS345*, 32/42LS341*,

32/42LS348*

Screen

Speakers

Remote control and

intelligent sensors

Power indicator

buttons

A type

Buttons

B type

Description

Scrolls through the saved programmes. Adjusts the volume level.

ꔉ

OK SETTINGS S INPUT

/ I

Selects the highlighted menu option or confirms an input. Accesses the main menu, or saves your input and exits the menus. Changes the input source. Turns the power on or off.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. 2 A type buttons are touch sensitive and can be operated through simple touch with your nger.

ASSEMBLING AND PREPARING

ENGLISH

ENG

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

Avoid touching the screen at all times, as

this may result in damage to the screen.

It is recommended to move the TV in the box

or packing material that the TV originally came in.

Before moving or lifting the TV, disconnect the

power cord and all cables.

When holding the TV, the screen should face

away from you to avoid damage.

When transporting a large TV, there should be

at least 2 people.

When transporting the TV by hand, hold the TV

as shown in the following illustration.

When transporting the TV, do not expose the

TV to jolts or excessive vibration.

When transporting the TV, keep the TV upright,

never turn the TV on its side or tilt towards the left or right.

Hold the top and bottom of the TV frame rmly.

Make sure not to hold the transparent part, speaker, or speaker grill area.

ASSEMBLING AND PREPARING

Mounting on a table

1 Lift and tilt the TV into its upright position on a

table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

2 Connect the power cord to a wall outlet.

CAUTION

Do not place the TV near or on sources

of heat, as this may result in fire or other damage.

10 cm

Securing the TV to a table

(Only 32LS35**, 26/32/42CS46**, 32/42LS34**) Fix the TV to a table to prevent from tilting forward, damage, and potential injury. To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand.

WARNING

To prevent TV from falling over, the TV

should be securely attached to the floor/ wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

ENGENGLISH

Adjusting the angle of the TV to suit view

(Only 32/42CS46**, 32/42LS340*) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

2020

CAUTION

When adjusting the angle of the product,

watch out for your fingers.

Personal injury may occur if hands or fingers



are pinched. If the product is tilted too much, it may fall, causing damage or injury.

ASSEMBLING AND PREPARING

ENGLISH

ENG

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

with a sturdy rope. Make sure to keep the rope horizontal with the at surface.

Using the Kensington security system

(Depending on model)

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit

http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

CAUTION

Make sure that children do not climb on or

hang on the TV.

NOTE

Use a platform or cabinet that is strong and

large enough to support the TV securely.

Brackets, bolts and ropes are not provided.

You can obtain additional accessories from your local dealer.

ASSEMBLING AND PREPARING

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the oor. When you attach the TV to other building materials, please contact qualied personnel. LG recommends that wall mounting be performed by a qualied professional installer.

10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model

VESA (A x B) Standard screw

Number of screws

Wall mount bracket

19/22/26LS35** 32LS35**,

26/32CS46**,

32LS34** 100 x 100 200 x 100 M4 M4

4 4

LSW100B LSW100B

CAUTION

Disconnect the power first, and then move

or install the TV. Otherwise electric shock may occur.

If you install the TV on a ceiling or slanted

wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.

Do not over tighten the screws as this may

cause damage to the TV and void your warranty.

Use the screws and wall mounts that meet

the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

Use the screws that are listed on the VESA

standard screw specifications.

The wall mount kit includes an installation

manual and necessary parts.

The wall mount bracket is not provied. You

can obtain additional accessories from your local dealer.

The length of screws may differ depending

on the wall mount. Make sure to use the proper length.

For more information, refer to the manual

supplied with the wall mount.

ENGENGLISH

Model VESA (A x B) Standard screw Number of

screws Wall mount

bracket

42CS46**, 42LS34** 200 x 200 M6 4

LSW200BX LSW220BX

REMOTE CONTROL

LIST

Q.VIEW

TV/RAD

ENERGY

SAVING

RATIO

SETTINGS

GUIDE

Q.MENU

INFO

FAV

MUTE

P A G E

LIST

Q.VIEW

TV/RAD

ENERGY

SAVING

RATIO

SETTINGS

GUIDE

Q.MENU

INFO

FAV

MUTE

P A G E

EXIT

ENGLISH

ENG

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the

and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

Adjusts the brightness of the screen to reduce

energy consumption.

Selects Radio, TV and DTV programme.

Shows programme guide.

Views the information of the current programme

Changes the input source.

Navigation buttons (up/down/left/right)

AD Switches the Audio Description on or off.

PAGE

Coloured buttons

Control buttons

( )

TELETEXT

BUTTONS

and screen. Resizes an image.

Accesses the saved programme list. Returns to the previously viewed programme. Accesses the main menus. Accesses the Quick menus. Scrolls through menus or options.

Selects menus or options and con rms your input. Returns to the previous level. Clears on-screen displays and return to TV viewing. Accesses your favourite programme list.

Moves to the previous or next screen. These access special functions in some menus. (

: Red, : Green, : Yellow, : Blue) Recalls your preferred subtitle in digital mode. Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK). These buttons are used for teletext.

ENTERTAINMENT

(Depending on model) Image shown may differ from your TV.

Wired Network Connection

ENGENGLISH

Internet connection

Wired router

Network setting

1 Press the SETTING button to access the main

menu.

2 Select the NETWORK → Network Setting

menu.

NETWORK

Network Setting

Network Status

3 Select the Start Connection.

Network Setting

Connect a LAN cable to the back of TV.

Setting your network will enable network-related features on the TV.

Move OK

4 The device automatically tries to connect to the

network.

Network Setting

Network connecting...

Cancel

5 The connected network is displayed.

Select the Complete to confirm the network connection.

Network Setting

Wired network is connected.

For detailed settings, select [Set Expert].

CompleteSet Expert

Start Connection

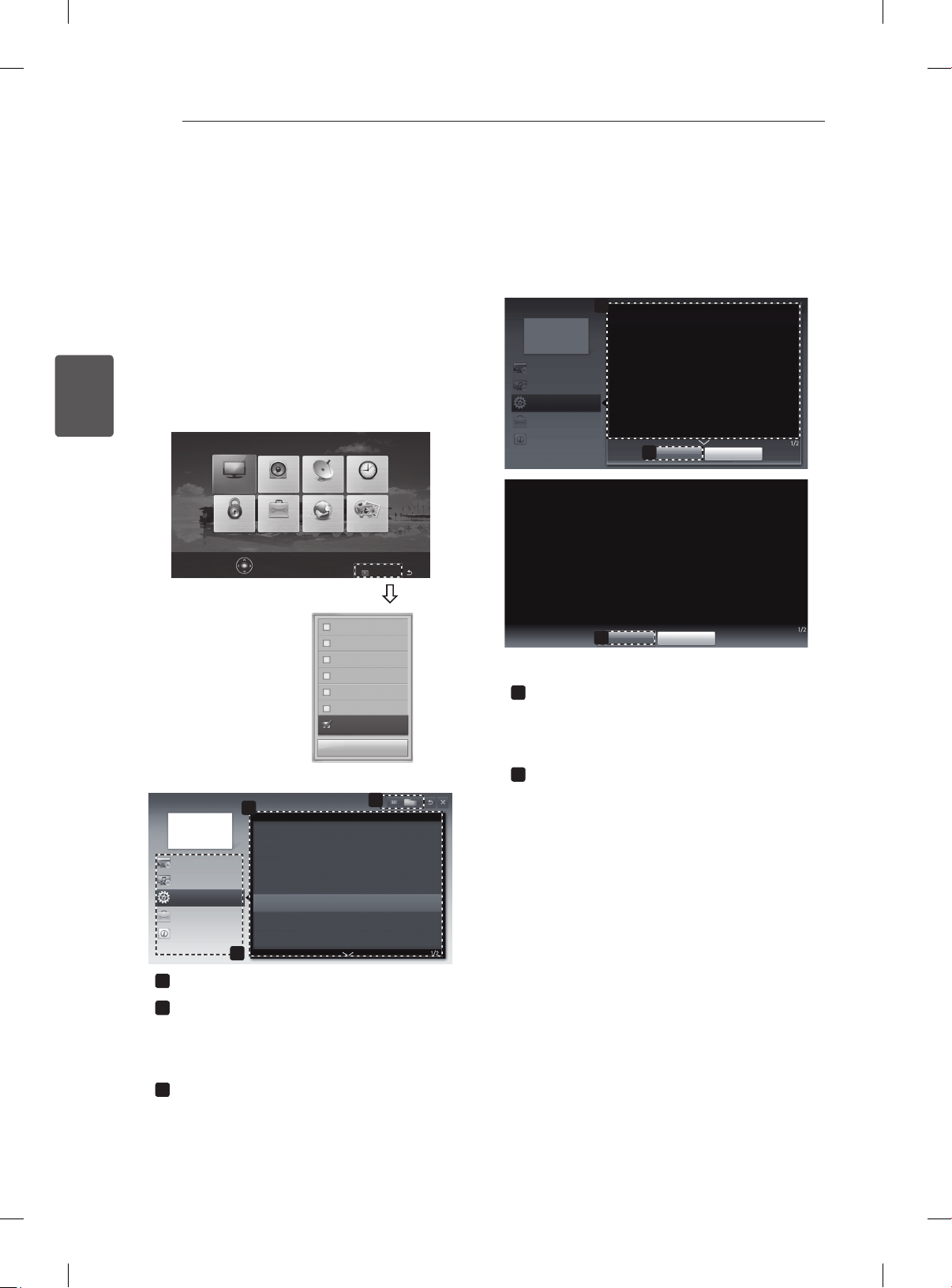

USING THE USER GUIDE

ENGLISH

ENG

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press SETTINGS to access the main menus. 2 Press the RED button to access the Customer

Support menus.

3 Press the Navigation buttons to scroll to User

Guide and press OK.

PICTURE AUDIO SETUP TIME

Press OK() to set picture settings.

Software Update Picture Test Sound Test Signal Test

Product/Service Info.

Network Test

User Guide

MY MEDIANETWORKOPTIONLOCK

Customer Support Exit

User Guide

CHANNEL Setting

PICTURE, SOUND Setting

OPTION

Advabced Function

Information

SETTING  OPTION  Language You can select the language of the menu displayed on the screen and the digital sound broadcasting.

 



Shows the description of the selected menu.

OPTION > To set language

SETTING  OPTION  Language You can select the language of the menu displayed on the screen and the digital sound broadcasting.



Menu Language : Selects a language for the display text.



Audio Language [In Digital Mode Only] : Select the desired language

when watching digital broadcasting containg several



Menu Language : Selects a language for the display text. Audio Language [In Digital Mode Only] : elect the desired language when

Subtitle Language [In Digital Mode Only] : Use the Subtitle function when

watching digital broadcasting containg several voice languages.

two or more subtitle languages are broadcast. ✎ If subtitle data in a selected language is not broad-

Zoom Out

voice languages.

Subtitle Language [In Digital Mode Only] : Use the Subtitle function when

two or more subtitle languages are broadcast. ✎ If subtitle data in a selected language is not

broadcast, the default language subtitle will be displayed.

Zoom In

cast, the default language subtitle will be displayed.

You can use ꕌ/ꕍ to move between pages. Zooms in or out the screen.

User Guide

PROGRAMME Setting

PICTURE, SOUND Setting

OPTION

Advabced Function

Information

To use input device

To use Energy Saving feature

To set time options

To set TV lock options

To set language

Disabled Assistance

To set other options

Allows to select the category you want.

Allows to select the item you want.

You can use ꕌ/ꕍ to move between pages. Allows to browse the description of the

function you want from the index.

+ 90 hidden pages
