LG 29FU3RLX-TG User guide

Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service.

Model number : Serial number

P/NO : MFL58510503 (CW-62A/B/E, Rev. 04)

Important Precautions

XDP Demo (optional)

XDP

3 5

X-SORT / Adding a program to a desired category

Important Precautions

This unit has been engineered and manufactured to assure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this TV set, observe the following basic rules for its installation, use and servicing. Keep it in an accessible place for future reference.

On Safety

The power supply cord is used as the main disconnect device. Ensure that the socket-outlet is easily accessible after installation.

Operate the TV set only from a power source indicated in the specifications of this manual or listed on the TV set. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

Hands must be dry when holding the power plug to avoid an electric shock.

Do not damage the power cord by disassembling, bending, pulling or heating up, fire or electric shock.

Make sure to completely insert the power plug. Insecure connections can cause fire.

Do not Open the TV set

There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is Off. Contact your dealer if the TV is not operating properly.

To Avoid Personal Injury :

Do not place the TV set on a sloping shelf unless properly secured.

Use only fixed wooden stand. The TV shall be positioned 5cm behind the front edge of an open fronted with 1cm free space along the sides top and 5cm depth behind the TV.

Do not try to roll a stand with small casters across thresholds or deep pile

carpets.

To Prevent Fire or Hazards:

Always turn the TV set Off if you leave the room for more than a short period

of time. Never leave the TV set On when leaving the house.

Keep children from dropping or pushing objects into the TV cabinet

openings. Some internal parts carry hazardous voltages.

Do not add accessories that have not been designed for this TV set.

During a lighting storm or when the TV set is to be left unattended for an

extended period of time, unplug it from the wall outlet and external socket.

Do not bring magnetic devices such as magnets or motors near the picture tube.

Important Precautions

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the TV set where the power cord is subject to damage.

Power

This set operates on an AC mains supply, the voltage is as indicated on the label on the back cover. Never apply DC power to the set. In the event of thunderstorms or powercuts, please pull out the aerial and mains plugs.

Service

Do not attempt to service the TV set yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Aerial

Connect the aerial cable to the socket marked 75 on the back cover. For the best reception an outdoor aerial should be used.

Location

Do not use this TV near water such as near bathtub, washbowl, kitchen sink, laundary tub, in a wet basement, or near a swimming pool. TV set are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. There fore,

The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table cloths, curtains, etc.

Never place the TV set in a built-in enclosure unless proper ventilation is provided. No naked flame source such as lighted candles should be placed on the TV. Never place the TV set near or over a radiator or heat source. Position your set so that no bright light or sunlight falls directly onto the screen.

On Cleaning

Unplug the TV set before cleaning the face of the TV screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the TV screen because overspray may cause electric shock.

On Repacking

Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

Caution:

stabilizer. Use of Inferior quality stabilizer may damage the set.

Please do not use stabilizer with TV set as this set has inbuilt voltage

Battery installation

The remote control handset is powered by two AA/AAA type batteries. To load the batteries, turn the remote control handset over and open the battery compartment. Install two batteries as indicated by the polarity symbols ( + and - ) marked inside the compartment.

Note: To avoid damage from possible battery leakage, remove the batteries if you do not plan to use the

remote control handset for an extended period of time.

All the functions can be controlled with the remote control handset. Some functions can also be adjusted with the buttons on the front panel of the set.

X-LIST

13 14 15

16 17 18 19 20

3 4

5 6

8 9

MM/*

TURBO

PIP/*

X-SORT

MUSIC MOVIES NEWS SPORTS

(With TELETEXT/With PIP)

(option-1)

1 12

3 20 10

(Without TELETEXT/Without PIP)

MUTE

MUSIC

1 2 4 7

VOL

MM/*

X-SORT

PSM

MOVIES

TURBO SOUND/*

POWER

Q-VIEW

SLEEP

TV/AV

SPORTS

NEWS

6 9

X-LIST

XDP/*

SSM

EYE/*

VOL

5 4 8

I/II

(option-2)

Remote control handset

Before you use the remote control handset, please install the batteries. See the previous page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. MM/* (option)

Select music mode.

4. TURBO SOUND/* (option)

Select turbo sound button.

5. XD PICTURE OR XDP/* (option)

Select XD picture

6. / (Programme Up/Down)

selects a programme or a menu item. switches the set on from standby.

/ (Volume Up/Down)

adjusts the volume. adjusts menu settings.

7. VCR BUTTONS (option)

control a LG video cassette recorder.

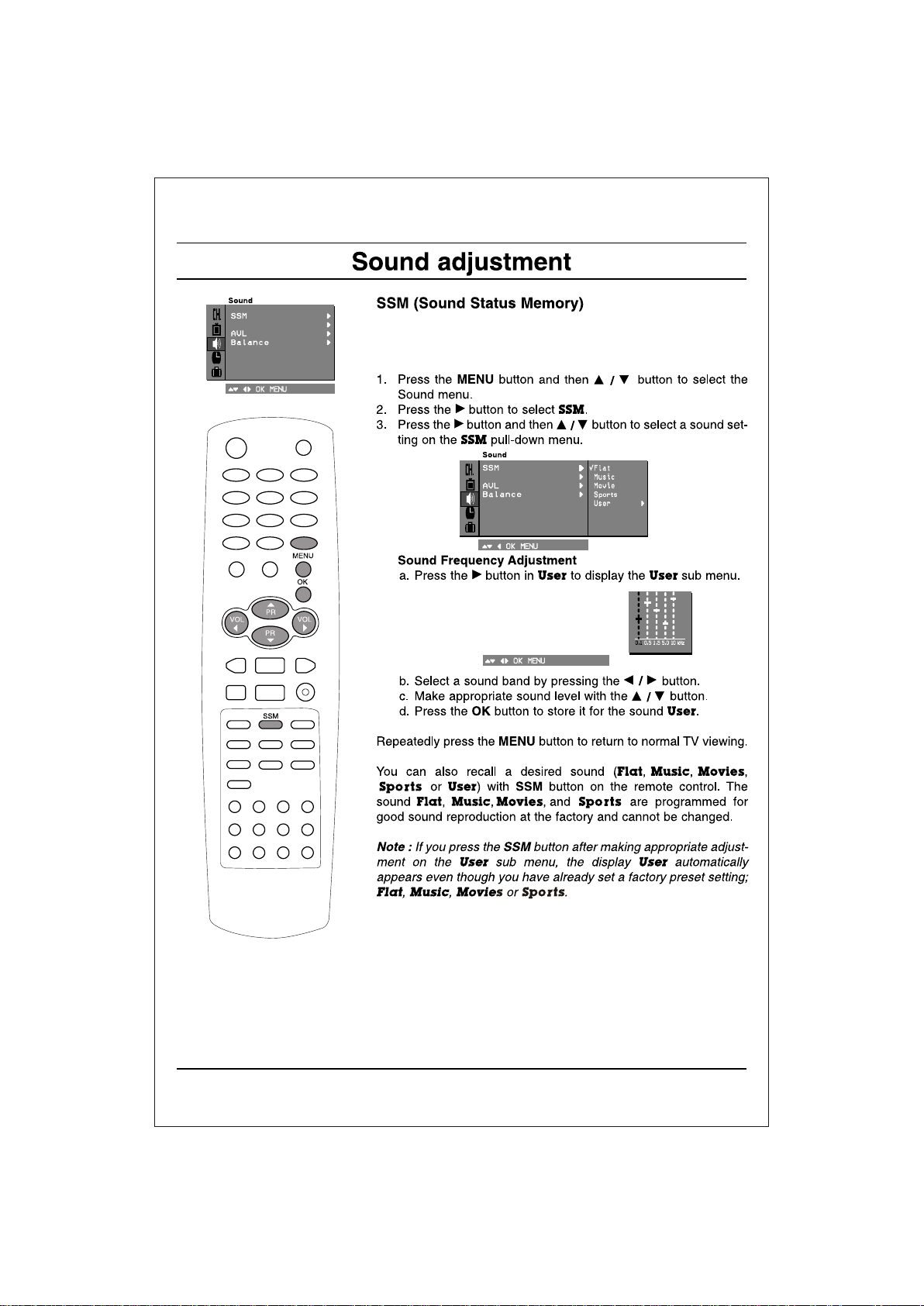

8. SSM (Sound Status Memory)

recalls your preferred sound setting.

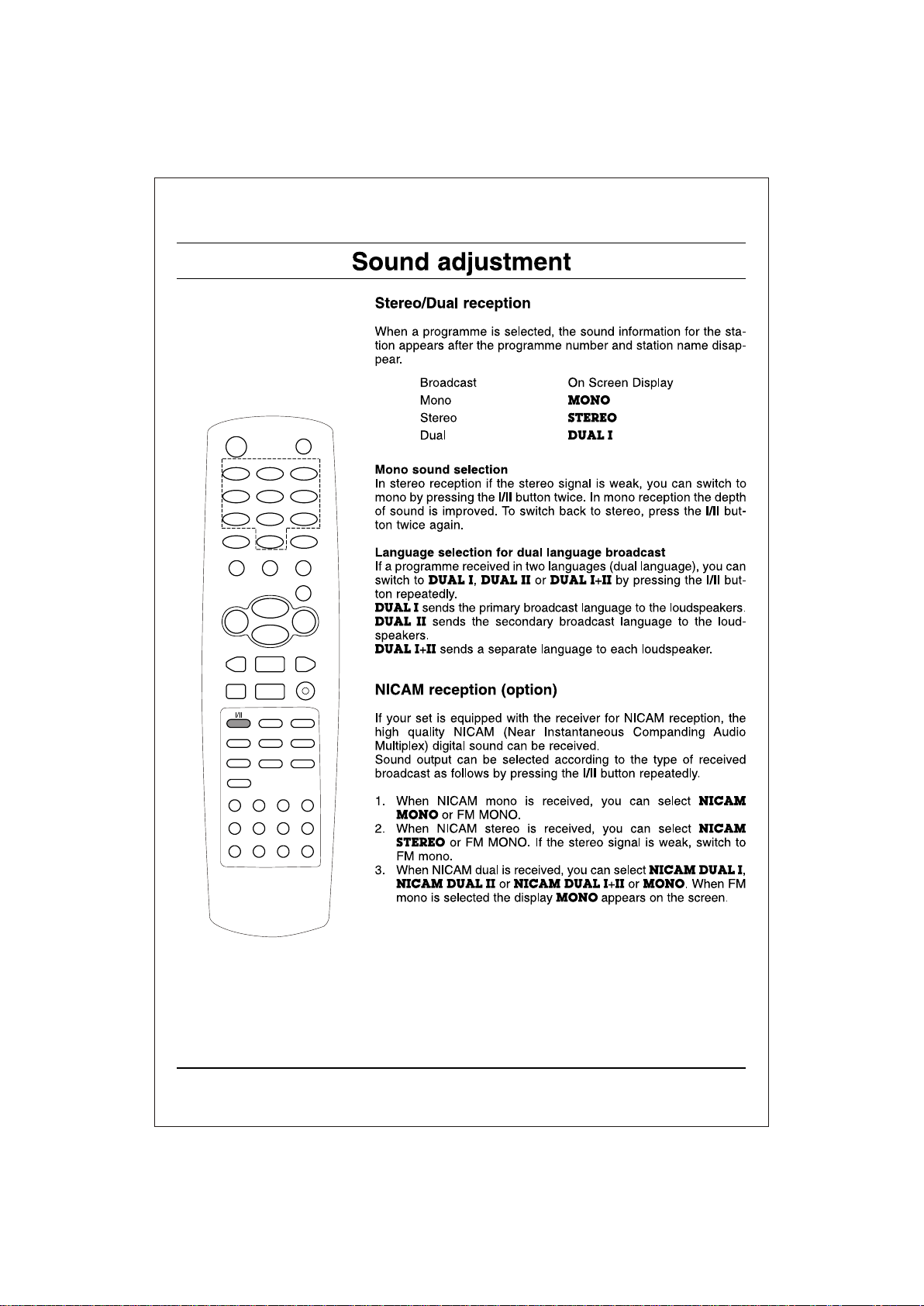

9. I/II (option)

selects the language during dual language broadcast (option). selects the sound output.

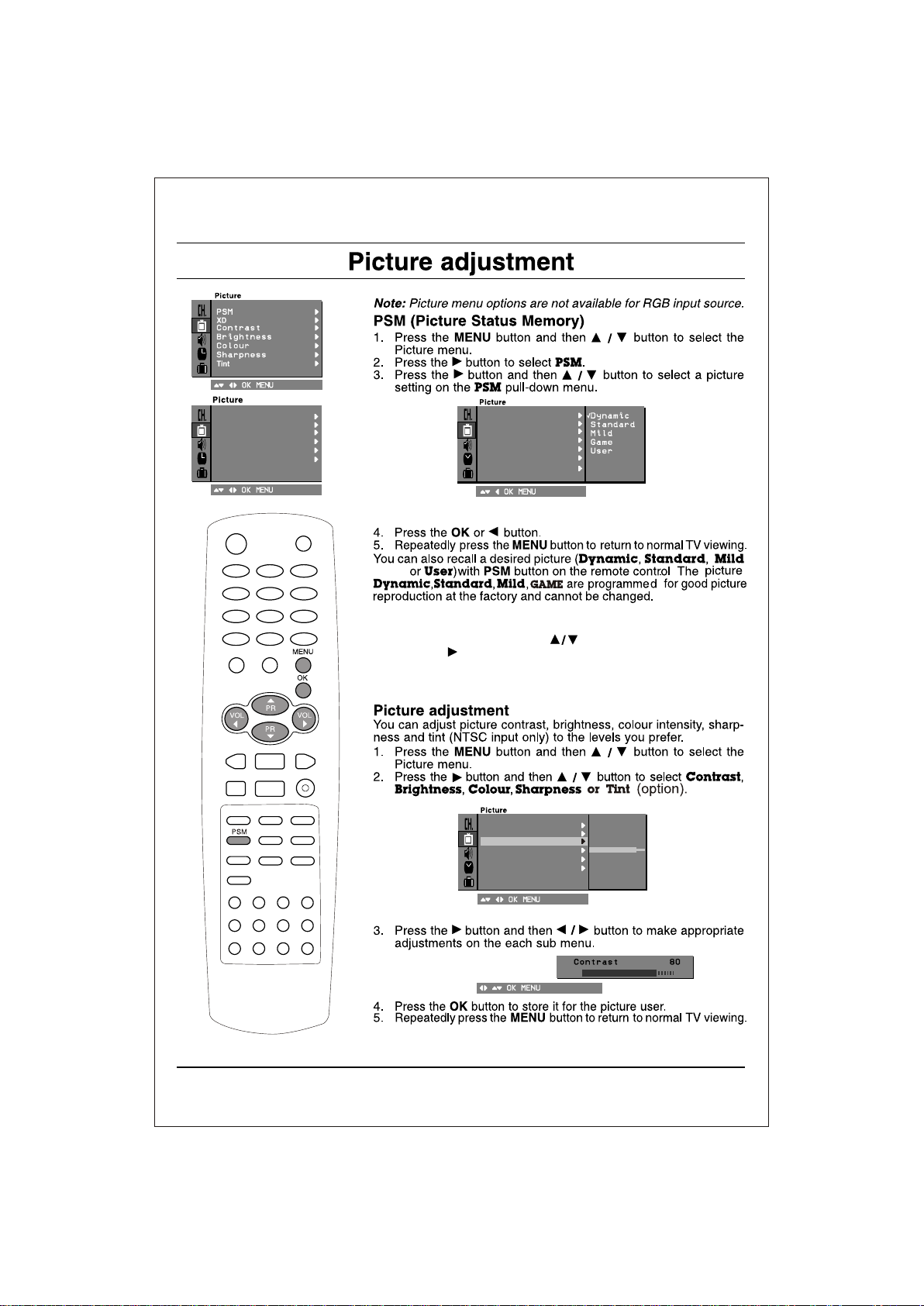

10. PSM (Picture Status Memory)

recalls your preferred picture setting.

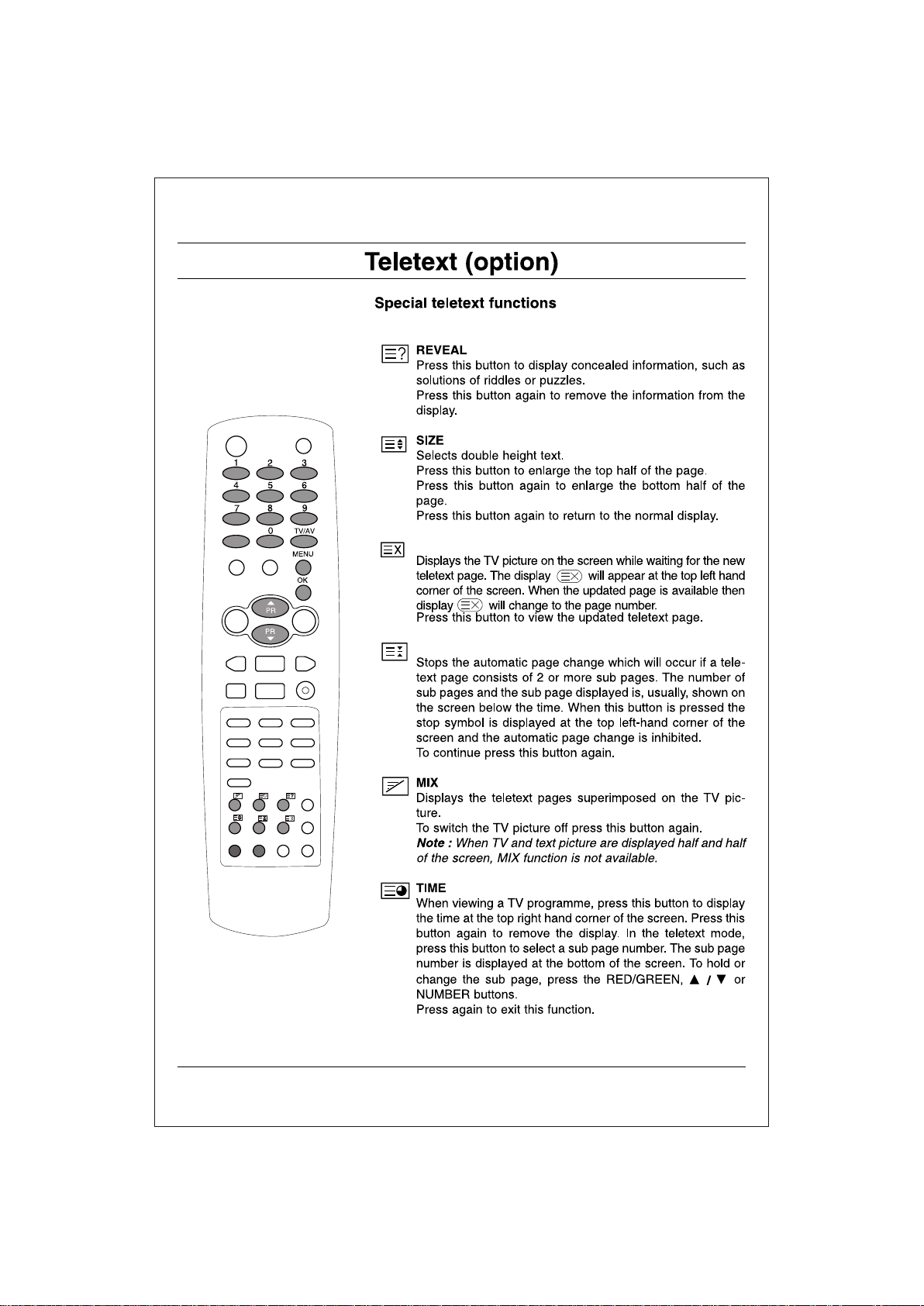

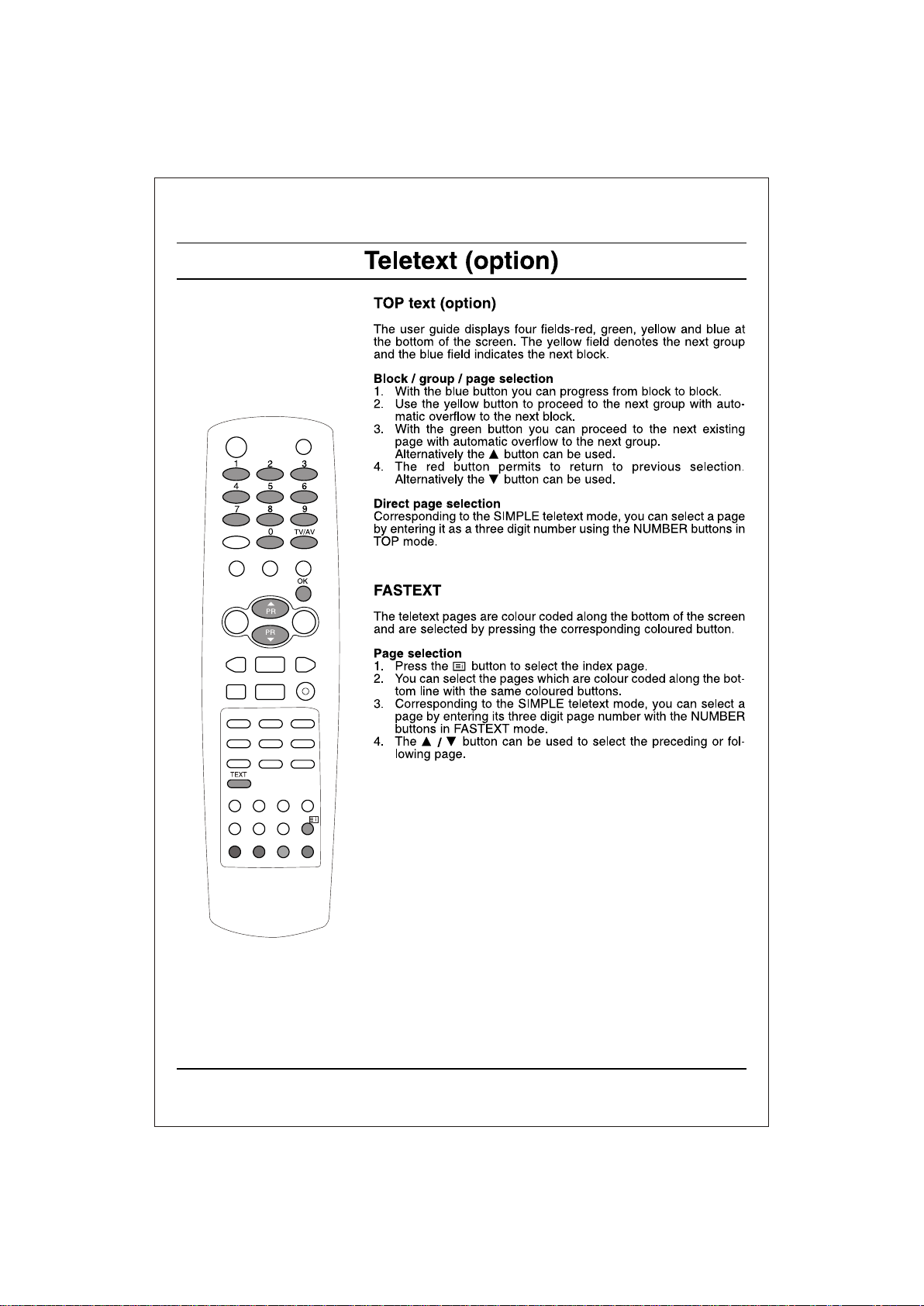

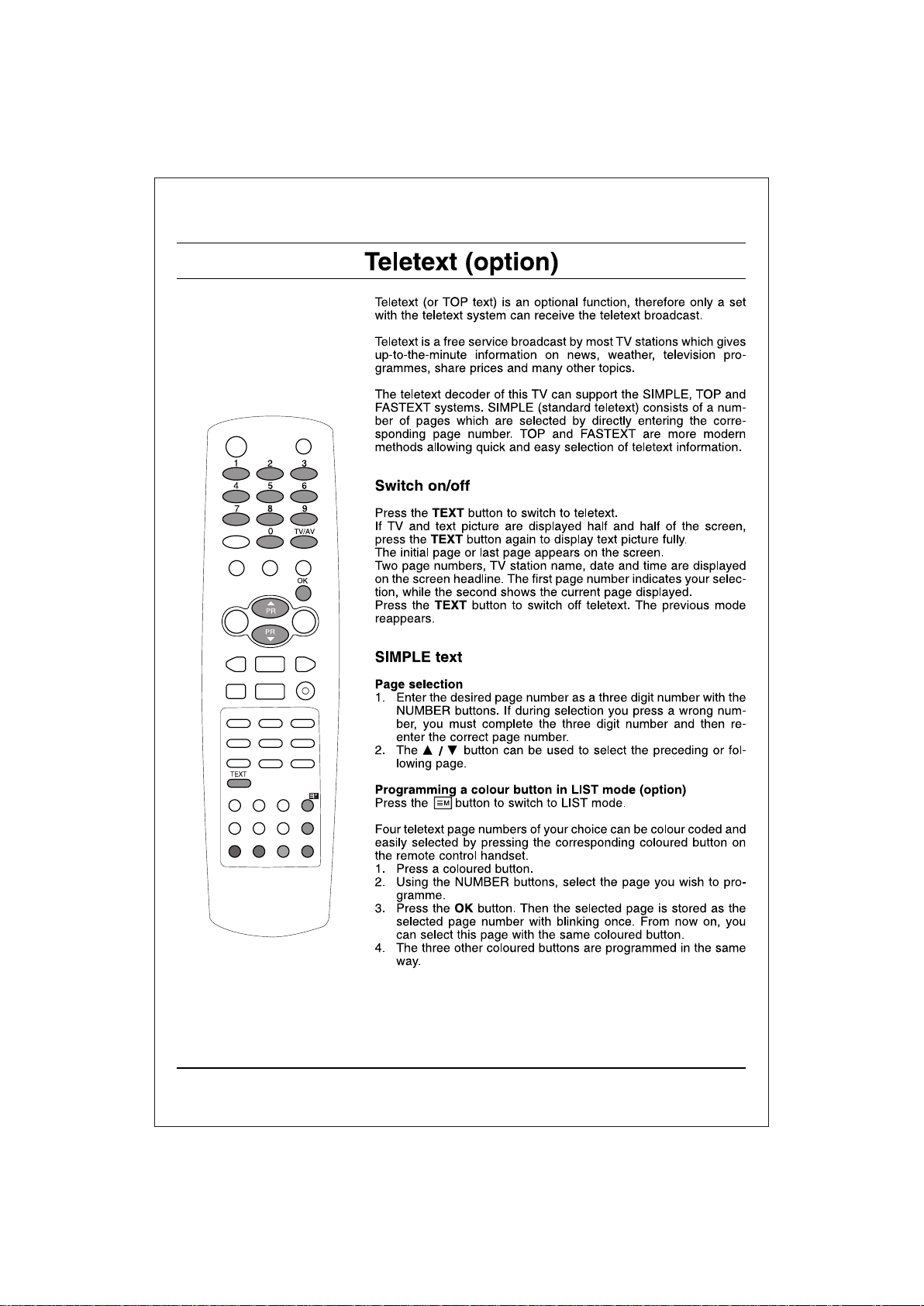

11. TELETEXT BUTTONS (option)

These buttons are used for teletext. For further details, see the ‘Teletext’ section.

12. MUTE

switches the sound on or off.

13. TV/AV

selects TV or AV mode. switches the set on from standby.

14. MENU

selects a menu.

15. OK

accepts your selection or displays the current mode.

X-LIST

13 14 15

16 17 18 19 20

3 4

5 6

8 9

MM/*

TURBO

PIP/*

X-SORT

MUSIC MOVIES NEWS SPORTS

(With TELETEXT/With PIP)

(option-1)

19 3

20 10

MUTE

MUSIC

MOVIES SPORTS

1 2 4 7

VOL

MM/*

X-SORT

TURBO SOUND/*

PSM

POWER

Q-VIEW

SLEEP

TV/AV

NEWS

6 9

X-LIST

XDP/*

EYE/*

VOL

SSM

4 8

I/II

16. X-LIST

displays the programme table.(X-SORT LIST)

17. EYE/*(option)

switches the eye function on or off.

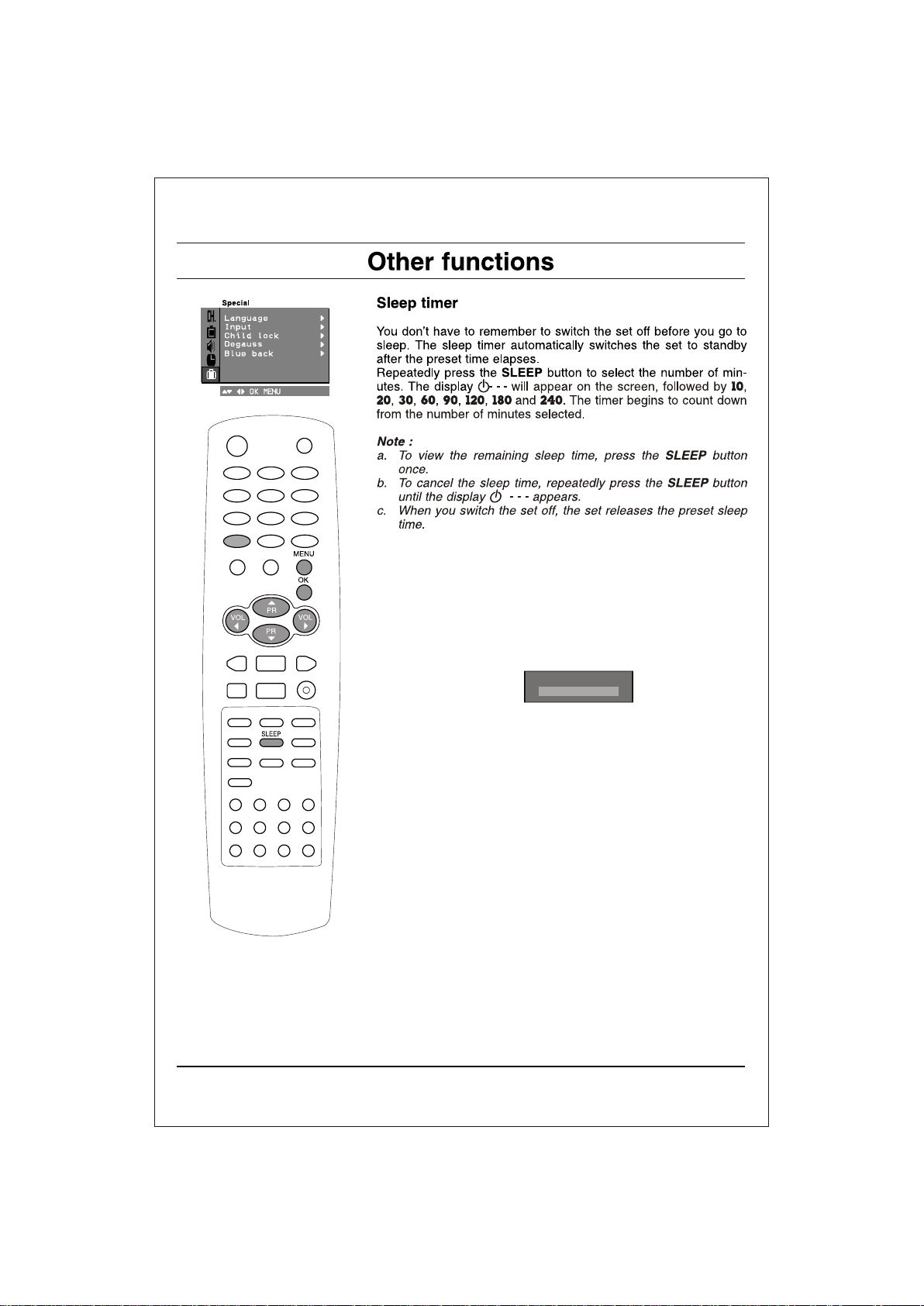

18. SLEEP

sets the sleep timer.

19. Q.VIEW

returns to the previously viewed programme.

20. X-SORT

switches the X-SORT On/Off.

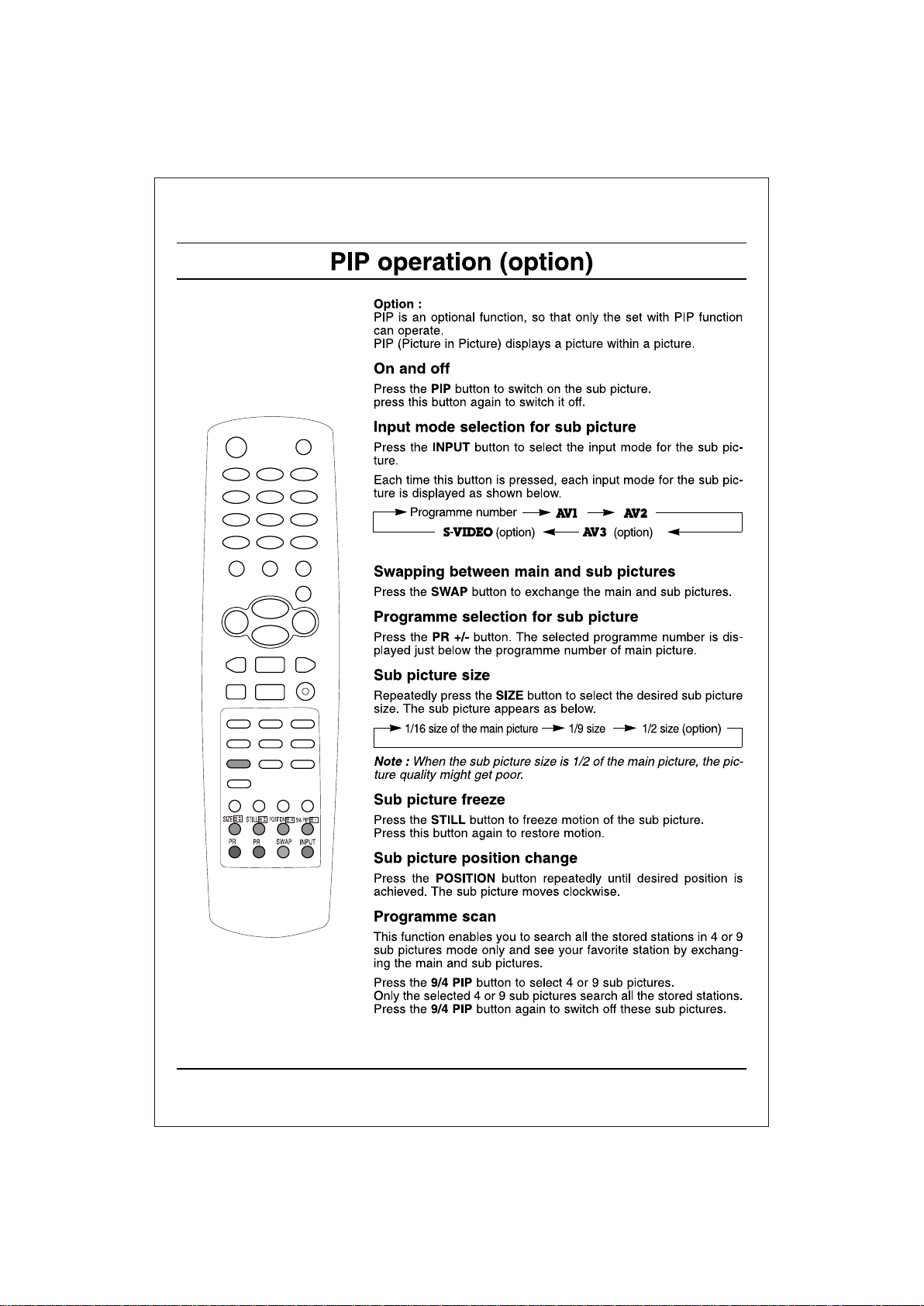

21. PIP BUTTONS (option) PIP/*

switches the sub picture on or off. PR +/-selects a programme for the sub picture.

SWAP

alternates between main and sub picture.

INPUT

selects the input mode for the sub picture.

SIZE

adjusts the sub picture size.

STILL

freezes motion of the sub picture.

POSITION

relocates the sub picture in clockwise direction.

9/4 PIP

switches on or off the programme scan mode through 4 or 9 sub pictures.

COLOURED BUTTONS

These buttons are used for teletext (only TELETEXT models) or programme edit. X-LIST and also used for selecting X-SORT mode when X-SORT is on.

When X-SORT is on: MUSIC (RED KEY) : selects MUSIC channels group. MOVIES (GREEN KEY) : selects MOVIES channels group. NEWS (YELLOW KEY) : selects NEWS channels group. SPORTS (BLUE KEY) : selects SPORTS channels group.

Remarks:

1. Some keys in the remote can be non-functional, these keys

are used in other models, they are marked with *.

(Without TELETEXT/Without PIP)

(option-2)

FRONT PANEL / SIDE PANEL (Option)

Shown below is a simplified representation of front or side panel, here shown may be somewhat different from your set.

Common

L/MONO

AUDIO

VIDEO

S VIDEO

AV IN 3

ON/OFF

2 5

3 4

29FU3 Series

ON/OFF

OK VOL

On Off

O n or Off.

O n.

AV3

21SA1 series

21SA2 series

29FU6 series

21FU6 series

O n

If X-Sort is On, switches to the next programme in the same group.

(option)

VIDEO

AUDIO

AV2

A U DO

L/ M

N OO

VIDEO

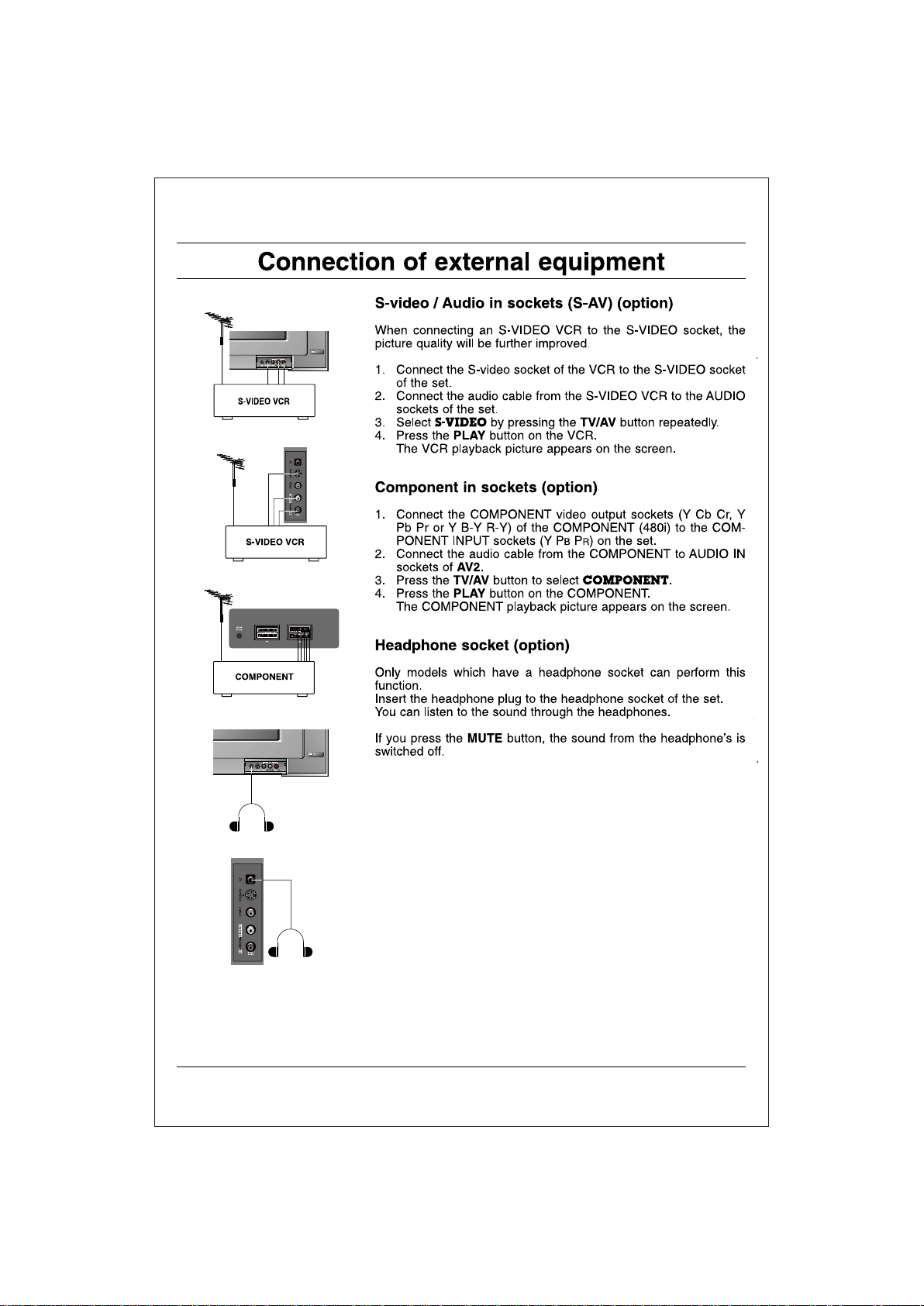

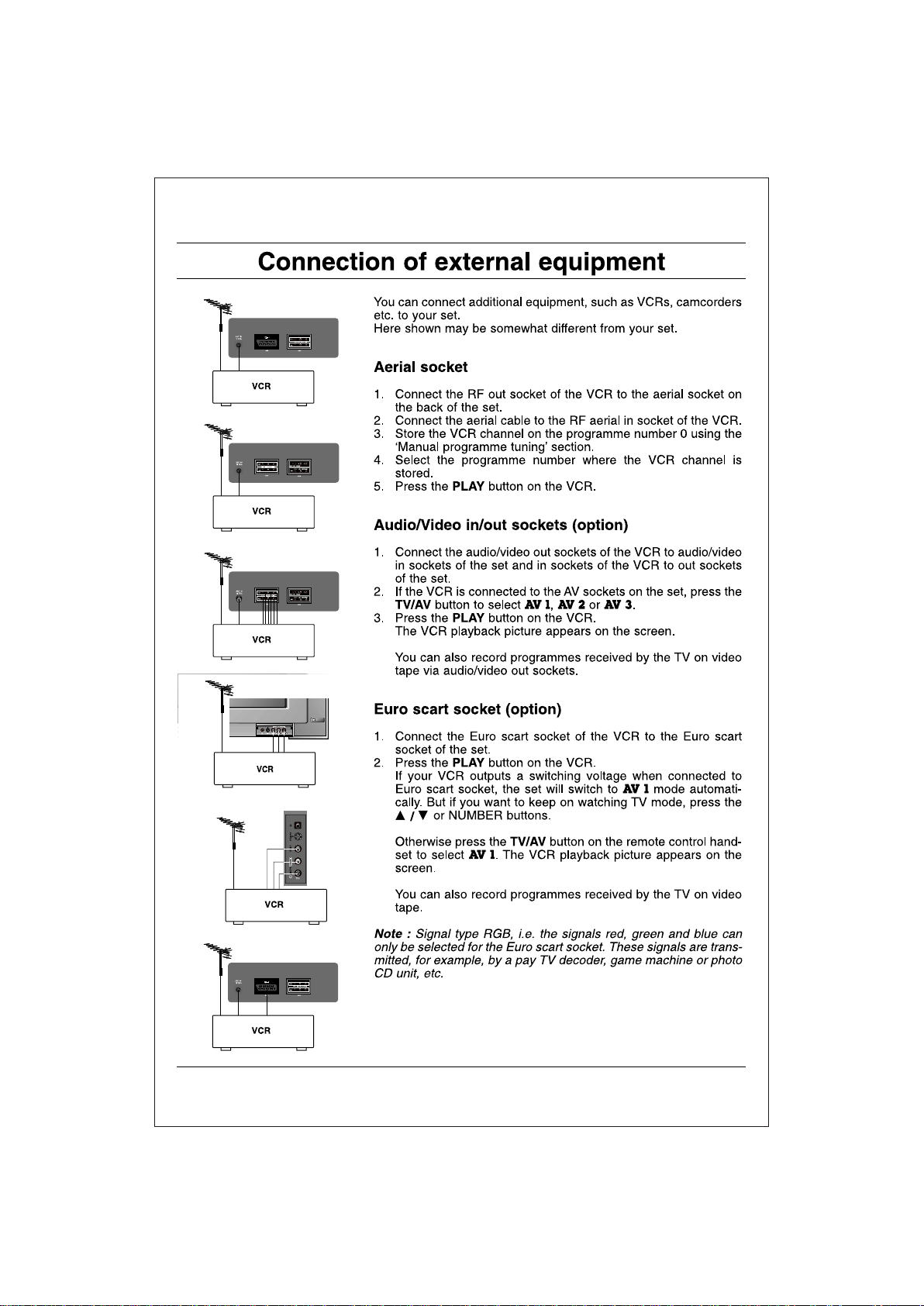

S-VIDEO/AUDIO IN SOCKET (S-AV) (option)

Connect the video out socket of an

S-VIDEO V CR to the S-VIDEO socket.

Connect the audio out sockets of the S-VIDEO V CR to the audio sockets as

in AV-2.

8. HEADPHONE SOCKET (option)

Connect the headphone plug to this socket.

9. EYE (option)

adjusts picture according to the surrounding conditions.

SWIVEL STAND

This feature is available with 21SA1model only. After installing the TV, you can adjust the TV set manually to the left or right direction by 15 degrees to suit your viewing position.

MM/*

TURBO

X-LIST

X-SORT

MUSIC MOVIE NEWS SPORTS

MM/*

TURBO

e. In some models, XDP Demo will not display.

X-LIST

X-SORT

MUSIC MOVIE NEWS SPORTS

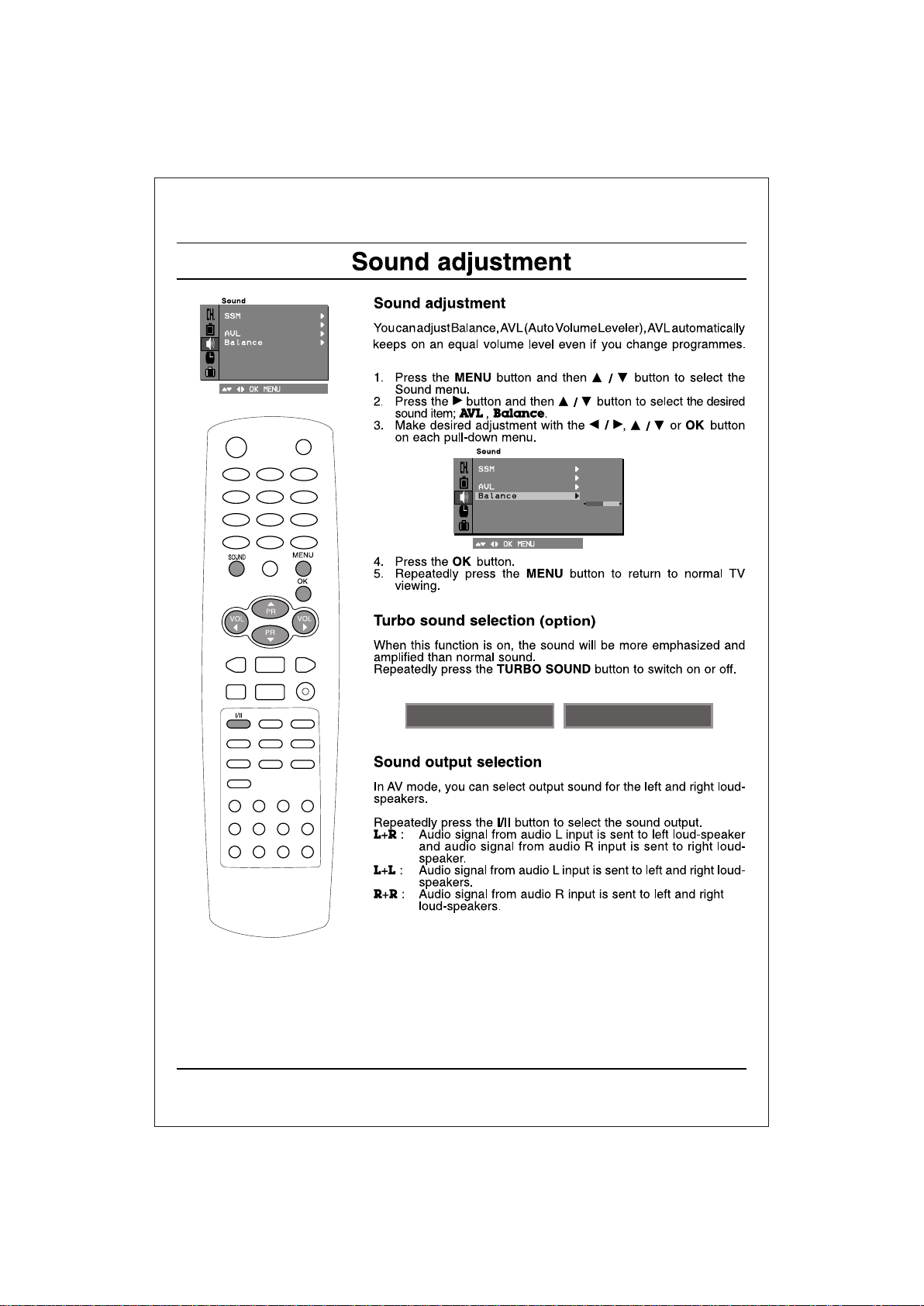

Turbo Sound

XDP Demo

Picture Menu with XDP Demo (optional)

MM/*

TURBO

X-LIST

X-SORT

MUSIC MOVIE NEWS SPORTS
