LG 23MP55A-P User guide
<![endif]>ENGLISH
OWNER’S MANUAL
IPS LED MONITOR
Please read this manual carefully before operating your set and retain it for future reference.
IPS LED MONITOR MODEL
22MP55D 22MP55A 23MP55D 23MP55A 24MP55D
www.lg.com
<![endif]>ENGLISH
2 TABLE OF CONTENTS
CONTENTS
3 |
ASSEMBLING AND PREPAR- |
24 |

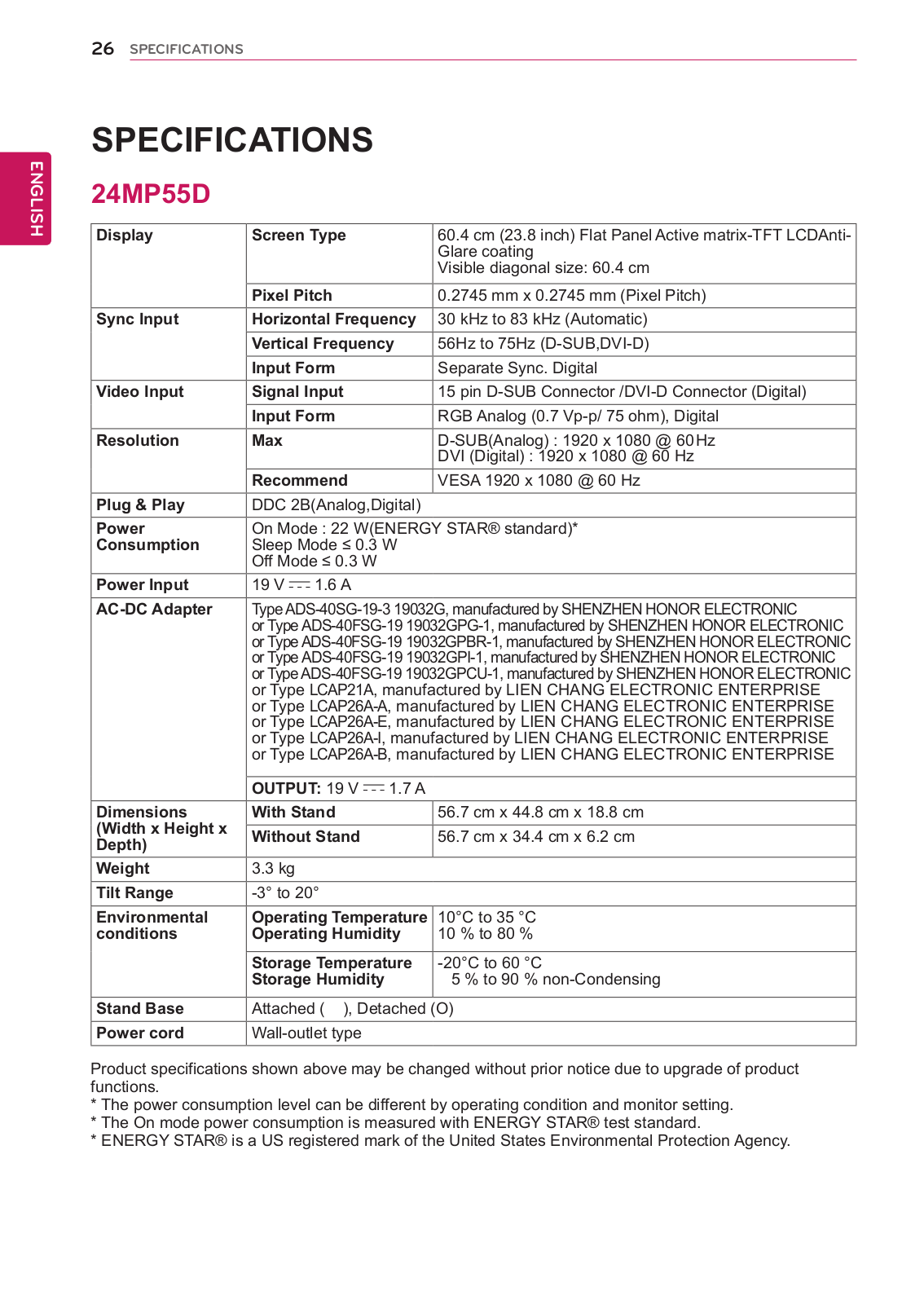

SPECIFICATIONS |
||
|
ING |
|
|
|
|
|
24 |

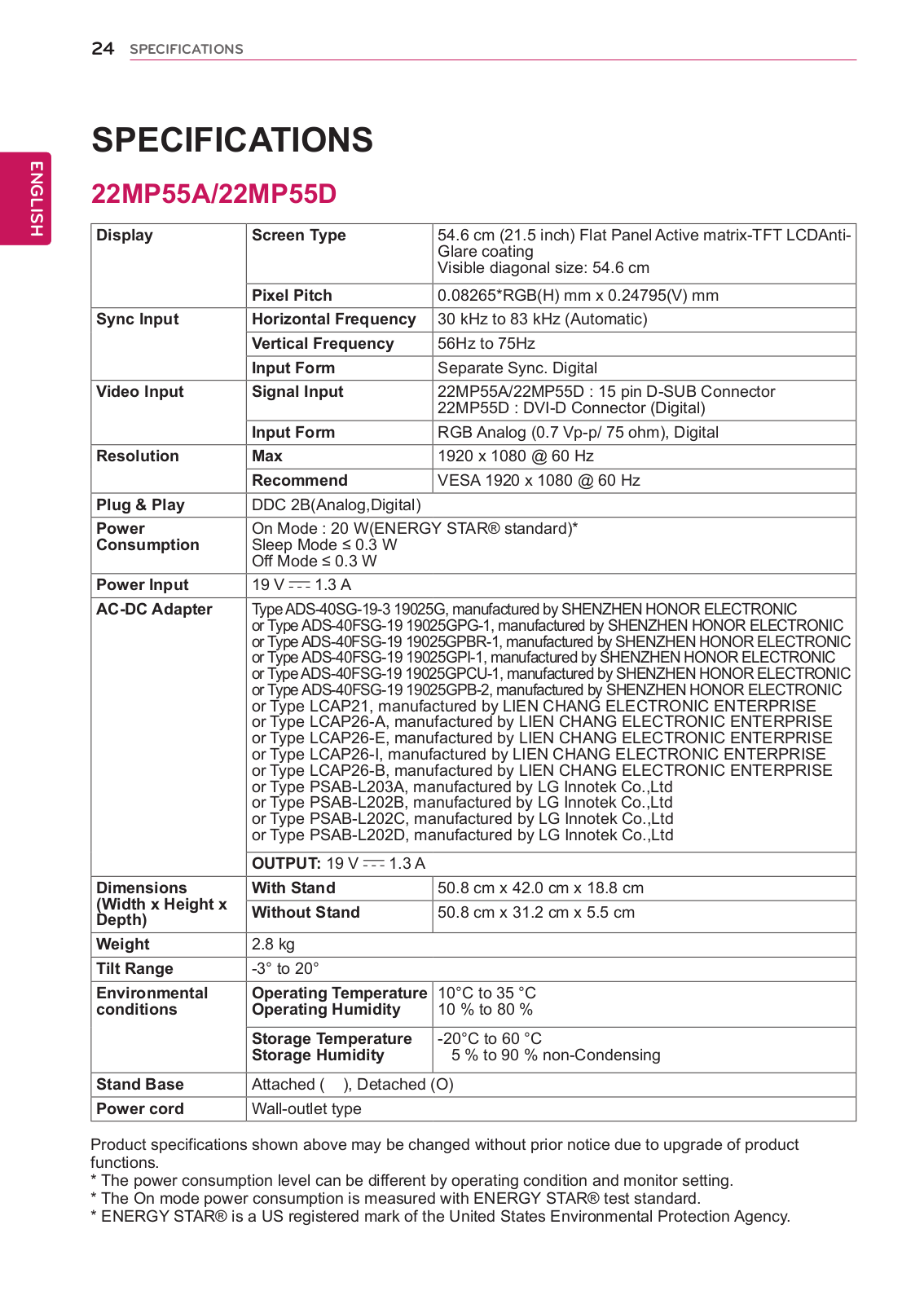

22MP55A/22MP55D |
|||
3 |
Unpacking |
||||
25 |

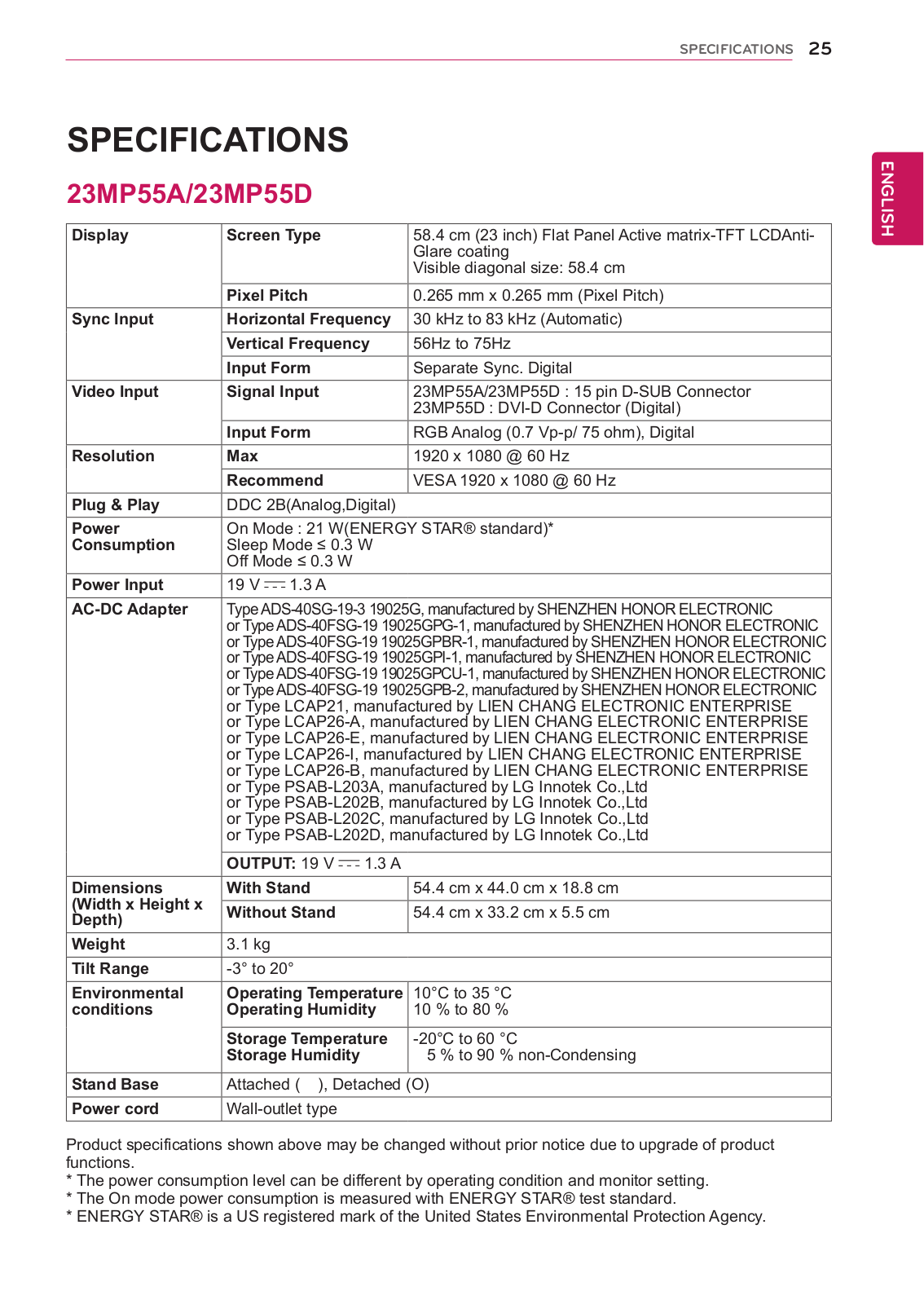

23MP55A/23MP55D |
||||
4 |
Parts and buttons |
26 |
24MP55D |
||
5 |
Setting up the Monitor set |
27 |

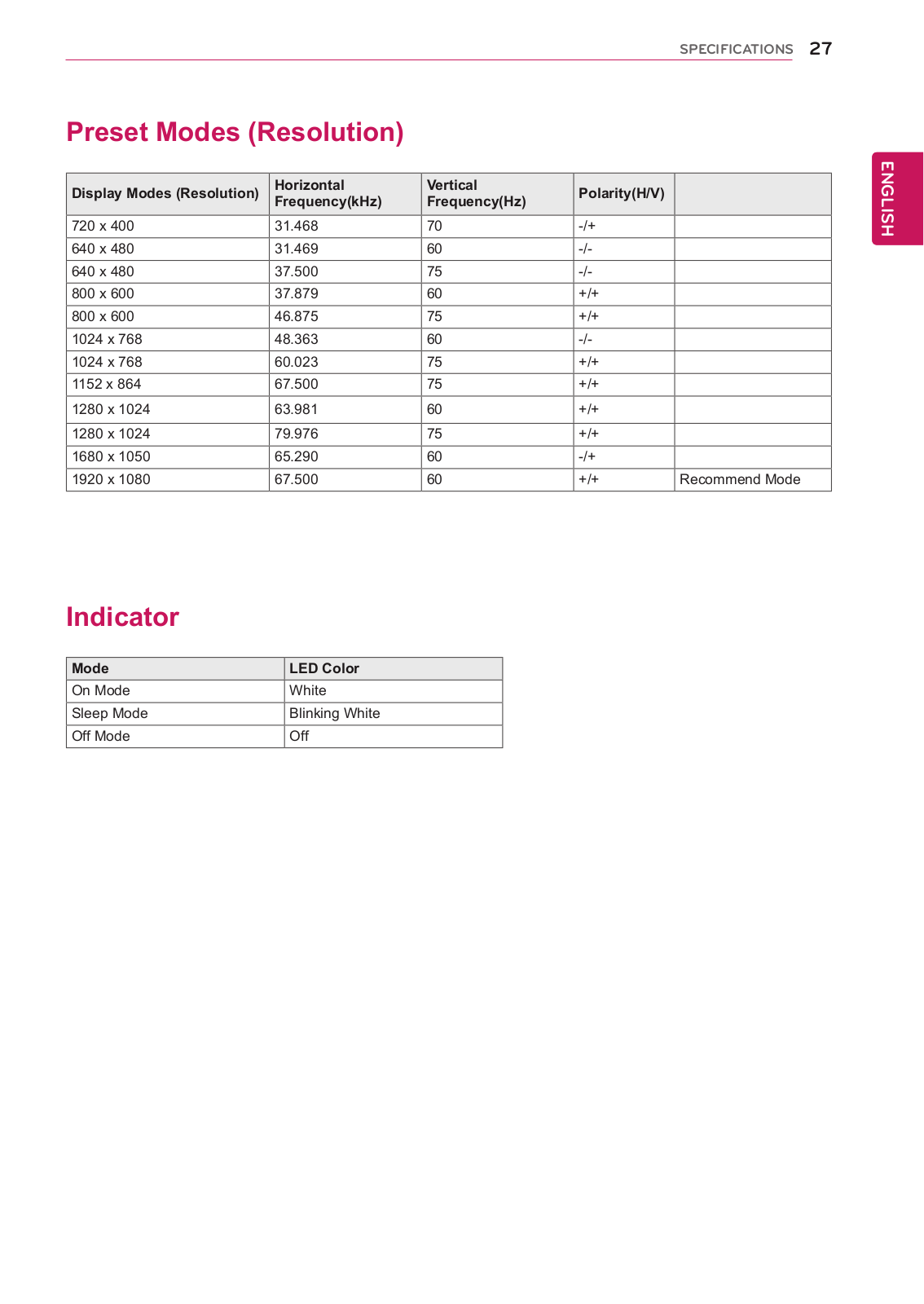

Preset Modes (Resolution) |
||
5 |
- Attaching the Stand Base |
27 |
Indicator |
||
5- Detaching the Stand Base
6 |
- Mounting on a table |
28 |

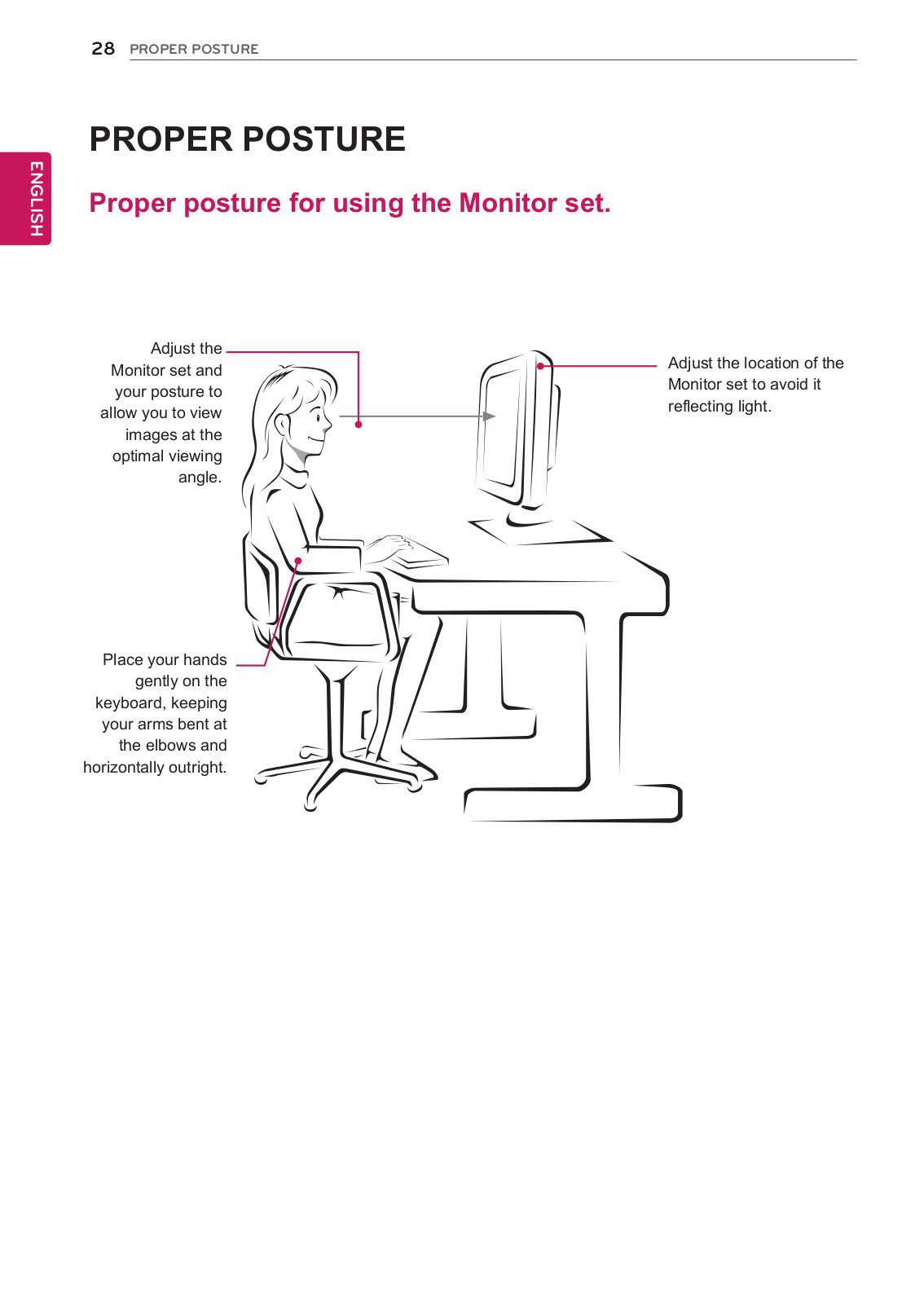

PROPER POSTURE |
||
6 |
- Using the cable holder |
||||
|
|
|
|||
28 |
Proper posture for using the Monitor set. |
||||
8 |
- Mounting on a wall |
||||
9USING THE MONITOR SET
9Connecting to a PC
9- D-SUB connection
9- DVI-D connection

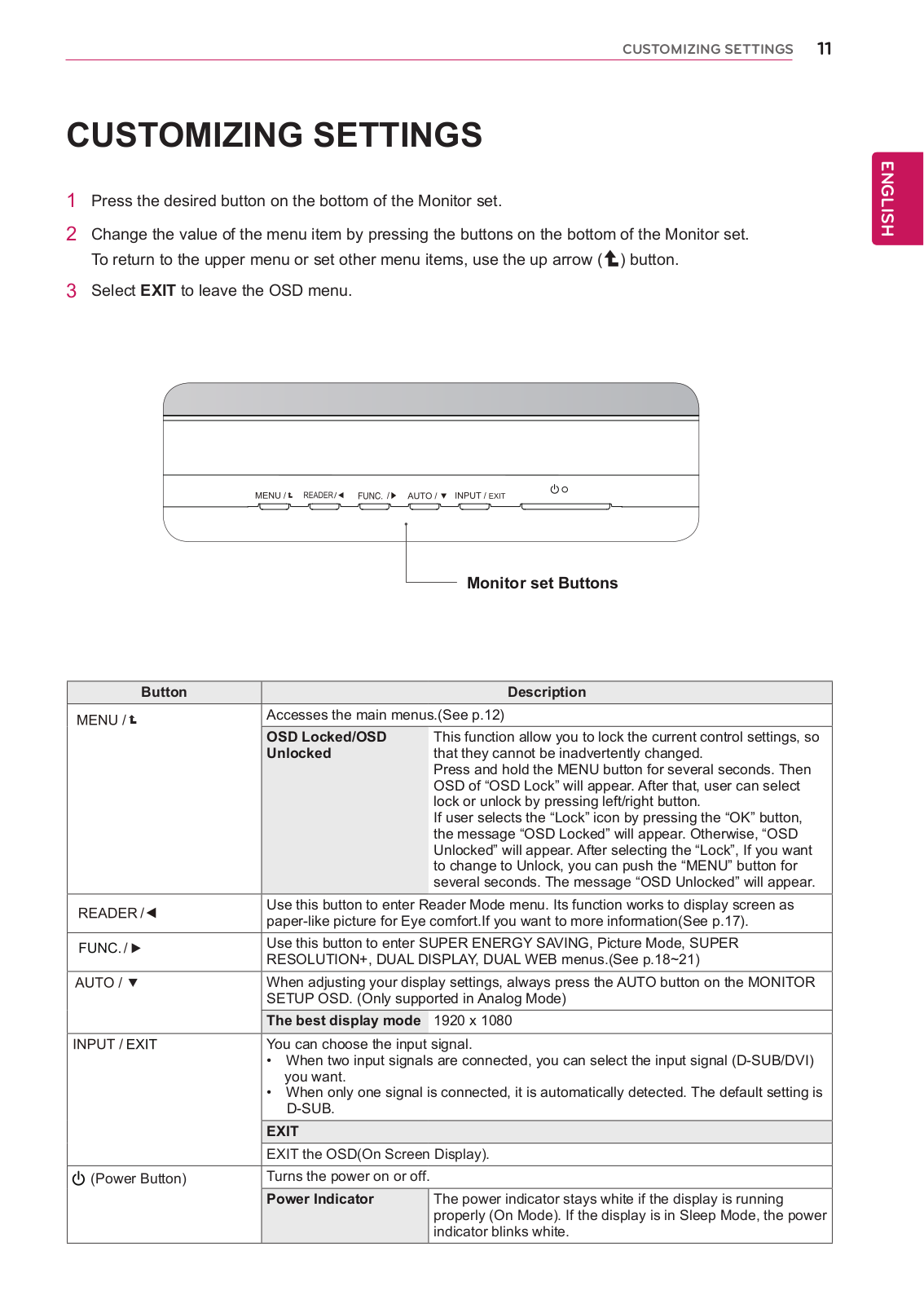

11 CUSTOMIZING SETTINGS

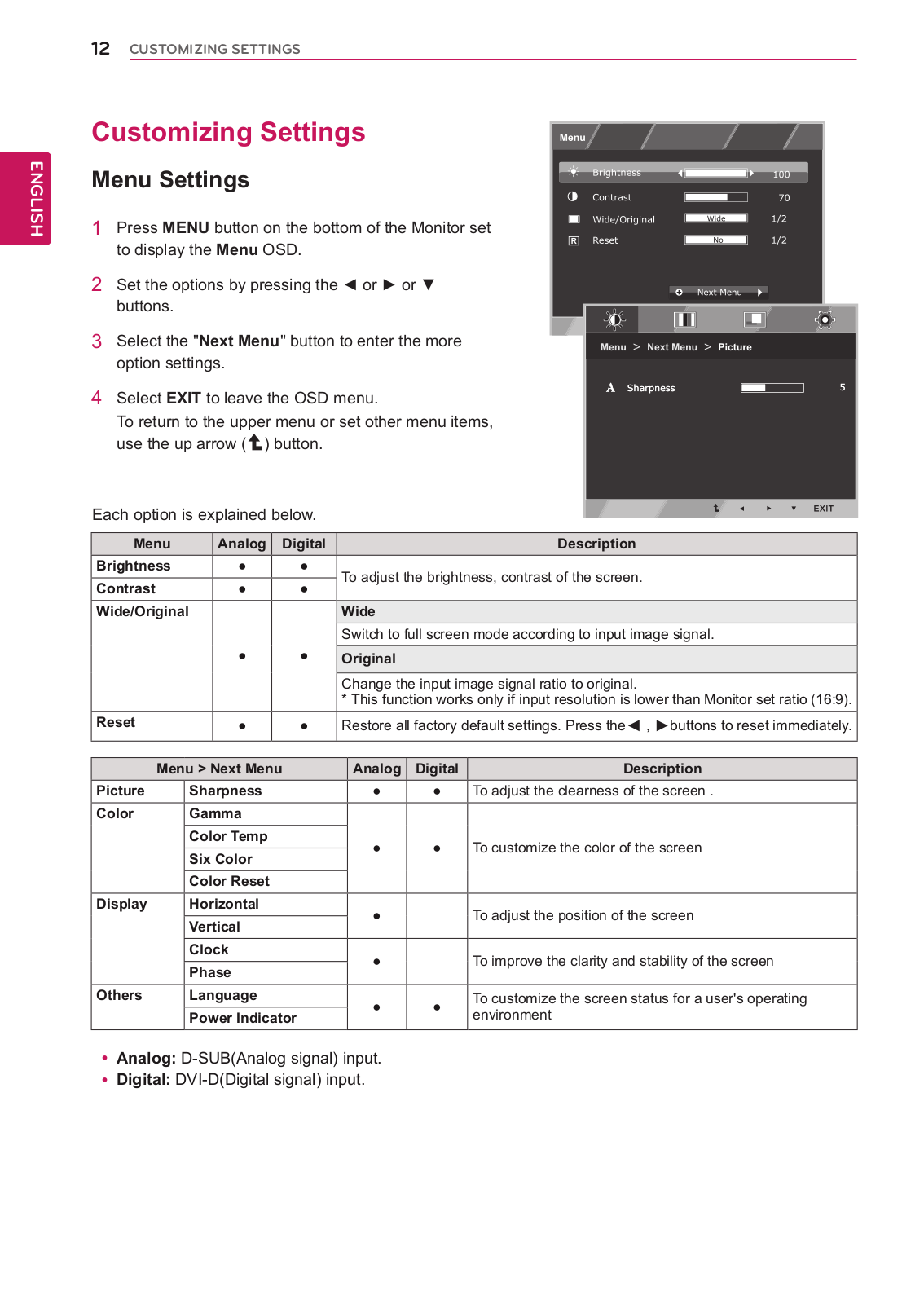

12Customizing Settings
12- Menu Settings

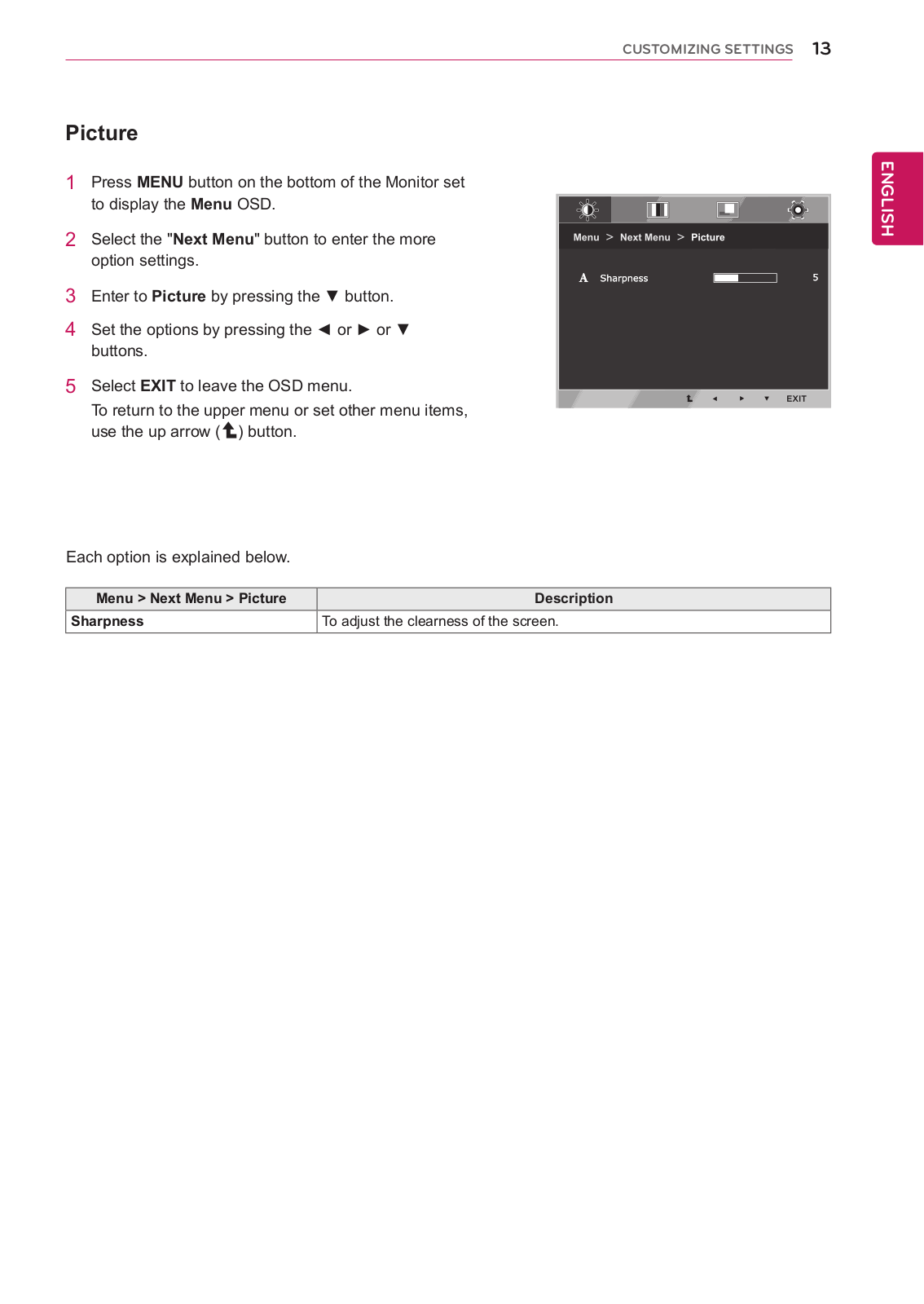

13-Picture

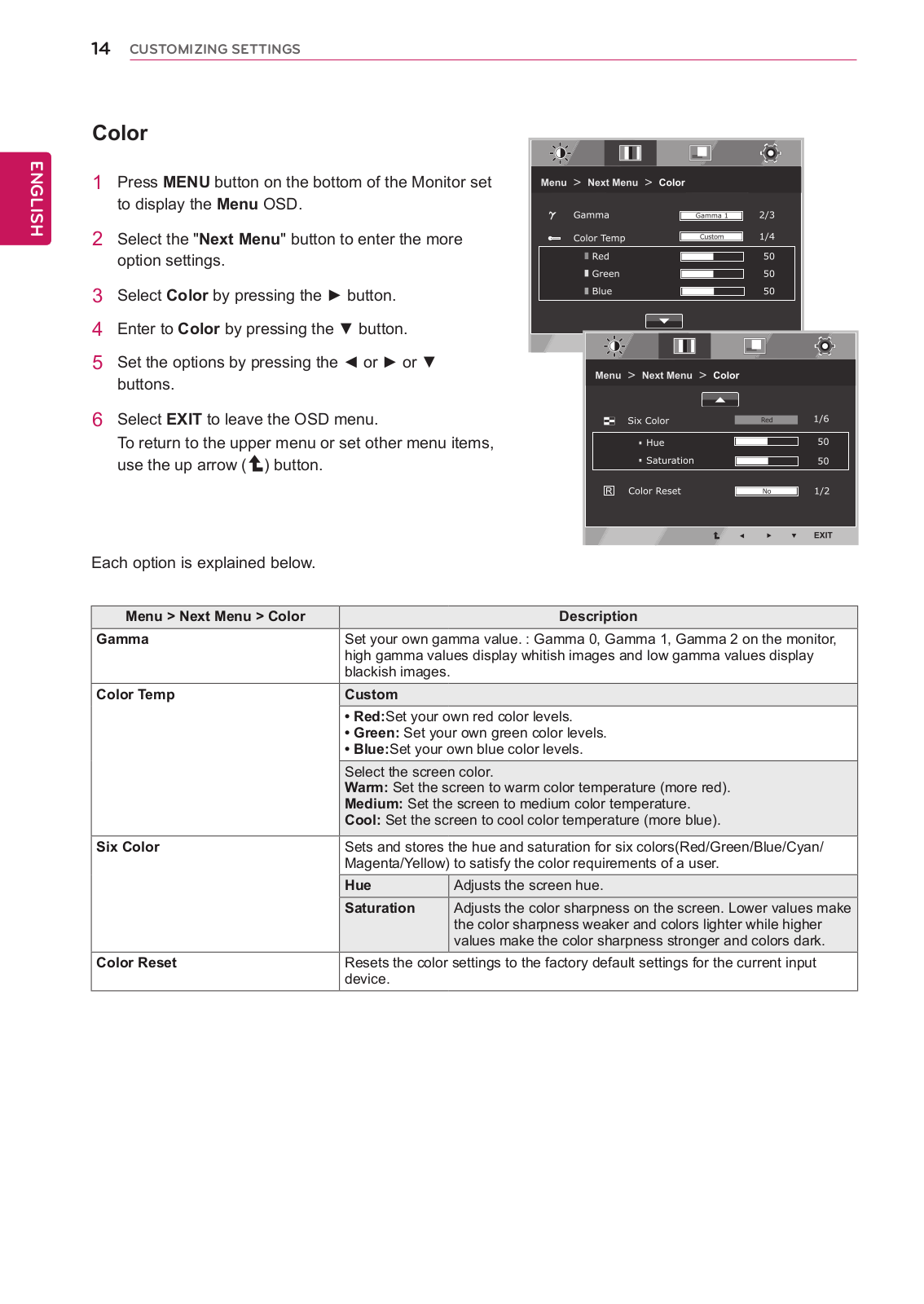

14-Color

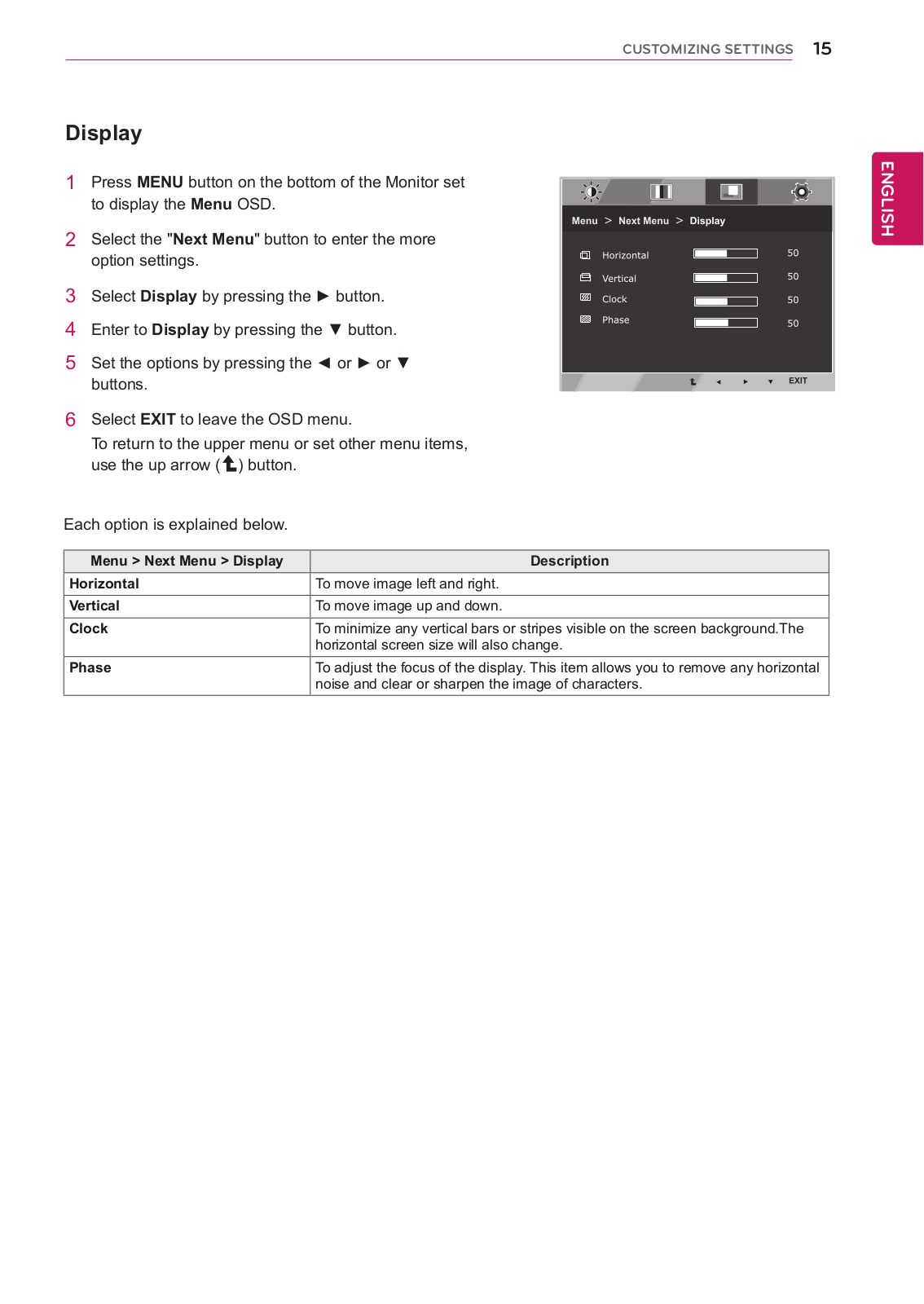

15-Display

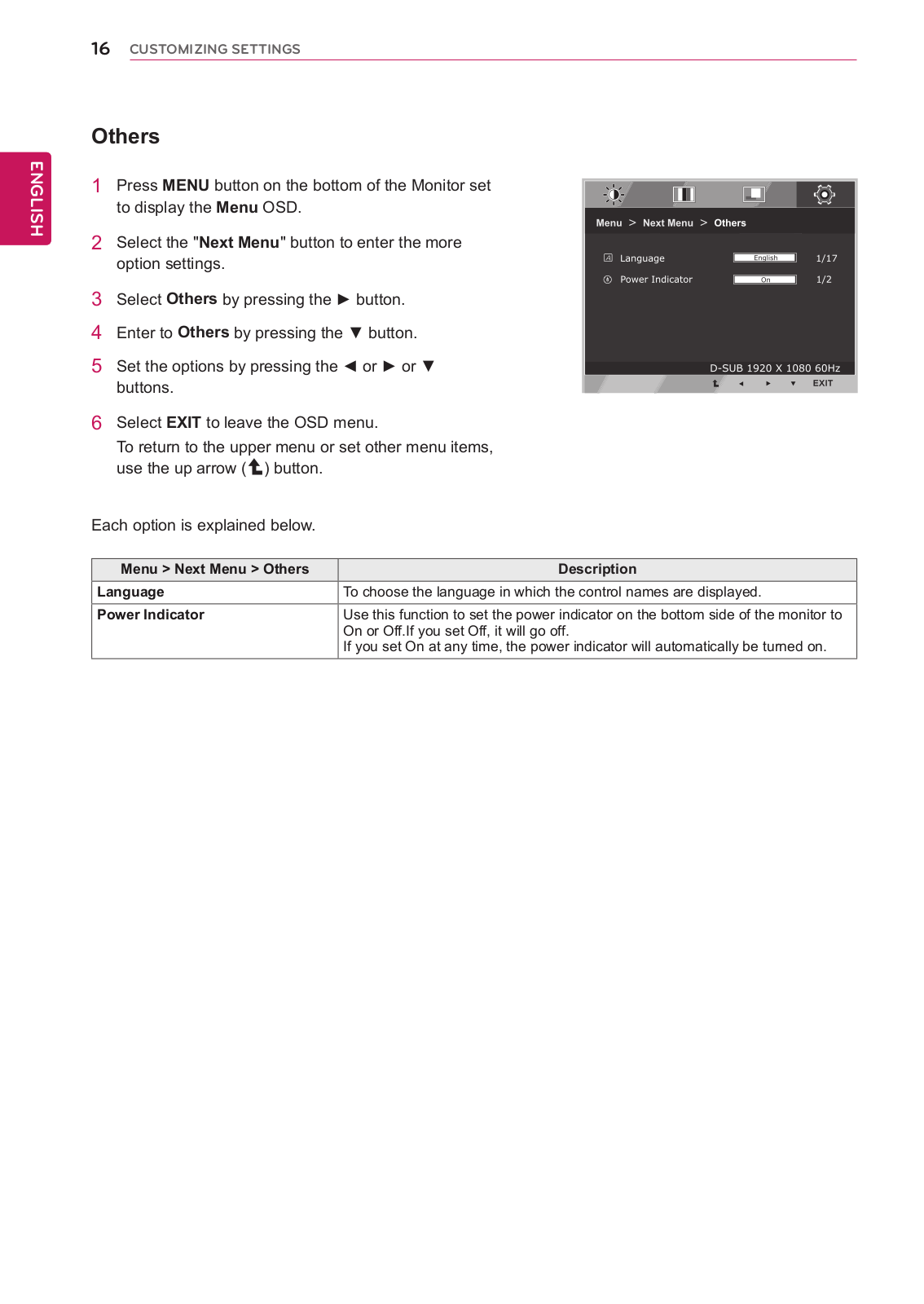

16-Others

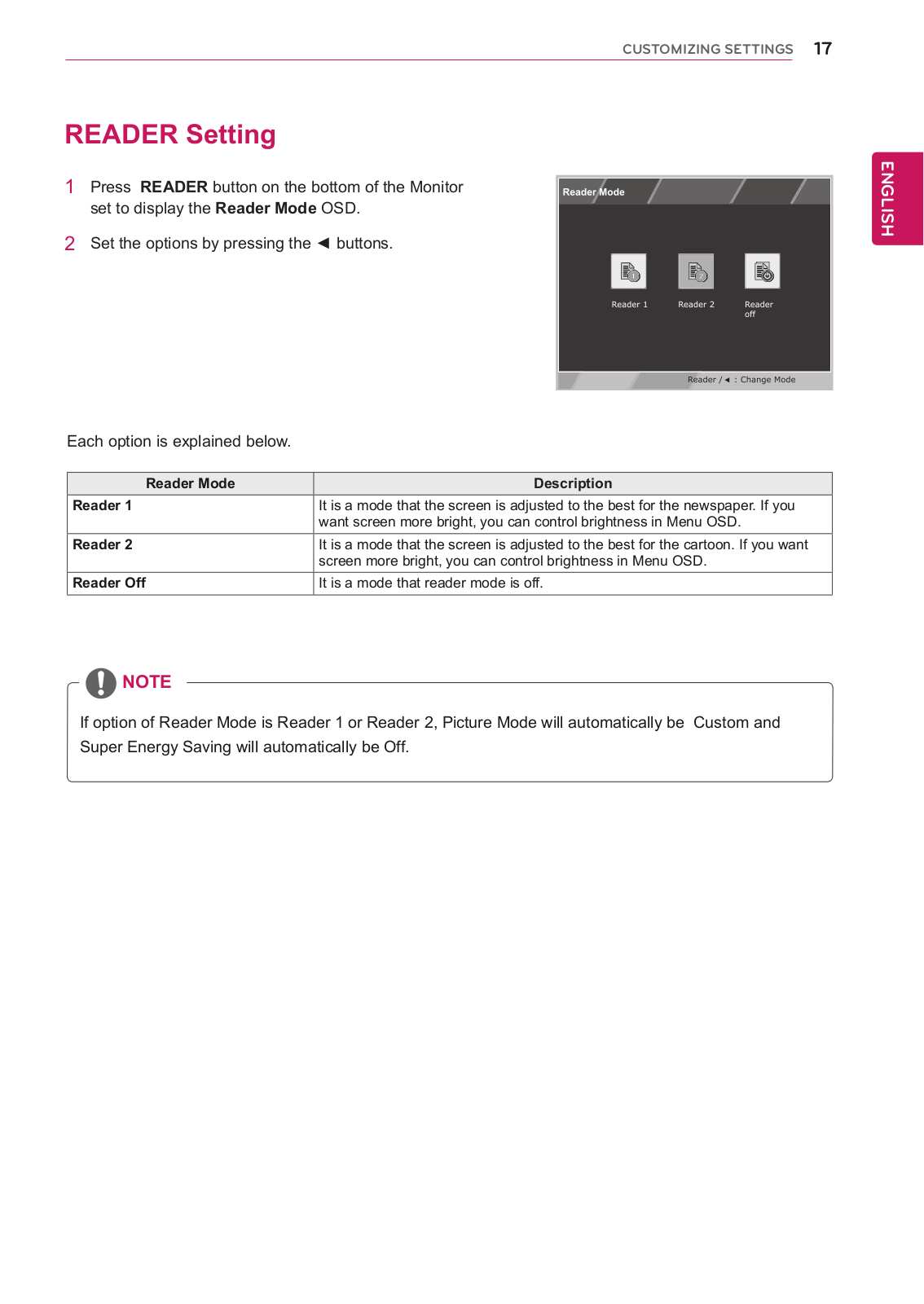

17READER Setting

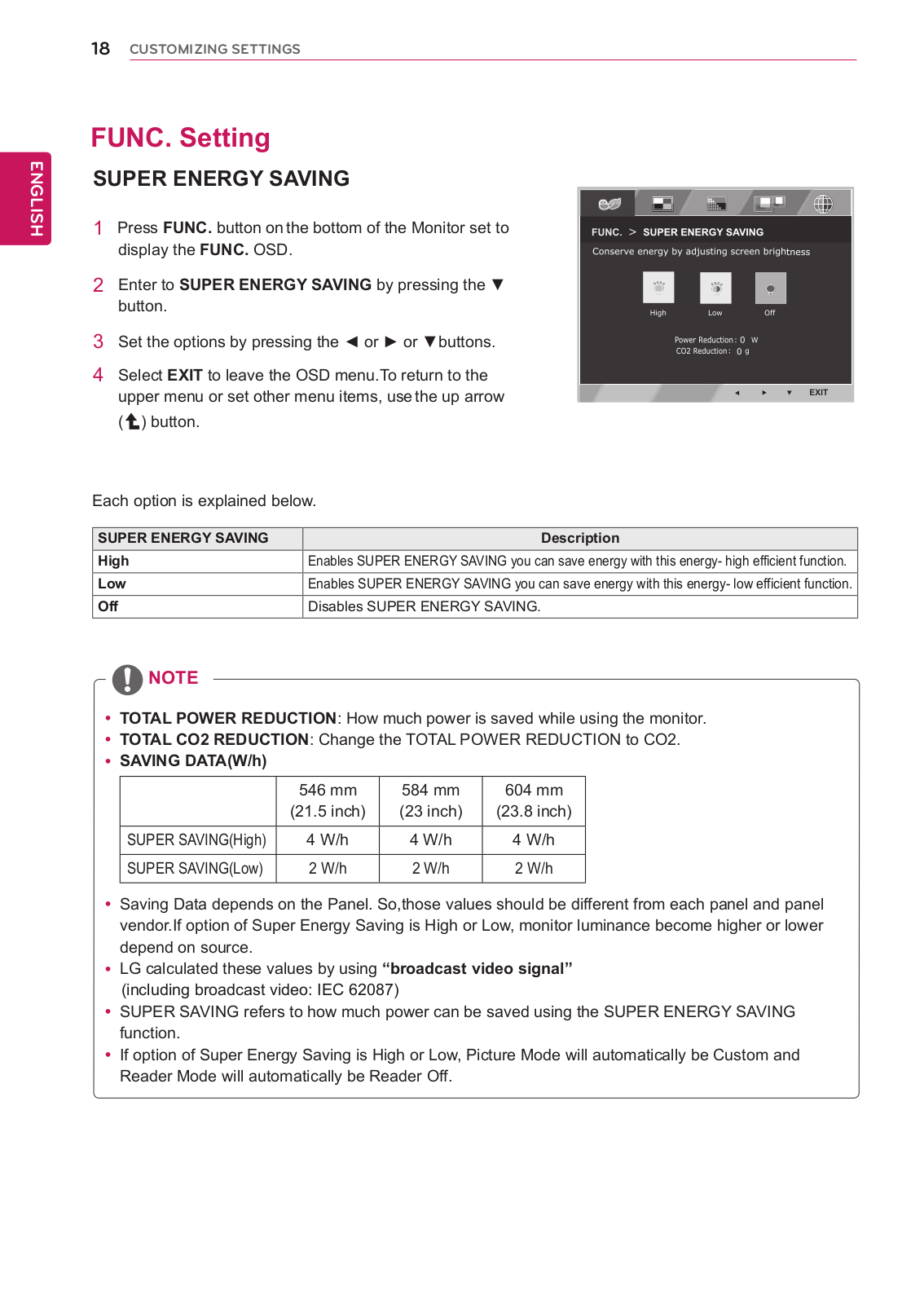

18FUNC. Setting
18-SUPER ENERGY SAVING

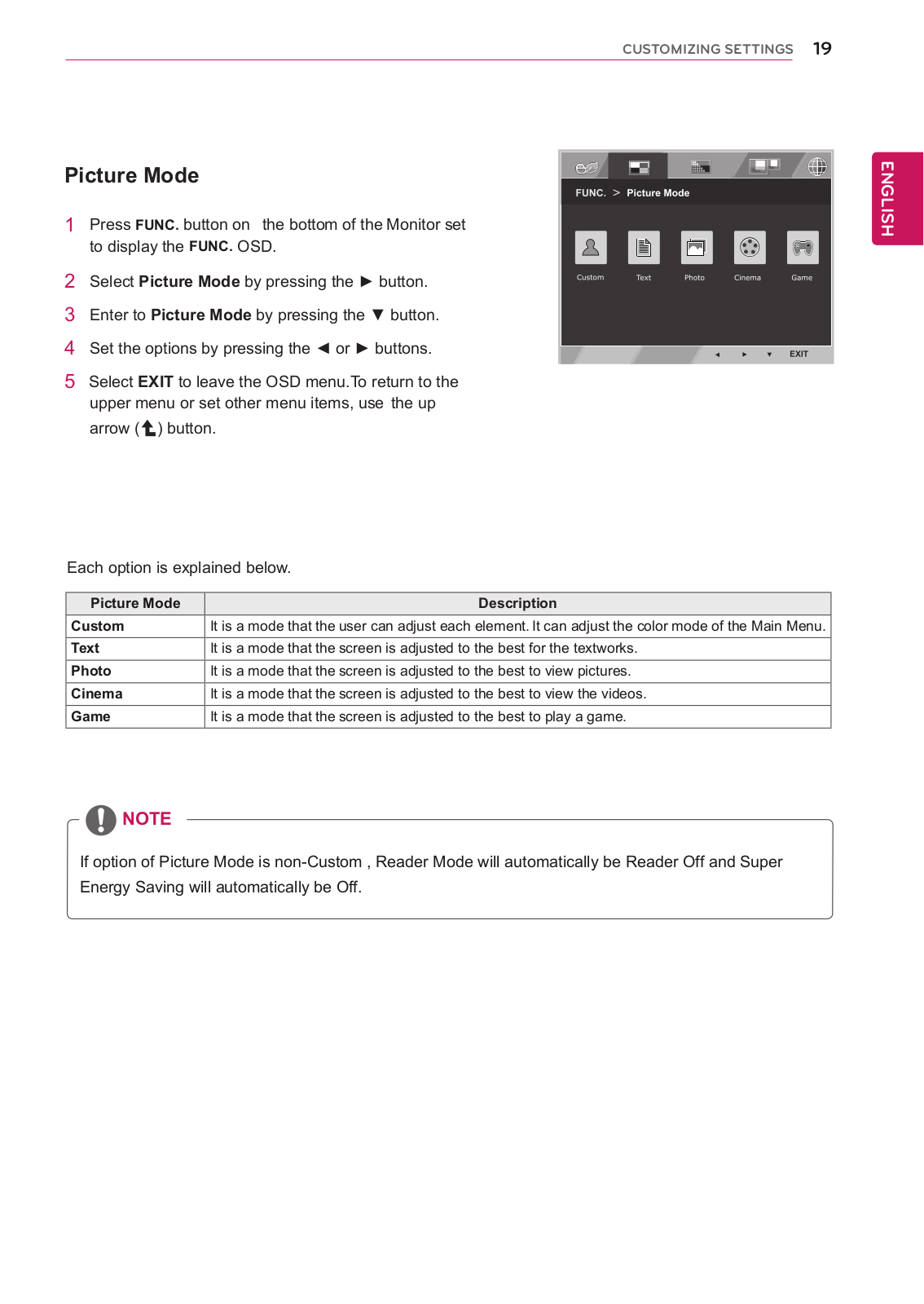

19-Picture Mode

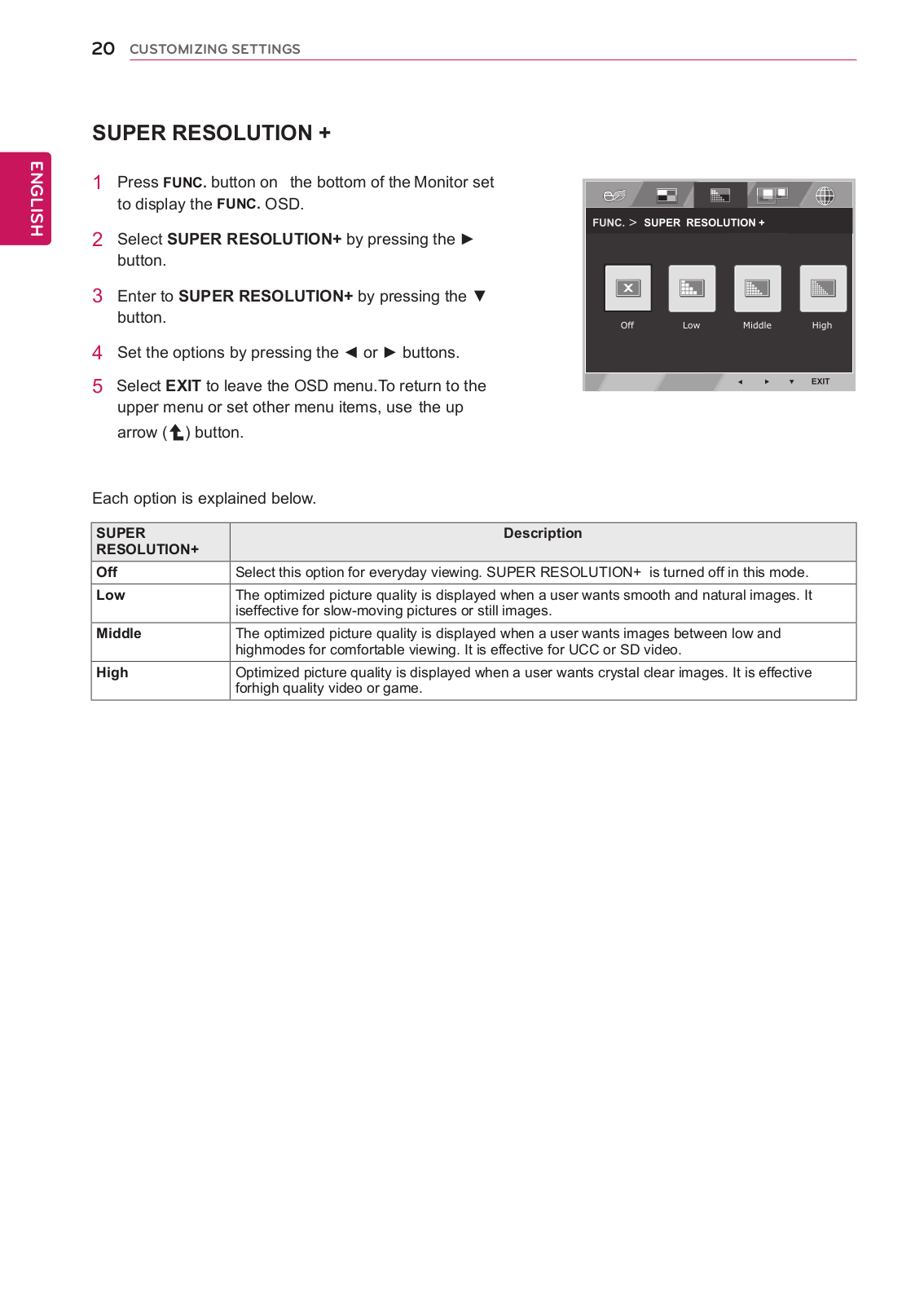

20-SUPER RESOLUTION +

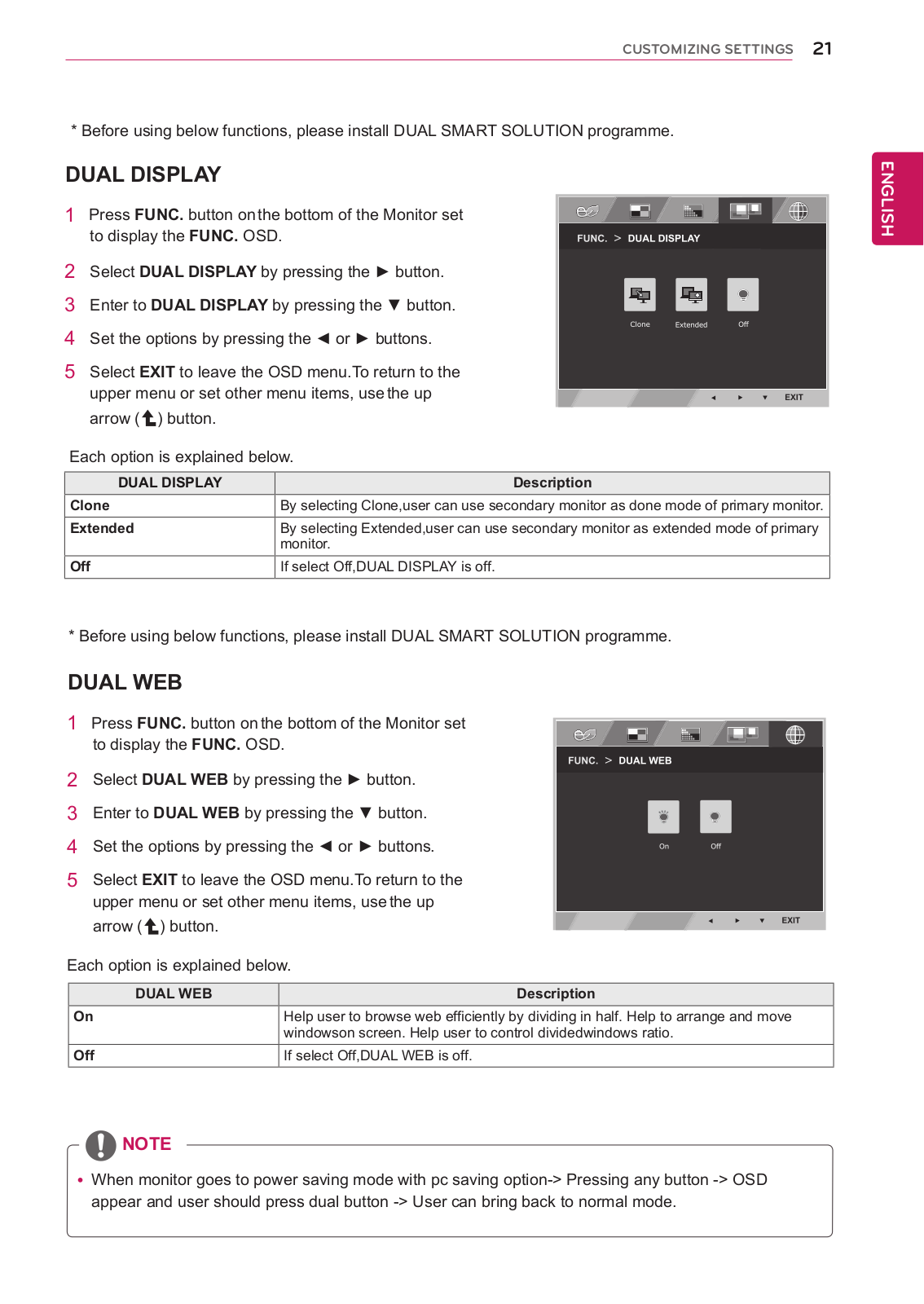

21-DUAL DISPLAY
21 -DUAL WEB

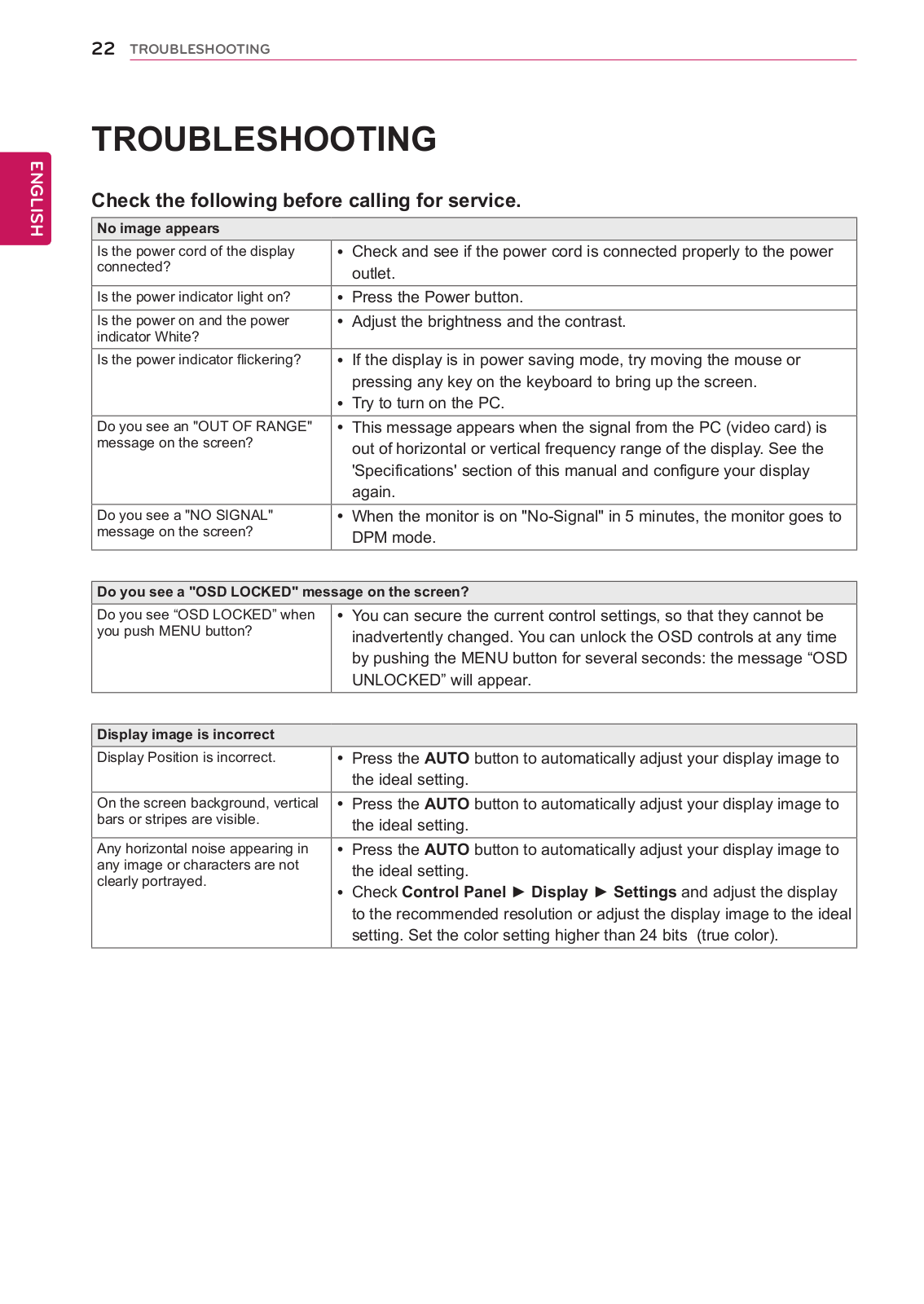

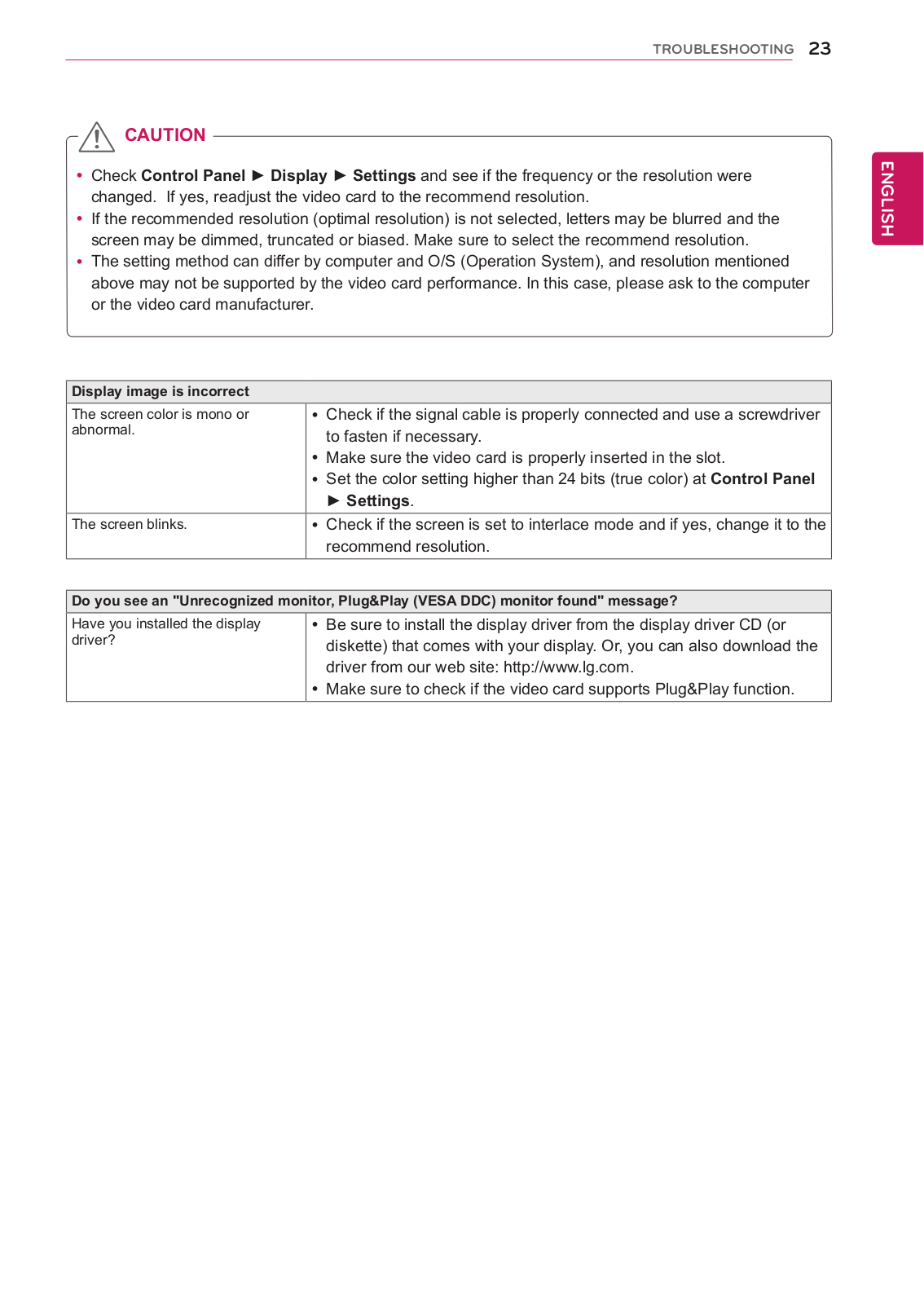

22 TROUBLESHOOTING
ASSEMBLING AND PREPARING 3
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.
<![endif]>ENGLISH
CD(Owner's Manual) / |
D-SUB Cable |
|
(This cable is not included |
||
Card |
||
in all countries.) |
||
|
Power Cord |
AC-DC Adapter |
( Depending on the country )
DVI-D Cable
(This cable is not included in all countries.)
(22MP55D/23MP55D/24MP55D)
or
AC-DC Adapter
( Depending on the country )
Stand Body |
Stand Base |
CAUTION
yyDo not use any unapproved accessories to ensure the safety and product life span.
yyAny damages or injuries by using unapproved accessories are not covered by the warranty.
NOTE
yyThe accessories supplied with your product may vary depending on the model.
yyProduct specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
4 ASSEMBLING AND PREPARING
Parts and buttons
<![if ! IE]><![endif]>ENGLISH
Power Indicator yyLightingOn:Turnedon yyLightingOff: Turned off
(Power Button)
READER
Button (See p.11)
Connection panel (See p.9)
ASSEMBLING AND PREPARING 5
Setting up the Monitor set
Attaching the Stand Base
1Place the Monitor set with the screen side down on a flat and cushioned surface.
CAUTION
Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
21 Attach the Stand Body to the monitor set.
2 Attach the Stand Base.
3 Tighten the screw to the right.
Stand Body
Stand Base
Detaching the Stand Base
1Place the Monitor set with the screen side down on a flat and cushioned surface.
21 Pull out the Stand Body and Stand Base from the monitor set.
2 Turn the screw to the left.
3 Pull out the Stand Base.
Stand Body
Stand Base
Stand Body
Stand Base
CAUTION
yyThis illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.
yyDo not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.
<![endif]>ENGLISH
<![endif]>ENGLISH
6 ASSEMBLING AND PREPARING
Mounting on a table
1Lift and tilt the Monitor set into its upright position on a table.
Leave a 10 cm (minimum) space from the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
3Press
(Power) button on the bottom switch panel to turn the power on.
CAUTION
Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.
Using the cable holder
2Connect the AC-DC Adapter and Power Cord to a wall outlet.
Cable holder
or
|
|
ASSEMBLING AND PREPARING 7 |
||
WARNING |
|
|
||
|
Using the Kensington security system |
|
||
When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.
Do not touch or press the screen when adjusting the angle of the monitor.
Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.
NOTE
+20 to -3 degrees up or down to adjust the angle of the Monitor set to suit your view.
The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.
Connect the Kensington security system cable between the Monitor set and a table.
NOTE
The Kensington security system is optional. You can obtain it from most electronics stores.
<![endif]>ENGLISH
Front Rear
<![endif]>ENGLISH
8 ASSEMBLING AND PREPARING
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
10 cm
10 cm
10 cm
10 cm
If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.
When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.
1Please, Use the screw and wall mount interface in accordance with VESA Standards.
2If you use screw longer than standard, the monitor might be damaged internally.
3If you use improper screw, the product might be damaged and drop from mounted position. In
this case, LG Electronics is not responsible for it.
4 VESA compatible.
5 Please use VESA standard as below. yy784.8 mm (30.9 inch) and under
*Wall Mount Pad Thickness : 2.6 mm * Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm
yy787.4 mm (31.0 inch) and above
*Please use VESA standard wall mount pad and screws.
Model |
22MP55A |
|
|
23MP55A |
24MP55D |
|
22MP55D |
|
|
23MP55D |
|
VESA (A x B) |
75 x 75 |
100 x 100 |
Standard screw |
M4 |
|
Number of screws |
4 |
|
CAUTION
yyDisconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.
yyIf you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.
yyUse only an authorized LG wall mount and contact the local dealer or qualified personnel.
yyDo not over tighten the screws as this may cause damage to the Monitor set and void your warranty.
yyUse only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.
NOTE
yyUse the screws that are listed on the VESA standard screw specifications.
yyThe wall mount kit will include an installation manual and necessary parts.
yyThe wall mount bracket is optional. You can obtain additional accessories from your local dealer.
yyThe length of screws may differ depending on the wall mount. Be sure to use the proper length.
yyFor more information, refer to the instructions supplied with the wall mount.
USING THE MONITOR SET 9
USING THE MONITOR SET
Connecting to a PC
yyYour Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.
D-SUB connection
Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.
NOTE
yyWhen using a D-Sub signal input cable connector for Macintosh
yyMac adapter
For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

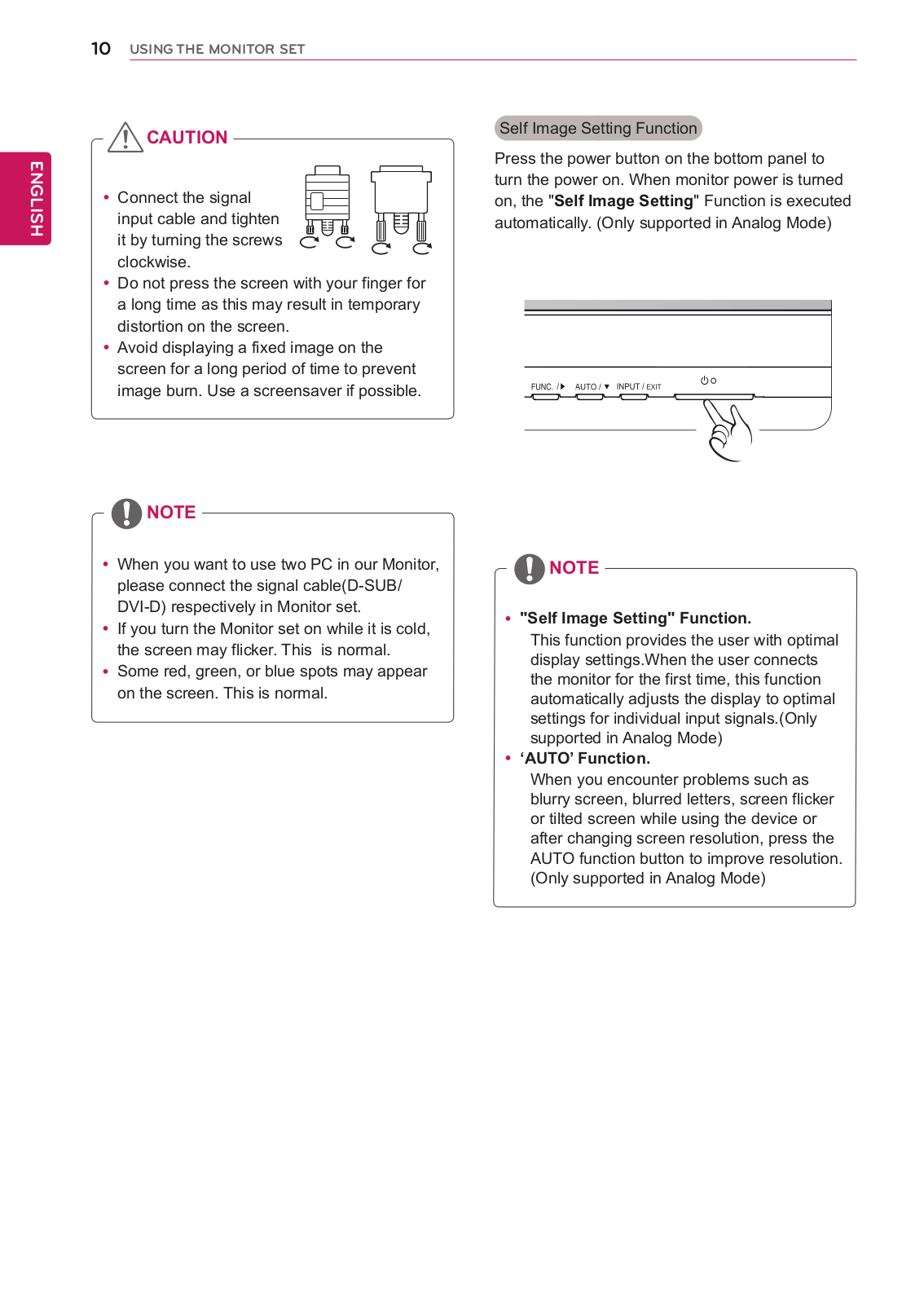

DVI-D connection
Transmits a digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with a DVI cable as shown in the following illustrations.
<![endif]>ENGLISH
