AAA
LED MONITOR
20MN48A
22MN48A
24MN48A
*Image may vary depending on model.
MBM64536723
www.lg.com

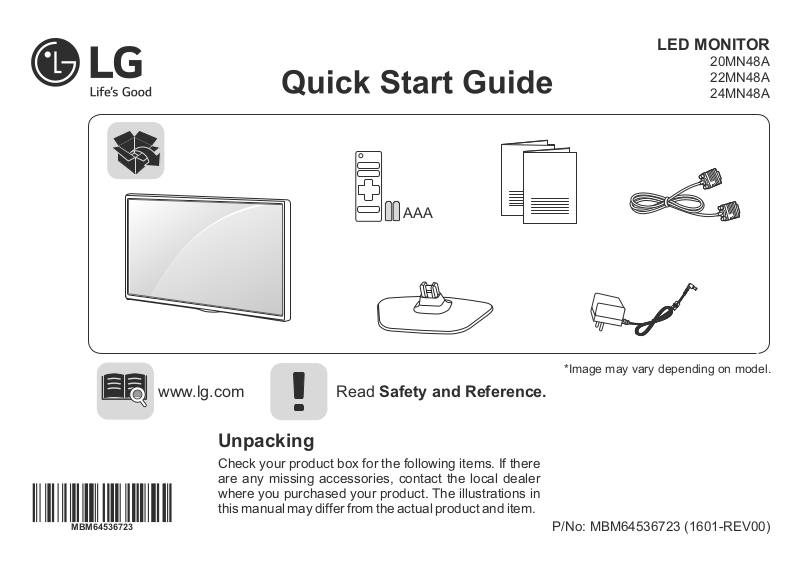

Unpacking
Check your product box for the following items. If there
are any missing accessories, contact the local dealer
where you purchased your product. The illustrations in
this manual may differ from the actual product and item.
Read Safety and Reference.
P/No: MBM64536723 (1601-REV00)
For the power supply and power consumption, refer to the label attached to the product
1 2
CAUTION
Image shown may differ from your
monitor.
When attaching the stand to the monitor
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
USB Connection
Connect a USB storage device such as a USB
flash memory, external hard drive, or a USB
memory card reader to the monitor and access
the entertainment menu to use Various
multimedia files
AV IN
HDMI OUT
DC-IN
(19 V )(19 V )(19 V )(19 V )(19 V )
HDMI IN
AV IN
RGB OUT (PC)
RGB IN (PC)
VIDEO
L
R
(MONO)
AUDIO
USB IN
USB IN
5 V 0.5 A
AUDIO OUT
Note: All connection cables shown in the picture are not included along with the monitor set
L L
VIDEO
L
VIDEO
(MONO)
AUDIO
AUDIO OUT
R
R
AUDIO OUT
L
AUDIO IN
R
R
DC-IN
(19 V )
DC-IN
(19V )
1
2
NOTE
Do not use sub standard batteries in monitor
remote which may lead to leakage & damage
the remote control unit permanently. For long
43
unused applications of remote controller it is
advisable to remove batteries from remote
control unit.
IN002043
